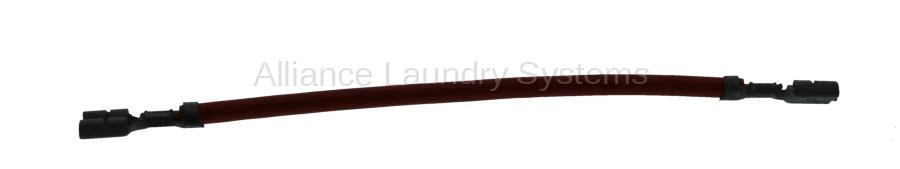

D518256 Speed Queen Heater Assembly Wire Orange
Wire 1-org assembly works with some Speed Queen, and Amana models of washer/dryers.
Weight : 0.023300 lbs
Dimension : 4.055100 x 1.692900 x 0.472400
Product Details
Reviews
Replaces Parts
Installation Instructions
Compatible Models
Compatible Brands
Wire 1-org assembly works with some Speed Queen, and Amana models of washer/dryers.
Weight : 0.023300 lbs
Dimension : 4.055100 x 1.692900 x 0.472400
Write Your Own Review
The following parts are replaced by this product
- D510528
1. Start by turning your Speed Queen D518256 washing machine off and unplugging it from the wall.
2. Open the top door and unscrew the inner panel using a phillips head screwdriver. Once the panel is removed, you should be able to clearly see all of the wiring in the back of the machine.
3. Locate the ASSY WIRE(1)ORG-HEATER on the left-hand side of the wiring and remove it by unscrewing it with a flathead screwdriver.
4. Take the replacement ASSY WIRE(1)ORG-HEATER and carefully insert it into the same location where the old one was removed. Make sure that the wiring is properly connected and secured.
5. Screw the inner panel back into place and close the top door. Plug the washing machine back into the wall and turn it on.
6. Check to make sure that the replacement ASSY WIRE(1)ORG-HEATER is working and your Speed Queen D518256 washing machine is ready for use.
Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer's manual, if available.
