Model Huebsch HTEY17*N2802 Stacked Washer and Dryer – Common Parts & Diagrams
Control Panel and Controls
Control Cabinet Controls
Electrical Access Panel, Filters and Terminal Block

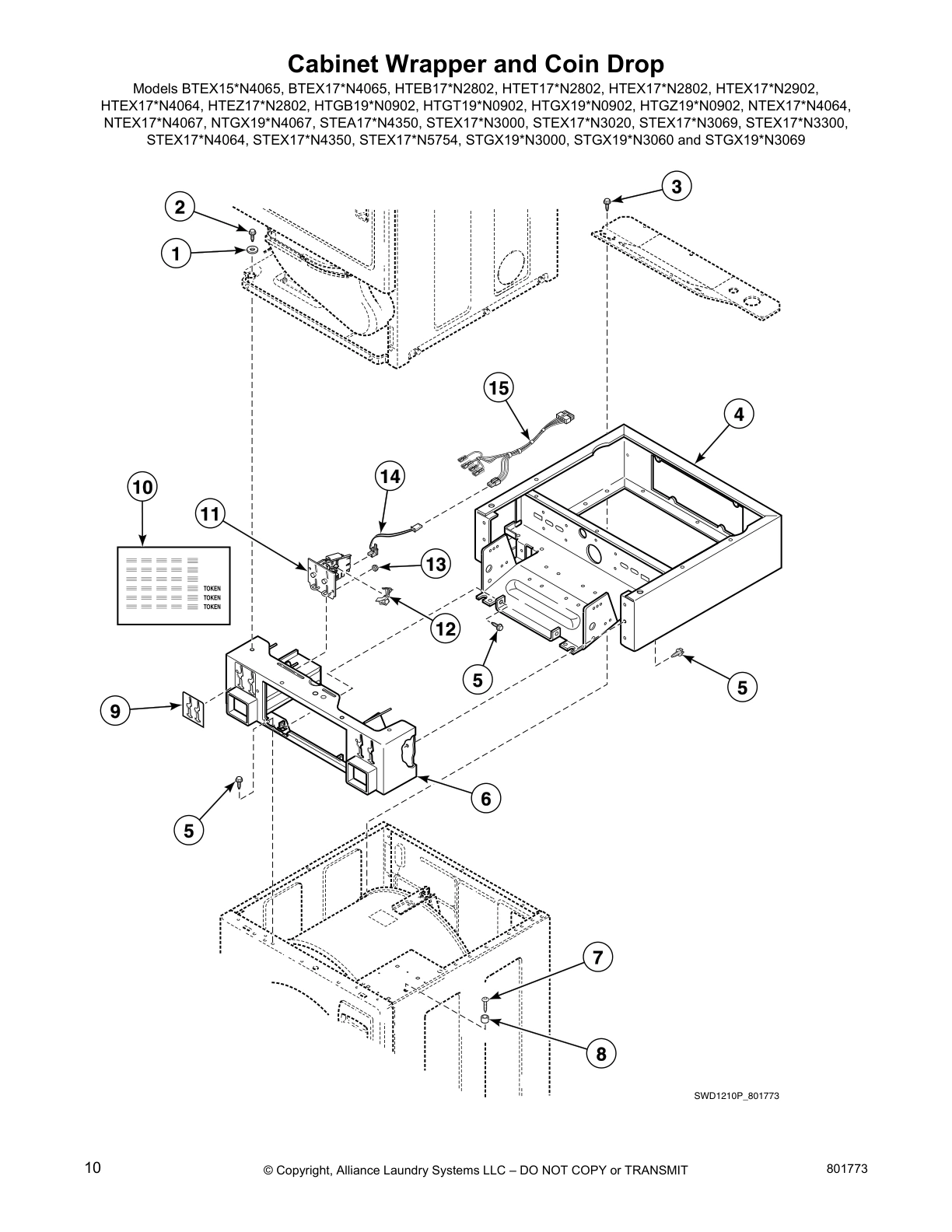

Cabinet Wrapper and Coin Drop

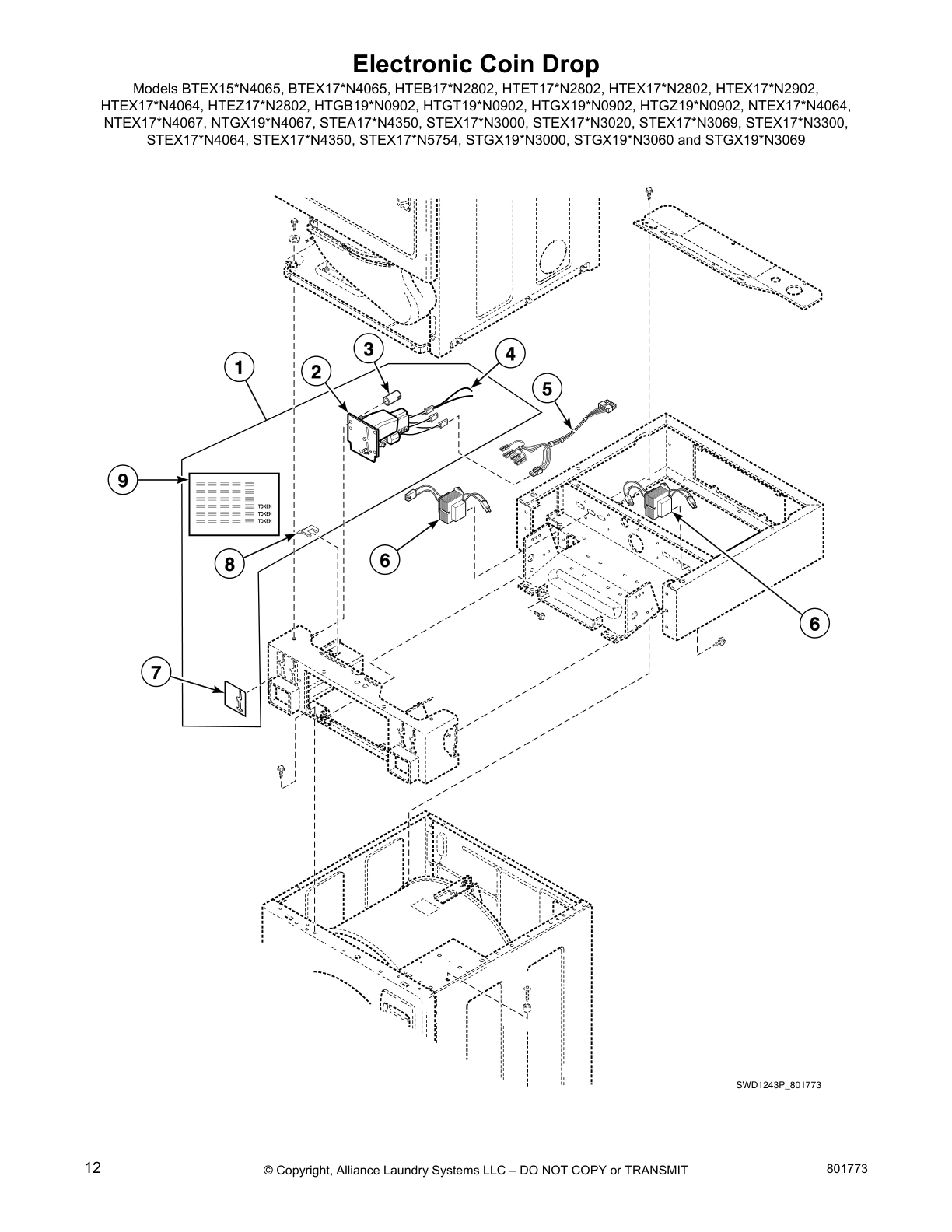

Electronic Coin Drop

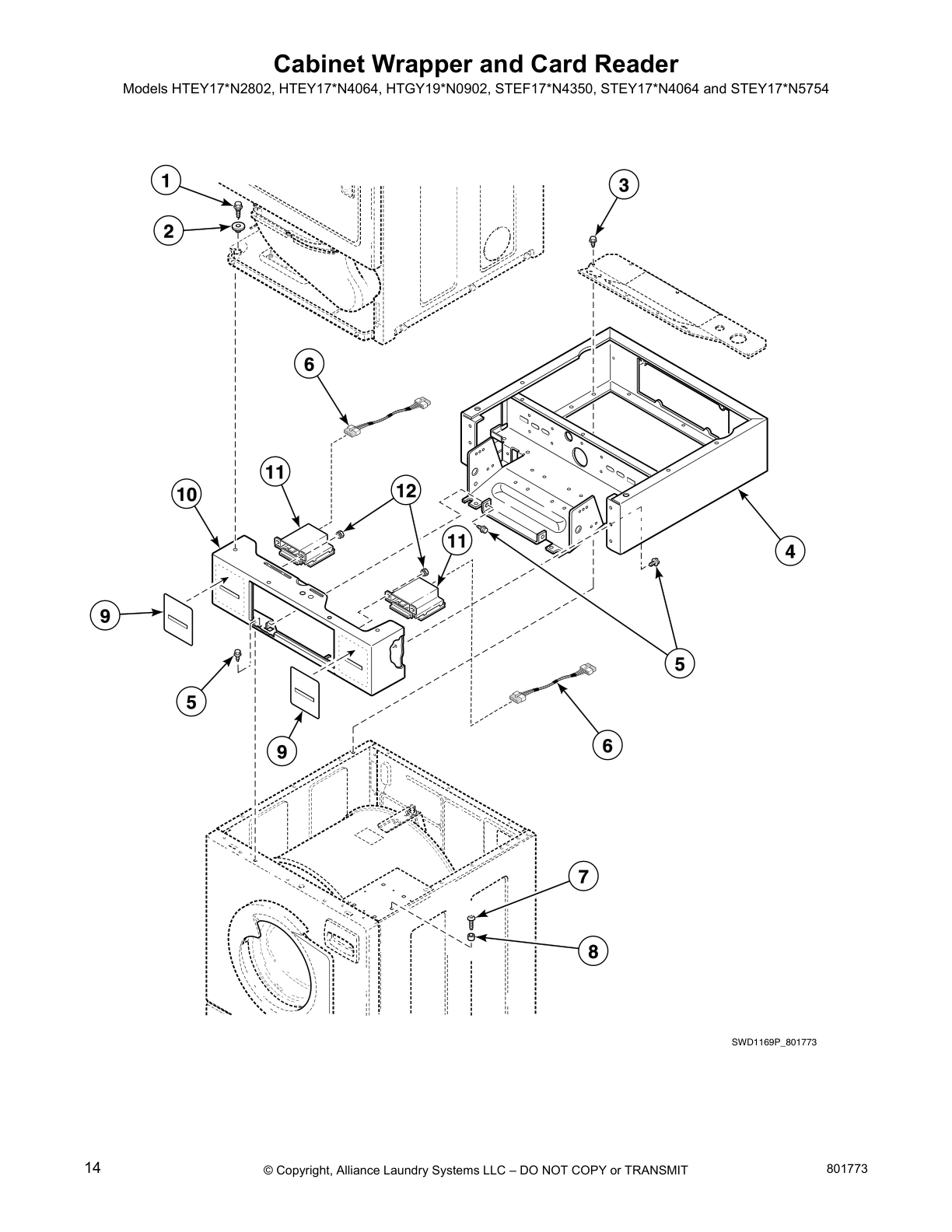

Cabinet Wrapper and Card Reader

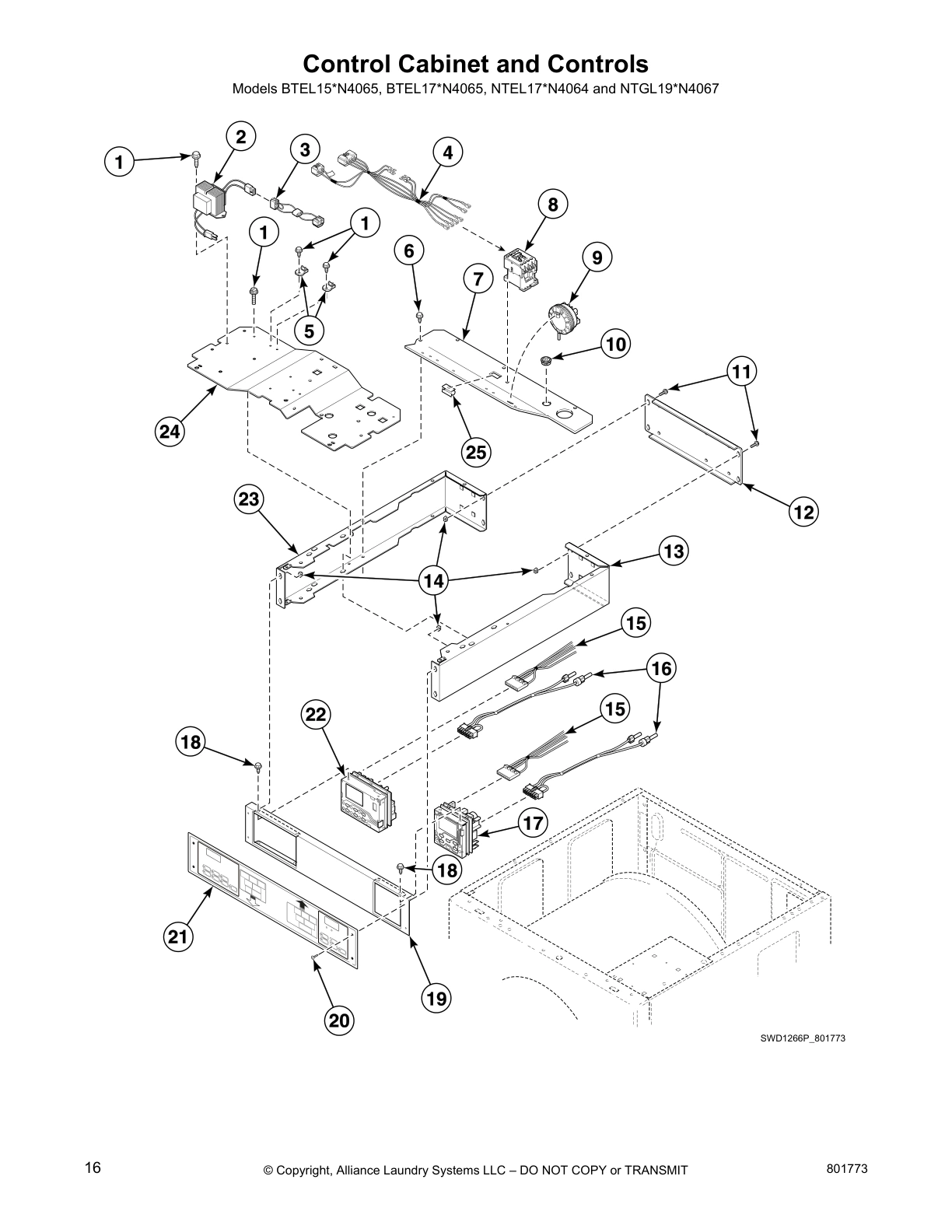

Control Cabinet and Controls

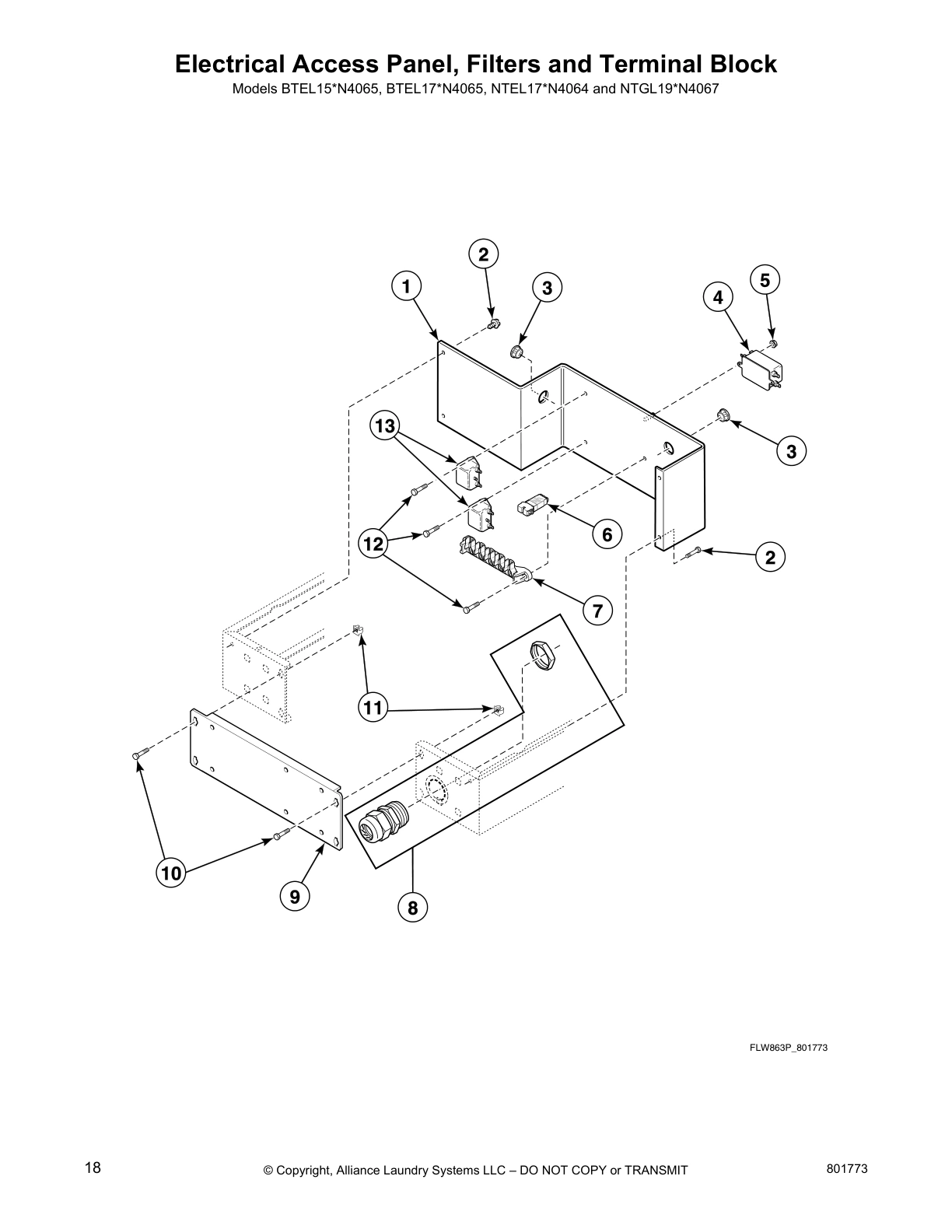

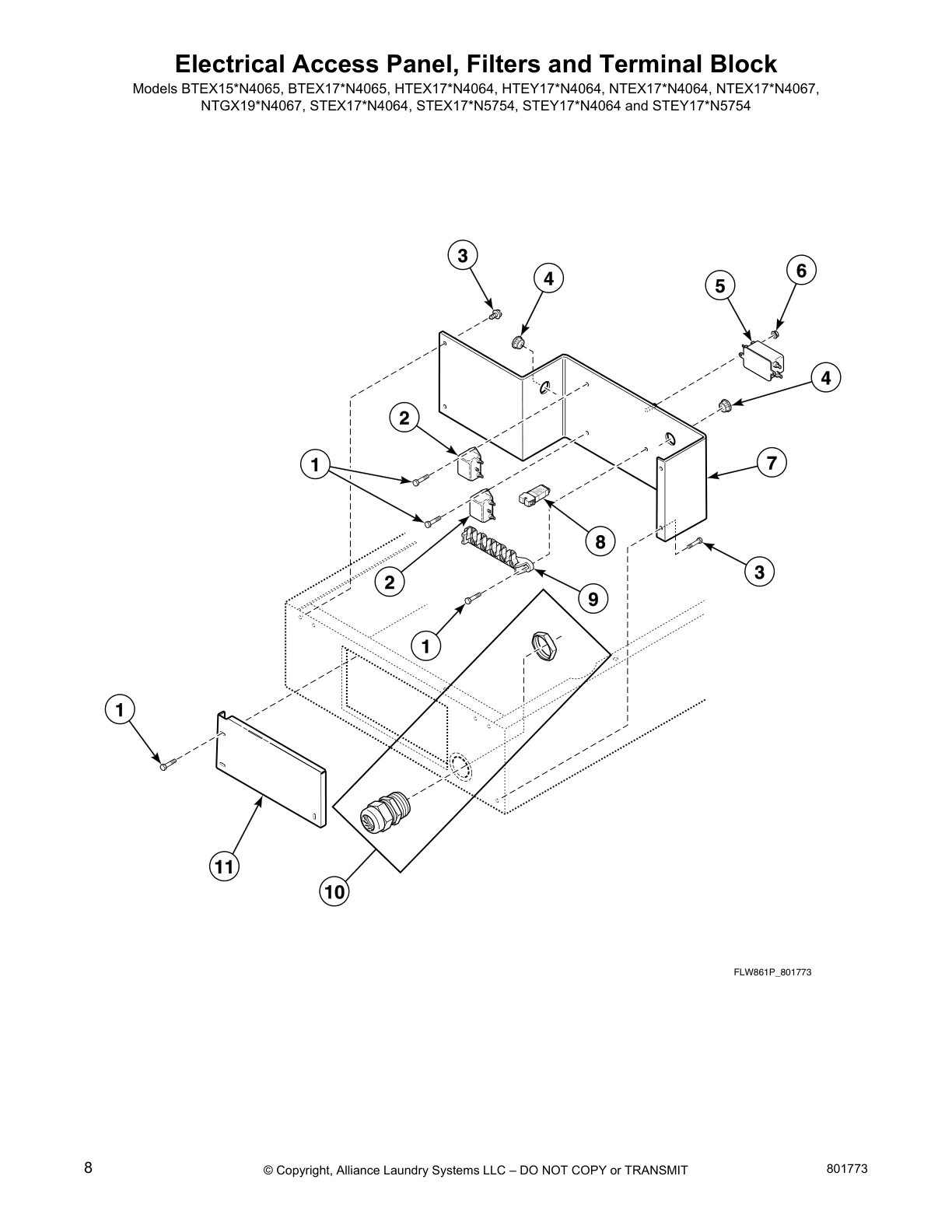

Electrical Access Panel, Filters and Terminal Block

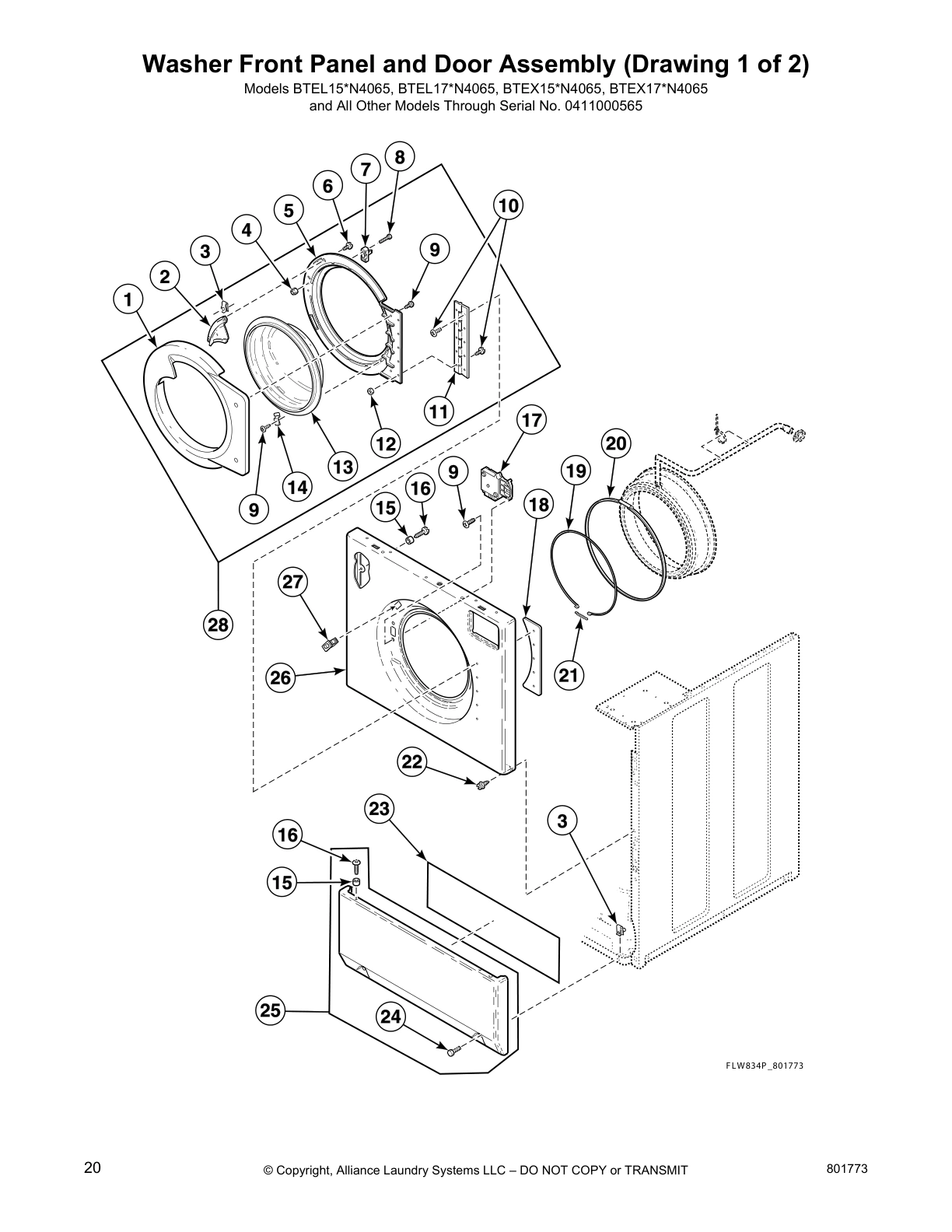

Washer Front Panel and Door Assembly (Drawing 1 of 2)

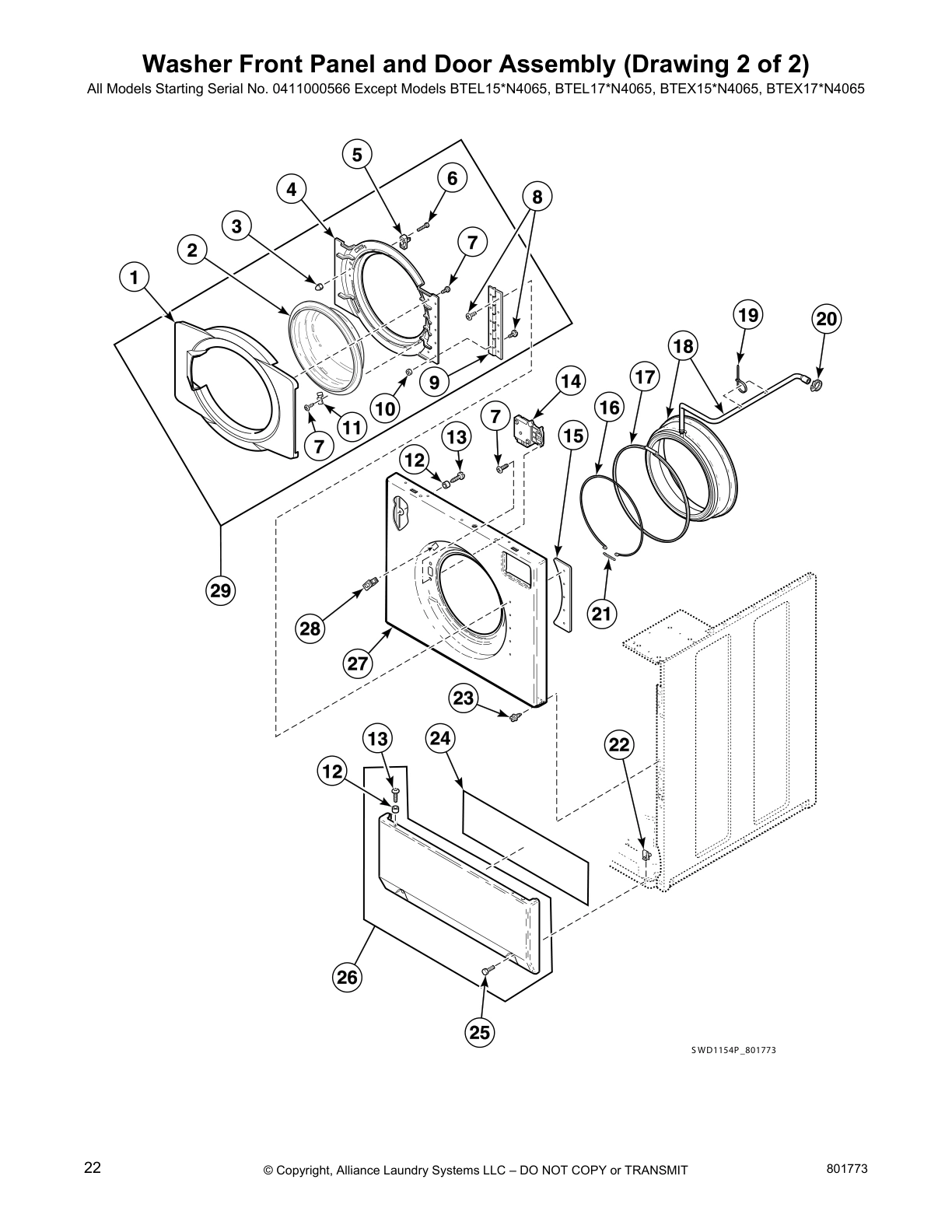

Washer Front Panel and Door Assembly (Drawing 2 of 2)

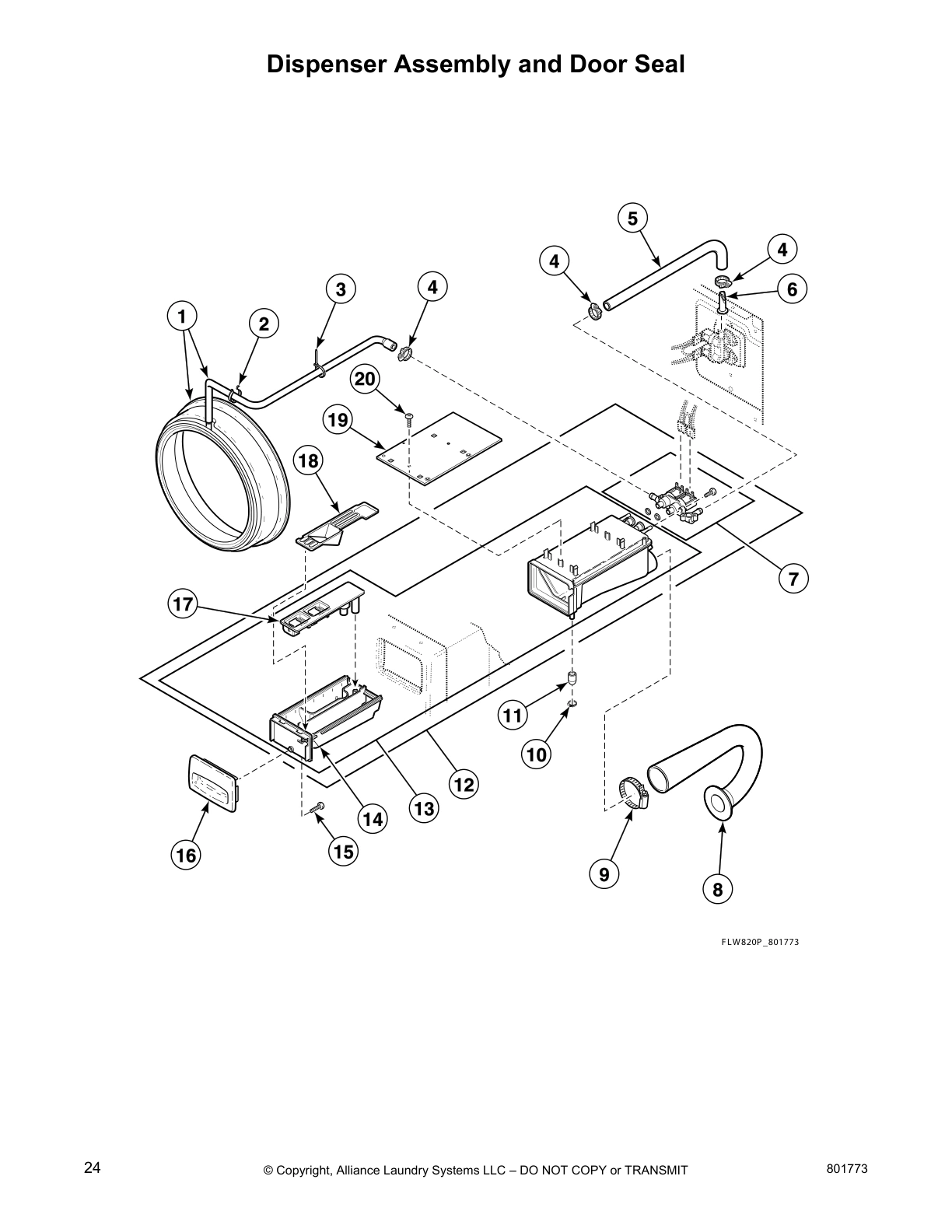

Dispenser Assembly and Door Seal
Mixing Valve, Valve-to-Dispenser Inlet Hose and Fill Hose

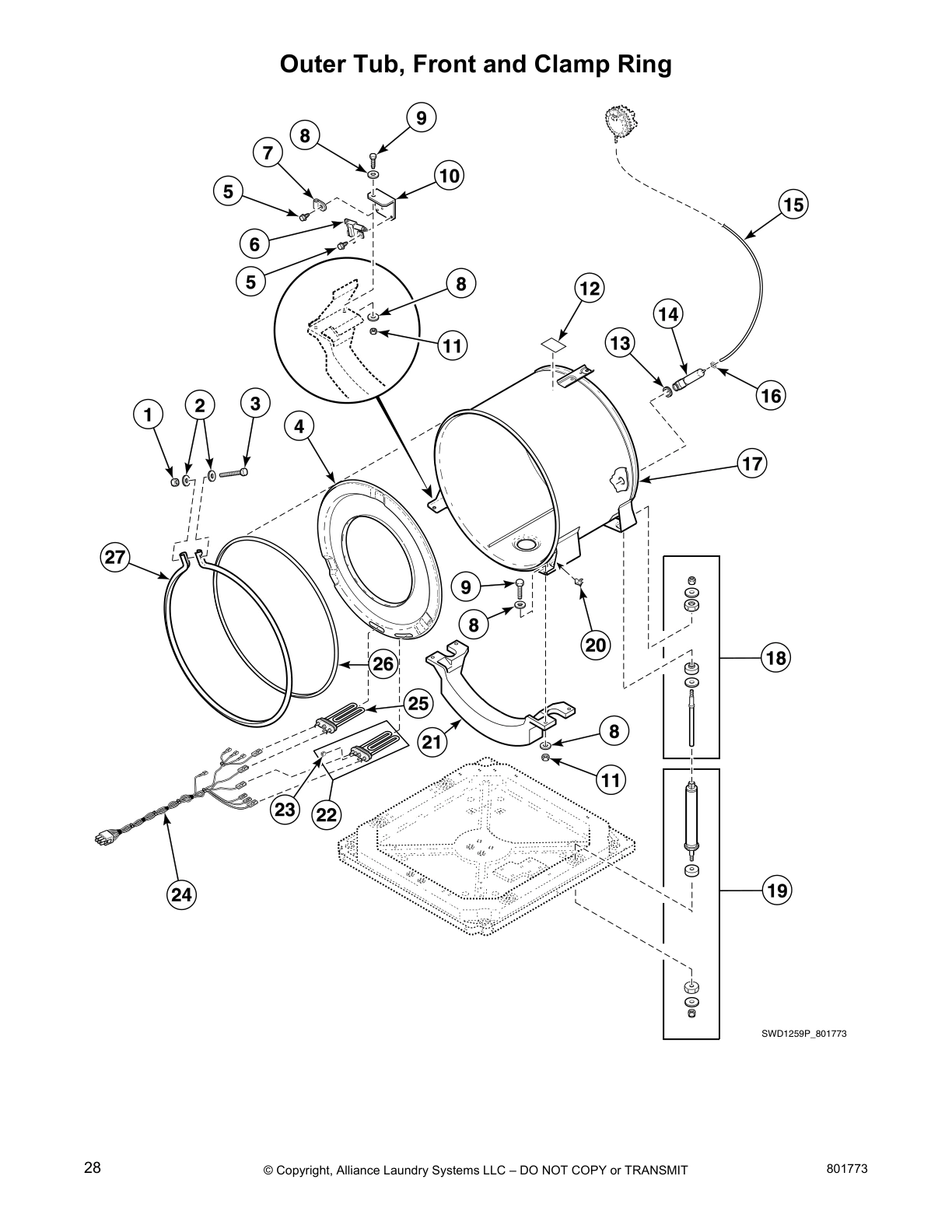

Outer Tub, Front and Clamp Ring
Inner Basket, Trunnion, Bearing Housing and Pulley

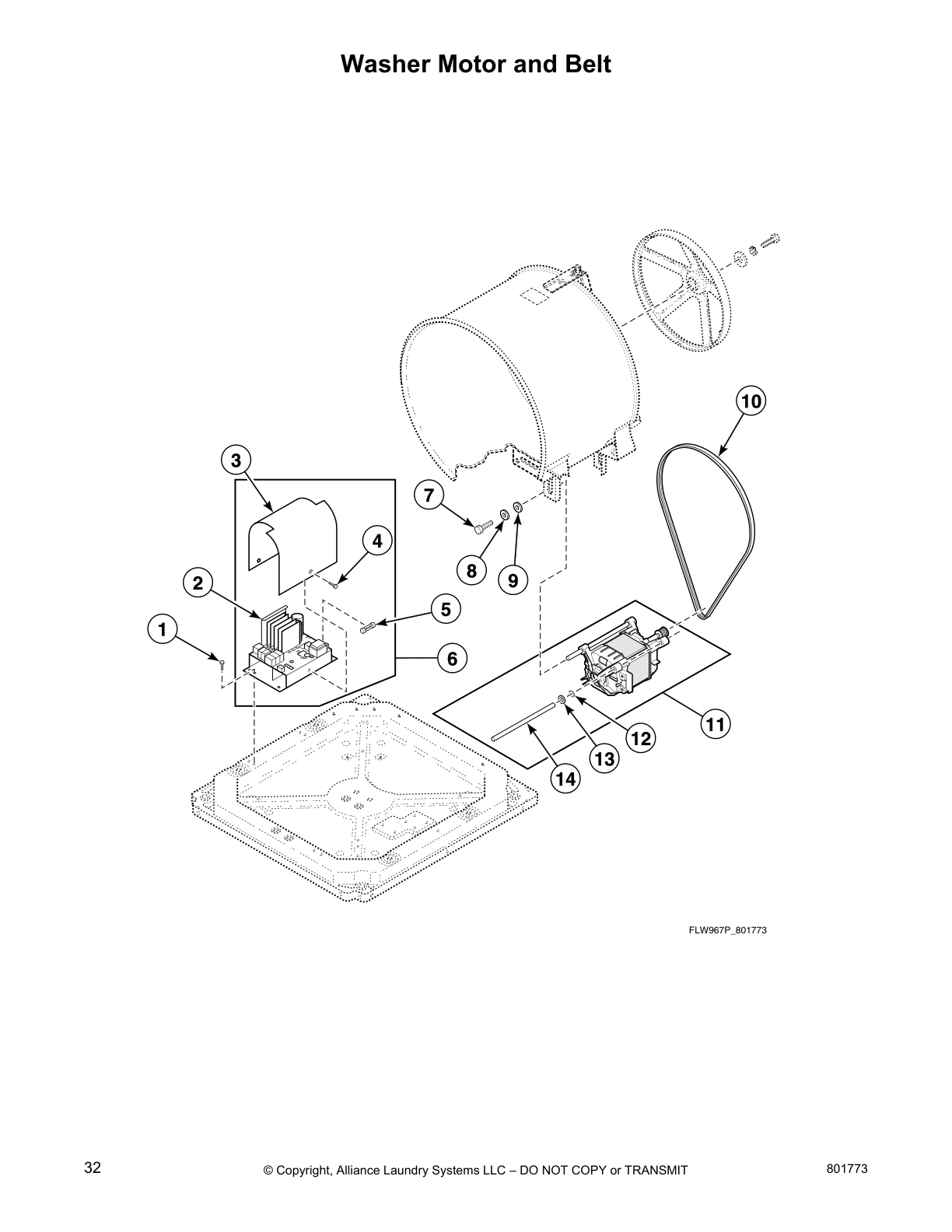

Washer Motor and Belt

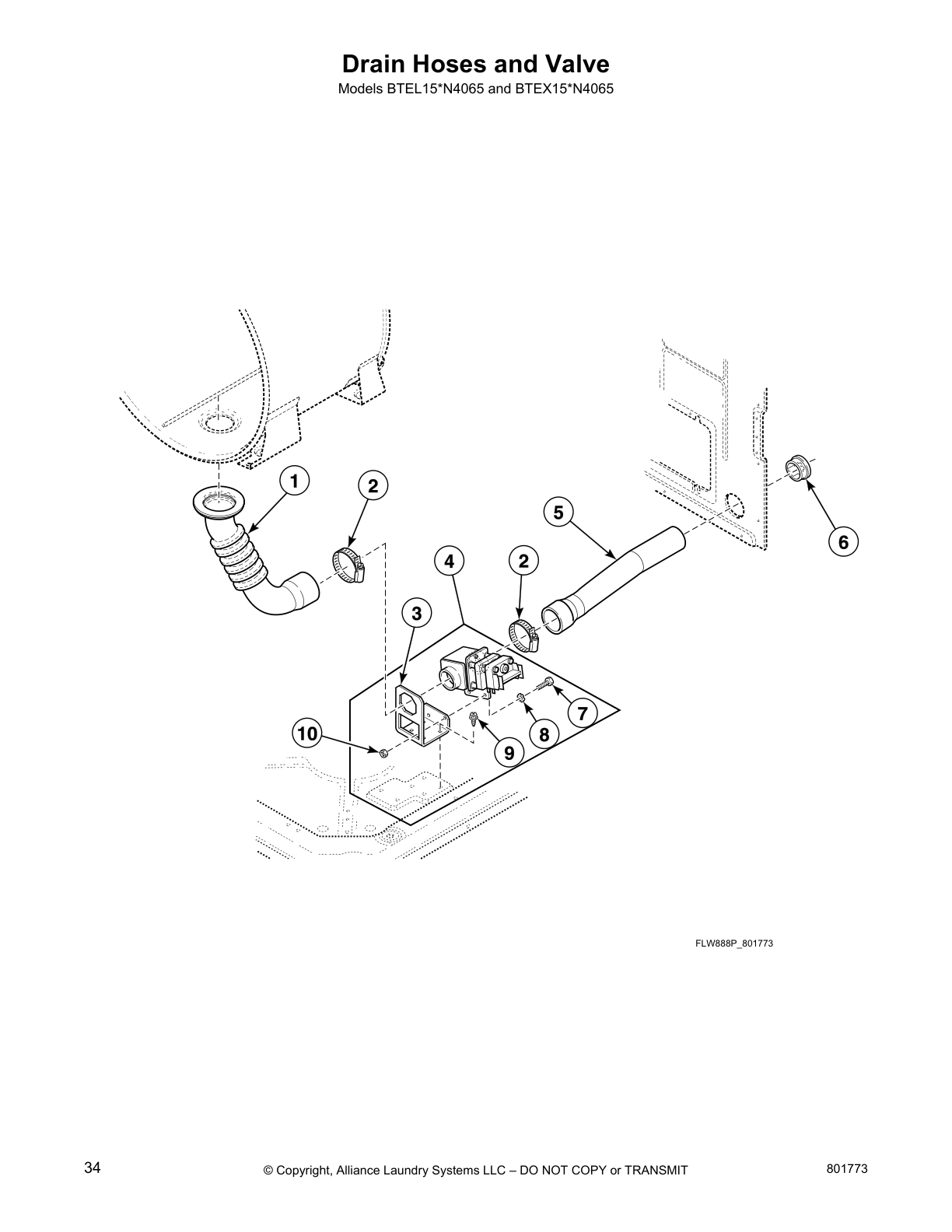

Drain Hoses and Valve

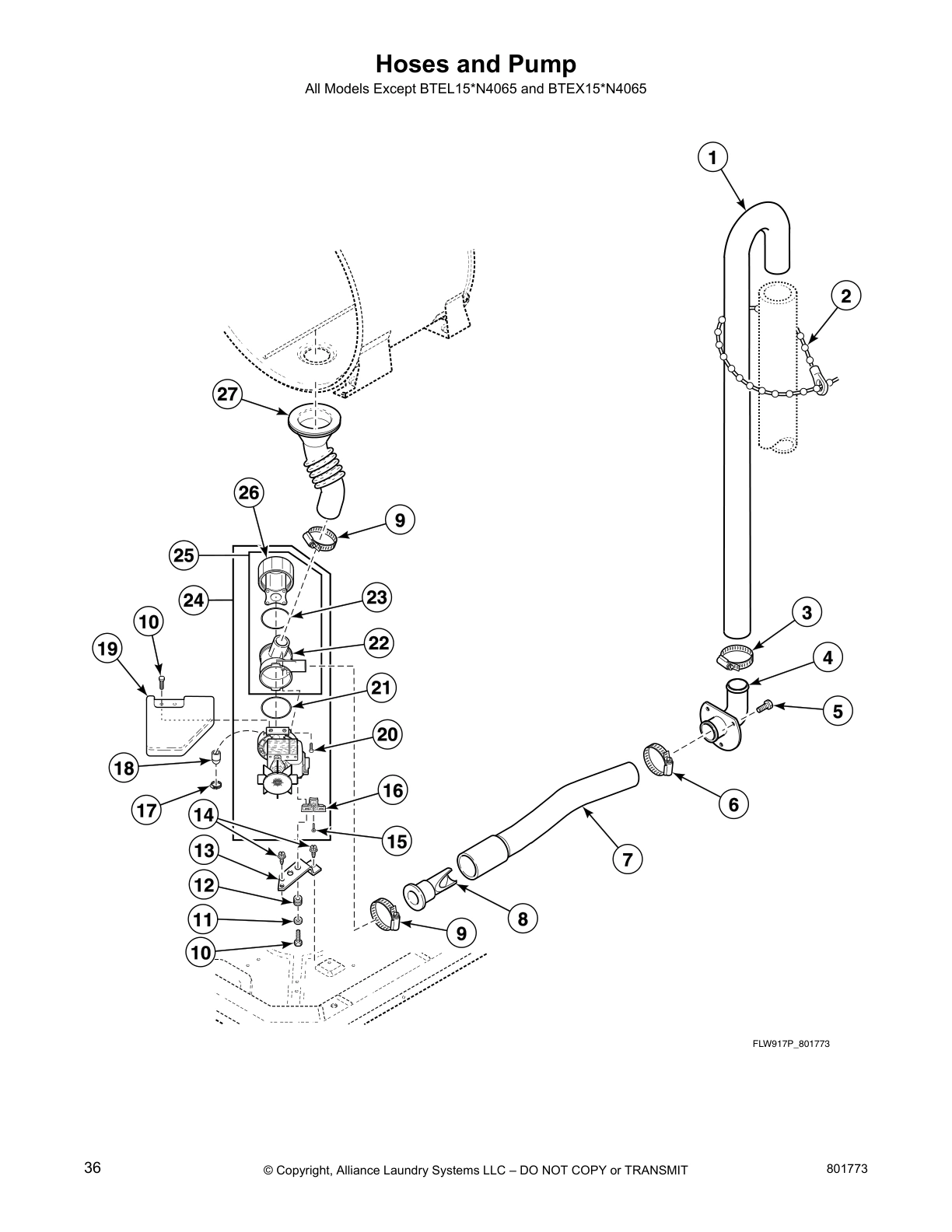

Hoses and Pump

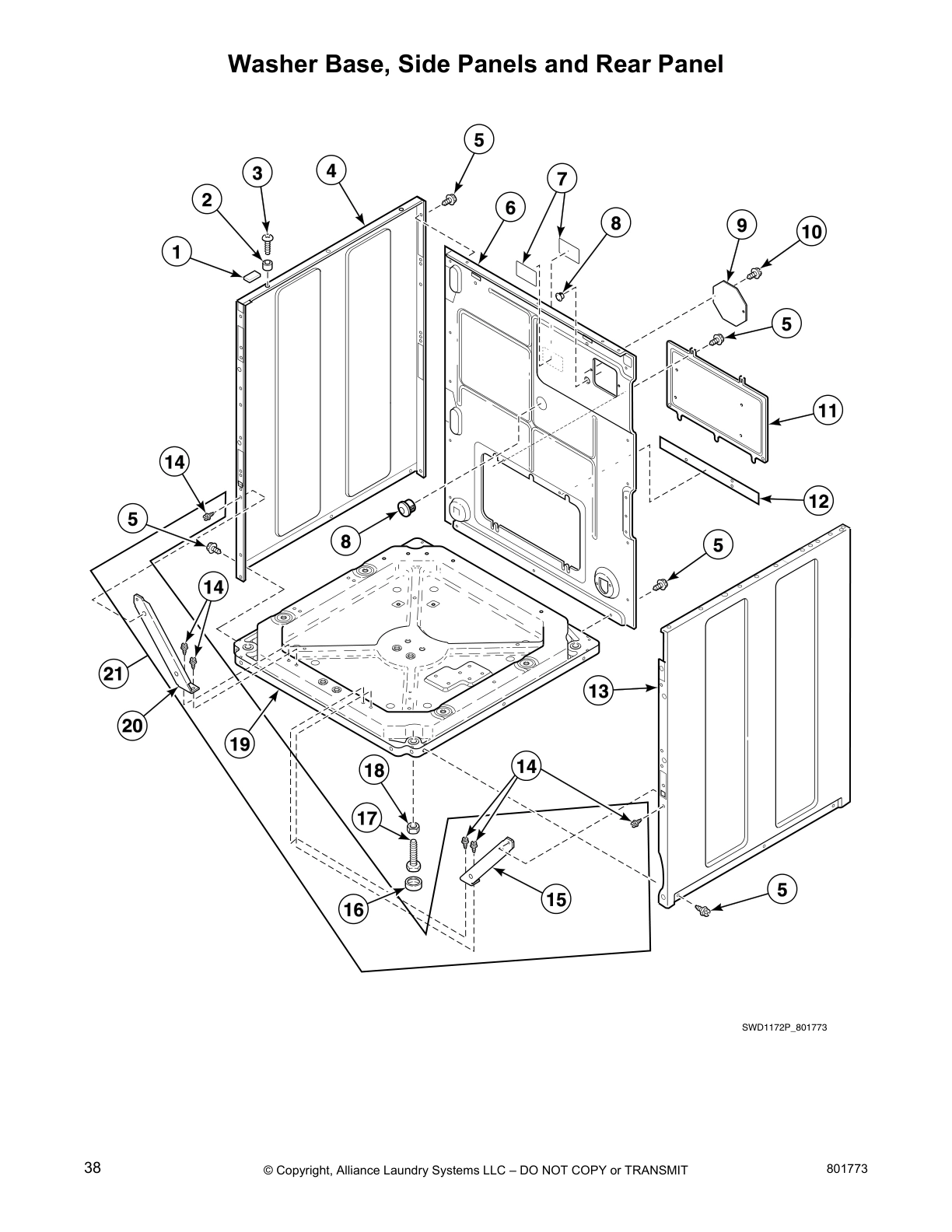

Washer Base, Side Panels and Rear Panel

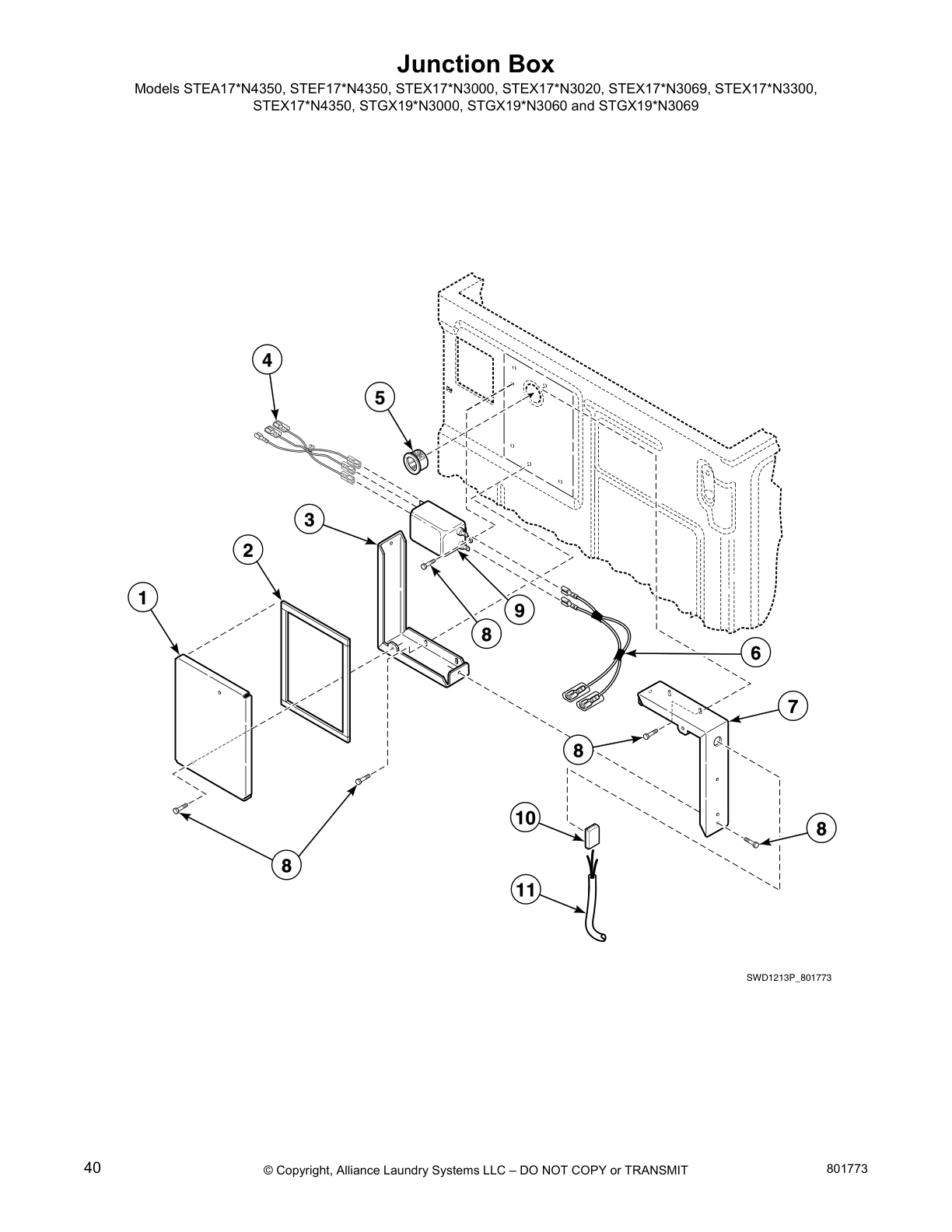

Junction Box

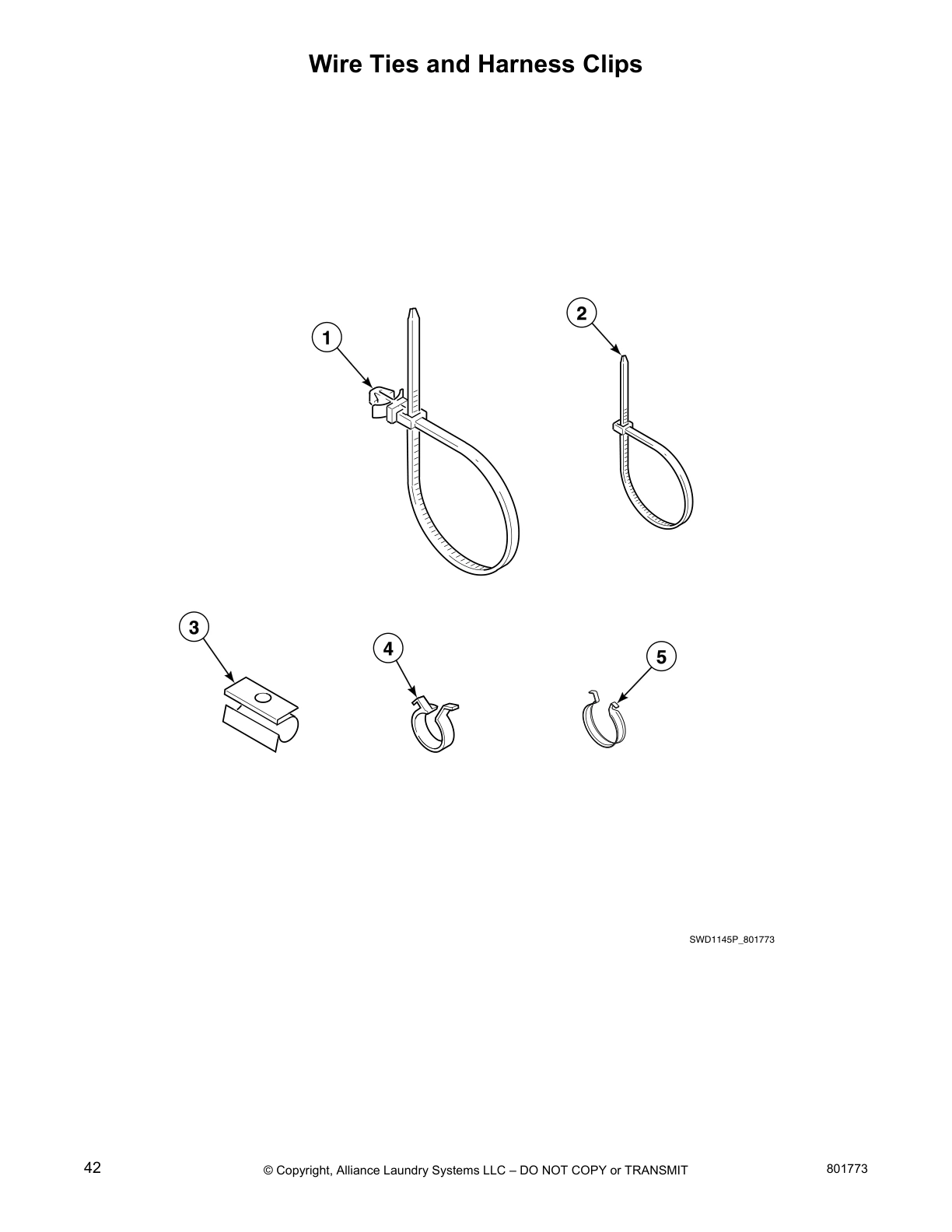

Wire Ties and Harness Clips

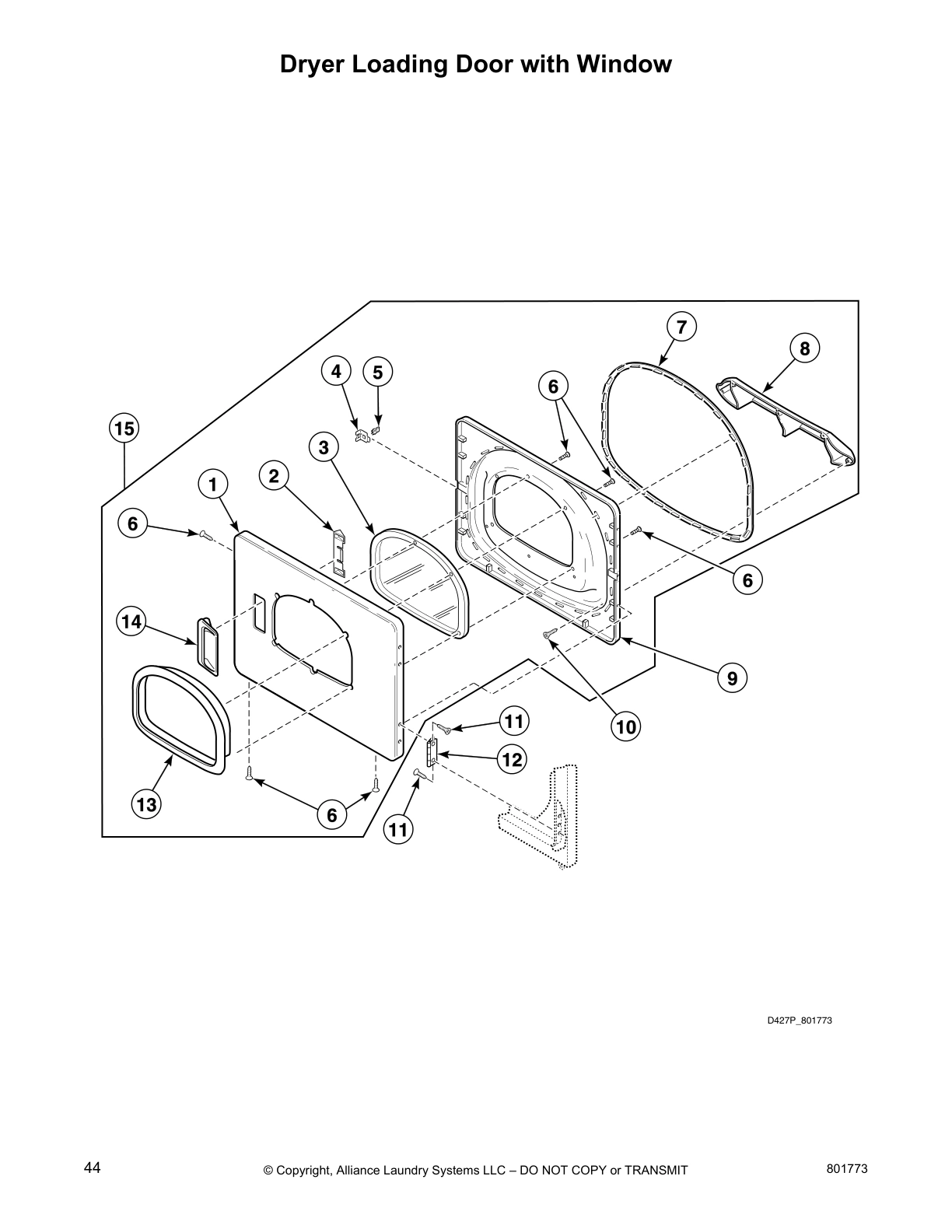

Dryer Loading Door with Window

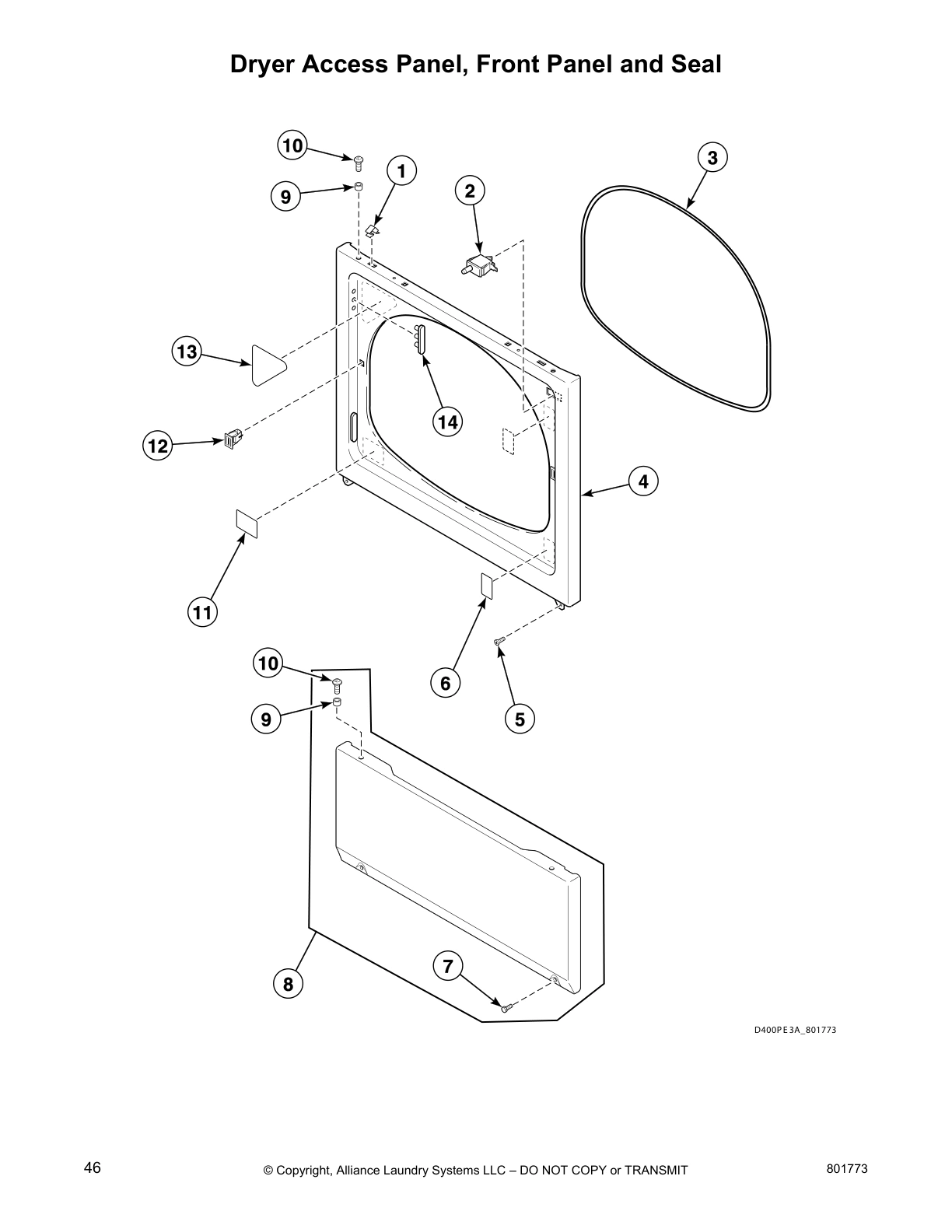

Dryer Access Panel, Front Panel and Seal

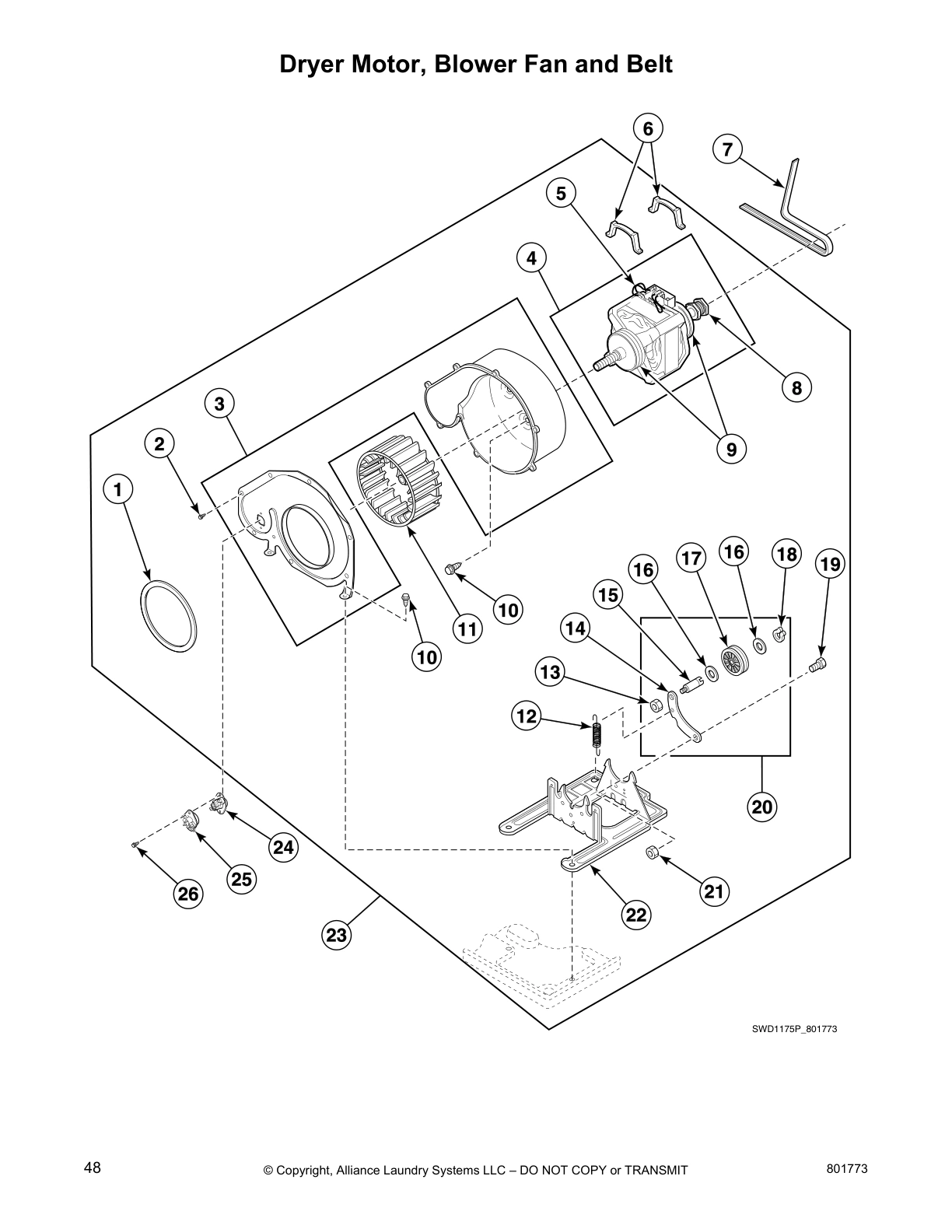

Dryer Motor, Blower Fan and Belt

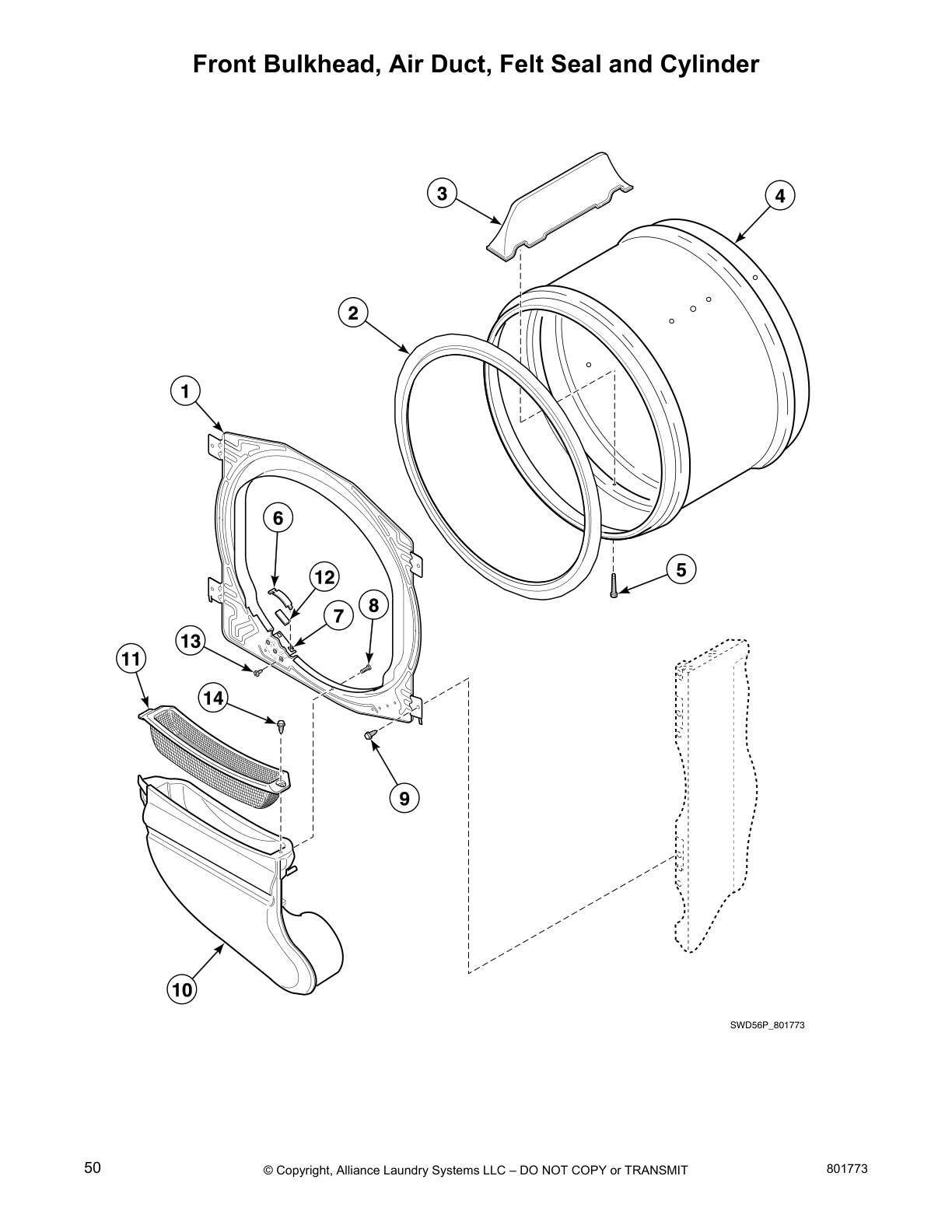

Front Bulkhead, Air Duct, Felt Seal and Cylinder

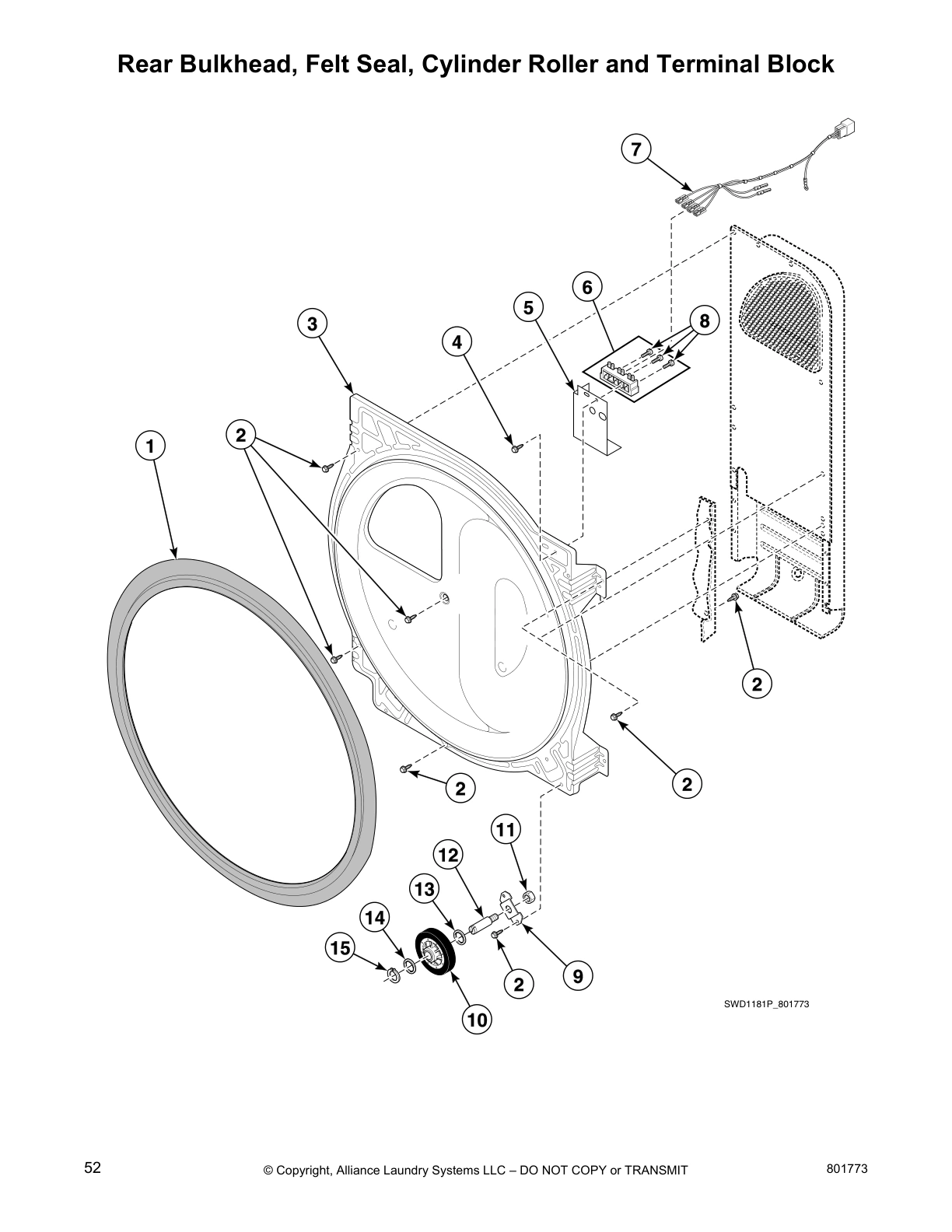

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

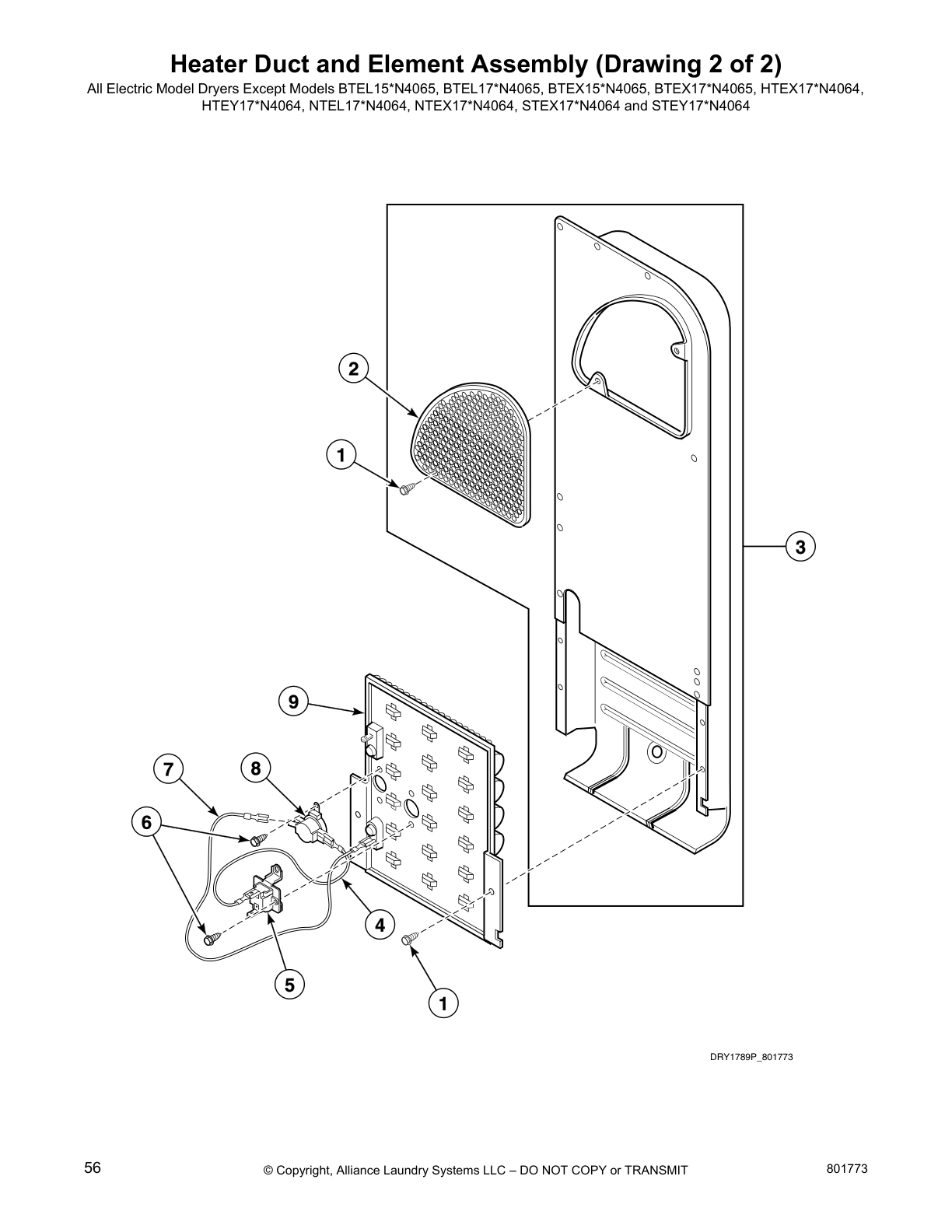

Heater Duct and Element Assembly (Drawing 1 of 2)
Heater Duct and Element Assembly (Drawing 2 of 2)

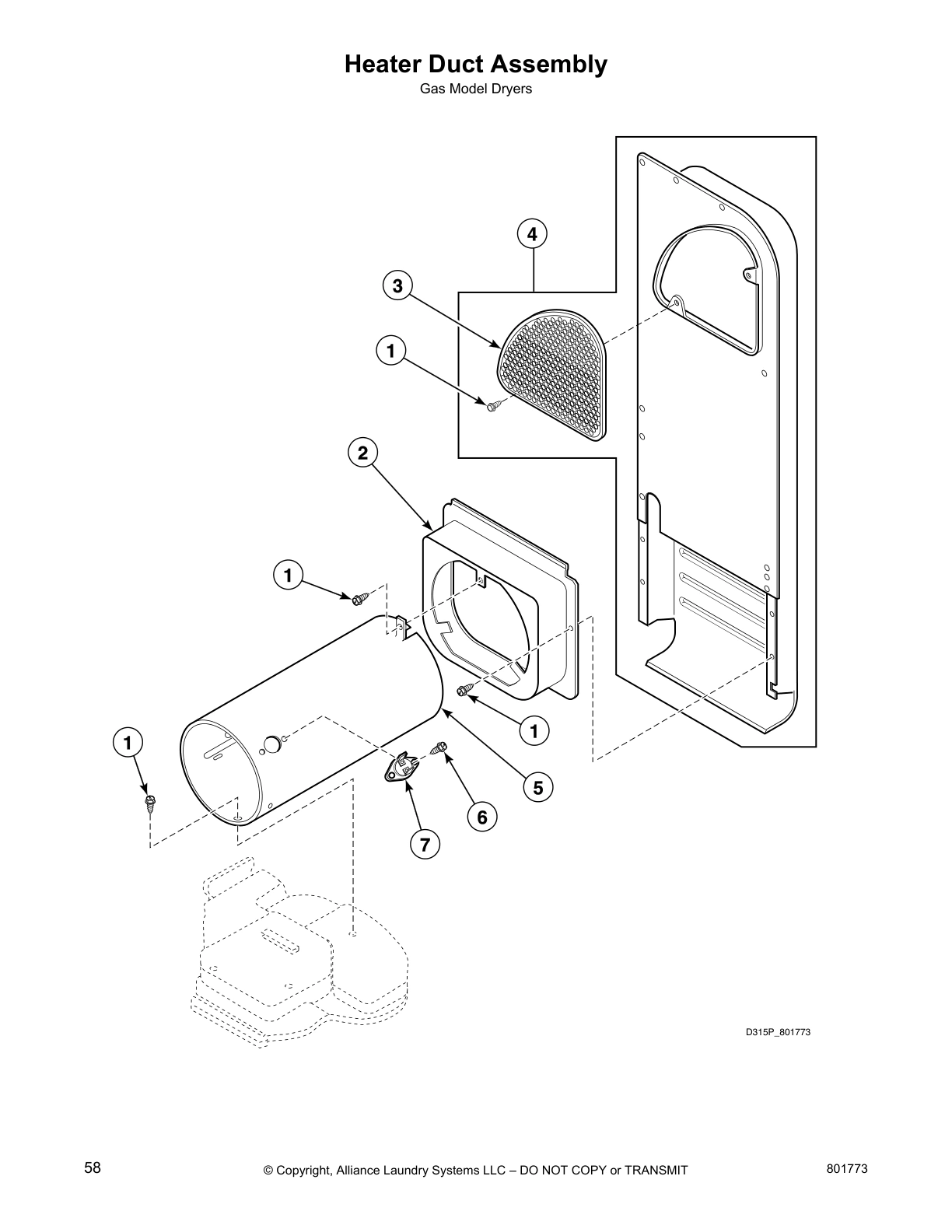

Heater Duct Assembly

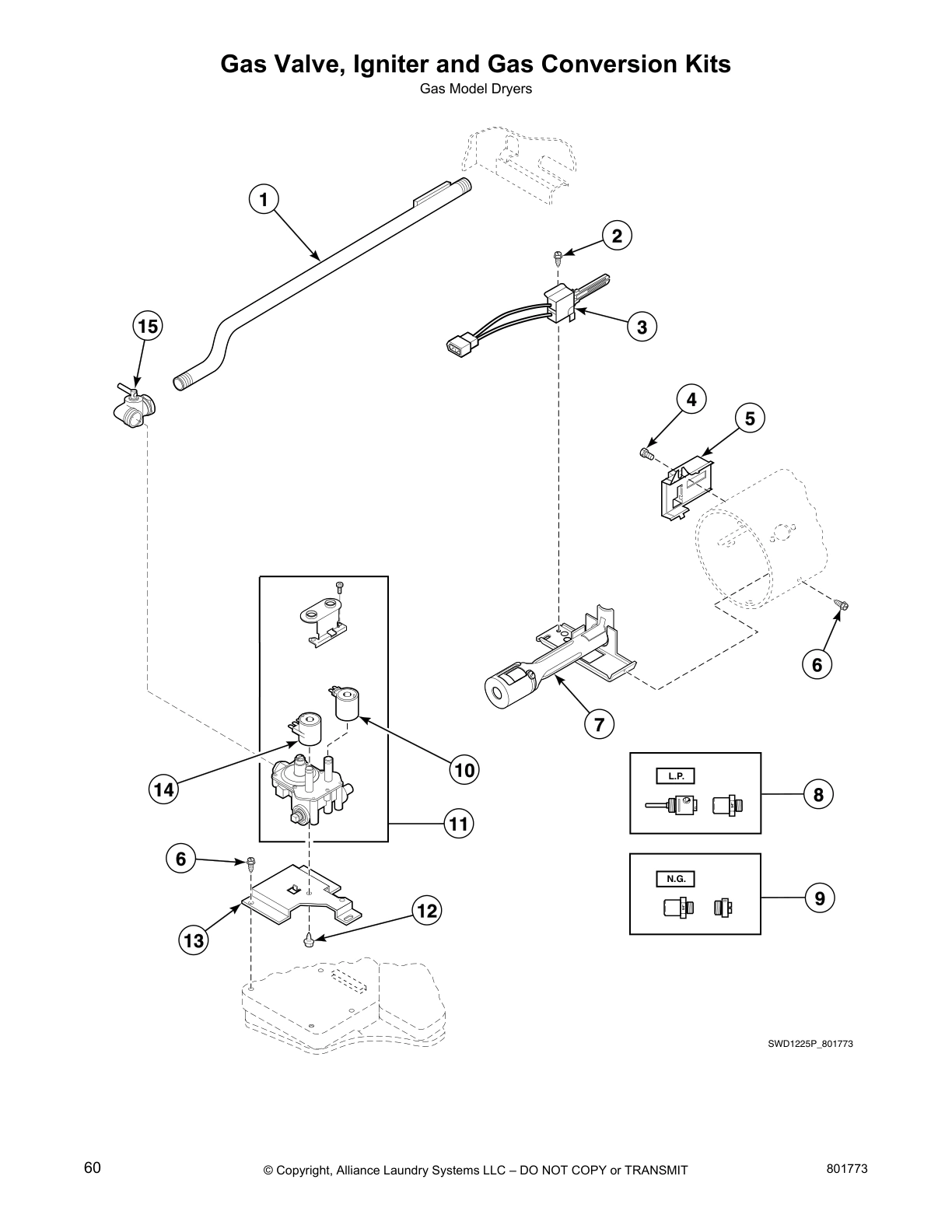

Gas Valve, Igniter and Gas Conversion Kits
Dryer Cabinet, Exhaust Duct and Base
Dryer Motor Connection Block, Terminal Extractor Tools

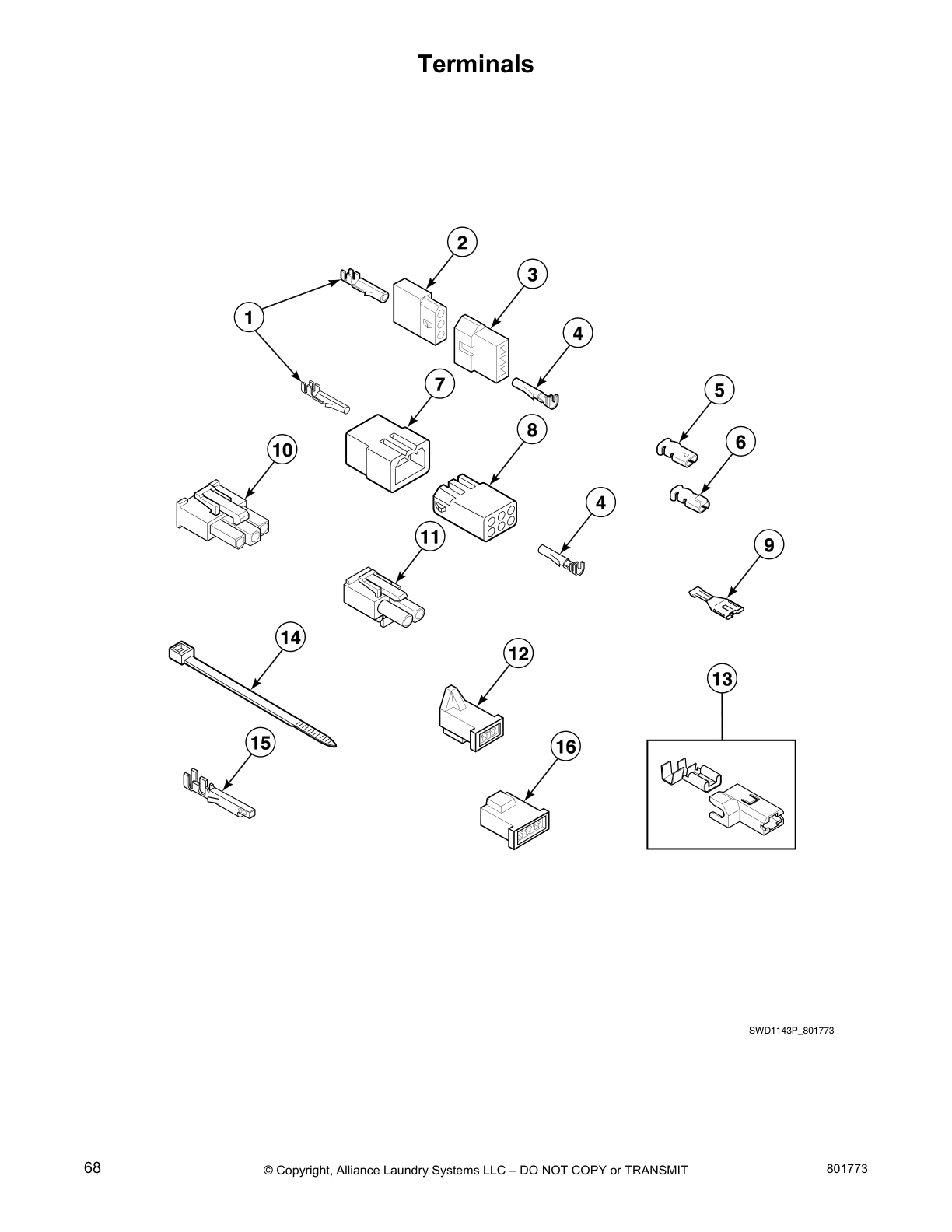

Terminals

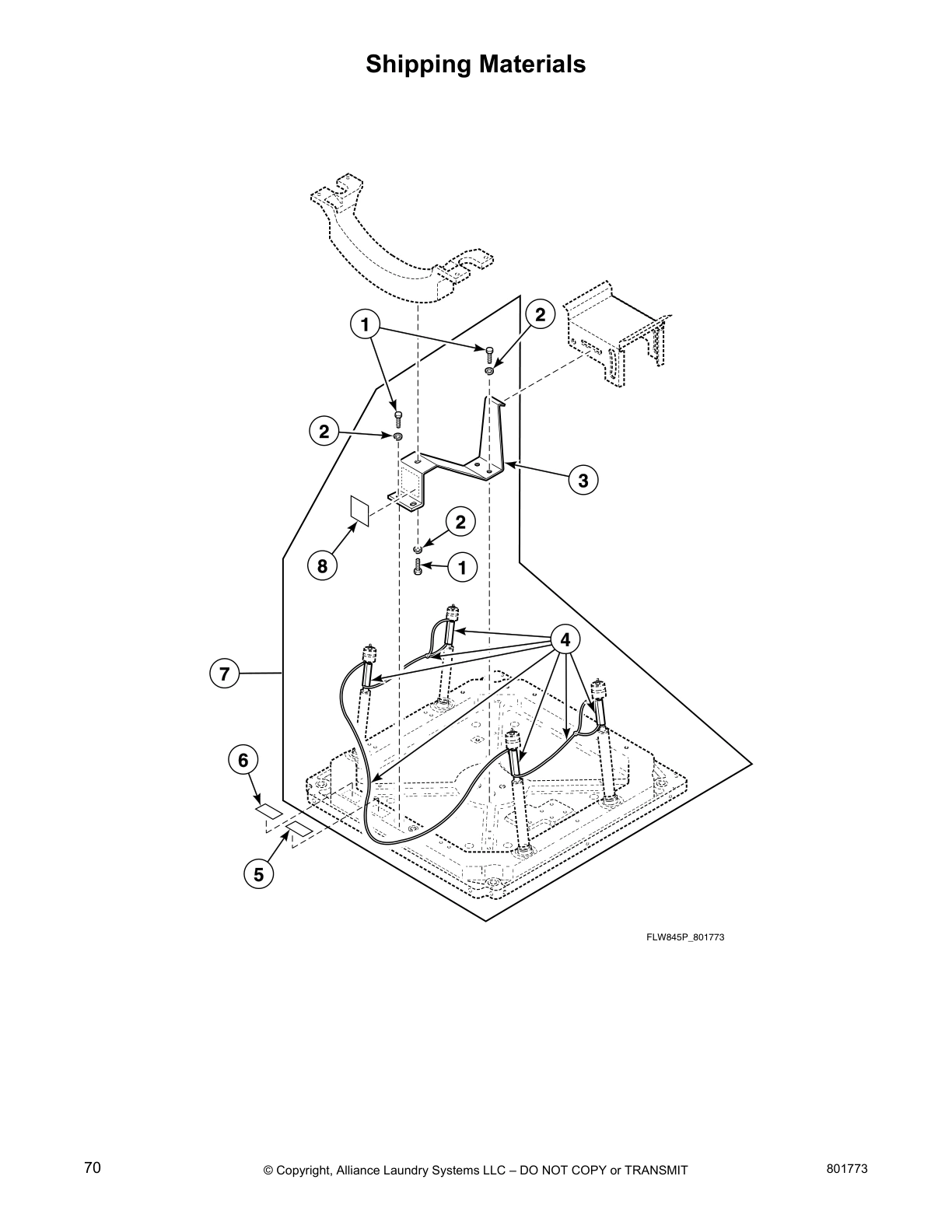

Shipping Materials

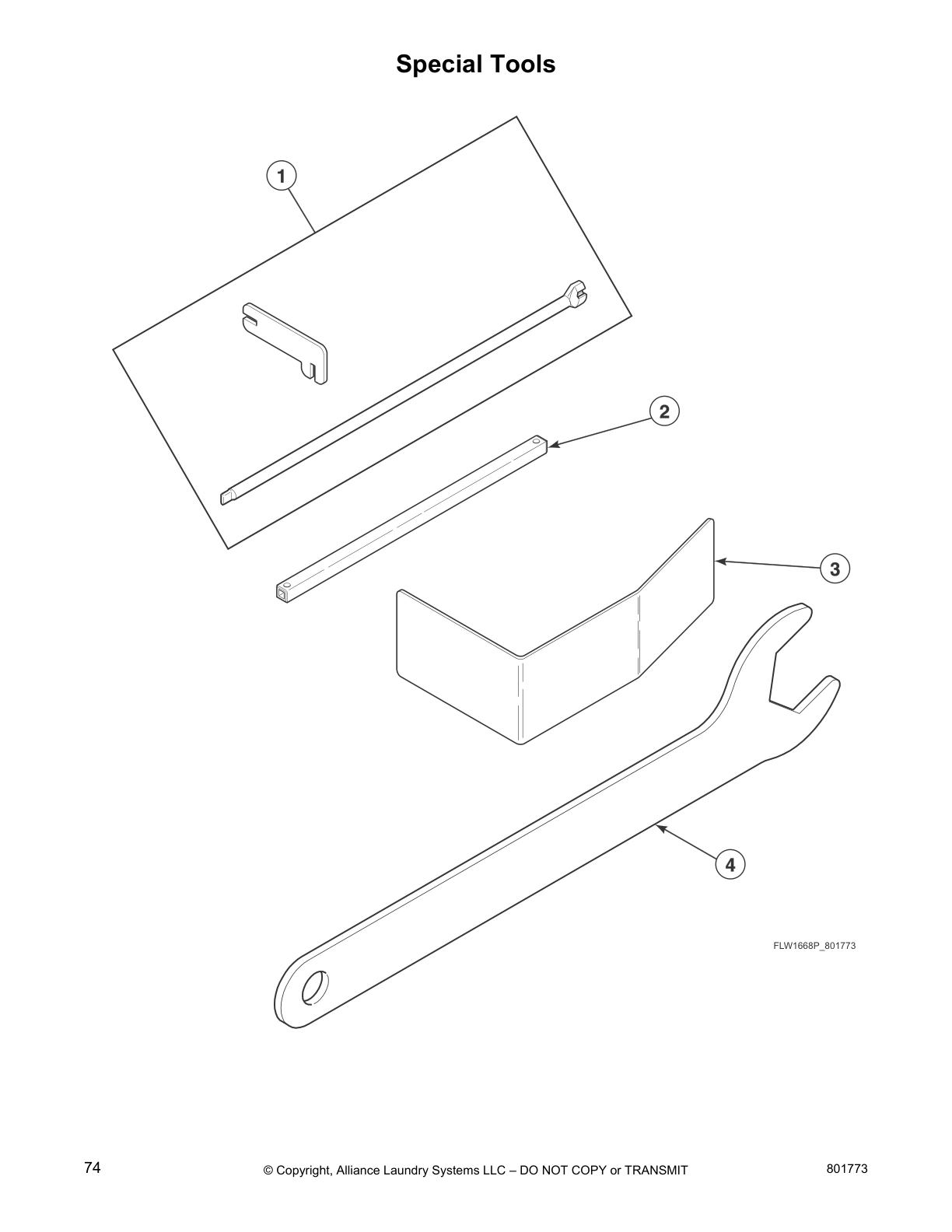

Special Tools

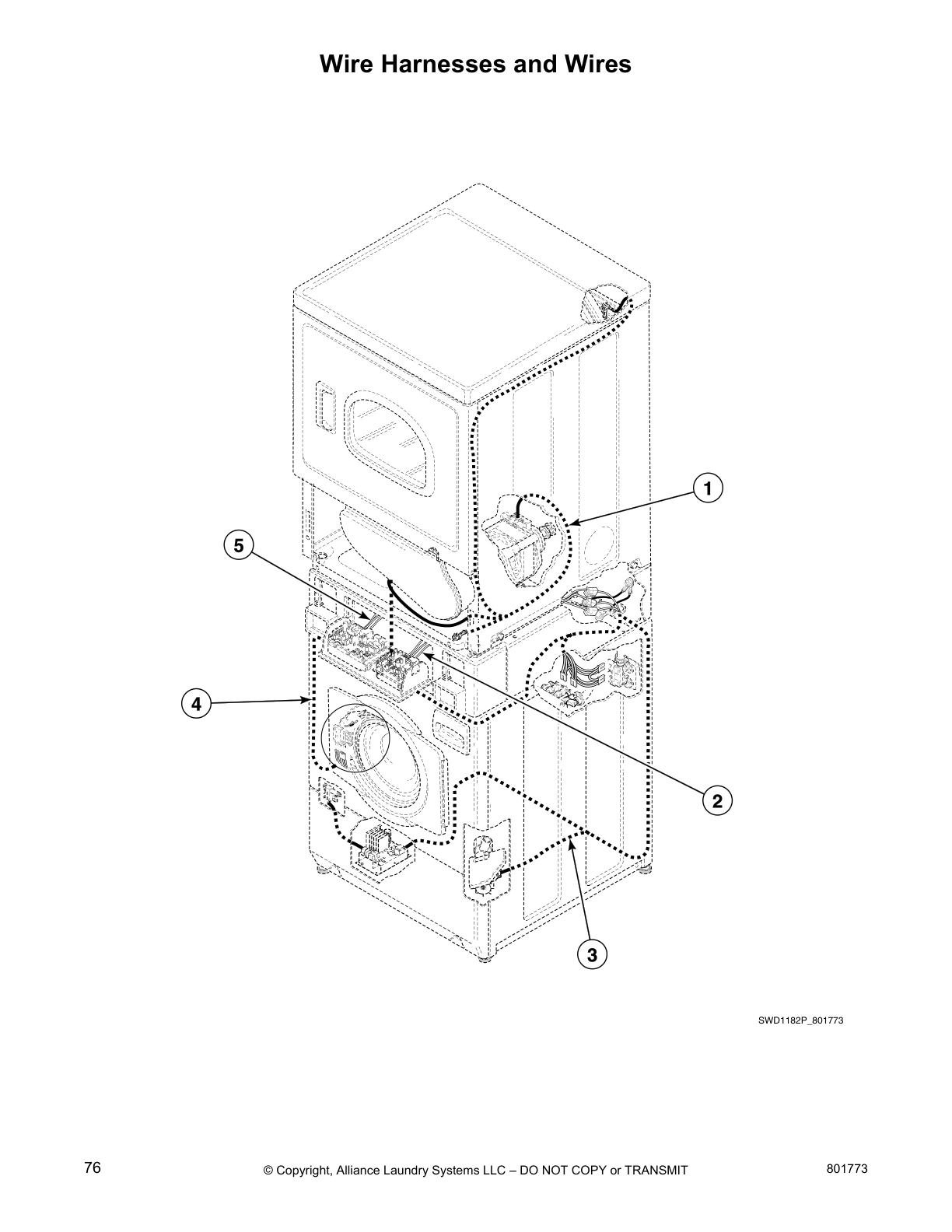

Wire Harnesses and Wires
Common parts from model Huebsch HTEY17*N2802 Stacked Washer and Dryer
3
SPQ 800211 SPQ 800211 Contact Us For Availability
4
SPQ 801928WP SPQ 801928WP Contact Us For Availability
6
Pump-to-Elbow Hose SPQ 802434P Contact Us For Availability
13
Dispenser Assembly SPQ 801476P Contact Us For Availability
16
Inner Basket Assembly SPQ 800428P Contact Us For Availability
19
Harness Strap SPQ 800232P Contact Us For Availability
NI
SPQ 62853 SPQ 62853 Contact Us For Availability
× ![]()
