Model Huebsch HTEBCASP176TW01 Stacked Washer and Dryer – Common Parts & Diagrams
Control Panel and Controls (Drawing 1 of 3)
Control Panel and Controls (Drawing 2 of 3)

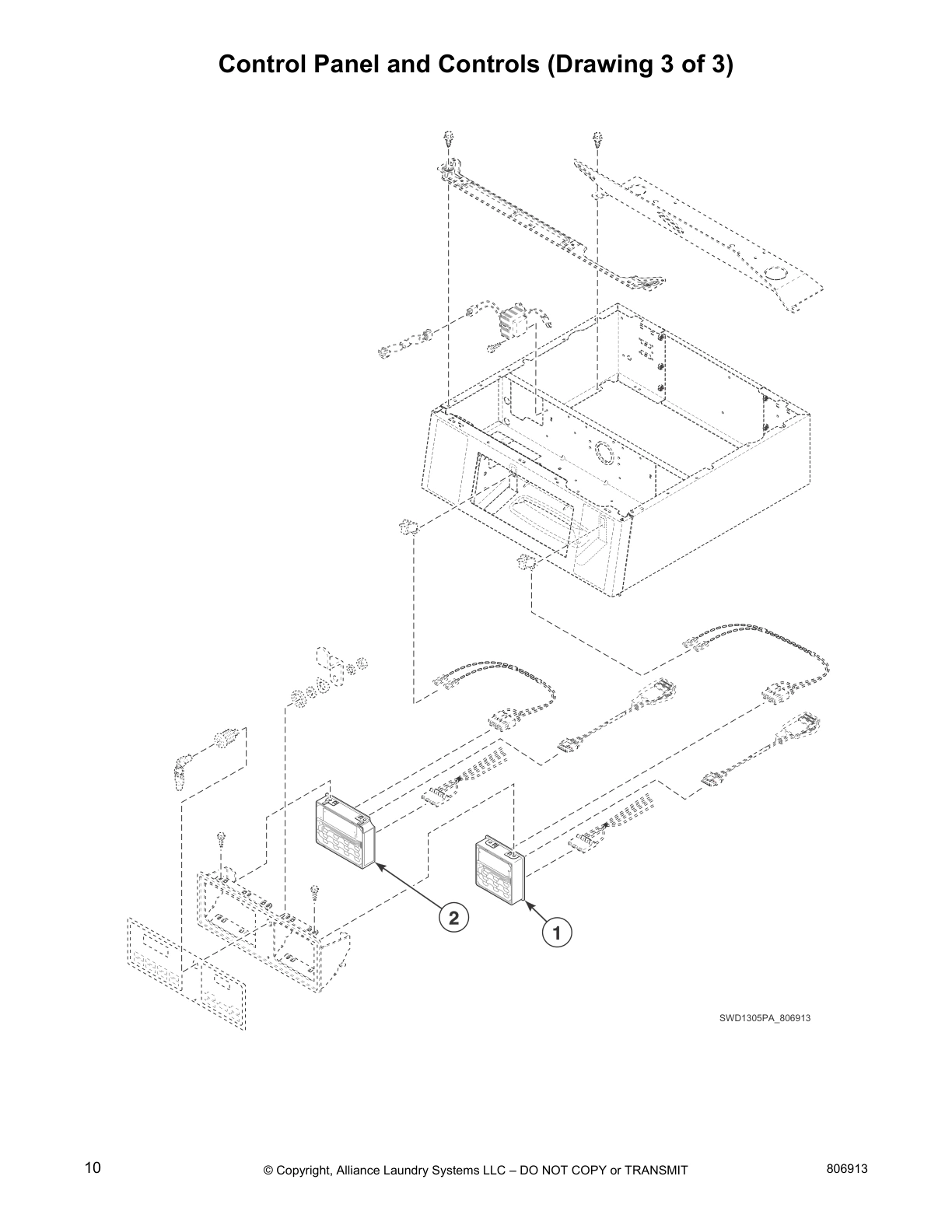

Control Panel and Controls (Drawing 3 of 3)

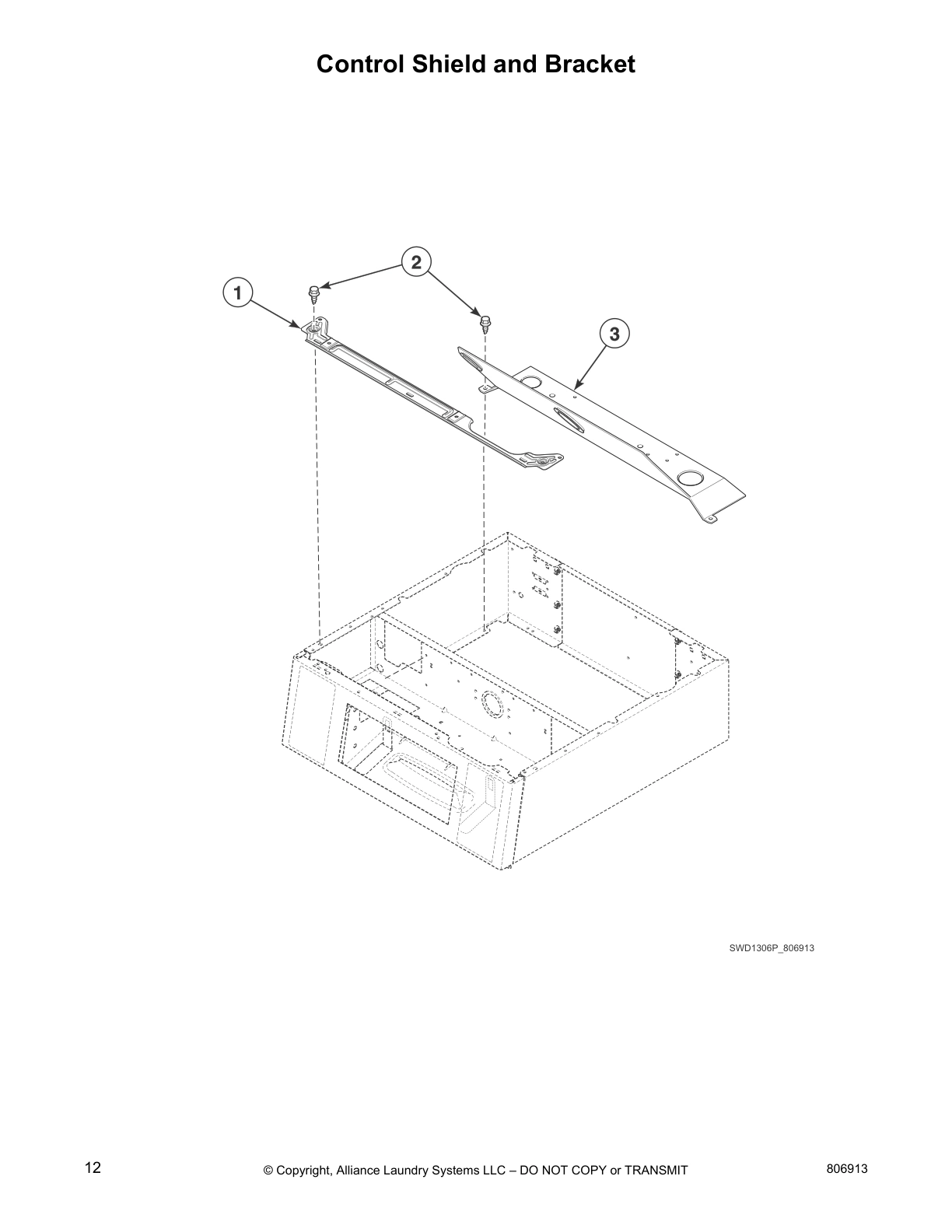

Control Shield and Bracket

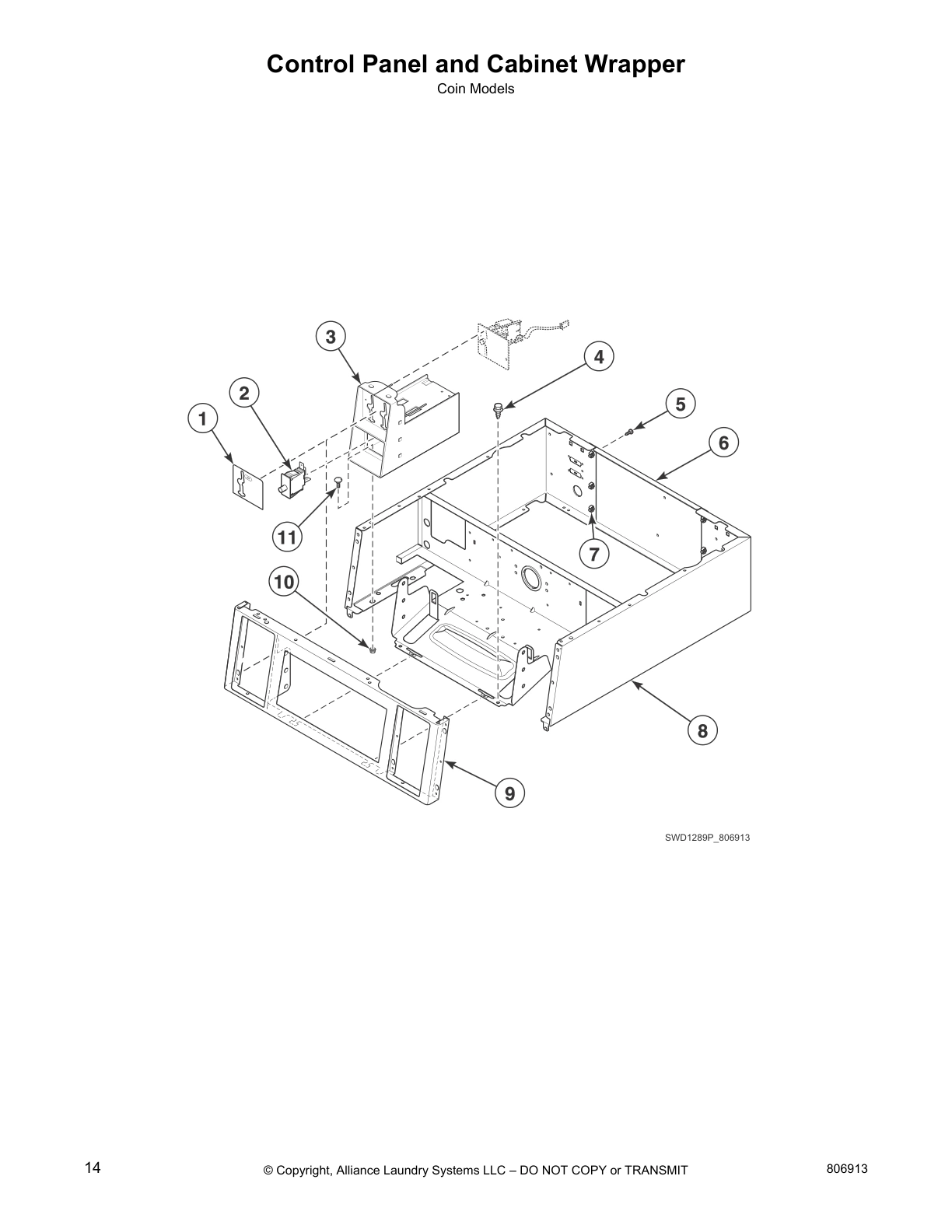

Control Panel and Cabinet Wrapper

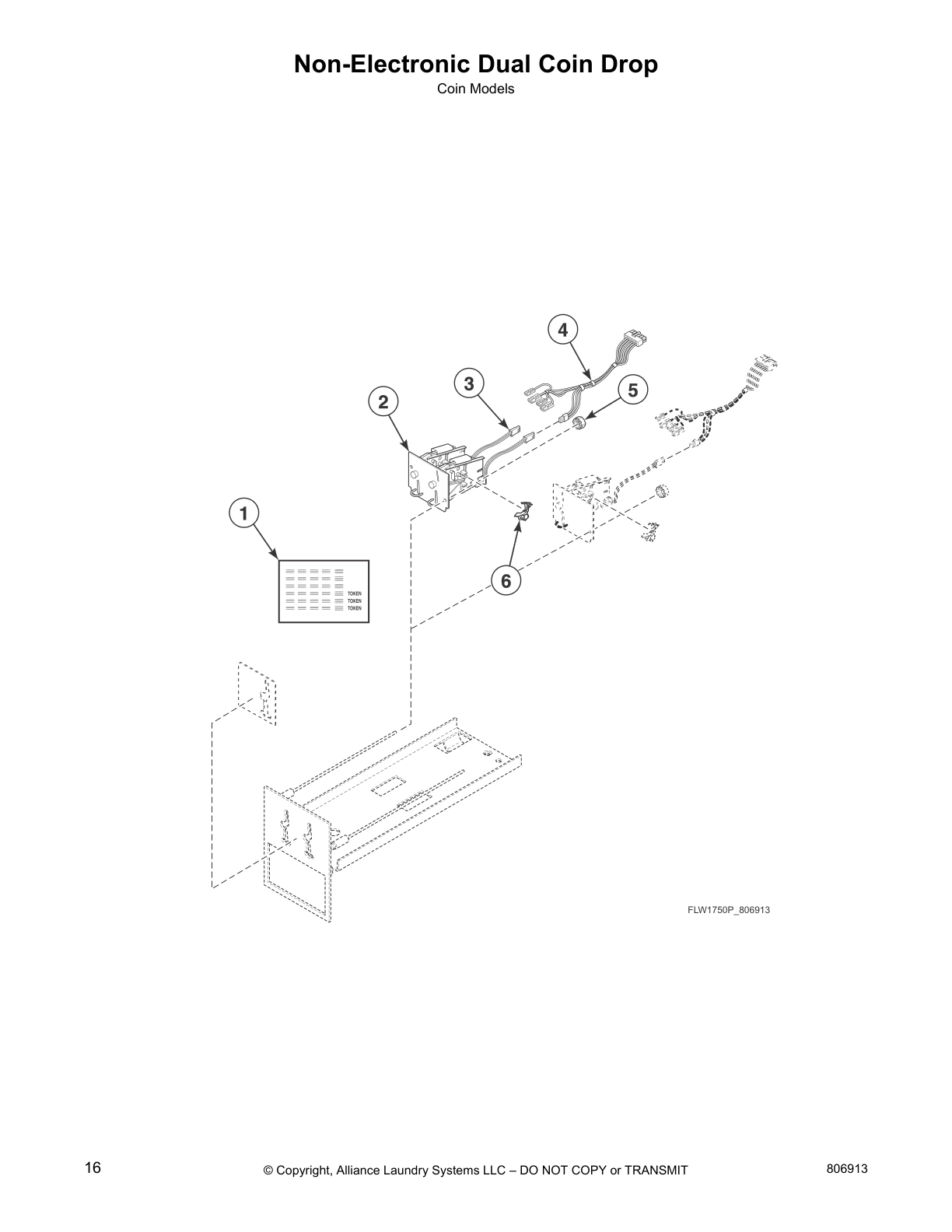

Non-Electronic Dual Coin Drop

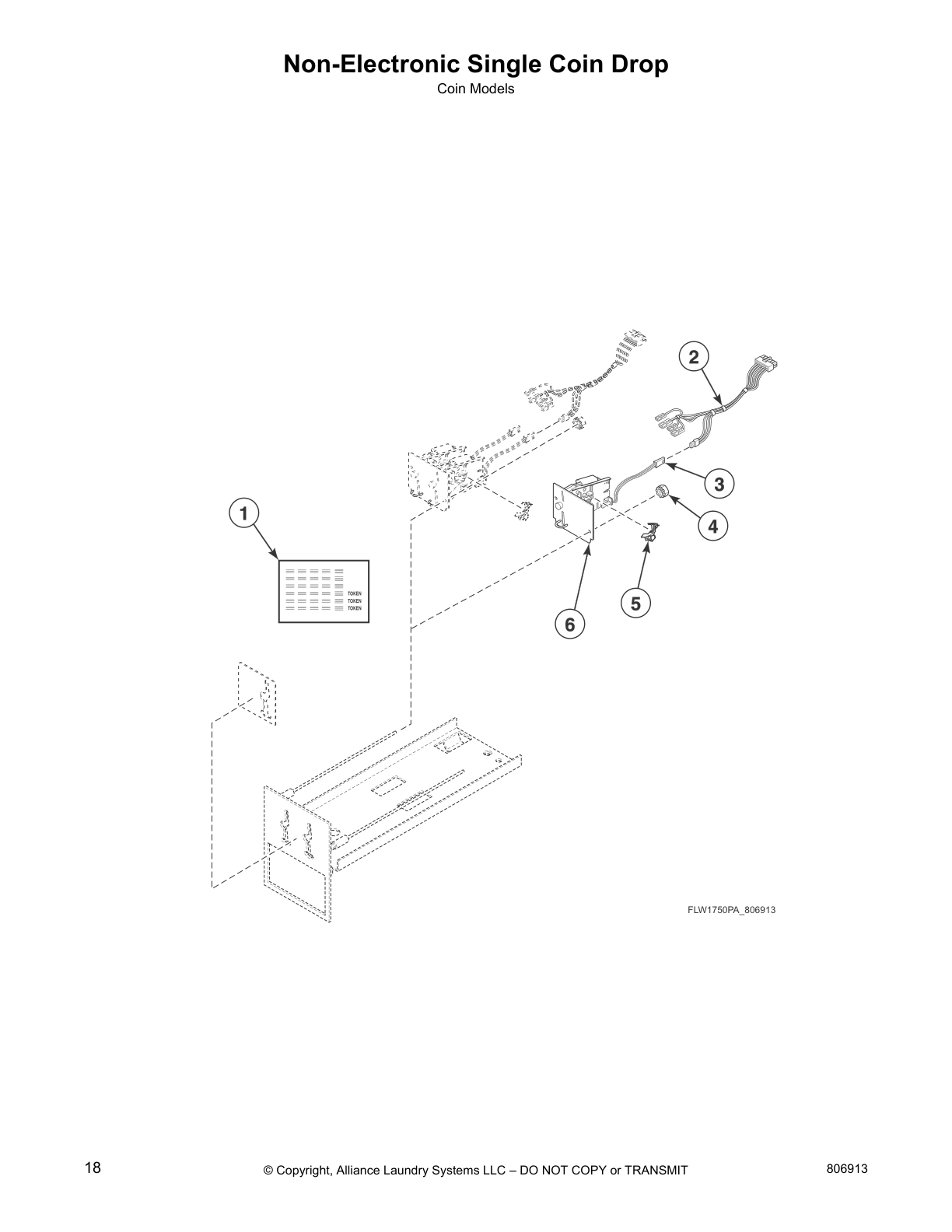

Non-Electronic Single Coin Drop

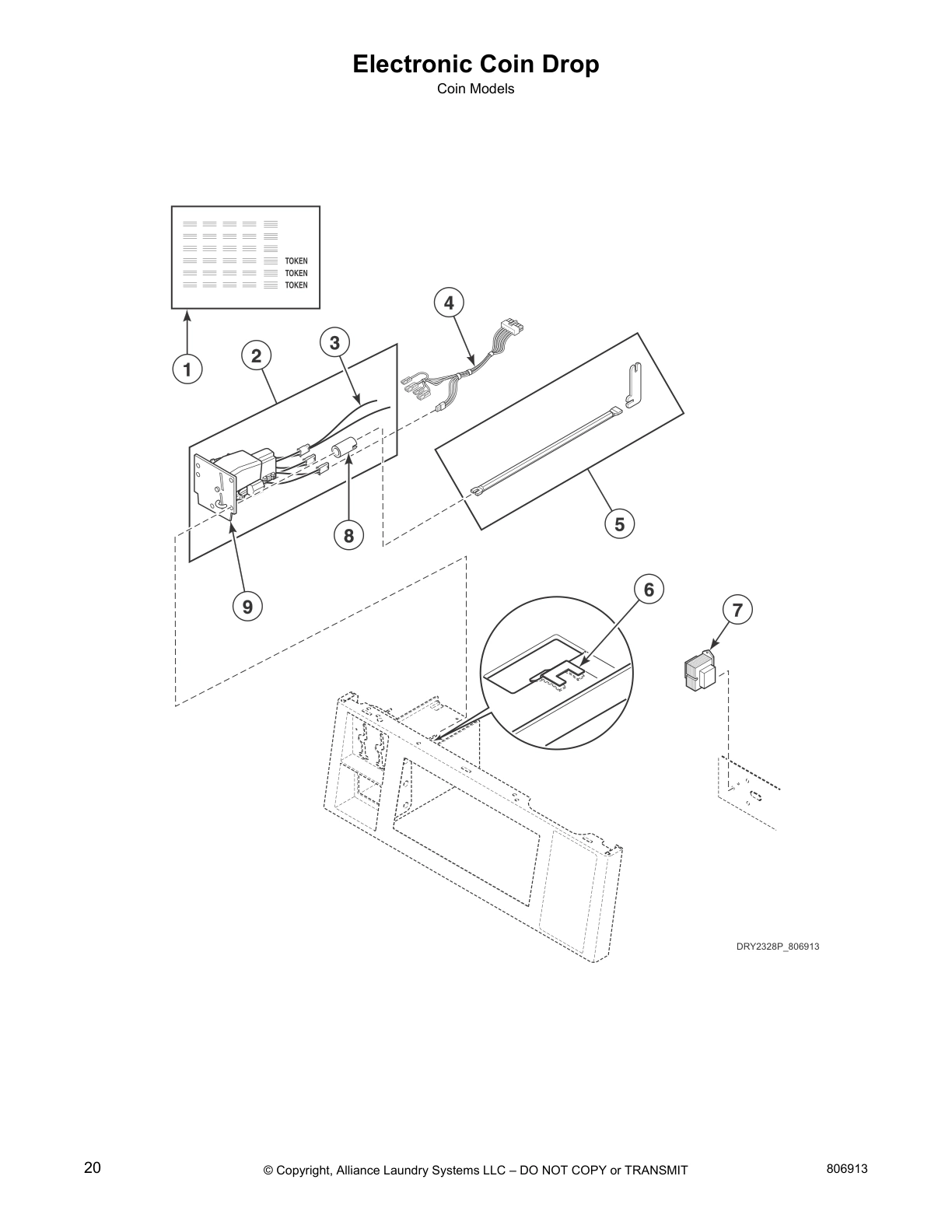

Electronic Coin Drop

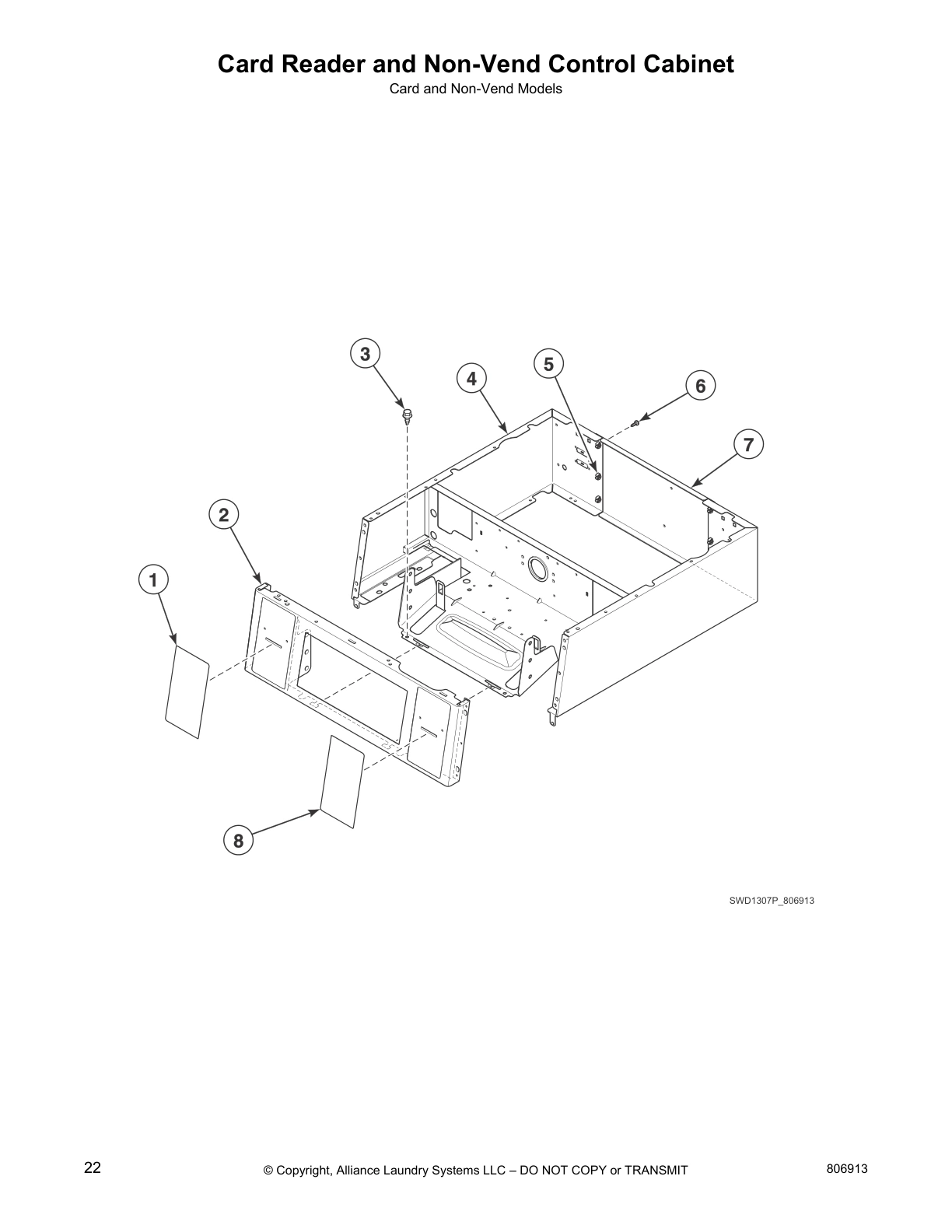

Card Reader and Non-Vend Control Cabinet

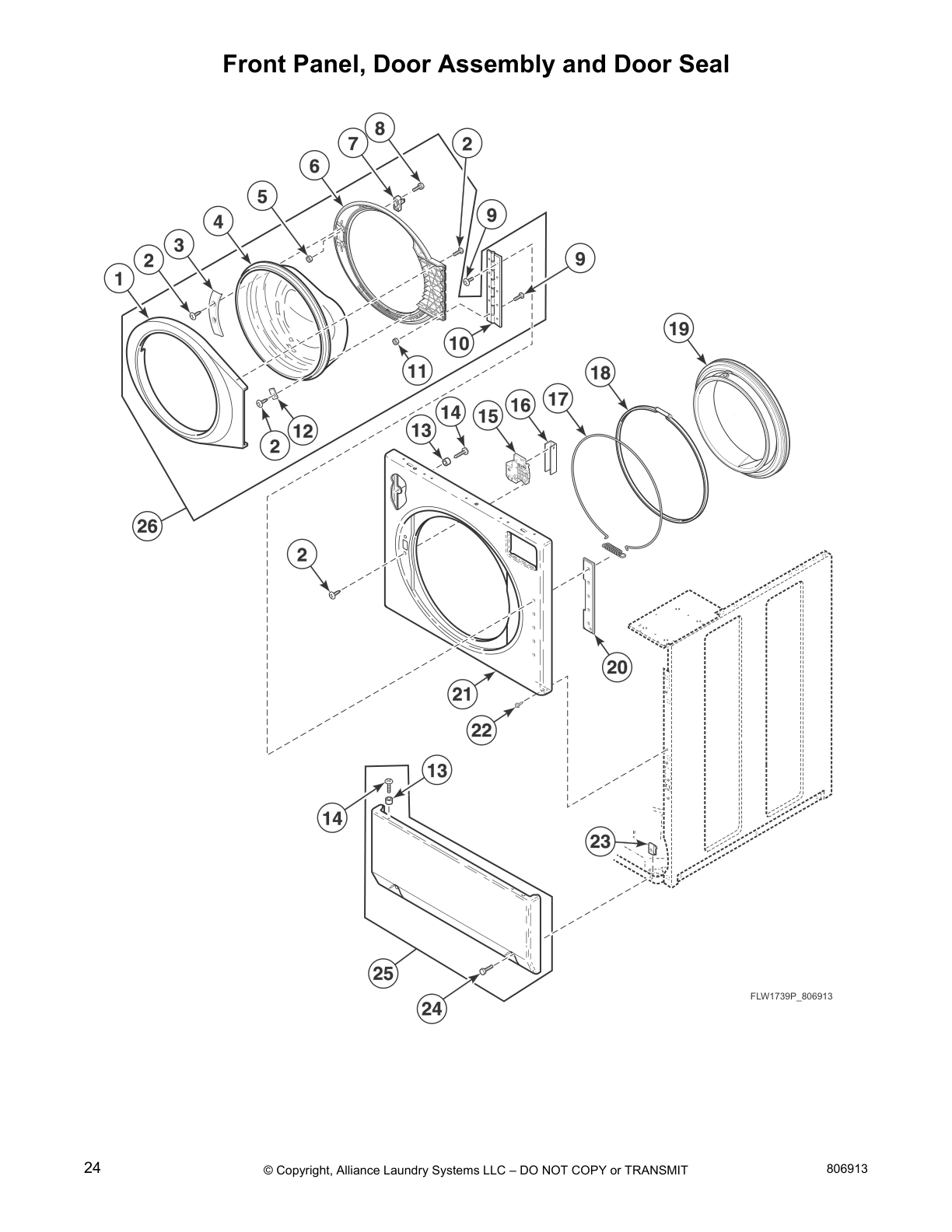

Front Panel, Door Assembly and Door Seal

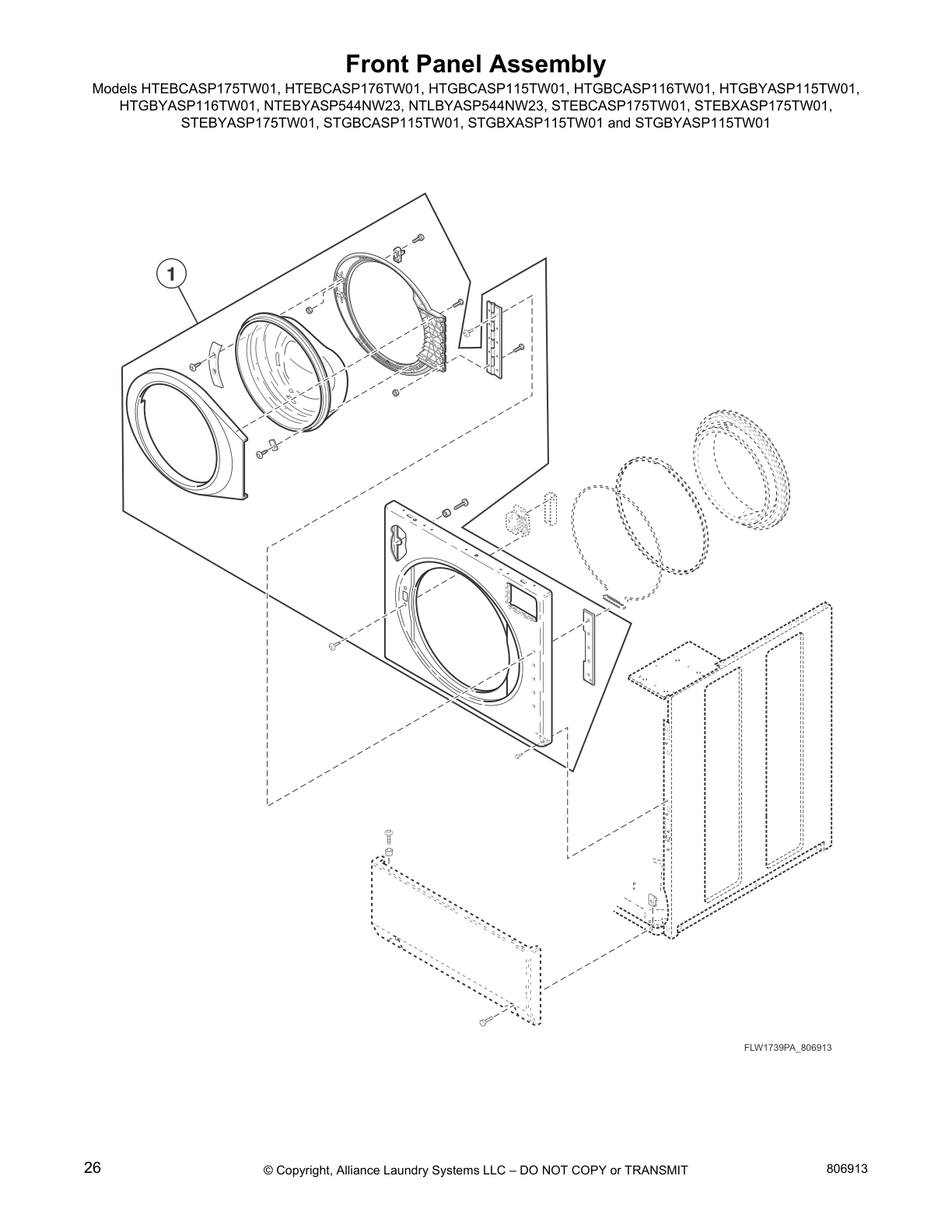

Front Panel Assembly
Dispenser Assembly
Mixing Valve

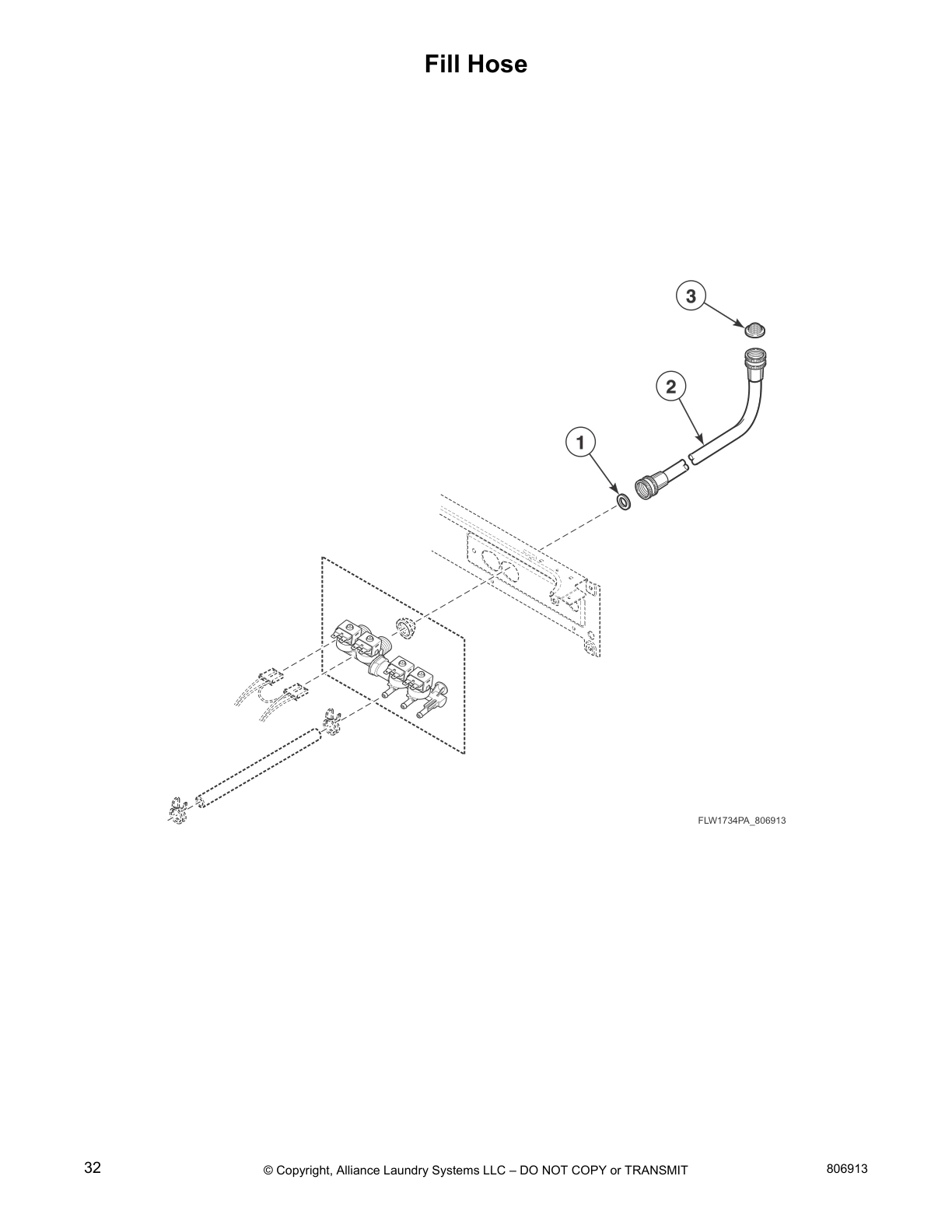

Fill Hose

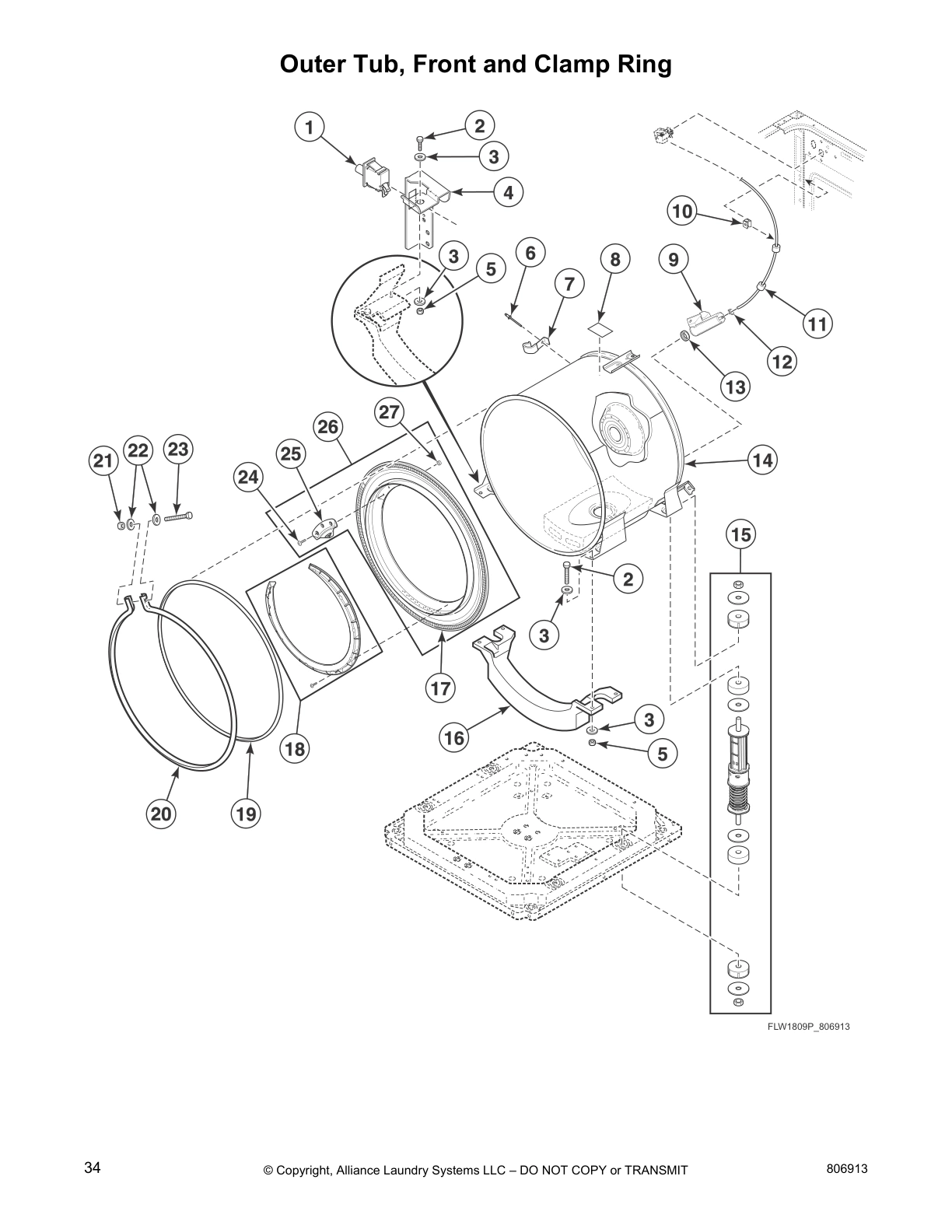

Outer Tub, Front and Clamp Ring

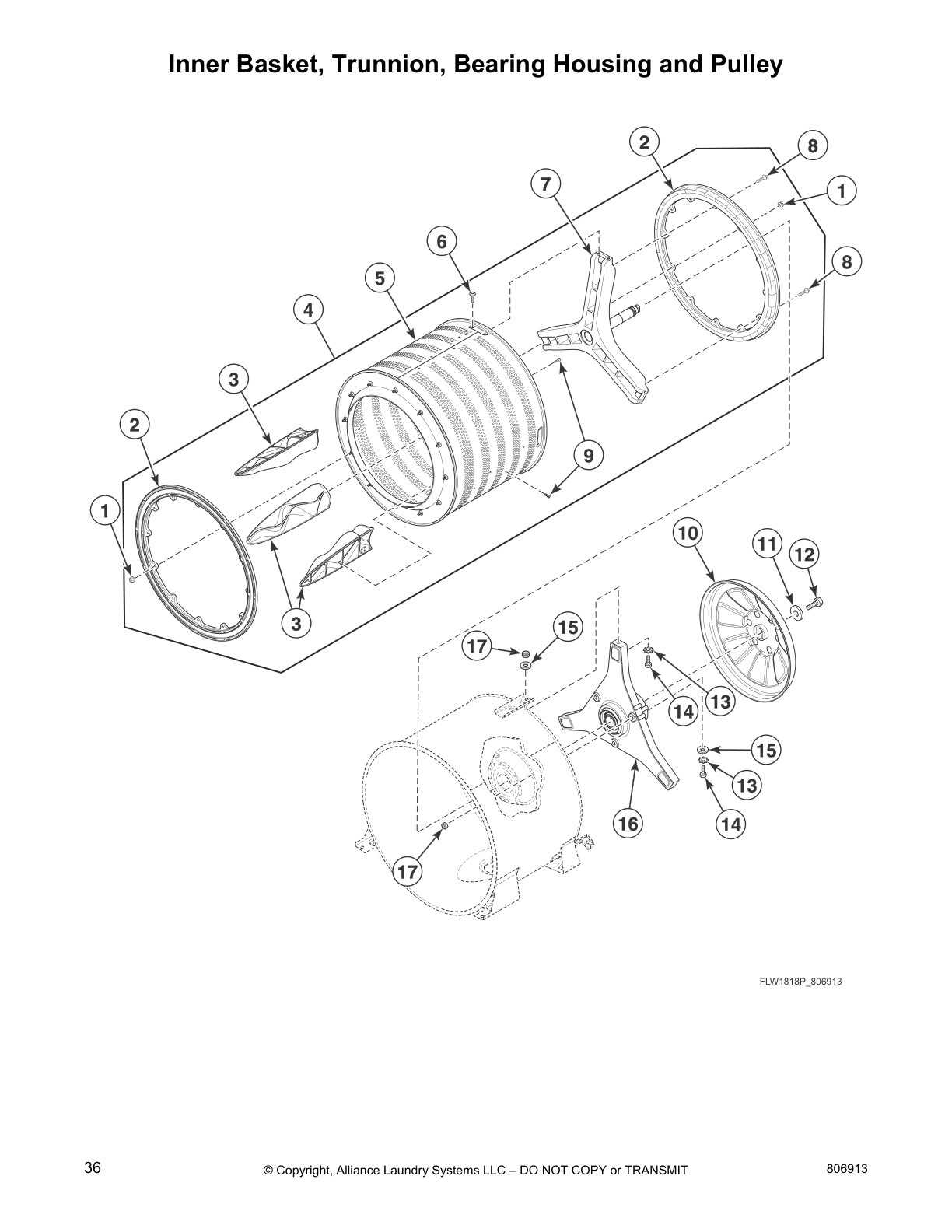

Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt

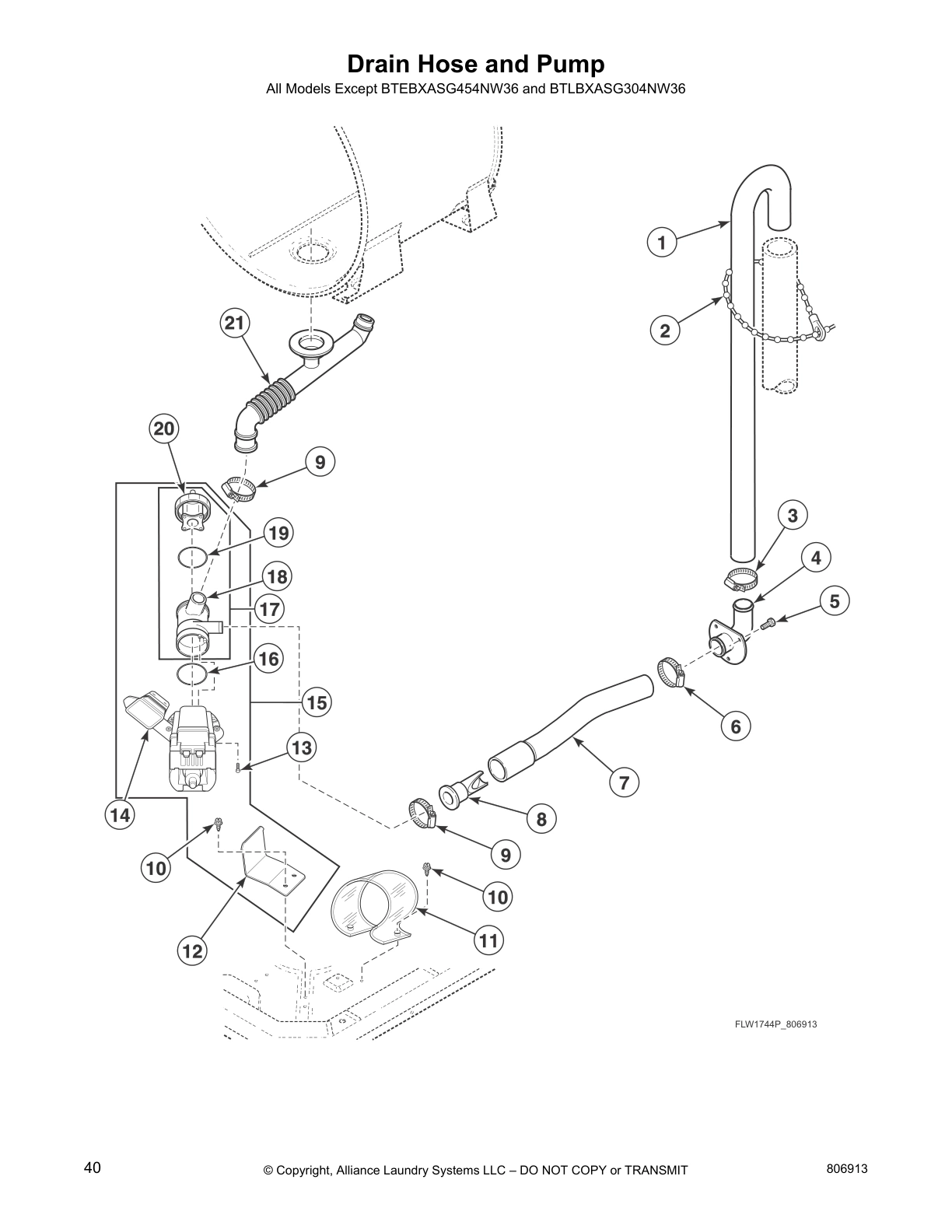

Drain Hose and Pump

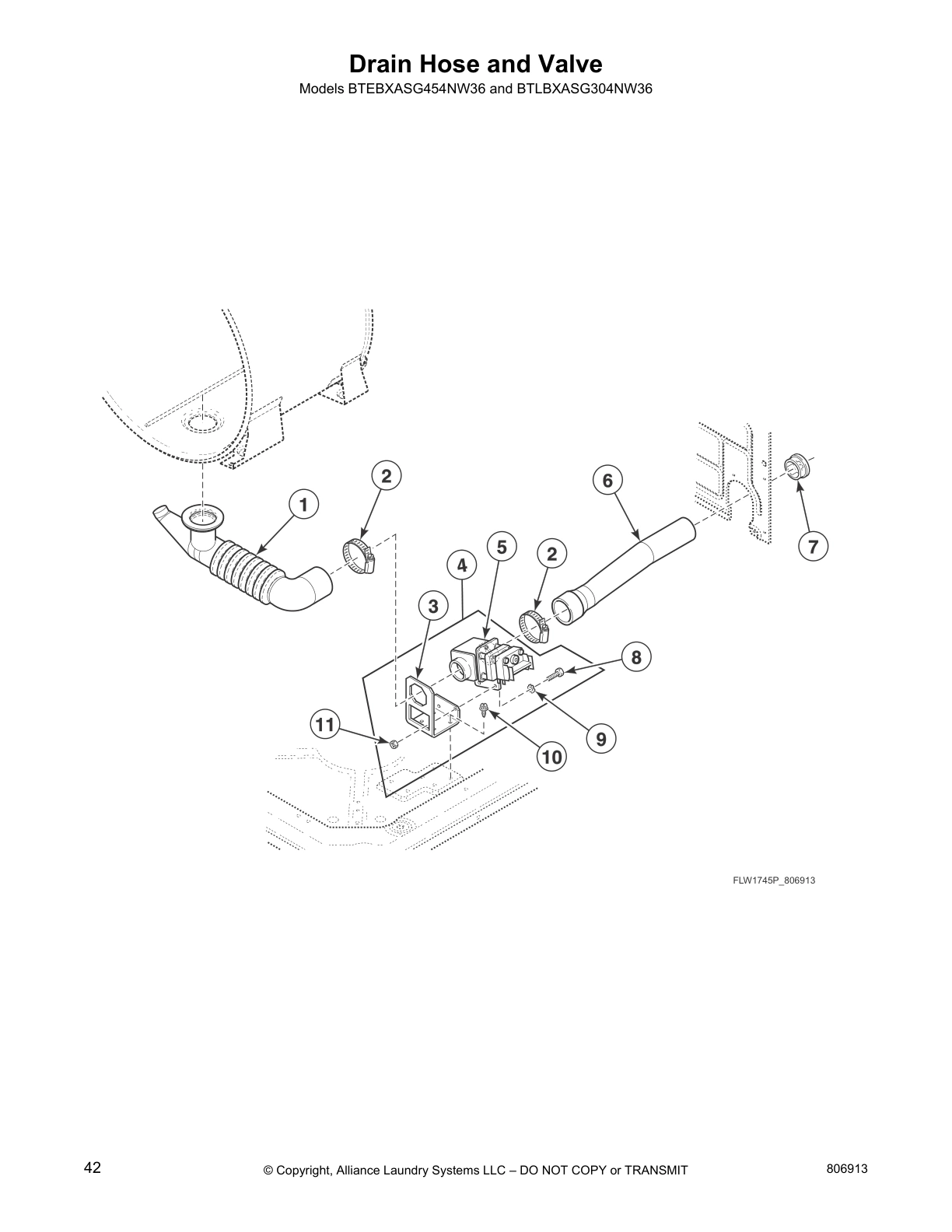

Drain Hose and Valve

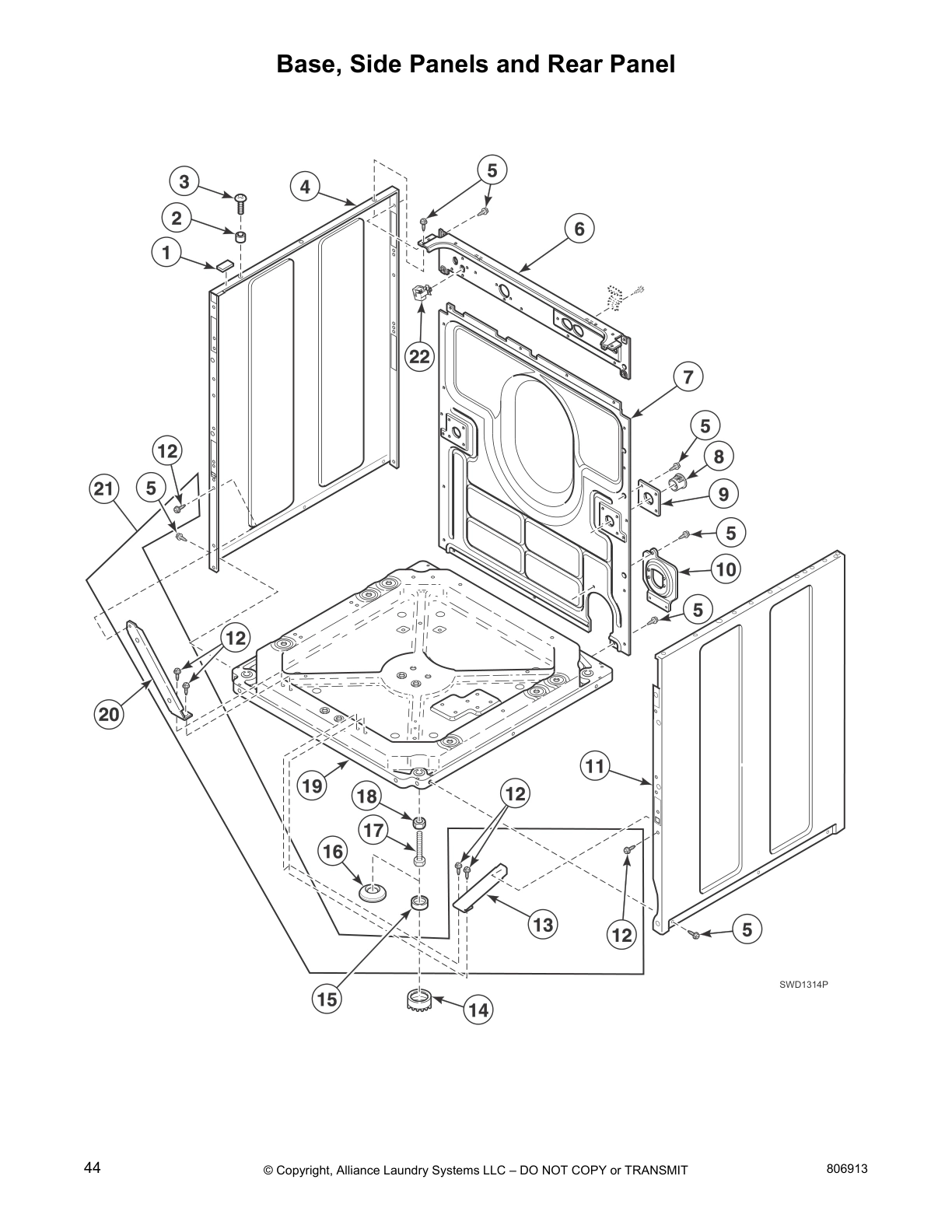

Base, Side Panels and Rear Panel

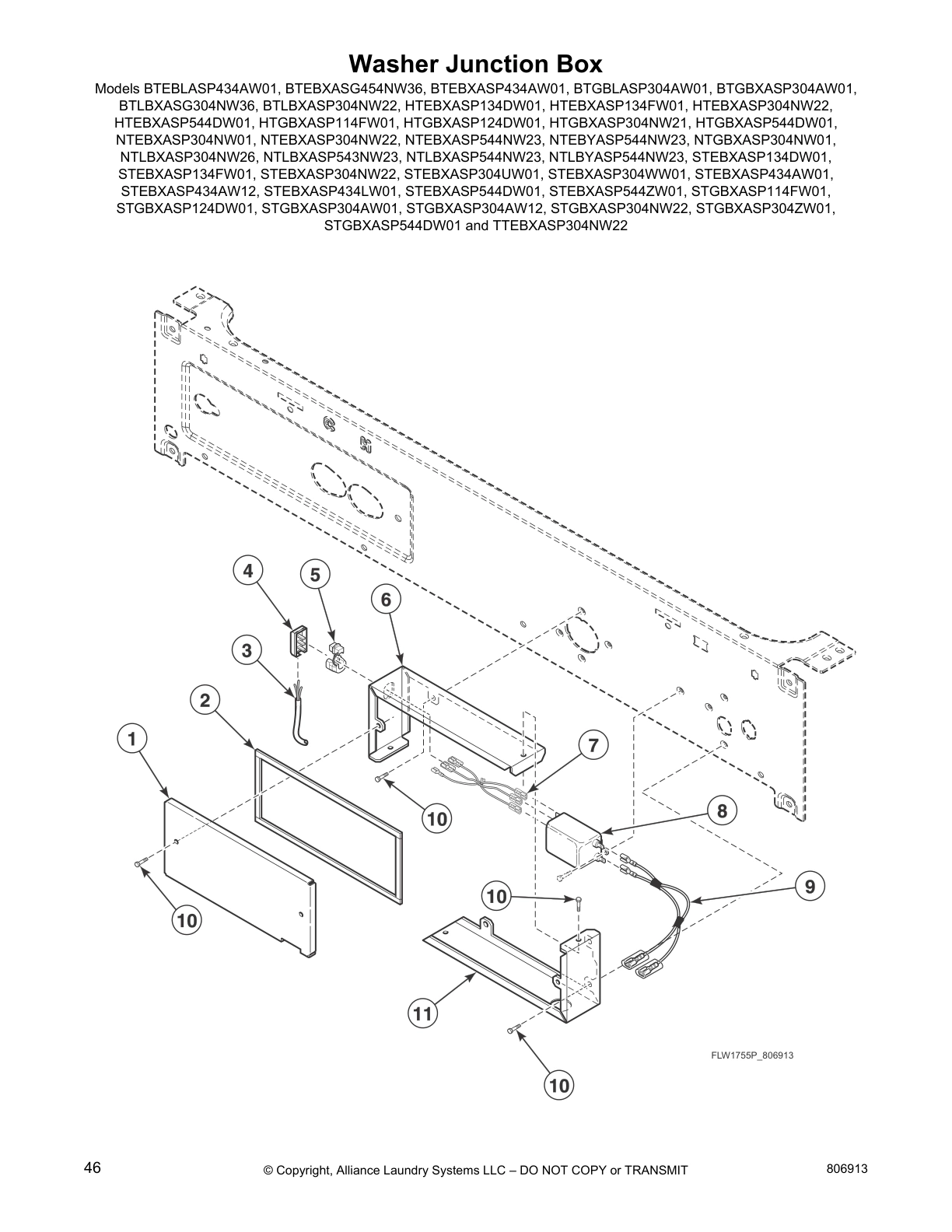

Washer Junction Box
Washer Lead-In Cord, Wire Ties and Harness Clips

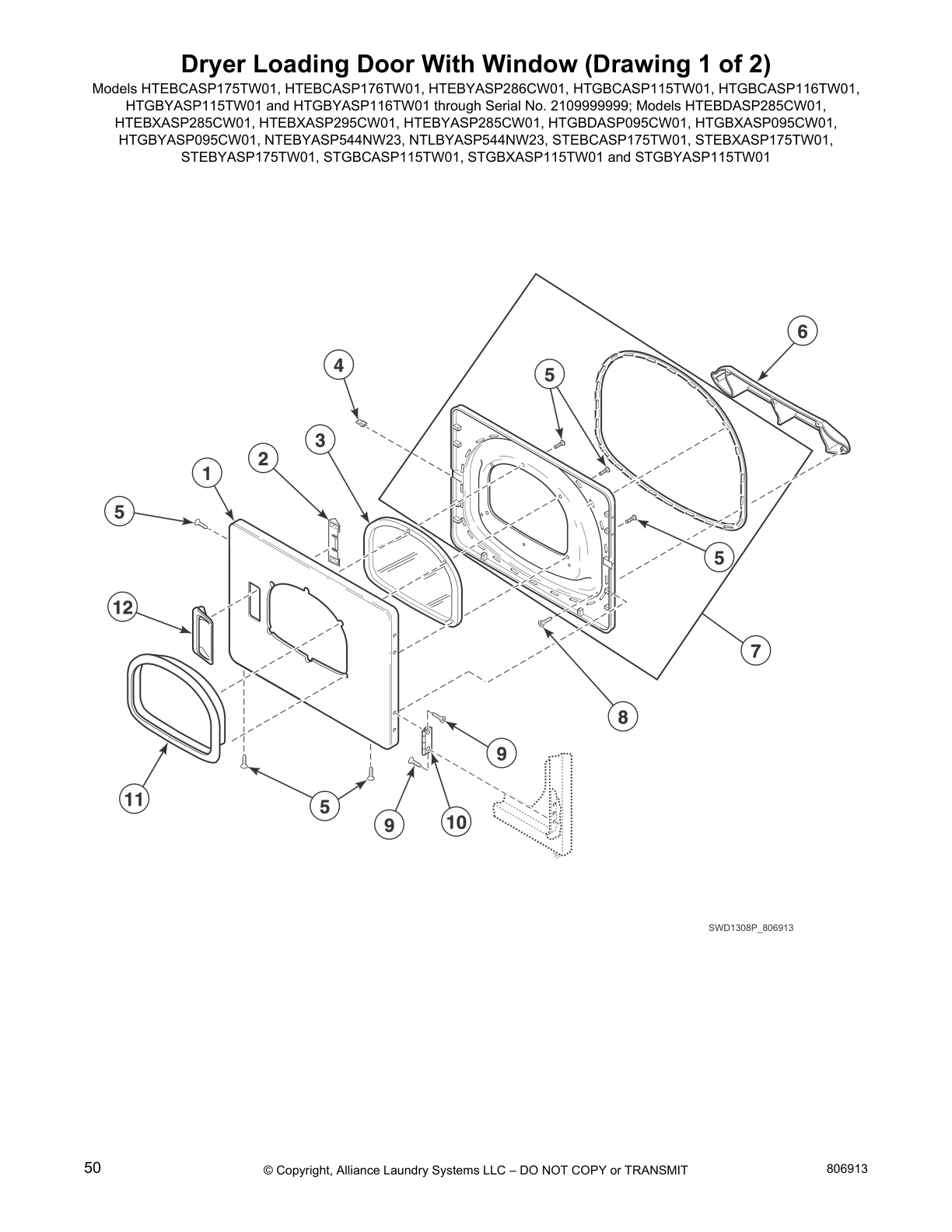

Dryer Loading Door With Window (Drawing 1 of 2)

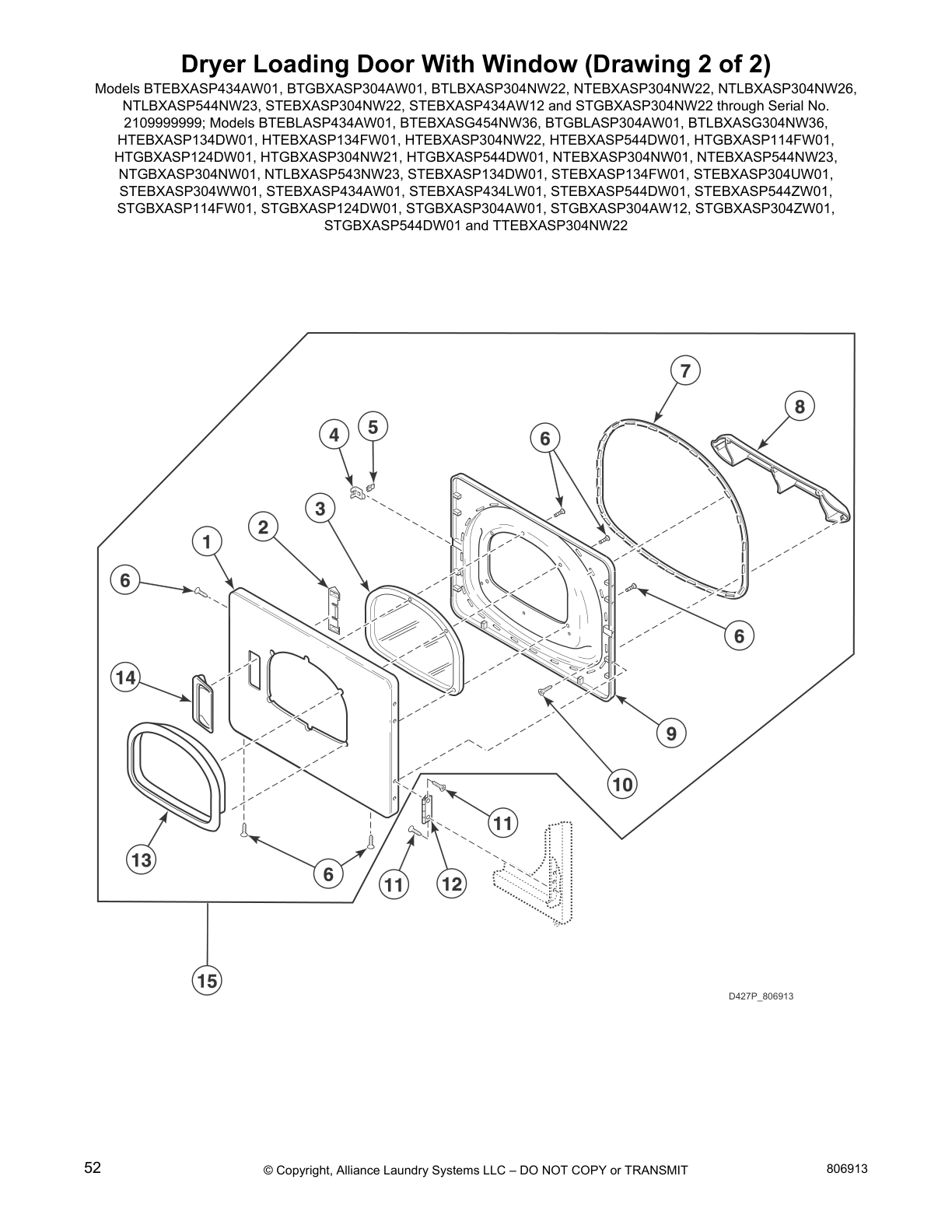

Dryer Loading Door With Window (Drawing 2 of 2)

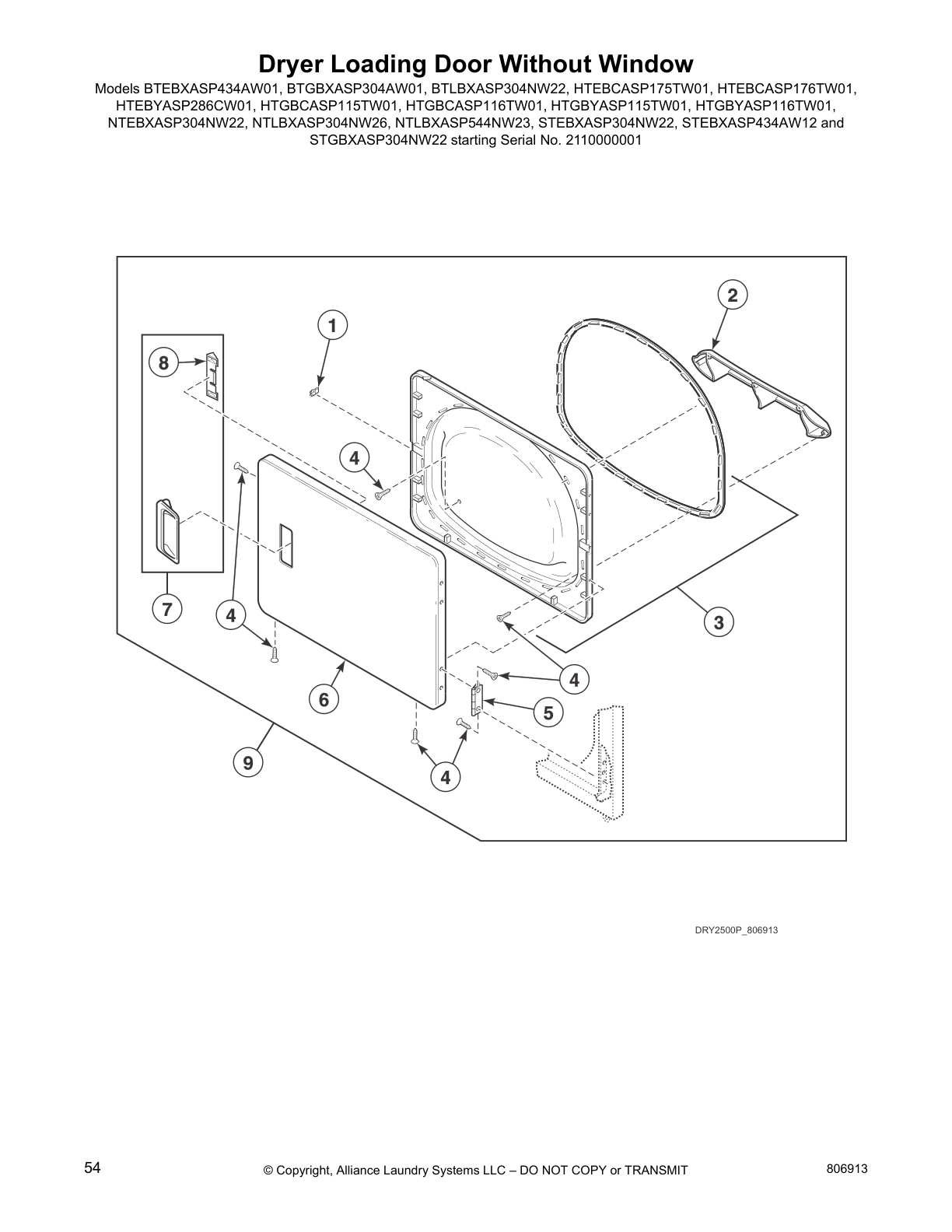

Dryer Loading Door Without Window

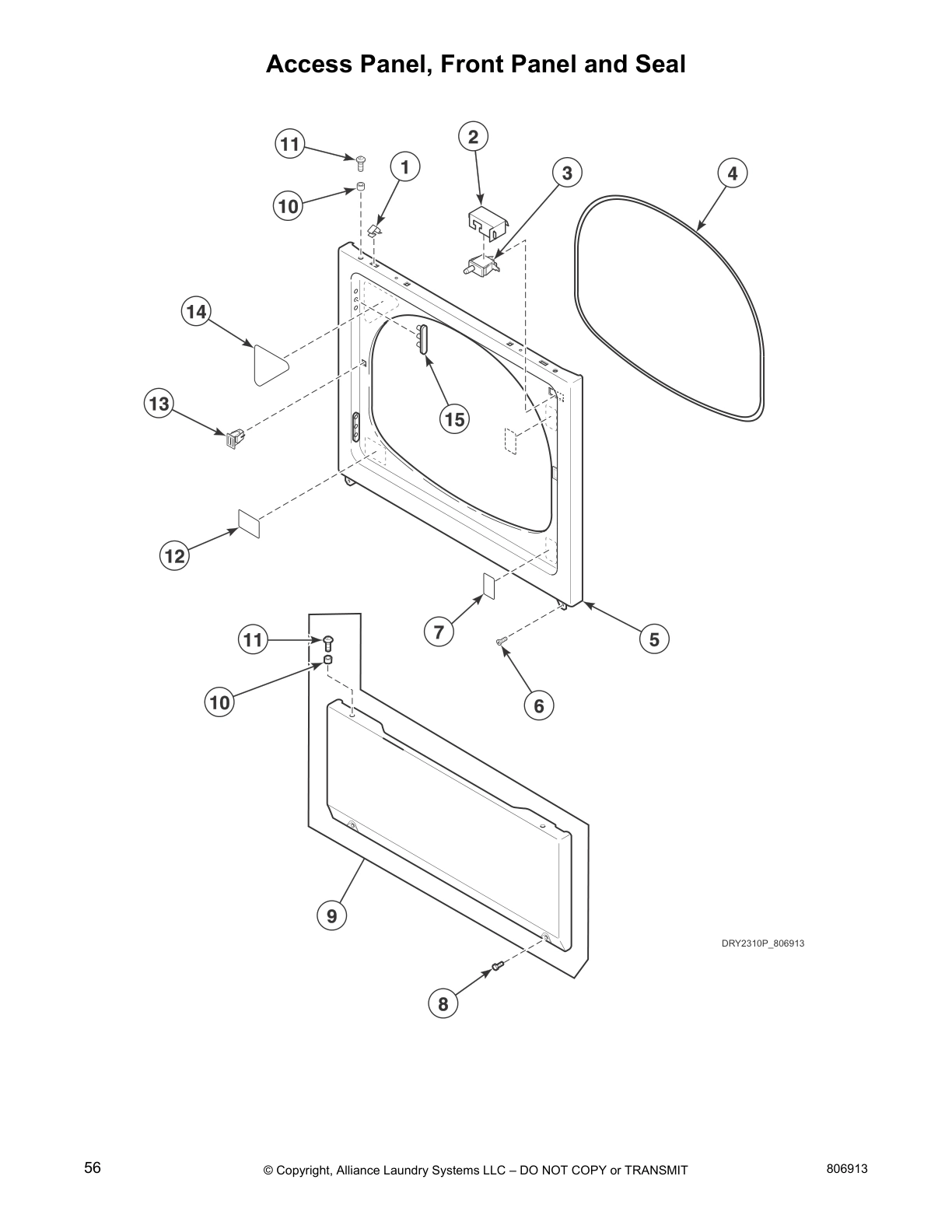

Access Panel, Front Panel and Seal

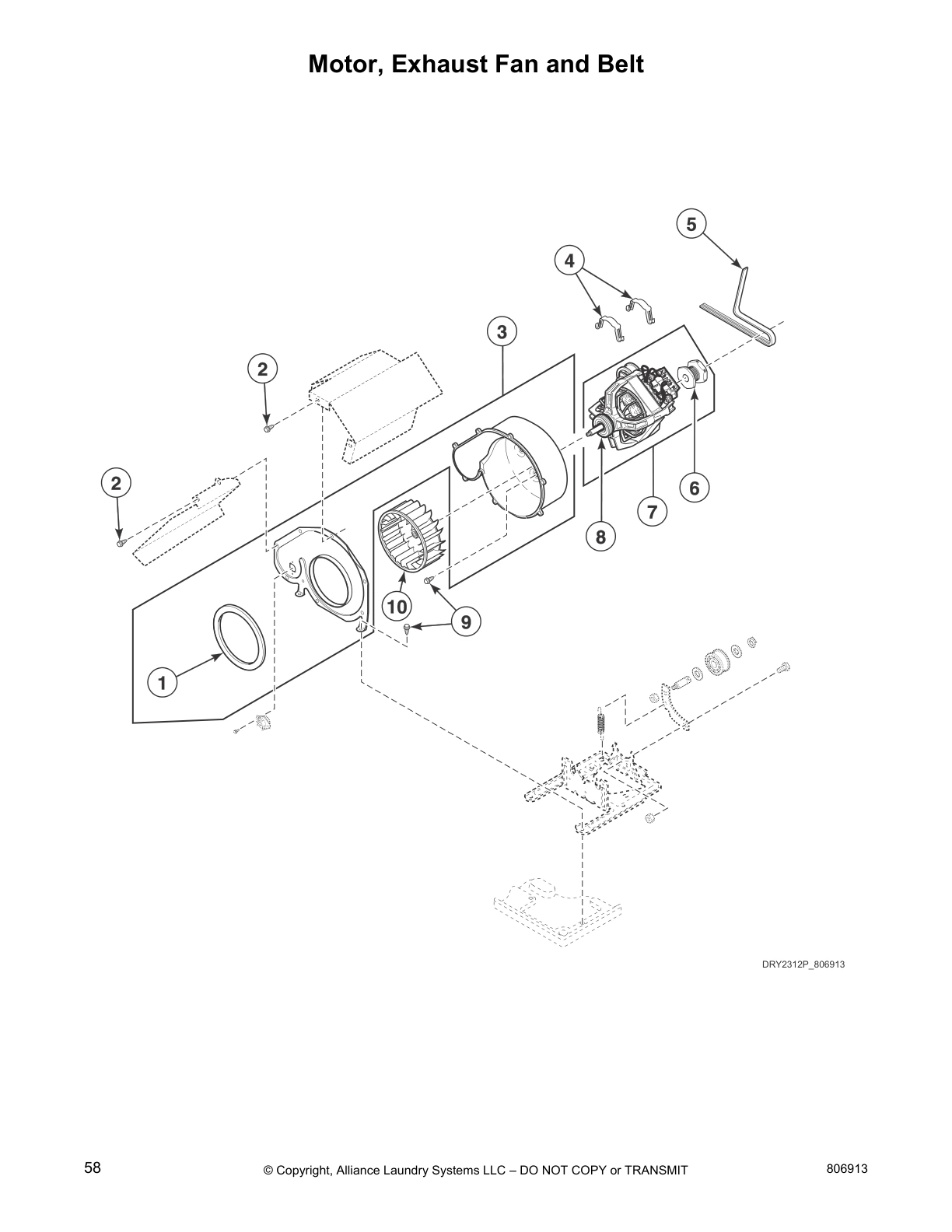

Motor, Exhaust Fan and Belt

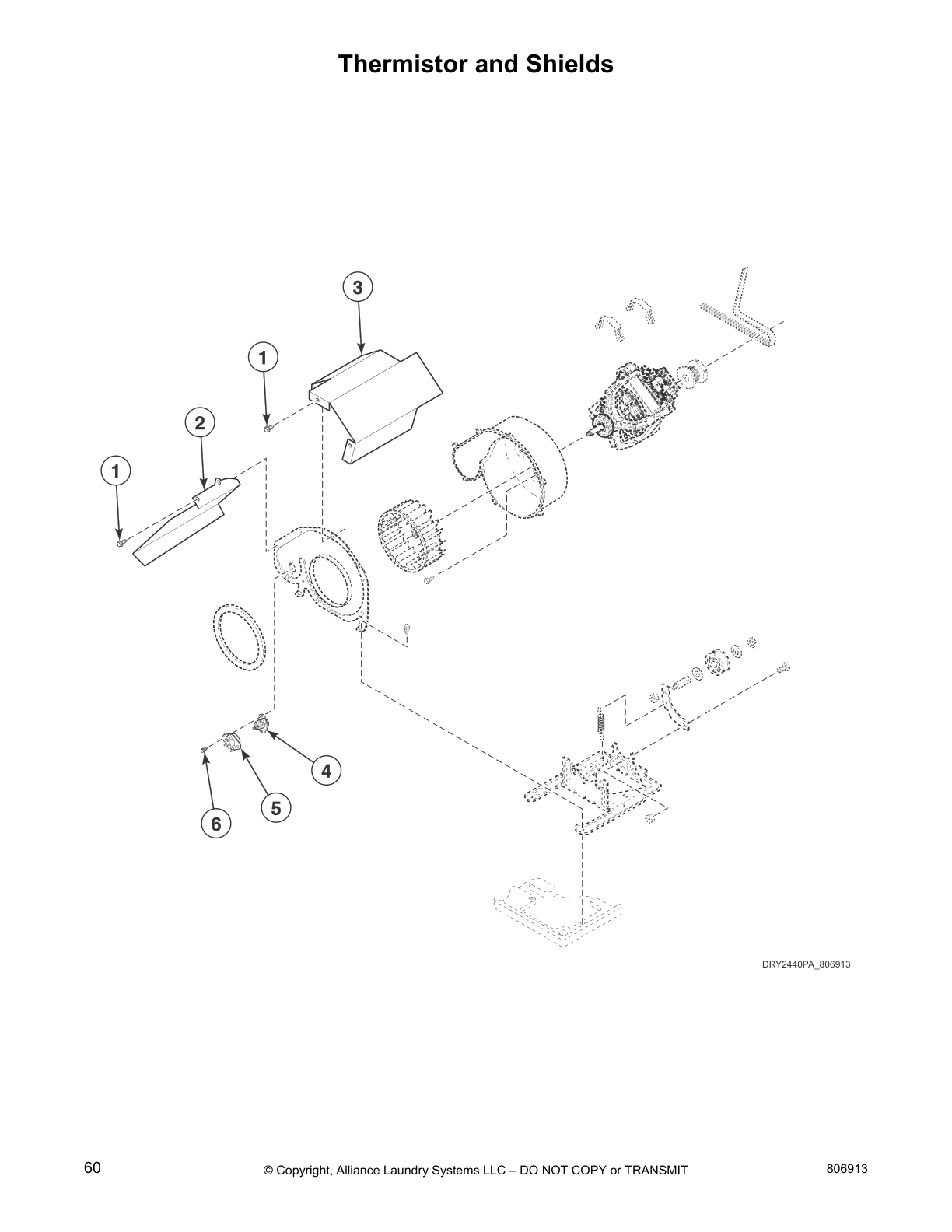

Thermistor and Shields

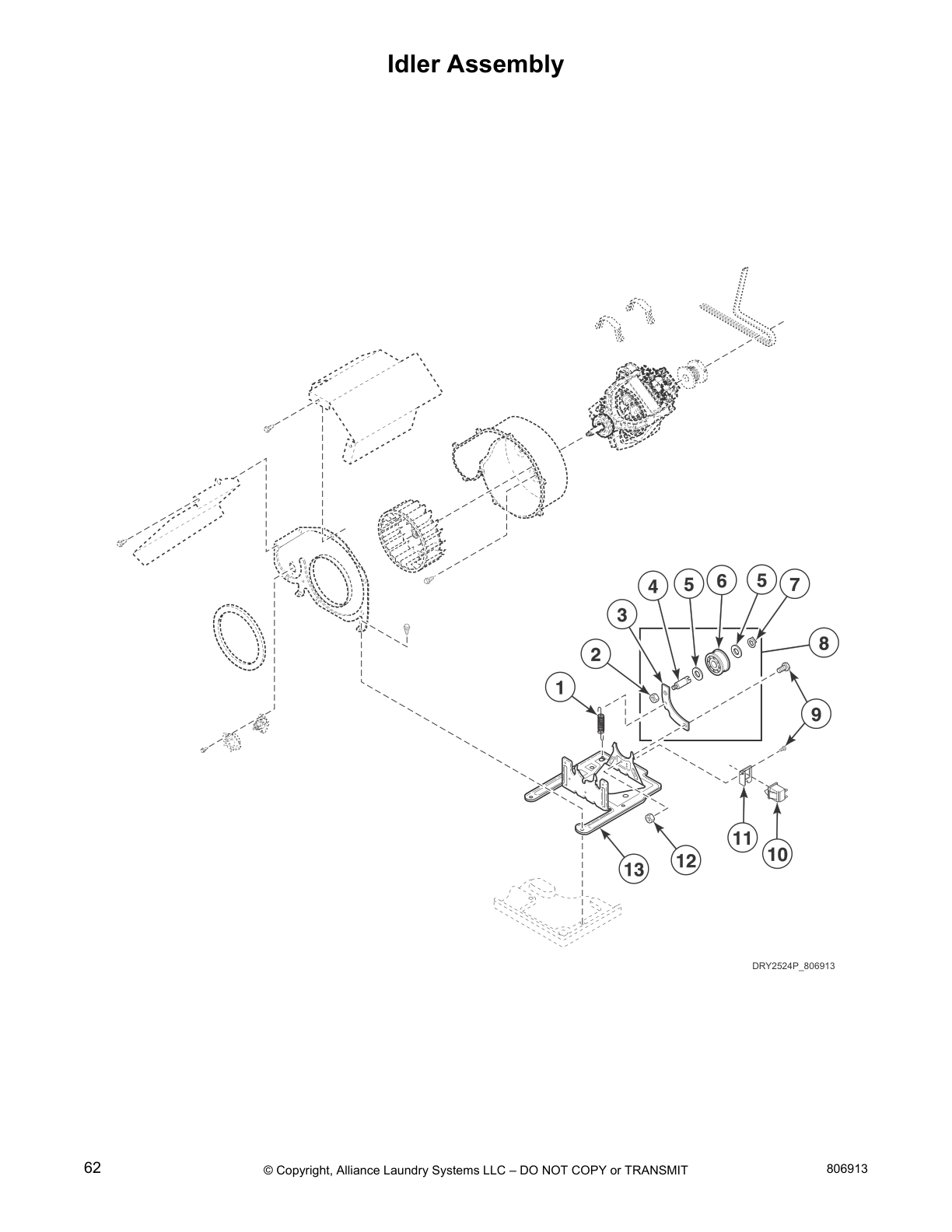

Idler Assembly

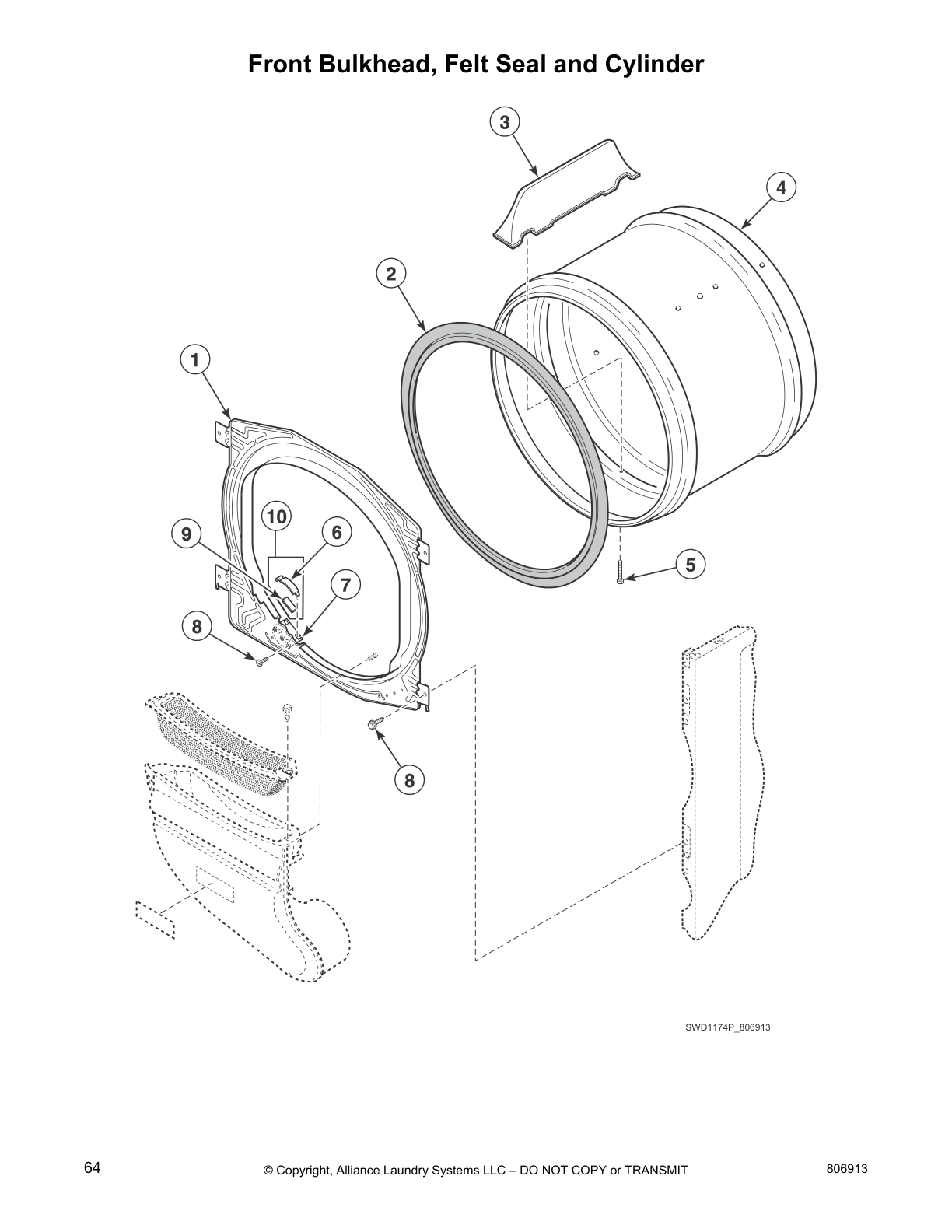

Front Bulkhead, Felt Seal and Cylinder

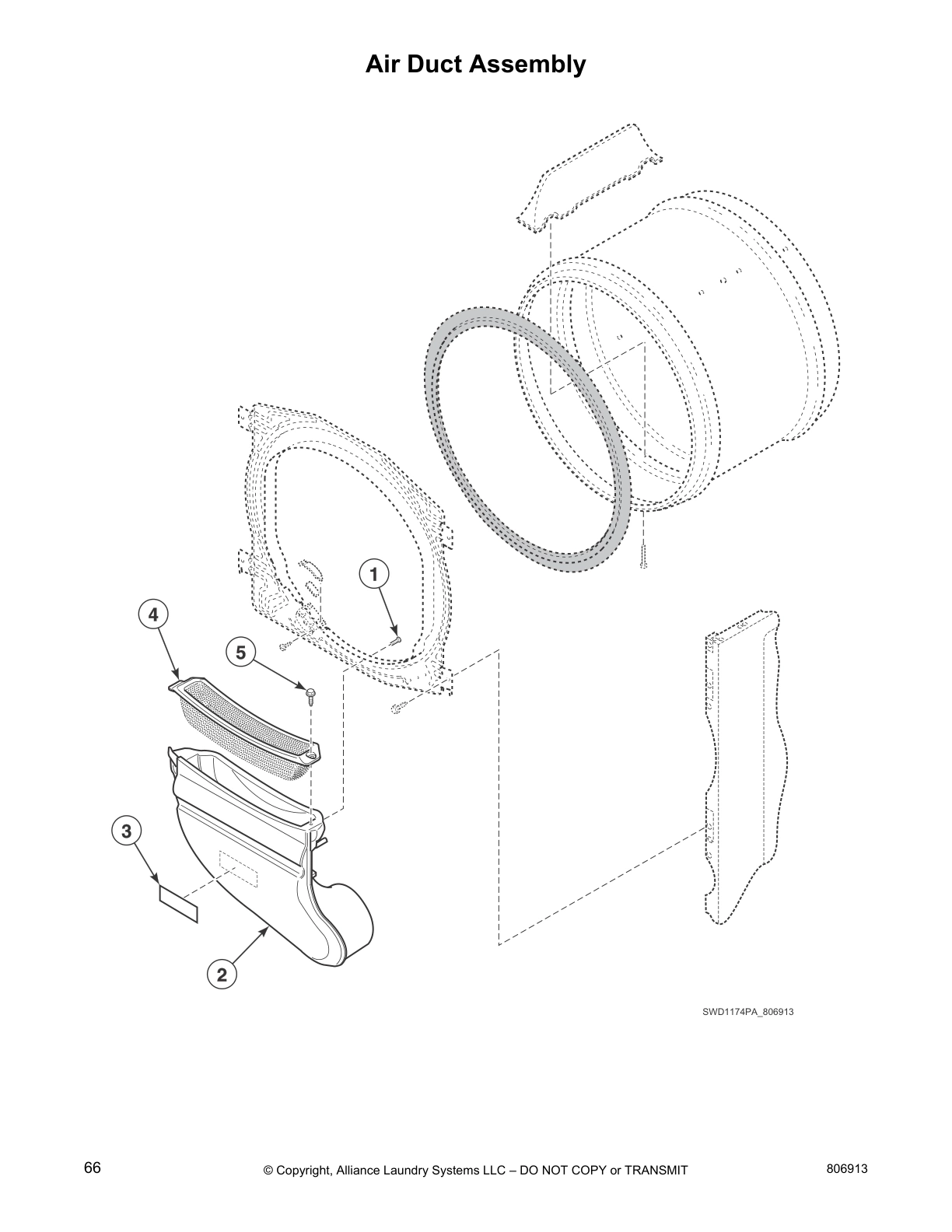

Air Duct Assembly

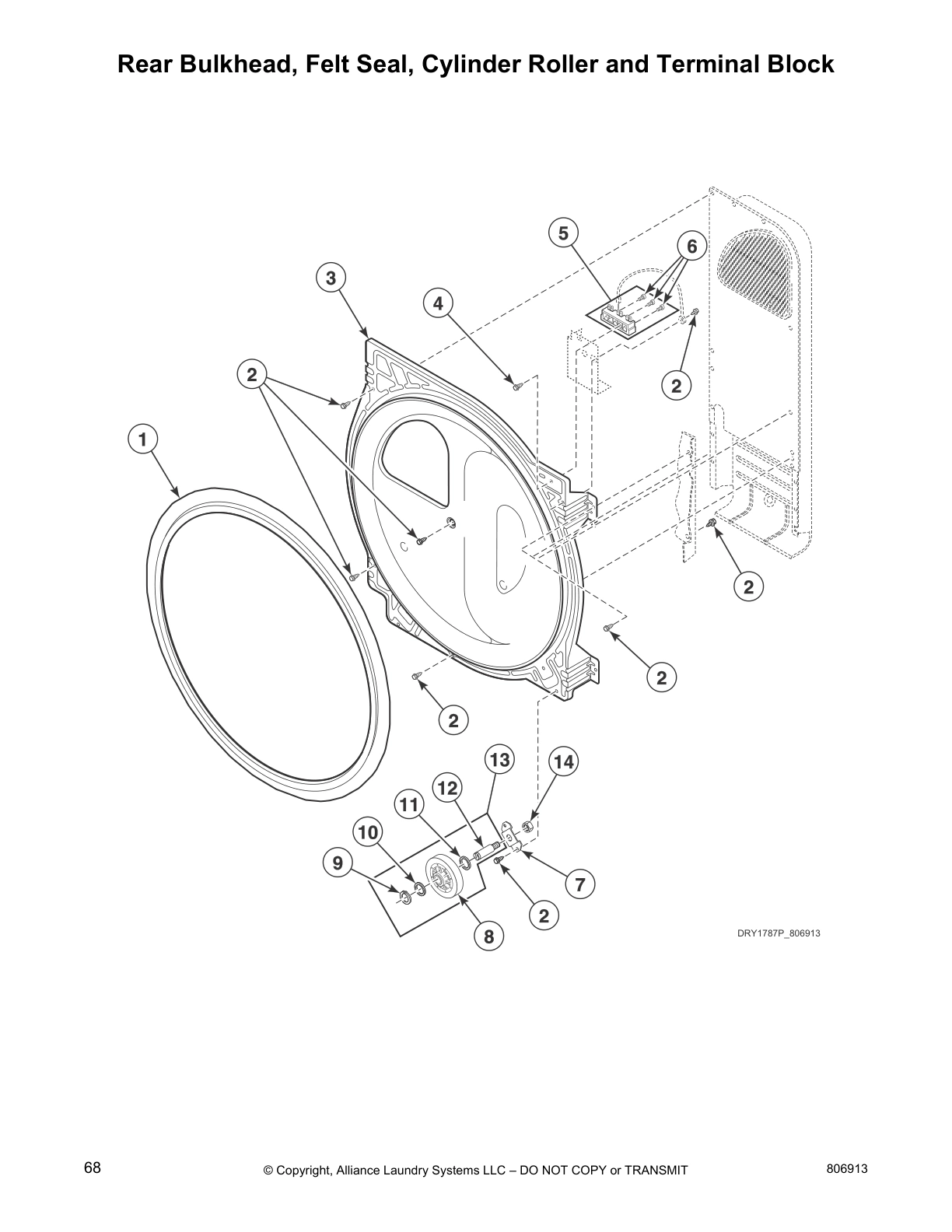

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

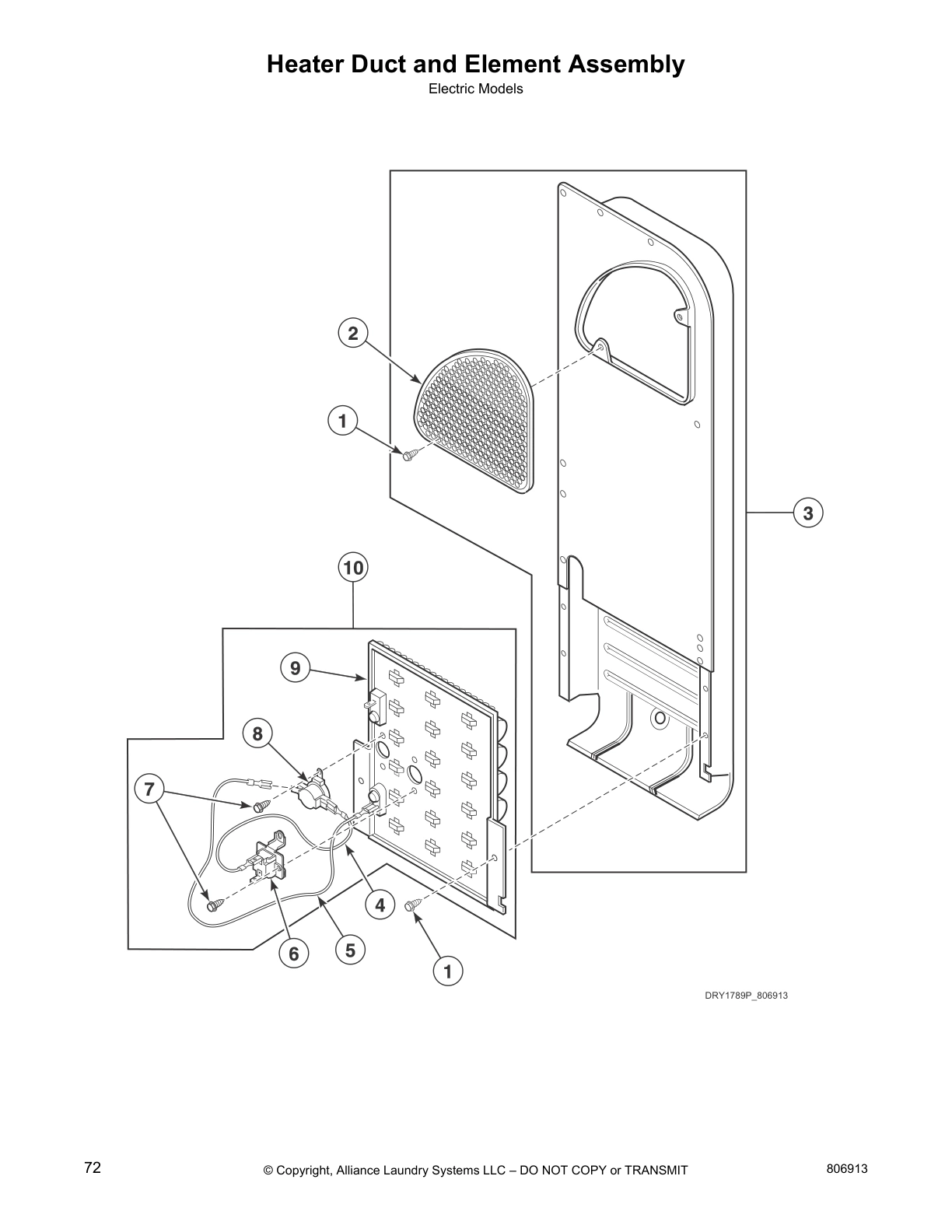

Heater Duct and Element Assembly
Heater Duct Assembly

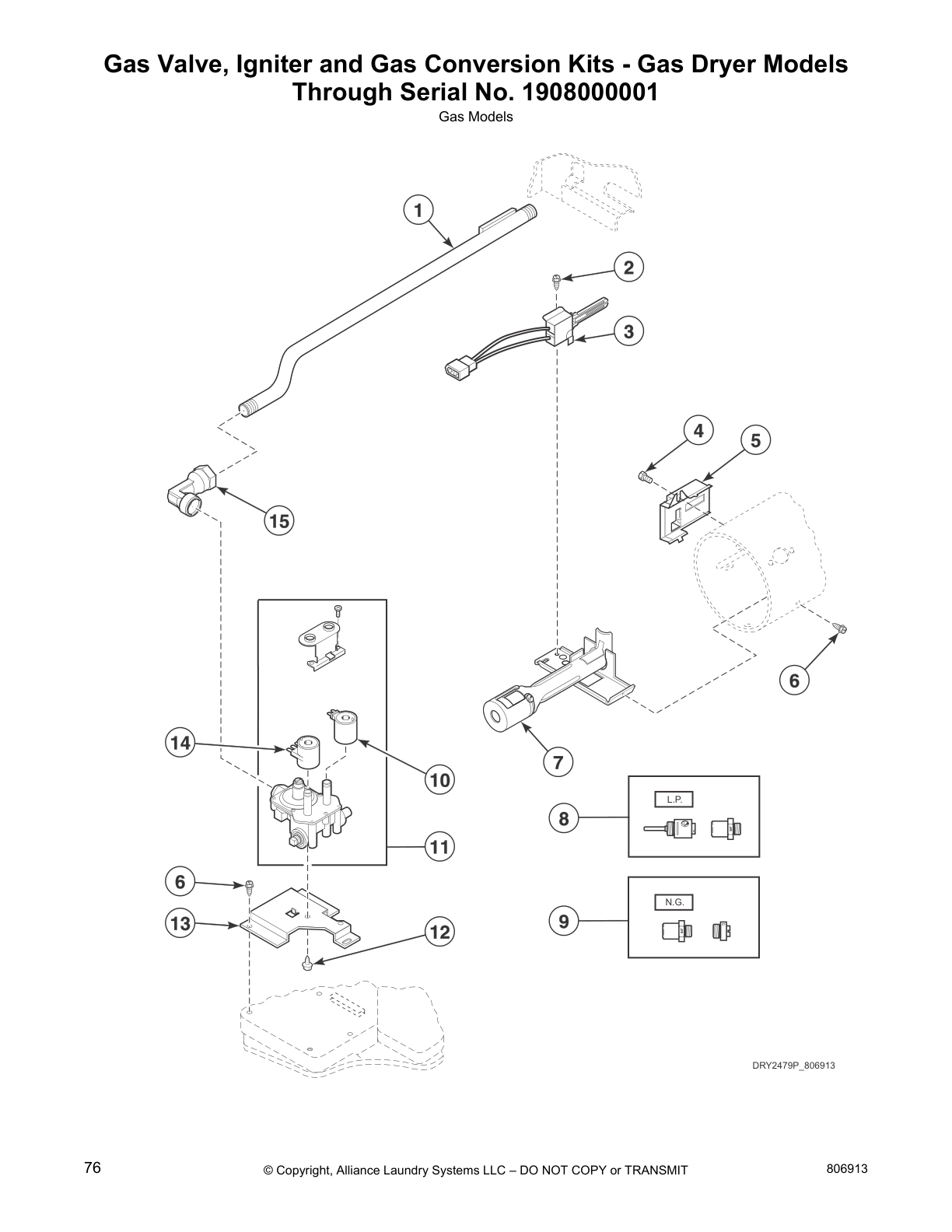

Gas Valve, Igniter and Gas Conversion Kits - Gas Dryer Models
Through Serial No. 1908000001

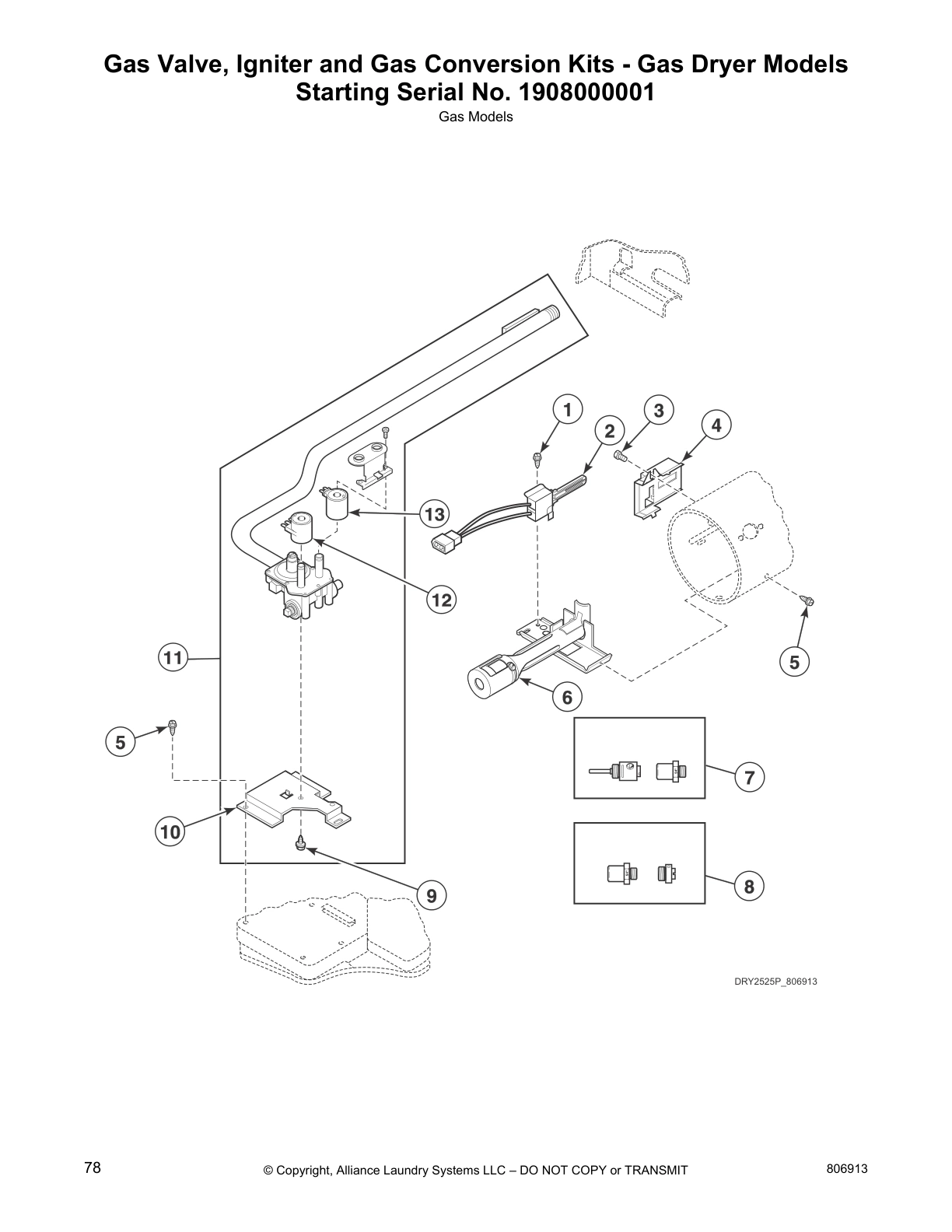

Gas Valve, Igniter and Gas Conversion Kits - Gas Dryer Models
Starting Serial No. 1908000001

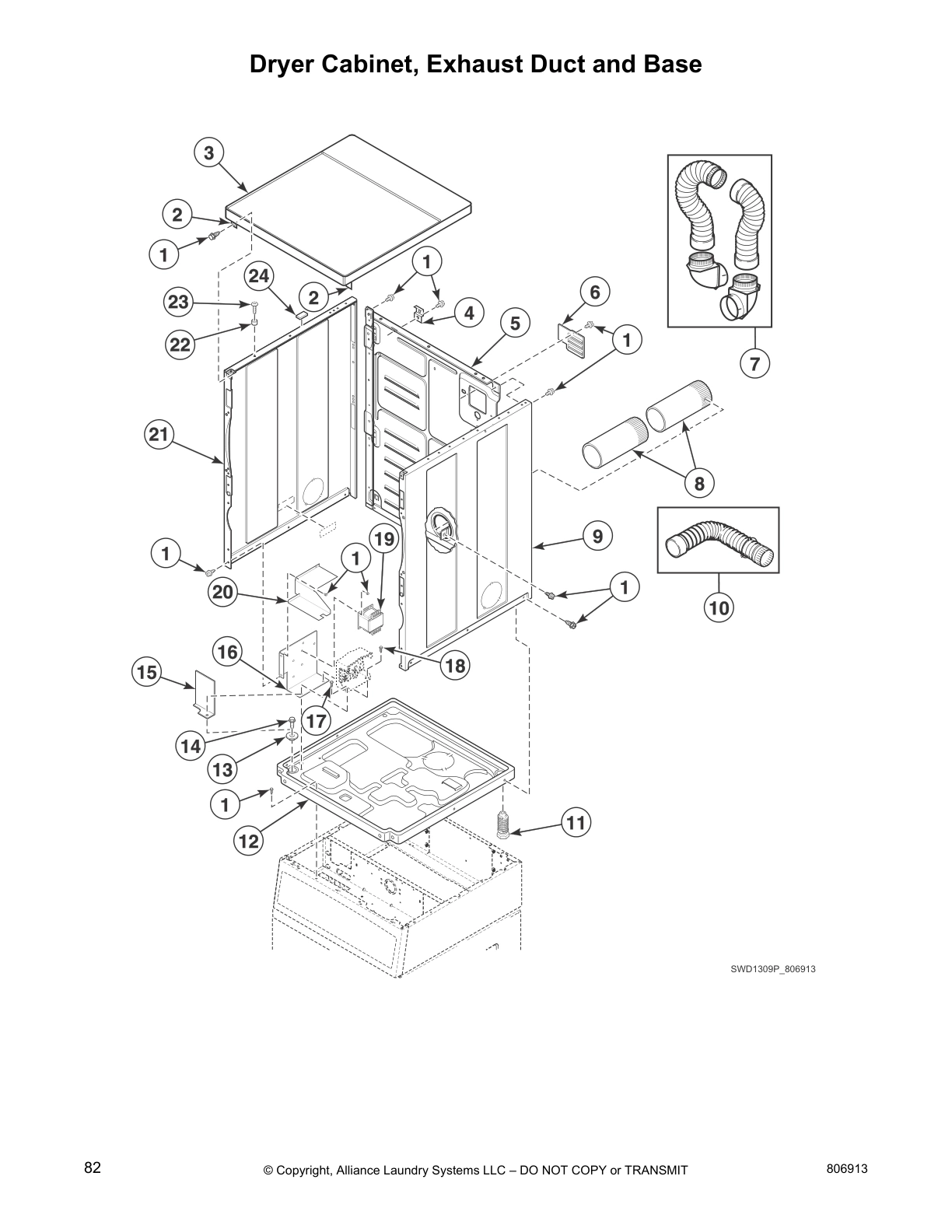

Dryer Cabinet, Exhaust Duct and Base

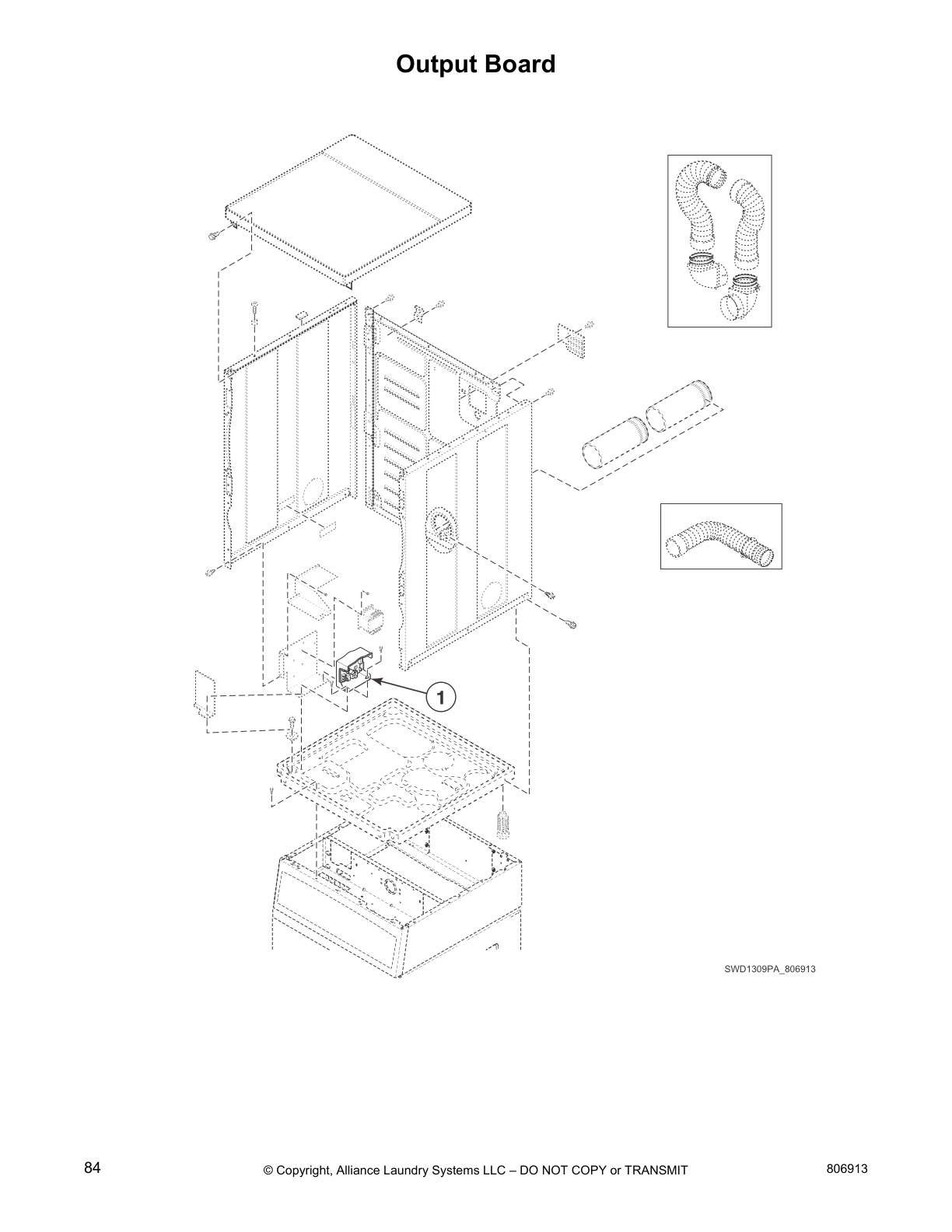

Output Board

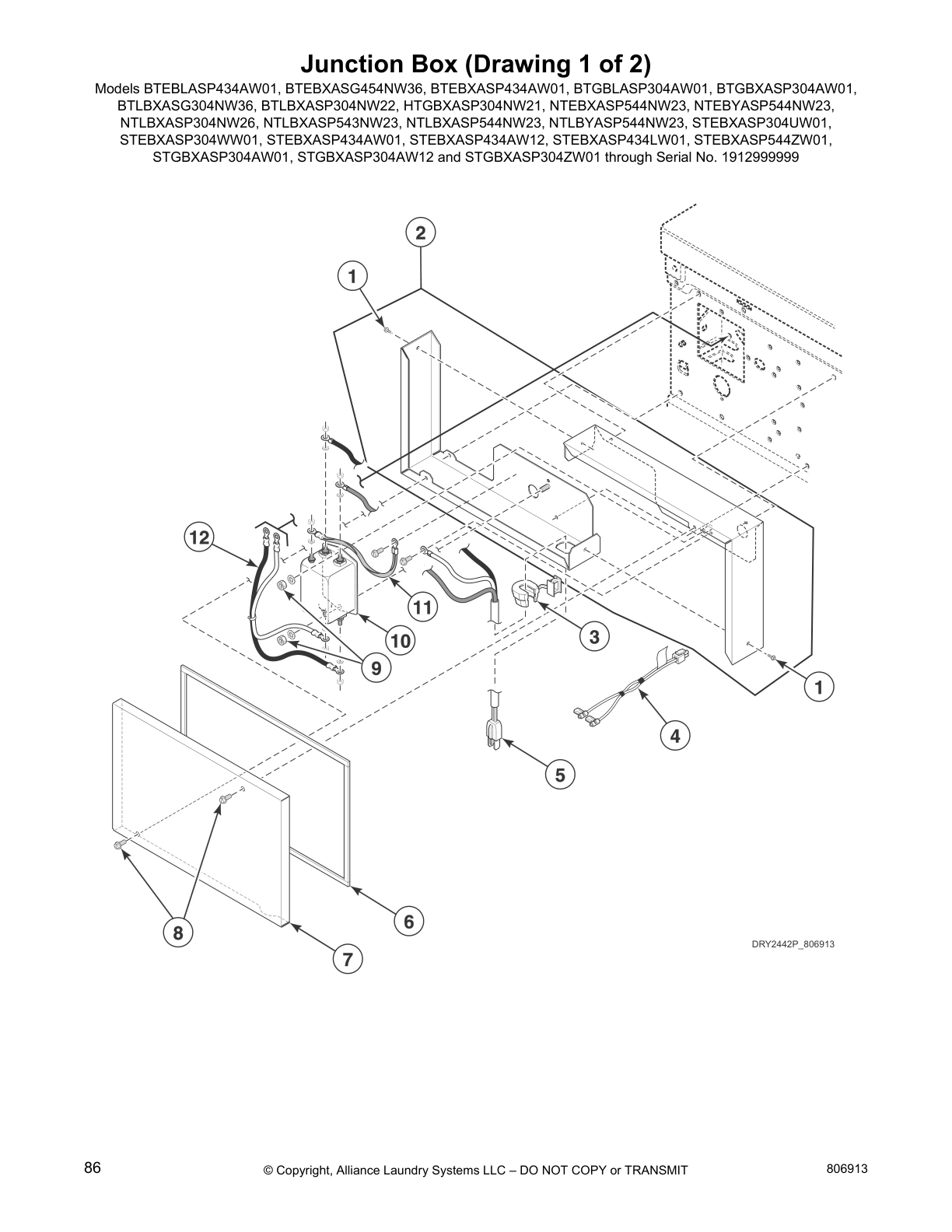

Junction Box (Drawing 1 of 2)
Junction Box (Drawing 2 of 2)

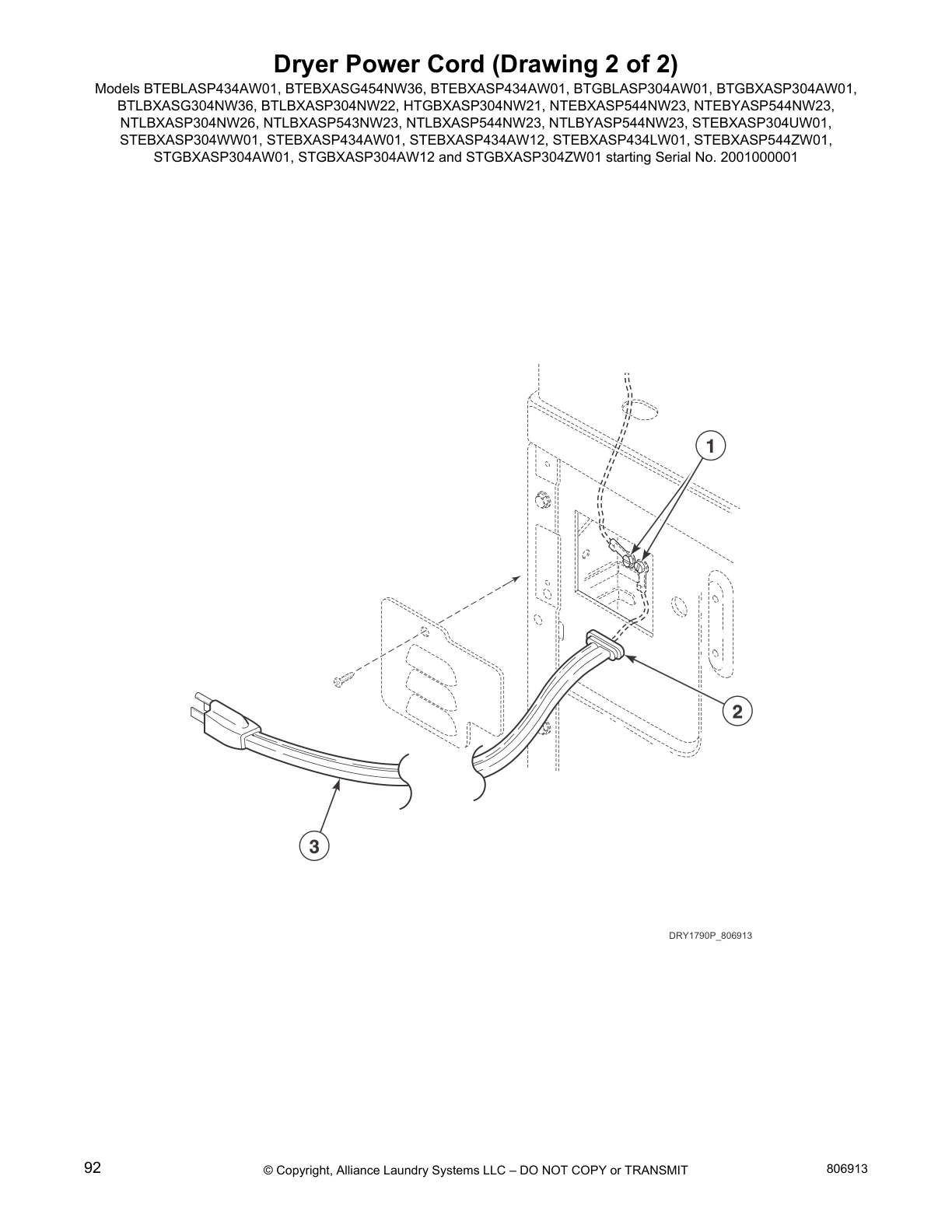

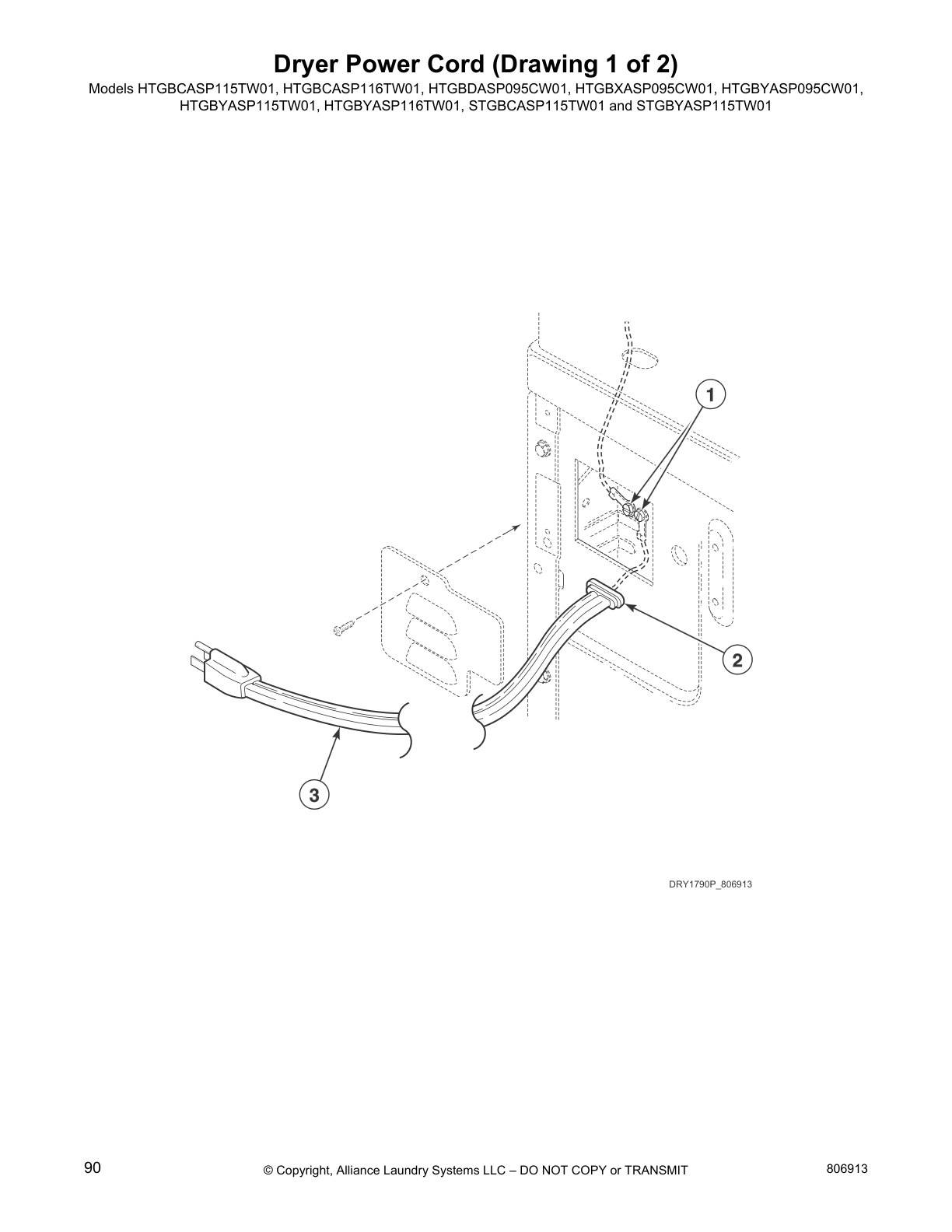

Dryer Power Cord (Drawing 1 of 2)
Dryer Power Cord (Drawing 2 of 2)

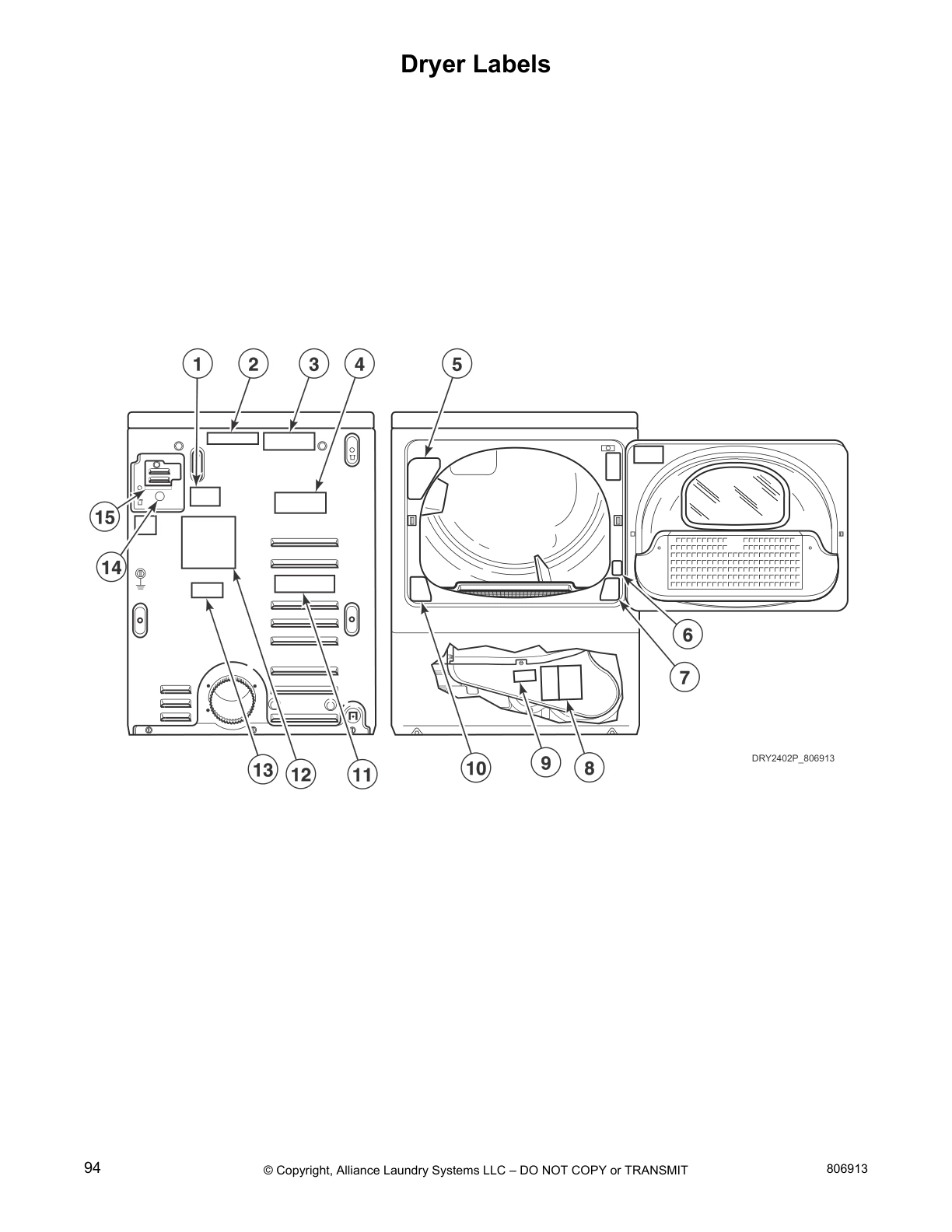

Dryer Labels

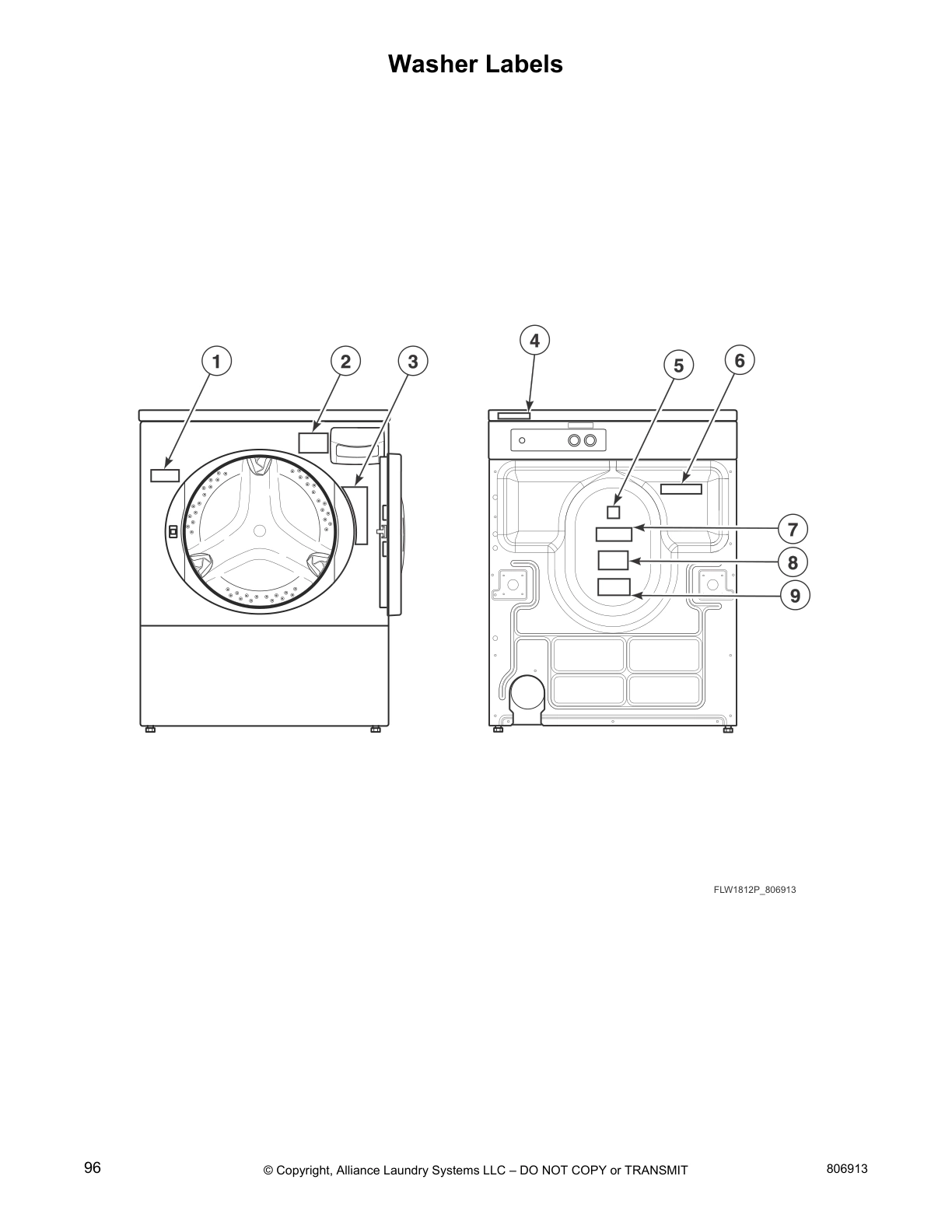

Washer Labels
Shipping Materials
Special Tools

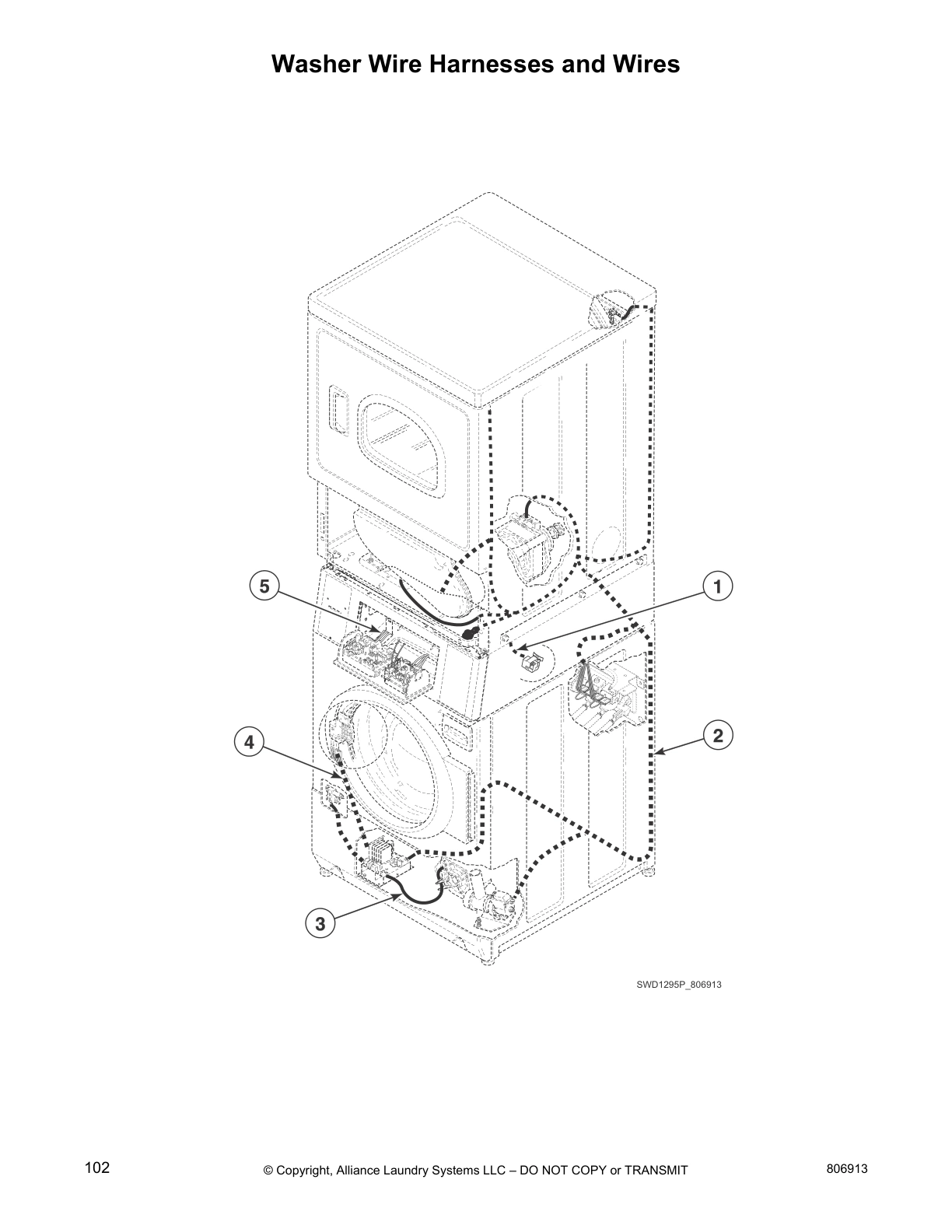

Washer Wire Harnesses and Wires

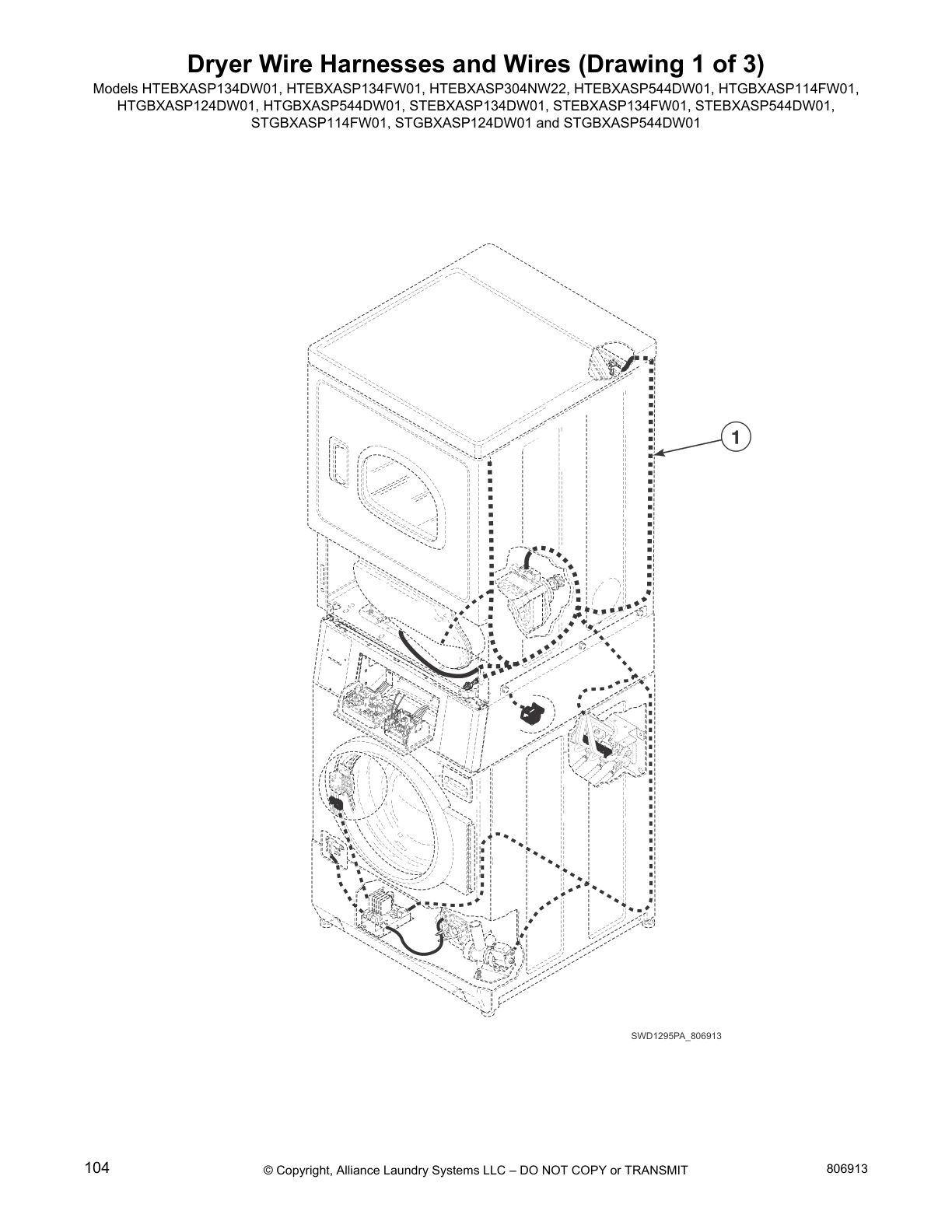

Dryer Wire Harnesses and Wires (Drawing 1 of 3)

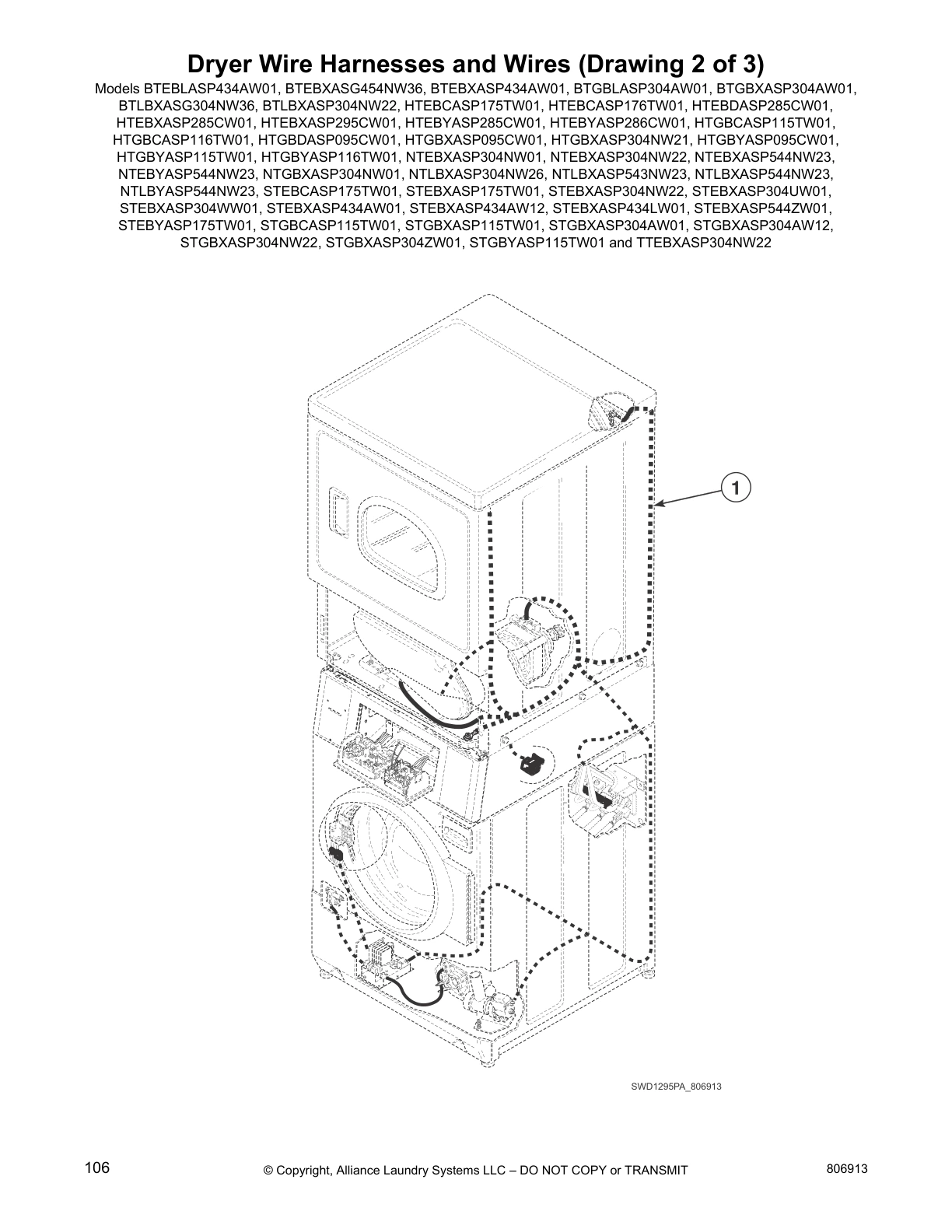

Dryer Wire Harnesses and Wires (Drawing 2 of 3)

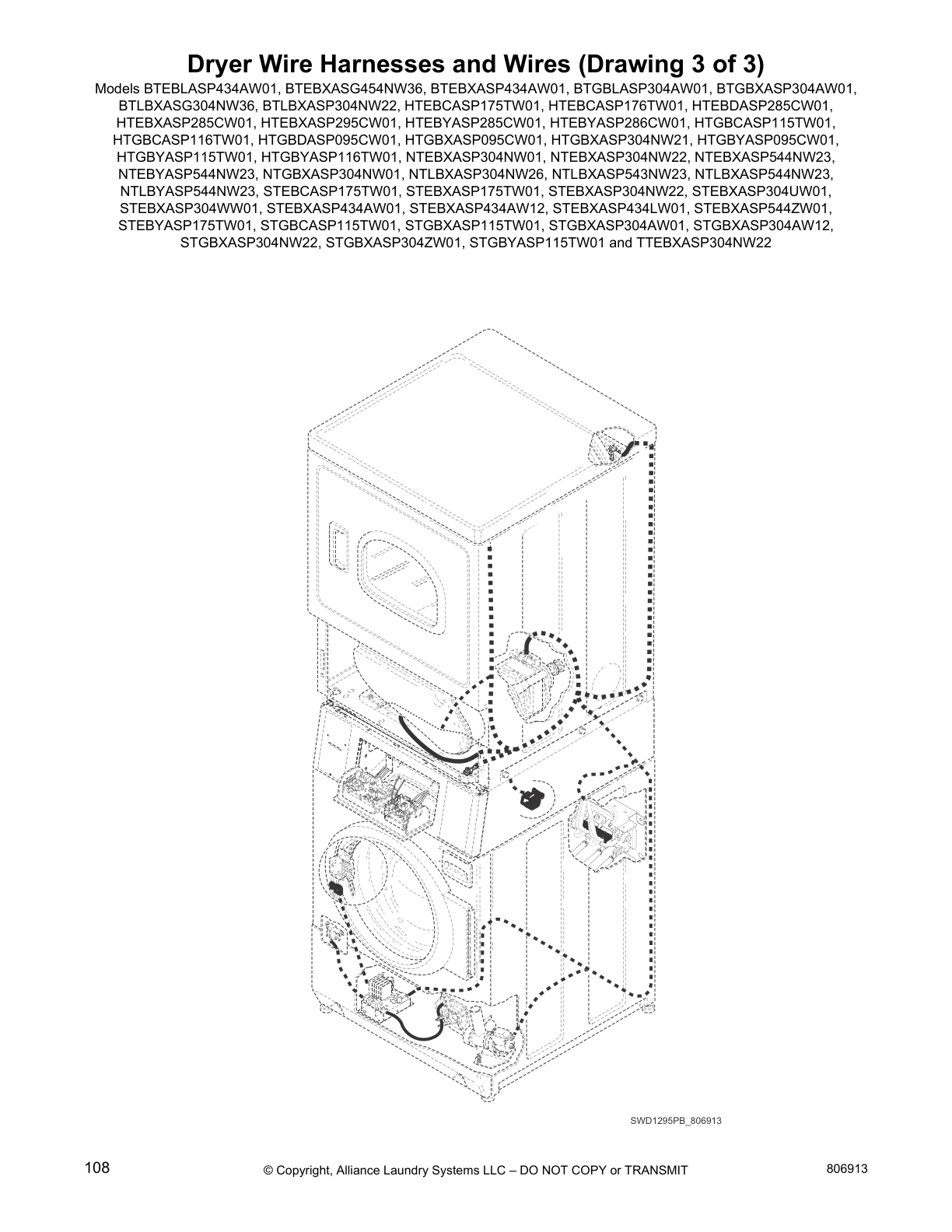

Dryer Wire Harnesses and Wires (Drawing 3 of 3)
Common parts from model Huebsch HTEBCASP176TW01 Stacked Washer and Dryer
SPQ D510708P SPQ D510708P Contact Us For Availability
SPQ 802254 SPQ 802254 Contact Us For Availability
SPQ CK115 SPQ CK115 Contact Us For Availability
SPQ CK096 SPQ CK096 Contact Us For Availability
SPQ 203719 SPQ 203719 Contact Us For Availability
SPQ CK078 SPQ CK078 Contact Us For Availability
Broken Belt Harness SPQ D517261 Contact Us For Availability
SPQ 201375P SPQ 201375P Contact Us For Availability
1
Door Strike SPQ D510181 Contact Us For Availability
1
Seal Kit SPQ RB170001 Contact Us For Availability
1
Front Bulkhead Assembly SPQ D510266P Contact Us For Availability
1
Screw SPQ D503688 Contact Us For Availability
1
Out-of-Balance Switch Assembly SPQ 807384 Contact Us For Availability
1
Idler Spring SPQ D510185 Contact Us For Availability
1
Output Control Assembly SPQ D517191P Contact Us For Availability
1
Pressure Sensor Harness SPQ 804433 Contact Us For Availability
1
Blower Housing Seal SPQ D510238P Contact Us For Availability
1
Pulley Bolt Tightening Fixture SPQ 802336 Contact Us For Availability
1
Drain Hose SPQ 27154 Contact Us For Availability
1
Speed Clip SPQ 28835 Contact Us For Availability
1
Bumper Pad SPQ 36226 Contact Us For Availability
1
Dispenser Plate SPQ 803843 Contact Us For Availability
1
Coin Identification Paper SPQ 38725 Contact Us For Availability
1
Shield Bracket SPQ 804018 Contact Us For Availability
2
Nut SPQ RB170002 Contact Us For Availability
2
Trunnion Shaft Kit SPQ 804393 Contact Us For Availability
2
Mixing Valve Screen SPQ 24122 Contact Us For Availability
2
Front Control Harness SPQ 806031 Contact Us For Availability
2
Air Duct Assembly SPQ D518433 Contact Us For Availability
2
Single Overlay SPQ 38717 Contact Us For Availability
2
Wrench SPQ 392P4 Contact Us For Availability
2
Screw SPQ 806313 Contact Us For Availability
2
Door Liner Grill SPQ D503870W Contact Us For Availability
2
Washer SPQ M400014 Contact Us For Availability
2
Screw SPQ 801001 Contact Us For Availability
2
Harness Strap SPQ 55881 Contact Us For Availability
2
Electronic Coin Drop Kit SPQ CK110 Contact Us For Availability
2
Strain Relief SPQ 38384 Contact Us For Availability
2
Bumper Pad SPQ D510146 Contact Us For Availability
3
Pressure Sensor SPQ 203843 Contact Us For Availability
3
Outlet Cover SPQ D518524 Contact Us For Availability
3
Blower Housing SPQ D511969WP Contact Us For Availability
3
Lead-In Cord SPQ 202777 Contact Us For Availability
3
Door Liner Assembly SPQ D516508 Contact Us For Availability
3
Motor Harness SPQ 806029 Contact Us For Availability
3
Hose Clamp SPQ 803829 Contact Us For Availability
3
Dryer Door Window SPQ D515681 Contact Us For Availability
3
Anti-Seize Compound SPQ 804382 Contact Us For Availability
3
Coin Drop Kit SPQ 70441602 Contact Us For Availability
3
SPQ 805548 SPQ 805548 Contact Us For Availability
3
Nut SPQ 44087201 Contact Us For Availability
4
Heater Duct Assembly SPQ D500820 Contact Us For Availability
4
Lint Filter SPQ D503980W Contact Us For Availability
4
Lock Cam SPQ 54612 Contact Us For Availability
4
SPQ 804376P SPQ 804376P Contact Us For Availability
4
Front Panel Seal SPQ D511056 Contact Us For Availability
4
Dispenser Inlet Hose SPQ 803849 Contact Us For Availability
4
Screw SPQ D500226 Contact Us For Availability
4
Door Lock Harness Assembly SPQ 806028 Contact Us For Availability
4
Motor Mount Clamp SPQ D510180 Contact Us For Availability
4
Exhaust Duct SPQ D510136 Contact Us For Availability
4
SPQ 804467 SPQ 804467 Contact Us For Availability
5
Cylinder Belt SPQ D511255P Contact Us For Availability
5
Thermistor Assembly SPQ D510523 Contact Us For Availability
5
Switch SPQ D512973 Contact Us For Availability
5
Rear Bulkhead Assembly SPQ D511082P Contact Us For Availability
5
Hinge SPQ D511036 Contact Us For Availability
5
Dispenser Assembly SPQ 803698 Contact Us For Availability
5
Front Panel SPQ D510066WP Contact Us For Availability
5
SPQ 803879 SPQ 803879 Contact Us For Availability
5
Cylinder Baffle SPQ D510102W Contact Us For Availability
5
Cabinet Panel Kit SPQ 800004WP Contact Us For Availability
5
SPQ 804374P SPQ 804374P Contact Us For Availability
5
Pump-to-Elbow Hose SPQ 35766 Contact Us For Availability
5
Wire Guard SPQ 201595P Contact Us For Availability
5
Wiring Harness Assembly SPQ 804339P Contact Us For Availability
5
Nut SPQ 687500 Contact Us For Availability
5
Security Cabinet Harness SPQ D513991 Contact Us For Availability
6
Retaining Ring SPQ D510142P Contact Us For Availability
6
Motor Pulley SPQ D500011 Contact Us For Availability
6
Terminal Block Assembly SPQ D510905WP Contact Us For Availability
6
Cylinder Assembly SPQ D510265WP Contact Us For Availability
6
Detergent Hose SPQ 804717 Contact Us For Availability
6
SPQ D502535 SPQ D502535 Contact Us For Availability
6
SPQ 802343 SPQ 802343 Contact Us For Availability
6
Meter Case Assembly SPQ 807396W Contact Us For Availability
7
Motor and Pulley Assembly SPQ D511629P Contact Us For Availability
7
Door Pull and Wedge Kit SPQ D510103WP Contact Us For Availability
7
SPQ 808095 SPQ 808095 Contact Us For Availability
7
SPQ D510903 SPQ D510903 Contact Us For Availability
7
Cylinder Roller Bracket SPQ D501285 Contact Us For Availability
7
Screw SPQ 62588 Contact Us For Availability
7
Shipping Plug SPQ 806716 Contact Us For Availability
7
Limit Thermostat SPQ D518256 Contact Us For Availability
8
Screw SPQ D516792 Contact Us For Availability
8
SPQ 802803 SPQ 802803 Contact Us For Availability
8
Cylinder Roller SPQ D510190P Contact Us For Availability
8
Cylinder Glide SPQ D513710 Contact Us For Availability
8
Shipping Plate SPQ 803789 Contact Us For Availability
8
SPQ 33562 SPQ 33562 Contact Us For Availability
8
Motor Hub Ring Kit SPQ 590P3 Contact Us For Availability
8
Heater Assembly SPQ D518255 Contact Us For Availability
8
Rear Access Panel SPQ 70240301 Contact Us For Availability
8
Door Handle Wedge SPQ D510129W Contact Us For Availability
9
Cylinder Glide Bracket SPQ D510145 Contact Us For Availability
9
SPQ D514250WP SPQ D514250WP Contact Us For Availability
9
SPQ D516196 SPQ D516196 Contact Us For Availability
9
SPQ D500824 SPQ D500824 Contact Us For Availability
9
SPQ 801993 SPQ 801993 Contact Us For Availability
9
SPQ 800310 SPQ 800310 Contact Us For Availability
9
Porcelain Touch-Up Paint SPQ 803859 Contact Us For Availability
10
Heater Kit SPQ 964P3 Contact Us For Availability
10
Blower Fan Assembly SPQ D510139P Contact Us For Availability
10
Glide Kit SPQ RB170003 Contact Us For Availability
10
Hose Clip SPQ 803415 Contact Us For Availability
10
Adhesive SPQ D511637P Contact Us For Availability
10
Door Hinge SPQ 802934 Contact Us For Availability
10
Dispenser Handle SPQ 804227WP Contact Us For Availability
10
Panel Locator SPQ 56079 Contact Us For Availability
10
Belt Kit SPQ 807429P Contact Us For Availability
10
Switch SPQ D516391 Contact Us For Availability
10
Overlay Kit SPQ 38676 Contact Us For Availability
10
Screw SPQ D503661 Contact Us For Availability
11
Cylinder Seal Assembly SPQ D510207P Contact Us For Availability
11
Leveling Leg SPQ D510135 Contact Us For Availability
11
Washer SPQ 807679 Contact Us For Availability
11
Nut SPQ 23951 Contact Us For Availability
11
Motor and Rod Assembly Kit SPQ 808067P Contact Us For Availability
11
Side Panel Kit SPQ 806492 Contact Us For Availability
11
Pressure Sensor Tube Assembly SPQ 36985 Contact Us For Availability
11
Hinge SPQ D505295 Contact Us For Availability
12
Washer SPQ 52549 Contact Us For Availability
12
Screw SPQ 685831 Contact Us For Availability
12
Hose Clamp SPQ 804483 Contact Us For Availability
12
Dryer Base SPQ D514245 Contact Us For Availability
12
Glass Mounting Clip SPQ 802700 Contact Us For Availability
13
Door Catch Assembly SPQ D510177 Contact Us For Availability
13
Shaft SPQ D504082 Contact Us For Availability
13
Washer SPQ 26509 Contact Us For Availability
13
Balance Ring Assembly SPQ M403958 Contact Us For Availability
14
Roller Kit SPQ 56461P Contact Us For Availability
14
Rubber Foot SPQ D501855 Contact Us For Availability
14
Outer Tub Assembly SPQ 29175 Contact Us For Availability
15
Rubber Foot SPQ 34318 Contact Us For Availability
15
Hinge Hole Plug SPQ D510186 Contact Us For Availability
16
Anchor Floor Mount Assembly SPQ 802844P Contact Us For Availability
16
Pump Housing Assembly SPQ 802429P Contact Us For Availability
17
Wire Ring and Spring SPQ 806466 Contact Us For Availability
17
Tub Front SPQ 803864 Contact Us For Availability
17
Pump Housing SPQ 802434P Contact Us For Availability
18
Hose Clamp SPQ 802281 Contact Us For Availability
18
Foreign Object Deflector SPQ 803770 Contact Us For Availability
18
Gasket SPQ 802428 Contact Us For Availability
18
Panel Locator SPQ 804667 Contact Us For Availability
19
Tub Front Seal SPQ 806361 Contact Us For Availability
19
Standpipe Strap SPQ 802427 Contact Us For Availability
20
Clamp Ring SPQ 806308 Contact Us For Availability
20
Front Panel SPQ 802206 Contact Us For Availability
20
Sealant SPQ 802426P Contact Us For Availability
21
Nut SPQ 803801 Contact Us For Availability
21
Top Kit SPQ D510001WP Contact Us For Availability
23
Door Glass Mounting Plate SPQ 36020 Contact Us For Availability
23
Clothes Guard Deflector SPQ 803802 Contact Us For Availability
24
Access Panel Plate SPQ 56128 Contact Us For Availability
25
Inner Door Bezel Kit SPQ 804617W Contact Us For Availability
27
Pressure Bulb SPQ 802596 Contact Us For Availability
NI
SPQ D510329P SPQ D510329P Contact Us For Availability
NI
SPQ D510189 SPQ D510189 Contact Us For Availability
NI
SPQ 23748 SPQ 23748 Contact Us For Availability
NI
SPQ 70441601P SPQ 70441601P Contact Us For Availability
NI
SPQ D510002WP SPQ D510002WP Contact Us For Availability
NI
SPQ D510100 SPQ D510100 Contact Us For Availability
NI
SPQ 803615 SPQ 803615 Contact Us For Availability
NI
SPQ 203423 SPQ 203423 Contact Us For Availability
NI
SPQ 38462P SPQ 38462P Contact Us For Availability
NI
SPQ 203720 SPQ 203720 Contact Us For Availability
NI
SPQ 70441603 SPQ 70441603 Contact Us For Availability
NI
SPQ M400080 SPQ M400080 Contact Us For Availability
NI
18 Gauge Wire SPQ 45001 Contact Us For Availability
× ![]()
