Model GE HDENYRGS153CW01 General Electric Model HDENYRGS153CW01 – Common Parts & Diagrams
Terminal Block - Gas and 1 Phase Electric Models
Terminals
Thermistor

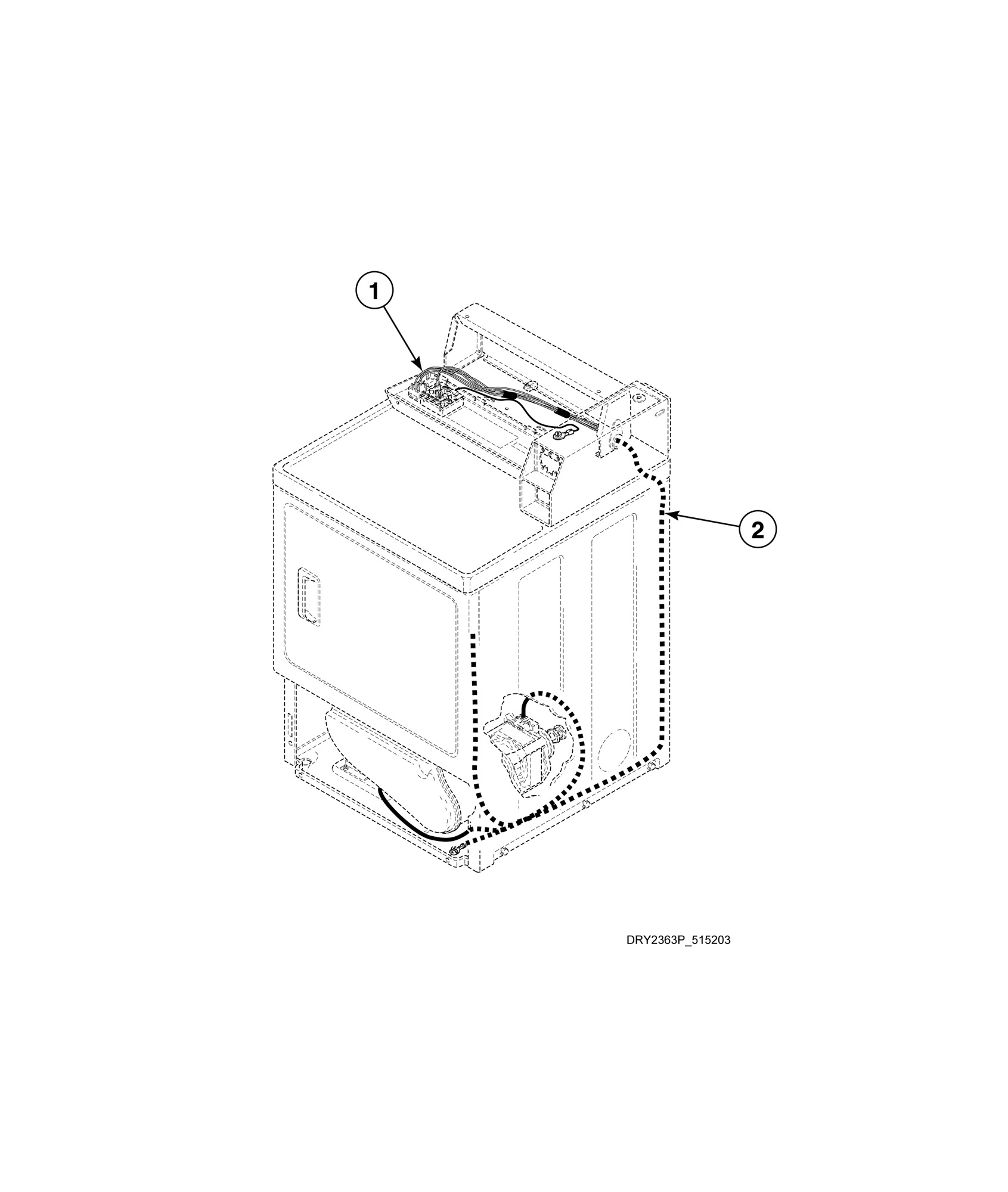

Wire Harnesses and Wires - Rear Control Models
Common parts from model GE HDENYRGS153CW01 General Electric Model HDENYRGS153CW01
1
Screw GEN D501285 Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
1
Screw GEN D502535 Contact Us For Availability
1
Wire Harness Assembly GEN D512422P Contact Us For Availability
2
Terminal Block Shield (Comment: Through Seria GEN D510237 Contact Us For Availability
2
Female Spade Terminal GEN 00189 Contact Us For Availability
2
Thermistor Assembly GEN D510523 Contact Us For Availability
2
NOT ON YOUR MODEL GEN - Contact Us For Availability
3
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
3
Female Piggyback Terminal GEN 00361 Contact Us For Availability
4
Screw GEN 61199 Contact Us For Availability
4
2 Circuit Connector GEN 58799 Contact Us For Availability
4
Electric Harness GEN D513984 Contact Us For Availability
5
Screw GEN D503688 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (2) GEN 00121 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00223 Contact Us For Availability
5
Spade Terminal (Comment: 1/4 inch, (1) 22 gau GEN 00245 Contact Us For Availability
6
Nut GEN 28447 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, (1 GEN 00124 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, Th GEN 00156 Contact Us For Availability
7
Screw GEN 28448 Contact Us For Availability
7
Female Spade Terminal (Comment: 1/4 inch) GEN 00222 Contact Us For Availability
8
Washer GEN 28449 Contact Us For Availability
8
Terminal GEN 00347 Contact Us For Availability
9
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00115 Contact Us For Availability
10
Receptacle Housing GEN 90789 Contact Us For Availability
11
Insulated Female Terminal (Comment: 3/16 inch GEN 00165 Contact Us For Availability
11
Insulated Female Spade Terminal (Comment: 1/4 GEN 00359 Contact Us For Availability
12
Ring Terminal (Comment: (1) 18 gauge wire) GEN 00110 Contact Us For Availability
12
Ring Terminal (Comment: (2) 18 gauge wires or GEN 00111 Contact Us For Availability
12
Ring Terminal (Comment: (2) 18 gauge wires or GEN 00319 Contact Us For Availability
13
Female Spade Terminal (Comment: 1/4 inch, Dou GEN 00114 Contact Us For Availability
14
Male Tab Terminal (Comment: 1/4 inch, (2) 18 GEN 00139 Contact Us For Availability
15
Female Tab Terminal GEN 00344 Contact Us For Availability
16
Terminal GEN 00252 Contact Us For Availability
17
9 Circuit Plug GEN 23033 Contact Us For Availability
17
6 Circuit Plug GEN 23041 Contact Us For Availability
17
GEN 26302 GEN 26302 Contact Us For Availability
18
GEN 26163 GEN 26163 Contact Us For Availability
18
GEN 56855 GEN 56855 Contact Us For Availability
19
GEN 00221 GEN 00221 Contact Us For Availability
20
GEN 26301 GEN 26301 Contact Us For Availability
20
GEN 26708 GEN 26708 Contact Us For Availability
21
GEN 54522 GEN 54522 Contact Us For Availability
22
GEN 34596 GEN 34596 Contact Us For Availability
22
GEN D501333 GEN D501333 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
