Model Speed Queen SSEBXAGS303UW01 Dryer – Common Parts & Diagrams

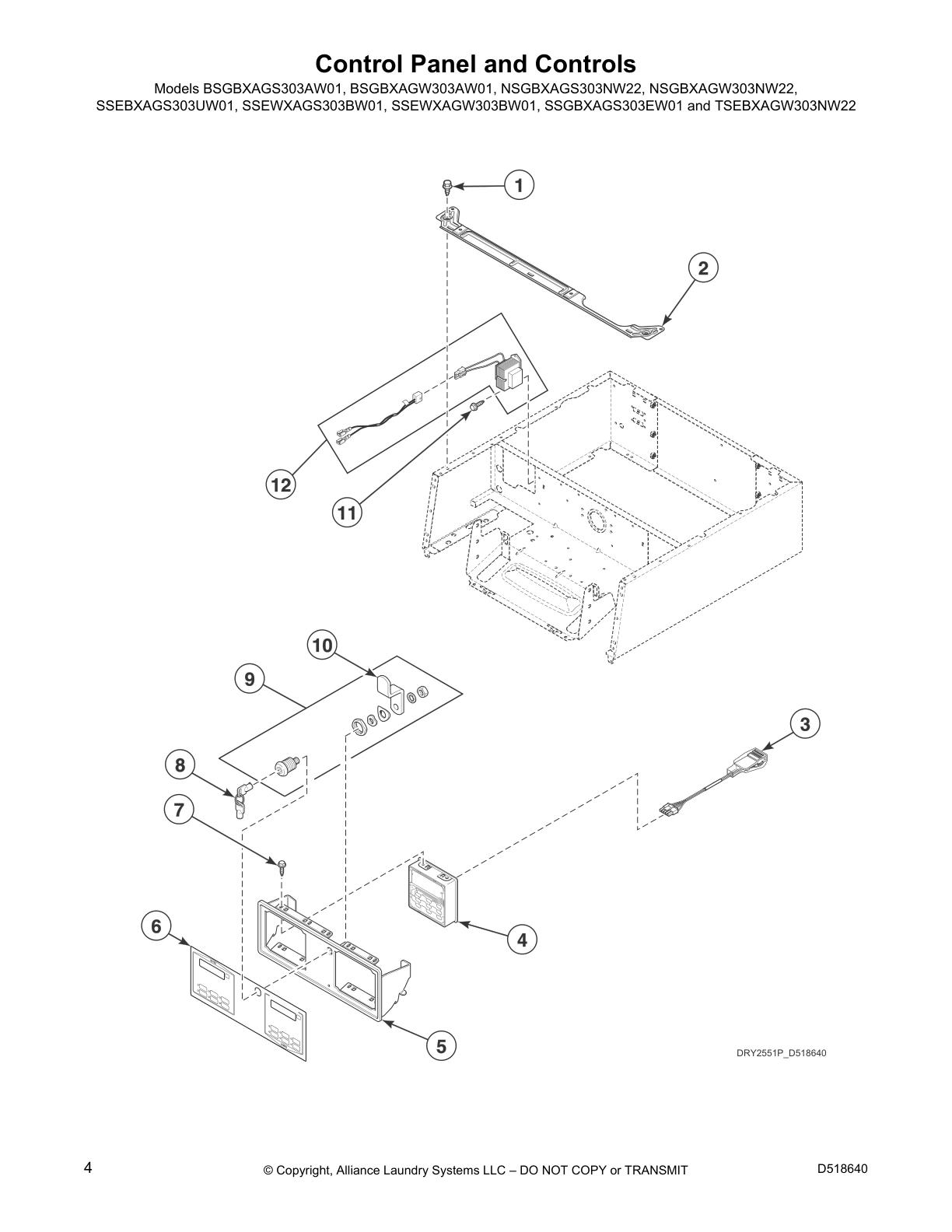

Control Panel and Controls

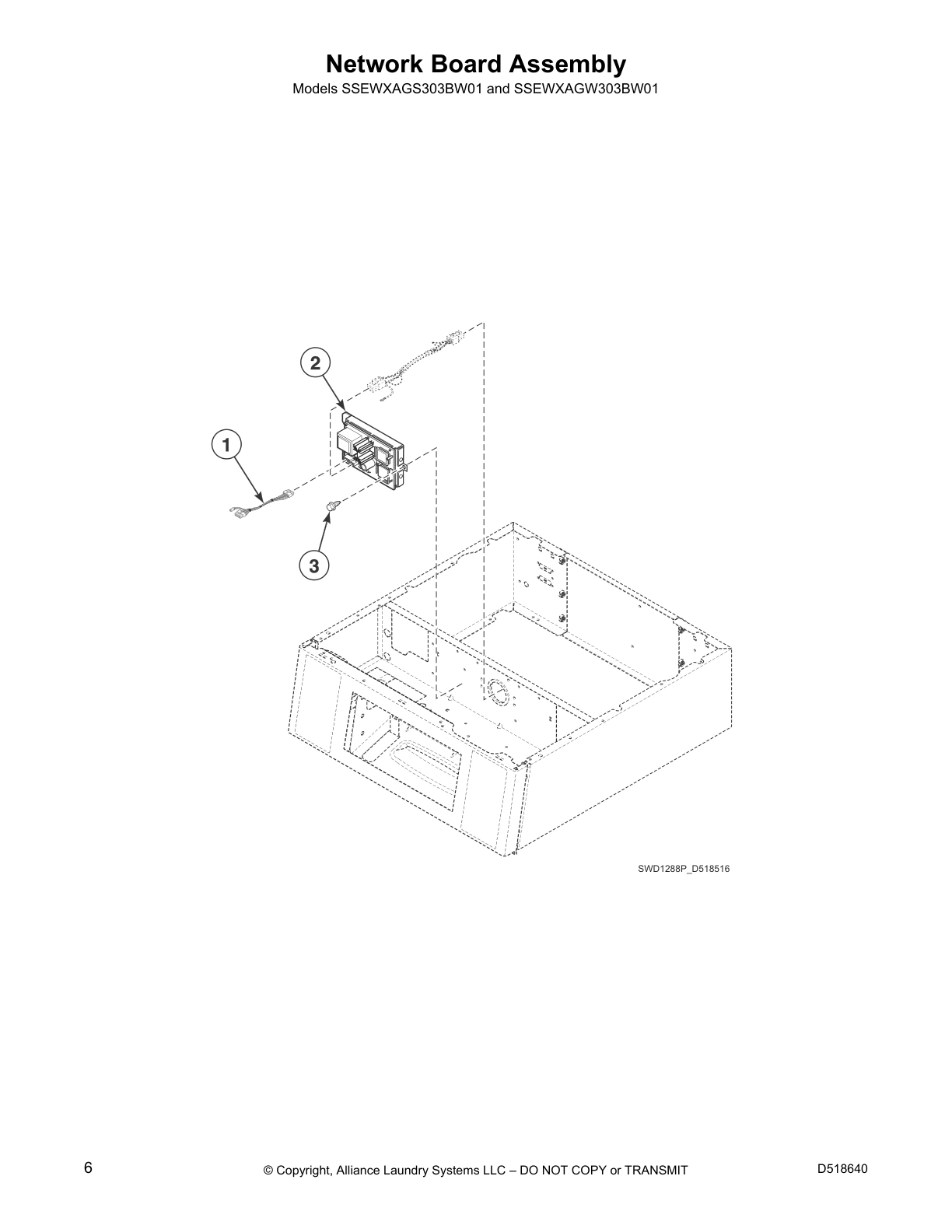

Network Board Assembly

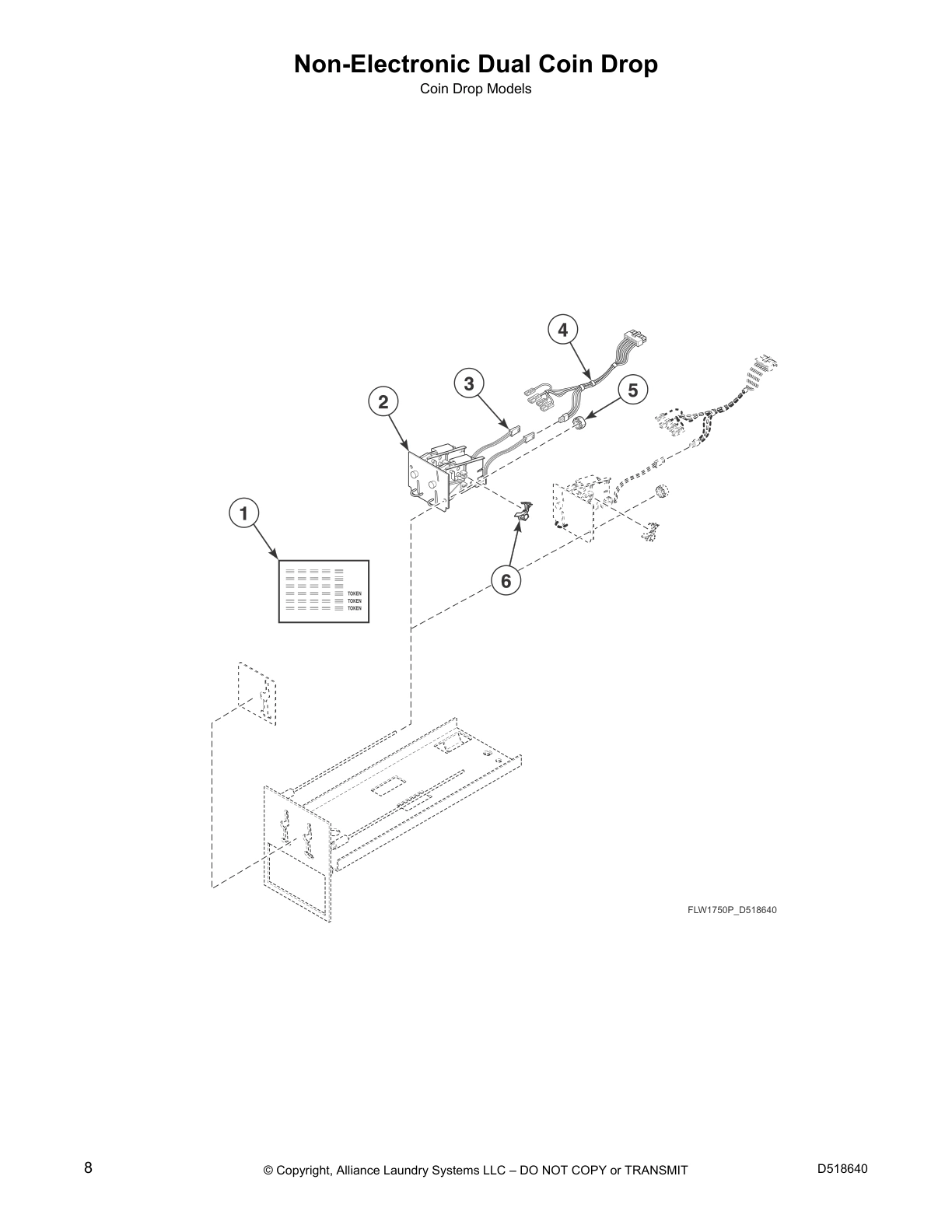

Non-Electronic Dual Coin Drop

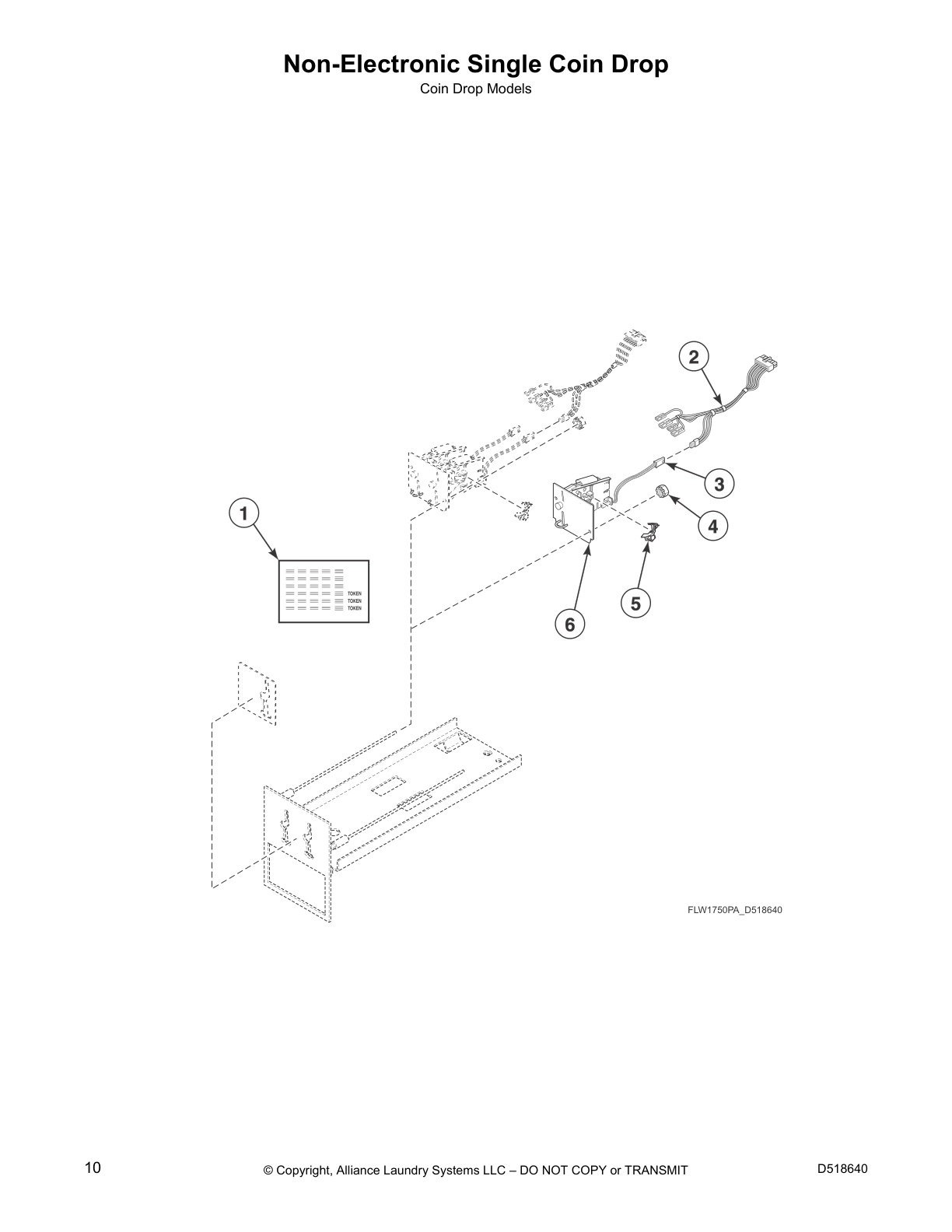

Non-Electronic Single Coin Drop

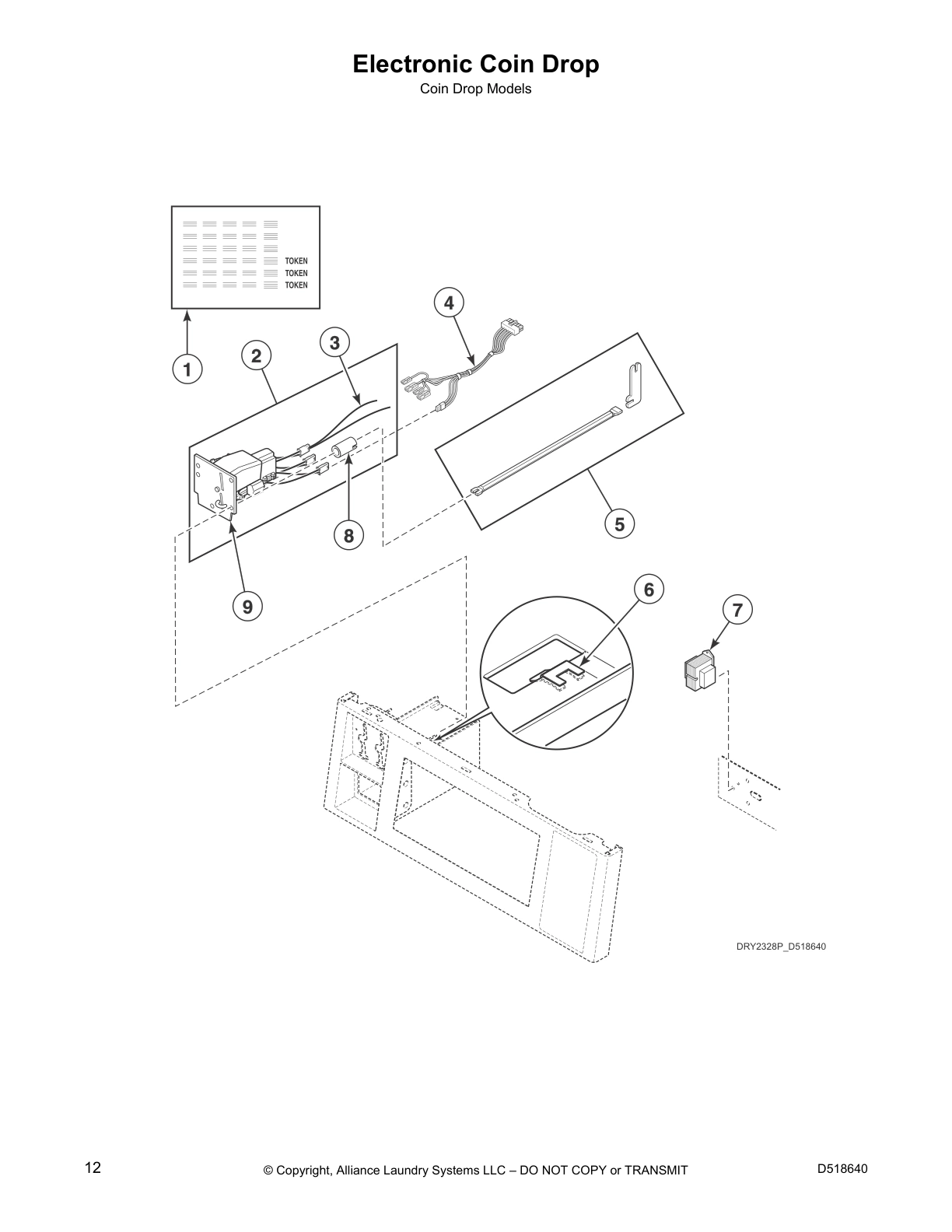

Electronic Coin Drop

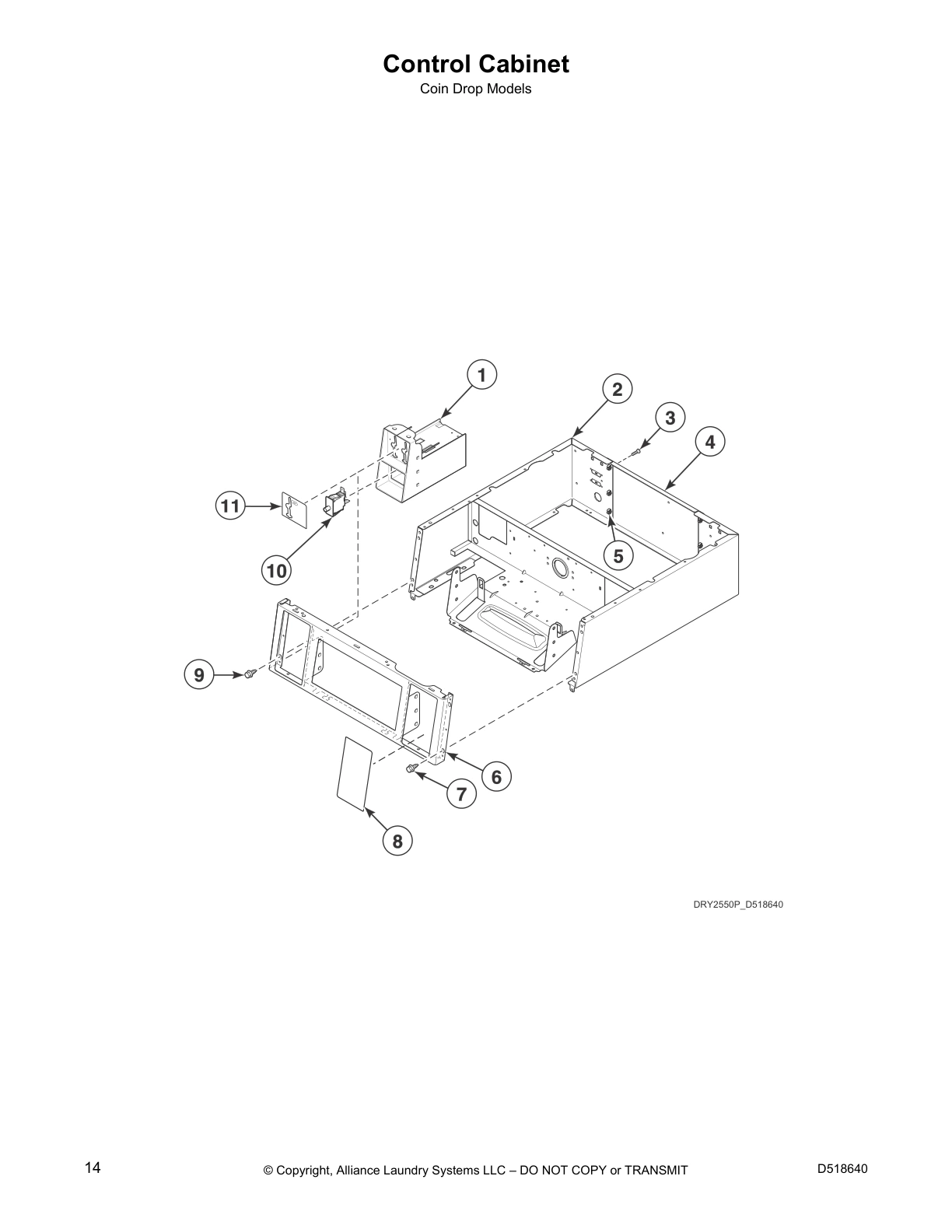

Control Cabinet

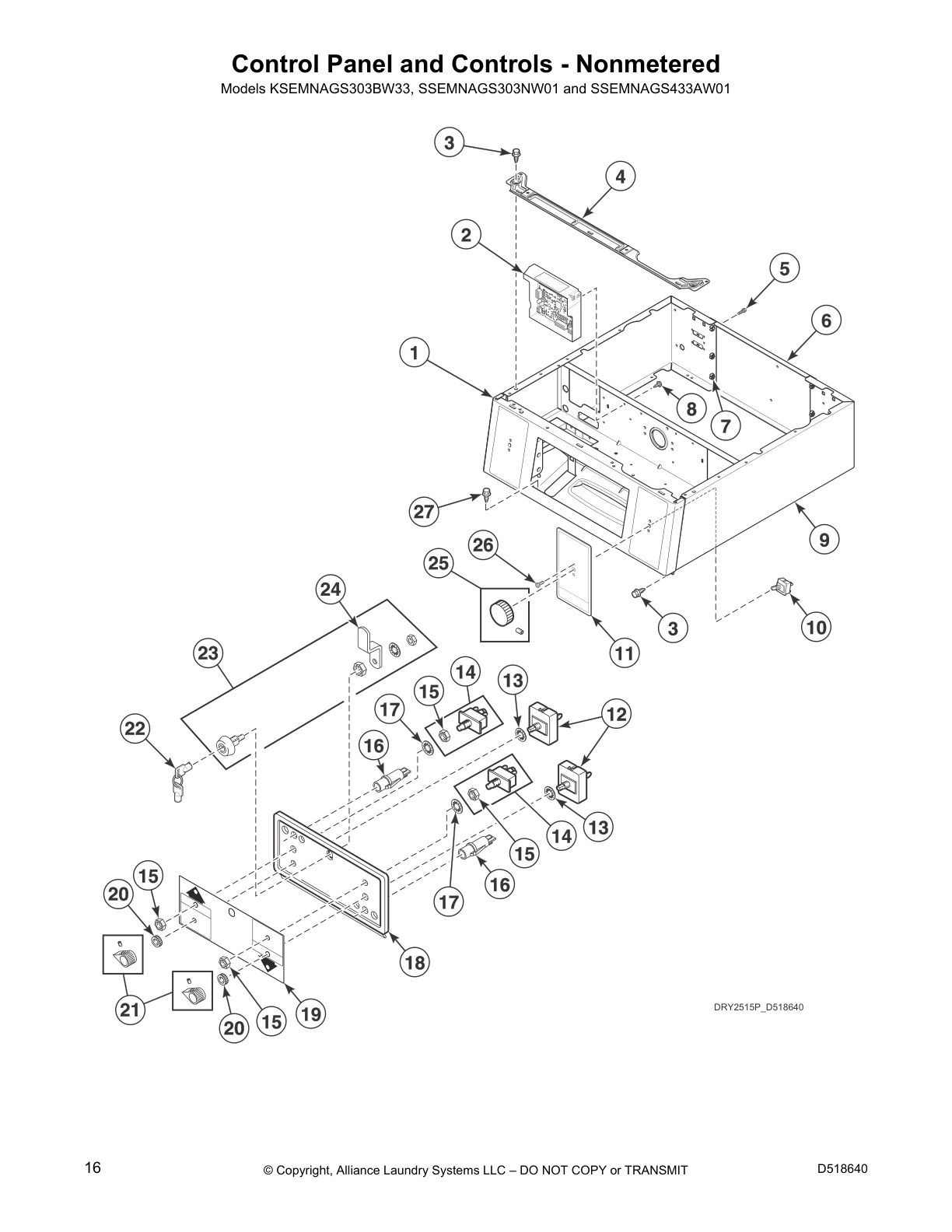

Control Panel and Controls - Nonmetered

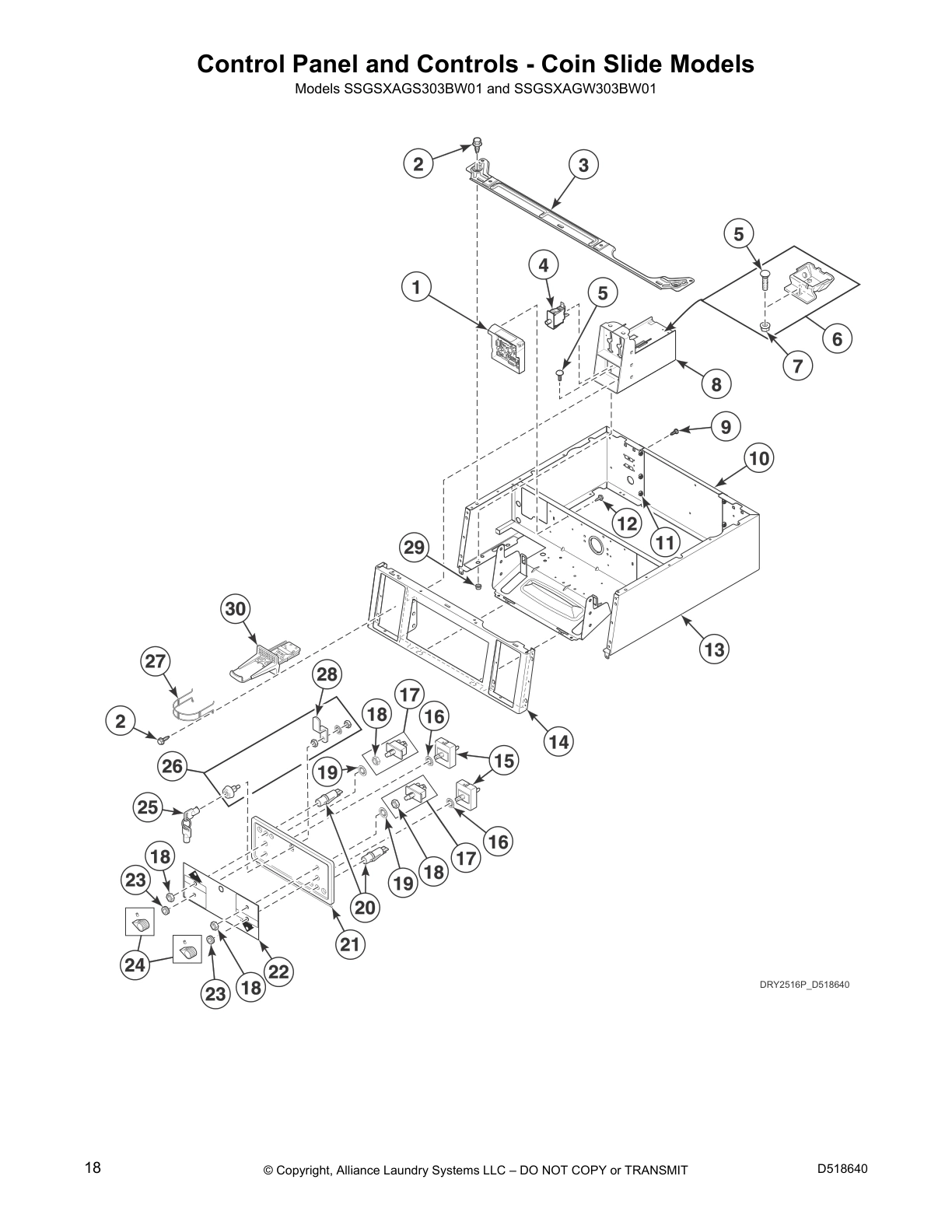

Control Panel and Controls - Coin Slide Models

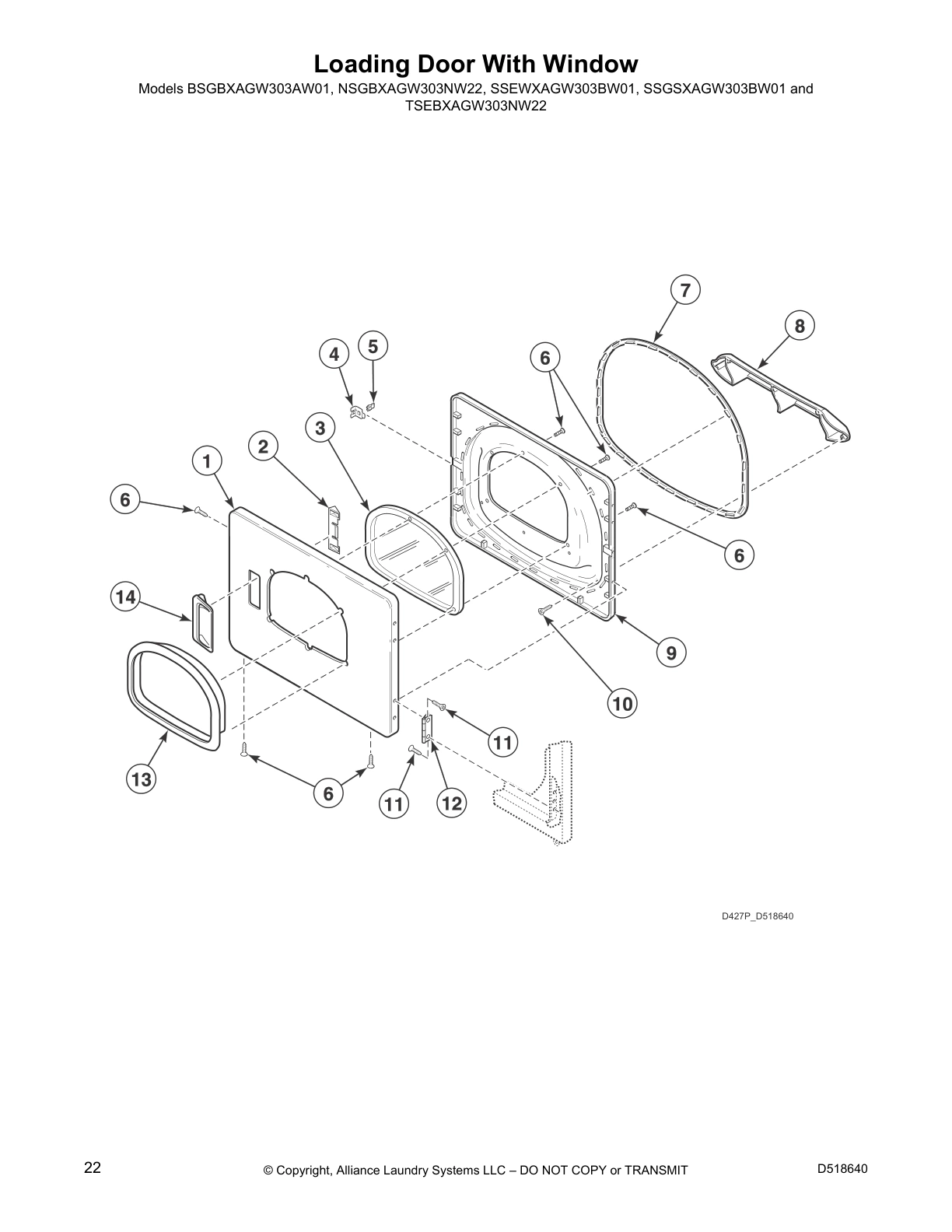

Loading Door With Window

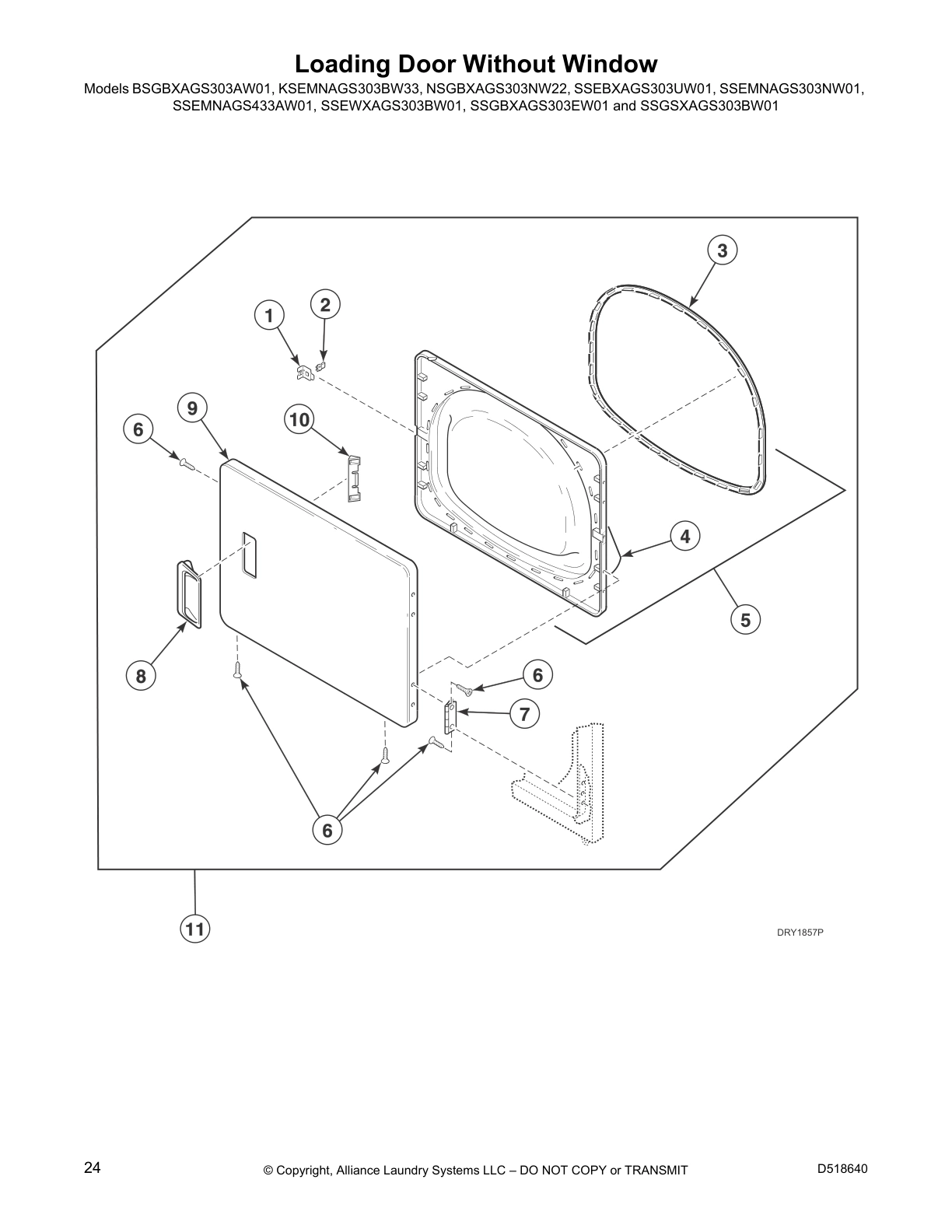

Loading Door Without Window

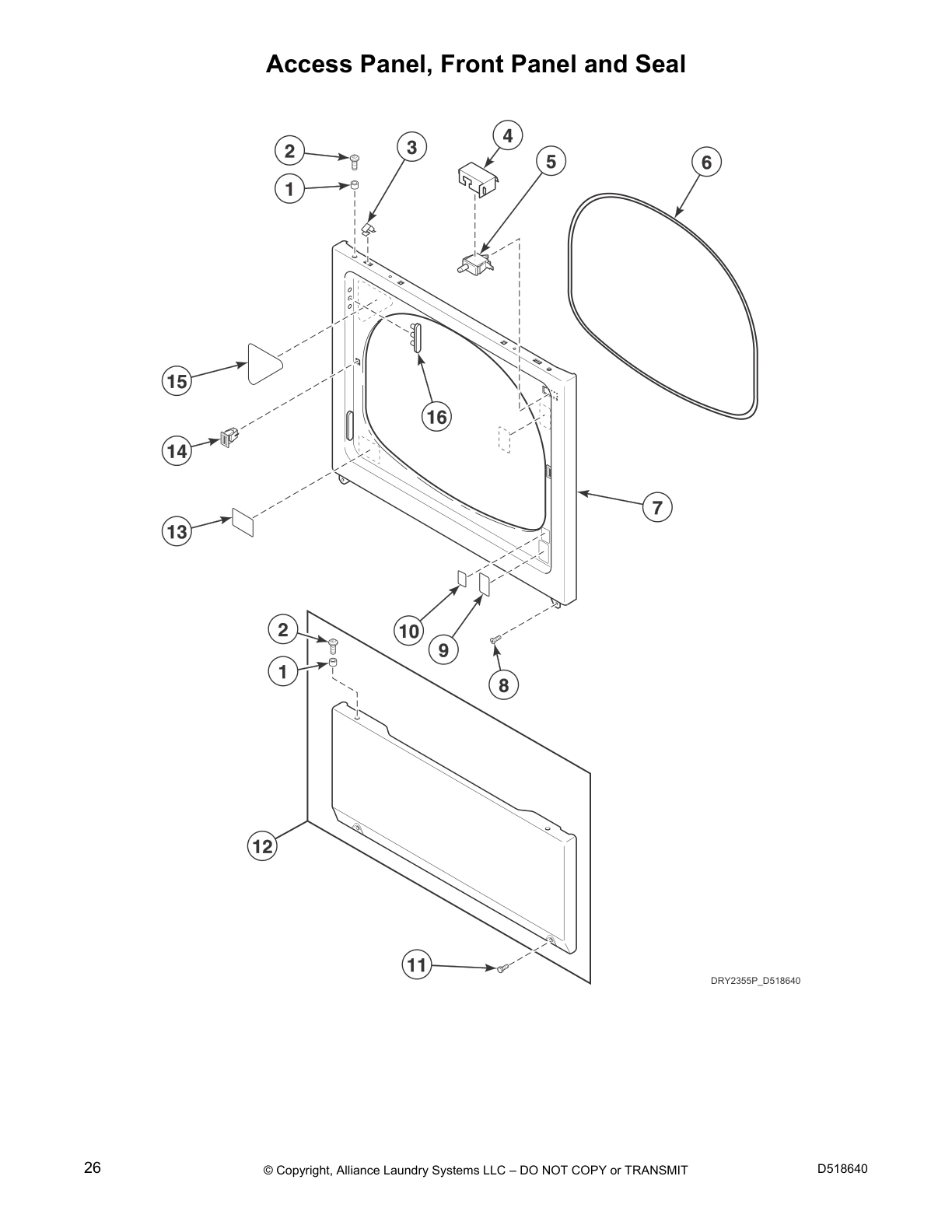

Access Panel, Front Panel and Seal

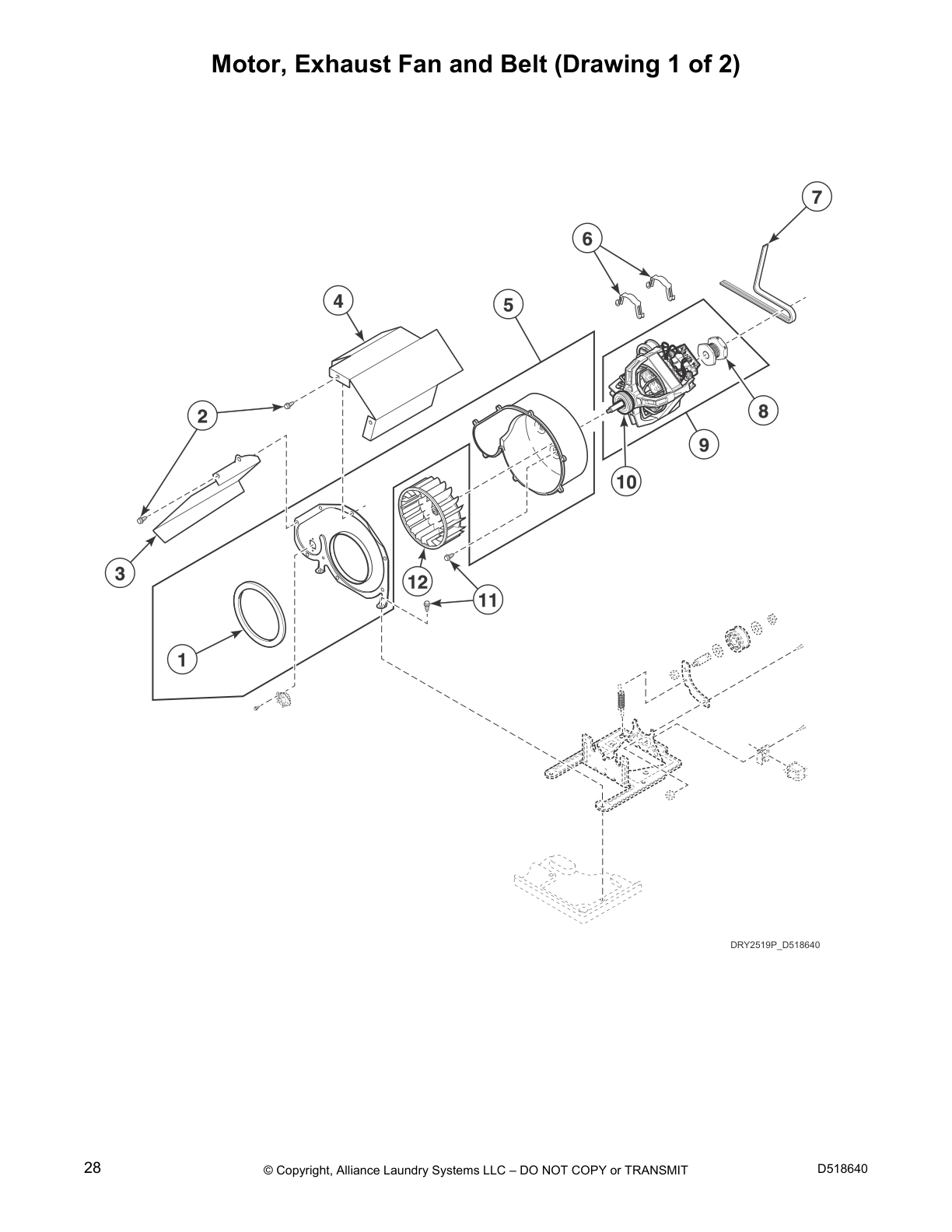

Motor, Exhaust Fan and Belt (Drawing 1 of 2)

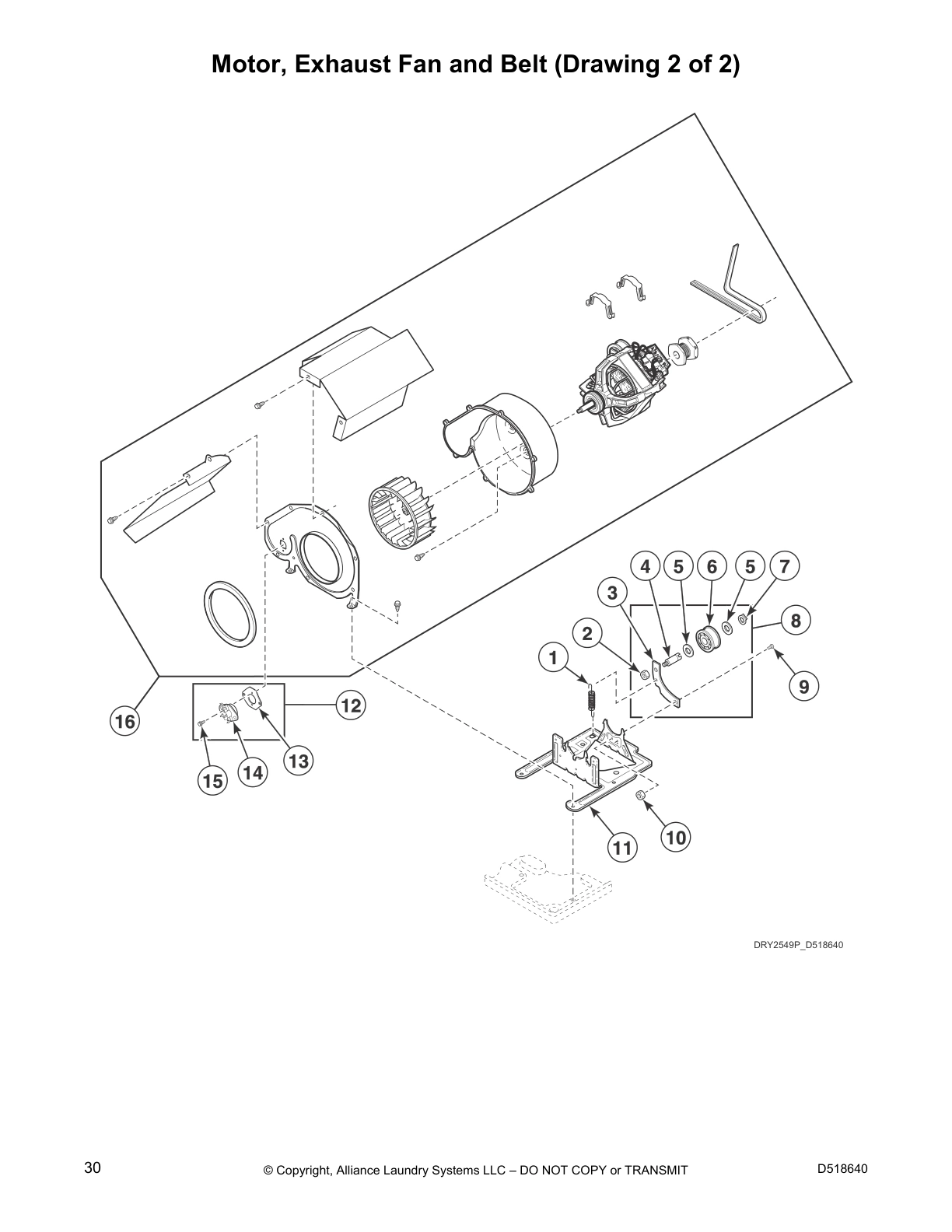

Motor, Exhaust Fan and Belt (Drawing 2 of 2)

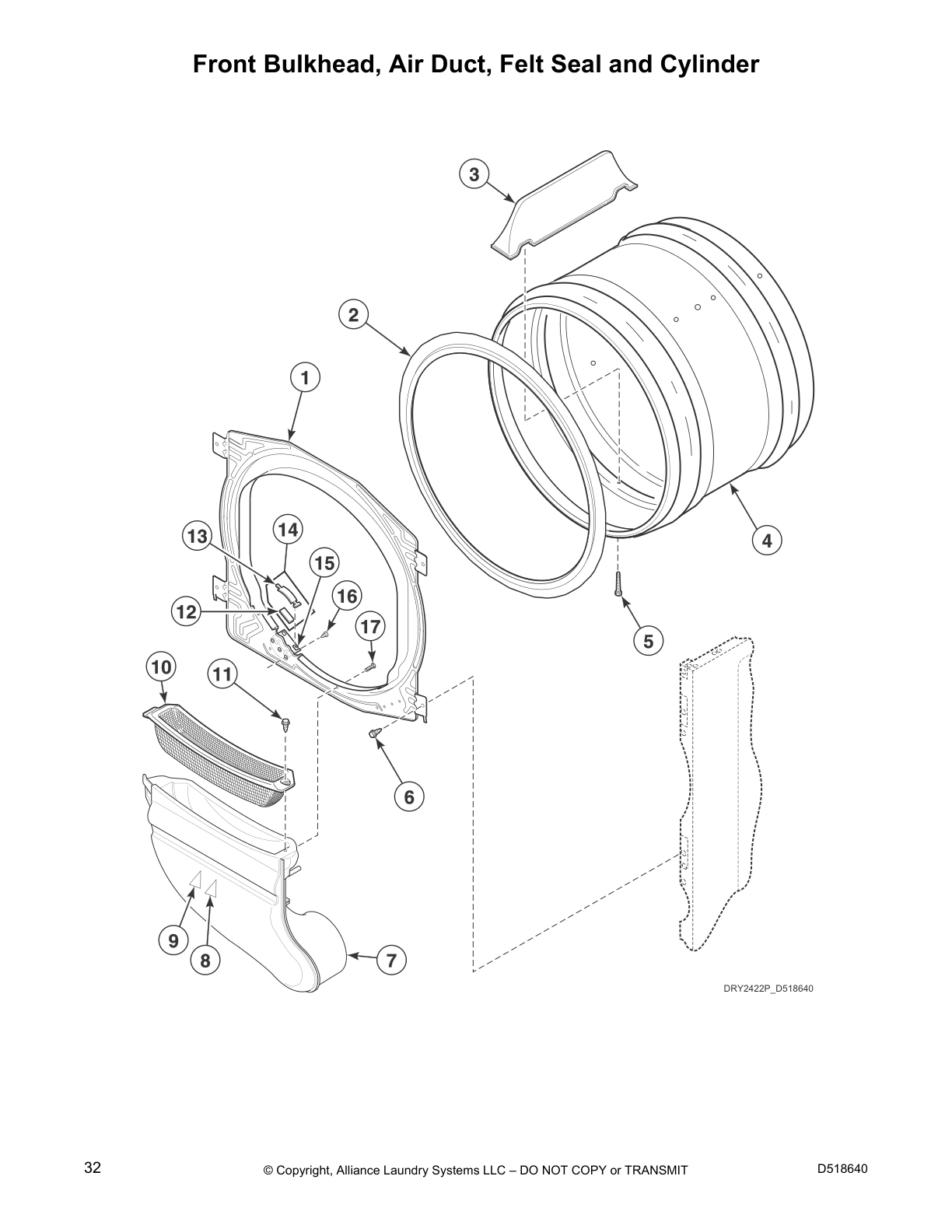

Front Bulkhead, Air Duct, Felt Seal and Cylinder

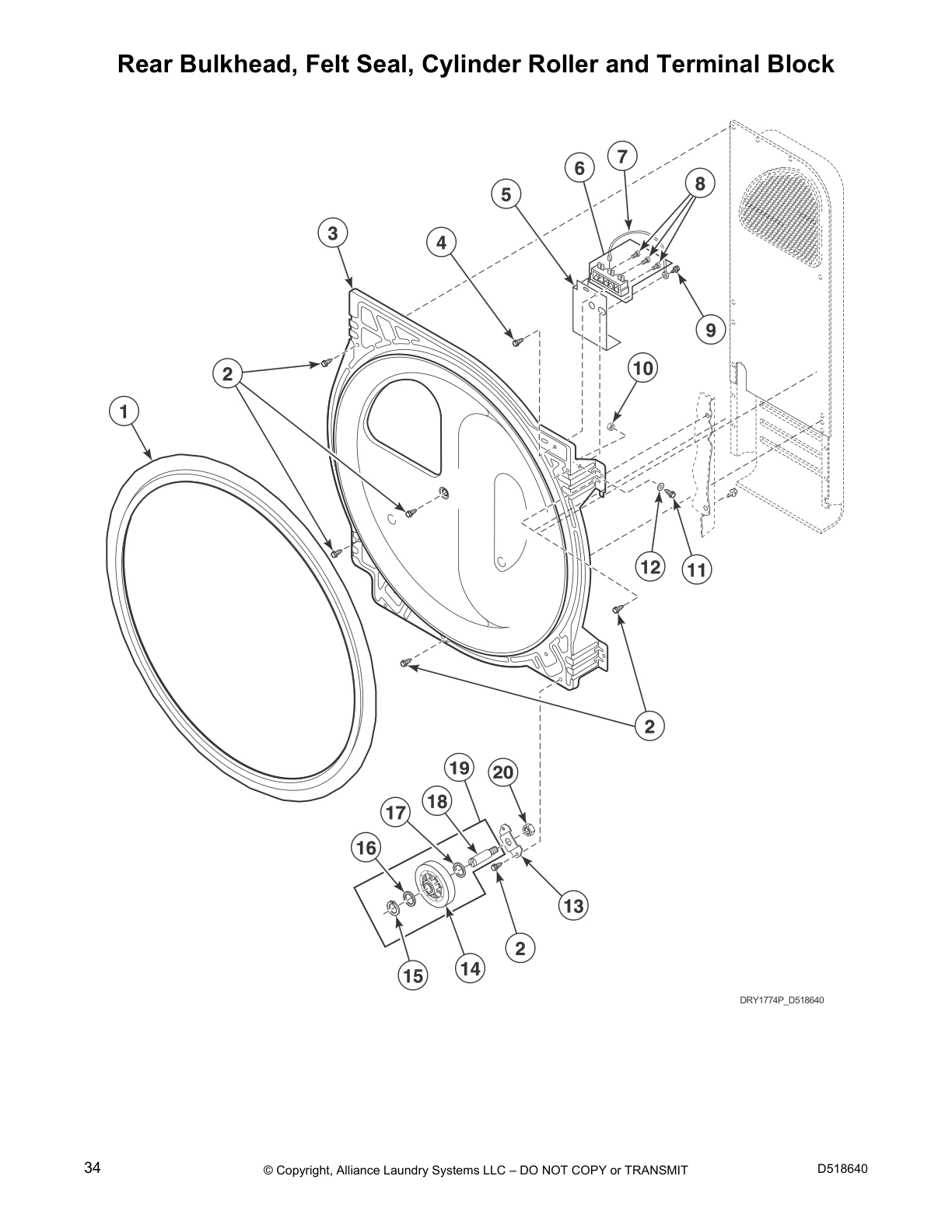

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

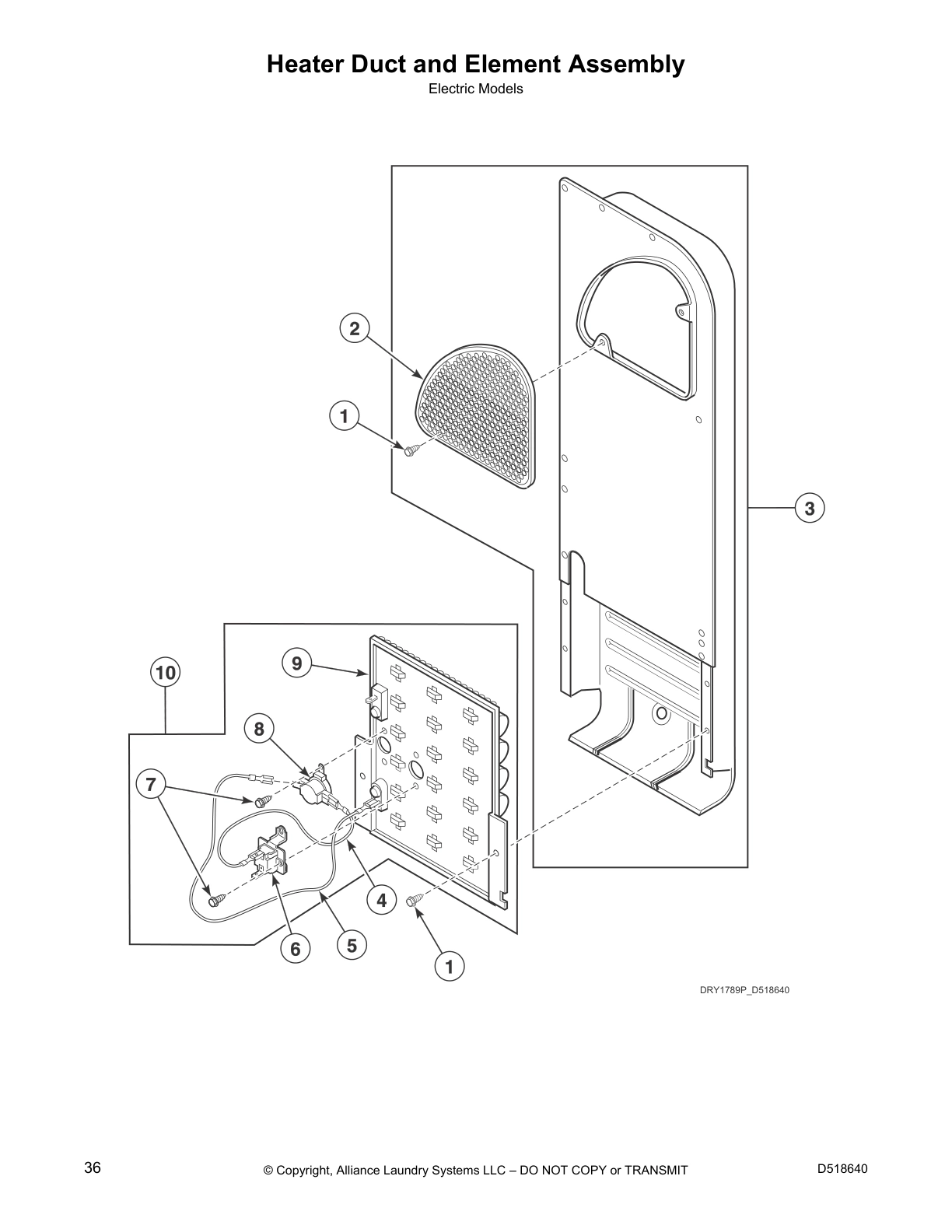

Heater Duct and Element Assembly

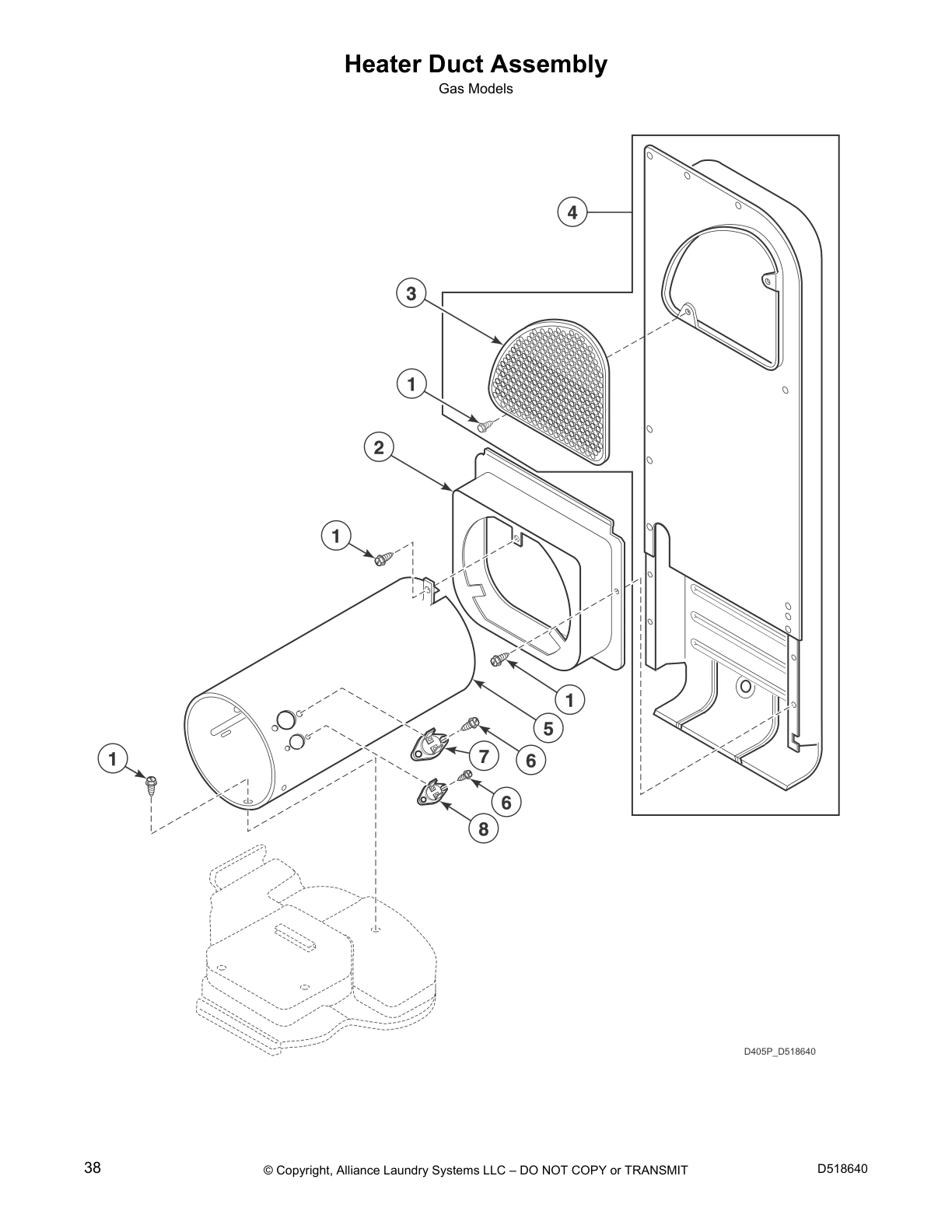

Heater Duct Assembly

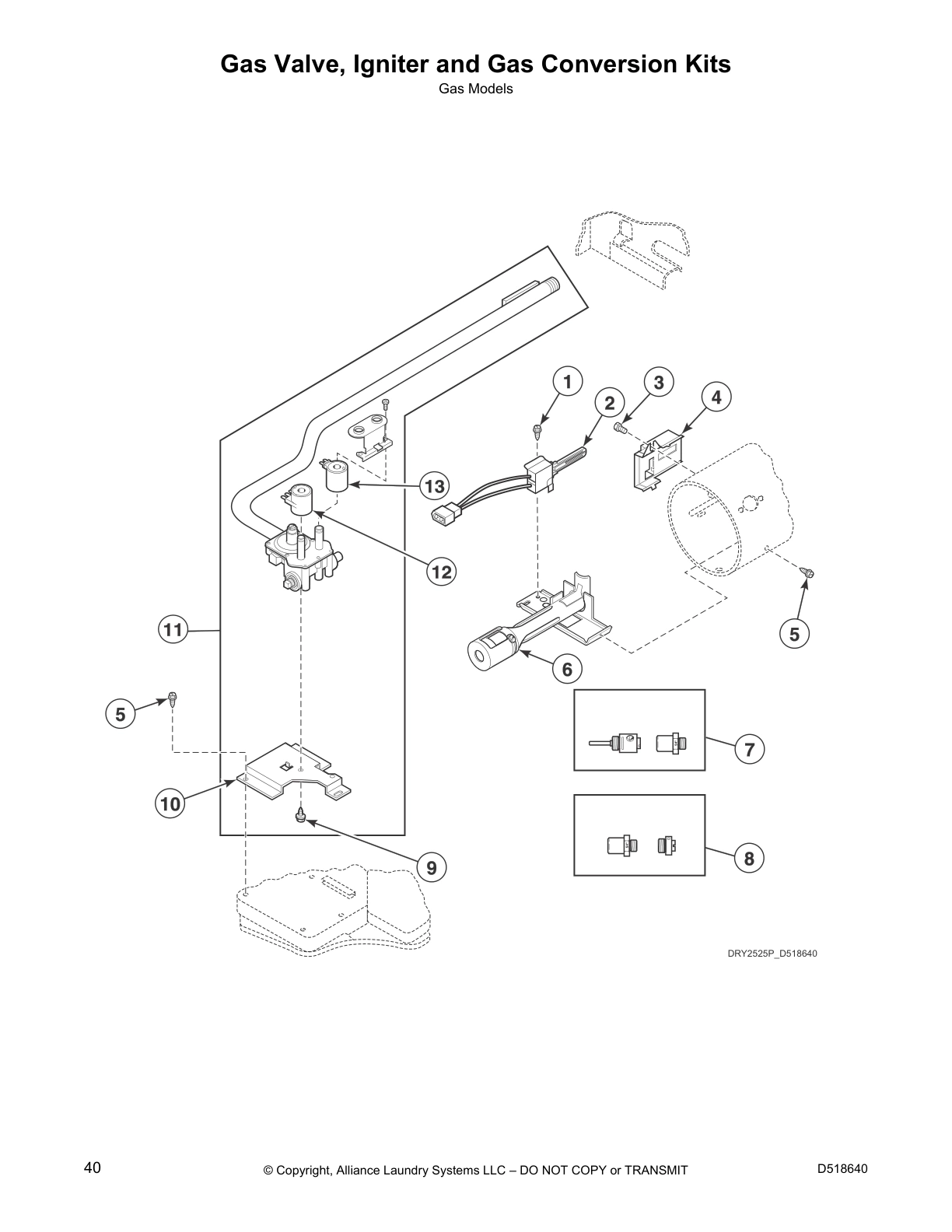

Gas Valve, Igniter and Gas Conversion Kits

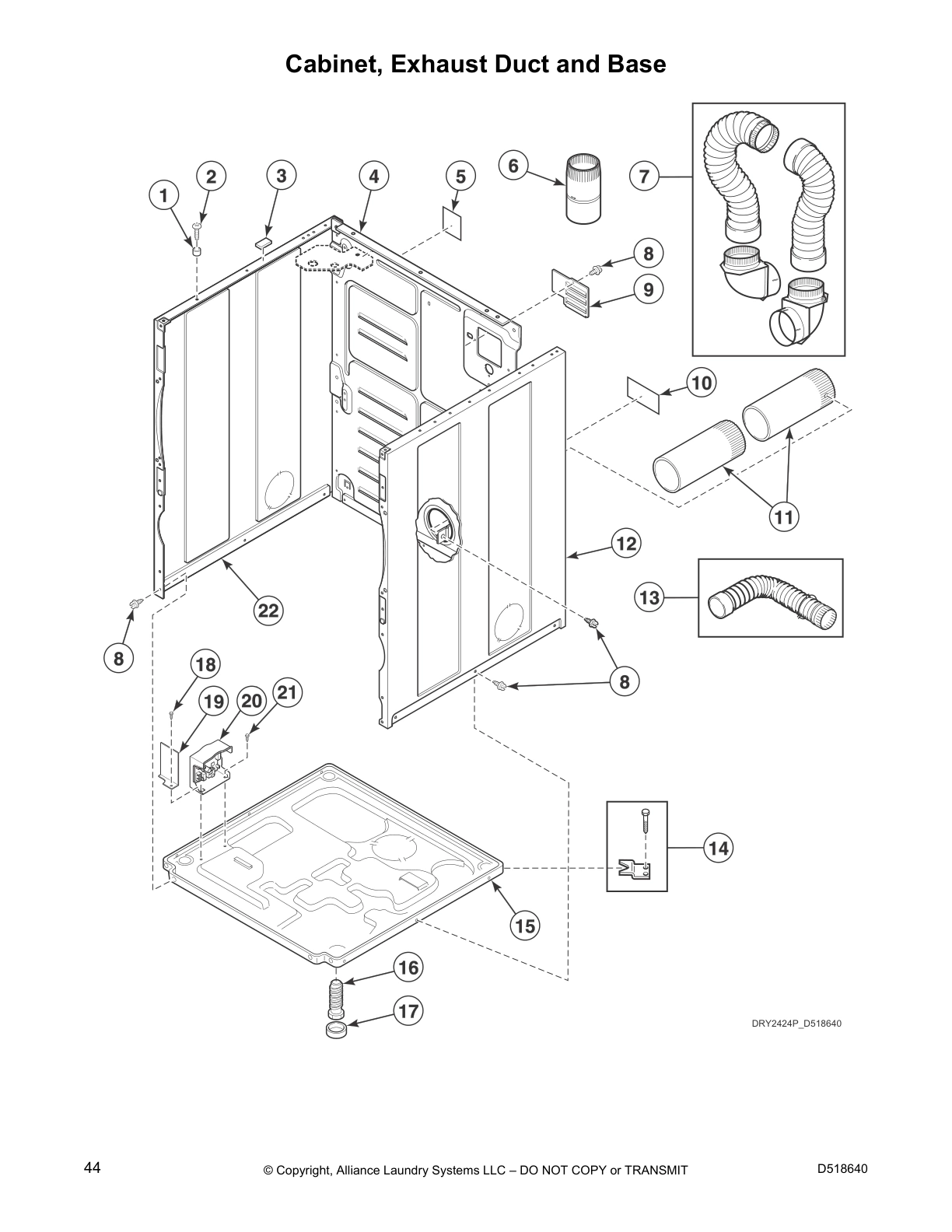

Cabinet, Exhaust Duct and Base

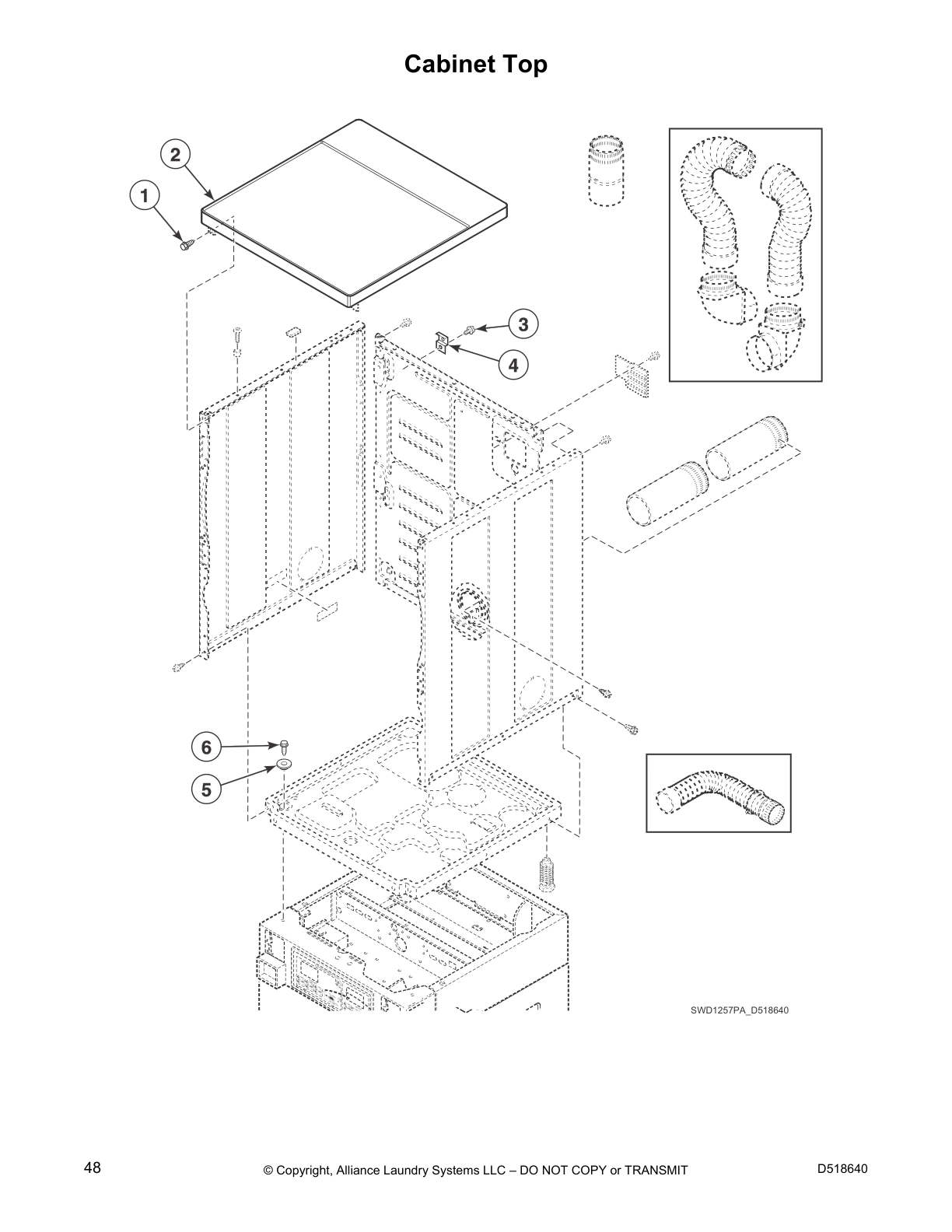

Cabinet Top

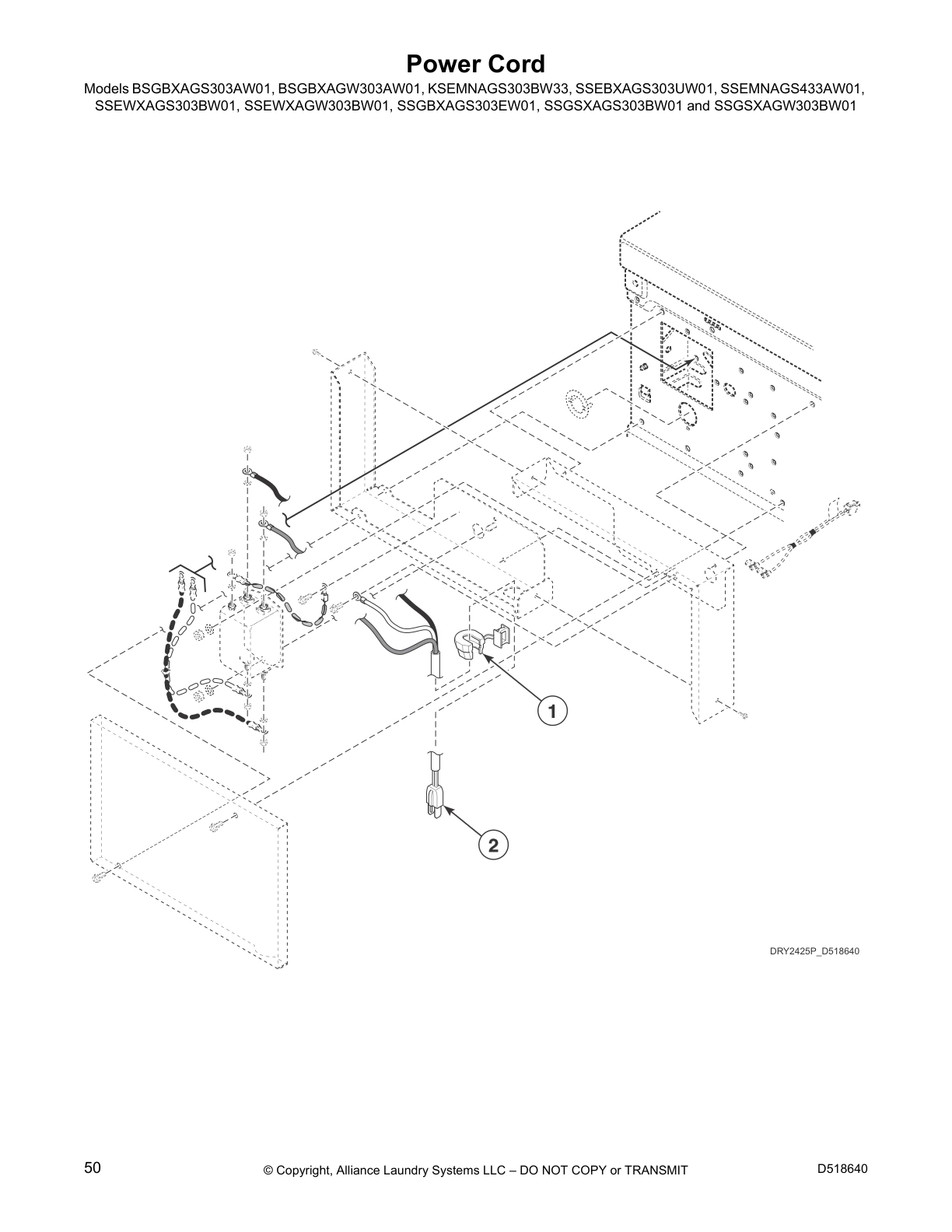

Power Cord

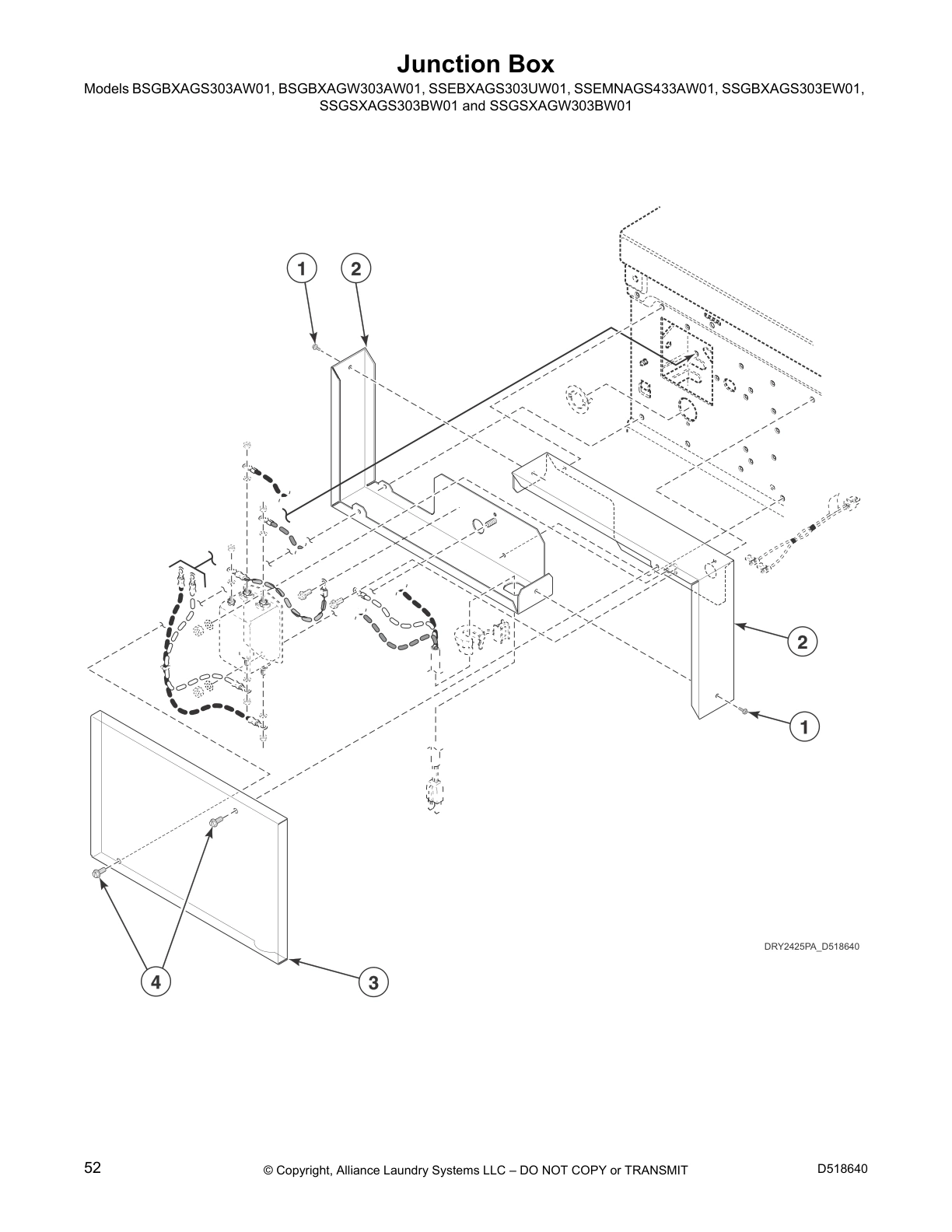

Junction Box

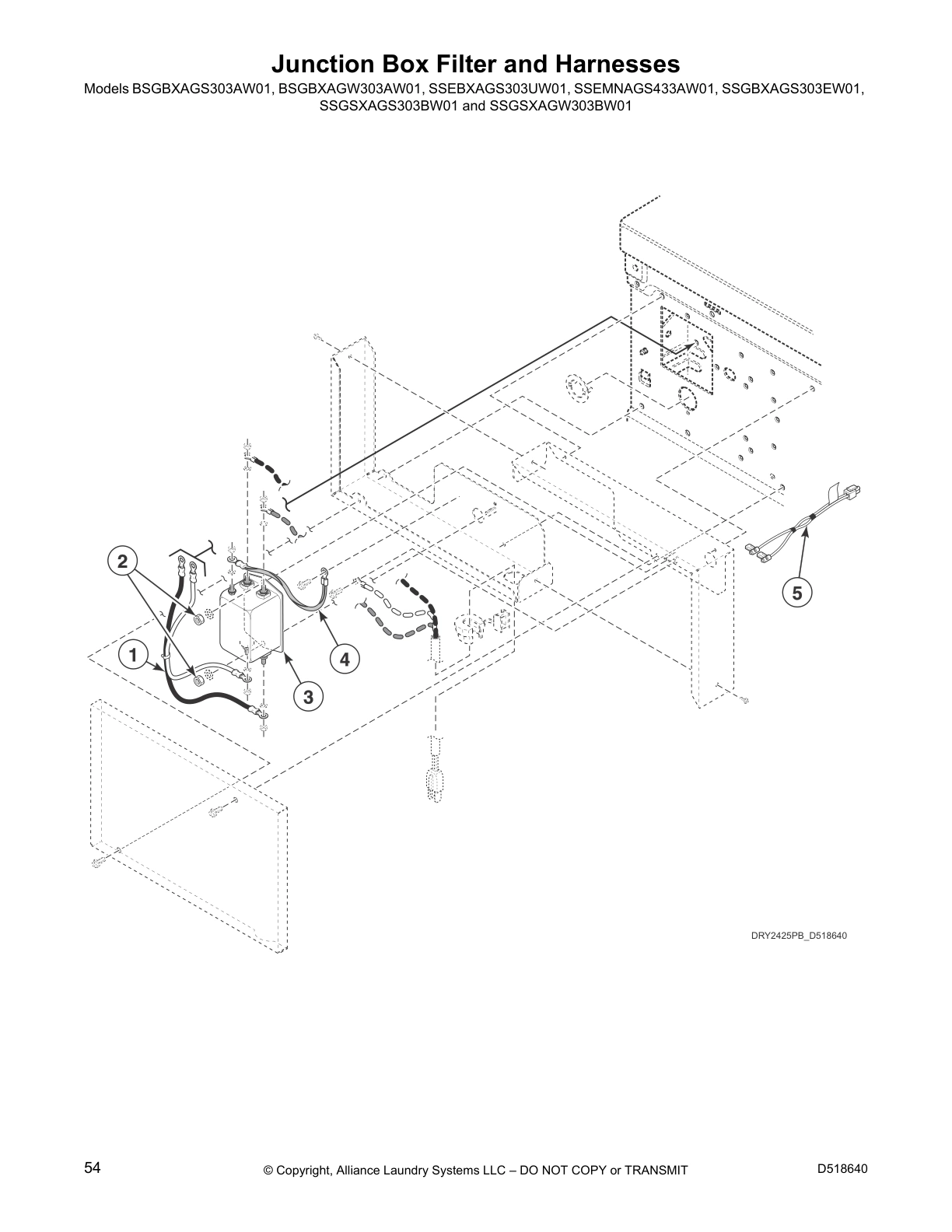

Junction Box Filter and Harnesses

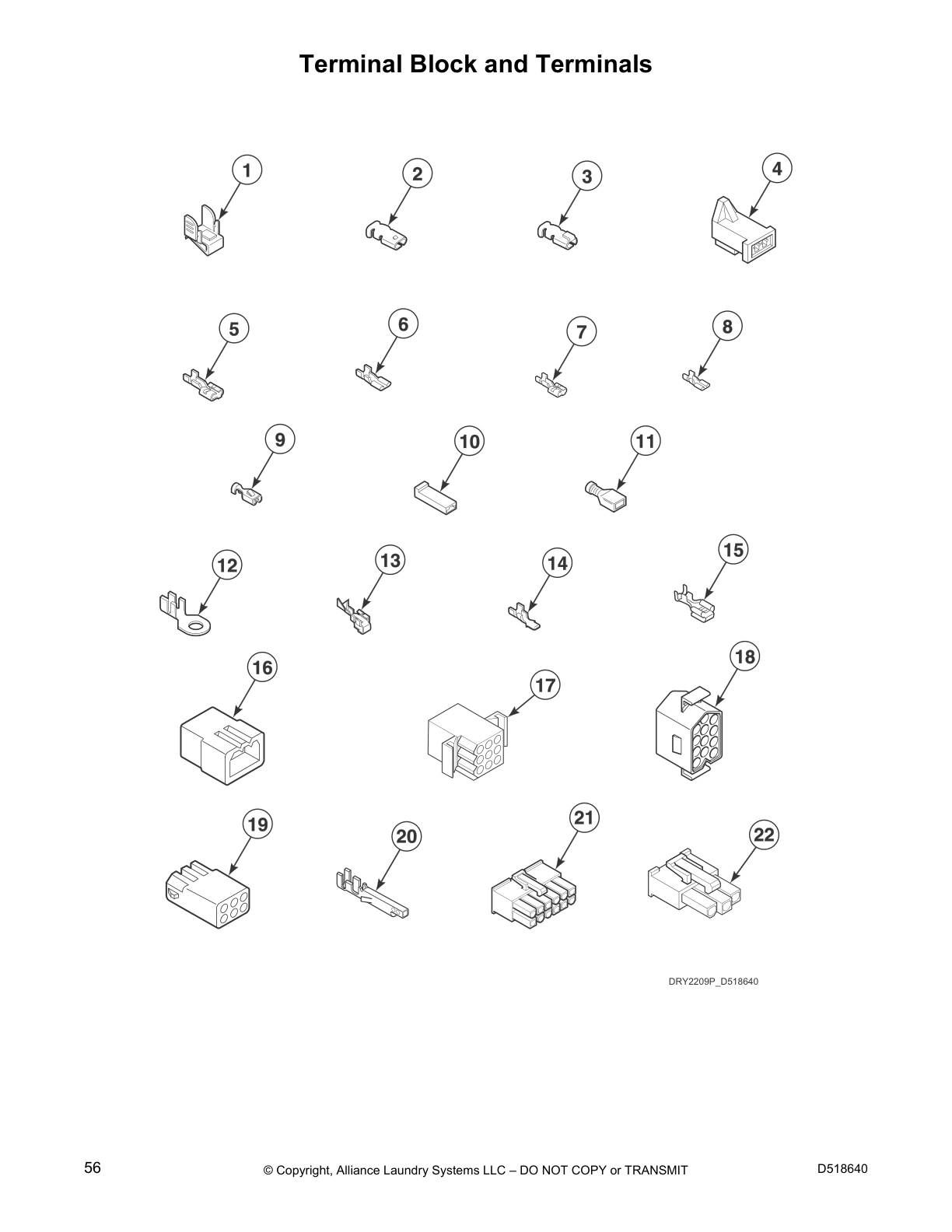

Terminal Block and Terminals

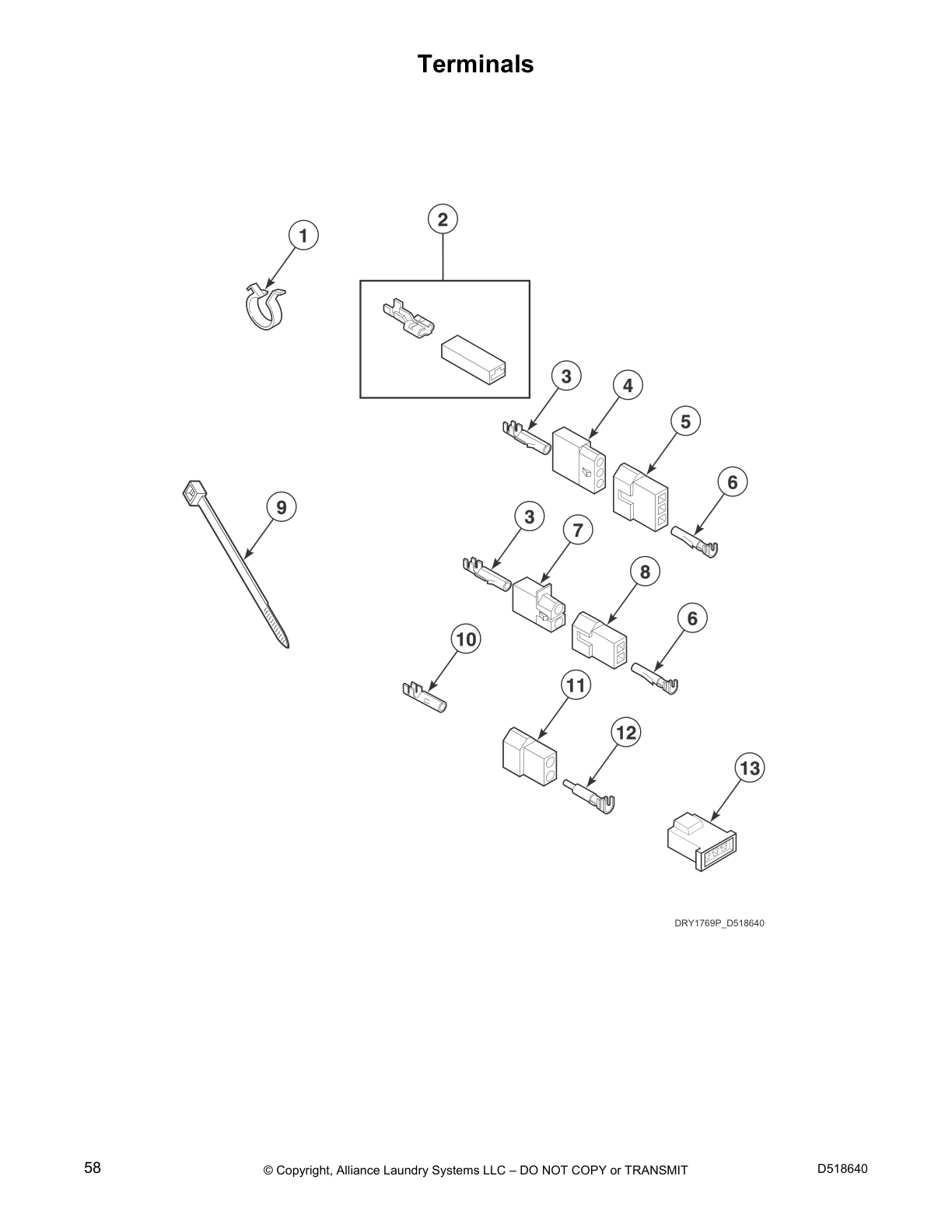

Terminals

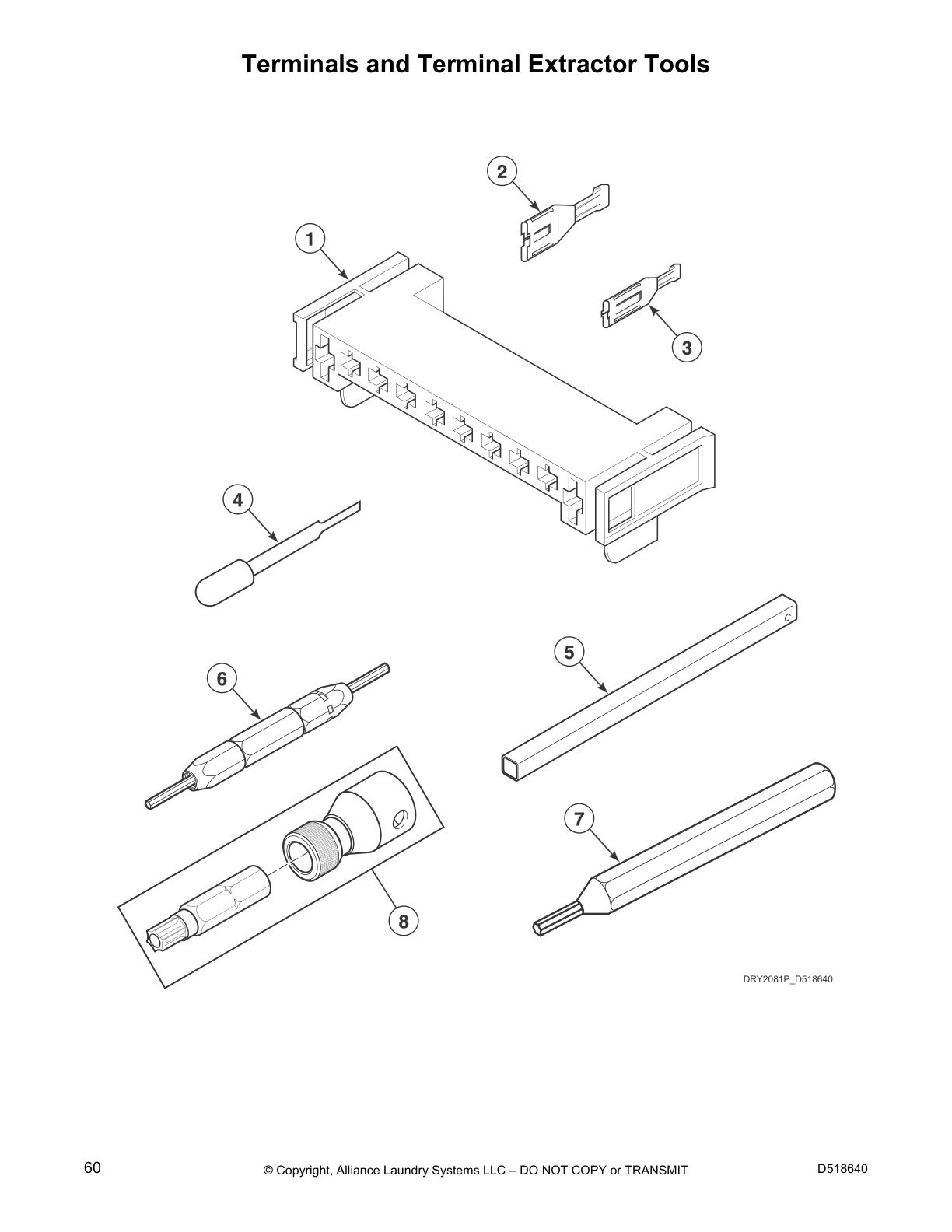

Terminals and Terminal Extractor Tools

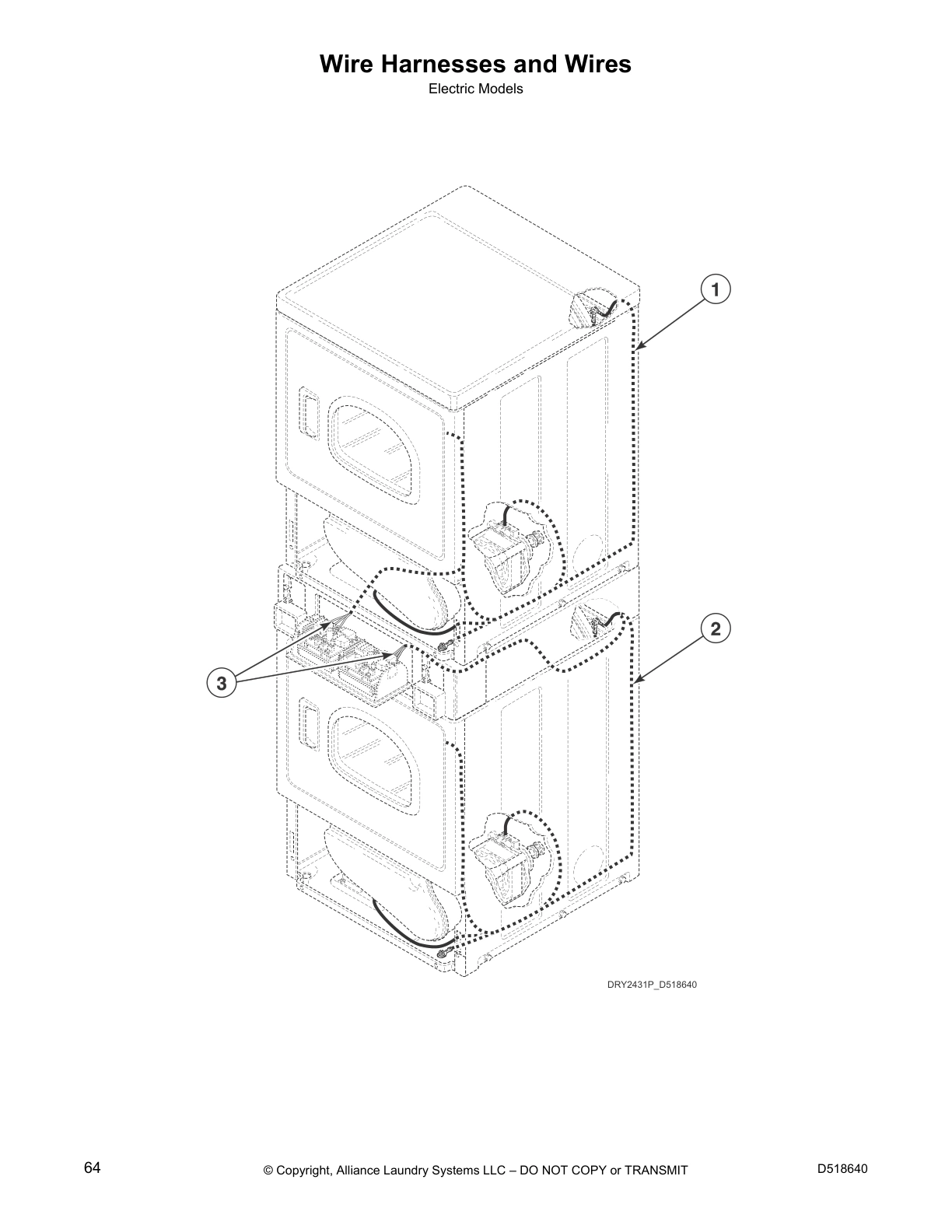

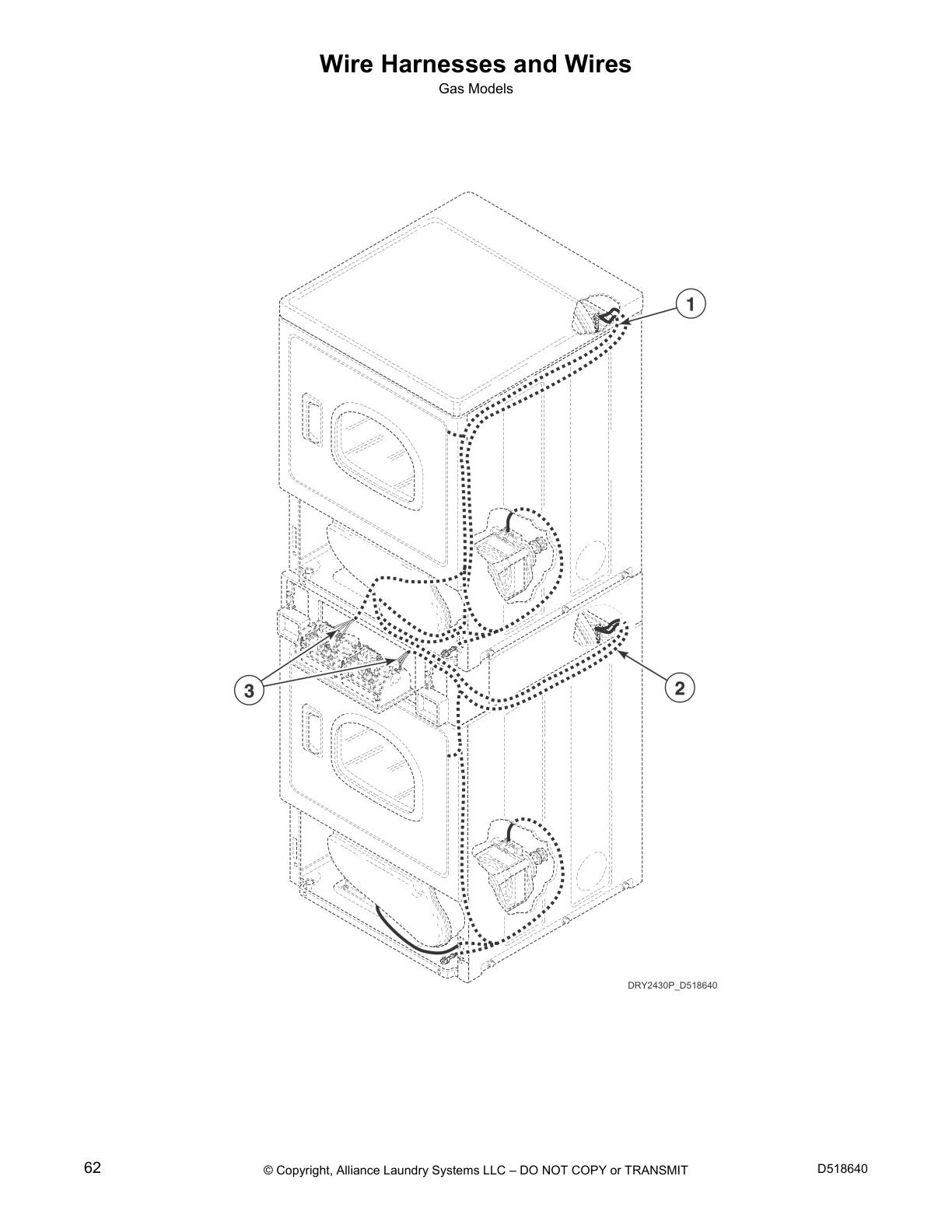

Wire Harnesses and Wires

Common parts from model Speed Queen SSEBXAGS303UW01 Dryer

282P4 Speed Queen Bit Torx T25H Backorder SPQ 282P4 $10.36

View on Model

CK078 Speed Queen Kit Munz U.S.A. Backorder SPQ CK078 $200.64

View on Model

D510903 Speed Queen Access Cover Plate - 3 Lo In Stock SPQ D510903 $3.92

View on Model

SPQ 56448 SPQ 56448 Contact Us For Availability

View on Model

38725 Speed Queen Coin Identifier Paper Backorder SPQ 38725 $4.92

View on Model

687500 Speed Queen Wire Clip 1.00 DIA Backorder SPQ 687500 $5.01

View on Model

807396W Speed Queen Meter Case Prep for Coin In Stock SPQ 807396W $209.53

View on Model

D500338 Speed Queen Housing 10 Position Backorder SPQ D500338 $4.92

View on Model

D510185 Speed Queen Idler Spring In Stock SPQ D510185 $2.09

View on Model

D510238P Speed Queen Blower Housing Seal Pack In Stock SPQ D510238P $5.98

View on Model

D510266P Speed Queen Front Bulkhead Assembly In Stock SPQ D510266P $157.23

View on Model

D517476 Speed Queen Upper 240V Electric Harne Backorder SPQ D517476 $108.90

View on Model

00129 Speed Queen Terminal Pin Male Backorder SPQ 00129 $0.44

View on Model

203423 Speed Queen 120V Transformer Kit ACAS Backorder SPQ 203423 $153.36

View on Model

CK110 Speed Queen Drop Kit Munz Ecuador Mexic Backorder SPQ CK110 $171.77

View on Model

RB170001 Speed Queen Dryer Seal Kit 1992 and In Stock SPQ RB170001 $72.86

View on Model

Female Terminal SPQ 00256 Contact Us For Availability

View on Model

00127 Speed Queen Terminal Pin 1/8 Male Backorder SPQ 00127 $0.27

View on Model

70441602 Speed Queen Dual Coindrop Can Assemb Backorder SPQ 70441602 $579.97

View on Model

D510001WP Speed Queen Left Side Cabinet Panel Backorder SPQ D510001WP $157.23

View on Model

D513991 Speed Queen Security Cabinet Harness Backorder SPQ D513991 $26.26

View on Model

D518524 Speed Queen Outlet Cover (Nitrocarbur In Stock SPQ D518524 $9.79

View on Model

RB170002 Speed Queen Dryer Drum Support Rolle In Stock SPQ RB170002 $44.89

View on Model

Terminal Extractor Tool SPQ 00255 Contact Us For Availability

View on Model

56156 Speed Queen Serrated Nut 3/8-16 In Stock SPQ 56156 $4.92

View on Model

58800 Speed Queen 3 Circuit Connector Backorder SPQ 58800 $1.12

View on Model

804018 Speed Queen Stack Shield Bracket Backorder SPQ 804018 $82.05

View on Model

D510136 Speed Queen Top Hinge Backorder SPQ D510136 $4.92

View on Model

D510186 Speed Queen Hinge Hole Plug Backorder SPQ D510186 $3.00

View on Model

D510705P Speed Queen Heater Duct Assembly Backorder SPQ D510705P $66.43

View on Model

D518256 Speed Queen Heater Assembly Wire Oran Backorder SPQ D518256 $2.16

View on Model

Ratchet Extension Tool SPQ 00188 Contact Us For Availability

View on Model

283P4 Speed Queen Terminal Extractor Tool Backorder SPQ 283P4 $60.87

View on Model

28835 Speed Queen Washer Clip In Stock SPQ 28835 $4.92

View on Model

D510102W Speed Queen White Cylinder Baffle In Stock SPQ D510102W $4.96

View on Model

D510127 Speed Queen Washer Dryer Door Strike In Stock SPQ D510127 $2.29

View on Model

D510163WP Speed Queen Liner Seal and Grill As Backorder SPQ D510163WP $161.30

View on Model

D511082P Speed Queen Rear Bulkhead Assembly w In Stock SPQ D511082P $101.22

View on Model

D511969WP Speed Queen Blower Housing Package In Stock SPQ D511969WP $43.65

View on Model

D518255 Speed Queen Wire Assembly (1) Black Backorder SPQ D518255 $4.92

View on Model

00360 Speed Queen 1/4" Female Insulated Termi Backorder SPQ 00360 $0.88

View on Model

310P4 Speed Queen Washer Dryer Ratchet Extens In Stock SPQ 310P4 $41.16

View on Model

56128 Speed Queen Bumper Pad Backorder SPQ 56128 $4.92

View on Model

D510142P Speed Queen Dryer Idler Pulley Wheel In Stock SPQ D510142P $11.29

View on Model

D510180 Speed Queen Motor Mount Clamp In Stock SPQ D510180 $4.92

View on Model

D510181 Speed Queen Dryer Metal Door Strike In Stock SPQ D510181 $3.00

View on Model

00117 Speed Queen Female Pin Terminal Backorder SPQ 00117 $4.68

View on Model

190P4 Speed Queen Tool Extractor HT2066A Backorder SPQ 190P4 $170.88

View on Model

D500226 Speed Queen Tap Screw 8B-16 x 5/8 #6 Backorder SPQ D500226 $2.75

View on Model

D510265WP Speed Queen Galvanized Dryer Cylind Backorder SPQ D510265WP $290.28

View on Model

D511255P Speed Queen Dryer Rubber Face Cylind In Stock SPQ D511255P $22.18

View on Model

D512973 Speed Queen Washer Dryer Push Button In Stock SPQ D512973 $8.99

View on Model

128P4 Speed Queen Tool Extractor HT-2038 Backorder SPQ 128P4 $65.36

View on Model

62588 Speed Queen Tapping Screw 10BT-12 X 1 Backorder SPQ 62588 $4.92

View on Model

D500222 Speed Queen Motor Pulley - 50Hz Backorder SPQ D500222 $11.57

View on Model

D510147P Speed Queen Door Liner Seal Backorder SPQ D510147P $17.81

View on Model

D510190P Speed Queen Dryer Terminal Block Ass In Stock SPQ D510190P $5.98

View on Model

D515873 Speed Queen Green Limit Thermostat In Stock SPQ D515873 $20.68

View on Model

D516792 Speed Queen Dryer Idler Lever Pulley In Stock SPQ D516792 $28.62

View on Model

SPQ 56265 SPQ 56265 Contact Us For Availability

View on Model

00116 Speed Queen 11 Oz Lubricant LPS In Stock SPQ 00116 $4.58

View on Model

D500824 Speed Queen Screw Backorder SPQ D500824 $4.92

View on Model

D505843P Speed Queen Motor and Pulley Assembl Backorder SPQ D505843P $559.12

View on Model

D510326P Speed Queen 240V 4.8KW 50Hz Heater A Backorder SPQ D510326P $197.40

View on Model

52566 Speed Queen Hex Nut 1/4-20 Jam UNC ZNC In Stock SPQ 52566 $4.92

View on Model

590P3 Speed Queen Motor Hub Ring Kit Backorder SPQ 590P3 $48.29

View on Model

61929 Speed Queen Heater Kit Assembly 240V 4. Backorder SPQ 61929 $179.01

View on Model

70529301 Speed Queen Silver Rocker Switch MOM Backorder SPQ 70529301 $6.51

View on Model

D503980W Speed Queen Dryer Lint Filter In Stock SPQ D503980W $23.90

View on Model

D504034 Speed Queen Wire Clip - 0.69 Diameter Backorder SPQ D504034 $4.92

View on Model

D510129W Speed Queen Door Handle Wedge (White Backorder SPQ D510129W $1.98

View on Model

D511637P Speed Queen Washer Dryer Adhesive Do In Stock SPQ D511637P $43.01

View on Model

00130 Speed Queen Knob Backorder SPQ 00130 $0.27

View on Model

33562 Speed Queen Screw Tap Socket Head 10B-1 Backorder SPQ 33562 $4.92

View on Model

38717 Speed Queen Single Munz Overlay Backorder SPQ 38717 $8.56

View on Model

D501285 Speed Queen Screw Tap 12-16x.562 Slhx In Stock SPQ D501285 $1.96

View on Model

D503661 Speed Queen Induction Hex Screw 10-16 Backorder SPQ D503661 $1.96

View on Model

D510207P Speed Queen Dryer Drum Felt Seal In Stock SPQ D510207P $34.39

View on Model

D516196 Speed Queen One-Piece Exhaust Duct Backorder SPQ D516196 $17.46

View on Model

00128 Speed Queen Female Terminal Pin 1/8 Backorder SPQ 00128 $0.44

View on Model

D510002WP Speed Queen Right Side Cabinet Pane Backorder SPQ D510002WP $174.48

View on Model

D510139P Speed Queen Blower Fan Assembly In Stock SPQ D510139P $37.48

View on Model

D510189 Speed Queen Felt Pad In Stock SPQ D510189 $3.00

View on Model

D511036 Speed Queen Door Hinge In Stock SPQ D511036 $3.00

View on Model

D514250WP Speed Queen Access Panel Assembly P In Stock SPQ D514250WP $62.12

View on Model

56266 Speed Queen Plug Backorder SPQ 56266 $0.93

View on Model

D513710 Speed Queen Cylinder Glide In Stock SPQ D513710 $5.98

View on Model

D510103WP Speed Queen Washer/Dryer Door Pull In Stock SPQ D510103WP $5.98

View on Model

M414704 Speed Queen Thermistor In Stock SPQ M414704 $32.10

View on Model

RB170003 Speed Queen Dryer Glide Kit for 1992 In Stock SPQ RB170003 $26.06

View on Model

528P3 Speed Queen Directional Exhaust Kit In Stock SPQ 528P3 $93.61

View on Model

D502535 Speed Queen Screw Tap SLHXWAHD8AB-18X Backorder SPQ D502535 $4.92

View on Model

D510100 Speed Queen Cylinder Roller Bracket In Stock SPQ D510100 $4.92

View on Model

D510145 Speed Queen Cylinder Glide Bracket In Stock SPQ D510145 $9.97

View on Model

D510177 Speed Queen Dryer Door Catch Assembly In Stock SPQ D510177 $5.98

View on Model

52864 Speed Queen Flat Head Screw, 8AB-18 x 5 Backorder SPQ 52864 $1.24

View on Model

D510708P Speed Queen Cylinder Roller with Ins In Stock SPQ D510708P $13.34

View on Model

D510717P Speed Queen Blower and Fan Kit 120/6 Backorder SPQ D510717P $552.69

View on Model

D514245 Speed Queen Dryer Base (No Knockouts) Backorder SPQ D514245 $71.04

View on Model

23748 Speed Queen Washer Retaining Ring In Stock SPQ 23748 $4.92

View on Model

D505295 Speed Queen Screw 8AB-16 X 3/4 PHIL In Stock SPQ D505295 $1.04

View on Model

D510135 Speed Queen Leveling Leg Backorder SPQ D510135 $5.98

View on Model

52549 Speed Queen Washer 3/4" Washer/Dryer In Stock SPQ 52549 $3.00

View on Model

D501855 Speed Queen Rubber Foot In Stock SPQ D501855 $5.98

View on Model

23033 Speed Queen 9-Circuit Plug Backorder SPQ 23033 $1.59

View on Model

D504082 Speed Queen Washer Dryer Wave In Stock SPQ D504082 $3.00

View on Model

56461P Speed Queen Washer Dryer Idler/Rolley In Stock SPQ 56461P $5.98

View on Model

54522 Speed Queen Nylon Plug Backorder SPQ 54522 $11.51

View on Model

804667 Speed Queen Screw, 10-16 SP HX WAS HD Backorder SPQ 804667 $0.53

View on Model

Lock Kit SPQ 54612 No Longer Available

View on Model

00121 Speed Queen Spade Terminal 1/4" Female Backorder SPQ 00121 $4.68

View on Model

122P4P Speed Queen Paint, Porcelain Touch Backorder SPQ 122P4P $38.03

View on Model

200674P Speed Queen Opto I Coupler 12 Backorder SPQ 200674P $106.17

View on Model

201595P Speed Queen Wire Guard Backorder SPQ 201595P $27.50

View on Model

27260P Speed Queen Lock Assembly In Stock SPQ 27260P $46.61

View on Model

27604P Speed Queen Anti-Seize Compound, 1 oz In Stock SPQ 27604P $5.01

View on Model

292P4 Speed Queen T-20 Bit Torx Backorder SPQ 292P4 $13.32

View on Model

29443 Speed Queen Washer Felt Backorder SPQ 29443 $4.92

View on Model

38462P Speed Queen Coin Drop Token Assembly S Backorder SPQ 38462P $284.59

View on Model

44087201 Speed Queen Hex Flange Nut 5/16-18 Backorder SPQ 44087201 $4.92

View on Model

45001 Speed Queen 18GA Black Wire Backorder SPQ 45001 $0.46

View on Model

45380 Speed Queen Wire 12GA ORG/PER FT Backorder SPQ 45380 $4.92

View on Model

55881 Speed Queen Tie Cable Backorder SPQ 55881 $1.78

View on Model

58799 Speed Queen 2 Circuit Connector Backorder SPQ 58799 $1.12

View on Model

61199 Speed Queen Mach-HXWAHD 10-32 ST Screw Backorder SPQ 61199 $5.86

View on Model

70240301 Speed Queen Tap Screw HXWAHD 10AB-16 Backorder SPQ 70240301 $4.92

View on Model

SPQ 70441601P No Longer Available

View on Model

70441603 Speed Queen Dual Coin Drop Assembly Backorder SPQ 70441603 $714.96

View on Model

CK096 Speed Queen Mounting Tool Kit Backorder SPQ CK096 $14.64

View on Model

CK115 Speed Queen EC Drop Munz Kit Backorder SPQ CK115 $279.84

View on Model

D503870W Speed Queen Door Liner Grill - White In Stock SPQ D503870W $24.06

View on Model

D510013WP Speed Queen Dryer Door In Stock SPQ D510013WP $102.19

View on Model

D510066WP Speed Queen Front Panel Backorder SPQ D510066WP $110.81

View on Model

D511056 Speed Queen Washer Dryer Front Seal P In Stock SPQ D511056 $8.99

View on Model

SPQ 00124 SPQ 00124 Contact Us For Availability

View on Model

SPQ 00222 SPQ 00222 Contact Us For Availability

View on Model

SPQ 00115 SPQ 00115 Contact Us For Availability

View on Model

SPQ 56451 SPQ 56451 Contact Us For Availability

View on Model

SPQ 281P4 SPQ 281P4 Contact Us For Availability

View on Model

SPQ 93501 SPQ 93501 Contact Us For Availability

View on Model

Model Speed Queen SSEBXAGS303UW01 Dryer – Common Parts & Diagrams

Common parts from model Speed Queen SSEBXAGS303UW01 Dryer

Search result for :
