Model Speed Queen SDENXAGS543DW01 Dryer – Common Parts & Diagrams

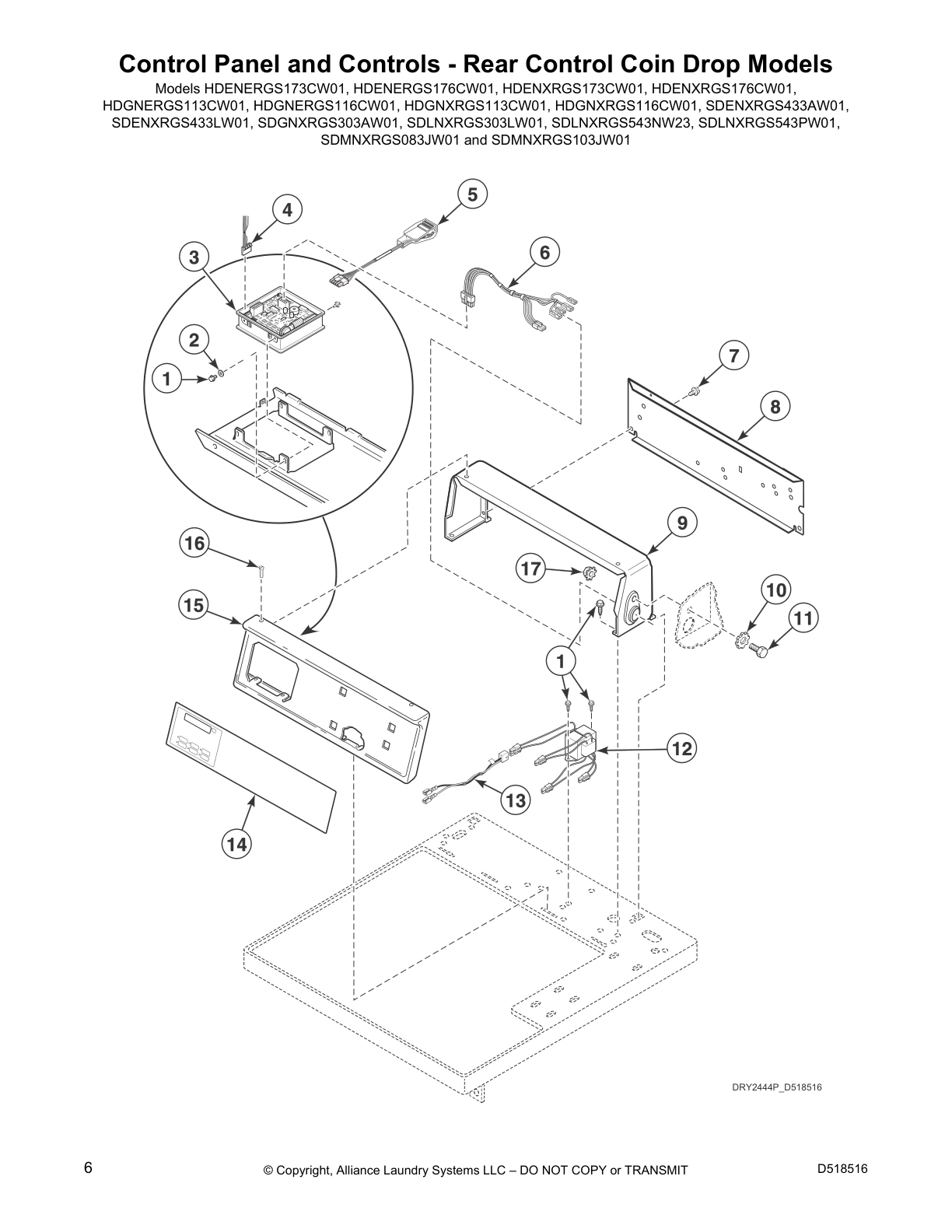

Control Panel and Controls - Rear Control Coin Drop Models

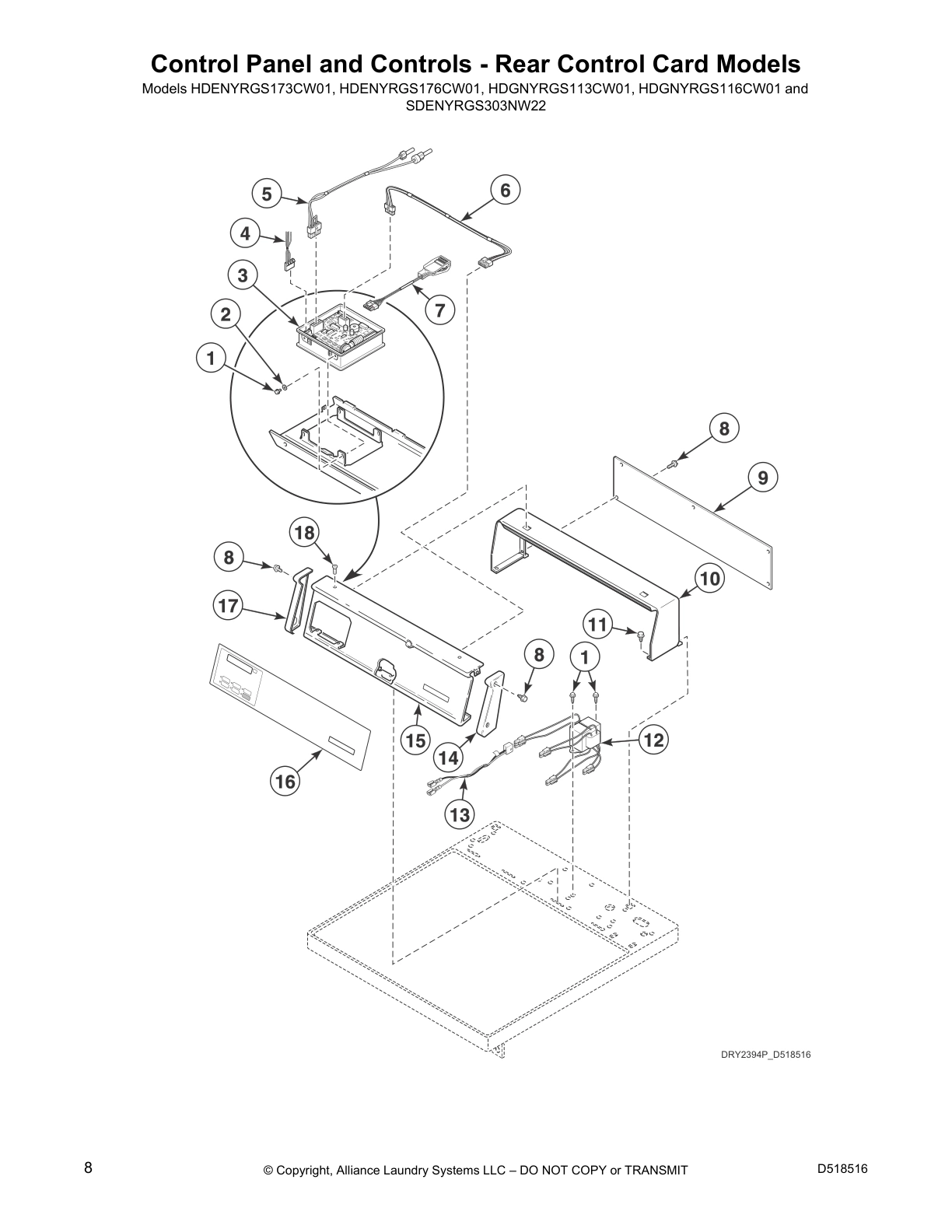

Control Panel and Controls - Rear Control Card Models

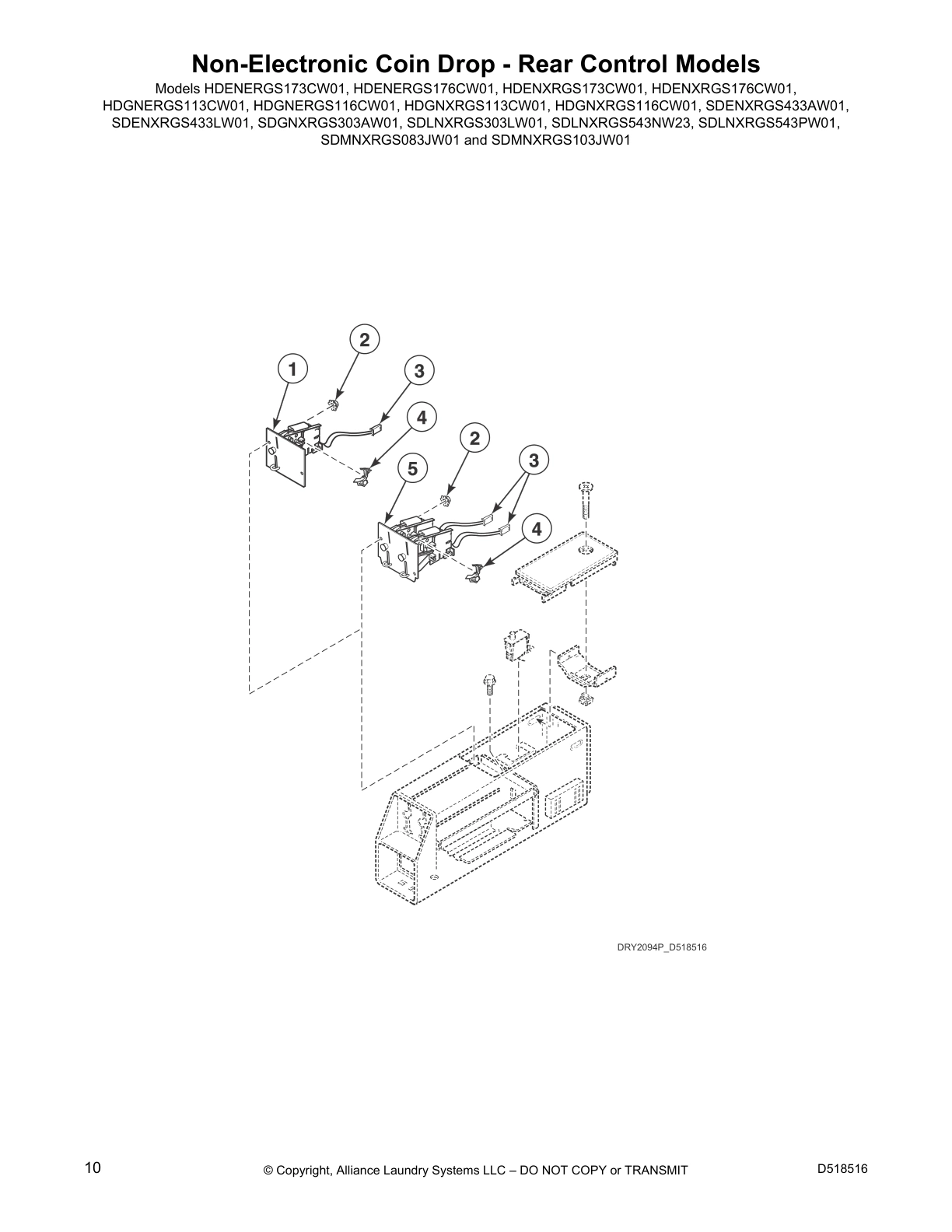

Non-Electronic Coin Drop - Rear Control Models

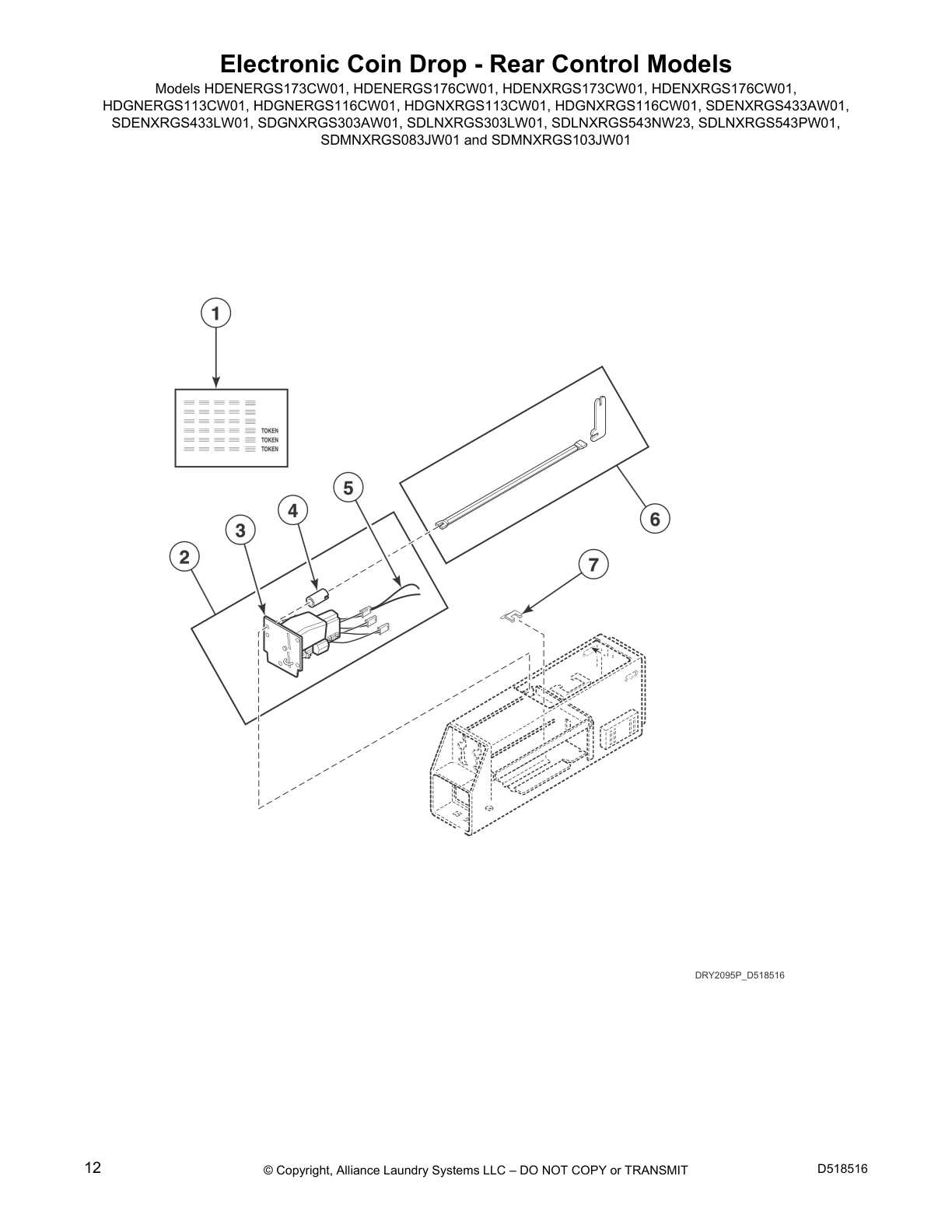

Electronic Coin Drop - Rear Control Models

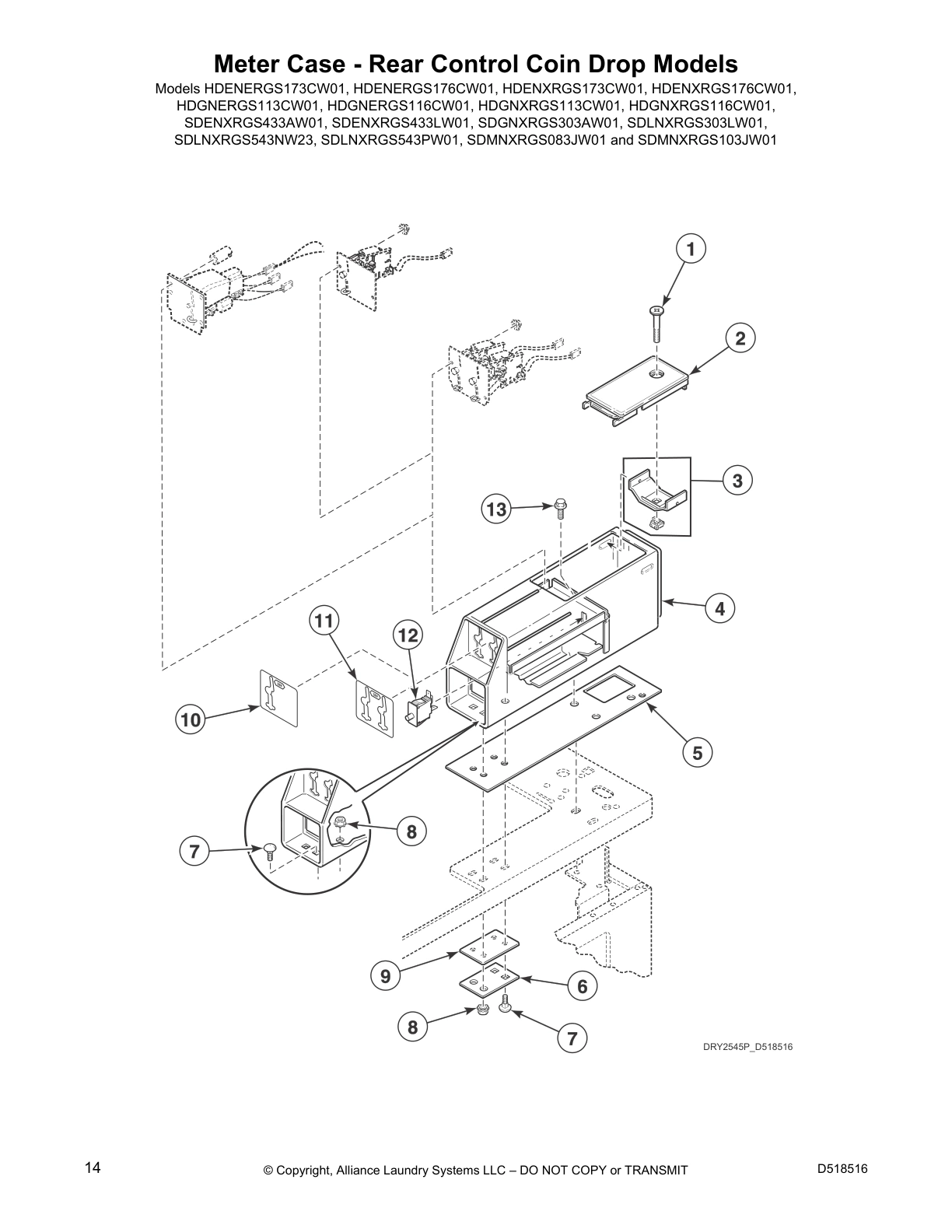

Meter Case - Rear Control Coin Drop Models

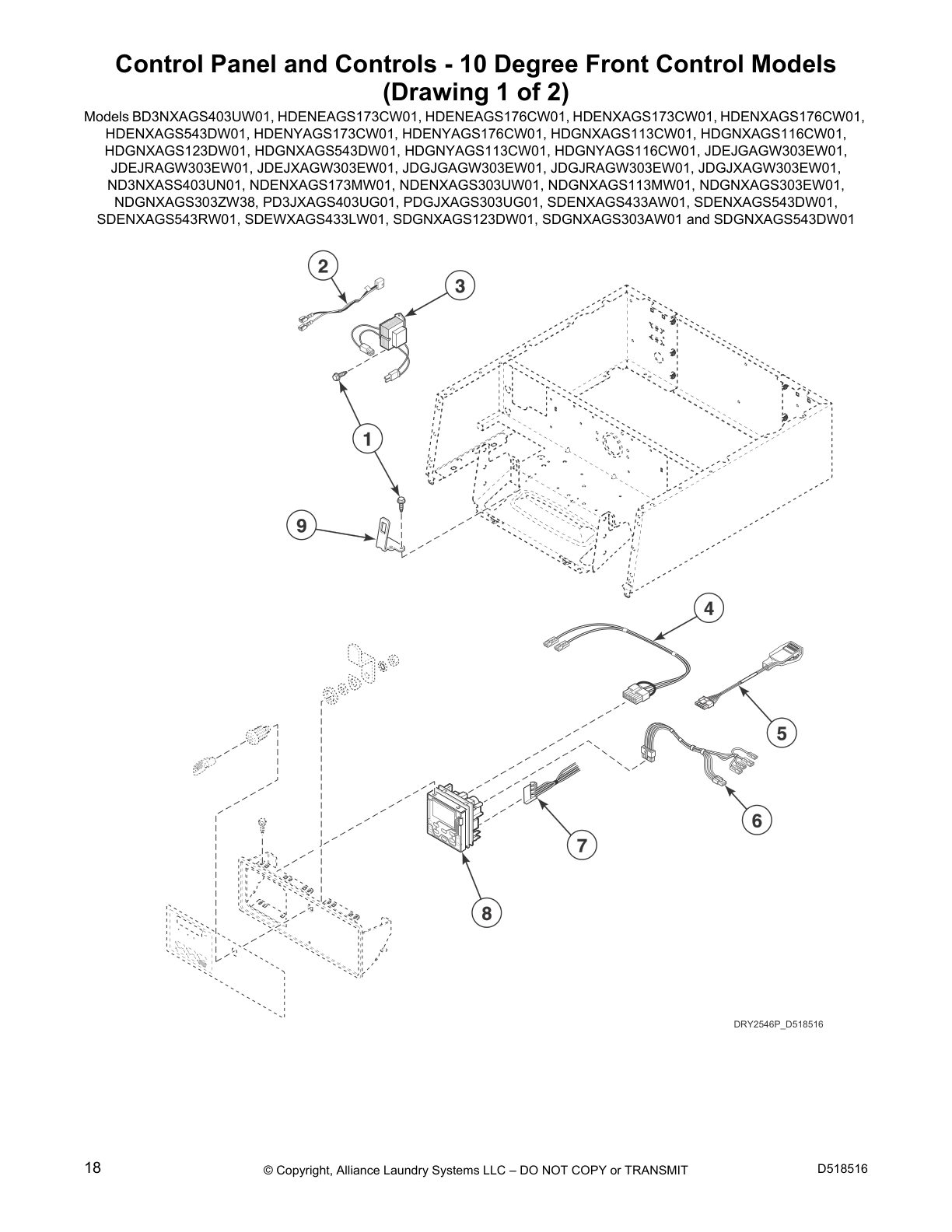

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)

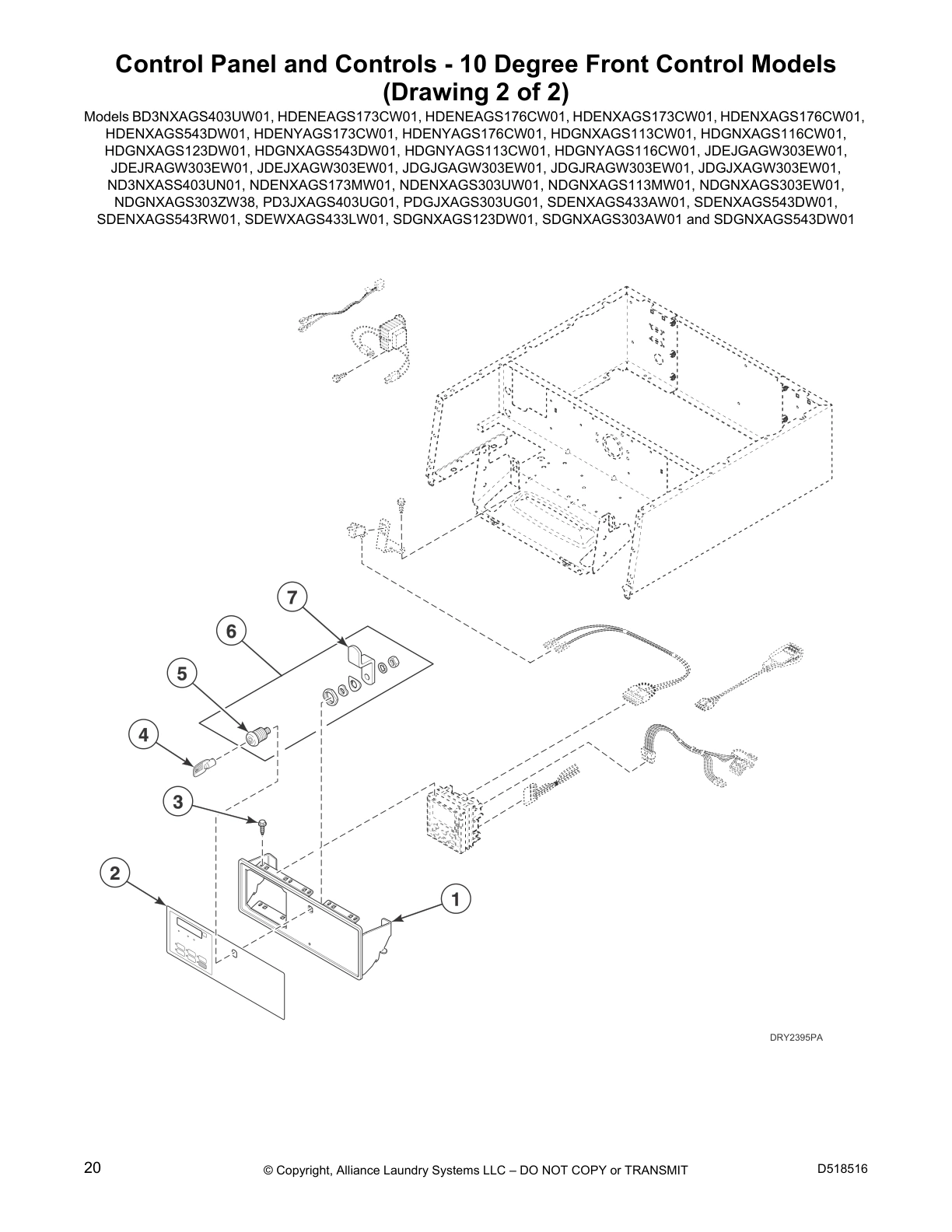

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 2 of 2)

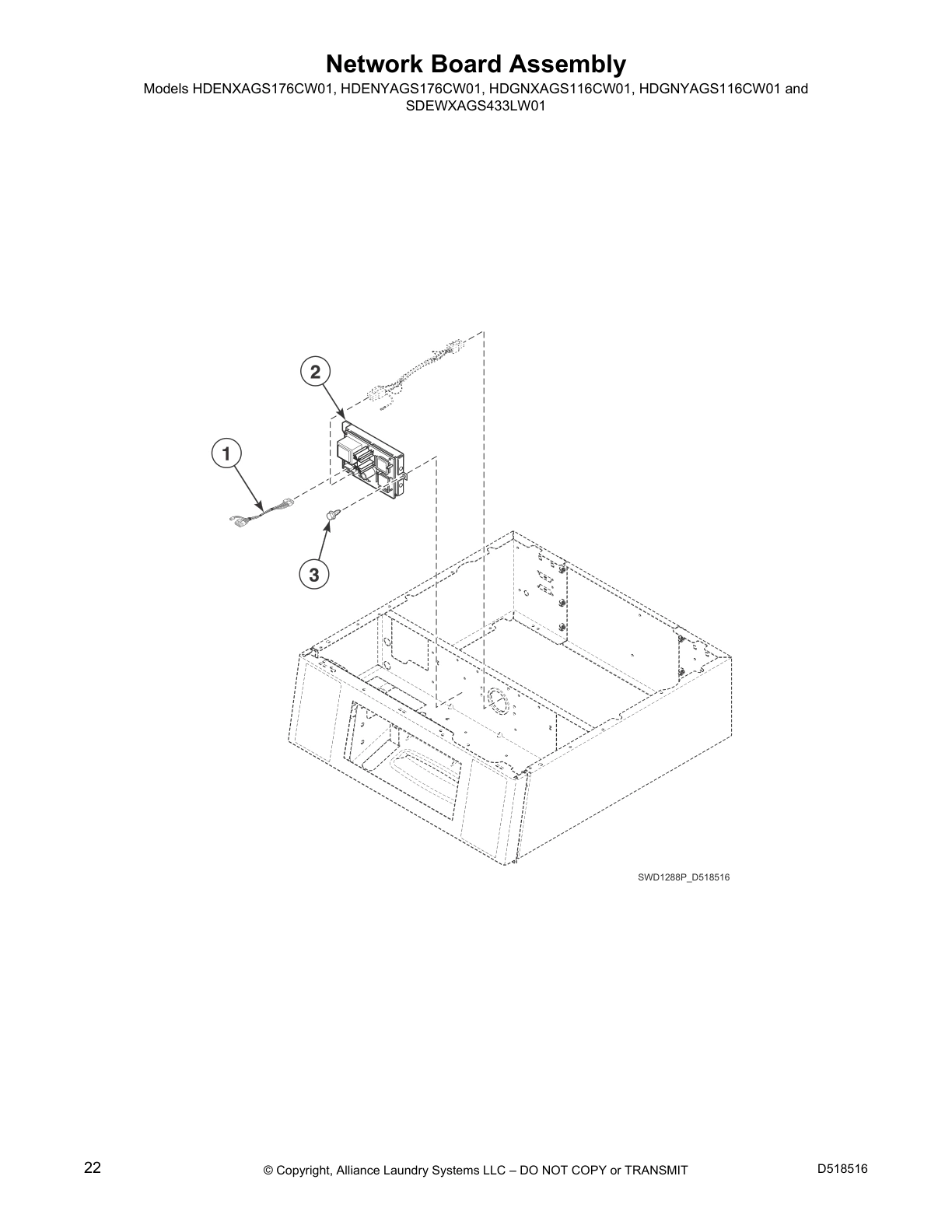

Network Board Assembly

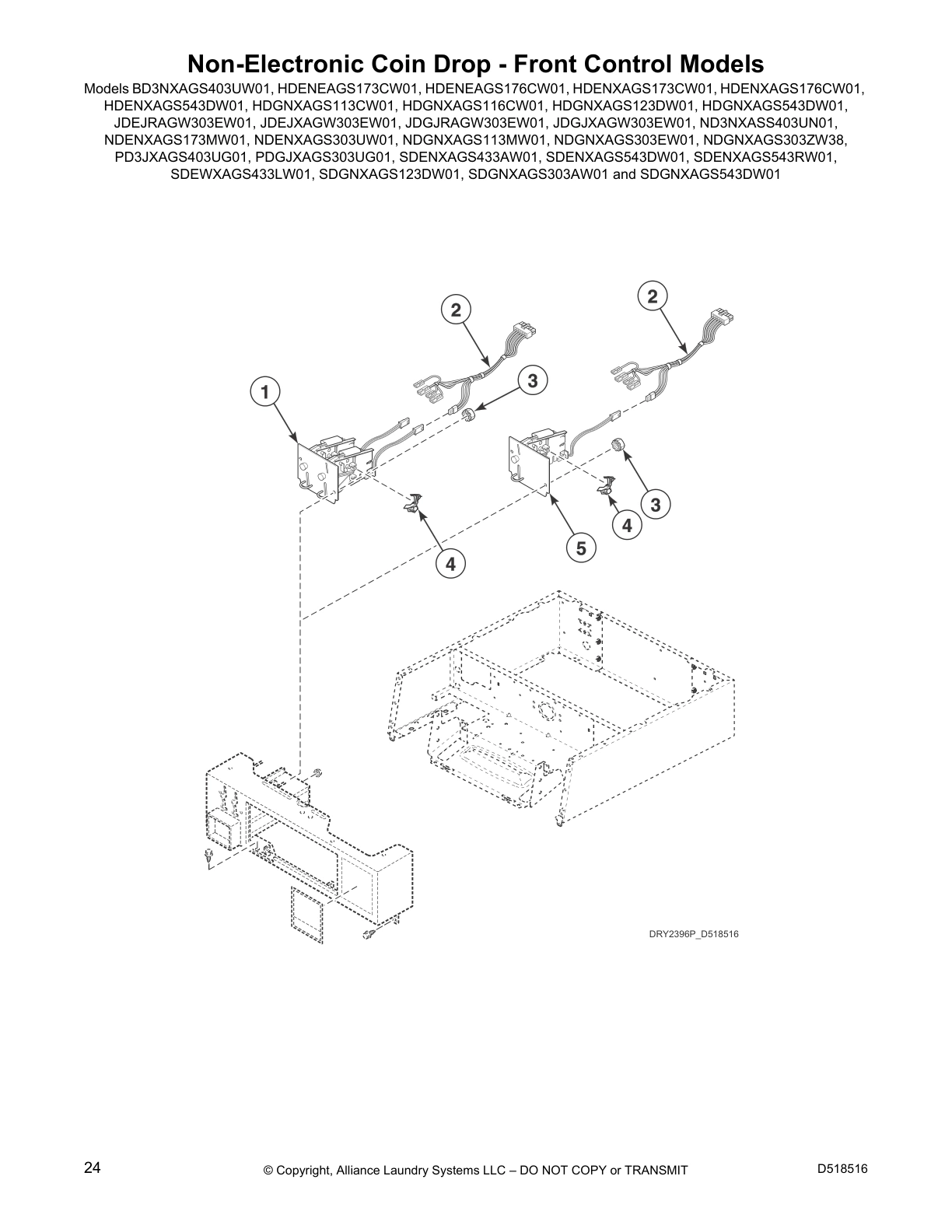

Non-Electronic Coin Drop - Front Control Models

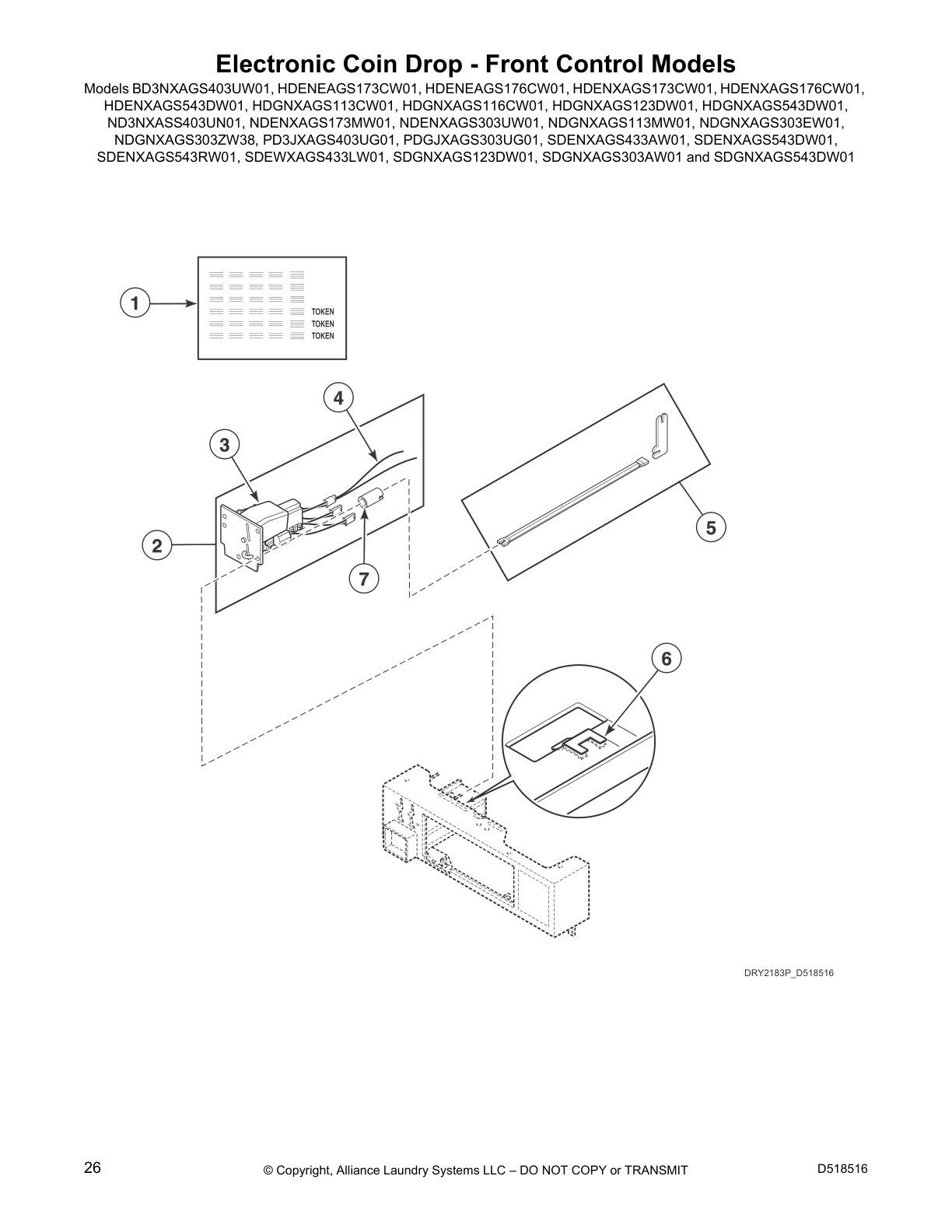

Electronic Coin Drop - Front Control Models

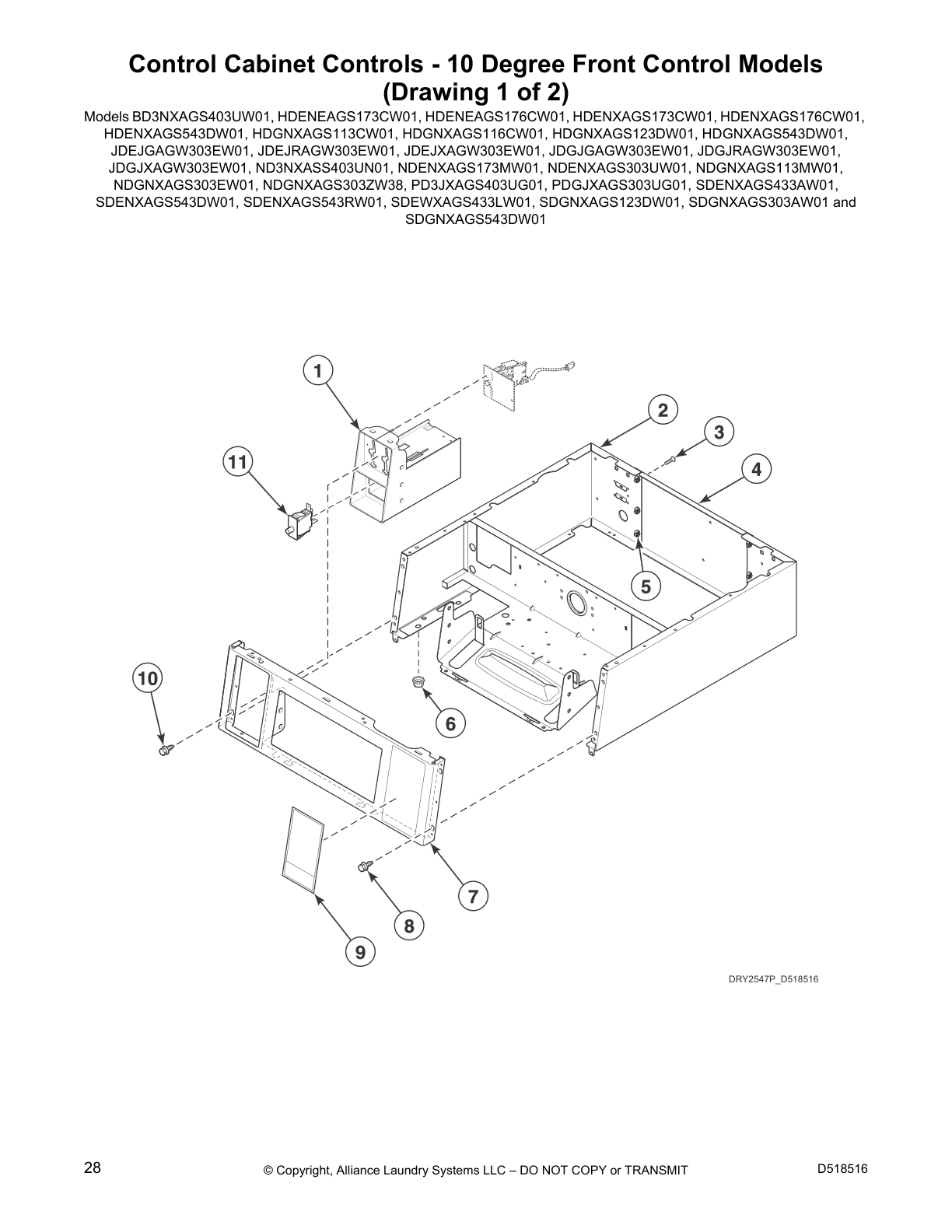

Control Cabinet Controls - 10 Degree Front Control Models
(Drawing 1 of 2)

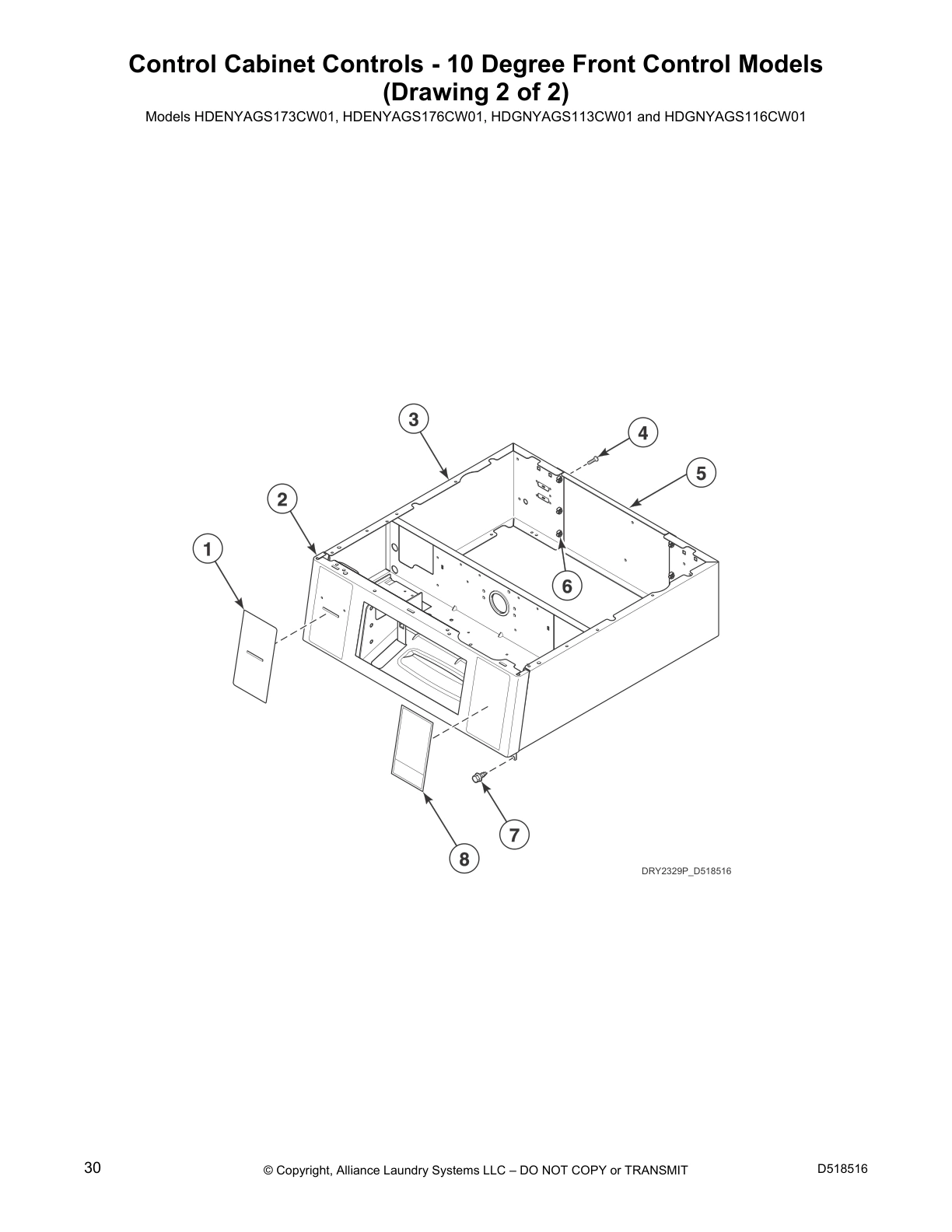

Control Cabinet Controls - 10 Degree Front Control Models
(Drawing 2 of 2)

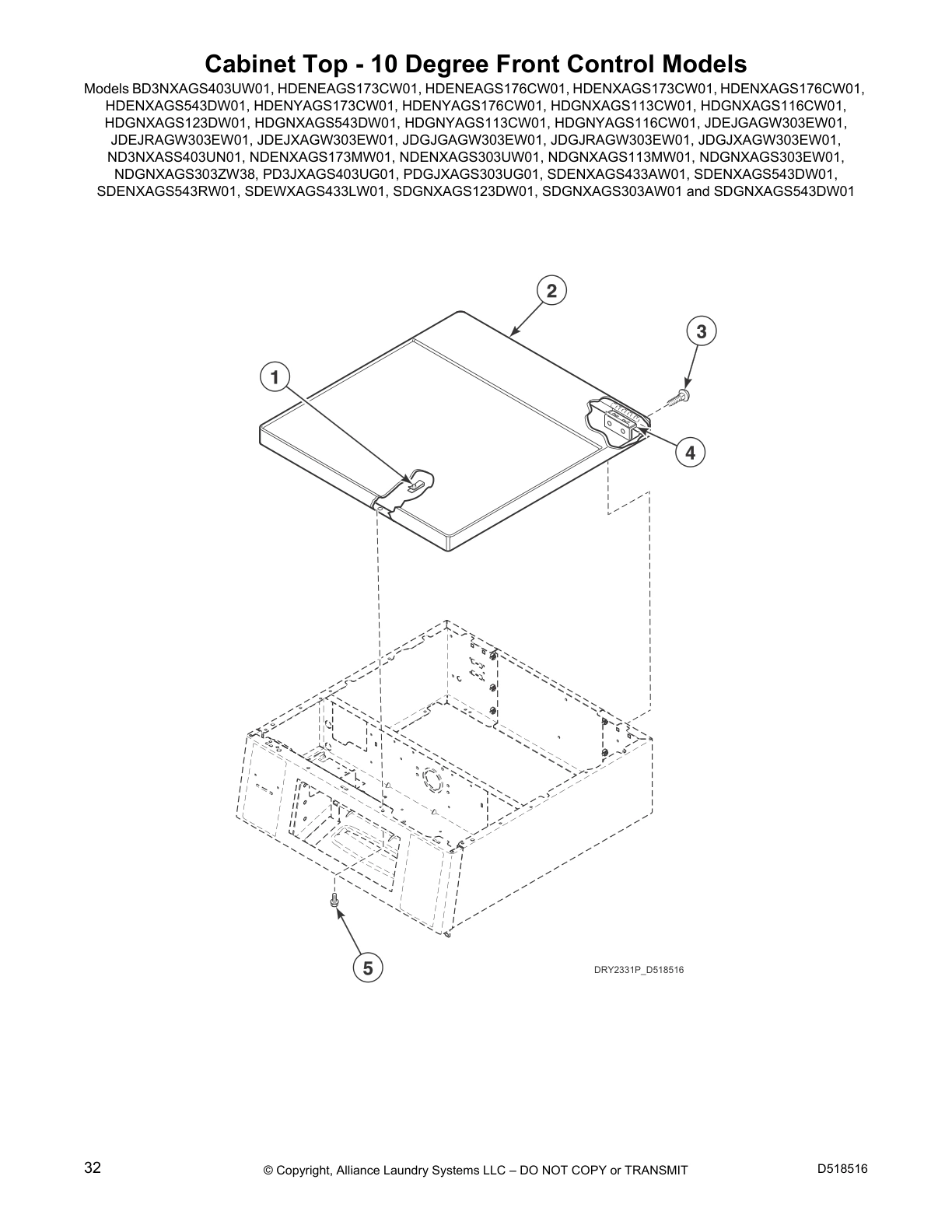

Cabinet Top - 10 Degree Front Control Models

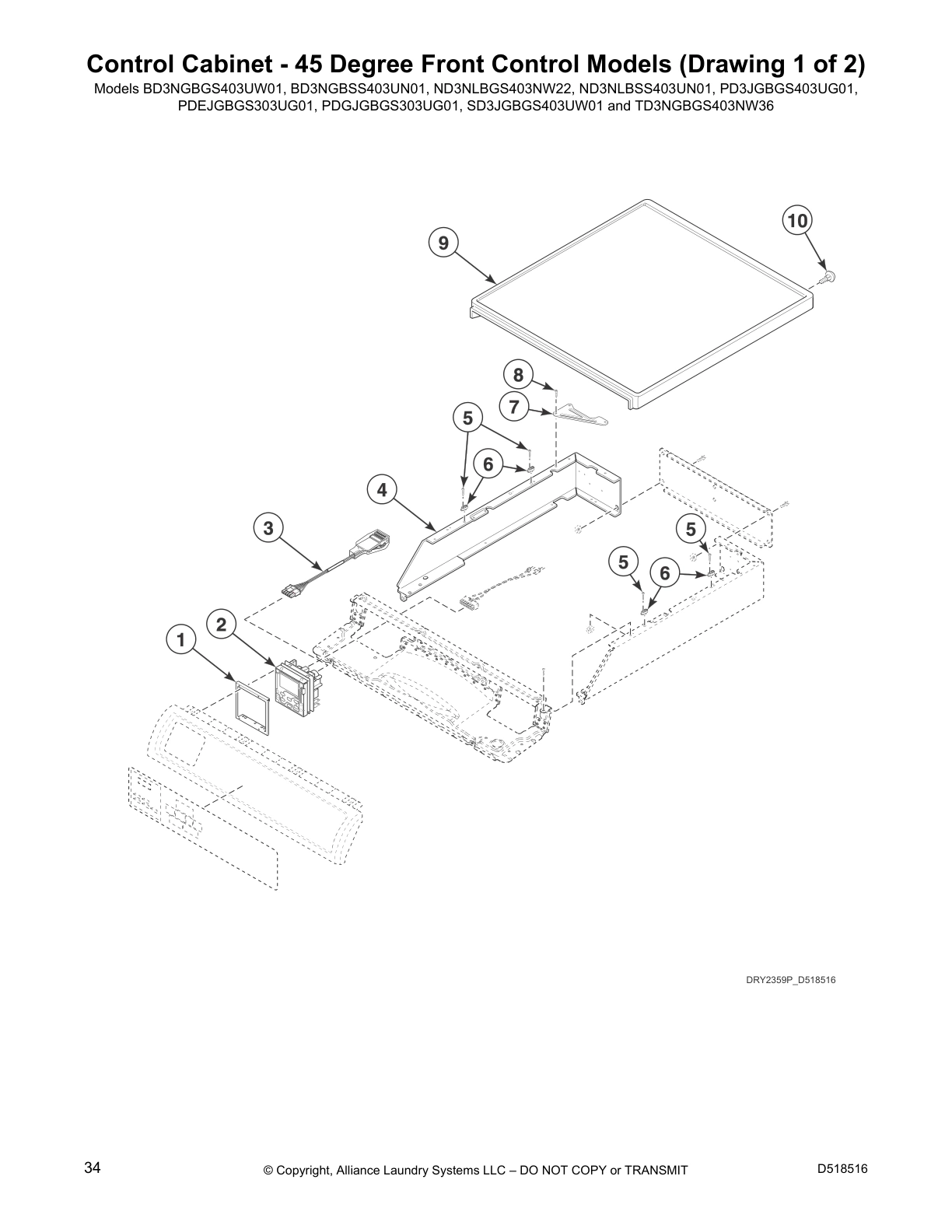

Control Cabinet - 45 Degree Front Control Models (Drawing 1 of 2)

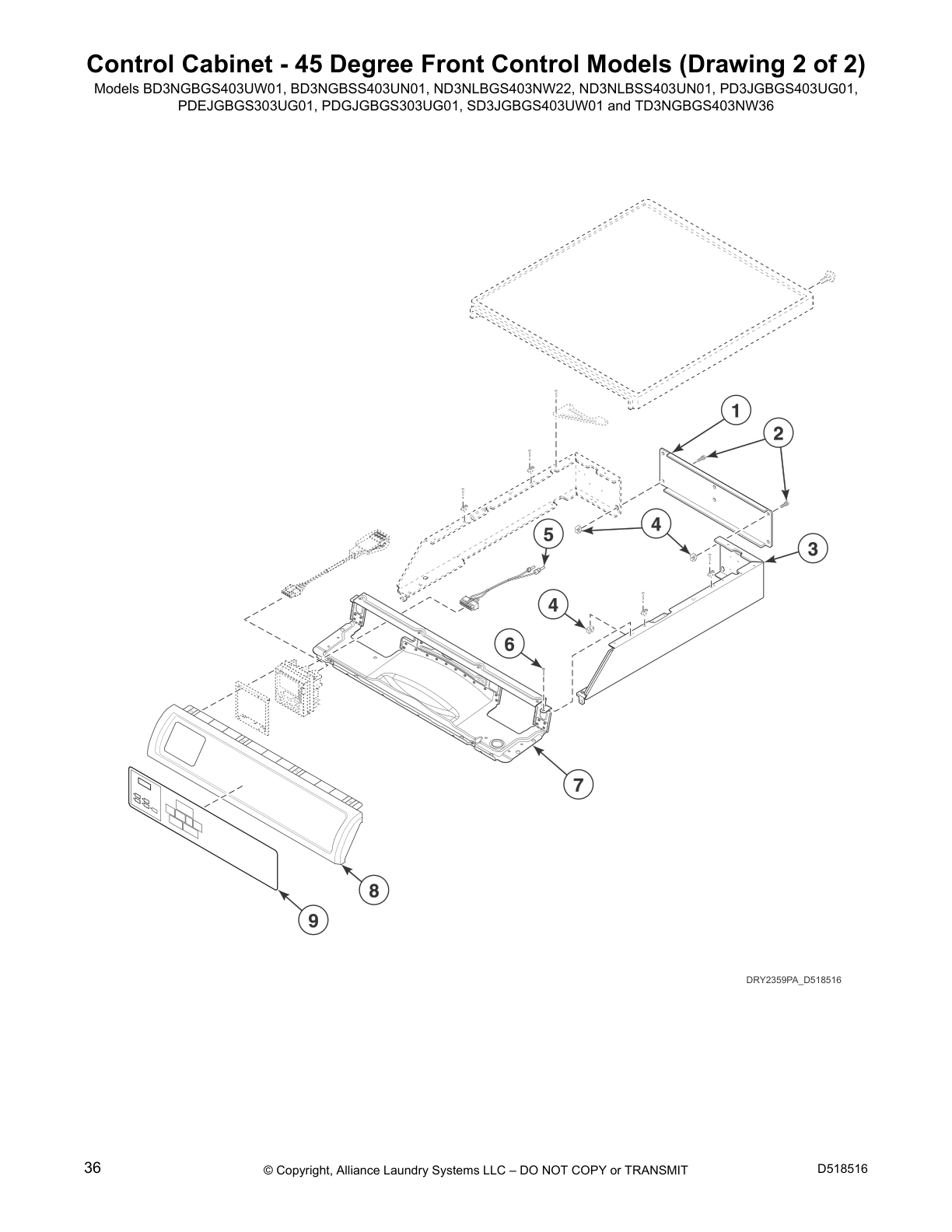

Control Cabinet - 45 Degree Front Control Models (Drawing 2 of 2)

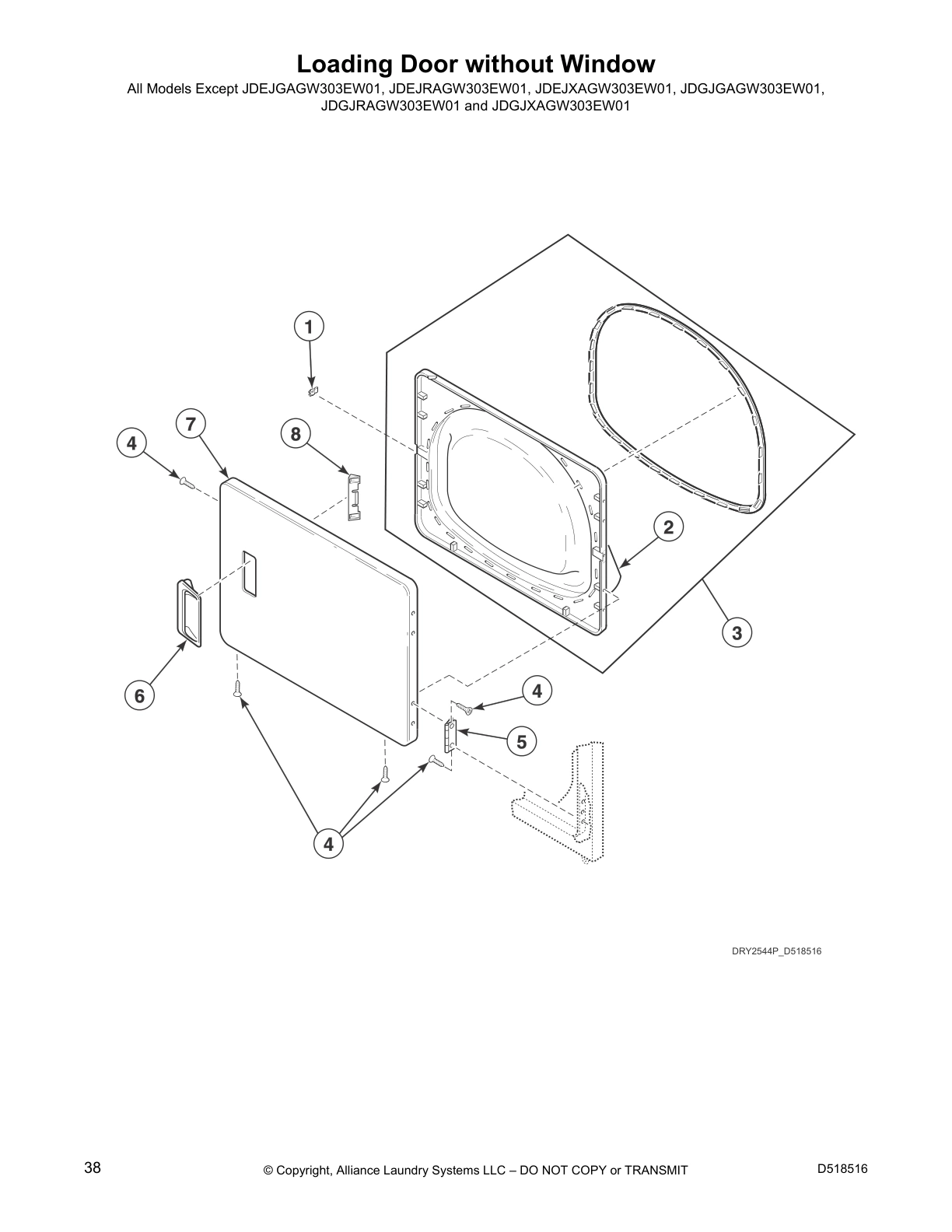

Loading Door without Window

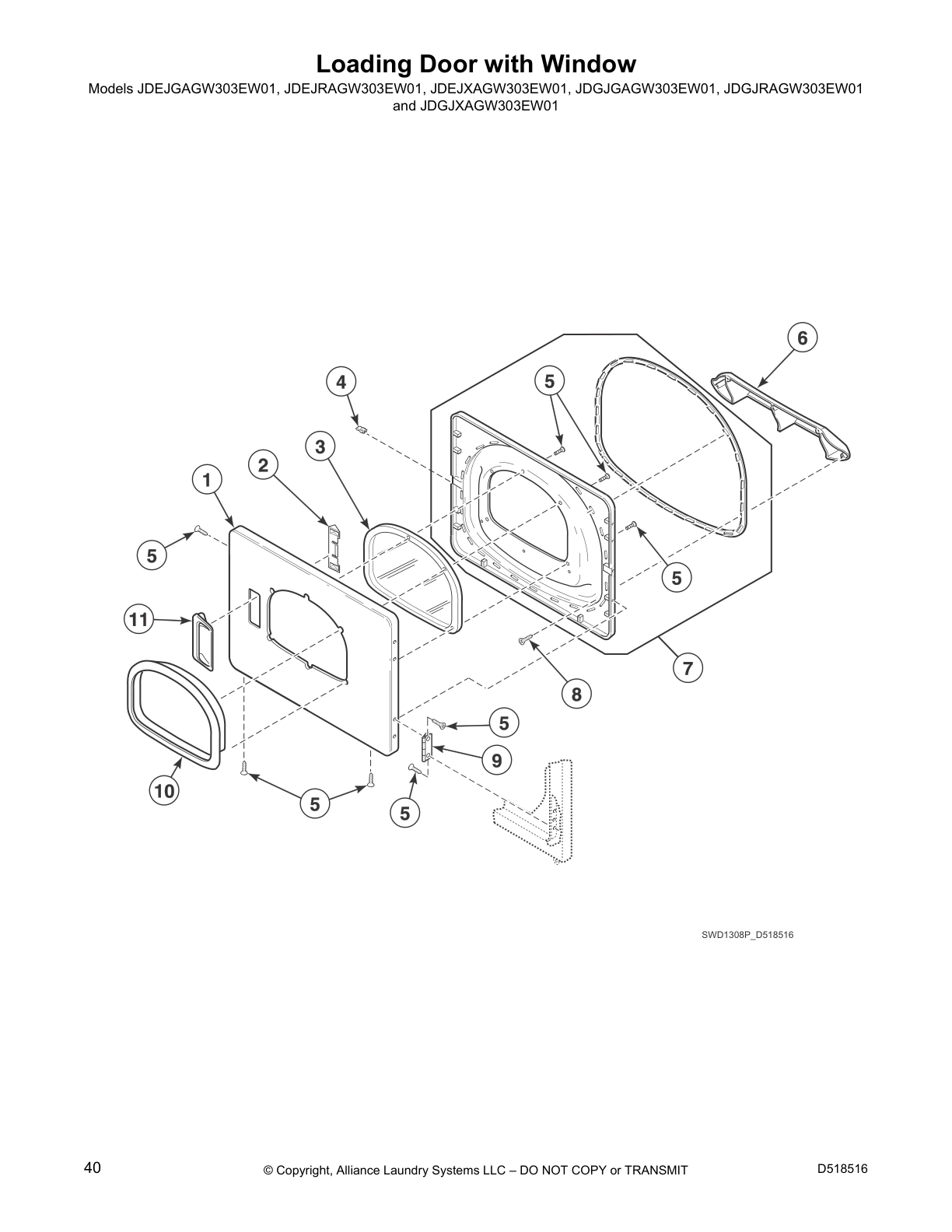

Loading Door with Window

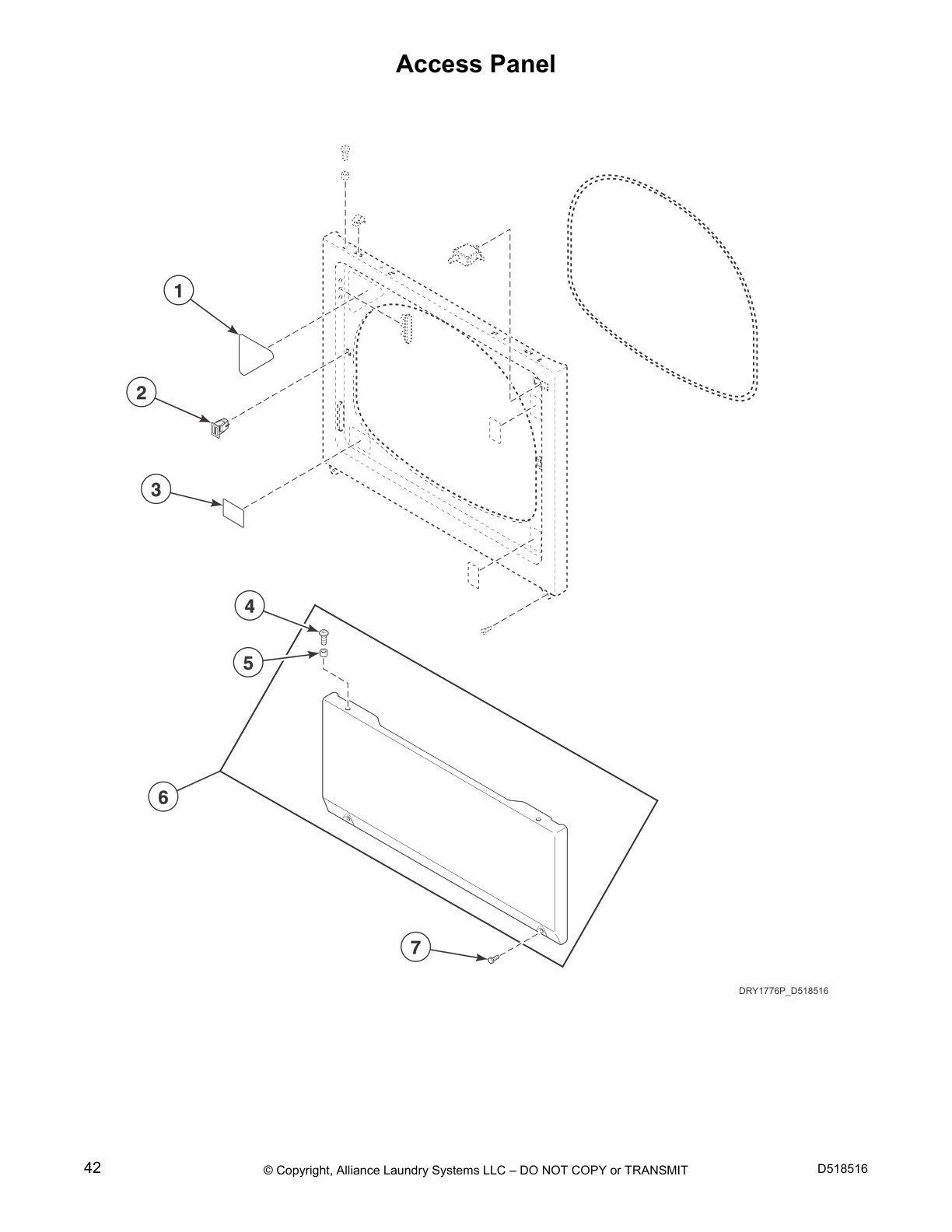

Access Panel

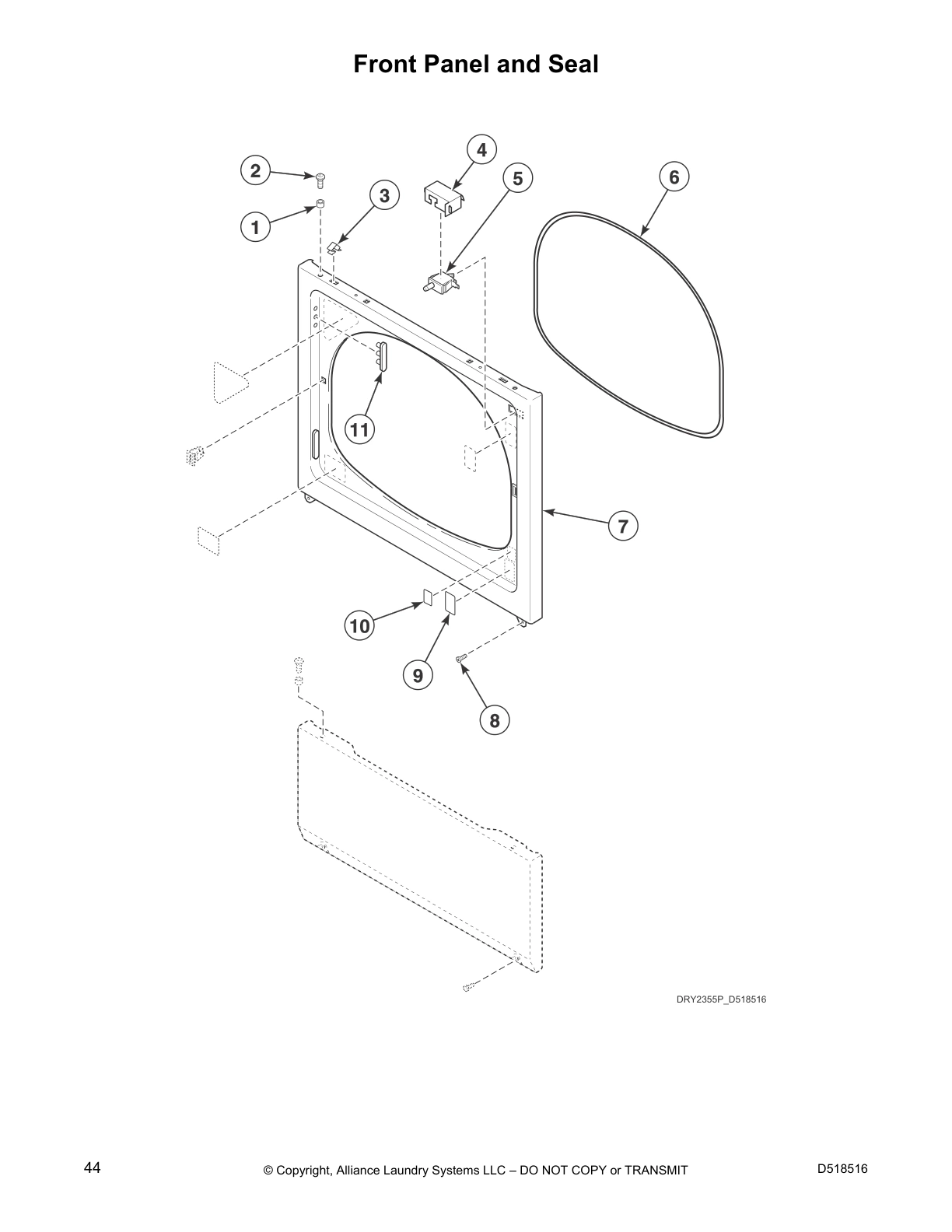

Front Panel and Seal
Motor and Belt

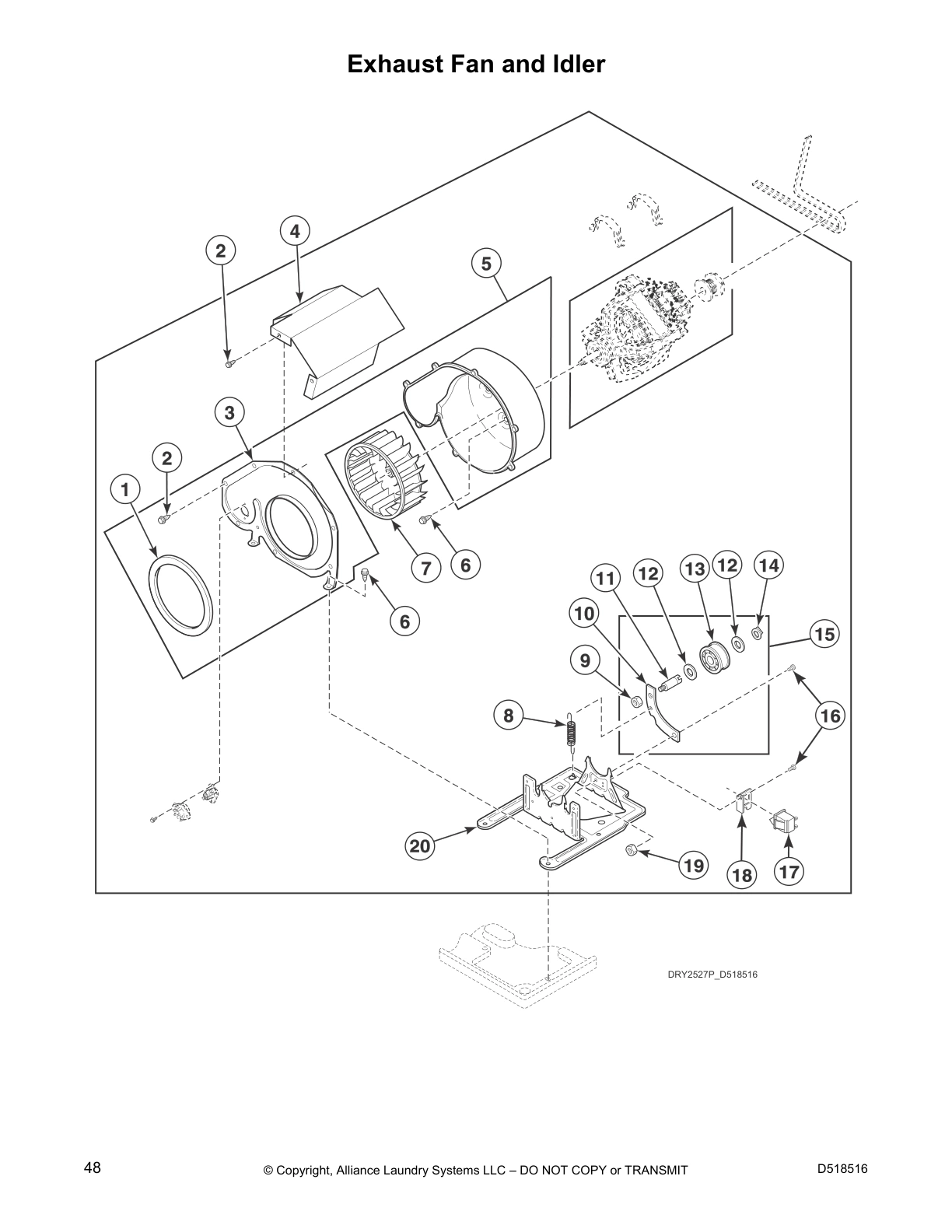

Exhaust Fan and Idler

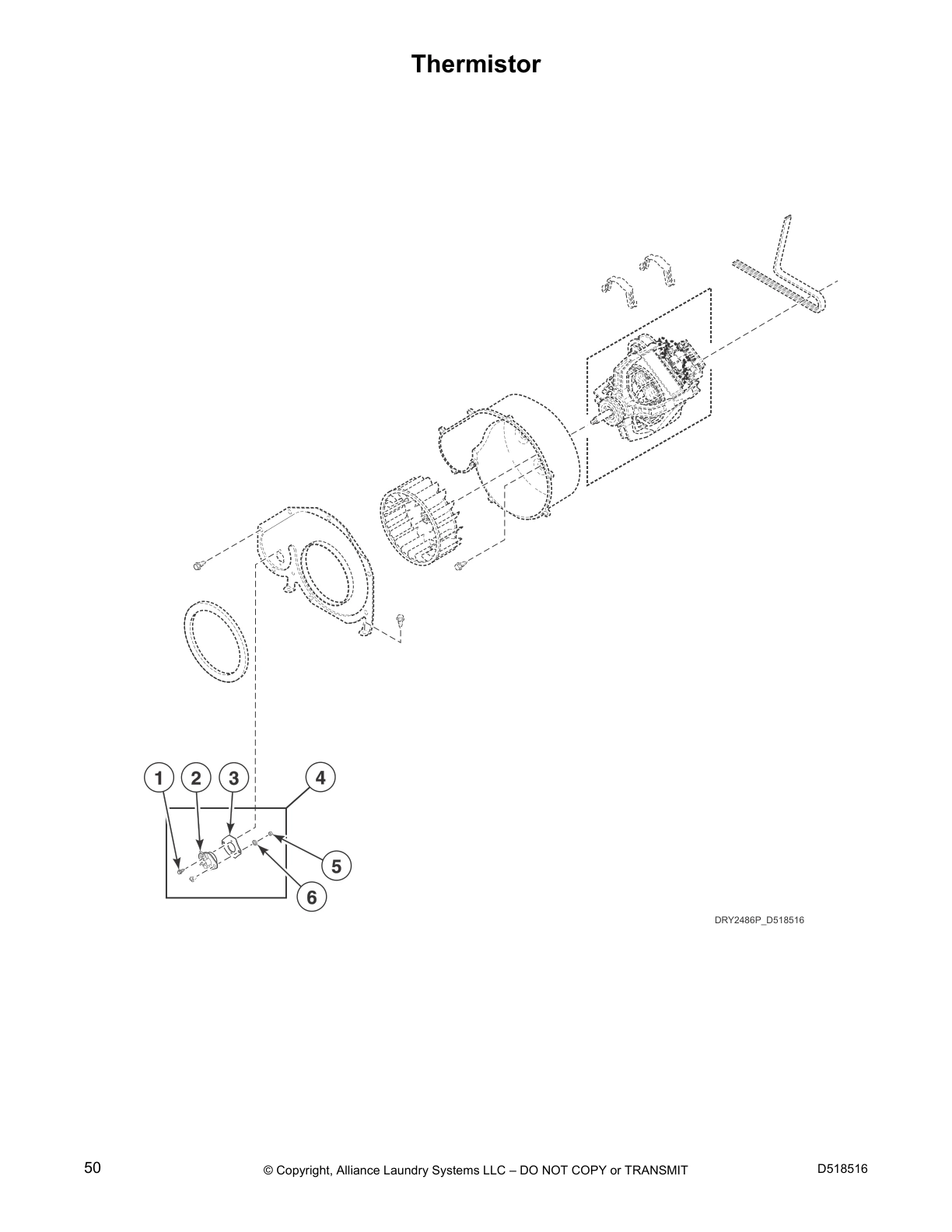

Thermistor

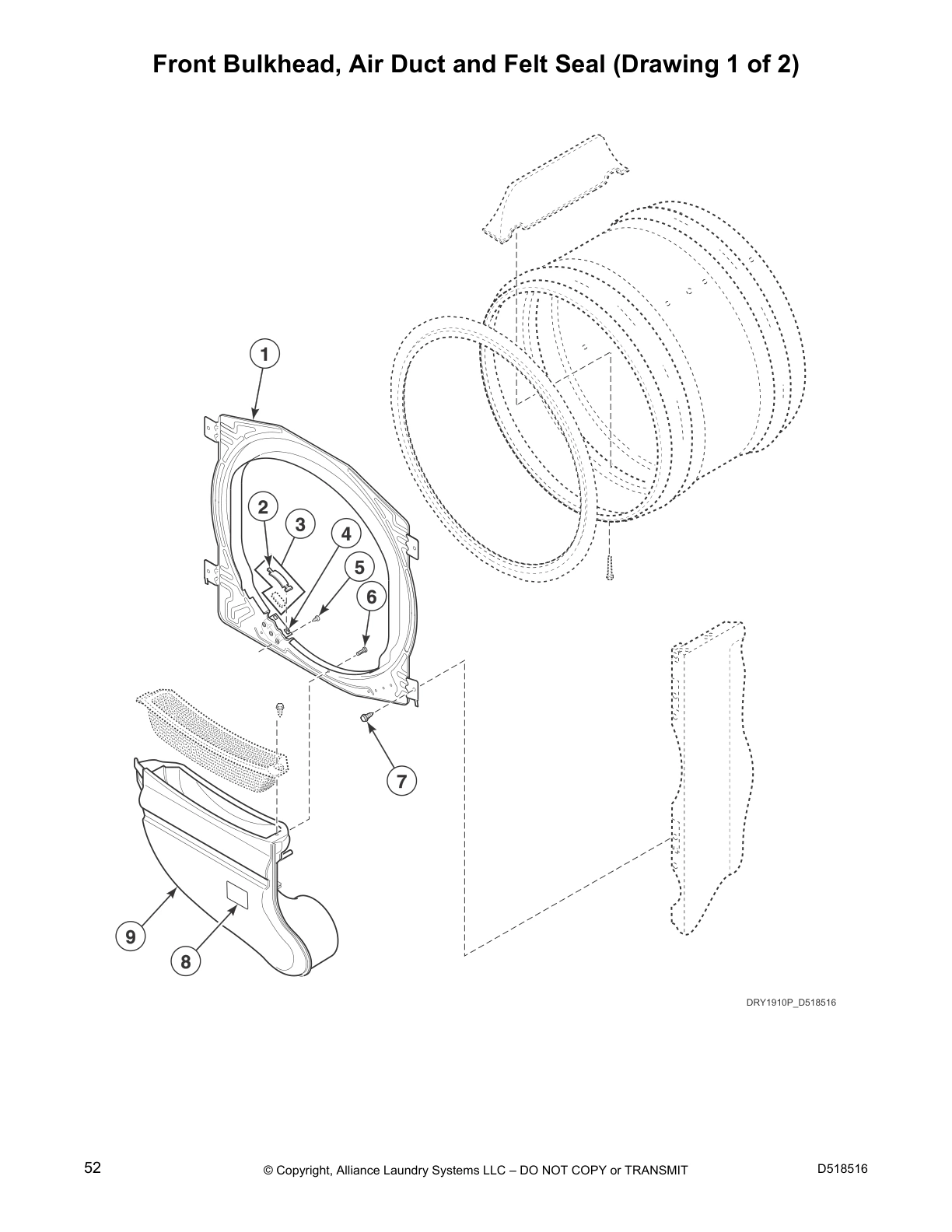

Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)

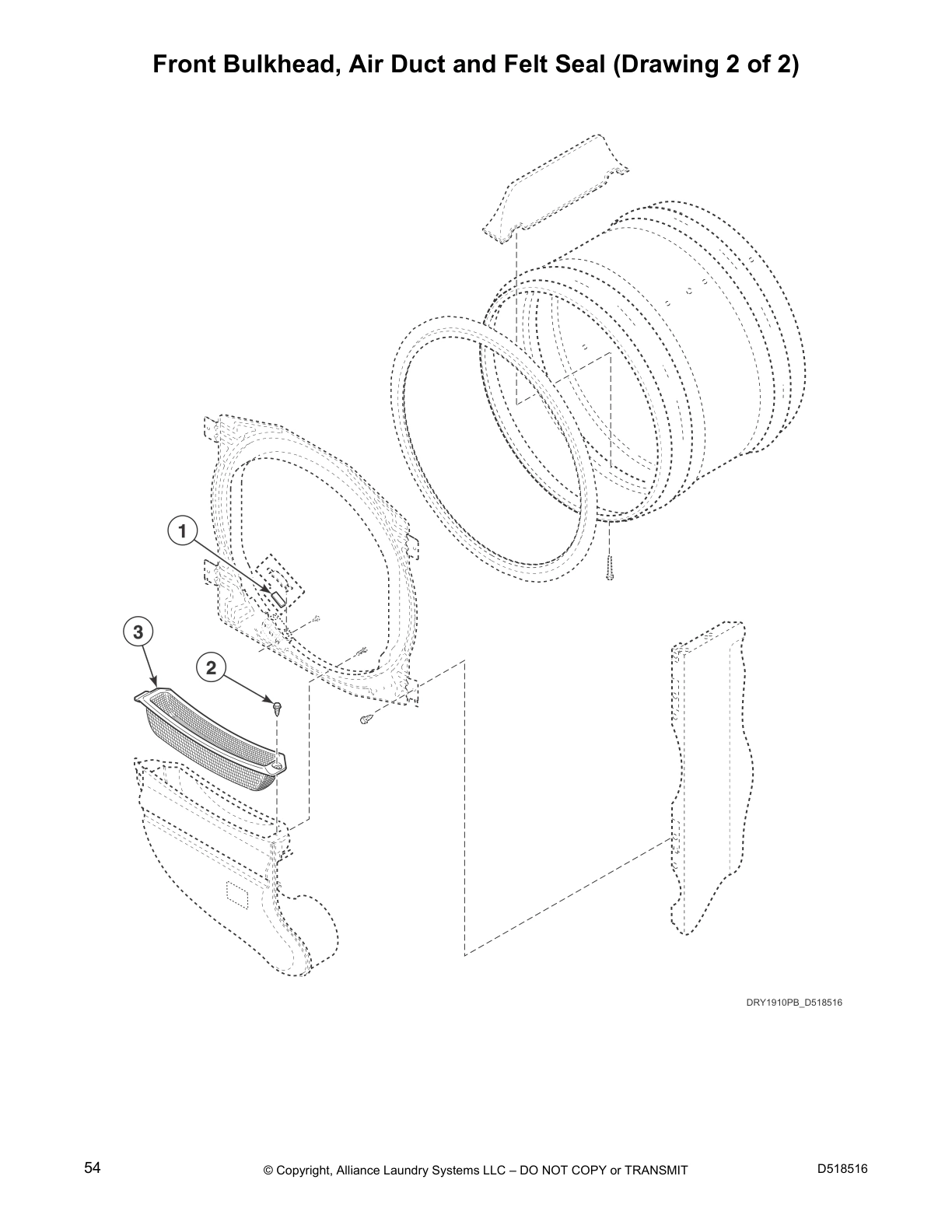

Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)

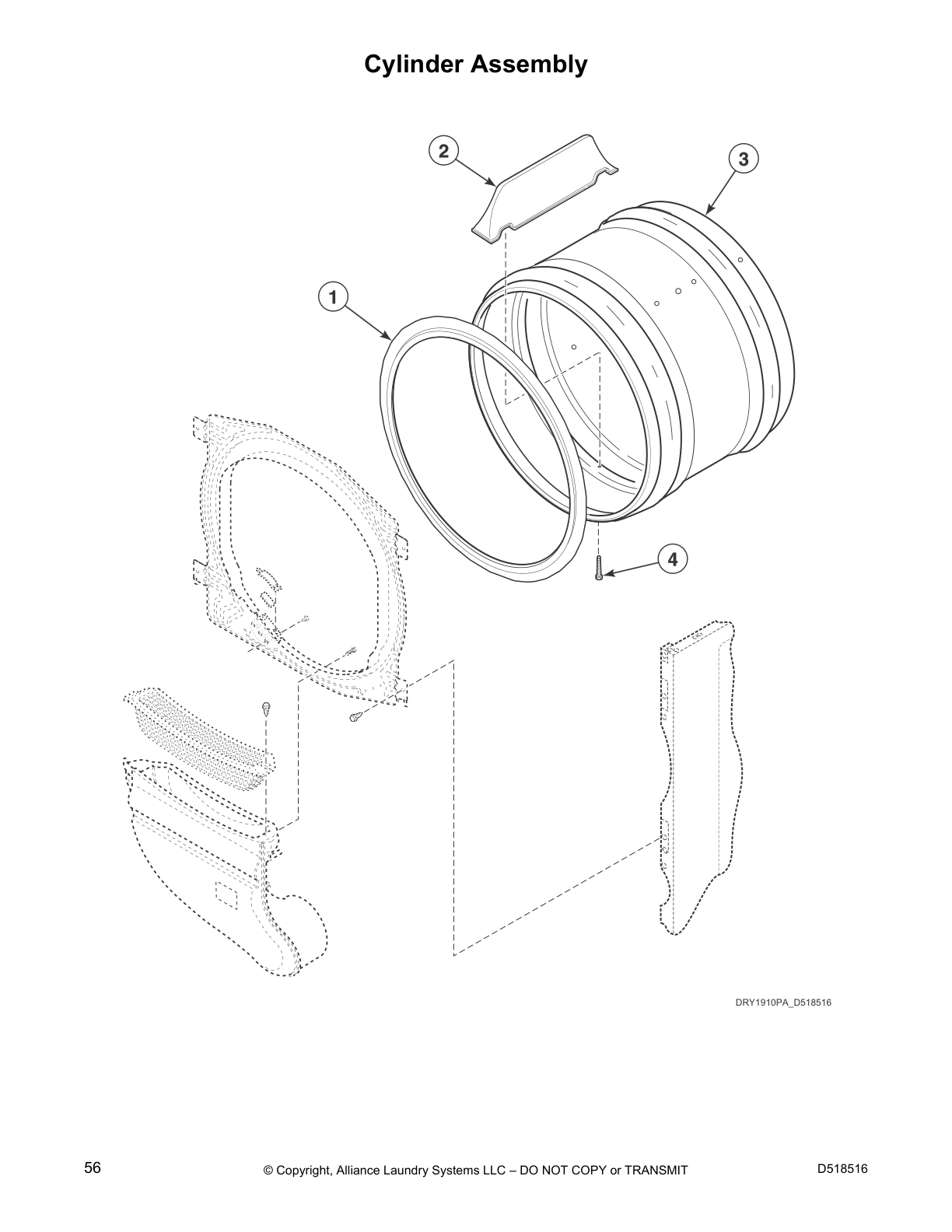

Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller

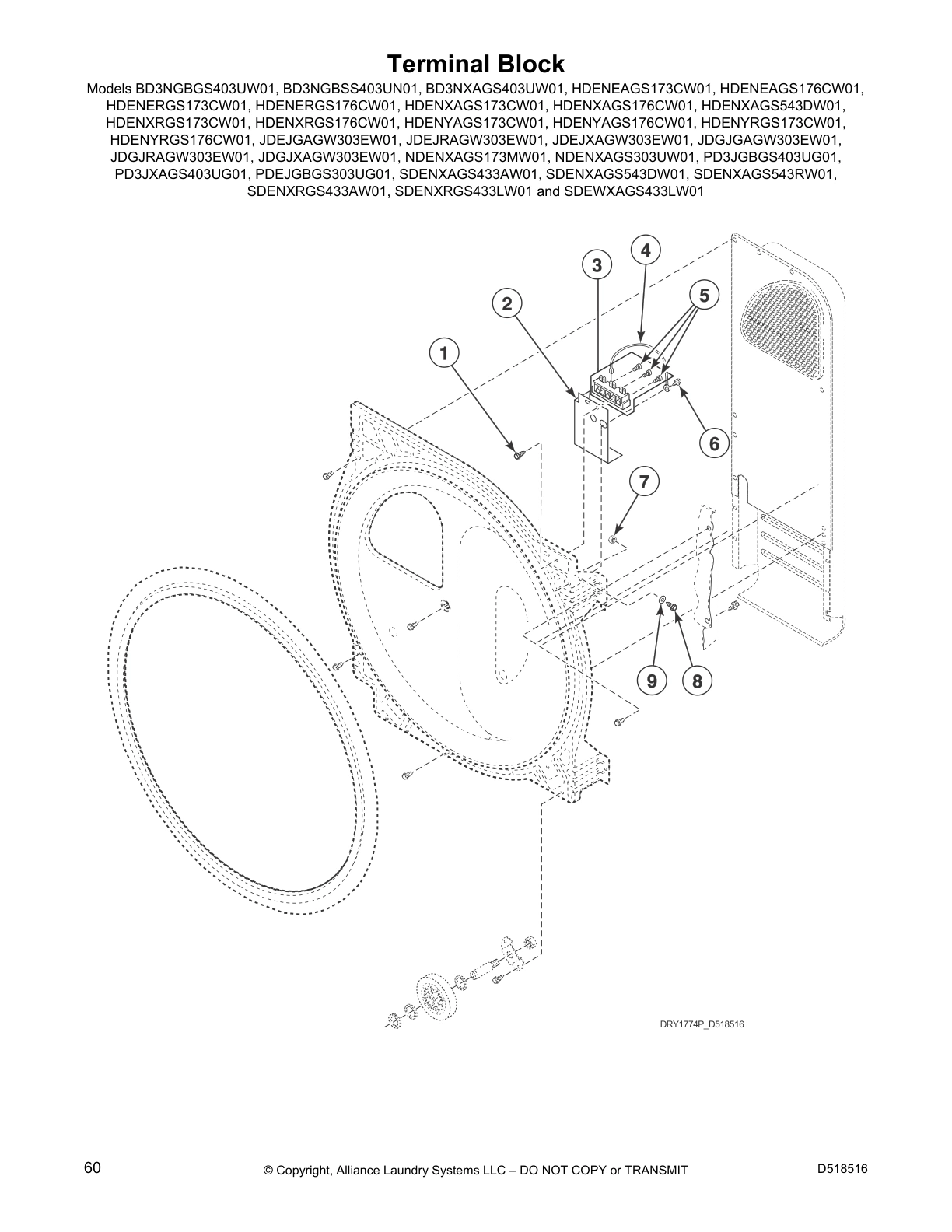

Terminal Block

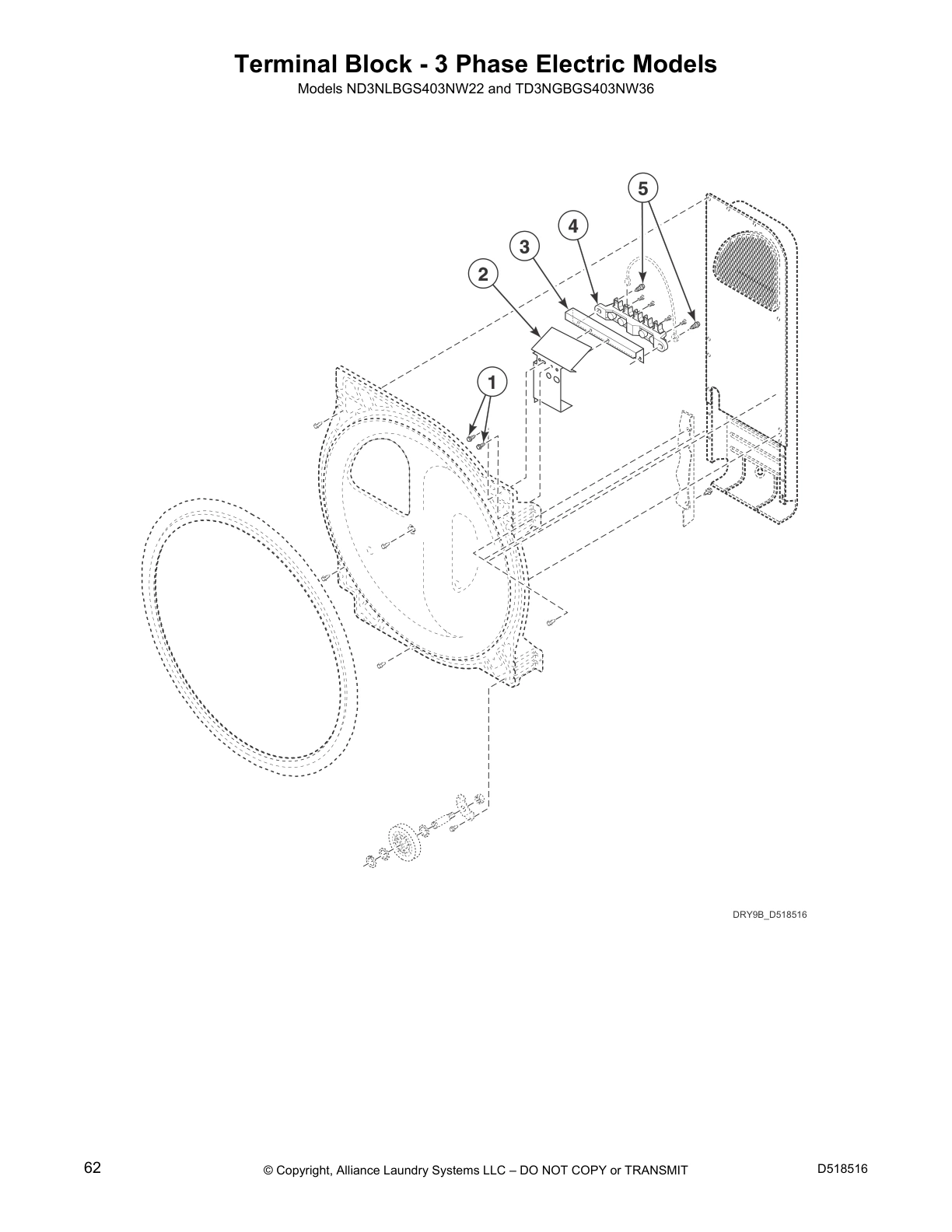

Terminal Block - 3 Phase Electric Models

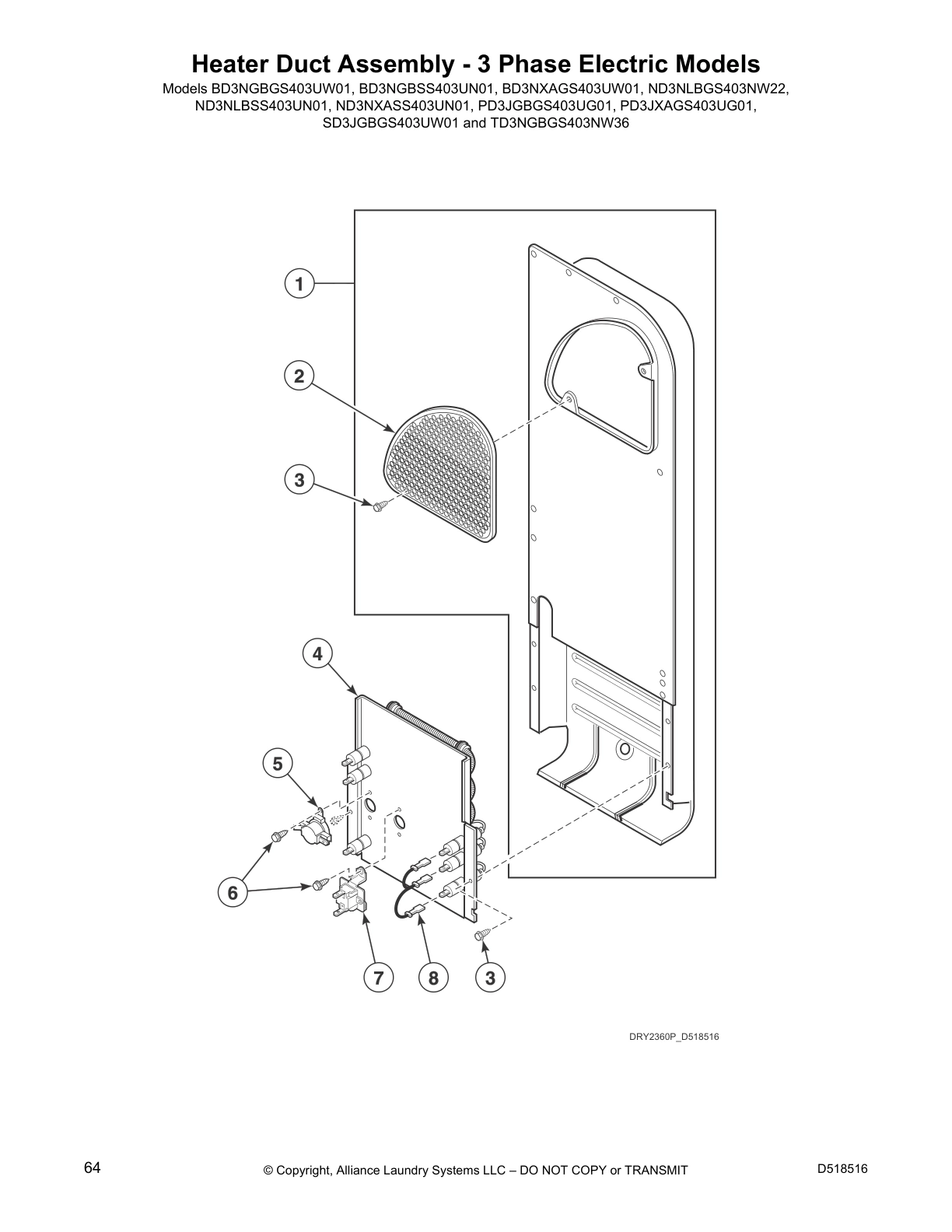

Heater Duct Assembly - 3 Phase Electric Models

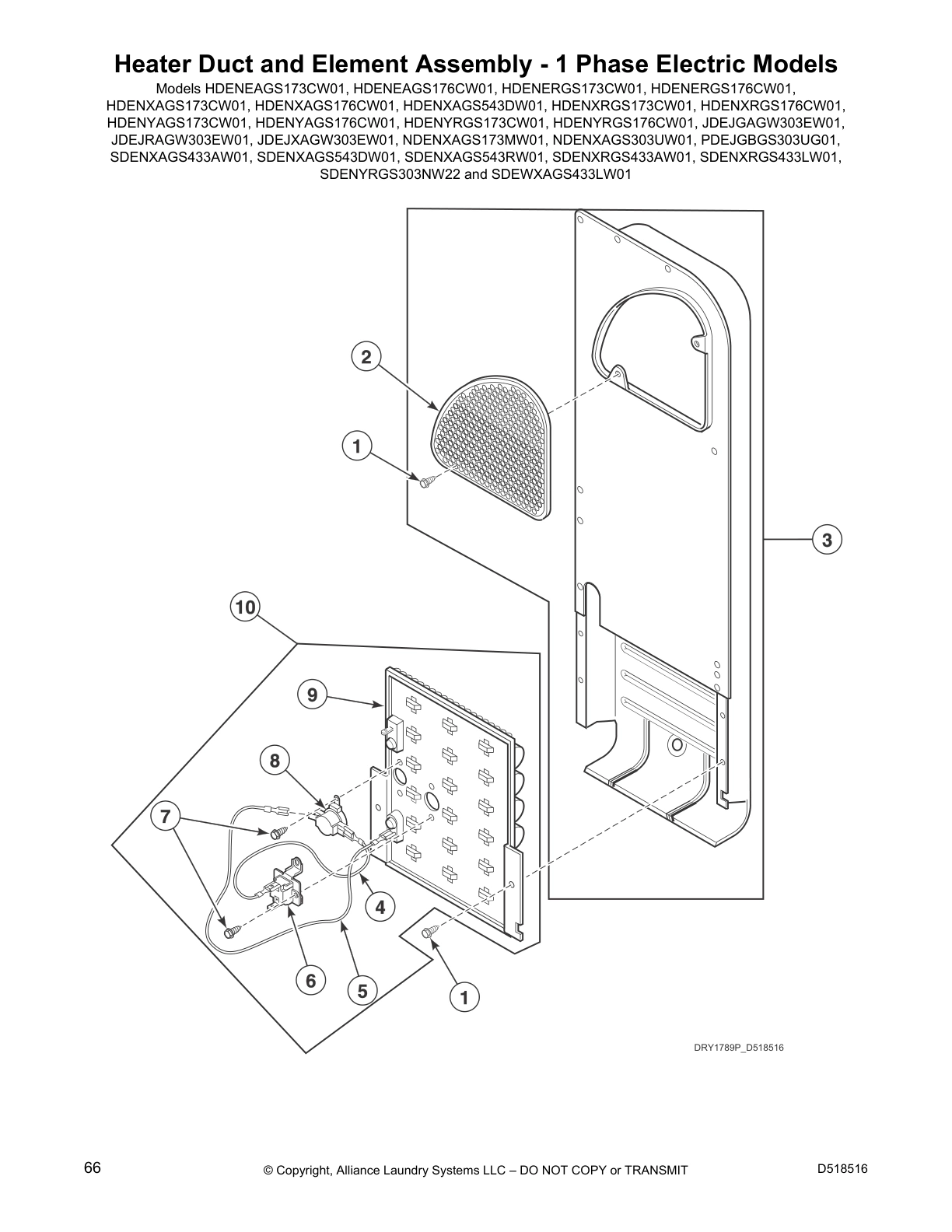

Heater Duct and Element Assembly - 1 Phase Electric Models
Heater Duct Assembly

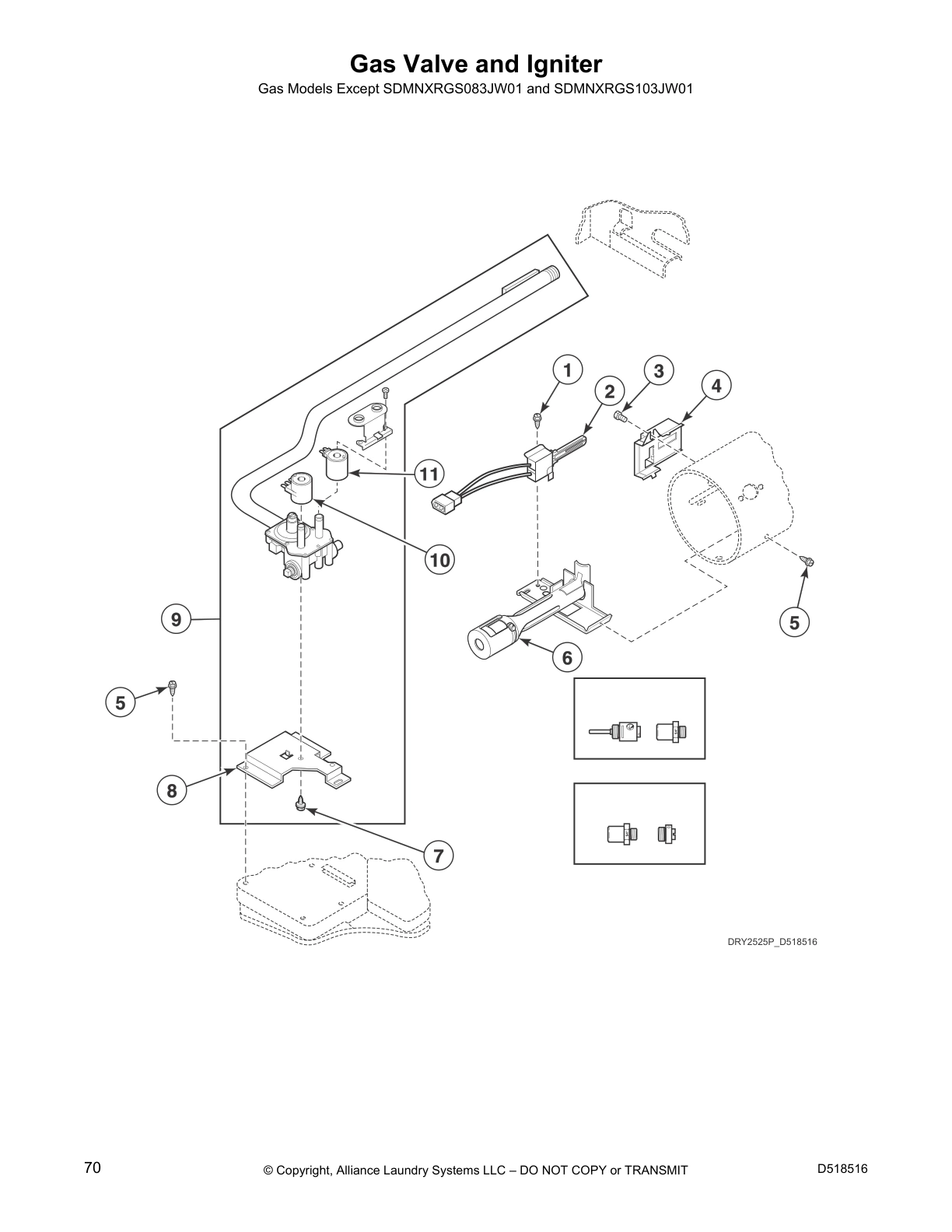

Gas Valve and Igniter
Cabinet, Exhaust Duct and Base

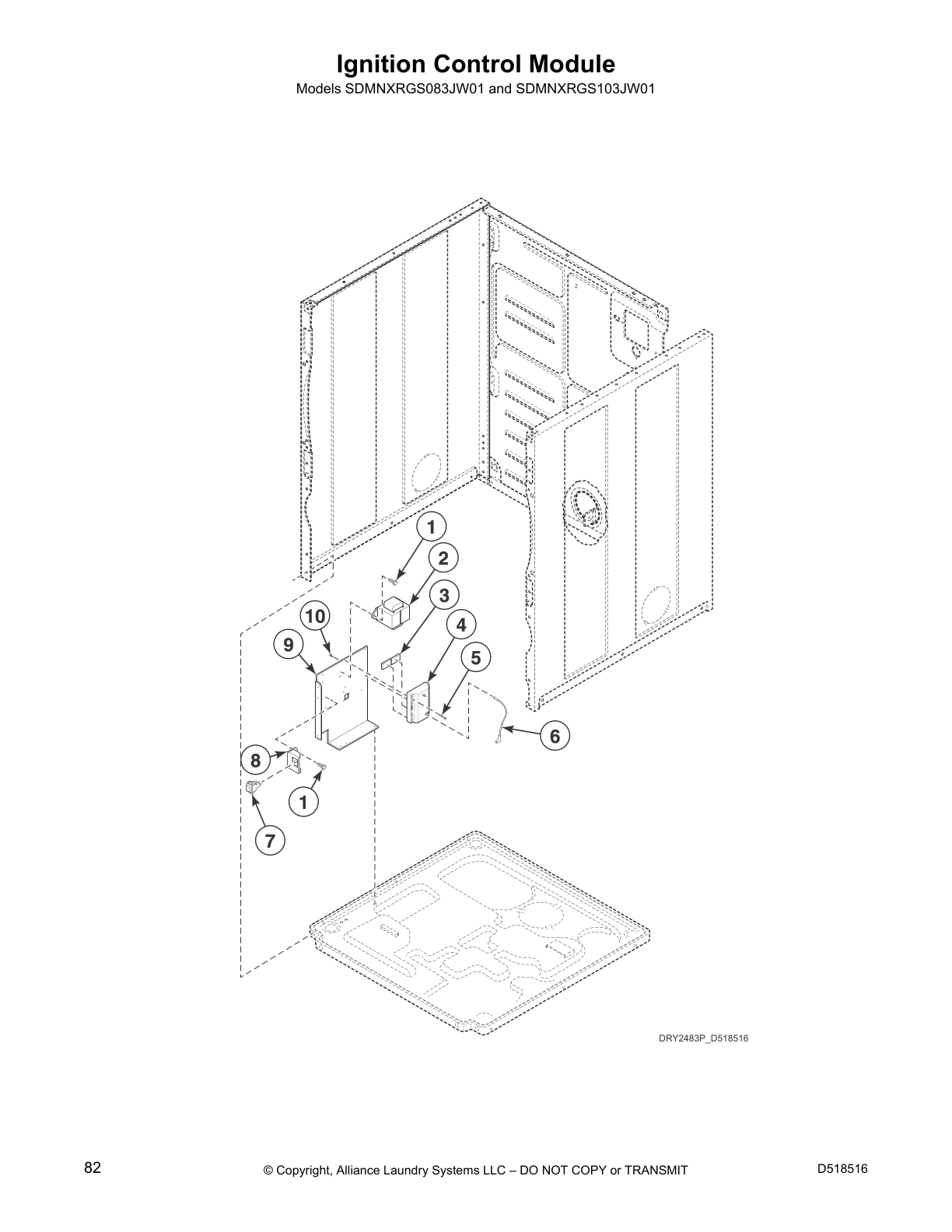

Ignition Control Module

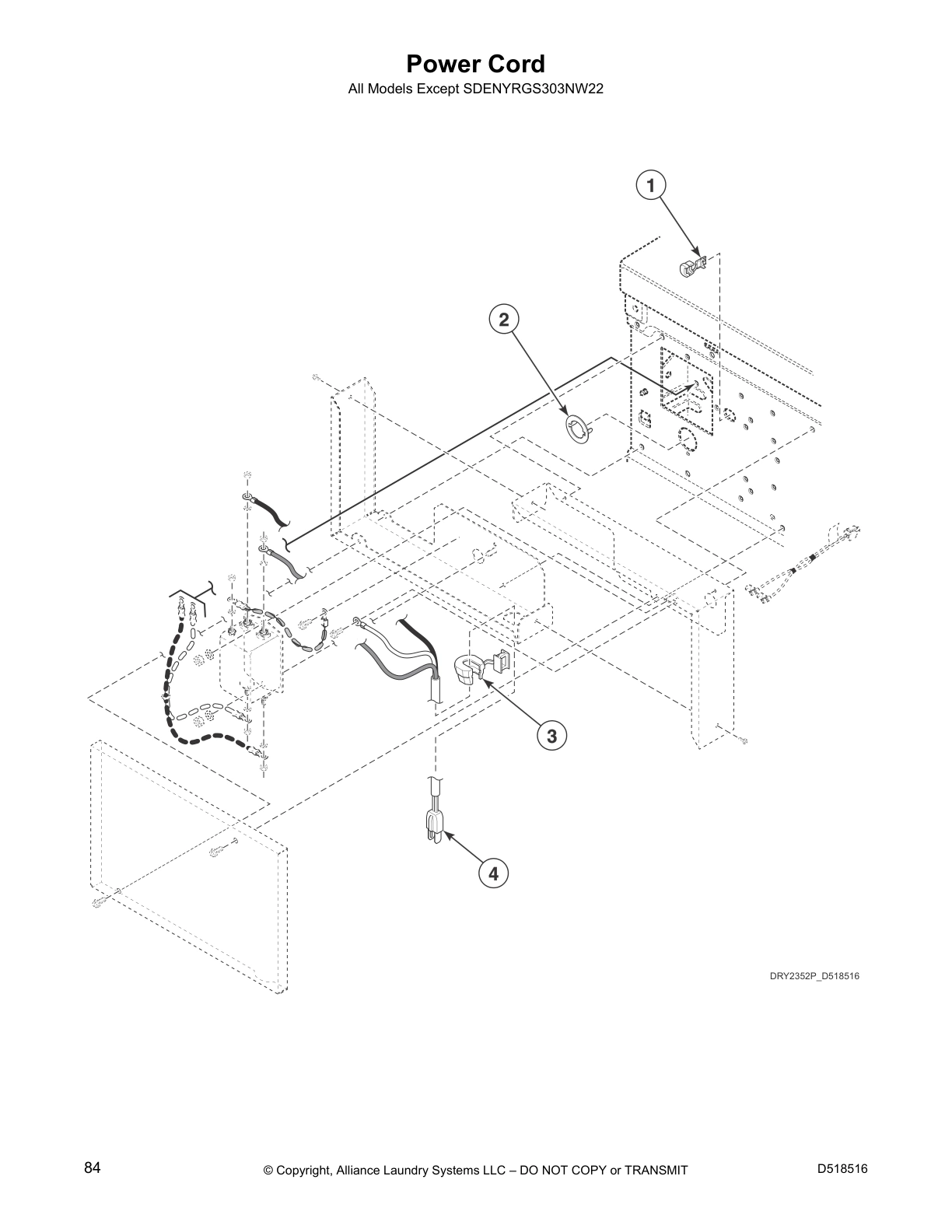

Power Cord

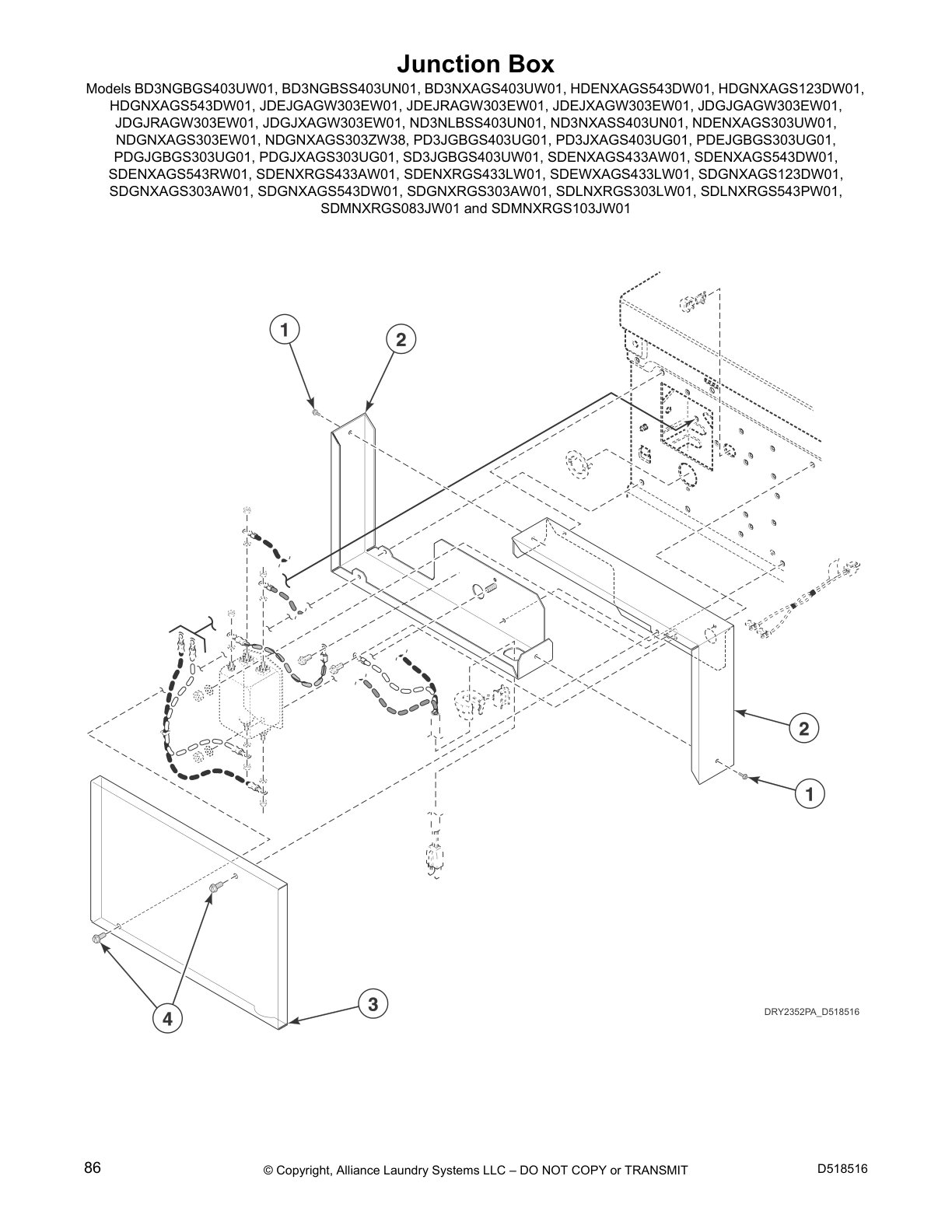

Junction Box

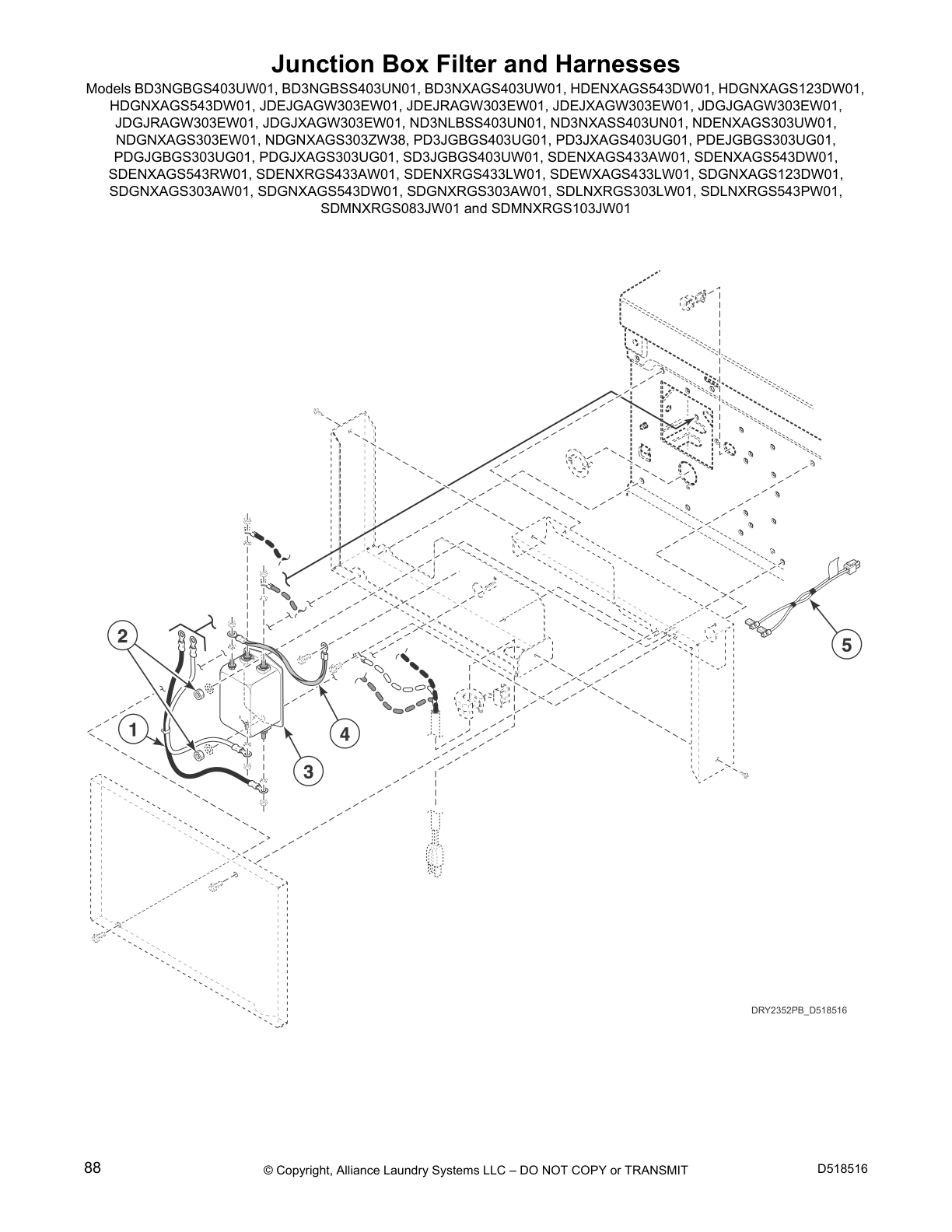

Junction Box Filter and Harnesses
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools

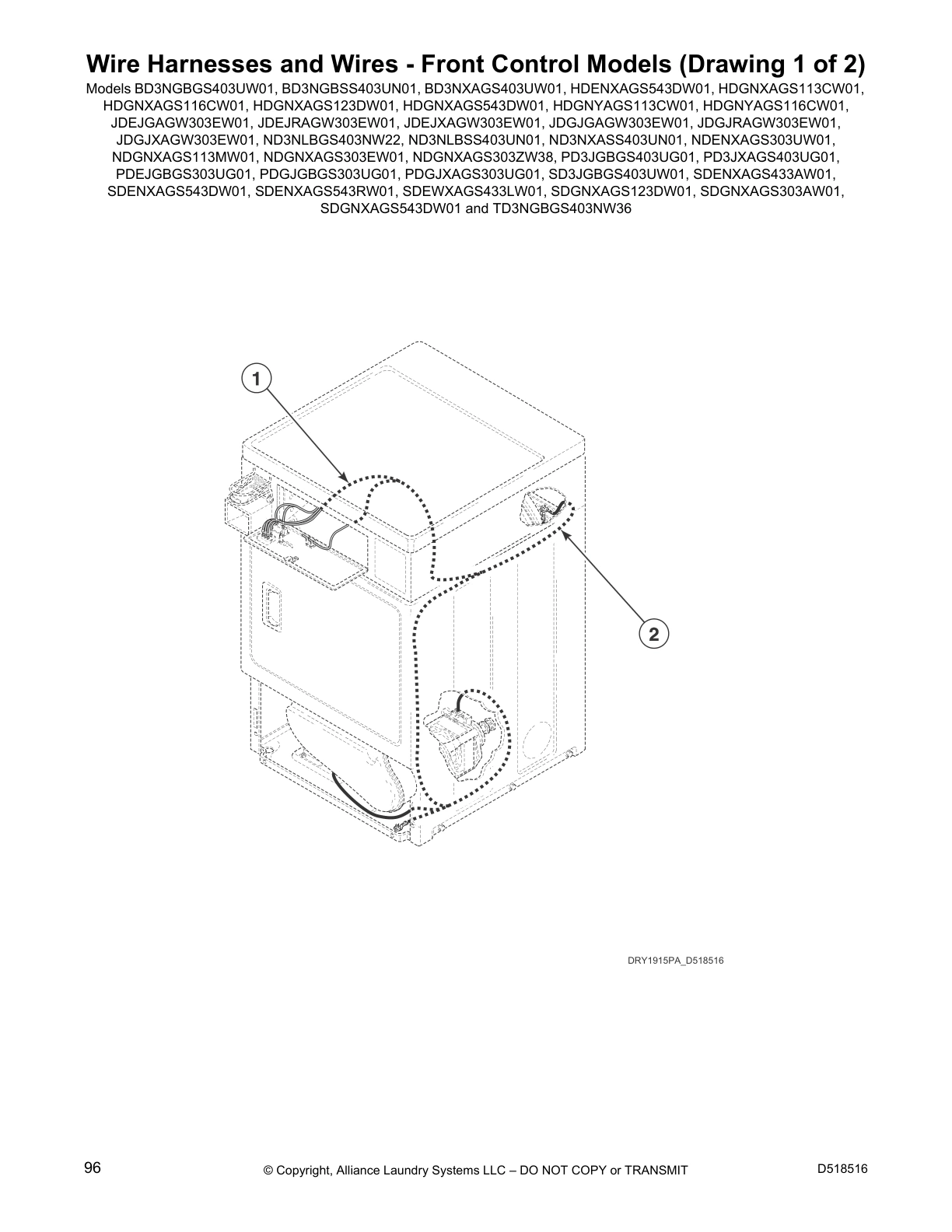

Wire Harnesses and Wires - Front Control Models (Drawing 1 of 2)

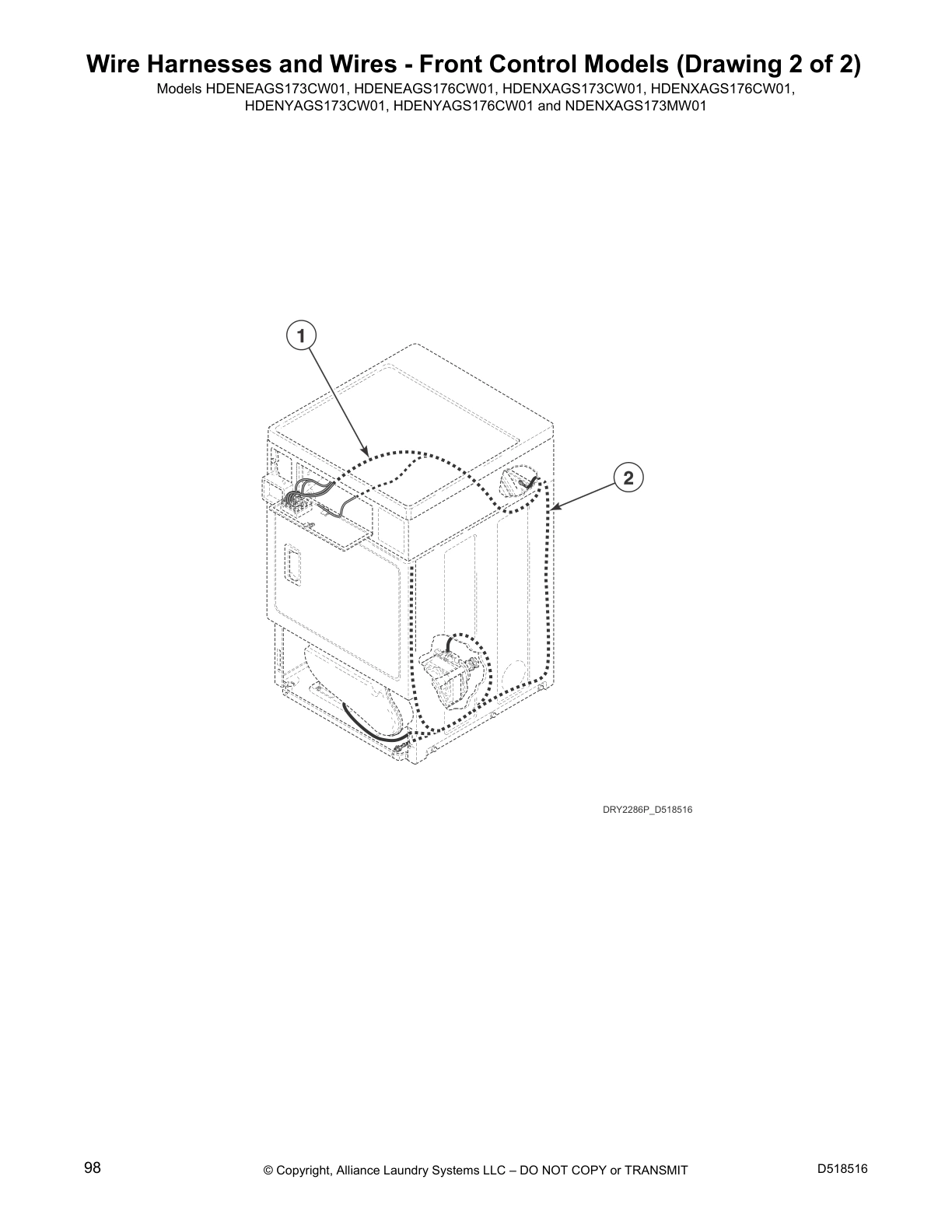

Wire Harnesses and Wires - Front Control Models (Drawing 2 of 2)

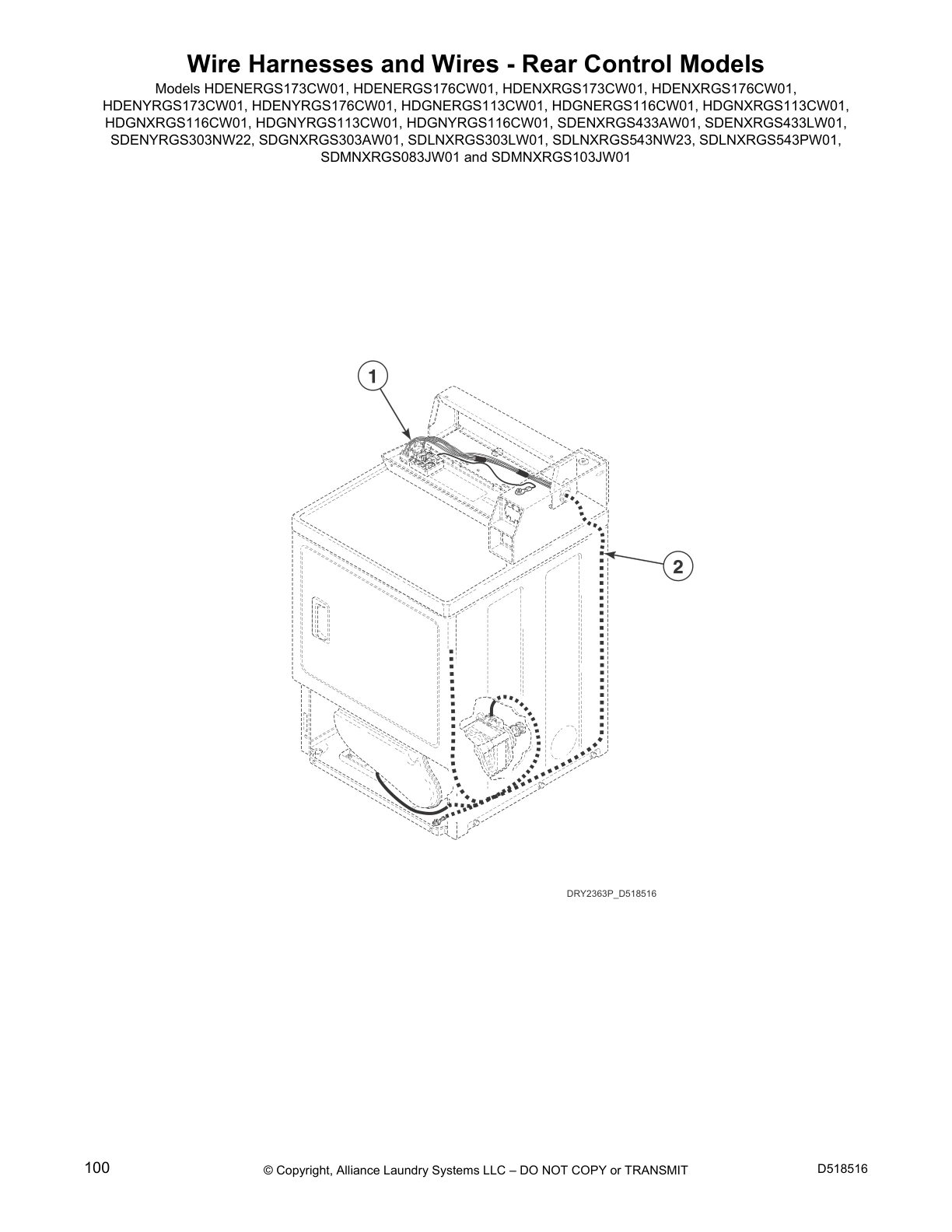

Wire Harnesses and Wires - Rear Control Models

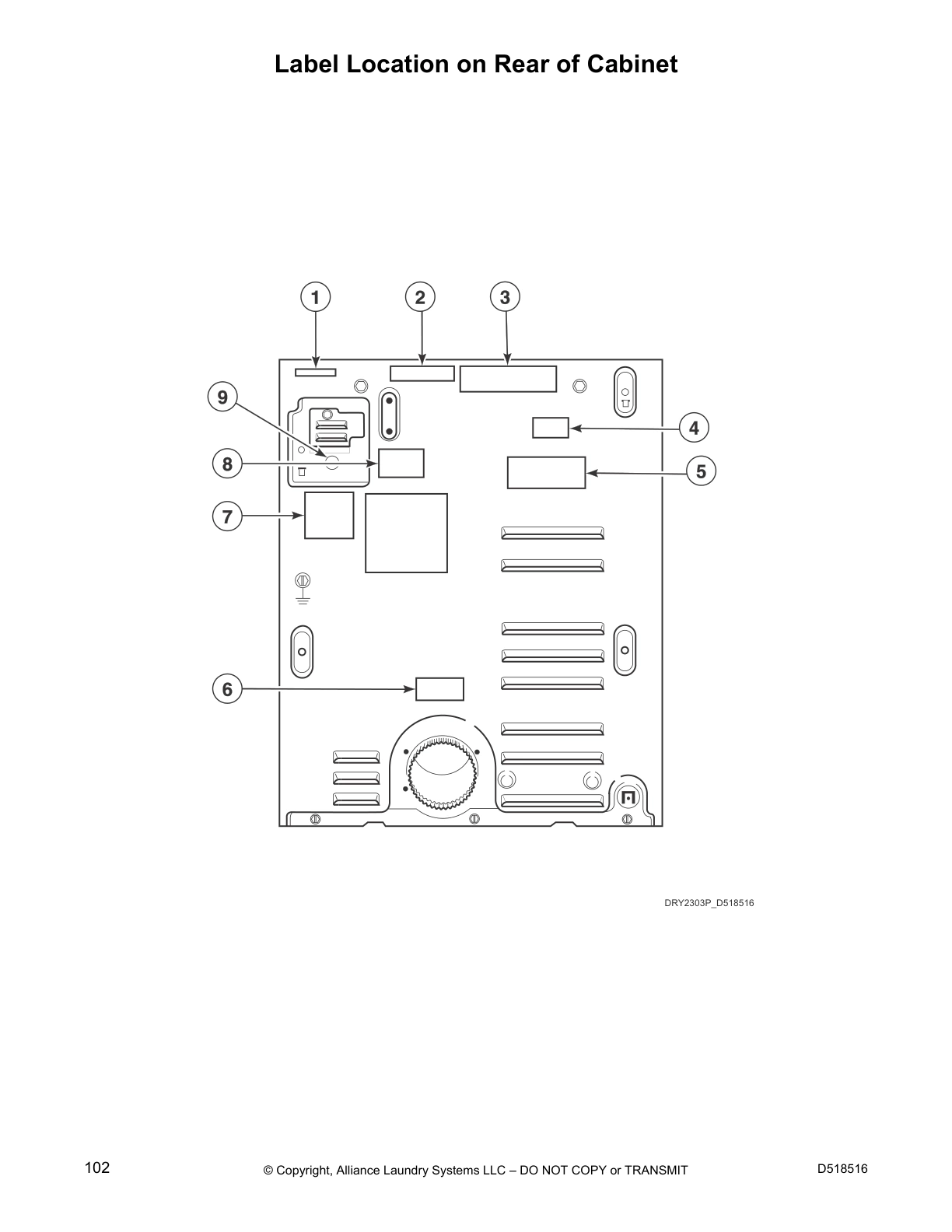

Label Location on Rear of Cabinet
Access Panel
Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal And Cylinder Roller
Exhaust Fan And Idler
Terminal Block And Terminals
Terminals
Cabinet, Exhaust Duct And Base
Terminals
Terminal Block And Terminals
Terminal Block - Gas And 1 Phase Electric Models
Cylinder Assembly
Access Panel
Terminals
Motor Connection Block And Tools
Electronic Coin Drop - Front Control Models
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Terminal Block And Terminals
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Non-electronic Coin Drop - Front Control Models
Label Location On Rear Of Cabinet
Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Cabinet, Exhaust Duct And Base
Junction Box
Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Label Location On Rear Of Cabinet
Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Electronic Coin Drop - Front Control Models
Non-electronic Coin Drop - Front Control Models
Cabinet, Exhaust Duct And Base
Motor Connection Block And Tools
Non-electronic Coin Drop - Front Control Models
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Motor And Belt
Exhaust Fan And Idler
Motor Connection Block And Tools
Non-electronic Coin Drop - Front Control Models
Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal And Cylinder Roller
Exhaust Fan And Idler
Motor And Belt
Electronic Coin Drop - Front Control Models
Non-electronic Coin Drop - Front Control Models
Cabinet Top - 10 Degree Front Control Models
Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Heater Duct And Element Assembly - 1 Phase Electric Models
Non-electronic Coin Drop - Front Control Models
Electronic Coin Drop - Front Control Models
Non-electronic Coin Drop - Front Control Models
Electronic Coin Drop - Front Control Models
Non-electronic Coin Drop - Front Control Models
Motor And Belt
Loading Door Without Window
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Motor Connection Block And Tools
Label Location On Rear Of Cabinet
Heater Duct And Element Assembly - 1 Phase Electric Models
Exhaust Fan And Idler
Label Location On Rear Of Cabinet
Terminal Block - Gas And 1 Phase Electric Models
Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)
Label Location On Rear Of Cabinet
Terminals
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Cabinet, Exhaust Duct And Base
Thermistor
Access Panel
Label Location On Rear Of Cabinet
Power Cord
Junction Box
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Terminal Block - Gas And 1 Phase Electric Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Junction Box
Heater Duct And Element Assembly - 1 Phase Electric Models
Front Panel And Seal
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Exhaust Fan And Idler
Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Cabinet, Exhaust Duct And Base
Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)
Terminal Block And Terminals
Rear Bulkhead, Felt Seal And Cylinder Roller
Cabinet Top - 10 Degree Front Control Models
Label Location On Rear Of Cabinet
Motor And Belt
Cabinet, Exhaust Duct And Base
Loading Door Without Window
Heater Duct And Element Assembly - 1 Phase Electric Models
Exhaust Fan And Idler
Front Panel And Seal
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Loading Door Without Window
Exhaust Fan And Idler
Cabinet, Exhaust Duct And Base
Exhaust Fan And Idler
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Loading Door Without Window
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Loading Door Without Window
Access Panel
Motor And Belt
Loading Door Without Window
Exhaust Fan And Idler
Front Panel And Seal
Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)
Terminal Block - Gas And 1 Phase Electric Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Exhaust Fan And Idler
Cylinder Assembly
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Heater Duct And Element Assembly - 1 Phase Electric Models
Thermistor
Heater Duct And Element Assembly - 1 Phase Electric Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Exhaust Fan And Idler
Cabinet, Exhaust Duct And Base
Loading Door Without Window
Front Panel And Seal
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor And Belt
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Exhaust Fan And Idler
Wire Harnesses And Wires - Front Control Models (drawing 1 Of 2)
Cabinet, Exhaust Duct And Base
Front Panel And Seal
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Cabinet, Exhaust Duct And Base
Wire Harnesses And Wires - Front Control Models (drawing 1 Of 2)
Junction Box
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Access Panel
Cabinet, Exhaust Duct And Base
Access Panel
Front Panel And Seal
Terminal Block - Gas And 1 Phase Electric Models
Junction Box
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Junction Box
Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Cabinet, Exhaust Duct And Base
Exhaust Fan And Idler
Cabinet, Exhaust Duct And Base
Junction Box
Exhaust Fan And Idler
Heater Duct And Element Assembly - 1 Phase Electric Models
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Front Panel And Seal
Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)
Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Heater Duct And Element Assembly - 1 Phase Electric Models
Power Cord
Non-electronic Coin Drop - Front Control Models
Electronic Coin Drop - Front Control Models
Exhaust Fan And Idler
Common parts from model Speed Queen SDENXAGS543DW01 Dryer
1
Filter Harness (comment: Filter To Terminal B SPQ D514036 Contact Us For Availability
1
Warning Label (comment: Brazilian Portuguese) SPQ D514226 Contact Us For Availability
2
Disconnect Power Warning Label SPQ D505281 Contact Us For Availability
2
Screw (comment: Use With Stainless Steel Pane SPQ D512921 Contact Us For Availability
2
Electric Harness SPQ D513970 Contact Us For Availability
2
Terminal Block Shield SPQ D514330 Contact Us For Availability
3
Lint Filter Label SPQ D502781 Contact Us For Availability
3
Blower Housing Cover SPQ D511970 Contact Us For Availability
3
Junction Box Cover SPQ D514363 Contact Us For Availability
4
Key SPQ 54612 No Longer Available
4
Lead-in Cord Assembly SPQ D503597 Contact Us For Availability
4
Top Mounting Bracket SPQ D504228 Contact Us For Availability
4
Ground Filter Harness (comment: Filter To Rea SPQ D514038 Contact Us For Availability
4
Motor Shield SPQ D514602 Contact Us For Availability
5
Venting Instruction Label SPQ D502791 Contact Us For Availability
7
Screw (comment: Torx Head, Optional For Added SPQ 62853 Contact Us For Availability
7
SCREW SPQ WP3177991 Contact Us For Availability
7
NUT SPQ WP487939 Contact Us For Availability
9
Door Handle Wedge SPQ D510129 Contact Us For Availability
9
Control Assembly SPQ D514138P Contact Us For Availability
9
Operating Instructions Label SPQ D514393 Contact Us For Availability
10
Idler Lever SPQ D510133 Contact Us For Availability
10
Exhaust Duct (comment: Each Dryer Requires 2 SPQ D510137 Contact Us For Availability
17
NUT SPQ WPW10139757 Contact Us For Availability
NA
Electronic Coin Drop Assembly (comment: Mexic SPQ 70294106 Contact Us For Availability
NA
Junction Box Seal SPQ D514379P Contact Us For Availability
NA
Junction Box Assembly SPQ D514389P Contact Us For Availability
NA
Junction Box Assembly SPQ D514390 Contact Us For Availability
NA
Junction Box Assembly (comment: Includes Item SPQ D516153 Contact Us For Availability
NA
Pinched Fingers Label (comment: Icon, Crush H SPQ F8211301 Contact Us For Availability
NA
Network Controller Kit (comment: Wired) SPQ NK220 Contact Us For Availability
NA
Ethernet Gateway Kit (comment: Wireless) SPQ NK320 Contact Us For Availability
NA
Usb Gateway Kit (comment: Wireless) SPQ NK330 Contact Us For Availability
NA
SCREW SPQ WP3351614 Contact Us For Availability
NI
SPQ 70441601P SPQ 70441601P Contact Us For Availability
× ![]()
Login and Registration Form
