Model Huebsch HTELXFSP281CW01 Stacked Washer and Dryer – Common Parts & Diagrams
Control Panel and Controls (Drawing 1 of 2)
Control Panel and Controls (Drawing 2 of 2)
Control Cabinet Controls (Drawing 1 of 2)
Control Cabinet Controls (Drawing 2 of 2)
Network Board Assembly
Electrical Access Panel, Filters and Terminal Block
Cabinet Wrapper and Coin Drop
Electronic Coin Drop
Cabinet Wrapper and Card Reader Front Assembly
Control Cabinet
Control Cabinet and Controls (Drawing 1 of 2)
Control Cabinet and Controls (Drawing 2 of 2)
Electrical Access Panel, Filters and Terminal Block
Washer Door Assembly
Washer Front Panel and Door Seal (Drawing 1 of 2)
Washer Front Panel and Door Seal (Drawing 2 of 2)
Dispenser Assembly (Drawing 1 of 3)
Dispenser Assembly (Drawing 2 of 3)
Dispenser Assembly (Drawing 3 of 3)
Dispenser Assembly and Supply Injection Hoses
Mixing Valve, Valve-to-Dispenser Inlet Hose and Fill Hose
Outer Tub, Front and Clamp Ring
Outer Tub, Front, Clamp Ring and Heating Element
Inner Basket, Trunnion, Bearing Housing and Pulley
Washer Motor and Belt
Drain Hoses and Valve
Hoses and Pump
Washer Base and Rear Panel
Side Panels
Junction Box and Power Cord
Wire Ties, Harness Clips and Washer Lead-In Cord
Dryer Loading Door with Window (Drawing 1 of 2)
Dryer Loading Door with Window (Drawing 2 of 2)
Window Trim
Dryer Front Panel and Seal
Dryer Access Panel
Dryer Motor
Blower Fan and Belt
Thermistor and Thermostat
Front Bulkhead, Felt Seal and Cylinder
Air Duct Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller
Terminal Block
Heater Duct and Element Assembly (Drawing 1 of 2)
Heater Duct and Element Assembly (Drawing 2 of 2)
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Dryer Cabinet - Panels
Dryer Cabinet - Hardware
Dryer Exhaust Duct and Base
Dryer Power Cord
Dryer Motor Connection Block, Terminal Extractor Tools
Terminals
Shipping Materials
Labels (Drawing 1 of 3)

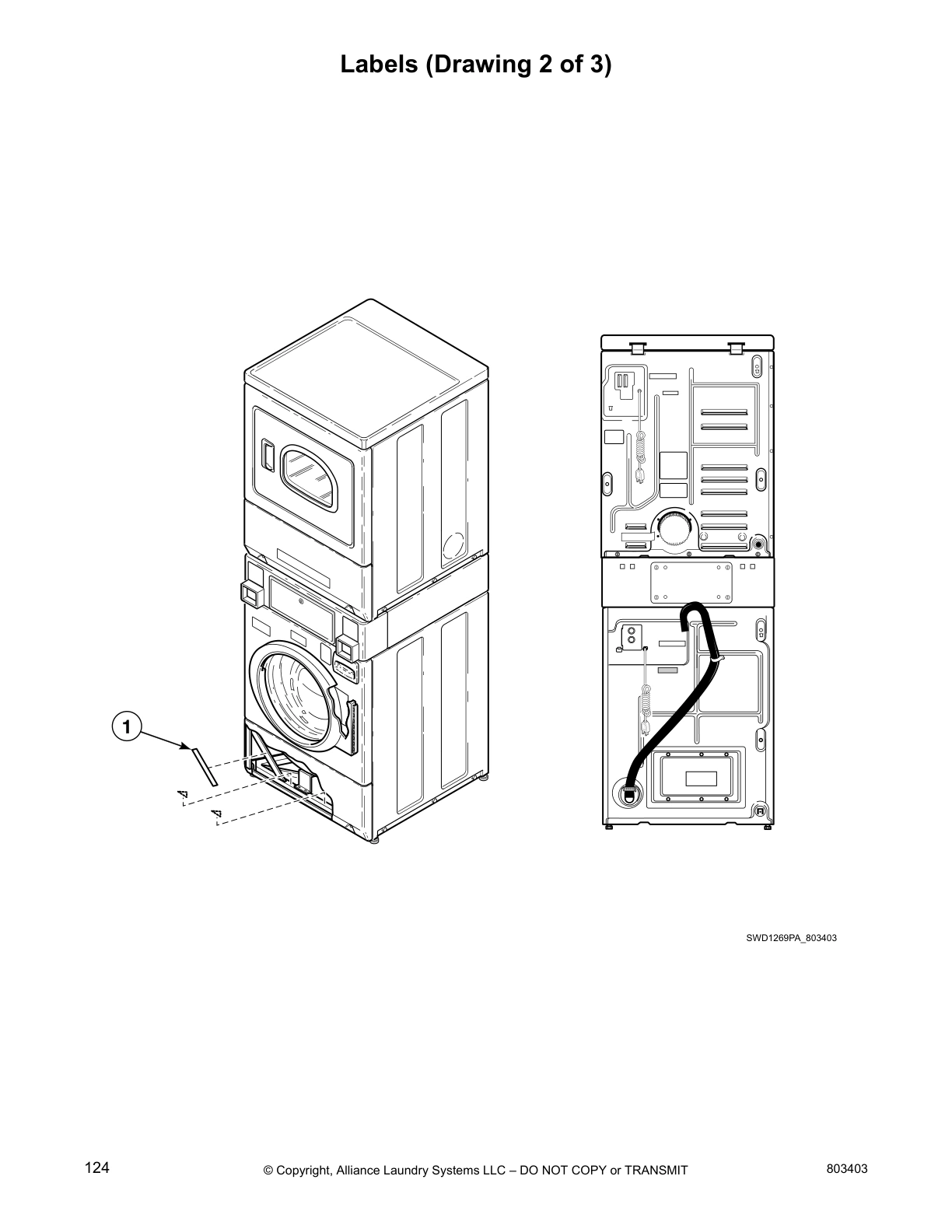

Labels (Drawing 2 of 3)
Special Tools
Dryer Wire Harnesses and Wires (Drawing 1 of 3)
Dryer Wire Harnesses and Wires (Drawing 2 of 3)
Dryer Wire Harnesses and Wires (Drawing 3 of 3)
Dryer Wire Harnesses and Wires Through Serial No. 1303025314
Dryer Wire Harnesses and Wires Starting Serial No. 1303025315
Washer Wire Harnesses and Wires (Drawing 1 of 2)
Washer Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model Huebsch HTELXFSP281CW01 Stacked Washer and Dryer
3
Panel Locator SPQ 62853 Contact Us For Availability
4
Drain Hose Elbow SPQ 985P3 Contact Us For Availability
6
Dispenser Assembly SPQ 801476P Contact Us For Availability
16
Gasket SPQ 802434P Contact Us For Availability
× ![]()
