Model GE SDENYAGS153CW01 General Electric Model SDENYAGS153CW01 – Common Parts & Diagrams
Access Panel
Cabinet, Exhaust Duct and Base

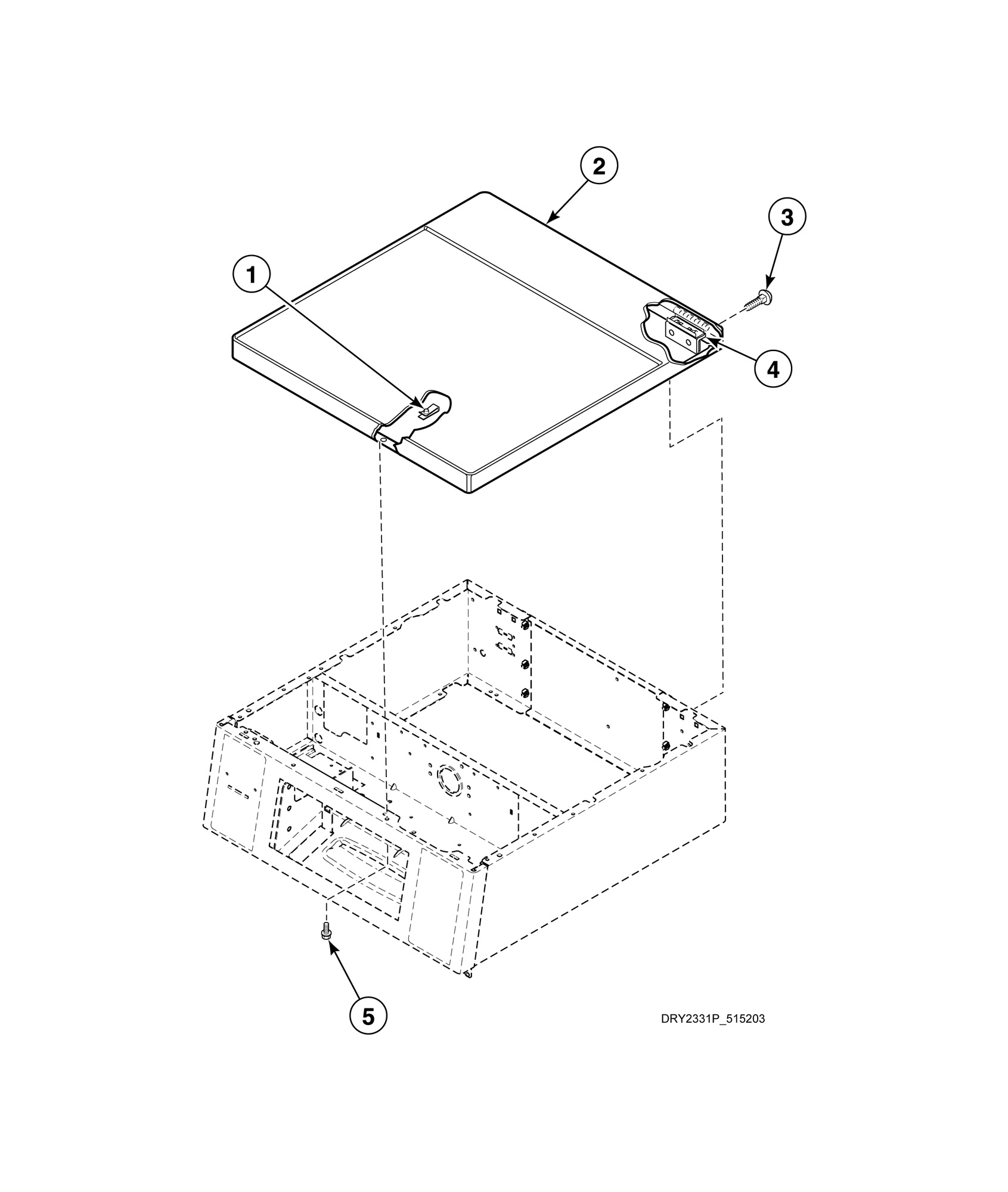

Cabinet Top - 10 Degree Front Control Models

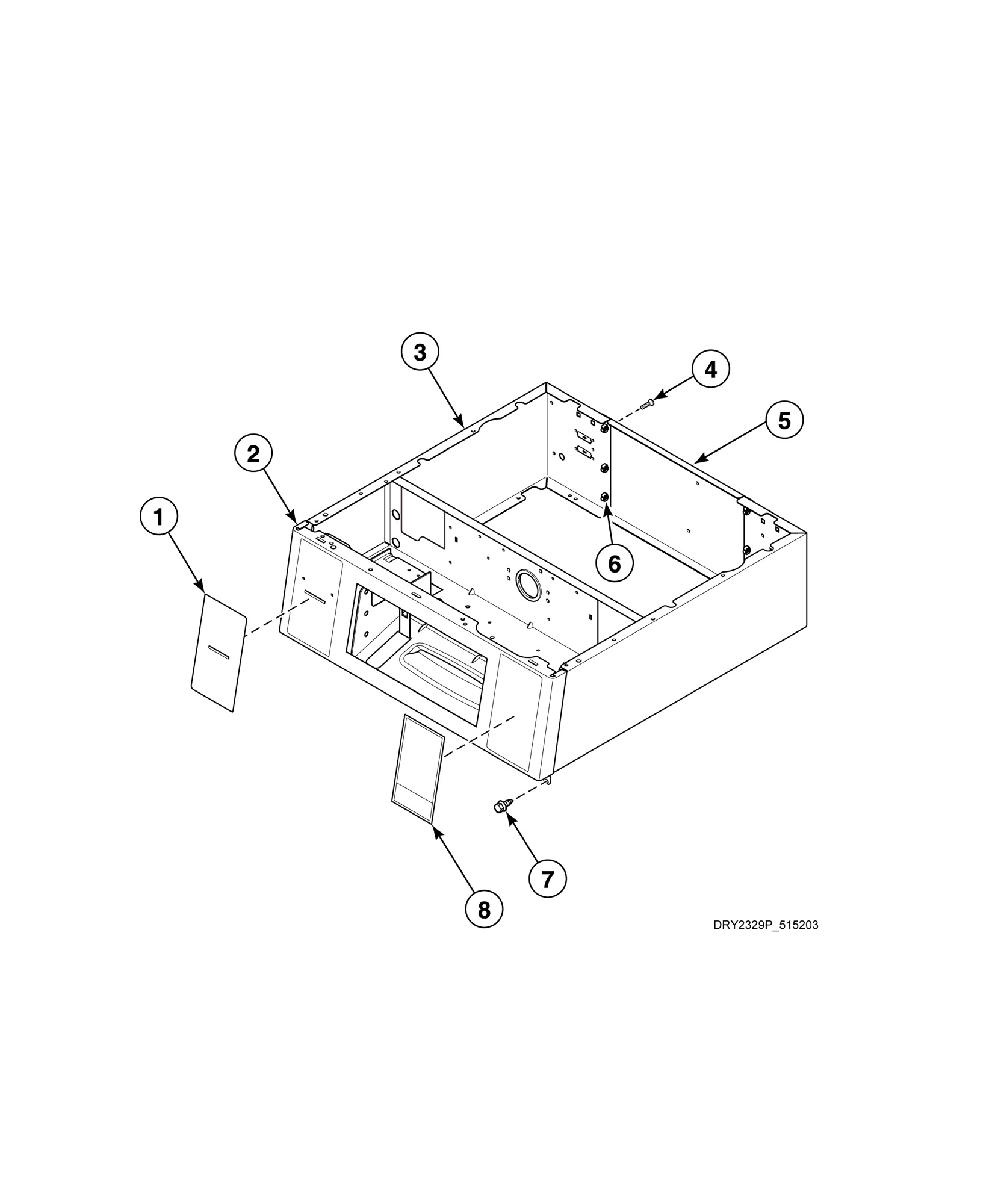

Control Cabinet Controls - 10 Degree Front Control Models (Drawing 2 of 2)

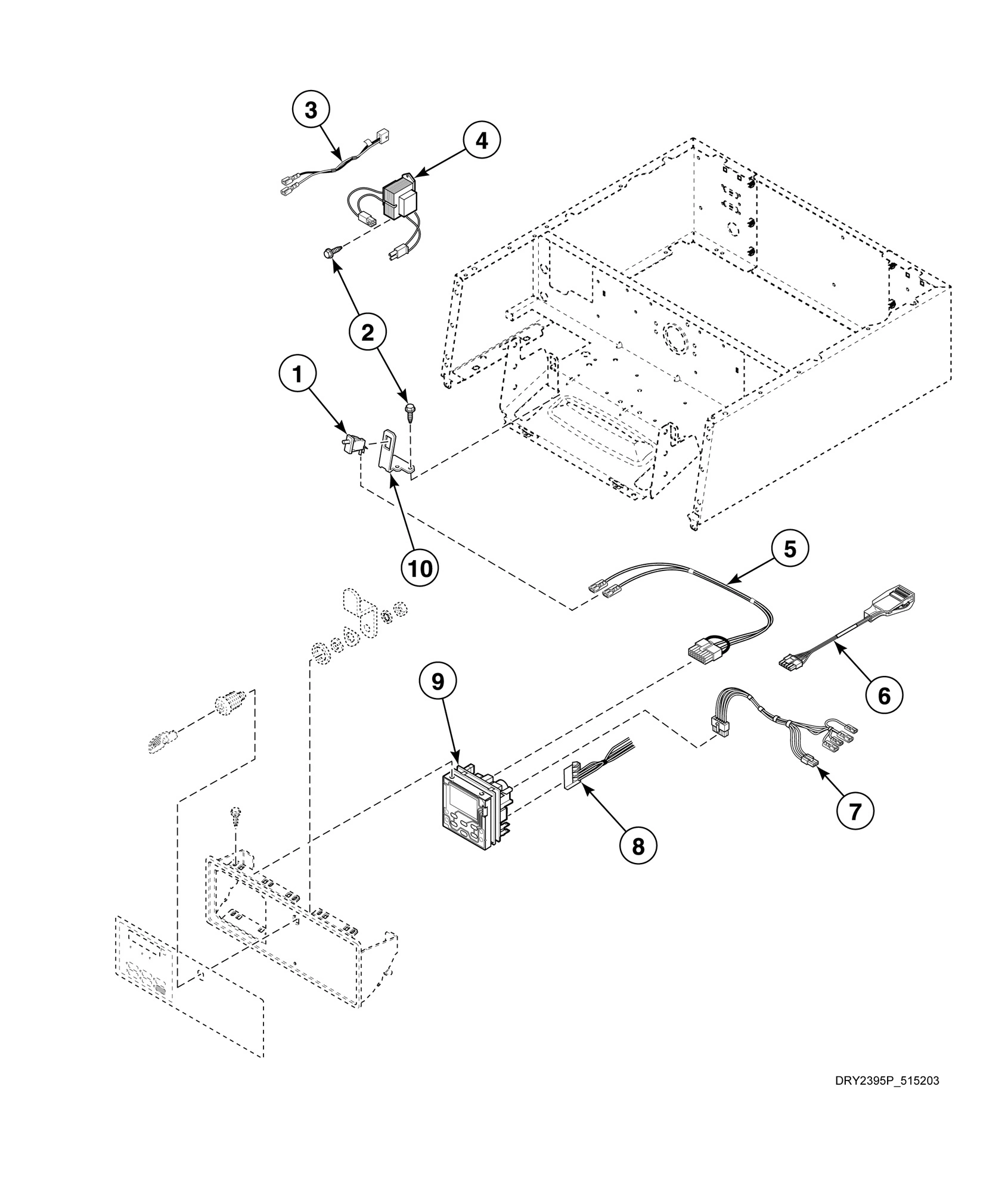

Control Panel and Controls - 10 Degree Front Control Models (Drawing 1 of 2)

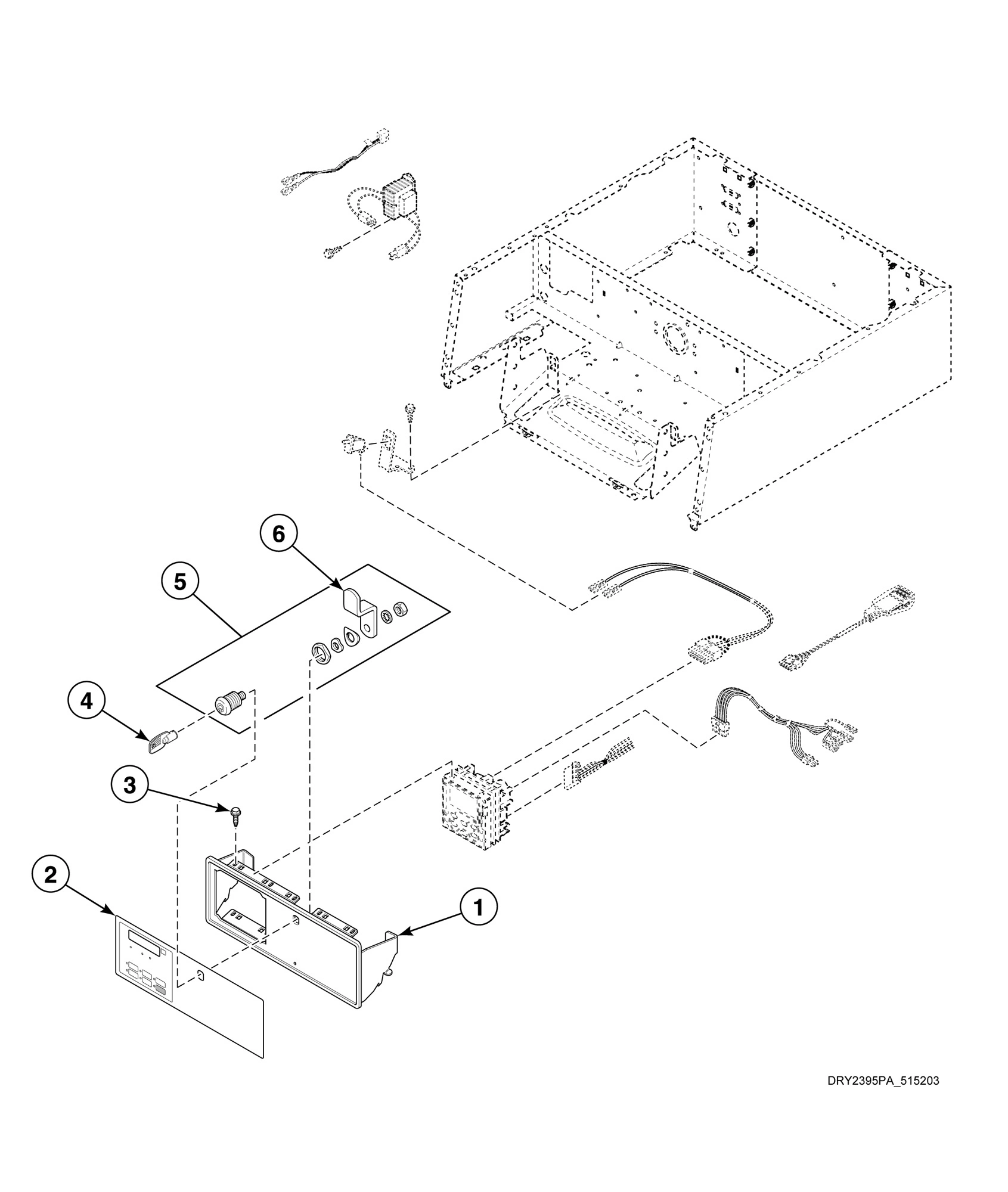

Control Panel and Controls - 10 Degree Front Control Models (Drawing 2 of 2)
Cylinder Assembly
Exhaust Fan and Idler
Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)
Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)
Front Panel and Seal

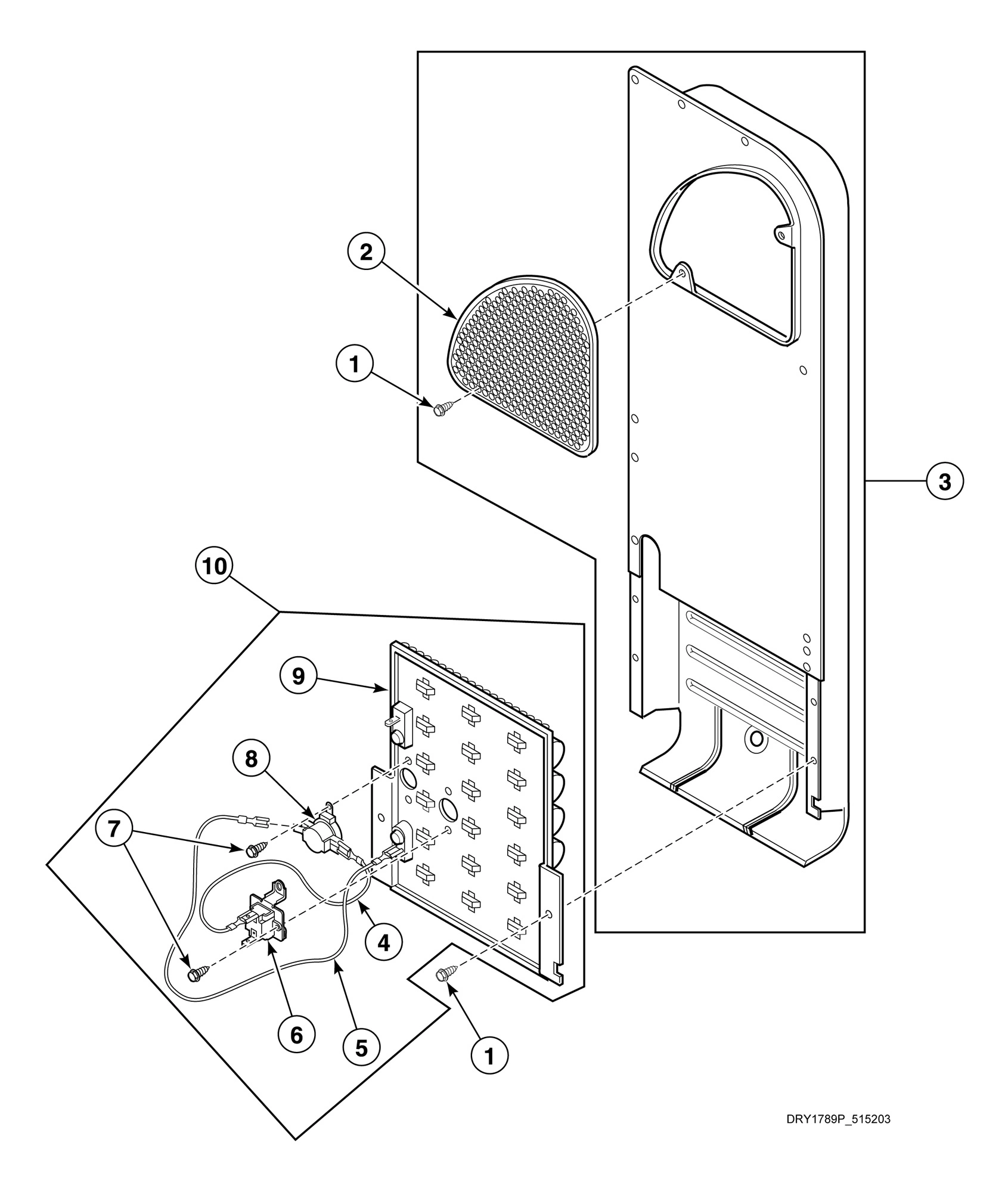

Heater Duct and Element Assembly - 1 Phase Electric Models

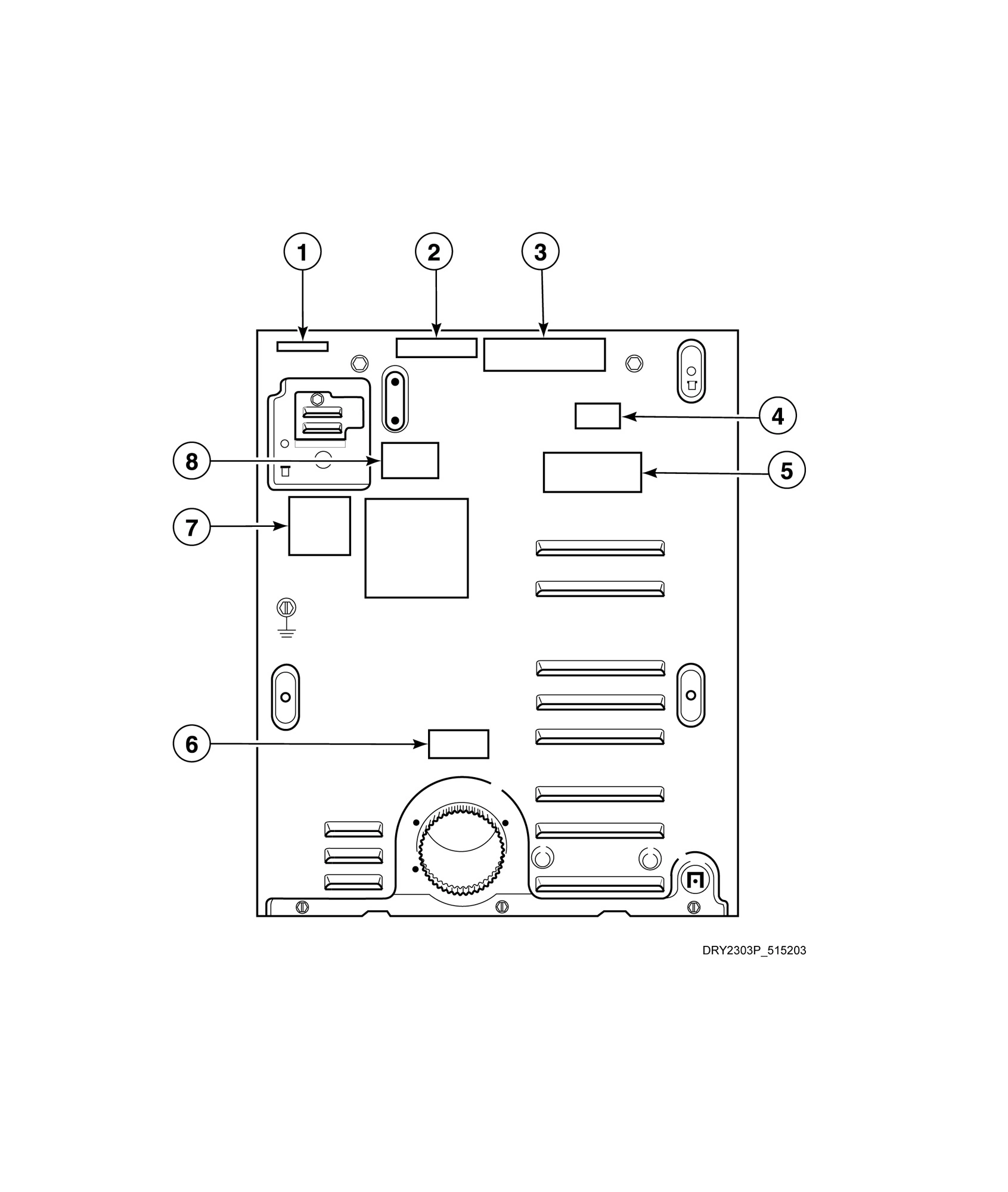

Label Location on Rear of Cabinet
Loading Door without Window
Motor and Belt
Motor Connection Block and Tools
Power Cord
Rear Bulkhead, Felt Seal and Cylinder Roller
Terminal Block and Terminals

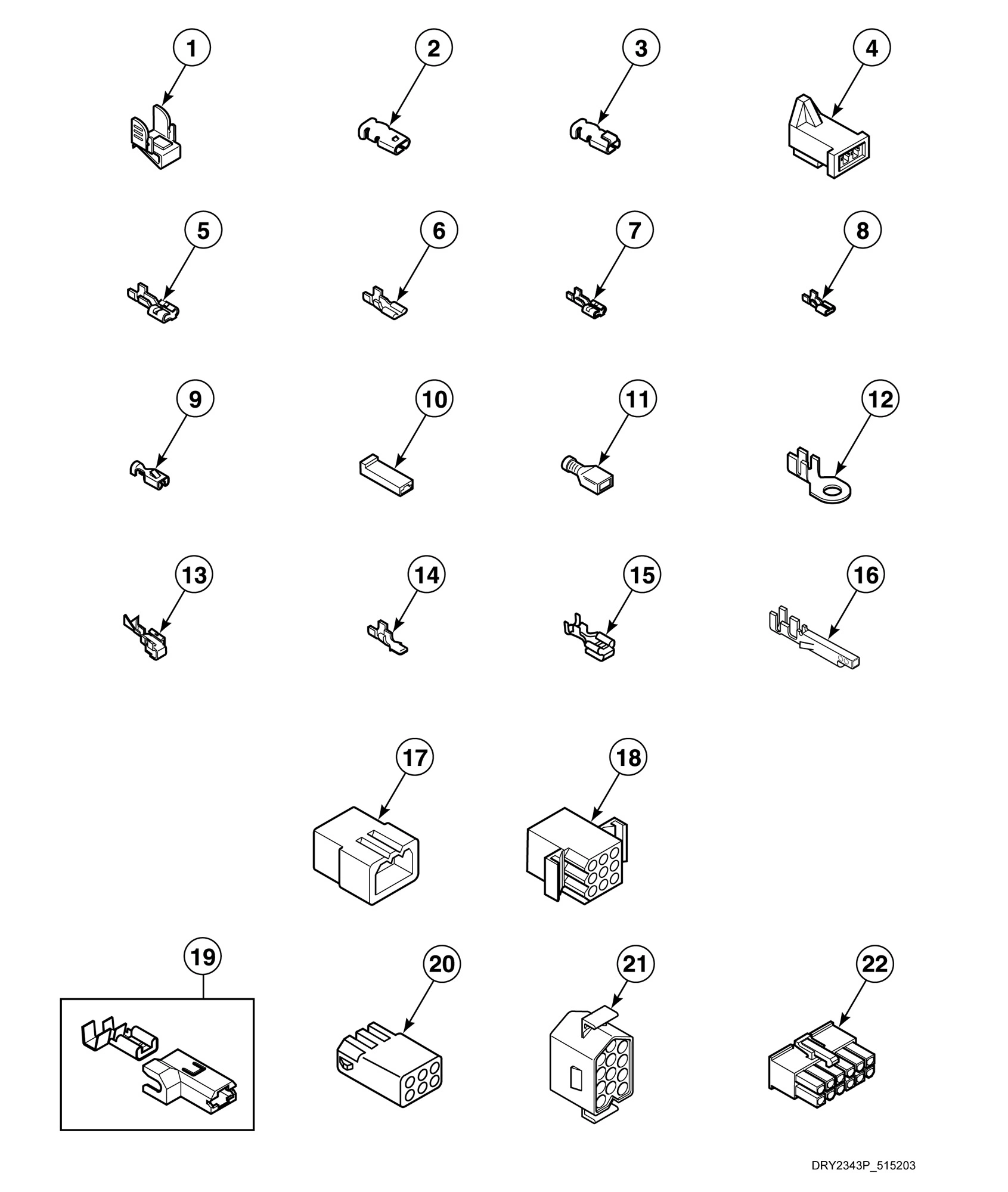

Terminals
Thermistor

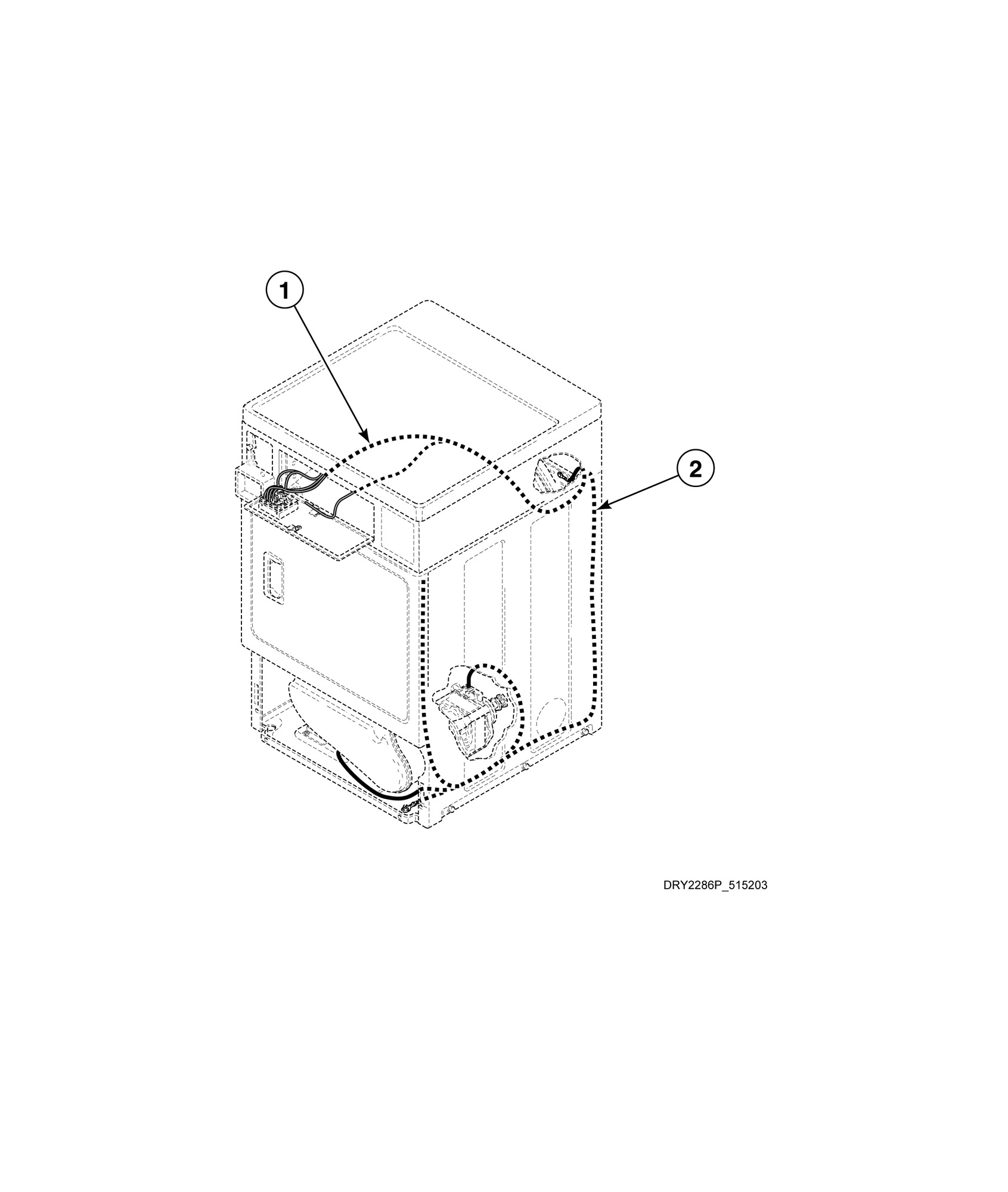

Wire Harnesses and Wires - Front Control Models (Drawing 2 of 2)
Common parts from model GE SDENYAGS153CW01 General Electric Model SDENYAGS153CW01
1
Caution Label GEN D500253 Contact Us For Availability
1
Panel Locator GEN 56079 Contact Us For Availability
1
Nut GEN 36020 Contact Us For Availability
1
Overlay (Comment: Gray) GEN D514873 Contact Us For Availability
1
Control Panel and Bracket Assembly (Comment: GEN D513777W Contact Us For Availability
1
Cylinder Seal Assembly (Comment: Apply adhesi GEN D510207P Contact Us For Availability
1
Adhesive (Comment: Apply to cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
Blower Housing Seal GEN D510238P Contact Us For Availability
1
Front Bulkhead Assembly (Comment: Unpainted, GEN D510266P Contact Us For Availability
1
Felt Pad GEN D510189 Contact Us For Availability
1
Terminal Block Label GEN D501288 Contact Us For Availability
1
Door Strike Mount GEN D510127 Contact Us For Availability
1
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
1
10 Position Housing GEN D500338 Contact Us For Availability
1
Wire Clip (Comment: 1 inch) GEN 687500 Contact Us For Availability
1
Wire Clip (Comment: 11/16 inch) GEN D504034 Contact Us For Availability
1
Screw GEN D502535 Contact Us For Availability
1
Wire Harness Assembly GEN D512422P Contact Us For Availability
2
Door Catch Assembly GEN D510177 Contact Us For Availability
2
Screw GEN 39733 Contact Us For Availability
2
Screw (Comment: Use with stainless steel side GEN D512921 Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
Top Panel (Comment: White) GEN 803868WP Contact Us For Availability
2
Security Cabinet Assembly (Comment: White) GEN 804149WP Contact Us For Availability
2
Screw GEN D503661 Contact Us For Availability
2
Control Overlay GEN D514369 Contact Us For Availability
2
Cylinder Baffle (Comment: Light gray) GEN D510102LG Contact Us For Availability
2
Screw GEN 31260 Contact Us For Availability
2
Cylinder Glide GEN D513710 Contact Us For Availability
2
Screw GEN D501285 Contact Us For Availability
2
Outlet Cover GEN D500820 Contact Us For Availability
2
Outlet Cover (Comment: Black) GEN D515573 Contact Us For Availability
2
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
2
Door Strike GEN D510181 Contact Us For Availability
2
Motor Mount Clamp GEN D510180 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, For (1) 1 GEN 00255 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, For (1) o GEN 00256 Contact Us For Availability
2
Insulated Female Spade Terminal (Comment: (1) GEN 00360 Contact Us For Availability
2
Thermistor Assembly GEN D510523 Contact Us For Availability
2
Electric Harness GEN D513970 Contact Us For Availability
3
Lint Filter Label GEN D502781 Contact Us For Availability
3
Bumper Pad GEN 56128 Contact Us For Availability
3
NOT ON YOUR MODEL GEN - Contact Us For Availability
3
Bolt GEN 29651 Contact Us For Availability
3
Wrapper Assembly (Comment: White) GEN 804112W Contact Us For Availability
3
Transformer Harness GEN D514072 Contact Us For Availability
3
Screw GEN D501524 Contact Us For Availability
3
Cylinder Assembly (Comment: Galvanized, Inclu GEN D510265LGP Contact Us For Availability
3
Blower Housing Cover GEN D511970 Contact Us For Availability
3
Glide Kit (Comment: Includes items 2 and 12, GEN RB170003 Contact Us For Availability
3
Lint Filter (Comment: Light gray) GEN D503980LG Contact Us For Availability
3
Speed Clip GEN 28835 Contact Us For Availability
3
Heater Duct Assembly (Comment: Includes items GEN D510025P Contact Us For Availability
3
Warning Label GEN 44324001 Contact Us For Availability
3
Liner Door Seal GEN D510147P Contact Us For Availability
3
Cylinder Belt GEN D511255P Contact Us For Availability
3
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Galvanized, GEN D511082P Contact Us For Availability
3
Female Pin Terminal GEN 00117 Contact Us For Availability
3
Female Piggyback Terminal GEN 00361 Contact Us For Availability
4
Cabinet Rear Panel GEN D514632P Contact Us For Availability
4
Top Mounting Bracket GEN D504228 Contact Us For Availability
4
Screw (Comment: 6 required) GEN 70240301 Contact Us For Availability
4
Transformer GEN 202757 Contact Us For Availability
4
Key (Comment: 800) GEN 54612 Contact Us For Availability
4
Screw GEN 62588 Contact Us For Availability
4
Cylinder Glide Bracket GEN D510145 Contact Us For Availability
4
Wire Assembly (Comment: Orange, Thermostat ju GEN D510528 Contact Us For Availability
4
Natural Gas Notice Label GEN D501140 Contact Us For Availability
4
Liner, Seal and Grill Assembly (Comment: Gray GEN D513109P Contact Us For Availability
4
Motor Pulley (Comment: Use with Motor and Pul GEN D500011 Contact Us For Availability
4
Terminal Extractor Tool (Comment: For use on GEN 283P4 Contact Us For Availability
4
Lead-In Cord Assembly GEN D510505P Contact Us For Availability
4
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
4
3 Circuit Receptacle GEN 23039 Contact Us For Availability
4
2 Circuit Receptacle GEN 56265 Contact Us For Availability
4
2 Circuit Connector GEN 58799 Contact Us For Availability
5
Top Hinge GEN D510136 Contact Us For Availability
5
Screw GEN 23008 Contact Us For Availability
5
Rear Access Panel GEN 803998 Contact Us For Availability
5
Switch GEN D512973 Contact Us For Availability
5
Wiring Harness Assembly GEN 202868 Contact Us For Availability
5
Lock Kit (Comment: Includes item 4) GEN 27260P Contact Us For Availability
5
Blower Housing (Comment: Gray, Includes items GEN D511969LG Contact Us For Availability
5
Blower Housing (Comment: White, Includes item GEN D511969WP Contact Us For Availability
5
Screw GEN 52864 Contact Us For Availability
5
Screw GEN D514461 Contact Us For Availability
5
Wire Assembly (Comment: Black, Fuse jumper, A GEN D510527 Contact Us For Availability
5
Venting Instruction Label GEN D502791 Contact Us For Availability
5
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
5
Ratchet Extension Tool (Comment: 1/4 inch, Fo GEN 310P4 Contact Us For Availability
5
Cylinder Roller GEN D510708P Contact Us For Availability
5
Plug (Comment: 3 circuit) GEN 23040 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (2) GEN 00121 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00223 Contact Us For Availability
5
Spade Terminal (Comment: 1/4 inch, (1) 22 gau GEN 00245 Contact Us For Availability
6
Access Panel Assembly (Comment: White) GEN D514250WP Contact Us For Availability
6
Expansion Clip (Comment: 6 required) GEN 70030501 Contact Us For Availability
6
Machine ID Control Assembly (Comment: Model o GEN 203361P Contact Us For Availability
6
Lock Cam GEN 804338 Contact Us For Availability
6
Washer GEN 52549 Contact Us For Availability
6
Front Panel Seal GEN D511056 Contact Us For Availability
6
Thermal Fuse Assembly GEN D511412 Contact Us For Availability
6
Exhaust Warning Label GEN D500497 Contact Us For Availability
6
Hinge GEN D511036 Contact Us For Availability
6
Extractor Tool (Comment: For use on electric GEN 190P4 Contact Us For Availability
6
Male Pin Terminal GEN 00116 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, (1 GEN 00124 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, Th GEN 00156 Contact Us For Availability
7
Screw GEN 33562 Contact Us For Availability
7
Screw (Comment: Optional for added security) GEN 62853 Contact Us For Availability
7
Access Panel Plate GEN D510903 Contact Us For Availability
7
Blower Fan Assembly (Comment: Apply anti-seiz GEN D510139P Contact Us For Availability
7
Retaining Ring GEN 23748 Contact Us For Availability
7
Front Panel (Comment: White) GEN D510066WP Contact Us For Availability
7
Screw GEN 23222 Contact Us For Availability
7
20 Amp Notice Label GEN D500496 Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: White, Incl GEN D510103WP Contact Us For Availability
7
Extractor Tool (Comment: For use on gas dryer GEN 128P4 Contact Us For Availability
7
2 Circuit Receptacle GEN 56451 Contact Us For Availability
7
Female Spade Terminal (Comment: 1/4 inch) GEN 00222 Contact Us For Availability
8
Damper (Comment: Use when connecting to a man GEN 58786 Contact Us For Availability
8
Operating Instructions Label GEN D514393 Contact Us For Availability
8
Central Pay Harness GEN D511478 Contact Us For Availability
8
Idler Spring GEN D510185 Contact Us For Availability
8
Screw (Comment: Use with stainless steel side GEN M405188 Contact Us For Availability
8
Limit Thermostat GEN D510701 Contact Us For Availability
8
Warning Label GEN 803260 Contact Us For Availability
8
Dryer Door (Comment: White) GEN D510013WP Contact Us For Availability
8
Torx Bit (Comment: T15 Tamper Resistant Bit) GEN 281P4 Contact Us For Availability
8
Torx Bit (Comment: Use with 62853 Screw on ac GEN 282P4 Contact Us For Availability
8
Torx Bit (Comment: T20 Standard Bit) GEN 292P4 Contact Us For Availability
8
Torx Drive Tool (Comment: T10 Standard Bit) GEN 93501 Contact Us For Availability
8
Washer GEN D504082 Contact Us For Availability
8
Terminal GEN 00347 Contact Us For Availability
9
Flexible Venting Kit GEN 521P3 Contact Us For Availability
9
Control Assembly GEN D514138P Contact Us For Availability
9
Shaft GEN 56461P Contact Us For Availability
9
Air Duct Assembly (Comment: Light gray) GEN D510151LG Contact Us For Availability
9
Heater Assembly (Comment: 208 Volt/60 Hertz, GEN D510330P Contact Us For Availability
9
Door Handle Wedge GEN D510129 Contact Us For Availability
9
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00115 Contact Us For Availability
10
Exhaust Duct (Comment: Each dryer requires 2 GEN D510137 Contact Us For Availability
10
Audit Switch Bracket GEN 800379 Contact Us For Availability
10
Idler Lever GEN D510133 Contact Us For Availability
10
Heater Kit (Comment: 208 Volt/60 Hertz, 4.25 GEN 965P3 Contact Us For Availability
10
Roller Kit (Comment: Includes items 5-9) GEN RB170002 Contact Us For Availability
10
Female Pin Terminal (Comment: 1/8 inch, 10-14 GEN 00128 Contact Us For Availability
10
Female Pin Terminal (Comment: 1/8 inch, 16-18 GEN 00130 Contact Us For Availability
11
Cabinet Side Panel (Comment: White, Right) GEN D510002WP Contact Us For Availability
11
Nut GEN 56156 Contact Us For Availability
11
Hinge Hole Plug GEN D510186 Contact Us For Availability
11
2 Circuit Plug GEN 56266 Contact Us For Availability
12
Directional Exhaust Kit (Comment: Used to ven GEN 528P3 Contact Us For Availability
12
Male Pin Terminal (Comment: .18 insulation di GEN 00127 Contact Us For Availability
12
Male Pin Terminal (Comment: .12 insulation di GEN 00129 Contact Us For Availability
13
Hold Down Kit (Comment: For mobile home insta GEN 526P3 Contact Us For Availability
13
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
13
3 Circuit Connector GEN 58800 Contact Us For Availability
14
Dryer Base GEN D514245 Contact Us For Availability
14
3 Circuit Receptacle GEN 36170 Contact Us For Availability
15
Leveling Leg GEN D510135 Contact Us For Availability
15
Screw GEN D500824 Contact Us For Availability
16
Rubber Foot GEN D501855 Contact Us For Availability
16
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
17
Nut GEN 52566 Contact Us For Availability
18
Screw GEN D514428 Contact Us For Availability
18
Motor Mount GEN D510060 Contact Us For Availability
19
Output Control Assembly GEN D513797P Contact Us For Availability
19
Blower and Fan Kit (Comment: Includes items 1 GEN D510717P Contact Us For Availability
20
Screw GEN 804667 Contact Us For Availability
21
Cabinet Side Panel (Comment: White, Left) GEN D510001WP Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: White) GEN 122P4P Contact Us For Availability
NA
Network Retrofit Kit (Comment: Wired) GEN 203328 Contact Us For Availability
NA
USB IR Interface Kit GEN 203346 Contact Us For Availability
NA
Wireless Network Kit (Comment: Through Serial GEN 203889 Contact Us For Availability
NA
Wireless Network Kit (Comment: Starting Seria GEN 204689 Contact Us For Availability
NA
Network Controller Kit (Comment: Wired) GEN NK220 Contact Us For Availability
NA
Ethernet Gateway Kit (Comment: Wireless) GEN NK320 Contact Us For Availability
NA
USB Gateway Kit (Comment: Wireless) GEN NK330 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
NA
Screw GEN 20530 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
