Model GE LTUA7A*N2802 General Electric Model LTUA7A*N2802 – Common Parts & Diagrams

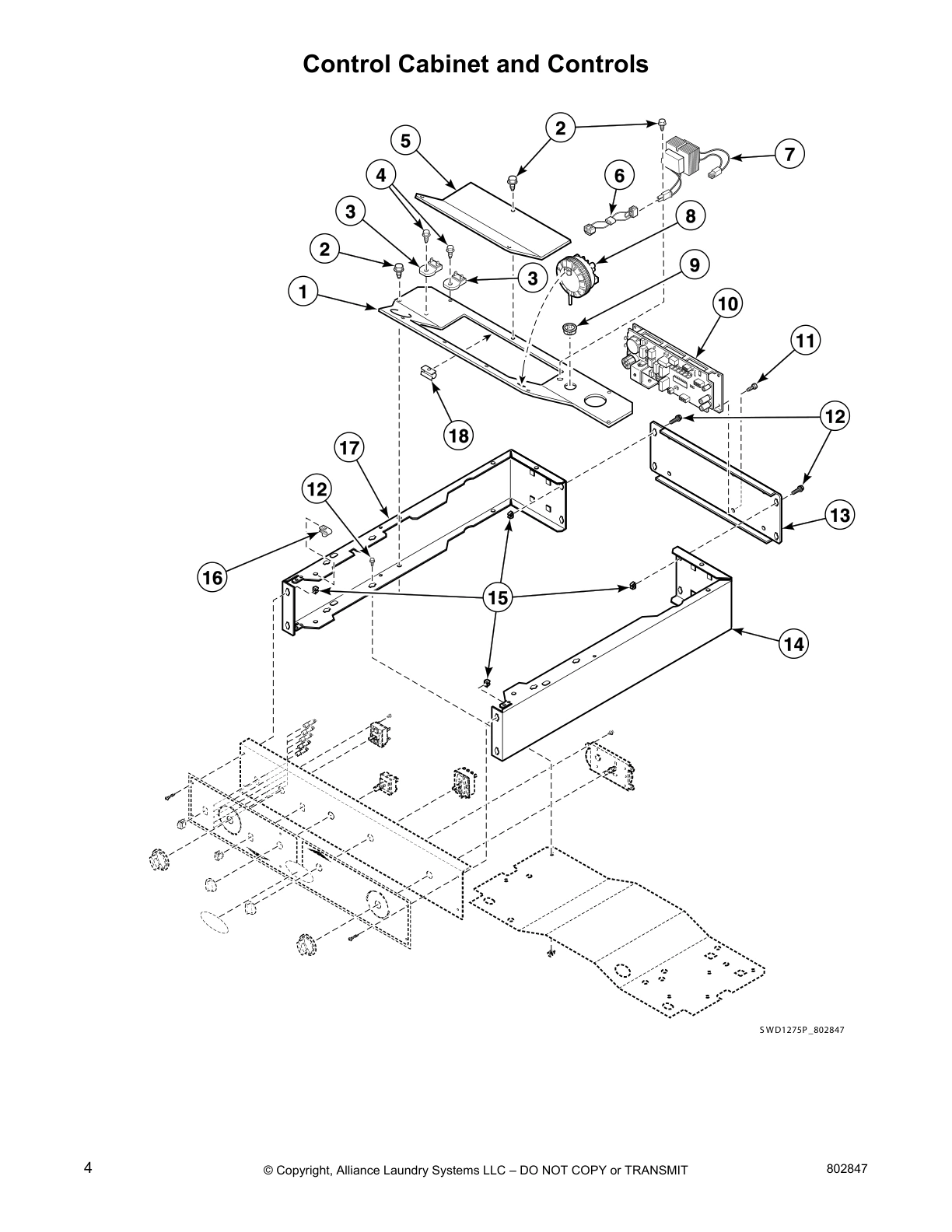

Control Cabinet and Controls

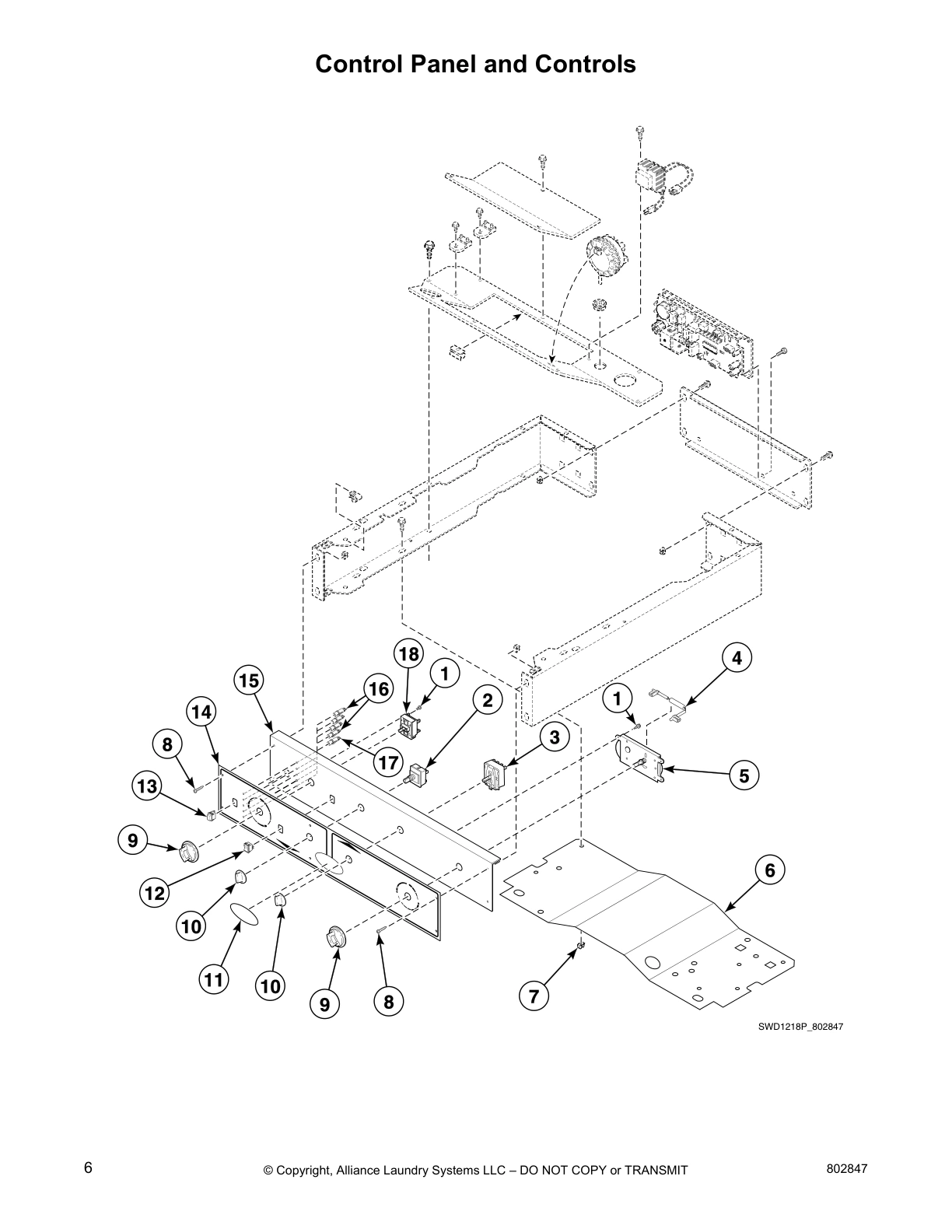

Control Panel and Controls

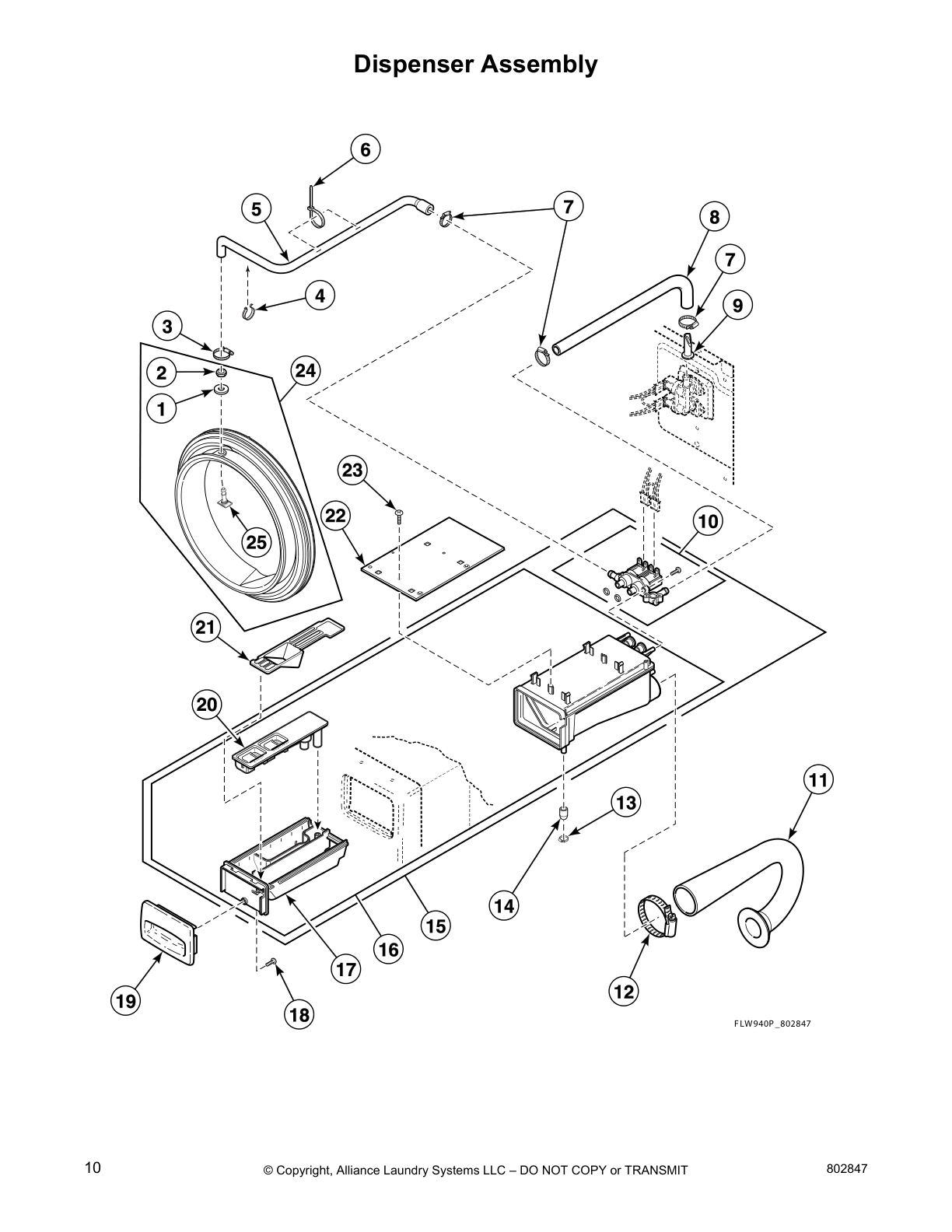

Dispenser Assembly

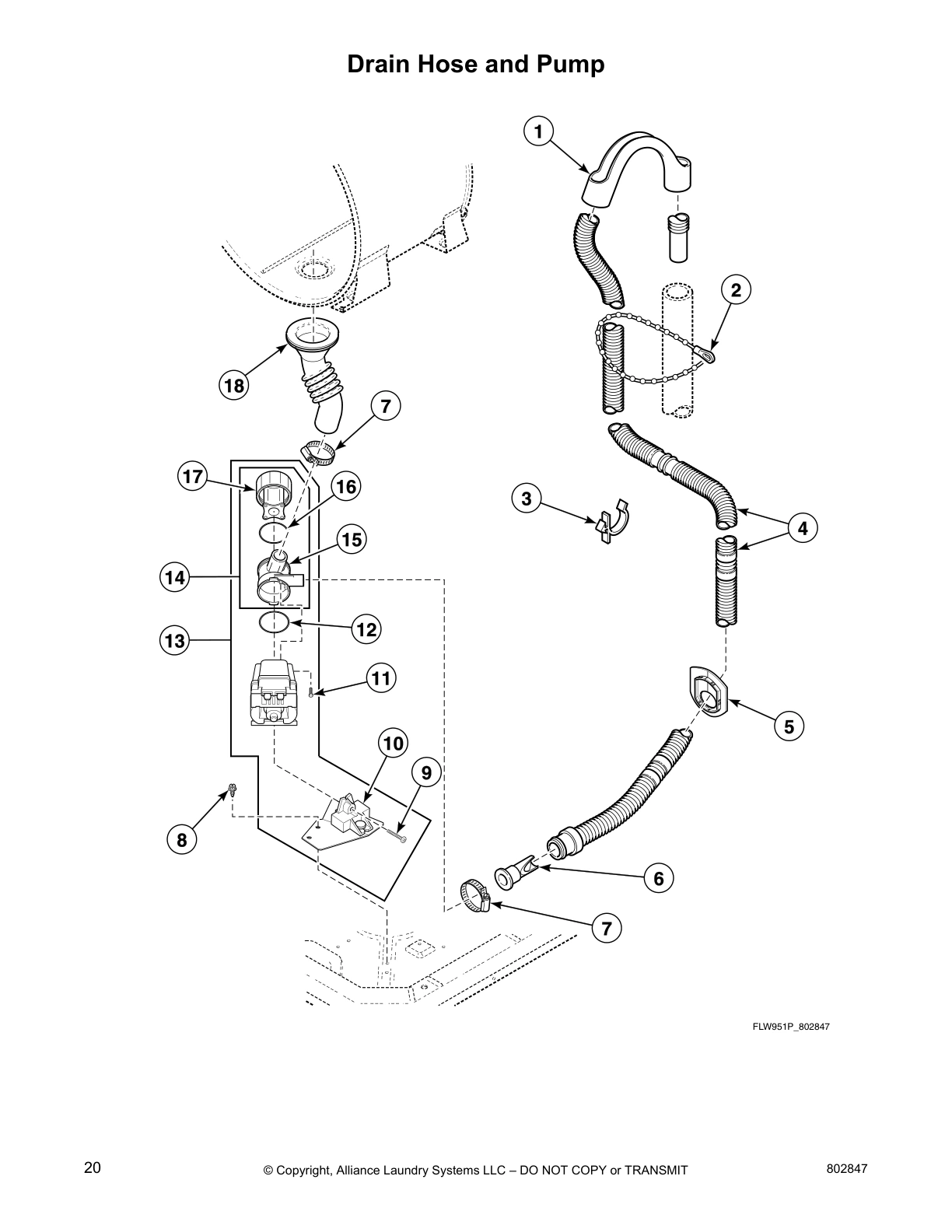

Drain Hose and Pump

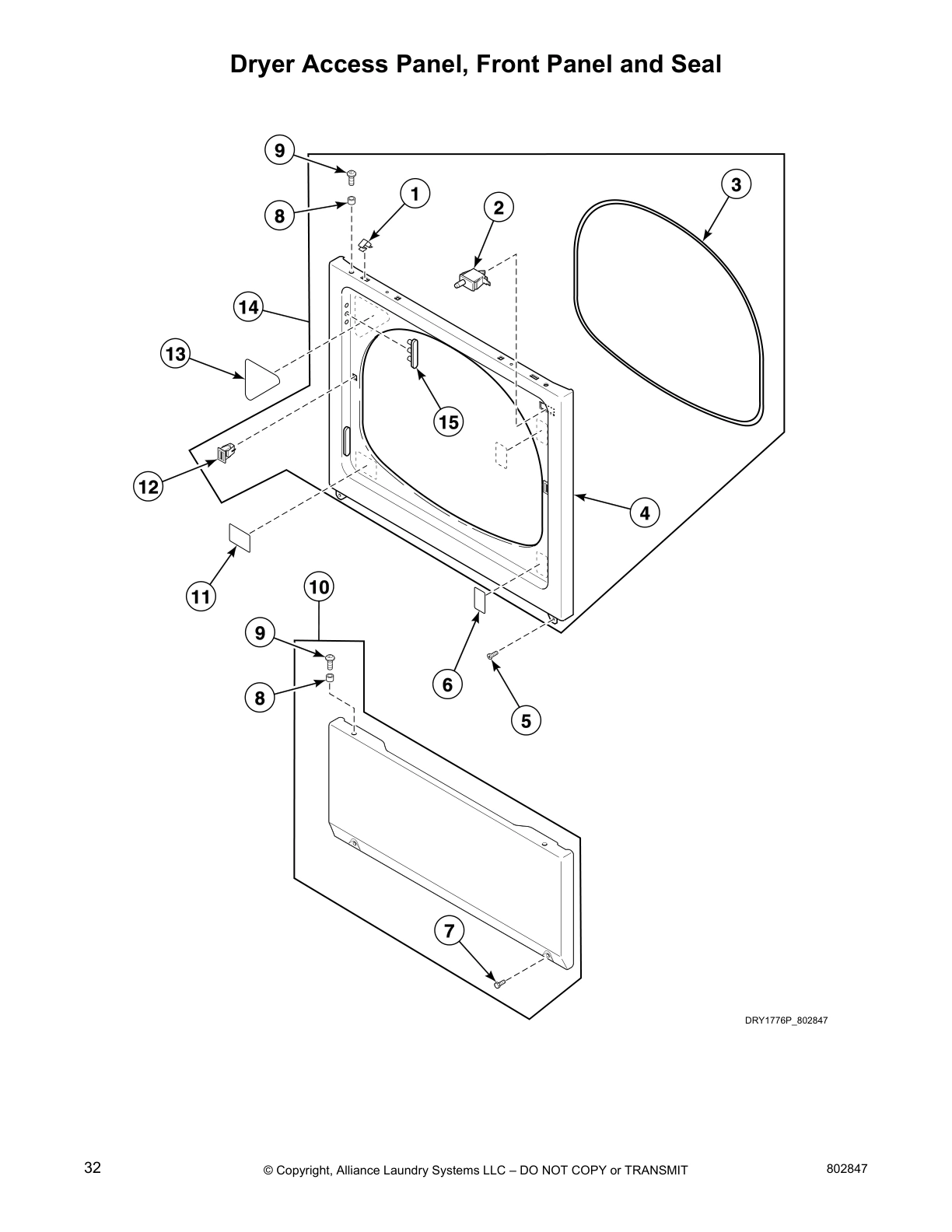

Dryer Access Panel, Front Panel and Seal

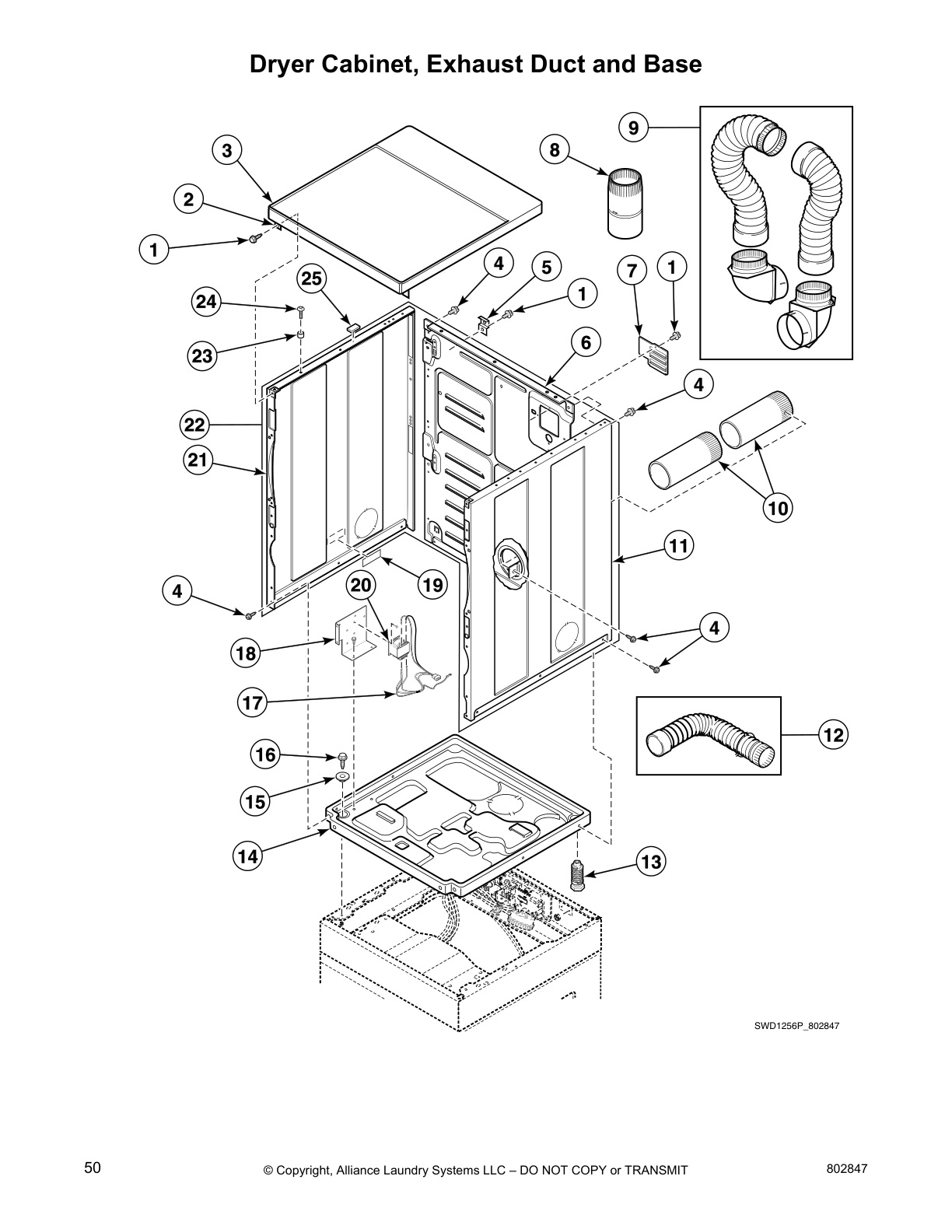

Dryer Cabinet, Exhaust Duct and Base

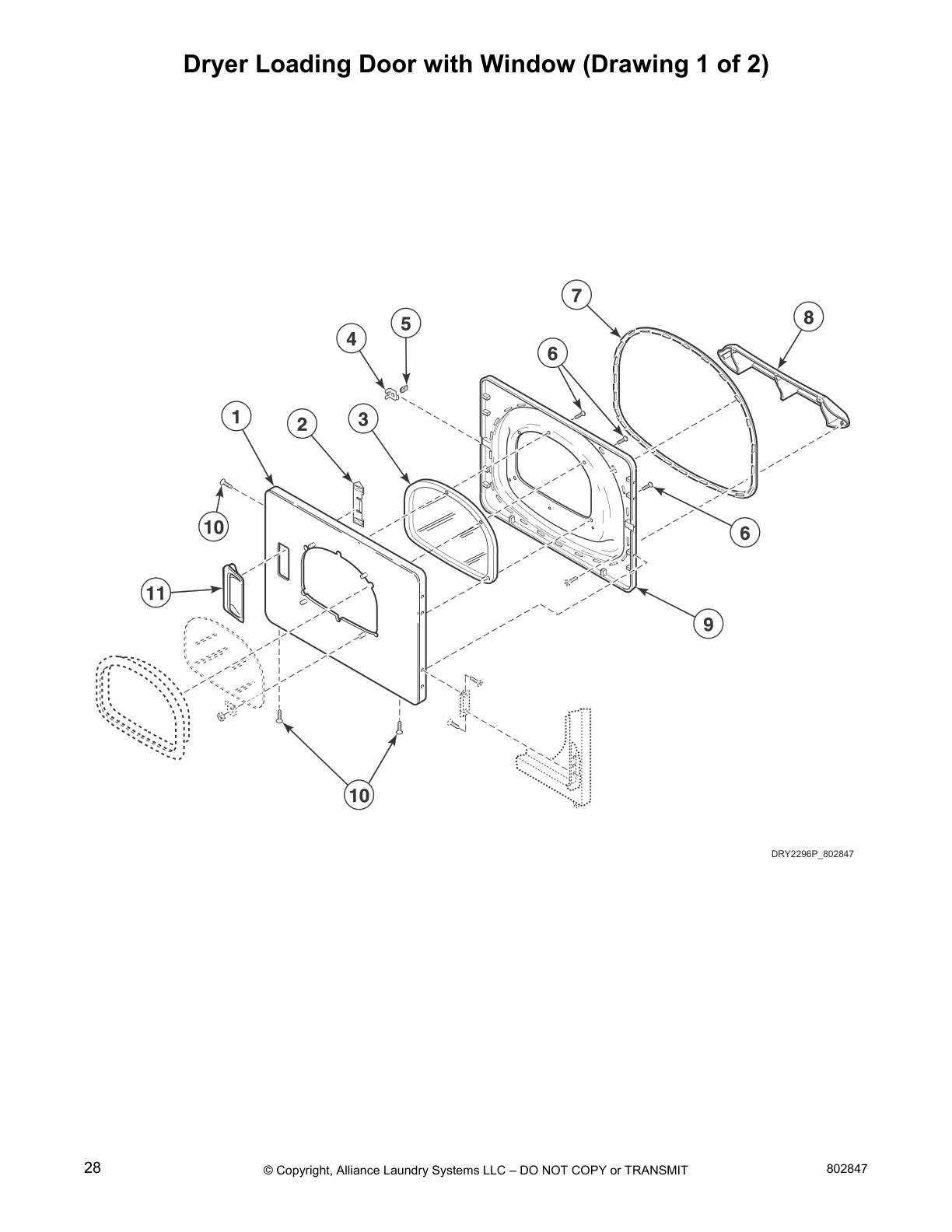

Dryer Loading Door with Window (Drawing 1 of 2)

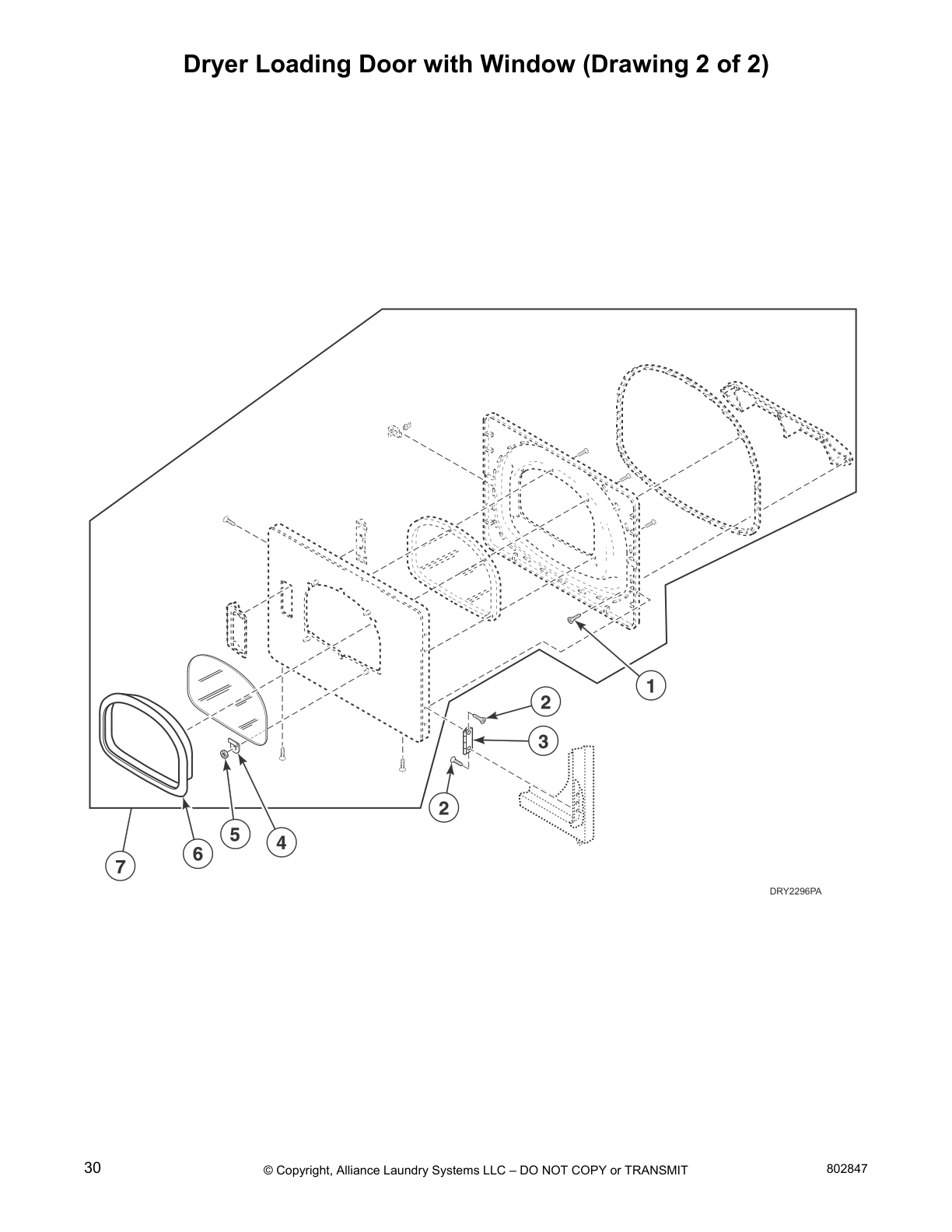

Dryer Loading Door with Window (Drawing 2 of 2)
Dryer Motor Connection Block, Terminal Extractor Tools

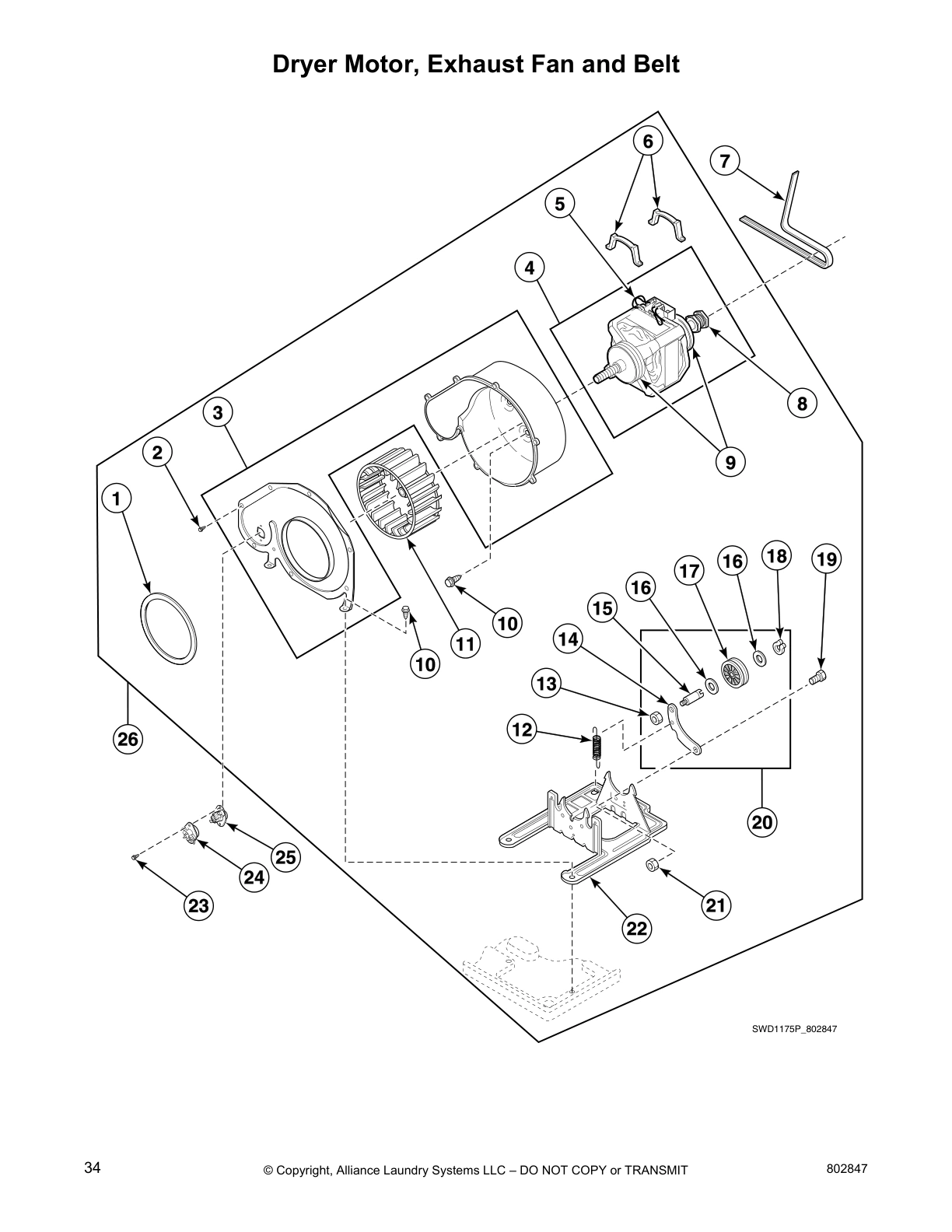

Dryer Motor, Exhaust Fan and Belt

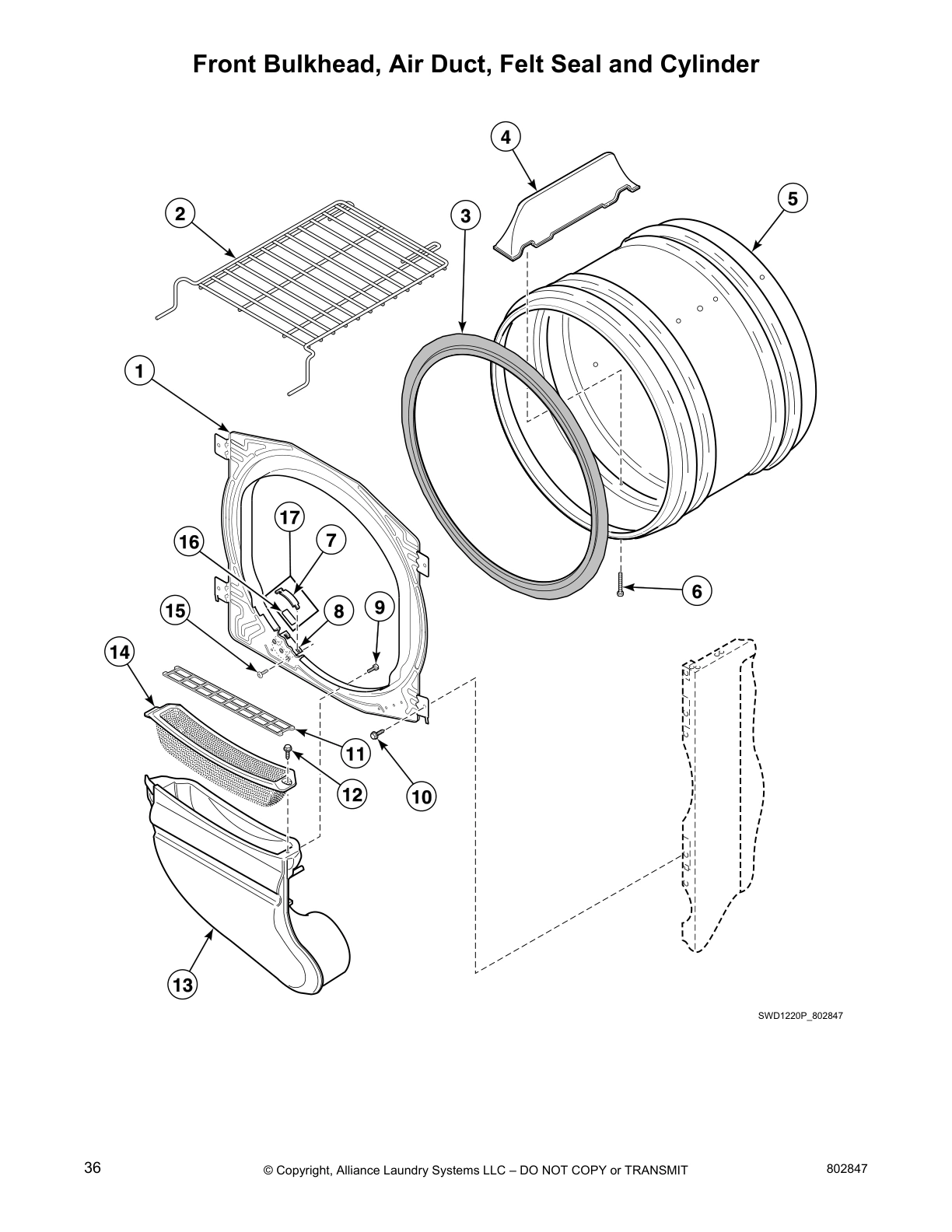

Front Bulkhead, Air Duct, Felt Seal and Cylinder

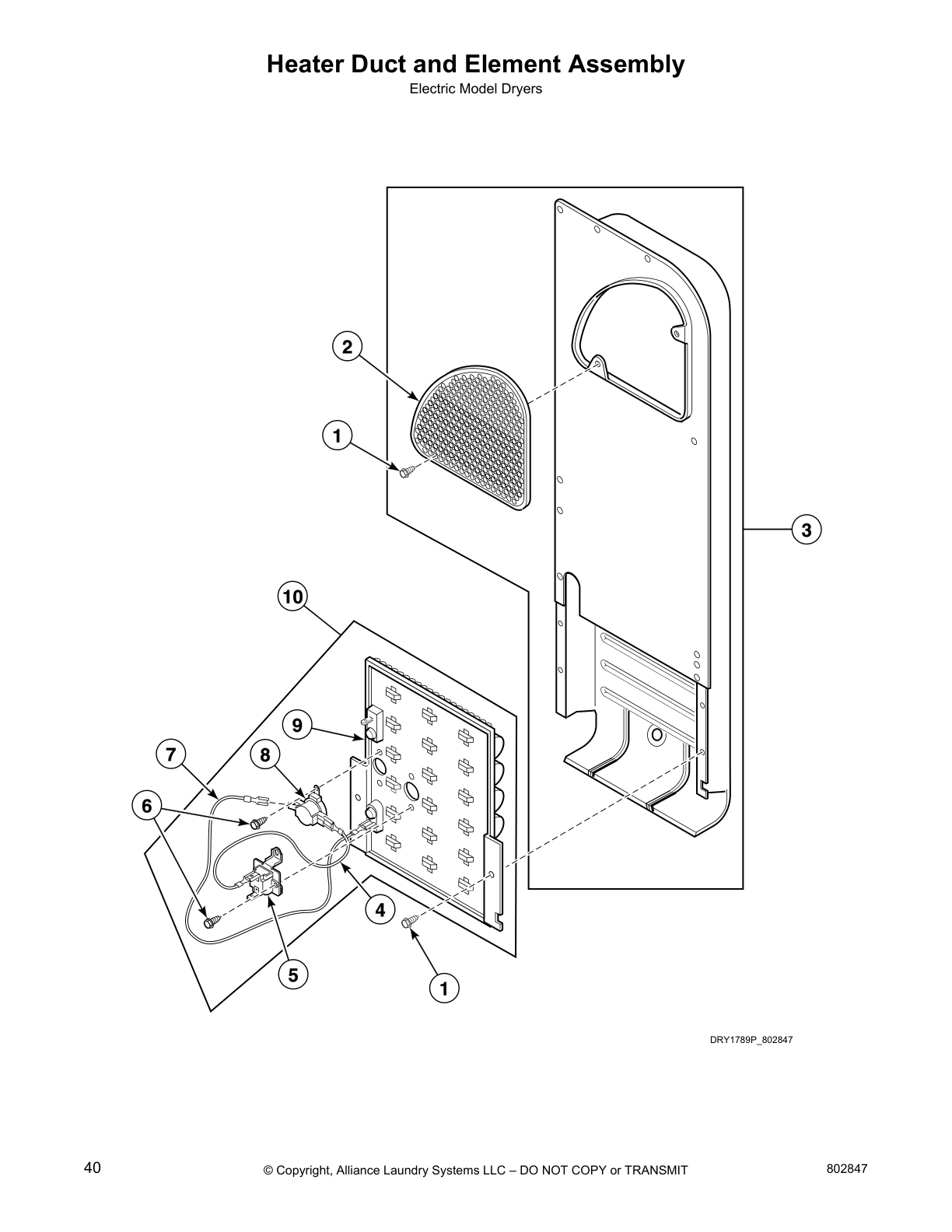

Heater Duct and Element Assembly (Electric Model Dryers)
Inner Basket, Trunnion, Bearing Housing and Pulley

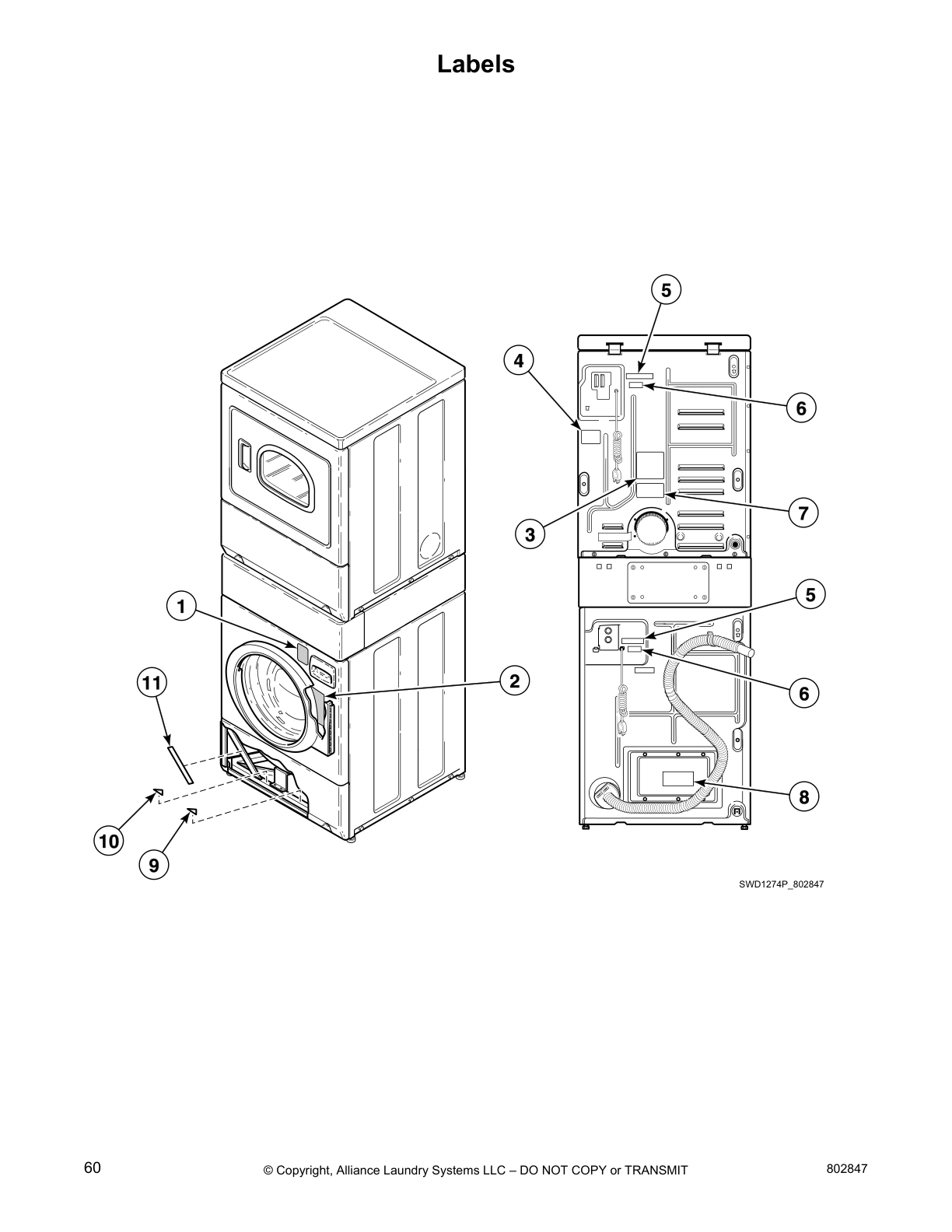

Labels
Mixing Valve, Valve-to-Dispenser Inlet Hose and Fill Hose

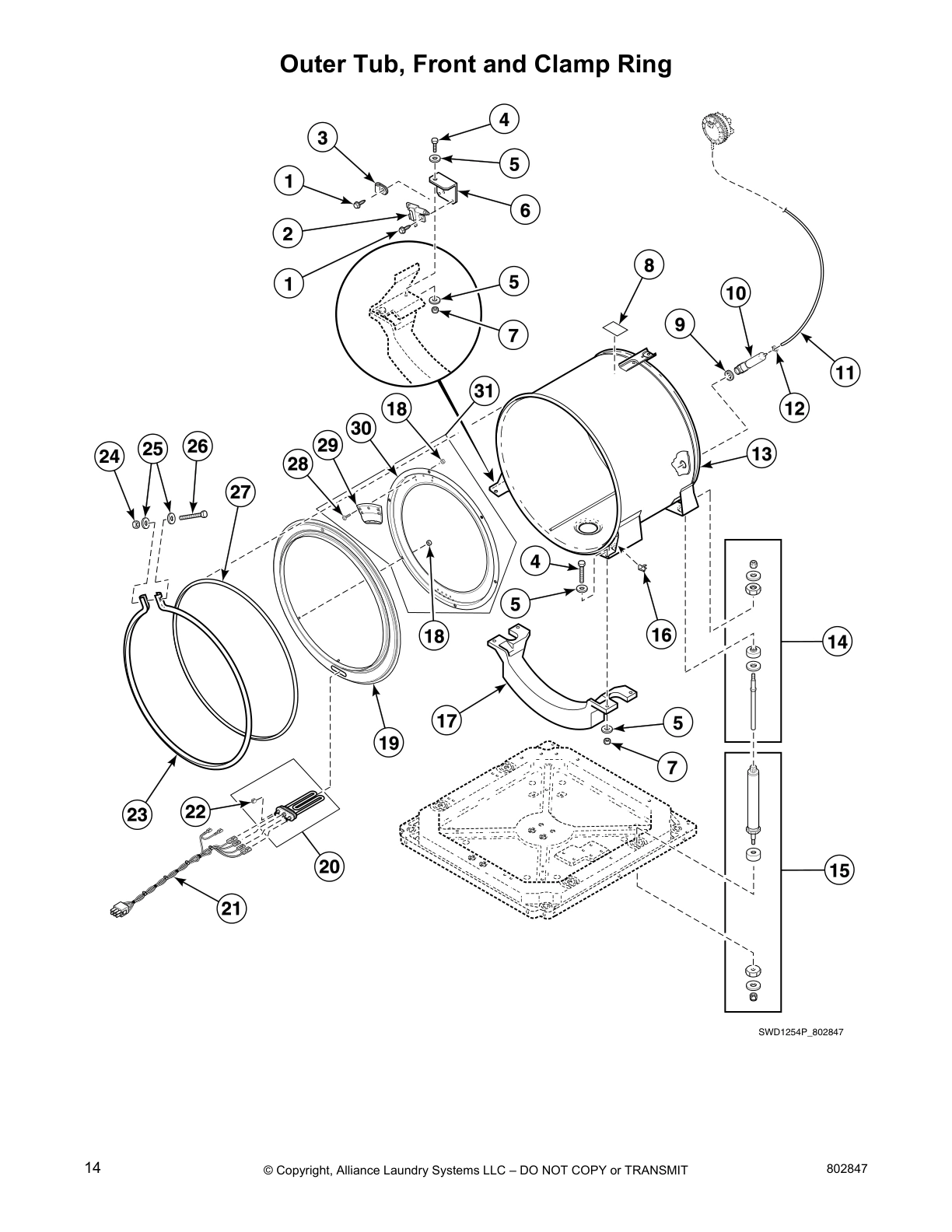

Outer Tub, Front and Clamp Ring

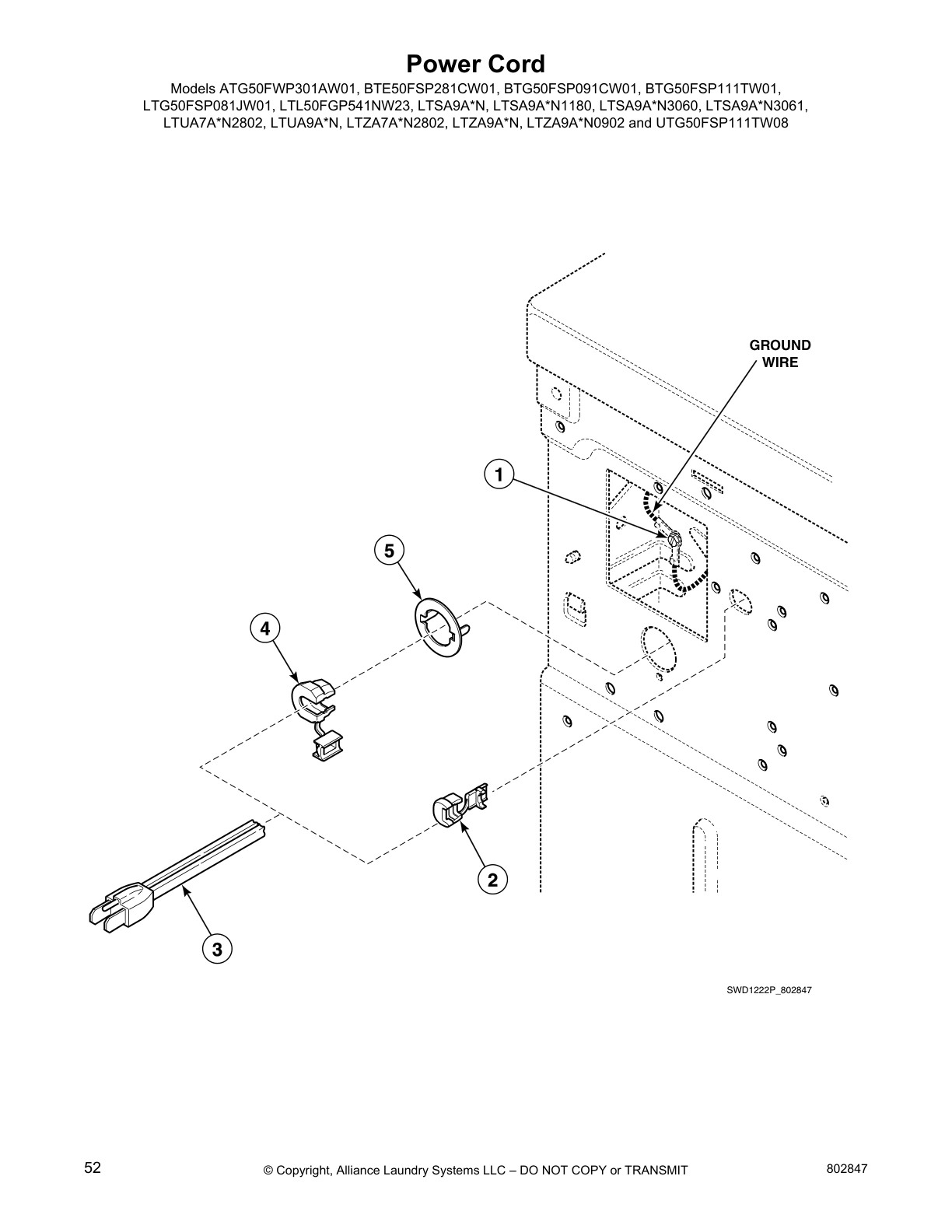

Power Cord
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Shipping Materials

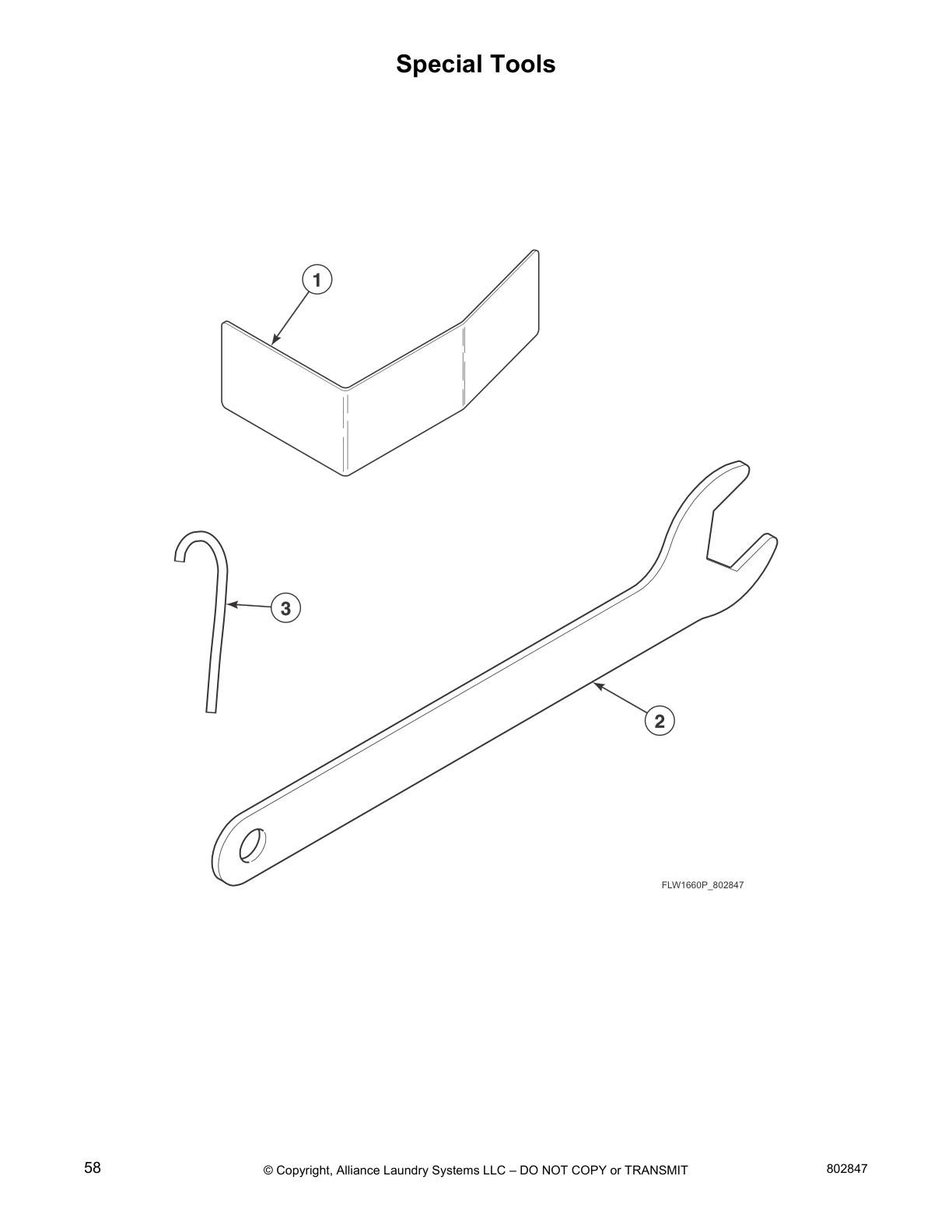

Special Tools

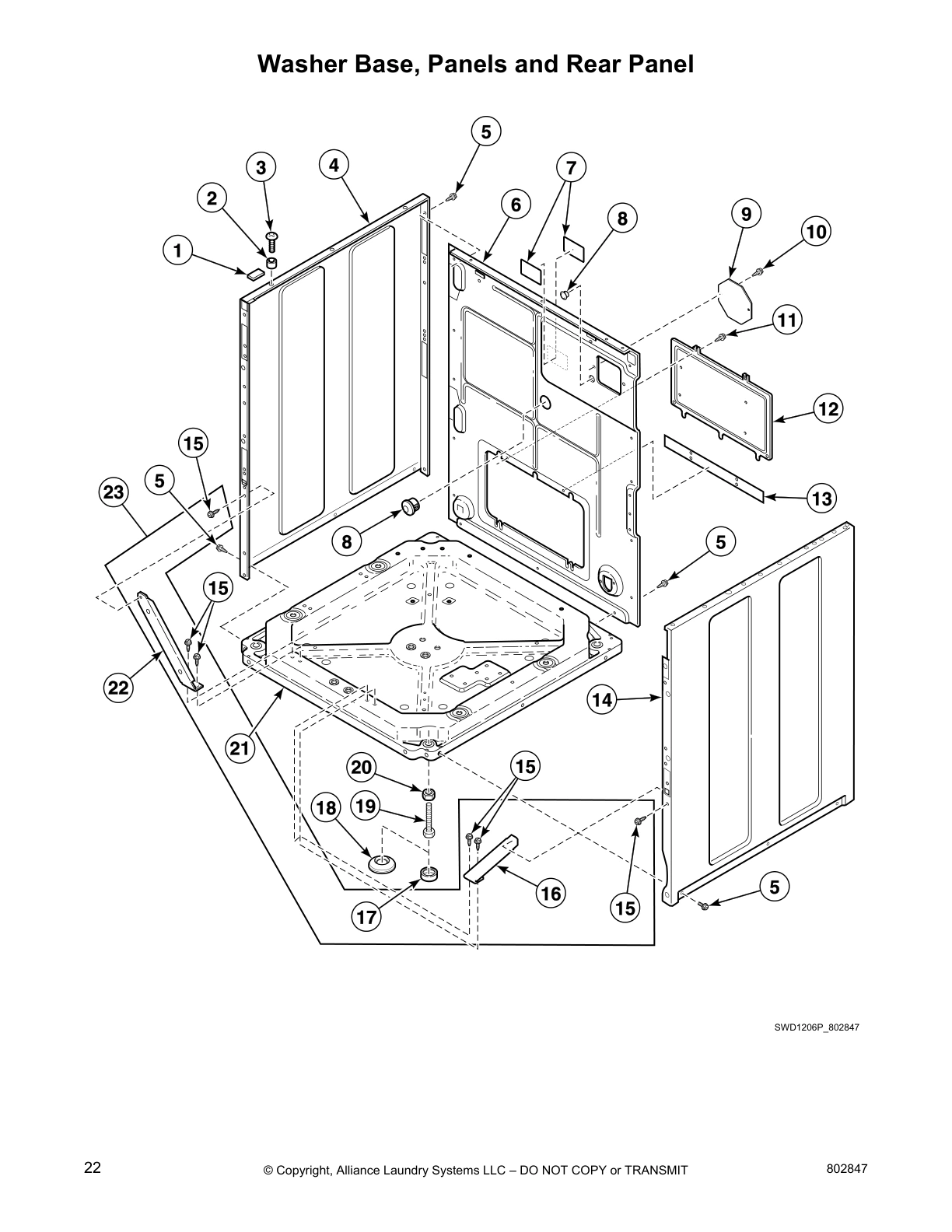

Washer Base, Panels and Rear Panel

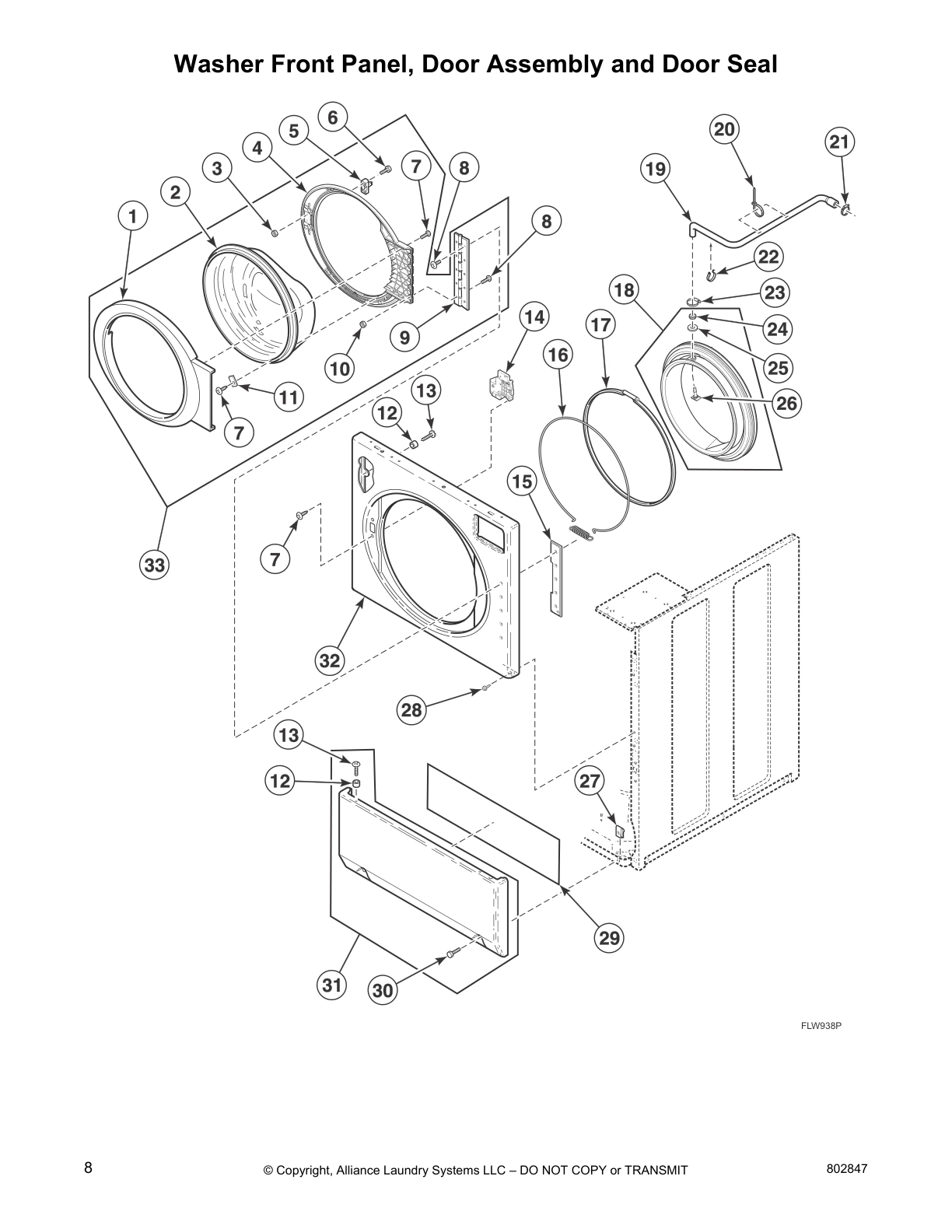

Washer Front Panel, Door Assembly and Door Seal
Washer Motor and Belt

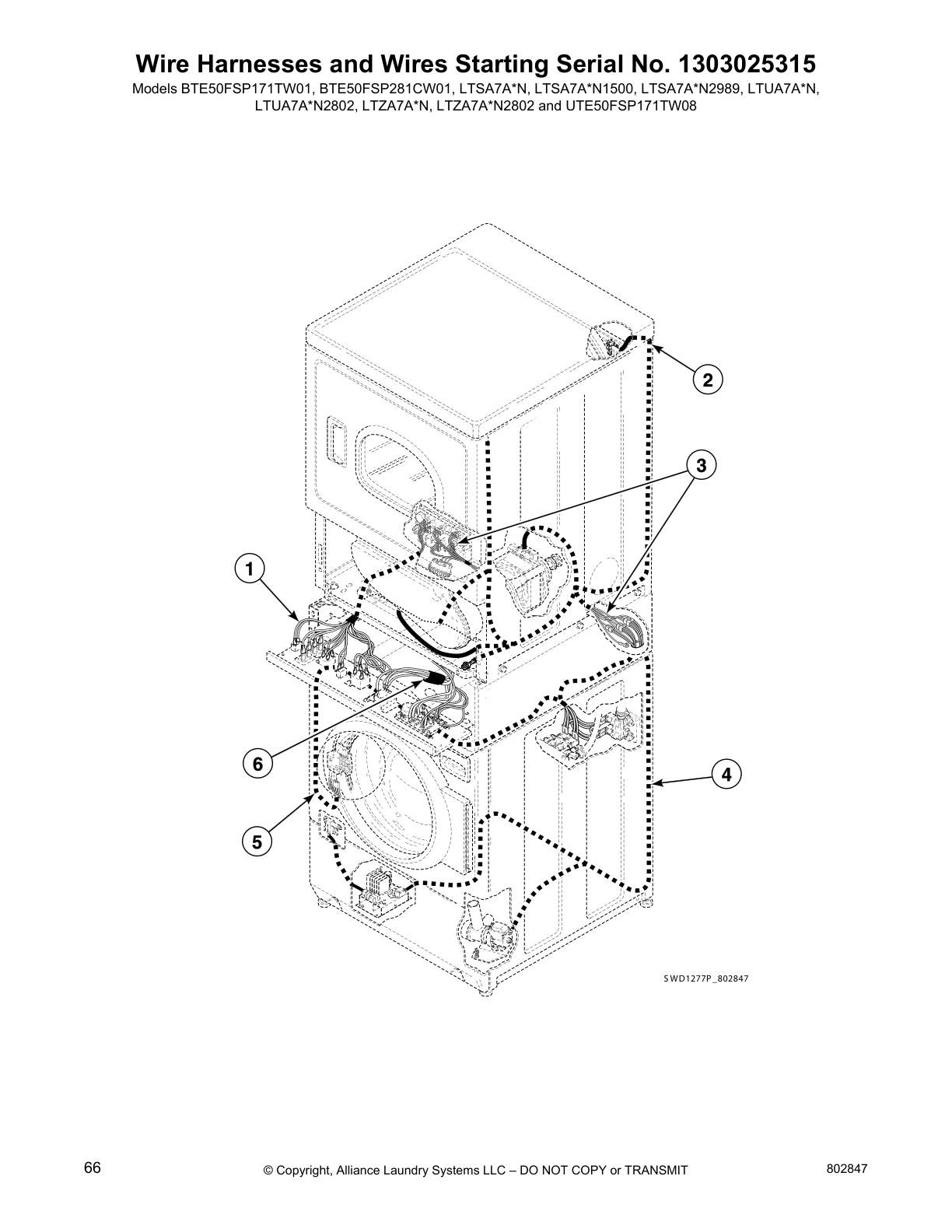

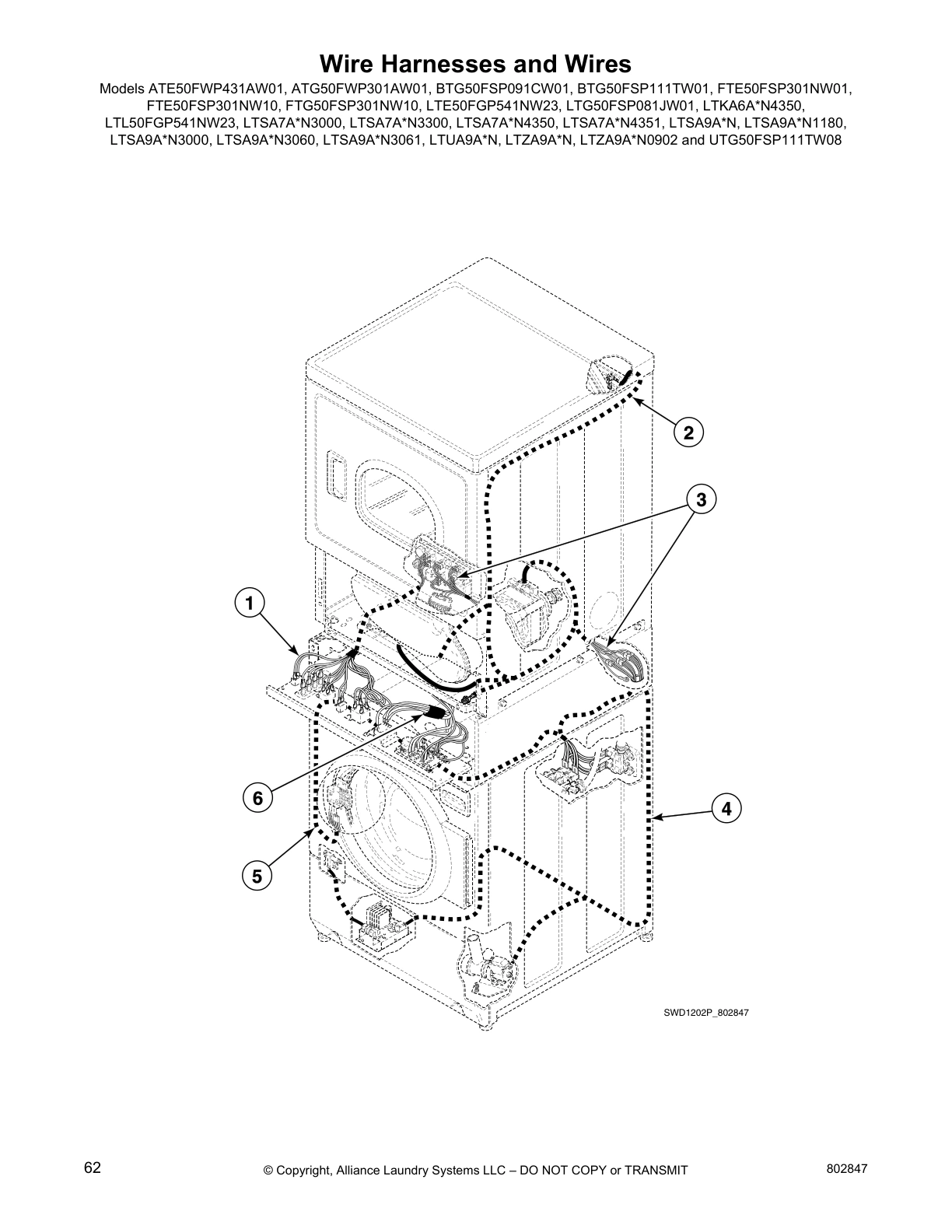

Wire Harnesses and Wires Starting Serial No. 1303025315

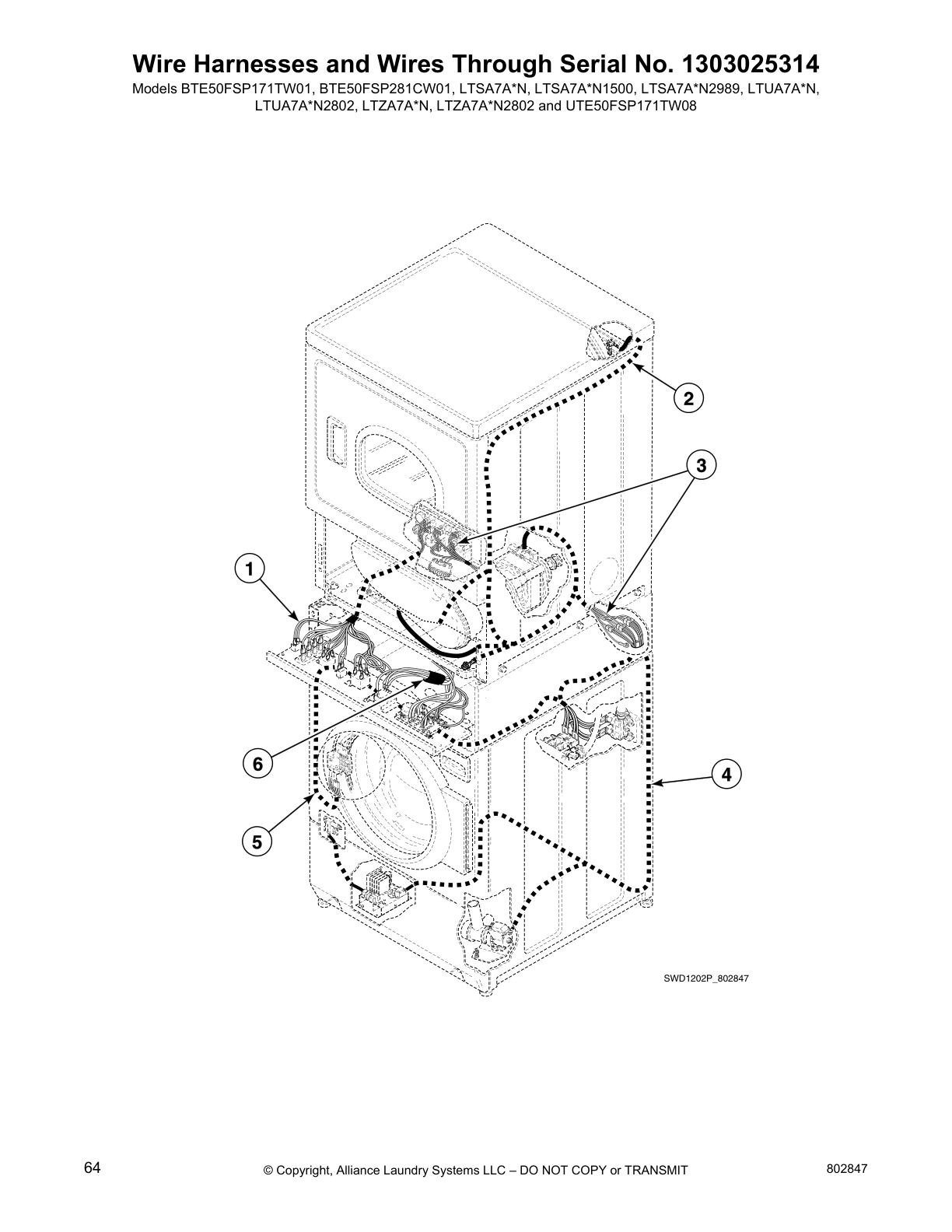

Wire Harnesses and Wires Through Serial No. 1303025314

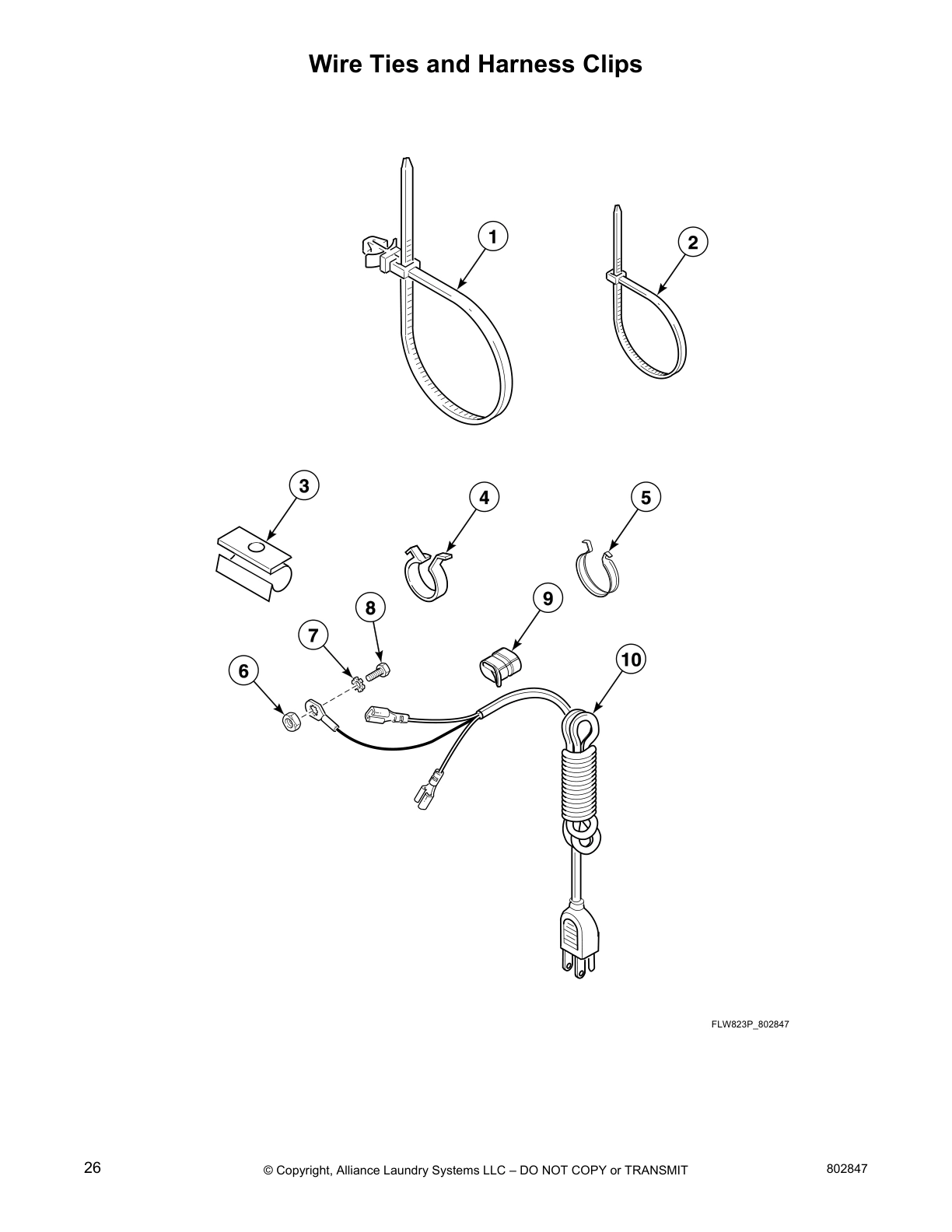

Wire Ties and Harness Clips
Common parts from model GE LTUA7A*N2802 General Electric Model LTUA7A*N2802
1
Control Shield (Comment: No service door) GEN 801371 Contact Us For Availability
1
Control Shield (Comment: Uses service door) GEN 801372 Contact Us For Availability
1
Screw GEN D503661 Contact Us For Availability
1
Drain Hose Sleeve GEN 33615 Contact Us For Availability
1
Speed Clip GEN 28835 Contact Us For Availability
1
Dryer Door (Comment: Bisque, through Serial N GEN D510082QP Contact Us For Availability
1
Dryer Door (Comment: White, through Serial No GEN D510082WP Contact Us For Availability
1
Dryer Door Assembly (Comment: Bisque, startin GEN D514114Q Contact Us For Availability
1
Dryer Door Assembly (Comment: White, starting GEN D514114W Contact Us For Availability
1
Screw GEN D505870 Contact Us For Availability
1
10 Position Housing (Comment: Molex) GEN D500338 Contact Us For Availability
1
Blower Housing Seal GEN D510238P Contact Us For Availability
1
Front Bulkhead Assembly (Comment: Unpainted, GEN D510266P Contact Us For Availability
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: For cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
Tension Rod Assembly GEN 800666 Contact Us For Availability
1
Screw GEN M400043 Contact Us For Availability
1
Oversudsing Label (Comment: English) GEN 802074 Contact Us For Availability
1
Oversudsing Label (Comment: Spanish) GEN 802838 Contact Us For Availability
1
Oversudsing Label (Comment: Quebec French) GEN 802839 Contact Us For Availability
1
Screw GEN 20530 Contact Us For Availability
1
Dispenser Drawer Tool (Comment: Use to remove GEN 318P4 Contact Us For Availability
1
Bumper Pad GEN 36226 Contact Us For Availability
1
Outer Door Bezel Kit (Comment: Bisque) GEN 802313QP Contact Us For Availability
1
Outer Door Bezel Kit (Comment: White) GEN 802313WP Contact Us For Availability
1
Control Panel Harness Assembly GEN 801326P Contact Us For Availability
1
Wire Tie GEN 38663 Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
Temperature Switch (Comment: Washer) GEN 687542 Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
2
Valve-to-Dispenser Inlet Hose GEN 801464 Contact Us For Availability
2
Standpipe Strap GEN 33489 Contact Us For Availability
2
Switch GEN D512973 Contact Us For Availability
2
Bracket GEN D510146 Contact Us For Availability
2
Door Handle Wedge GEN D510129 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, For (1) 1 GEN 00255 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, For (1) o GEN 00256 Contact Us For Availability
2
Screw GEN 31260 Contact Us For Availability
2
Outlet Cover GEN D500820 Contact Us For Availability
2
Inner Basket Assembly GEN 803008P Contact Us For Availability
2
Warning Label GEN 802367 Contact Us For Availability
2
Out-of-Balance Switch Assembly (Comment: Mode GEN 803415 Contact Us For Availability
2
Out-of-Balance Switch Assembly Kit (Comment: GEN 806512 Contact Us For Availability
2
Washer GEN M400014 Contact Us For Availability
2
Wrench (Comment: Use for adjusting leveling l GEN 392P4 Contact Us For Availability
2
Door Glass GEN 802695P Contact Us For Availability
2
Inverter Control Assembly (Comment: 120 Volt) GEN 803254P Contact Us For Availability
2
Wire Harness Assembly (Comment: Dryer) GEN D513946 Contact Us For Availability
2
Upper Harness Assembly (Comment: Dryer) GEN D511322P Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
3
Fabric Selector Switch (Comment: Dryer) GEN D513505 Contact Us For Availability
3
Backflow Preventer GEN 34500 Contact Us For Availability
3
Retainer Clip GEN 36014 Contact Us For Availability
3
Front Panel Seal GEN D511056 Contact Us For Availability
3
Top Kit (Comment: Bisque) GEN D510032QP Contact Us For Availability
3
Top Kit (Comment: White) GEN D510032WP Contact Us For Availability
3
Dryer Door Window GEN D503982P Contact Us For Availability
3
Hinge GEN D511036 Contact Us For Availability
3
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
3
Blower Housing GEN D511969WP Contact Us For Availability
3
Heater Duct and Screw Assembly (Comment: Incl GEN D510025P Contact Us For Availability
3
Trunnion Shaft and Hardware Kit (Comment: Inc GEN 800749P Contact Us For Availability
3
Venting Instruction Label GEN D502791 Contact Us For Availability
3
Wire Clamp GEN 800811 Contact Us For Availability
3
Power Cord Assembly GEN 57397 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Galvanized, GEN D511082P Contact Us For Availability
3
Shipping Materials Kit (Comment: Includes ite GEN 930P3 Contact Us For Availability
3
Pulley Bolt Tightening Fixture (Comment: Use GEN 802336 Contact Us For Availability
3
Nut GEN 685846 Contact Us For Availability
3
Control Shield GEN 801061 Contact Us For Availability
3
Control Harness Assembly GEN 801324P Contact Us For Availability
4
Screw GEN D501524 Contact Us For Availability
4
Resistor Assembly (Comment: Use with D505797 GEN D511277 Contact Us For Availability
4
Drain Hose GEN 685730 Contact Us For Availability
4
Front Panel (Comment: Bisque) GEN D510066QP Contact Us For Availability
4
Front Panel (Comment: White) GEN D510066WP Contact Us For Availability
4
Door Strike Mount GEN D510127 Contact Us For Availability
4
Glass Door Window (Comment: starting Serial N GEN D513910 Contact Us For Availability
4
Terminal Extractor Tool (Comment: For use on GEN 283P4 Contact Us For Availability
4
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
4
Cylinder Baffle (Comment: starting Serial No. GEN D510102LG Contact Us For Availability
4
Cylinder Baffle (Comment: through Serial No. GEN D510102W Contact Us For Availability
4
Screw GEN D501285 Contact Us For Availability
4
Wire Assembly (Comment: Orange, Thermostat ju GEN D510528 Contact Us For Availability
4
Inner Basket Assembly GEN 802365P Contact Us For Availability
4
Mixing Valve Plate GEN 800323 Contact Us For Availability
4
Screw GEN 800461 Contact Us For Availability
4
Shipping Bracket Label GEN 686901 Contact Us For Availability
4
Cabinet Panel Kit (Comment: Bisque, Left, Inc GEN 800004QP Contact Us For Availability
4
Cabinet Panel Kit (Comment: White, Left, Incl GEN 800004WP Contact Us For Availability
4
Inner Door Bezel Kit GEN 802307P Contact Us For Availability
4
Motor Harness Assembly (Comment: Models throu GEN 802274P Contact Us For Availability
4
Motor Harness Assembly (Comment: Models start GEN 803581 Contact Us For Availability
4
Wire Clip (Comment: Small) GEN D504034 Contact Us For Availability
5
Control Access Door GEN 801373 Contact Us For Availability
5
Timer and Harness Kit GEN D505797P Contact Us For Availability
5
Wire Clip (Comment: Large) GEN 687500 Contact Us For Availability
5
Strain Relief GEN 32219 Contact Us For Availability
5
Top Hinge GEN D510136 Contact Us For Availability
5
Door Strike GEN D510181 Contact Us For Availability
5
Window Clip (Comment: starting Serial No. 130 GEN D513958 Contact Us For Availability
5
Extractor Tool GEN 190P4 Contact Us For Availability
5
Motor Switch Kit (Comment: Does not include t GEN N/A Contact Us For Availability
5
Cylinder Assembly (Comment: Galvanized, Inclu GEN D510265LGP Contact Us For Availability
5
Cylinder Assembly (Comment: Galvanized, Inclu GEN D510265WP Contact Us For Availability
5
Thermal Fuse Assembly GEN D511412 Contact Us For Availability
5
Nut GEN 803017 Contact Us For Availability
5
Disconnect Power Warning Label (Comment: Engl GEN D505281 Contact Us For Availability
5
Washer GEN M400081 Contact Us For Availability
5
Terminal Block Shield GEN D510237 Contact Us For Availability
5
Door Catch Assembly GEN 802803 Contact Us For Availability
5
Fuse (Comment: 10 Amp, Slow blow) GEN 801755 Contact Us For Availability
5
Base Harness Assembly (Comment: Models throug GEN 802351P Contact Us For Availability
5
Base Harness Assembly (Comment: Models starti GEN 802831P Contact Us For Availability
6
Control Cabinet Bottom GEN 801777 Contact Us For Availability
6
Backflow Preventer GEN 800310 Contact Us For Availability
6
Cabinet Rear Panel GEN D514632P Contact Us For Availability
6
Nut (Comment: starting Serial No. 1303025315) GEN 44071201 Contact Us For Availability
6
Motor Mount Clamp GEN D510180 Contact Us For Availability
6
Screw GEN 23222 Contact Us For Availability
6
Screw GEN 62588 Contact Us For Availability
6
Warning Label GEN 803260 Contact Us For Availability
6
Washer GEN 20290 Contact Us For Availability
6
Switch Mounting Bracket (Comment: Models thro GEN 800663 Contact Us For Availability
6
Switch Mounting Bracket (Comment: Models star GEN 803388 Contact Us For Availability
6
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
6
Rear Panel GEN 800010P Contact Us For Availability
6
Screw GEN 801993 Contact Us For Availability
6
Screw GEN M400057 Contact Us For Availability
6
Security Cabinet Harness GEN D511324P Contact Us For Availability
7
Transformer GEN 210018P Contact Us For Availability
7
Expansion Clip GEN 70030501 Contact Us For Availability
7
Screw GEN 800548 Contact Us For Availability
7
Hose Clamp GEN F200204 Contact Us For Availability
7
Screw (Comment: Slotted hex head) GEN 33562 Contact Us For Availability
7
Screw (Comment: Torx head, Optional for added GEN 62853 Contact Us For Availability
7
Access Panel Plate GEN D510903 Contact Us For Availability
7
Liner Door Seal GEN D510147P Contact Us For Availability
7
Window Trim (Comment: Bisque, through Serial GEN D503981Q Contact Us For Availability
7
Window Trim (Comment: White, through Serial N GEN D503981W Contact Us For Availability
7
Window Trim (Comment: Bisque, starting Serial GEN D513960Q Contact Us For Availability
7
Window Trim (Comment: White, starting Serial GEN D513960W Contact Us For Availability
7
Cylinder Belt GEN D511255P Contact Us For Availability
7
Cylinder Glide GEN D513710 Contact Us For Availability
7
Wire Assembly (Comment: Black, Fuse jumper, A GEN D510527 Contact Us For Availability
7
Nut GEN 800452 Contact Us For Availability
7
Exhaust Warning Label GEN D500497 Contact Us For Availability
7
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
7
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
7
Wire Harness Assembly (Comment: Power to wash GEN D514256 Contact Us For Availability
7
Left Hand Thread Label GEN 685928 Contact Us For Availability
7
Washer GEN 02834 Contact Us For Availability
8
Pressure Switch GEN 802299P Contact Us For Availability
8
Screw GEN 800930 Contact Us For Availability
8
Damper GEN 58786 Contact Us For Availability
8
Door Liner Grill (Comment: starting Serial No GEN D503870LG Contact Us For Availability
8
Door Liner Grill (Comment: through Serial No. GEN D503870W Contact Us For Availability
8
Door and Liner Assembly (Comment: Bisque, Inc GEN D511636QP Contact Us For Availability
8
Door and Liner Assembly (Comment: White, Incl GEN D511636WP Contact Us For Availability
8
Motor Pulley (Comment: 60 Hertz) GEN D500011 Contact Us For Availability
8
Cylinder Glide Bracket GEN D510145 Contact Us For Availability
8
Limit Thermostat GEN D510701 Contact Us For Availability
8
Hose Mounting Plate GEN 800552 Contact Us For Availability
8
Electrical Shock Label (Comment: Icon) GEN D502511 Contact Us For Availability
8
Warning Label (Comment: English) GEN D500049 Contact Us For Availability
8
Warning Label GEN D500314 Contact Us For Availability
8
Fill Hose Kit (Comment: 5 feet, Hose is equip GEN 38349P Contact Us For Availability
8
Water Hose (Comment: 5 feet, Hose is equipped GEN F200116 Contact Us For Availability
8
Screw GEN 61199 Contact Us For Availability
8
Hole Plug GEN M412154 Contact Us For Availability
8
Screw GEN 801019 Contact Us For Availability
8
Washer GEN M400080 Contact Us For Availability
9
Snap Bushing GEN M402542 Contact Us For Availability
9
Timer Knob Assembly (Comment: Bisque) GEN D512117Q Contact Us For Availability
9
Timer Knob Assembly (Comment: White) GEN D512117W Contact Us For Availability
9
Screw GEN 802430 Contact Us For Availability
9
Flexible Venting Kit GEN 521P3 Contact Us For Availability
9
Liner and Seal Assembly (Comment: Includes it GEN D510098LG Contact Us For Availability
9
Liner and Seal Assembly (Comment: Includes it GEN D510098W Contact Us For Availability
9
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
9
Screw GEN 52864 Contact Us For Availability
9
Heater Assembly (Comment: 5000 Watt, 240 Volt GEN D510324P Contact Us For Availability
9
Hose Clip GEN 800553 Contact Us For Availability
9
Fill Hose (Comment: 8 feet, Hose is equipped GEN 20617 Contact Us For Availability
9
Fill Hose (Comment: 10 feet, Hose is equipped GEN 20618 Contact Us For Availability
9
Fill Hose (Comment: 8 feet, Hose is equipped GEN 37380 Contact Us For Availability
9
Fill Hose (Comment: 10 feet, Hose is equipped GEN 37381 Contact Us For Availability
9
Grommet GEN 29175 Contact Us For Availability
9
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
9
Door Hinge GEN 802934 Contact Us For Availability
9
Drive Belt GEN 800319P Contact Us For Availability
10
NOT ON YOUR MODEL GEN - Contact Us For Availability
10
Jumper Assembly (Comment: Attaches to H7 on c GEN 801333 Contact Us For Availability
10
Control Assembly GEN 802523P Contact Us For Availability
10
Screw GEN D501086 Contact Us For Availability
10
Knob Assembly (Comment: Bisque) GEN 36701Q Contact Us For Availability
10
Knob Assembly (Comment: White) GEN 36701W Contact Us For Availability
10
Valve Kit GEN 685766P Contact Us For Availability
10
Pump Mount Bracket GEN 802626 Contact Us For Availability
10
Access Panel and Guard Assembly (Comment: Bis GEN D514252Q Contact Us For Availability
10
Access Panel and Guard Assembly (Comment: Whi GEN D514252W Contact Us For Availability
10
Exhaust Duct (Comment: Each dryer requires 2 GEN D510137 Contact Us For Availability
10
Screw GEN D500226 Contact Us For Availability
10
Heater Kit Assembly (Comment: Includes items GEN 61927 Contact Us For Availability
10
Pop Rivet GEN 685847 Contact Us For Availability
10
Pressure Bulb GEN 30907 Contact Us For Availability
10
Cylinder Roller GEN D510708P Contact Us For Availability
10
Nut GEN 23951 Contact Us For Availability
10
Motor and Rod Assembly Kit (Comment: Includes GEN 801684P Contact Us For Availability
11
Screw GEN 430497 Contact Us For Availability
11
Domed Label GEN 800923 Contact Us For Availability
11
Dispenser-to-Tub Hose GEN 800331 Contact Us For Availability
11
Screw GEN 802431 Contact Us For Availability
11
Cabinet Side Panel (Comment: Bisque, Right) GEN D510002QP Contact Us For Availability
11
Cabinet Side Panel (Comment: White, Right) GEN D510002WP Contact Us For Availability
11
Door Pull and Wedge Kit (Comment: Includes it GEN D510103WP Contact Us For Availability
11
Blower Fan Assembly GEN D510139P Contact Us For Availability
11
Nut GEN 56156 Contact Us For Availability
11
Retaining Ring GEN 23748 Contact Us For Availability
11
Lint Filter Cover (Comment: starting Serial N GEN D510502LG Contact Us For Availability
11
Lint Filter Cover (Comment: through Serial No GEN D510502W Contact Us For Availability
11
Driven Pulley GEN 800866 Contact Us For Availability
11
Warning Label GEN 803522 Contact Us For Availability
11
Mixing Valve Screen GEN 802926 Contact Us For Availability
11
Tubing GEN 800648P Contact Us For Availability
11
Glass Mounting Clip GEN 802700 Contact Us For Availability
12
Rocker Switch (Comment: Bisque, Extra rinse) GEN 38424Q Contact Us For Availability
12
Rocker Switch (Comment: White, Extra rinse) GEN 38424W Contact Us For Availability
12
Hose Clamp GEN 685725 Contact Us For Availability
12
O-Ring GEN 802429P Contact Us For Availability
12
Panel Locator GEN 56079 Contact Us For Availability
12
Door Catch Assembly GEN D510177 Contact Us For Availability
12
Directional Exhaust Kit (Comment: Used to ven GEN 528P3 Contact Us For Availability
12
Idler Spring GEN D510185 Contact Us For Availability
12
Washer GEN 52549 Contact Us For Availability
12
Screw (Comment: Left hand thread) GEN 685831 Contact Us For Availability
12
Mixing Valve GEN 802220P Contact Us For Availability
12
Hose Clamp GEN 39282 Contact Us For Availability
12
Shaft GEN 56461P Contact Us For Availability
12
Rear Access Panel GEN 800011 Contact Us For Availability
13
Rear Control Cabinet GEN 801058 Contact Us For Availability
13
Push-to-Start Switch (Comment: Bisque) GEN 801434Q Contact Us For Availability
13
Push-to-Start Switch (Comment: White) GEN 801434W Contact Us For Availability
13
Hose Clamp GEN F200206 Contact Us For Availability
13
Drain Pump GEN 802623P Contact Us For Availability
13
Screw GEN 39733 Contact Us For Availability
13
Caution Label GEN D500253 Contact Us For Availability
13
Leveling Leg GEN D510135 Contact Us For Availability
13
Air Duct Assembly (Comment: starting Serial N GEN D510151LG Contact Us For Availability
13
Air Duct Assembly (Comment: through Serial No GEN D510151W Contact Us For Availability
13
Washer GEN M403958 Contact Us For Availability
13
Outer Tub Assembly GEN 801081P Contact Us For Availability
13
Washer GEN D504082 Contact Us For Availability
13
Motor Access Hole Edging GEN 801702 Contact Us For Availability
13
Motor Mount Rod GEN 801062 Contact Us For Availability
14
Right Control Cabinet Side (Comment: Bisque) GEN 800915Q Contact Us For Availability
14
Right Control Cabinet Side (Comment: White) GEN 800915W Contact Us For Availability
14
Graphic Overlay GEN 801142 Contact Us For Availability
14
Cap GEN 801746 Contact Us For Availability
14
Pump Housing Assembly (Comment: Includes item GEN 802434P Contact Us For Availability
14
Front Panel Assembly (Comment: Includes items GEN D513781WP Contact Us For Availability
14
Dryer Base GEN D514245 Contact Us For Availability
14
Idler Lever GEN D510133 Contact Us For Availability
14
Lint Filter (Comment: starting Serial No. 130 GEN D503980LG Contact Us For Availability
14
Lint Filter (Comment: through Serial No. 1303 GEN D503980W Contact Us For Availability
14
Washer GEN 800464 Contact Us For Availability
14
Tub Shock Absorber Kit (Comment: Upper) GEN 800622P Contact Us For Availability
14
Side Panel Kit (Comment: Bisque, Right, Inclu GEN 800005QP Contact Us For Availability
14
Side Panel Kit (Comment: White, Right, Includ GEN 806492 Contact Us For Availability
14
Door Latch/Switch Assembly GEN 802317P Contact Us For Availability
14
Jumper Harness (Comment: Use to limit spin RP GEN D513268 Contact Us For Availability
15
Control Panel Assembly GEN 802101W Contact Us For Availability
15
Dispenser (Comment: Includes items 10, 16 and GEN 685756P Contact Us For Availability
15
Pump Housing GEN 802428 Contact Us For Availability
15
Hinge Hole Plug GEN D510186 Contact Us For Availability
15
Washer GEN 26509 Contact Us For Availability
15
Screw GEN D505295 Contact Us For Availability
15
Shaft GEN D56461P Contact Us For Availability
15
Base Shock Absorber Kit (Comment: Lower, Must GEN 802881P Contact Us For Availability
15
Screw GEN 31645 Contact Us For Availability
15
Hinge Plate GEN 802206 Contact Us For Availability
16
Nut GEN 800931 Contact Us For Availability
16
Light (Comment: Green) GEN 801431 Contact Us For Availability
16
Dispenser Assembly (Comment: Includes items 1 GEN 801476P Contact Us For Availability
16
Gasket GEN 802427 Contact Us For Availability
16
Screw GEN D502431 Contact Us For Availability
16
Felt Pad GEN D510189 Contact Us For Availability
16
Bearing Housing Kit (Comment: Includes 838P3 GEN 800428P Contact Us For Availability
16
Grounding Clip GEN 00161 Contact Us For Availability
16
Roller Kit (Comment: Includes items 10 and 12 GEN RB170002 Contact Us For Availability
16
Cabinet Brace (Comment: Right) GEN 801492 Contact Us For Availability
16
Wire Clamp Ring GEN 802283 Contact Us For Availability
17
Left Control Cabinet Side (Comment: Bisque) GEN 800900QP Contact Us For Availability
17
Left Control Cabinet Side (Comment: White) GEN 800900WP Contact Us For Availability
17
Dispenser Drawer GEN 685757P Contact Us For Availability
17
Lid Assembly (Comment: Includes filter) GEN 802426P Contact Us For Availability
17
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
17
Glide Kit (Comment: Includes items 7 and 16) GEN RB170003 Contact Us For Availability
17
Ballast Weight GEN 800205 Contact Us For Availability
17
Rubber Foot GEN 34318 Contact Us For Availability
17
Hose Clamp (Comment: Door seal to outer tub f GEN 802281 Contact Us For Availability
18
Cycle Switch (Comment: Washer) GEN 801240 Contact Us For Availability
18
Door Seal Kit (Comment: Gray, Includes items GEN 802830P Contact Us For Availability
18
Door Seal Assembly (Comment: Black, Includes GEN 802866P Contact Us For Availability
18
Sealant (Comment: Tub-to-pump hose to outer t GEN 27615P Contact Us For Availability
18
Tub-to-Pump Hose GEN 800317 Contact Us For Availability
18
Drain Kit (Comment: Includes 803344 Tub-to-Pu GEN 985P3 Contact Us For Availability
18
Nut GEN 802343 Contact Us For Availability
18
Anchor Floor Mount Assembly (Comment: Include GEN 802844P Contact Us For Availability
19
Dispenser-to-Door Seal Hose GEN 802256 Contact Us For Availability
19
Dispenser Drawer Front (Comment: Bisque) GEN 685715QP Contact Us For Availability
19
Dispenser Drawer Front (Comment: White) GEN 685715WP Contact Us For Availability
19
Fuse Notice Label GEN 61294 Contact Us For Availability
19
Screw GEN D500824 Contact Us For Availability
19
Tub Front Assembly GEN 802258 Contact Us For Availability
19
Leveling Leg GEN 34319 Contact Us For Availability
20
Insert GEN 685716 Contact Us For Availability
20
Idler Lever and Wheel Assembly GEN D510158 Contact Us For Availability
20
Nut GEN 21899 Contact Us For Availability
21
Hose Clamp GEN 802164 Contact Us For Availability
21
Detergent Cover GEN 800899 Contact Us For Availability
21
Cabinet Side Panel (Comment: Bisque, Left) GEN D510001QP Contact Us For Availability
21
Cabinet Side Panel (Comment: White, Left) GEN D510001WP Contact Us For Availability
21
Nut GEN 52566 Contact Us For Availability
21
Base Assembly GEN 803876 Contact Us For Availability
22
Dispenser Plate GEN 801024 Contact Us For Availability
22
Panel Kit (Comment: Bisque, Replaces the 1 pi GEN 727P3Q Contact Us For Availability
22
Panel Kit (Comment: White, Replaces the 1 pie GEN 727P3W Contact Us For Availability
22
Motor Mount GEN D510060 Contact Us For Availability
22
Cabinet Brace (Comment: Left) GEN 801491 Contact Us For Availability
23
Hose Clamp GEN 802698 Contact Us For Availability
23
Screw GEN 801001 Contact Us For Availability
23
Clamp Ring GEN 800312 Contact Us For Availability
23
Brace Kit (Comment: Includes items 15, 16 and GEN 918P3 Contact Us For Availability
24
Nut GEN 802292 Contact Us For Availability
24
Thermostat GEN D504515 Contact Us For Availability
24
Nut GEN F430218 Contact Us For Availability
25
Washer GEN 802293 Contact Us For Availability
25
Bumper Pad GEN 56128 Contact Us For Availability
25
Washer GEN 800457 Contact Us For Availability
26
Boot Nozzle GEN 802291 Contact Us For Availability
26
Blower and Fan Kit (Comment: 120 Volt/60 Hert GEN D510717P Contact Us For Availability
26
Screw GEN 800462 Contact Us For Availability
27
Tub Front Seal GEN 800432P Contact Us For Availability
27
Extension Spring GEN 802285 Contact Us For Availability
28
Screw GEN 802596 Contact Us For Availability
28
Nut GEN 36020 Contact Us For Availability
29
Clothes Guard Deflector GEN 804174P Contact Us For Availability
29
Clothes Guard Deflector (Comment: Heavy duty) GEN 804482 Contact Us For Availability
30
Clothes Guard GEN 803537 Contact Us For Availability
30
Front Panel Pad GEN 36204 Contact Us For Availability
31
Clothes Guard and Deflector Kit (Comment: Inc GEN 804560P Contact Us For Availability
31
Screw GEN 801045 Contact Us For Availability
32
Access Panel Assembly (Comment: Bisque) GEN D514250Q Contact Us For Availability
32
Access Panel Assembly (Comment: White) GEN D514250WP Contact Us For Availability
33
Front Panel (Comment: Bisque) GEN 802277QP Contact Us For Availability
33
Front Panel (Comment: White) GEN 802277WP Contact Us For Availability
34
Door Assembly (Comment: White, Includes items GEN 802368WP Contact Us For Availability
34
Door Assembly (Comment: Bisque, Includes item GEN 804914QP Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: White) GEN 122P4P Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: Bisque) GEN 370P4P Contact Us For Availability
NA
Anti-Seize Compound (Comment: Pulley to inner GEN 27604P Contact Us For Availability
NA
Hardware Kit (Comment: Includes (8) of item 6 GEN 838P3 Contact Us For Availability
NA
Bearing Kit GEN RB160001 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black) GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange) GEN 45380 Contact Us For Availability
× ![]()
