Model Speed Queen SSENXAGW433LW01 Dryer – Common Parts & Diagrams
Control Panel and Controls (Drawing 1 of 3)
Control Panel and Controls (Drawing 2 of 3)

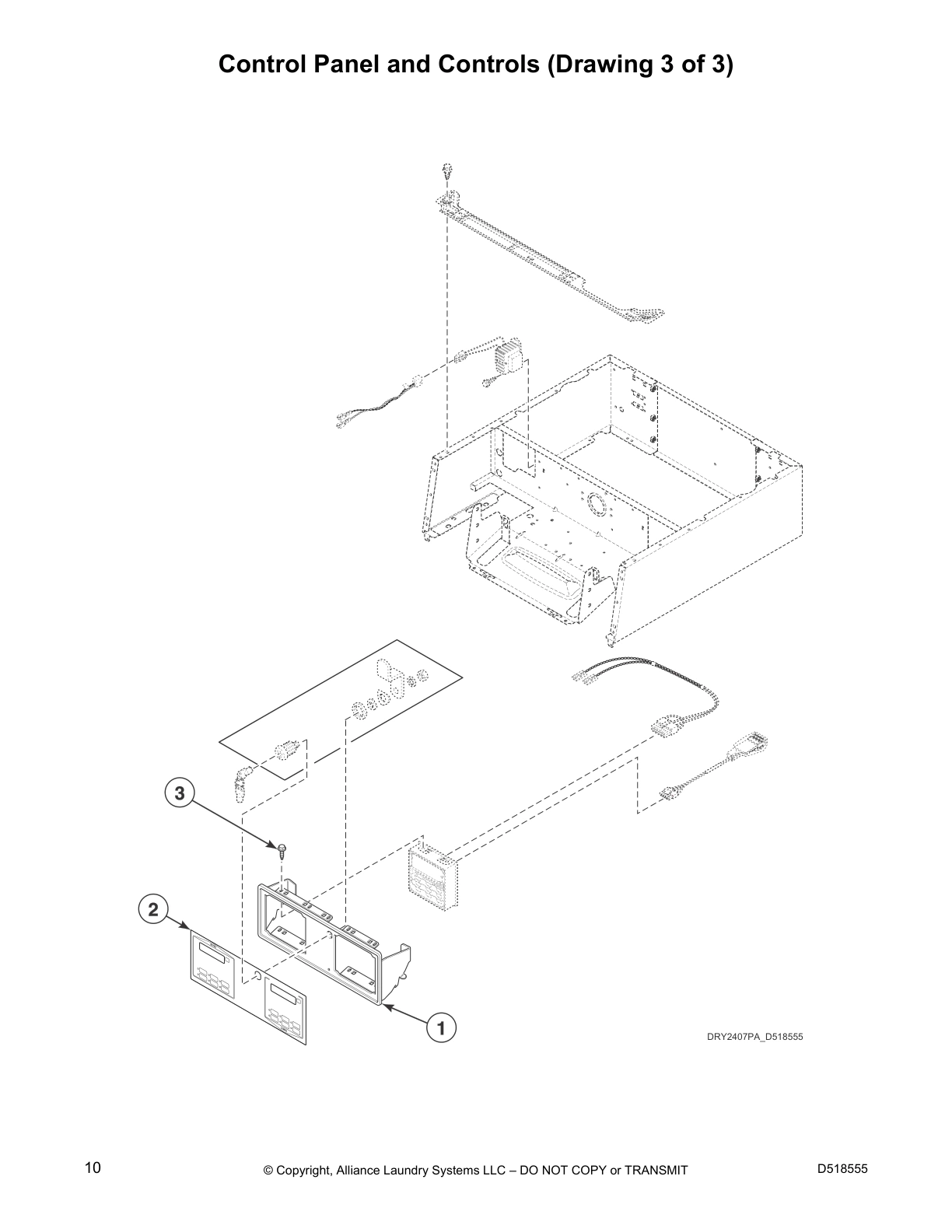

Control Panel and Controls (Drawing 3 of 3)

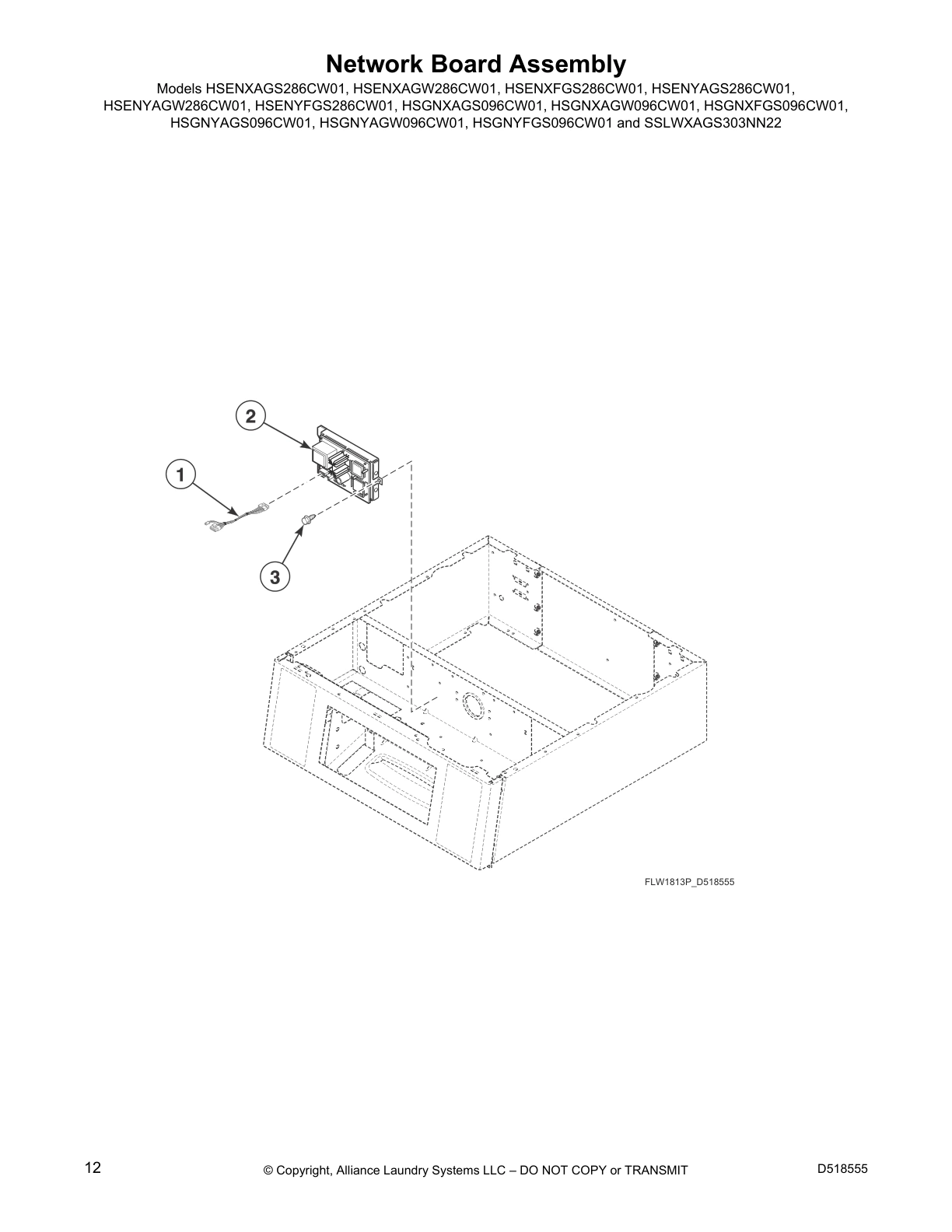

Network Board Assembly

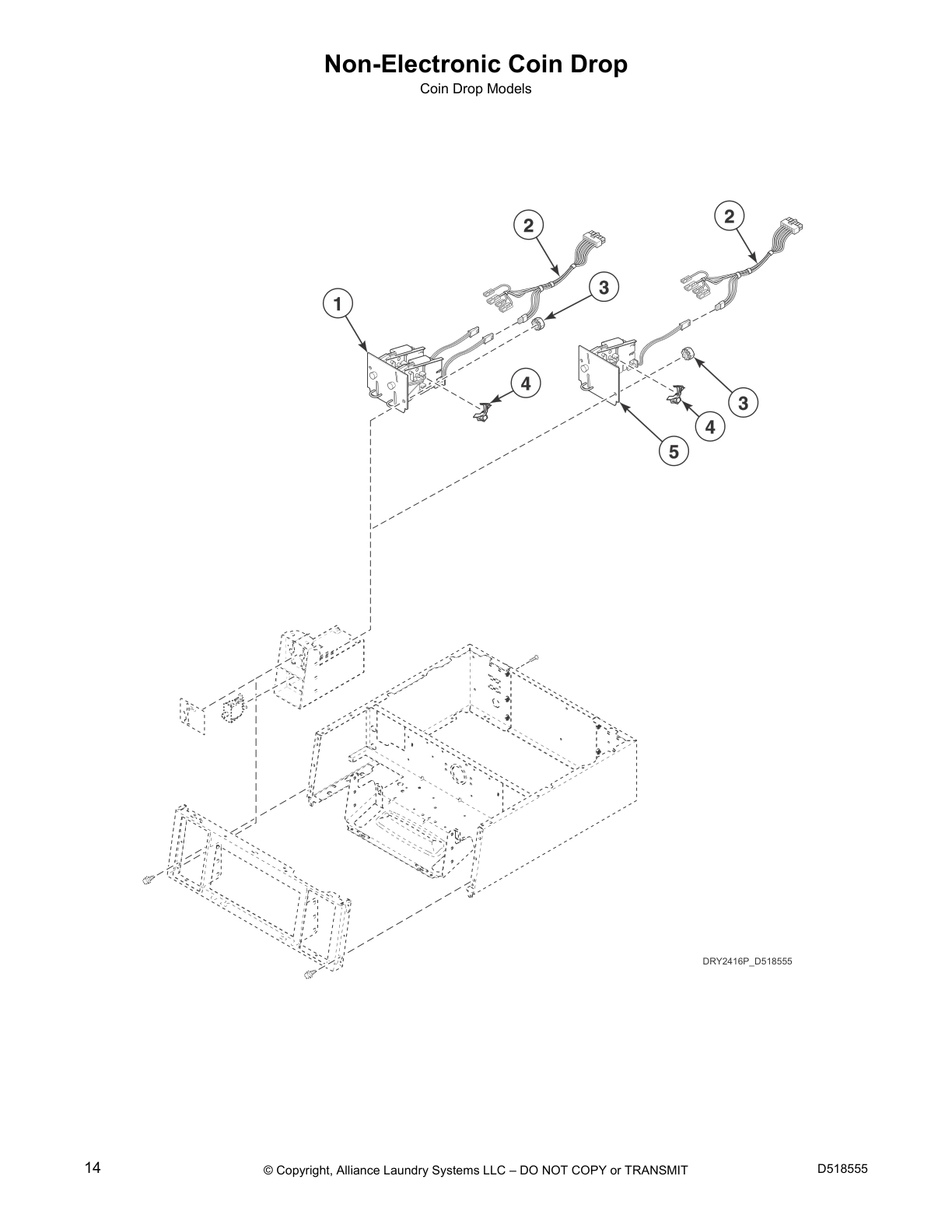

Non-Electronic Coin Drop

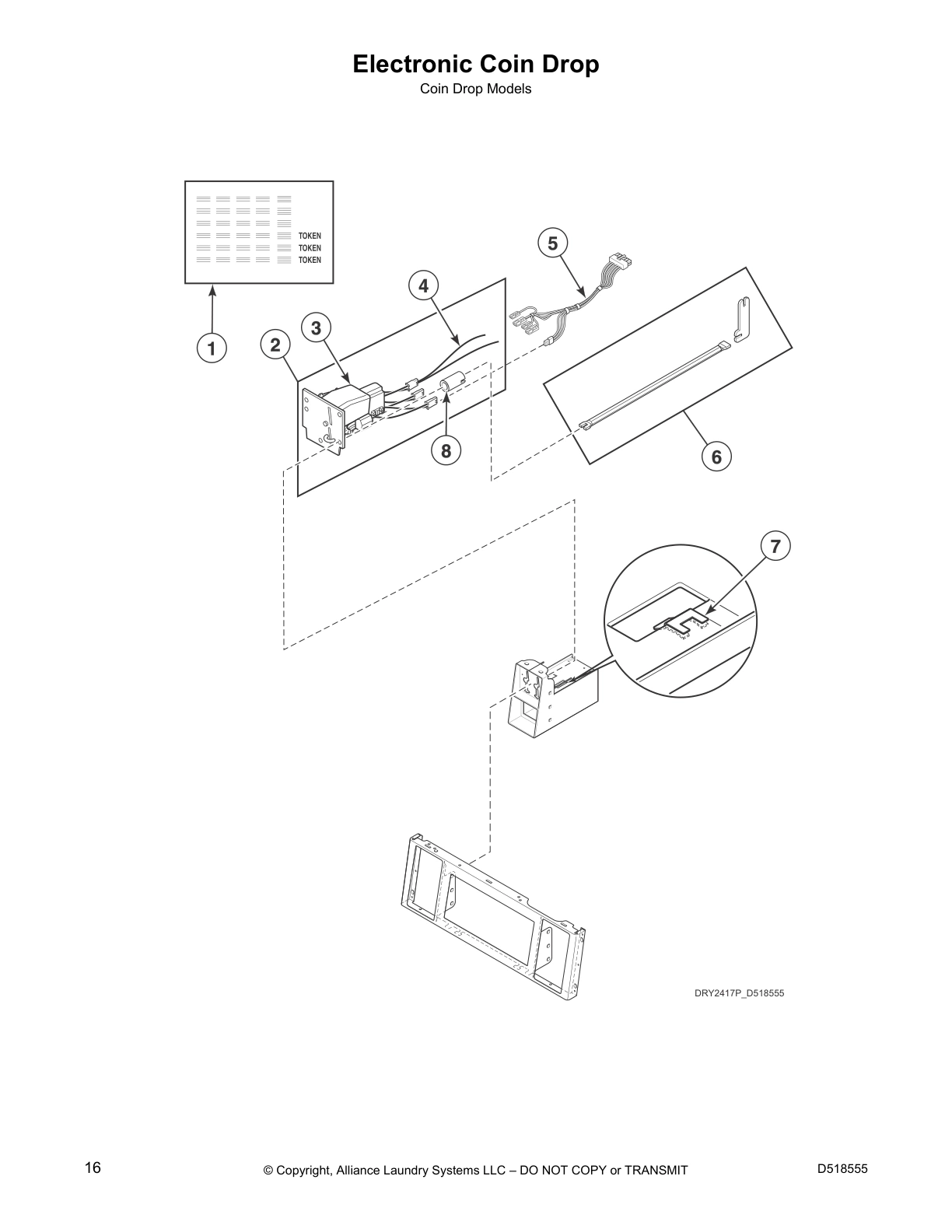

Electronic Coin Drop

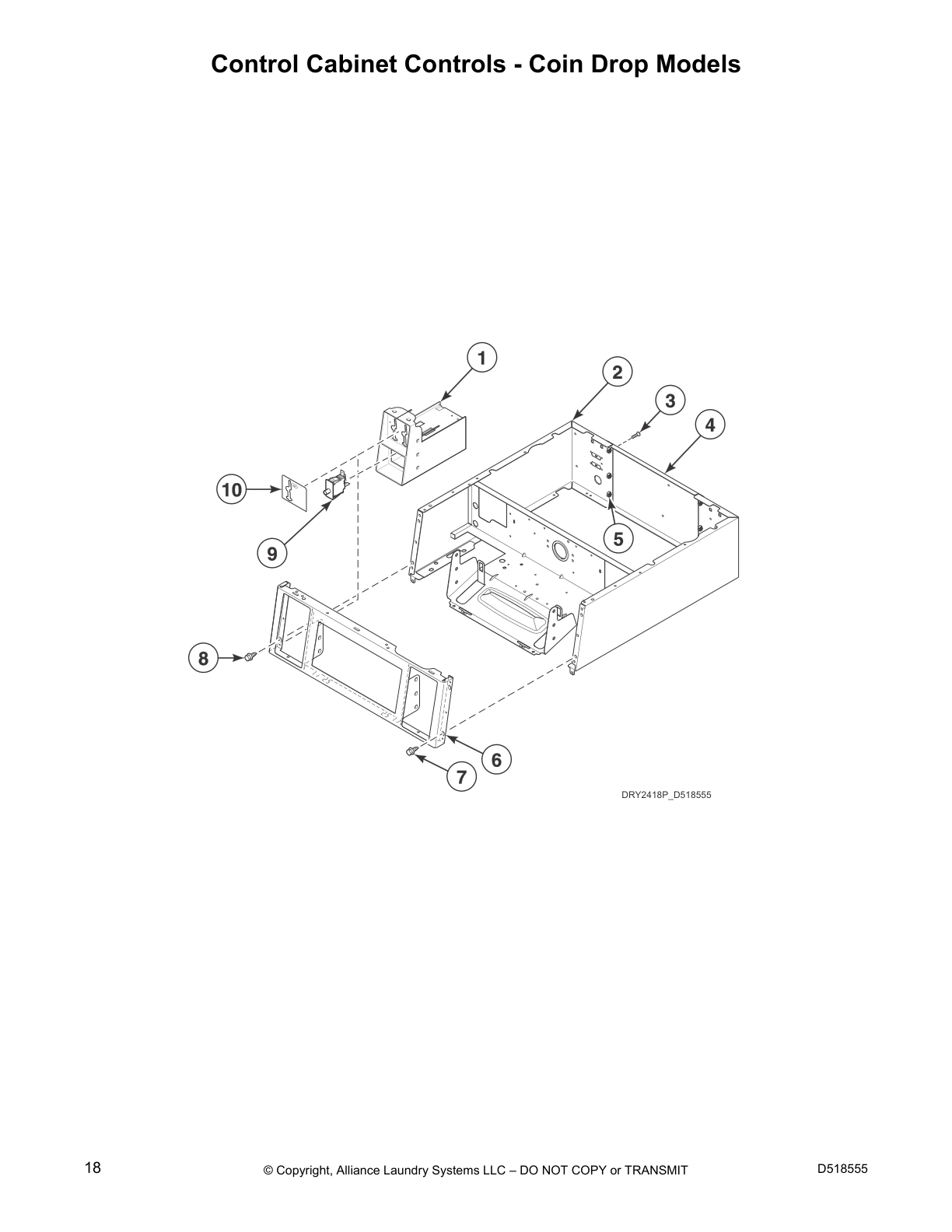

Control Cabinet Controls - Coin Drop Models

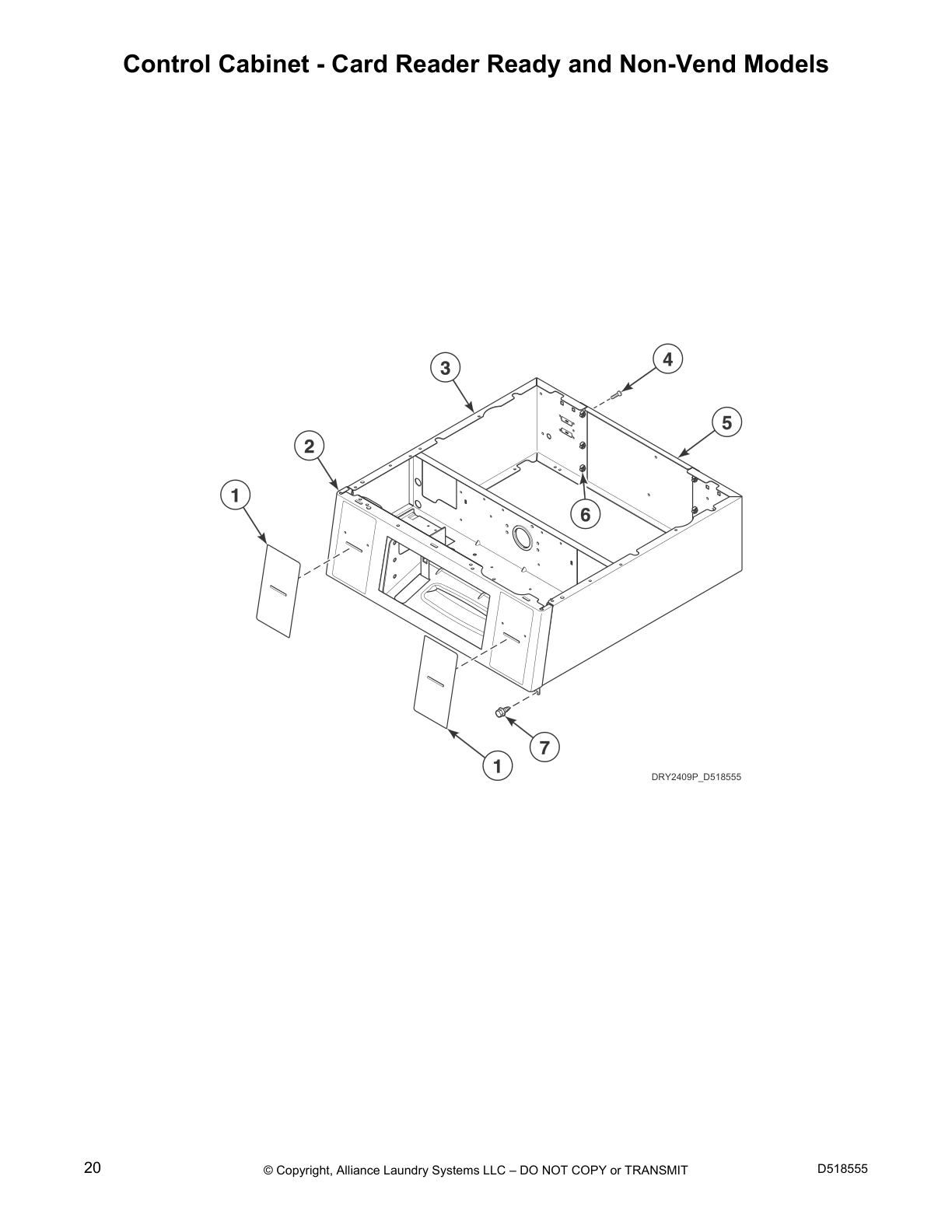

Control Cabinet - Card Reader Ready and Non-Vend Models

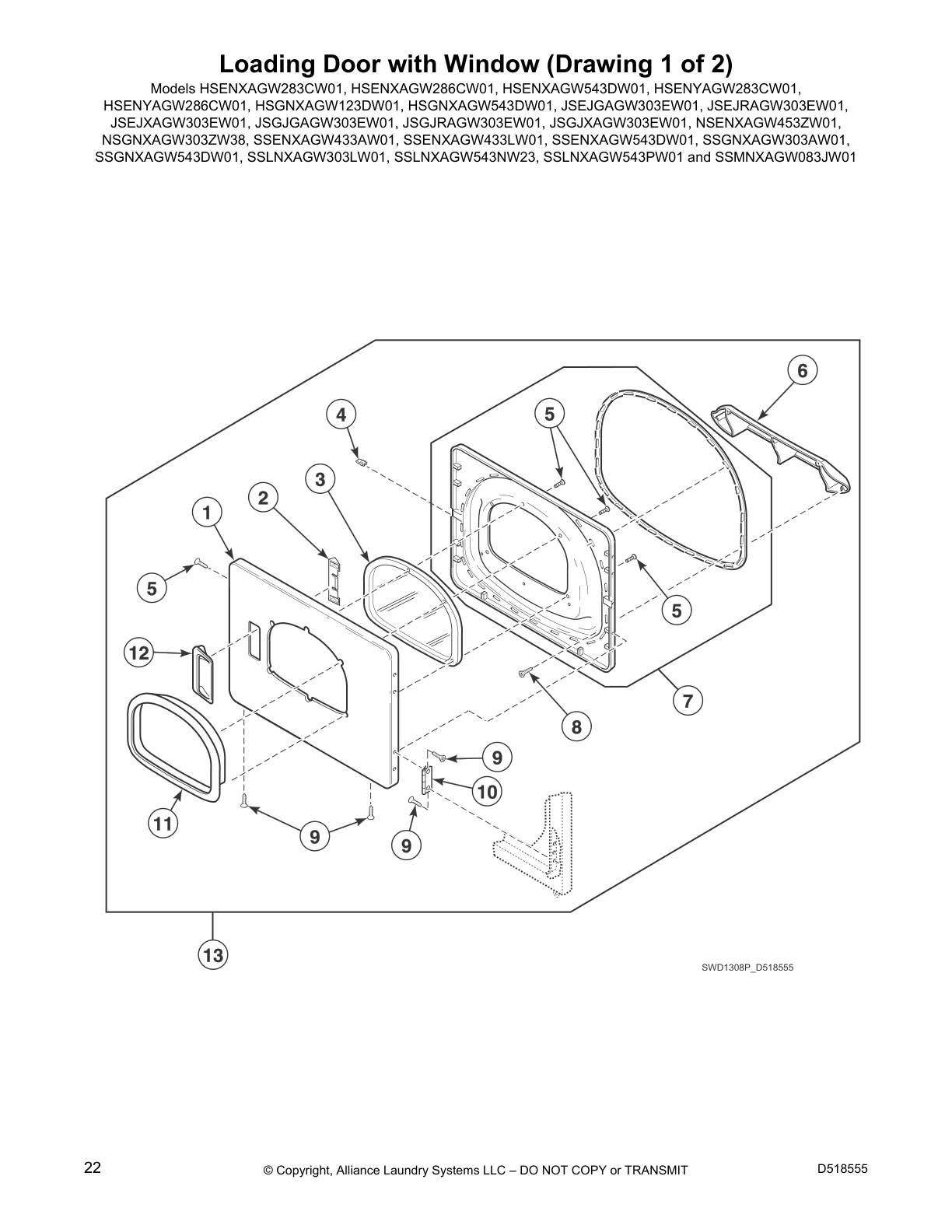

Loading Door with Window (Drawing 1 of 2)

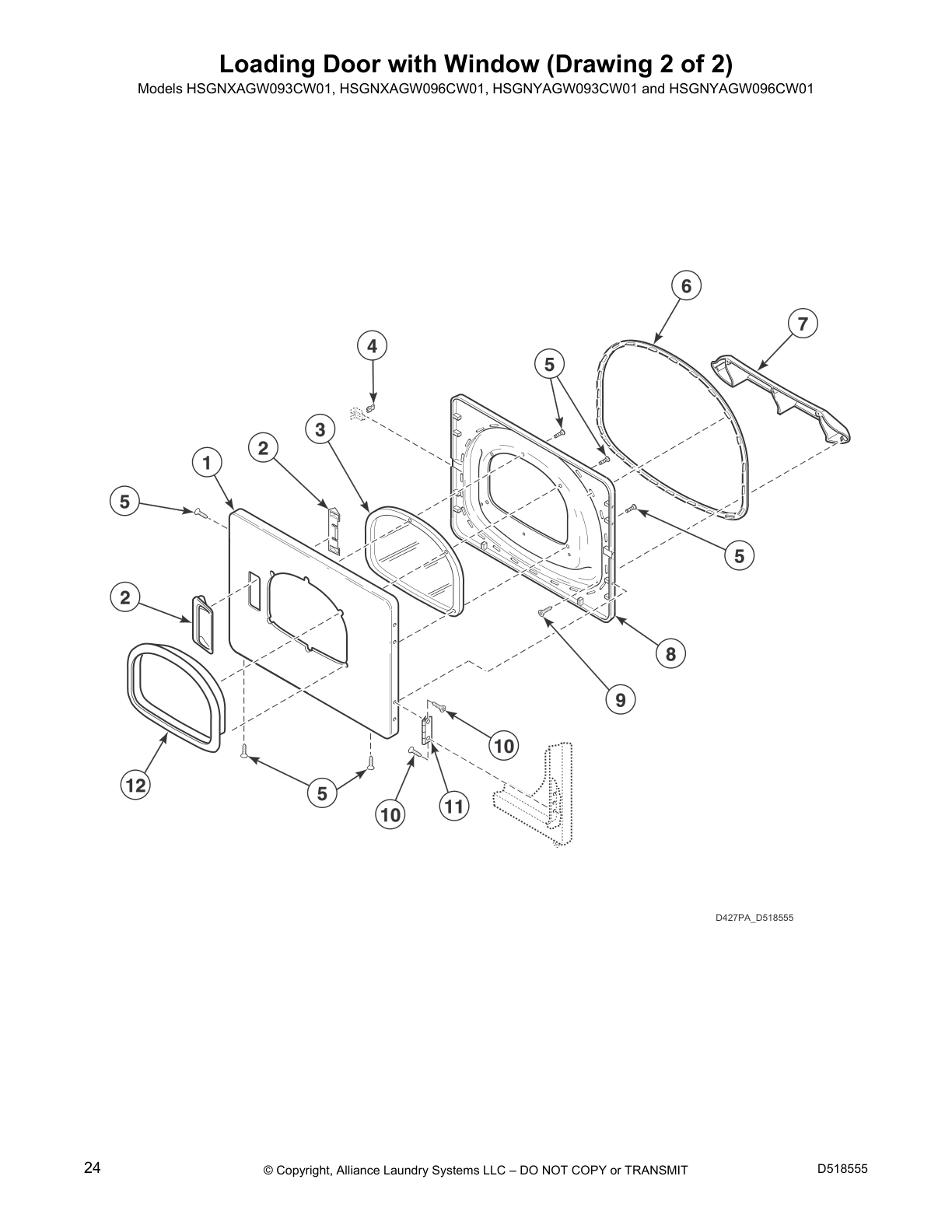

Loading Door with Window (Drawing 2 of 2)

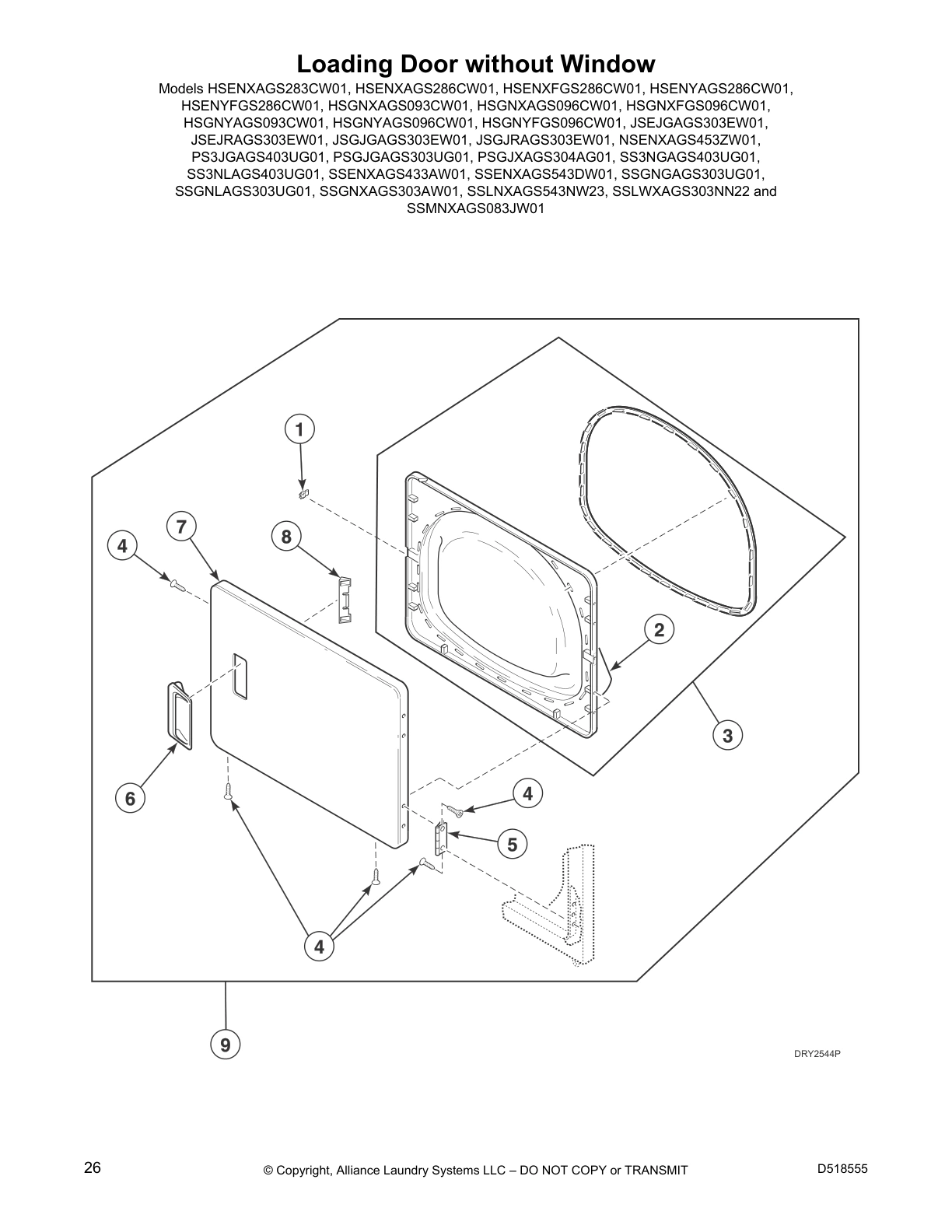

Loading Door without Window

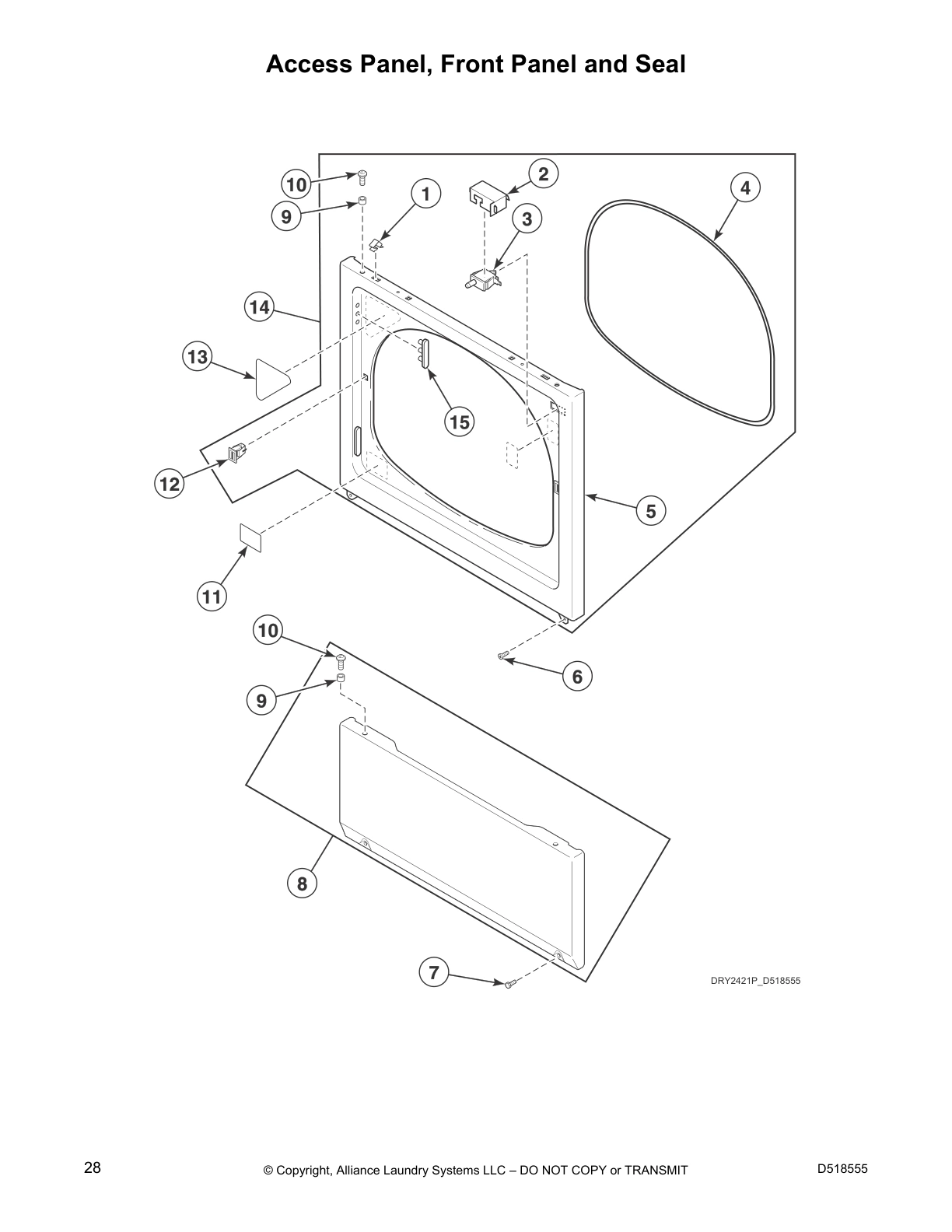

Access Panel, Front Panel and Seal

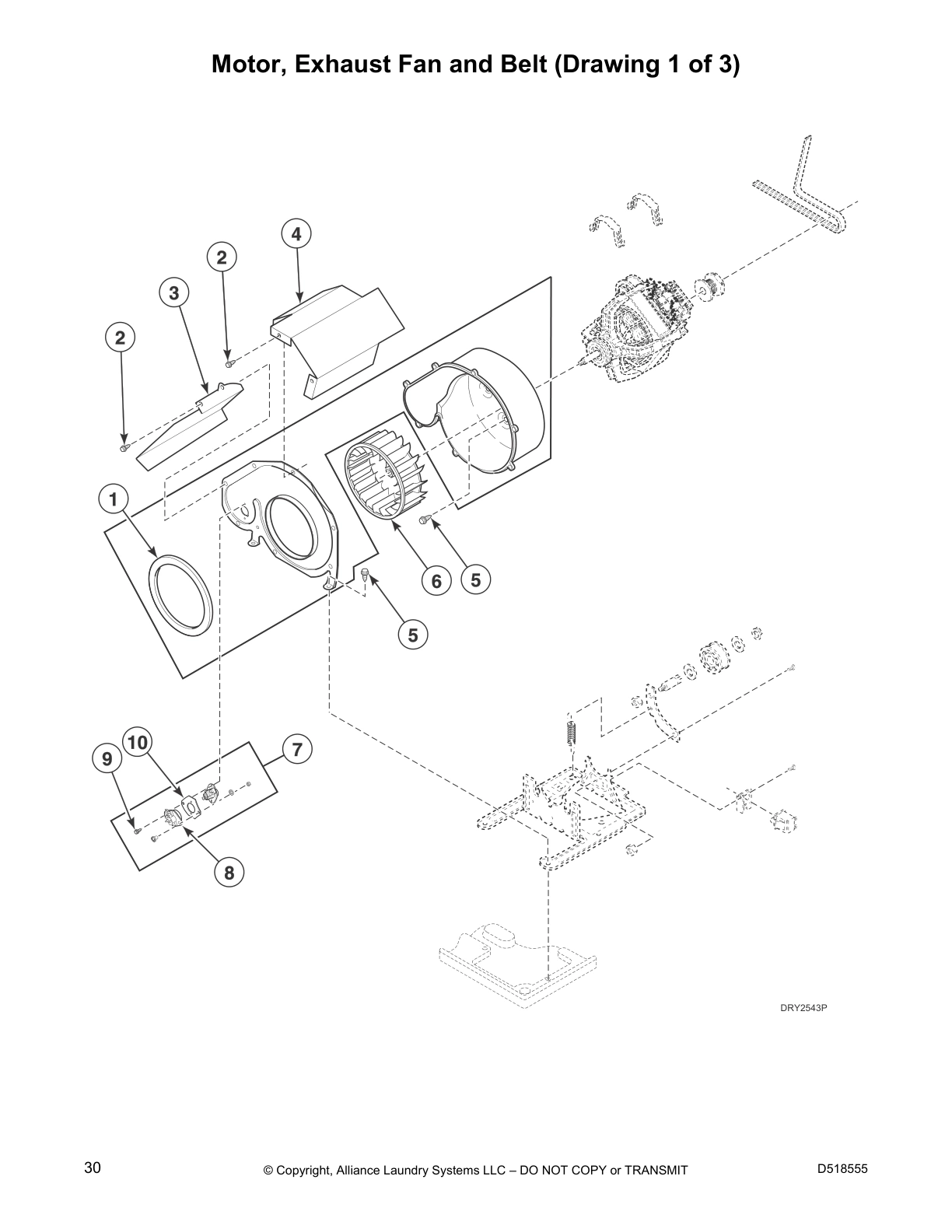

Motor, Exhaust Fan and Belt (Drawing 1 of 3)

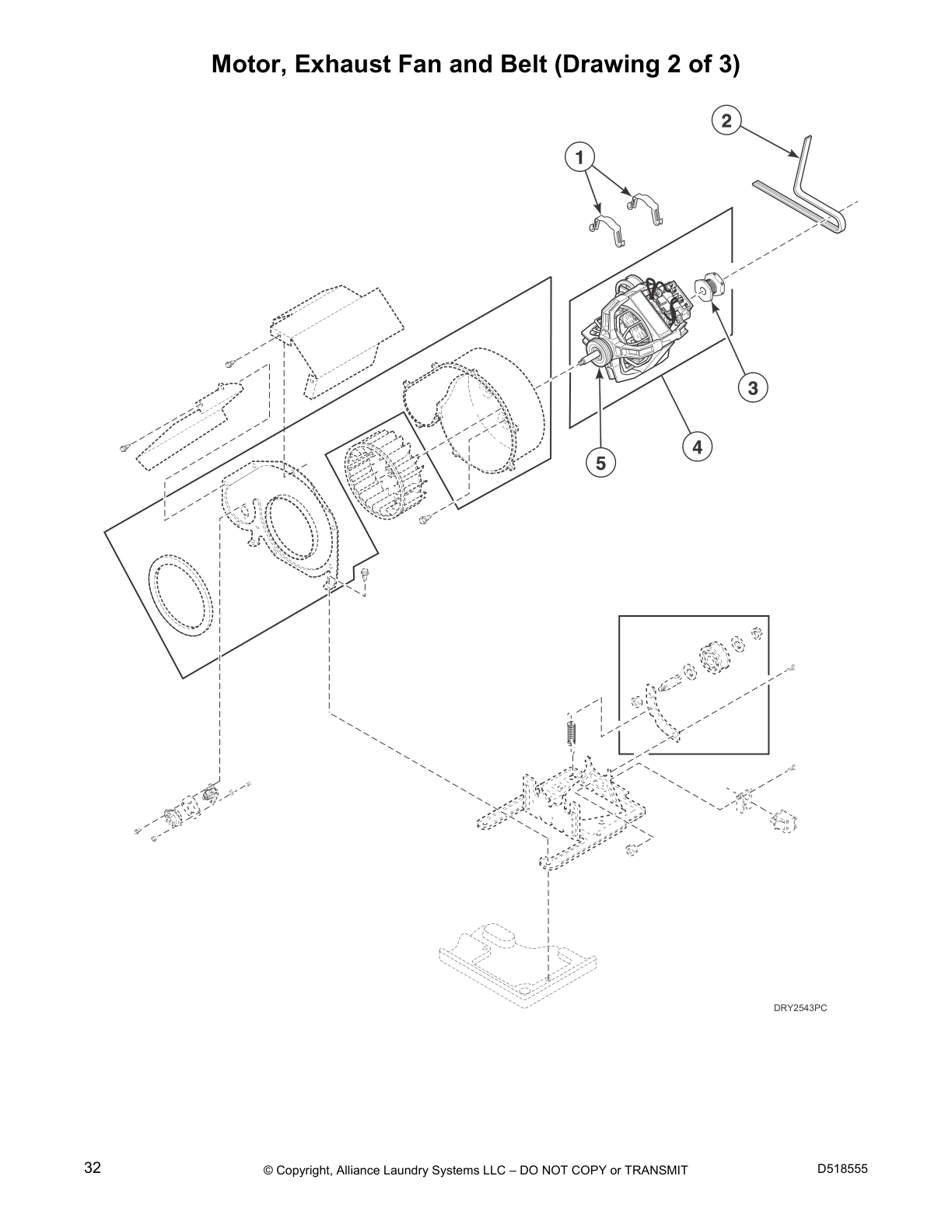

Motor, Exhaust Fan and Belt (Drawing 2 of 3)

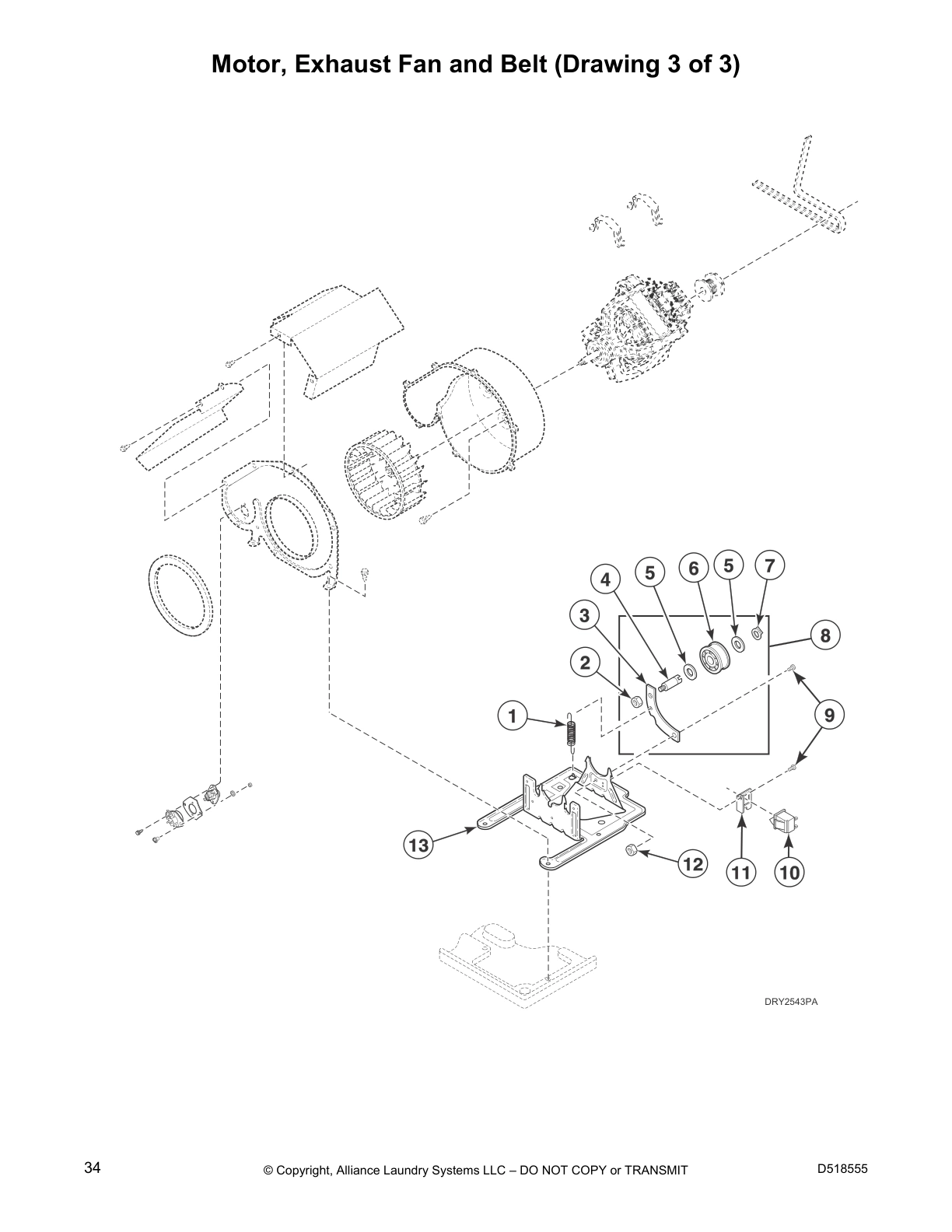

Motor, Exhaust Fan and Belt (Drawing 3 of 3)

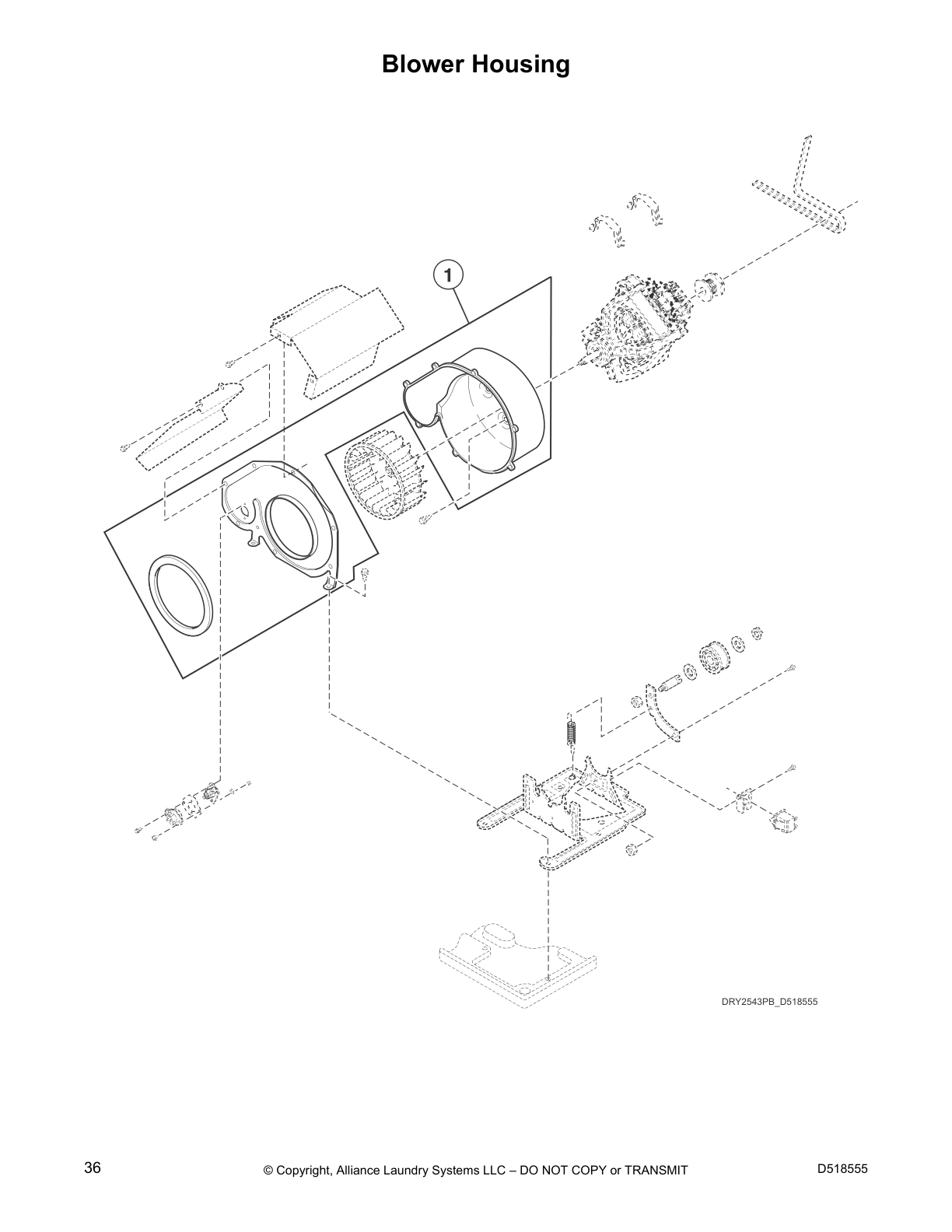

Blower Housing

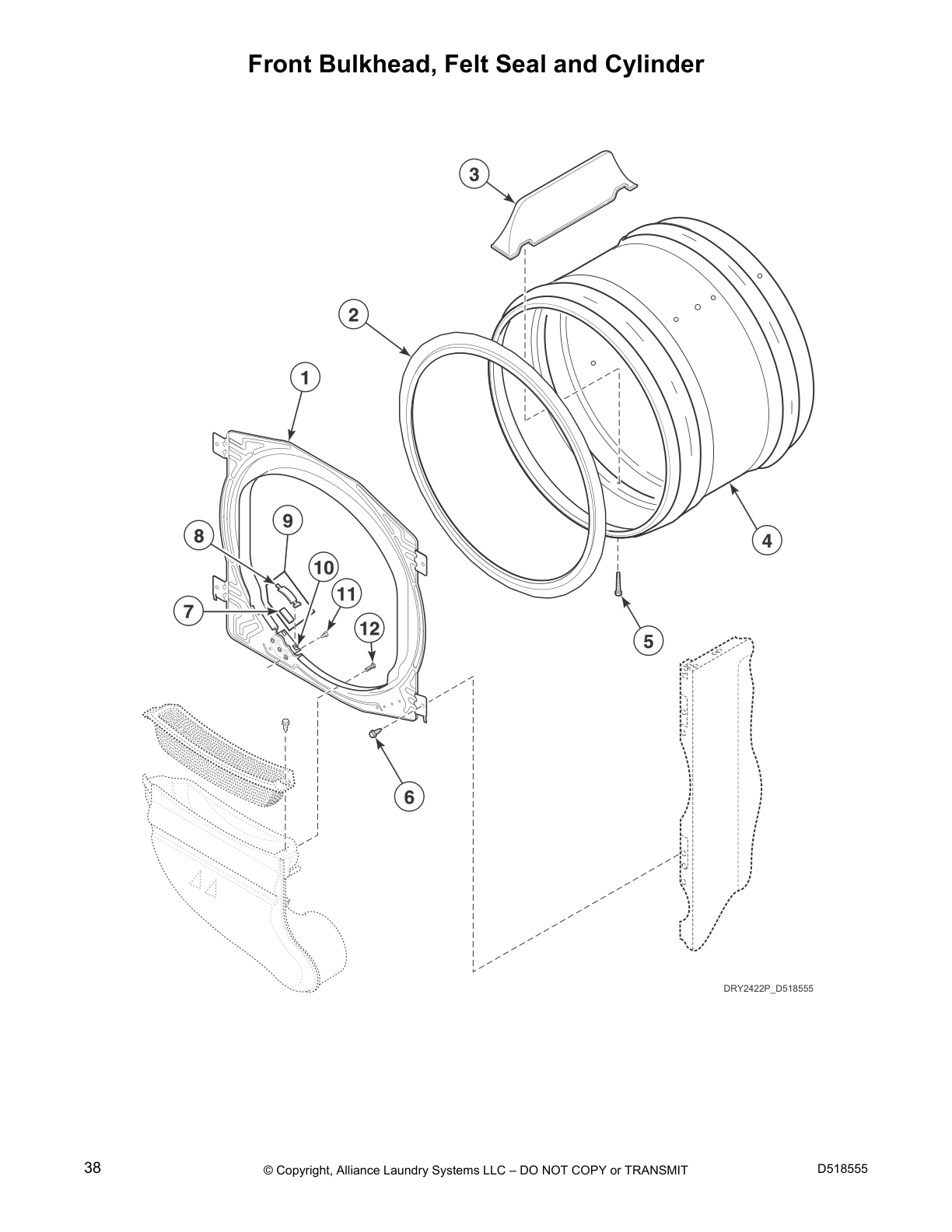

Front Bulkhead, Felt Seal and Cylinder

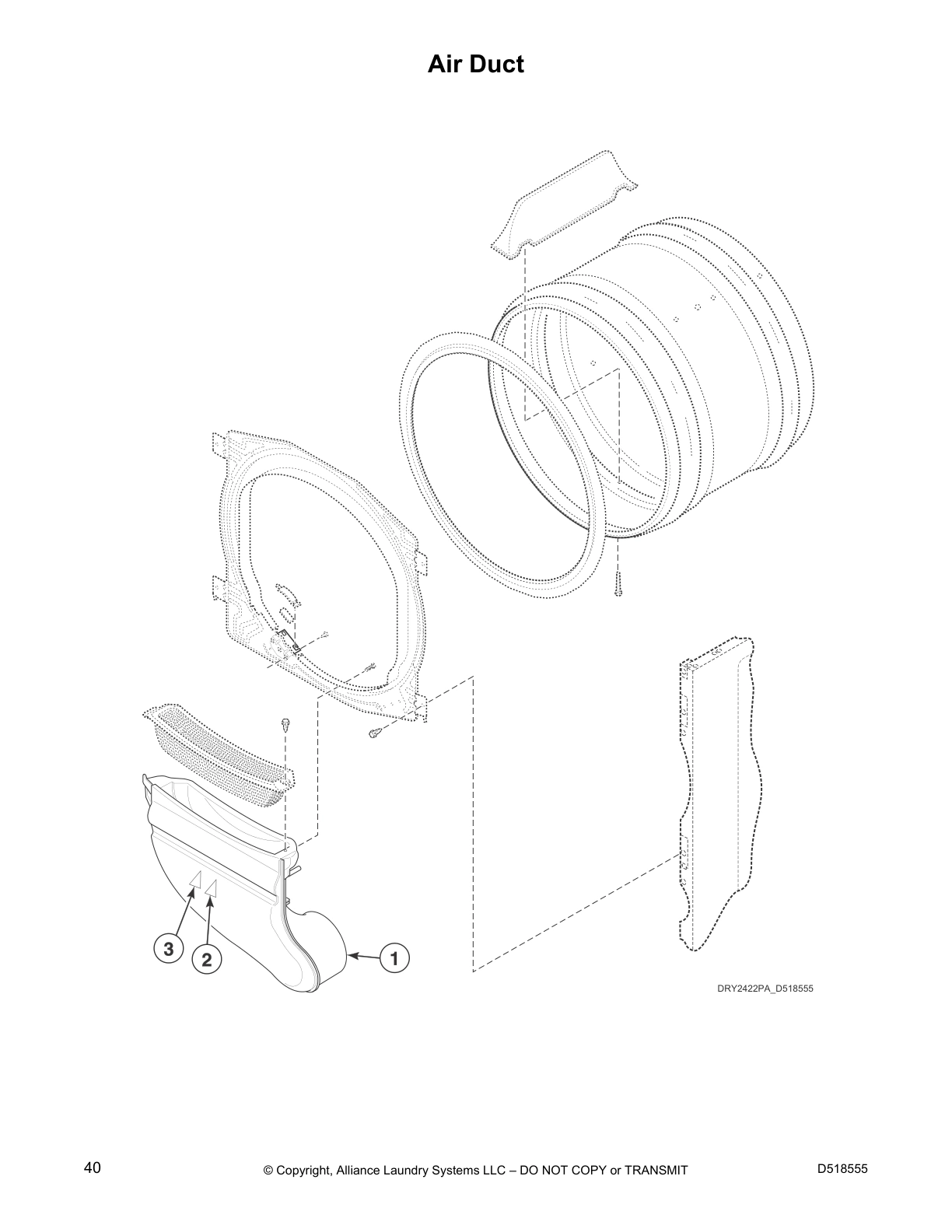

Air Duct

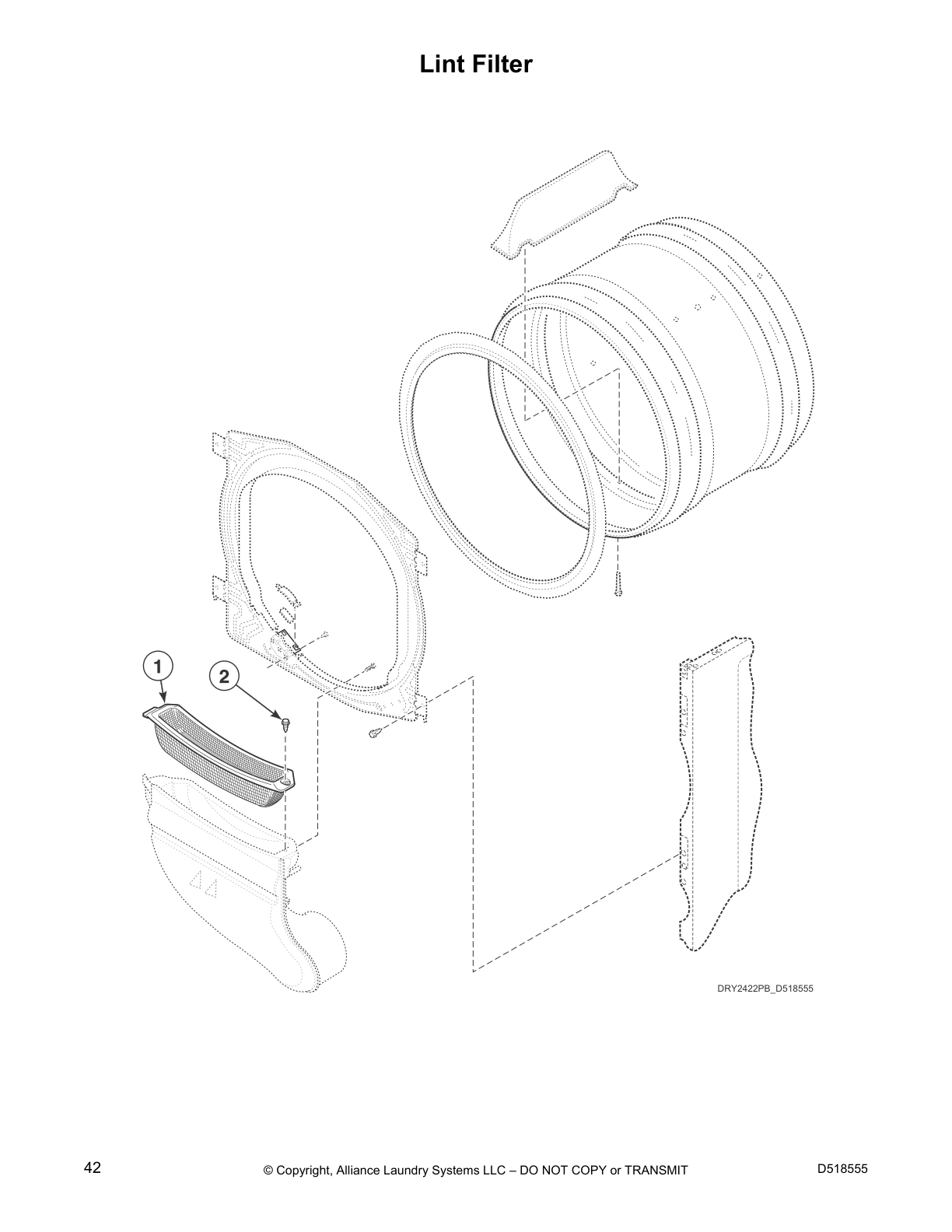

Lint Filter
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

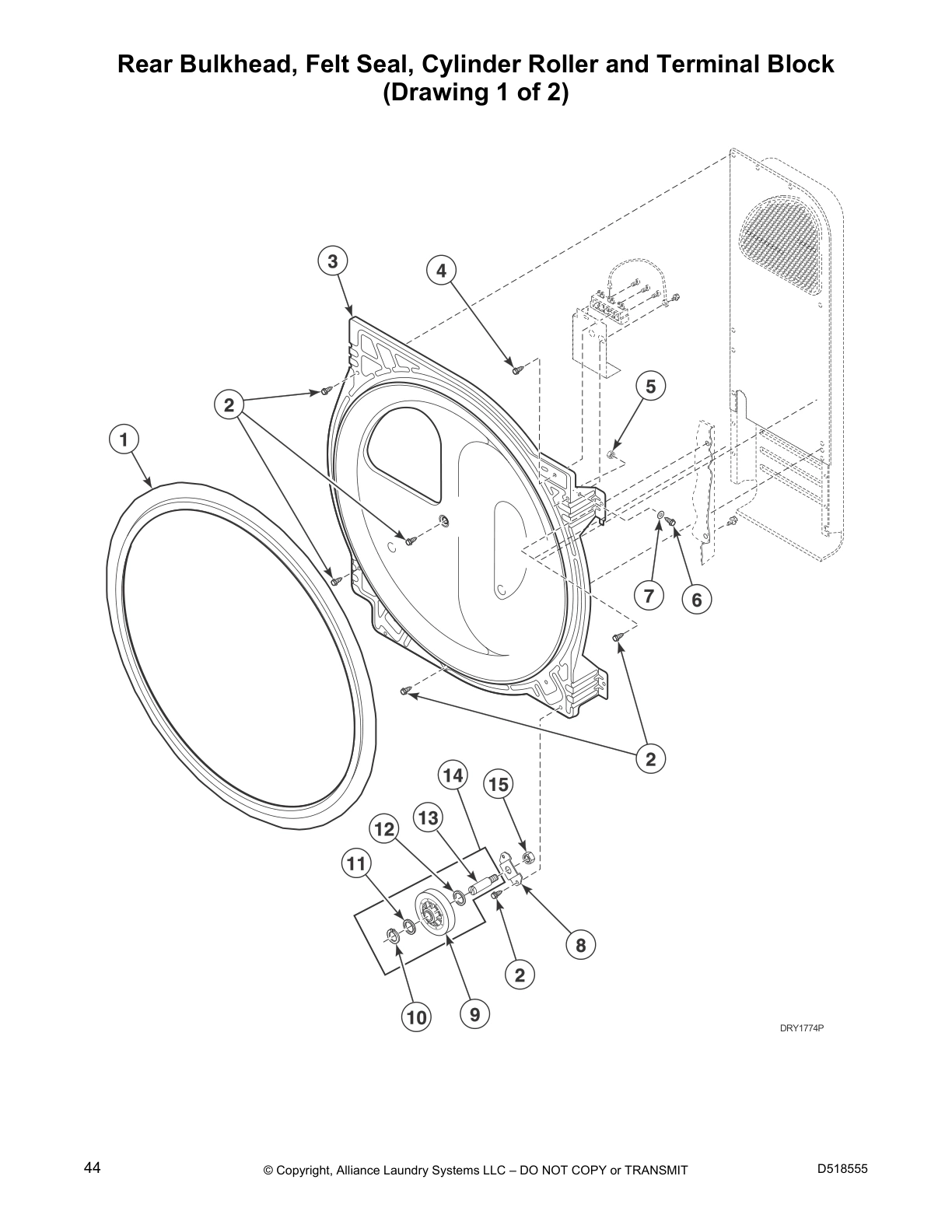

(Drawing 1 of 2)

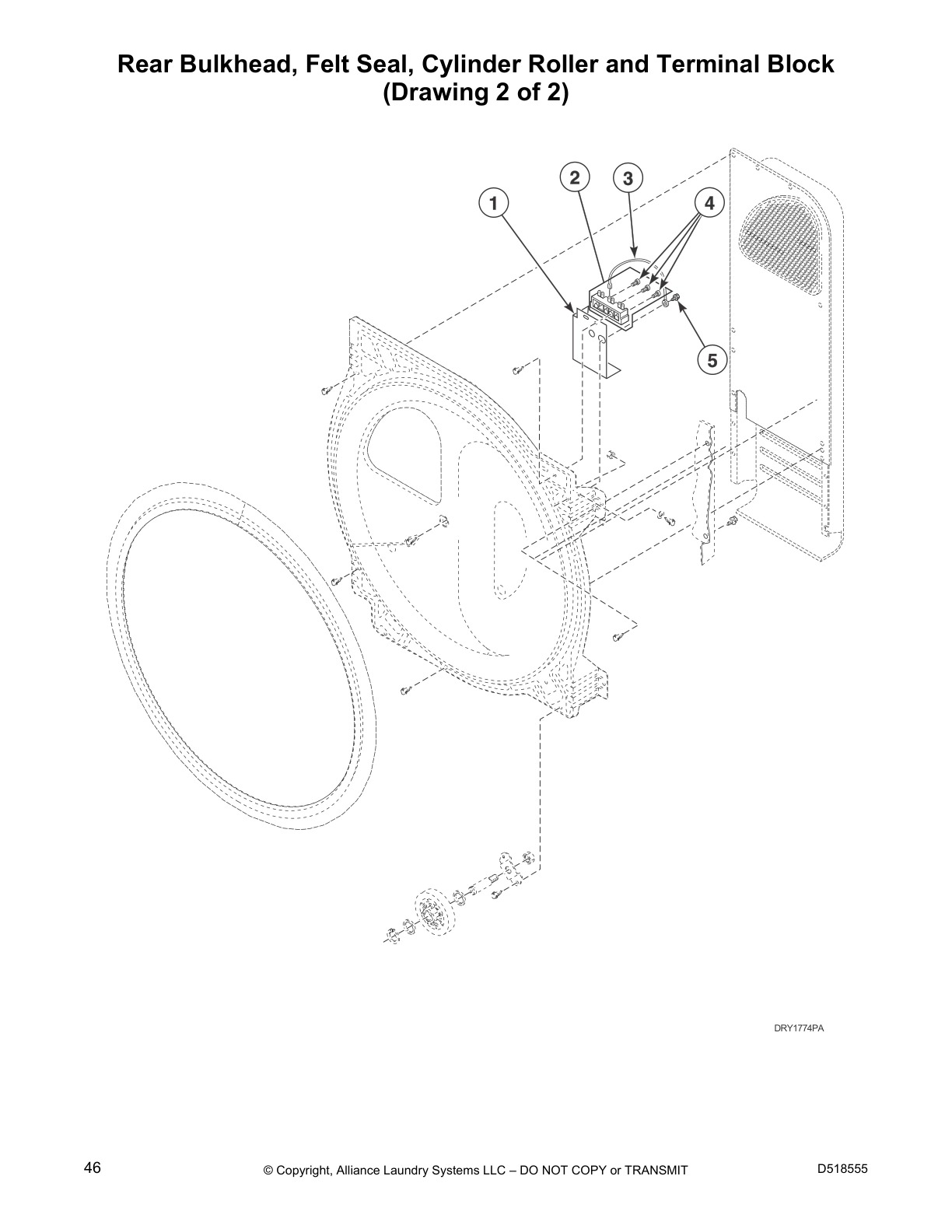

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
(Drawing 2 of 2)

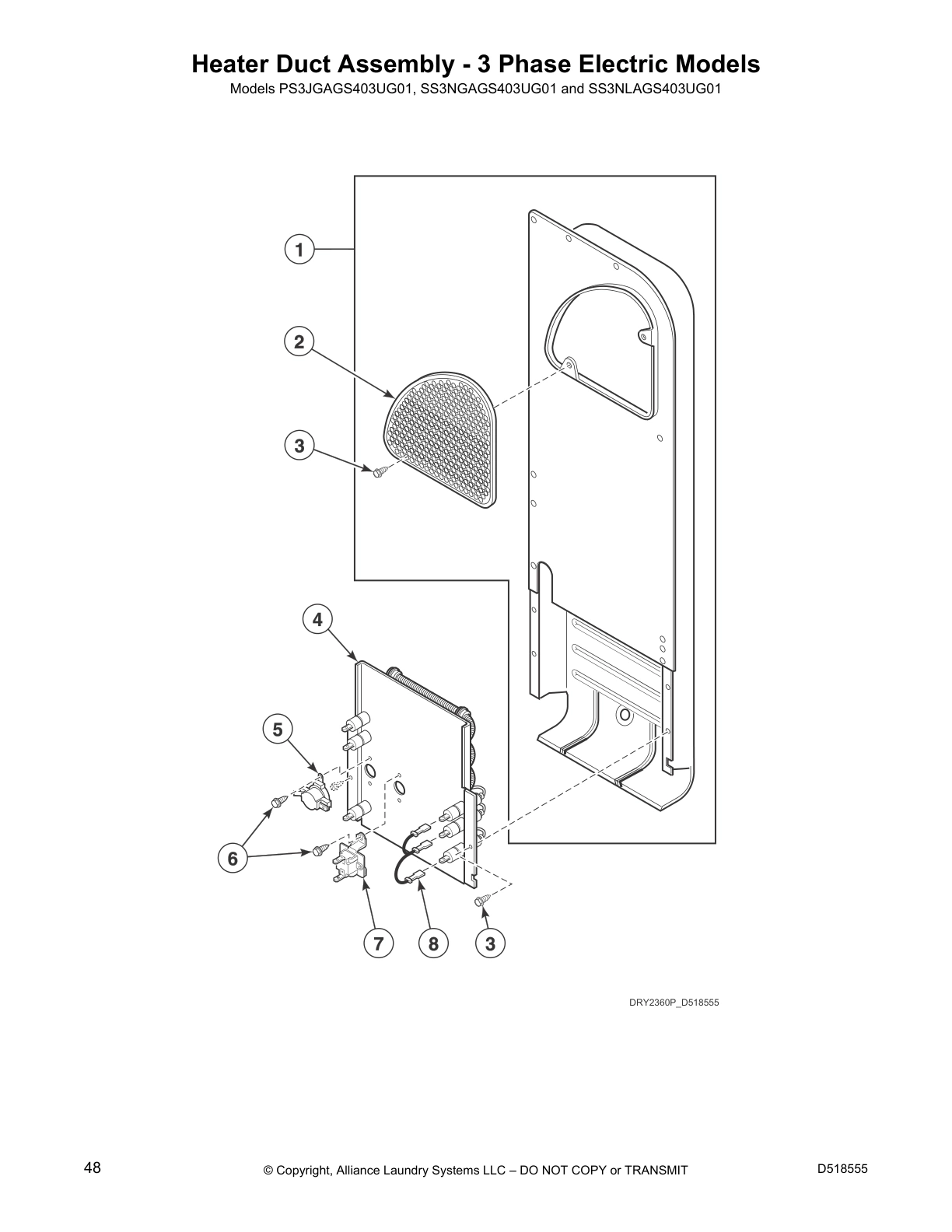

Heater Duct Assembly - 3 Phase Electric Models

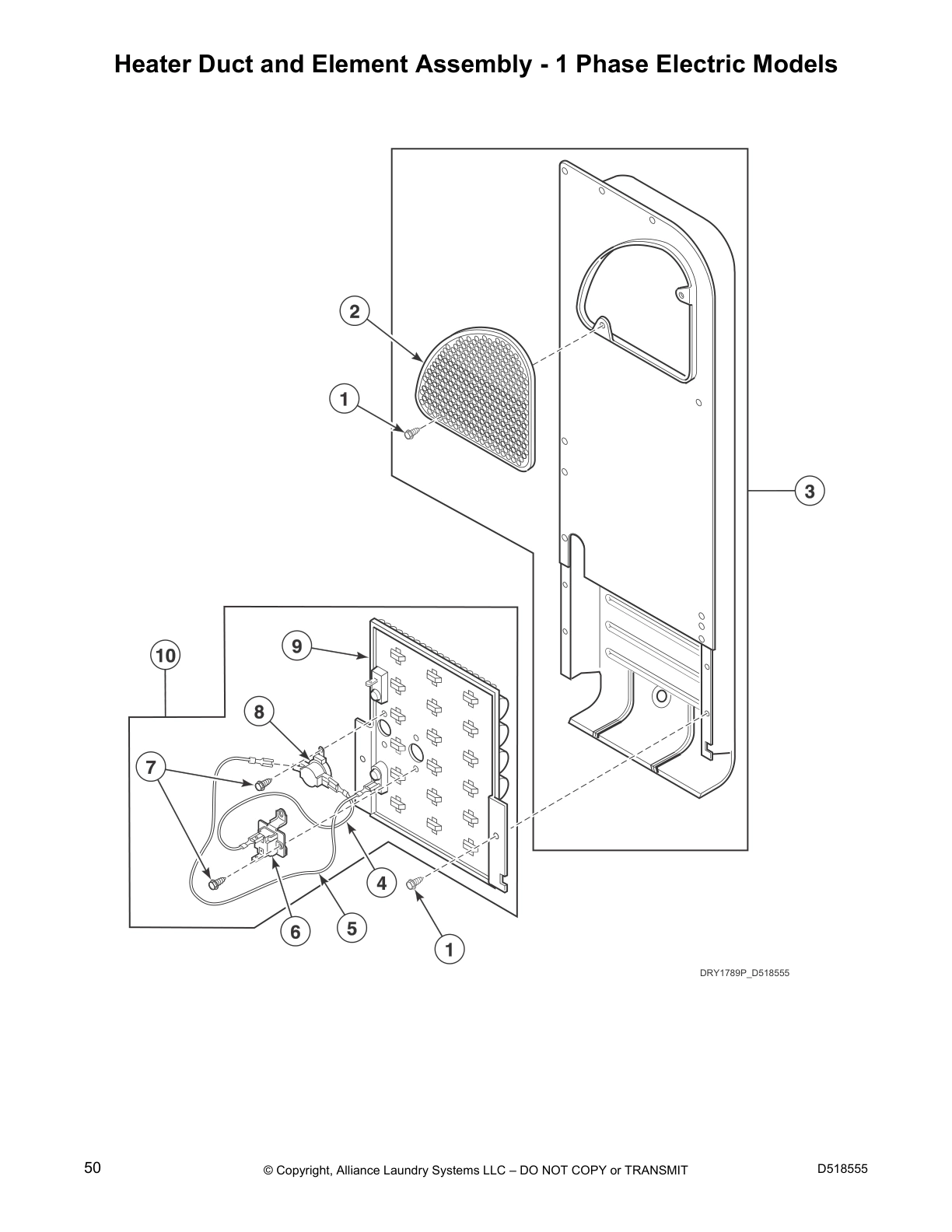

Heater Duct and Element Assembly - 1 Phase Electric Models

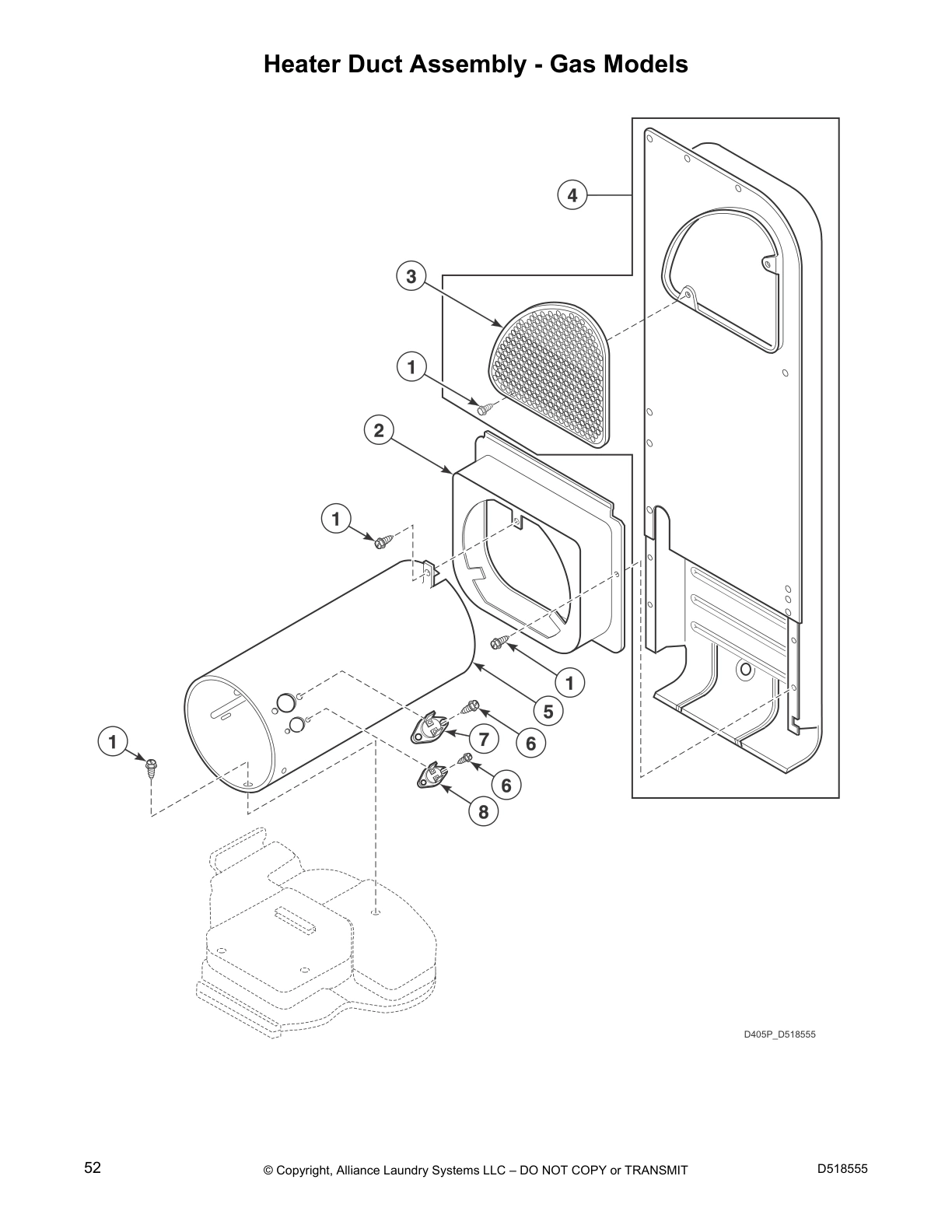

Heater Duct Assembly - Gas Models

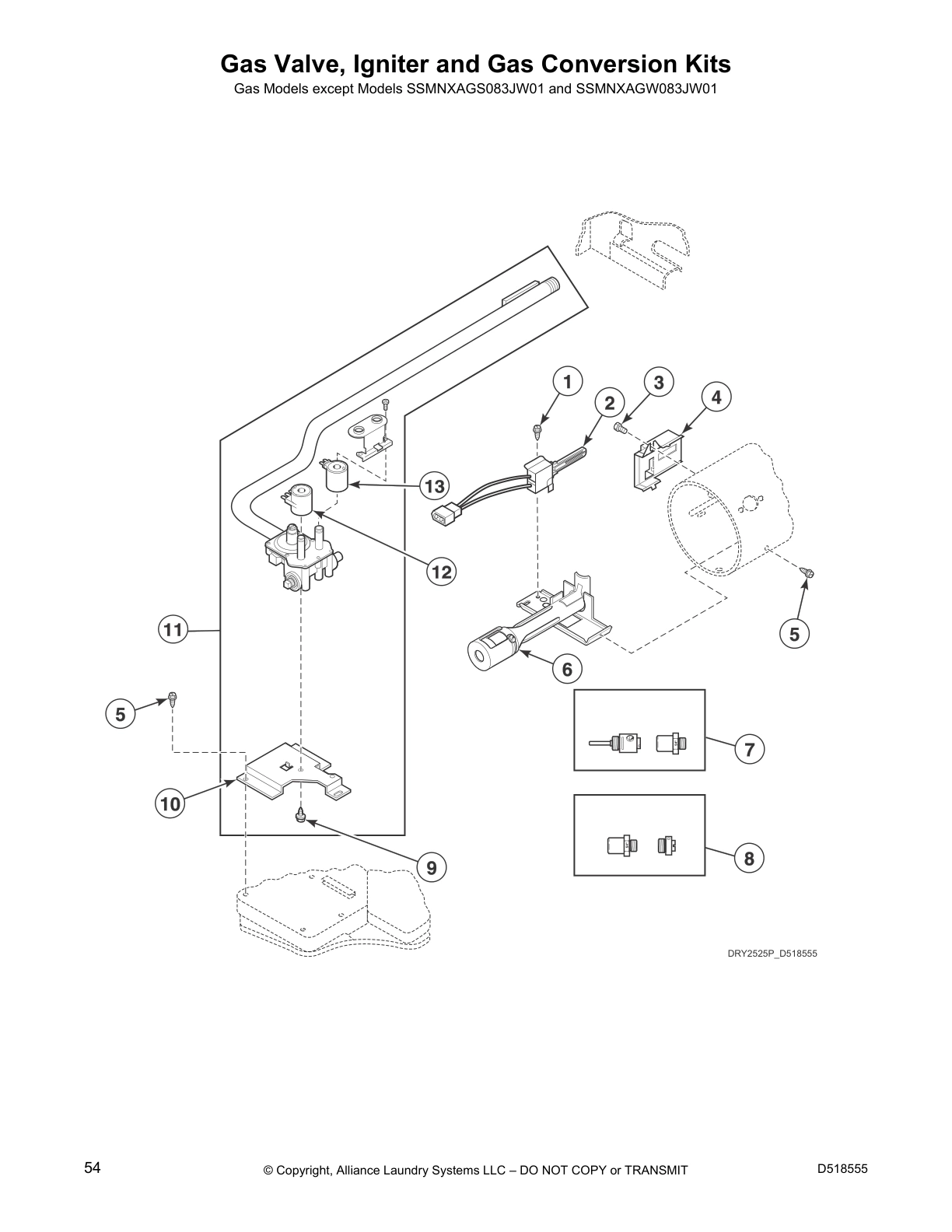

Gas Valve, Igniter and Gas Conversion Kits

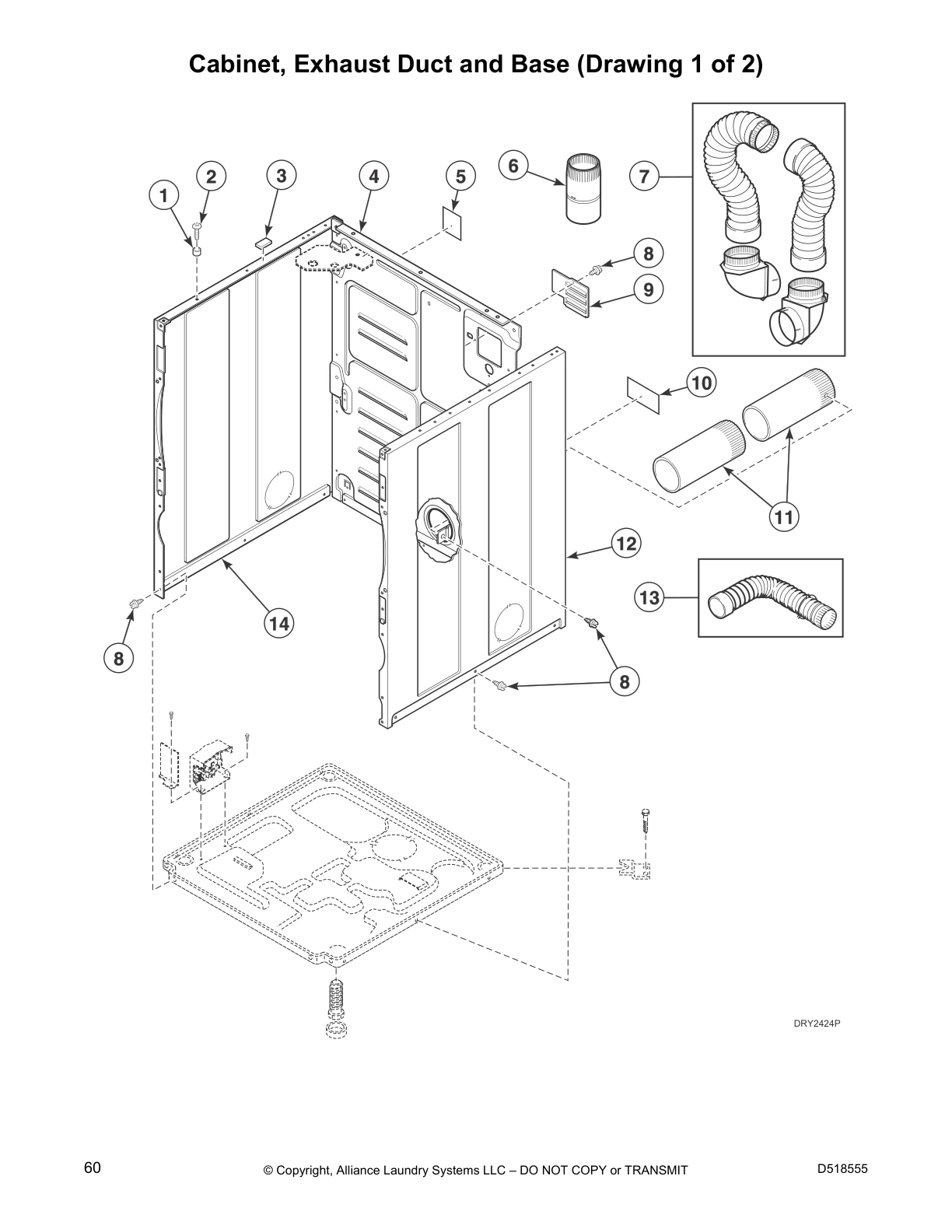

Cabinet, Exhaust Duct and Base (Drawing 1 of 2)

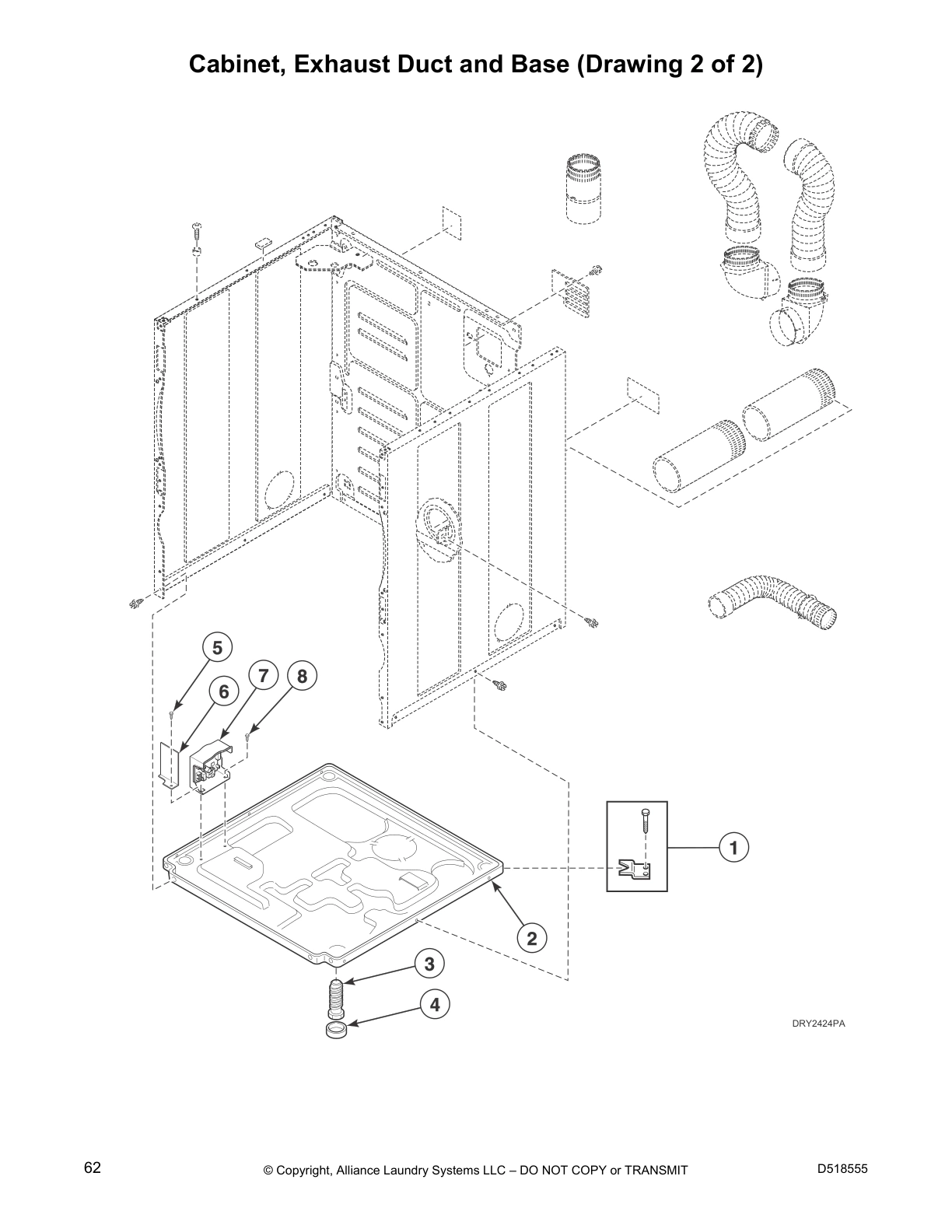

Cabinet, Exhaust Duct and Base (Drawing 2 of 2)
Ignition Control Module

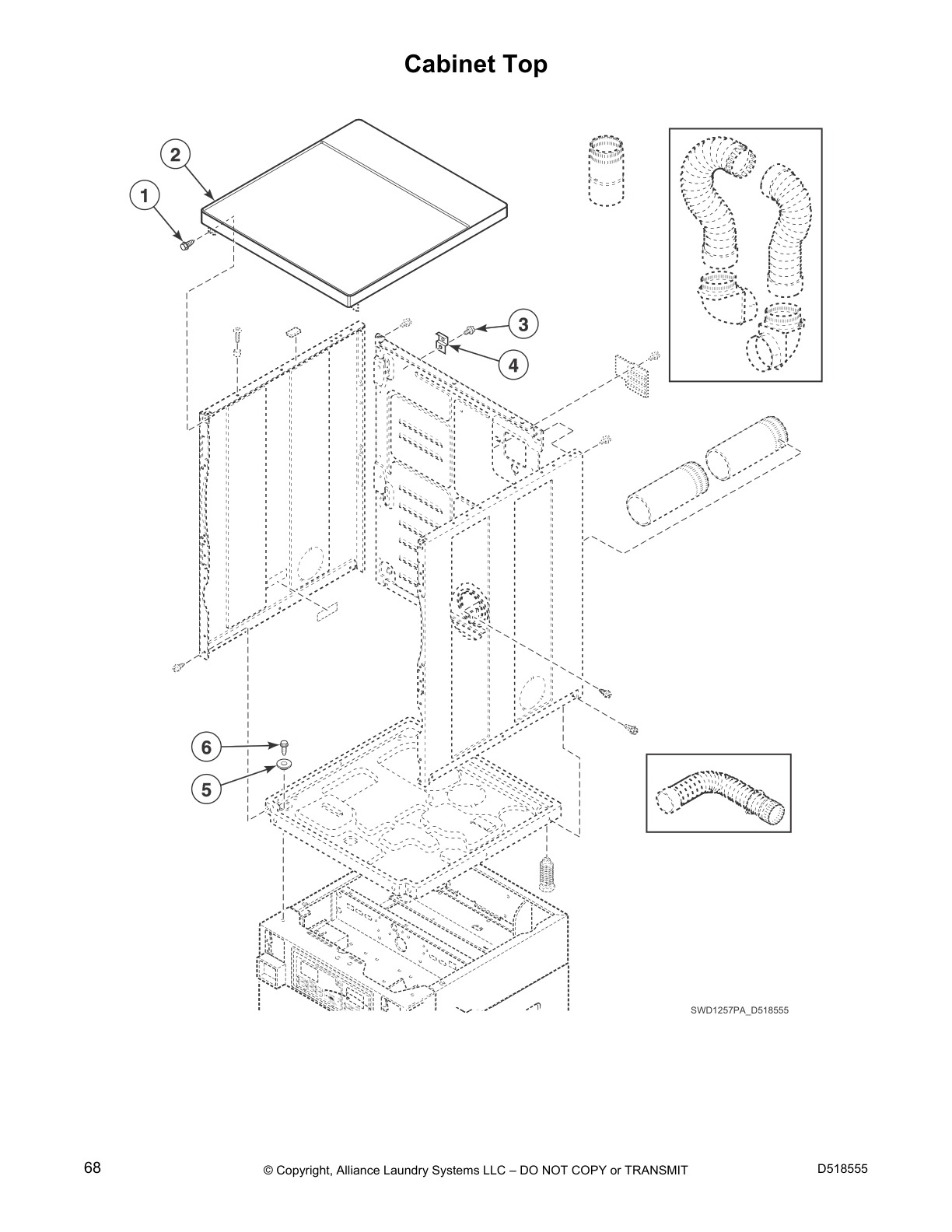

Cabinet Top

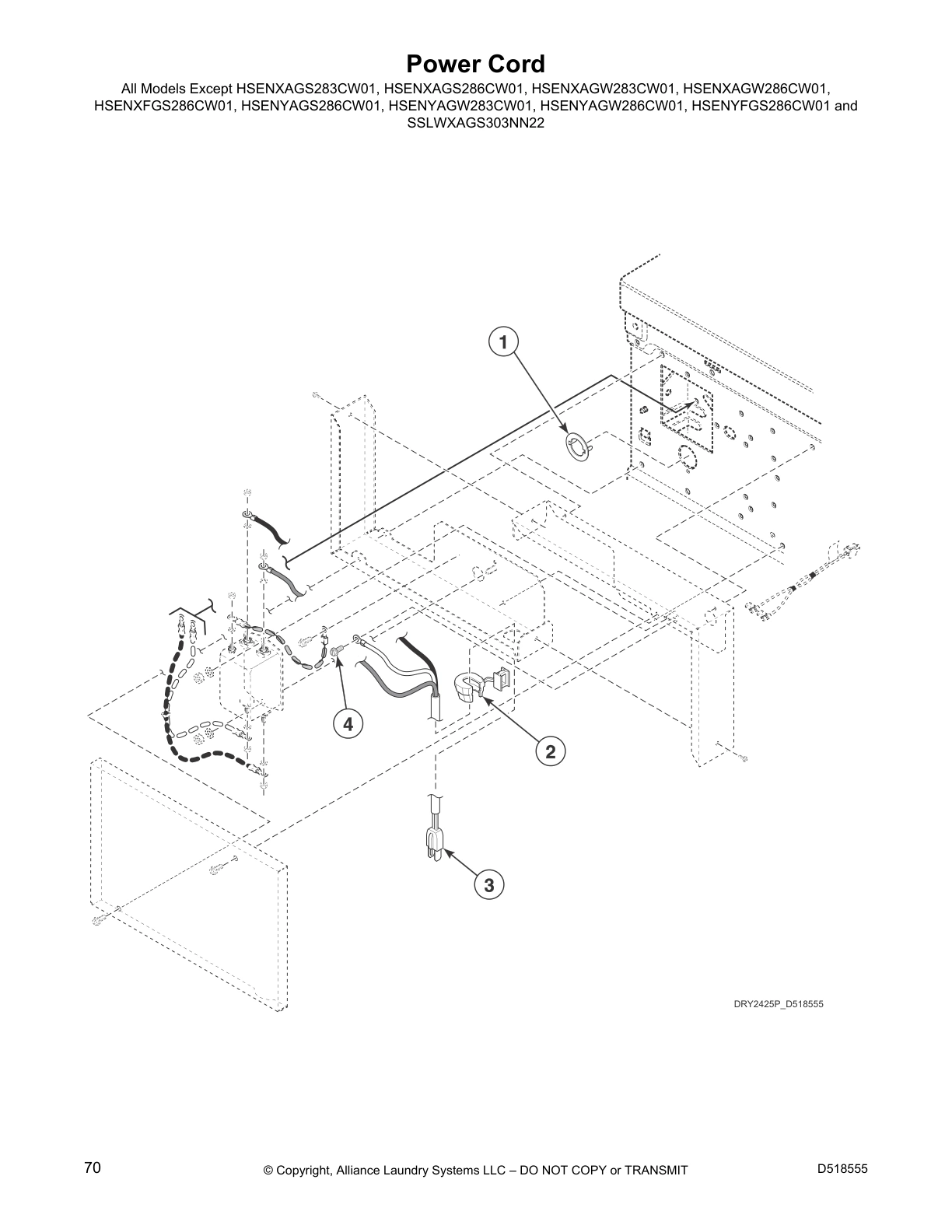

Power Cord

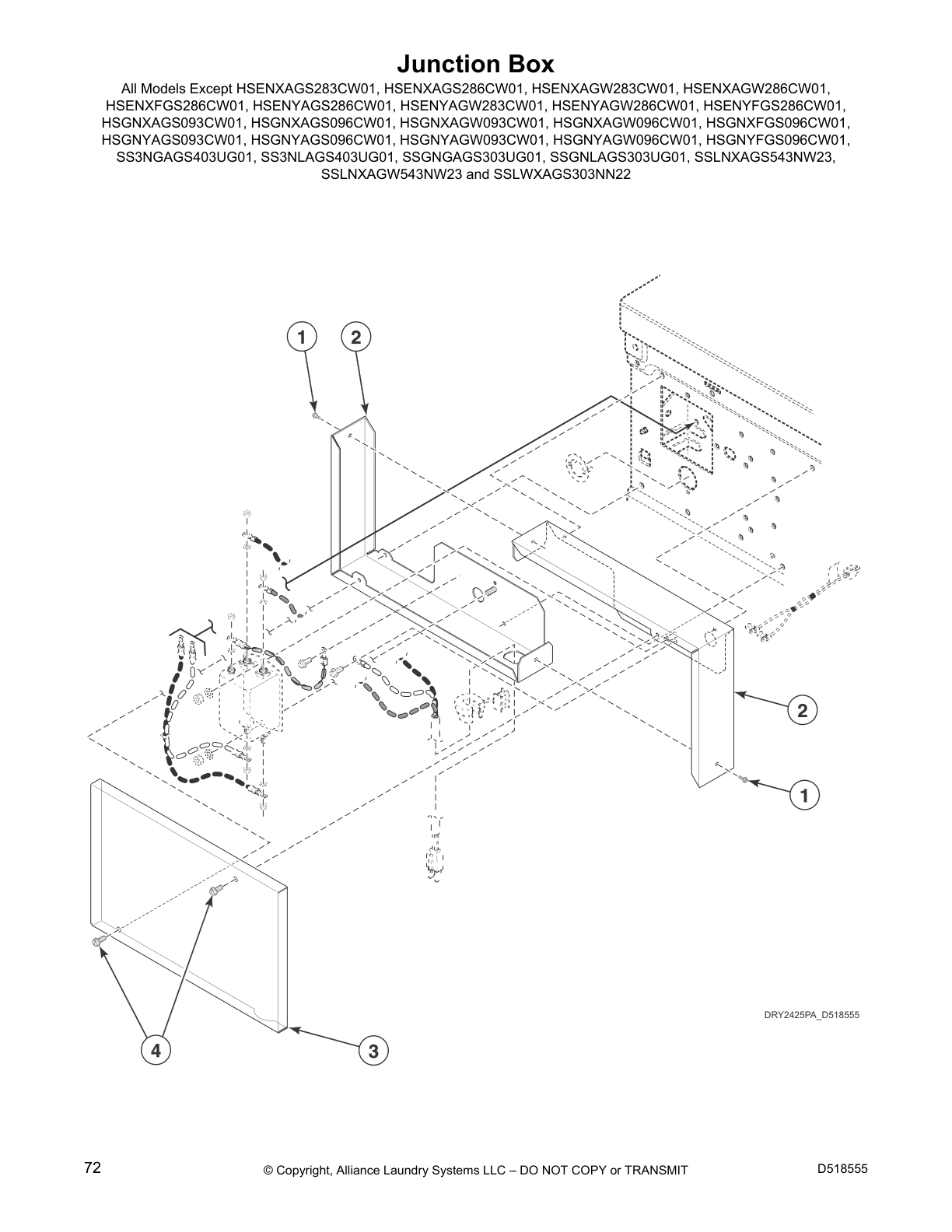

Junction Box

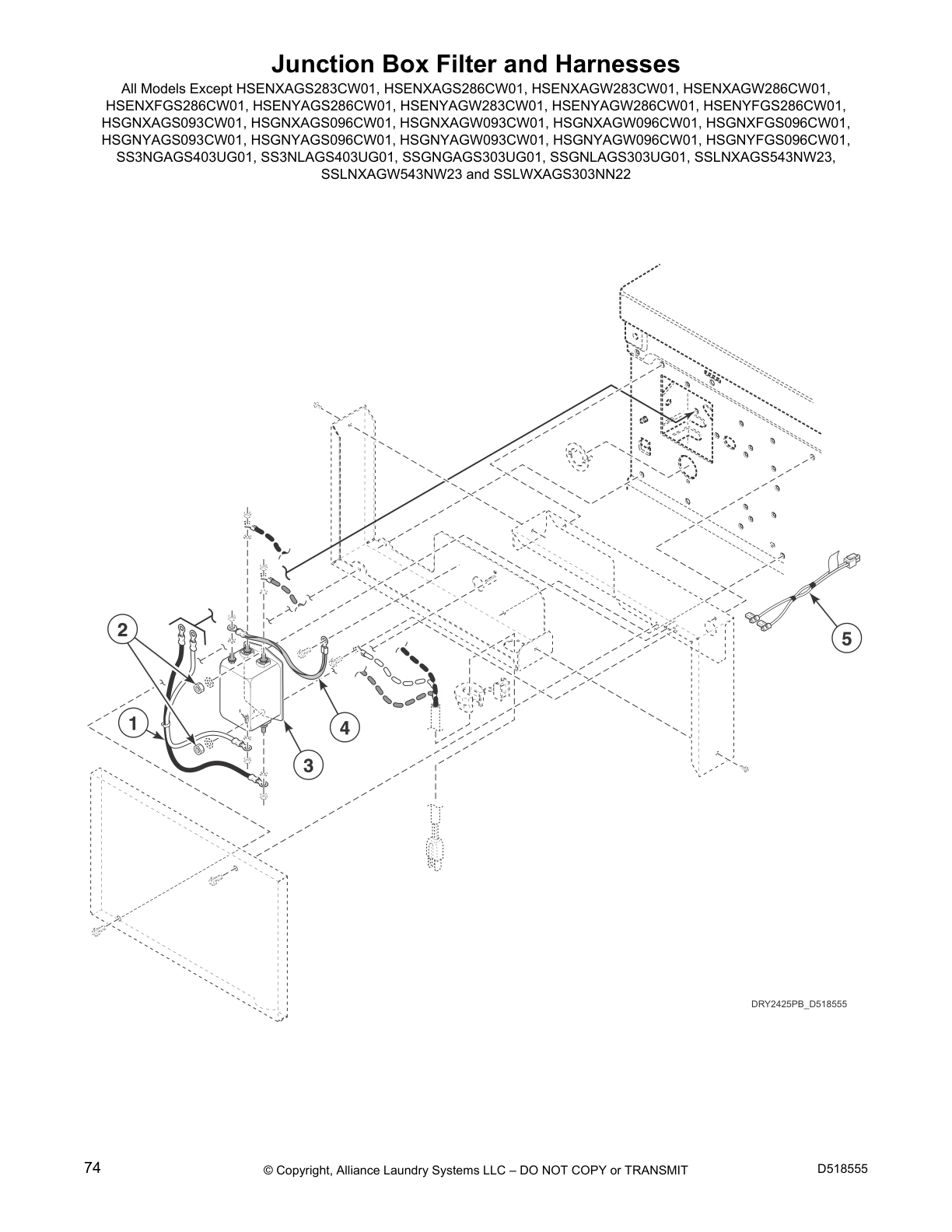

Junction Box Filter and Harnesses

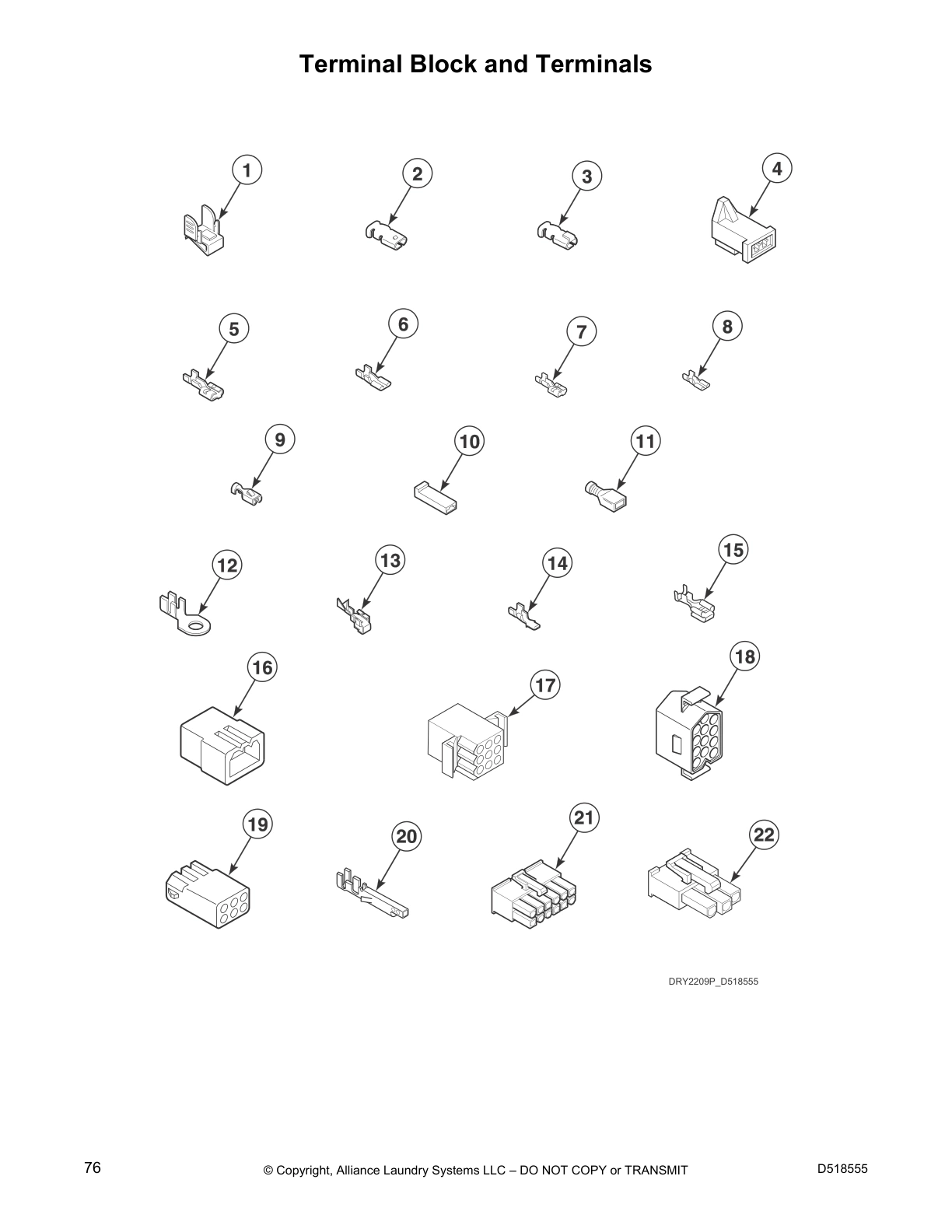

Terminal Block and Terminals

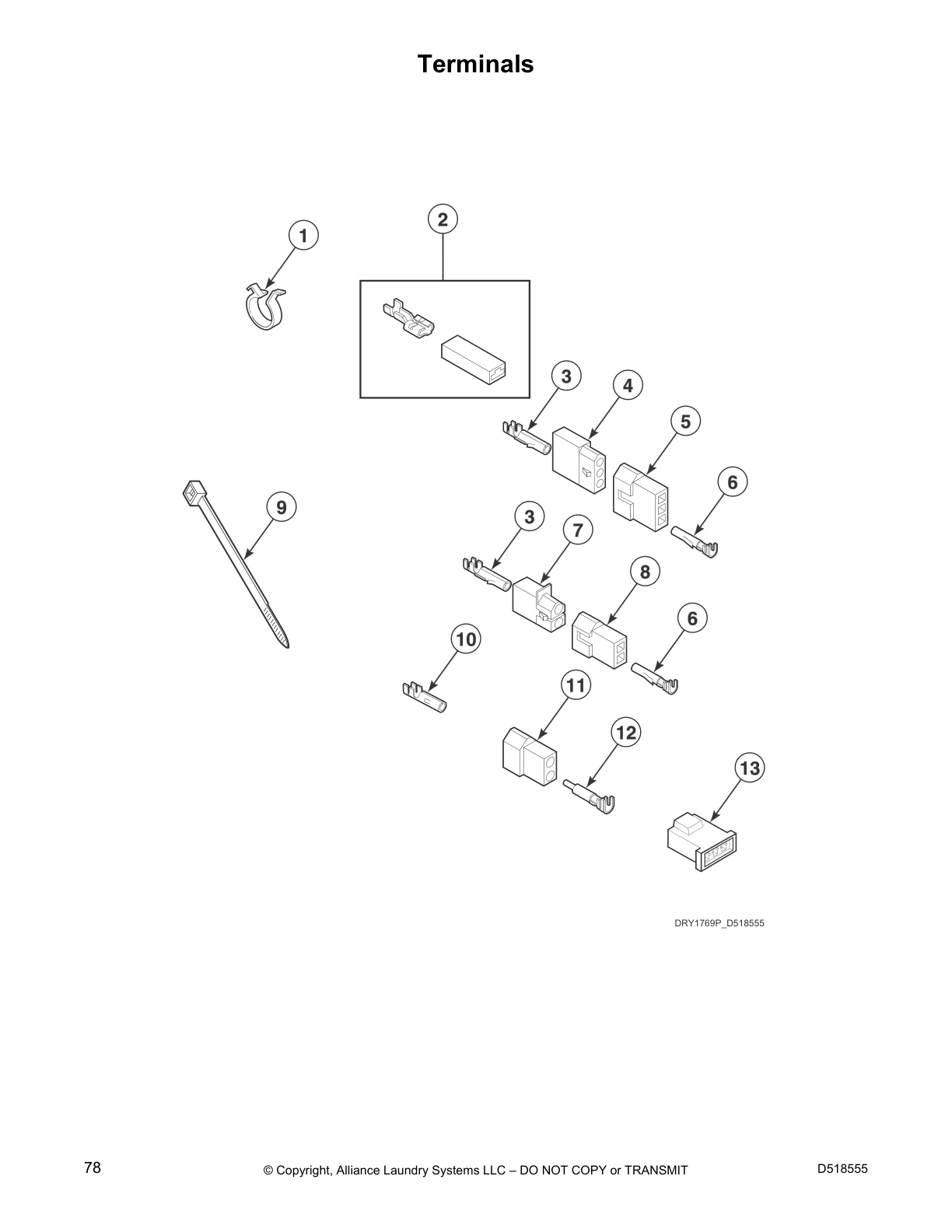

Terminals

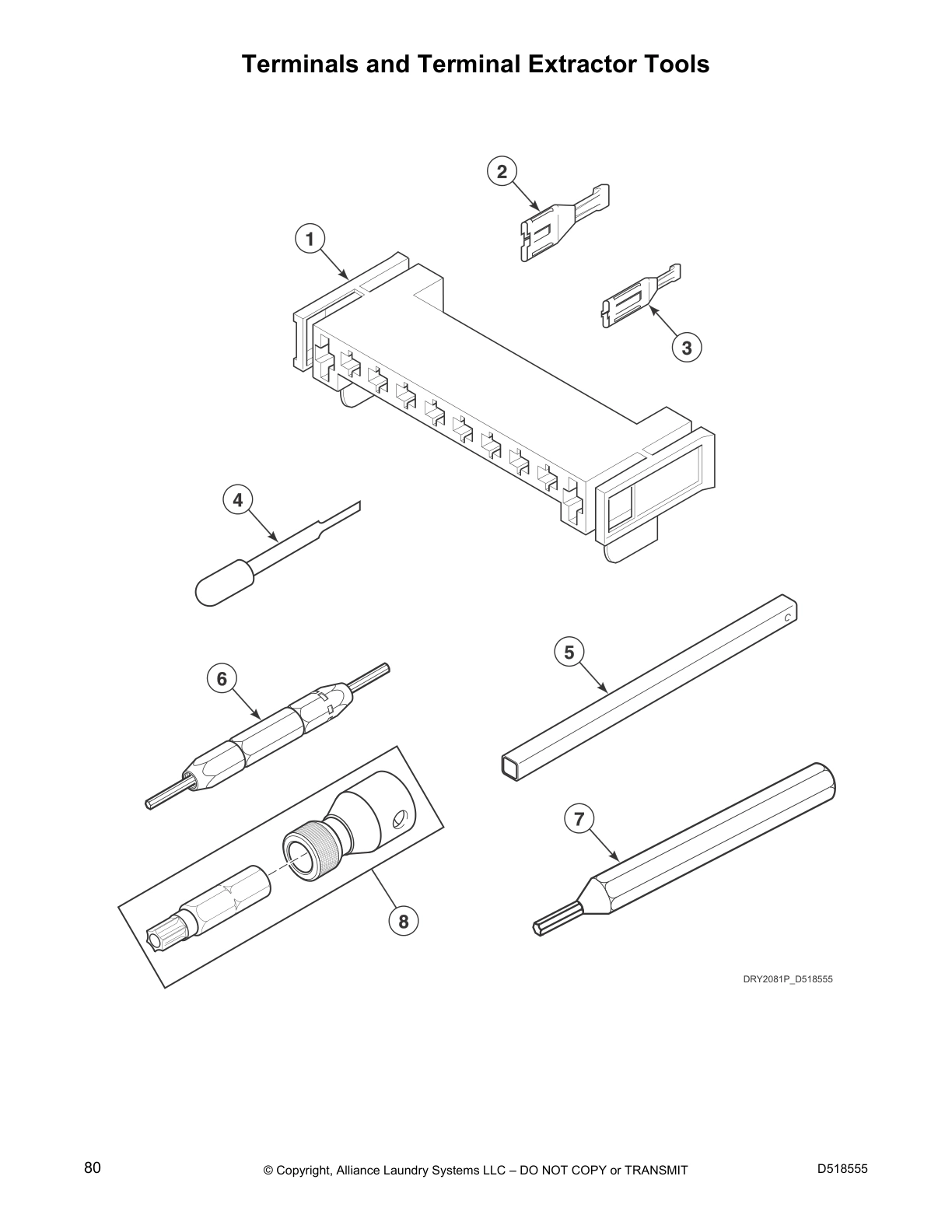

Terminals and Terminal Extractor Tools

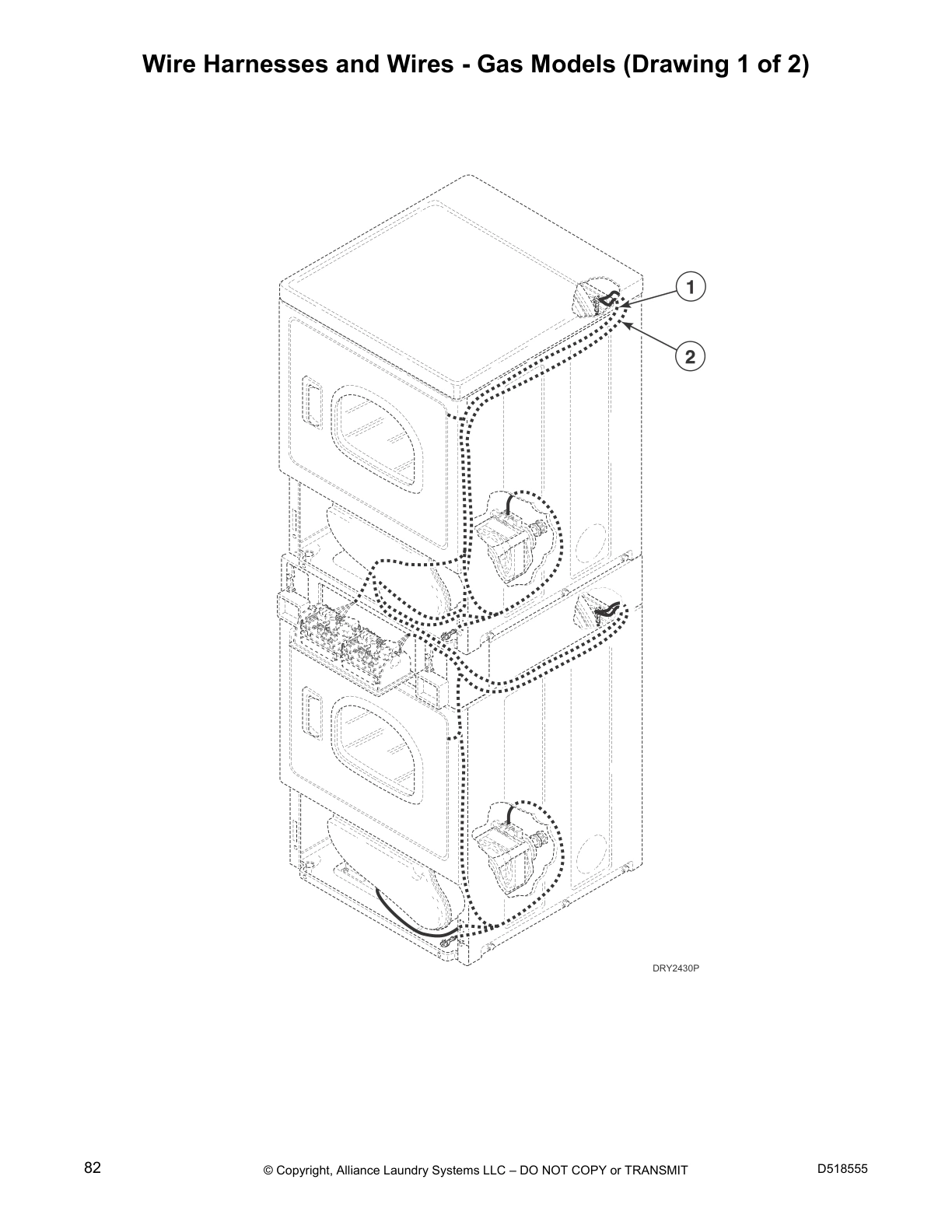

Wire Harnesses and Wires - Gas Models (Drawing 1 of 2)

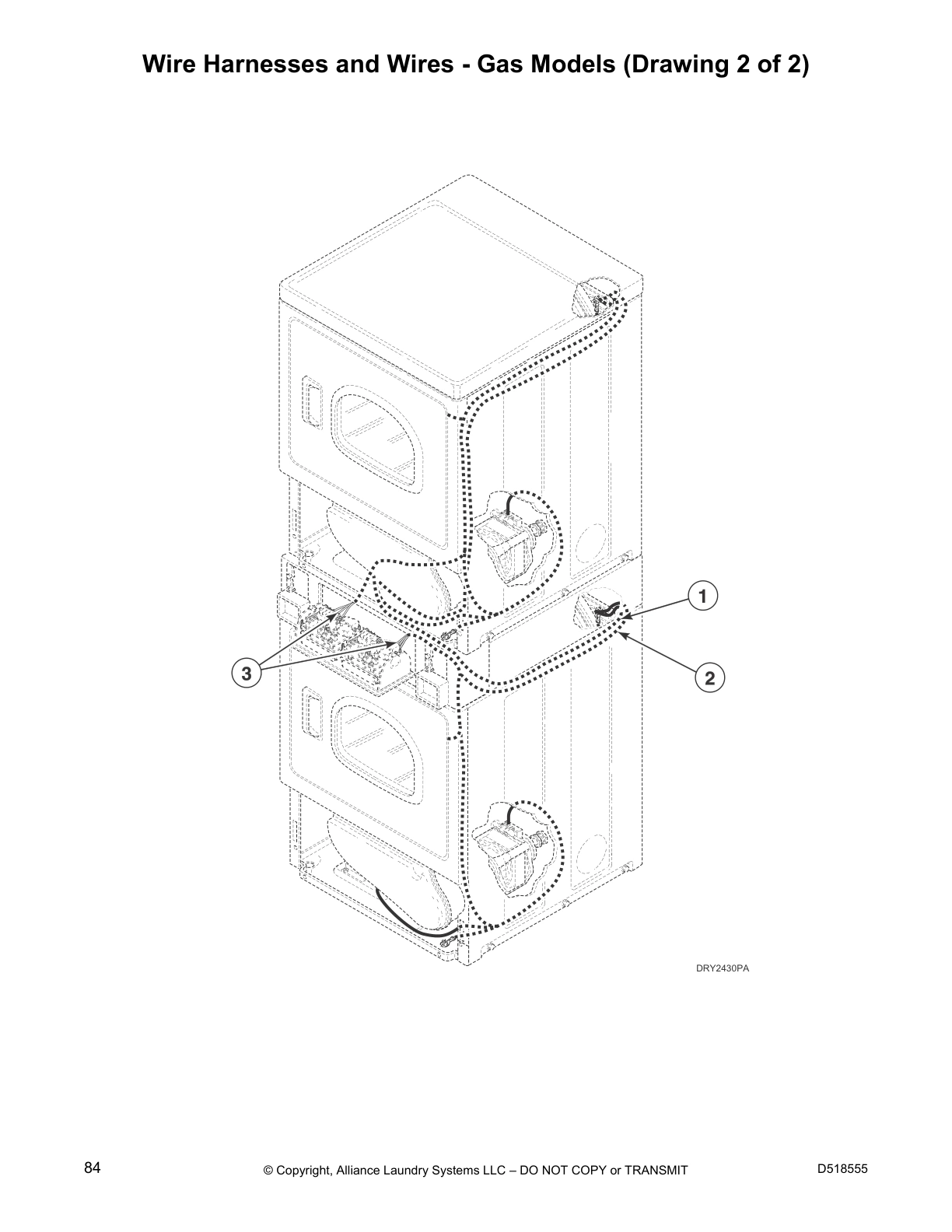

Wire Harnesses and Wires - Gas Models (Drawing 2 of 2)

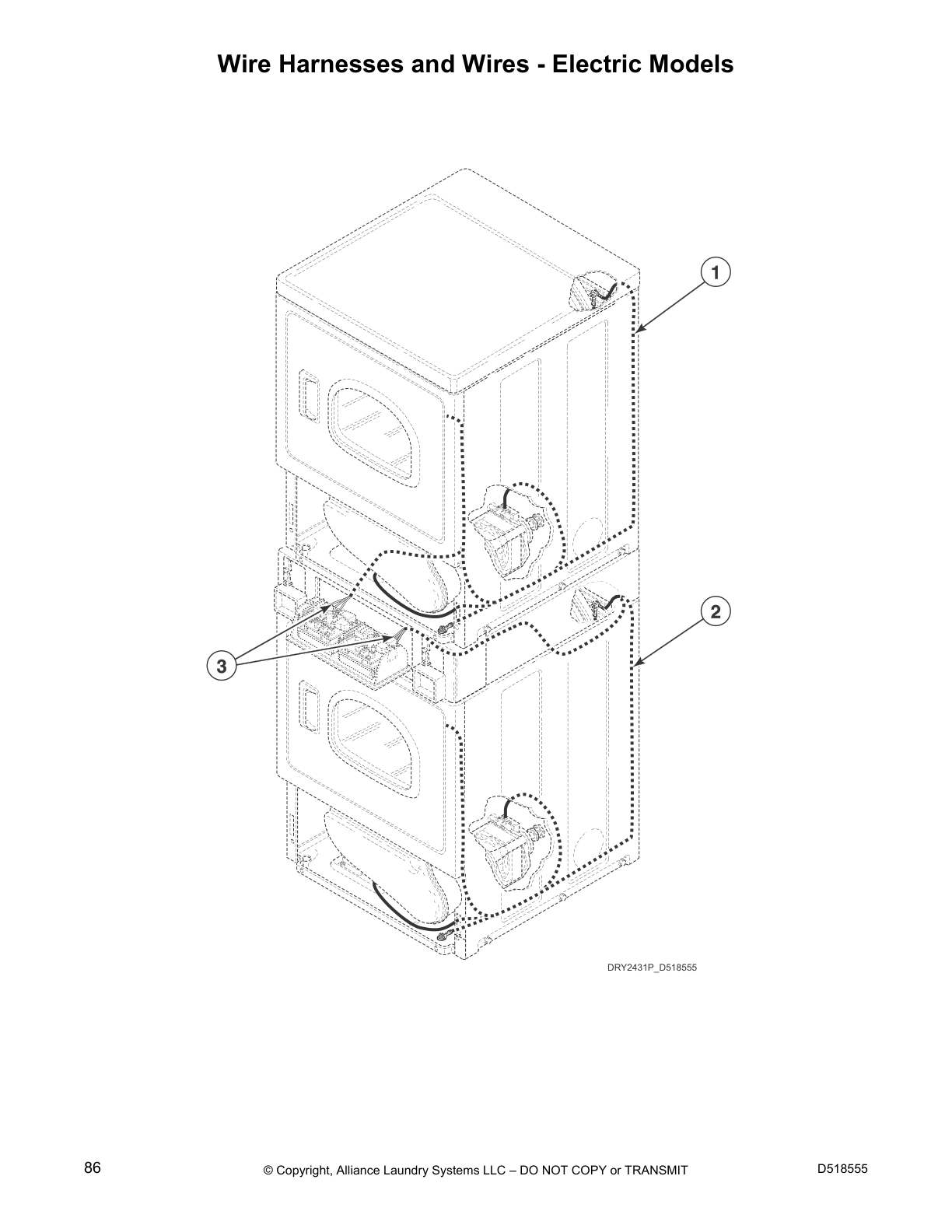

Wire Harnesses and Wires - Electric Models
Common parts from model Speed Queen SSENXAGW433LW01 Dryer
2
Female Terminal SPQ 00256 Contact Us For Availability
3
Terminal Extractor Tool SPQ 00255 Contact Us For Availability
4
Ratchet Extension Tool SPQ 00188 Contact Us For Availability
NI
SPQ 93501 SPQ 93501 Contact Us For Availability
× ![]()
