Model Huebsch HTEBDASP283CW01 Stacked Washer and Dryer – Common Parts & Diagrams
Control Panel and Controls (Drawing 1 of 4)
Control Panel and Controls (Drawing 2 of 4)

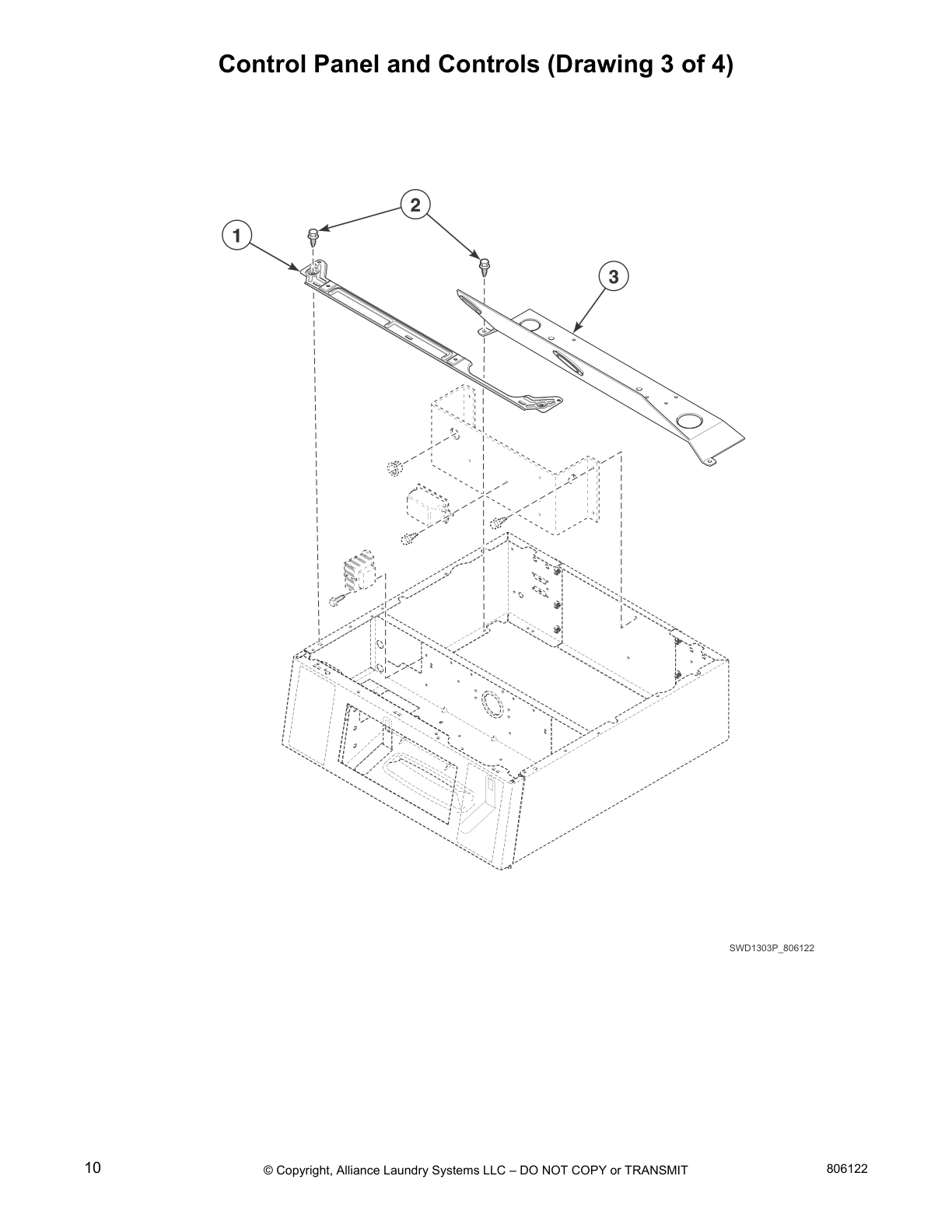

Control Panel and Controls (Drawing 3 of 4)

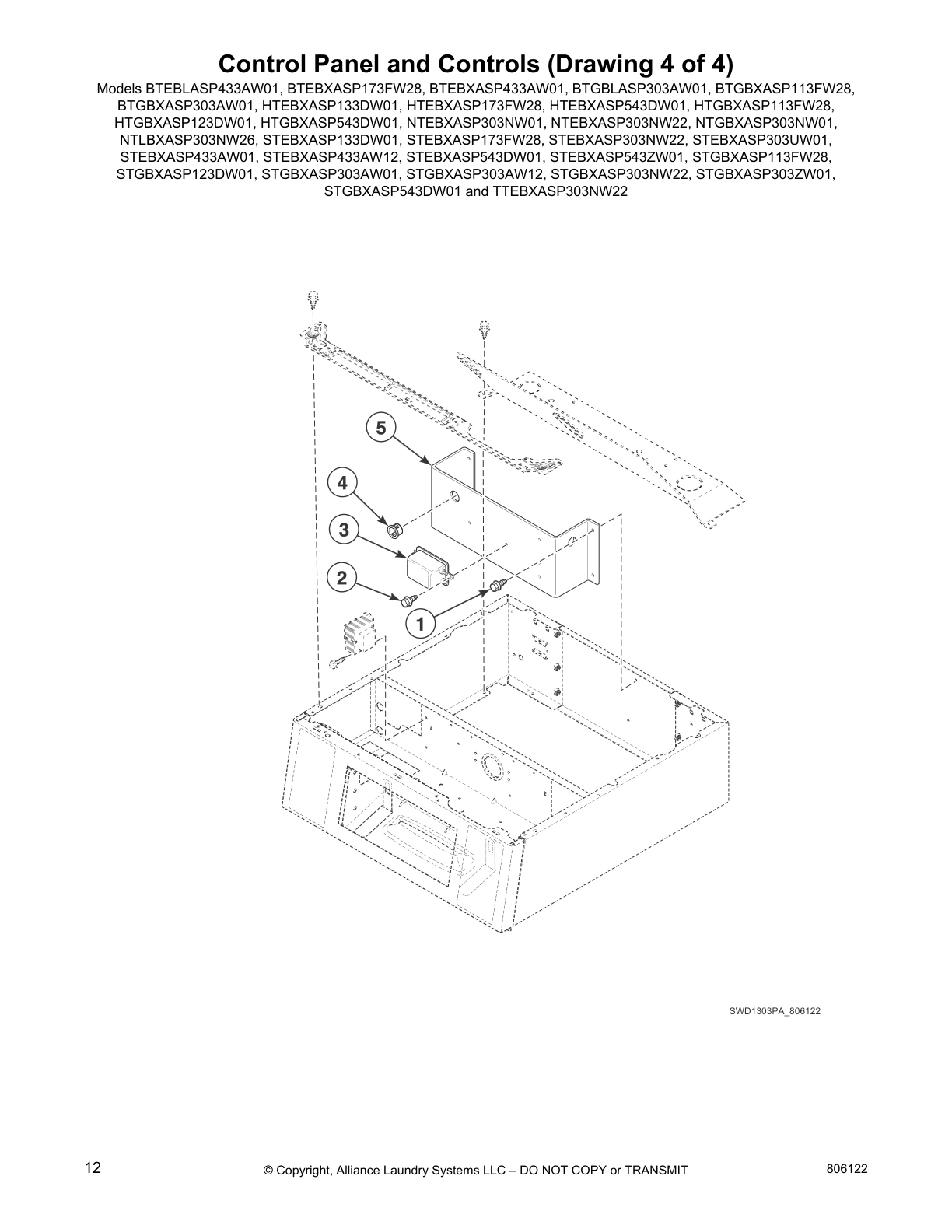

Control Panel and Controls (Drawing 4 of 4)

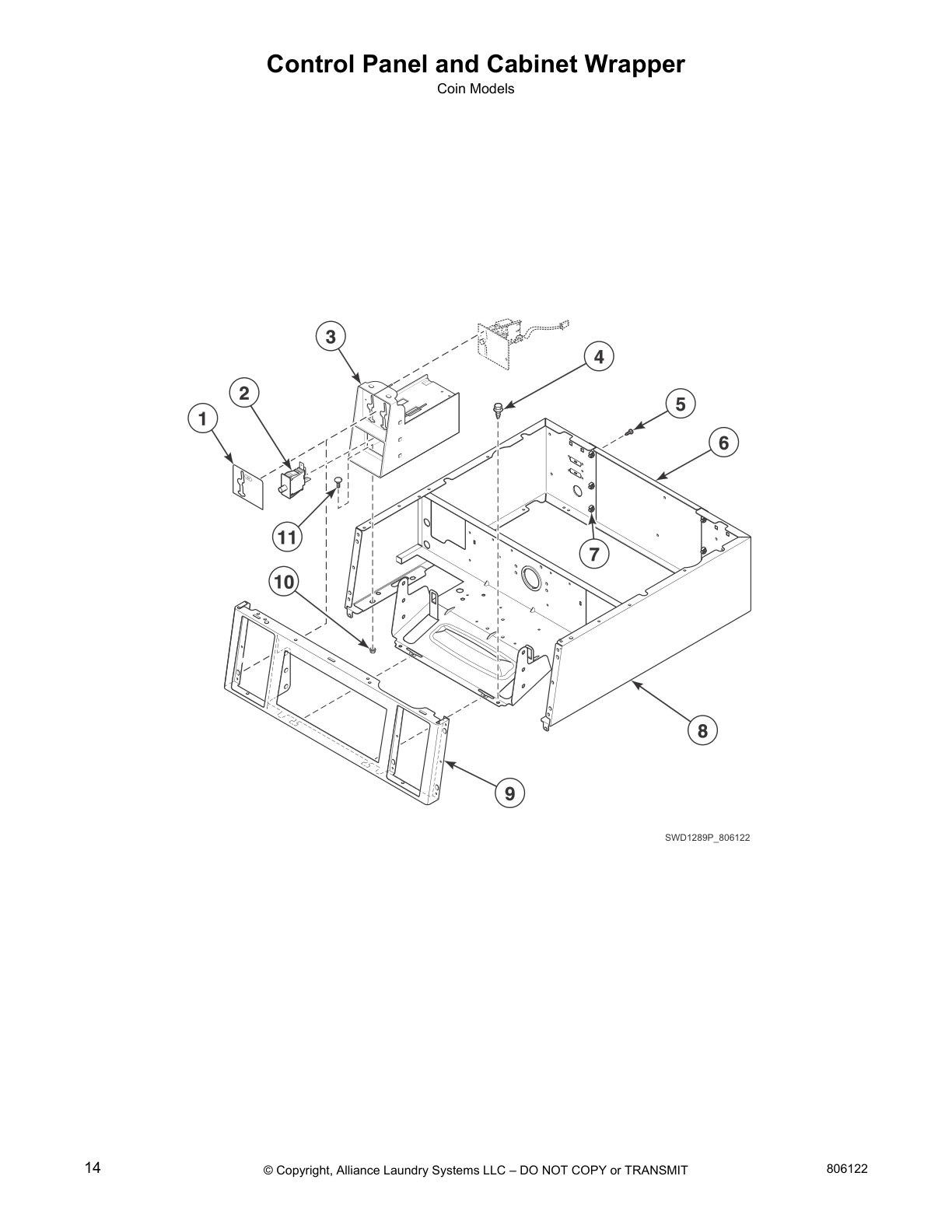

Control Panel and Cabinet Wrapper
Non-Electronic Coin Drop

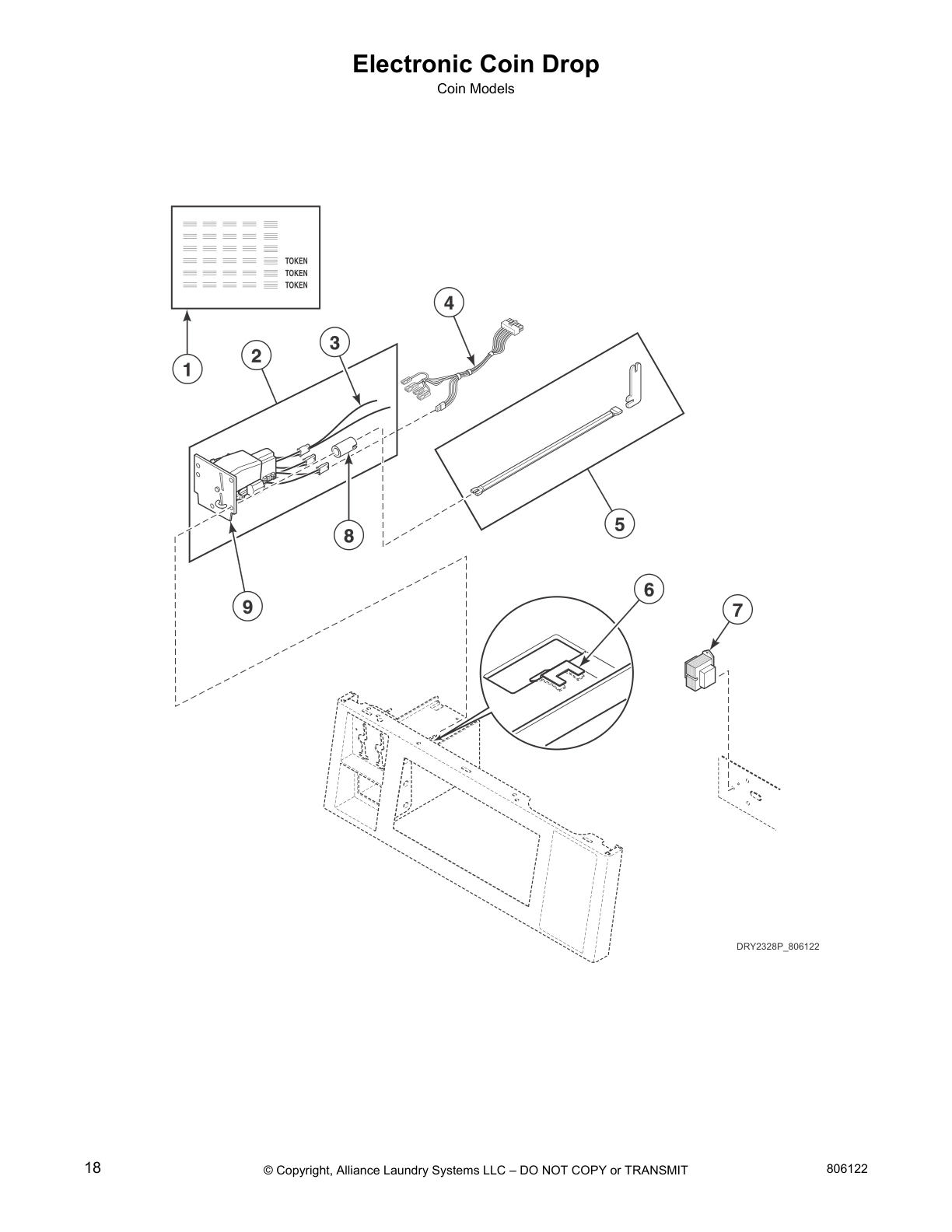

Electronic Coin Drop

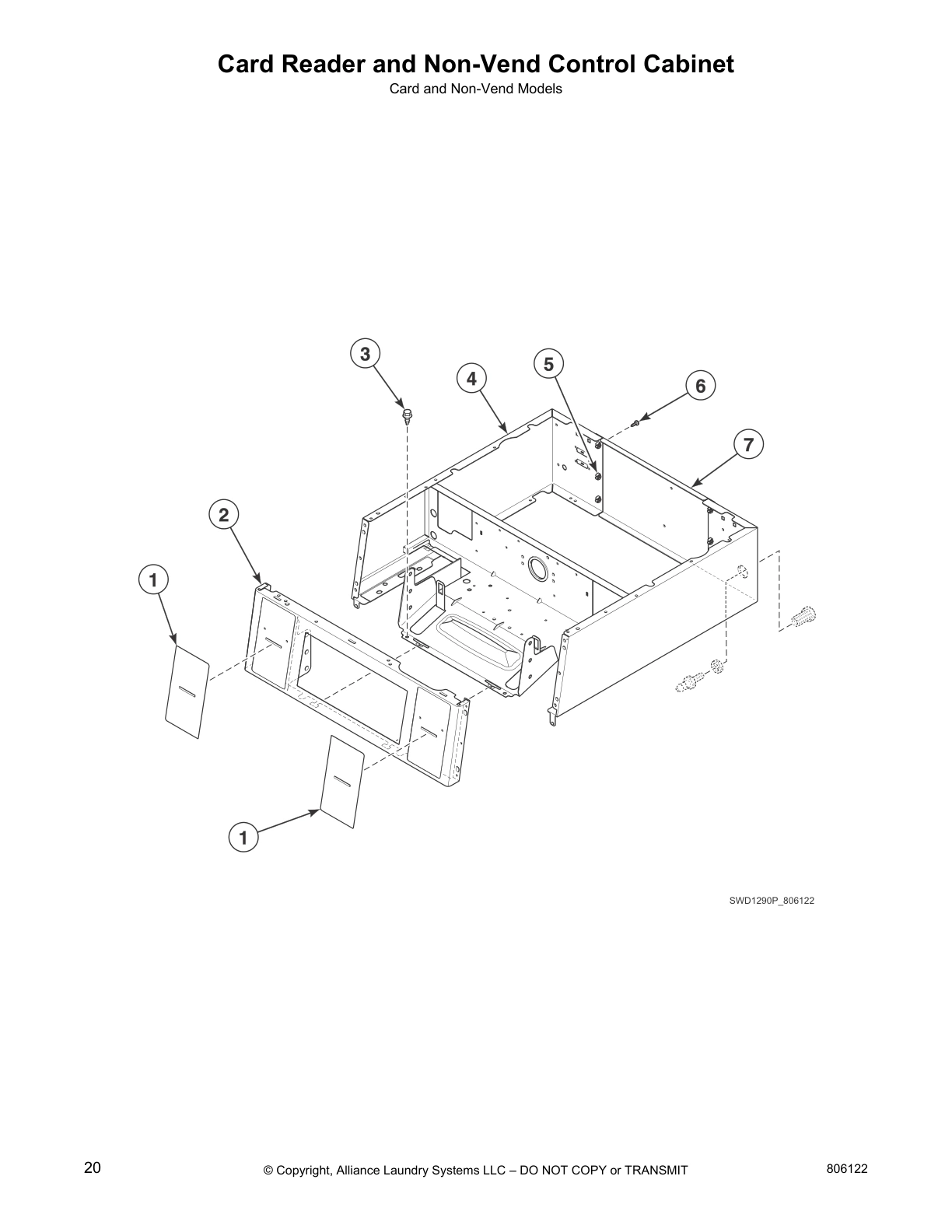

Card Reader and Non-Vend Control Cabinet

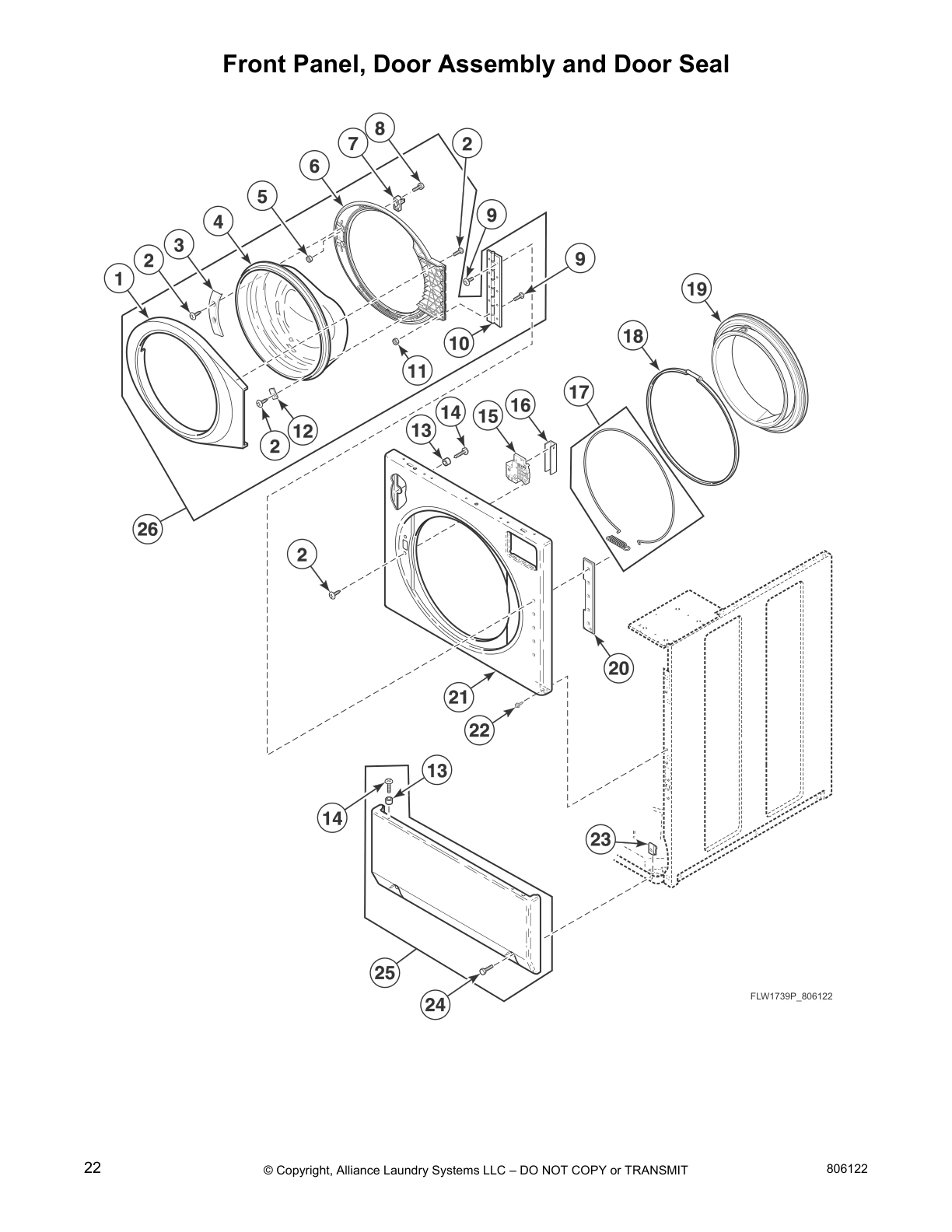

Front Panel, Door Assembly and Door Seal
Dispenser Assembly

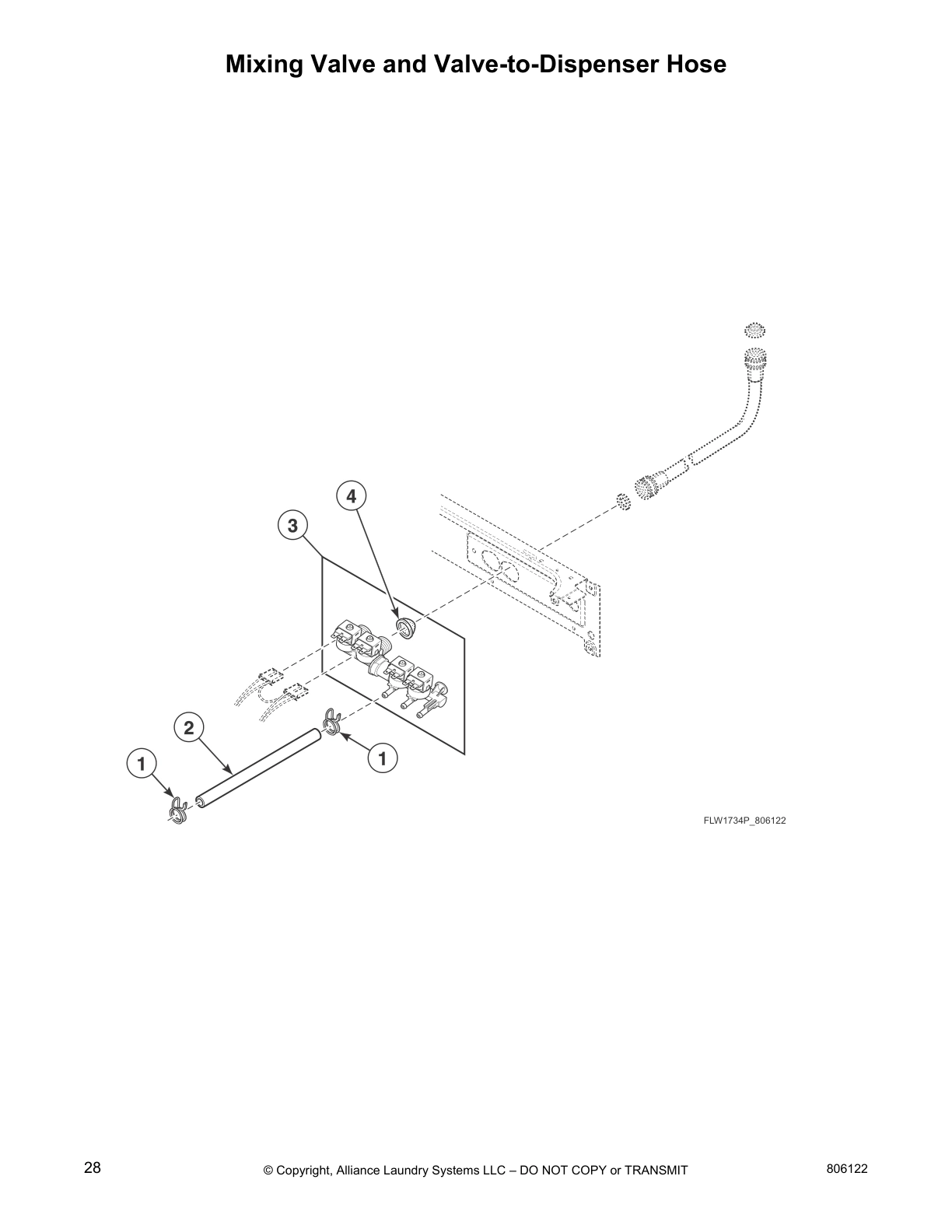

Mixing Valve and Valve-to-Dispenser Hose

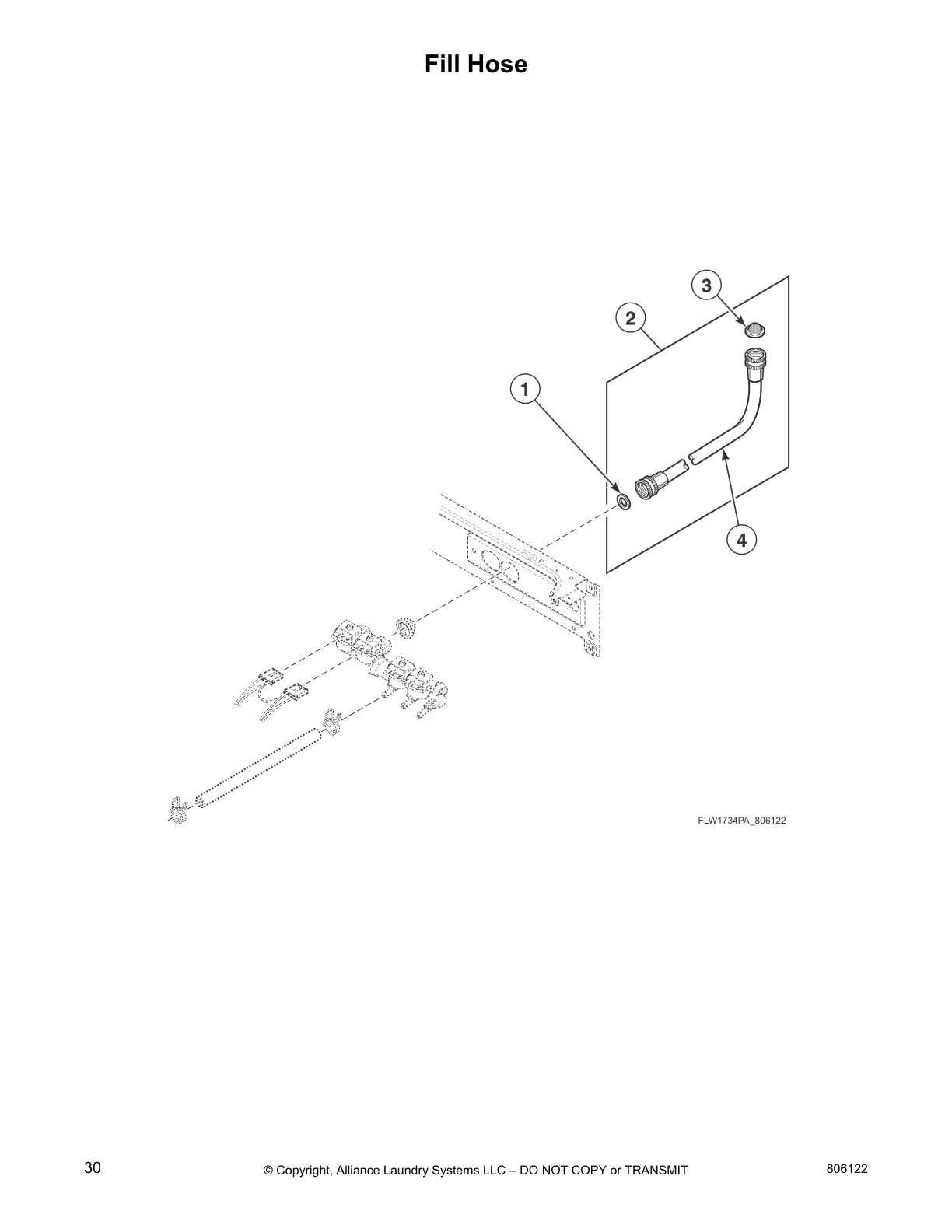

Fill Hose

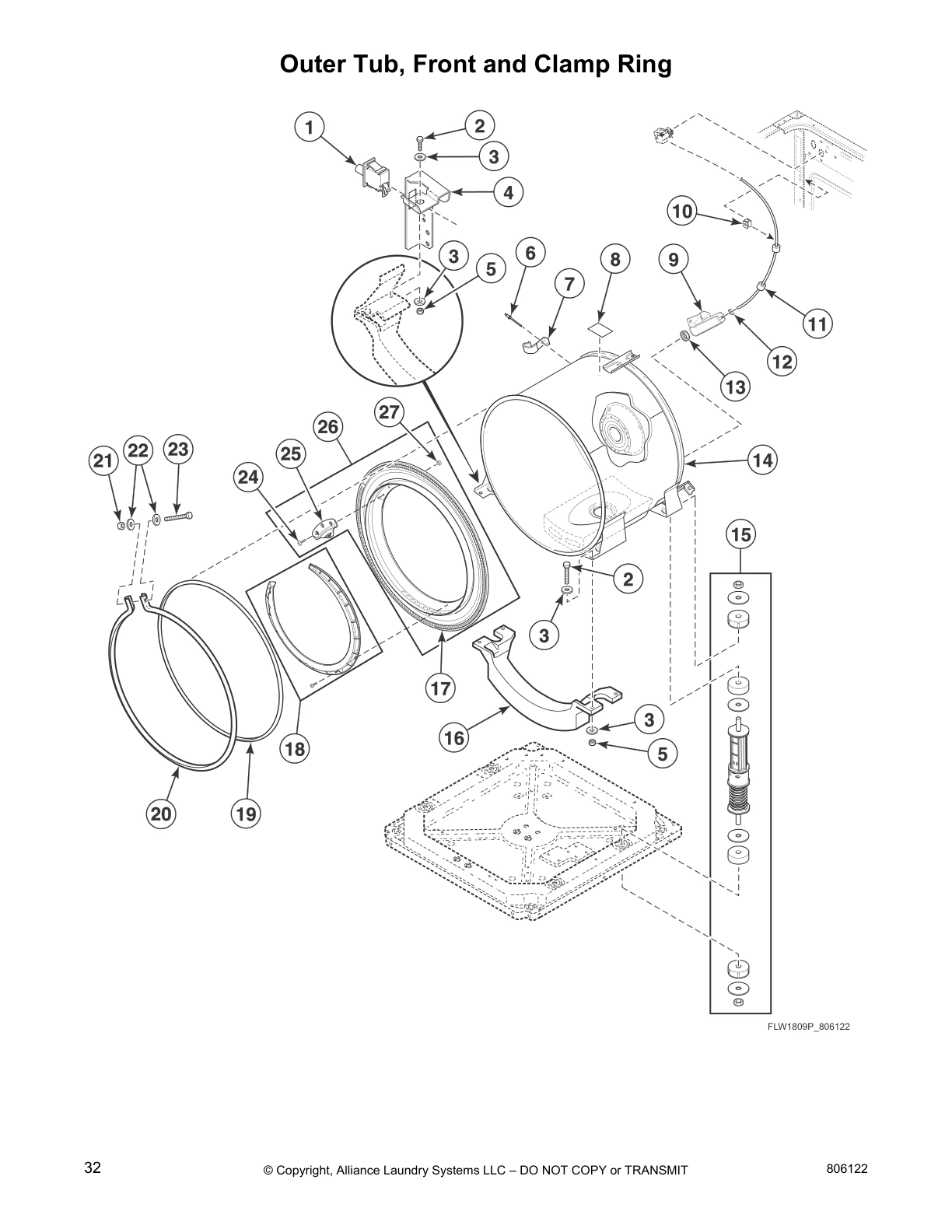

Outer Tub, Front and Clamp Ring

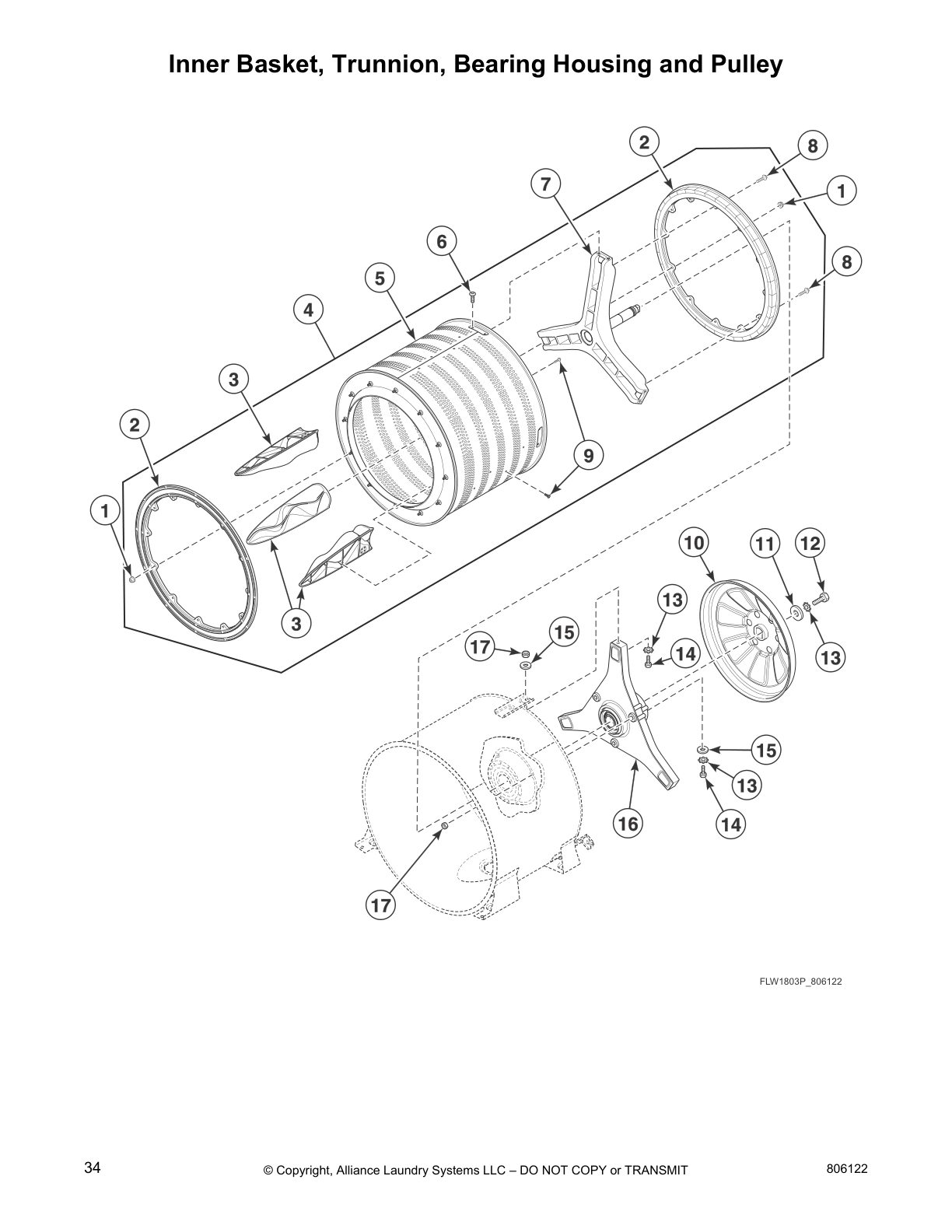

Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt

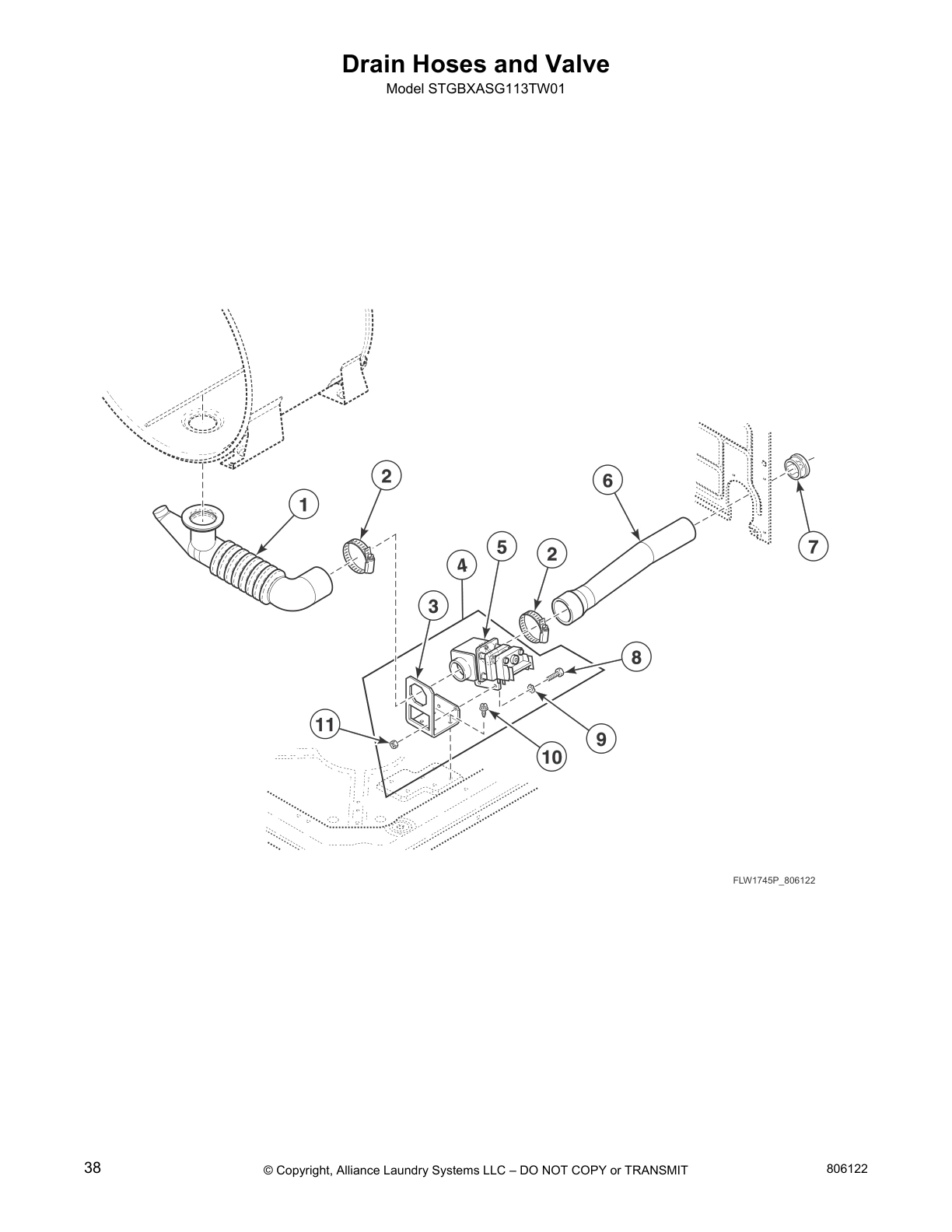

Drain Hoses and Valve

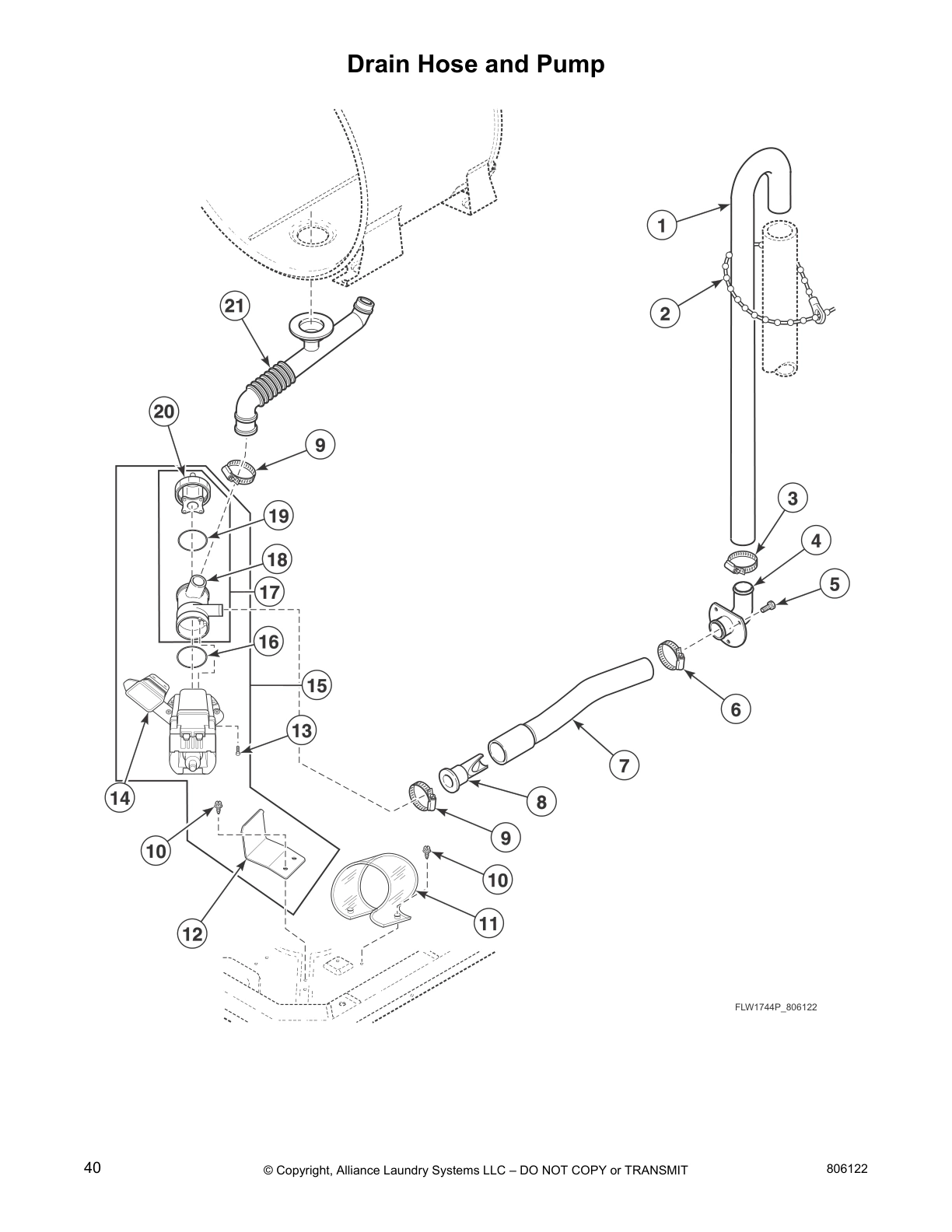

Drain Hose and Pump

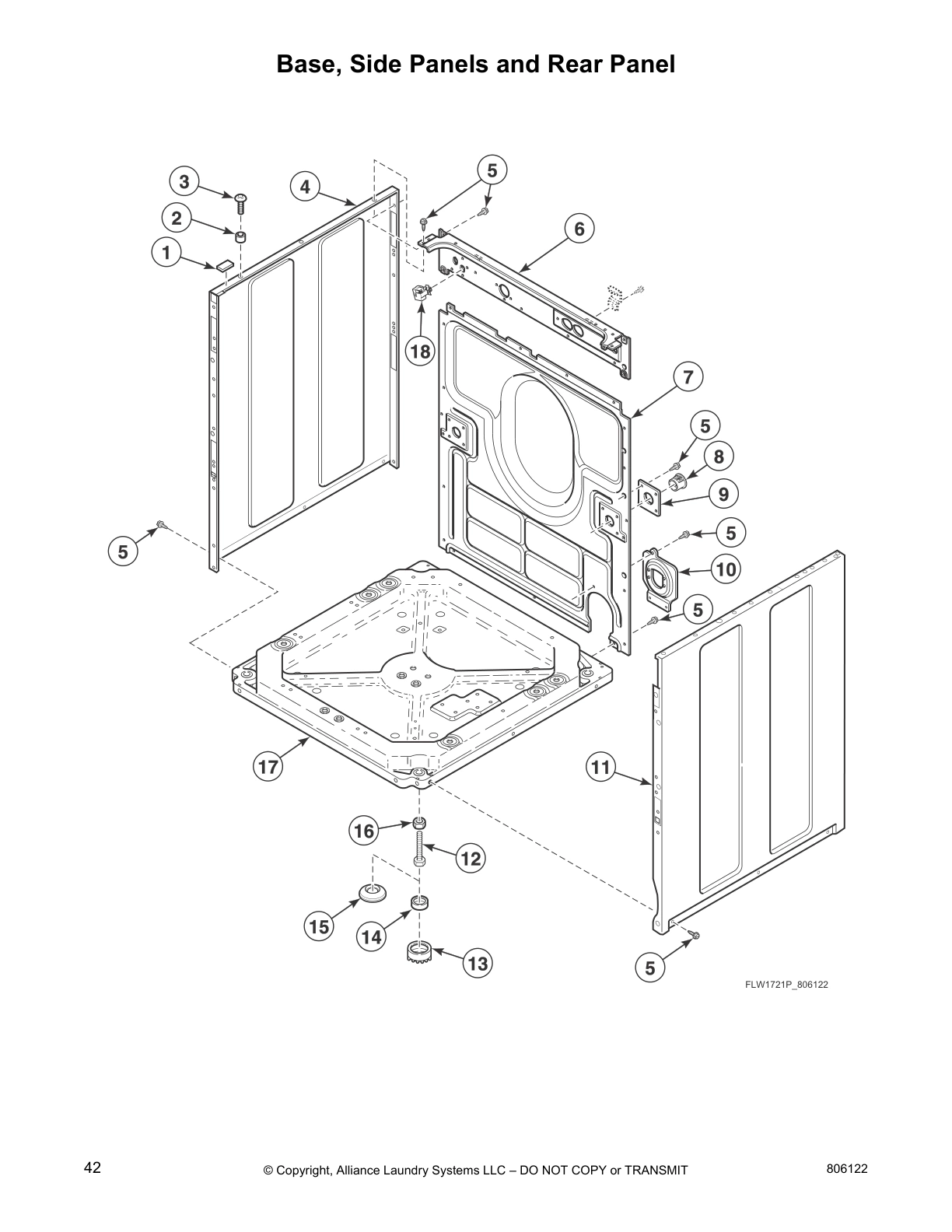

Base, Side Panels and Rear Panel

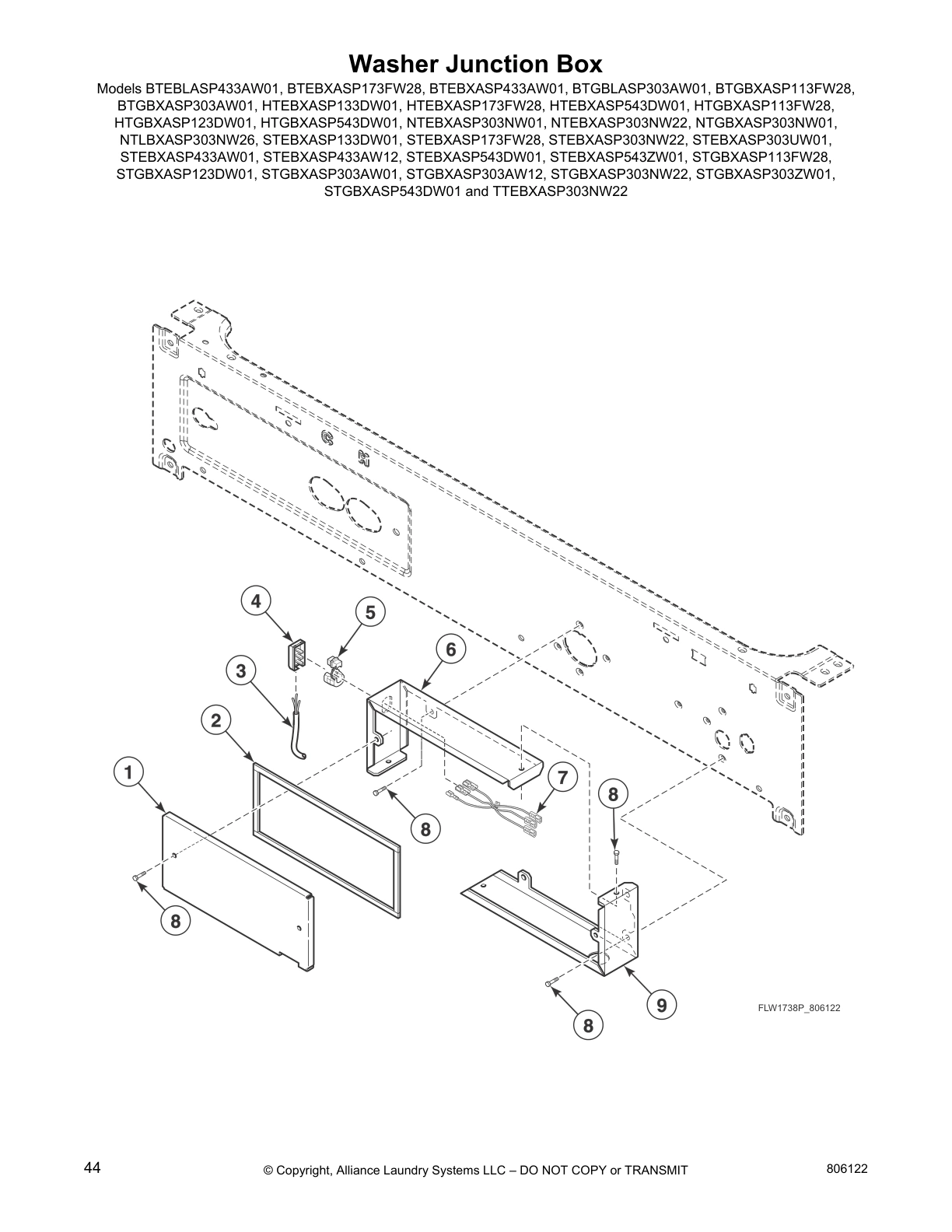

Washer Junction Box
Washer Lead-In Cord, Wire Ties and Harness Clips

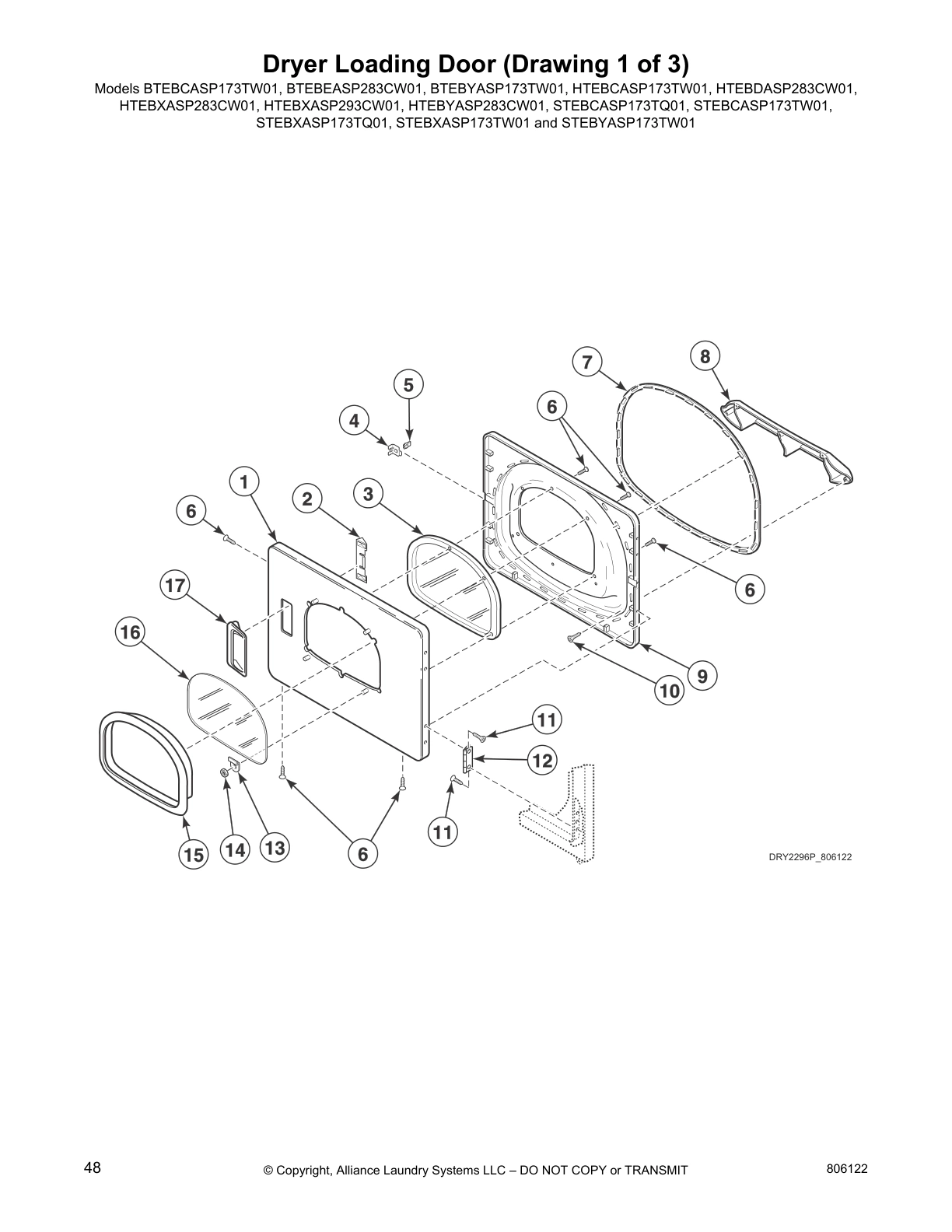

Dryer Loading Door (Drawing 1 of 3)

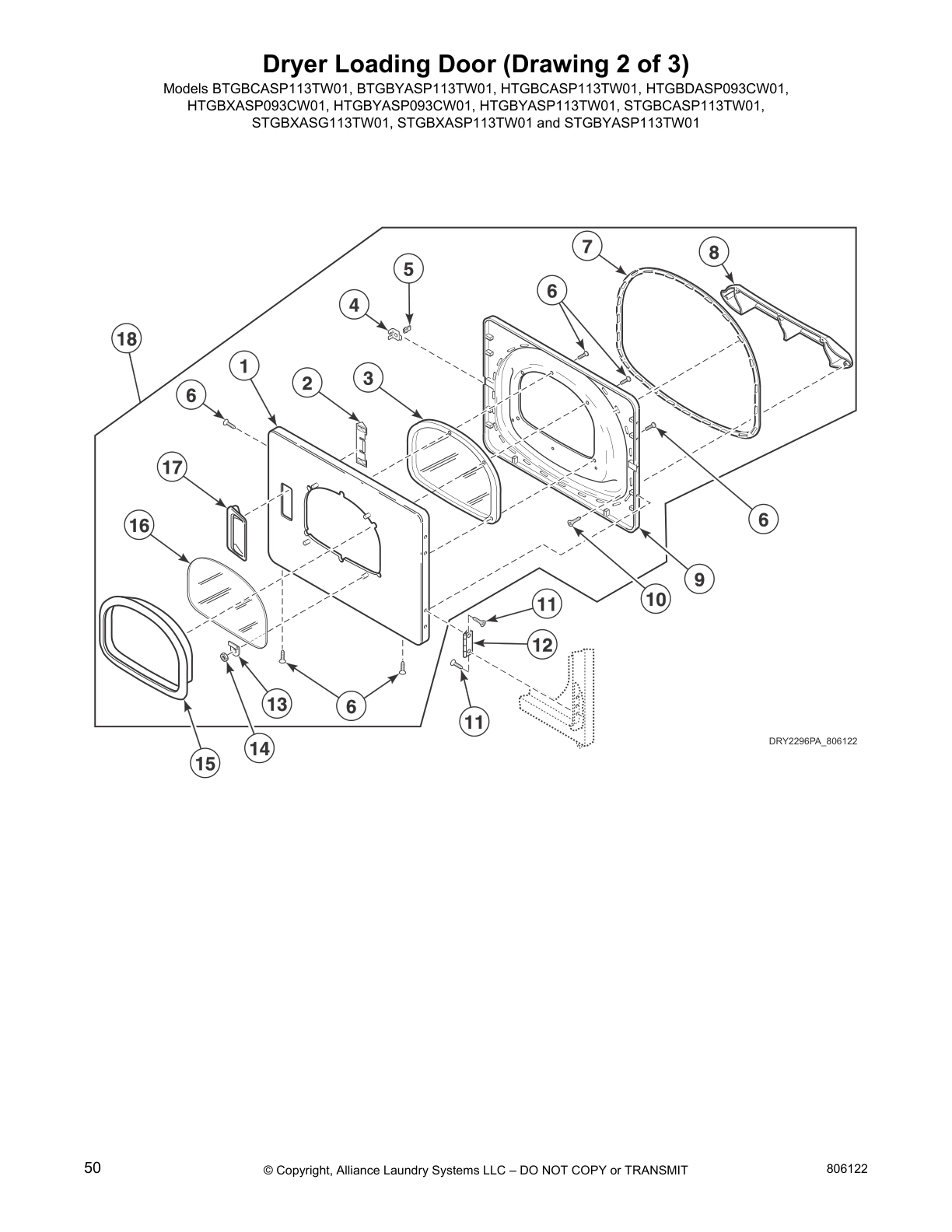

Dryer Loading Door (Drawing 2 of 3)

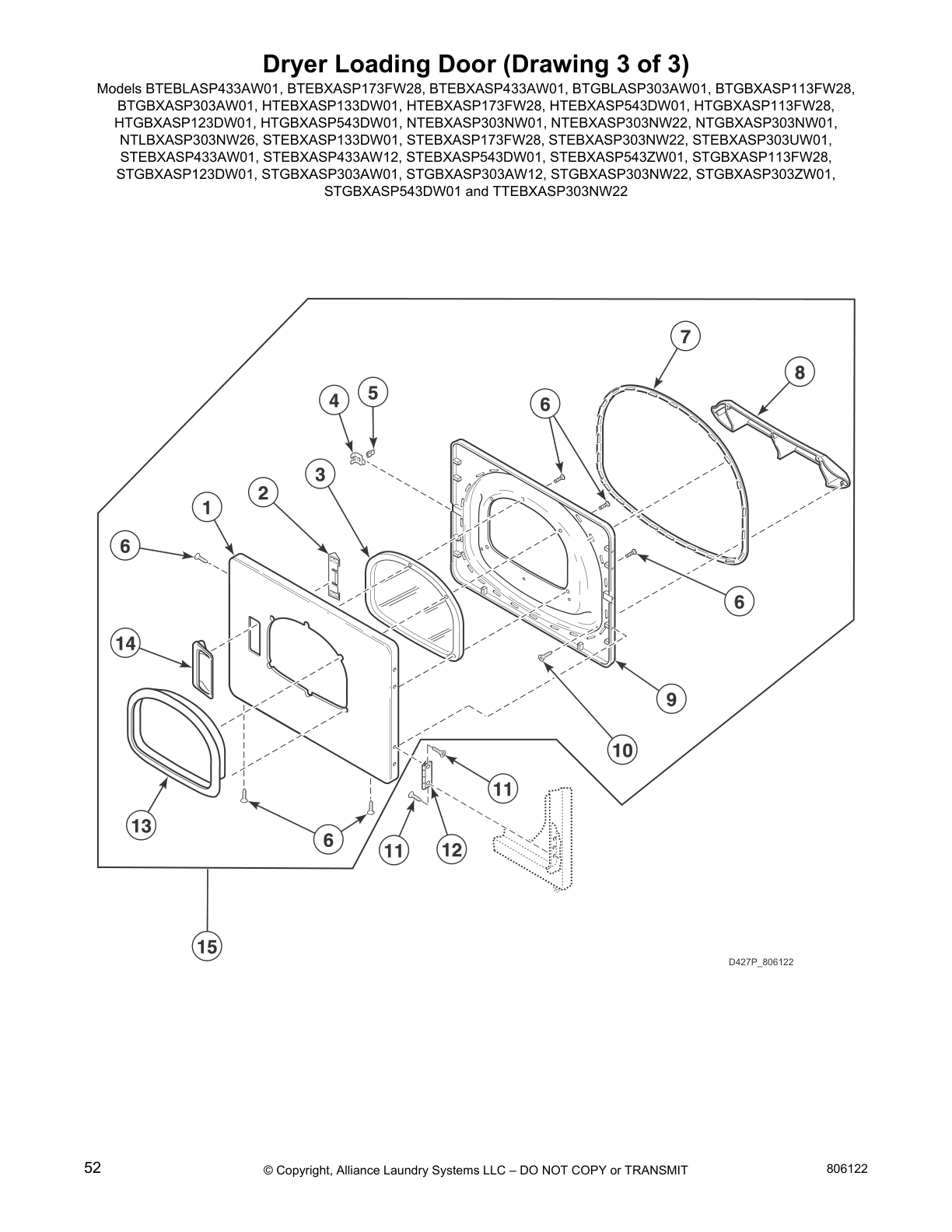

Dryer Loading Door (Drawing 3 of 3)

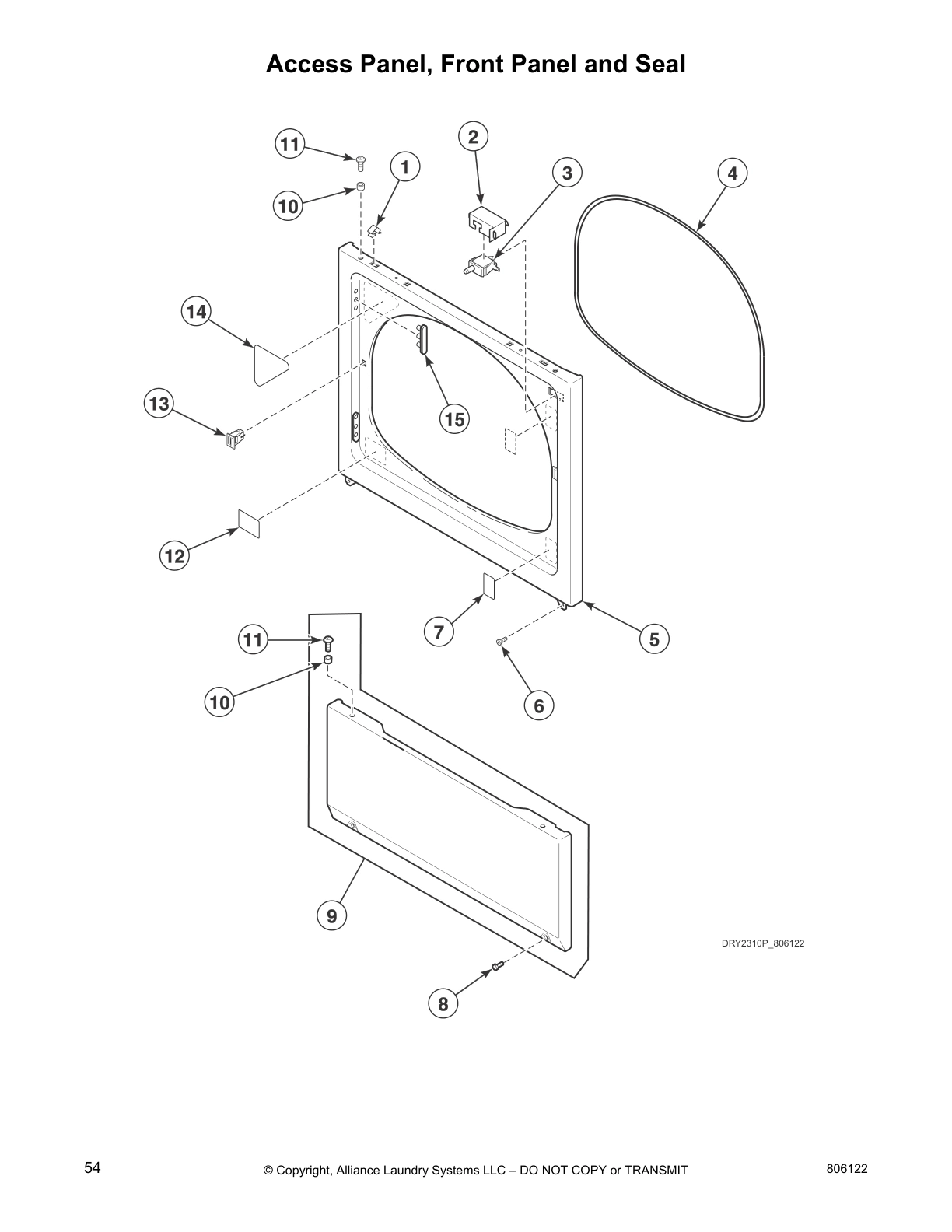

Access Panel, Front Panel and Seal

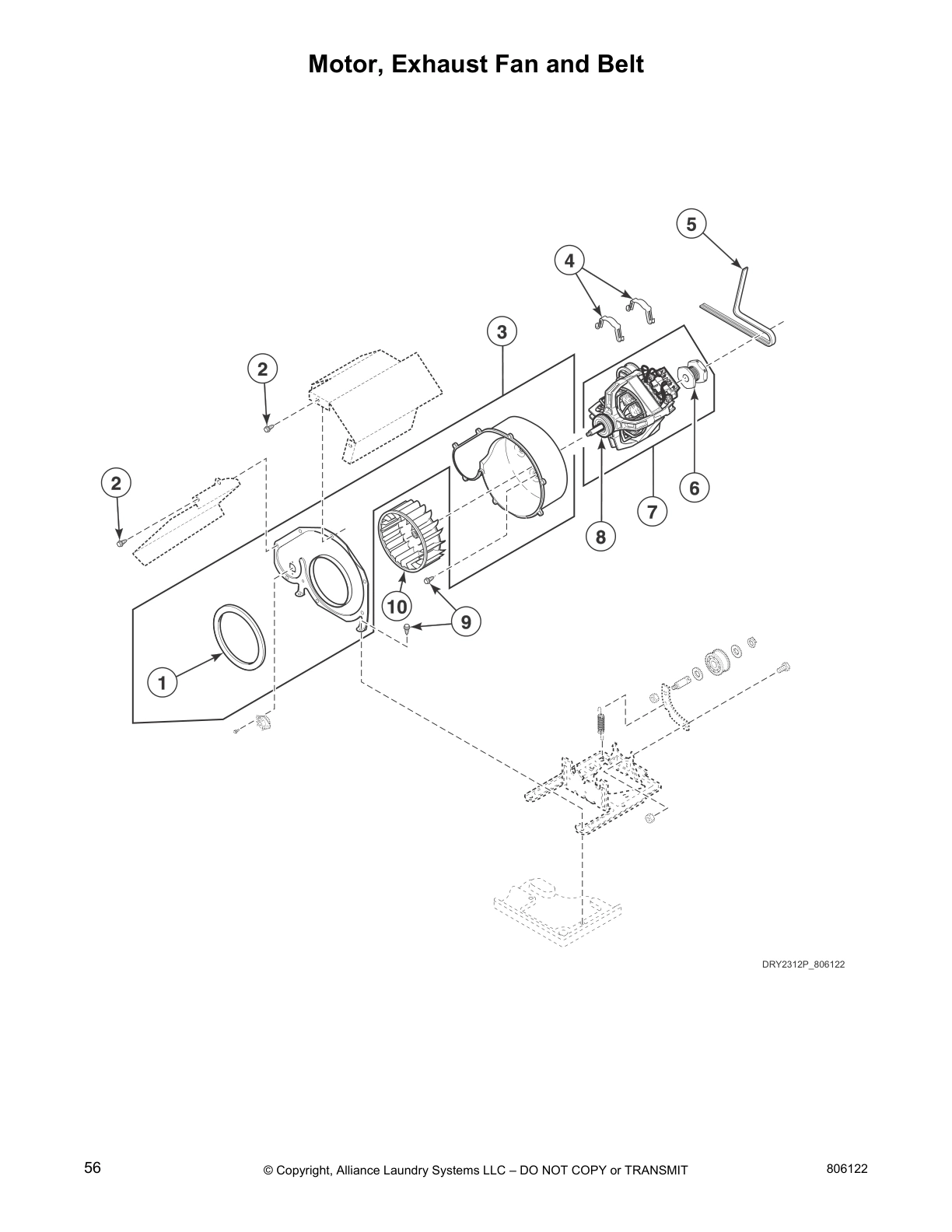

Motor, Exhaust Fan and Belt

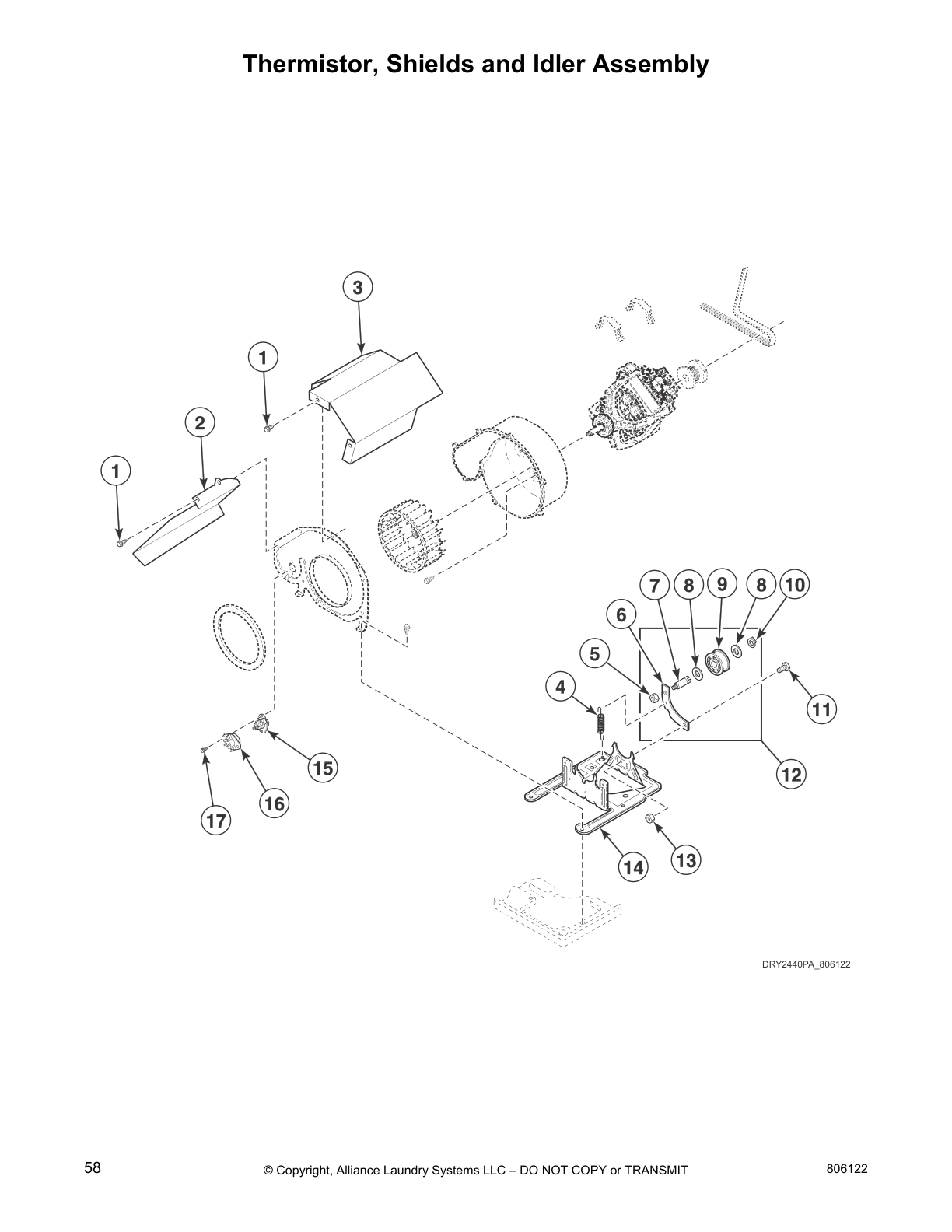

Thermistor, Shields and Idler Assembly

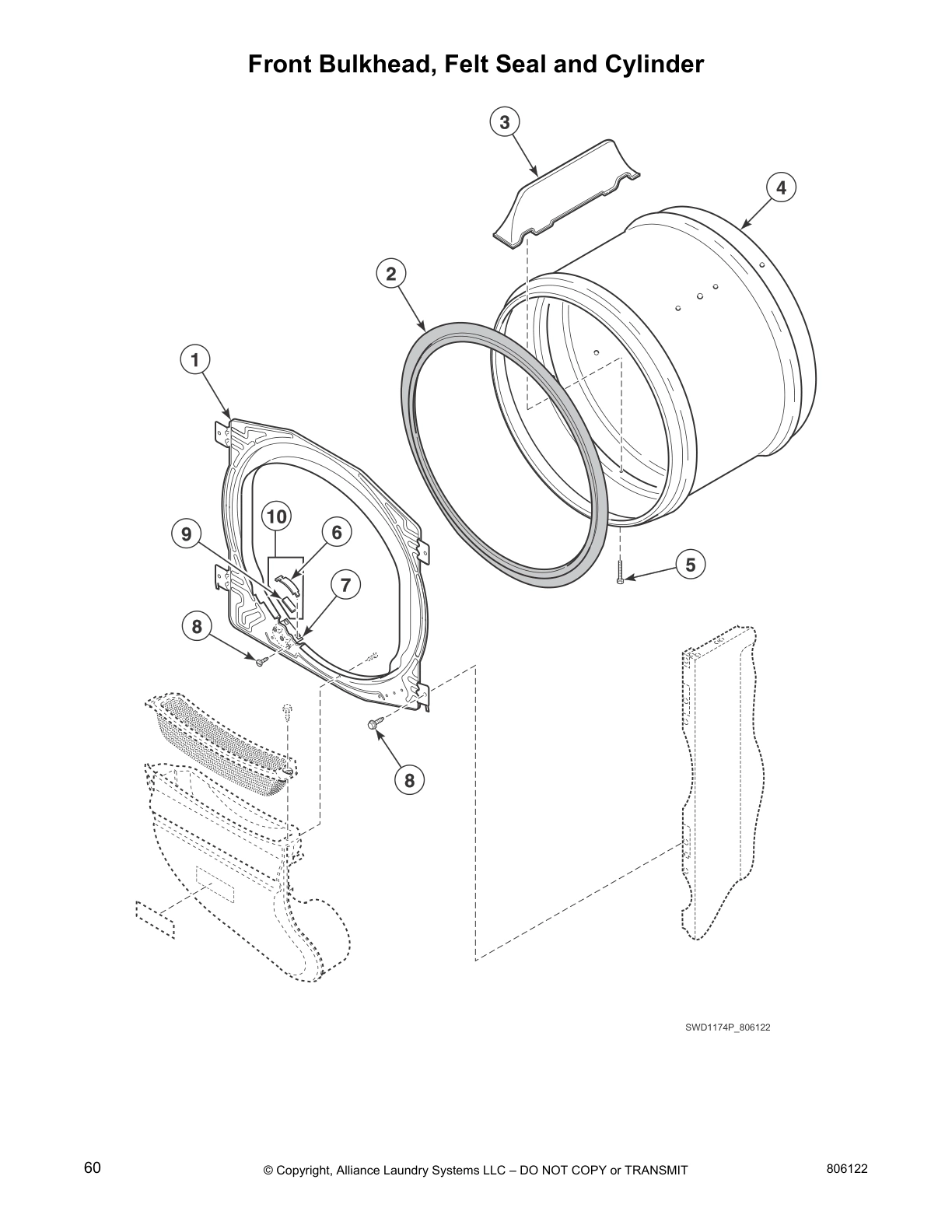

Front Bulkhead, Felt Seal and Cylinder

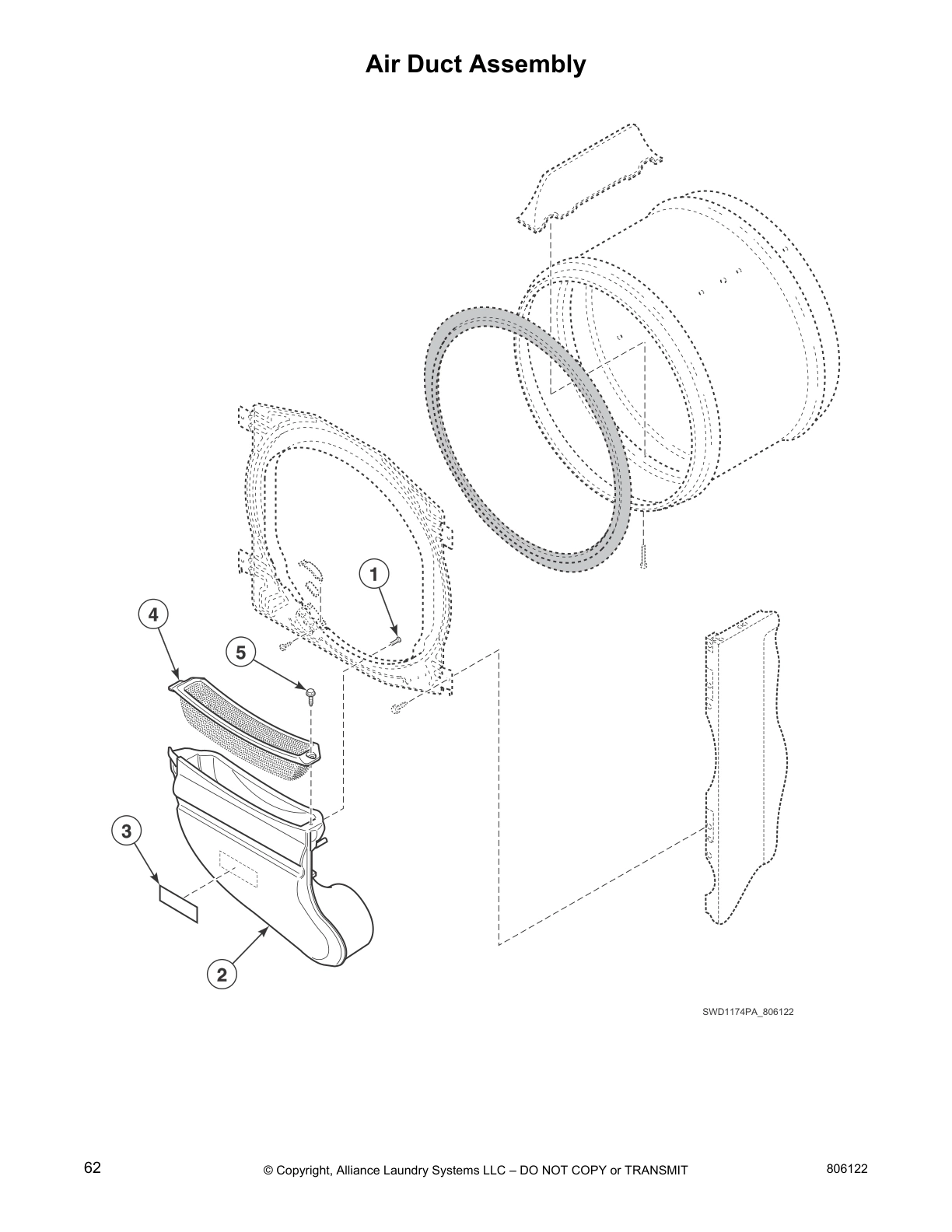

Air Duct Assembly

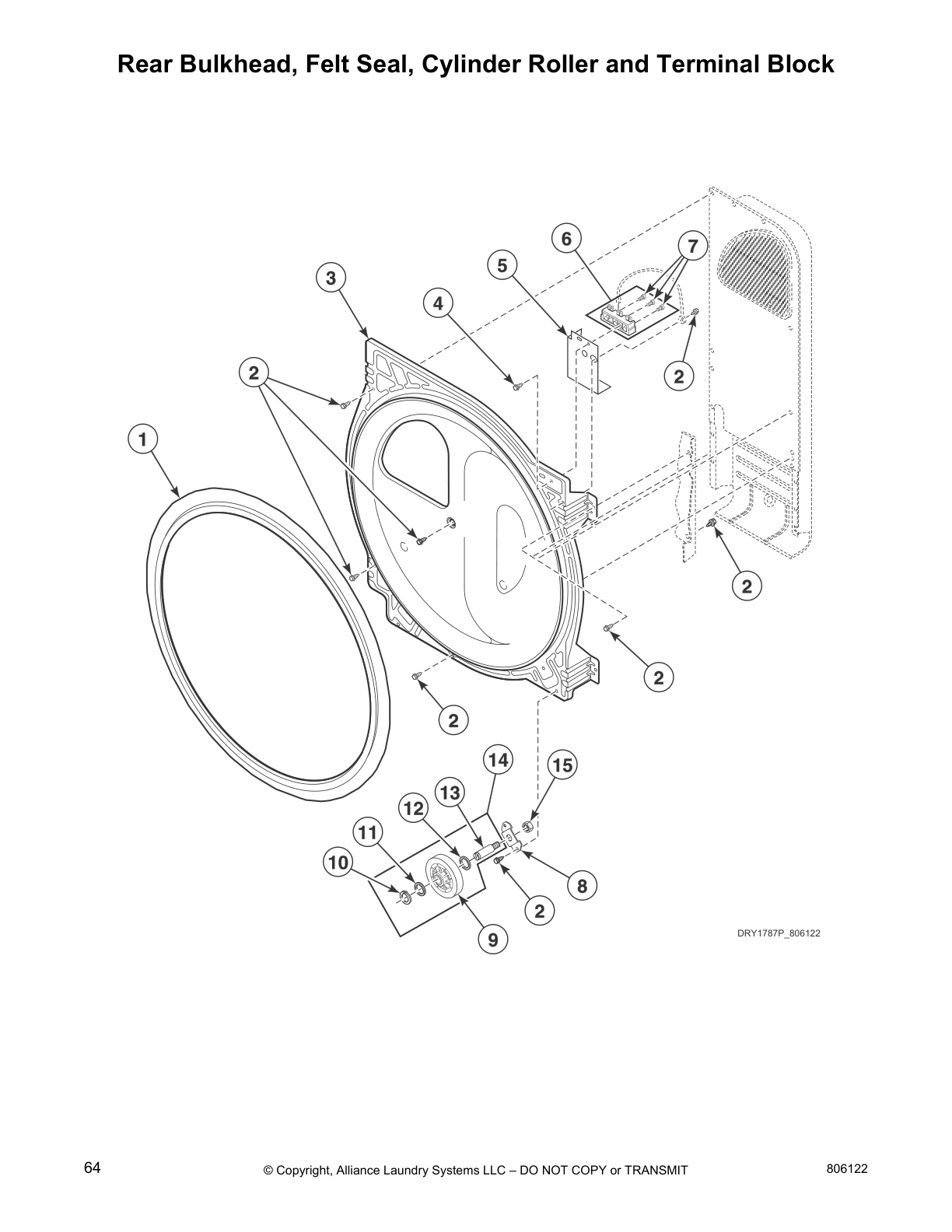

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

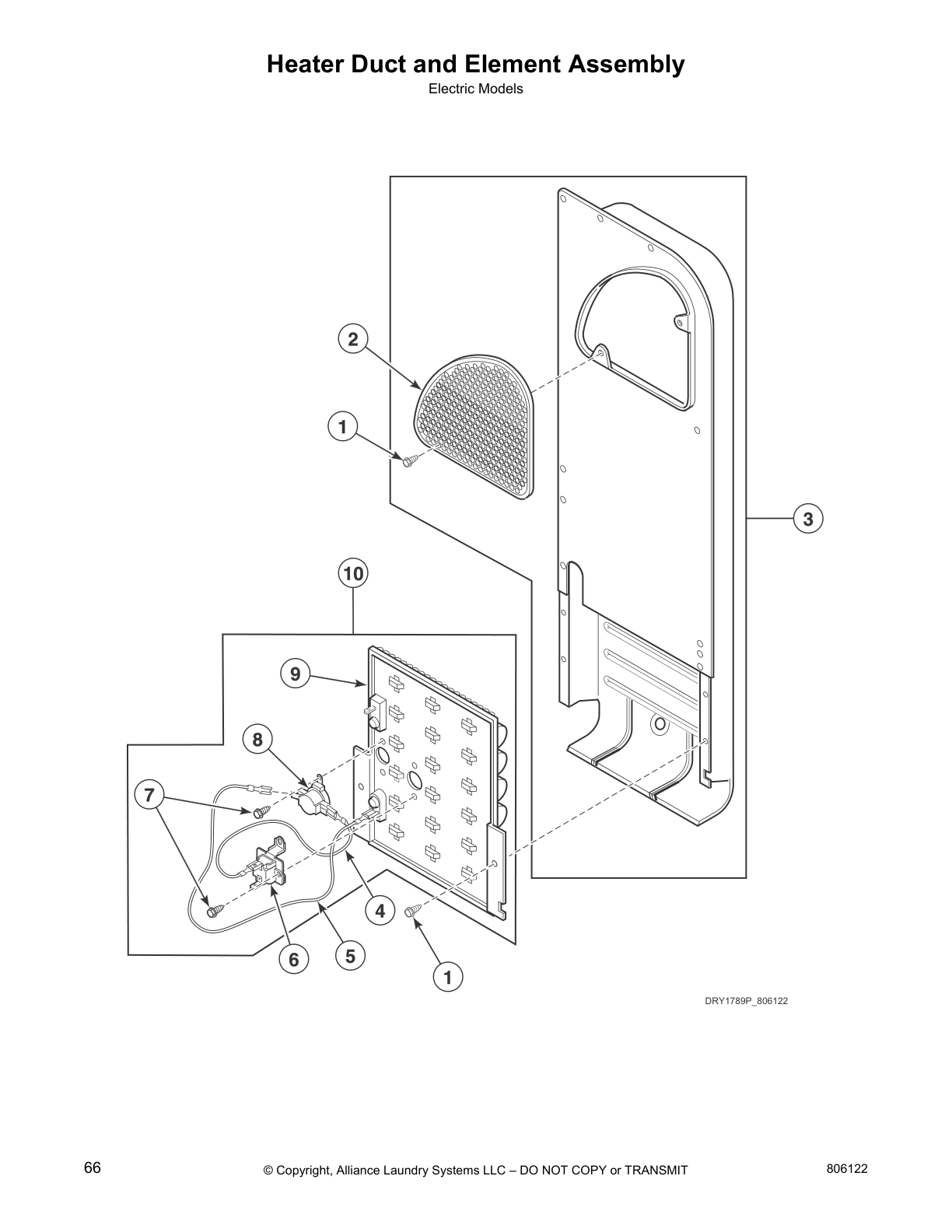

Heater Duct and Element Assembly
Heater Duct Assembly

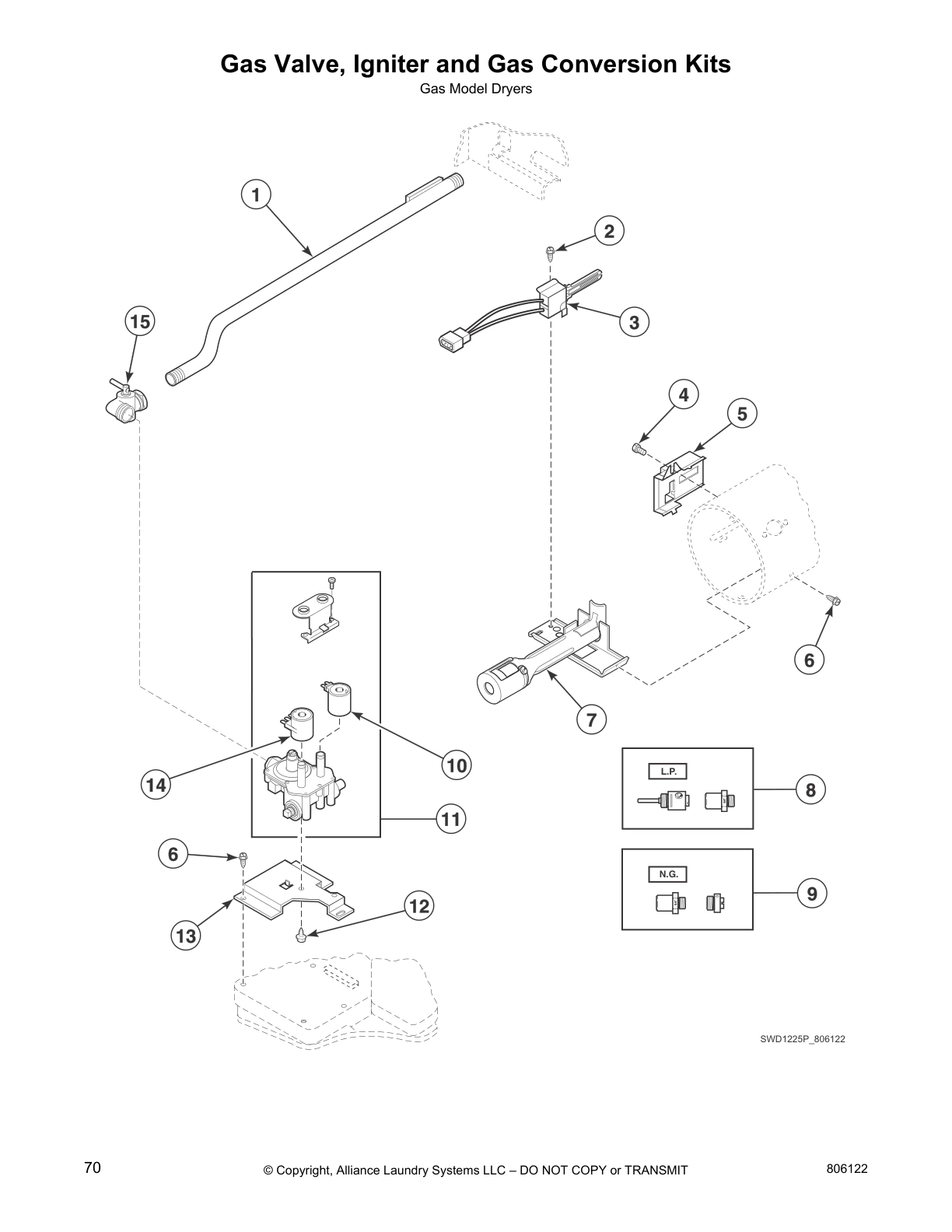

Gas Valve, Igniter and Gas Conversion Kits

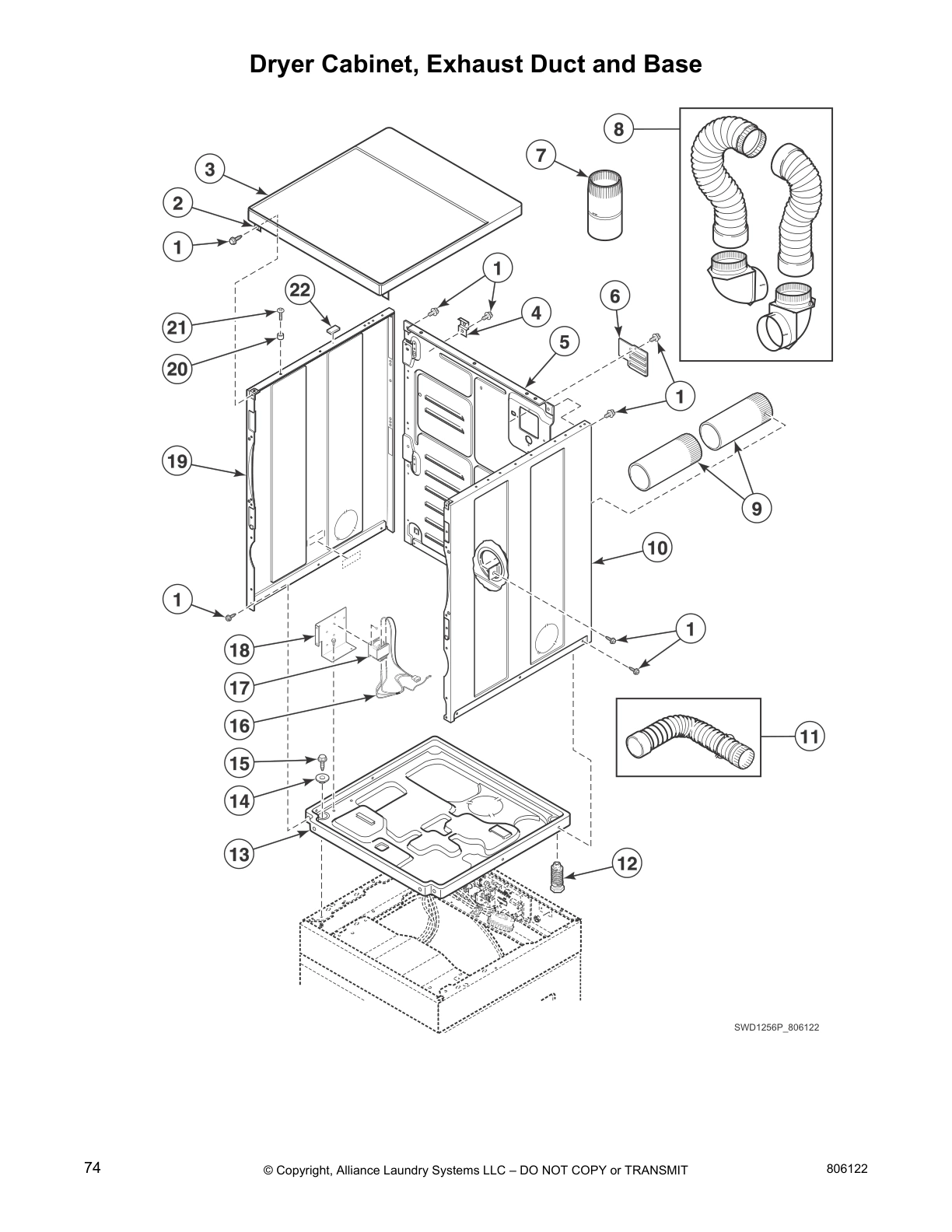

Dryer Cabinet, Exhaust Duct and Base

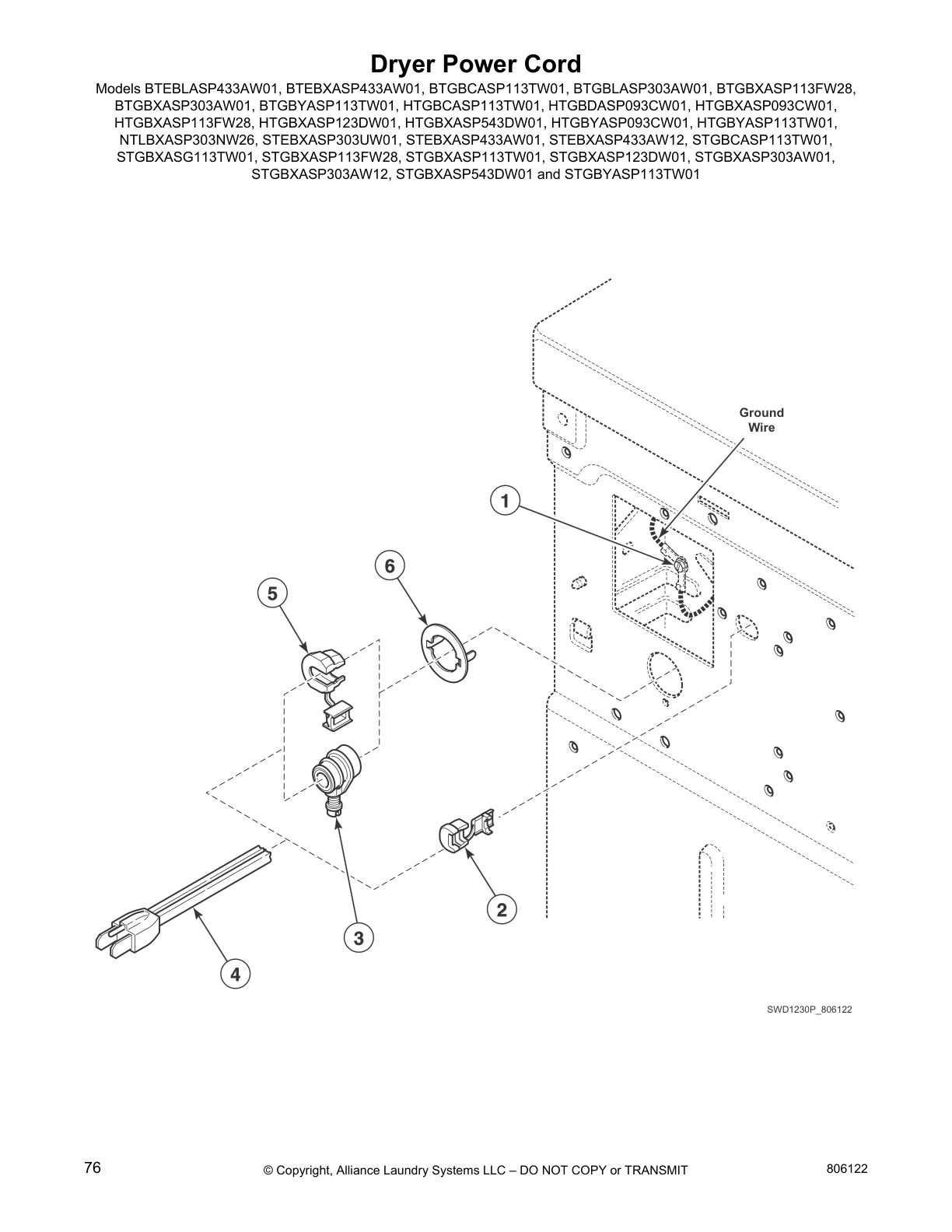

Dryer Power Cord

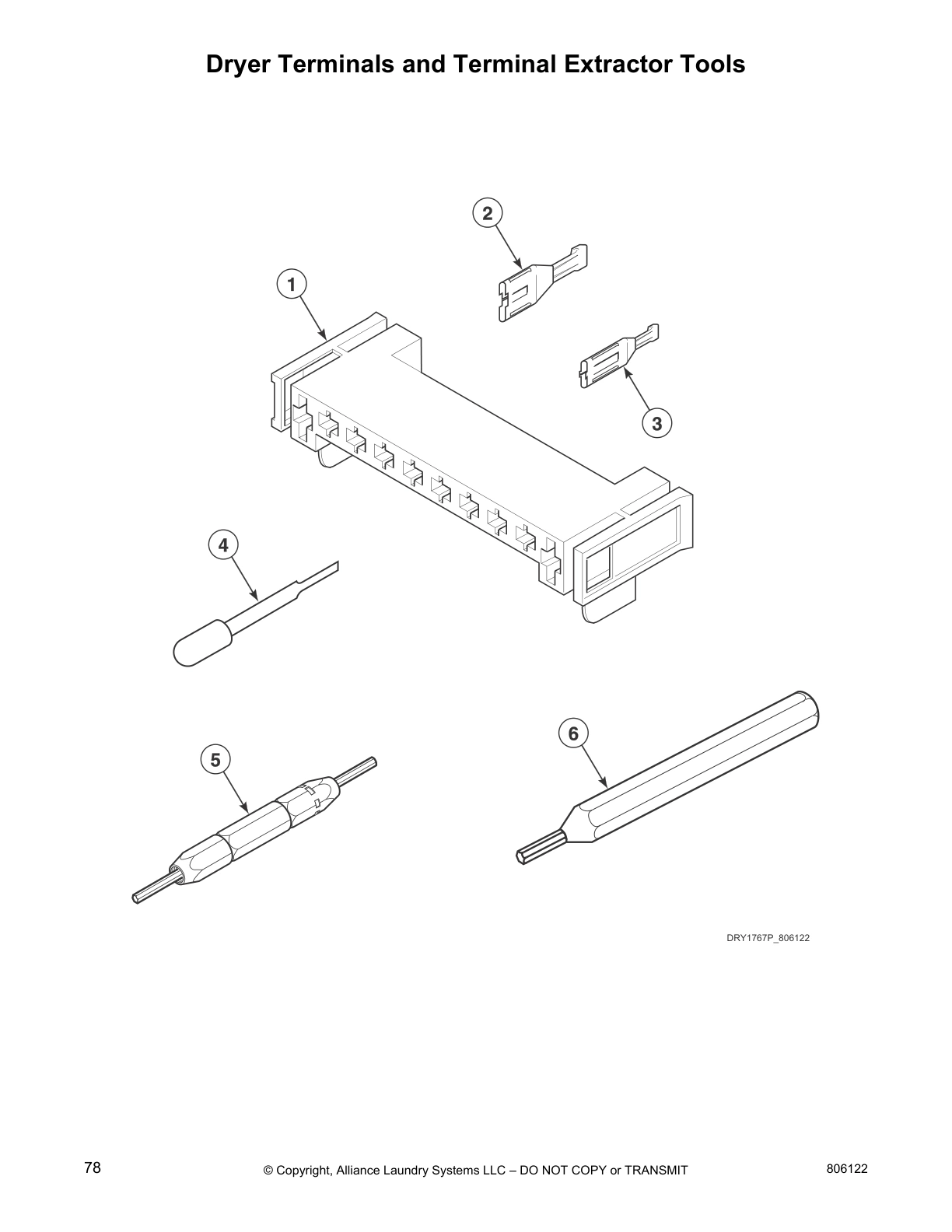

Dryer Terminals and Terminal Extractor Tools

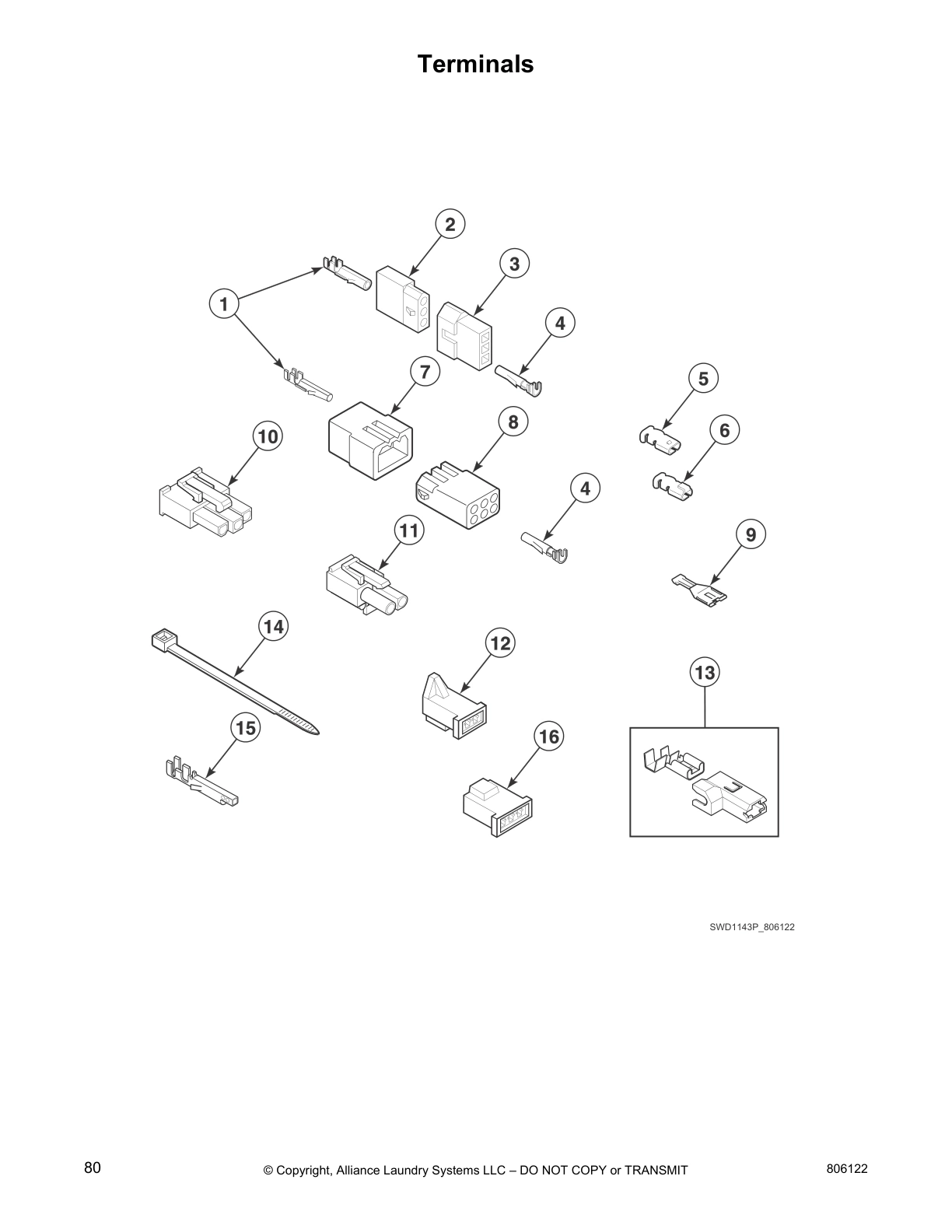

Terminals
Dryer Labels

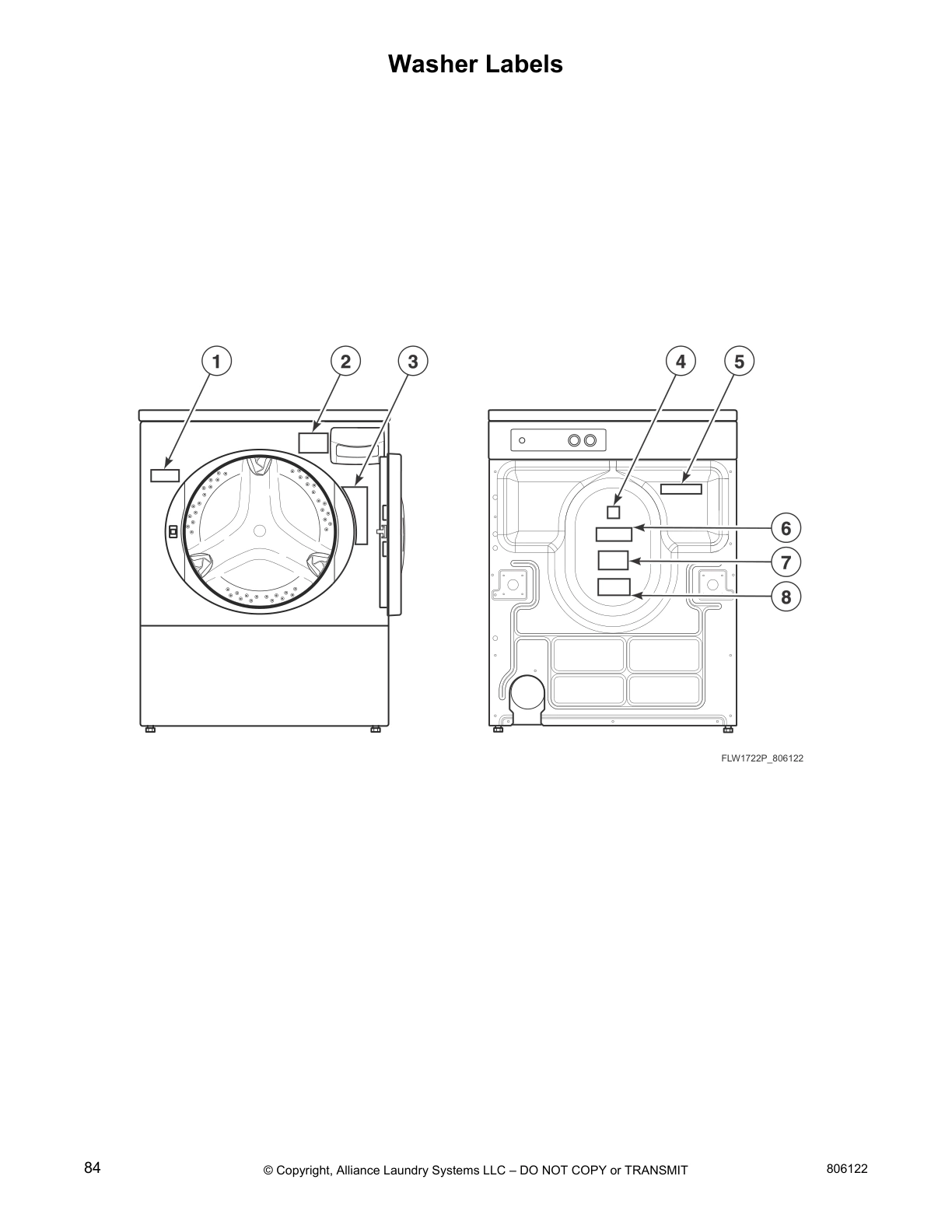

Washer Labels
Shipping Materials
Special Tools

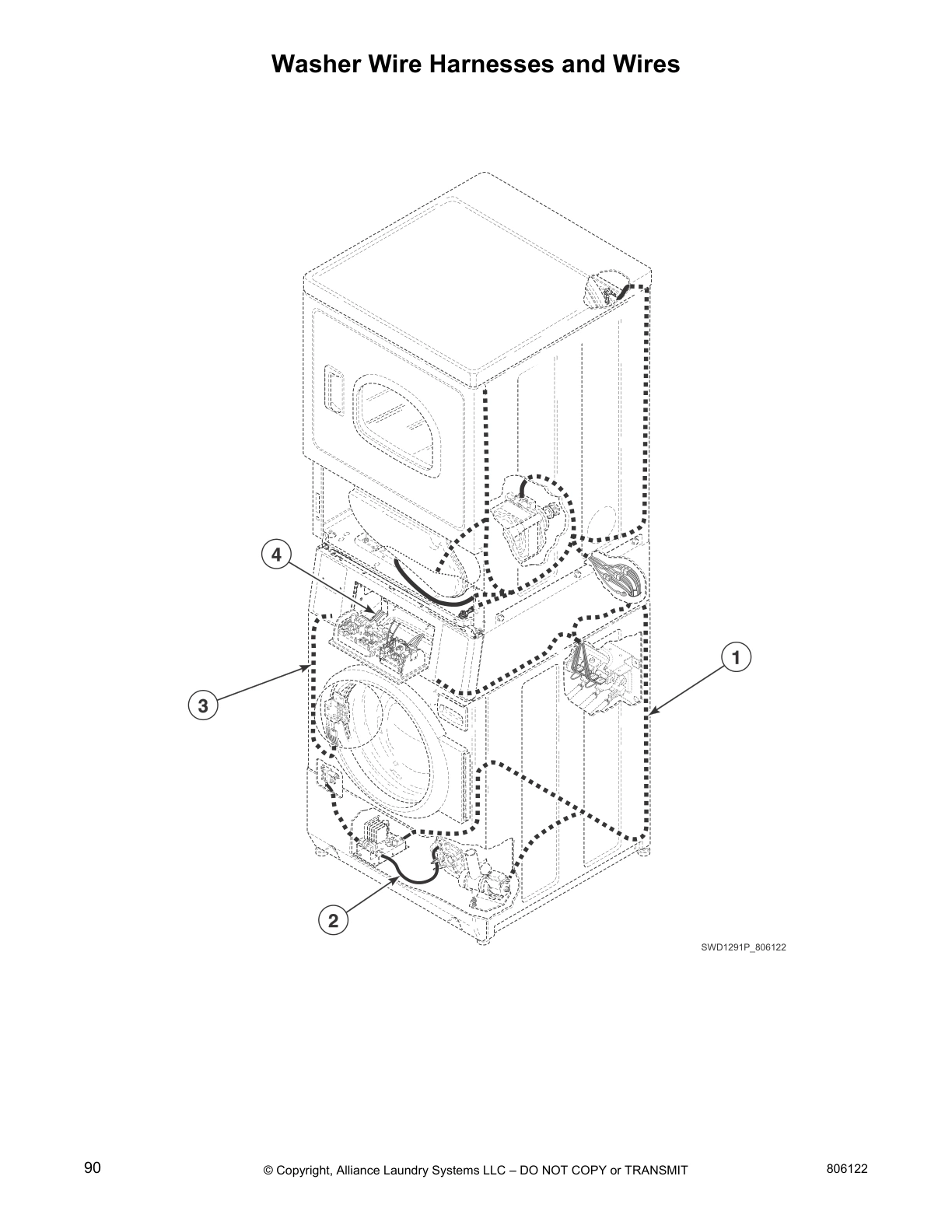

Washer Wire Harnesses and Wires

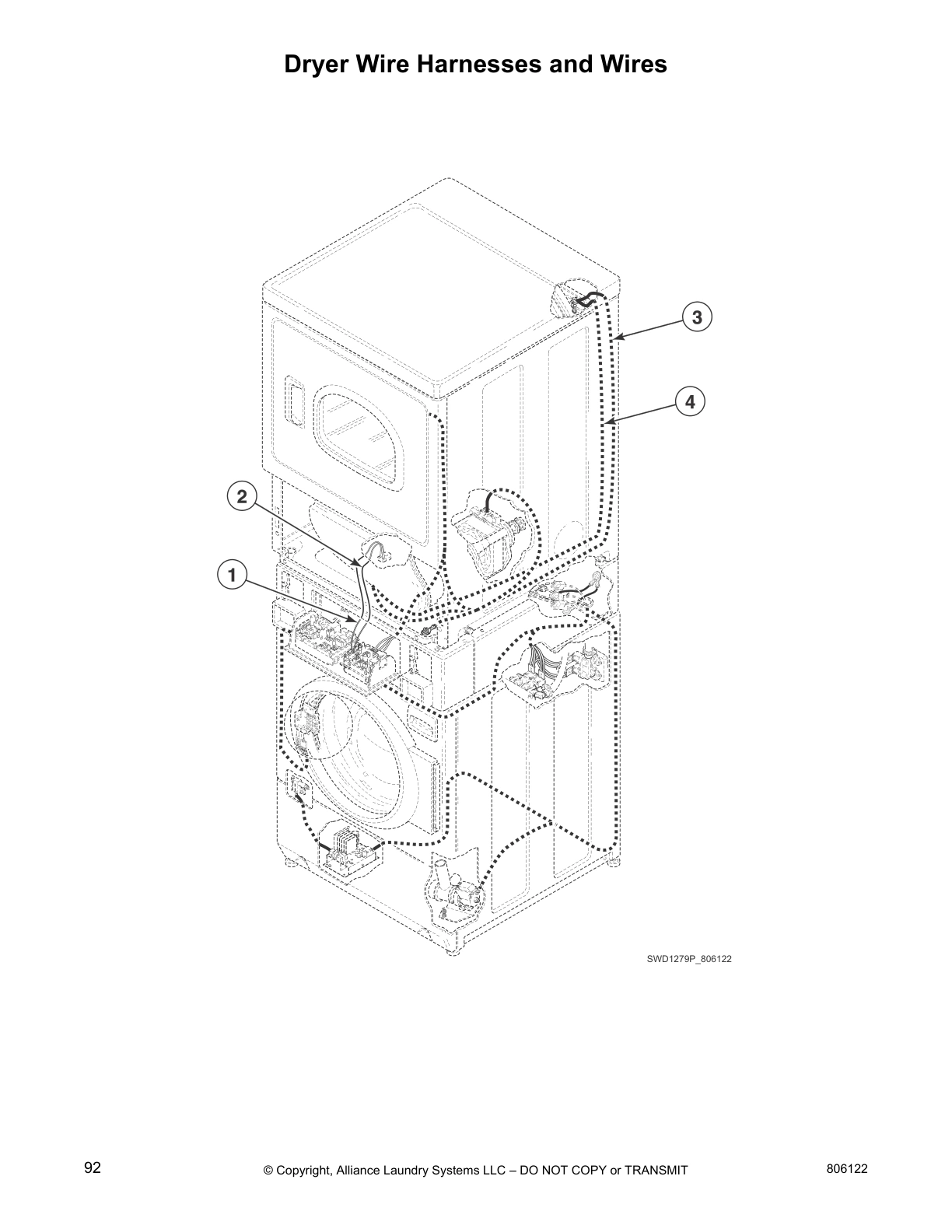

Dryer Wire Harnesses and Wires
Common parts from model Huebsch HTEBDASP283CW01 Stacked Washer and Dryer
SPQ 70441601P SPQ 70441601P Contact Us For Availability
SPQ D510100 SPQ D510100 Contact Us For Availability
SPQ 801993 SPQ 801993 Contact Us For Availability
1
Out-of-Balance Switch Assembly SPQ 803415 Contact Us For Availability
1
Front Bulkhead Assembly SPQ D510266P Contact Us For Availability
1
Front Control Harness SPQ 806031 Contact Us For Availability
1
Blower Housing Seal SPQ D510238P Contact Us For Availability
1
Pulley Bolt Tightening Fixture SPQ 802336 Contact Us For Availability
1
Drain Hose SPQ 27154 Contact Us For Availability
1
Speed Clip SPQ 28835 Contact Us For Availability
1
Bumper Pad SPQ 36226 Contact Us For Availability
1
Dispenser Plate SPQ 803843 Contact Us For Availability
1
Coin Drop Assembly SPQ 70441602 Contact Us For Availability
1
Shield Bracket SPQ 804018 Contact Us For Availability
1
Coin Identification Paper SPQ 38725 Contact Us For Availability
2
Nut SPQ RB170002 Contact Us For Availability
2
Pressure Sensor SPQ 203843 Contact Us For Availability
2
Seal Kit SPQ RB170001 Contact Us For Availability
2
Outlet Cover SPQ D518524 Contact Us For Availability
2
Water Hose SPQ F200116 Contact Us For Availability
2
Anti-Seize Compound SPQ 804393 Contact Us For Availability
2
Motor Harness SPQ 806029 Contact Us For Availability
2
Screw SPQ 806308 Contact Us For Availability
2
Air Duct Assembly SPQ D518433 Contact Us For Availability
2
Single Overlay SPQ 38717 Contact Us For Availability
2
Wrench SPQ 392P4 Contact Us For Availability
2
Membrane Switch SPQ D510036P Contact Us For Availability
2
Washer SPQ M400014 Contact Us For Availability
2
Electronic Coin Drop Kit SPQ CK110 Contact Us For Availability
2
Screw SPQ 801001 Contact Us For Availability
2
Dryer Door Window SPQ D510129W Contact Us For Availability
2
Bumper Pad SPQ D510146 Contact Us For Availability
3
Heater Duct Assembly SPQ D500820 Contact Us For Availability
3
Switch SPQ D512973 Contact Us For Availability
3
Washer SPQ 802254 Contact Us For Availability
3
Adhesive SPQ D511637P Contact Us For Availability
3
Hose Clamp SPQ 803829 Contact Us For Availability
3
Blower Housing SPQ D511969LG Contact Us For Availability
3
Door Lock Harness Assembly SPQ 806028 Contact Us For Availability
3
Door Strike Mount SPQ D503982P Contact Us For Availability
3
Key SPQ 210100 Contact Us For Availability
3
SPQ 804382 SPQ 804382 Contact Us For Availability
3
SPQ 804467 SPQ 804467 Contact Us For Availability
3
Nut SPQ 44087201 Contact Us For Availability
4
Cylinder Seal Assembly SPQ D510207P Contact Us For Availability
4
Lint Filter SPQ D503980W Contact Us For Availability
4
Blower Housing SPQ D511969WP Contact Us For Availability
4
Door Strike SPQ D510127 Contact Us For Availability
4
SPQ 804376P SPQ 804376P Contact Us For Availability
4
Shaft SPQ D510185 Contact Us For Availability
4
Front Panel Seal SPQ D511056 Contact Us For Availability
4
Fill Hose SPQ 803615 Contact Us For Availability
4
SPQ 803879 SPQ 803879 Contact Us For Availability
4
Dispenser Inlet Hose SPQ 803849 Contact Us For Availability
4
Damper SPQ D510136 Contact Us For Availability
5
Liner Door Seal SPQ D510181 Contact Us For Availability
5
SPQ D503980LG SPQ D503980LG Contact Us For Availability
5
Rear Bulkhead Assembly SPQ D511082P Contact Us For Availability
5
Front Panel SPQ D510066WP Contact Us For Availability
5
Cylinder Baffle SPQ D510102W Contact Us For Availability
5
Cabinet Panel Kit SPQ 800004WP Contact Us For Availability
5
SPQ 804374P SPQ 804374P Contact Us For Availability
5
Motor Mount Clamp SPQ D510180 Contact Us For Availability
5
Flexible Venting Kit SPQ D514632P Contact Us For Availability
5
Pump-to-Elbow Hose SPQ 35766 Contact Us For Availability
5
Nut SPQ 687500 Contact Us For Availability
5
SPQ 802343 SPQ 802343 Contact Us For Availability
5
Strain Relief SPQ 38384 Contact Us For Availability
6
Cylinder Belt SPQ D511255P Contact Us For Availability
6
Terminal Block Shield SPQ D510905WP Contact Us For Availability
6
Cylinder Assembly SPQ D510265WP Contact Us For Availability
6
Dispenser Assembly SPQ 803698 Contact Us For Availability
6
Exhaust Duct SPQ D510903 Contact Us For Availability
6
Meter Case Assembly SPQ 807396W Contact Us For Availability
7
SPQ 56461P SPQ 56461P Contact Us For Availability
7
Motor Pulley SPQ D500011 Contact Us For Availability
7
Detergent Hose SPQ 804717 Contact Us For Availability
7
Door Liner Grill SPQ D510147P Contact Us For Availability
7
Terminal Block Assembly SPQ D501285 Contact Us For Availability
7
Screw SPQ 62588 Contact Us For Availability
7
Limit Thermostat SPQ D518256 Contact Us For Availability
8
Motor and Pulley Assembly SPQ D511629P Contact Us For Availability
8
SPQ 52549 SPQ 52549 Contact Us For Availability
8
Cylinder Glide SPQ D513710 Contact Us For Availability
8
Cylinder Roller Bracket SPQ D510237 Contact Us For Availability
8
Liner and Seal Assembly SPQ D503870W Contact Us For Availability
8
SPQ 33562 SPQ 33562 Contact Us For Availability
8
Screw SPQ D503661 Contact Us For Availability
9
SPQ D510142P SPQ D510142P Contact Us For Availability
9
Cylinder Roller SPQ D510190P Contact Us For Availability
9
Central Pay Kit SPQ 54612 Contact Us For Availability
9
Cylinder Glide Bracket SPQ D510145 Contact Us For Availability
9
SPQ D514250WP SPQ D514250WP Contact Us For Availability
9
SPQ 808095 SPQ 808095 Contact Us For Availability
9
SPQ D516196 SPQ D516196 Contact Us For Availability
9
Shipping Plate SPQ 803789 Contact Us For Availability
9
SPQ 800310 SPQ 800310 Contact Us For Availability
9
Motor Hub Ring Kit SPQ 590P3 Contact Us For Availability
9
Expansion Clip SPQ 70240301 Contact Us For Availability
9
SPQ M400080 SPQ M400080 Contact Us For Availability
10
Blower Fan Assembly SPQ D510139P Contact Us For Availability
10
Glide Kit SPQ RB170003 Contact Us For Availability
10
Retaining Ring SPQ 23748 Contact Us For Availability
10
Door Hinge SPQ 802934 Contact Us For Availability
10
Cabinet Side Panel SPQ D510002WP Contact Us For Availability
10
Dispenser Handle SPQ 804227WP Contact Us For Availability
10
Panel Locator SPQ 56079 Contact Us For Availability
10
Hose Clip SPQ 36985 Contact Us For Availability
10
Overlay Kit SPQ 38676 Contact Us For Availability
11
Pressure Sensor Tube Assembly SPQ 804483 Contact Us For Availability
11
Idler Lever and Wheel Assembly SPQ D500824 Contact Us For Availability
11
Washer SPQ 807679 Contact Us For Availability
11
Nut SPQ 23951 Contact Us For Availability
11
Hinge SPQ D505295 Contact Us For Availability
11
Side Panel Kit SPQ 806492 Contact Us For Availability
12
Nut SPQ D516792 Contact Us For Availability
12
Door Pull and Wedge Kit SPQ D511036 Contact Us For Availability
12
Leveling Leg SPQ D510135 Contact Us For Availability
12
Screw SPQ 685831 Contact Us For Availability
12
Glass Mounting Clip SPQ 802700 Contact Us For Availability
12
Screw SPQ 201375P Contact Us For Availability
13
Door Catch Assembly SPQ D510177 Contact Us For Availability
13
Rubber Foot SPQ D501855 Contact Us For Availability
13
Grommet SPQ 29175 Contact Us For Availability
13
Balance Ring Assembly SPQ M403958 Contact Us For Availability
13
Dryer Base SPQ D514245 Contact Us For Availability
14
Rubber Foot SPQ 34318 Contact Us For Availability
14
Door Assembly SPQ D510103WP Contact Us For Availability
14
Shaft SPQ D504082 Contact Us For Availability
14
Washer SPQ 26509 Contact Us For Availability
14
Outer Tub Assembly SPQ 803864 Contact Us For Availability
14
Harness Strap SPQ 55881 Contact Us For Availability
14
Door Pull and Wedge Kit SPQ 44071201 Contact Us For Availability
15
Hinge Hole Plug SPQ D510186 Contact Us For Availability
15
Anchor Floor Mount Assembly SPQ 802844P Contact Us For Availability
15
Door Handle Wedge SPQ D516737W Contact Us For Availability
16
Idler Spring SPQ D510523 Contact Us For Availability
16
Pump Housing Assembly SPQ 802429P Contact Us For Availability
17
Wire Ring and Spring SPQ 806466 Contact Us For Availability
17
Tub Front SPQ 803770 Contact Us For Availability
17
Pump Housing SPQ 802434P Contact Us For Availability
17
Door Strike Mount SPQ D515681 Contact Us For Availability
17
Idler Lever SPQ D502535 Contact Us For Availability
18
Hose Clamp SPQ 802281 Contact Us For Availability
18
Foreign Object Deflector SPQ 806361 Contact Us For Availability
18
Gasket SPQ 802428 Contact Us For Availability
19
Panel Locator SPQ D510001WP Contact Us For Availability
19
Tub Front Seal SPQ 806313 Contact Us For Availability
19
Standpipe Strap SPQ 802427 Contact Us For Availability
20
Clamp Ring SPQ 803801 Contact Us For Availability
20
Front Panel SPQ 802206 Contact Us For Availability
20
Sealant SPQ 802426P Contact Us For Availability
22
Washer SPQ 803802 Contact Us For Availability
22
Cabinet Rear Panel SPQ 56128 Contact Us For Availability
24
Door Glass SPQ 36020 Contact Us For Availability
26
Door Catch Assembly SPQ 804617W Contact Us For Availability
26
Pop Rivet SPQ 802596 Contact Us For Availability
27
SPQ 805548 SPQ 805548 Contact Us For Availability
NI
SPQ D510708P SPQ D510708P Contact Us For Availability
NI
SPQ 802803 SPQ 802803 Contact Us For Availability
NI
SPQ D510189 SPQ D510189 Contact Us For Availability
NI
Control Assembly SPQ D511867P Contact Us For Availability
NI
Felt Pad SPQ D503688 Contact Us For Availability
NI
SPQ CK115 SPQ CK115 Contact Us For Availability
NI
Mixing Valve Screen SPQ 24122 Contact Us For Availability
NI
Pressure Sensor Harness SPQ 804433 Contact Us For Availability
NI
SPQ CK096 SPQ CK096 Contact Us For Availability
NI
SPQ D510324P SPQ D510324P Contact Us For Availability
NI
SPQ 203423 SPQ 203423 Contact Us For Availability
NI
Wire Guard SPQ 38462P Contact Us For Availability
NI
SPQ 201595P SPQ 201595P Contact Us For Availability
NI
Porcelain Touch-Up Paint SPQ 803859 Contact Us For Availability
NI
SPQ 804339P SPQ 804339P Contact Us For Availability
NI
SPQ 45001 SPQ 45001 Contact Us For Availability
× ![]()
