Model Speed Queen STMNXASG113JW01 Stacked Washer and Dryer – Common Parts & Diagrams
Control Panel
Washer Control

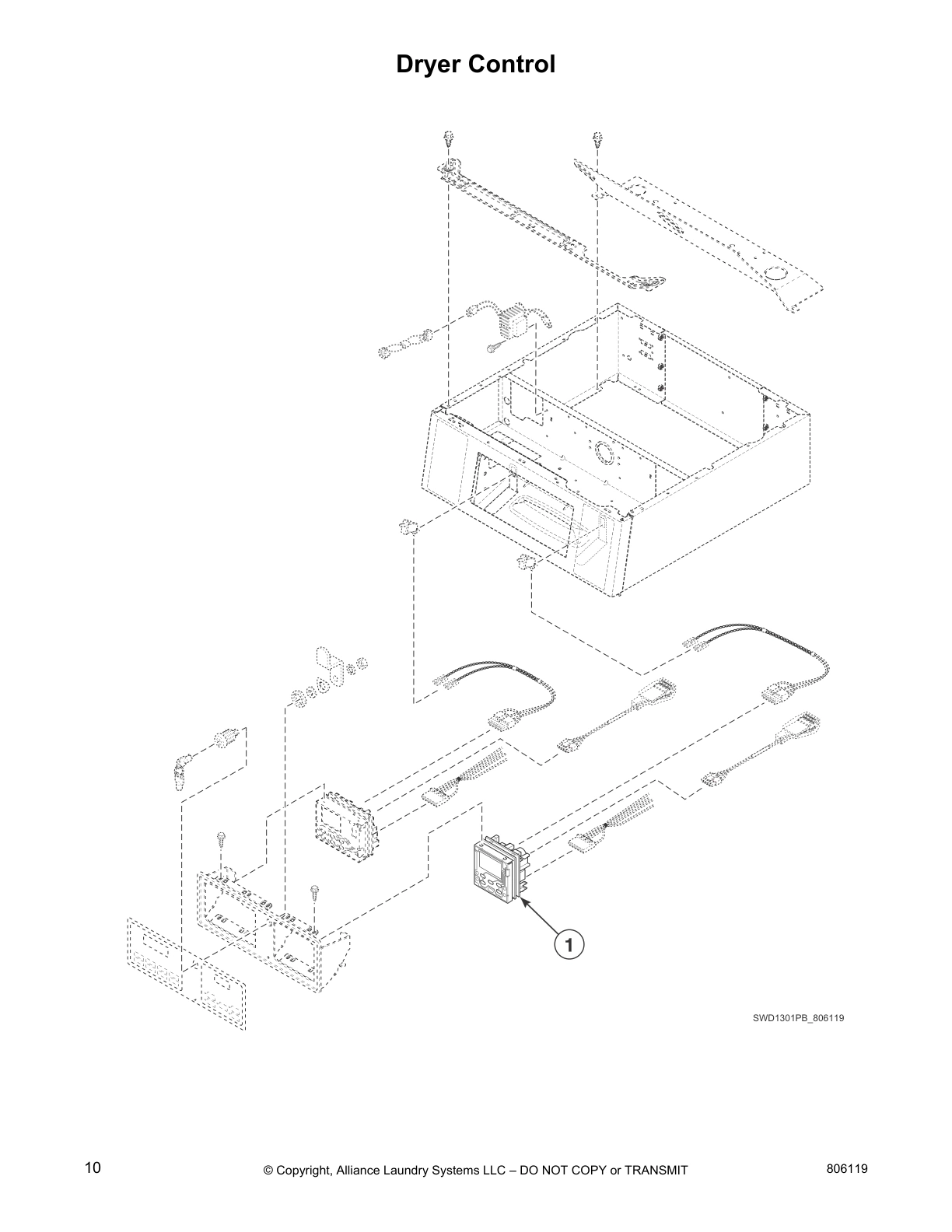

Dryer Control

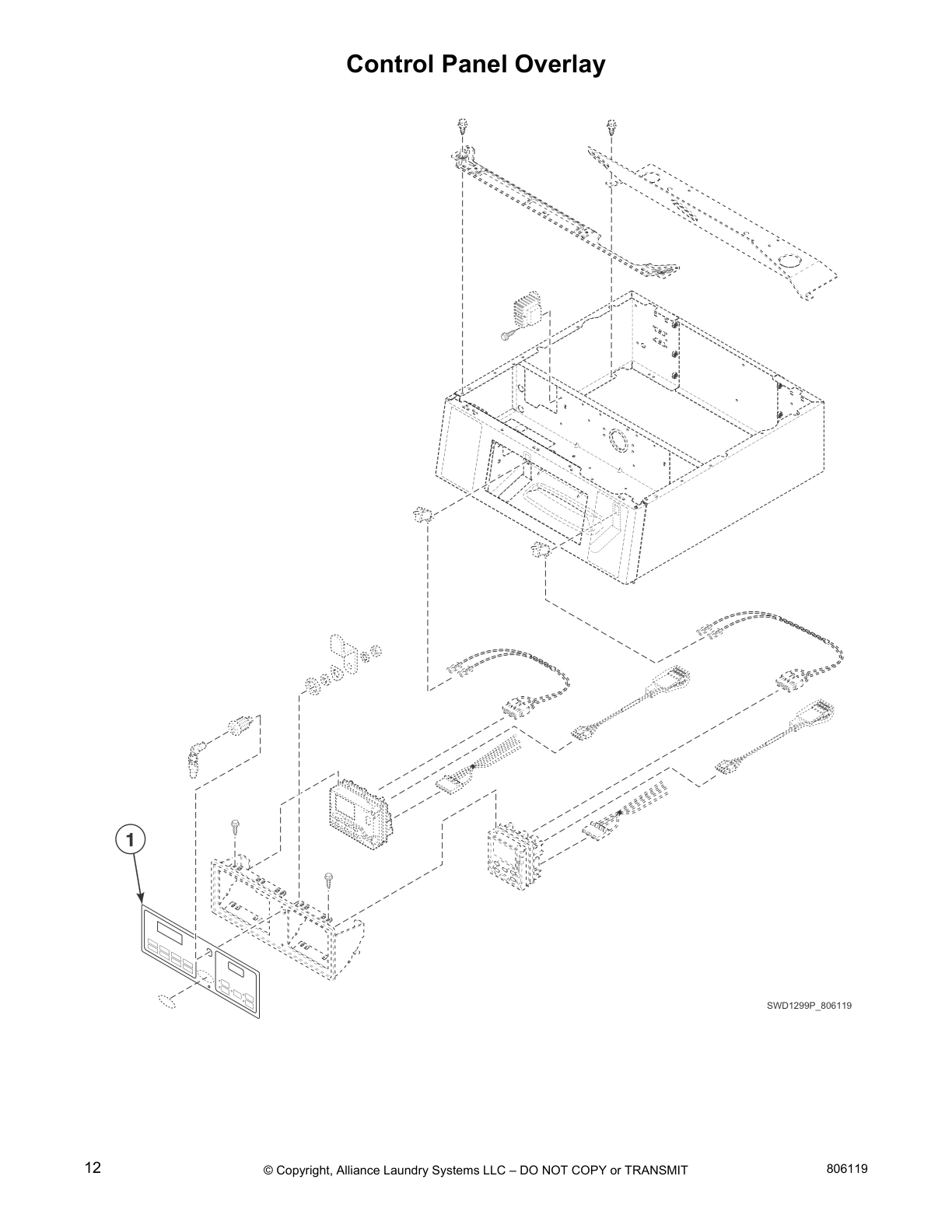

Control Panel Overlay

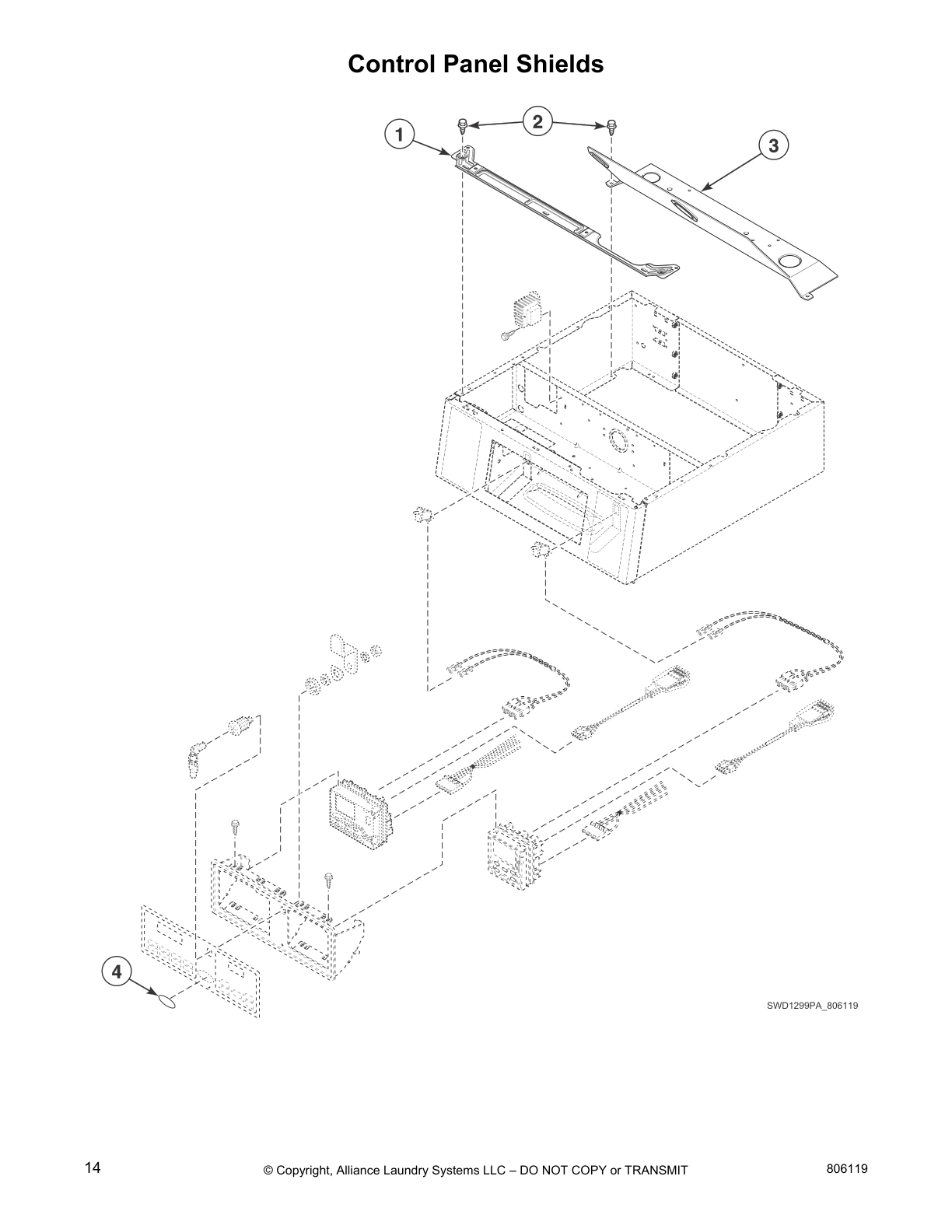

Control Panel Shields

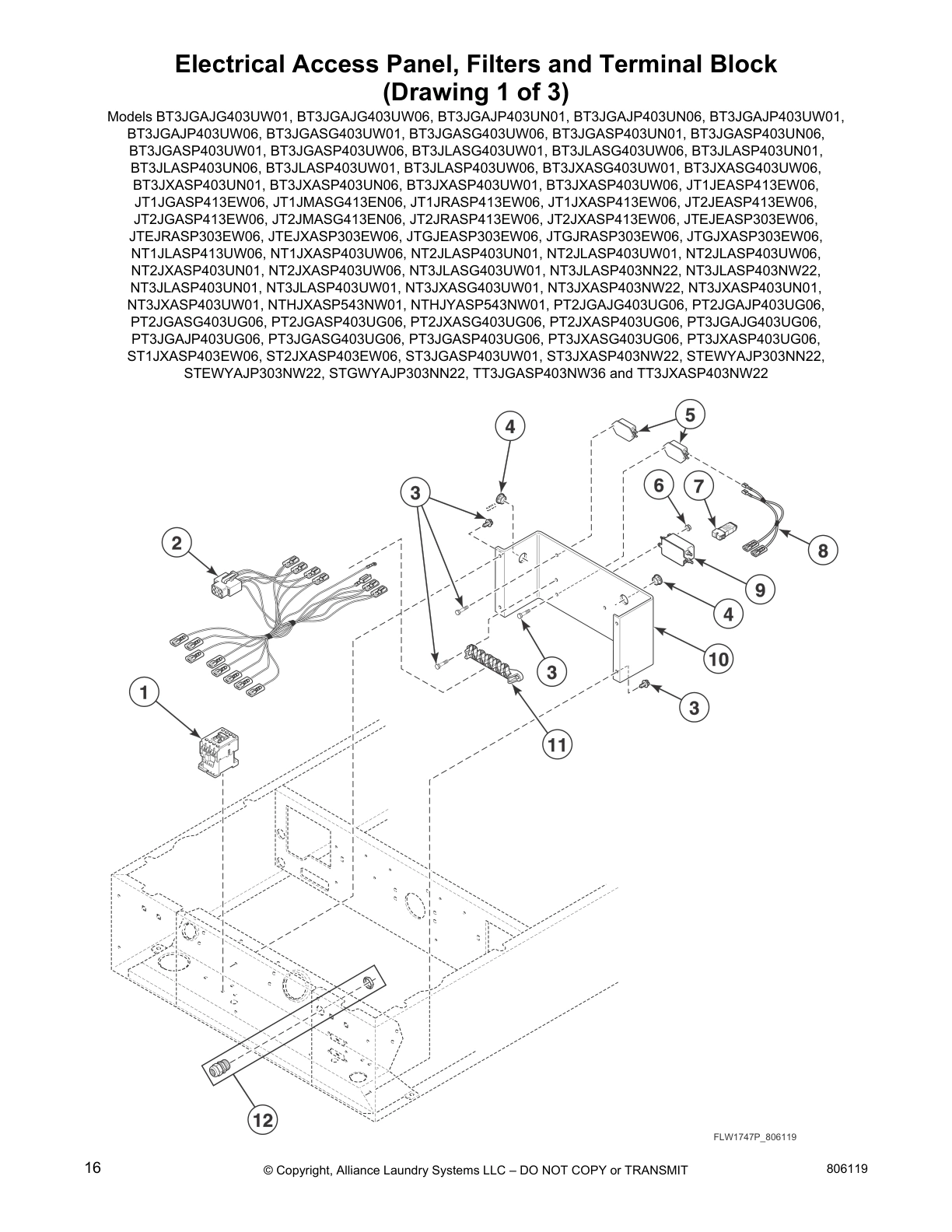

Electrical Access Panel, Filters and Terminal Block
(Drawing 1 of 3)
Electrical Access Panel, Filters and Terminal Block

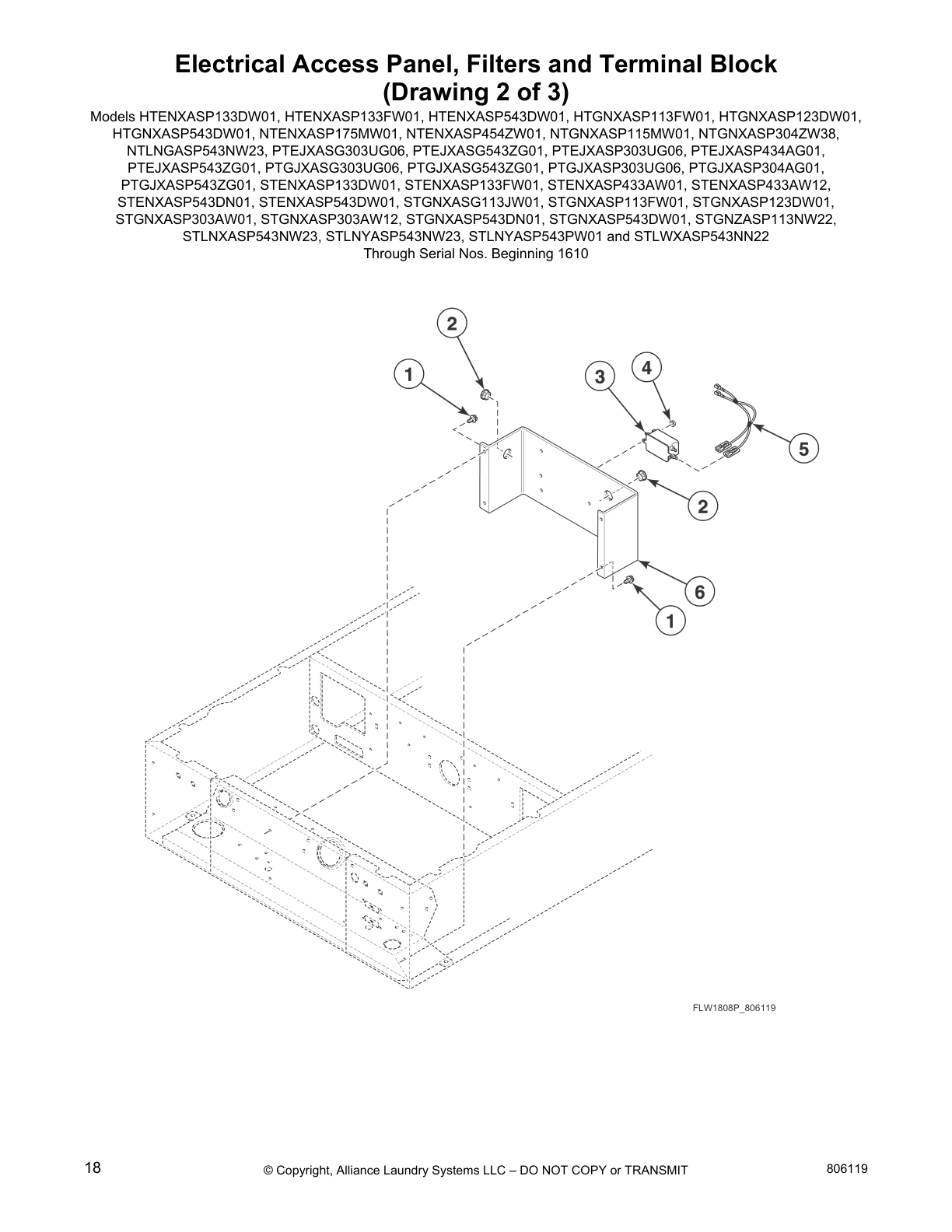

(Drawing 2 of 3)
Electrical Access Panel, Filters and Terminal Block

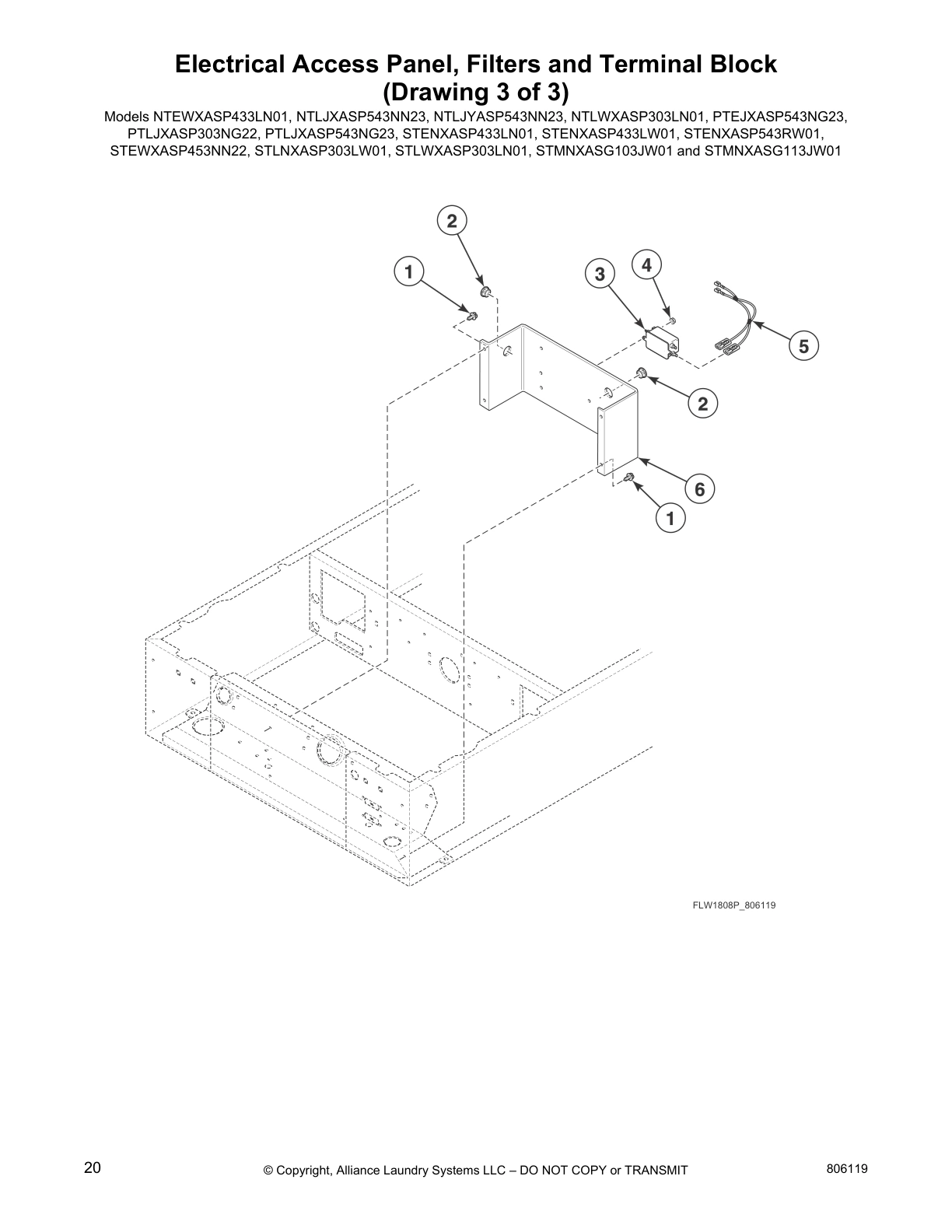

(Drawing 3 of 3)

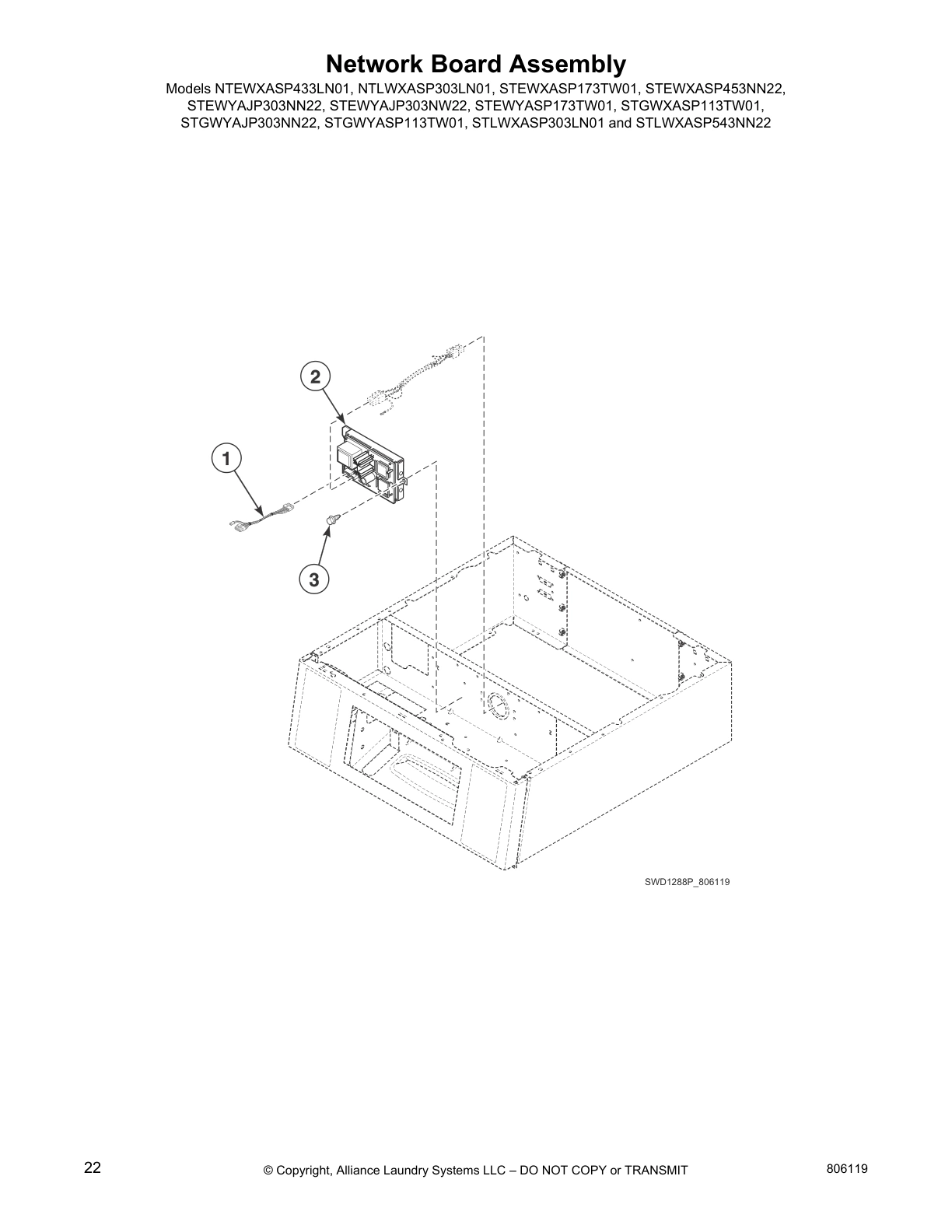

Network Board Assembly

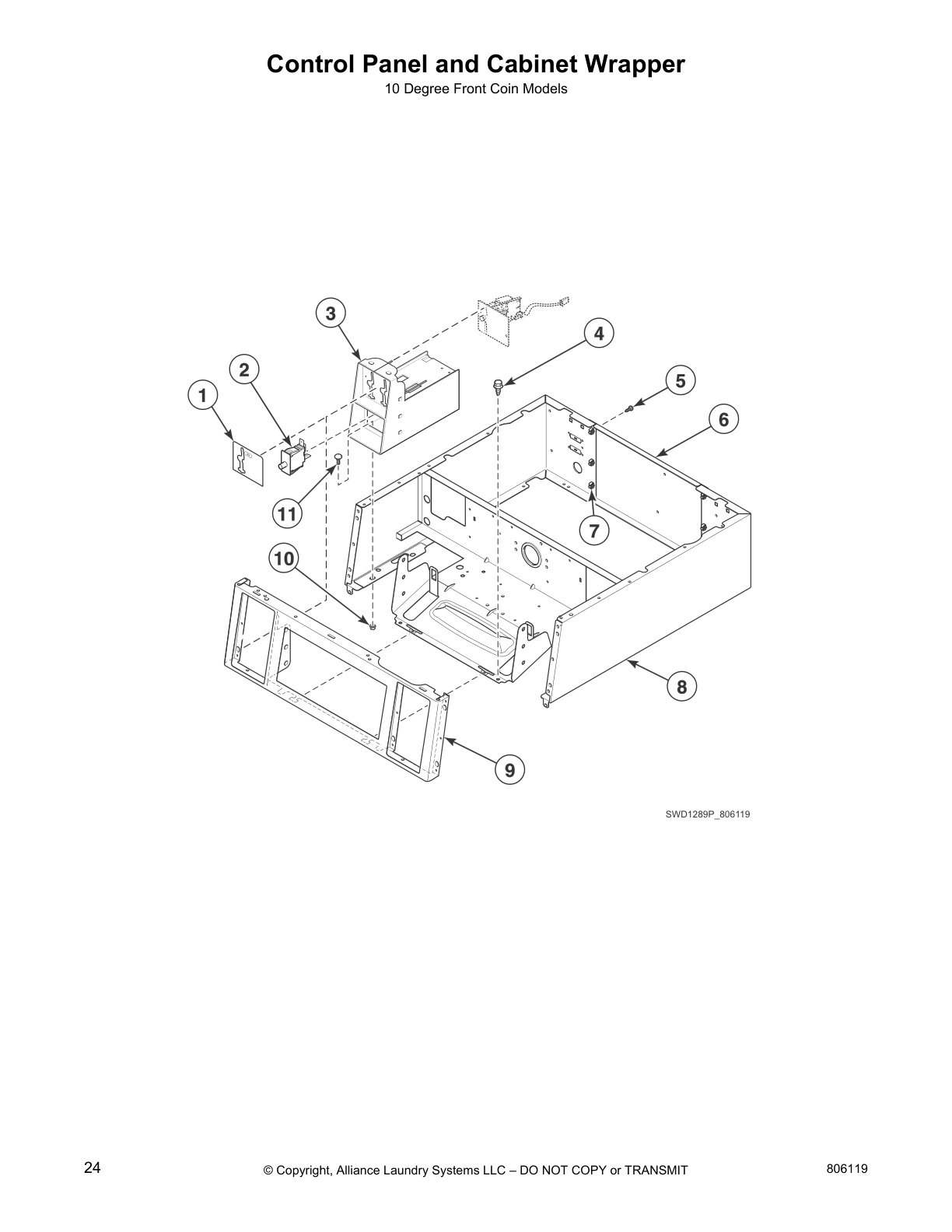

Control Panel and Cabinet Wrapper

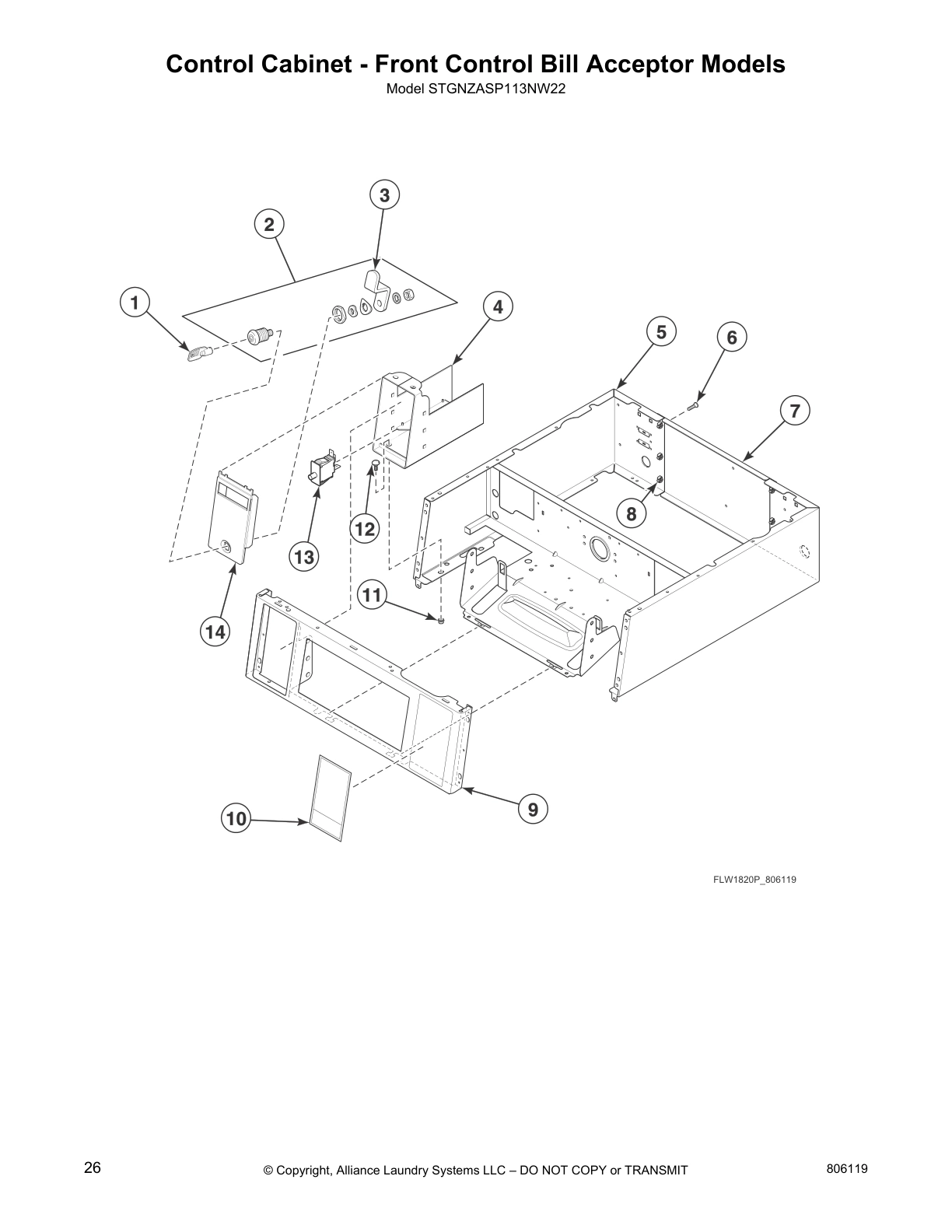

Control Cabinet - Front Control Bill Acceptor Models
Non-Electronic Coin Drop

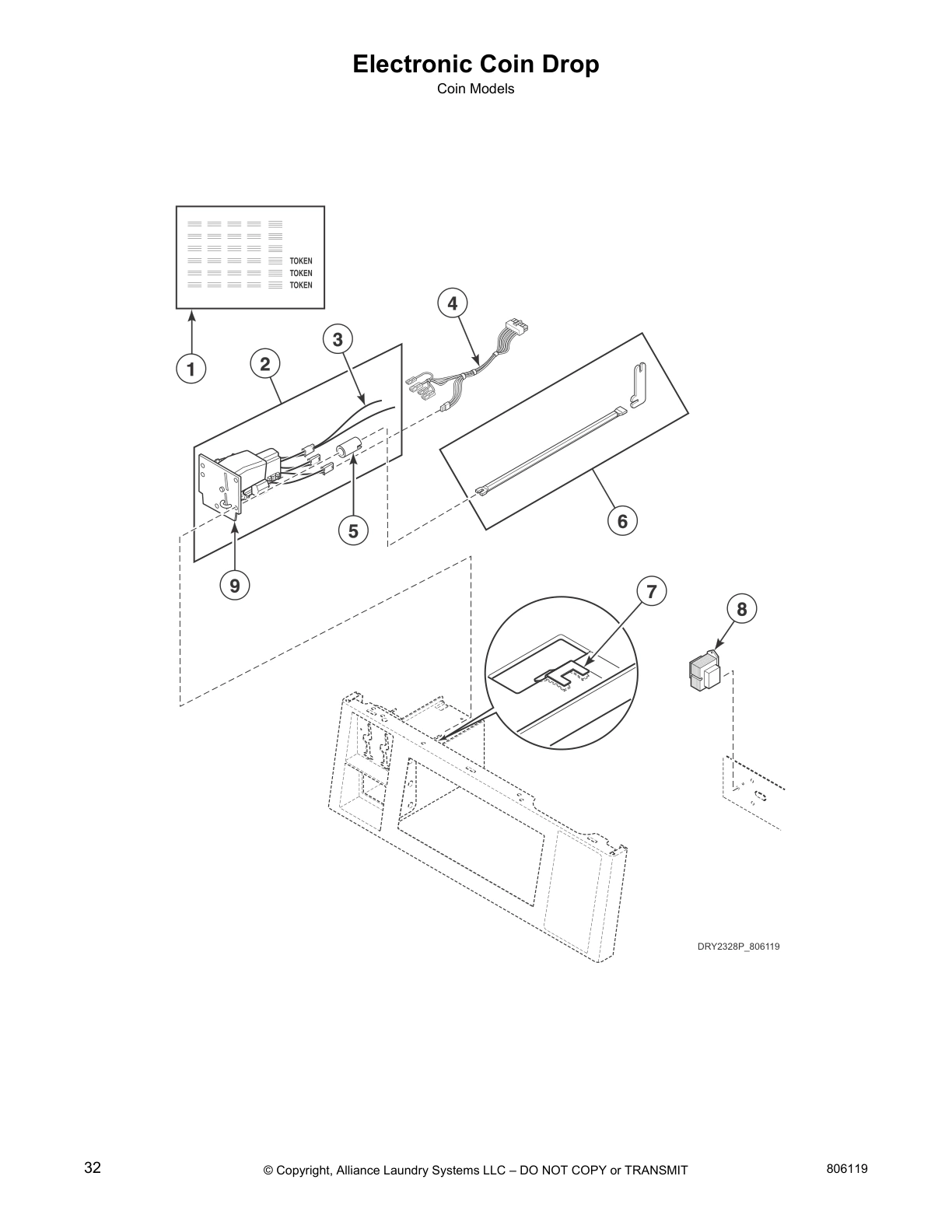

Electronic Coin Drop

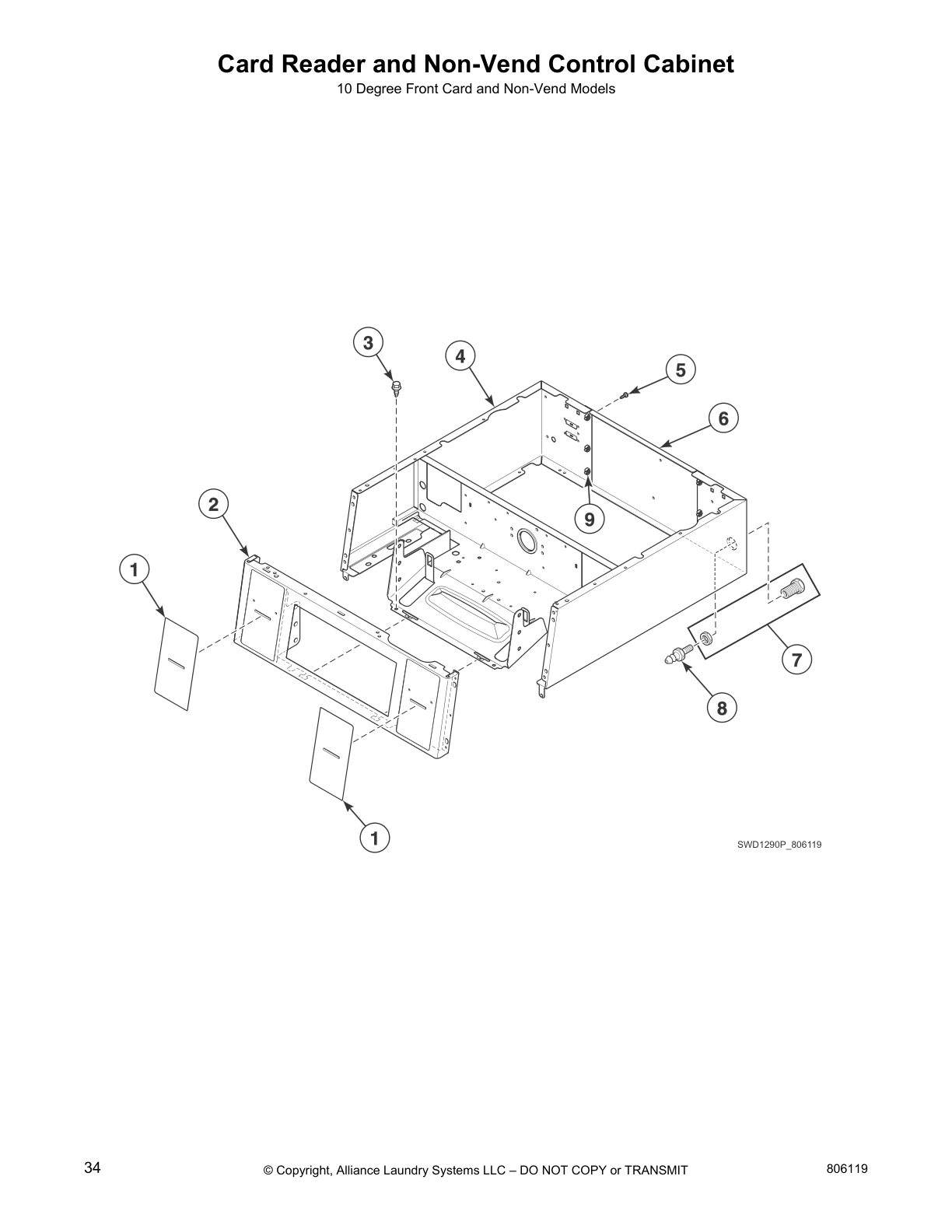

Card Reader and Non-Vend Control Cabinet
Front Panel, Door Assembly and Door Seal

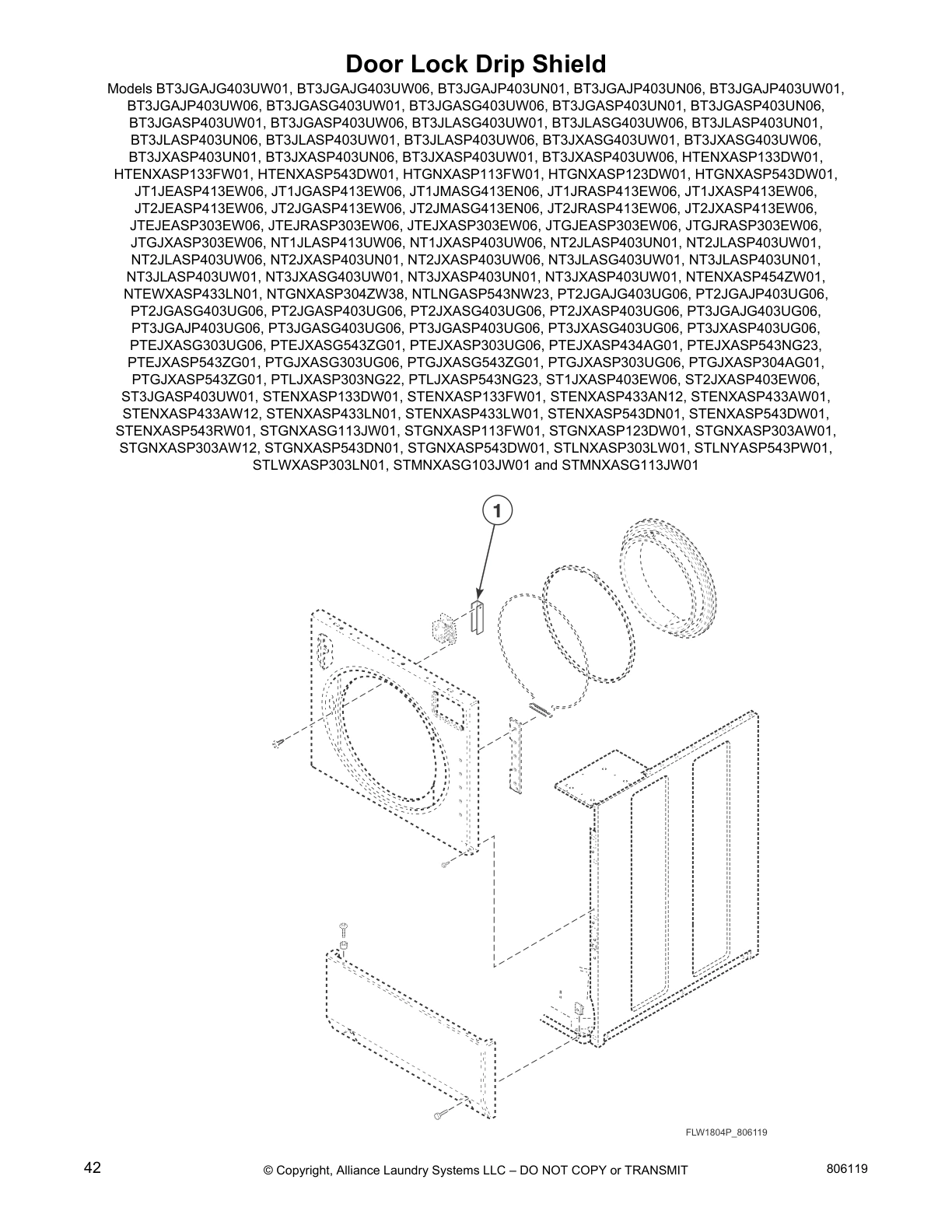

Door Lock Drip Shield

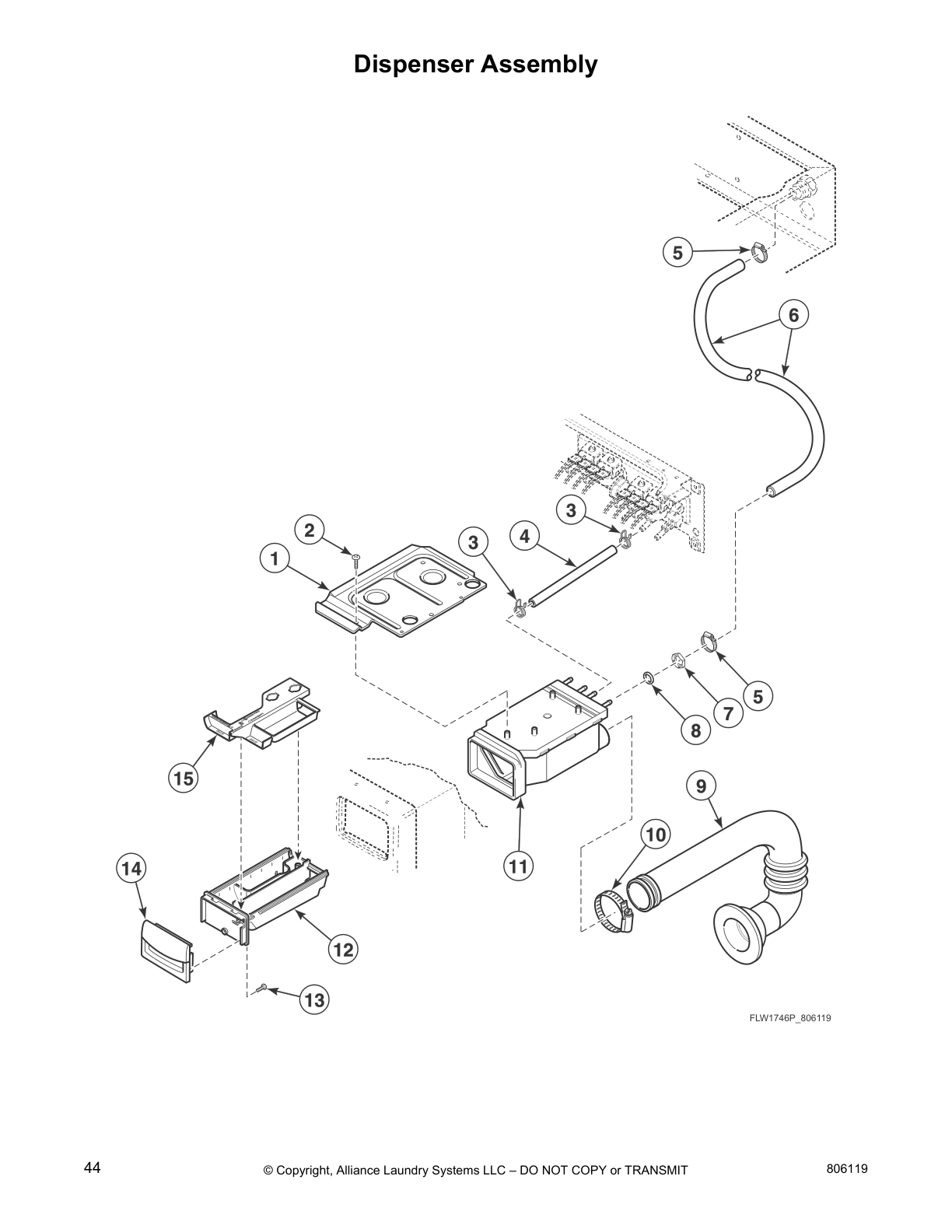

Dispenser Assembly
Mixing Valve

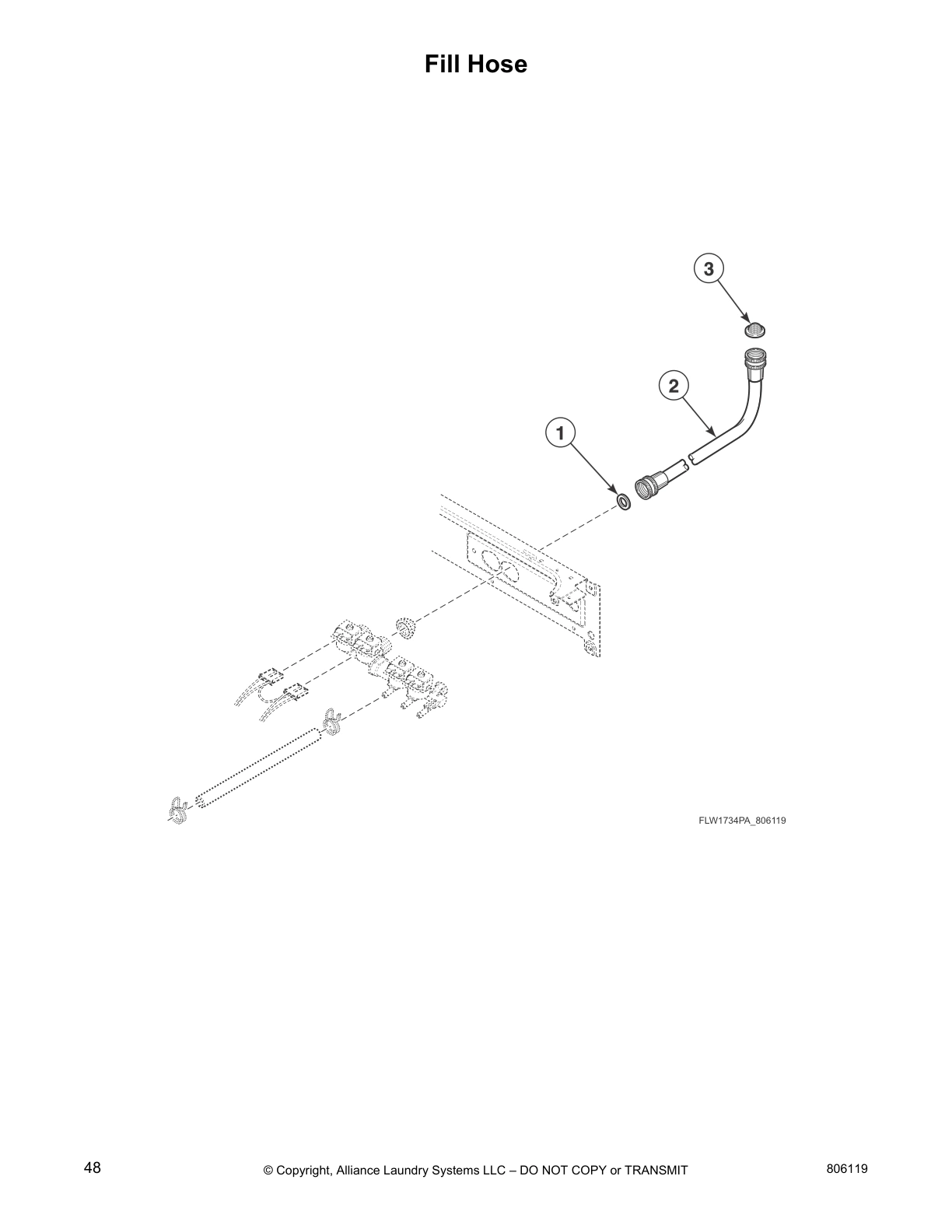

Fill Hose

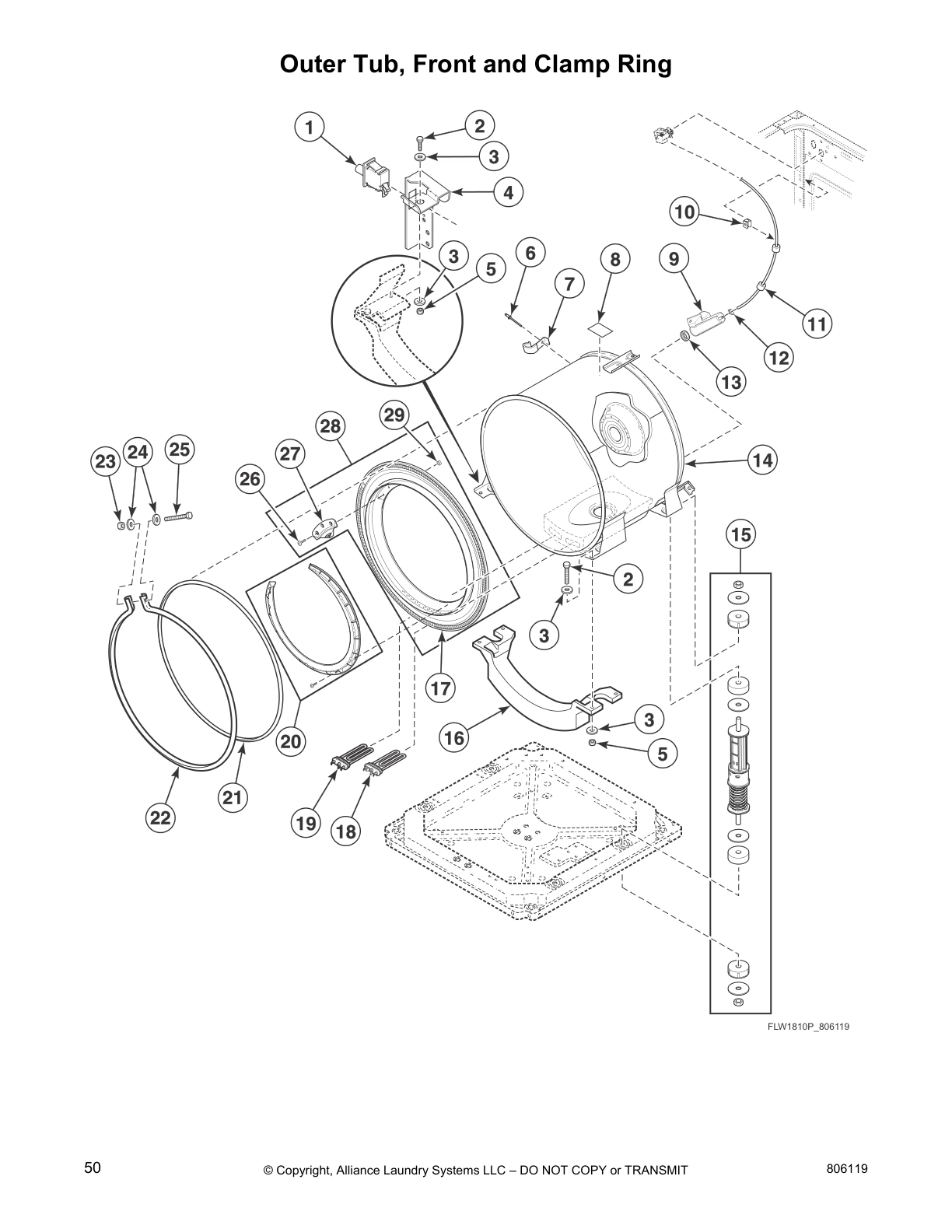

Outer Tub, Front and Clamp Ring
Inner Basket, Trunnion, Bearing Housing and Pulley

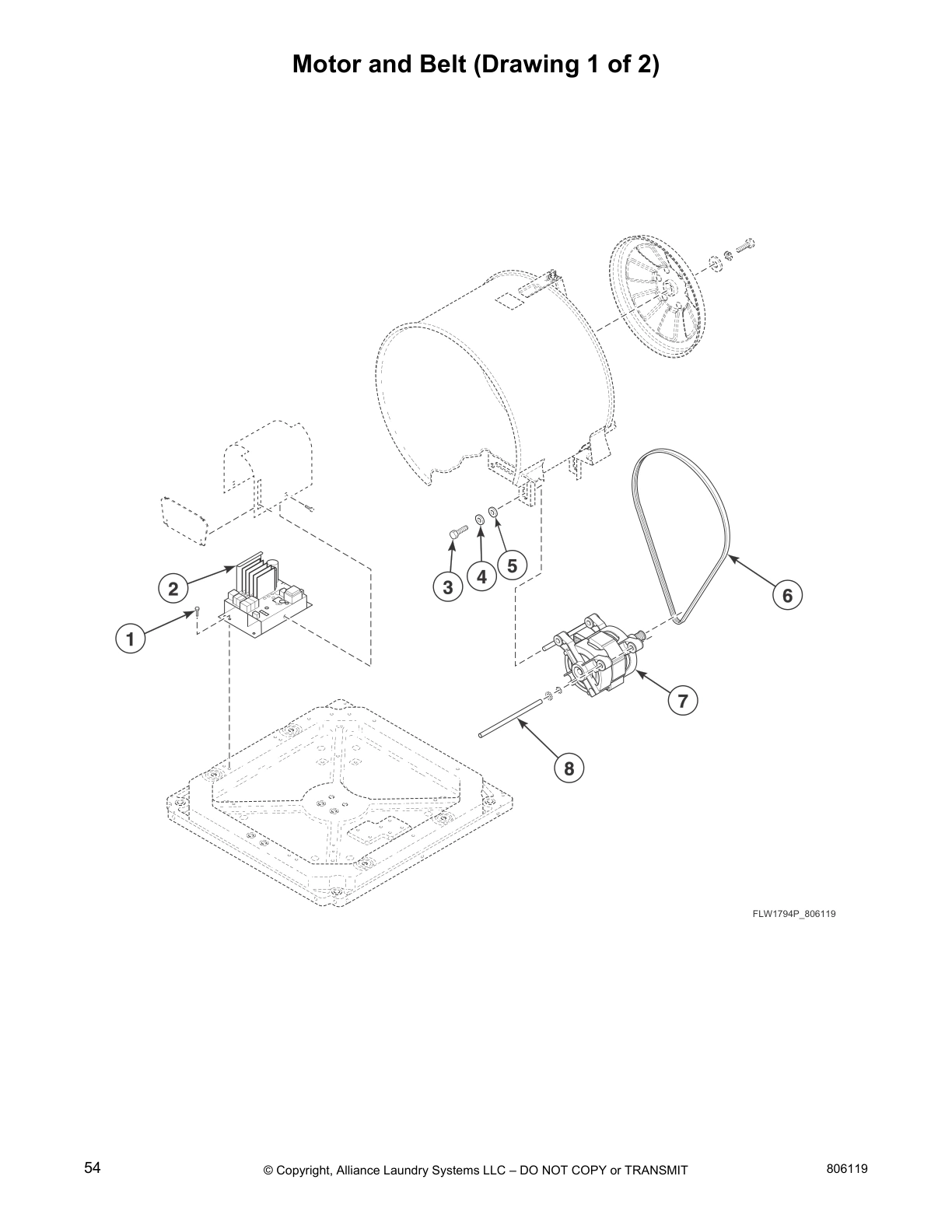

Motor and Belt (Drawing 1 of 2)
Motor and Belt (Drawing 2 of 2)

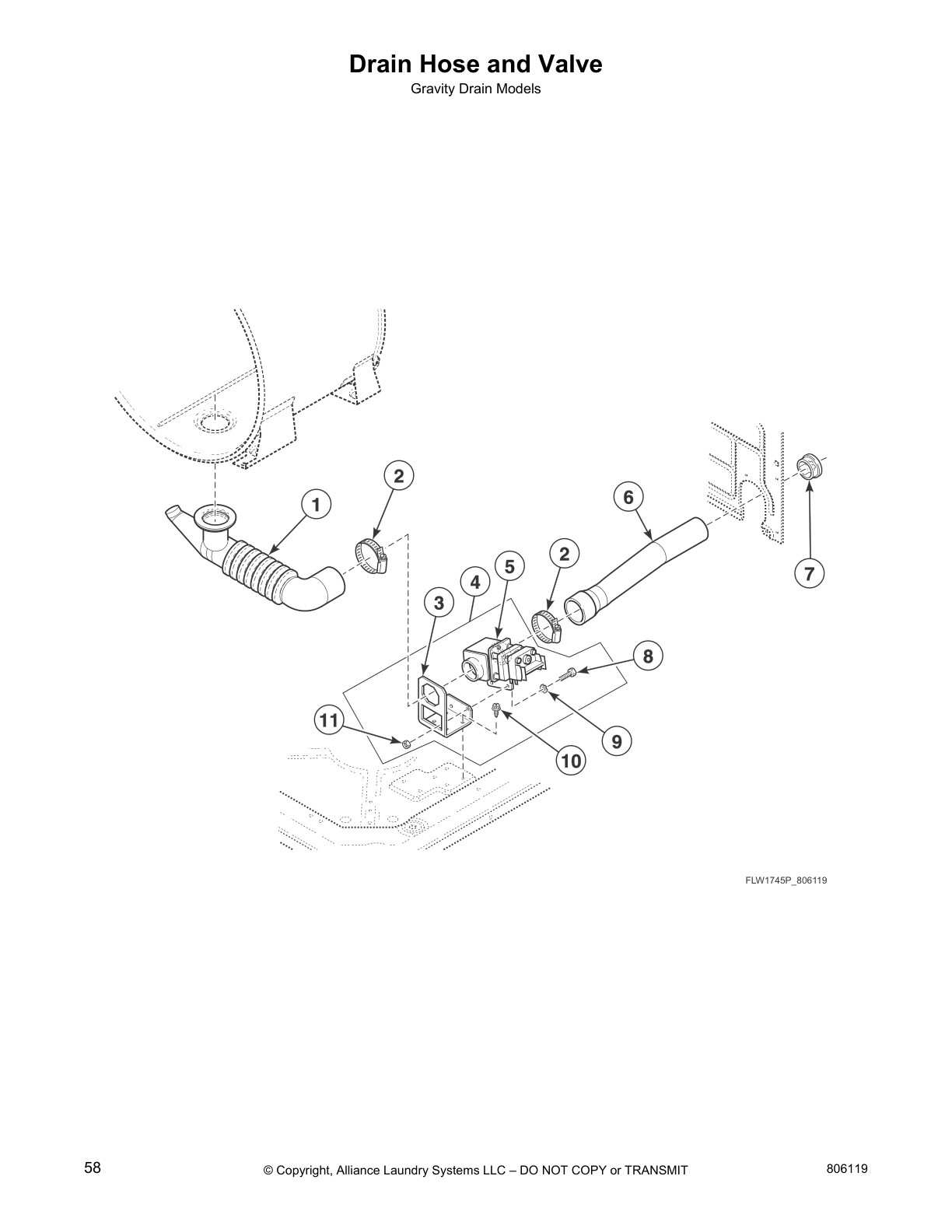

Drain Hose and Valve
Drain Hose and Pump

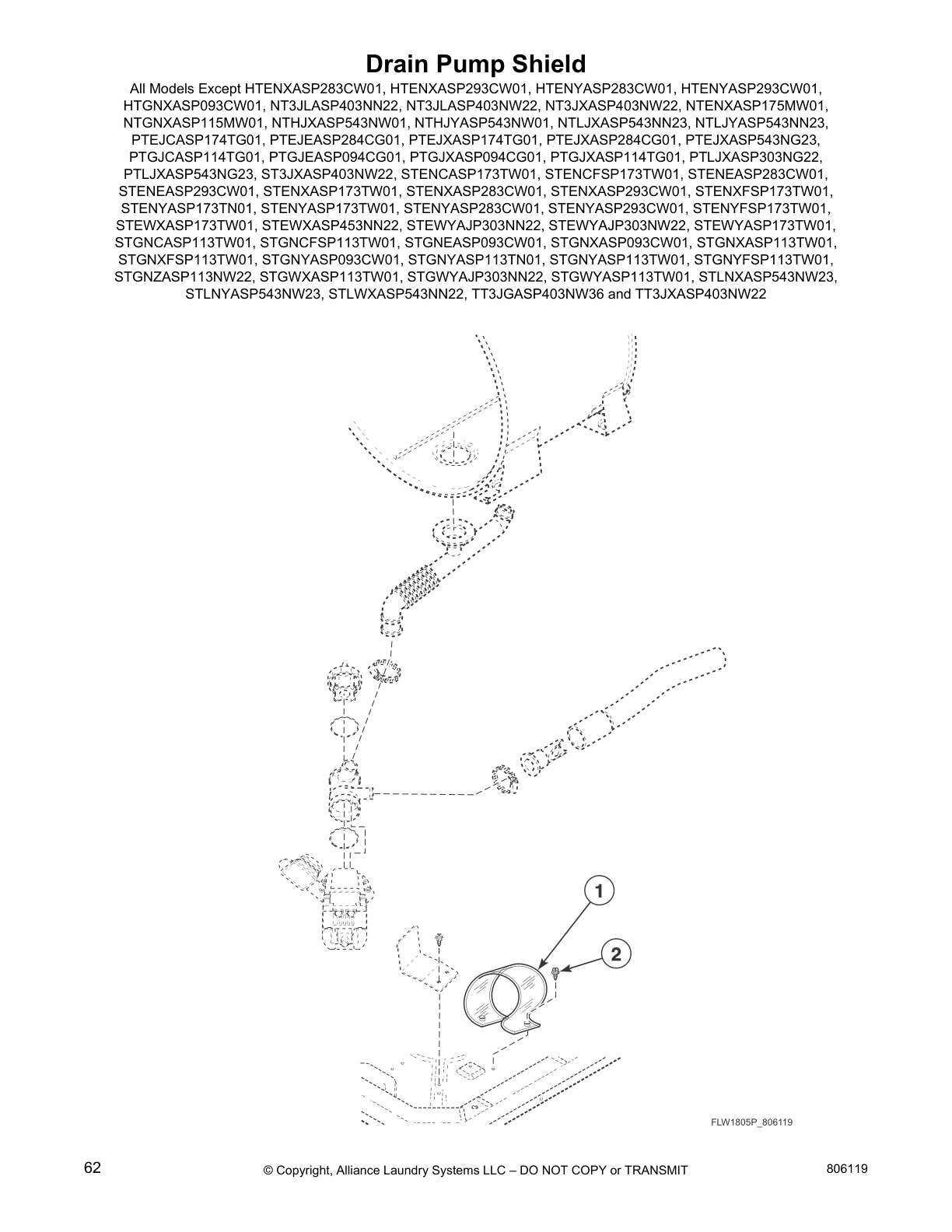

Drain Pump Shield
Washer Base, Side Panels and Rear Panel

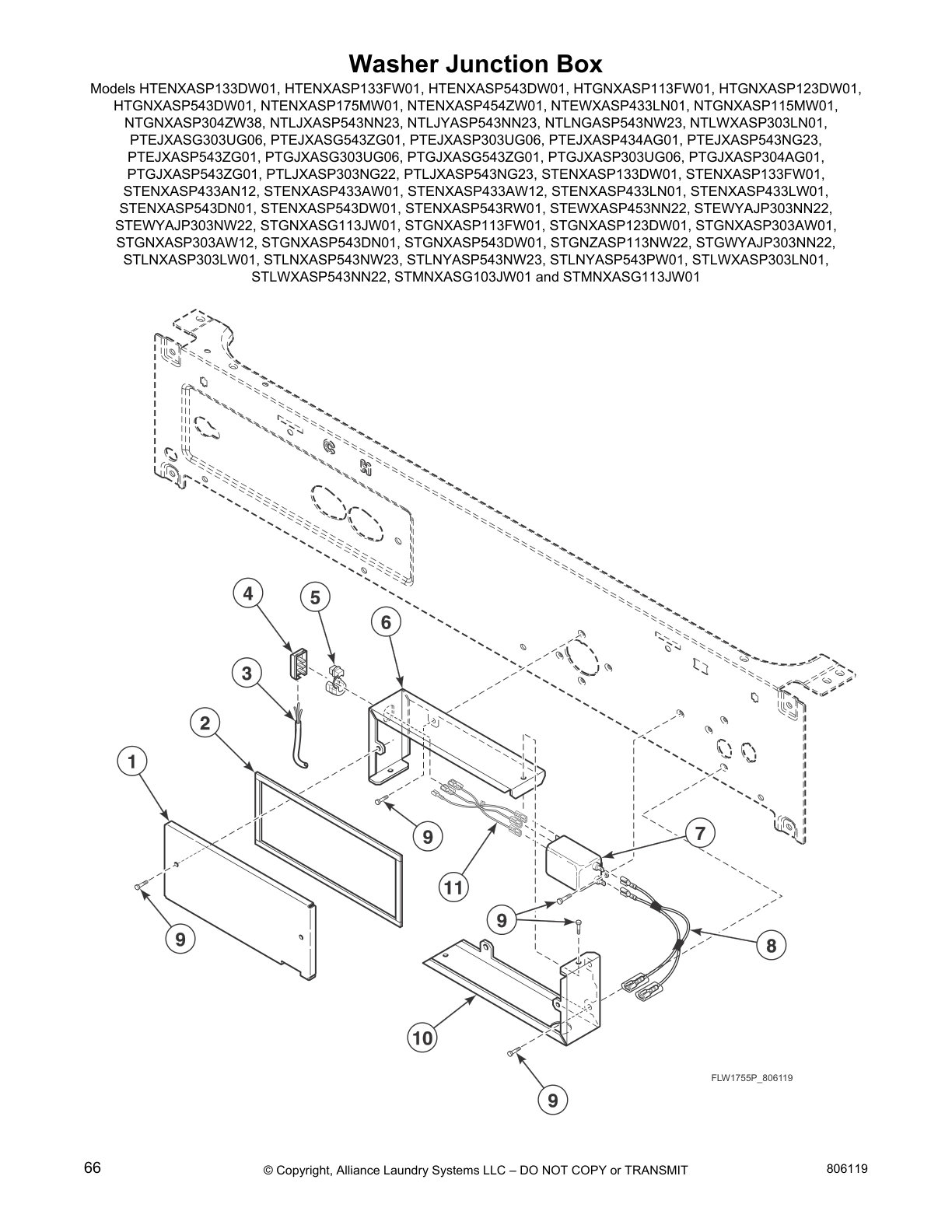

Washer Junction Box
Supply Injection Junction Box

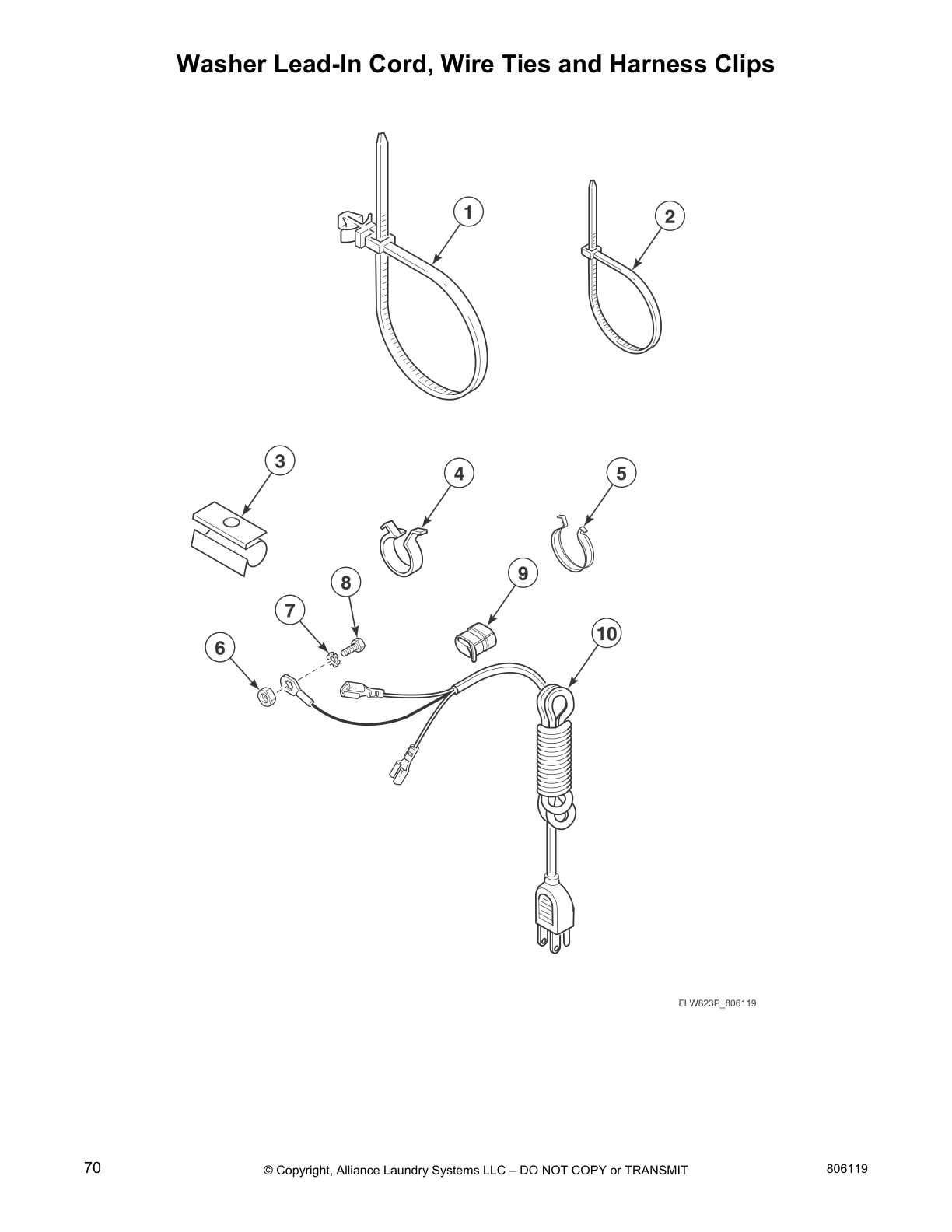

Washer Lead-In Cord, Wire Ties and Harness Clips

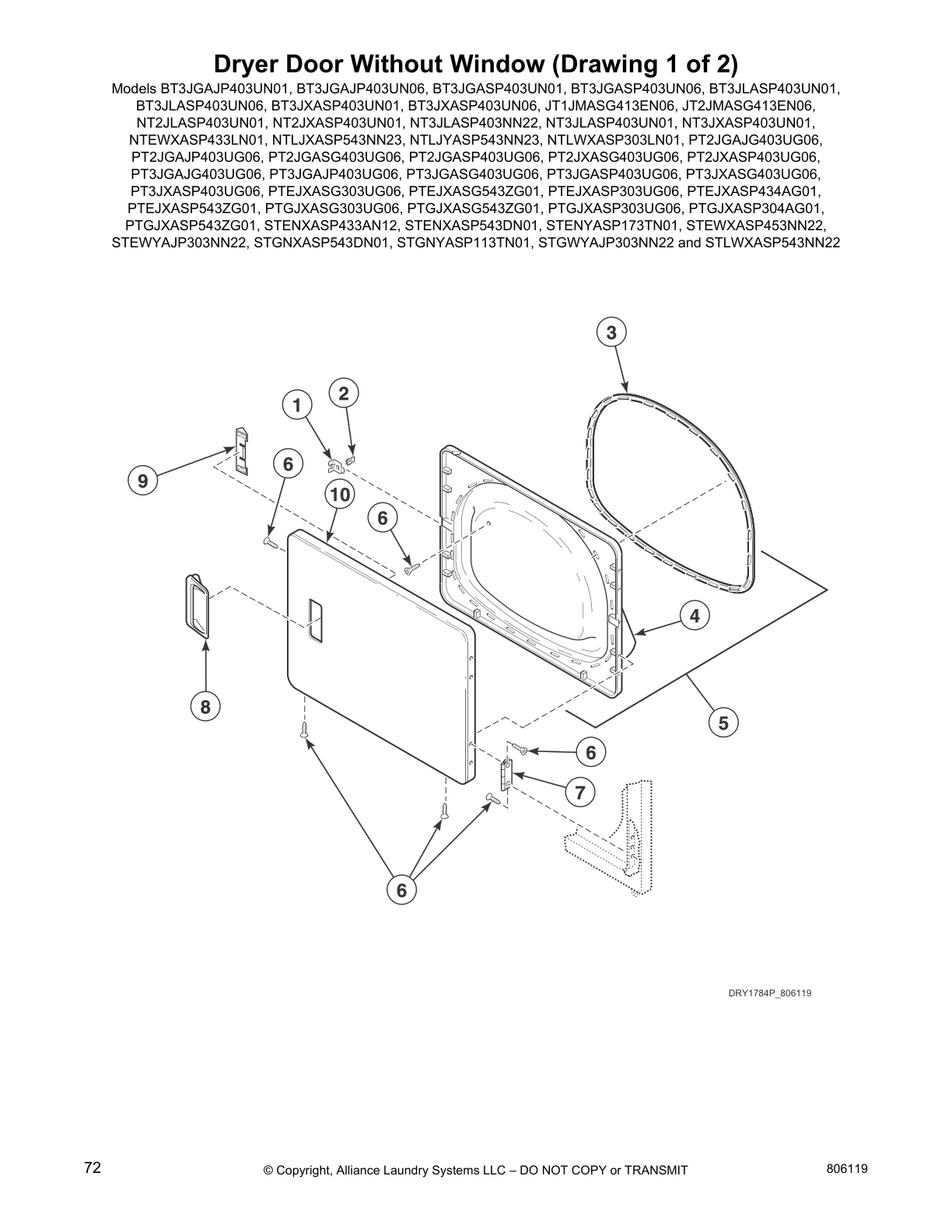

Dryer Door Without Window (Drawing 1 of 2)

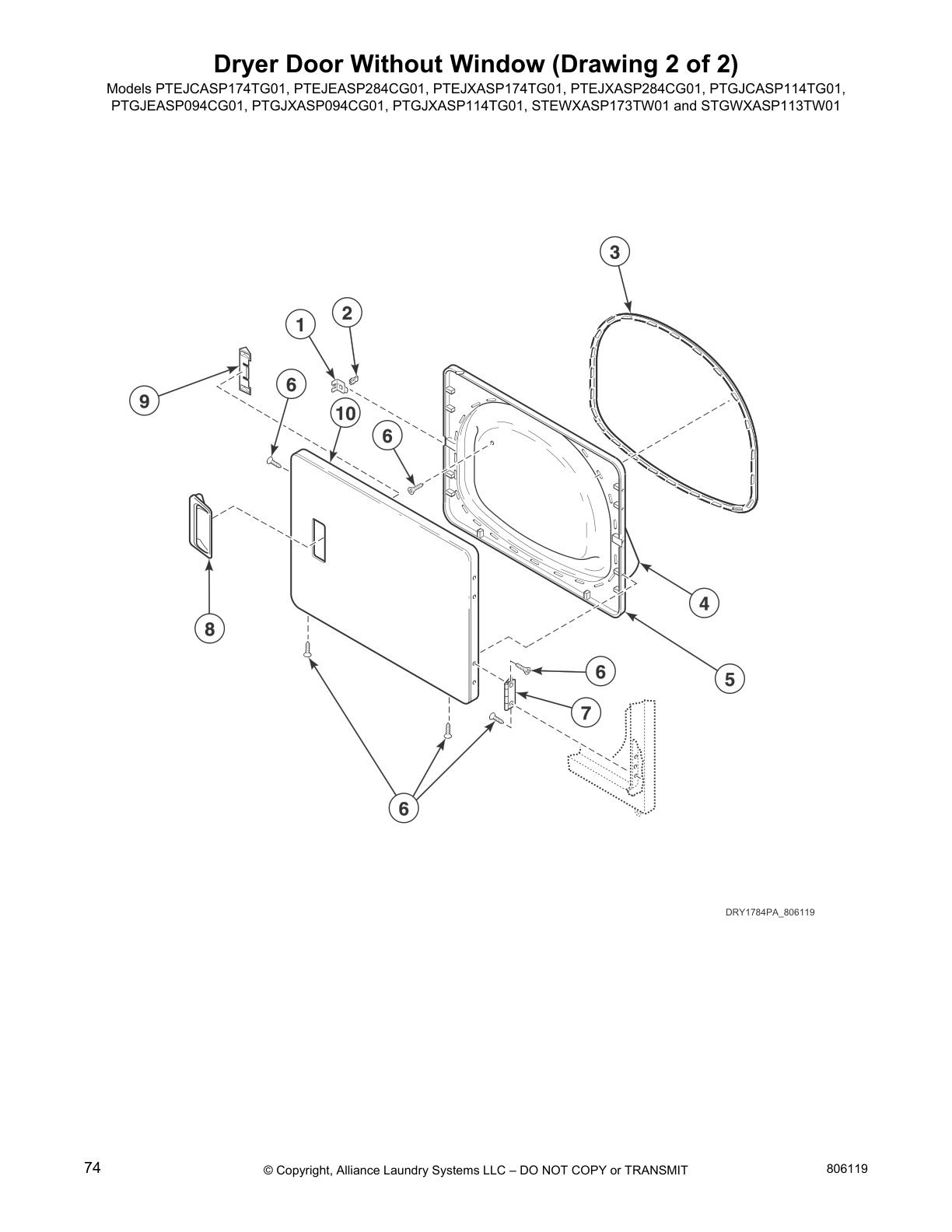

Dryer Door Without Window (Drawing 2 of 2)
Dryer Door With Window (Drawing 1 of 2)

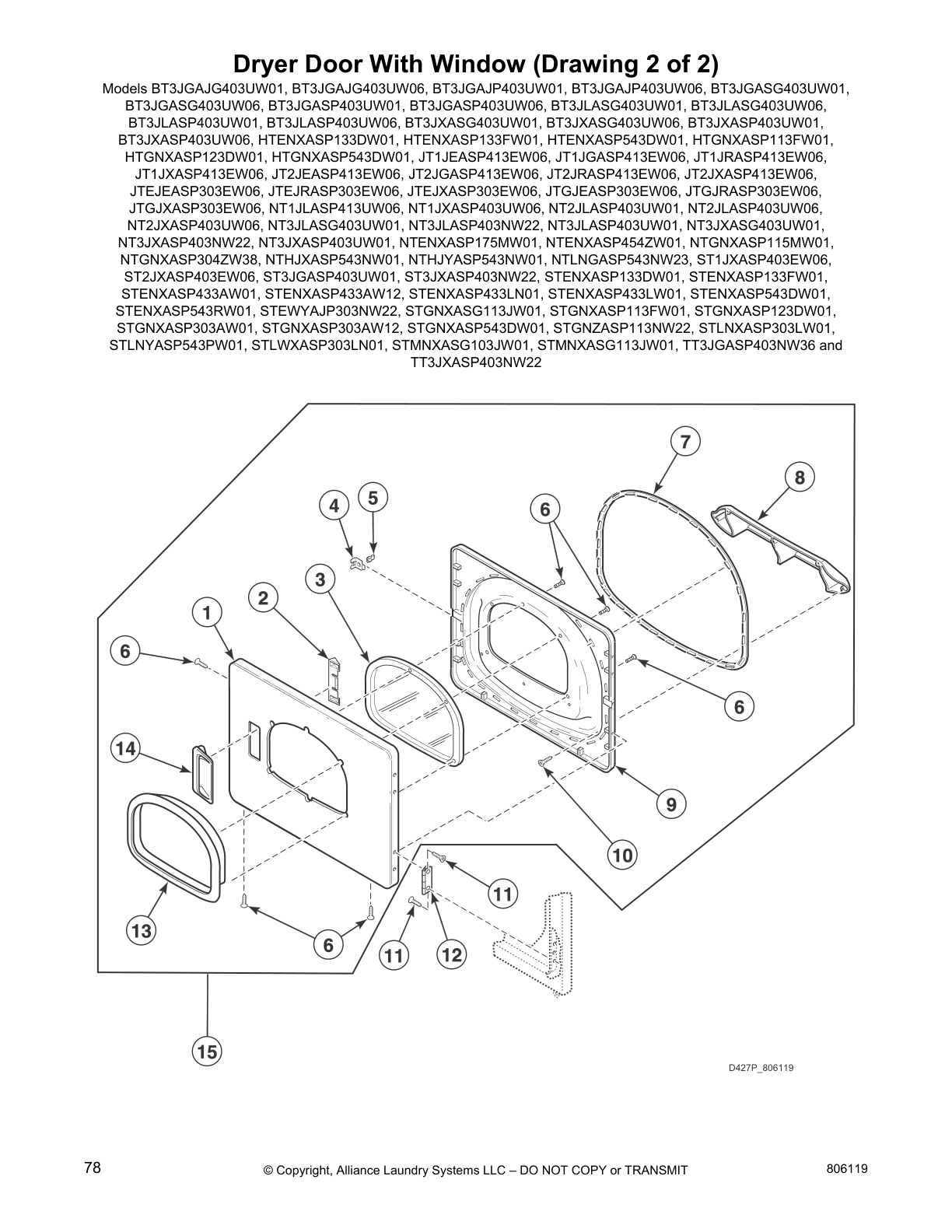

Dryer Door With Window (Drawing 2 of 2)
Dryer Door With Window - Through Serial No. 1706999999

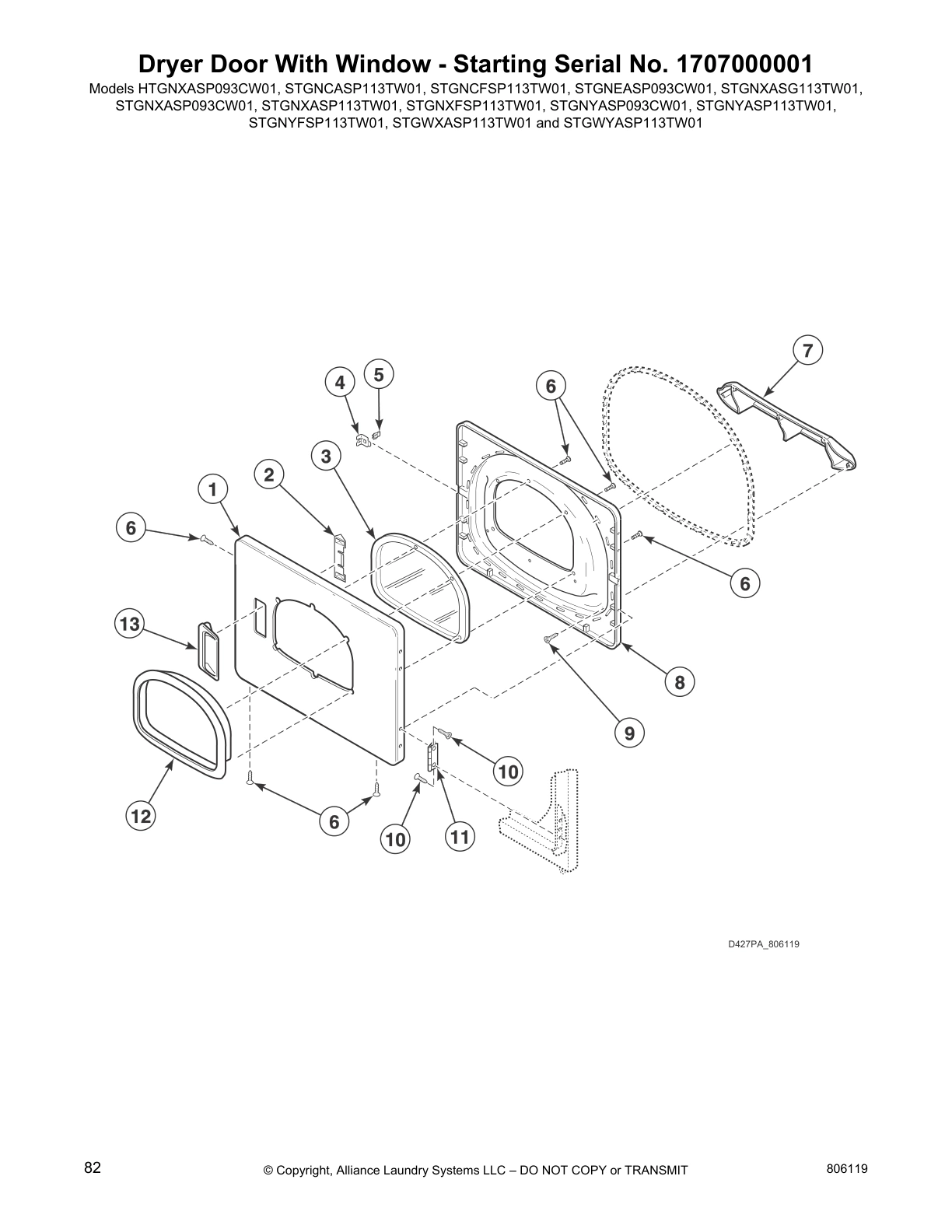

Dryer Door With Window - Starting Serial No. 1707000001

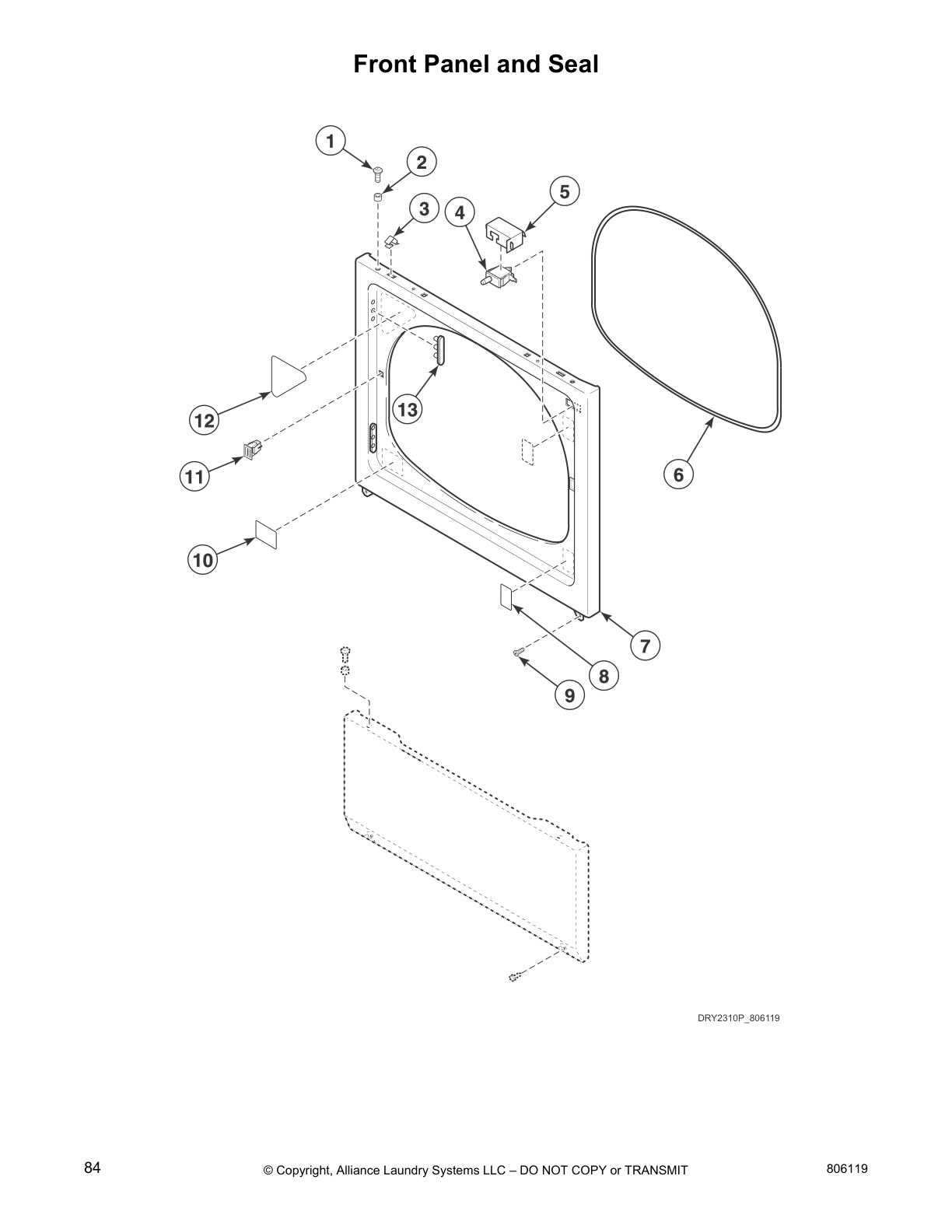

Front Panel and Seal

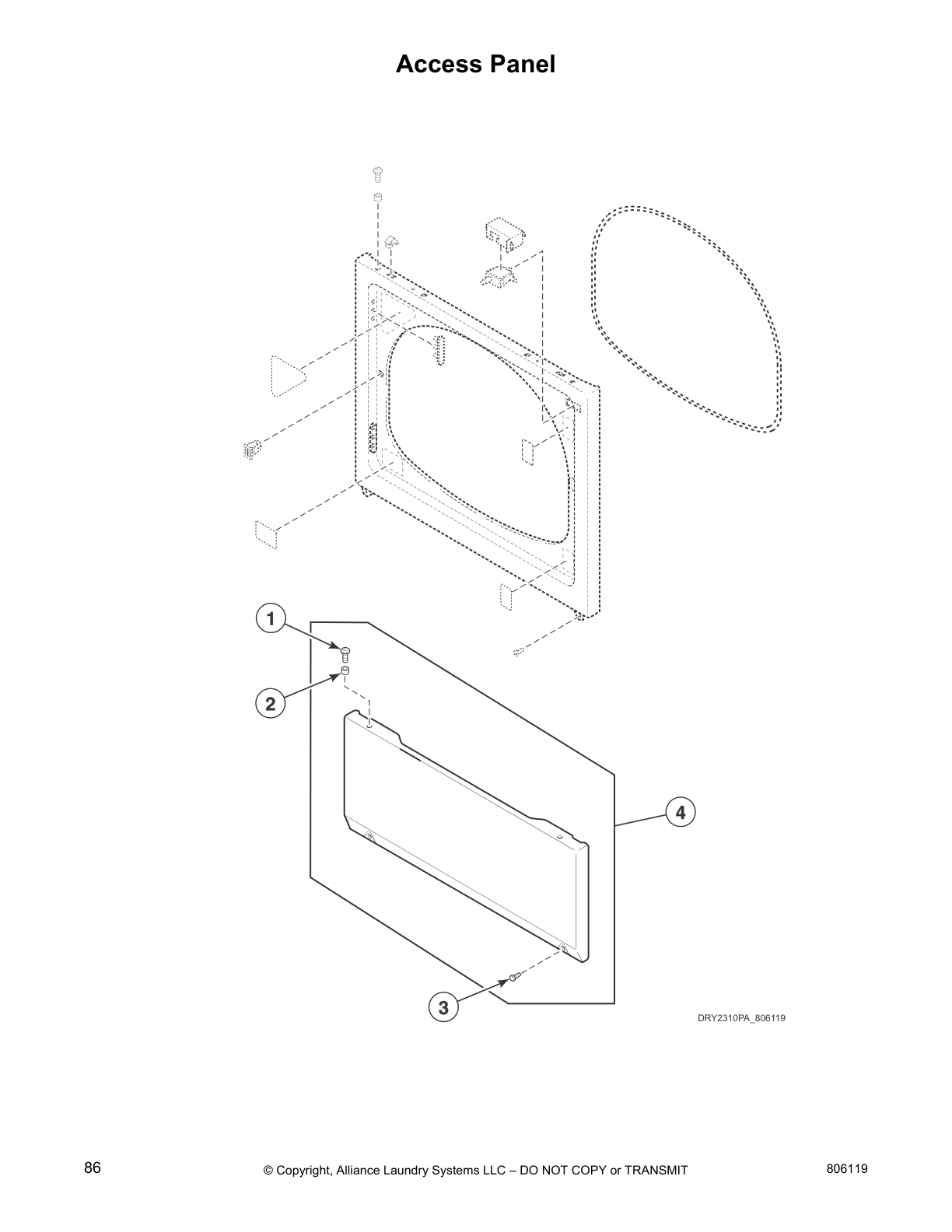

Access Panel

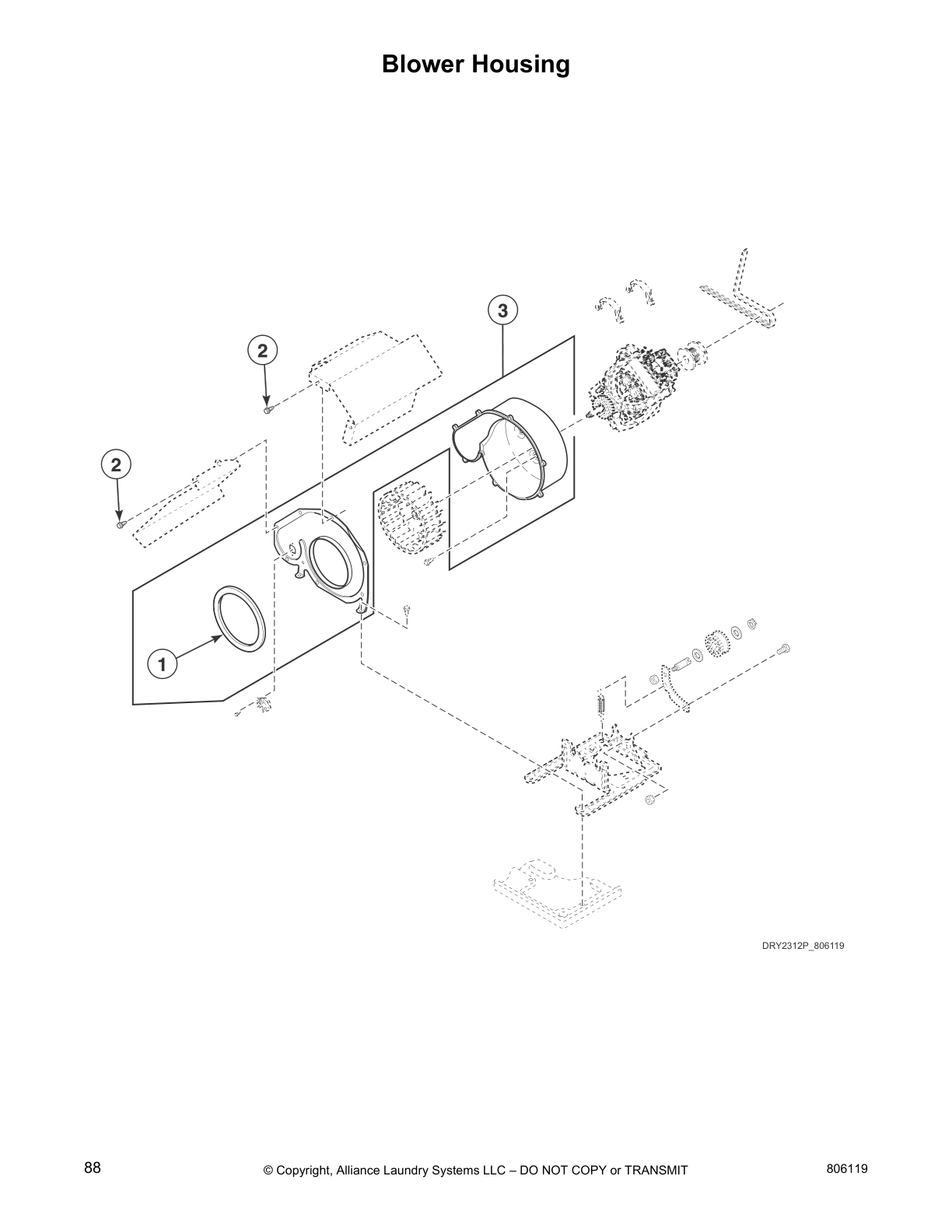

Blower Housing

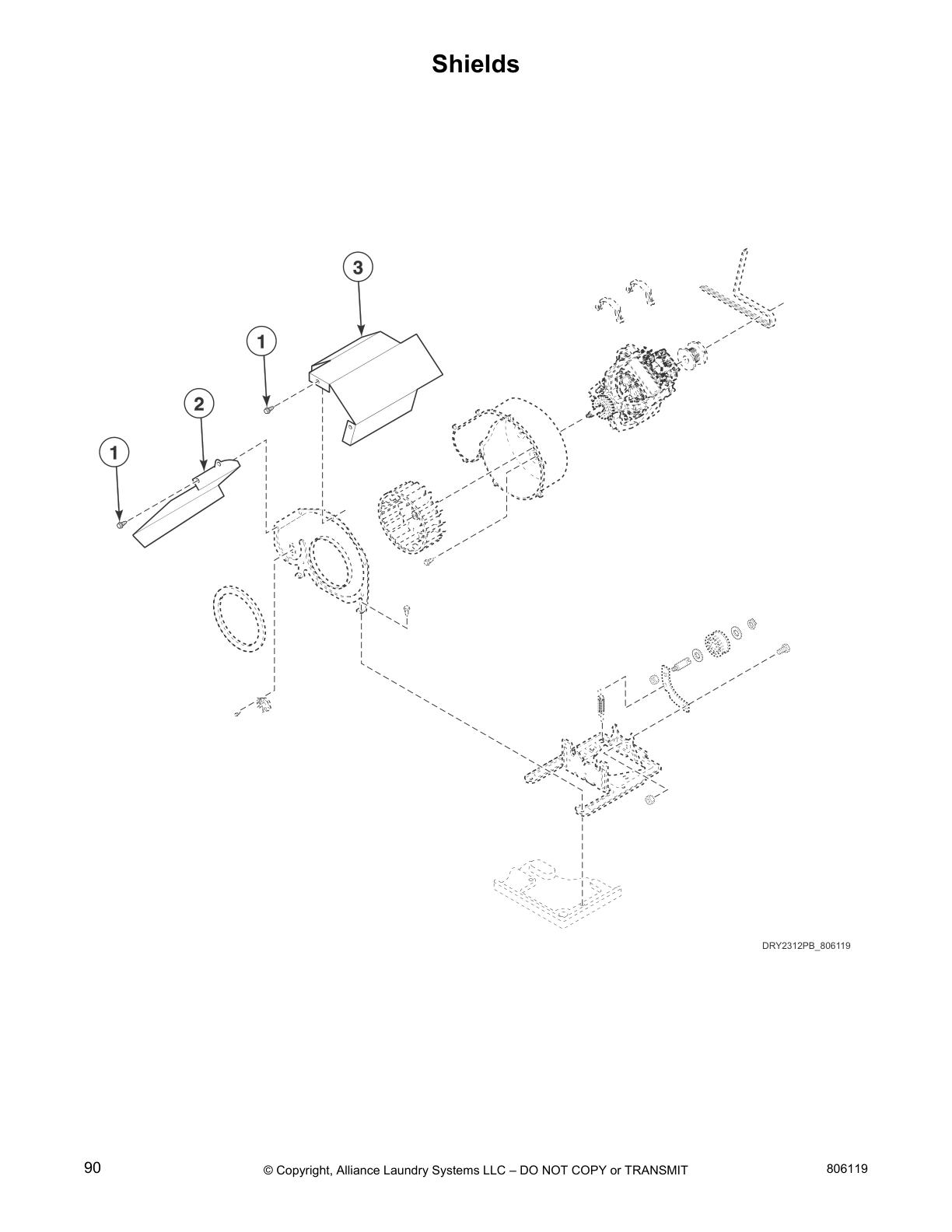

Shields

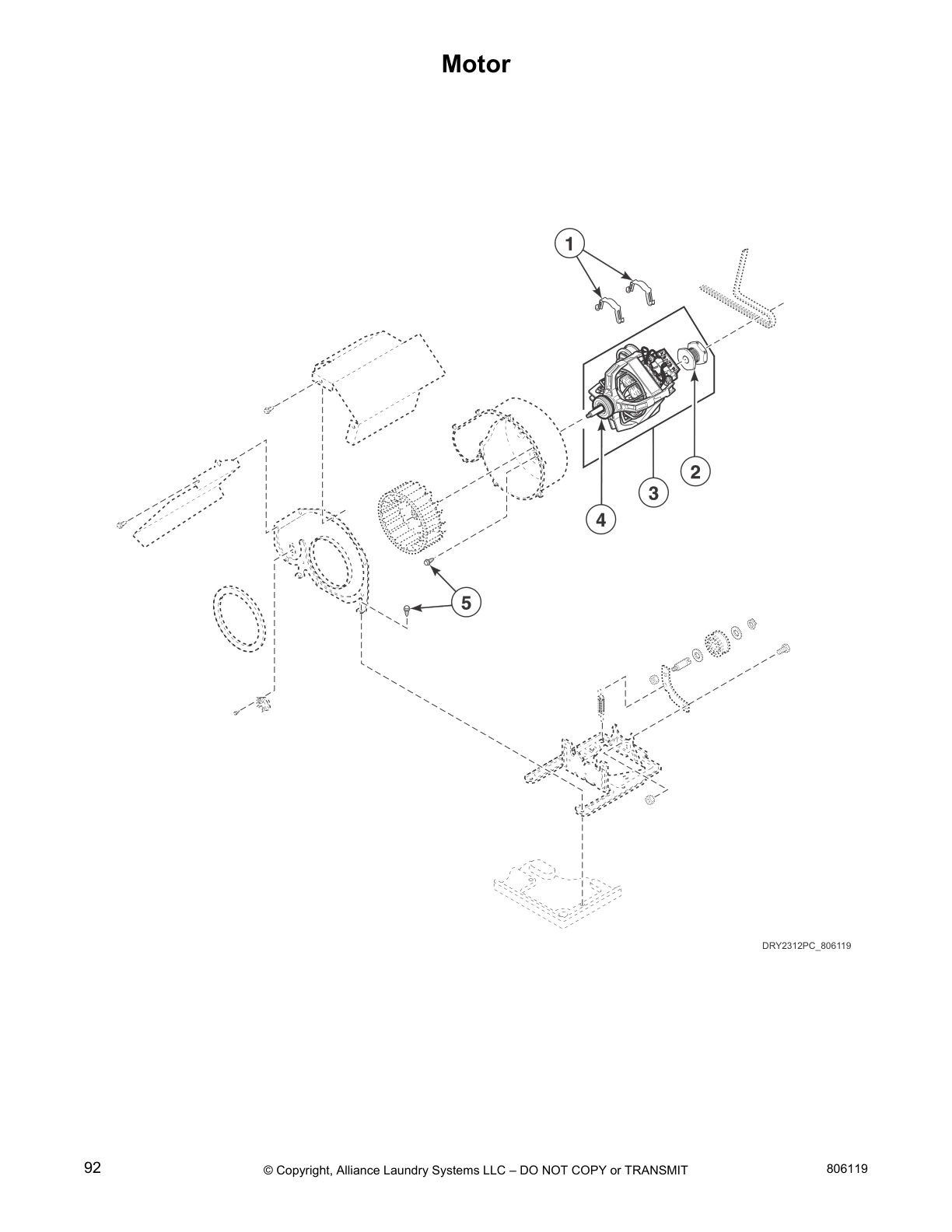

Motor

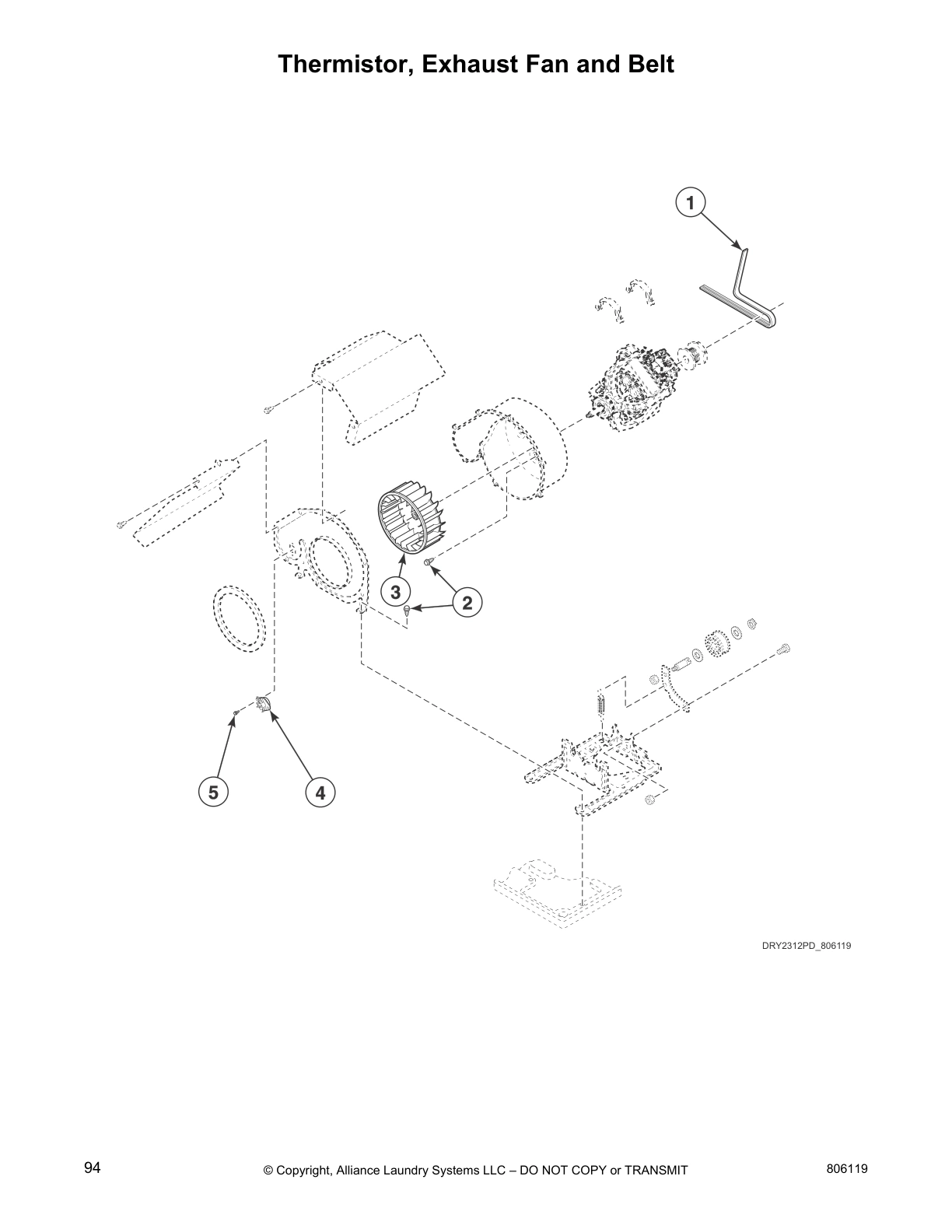

Thermistor, Exhaust Fan and Belt

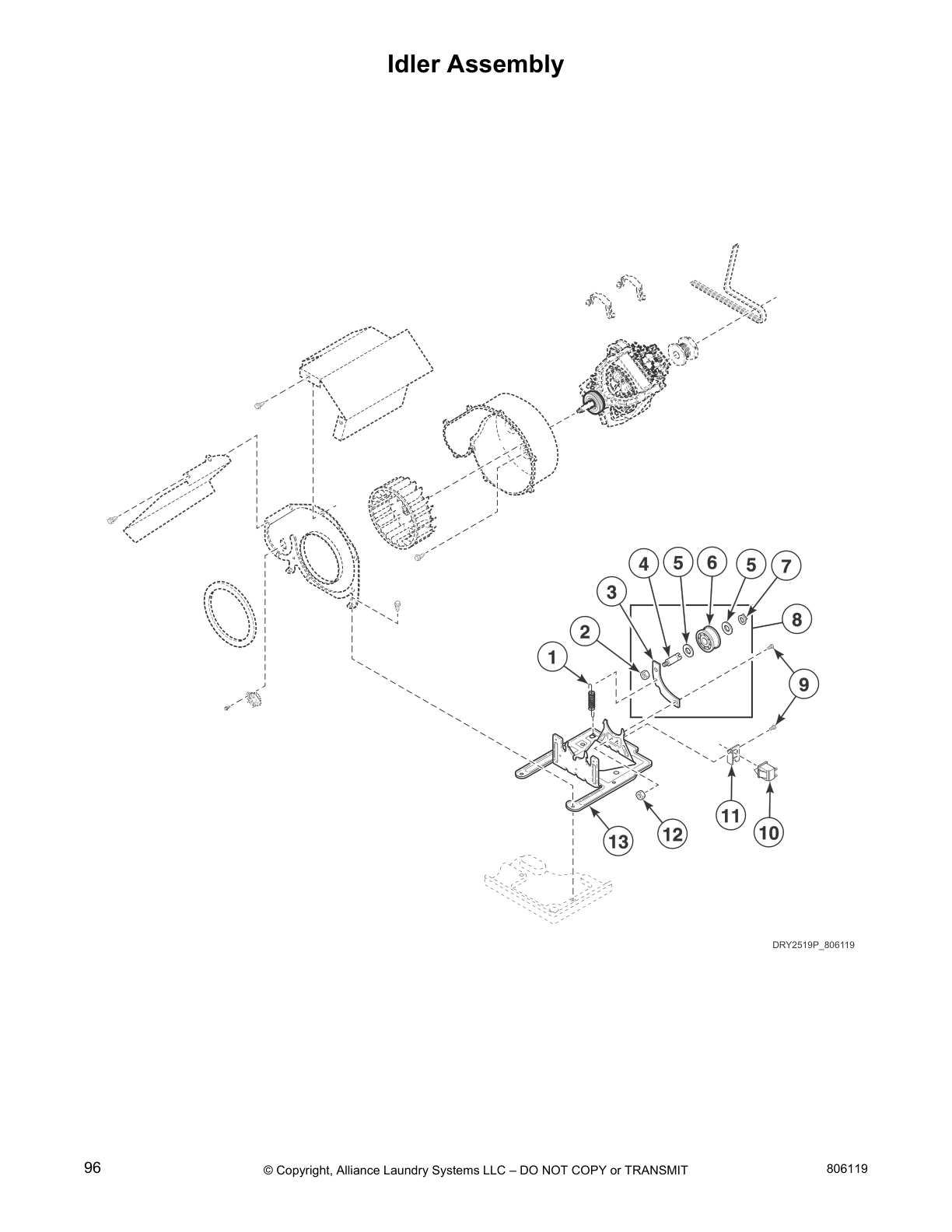

Idler Assembly

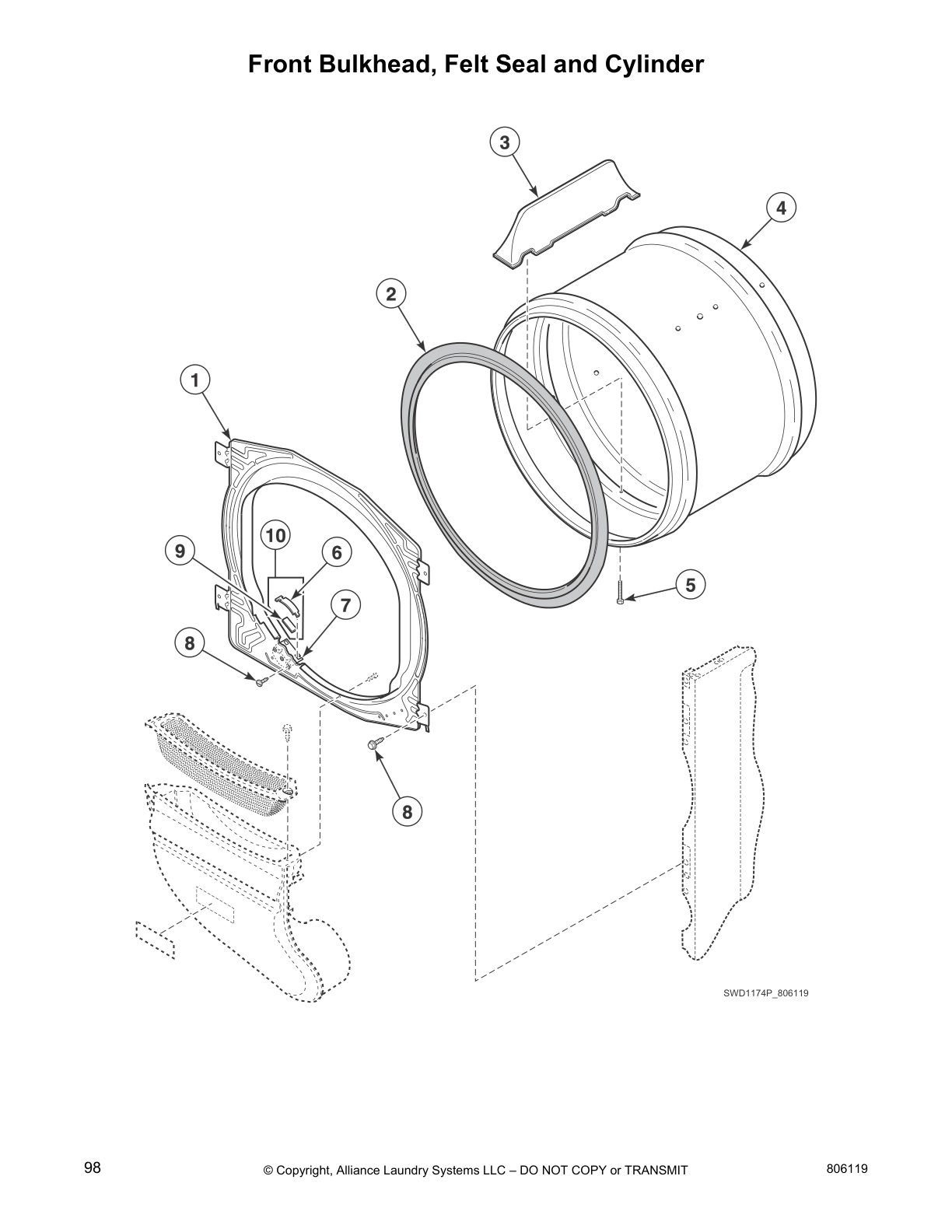

Front Bulkhead, Felt Seal and Cylinder

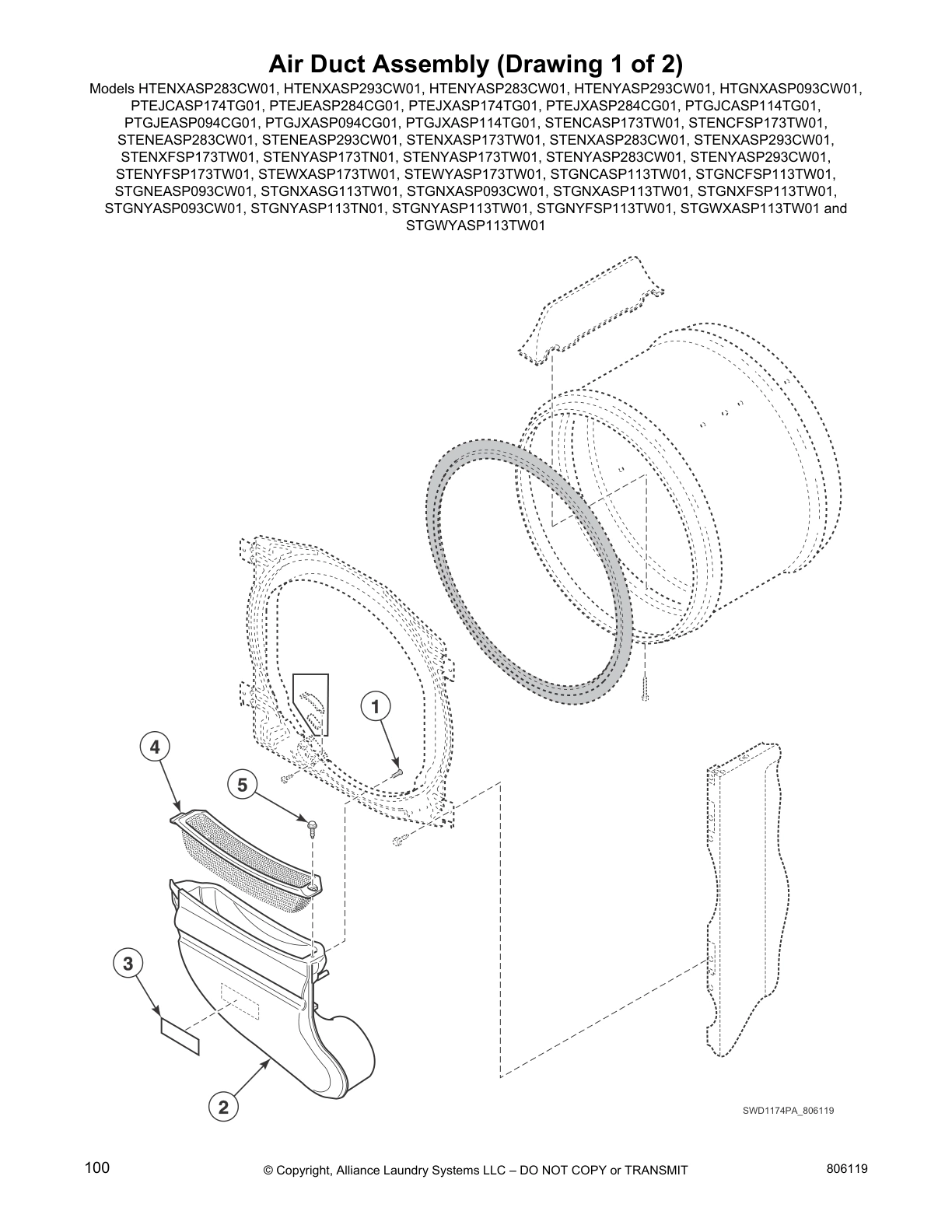

Air Duct Assembly (Drawing 1 of 2)

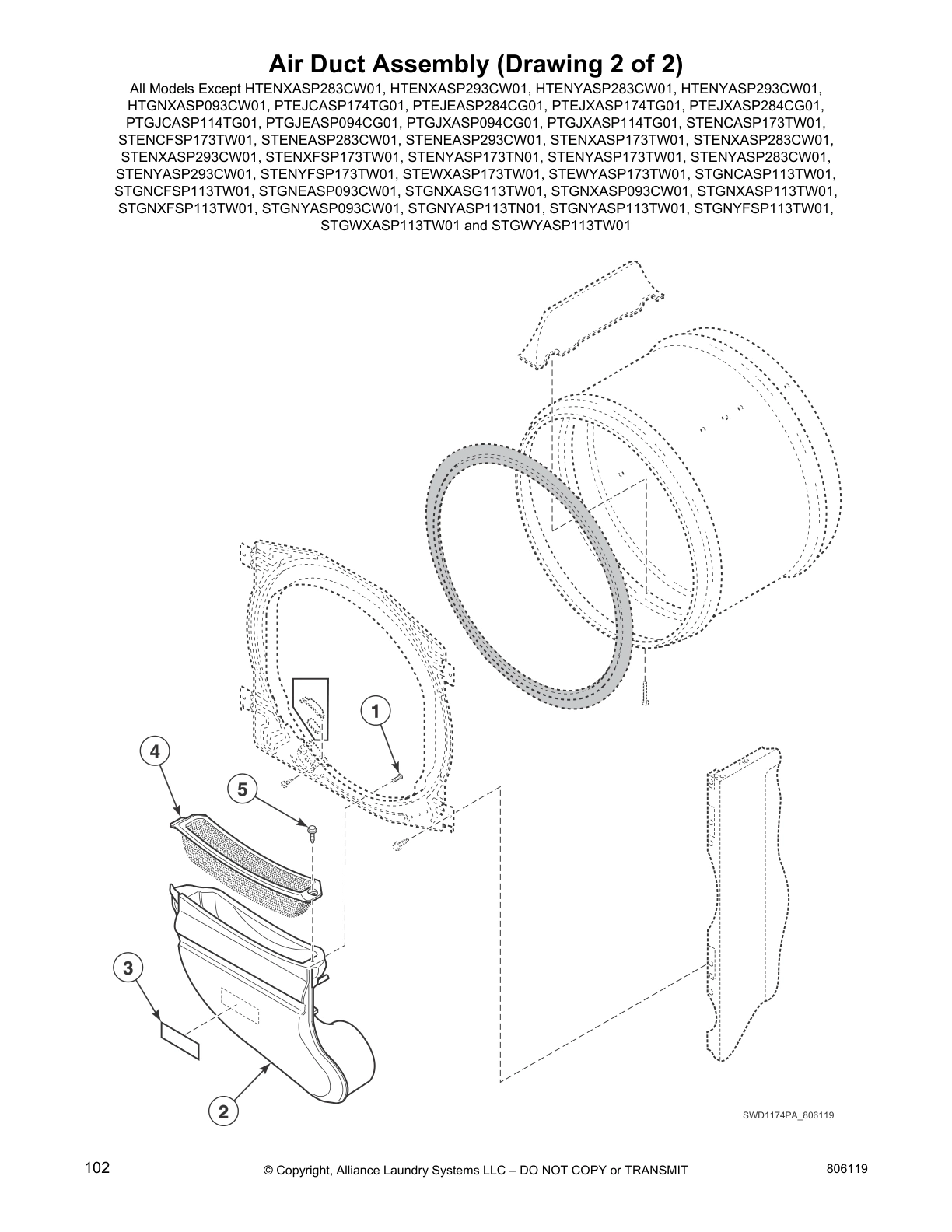

Air Duct Assembly (Drawing 2 of 2)
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

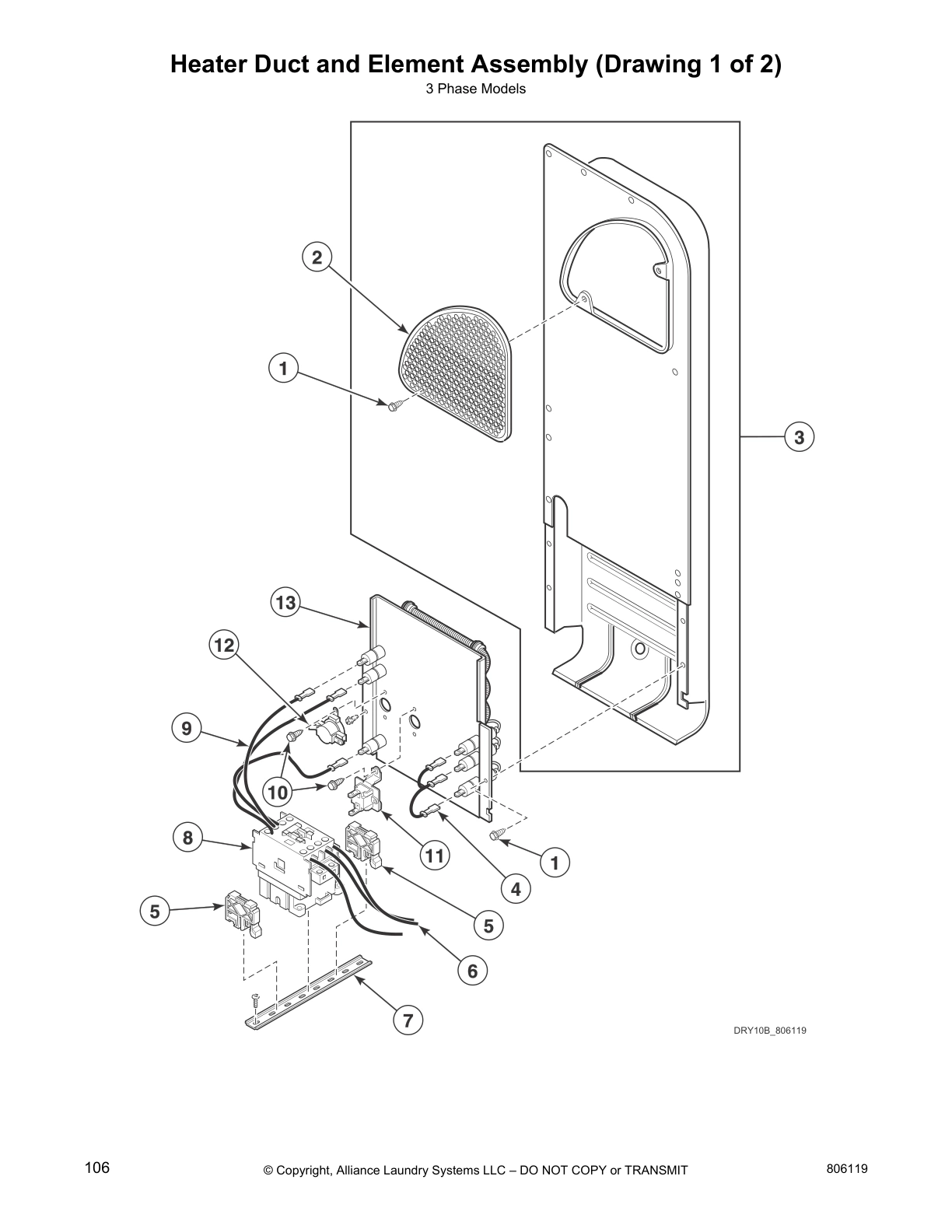

Heater Duct and Element Assembly (Drawing 1 of 2)

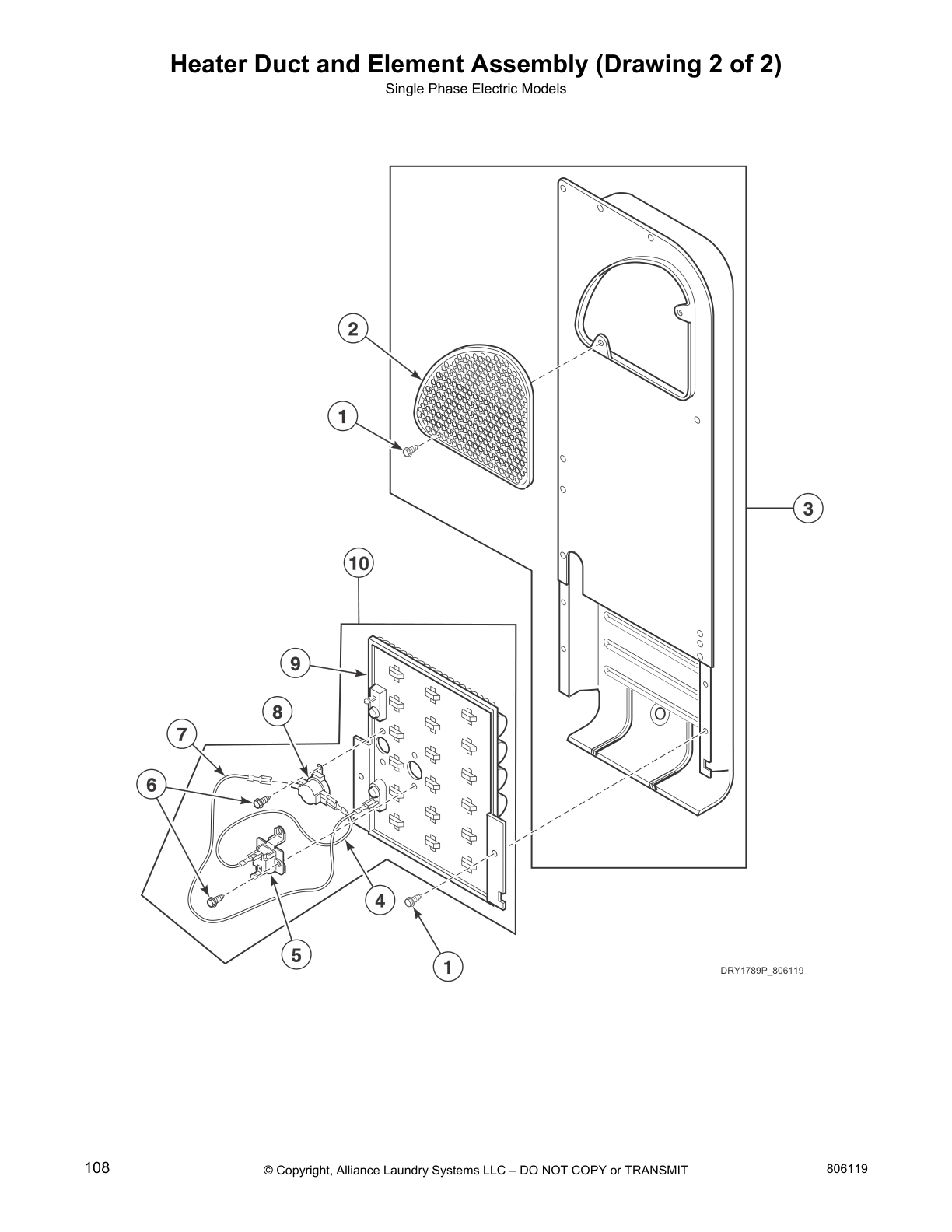

Heater Duct and Element Assembly (Drawing 2 of 2)
Heater Duct Assembly

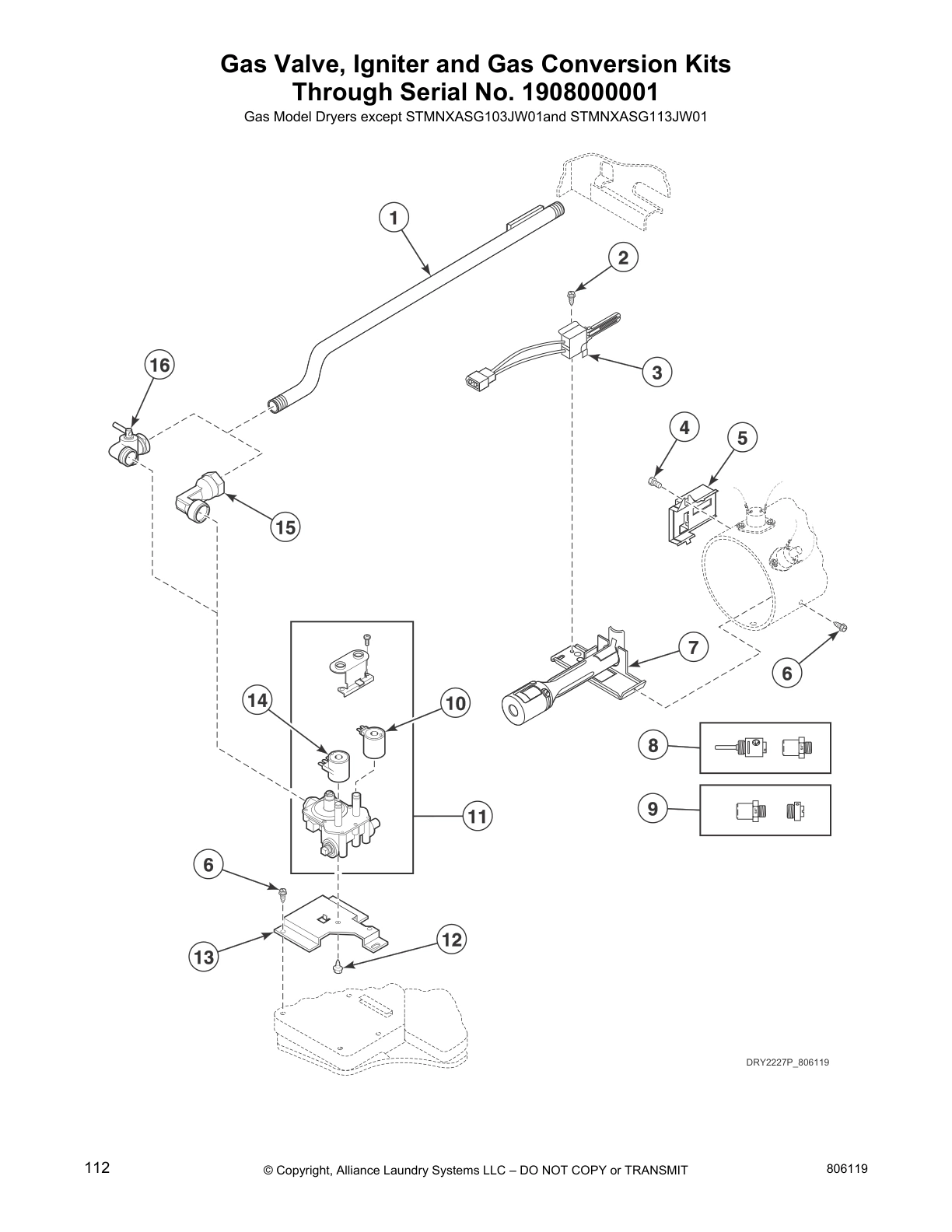

Gas Valve, Igniter and Gas Conversion Kits
Through Serial No. 1908000001
Gas Valve, Igniter and Gas Conversion Kits
Starting Serial No. 1908000001

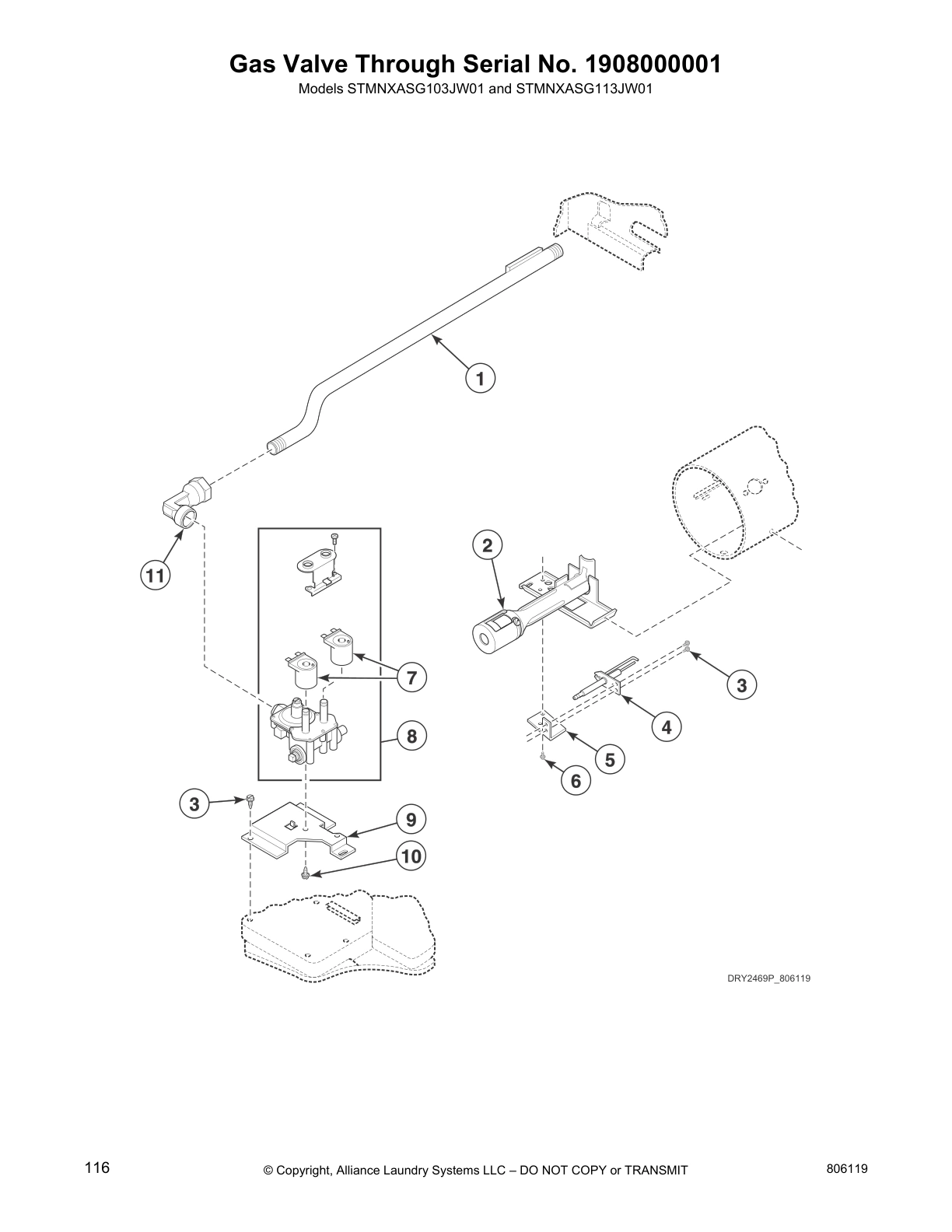

Gas Valve Through Serial No. 1908000001

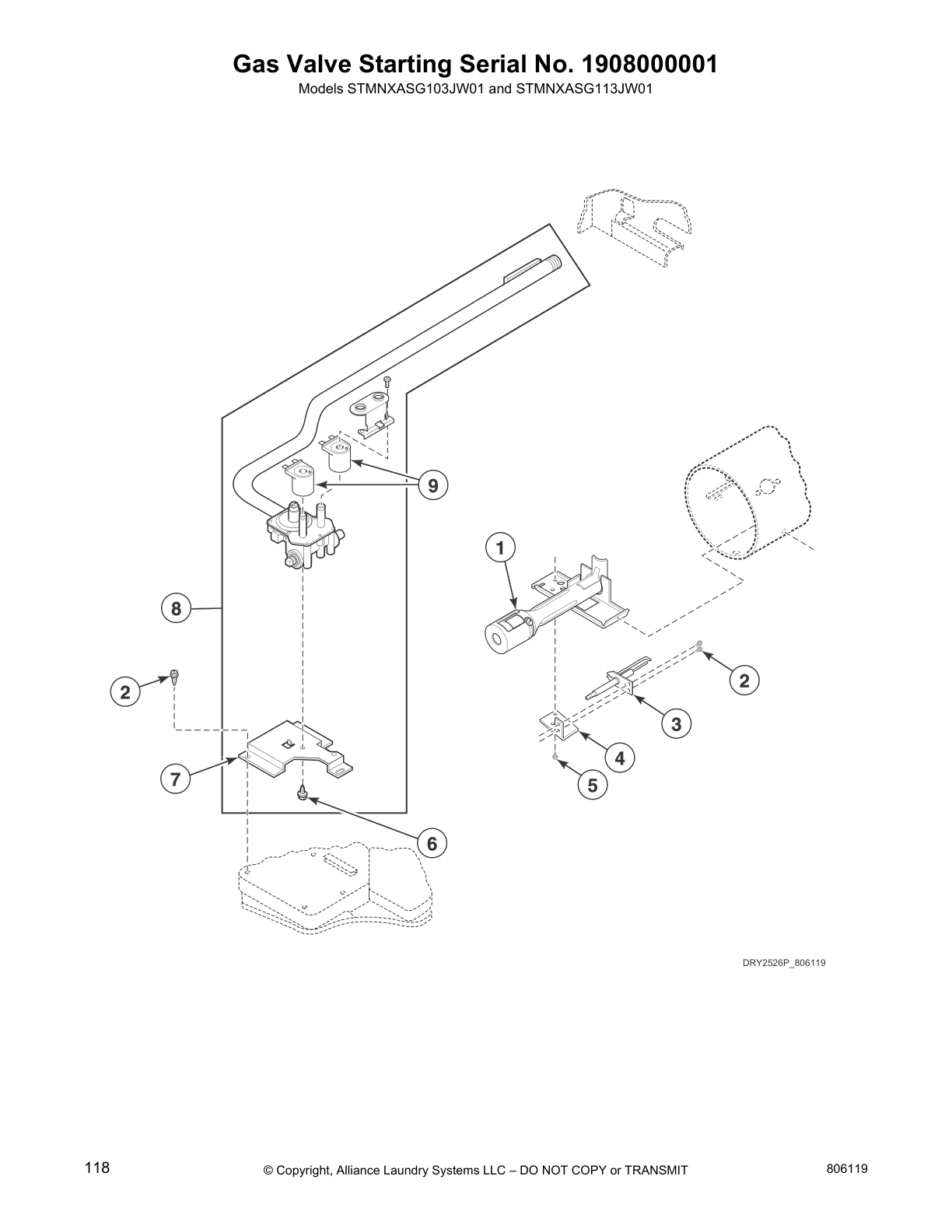

Gas Valve Starting Serial No. 1908000001

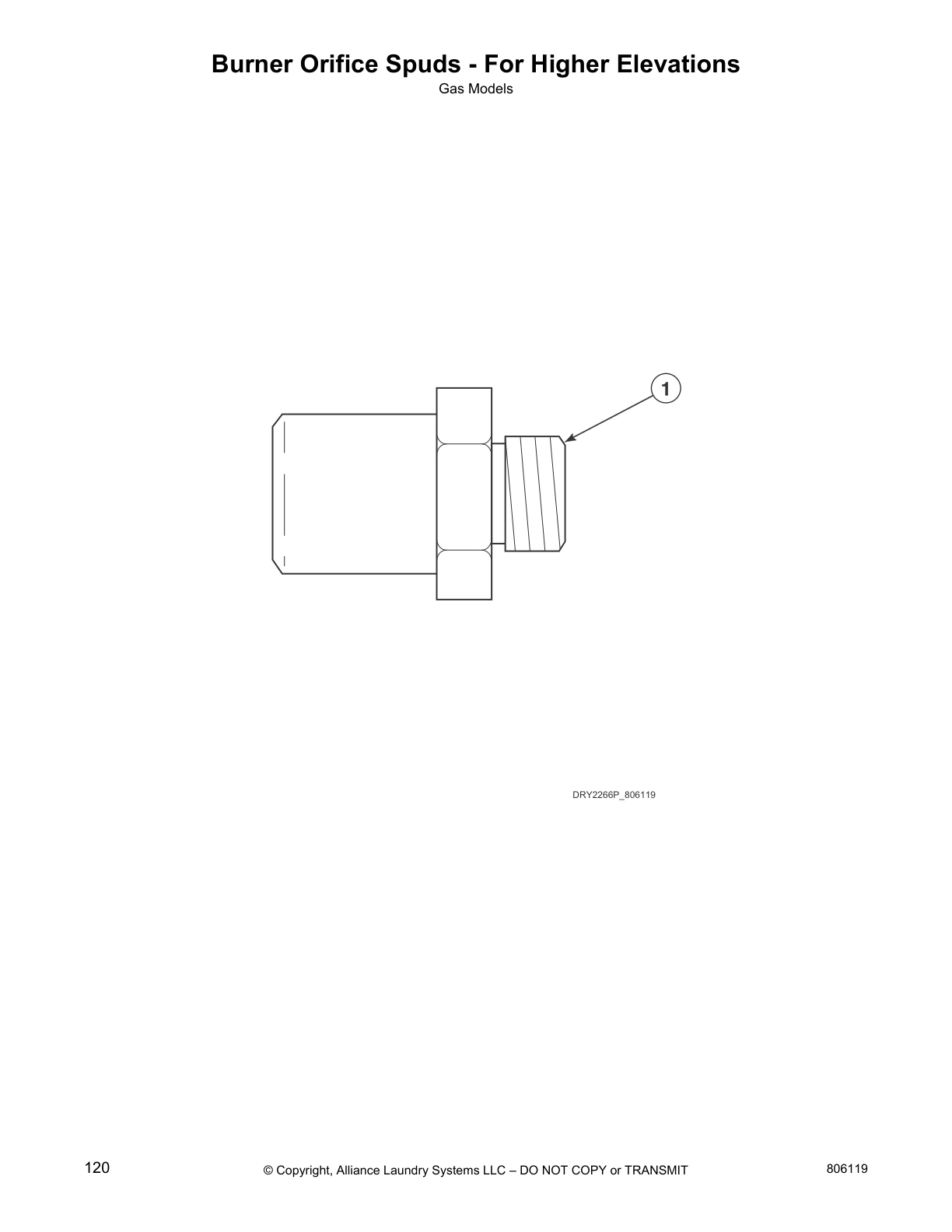

Burner Orifice Spuds - For Higher Elevations

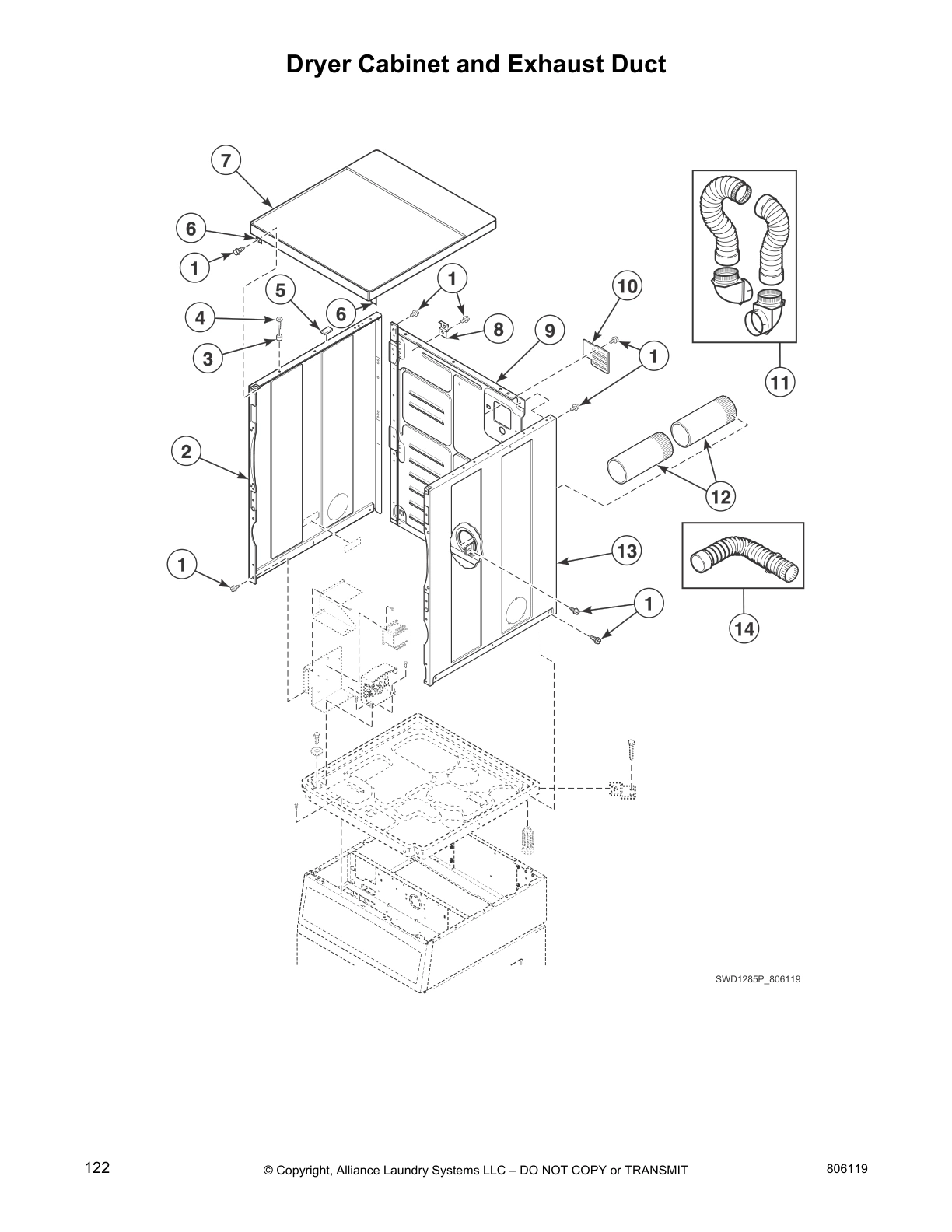

Dryer Cabinet and Exhaust Duct

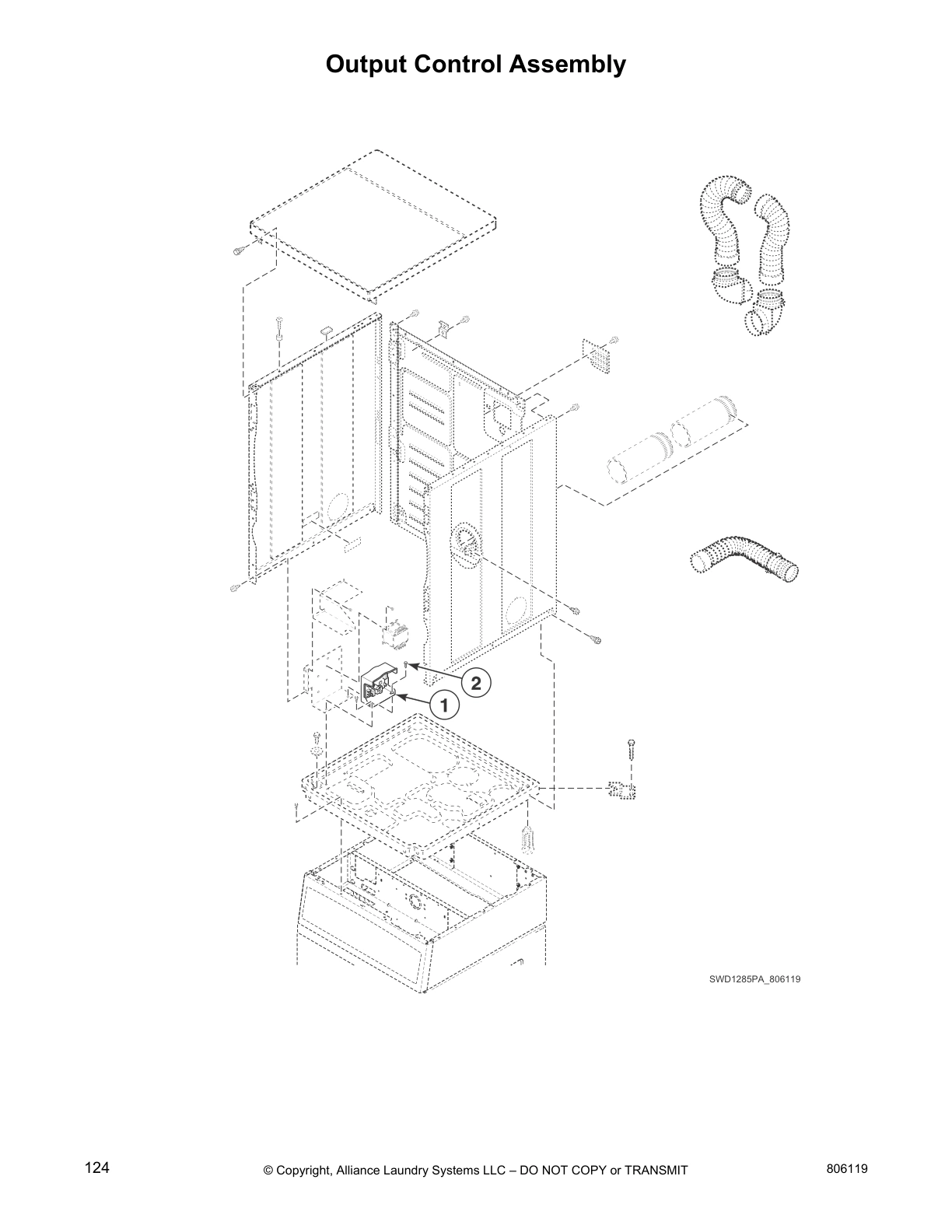

Output Control Assembly

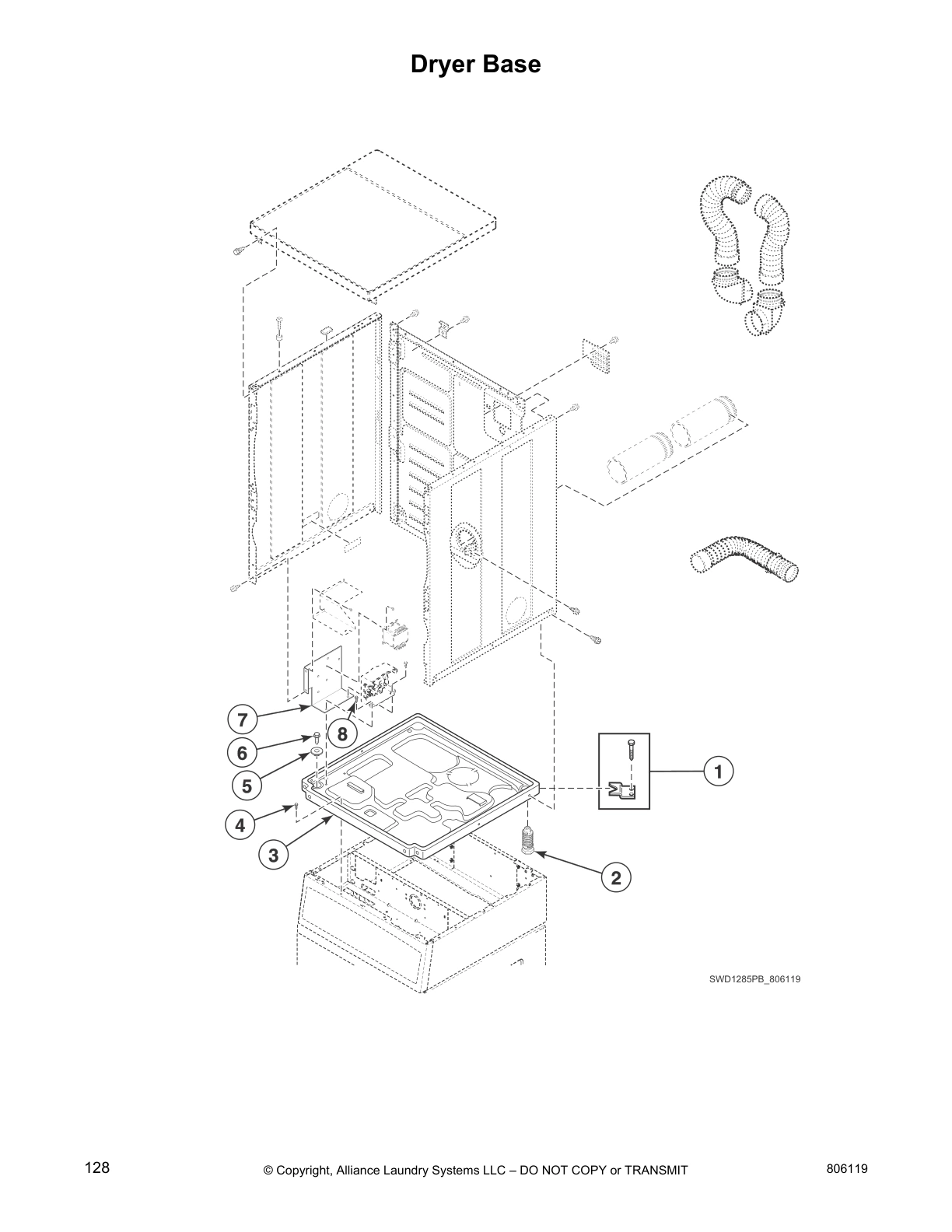

Dryer Base
Ignition Control Module

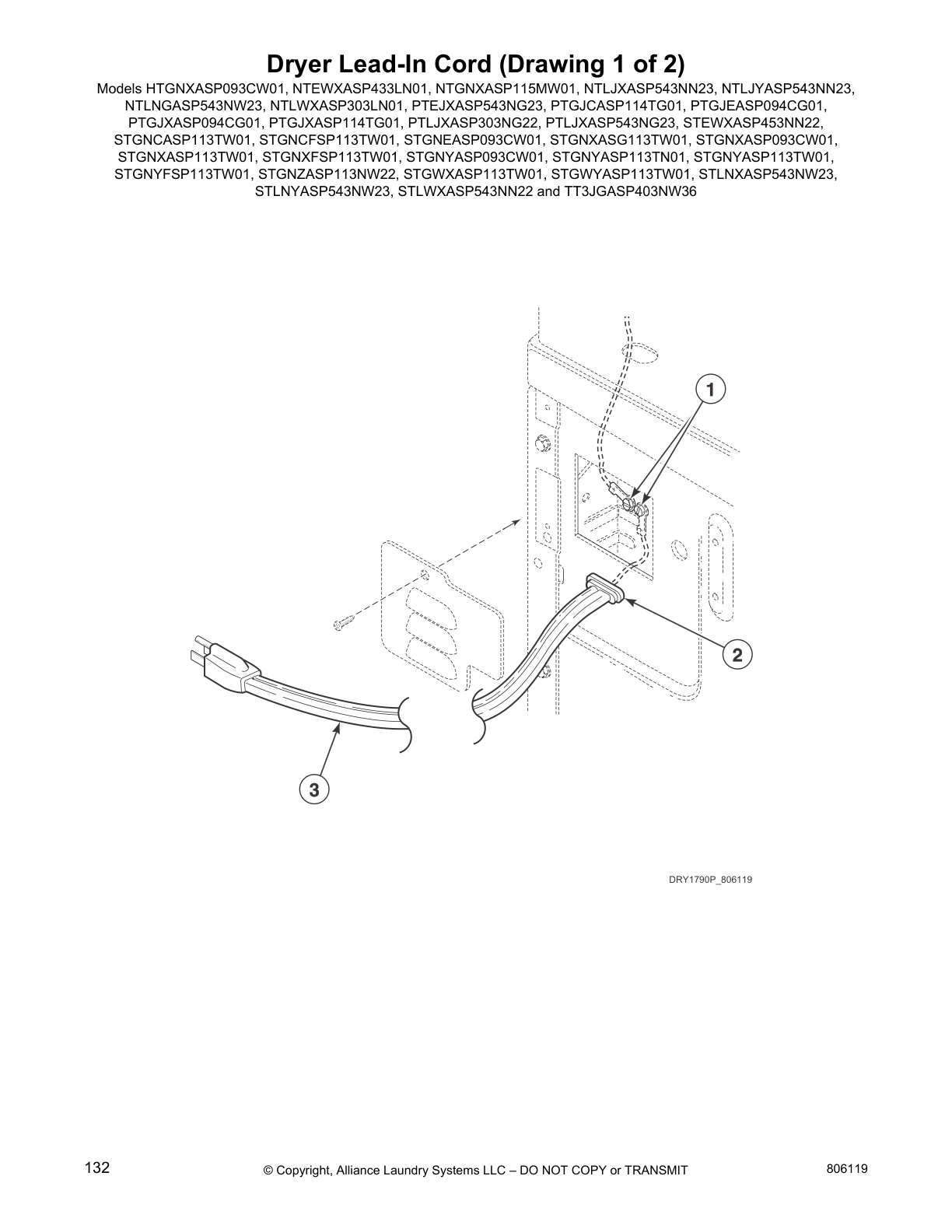

Dryer Lead-In Cord (Drawing 1 of 2)

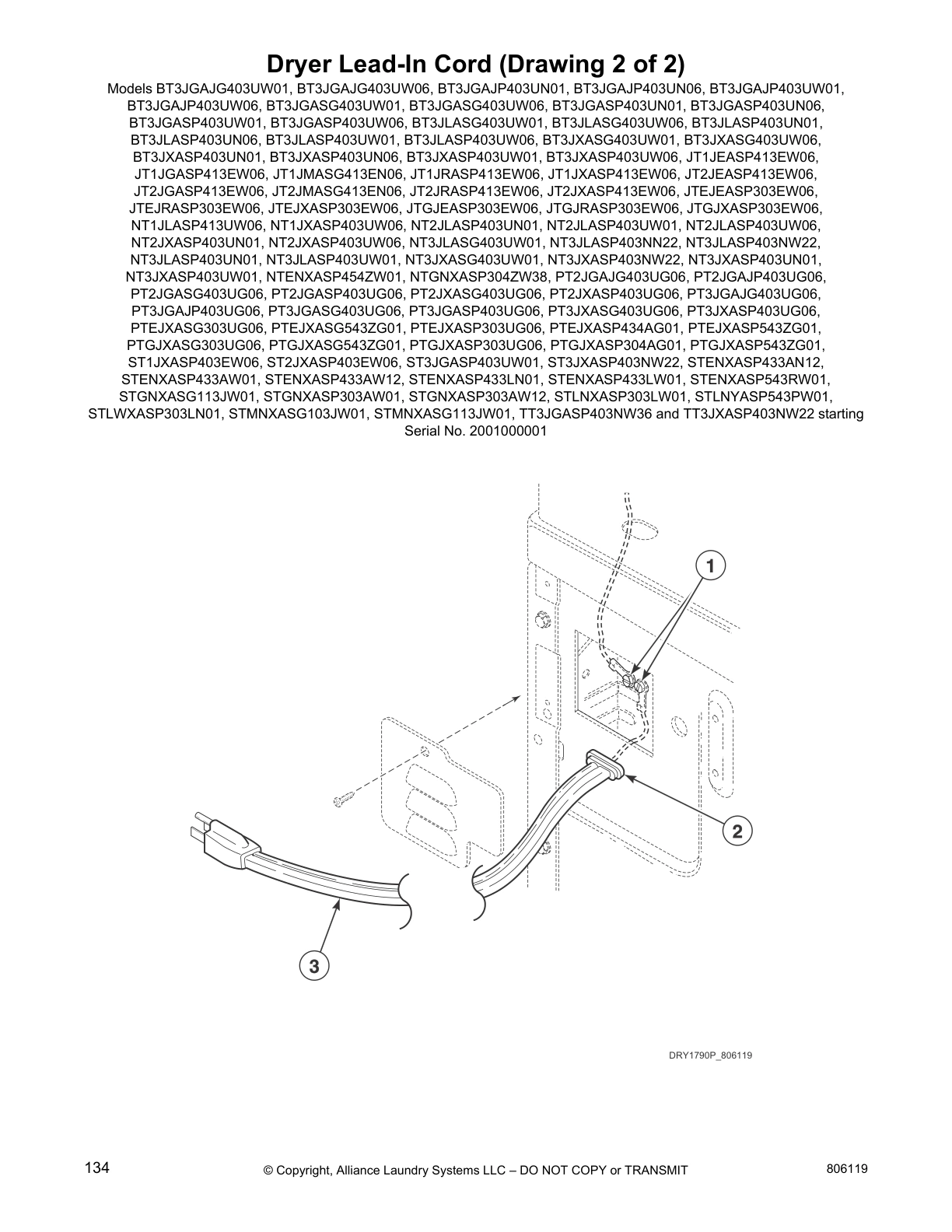

Dryer Lead-In Cord (Drawing 2 of 2)

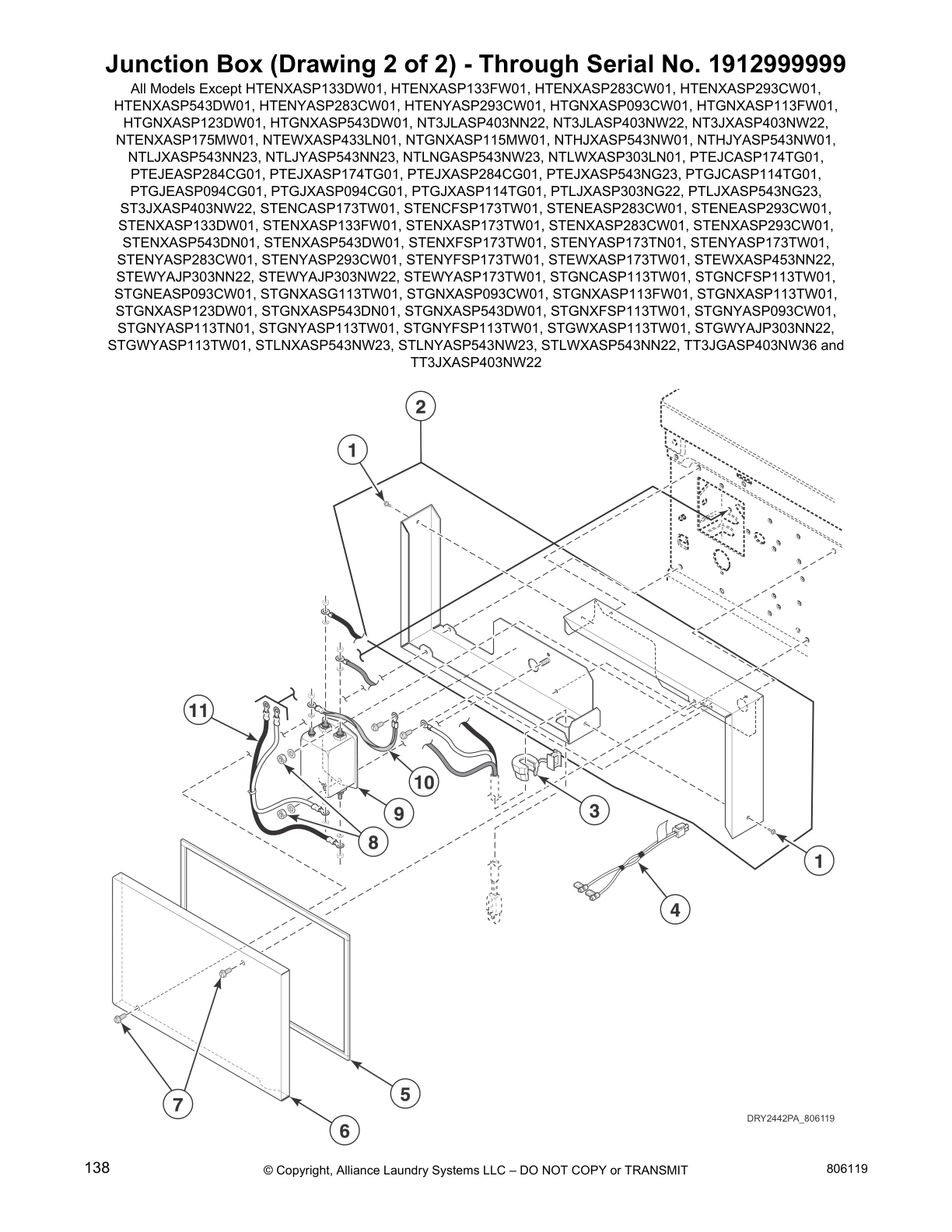

Junction Box (Drawing 2 of 2) - Through Serial No. 1912999999

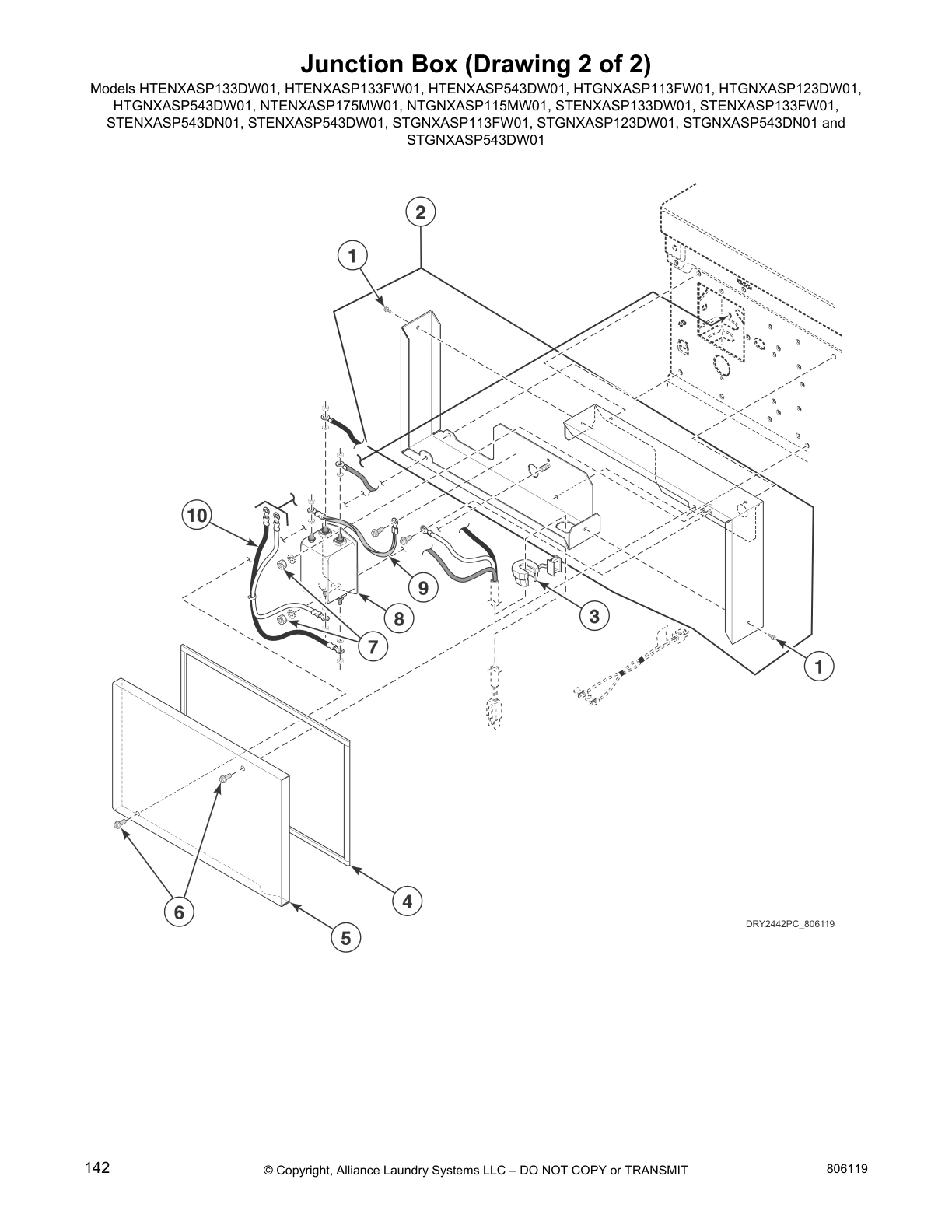

Junction Box (Drawing 2 of 2)
Dryer Terminals and Terminal Extractor Tools

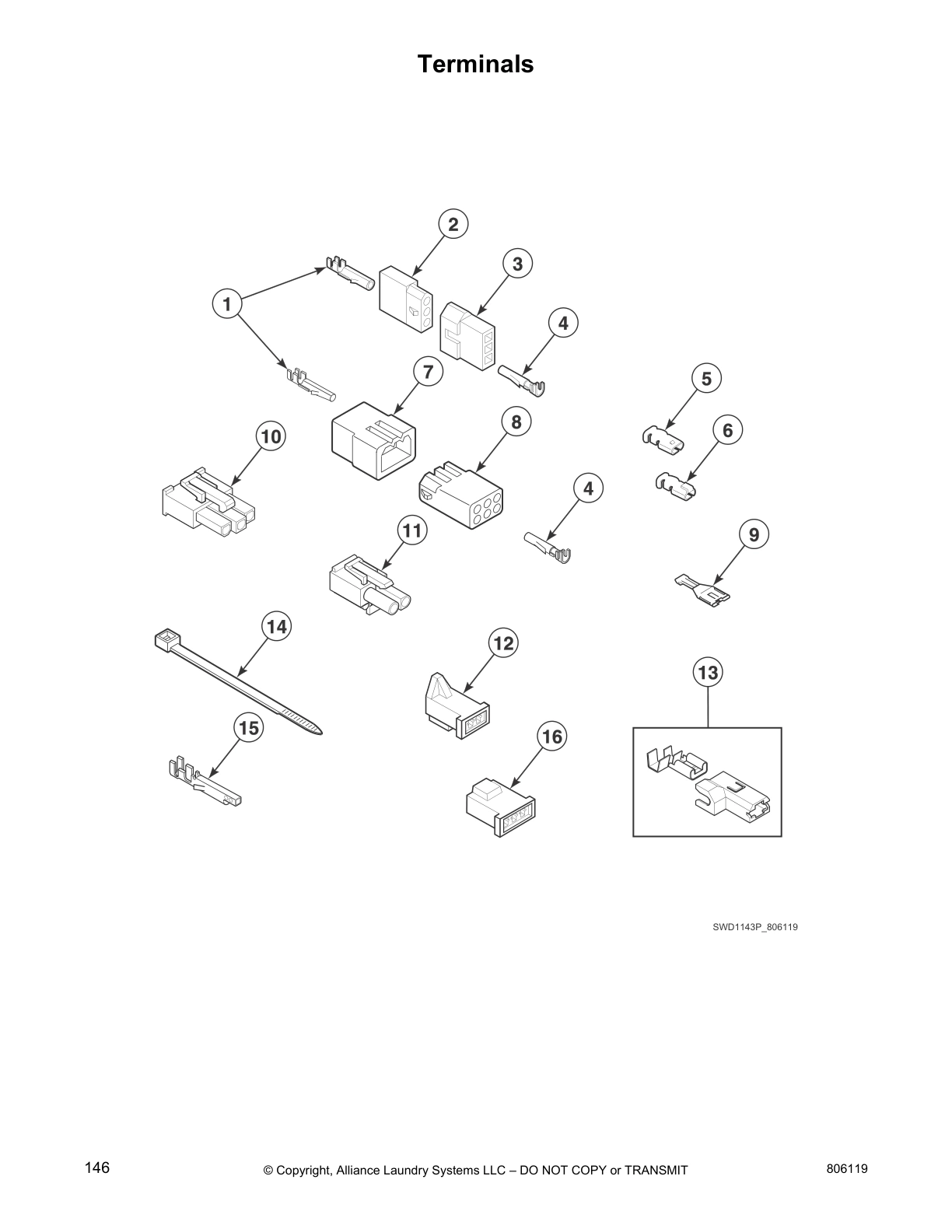

Terminals
Dryer Labels
Washer Labels
Shipping Materials
Special Tools

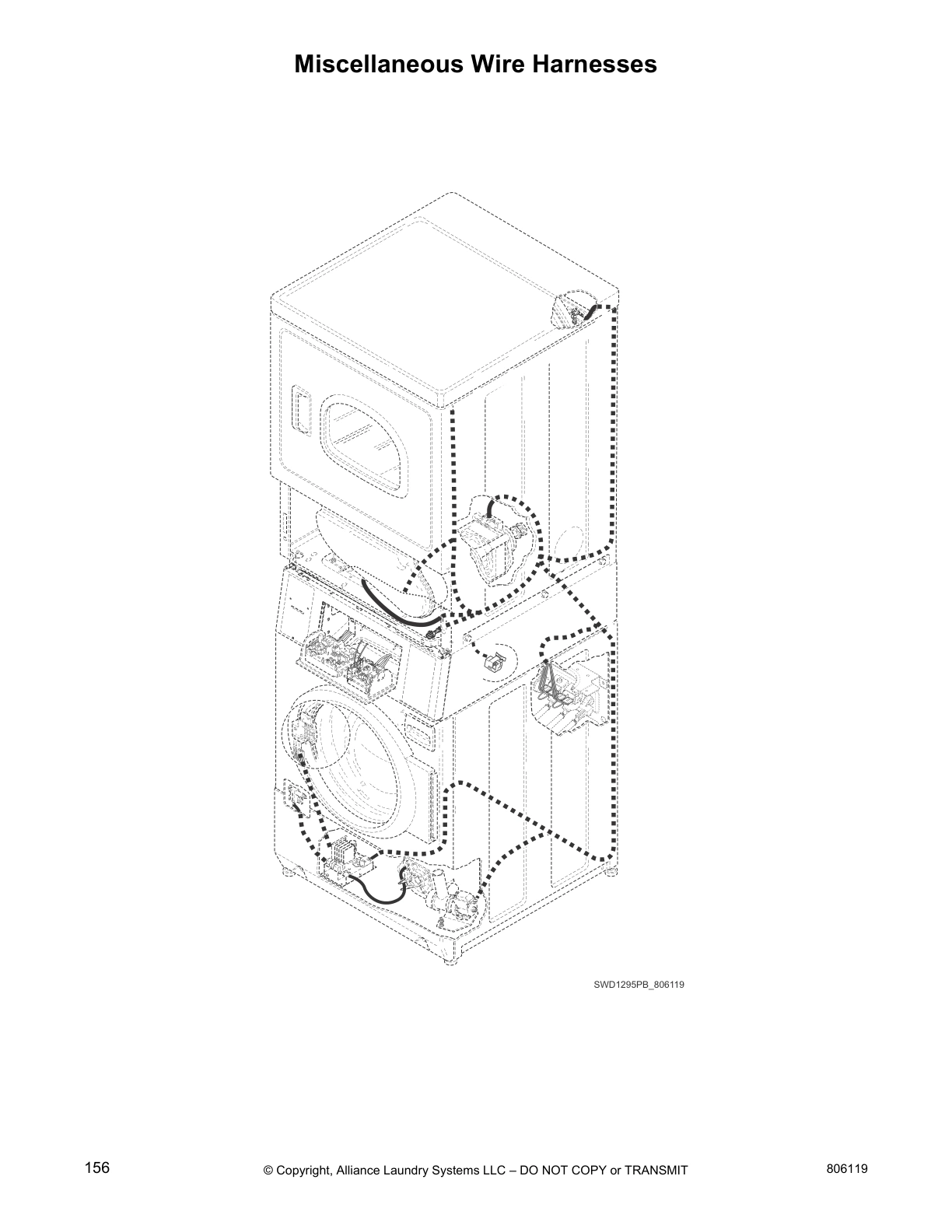

Miscellaneous Wire Harnesses

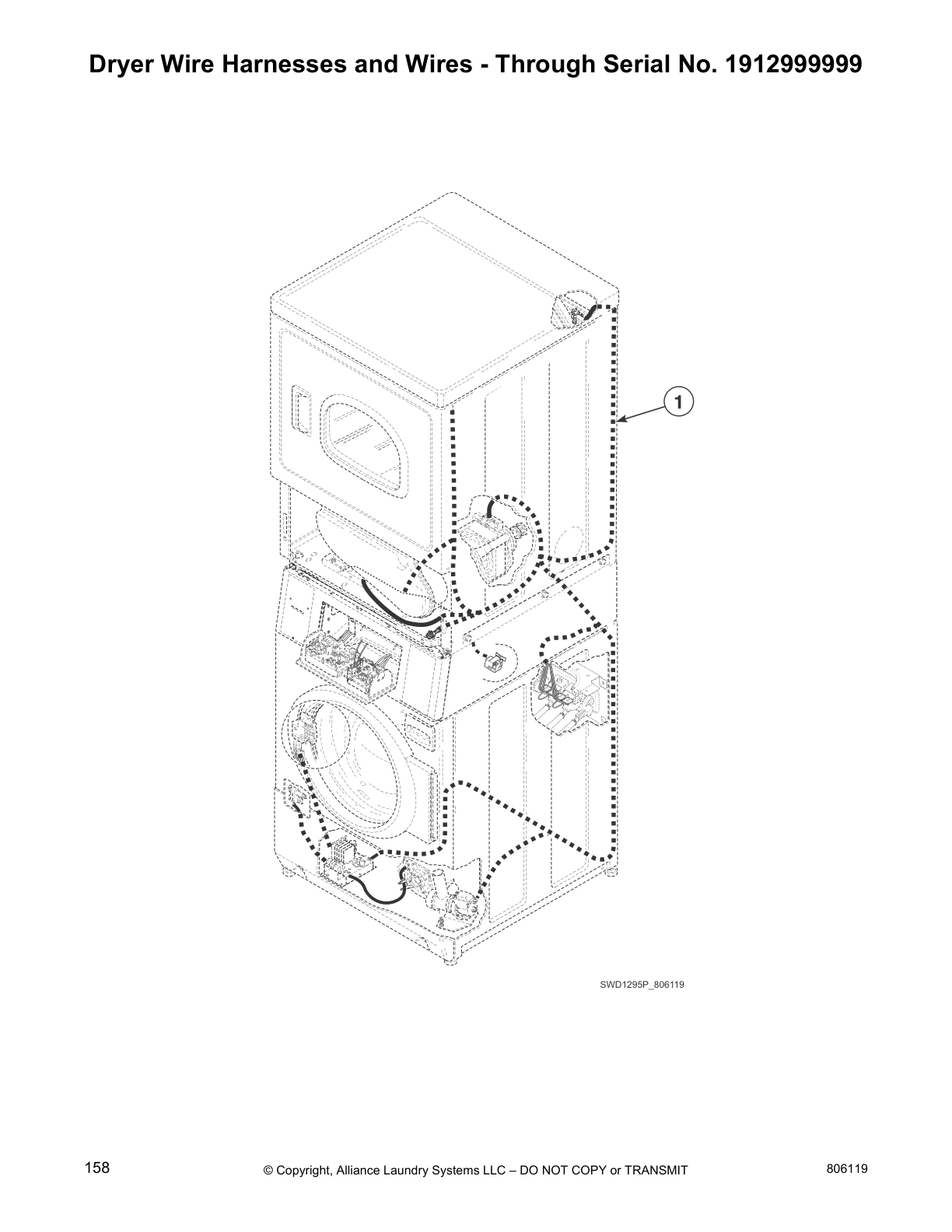

Dryer Wire Harnesses and Wires - Through Serial No. 1912999999

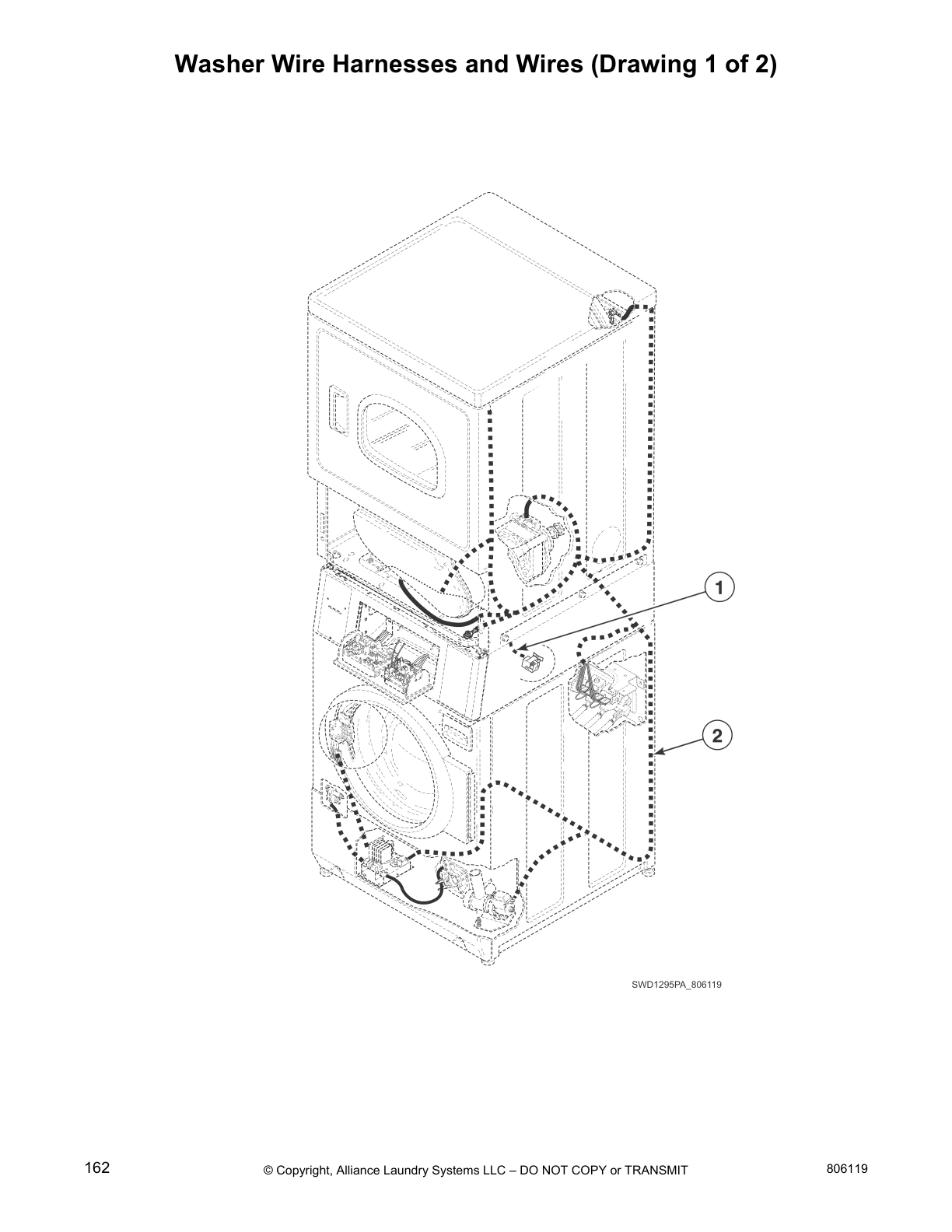

Washer Wire Harnesses and Wires (Drawing 1 of 2)
Washer Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model Speed Queen STMNXASG113JW01 Stacked Washer and Dryer
3
Spark Electrode SPQ 44328701P Contact Us For Availability
7
Wiring Harness Assembly SPQ 54612 No Longer Available
NI
SPQ 70441601P SPQ 70441601P Contact Us For Availability
× ![]()
