Model GE ADEE9RGS175CW01 General Electric Model ADEE9RGS175CW01 – Common Parts & Diagrams

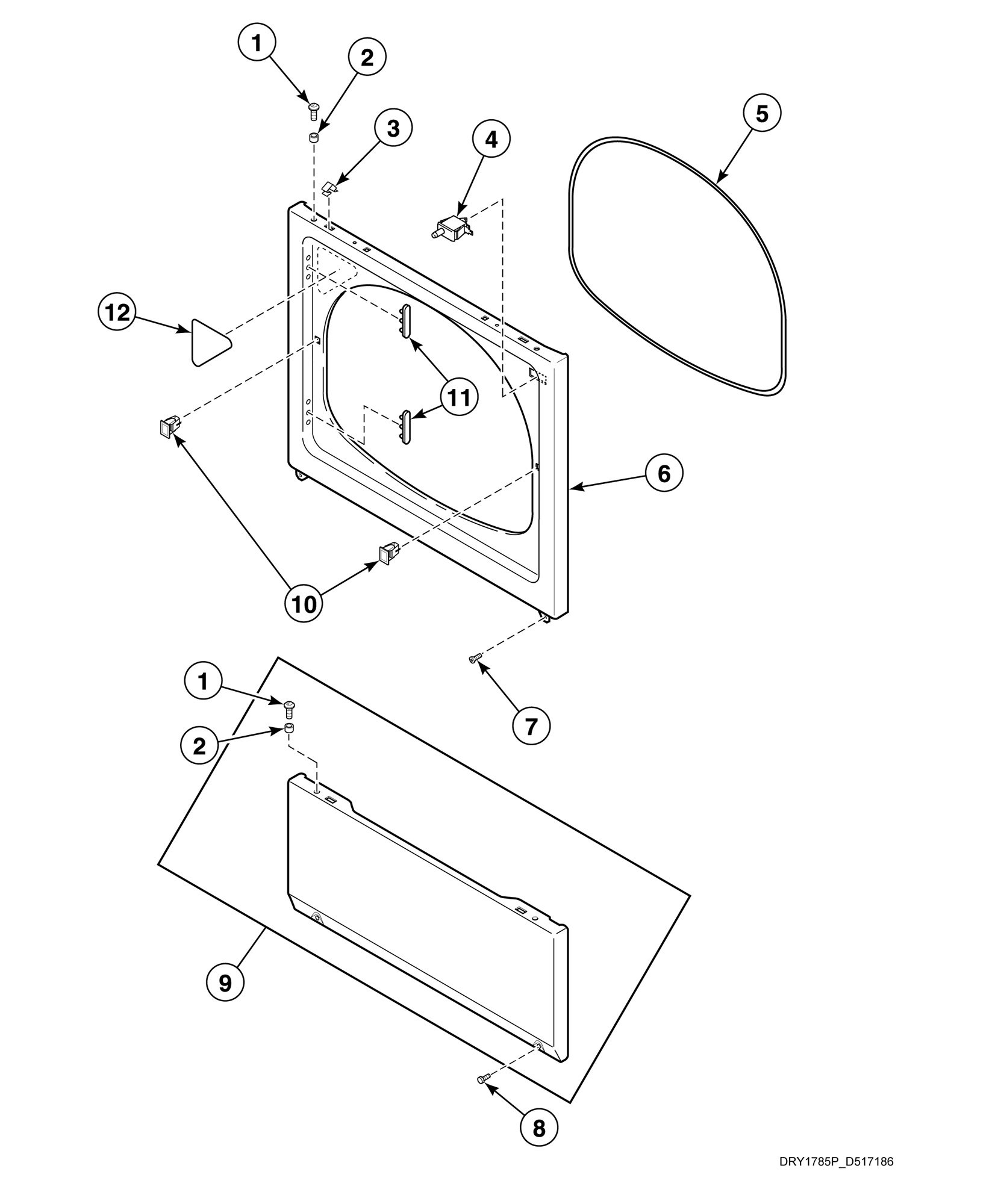

Access Panel, Front Panel and Seal

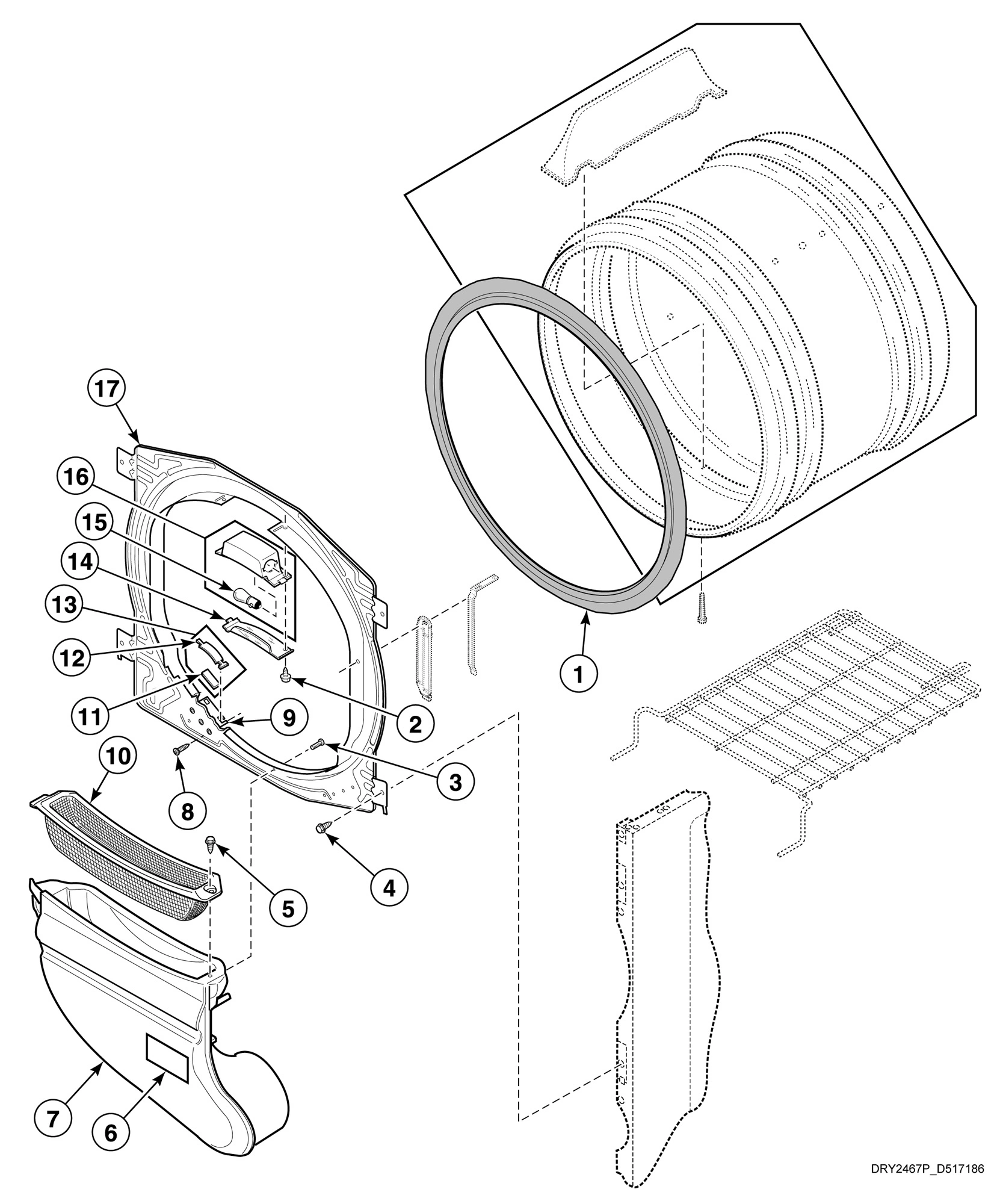

Front Bulkhead, Air Duct and Felt Seal

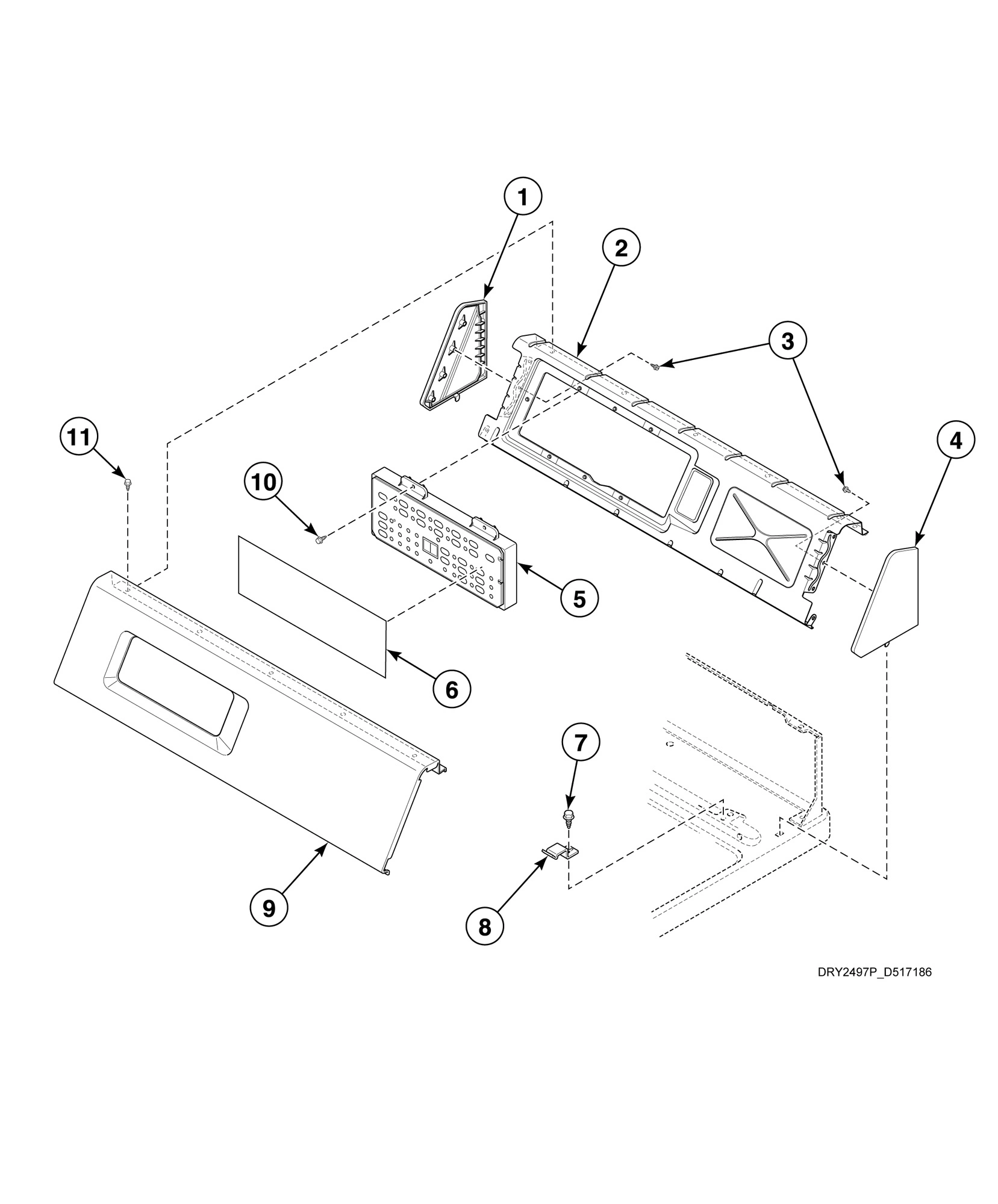

Graphic Panel, Control Support Panel and Controls - Rear Control (Drawing 2 of 2)

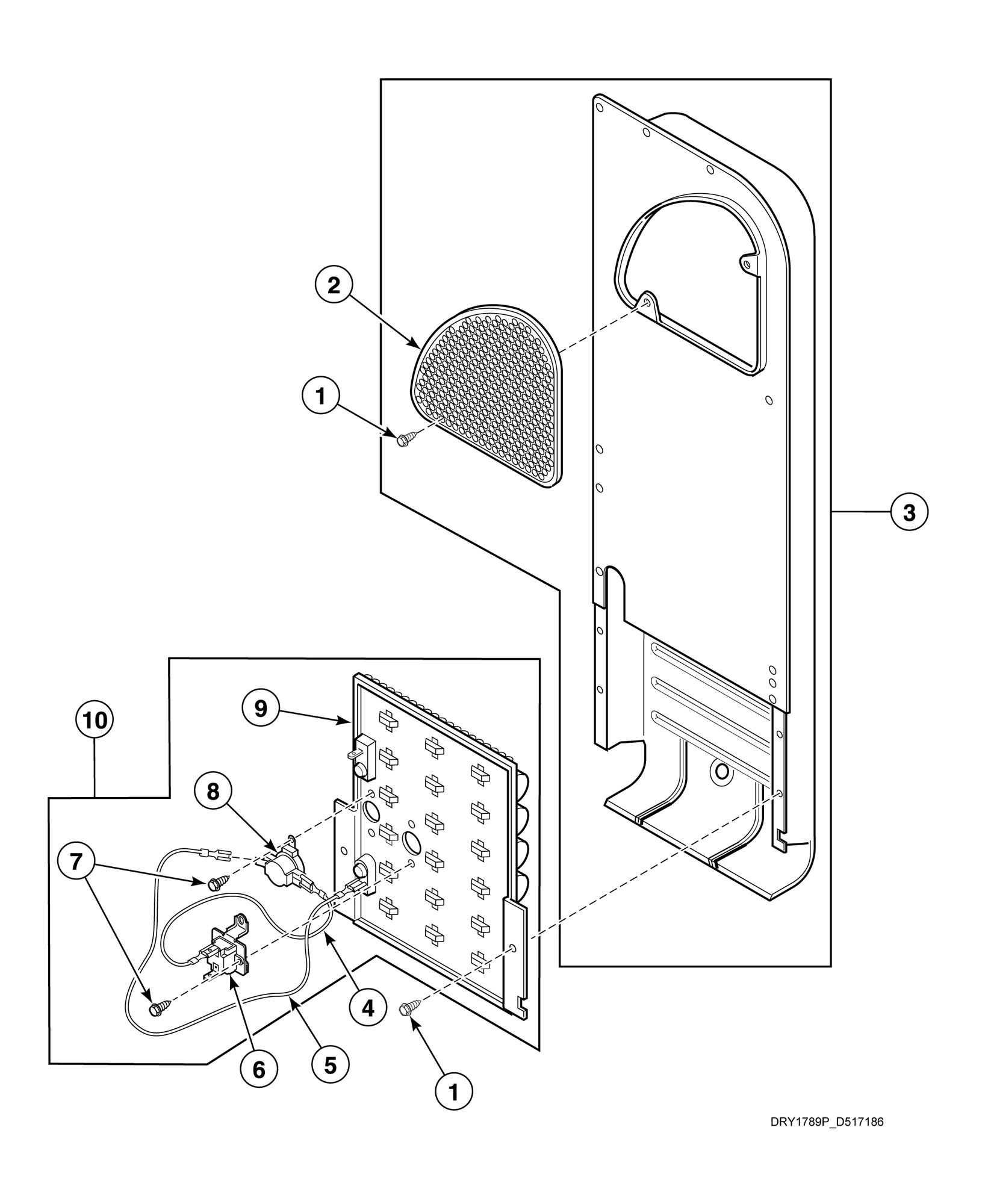

Heater Duct and Element Assembly (Electric Models)

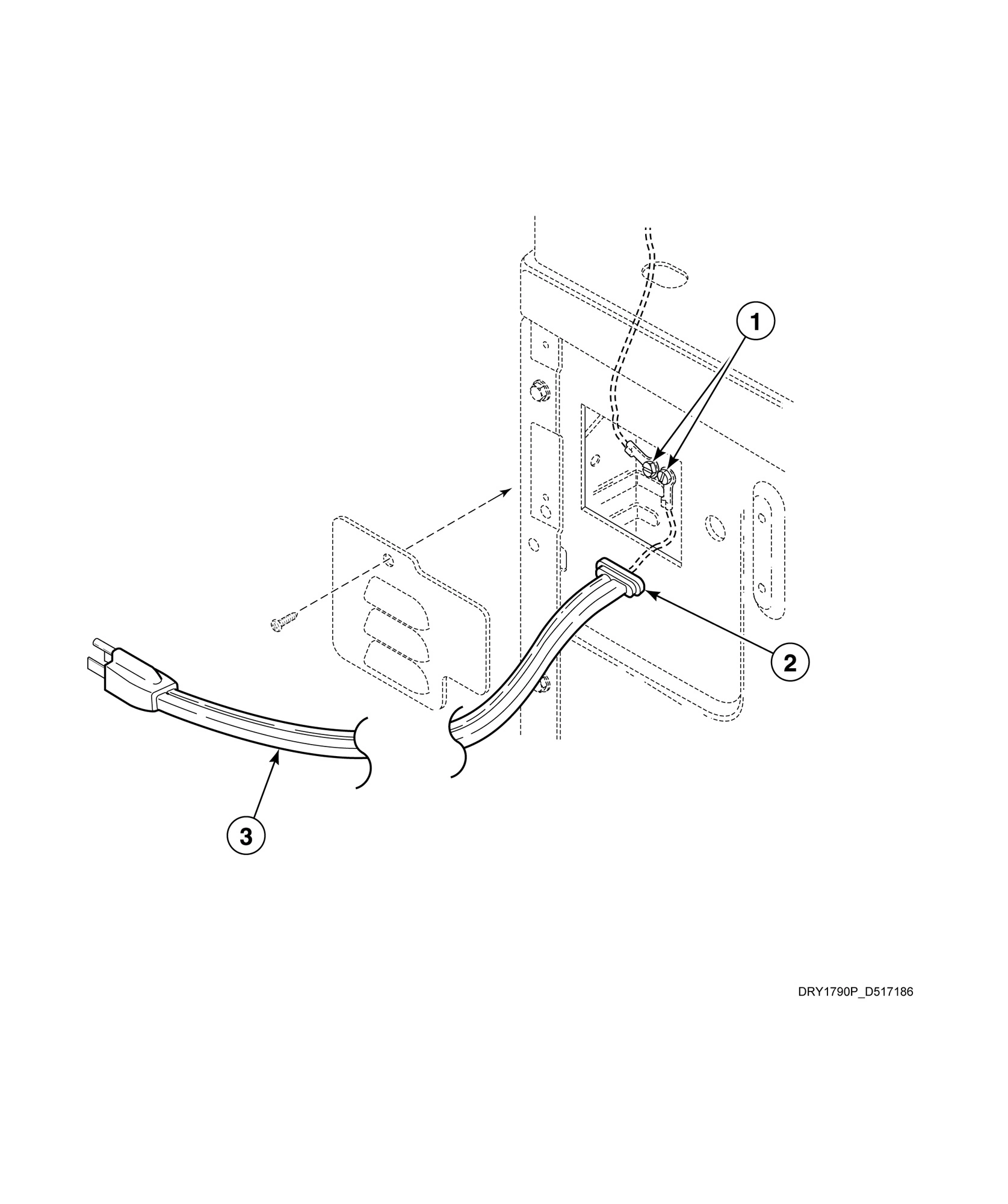

Lead-In Cord

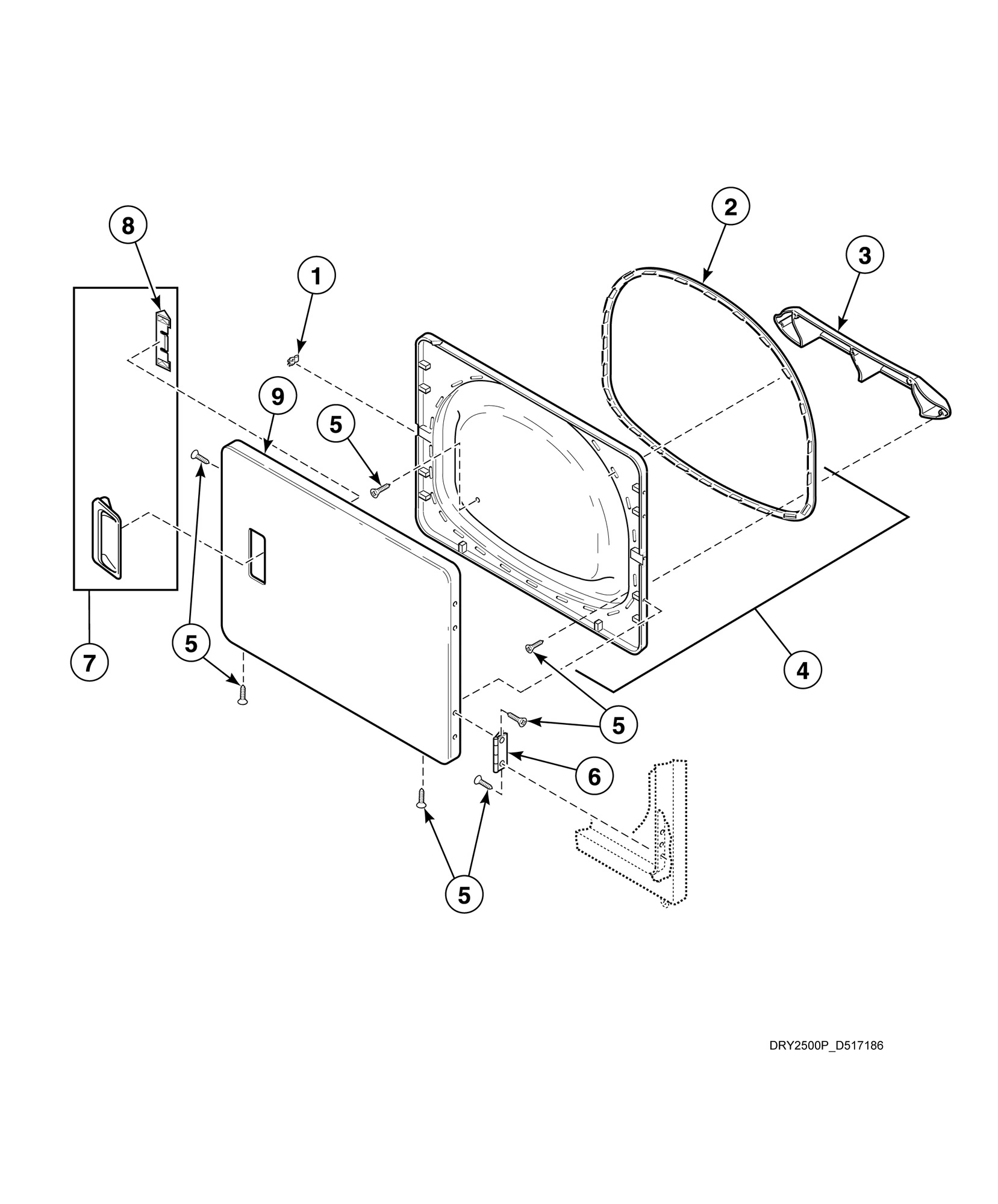

Loading Door

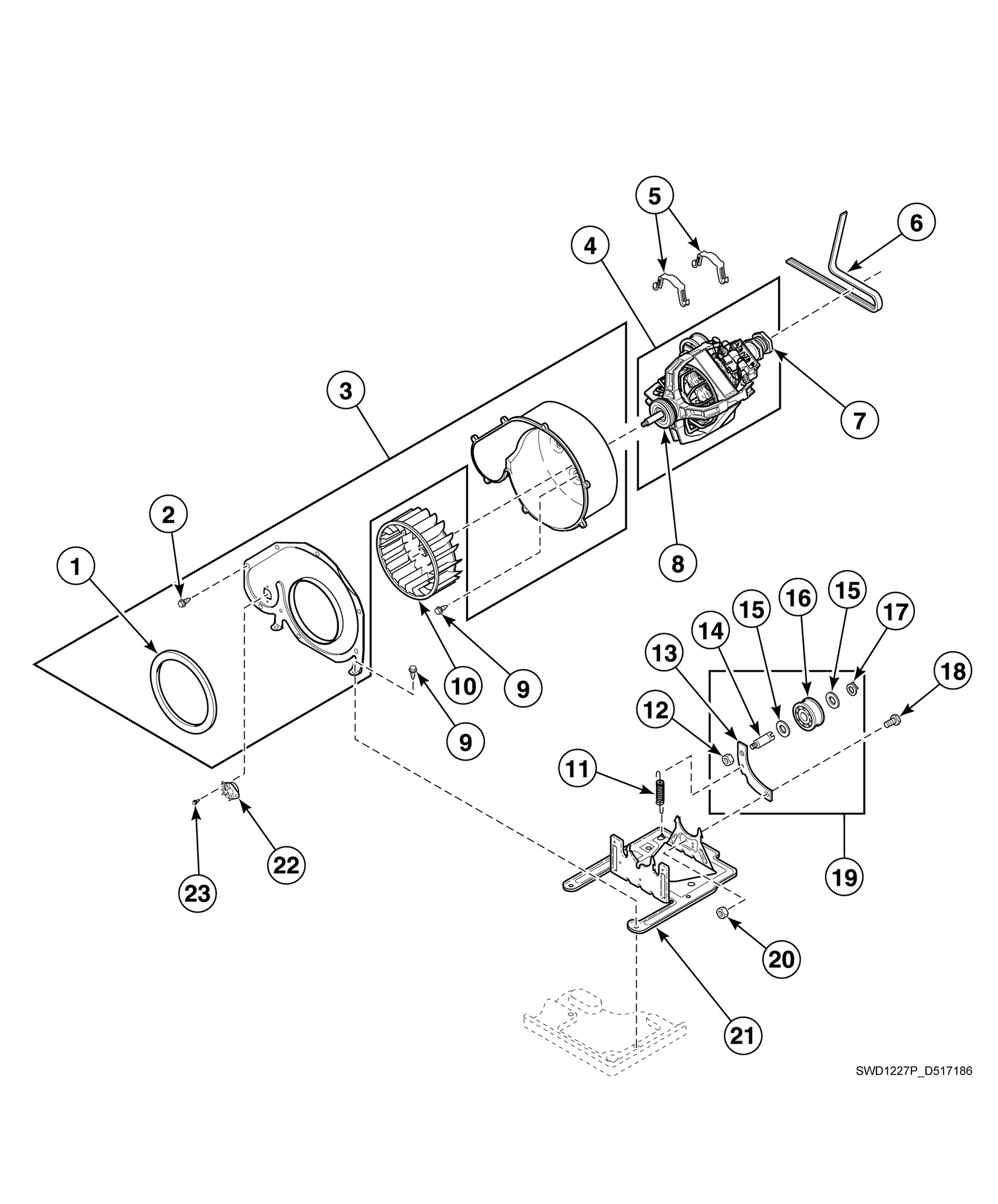

Motor, Exhaust Fan and Belt

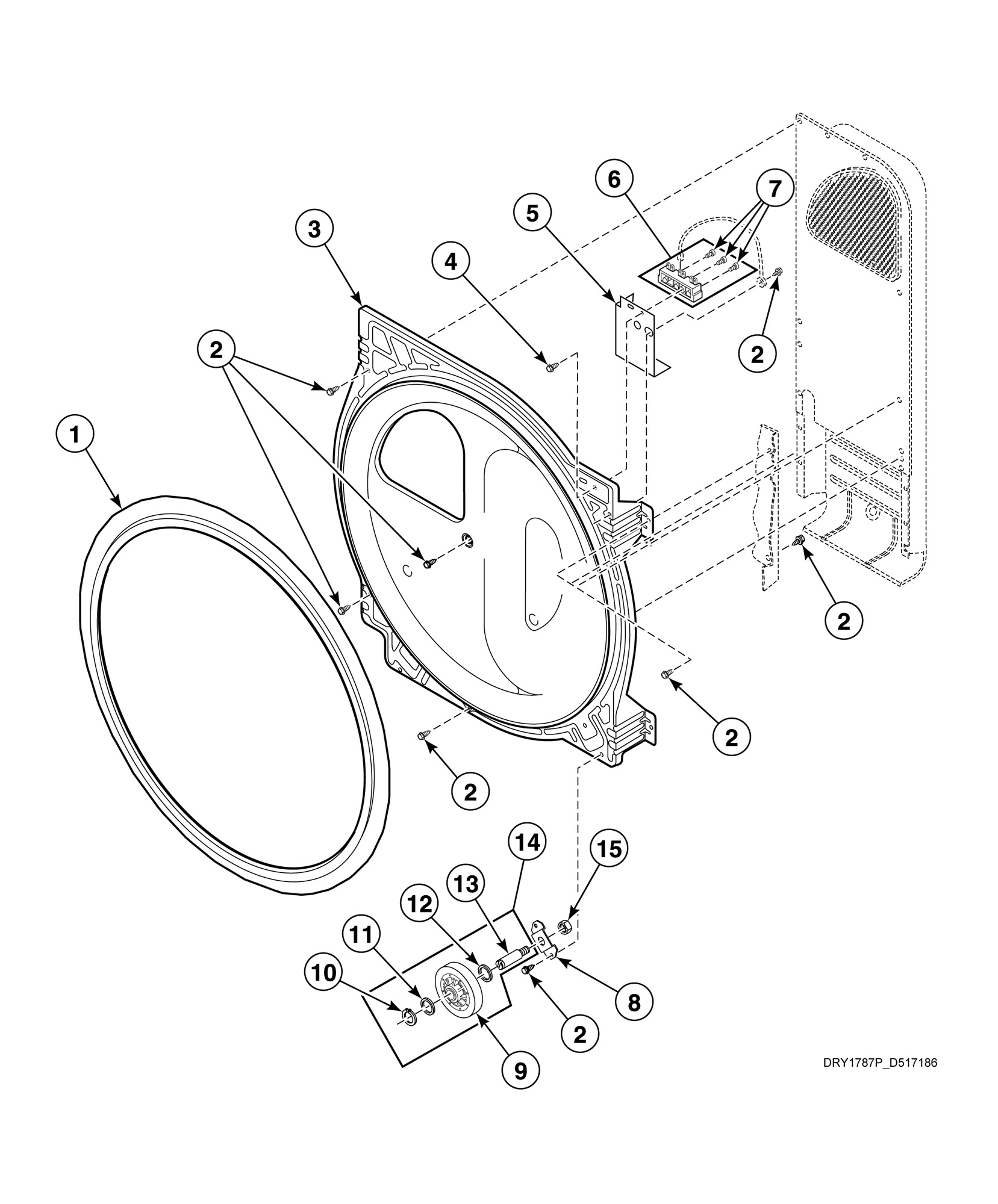

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

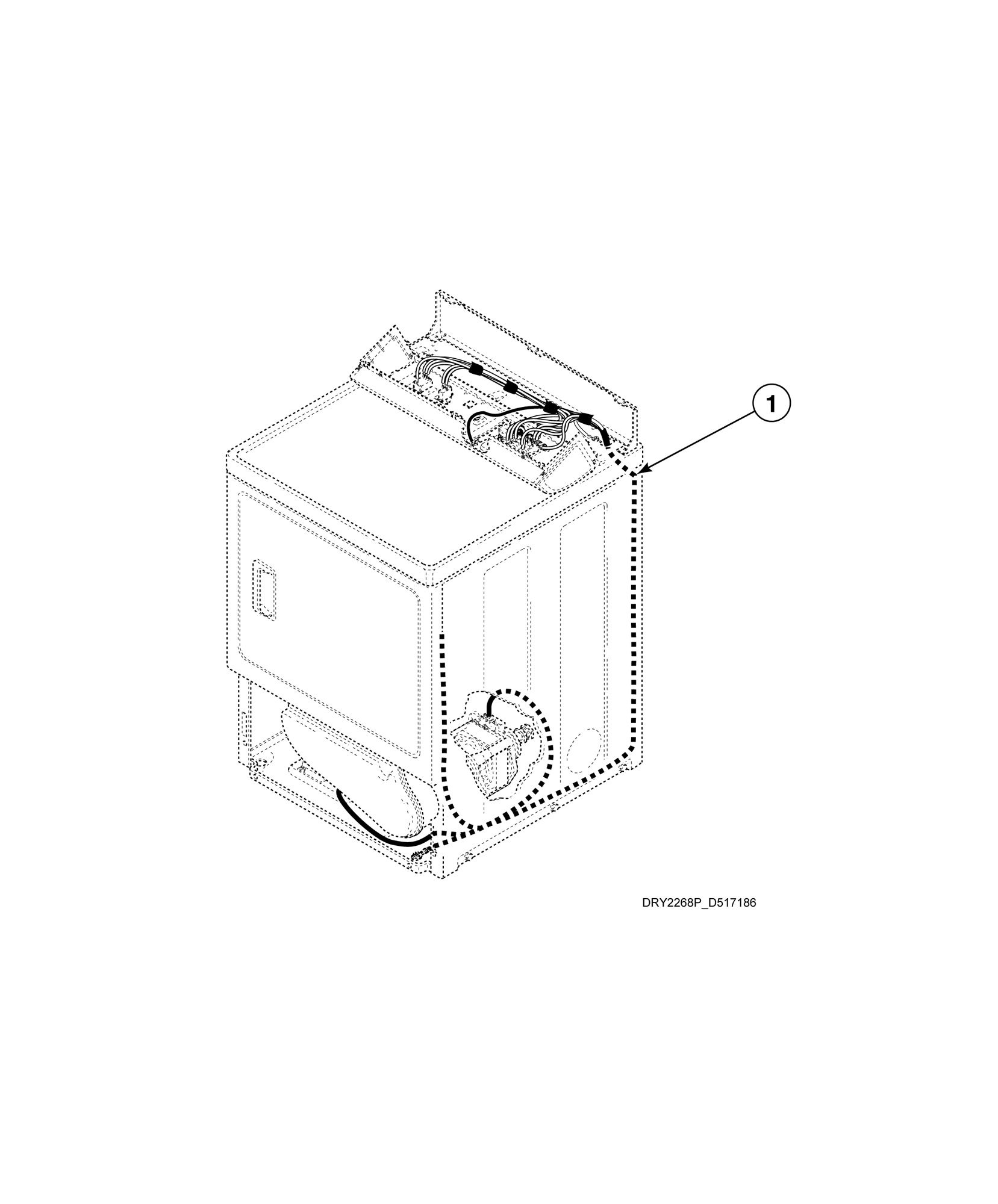

Wire Harnesses and Wires - Rear Control Models
Common parts from model GE ADEE9RGS175CW01 General Electric Model ADEE9RGS175CW01
1
Screw GEN 39733 Contact Us For Availability
1
End Cap (Comment: Left) GEN 203730W Contact Us For Availability
1
Screw (Comment: Earth/Ground) GEN 20530 Contact Us For Availability
1
Door Strike GEN D510181 Contact Us For Availability
1
Blower Housing Seal GEN D510238P Contact Us For Availability
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: Apply to cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
Electric Harness (Comment: Main harness) GEN D513986 Contact Us For Availability
2
Panel Locator GEN 56079 Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
Screw GEN D500227 Contact Us For Availability
2
Control Support Panel GEN 806430 Contact Us For Availability
2
Outlet Cover (Comment: Aluminized steel) GEN D500820 Contact Us For Availability
2
Outlet Cover (Comment: Black, Nitrocarburized GEN D515573 Contact Us For Availability
2
Strain Relief GEN 38384 Contact Us For Availability
2
Liner Door Seal GEN D515709 Contact Us For Availability
2
Screw GEN 31260 Contact Us For Availability
3
Speed Clip GEN 28835 Contact Us For Availability
3
Screw GEN 203799 Contact Us For Availability
3
Heater Duct Assembly (Comment: Includes items GEN D510025P Contact Us For Availability
3
Lead-In Cord Assembly GEN D510505P Contact Us For Availability
3
Door Liner Grill (Comment: Light gray) GEN D503870LG Contact Us For Availability
3
Door Liner Grill (Comment: White) GEN D503870W Contact Us For Availability
3
Blower Housing (Comment: Includes items 1 and GEN D511969WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Includes ite GEN D510043 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: White, Inclu GEN D510905WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Includes ite GEN D511082P Contact Us For Availability
4
Switch GEN D512973 Contact Us For Availability
4
Screw (Comment: Use with stainless steel side GEN M405188 Contact Us For Availability
4
Screw GEN D501285 Contact Us For Availability
4
End Cap (Comment: Right) GEN 203729W Contact Us For Availability
4
Wire Assembly (Comment: Orange, Thermostat ju GEN D510528 Contact Us For Availability
4
Door Liner Assembly (Comment: Includes item 2 GEN D516508 Contact Us For Availability
4
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
5
Front Panel Seal GEN D511056 Contact Us For Availability
5
Screw GEN D500226 Contact Us For Availability
5
Control GEN D514567P Contact Us For Availability
5
Wire Assembly (Comment: Black, Fuse jumper, A GEN D510527 Contact Us For Availability
5
Motor Mount Clamp GEN D510180 Contact Us For Availability
5
Terminal Block Shield (Comment: Through Seria GEN D510237 Contact Us For Availability
6
Front Panel (Comment: White) GEN D510066WP Contact Us For Availability
6
Front Panel (Comment: Stainless steel) GEN D512542 Contact Us For Availability
6
Warning Label (Comment: English/French) GEN 44324001 Contact Us For Availability
6
Control Overlay GEN D516225 Contact Us For Availability
6
Thermal Fuse Assembly GEN D511412 Contact Us For Availability
6
Hinge GEN D511036 Contact Us For Availability
6
Cylinder Belt GEN D511255P Contact Us For Availability
6
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
7
Screw GEN D501086 Contact Us For Availability
7
Air Duct Assembly GEN D515805LG Contact Us For Availability
7
Screw GEN 23222 Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: White, Incl GEN D510103WP Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: Black, Incl GEN D511213P Contact Us For Availability
7
Motor Pulley (Comment: 60 Hertz) GEN D500011 Contact Us For Availability
7
Screw GEN 61199 Contact Us For Availability
8
Hold-Down Clip GEN 35358 Contact Us For Availability
8
Limit Thermostat GEN D510701 Contact Us For Availability
8
Door Handle Wedge GEN D510129W Contact Us For Availability
8
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
8
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
9
Cylinder Glide Bracket (Comment: 2 required) GEN D510145 Contact Us For Availability
9
Graphic Panel GEN 806715 Contact Us For Availability
9
Heater Assembly (Comment: 5 kW, 240 Volt) GEN D510324P Contact Us For Availability
9
Dryer Door (Comment: White) GEN D515960W Contact Us For Availability
9
Dryer Door (Comment: Stainless steel) GEN D515963 Contact Us For Availability
9
Cylinder Roller GEN D510708P Contact Us For Availability
10
Door Catch Assembly GEN D510177 Contact Us For Availability
10
Lint Filter (Comment: White) GEN D503980W Contact Us For Availability
10
Screw GEN 804667 Contact Us For Availability
10
Heater Kit Assembly (Comment: 5 kW, 240 Volt/ GEN 61927 Contact Us For Availability
10
Heater Kit Assembly (Comment: 4.75 kW, 208 Vo GEN 61928 Contact Us For Availability
10
Blower Fan Assembly GEN D510139P Contact Us For Availability
10
Retaining Ring GEN 23748 Contact Us For Availability
11
Hinge Hole Plug GEN D510186 Contact Us For Availability
11
Felt Pad (Comment: 2 required) GEN D510189 Contact Us For Availability
11
Screw GEN 204340 Contact Us For Availability
11
Idler Spring GEN D510185 Contact Us For Availability
11
Washer GEN 52549 Contact Us For Availability
12
Warning/Caution Label (Comment: English) GEN D500281 Contact Us For Availability
12
Warning Label (Comment: French) GEN D516243 Contact Us For Availability
12
Cylinder Glide (Comment: 2 required) GEN D513710 Contact Us For Availability
12
Washer GEN D504082 Contact Us For Availability
13
Glide Kit (Comment: Includes items 11 and 12 GEN RB170003 Contact Us For Availability
13
Idler Lever GEN D510133 Contact Us For Availability
13
Shaft GEN 56461P Contact Us For Availability
14
Cylinder Light Lens GEN D512106 Contact Us For Availability
14
Roller Kit (Comment: Includes 2 each of items GEN RB170002 Contact Us For Availability
15
Drum Light Lamp GEN 60954 Contact Us For Availability
15
Nut GEN 56156 Contact Us For Availability
16
Light Housing Assembly (Comment: 120 Volt, In GEN D512108 Contact Us For Availability
16
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
17
Front Bulkhead (Comment: Galvanized) GEN D513641 Contact Us For Availability
17
Bulkhead Assembly (Comment: White, Includes GEN D515544W Contact Us For Availability
18
Screw GEN D500824 Contact Us For Availability
19
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
20
Nut GEN 52566 Contact Us For Availability
21
Motor Mount GEN D510060 Contact Us For Availability
22
Thermistor Assembly (Comment: Black) GEN D510523 Contact Us For Availability
23
Screw GEN D502535 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
NA
12 Gauge Wire (Comment: Green/yellow stripe, GEN 45477 Contact Us For Availability
× ![]()
