Model GE AES28AWF1500 General Electric Model AES28AWF1500 – Common Parts & Diagrams
Control Panel and Controls - Rear Control
Front Bulkhead, Air Duct, Felt Seal and Cylinder with Light

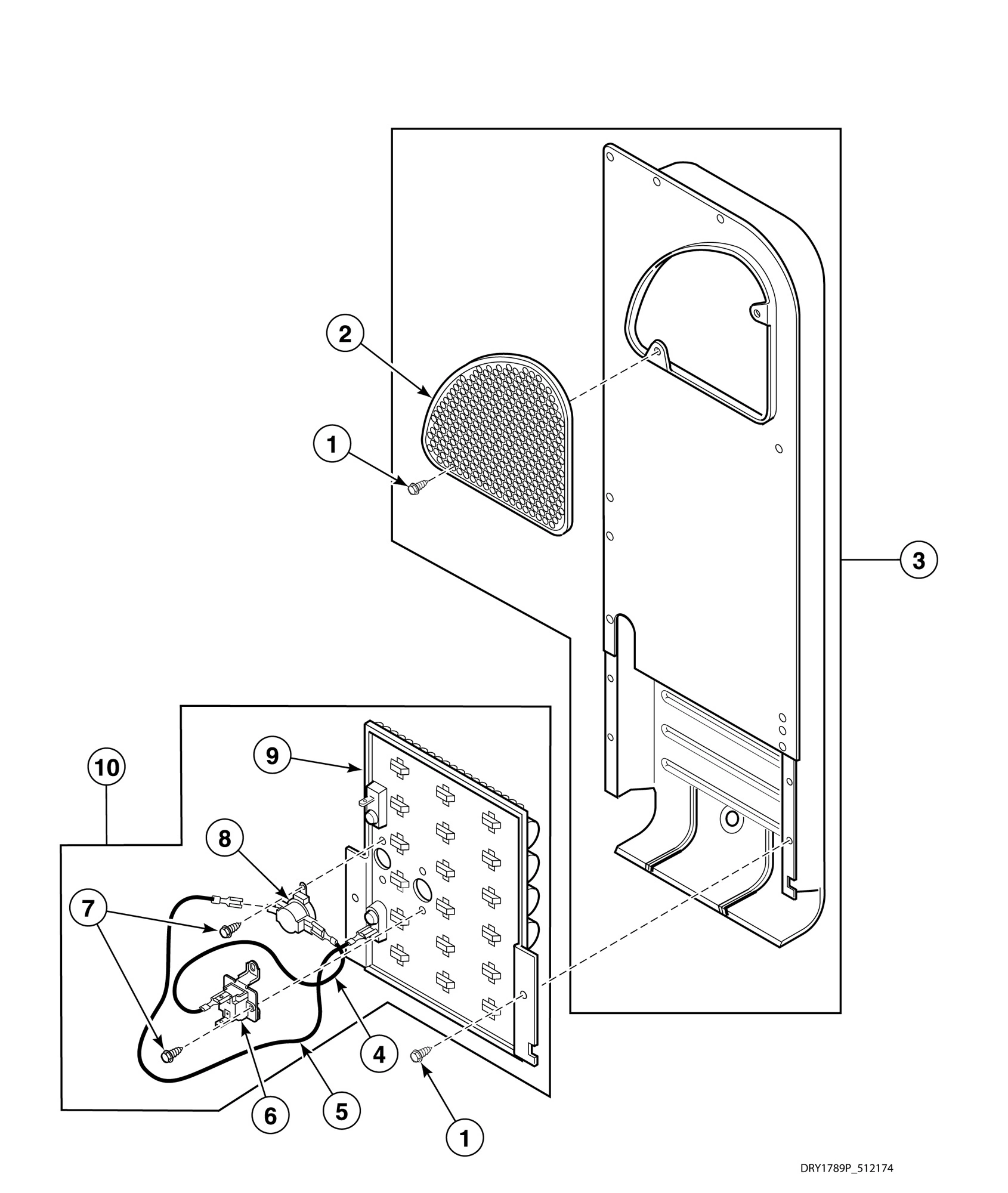

Heater Duct and Element Assembly (Electric Models)

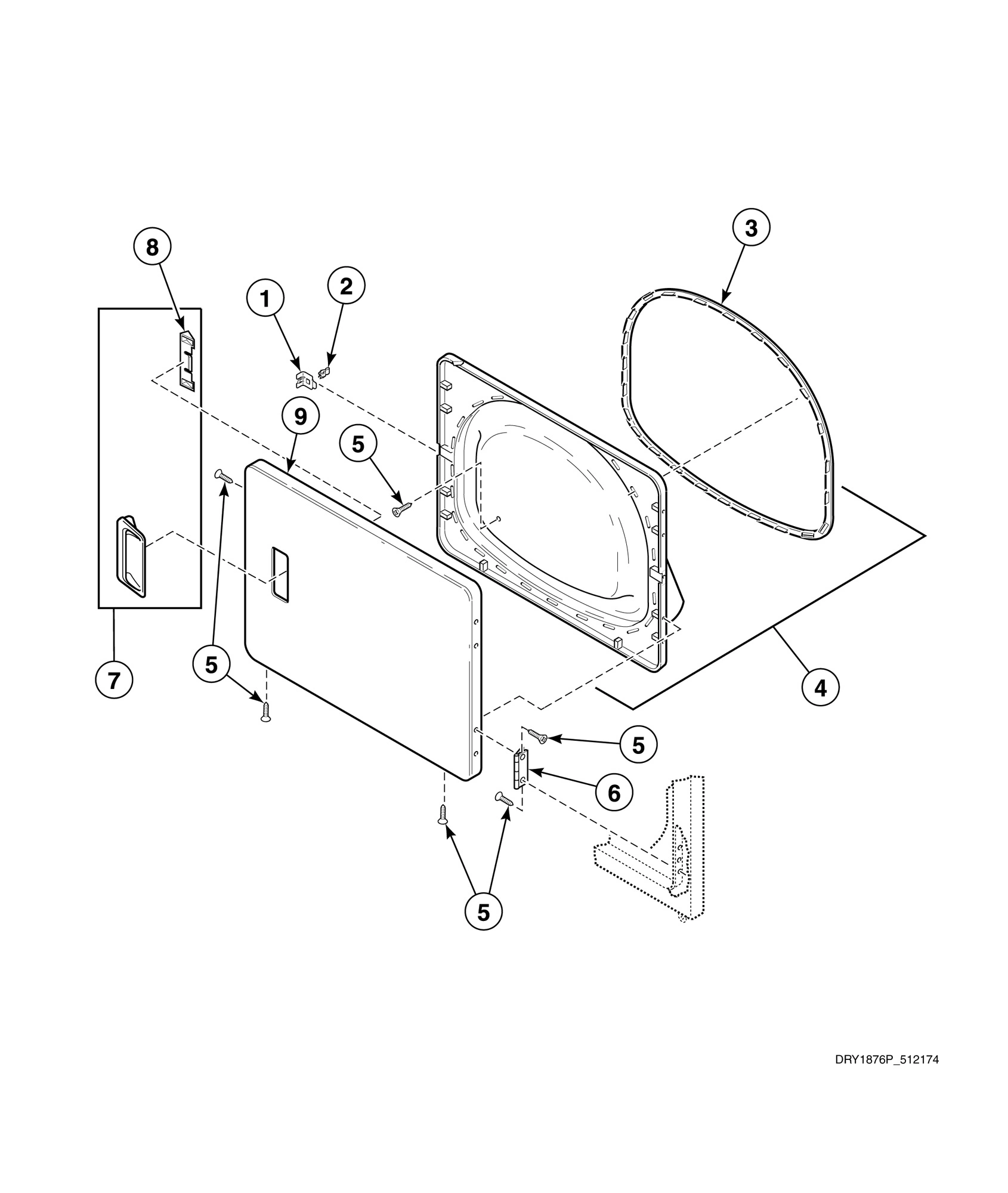

Loading Door - Without Window (Drawing 2 of 2)

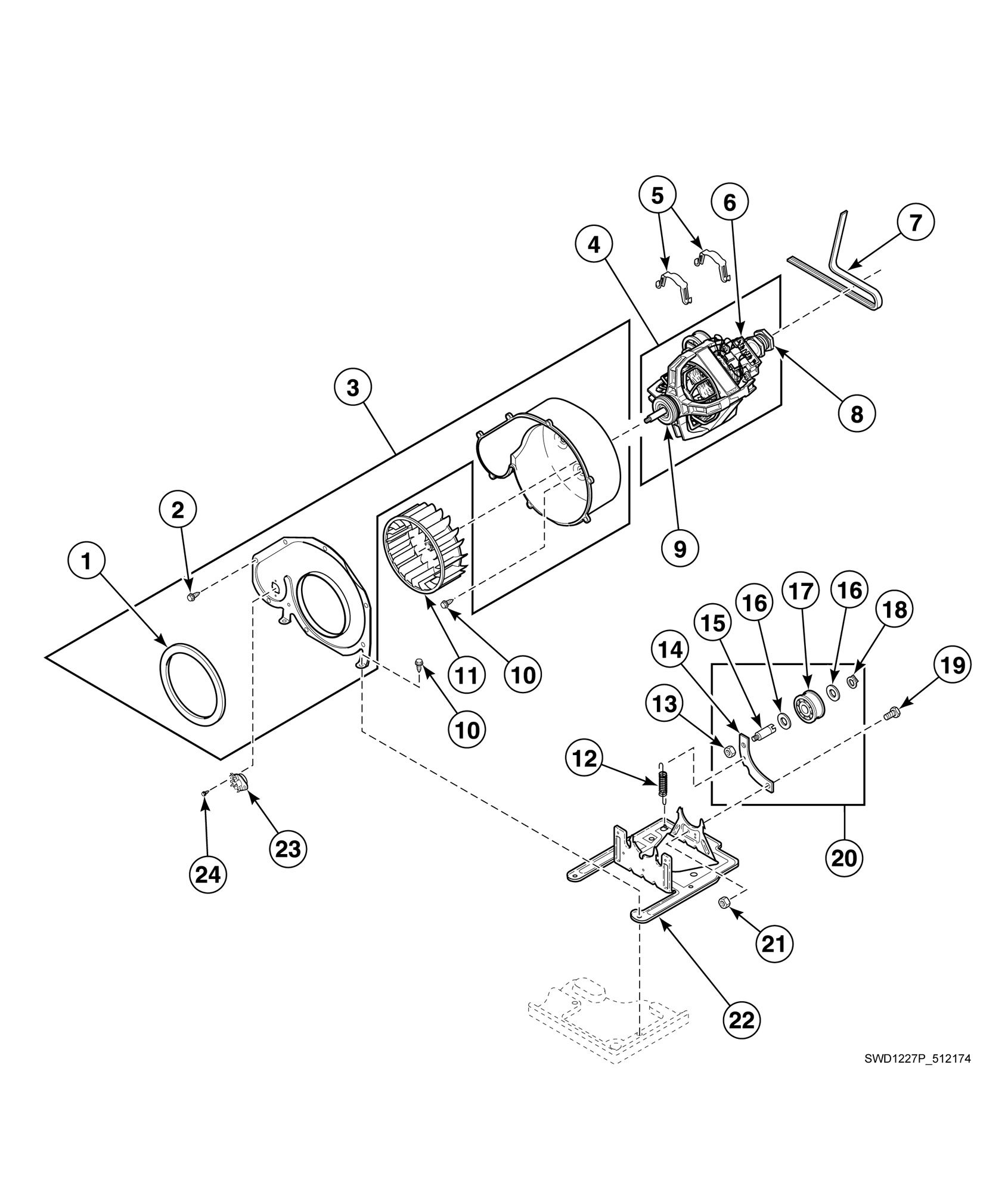

Motor, Exhaust Fan and Belt

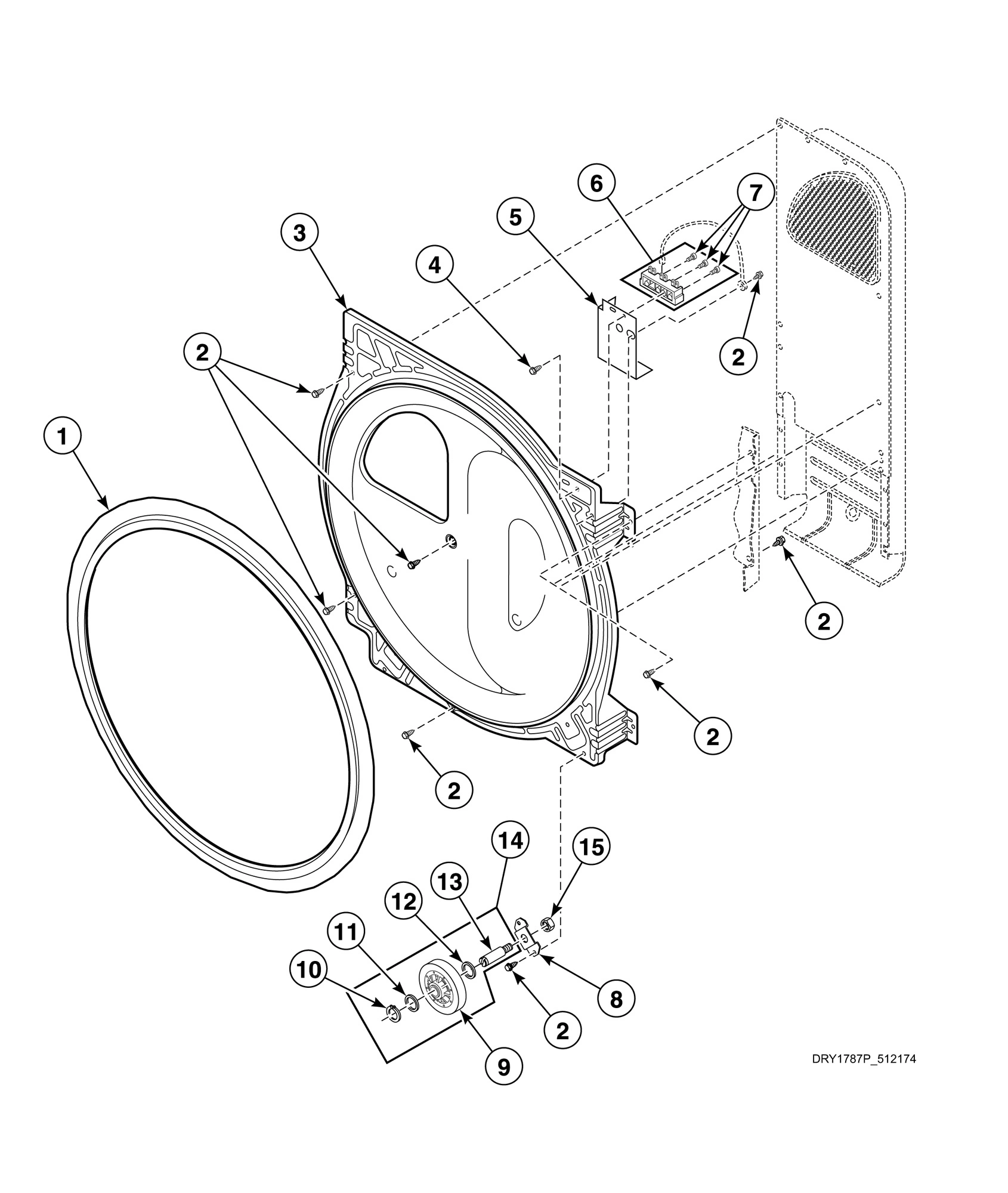

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

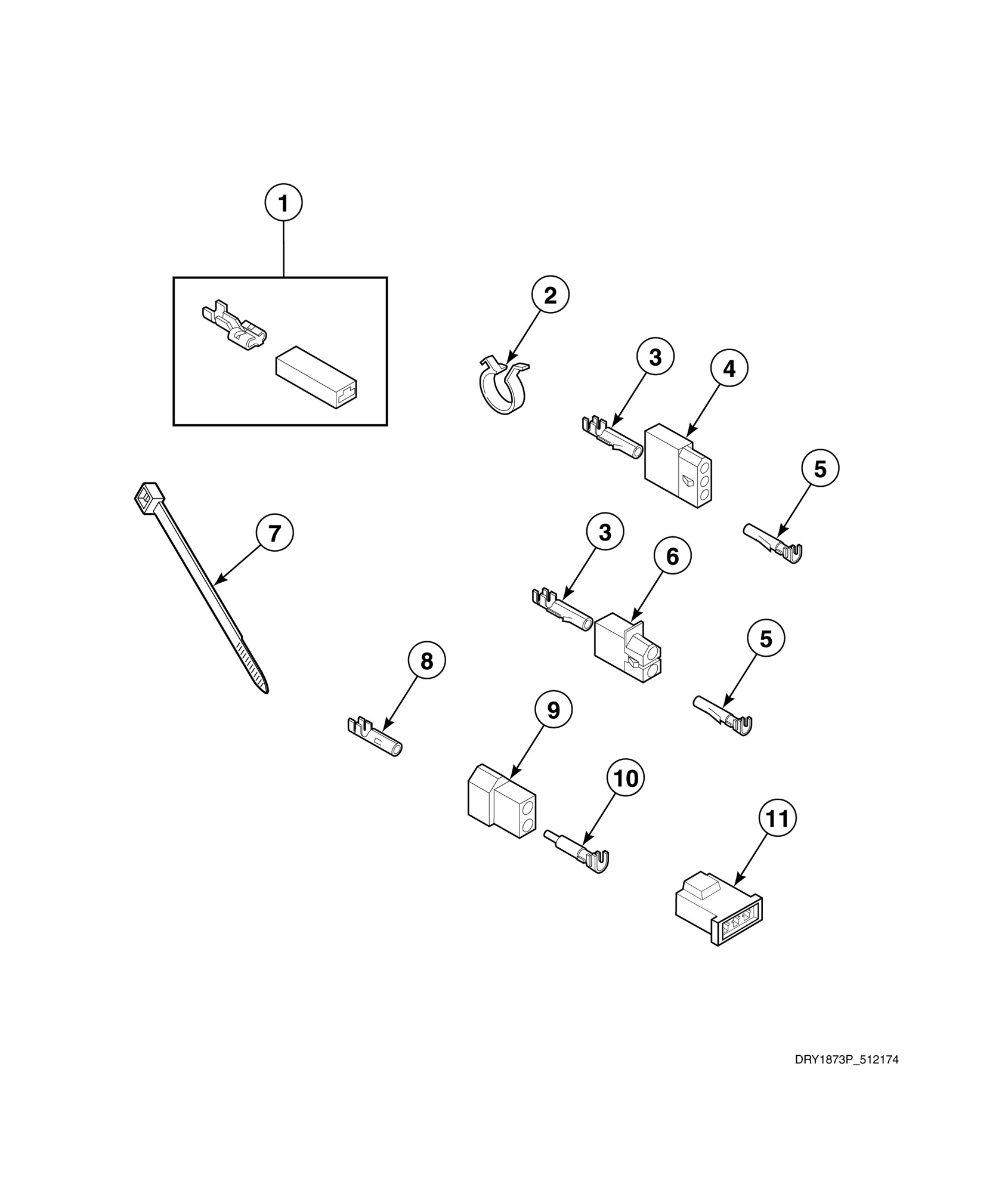

Terminal Block and Terminals

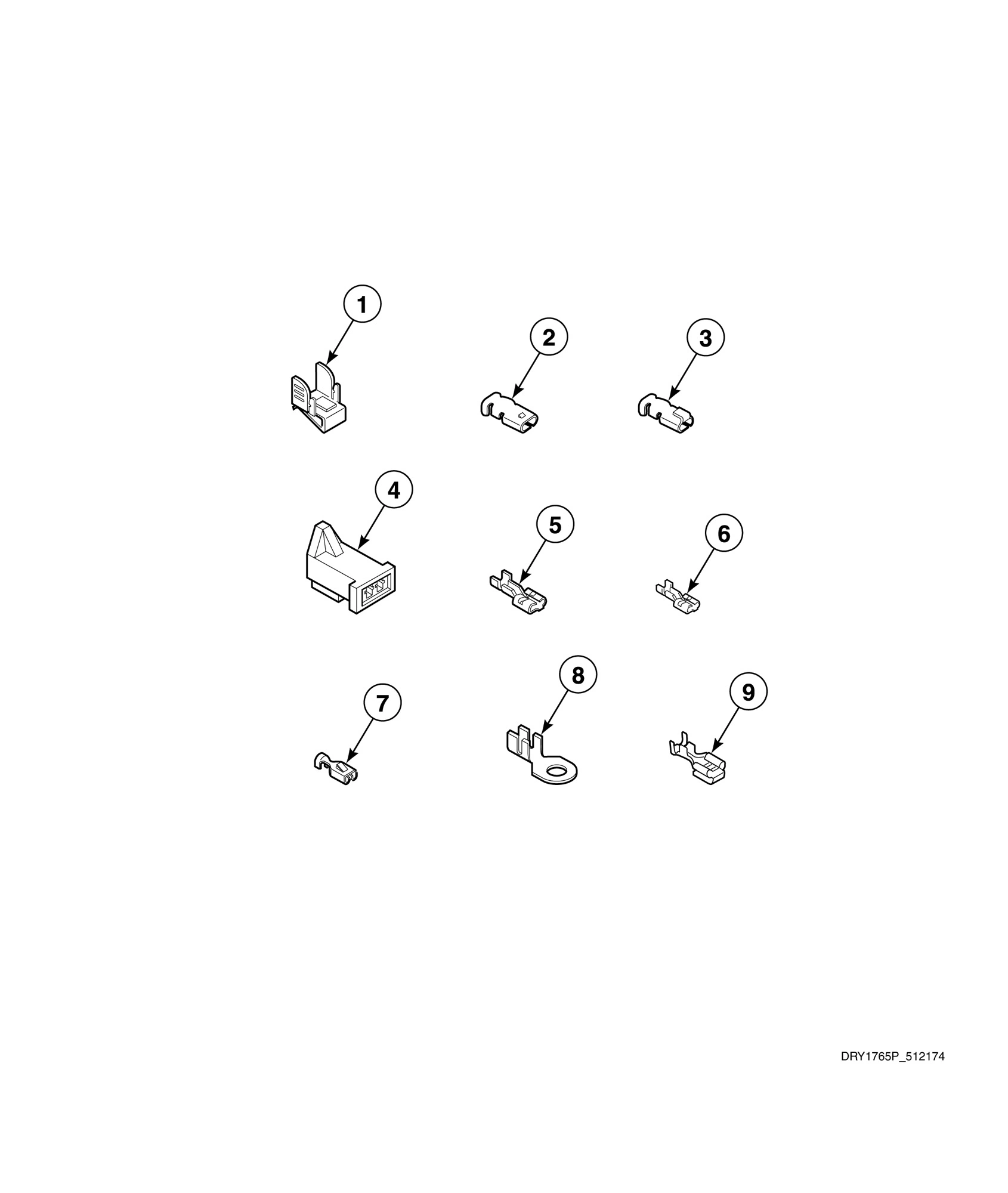

Terminals

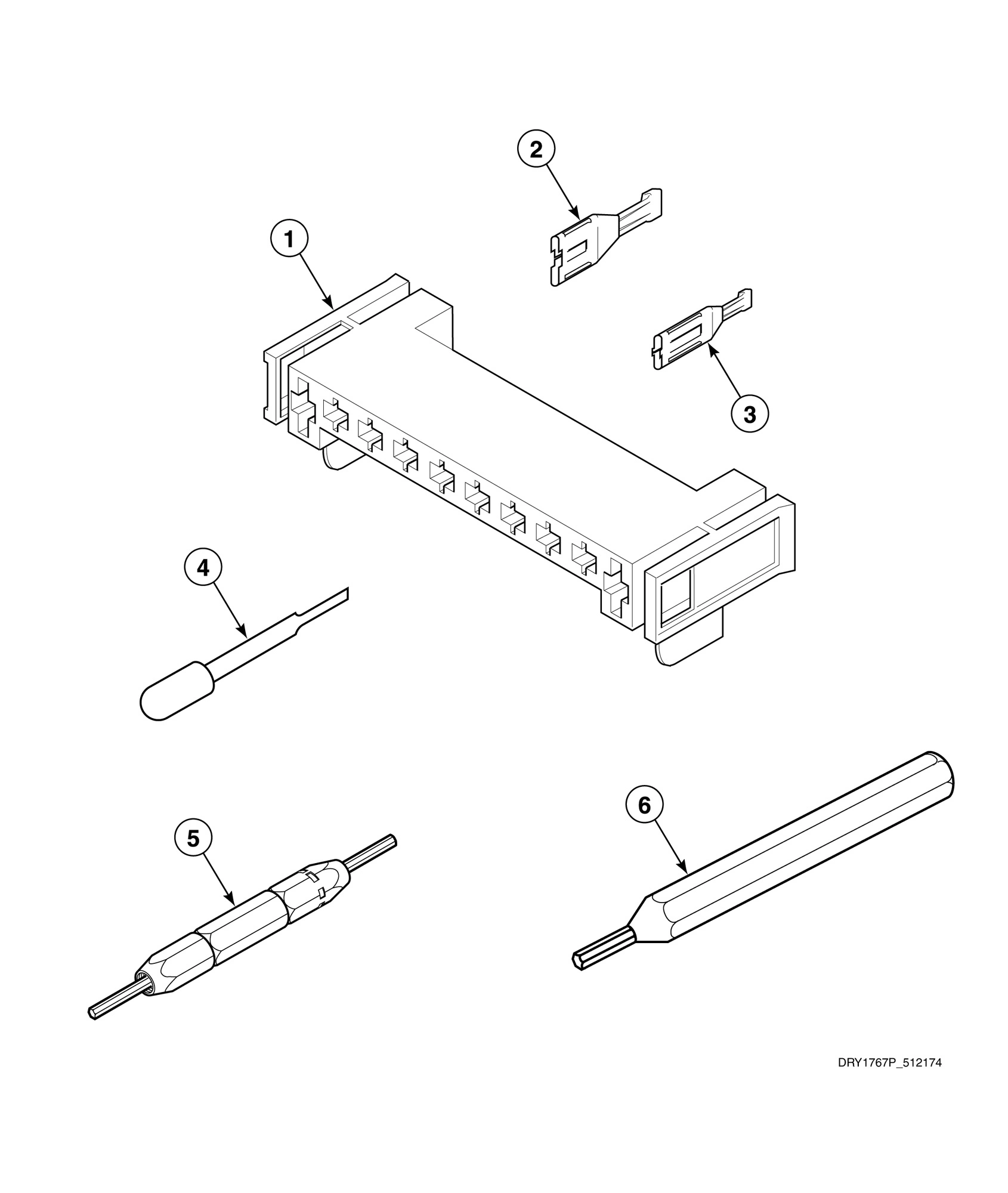

Terminals and Terminal Extractor Tools

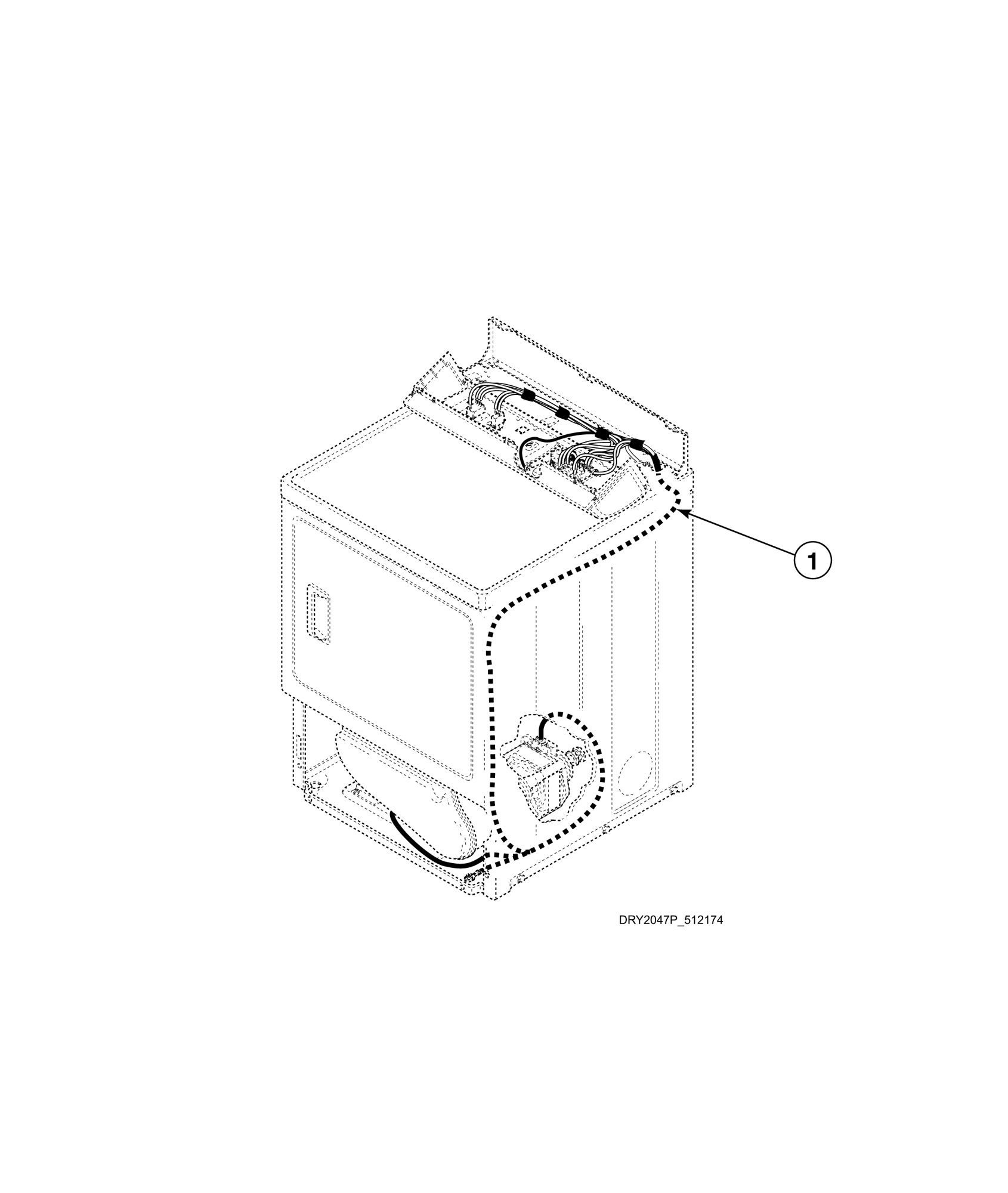

Wire Harnesses and Wires - Rear Control Models Through Serial No. 1207
Common parts from model GE AES28AWF1500 General Electric Model AES28AWF1500
1
Bulkhead Assembly (Comment: White, Punched wi GEN D505899WP Contact Us For Availability
1
Front Bulkhead Assembly (Comment: Galvanized, GEN D512476 Contact Us For Availability
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: Apply to cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
Door Strike Mount GEN D510127 Contact Us For Availability
1
Blower Housing Seal GEN D510238P Contact Us For Availability
1
Insulated Female Spade Terminal GEN 00360 Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
1
10 Position Housing GEN D500338 Contact Us For Availability
1
Wire Harness Assembly (Comment: Main harness) GEN D510444 Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
Outlet Cover GEN D500820 Contact Us For Availability
2
Door Strike GEN D510181 Contact Us For Availability
2
Screw GEN 31260 Contact Us For Availability
2
Wire Clip (Comment: 1 inch) GEN 687500 Contact Us For Availability
2
Wire Clip (Comment: 11/16 inch) GEN D504034 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, (1) 12 ga GEN 00255 Contact Us For Availability
3
Cylinder Baffle (Comment: 3 required) GEN D510102W Contact Us For Availability
3
Heater Duct and Screw Assembly (Comment: Incl GEN D510025P Contact Us For Availability
3
Liner Door Seal GEN D510147P Contact Us For Availability
3
Blower Housing (Comment: Includes items 1 and GEN D511969WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: White, Inclu GEN D510905WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Includes ite GEN D511082P Contact Us For Availability
3
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
4
Wire Assembly (Comment: Fabric selector switc GEN D510540 Contact Us For Availability
4
Cylinder Assembly (Comment: White) GEN D510159WP Contact Us For Availability
4
Cylinder Assembly (Comment: Includes item 3) GEN D510265WP Contact Us For Availability
4
Screw GEN D501285 Contact Us For Availability
4
Wire Assembly (Comment: Orange, Thermostat ju GEN D510528 Contact Us For Availability
4
Liner, Seal and Grill Assembly (Comment: Incl GEN D510163WP Contact Us For Availability
4
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
4
Terminal Extractor Tool (Comment: For use on GEN 283P4 Contact Us For Availability
5
Buzzer GEN D510211 Contact Us For Availability
5
Screw GEN 62588 Contact Us For Availability
5
Screw GEN D514461 Contact Us For Availability
5
Wire Assembly (Comment: Black, Fuse jumper, A GEN D510527 Contact Us For Availability
5
Motor Mount Clamp GEN D510180 Contact Us For Availability
5
Terminal Block Shield GEN D510237 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00223 Contact Us For Availability
5
Extractor Tool GEN 190P4 Contact Us For Availability
6
Timer and Harness Kit GEN D505797P Contact Us For Availability
6
NOT ON YOUR MODEL GEN - Contact Us For Availability
6
Drying Rack GEN D512082P Contact Us For Availability
6
Thermal Fuse Assembly GEN D511412 Contact Us For Availability
6
Hinge GEN D511036 Contact Us For Availability
6
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
7
Resistor Assembly GEN D511277 Contact Us For Availability
7
Screw (Comment: Use with stainless steel side GEN M405188 Contact Us For Availability
7
Screw GEN 23222 Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: Includes it GEN D510103WP Contact Us For Availability
7
Female Spade Terminal (Comment: 1/4 inch, (2) GEN N/A Contact Us For Availability
7
Cylinder Belt GEN D511255P Contact Us For Availability
7
Screw GEN 61199 Contact Us For Availability
7
Harness Strap GEN 55881 Contact Us For Availability
8
End Panel (Comment: Right) GEN D504008WP Contact Us For Availability
8
Limit Thermostat GEN D510701 Contact Us For Availability
8
Door Handle Wedge GEN D510129 Contact Us For Availability
8
Motor Pulley (Comment: 60 Hertz) GEN D500011 Contact Us For Availability
8
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
9
Hood Back Panel GEN D510099 Contact Us For Availability
9
Air Duct Assembly GEN D510151W Contact Us For Availability
9
Heater (Comment: 4.75 kW, 208 Volt) GEN D510325P Contact Us For Availability
9
Dryer Door GEN D510013WP Contact Us For Availability
9
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
9
Cylinder Roller GEN D510708P Contact Us For Availability
9
Female Tab Terminal (Comment: 1/4 inch) GEN 00344 Contact Us For Availability
10
Lint Filter GEN D503980W Contact Us For Availability
10
Heater Kit (Comment: 5.35 kW, 240 Volt, Inclu GEN 964P3 Contact Us For Availability
10
Retaining Ring GEN 23748 Contact Us For Availability
11
Lint Filter Cover GEN D510502W Contact Us For Availability
11
Blower Fan Assembly GEN D510139P Contact Us For Availability
11
Washer GEN 52549 Contact Us For Availability
12
Felt Pad (Comment: 2 required) GEN D510189 Contact Us For Availability
12
Idler Spring GEN D510185 Contact Us For Availability
12
Washer GEN D504082 Contact Us For Availability
13
Cylinder Glide (Comment: 2 required) GEN D513710 Contact Us For Availability
13
Shaft GEN 56461P Contact Us For Availability
14
Glide Kit (Comment: Includes 2 of items 12 an GEN RB170003 Contact Us For Availability
14
Idler Lever GEN D510133 Contact Us For Availability
14
Roller Kit (Comment: Includes 2 of items 9-13 GEN RB170002 Contact Us For Availability
15
Cylinder Light Lens GEN D512106 Contact Us For Availability
15
Nut GEN 56156 Contact Us For Availability
16
Drum Light Lamp GEN 60954 Contact Us For Availability
17
Light Housing Assembly (Comment: 120 Volt, In GEN D512108 Contact Us For Availability
17
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
18
Screw GEN D500227 Contact Us For Availability
19
Screw GEN D501086 Contact Us For Availability
19
Screw GEN D500824 Contact Us For Availability
20
Cylinder Glide Bracket (Comment: 2 required) GEN D510145 Contact Us For Availability
20
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
21
Nut GEN 52566 Contact Us For Availability
22
Motor Mount GEN D510060 Contact Us For Availability
23
Thermostat (Comment: Green) GEN D504515 Contact Us For Availability
24
Screw GEN D502535 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
