Model Primus PDEBXRGS173TW02 Dryer – Common Parts & Diagrams
Control Panel and Controls - Rear Control Coin Drop Models
Control Panel, Control Hood and Controls - Nonmetered Rear
Control Models

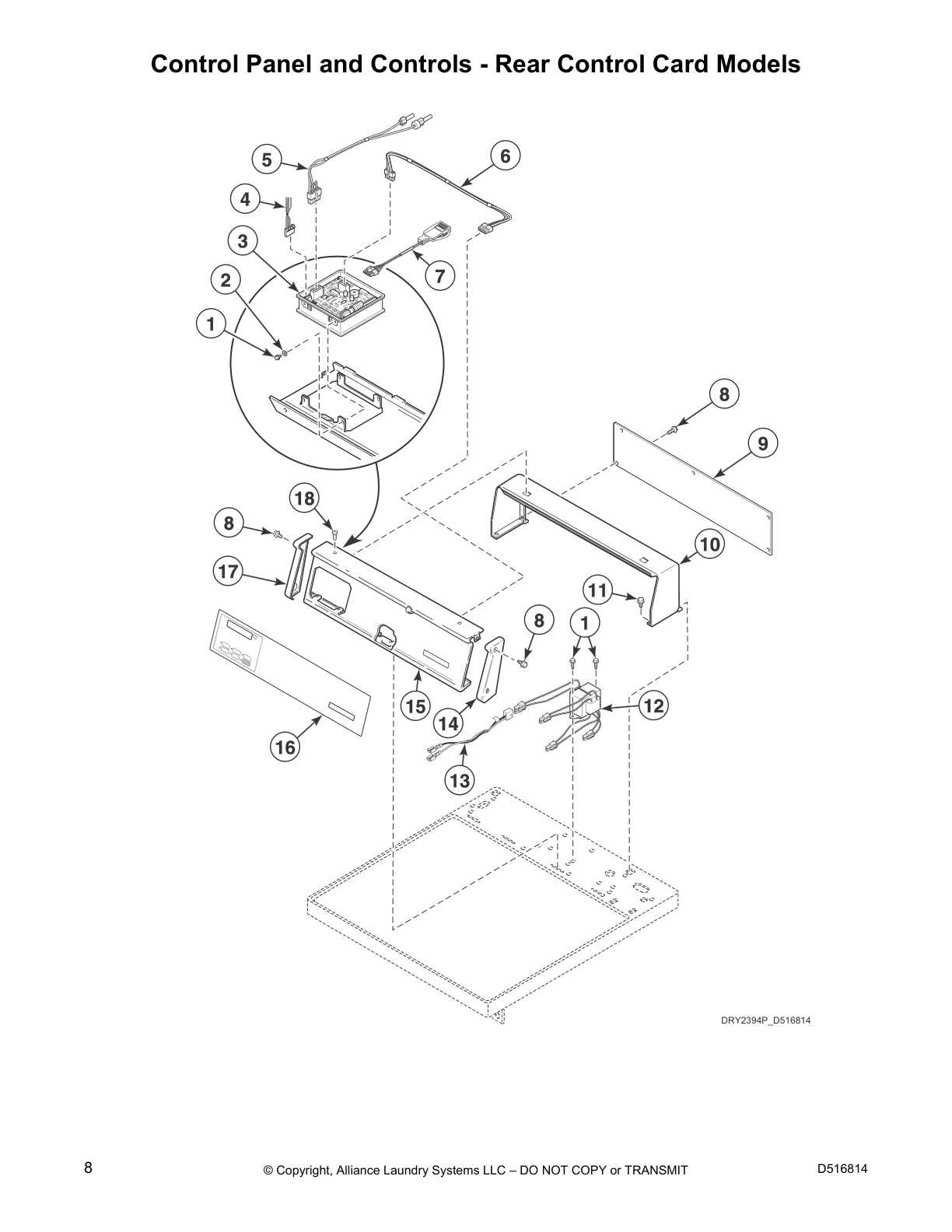

Control Panel and Controls - Rear Control Card Models

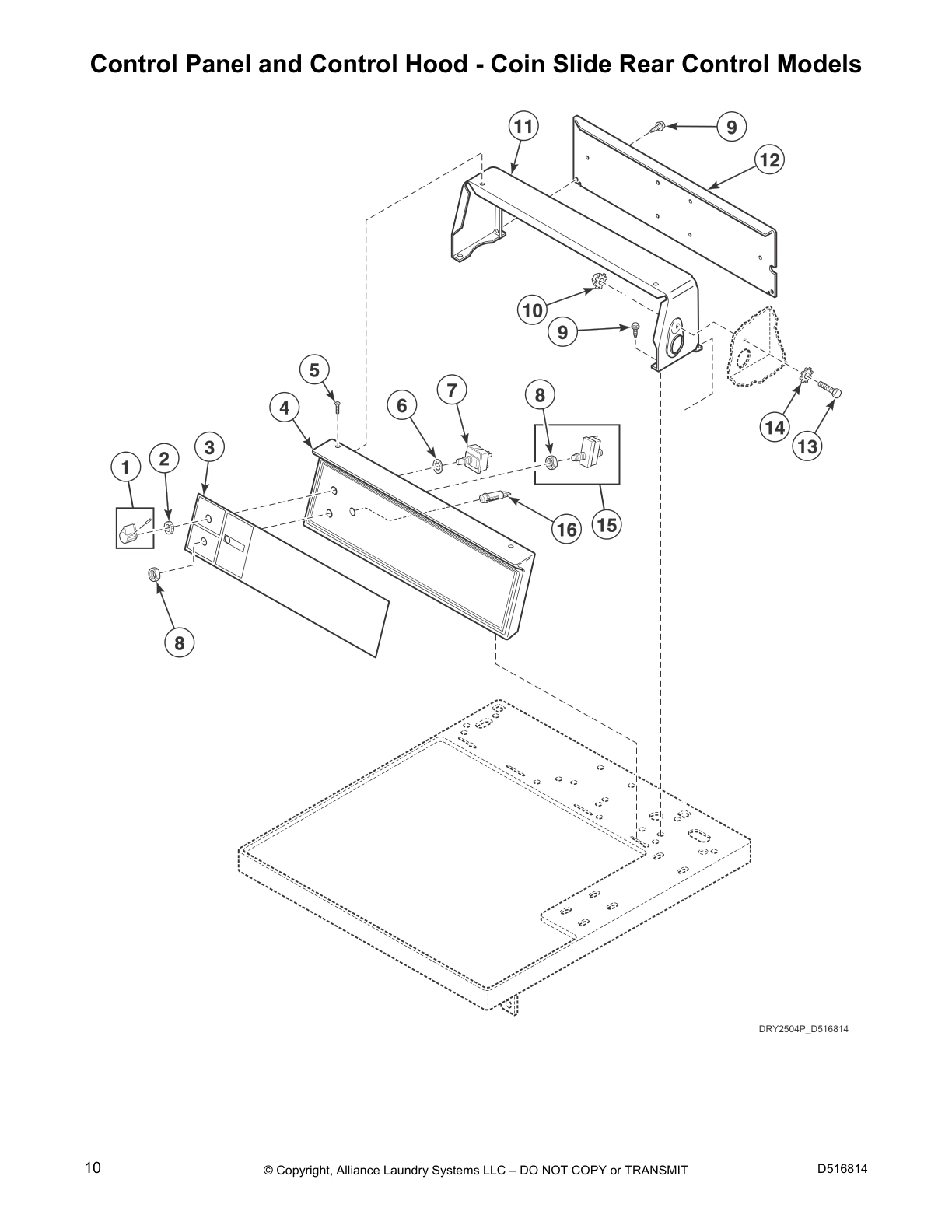

Control Panel and Control Hood - Coin Slide Rear Control Models
Meter Case - Rear Control Coin Drop Models

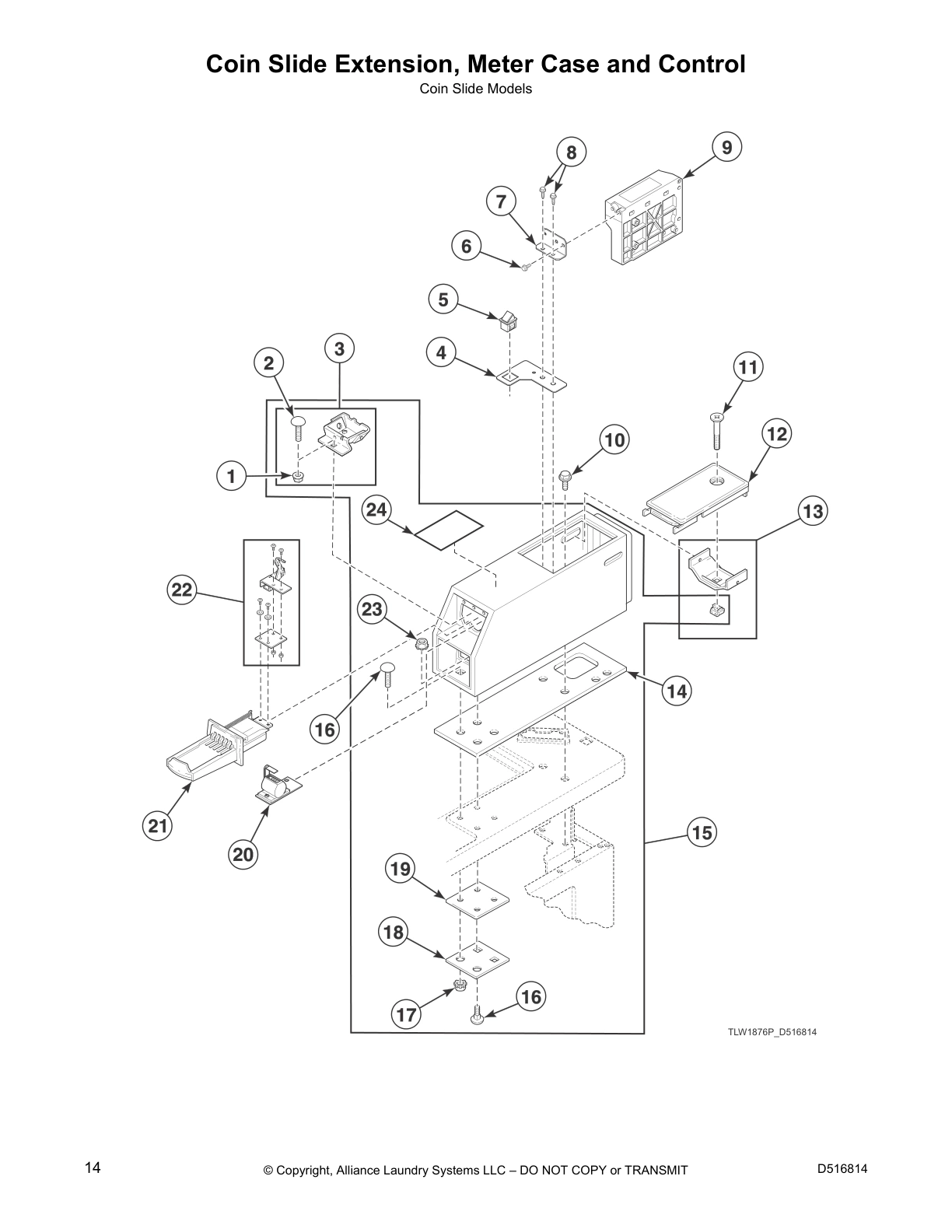

Coin Slide Extension, Meter Case and Control

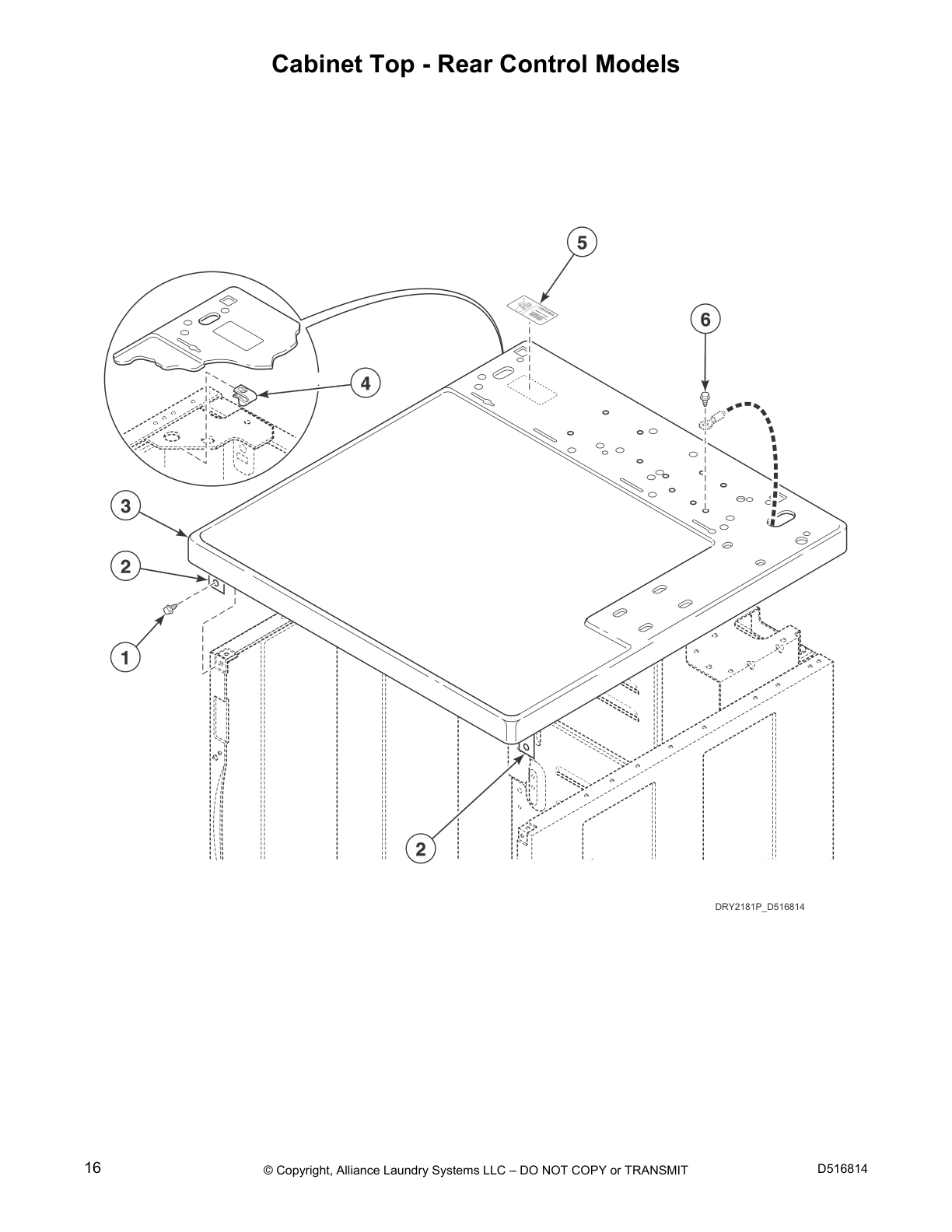

Cabinet Top - Rear Control Models
Non-Electronic Coin Drop
Electronic Coin Drop

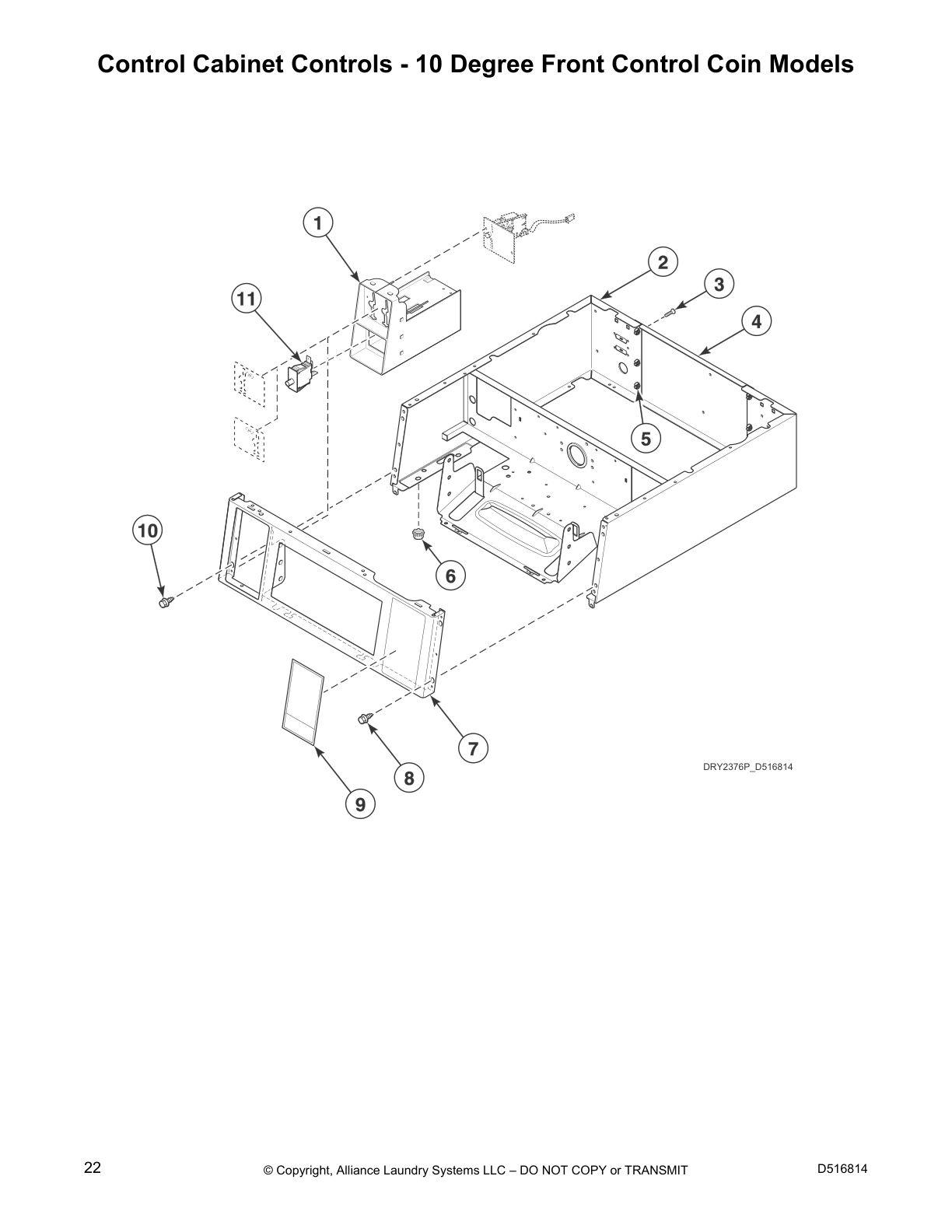

Control Cabinet Controls - 10 Degree Front Control Coin Models
Control Cabinet Controls -

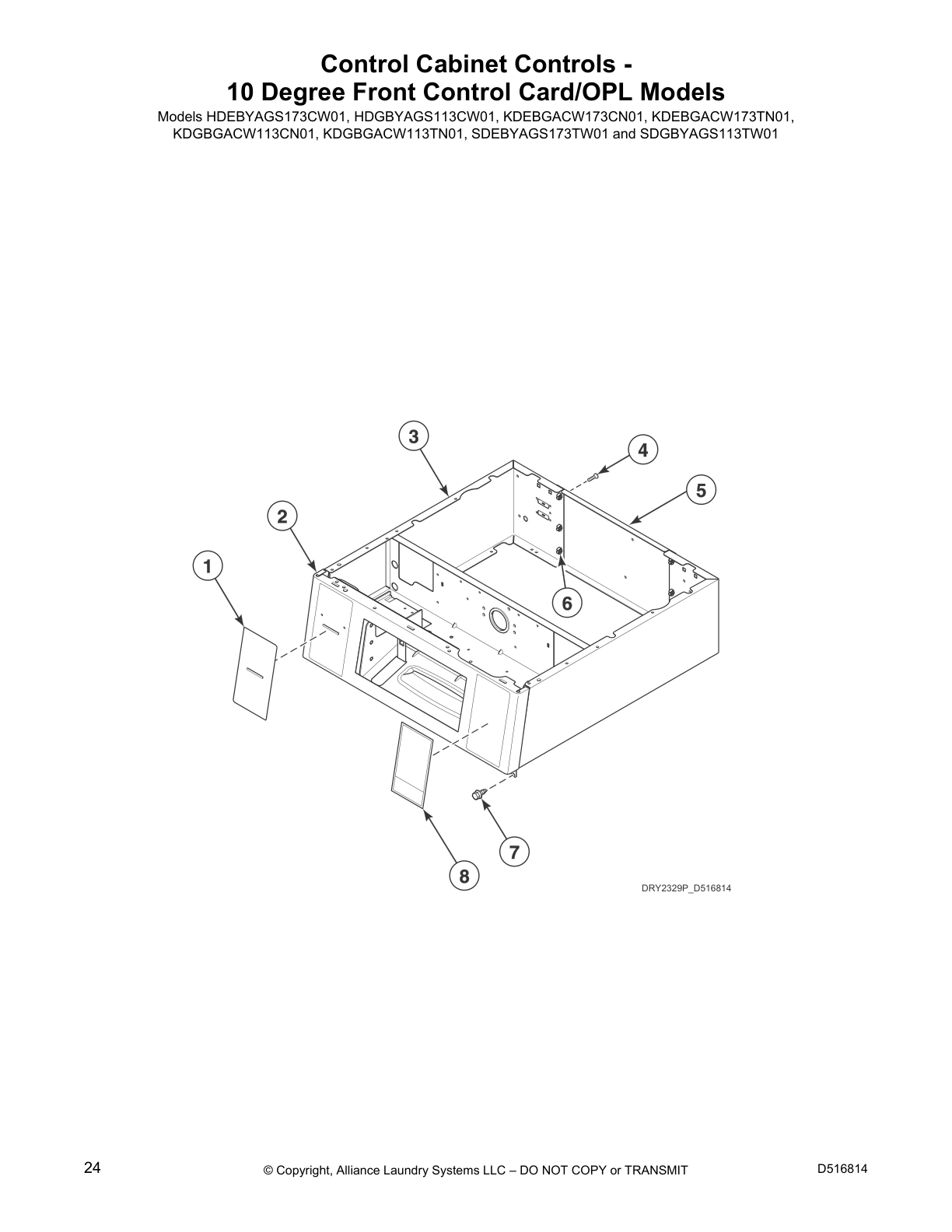

10 Degree Front Control Card/OPL Models

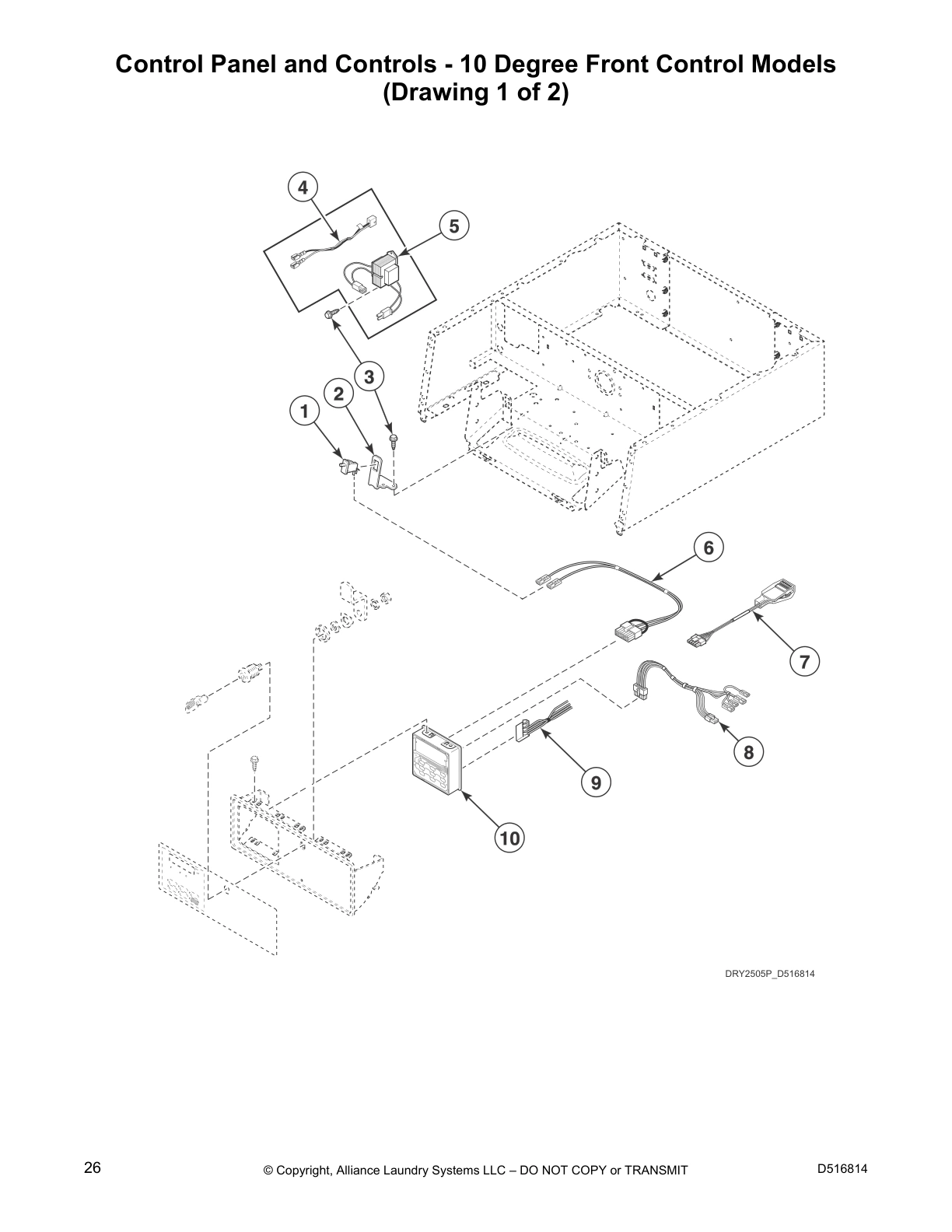

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)

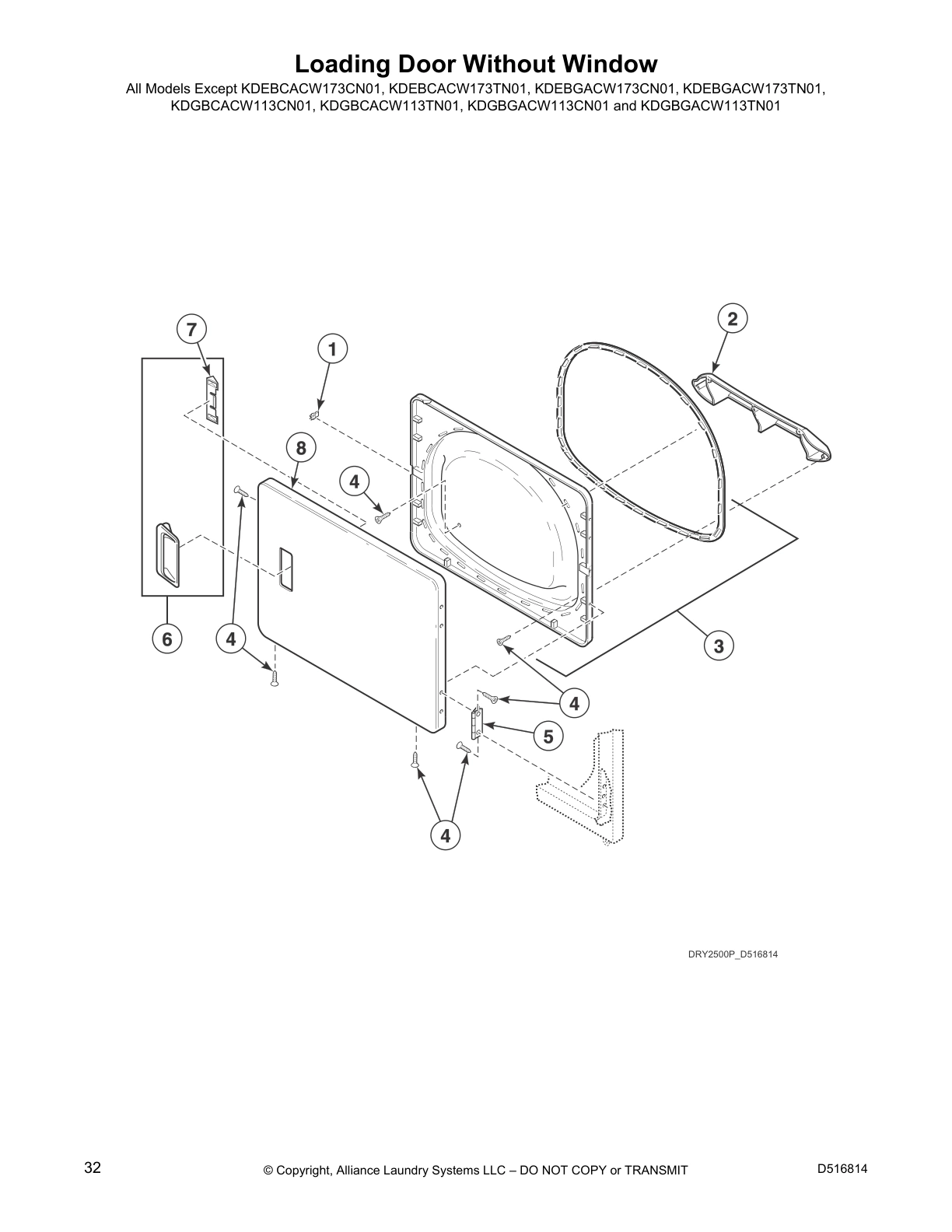

Loading Door Without Window

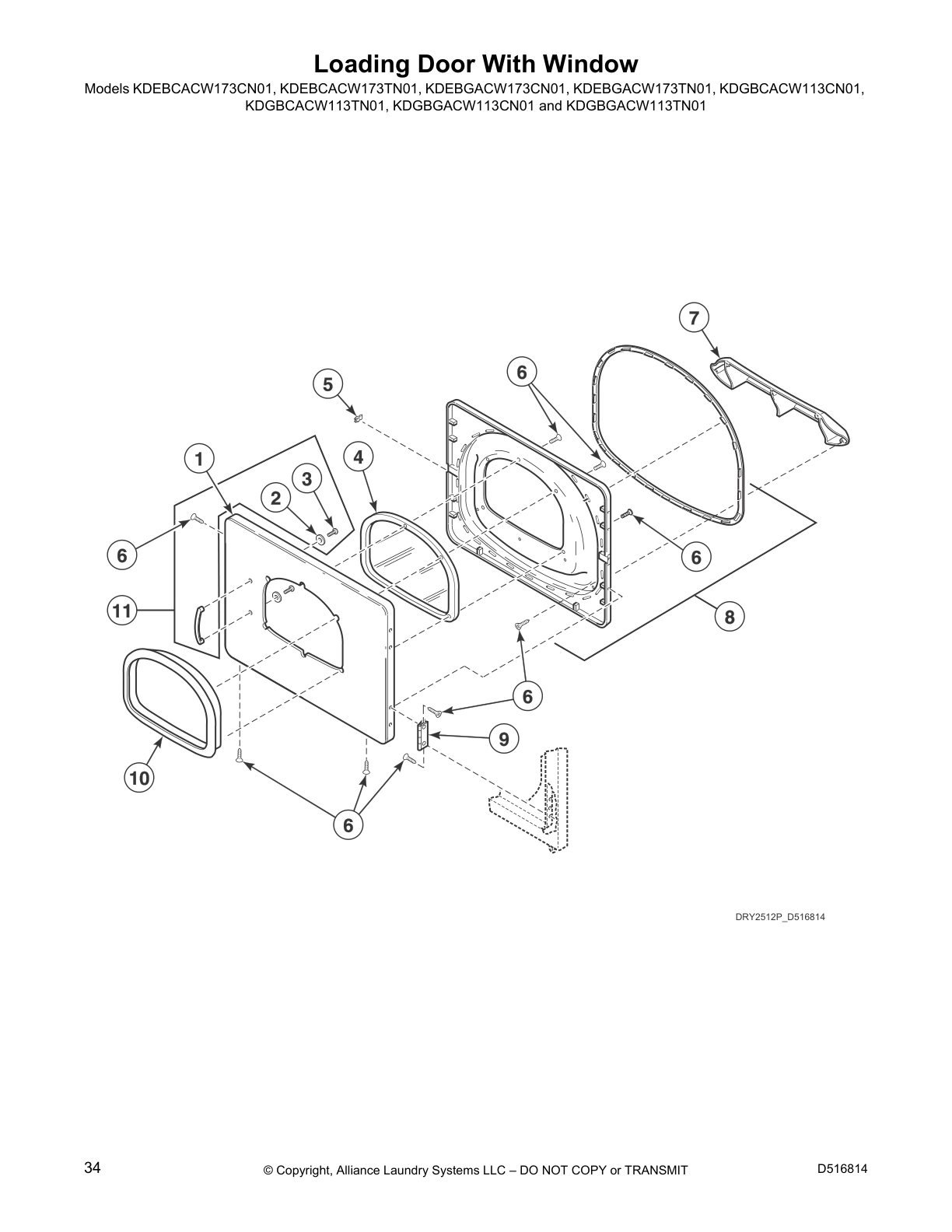

Loading Door With Window

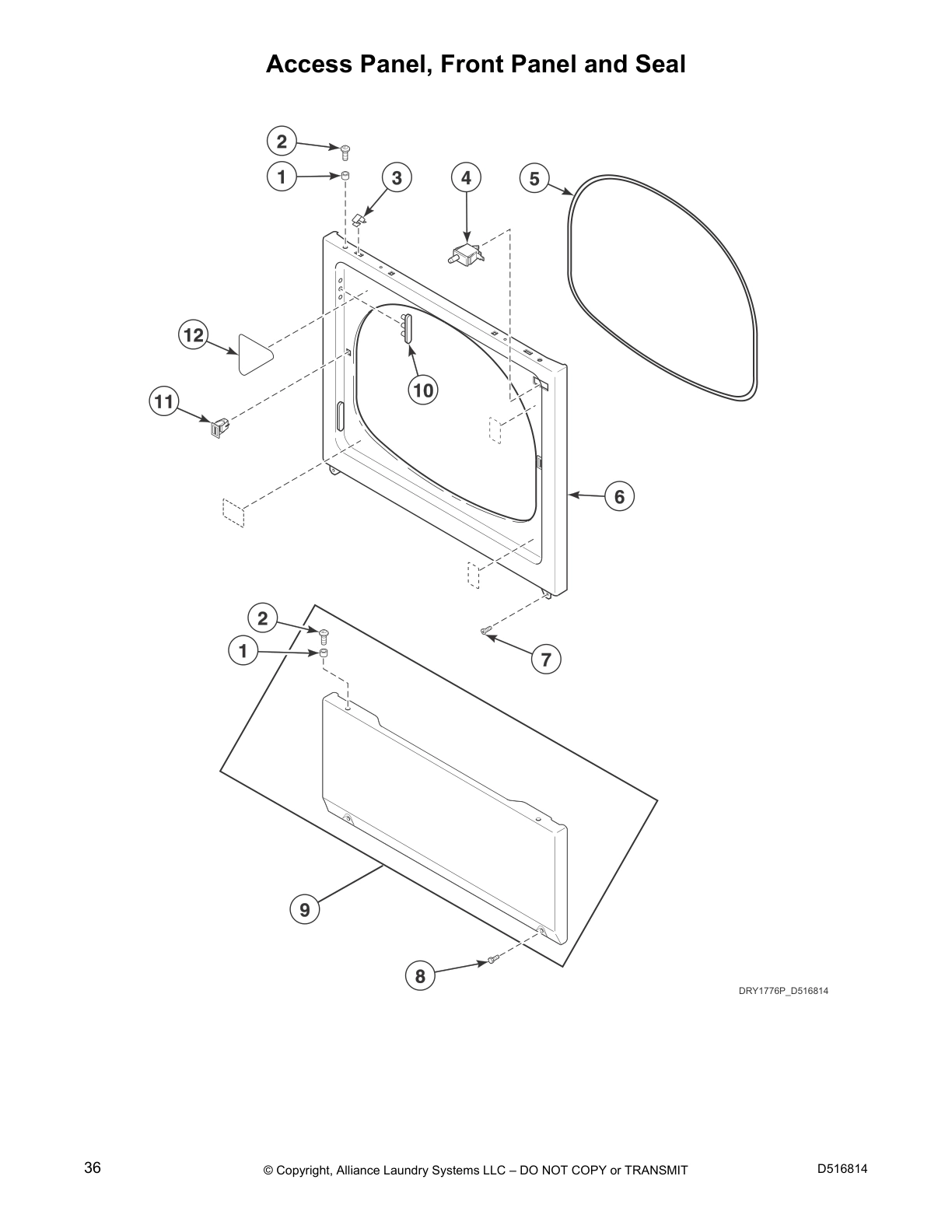

Access Panel, Front Panel and Seal

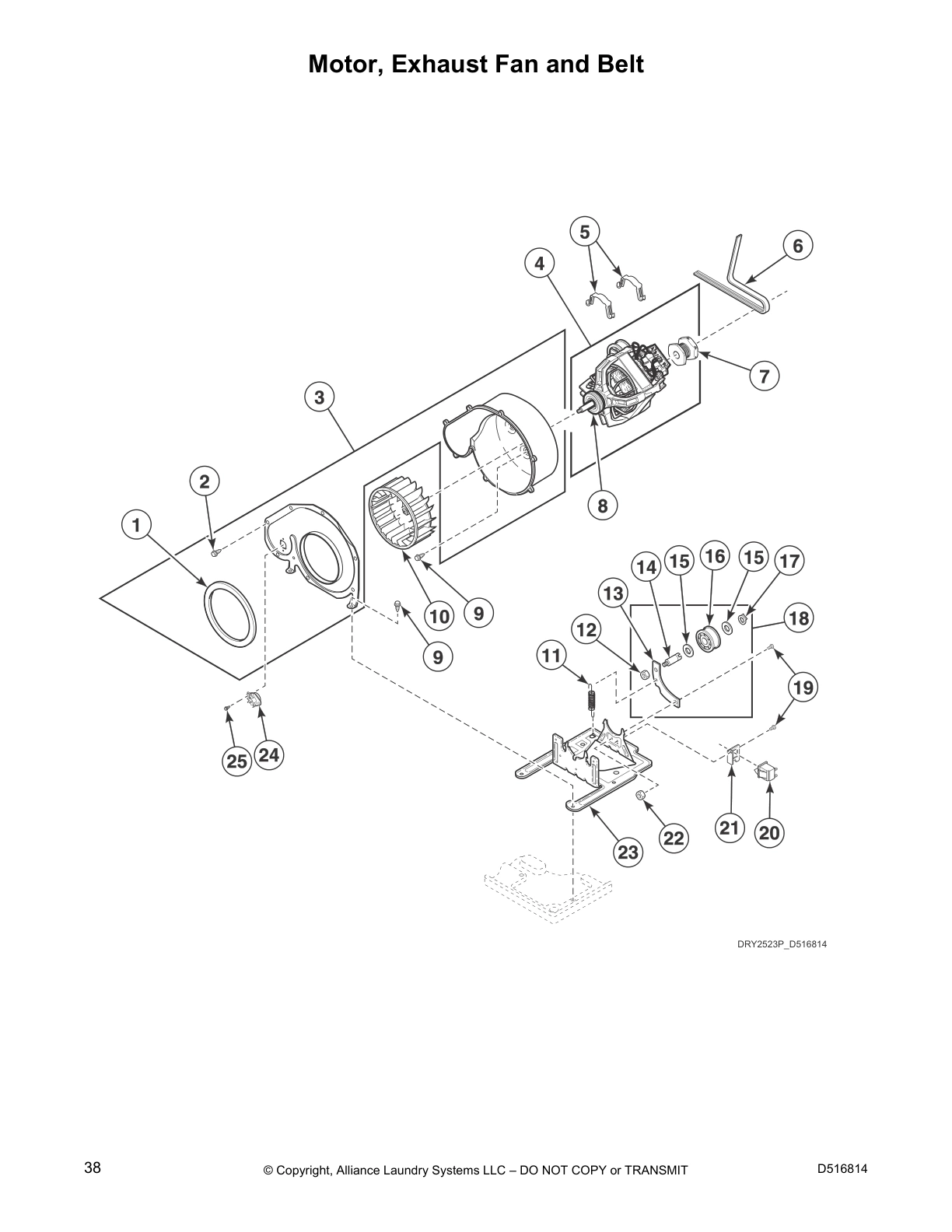

Motor, Exhaust Fan and Belt

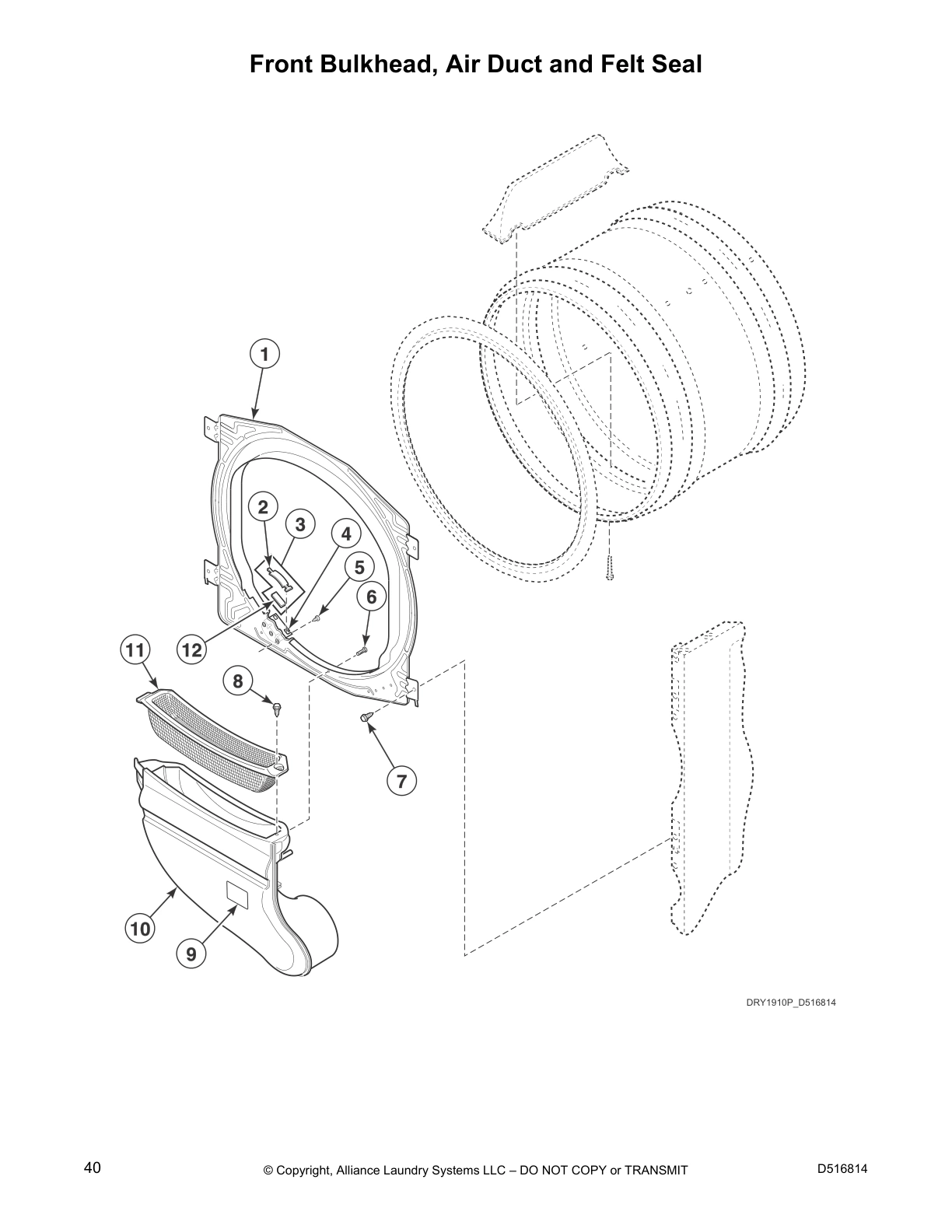

Front Bulkhead, Air Duct and Felt Seal
Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller

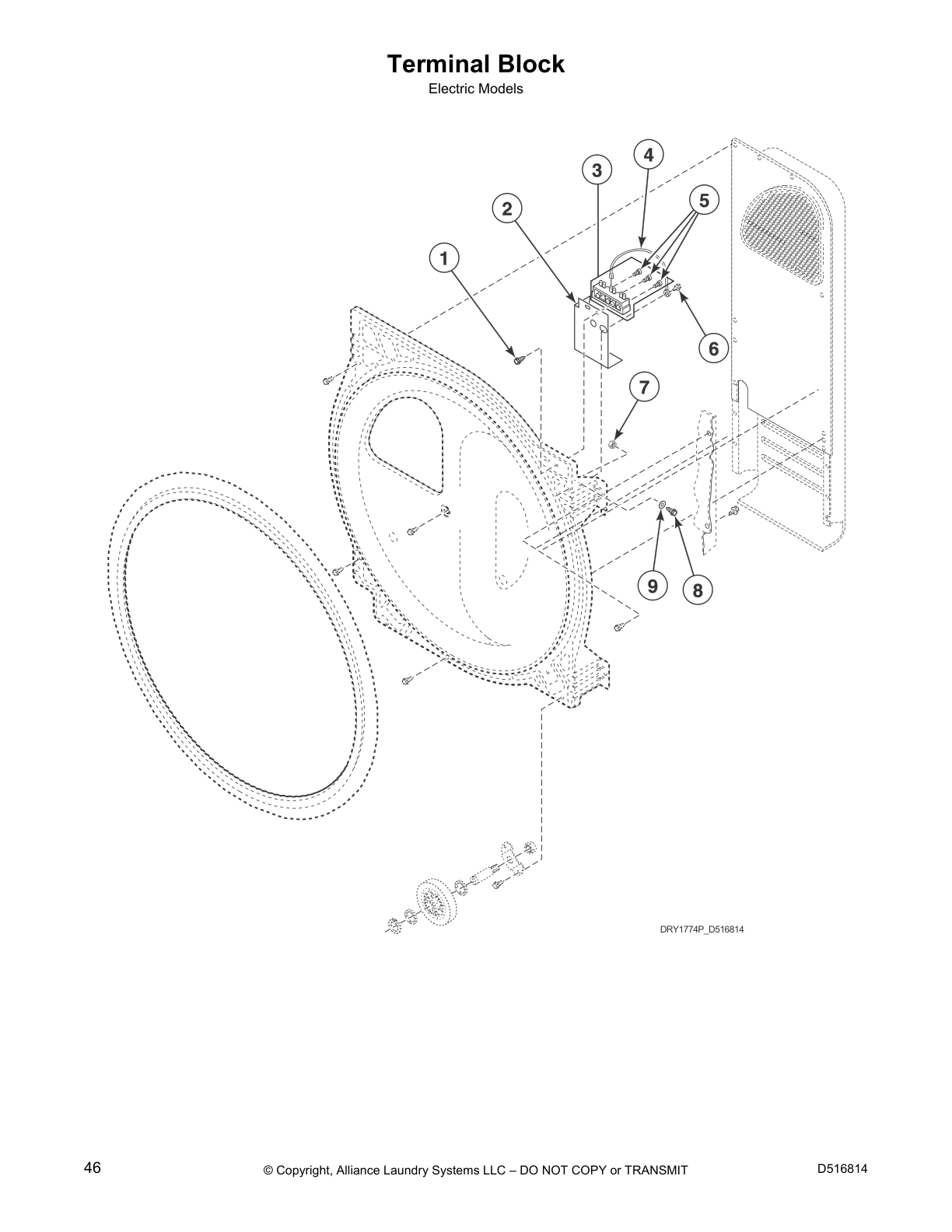

Terminal Block

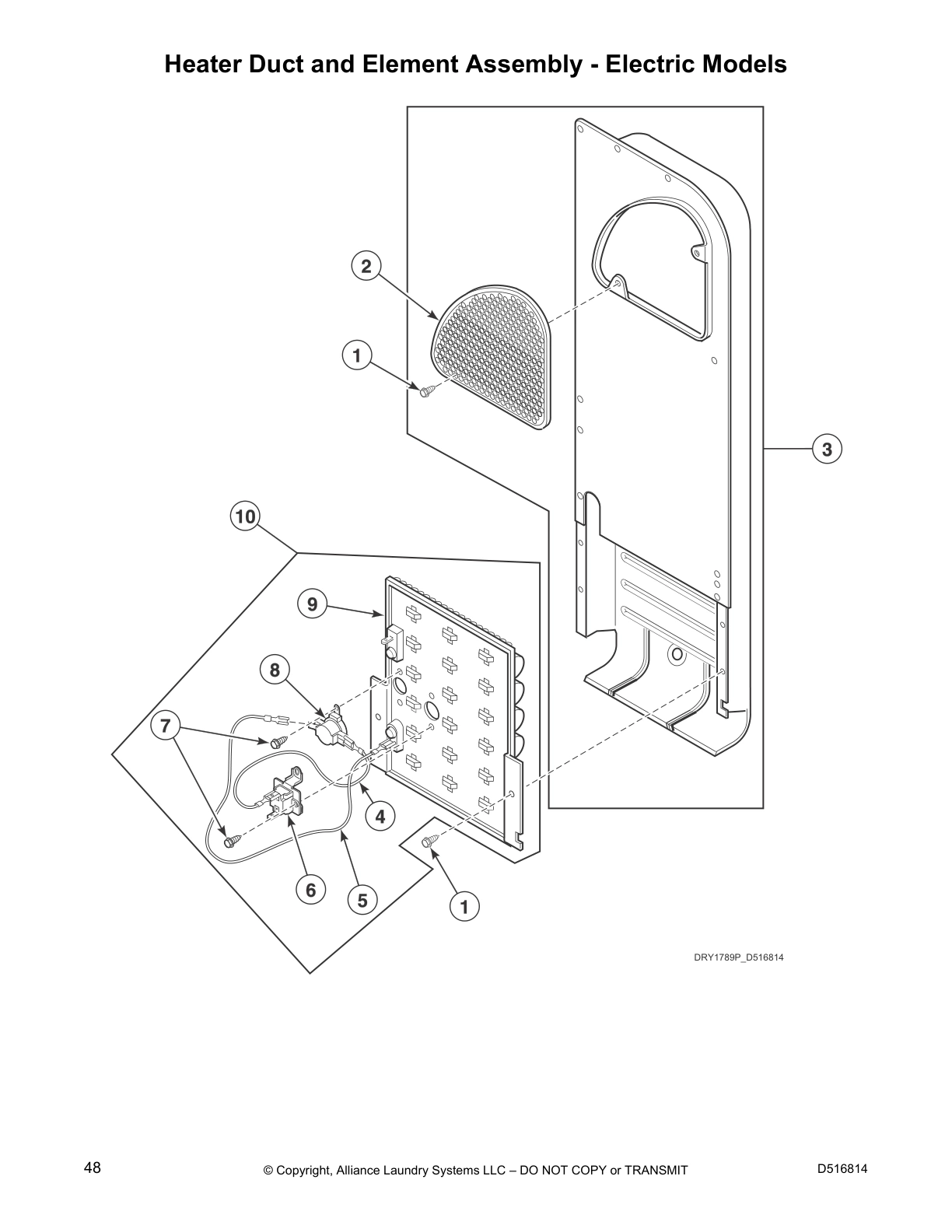

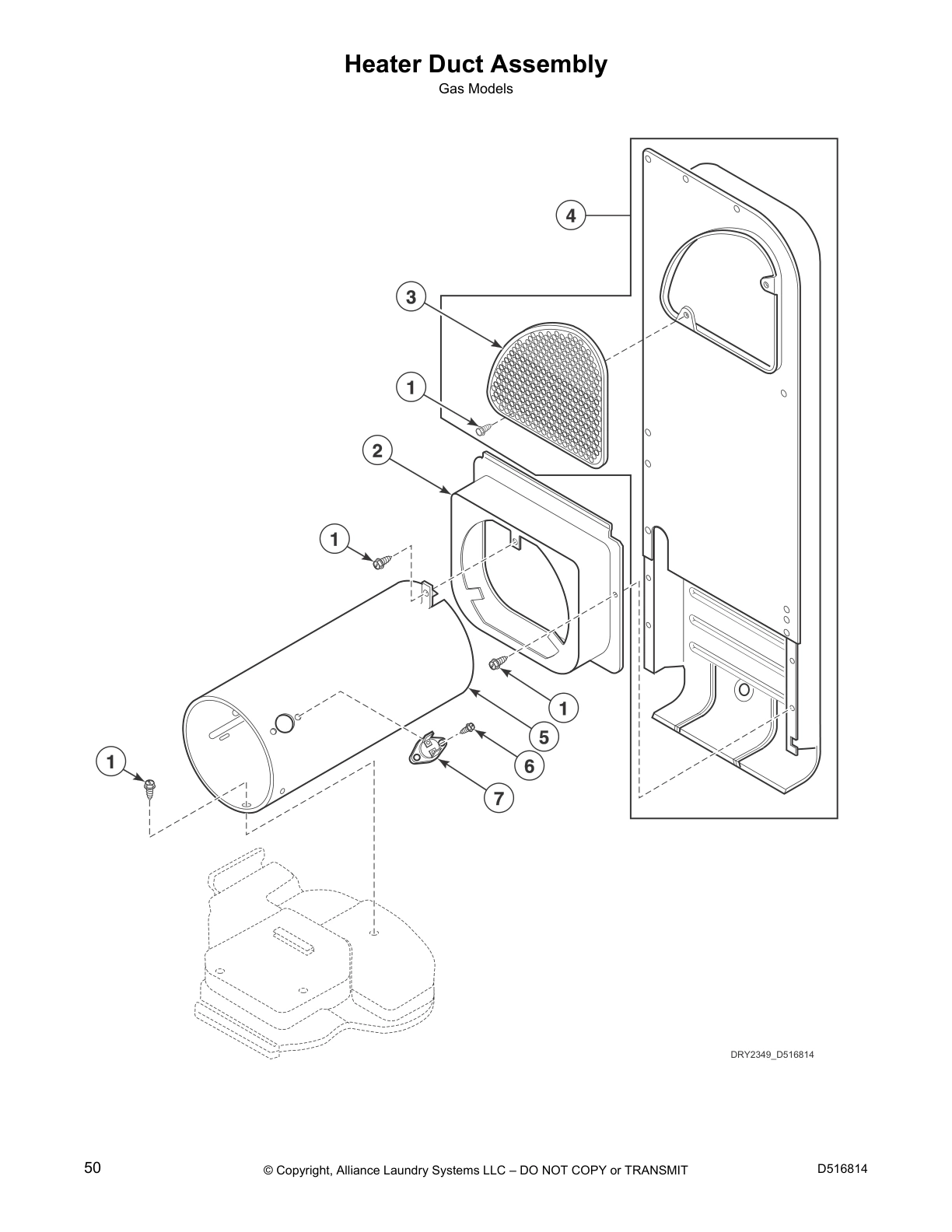

Heater Duct and Element Assembly - Electric Models
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits

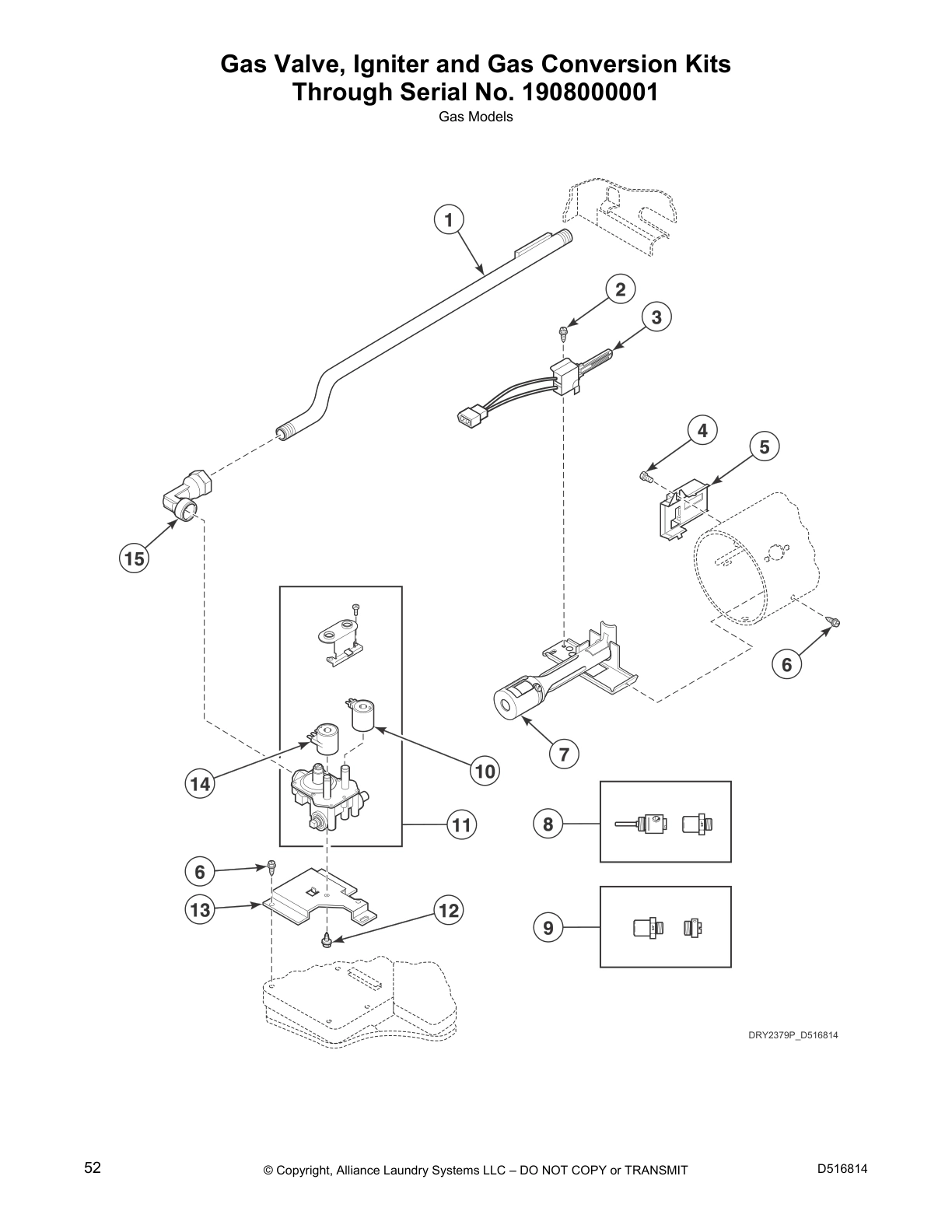

Through Serial No. 1908000001
Gas Valve, Igniter and Gas Conversion Kits

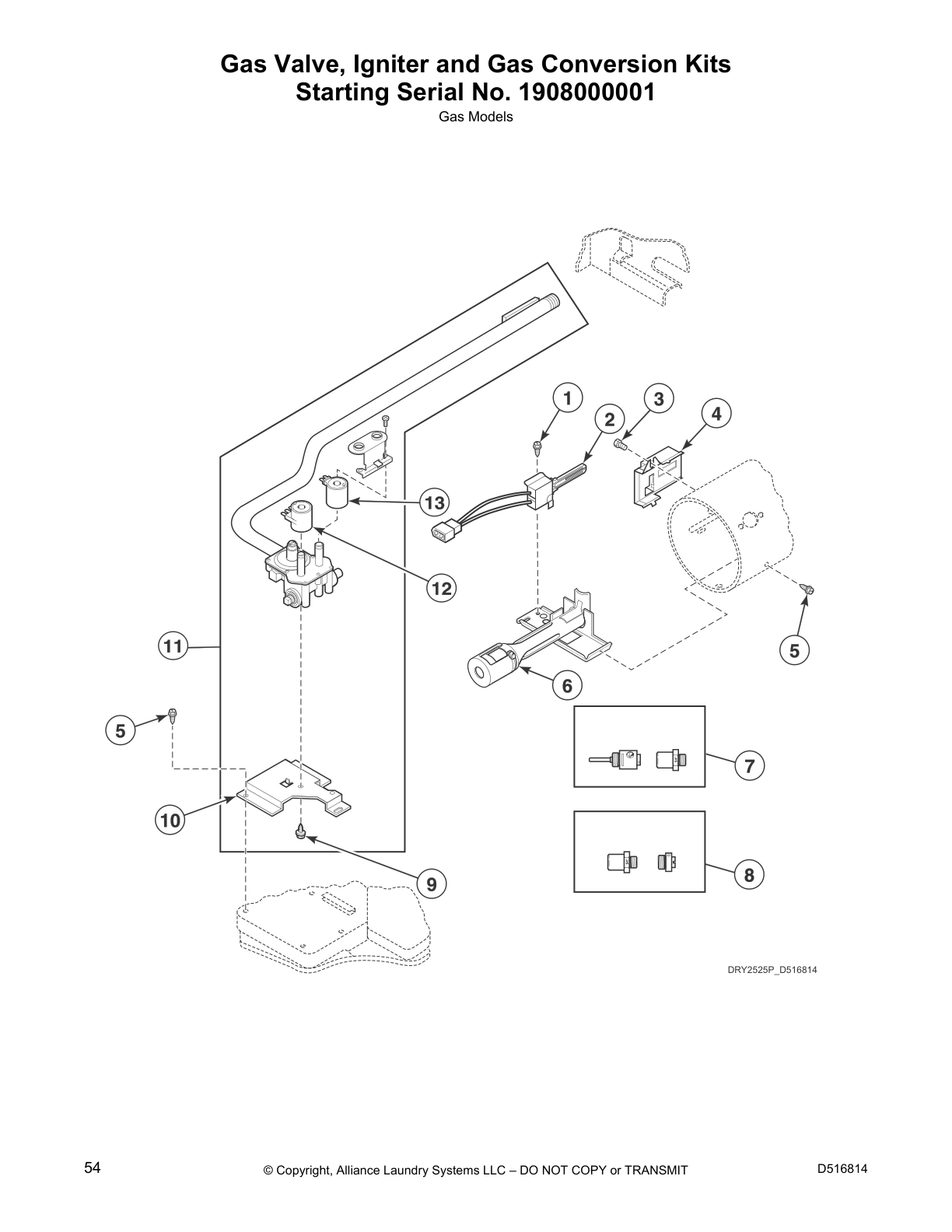

Starting Serial No. 1908000001
Cabinet, Exhaust Duct and Base
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools

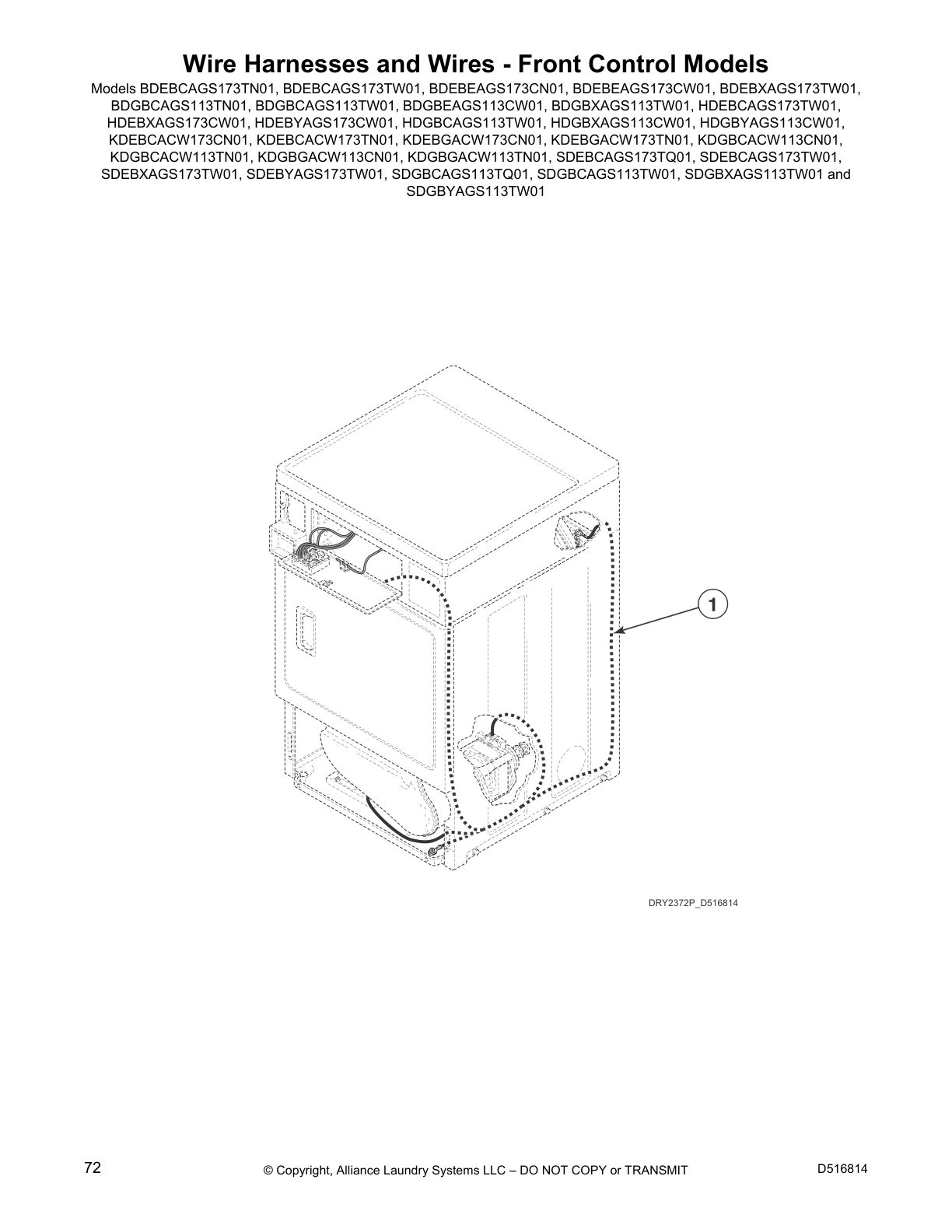

Wire Harnesses and Wires - Front Control Models

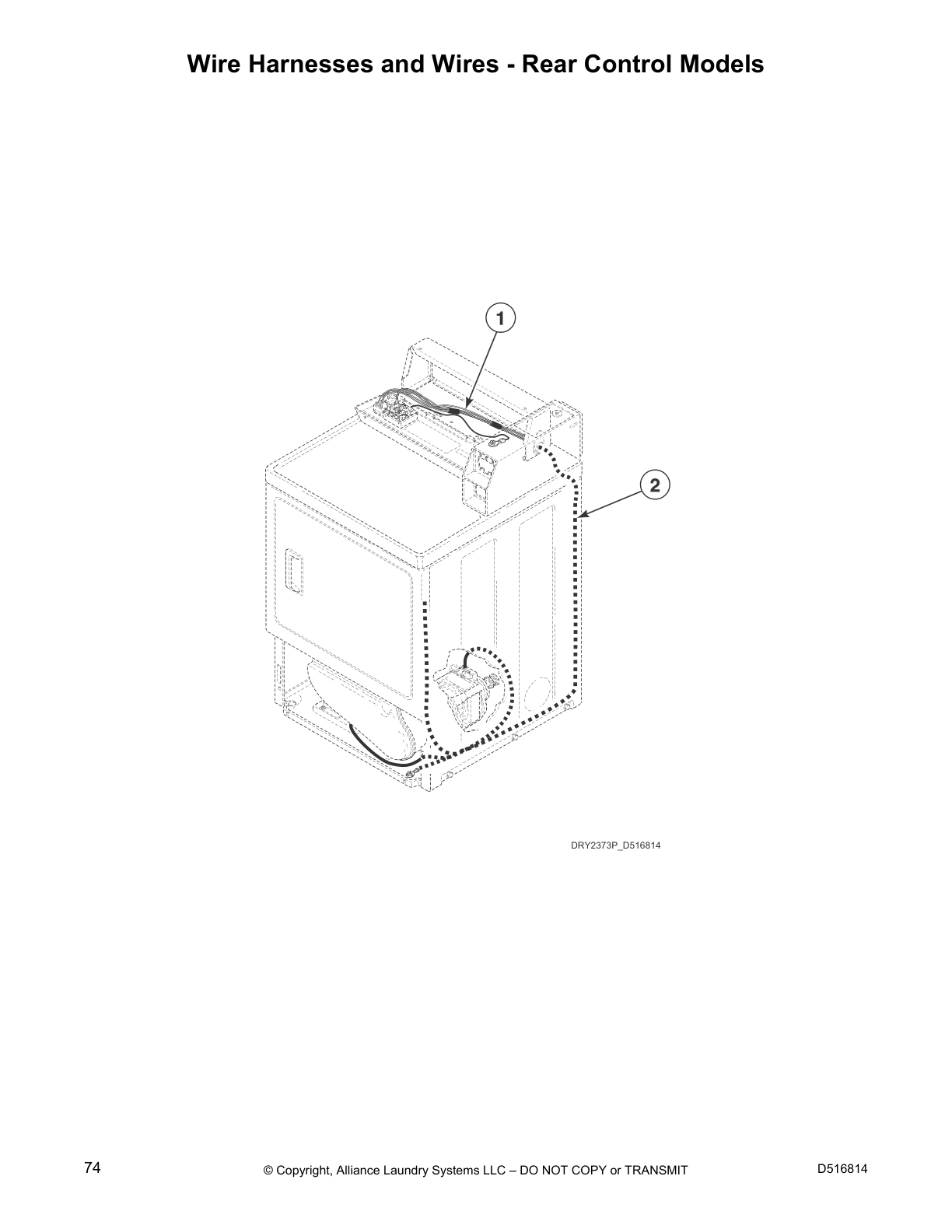

Wire Harnesses and Wires - Rear Control Models
Common parts from model Primus PDEBXRGS173TW02 Dryer
SPQ D514250WP SPQ D514250WP Contact Us For Availability
SPQ D510903 SPQ D510903 Contact Us For Availability
SPQ 33562 SPQ 33562 Contact Us For Availability
1
Door Strike SPQ D510181 Contact Us For Availability
1
Front Bulkhead Assembly SPQ D510266P Contact Us For Availability
1
Single Overlay SPQ 38717 Contact Us For Availability
1
Screw SPQ D501285 Contact Us For Availability
1
Blower Housing Seal SPQ D510238P Contact Us For Availability
1
Panel Locator SPQ 56079 Contact Us For Availability
2
Cylinder Glide SPQ D513710 Contact Us For Availability
2
Terminal Block Shield SPQ D510237 Contact Us For Availability
2
Door Liner Grill SPQ D503870W Contact Us For Availability
2
Electronic Coin Drop Assembly SPQ CK110 Contact Us For Availability
2
Bracket SPQ D510146 Contact Us For Availability
3
Terminal Block Assembly SPQ D510190P Contact Us For Availability
3
Outlet Cover SPQ D518524 Contact Us For Availability
3
Cylinder Belt SPQ D511969WP Contact Us For Availability
3
Speed Clip SPQ 28835 Contact Us For Availability
3
Access Panel Plate SPQ 804667 Contact Us For Availability
3
Coin Drop SPQ 70441603 Contact Us For Availability
4
Motor Pulley SPQ D511629P Contact Us For Availability
4
Heater Duct Assembly SPQ D500820 Contact Us For Availability
4
Cylinder Glide Bracket SPQ D510145 Contact Us For Availability
4
Screw SPQ D516508 Contact Us For Availability
4
Damper SPQ D510001WP Contact Us For Availability
4
Cylinder Baffle SPQ D510102W Contact Us For Availability
4
Hood Back Panel SPQ D515807P Contact Us For Availability
4
Screw SPQ D501086 Contact Us For Availability
4
Coin Drop Assembly SPQ 70441602 Contact Us For Availability
5
Rear Bulkhead Assembly SPQ D511082P Contact Us For Availability
5
Front Panel Seal SPQ D511056 Contact Us For Availability
5
Hinge SPQ D500226 Contact Us For Availability
5
Motor Hub Ring Kit SPQ D510180 Contact Us For Availability
6
Blower and Fan Kit SPQ D511255P Contact Us For Availability
6
Torx Drive Tool SPQ 310P4 Contact Us For Availability
6
Door Pull SPQ D511036 Contact Us For Availability
6
Cylinder Roller Bracket SPQ D510100 Contact Us For Availability
6
Front Panel SPQ D512542 Contact Us For Availability
6
Dual Coin Harness Assembly SPQ 806827 Contact Us For Availability
6
SPQ 00360 SPQ 00360 Contact Us For Availability
7
Cylinder Roller SPQ D510708P Contact Us For Availability
7
Anti-Seize Compound SPQ D500011 Contact Us For Availability
7
Access Panel Assembly SPQ D510066WP Contact Us For Availability
7
Nut SPQ 807401W Contact Us For Availability
8
Washer SPQ 52549 Contact Us For Availability
8
Door Handle Wedge SPQ D511213P Contact Us For Availability
8
SPQ 590P3 SPQ 590P3 Contact Us For Availability
8
SPQ 56128 SPQ 56128 Contact Us For Availability
8
Wire Assembly SPQ D518256 Contact Us For Availability
9
Retaining Ring SPQ 23748 Contact Us For Availability
9
SPQ D514632P SPQ D514632P Contact Us For Availability
10
Blower Fan Assembly SPQ D510139P Contact Us For Availability
10
Adhesive SPQ D511637P Contact Us For Availability
10
Air Duct Assembly SPQ D518433 Contact Us For Availability
10
Hinge Hole Plug SPQ D510186 Contact Us For Availability
10
Exhaust Duct SPQ D516196 Contact Us For Availability
10
Female Pin Terminal SPQ 687500 Contact Us For Availability
11
Switch SPQ D512973 Contact Us For Availability
11
Cylinder Seal Assembly SPQ D510207P Contact Us For Availability
11
Door Catch Assembly SPQ D510177 Contact Us For Availability
11
Lint Filter SPQ D503980W Contact Us For Availability
11
Cabinet Side Panel SPQ D510002WP Contact Us For Availability
11
Idler Spring SPQ D510185 Contact Us For Availability
11
Service Door Assembly SPQ D503673 Contact Us For Availability
12
Felt Pad SPQ D510189 Contact Us For Availability
14
Service Door Assembly SPQ 70529301 Contact Us For Availability
16
Idler Wheel and Bearing Assembly SPQ D510142P Contact Us For Availability
16
Rubber Foot SPQ D514245 Contact Us For Availability
17
Output Board Shield SPQ D510135 Contact Us For Availability
17
Nut SPQ 26354 Contact Us For Availability
18
Idler Lever and Wheel Assembly SPQ D516792 Contact Us For Availability
18
Screw SPQ D501855 Contact Us For Availability
19
Screw SPQ D500824 Contact Us For Availability
20
Bumper Pad SPQ D513797P Contact Us For Availability
20
Motor Switch Bracket SPQ D516391 Contact Us For Availability
24
Motor and Pulley Assembly SPQ D510523 Contact Us For Availability
25
Motor Mount Clamp SPQ D502535 Contact Us For Availability
NI
SPQ 70441601P No Longer Available
NI
SPQ D510329P SPQ D510329P Contact Us For Availability
NI
SPQ 56461P SPQ 56461P Contact Us For Availability
NI
Cylinder Assembly SPQ D510265WP Contact Us For Availability
NI
Dryer Door SPQ D510103WP Contact Us For Availability
NI
SPQ D503688 SPQ D503688 Contact Us For Availability
NI
Shaft SPQ D504082 Contact Us For Availability
NI
SPQ D510717P SPQ D510717P Contact Us For Availability
NI
SPQ D510136 SPQ D510136 Contact Us For Availability
NI
SPQ D514251 SPQ D514251 Contact Us For Availability
NI
Screw SPQ 62588 Contact Us For Availability
NI
SPQ 45001 SPQ 45001 Contact Us For Availability
NI
SPQ D510129W SPQ D510129W Contact Us For Availability
× ![]()
