Model Speed Queen STEY17*N5754 Stacked Washer and Dryer – Common Parts & Diagrams

Control Panel and Controls

Control Cabinet Controls

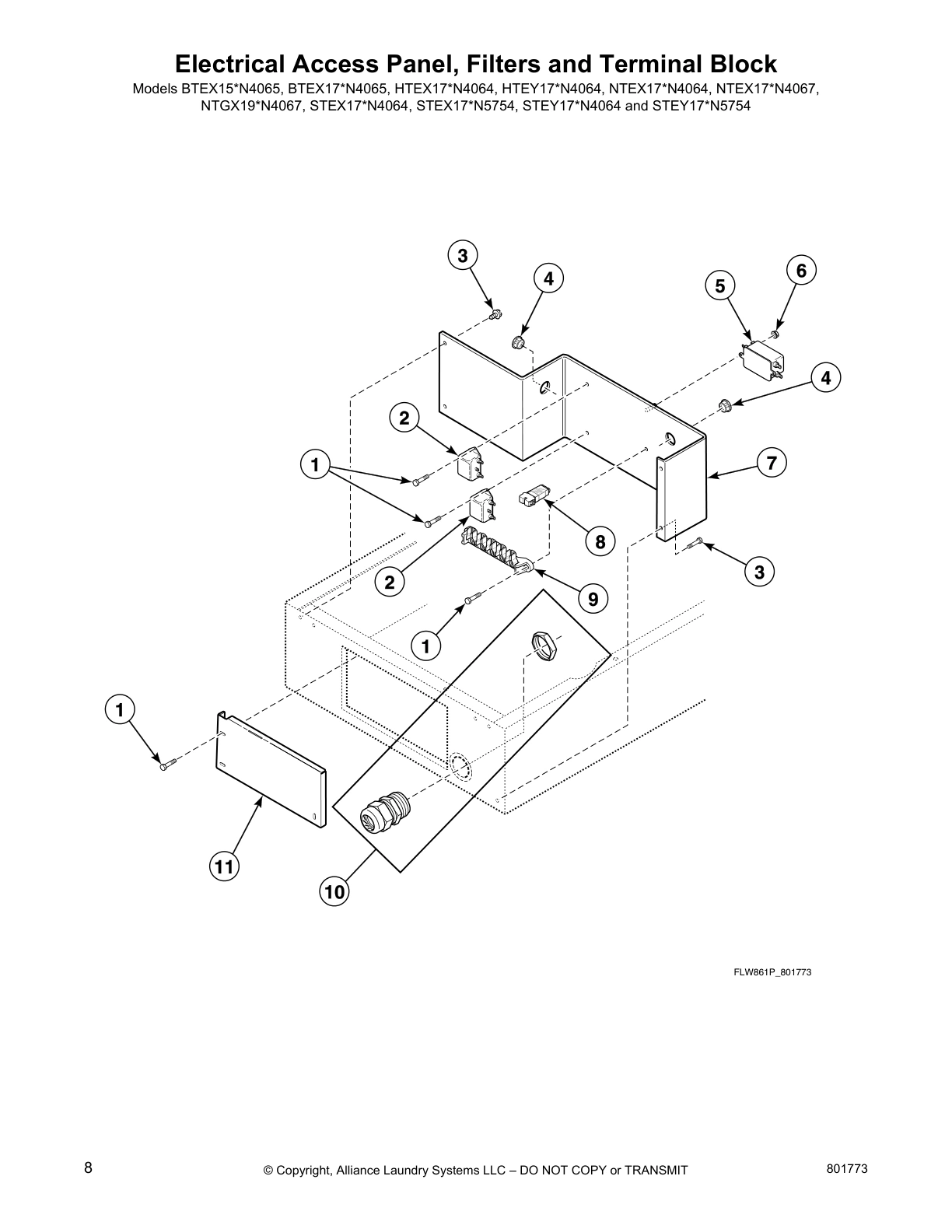

Electrical Access Panel, Filters and Terminal Block

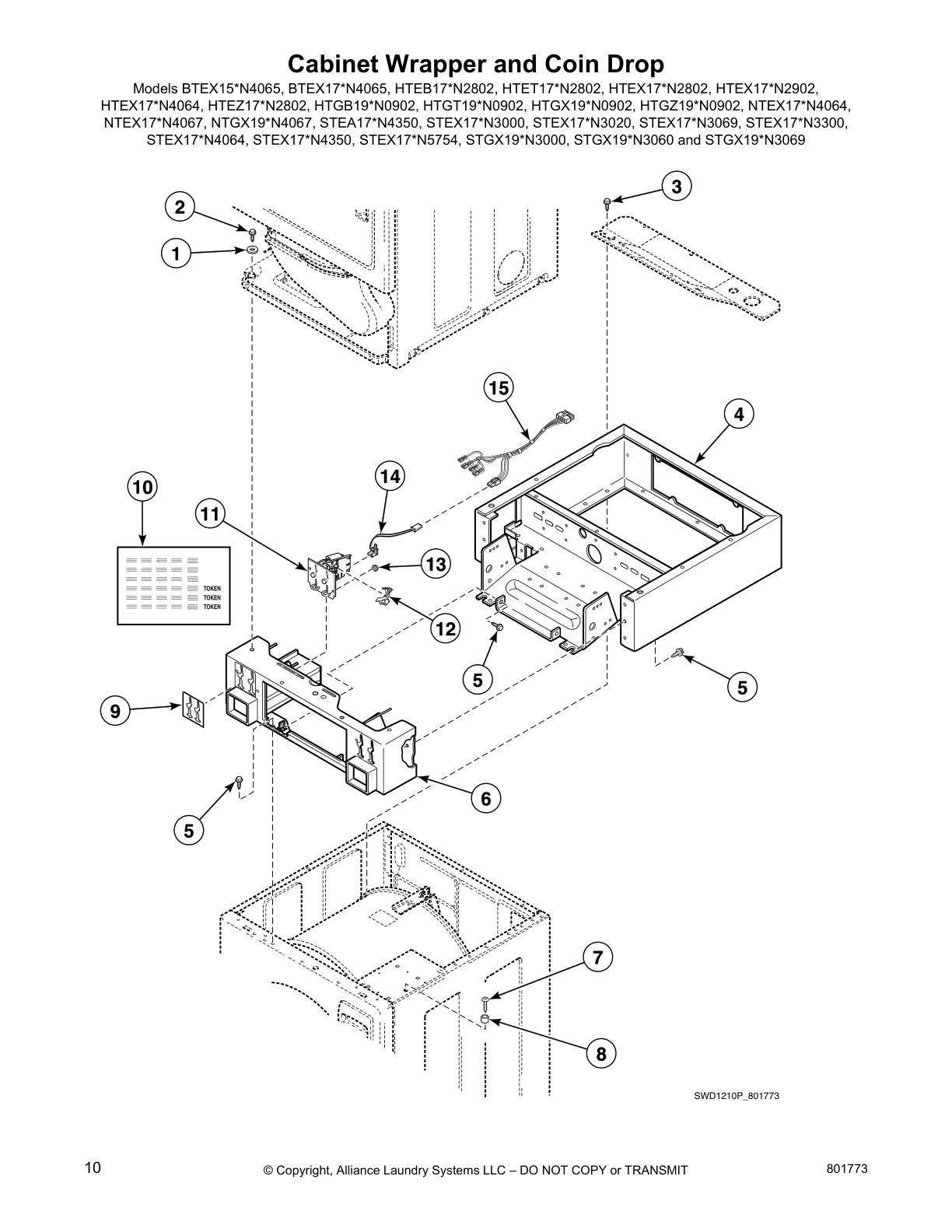

Cabinet Wrapper and Coin Drop

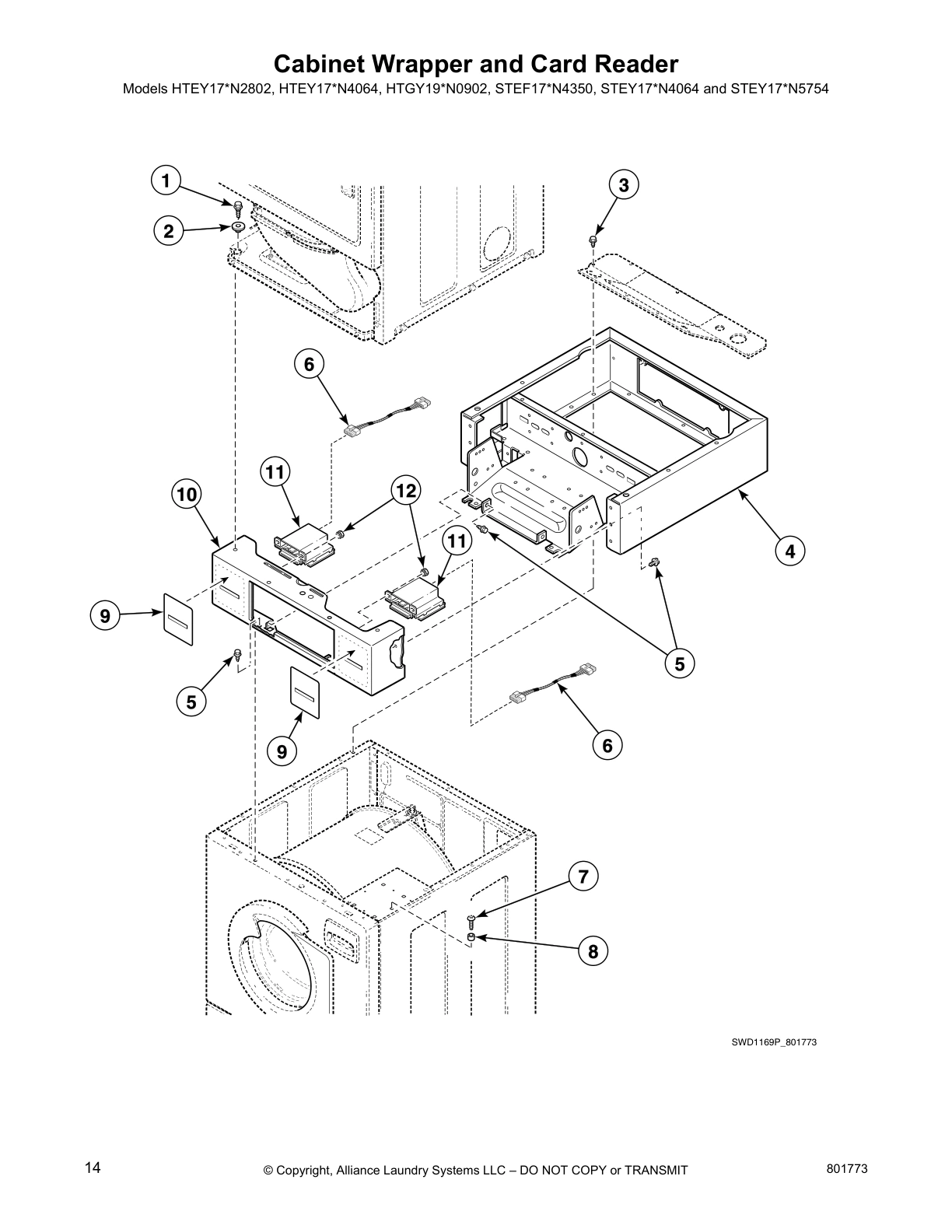

Cabinet Wrapper and Card Reader

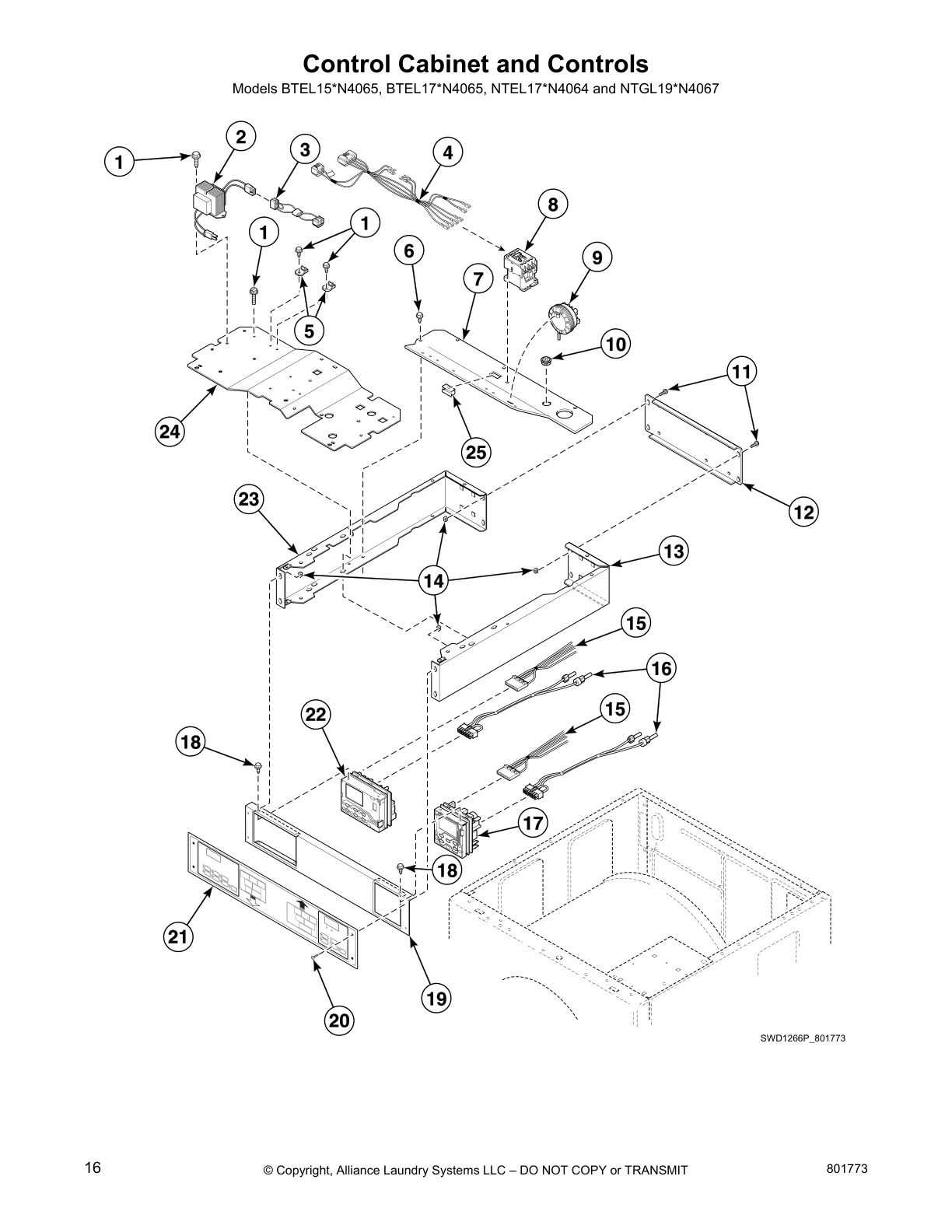

Control Cabinet and Controls

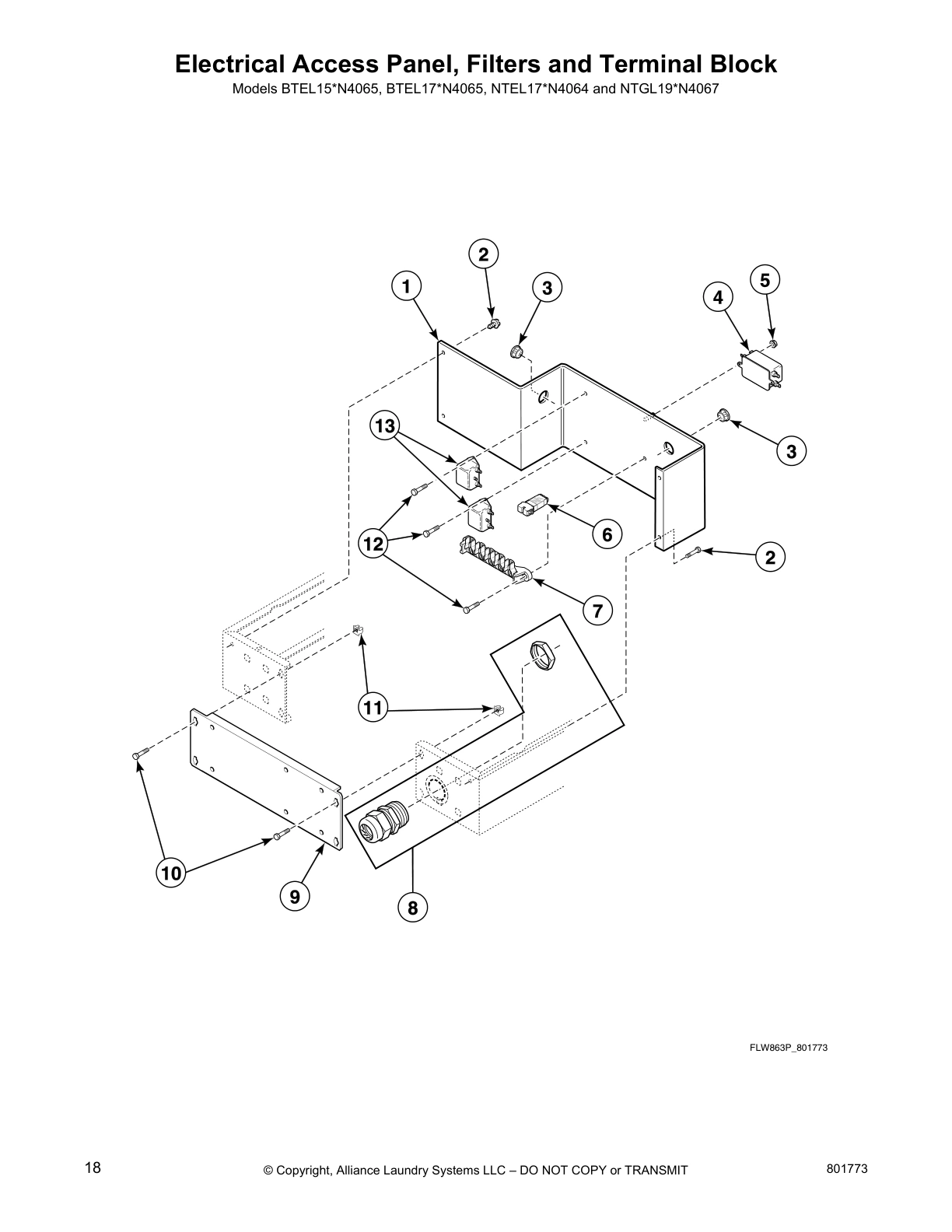

Electrical Access Panel, Filters and Terminal Block

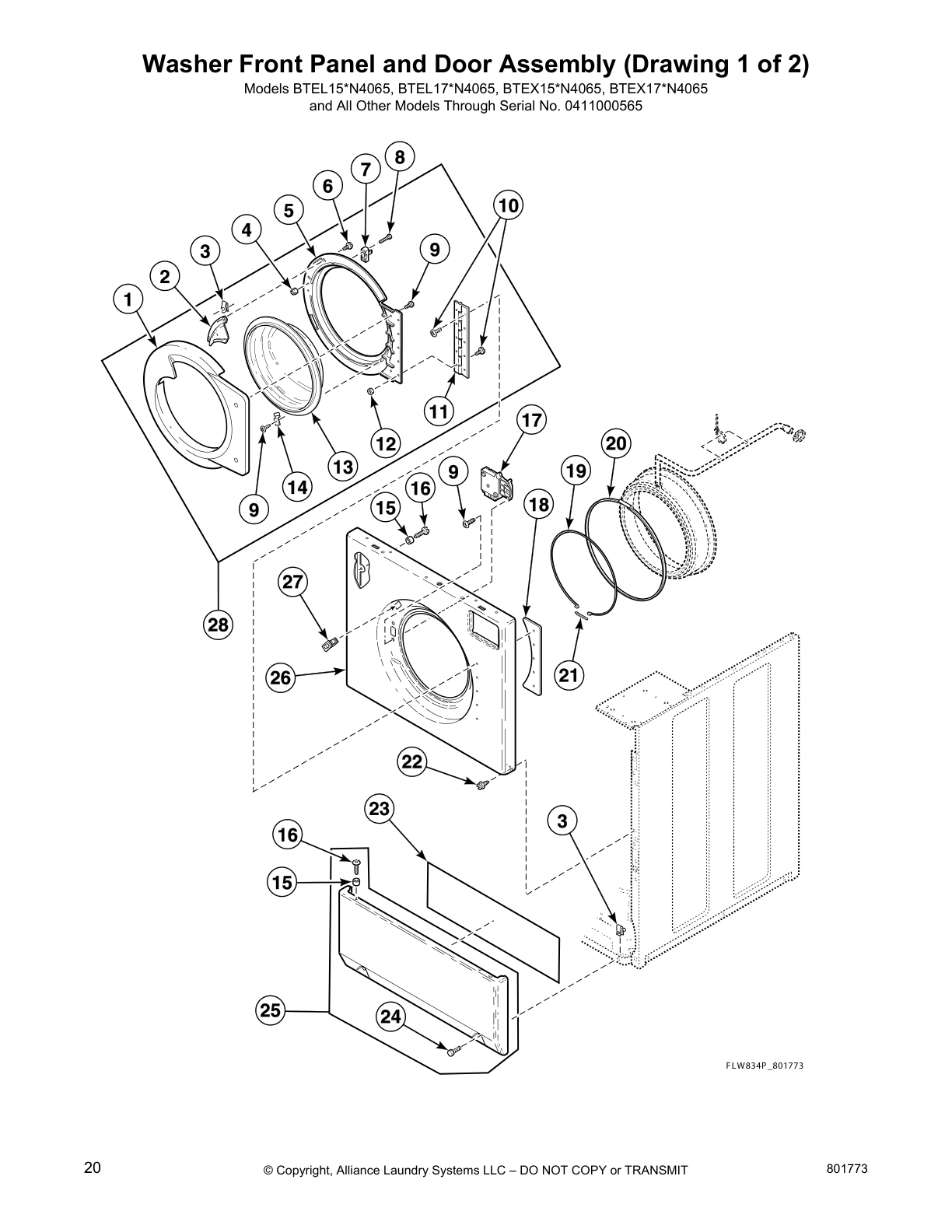

Washer Front Panel and Door Assembly (Drawing 1 of 2)

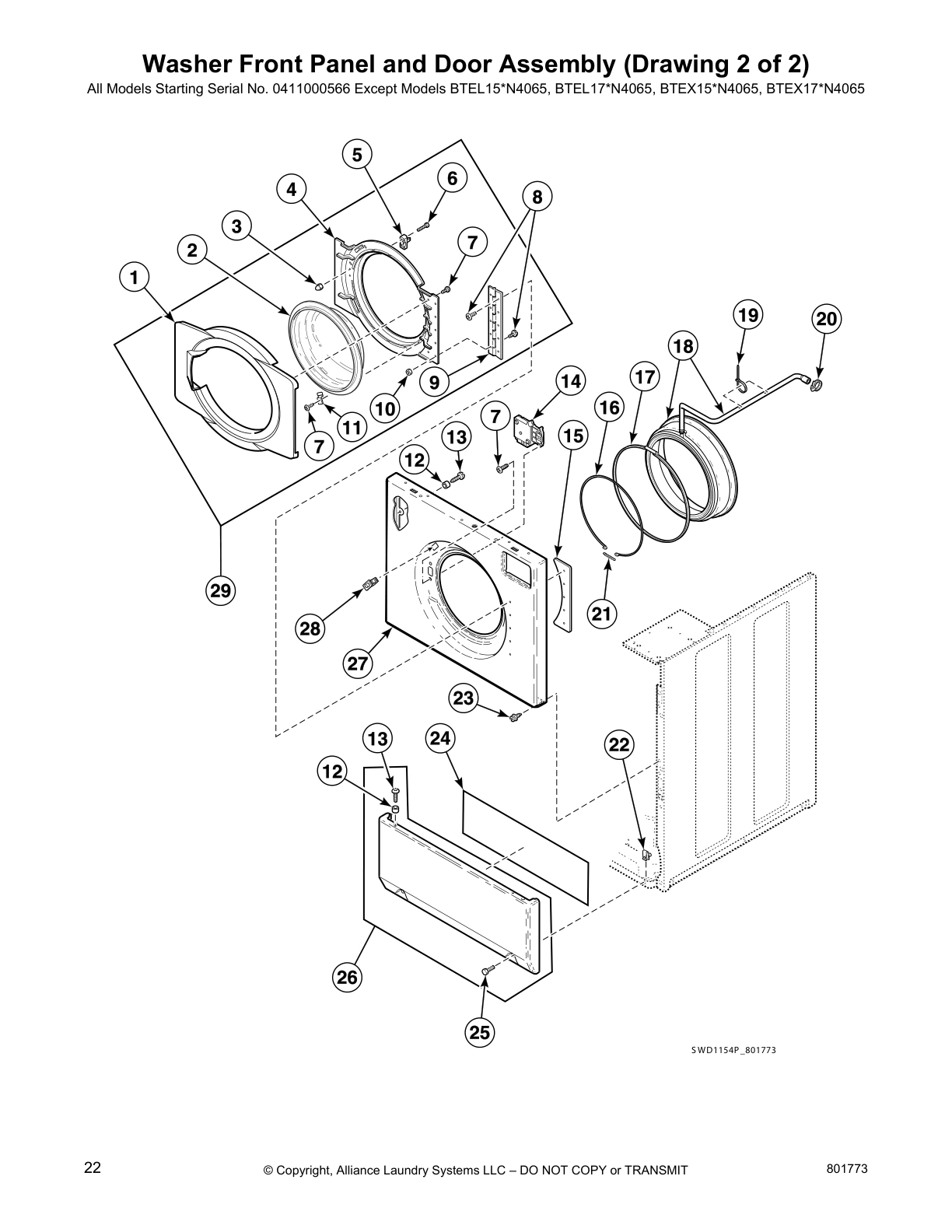

Washer Front Panel and Door Assembly (Drawing 2 of 2)

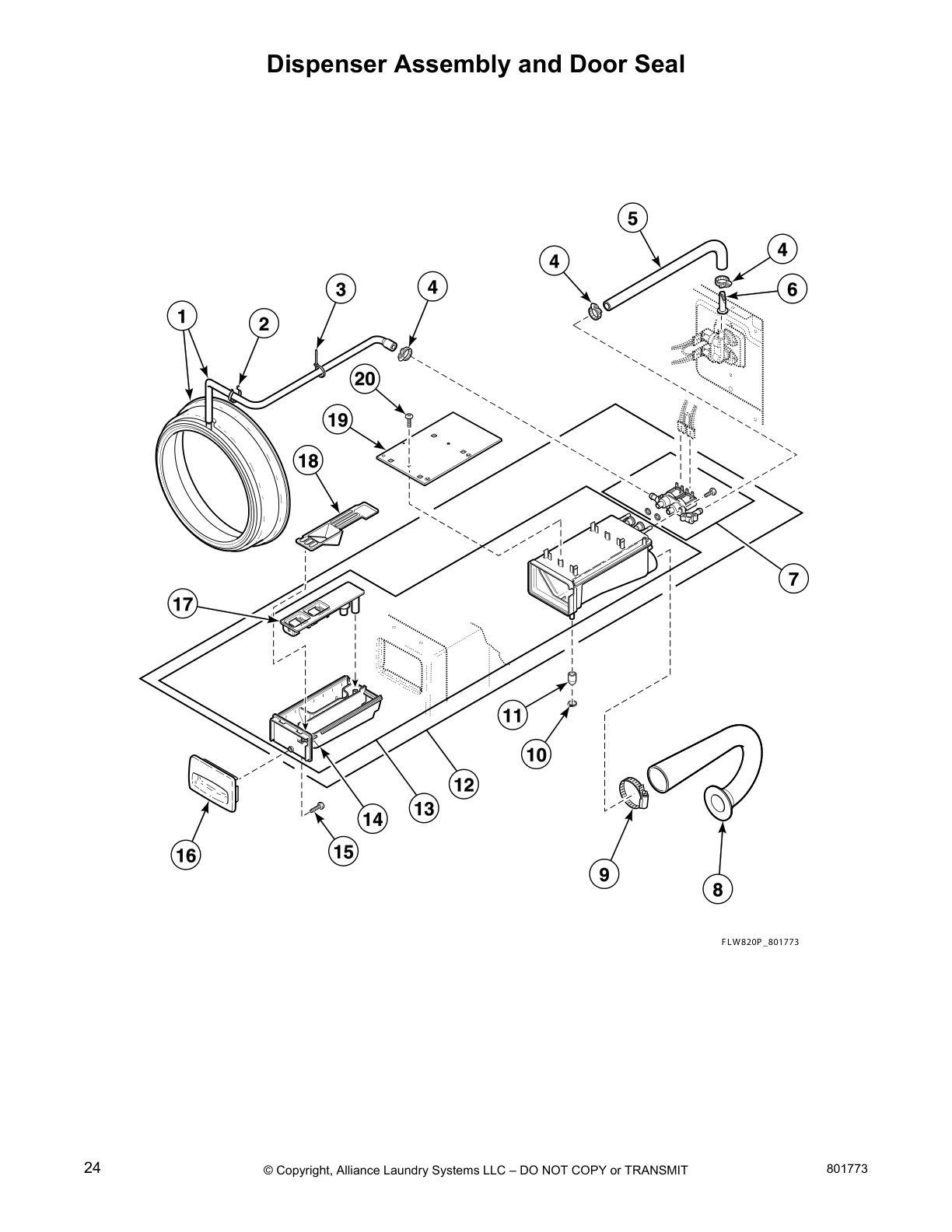

Dispenser Assembly and Door Seal

Mixing Valve, Valve-to-Dispenser Inlet Hose and Fill Hose

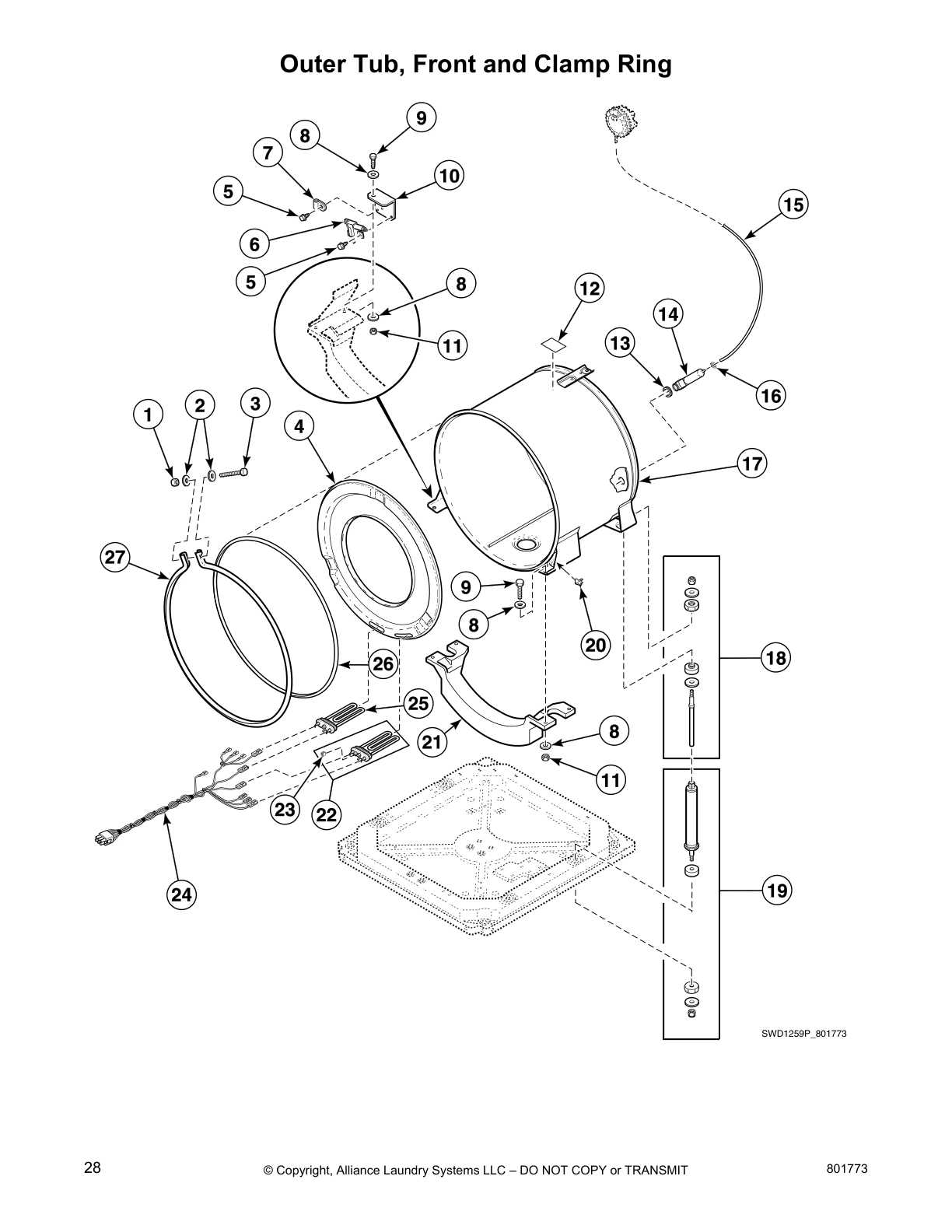

Outer Tub, Front and Clamp Ring

Inner Basket, Trunnion, Bearing Housing and Pulley

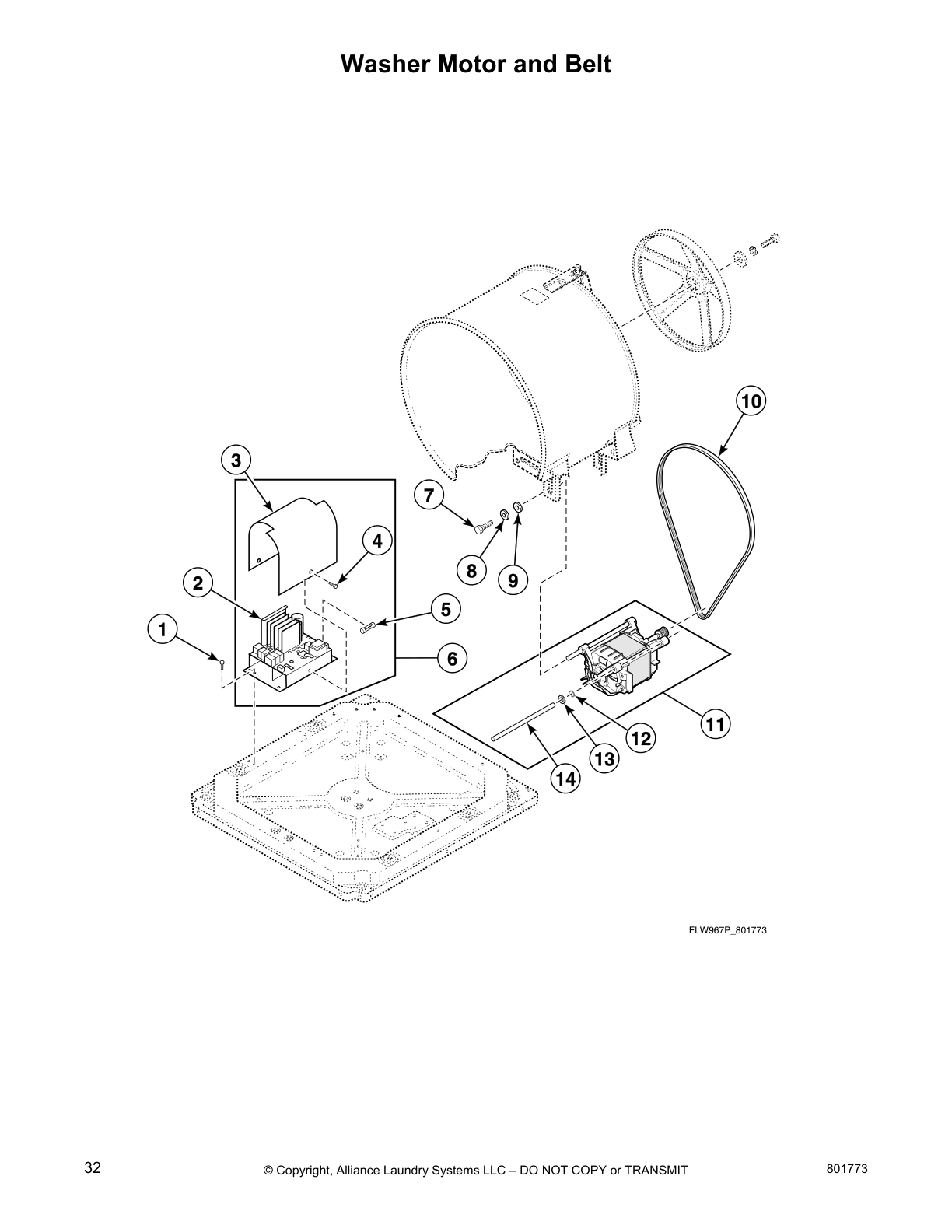

Washer Motor and Belt

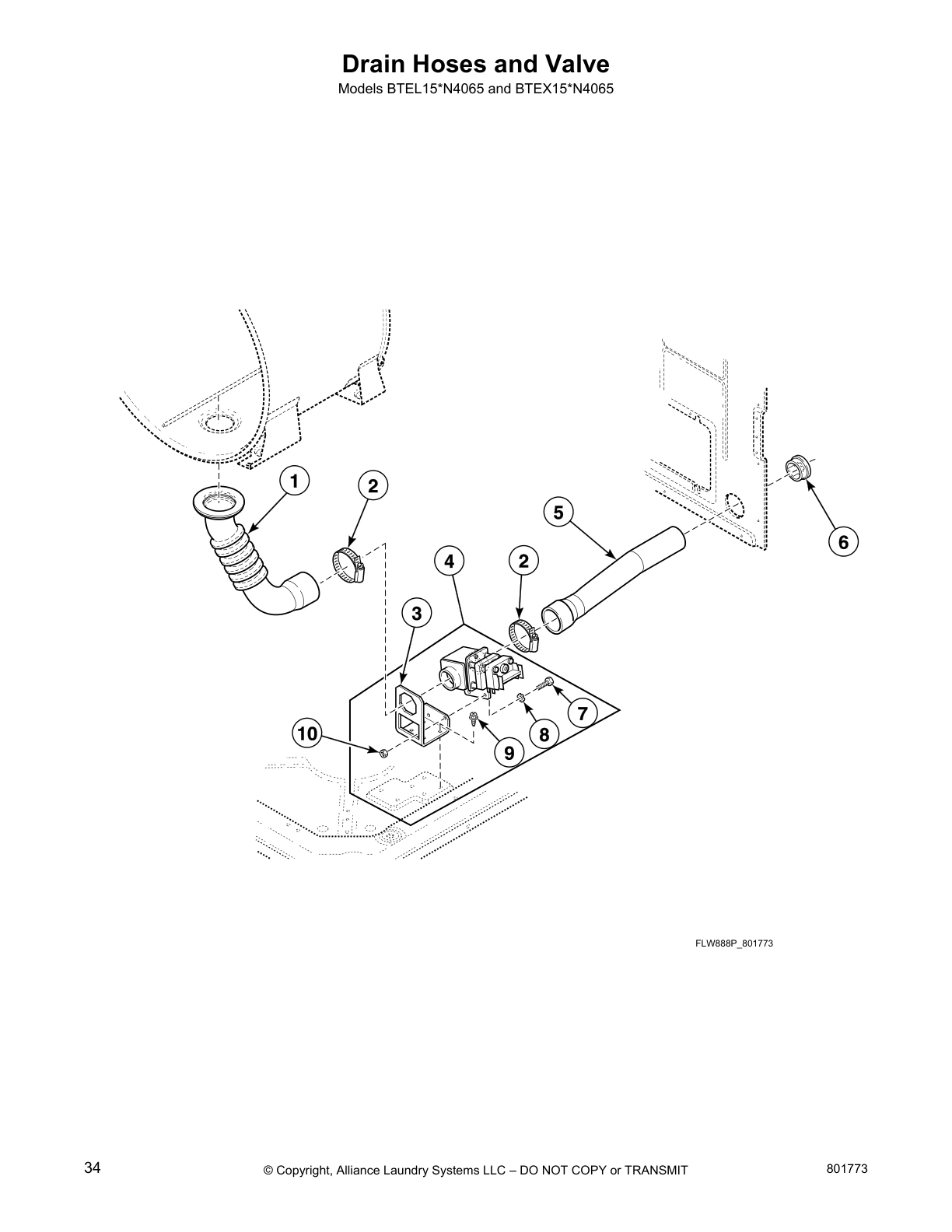

Drain Hoses and Valve

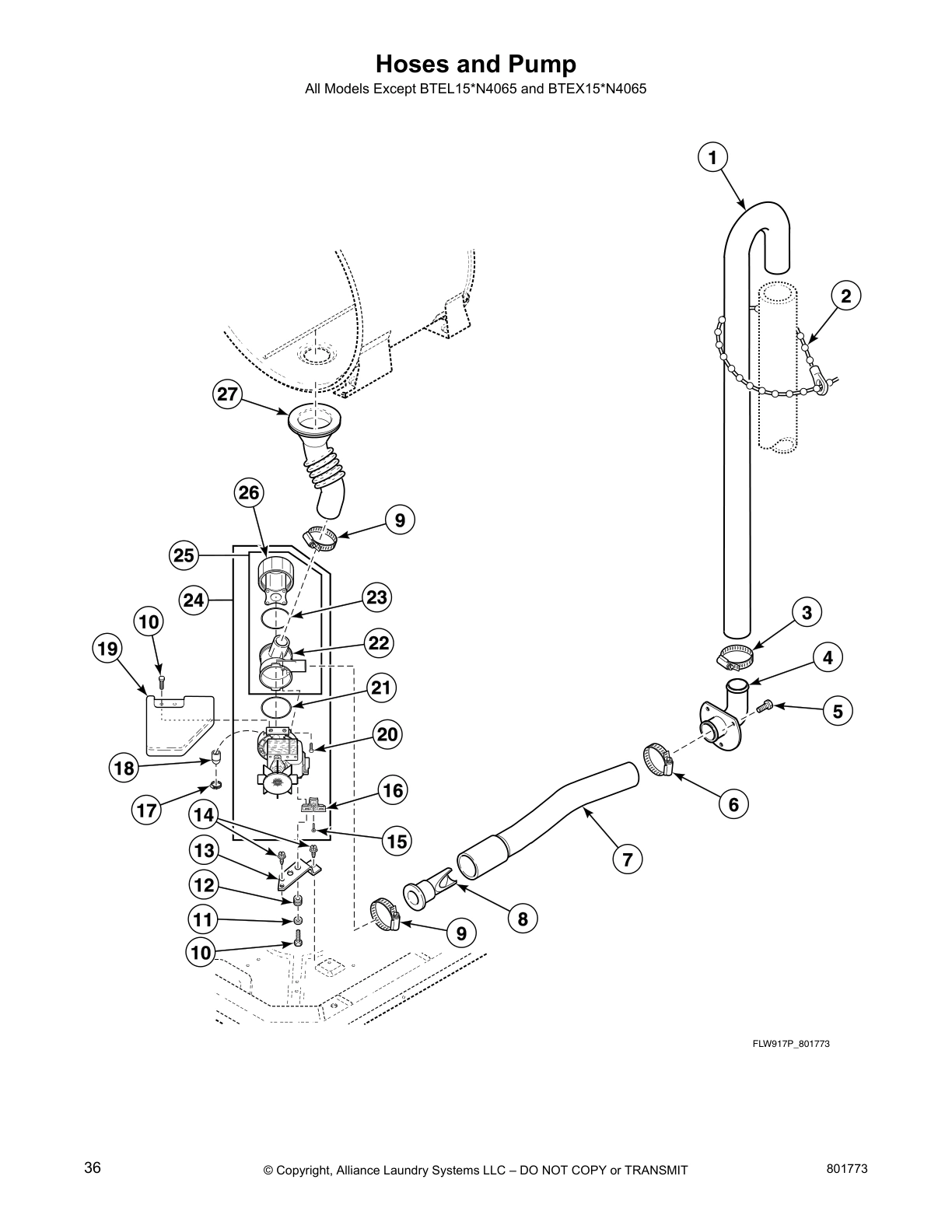

Hoses and Pump

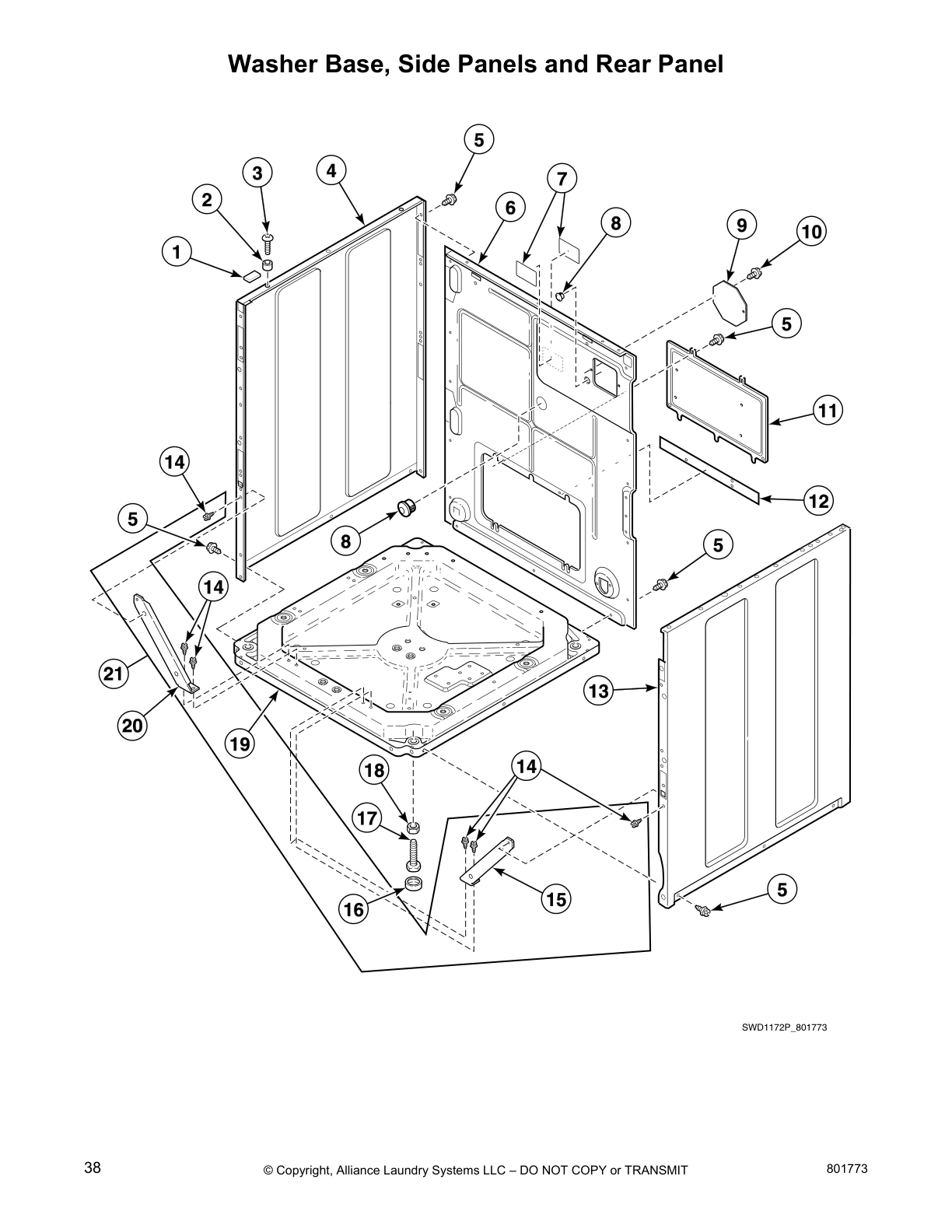

Washer Base, Side Panels and Rear Panel

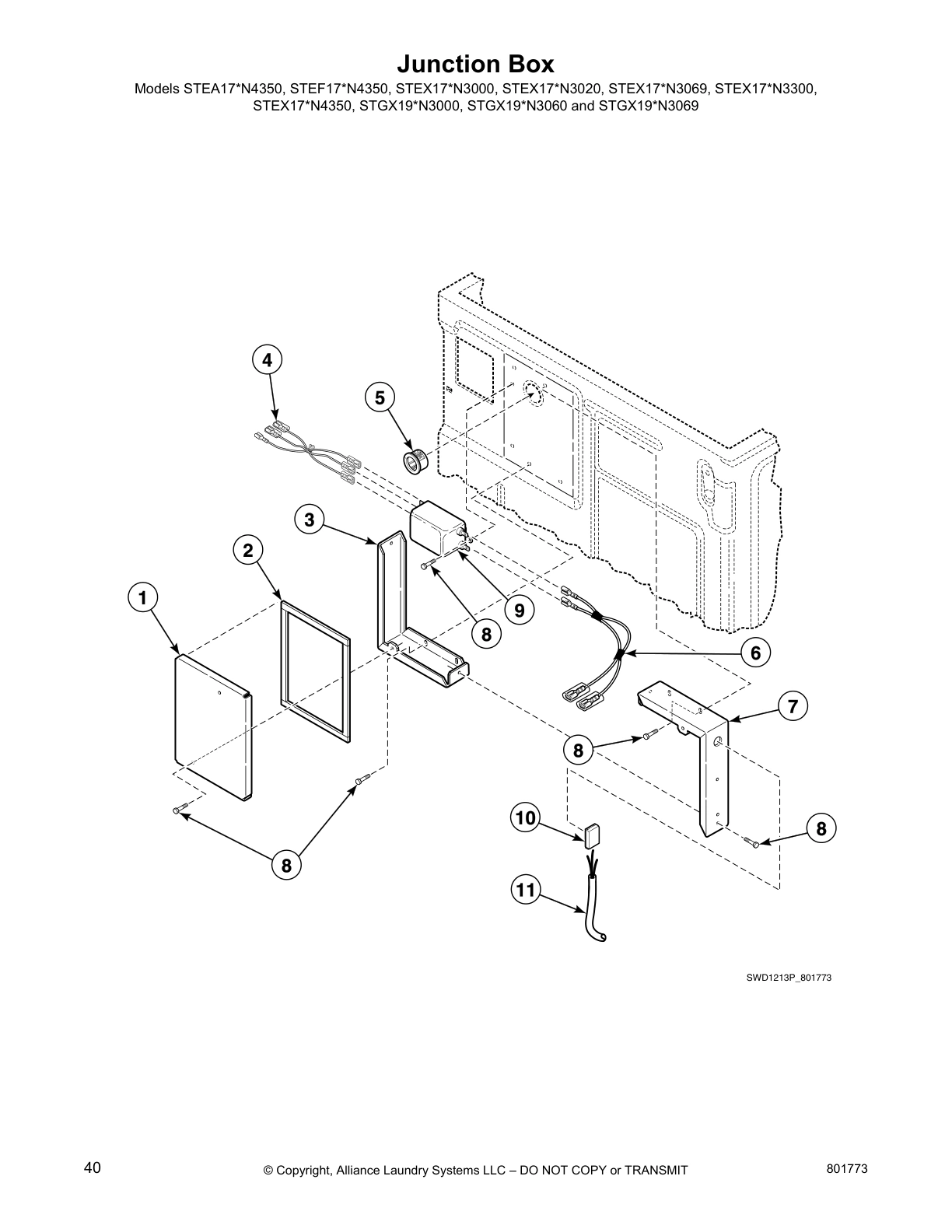

Junction Box

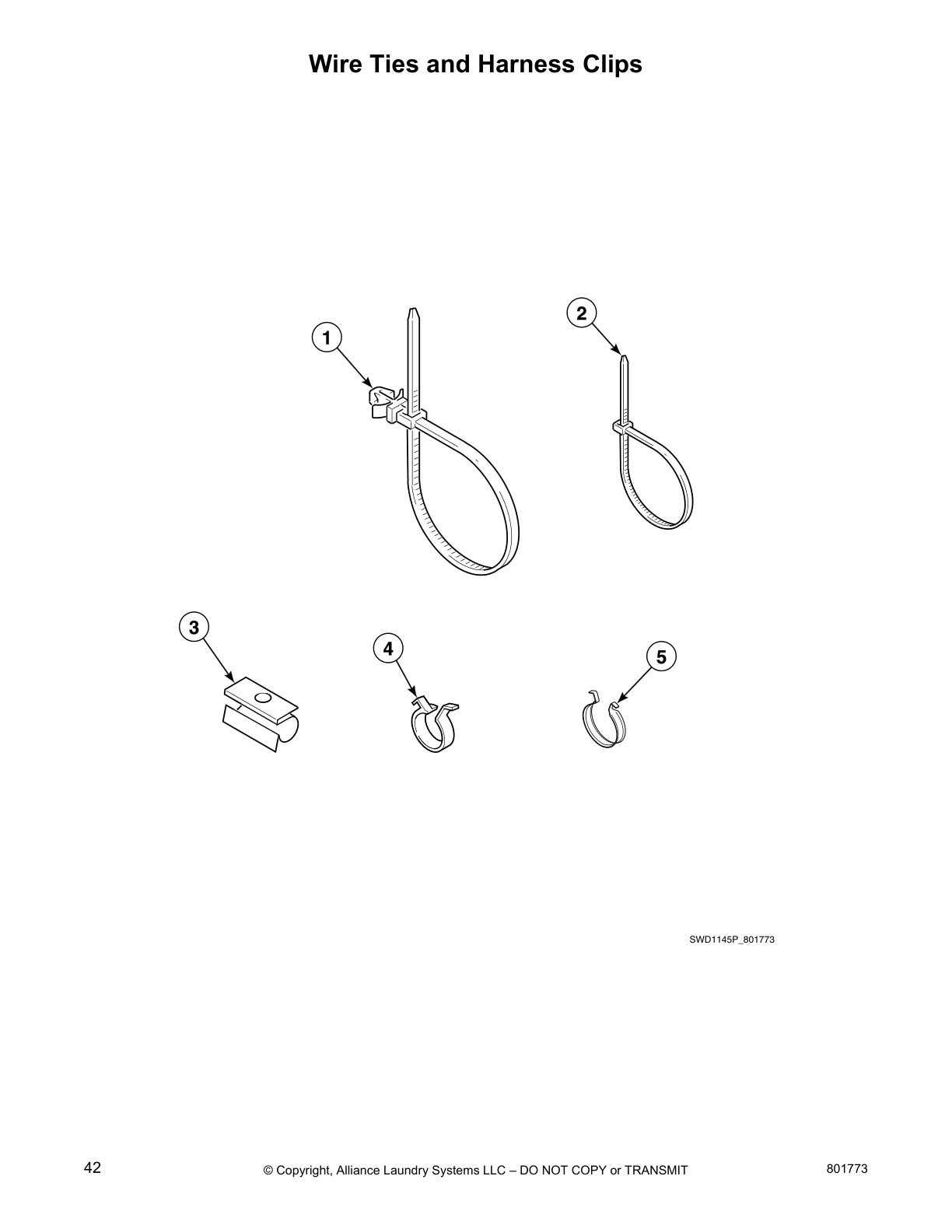

Wire Ties and Harness Clips

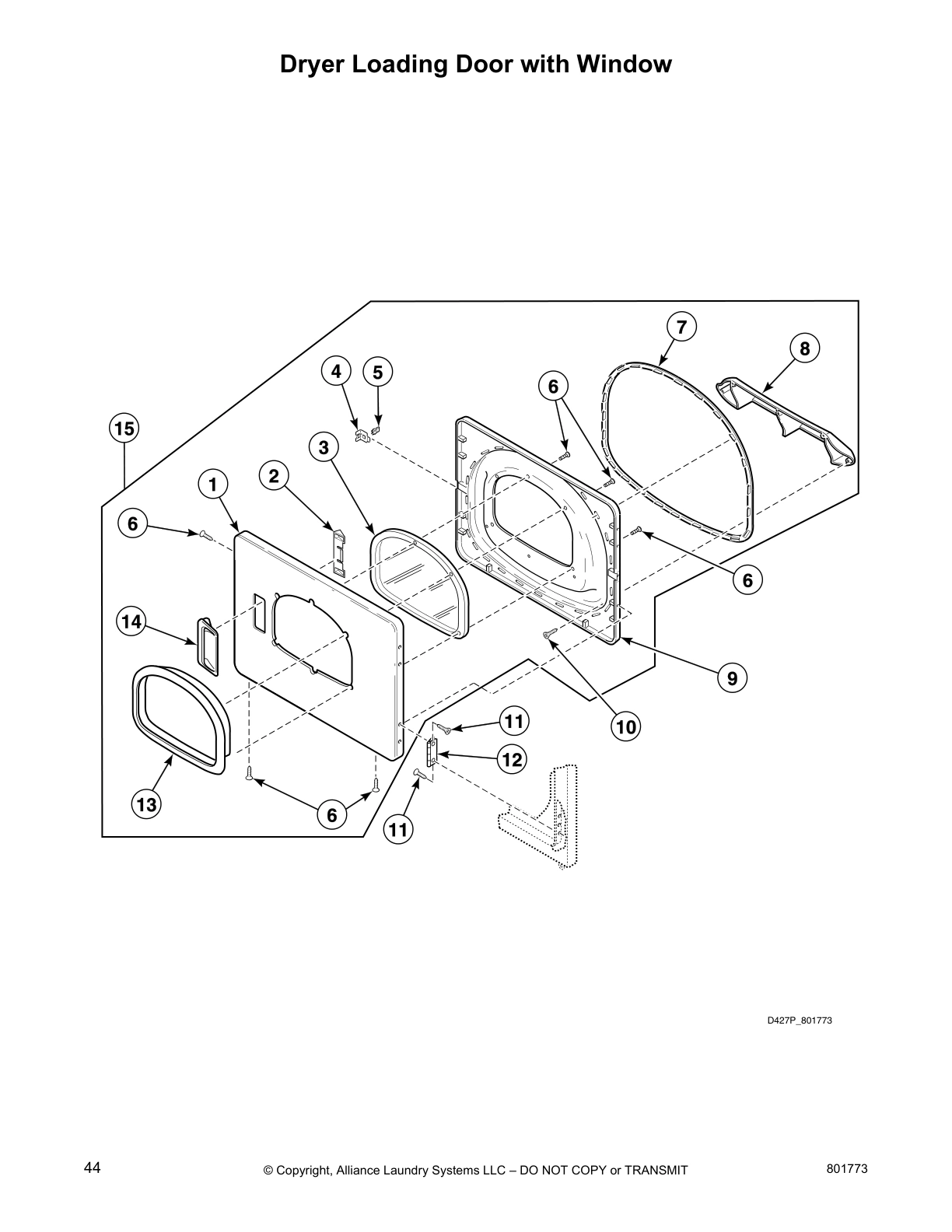

Dryer Loading Door with Window

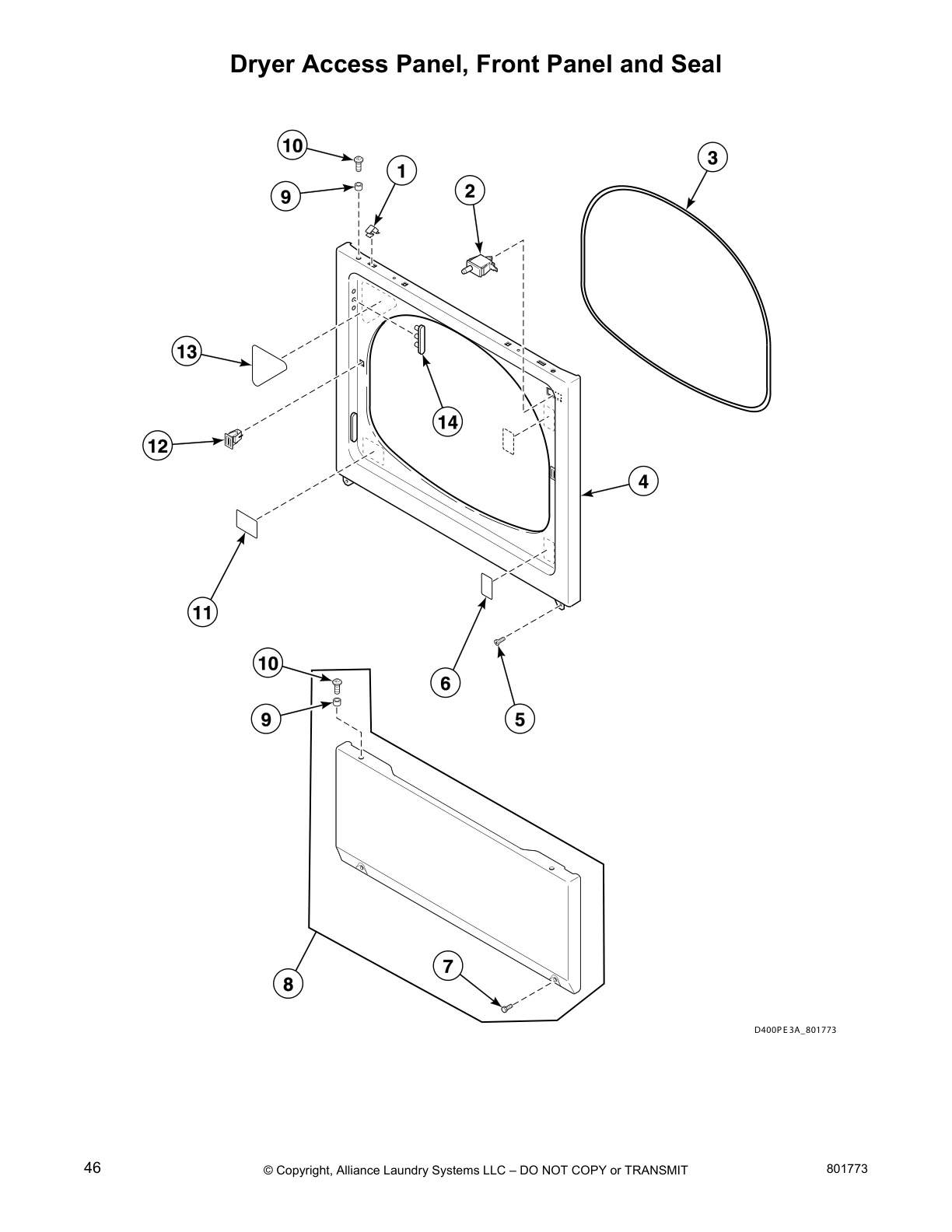

Dryer Access Panel, Front Panel and Seal

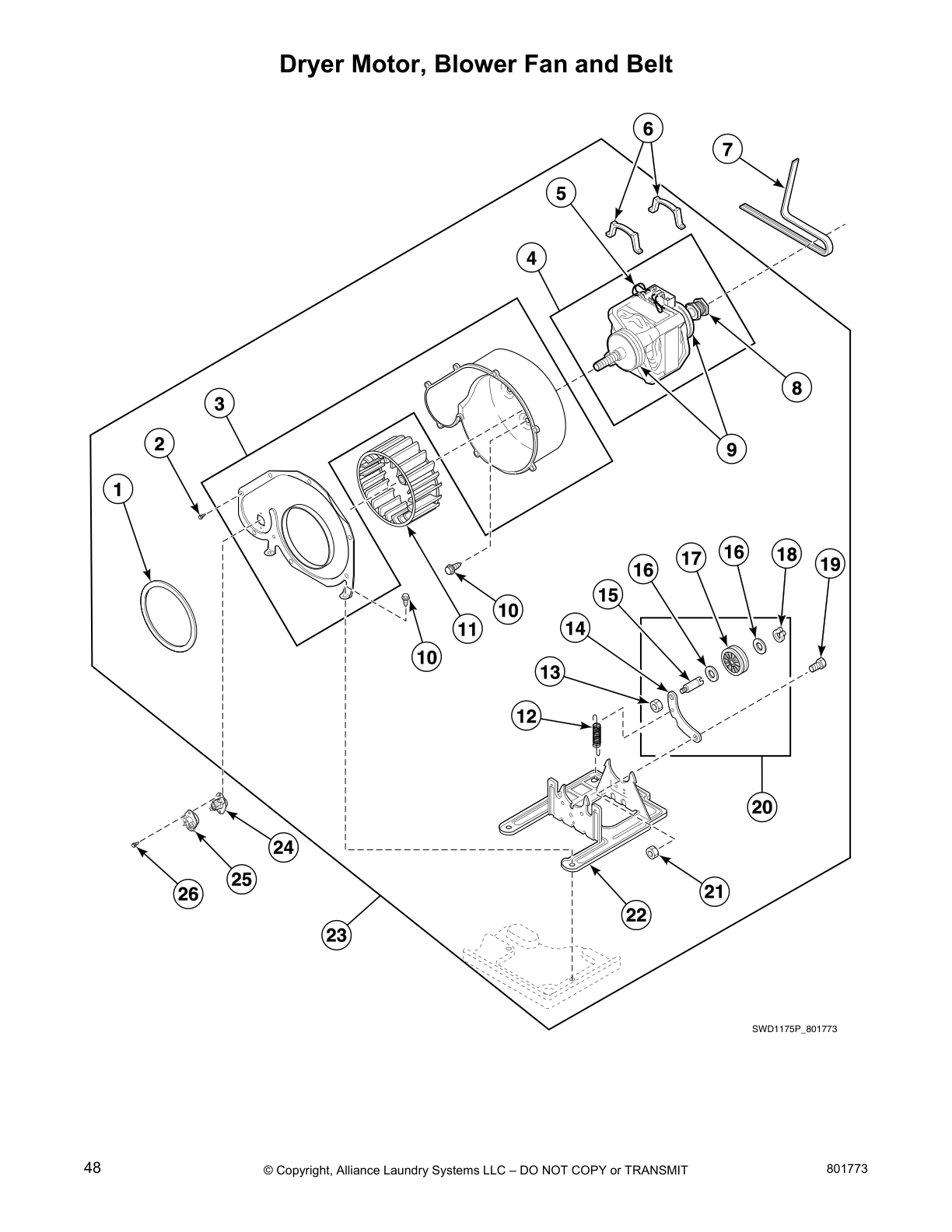

Dryer Motor, Blower Fan and Belt

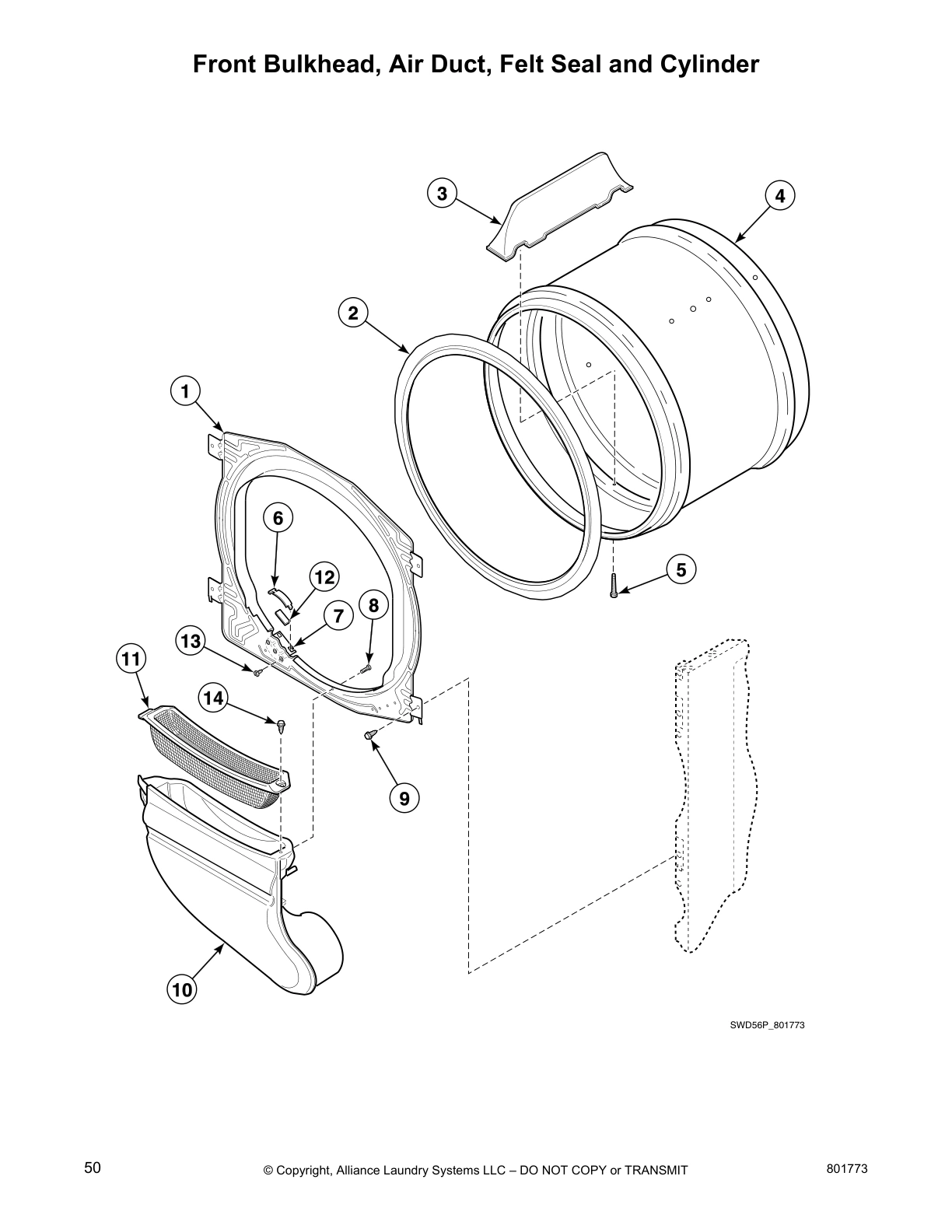

Front Bulkhead, Air Duct, Felt Seal and Cylinder

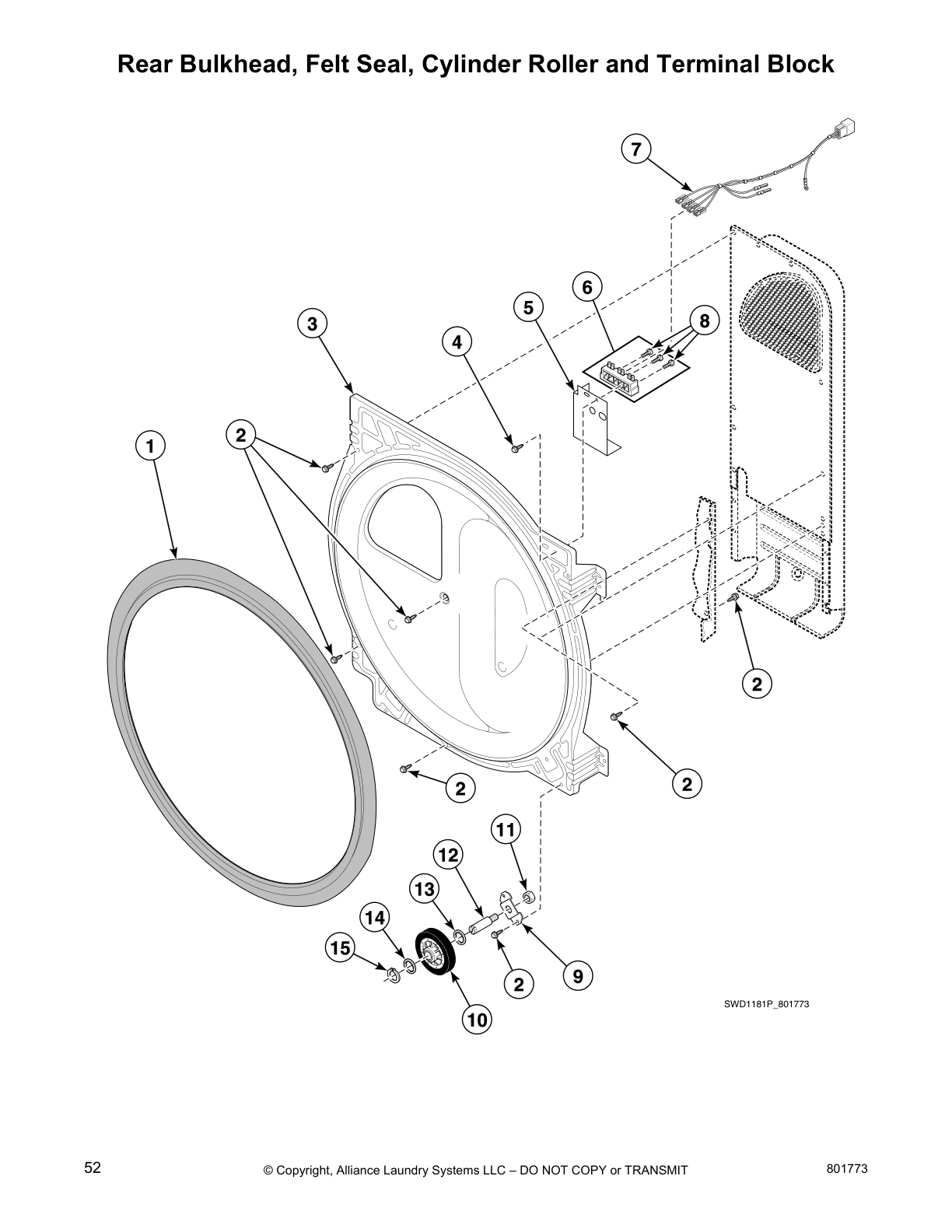

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

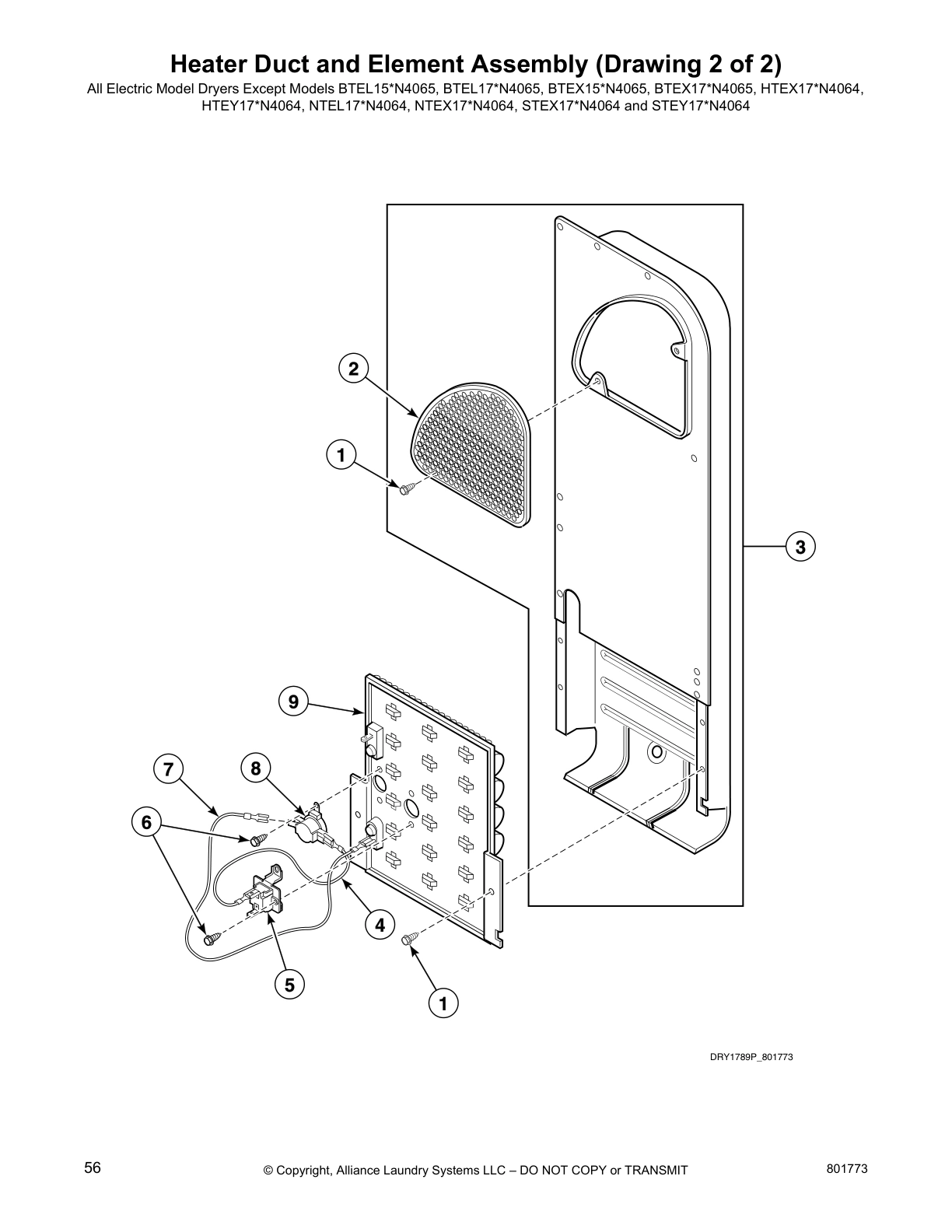

Heater Duct and Element Assembly (Drawing 1 of 2)

Heater Duct and Element Assembly (Drawing 2 of 2)

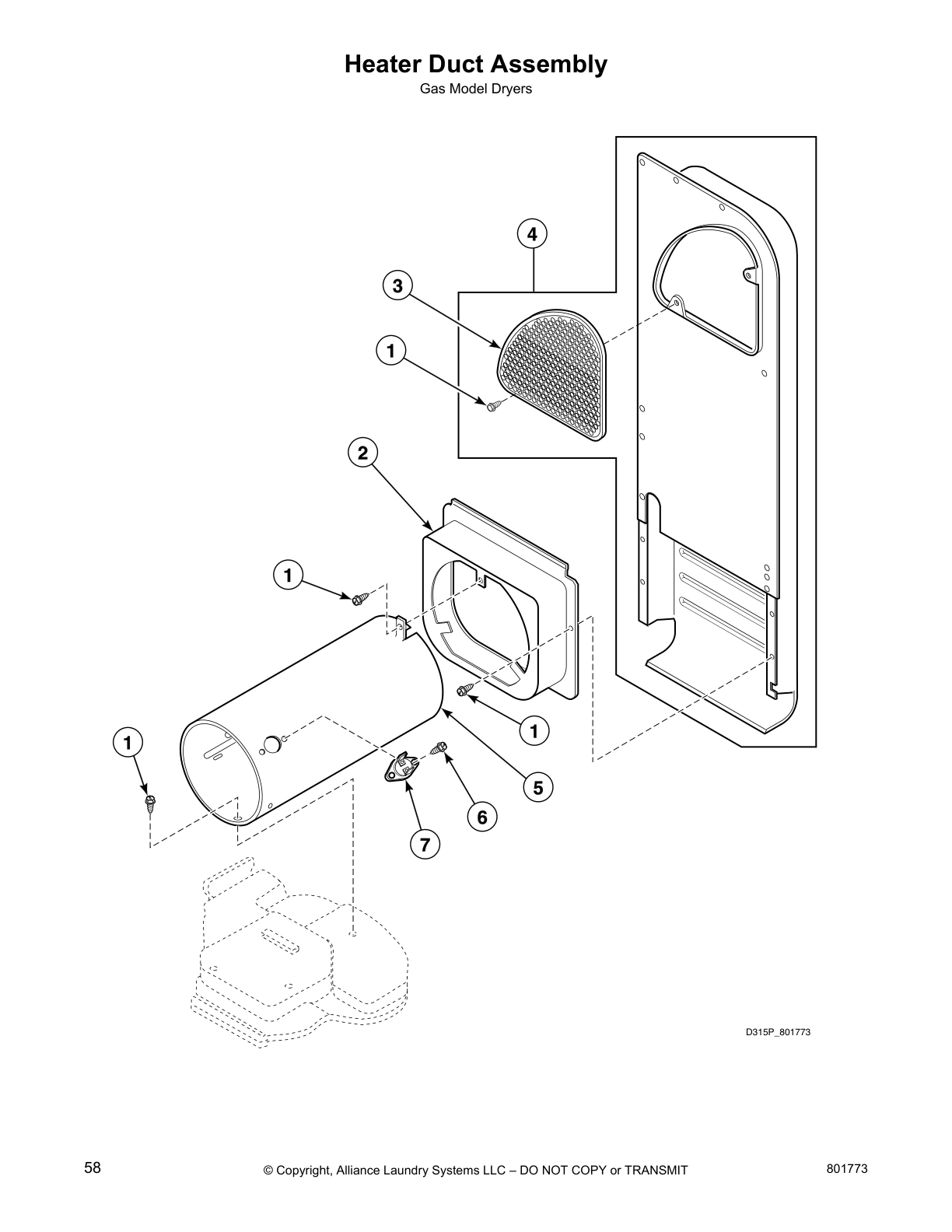

Heater Duct Assembly

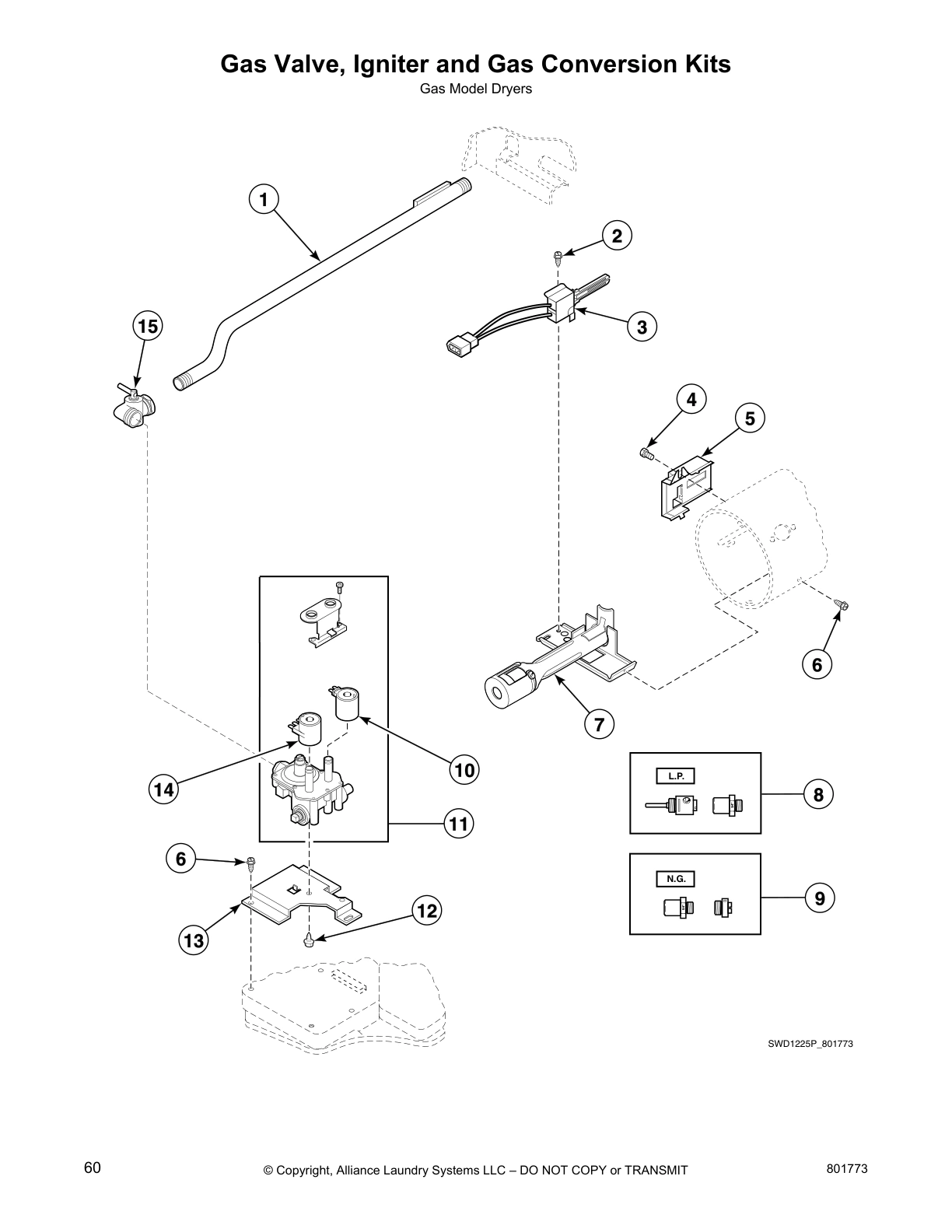

Gas Valve, Igniter and Gas Conversion Kits

Dryer Cabinet, Exhaust Duct and Base

Dryer Motor Connection Block, Terminal Extractor Tools

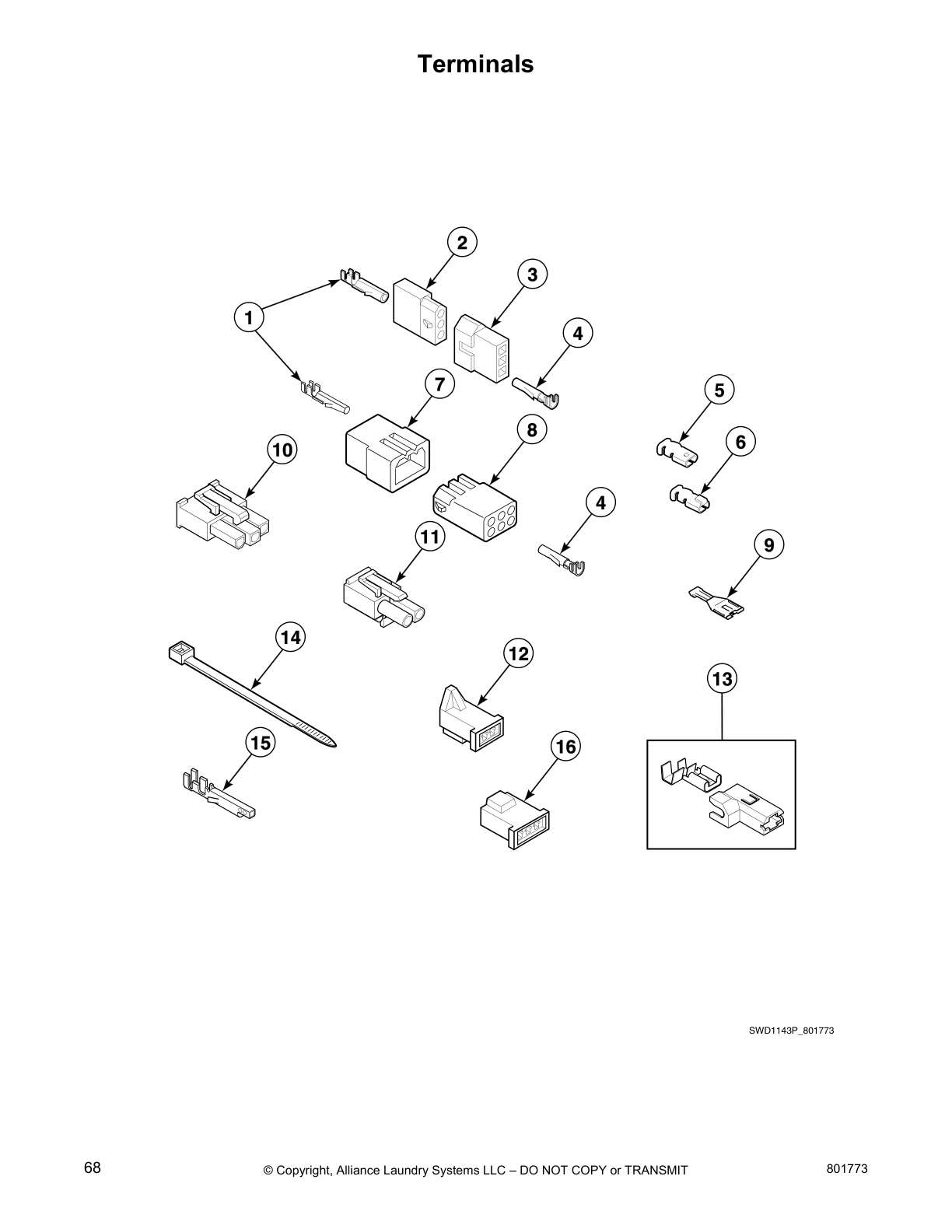

Terminals

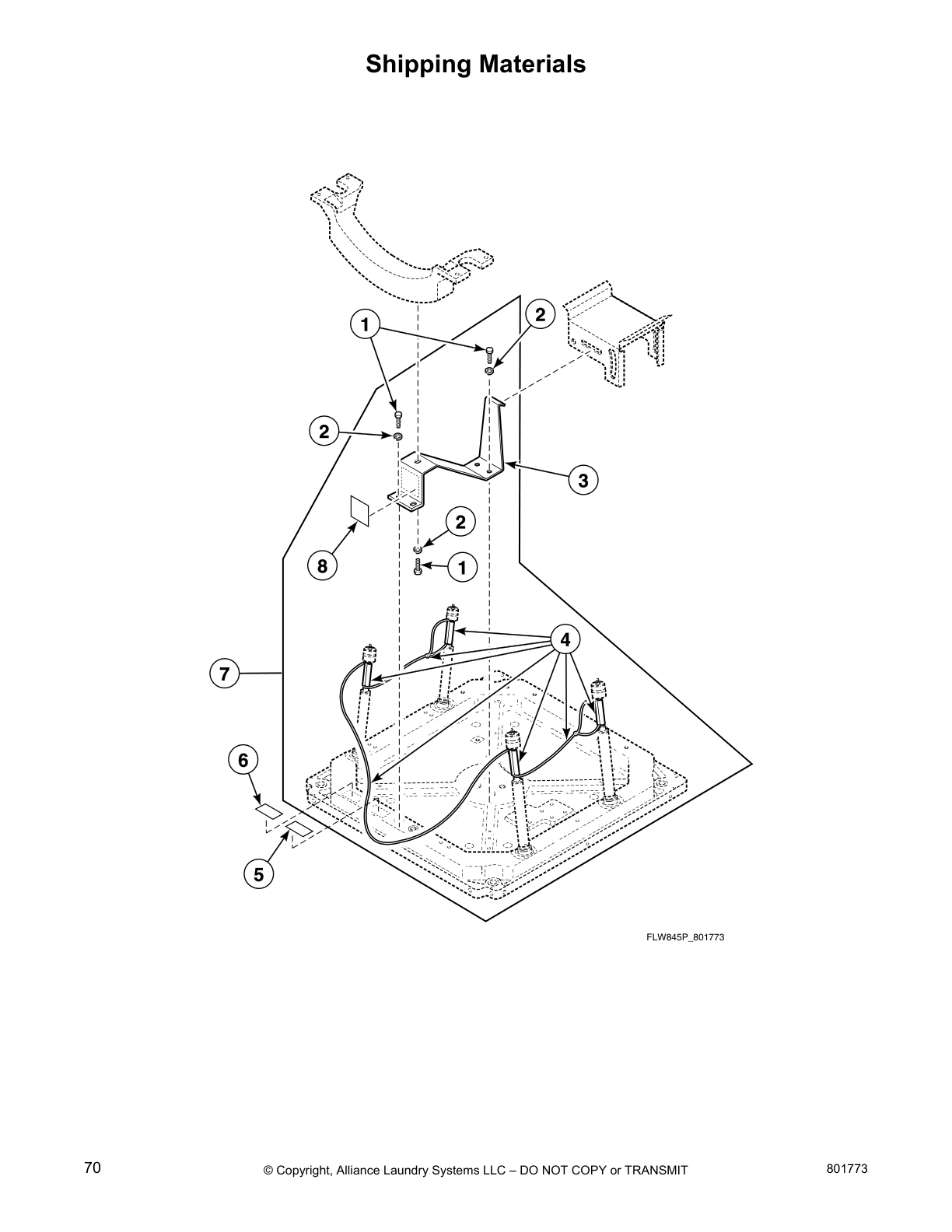

Shipping Materials

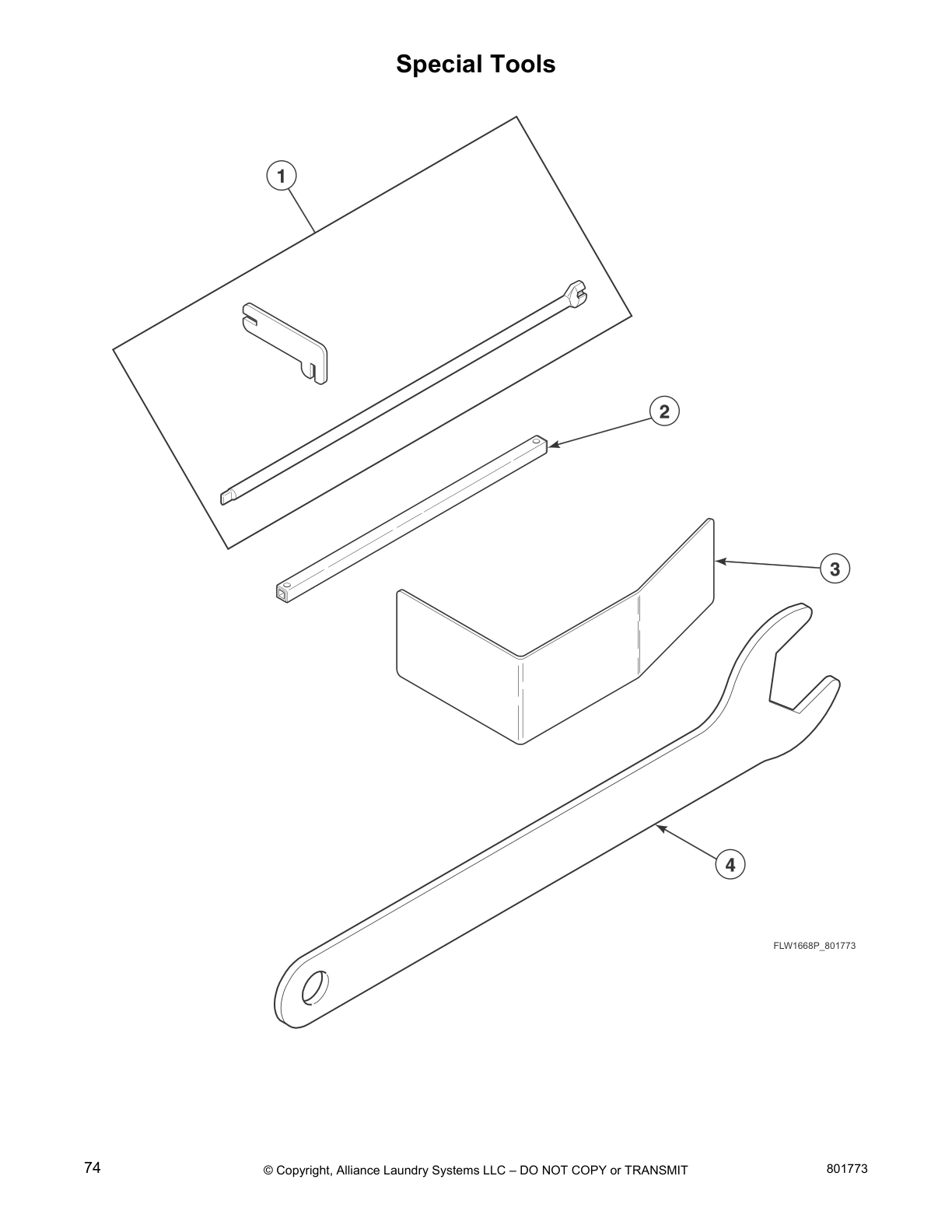

Special Tools

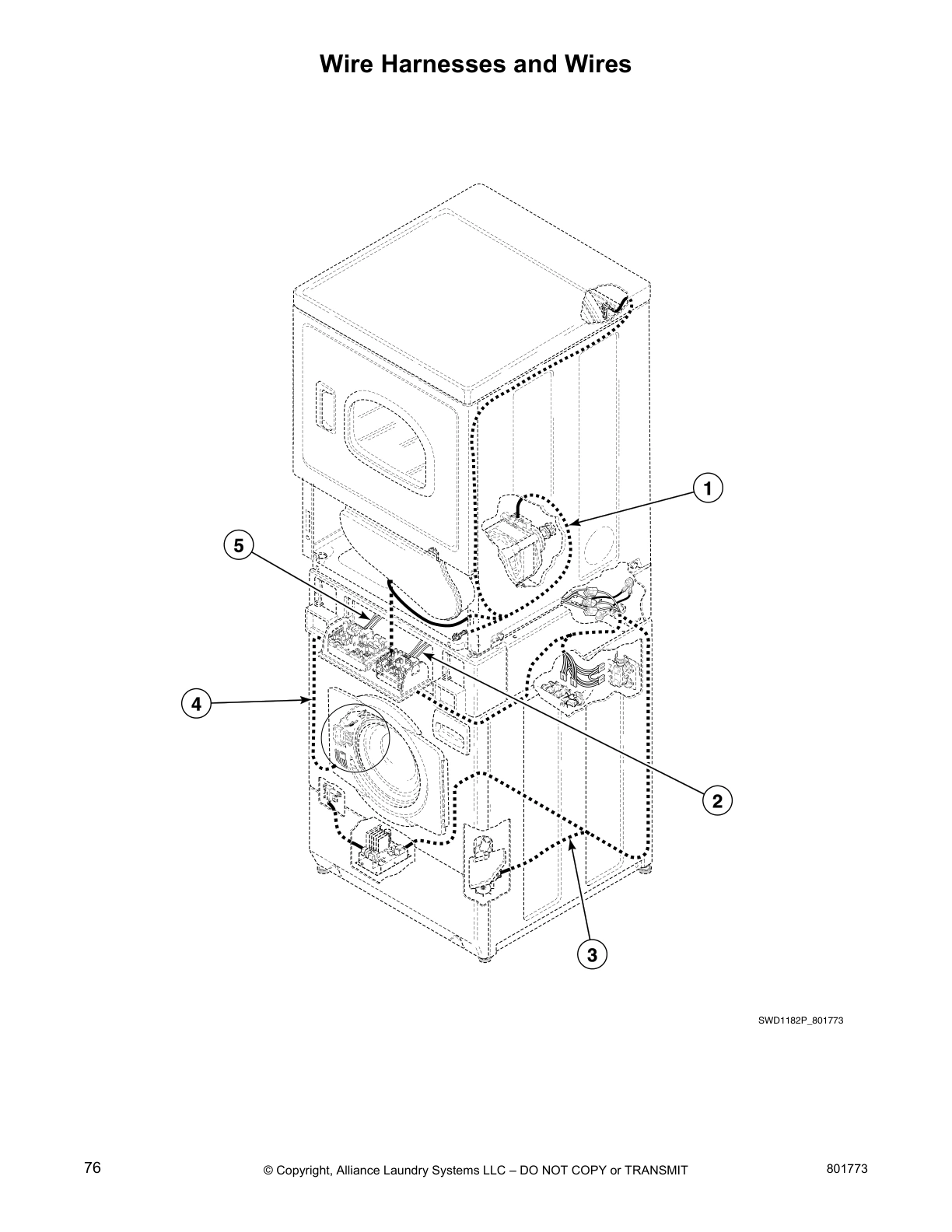

Wire Harnesses and Wires
