Model GE CDE4BFGS171CW01 General Electric Model CDE4BFGS171CW01 – Common Parts & Diagrams

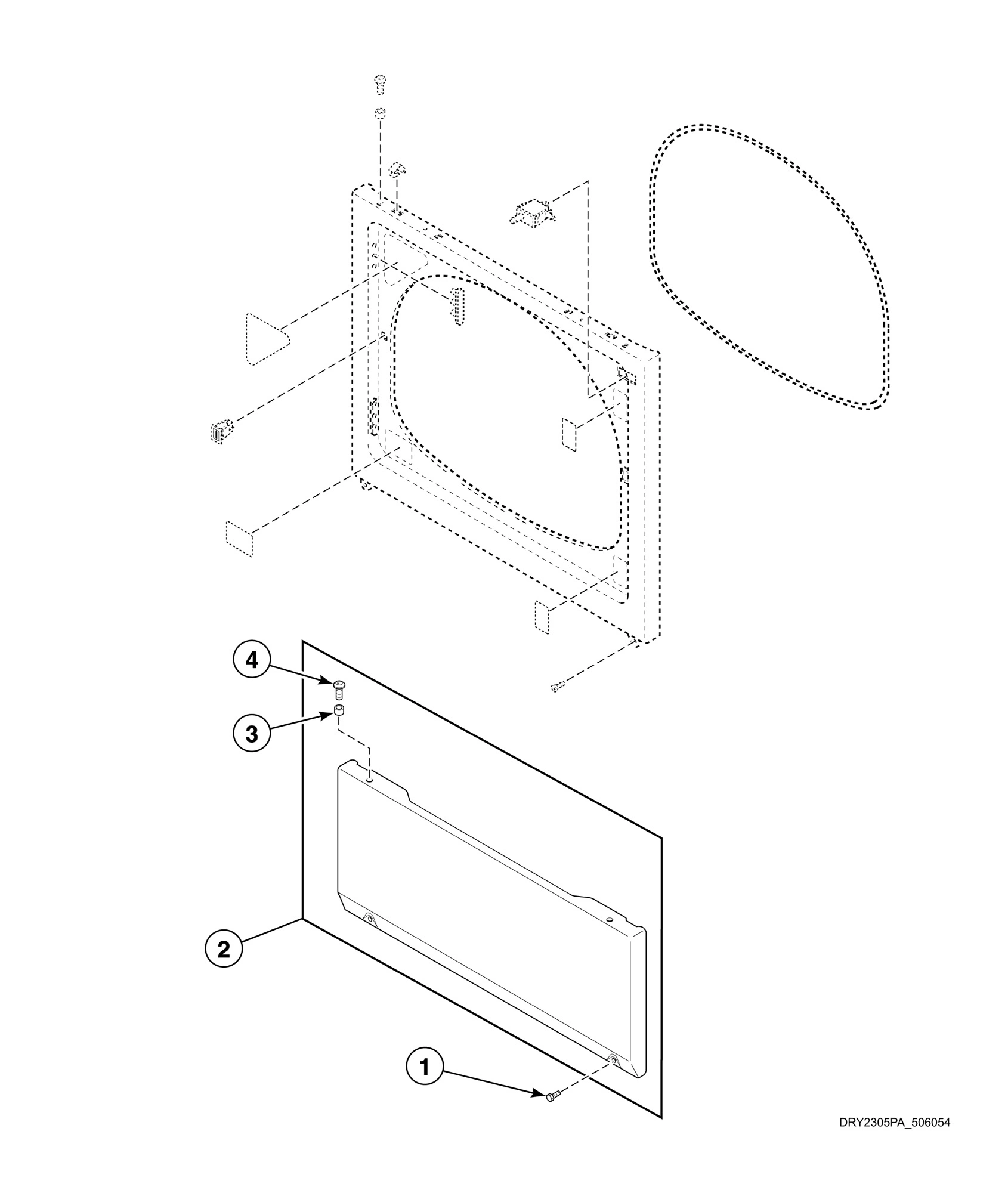

Access Panel

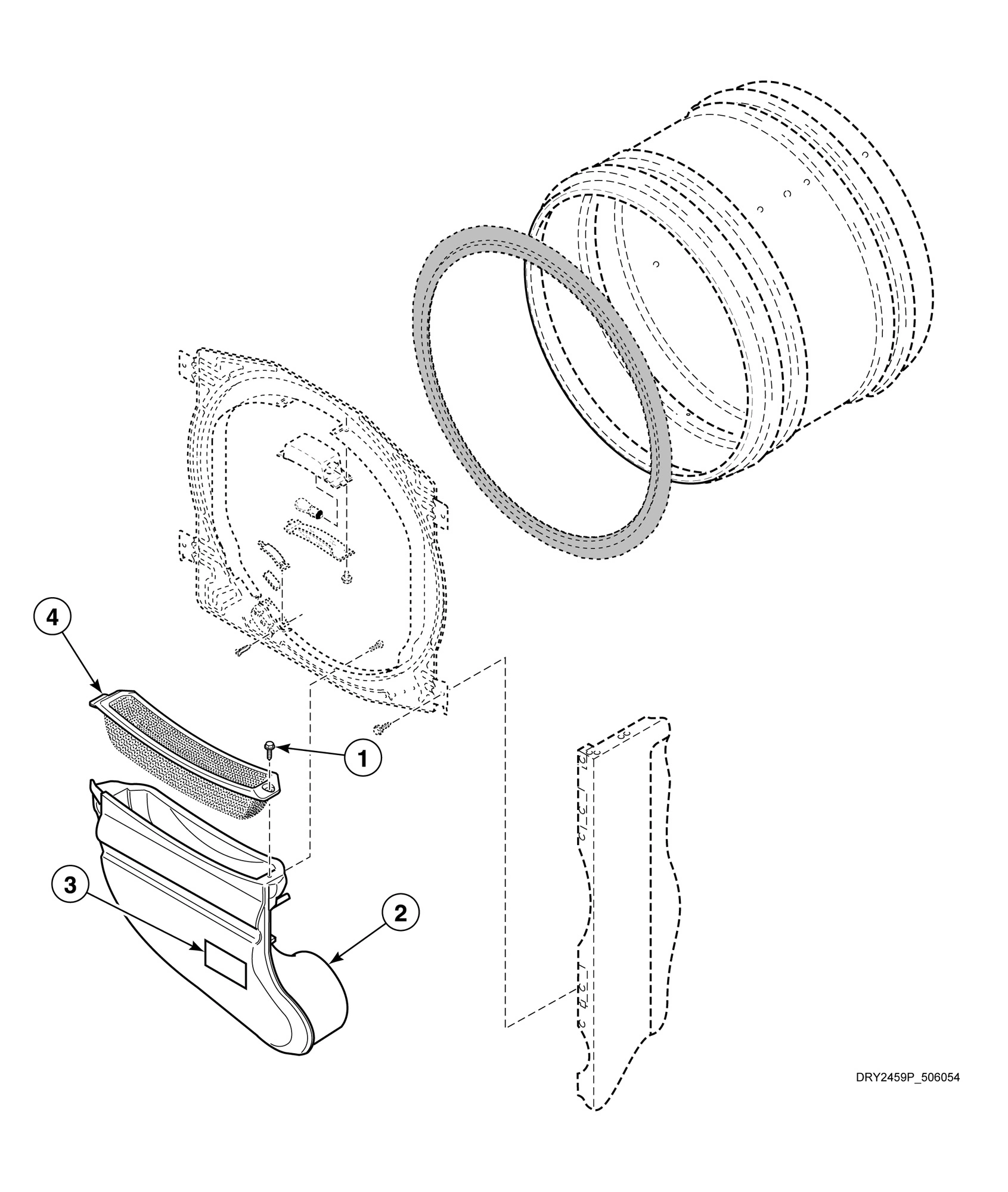

Air Duct

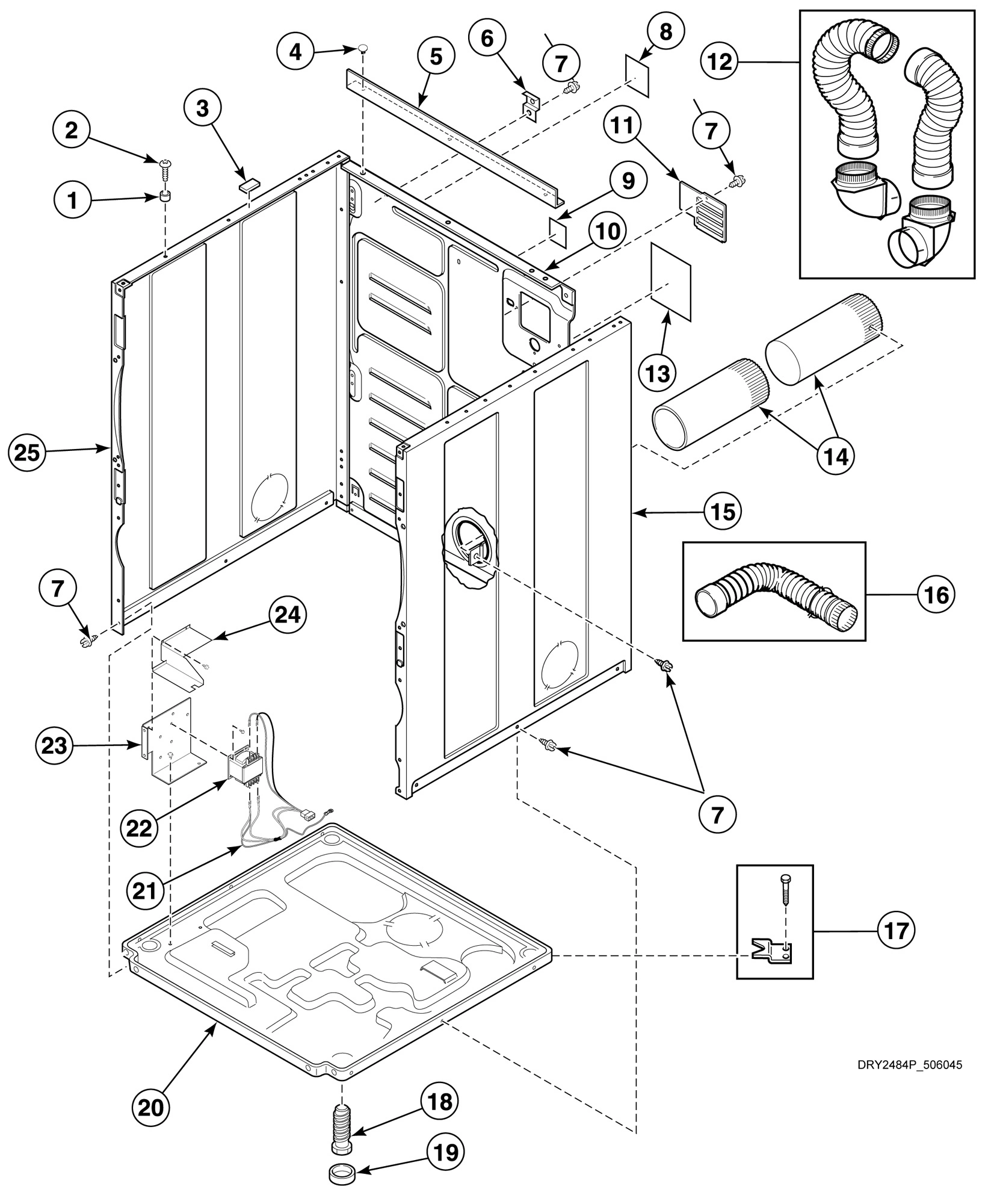

Cabinet, Exhaust Duct and Base

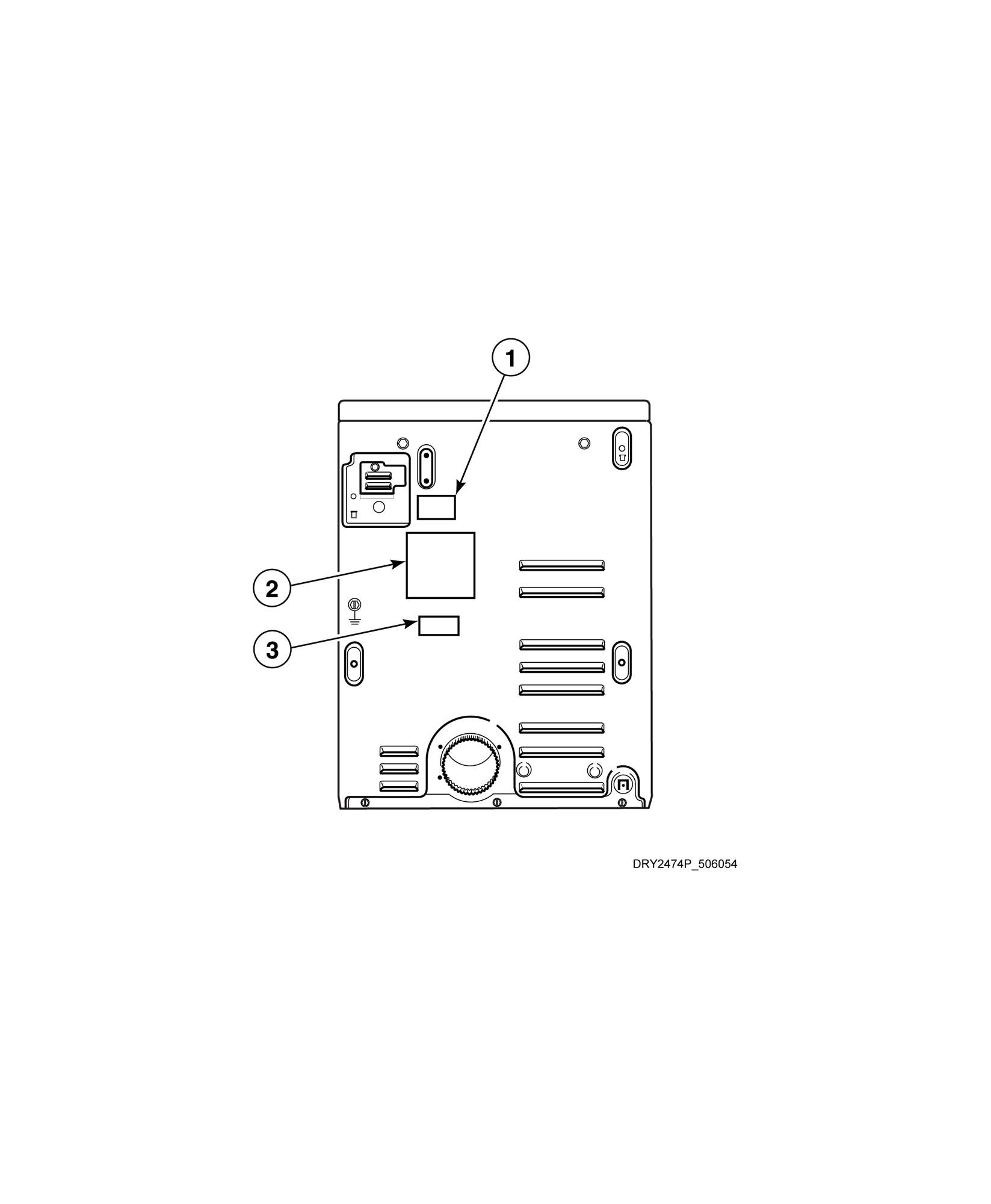

Cabinet Labels

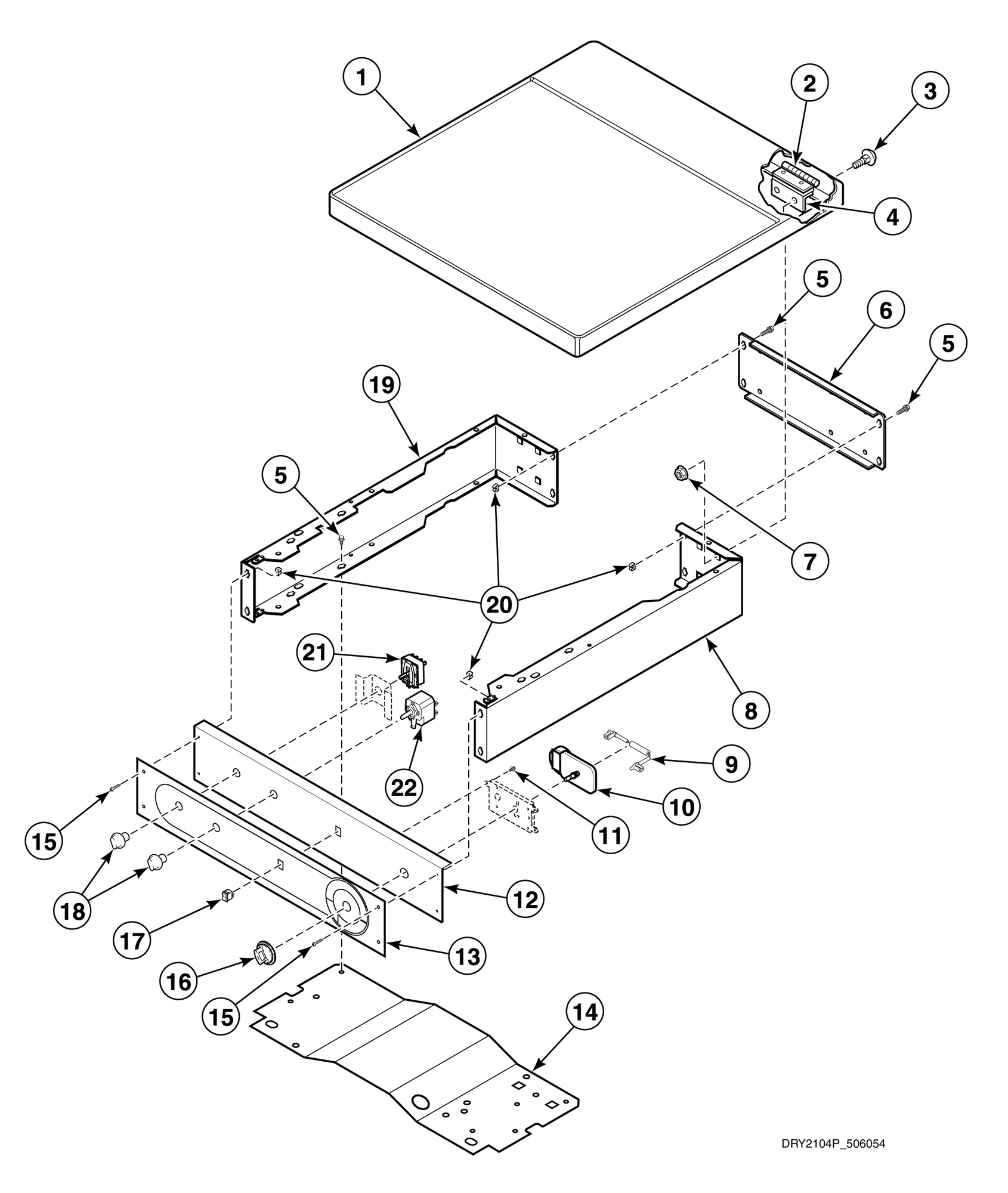

Control Panel and Controls - Front Control

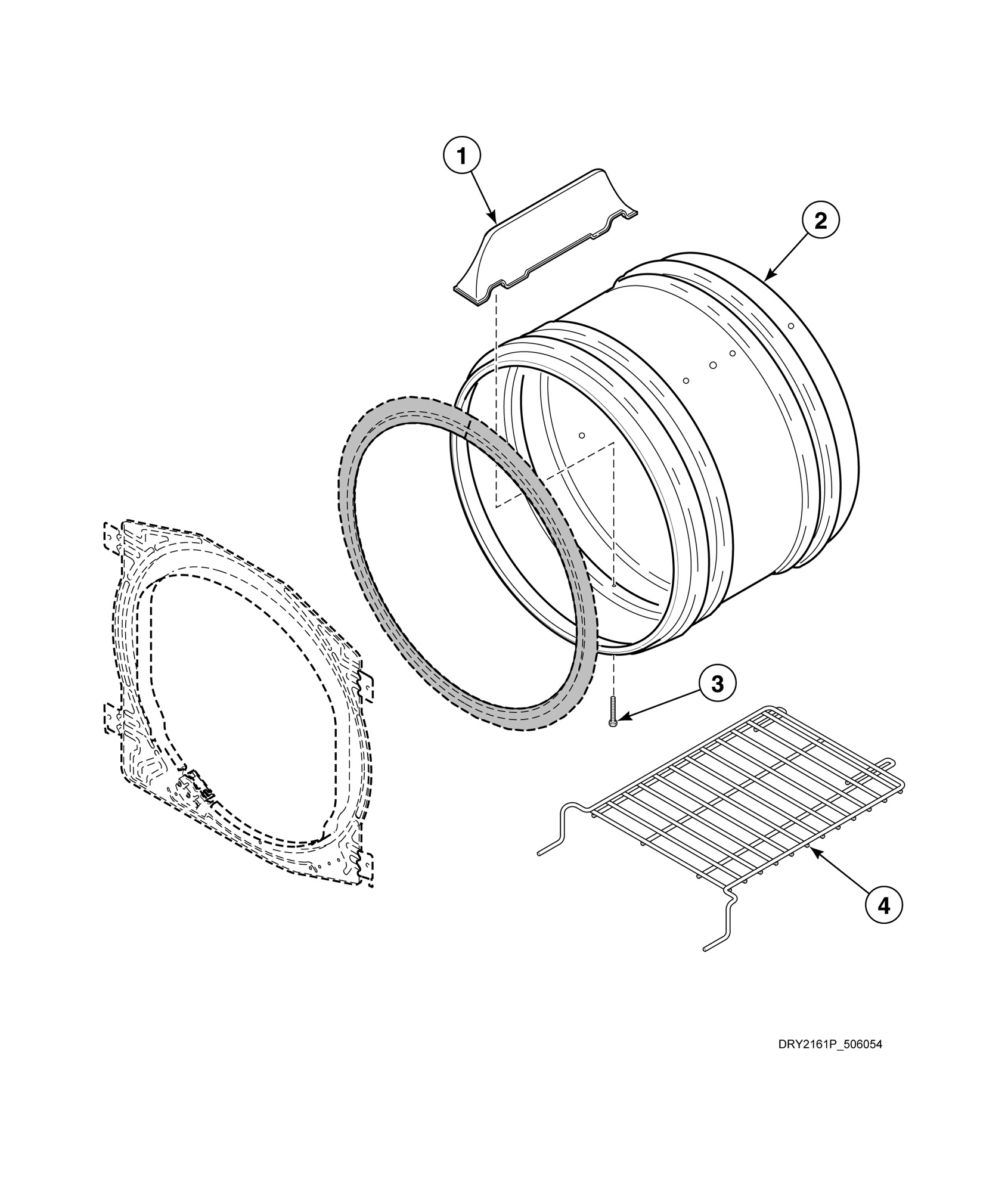

Cylinder, Baffles and Drying Rack

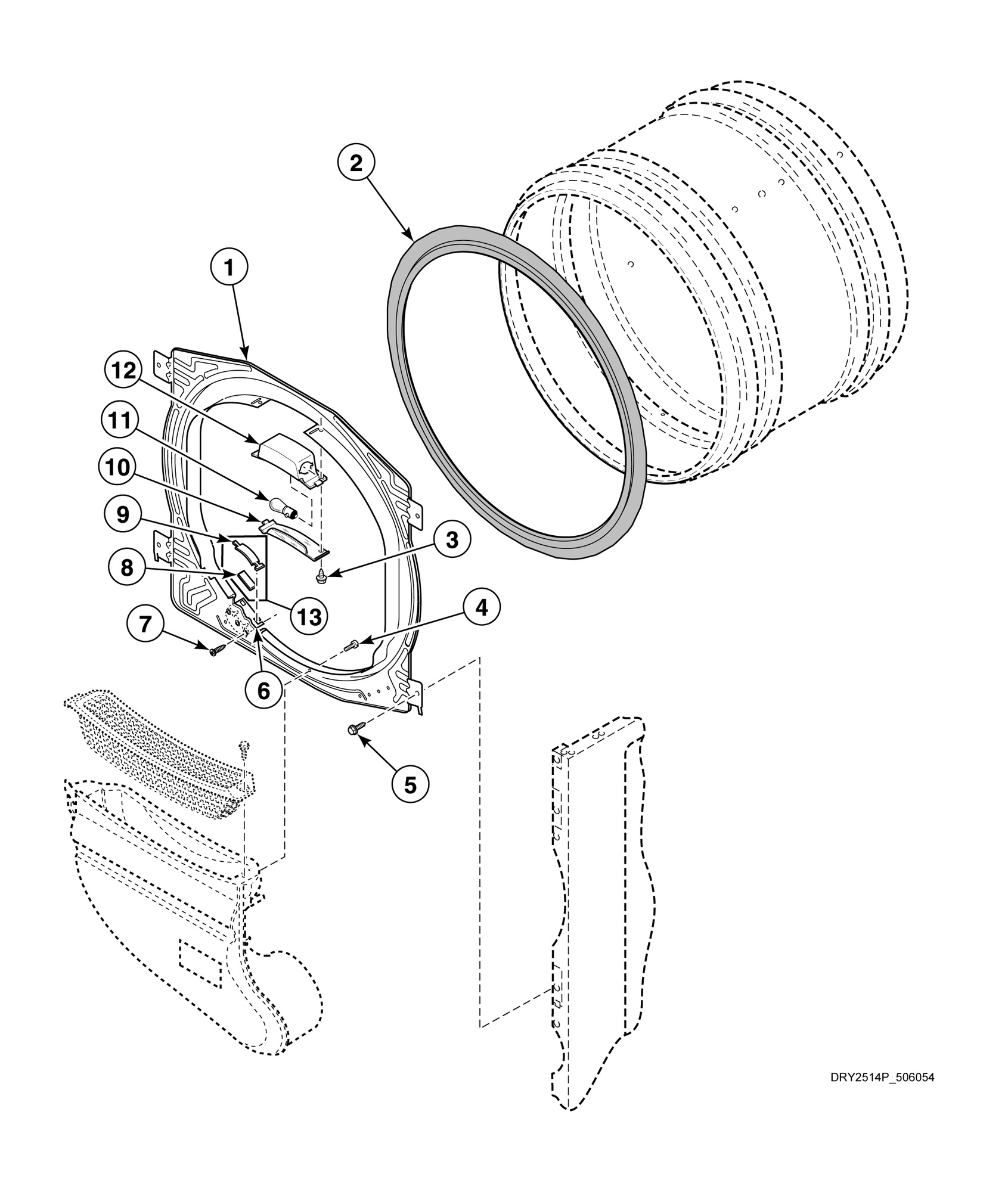

Front Bulkhead and Seal - With Light

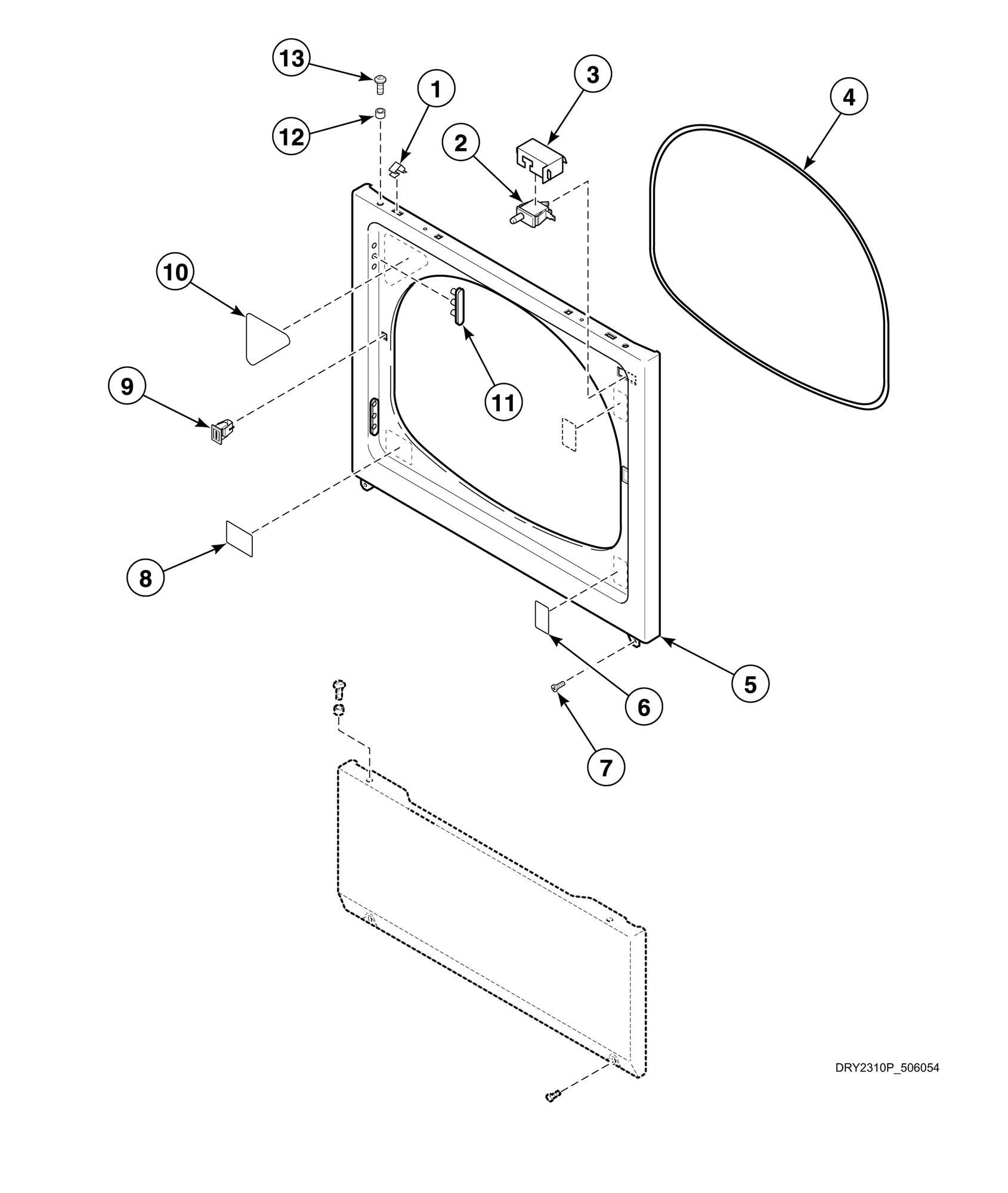

Front Panel and Seal

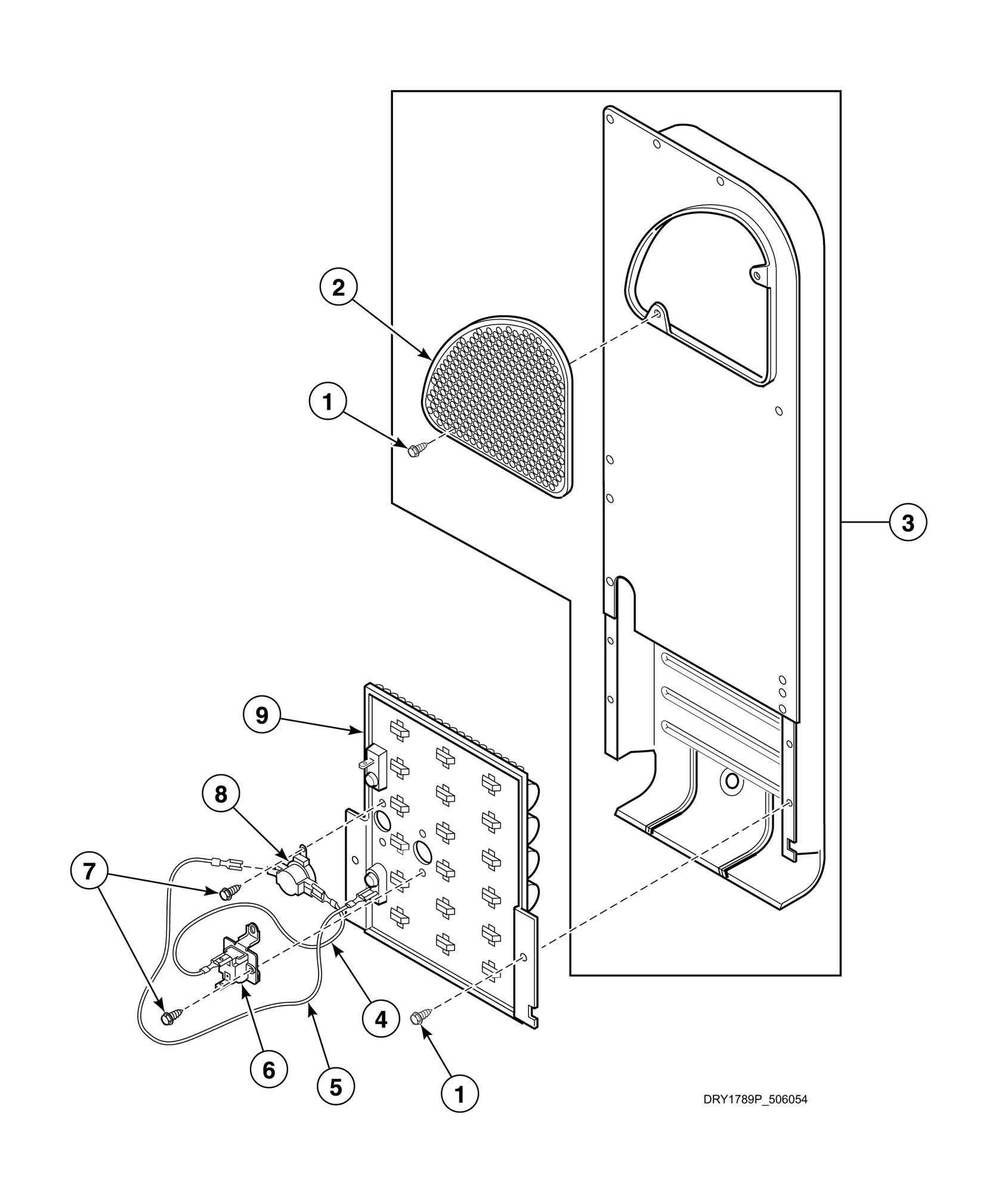

Heater Duct and Element Assembly - 1 Phase Models

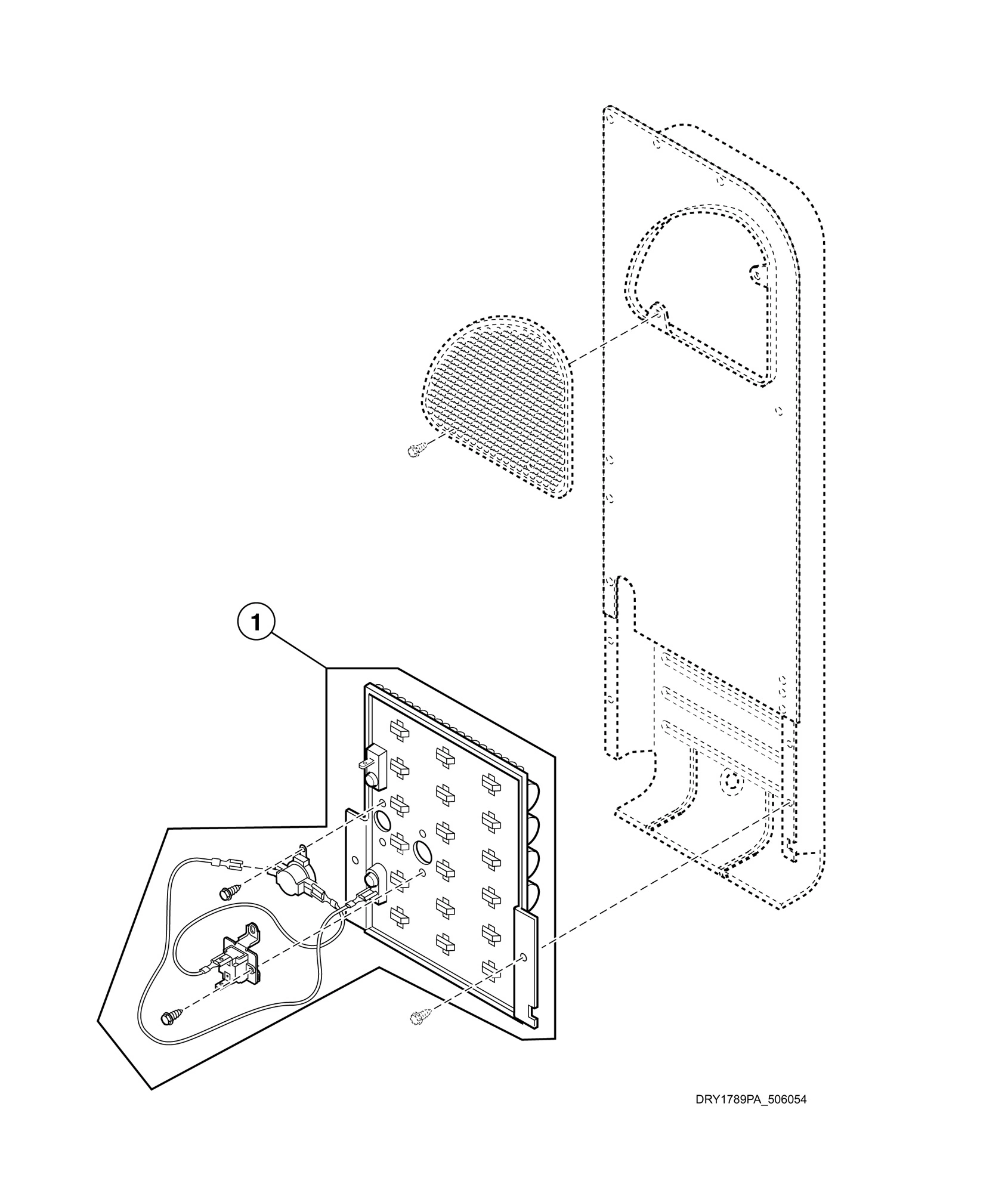

Heater Kit Assembly - 1 Phase Models

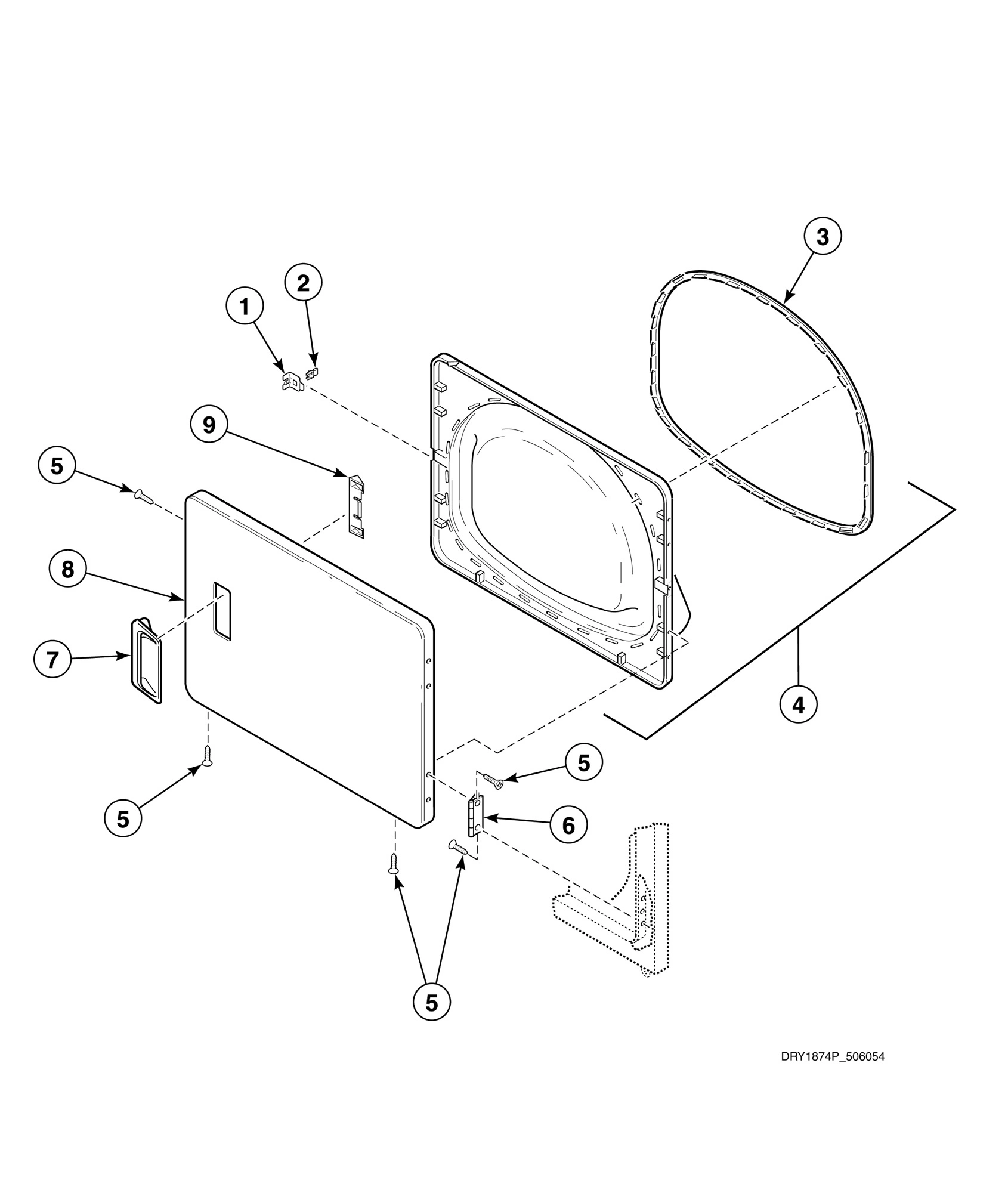

Loading Door (Drawing 2 of 2)

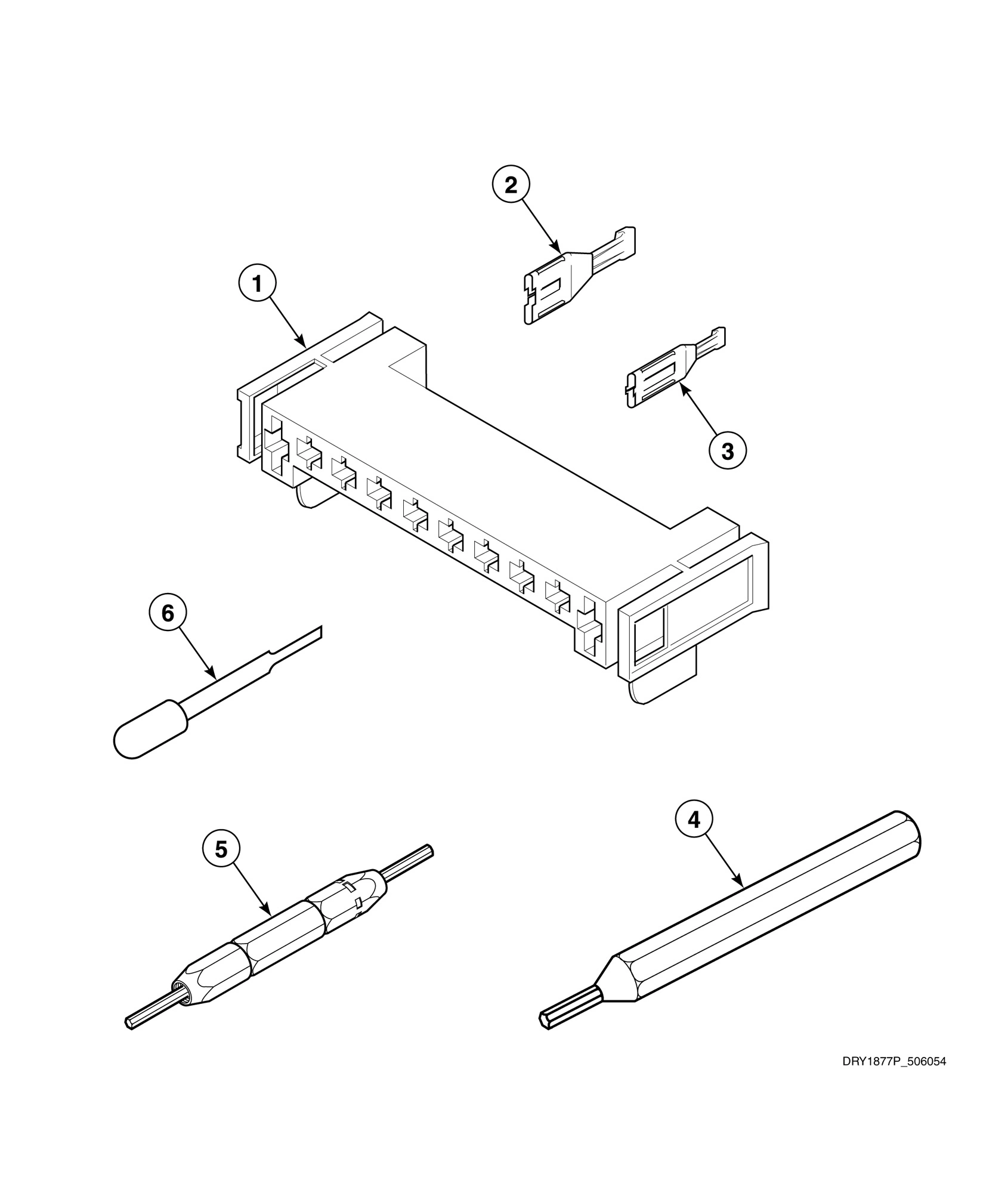

Motor Connection Block, Terminal Extractor Tools

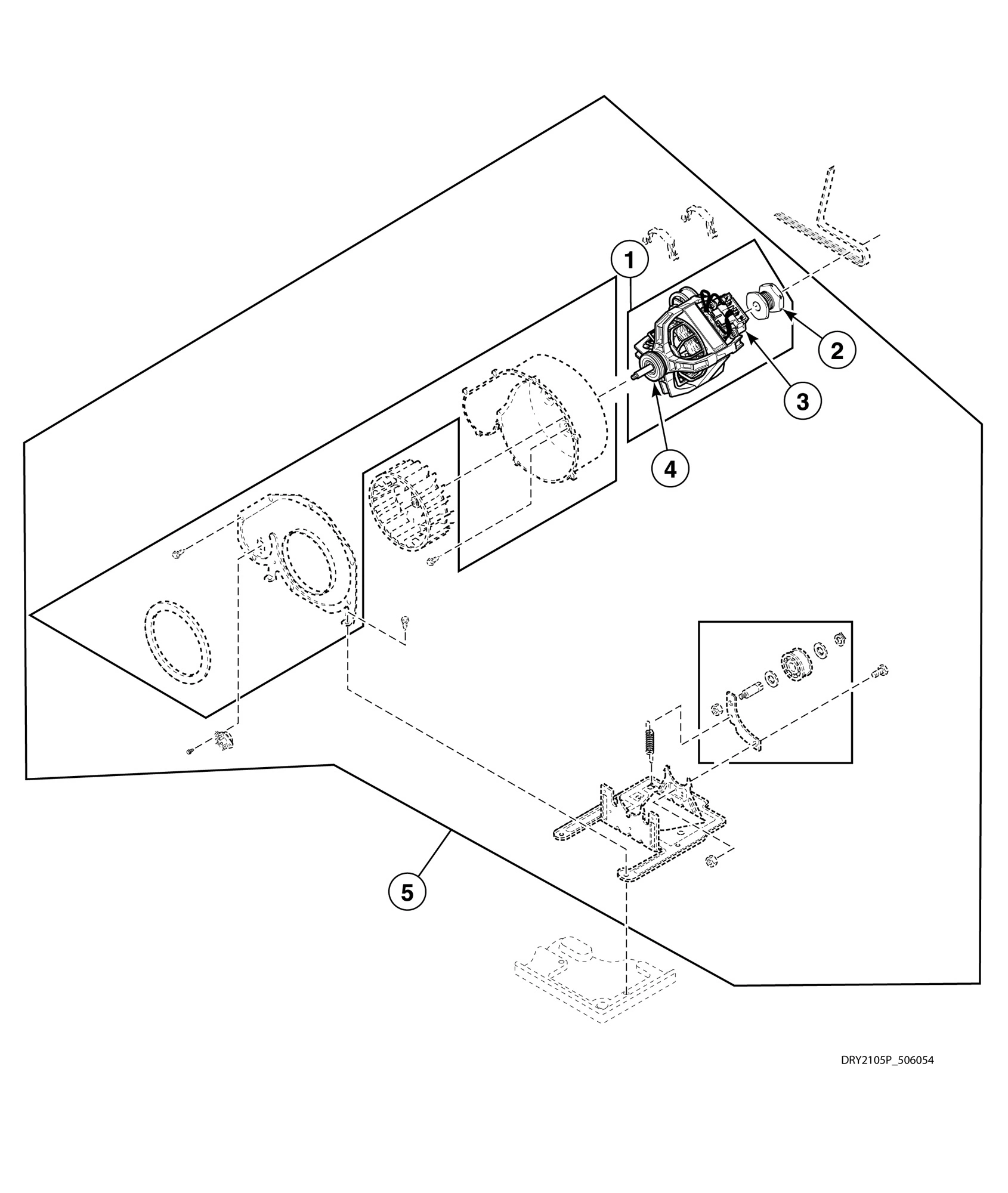

Motor, Exhaust Fan and Belt (Drawing 1 of 2)

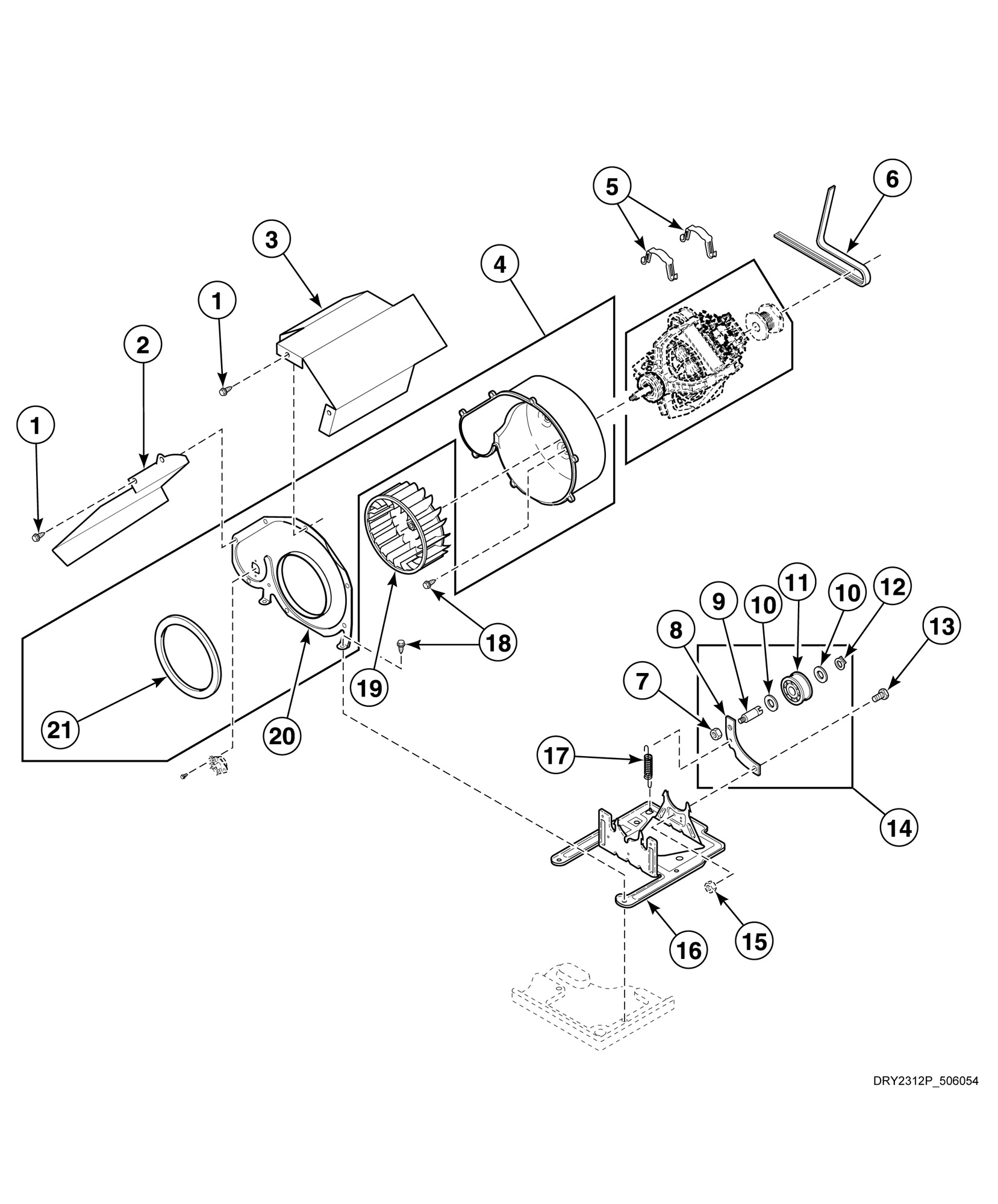

Motor, Exhaust Fan and Belt (Drawing 2 of 2)

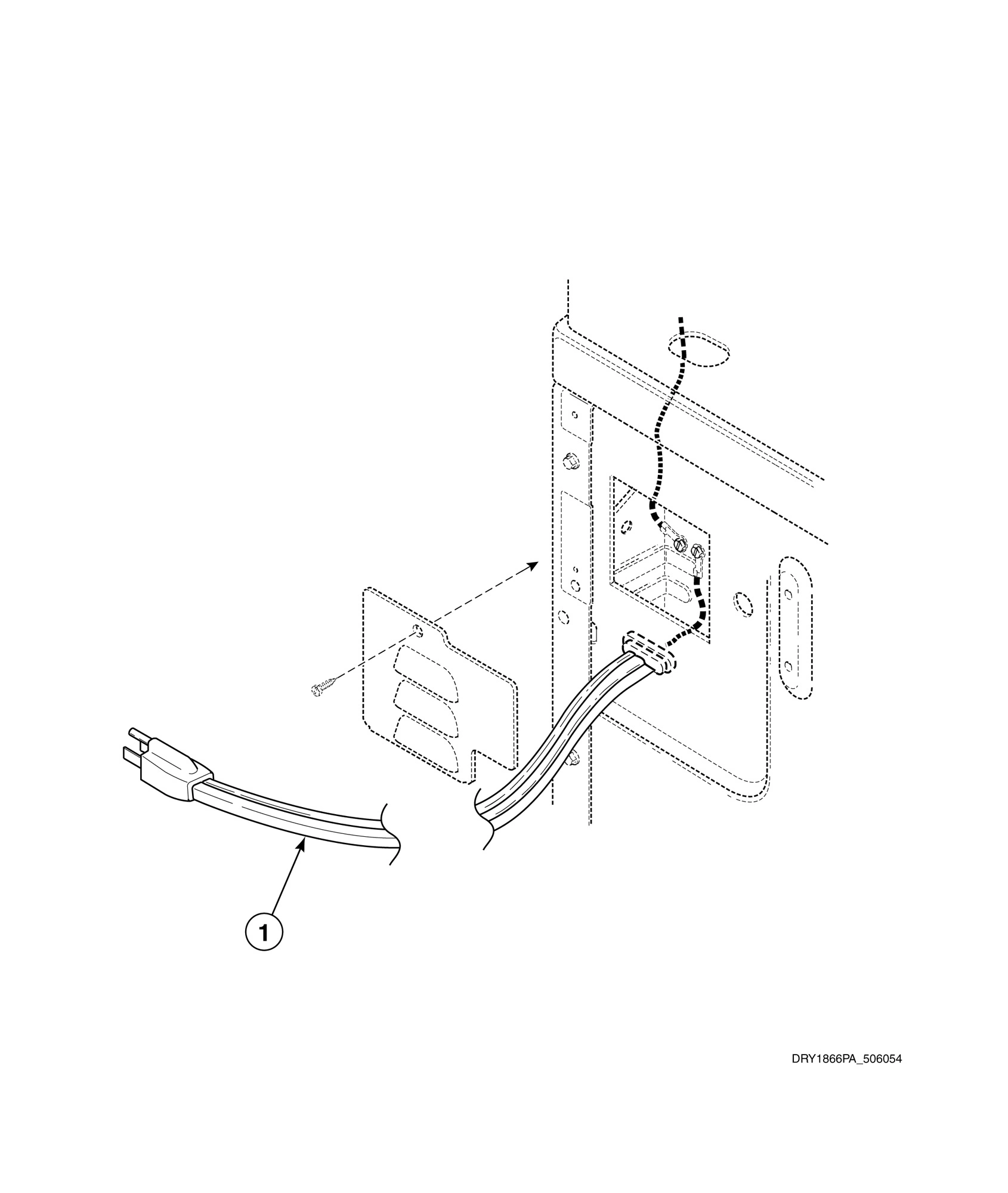

Power Cord

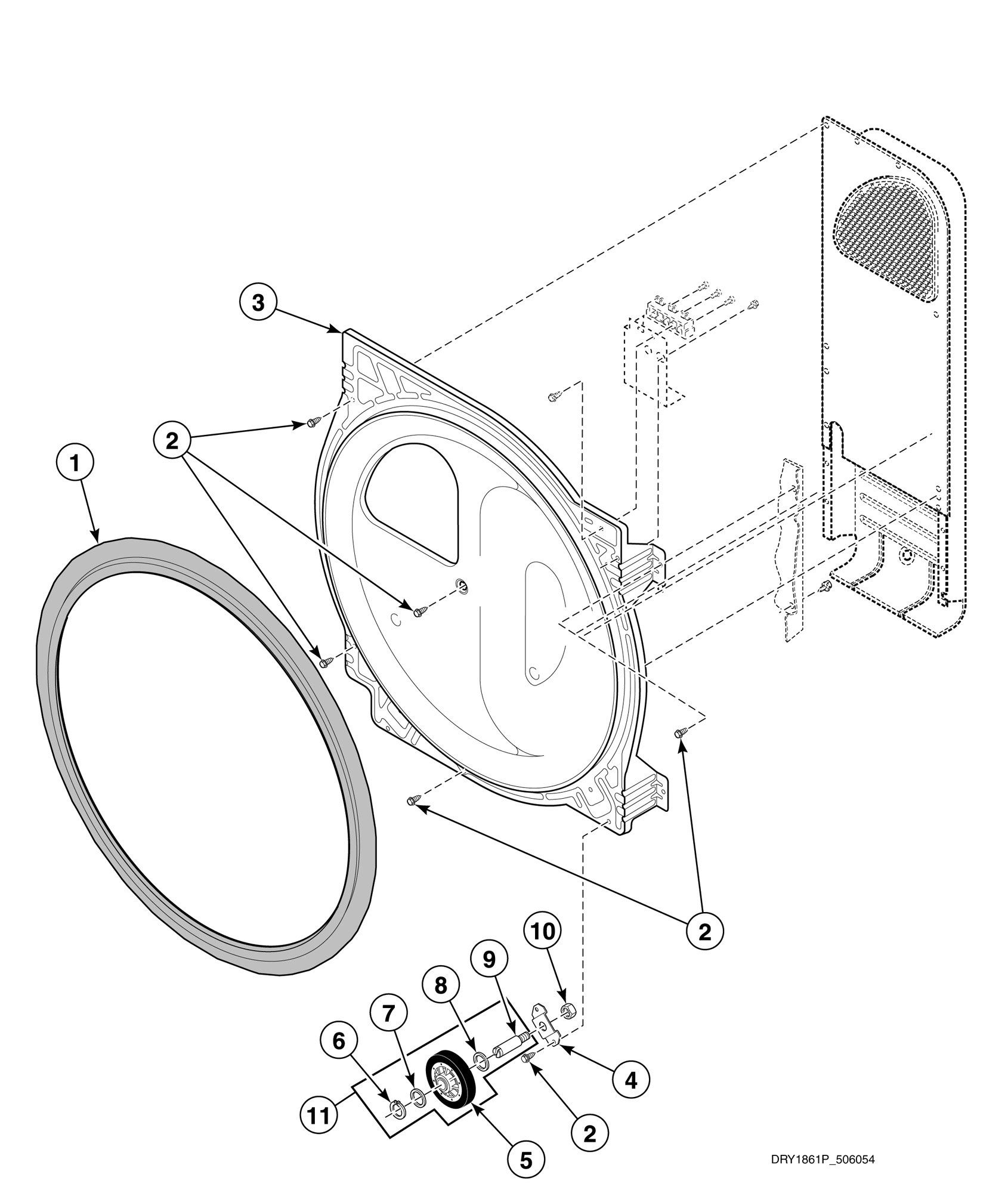

Rear Bulkhead, Felt Seal and Cylinder Roller - 1 Phase Models

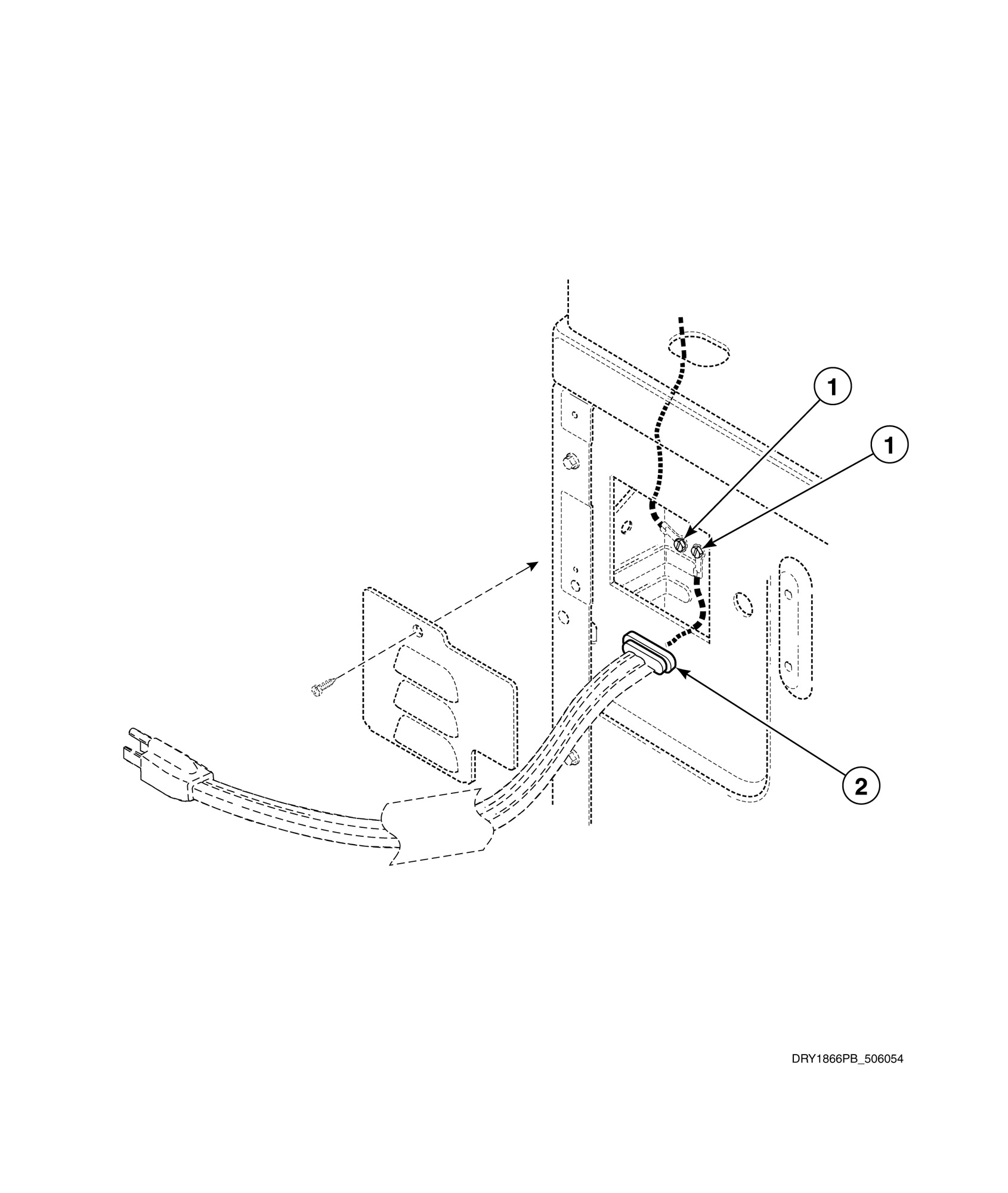

Strain Relief

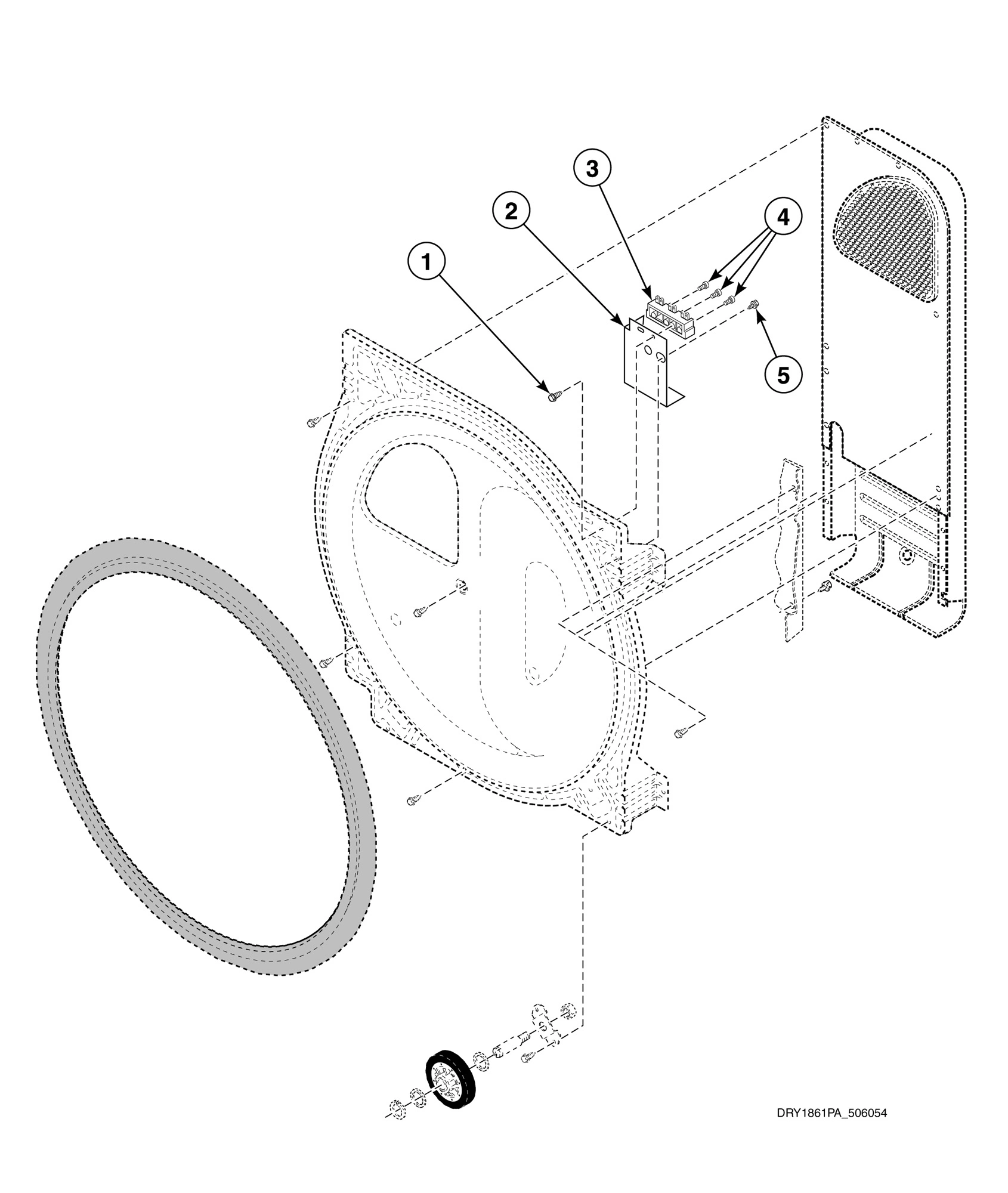

Terminal Block - 1 Phase Models

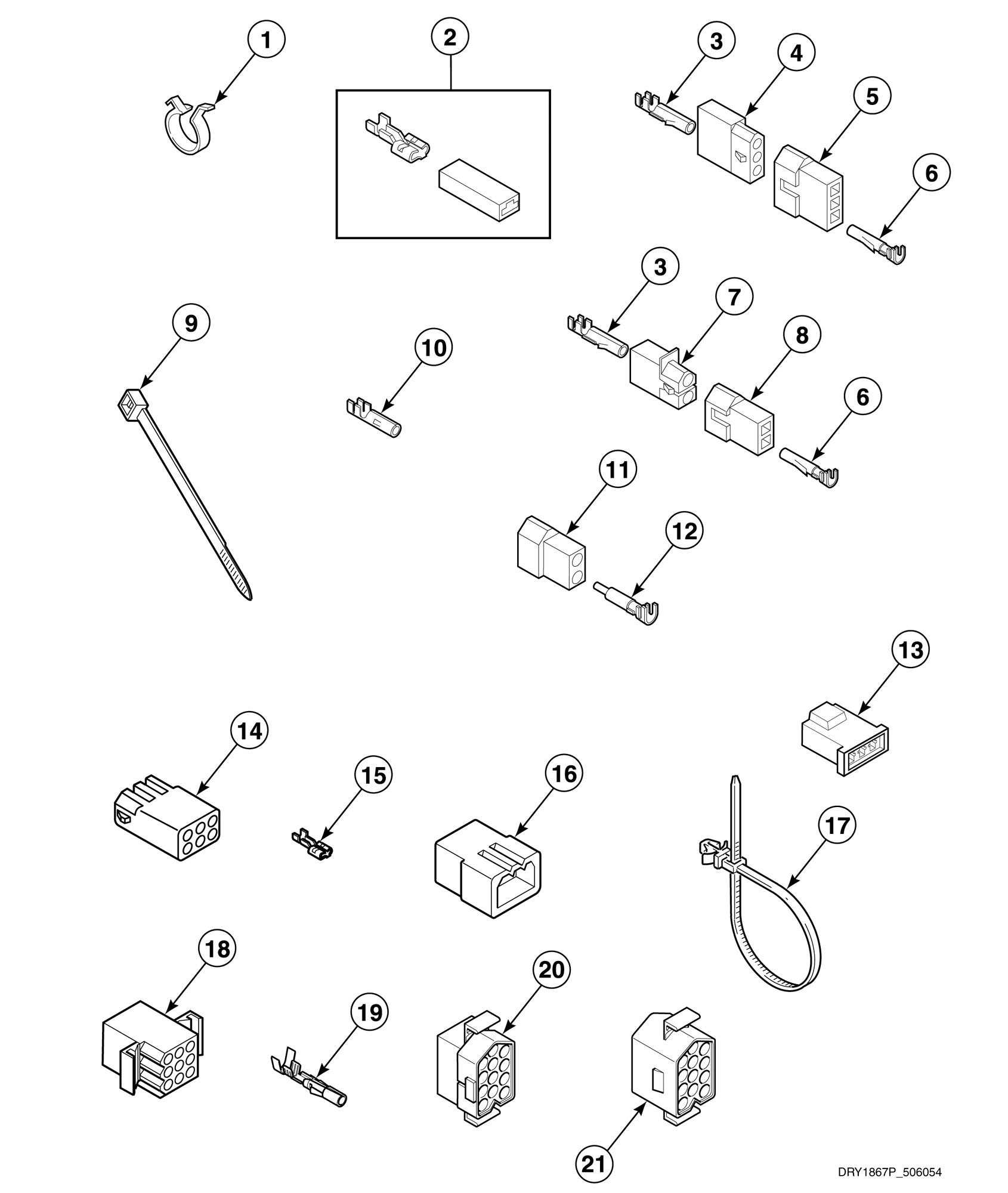

Terminal Block and Terminals

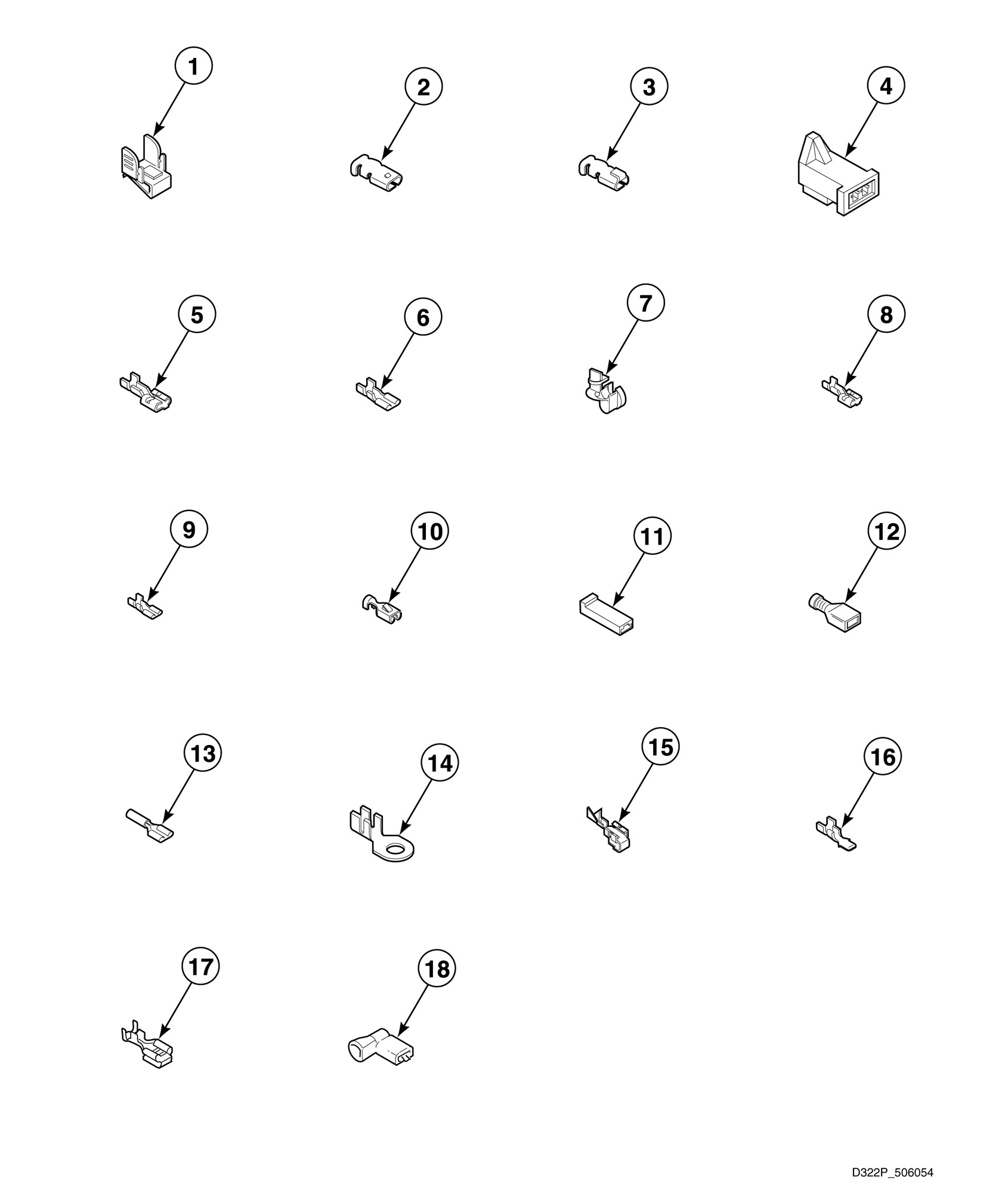

Terminals

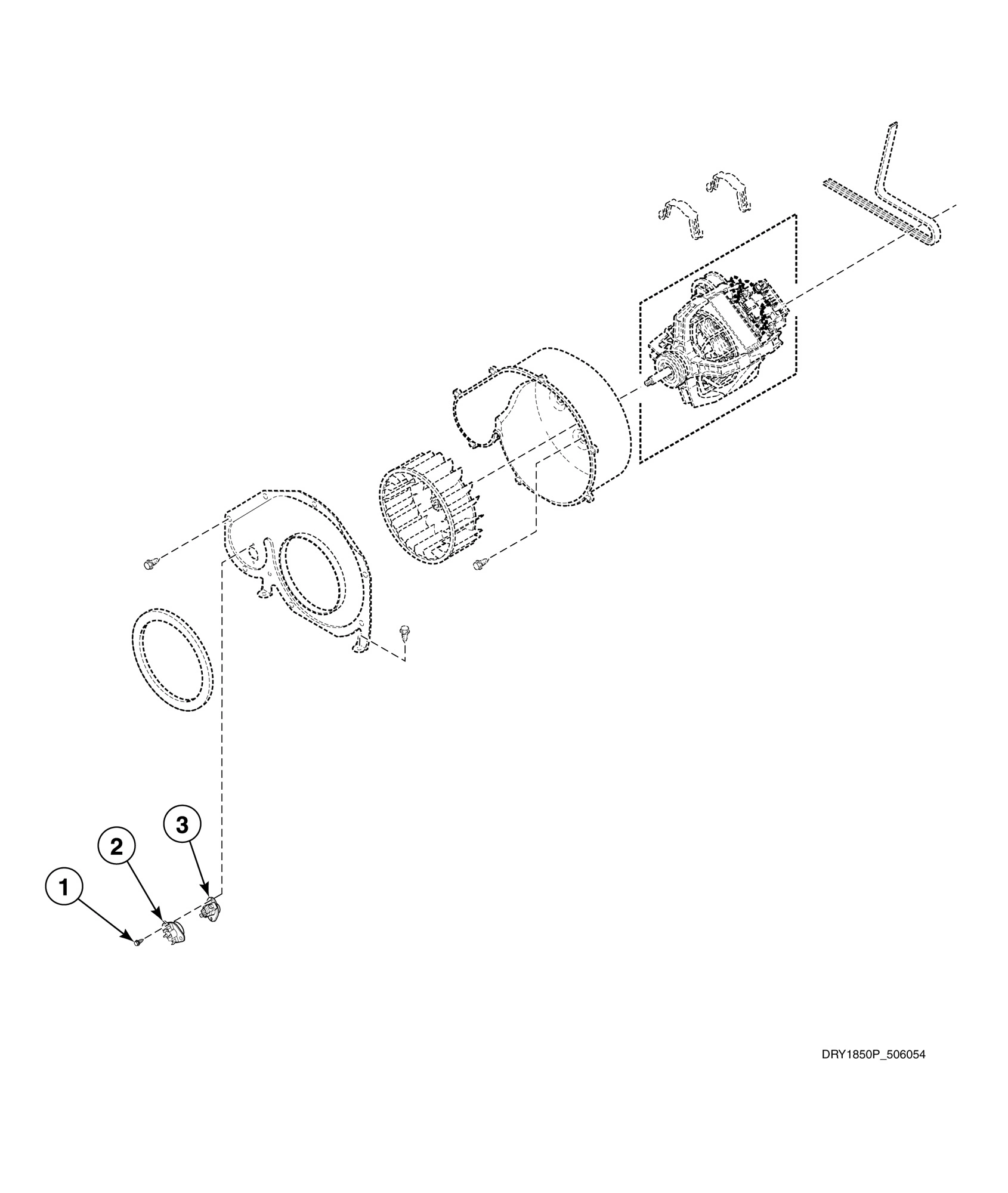

Thermostat

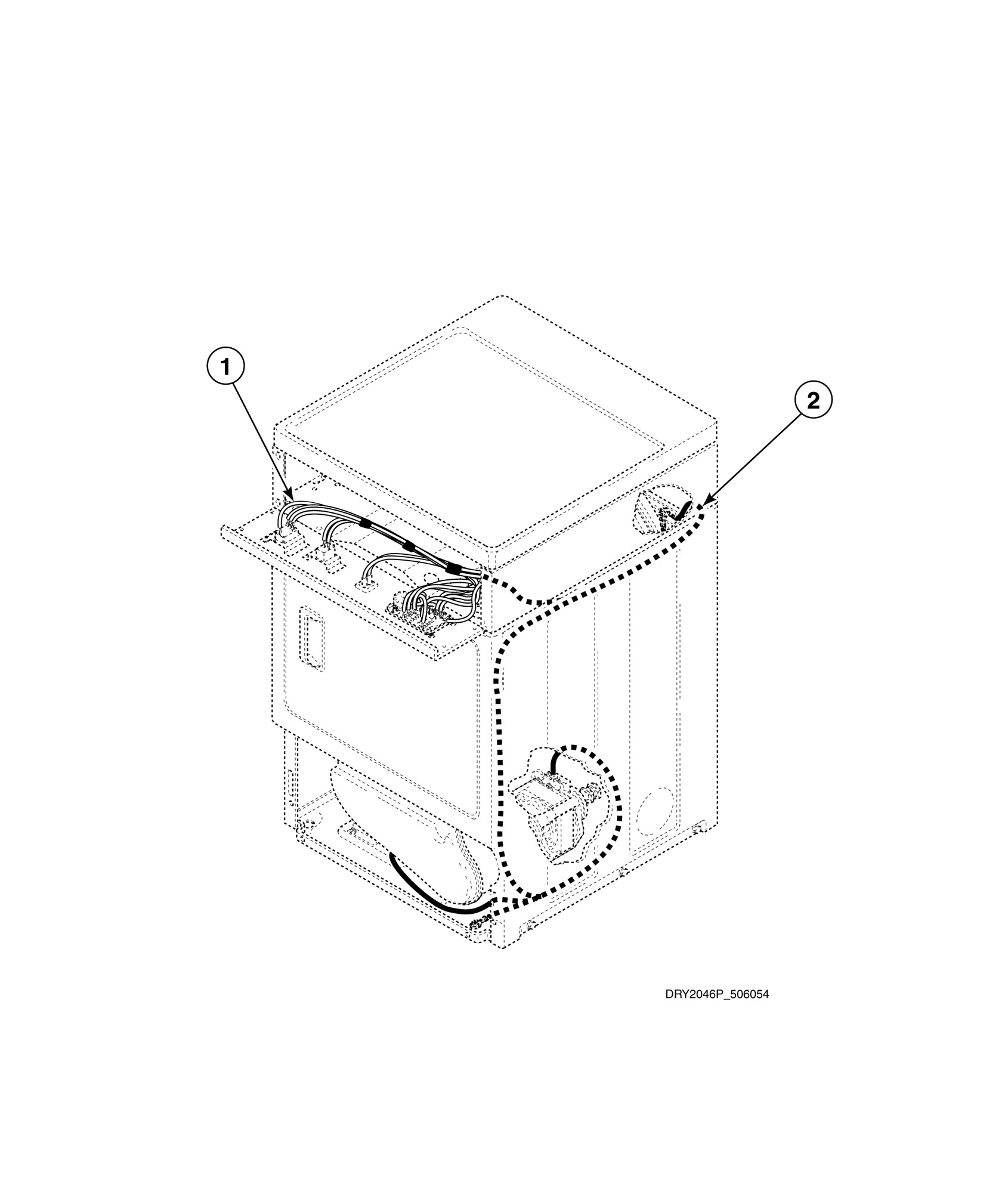

Wire Harnesses and Wires - Front Control Models (Drawing 1 of 5)
Common parts from model GE CDE4BFGS171CW01 General Electric Model CDE4BFGS171CW01
1
Screw (Comment: Slotted hex head) GEN 33562 Contact Us For Availability
1
Screw GEN D501285 Contact Us For Availability
1
Warning Label GEN 803260 Contact Us For Availability
1
Top and Gusset Assembly (Comment: Bisque) GEN 802247QP Contact Us For Availability
1
Top and Gusset Assembly (Comment: White) GEN 802247WP Contact Us For Availability
1
Cylinder Baffle GEN D510102W Contact Us For Availability
1
Front Bulkhead Assembly (Comment: Galvanized, GEN D512476 Contact Us For Availability
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: For cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
Speed Clip GEN 28835 Contact Us For Availability
1
Heater Kit Assembly (Comment: 240 Volt/60 Her GEN 61927 Contact Us For Availability
1
Heater Kit (Comment: 240 Volt/60 Hertz, 2.8 k GEN 966P3 Contact Us For Availability
1
Door Strike Mount GEN D510127 Contact Us For Availability
1
10 Position Housing GEN D500338 Contact Us For Availability
1
Motor and Pulley Assembly (Comment: 120 Volt/ GEN D511629P Contact Us For Availability
1
Screw GEN 31260 Contact Us For Availability
1
Lead-In Cord Assembly GEN D510505P Contact Us For Availability
1
Screw GEN 20530 Contact Us For Availability
1
Wire Clip (Comment: 11/16 inch) GEN D504034 Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
1
Screw GEN D502535 Contact Us For Availability
1
Security Cabinet Harness Assembly GEN D511770 Contact Us For Availability
2
Access Panel (Comment: Almond) GEN D510069LP Contact Us For Availability
2
Access Panel Assembly (Comment: Gray) GEN D514250G Contact Us For Availability
2
Access Panel Assembly (Comment: Bisque) GEN D514250Q Contact Us For Availability
2
Access Panel Assembly (Comment: White) GEN D514250WP Contact Us For Availability
2
Air Duct Assembly GEN D510151W Contact Us For Availability
2
Screw (Comment: Use with stainless steel pane GEN D512921 Contact Us For Availability
2
Electric Clearance Label GEN D511005 Contact Us For Availability
2
Cylinder Assembly (Comment: Galvanized, Inclu GEN D510265WP Contact Us For Availability
2
Switch GEN D512973 Contact Us For Availability
2
Outlet Cover GEN D500820 Contact Us For Availability
2
Door Strike GEN D510181 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, For (1) 1 GEN 00255 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, For (1) o GEN 00256 Contact Us For Availability
2
Motor Pulley (Comment: 60 Hertz, Use with D51 GEN D500011 Contact Us For Availability
2
Terminal Block Shield GEN D510237 Contact Us For Availability
2
Insulated Female Spade Terminal (Comment: (1) GEN 00360 Contact Us For Availability
2
Female Spade Terminal GEN 00189 Contact Us For Availability
2
Thermostat (Comment: Green) GEN D504515 Contact Us For Availability
2
Wire Harness Assembly GEN D511768P Contact Us For Availability
3
Warning Label GEN D500314 Contact Us For Availability
3
Bumper Pad GEN 56128 Contact Us For Availability
3
NOT ON YOUR MODEL GEN - Contact Us For Availability
3
Screw GEN 62588 Contact Us For Availability
3
Screw GEN D500227 Contact Us For Availability
3
Heater Duct Assembly (Comment: Includes items GEN D510025P Contact Us For Availability
3
Liner Door Seal GEN D510147P Contact Us For Availability
3
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Galvanized, GEN D511082P Contact Us For Availability
3
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
3
Female Pin Terminal GEN 00117 Contact Us For Availability
3
Female Piggyback Terminal (Comment: Receptacl GEN 00361 Contact Us For Availability
4
Lint Filter GEN D503980W Contact Us For Availability
4
Drying Rack GEN D512082P Contact Us For Availability
4
Front Panel Seal GEN D511056 Contact Us For Availability
4
Wire Assembly (Comment: Orange, Thermostat ju GEN D510528 Contact Us For Availability
4
Liner, Seal and Grill Assembly GEN D510163WP Contact Us For Availability
4
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
4
Blower Housing (Comment: Includes items 1 and GEN D511969LG Contact Us For Availability
4
Blower Housing (Comment: Includes items 1 and GEN D511969WP Contact Us For Availability
4
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
4
Screw GEN 61199 Contact Us For Availability
4
3 Circuit Receptacle GEN 23039 Contact Us For Availability
4
2 Circuit Connector GEN 58799 Contact Us For Availability
5
Screw GEN D503688 Contact Us For Availability
5
Screw (Comment: 8 required) GEN 70240301 Contact Us For Availability
5
Screw GEN D514461 Contact Us For Availability
5
Front Panel (Comment: Gray) GEN D510066GP Contact Us For Availability
5
Front Panel (Comment: Almond) GEN D510066LP Contact Us For Availability
5
Front Panel (Comment: Bisque) GEN D510066QP Contact Us For Availability
5
Front Panel (Comment: White) GEN D510066WP Contact Us For Availability
5
Wire Assembly (Comment: Black, Fuse jumper, A GEN D510527 Contact Us For Availability
5
Extractor Tool GEN 190P4 Contact Us For Availability
5
Blower and Fan Kit (Comment: 120 Volt/60 Hert GEN D510717P Contact Us For Availability
5
Motor Mount Clamp GEN D510180 Contact Us For Availability
5
Cylinder Roller GEN D510708P Contact Us For Availability
5
Plug GEN 23040 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (2) GEN 00121 Contact Us For Availability
5
Spade Terminal (Comment: 1/4 inch, (1) 22 gau GEN 00245 Contact Us For Availability
6
Top Hinge GEN D510136 Contact Us For Availability
6
Rear Control Cabinet GEN 801058 Contact Us For Availability
6
Cylinder Glide Bracket GEN D510145 Contact Us For Availability
6
Thermal Fuse Assembly GEN D511412 Contact Us For Availability
6
Hinge GEN D511036 Contact Us For Availability
6
Terminal Extractor Tool (Comment: For use on GEN 283P4 Contact Us For Availability
6
Cylinder Belt GEN D511255P Contact Us For Availability
6
Retaining Ring GEN 23748 Contact Us For Availability
6
Male Pin Terminal GEN 00116 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, (1 GEN 00124 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, Th GEN 00156 Contact Us For Availability
7
Nut (Comment: 4 required) GEN 29796 Contact Us For Availability
7
Screw GEN D501086 Contact Us For Availability
7
Screw GEN 23222 Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: Almond, Inc GEN D510103LP Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: Bisque, Inc GEN D510103QP Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: White, Incl GEN D510103WP Contact Us For Availability
7
Washer GEN 52549 Contact Us For Availability
7
2 Circuit Receptacle GEN 56451 Contact Us For Availability
7
Strain Relief GEN 38384 Contact Us For Availability
8
Right Control Cabinet Side (Comment: Bisque) GEN 800915Q Contact Us For Availability
8
Right Control Cabinet Side (Comment: White) GEN 800915W Contact Us For Availability
8
Felt Pad GEN D510189 Contact Us For Availability
8
Limit Thermostat GEN D510701 Contact Us For Availability
8
Dryer Door (Comment: Gray) GEN D510013GP Contact Us For Availability
8
Dryer Door (Comment: Almond) GEN D510013LP Contact Us For Availability
8
Dryer Door (Comment: Bisque) GEN D510013QP Contact Us For Availability
8
Dryer Door (Comment: White) GEN D510013WP Contact Us For Availability
8
Idler Lever GEN D510133 Contact Us For Availability
8
Washer GEN D504082 Contact Us For Availability
8
2 Circuit Plug GEN 56448 Contact Us For Availability
9
Resistor Assembly (Comment: Use with 511150 4 GEN D511277 Contact Us For Availability
9
Cylinder Glide GEN D513710 Contact Us For Availability
9
Door Catch Assembly GEN D510177 Contact Us For Availability
9
Heater Assembly (Comment: 240 Volt/60 Hertz, GEN D510324P Contact Us For Availability
9
Door Handle Wedge (Comment: Gray) GEN D510129LG Contact Us For Availability
9
Door Handle Wedge GEN D510129W Contact Us For Availability
9
Shaft GEN 56461P Contact Us For Availability
9
Harness Strap GEN 55881 Contact Us For Availability
9
Terminal GEN 00347 Contact Us For Availability
10
Cabinet Rear Panel GEN D514632P Contact Us For Availability
10
Timer GEN D511150P Contact Us For Availability
10
Cylinder Light Lens GEN D512106 Contact Us For Availability
10
Caution Label (Comment: French) GEN D500253 Contact Us For Availability
10
Nut GEN 56156 Contact Us For Availability
10
Female Pin Terminal (Comment: 1/8 inch) GEN 00130 Contact Us For Availability
10
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00115 Contact Us For Availability
11
Access Panel Plate GEN D510903 Contact Us For Availability
11
Drum Light Lamp (Comment: 120 Volt) GEN 60954 Contact Us For Availability
11
Hinge Hole Plug GEN D510186 Contact Us For Availability
11
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
11
Roller Kit (Comment: Includes items 5-9, (Qua GEN RB170002 Contact Us For Availability
11
2 Circuit Plug GEN 56266 Contact Us For Availability
11
Receptacle Housing GEN 90789 Contact Us For Availability
12
Panel Locator GEN 56079 Contact Us For Availability
12
Flexible Venting Kit GEN 521P3 Contact Us For Availability
12
Control Panel Assembly GEN D512067W Contact Us For Availability
12
Light Housing Assembly (Comment: 120 Volt, In GEN D512108 Contact Us For Availability
12
Male Pin Terminal (Comment: 1/8 inch) GEN 00127 Contact Us For Availability
12
Insulated Female Terminal (Comment: 3/16 inch GEN 00165 Contact Us For Availability
13
Screw GEN 39733 Contact Us For Availability
13
Graphic Overlay GEN D511913 Contact Us For Availability
13
Glide Kit (Comment: Includes items 8 and 9) GEN RB170003 Contact Us For Availability
13
Screw GEN D500824 Contact Us For Availability
13
3 Circuit Connector GEN 58800 Contact Us For Availability
14
Exhaust Duct (Comment: Each dryer requires 2 GEN D510137 Contact Us For Availability
14
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
14
6 Circuit Receptacle GEN 26708 Contact Us For Availability
14
Ring Terminal (Comment: 10 stud, (1) 18 gauge GEN 00110 Contact Us For Availability
14
Ring Terminal (Comment: 10 stud, (2) 18 gauge GEN 00111 Contact Us For Availability
15
Cabinet Side Panel (Comment: Gray, Right) GEN D510002GP Contact Us For Availability
15
Cabinet Side Panel (Comment: Almond, Right) GEN D510002LP Contact Us For Availability
15
Cabinet Side Panel (Comment: Bisque, Right) GEN D510002QP Contact Us For Availability
15
Cabinet Side Panel (Comment: White, Right) GEN D510002WP Contact Us For Availability
15
Nut GEN 52566 Contact Us For Availability
15
Female Spade Terminal (Comment: 1/4 inch) GEN 00222 Contact Us For Availability
15
Female Spade Terminal (Comment: 1/4 inch, Dou GEN 00114 Contact Us For Availability
16
Directional Exhaust Kit (Comment: Used to ven GEN 528P3 Contact Us For Availability
16
Motor Mount GEN D510060 Contact Us For Availability
16
9 Circuit Plug GEN 23033 Contact Us For Availability
16
Male Tab Terminal (Comment: 1/4 inch, (2) 18 GEN 00139 Contact Us For Availability
17
Hold Down Kit (Comment: For mobile home insta GEN 526P3 Contact Us For Availability
17
Idler Spring GEN D510185 Contact Us For Availability
17
Wire Tie GEN 38663 Contact Us For Availability
17
GEN 00344 GEN 00344 Contact Us For Availability
18
Leveling Leg GEN D510135 Contact Us For Availability
18
GEN N/A GEN N/A Contact Us For Availability
18
9 Circuit Receptacle GEN 26163 Contact Us For Availability
19
Rubber Foot GEN D501855 Contact Us For Availability
19
Blower Fan Assembly (Comment: Apply anti-seiz GEN D510139P Contact Us For Availability
19
Female Pin Terminal (Comment: 1/8 inch) GEN 00128 Contact Us For Availability
19
Male Pin Terminal (Comment: 1/8 inch) GEN 00129 Contact Us For Availability
20
Dryer Base GEN D513901 Contact Us For Availability
20
Plug GEN 54522 Contact Us For Availability
21
Blower Housing Seal GEN D510238P Contact Us For Availability
21
12 Circuit Receptacle GEN 56855 Contact Us For Availability
25
Cabinet Side Panel (Comment: Gray, Left) GEN D510001GP Contact Us For Availability
25
Cabinet Side Panel (Comment: Almond, Left) GEN D510001LP Contact Us For Availability
25
Cabinet Side Panel (Comment: Bisque, Left) GEN D510001QP Contact Us For Availability
25
Cabinet Side Panel (Comment: White, Left) GEN D510001WP Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: White) GEN 122P4P Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: Almond) GEN 215P4P Contact Us For Availability
NA
Porcelain Touch-Up Paint (C GEN 370P4P Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
