Model Speed Queen AES28AWF Dryer – Common Parts & Diagrams

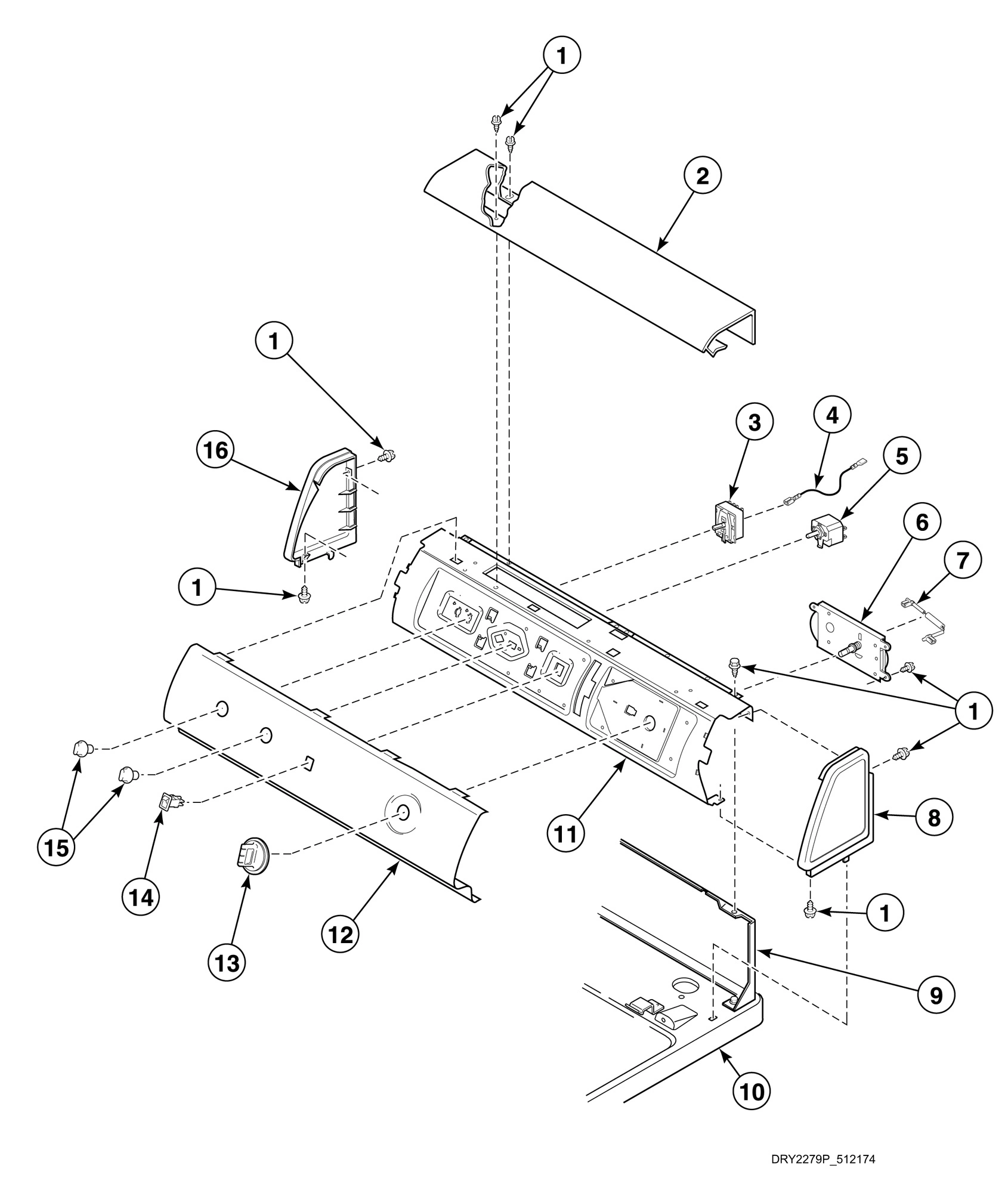

Control Panel and Controls - Rear Control
Control Panel and Controls - Front Control
Control Cabinet and Controls
Control Panel and Controls - Stacked Models
Loading Door - Without Window (Drawing 1 of 2)

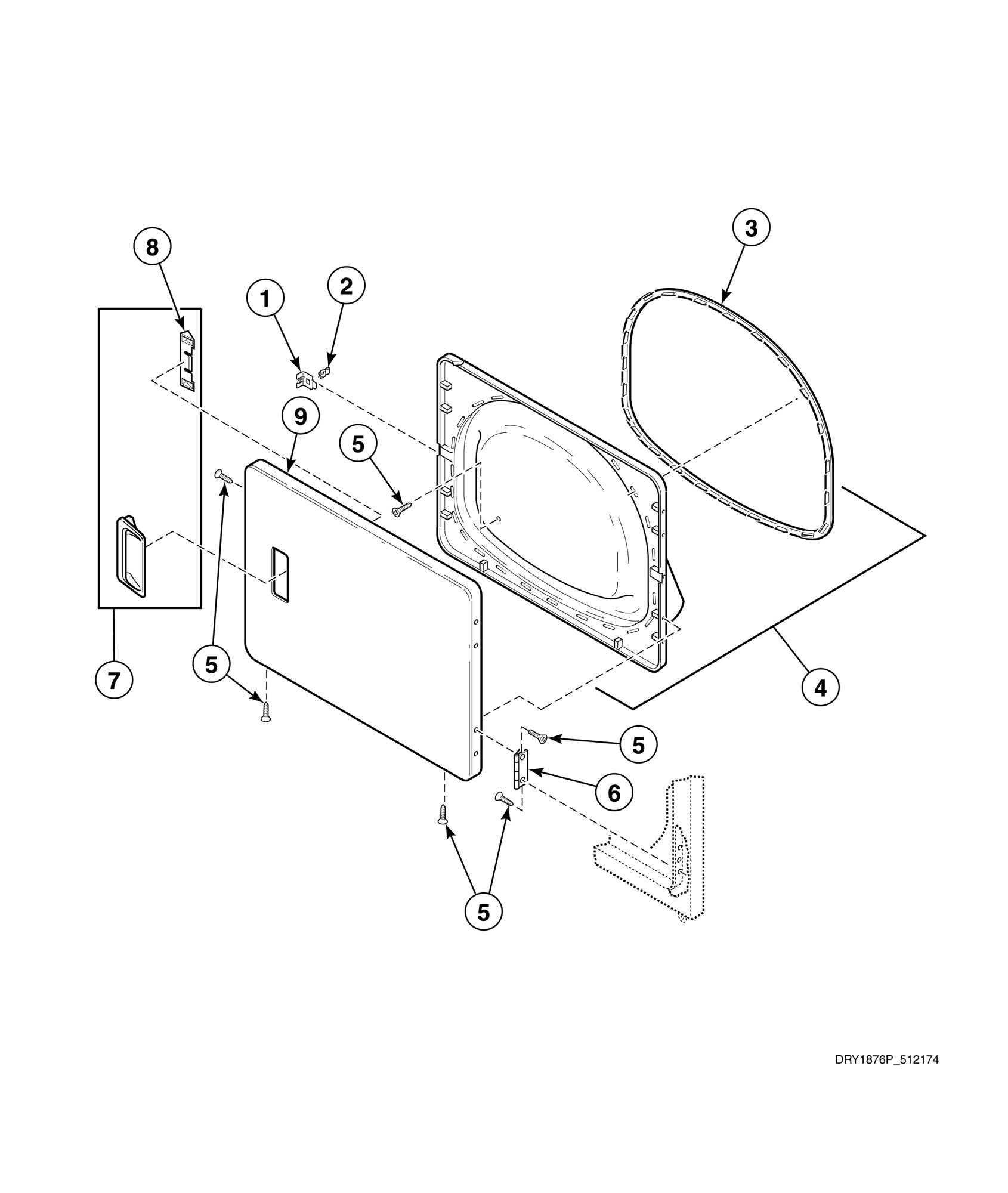

Loading Door - Without Window (Drawing 2 of 2)
Loading Door - With Window
Access Panel, Front Panel and Seal

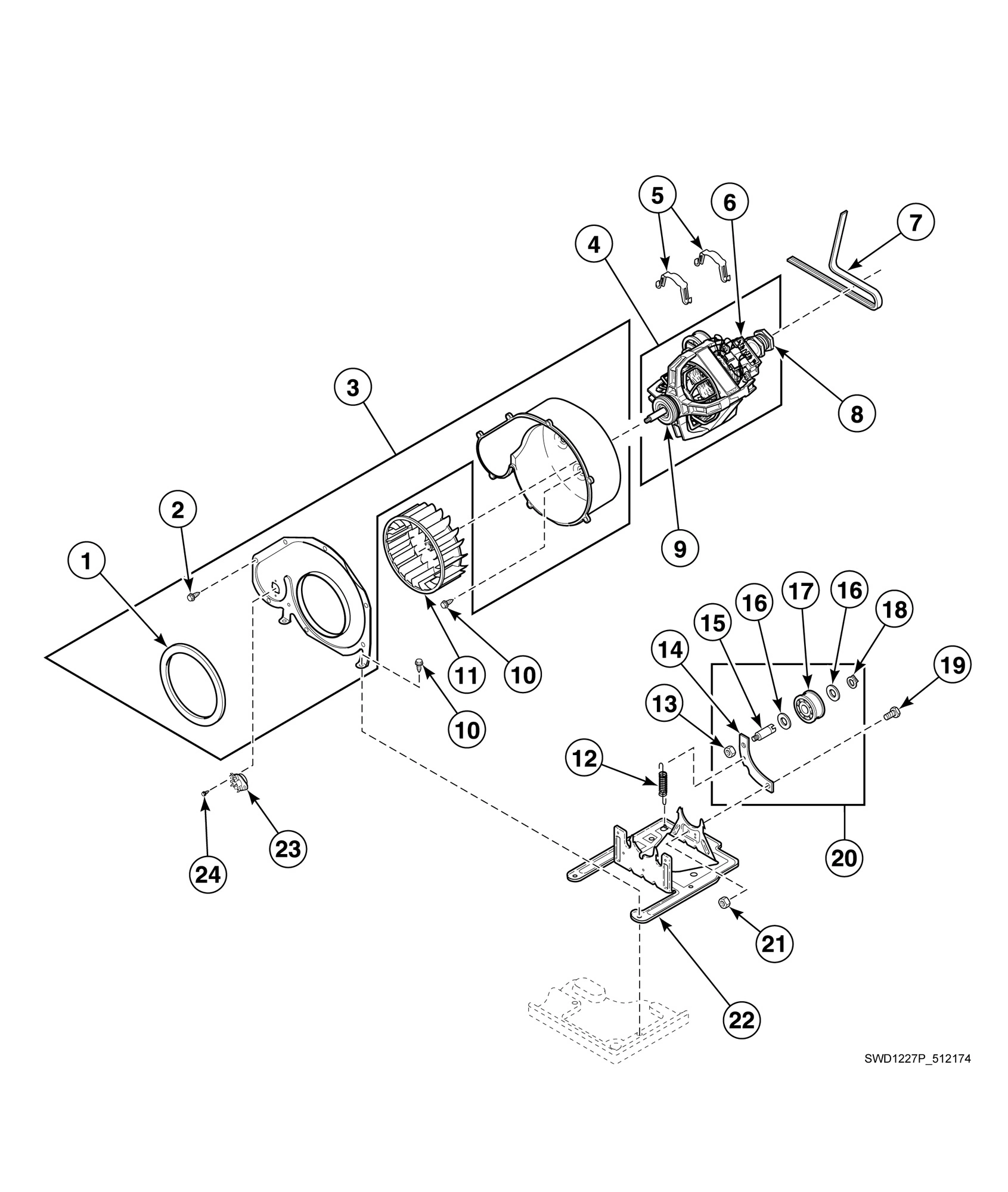

Motor, Exhaust Fan and Belt

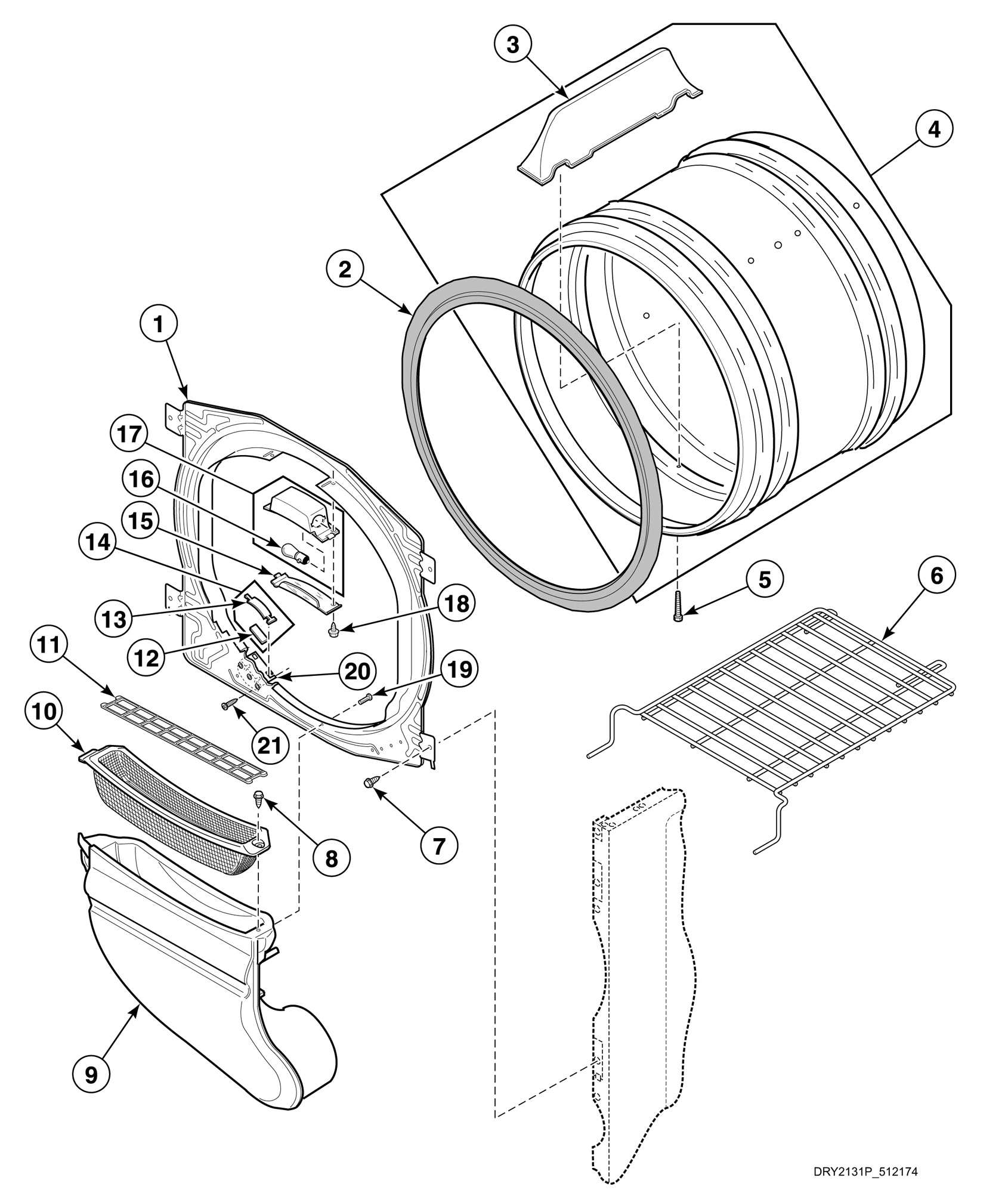

Front Bulkhead, Air Duct, Felt Seal and Cylinder with Light
Front Bulkhead, Air Duct, Felt Seal and Cylinder without Light

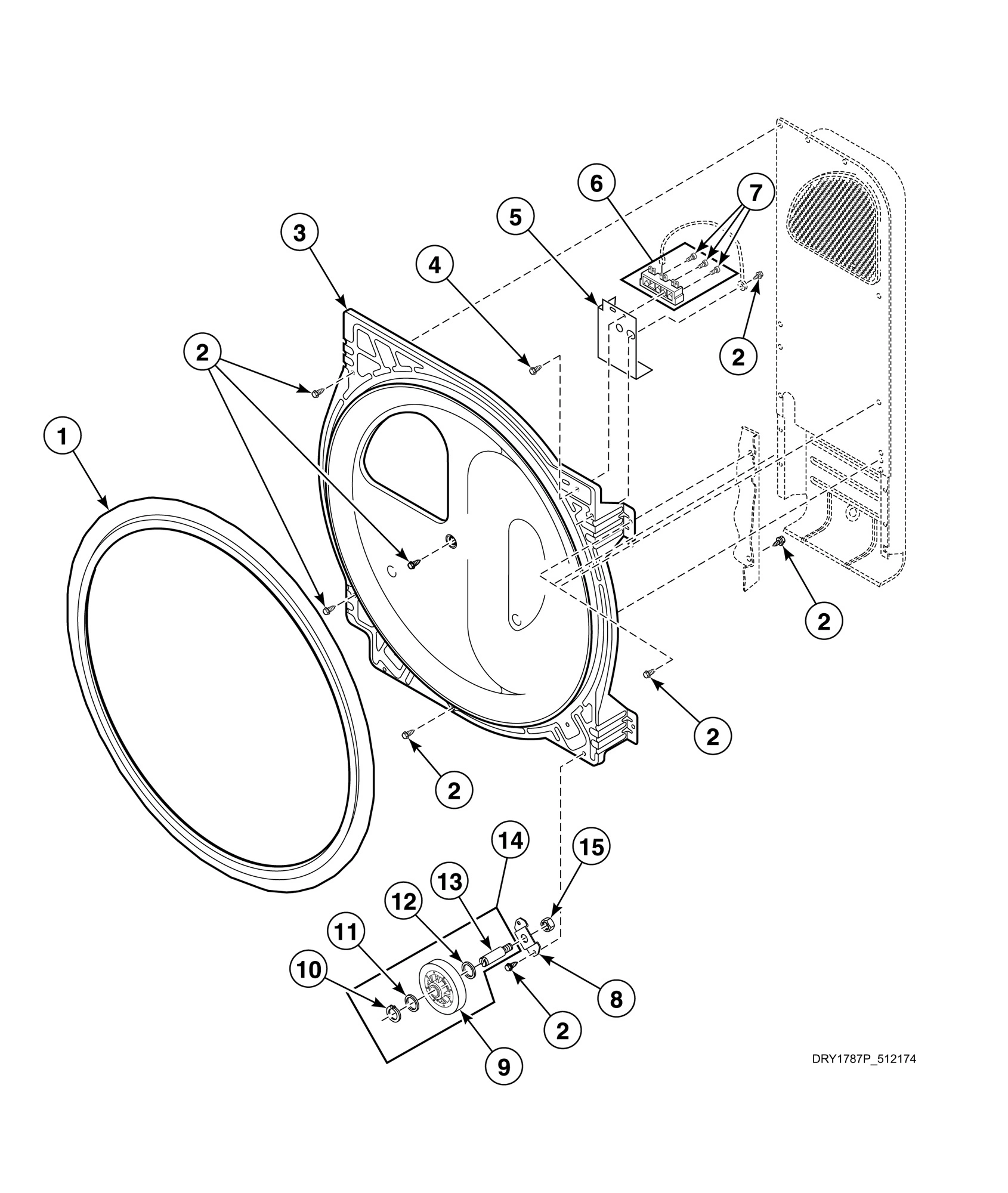

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

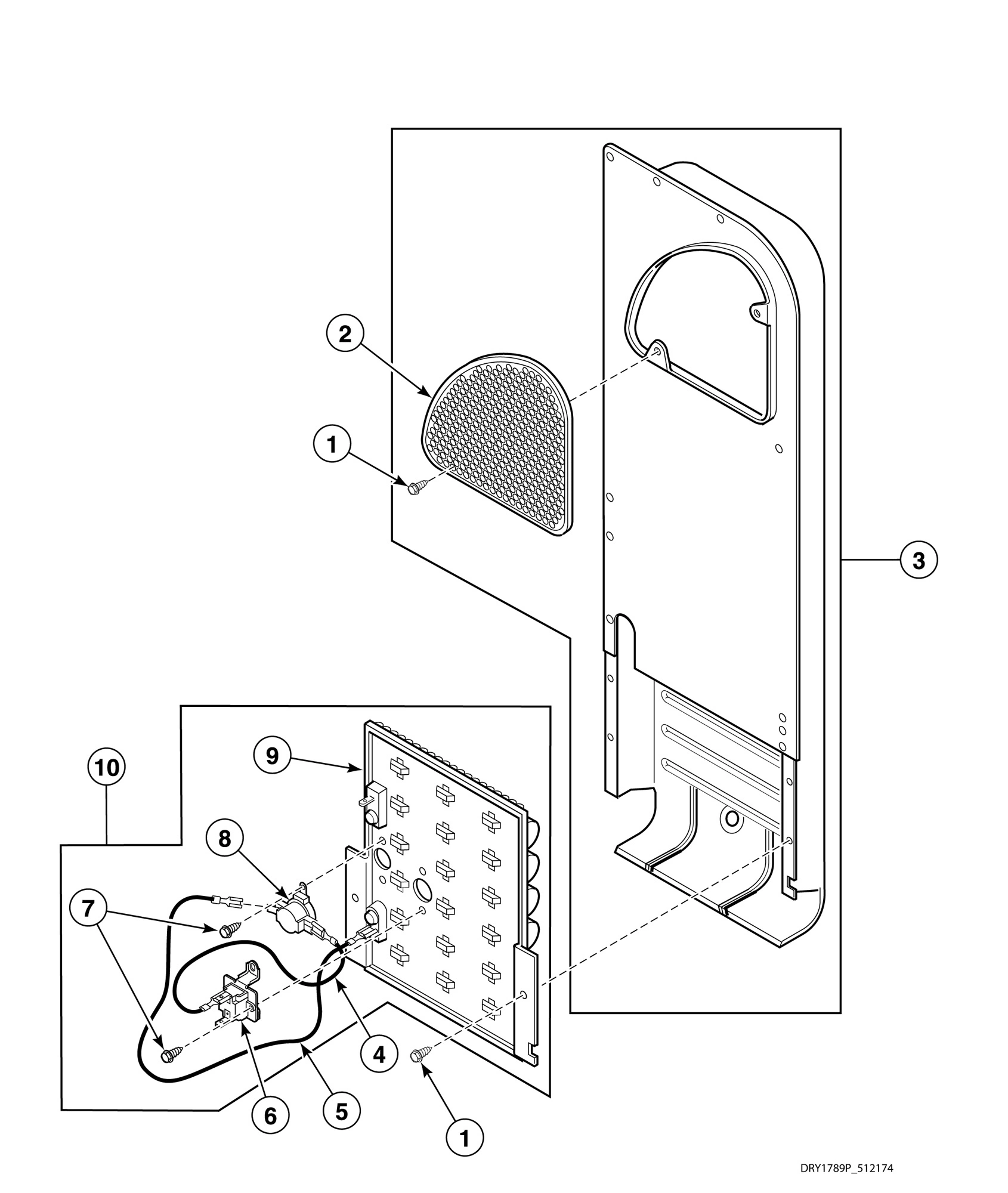

Heater Duct and Element Assembly
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Cabinet, Exhaust Duct and Base - Single Dryers
Cabinet, Exhaust Duct and Base - Stacked Dryers

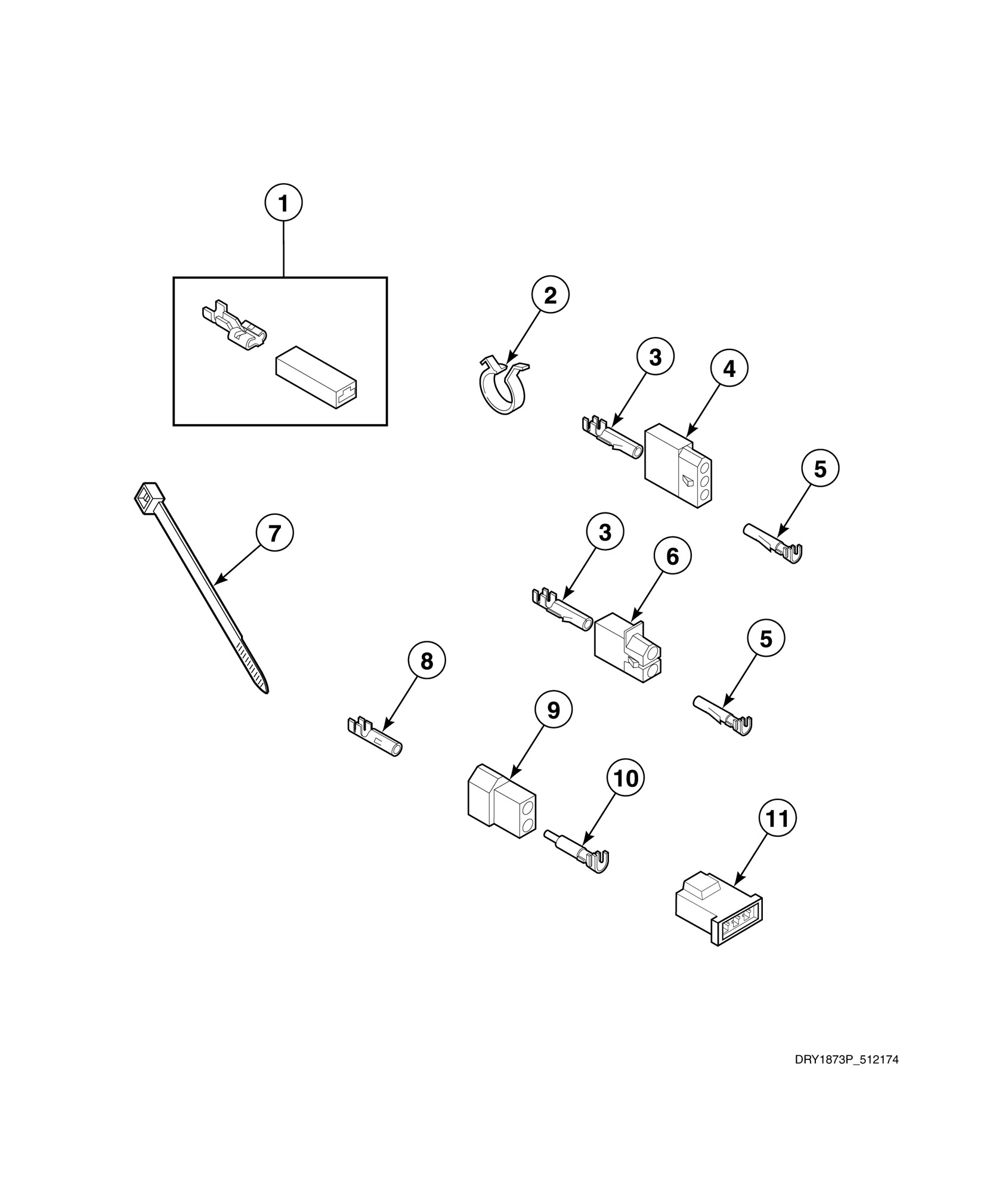

Terminal Block and Terminals

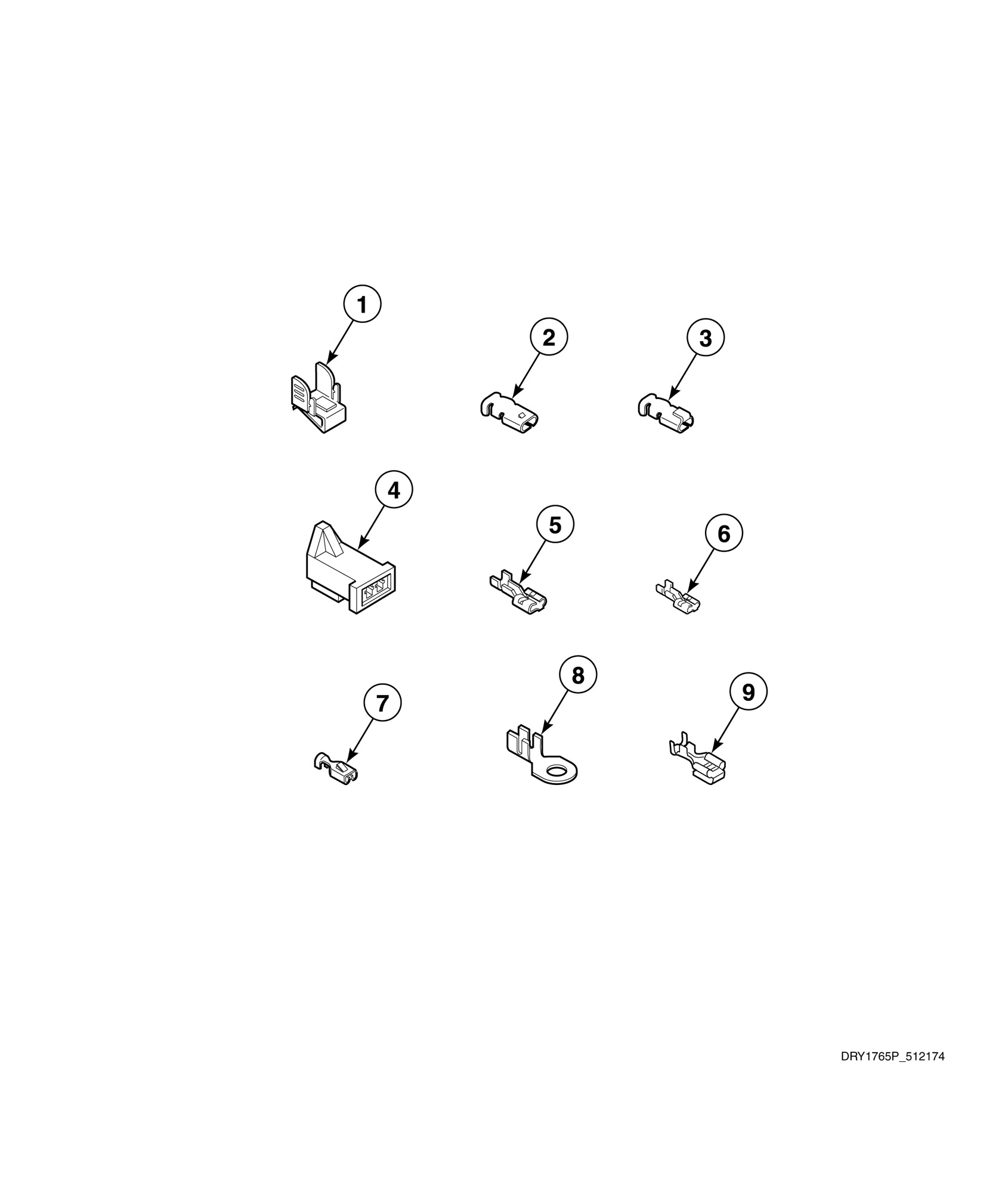

Terminals
Terminals and Terminal Extractor Tools
Wire Harnesses and Wires - Stacked Models
Wire Harnesses and Wires - Stacked Models
Through Serial No. 1303025314
Wire Harnesses and Wires - Stacked Models
Starting Serial No. 1303025315
Wire Harnesses and Wires - Front Control Models
Wire Harnesses and Wires - Front Control Models
Through Serial No. 1303025314
Wire Harnesses and Wires - Front Control Models
Starting Serial No. 1303025315
Wire Harnesses and Wires - Rear Control Models
Through Serial No. 1207
Wire Harnesses and Wires - Rear Control Models
Starting Serial No. 1207
Motor, Exhaust Fan And Belt
Heater Duct And Element Assembly (electric Models)
Motor, Exhaust Fan And Belt
Loading Door - Without Window (drawing 2 Of 2)
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Access Panel, Front Panel And Seal
Terminals
Heater Duct And Element Assembly (electric Models)
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Control Panel And Controls - Rear Control
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Cabinet, Exhaust Duct And Base - Single Dryers
Motor, Exhaust Fan And Belt
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Access Panel, Front Panel And Seal
Control Panel And Controls - Rear Control
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Control Panel And Controls - Rear Control
Terminal Block And Terminals
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Motor, Exhaust Fan And Belt
Cabinet, Exhaust Duct And Base - Single Dryers
Loading Door - Without Window (drawing 2 Of 2)
Heater Duct And Element Assembly (electric Models)
Control Panel And Controls - Rear Control
Motor, Exhaust Fan And Belt
Access Panel, Front Panel And Seal
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Loading Door - Without Window (drawing 2 Of 2)
Cabinet, Exhaust Duct And Base - Single Dryers
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Loading Door - Without Window (drawing 2 Of 2)
Loading Door - Without Window (drawing 2 Of 2)
Access Panel, Front Panel And Seal
Loading Door - Without Window (drawing 2 Of 2)
Motor, Exhaust Fan And Belt
Access Panel, Front Panel And Seal
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Control Panel And Controls - Rear Control
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Heater Duct And Element Assembly (electric Models)
Wire Harnesses And Wires - Rear Control Models Through serial no. 1207
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Control Panel And Controls - Rear Control
Heater Duct And Element Assembly (electric Models)
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Cabinet, Exhaust Duct And Base - Single Dryers
Loading Door - Without Window (drawing 2 Of 2)
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Motor, Exhaust Fan And Belt
Motor, Exhaust Fan And Belt
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Control Panel And Controls - Rear Control
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Cabinet, Exhaust Duct And Base - Single Dryers
Access Panel, Front Panel And Seal
Control Panel And Controls - Rear Control
Cabinet, Exhaust Duct And Base - Single Dryers
Access Panel, Front Panel And Seal
Cabinet, Exhaust Duct And Base - Single Dryers
Motor, Exhaust Fan And Belt
Heater Duct And Element Assembly (electric Models)
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light
Heater Duct And Element Assembly (electric Models)
Motor, Exhaust Fan And Belt
Common parts from model Speed Queen AES28AWF Dryer
1
Front Bulkhead Assembly SPQ 512476 Contact Us For Availability
1
Wire Harness Assembly SPQ 510444 Contact Us For Availability
1
ASSY WIRING HARNESS NS SPQ D510444 Contact Us For Availability
2
Door Handle Wedge SPQ 510129 Contact Us For Availability
4
Wire Assembly SPQ 510540 Contact Us For Availability
5
Wire Assembly SPQ 510528 Contact Us For Availability
6
Front Panel SPQ 510066WP Contact Us For Availability
6
Wire Assembly SPQ 510527 Contact Us For Availability
7
Timer and Harness Kit SPQ 505797P Contact Us For Availability
14
Idler Lever SPQ 510133 Contact Us For Availability
22
Motor and Pulley Assembly SPQ 510060 Contact Us For Availability
× ![]()
