Model Huebsch HTENXASP133FW01 Stacked Washer and Dryer – Common Parts & Diagrams
Control Panel
Washer Control

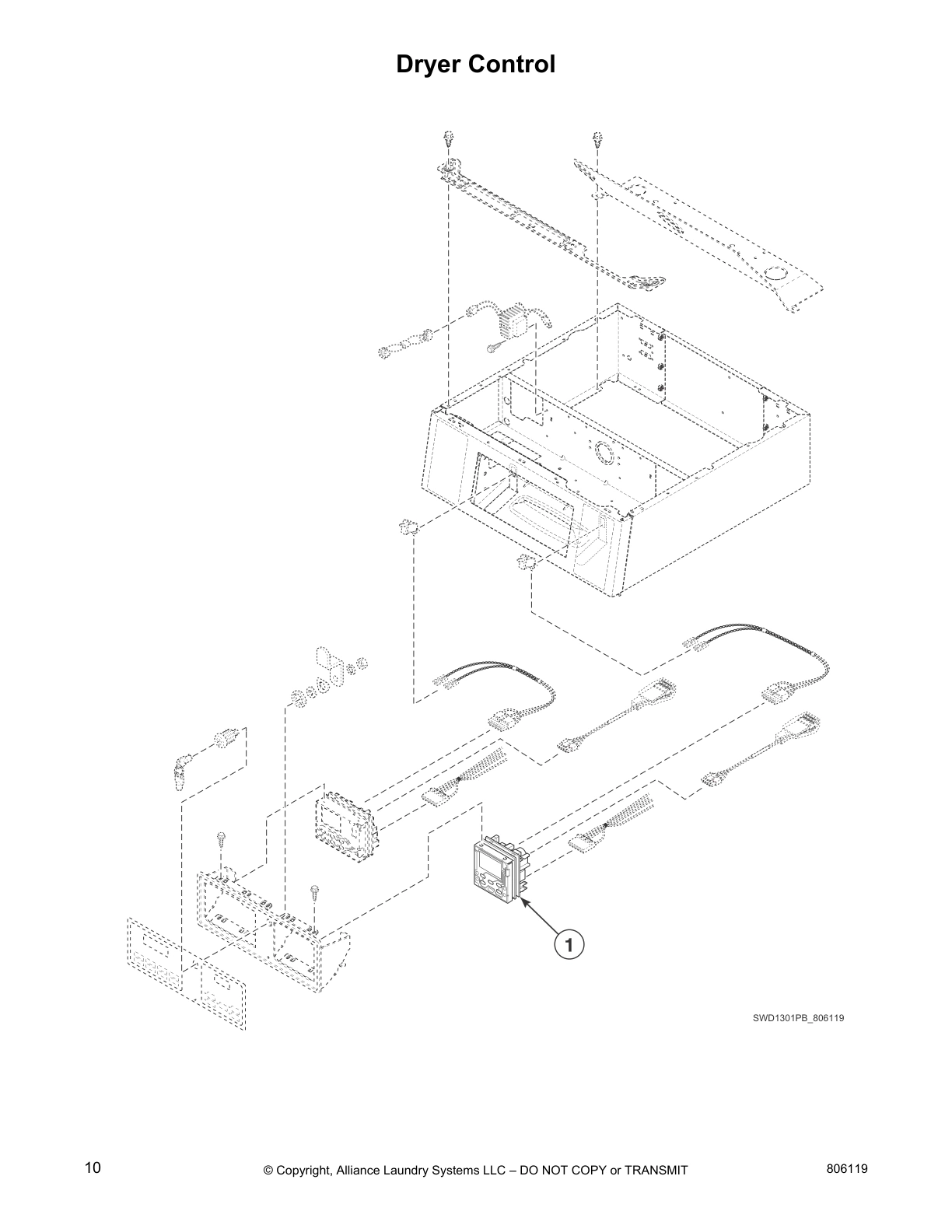

Dryer Control

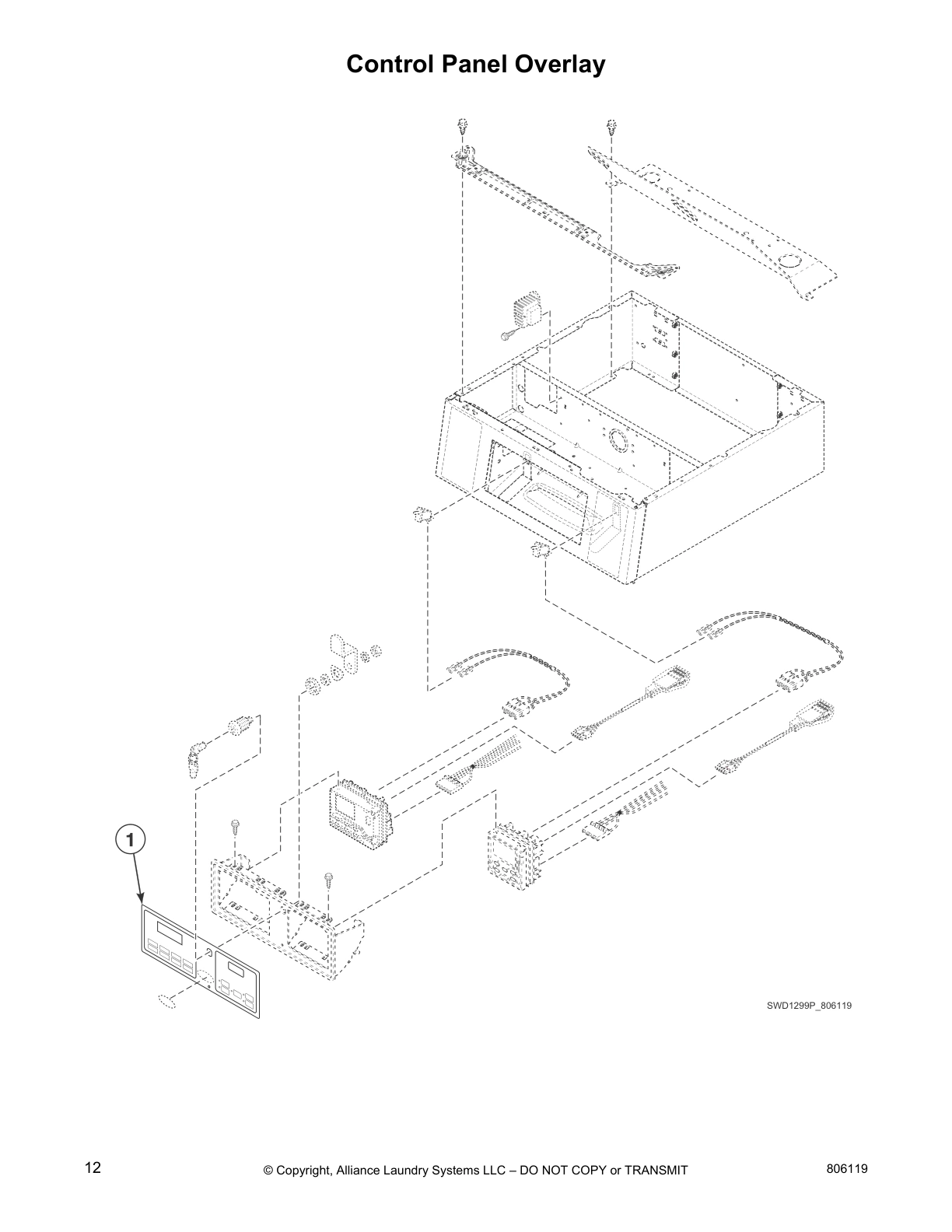

Control Panel Overlay

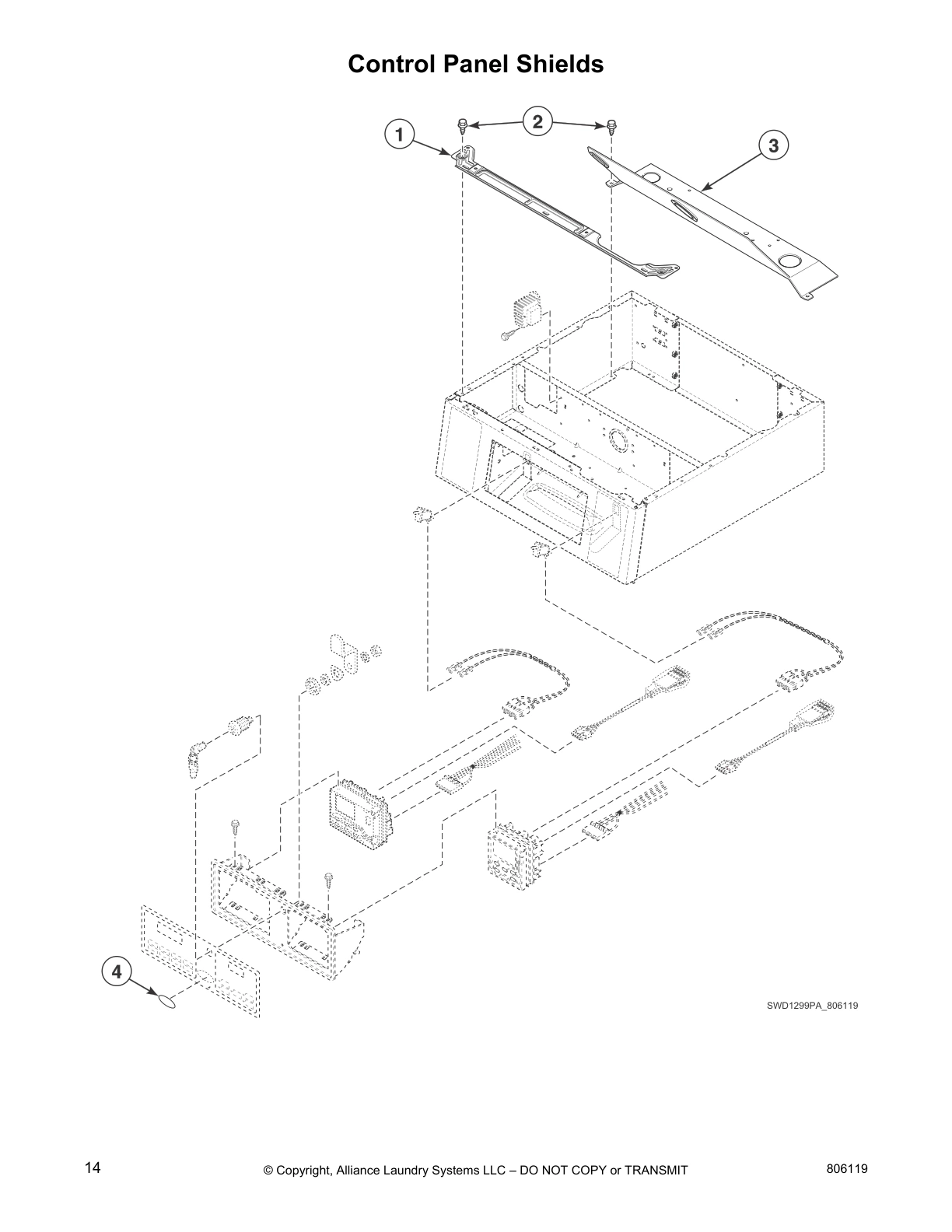

Control Panel Shields

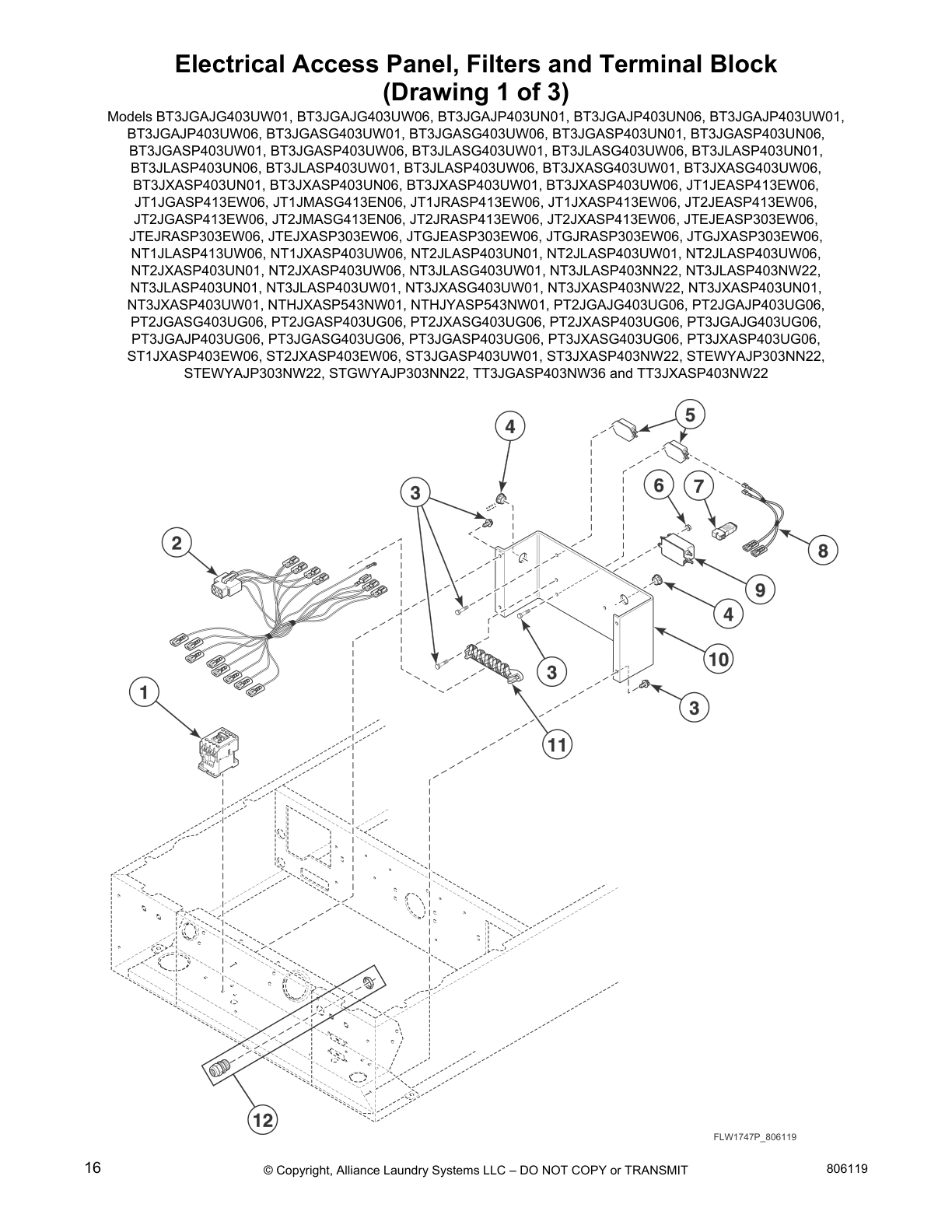

Electrical Access Panel, Filters and Terminal Block
(Drawing 1 of 3)

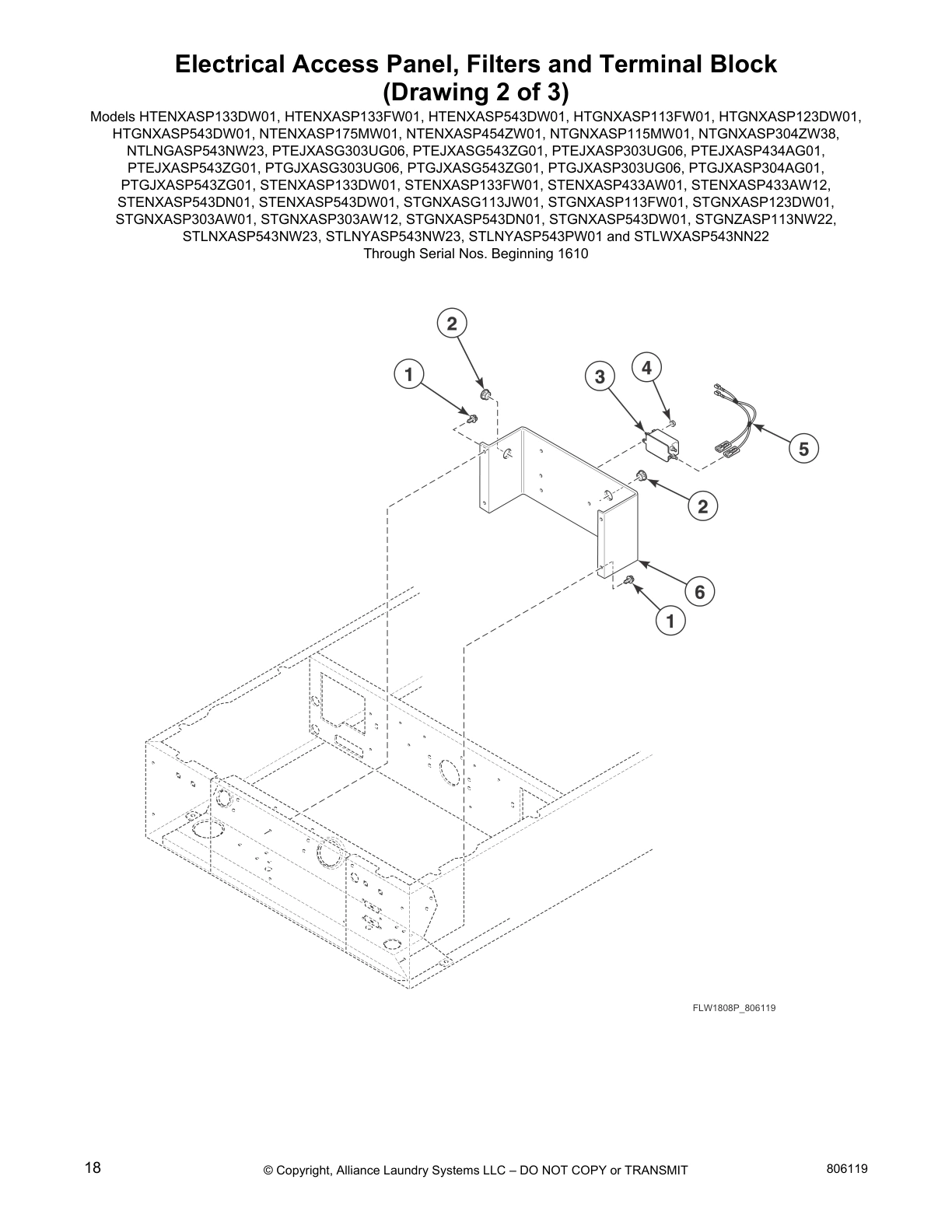

Electrical Access Panel, Filters and Terminal Block
(Drawing 2 of 3)

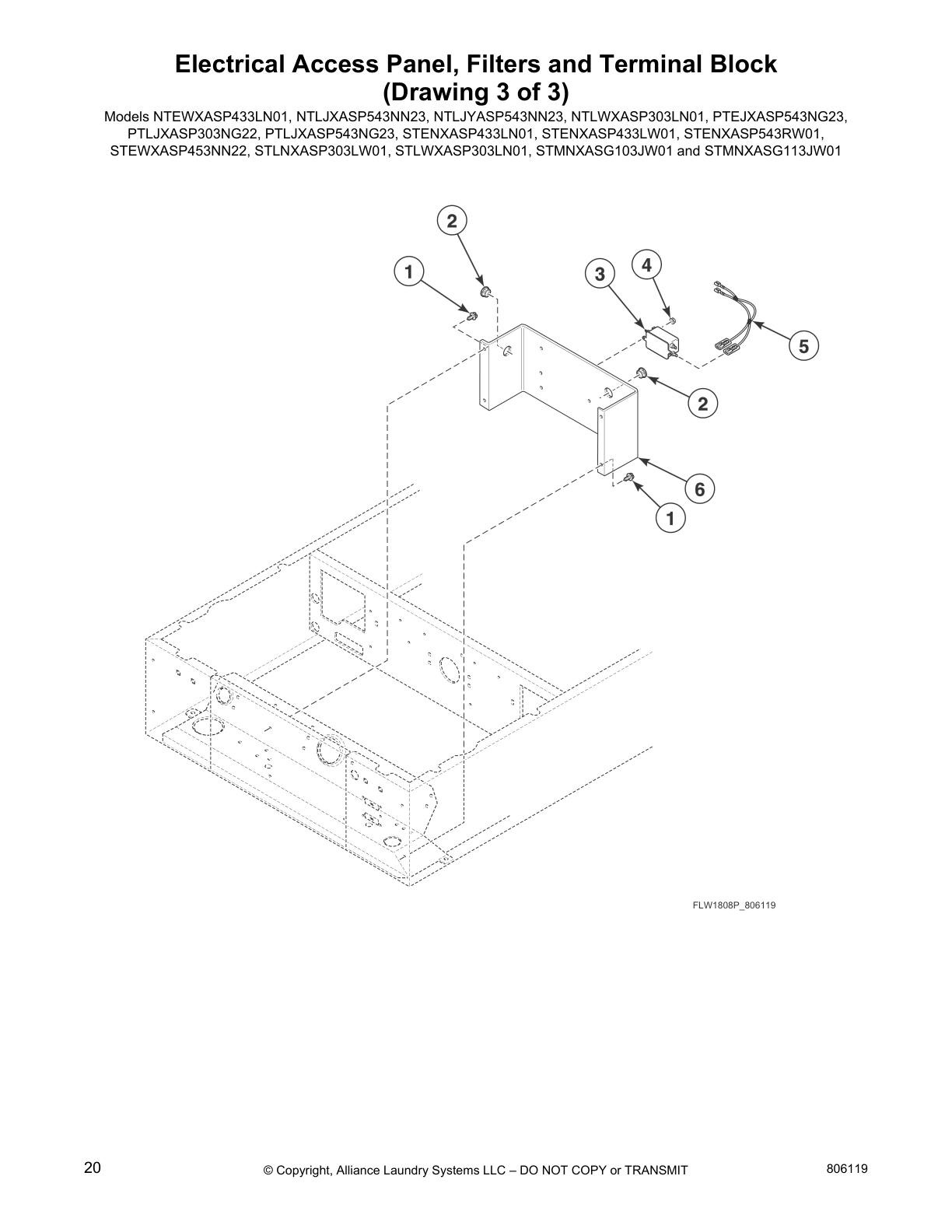

Electrical Access Panel, Filters and Terminal Block
(Drawing 3 of 3)

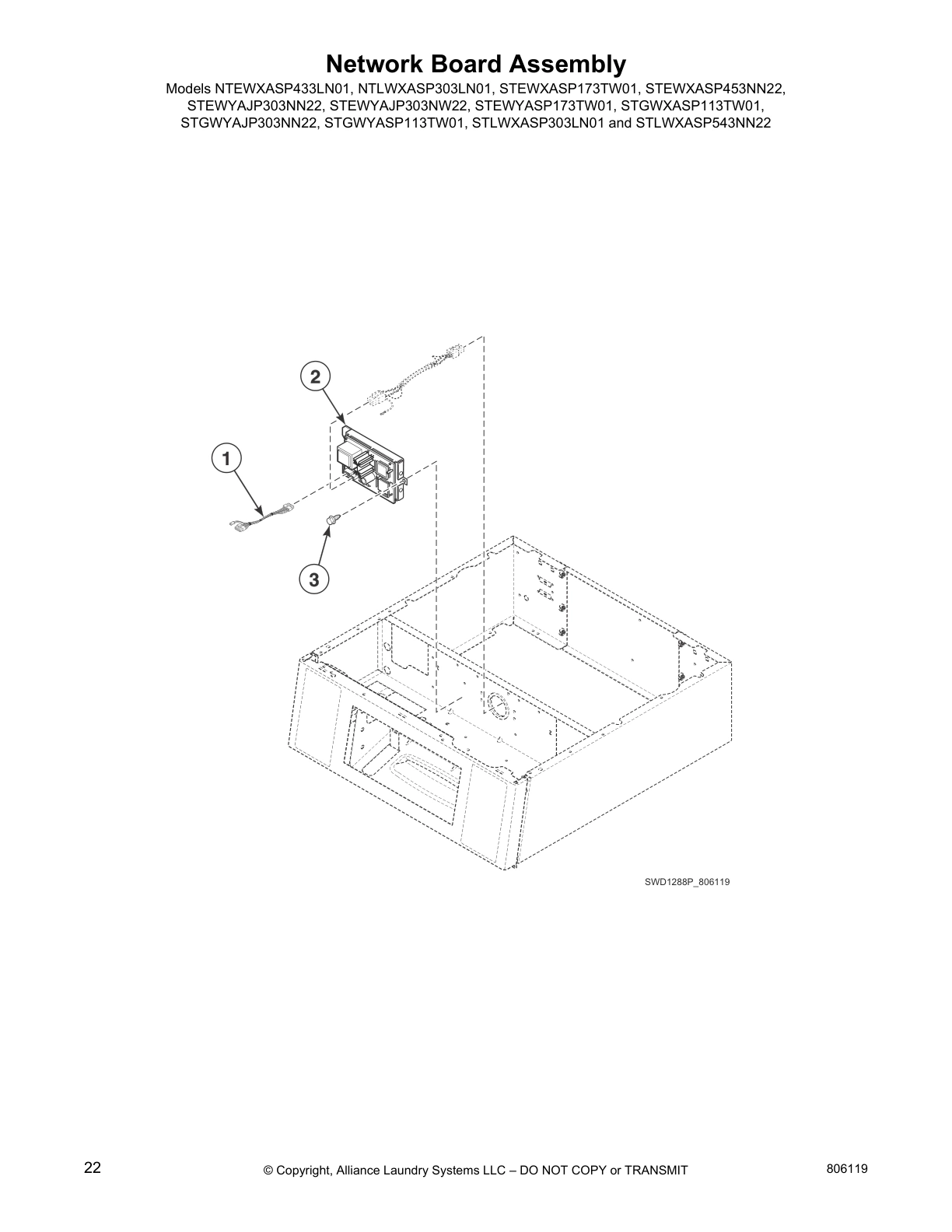

Network Board Assembly

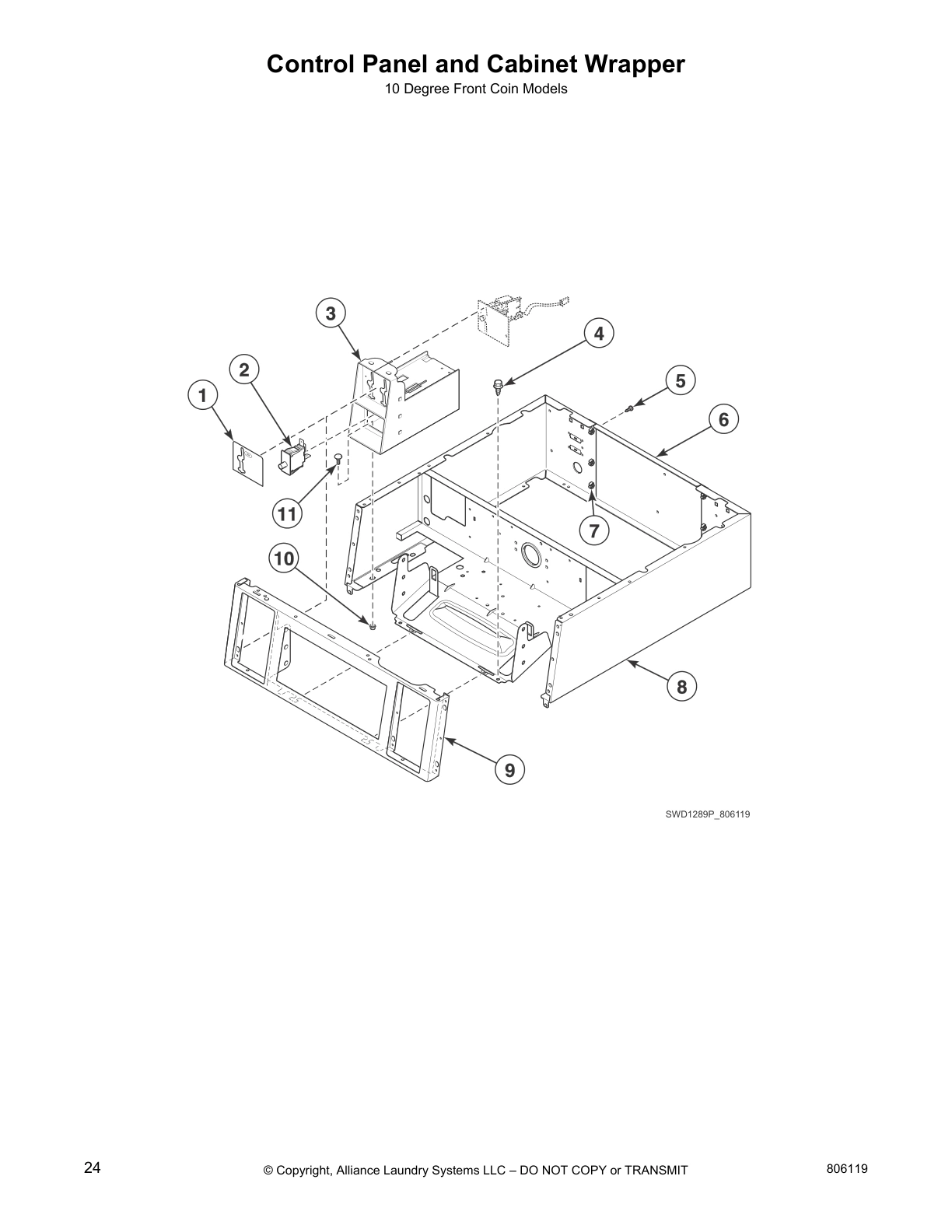

Control Panel and Cabinet Wrapper

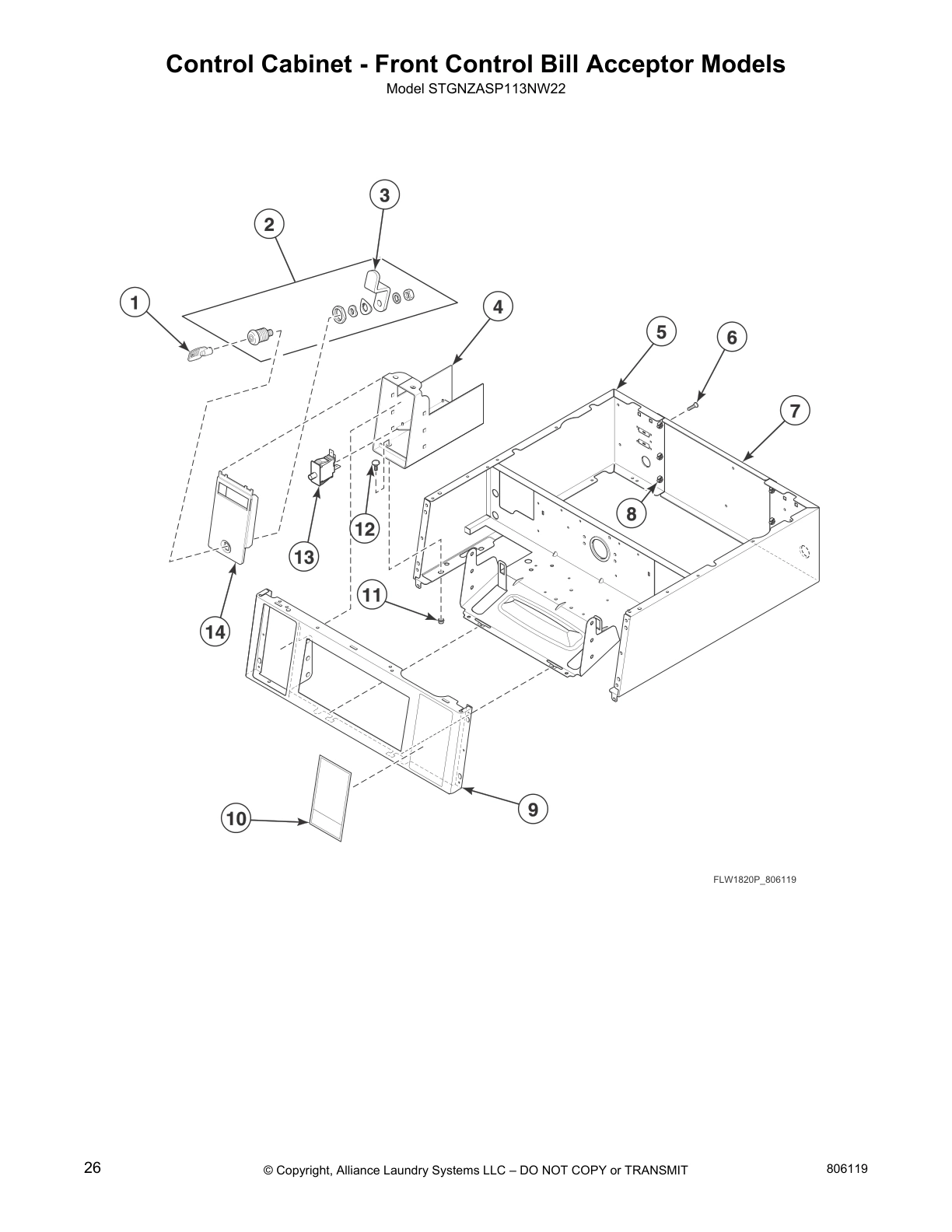

Control Cabinet - Front Control Bill Acceptor Models

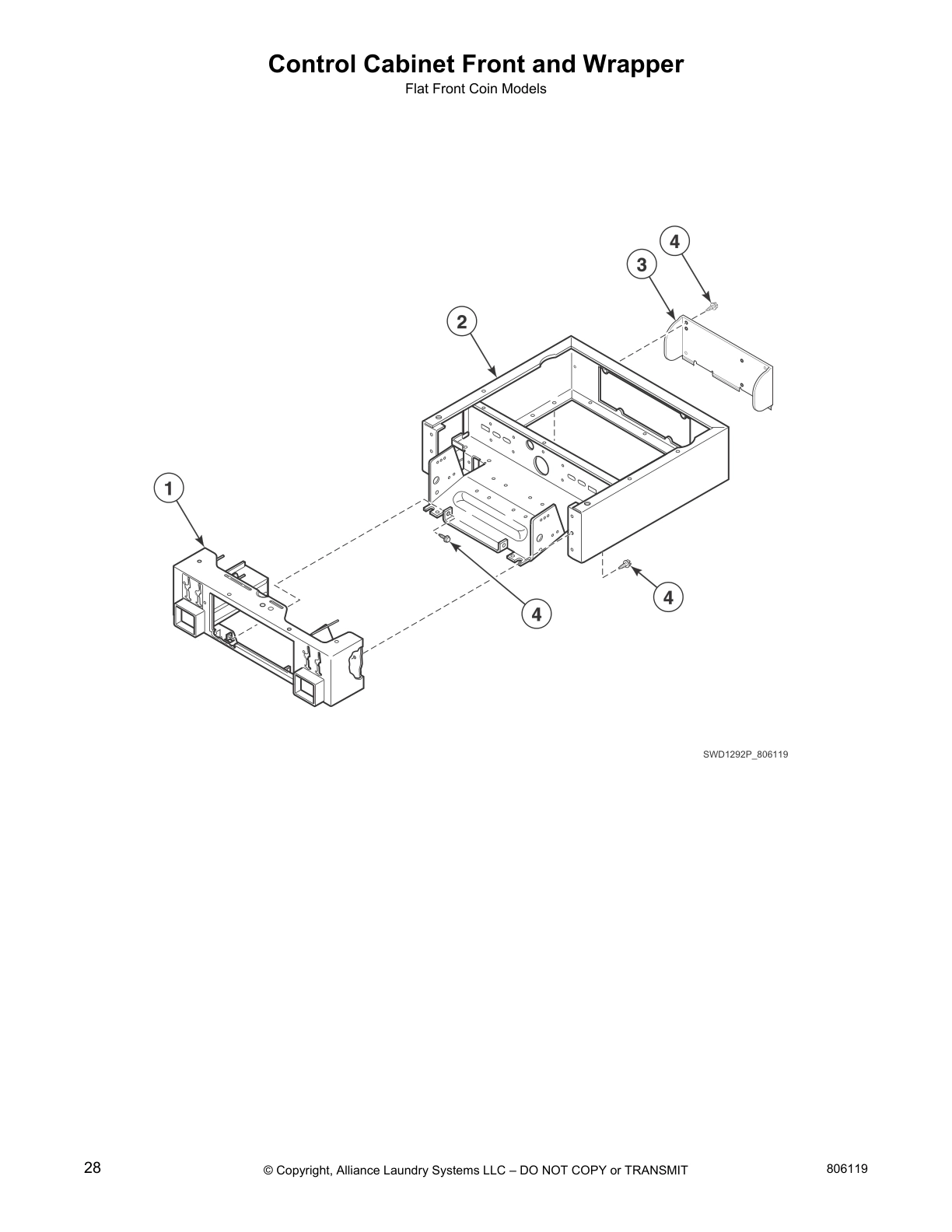

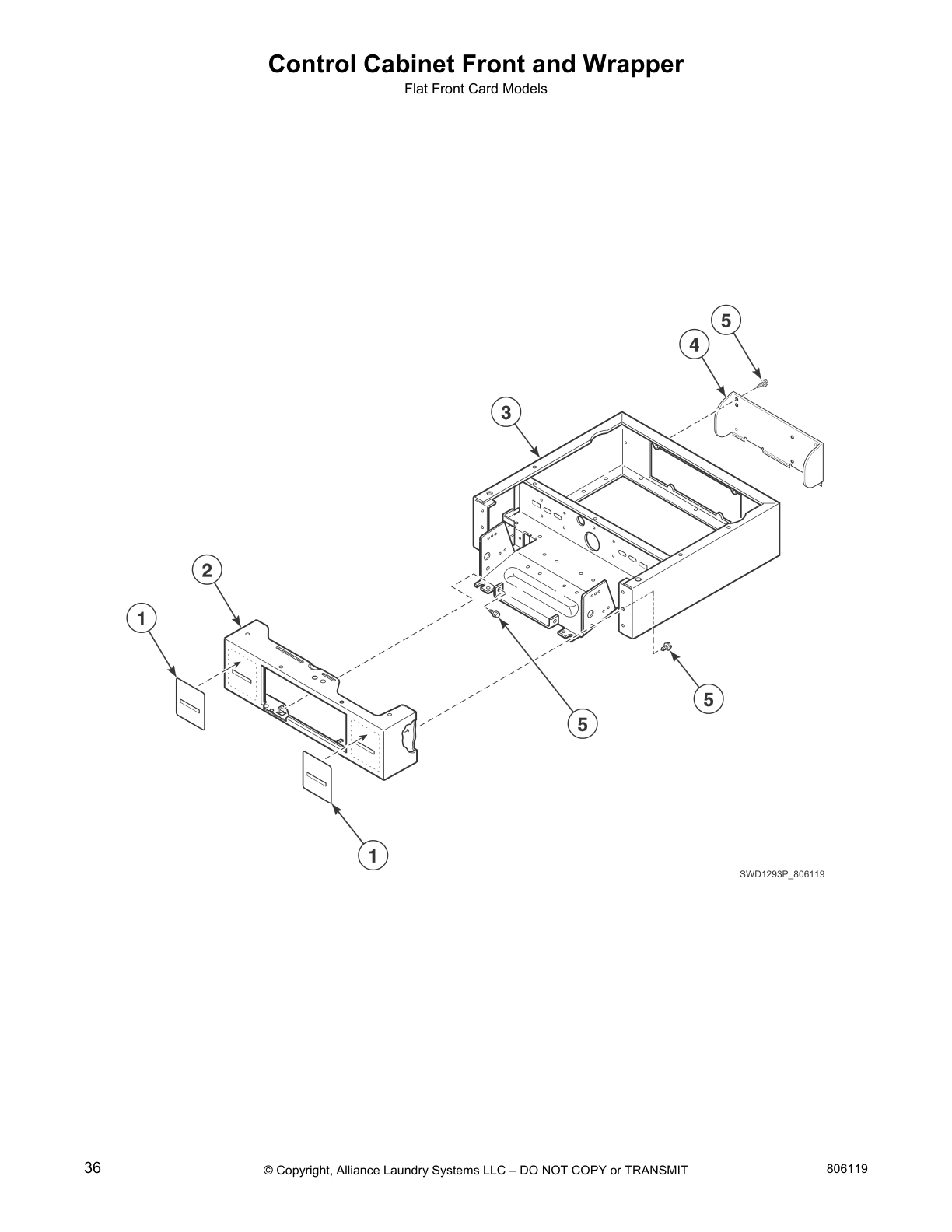

Control Cabinet Front and Wrapper
Non-Electronic Coin Drop

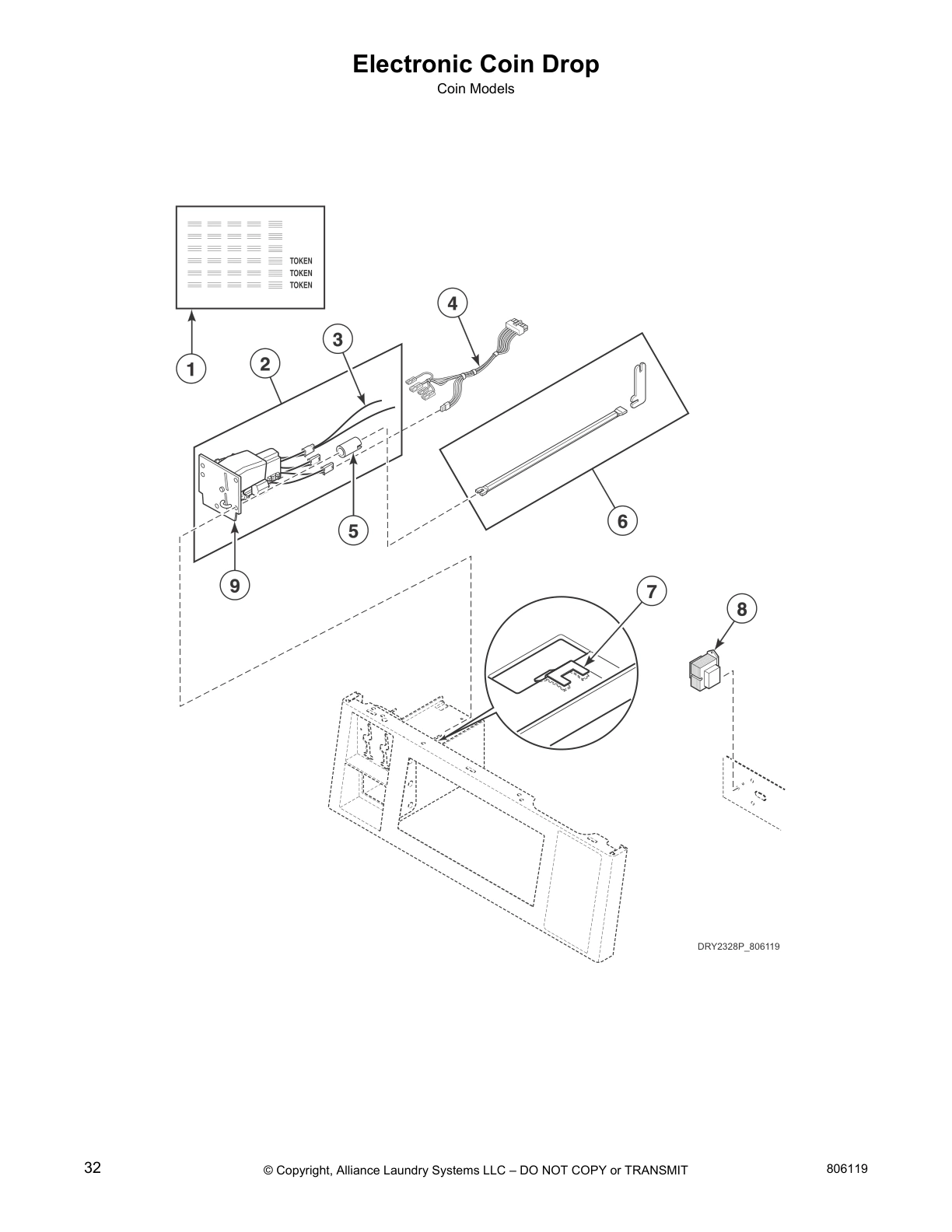

Electronic Coin Drop

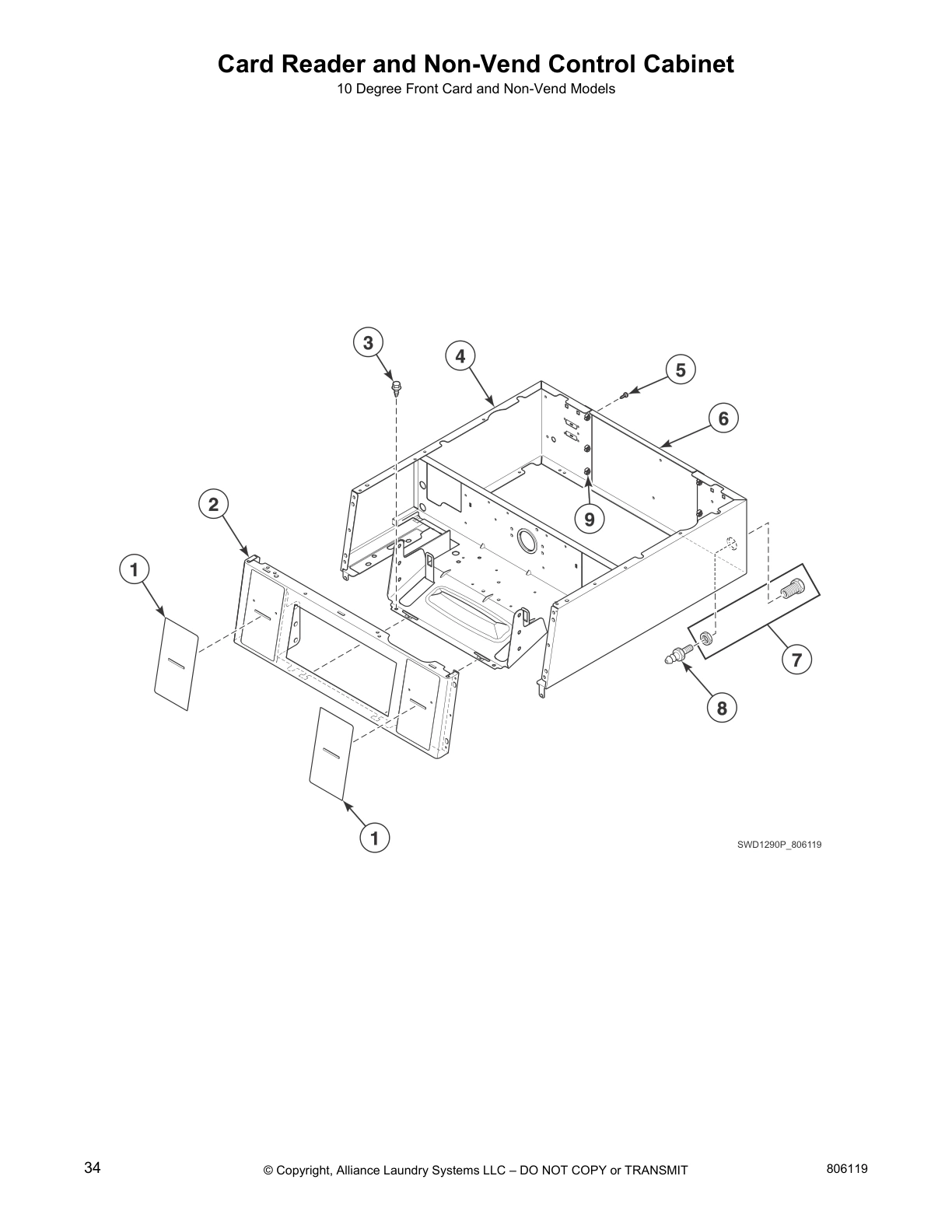

Card Reader and Non-Vend Control Cabinet
Control Cabinet Front and Wrapper
Front Panel, Door Assembly and Door Seal

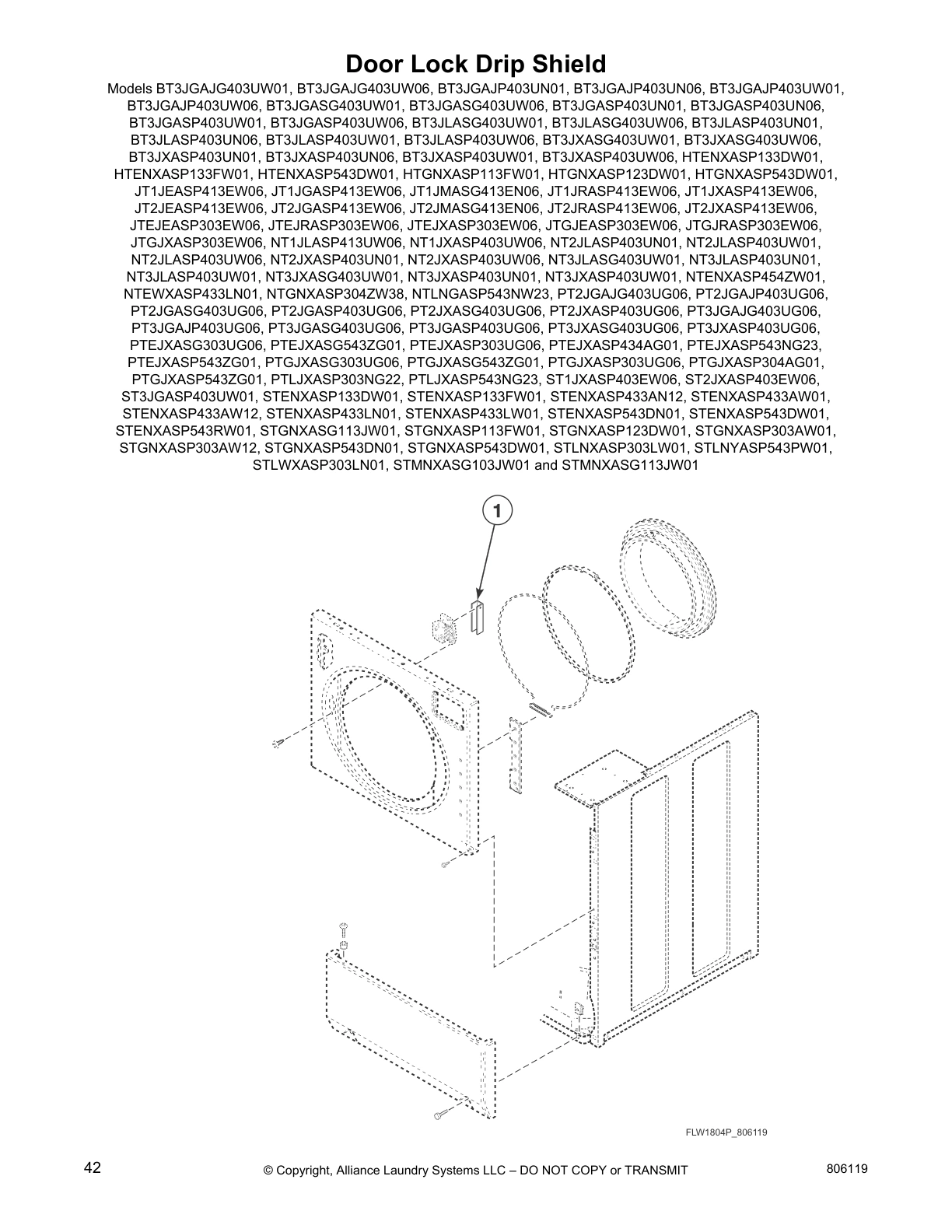

Door Lock Drip Shield

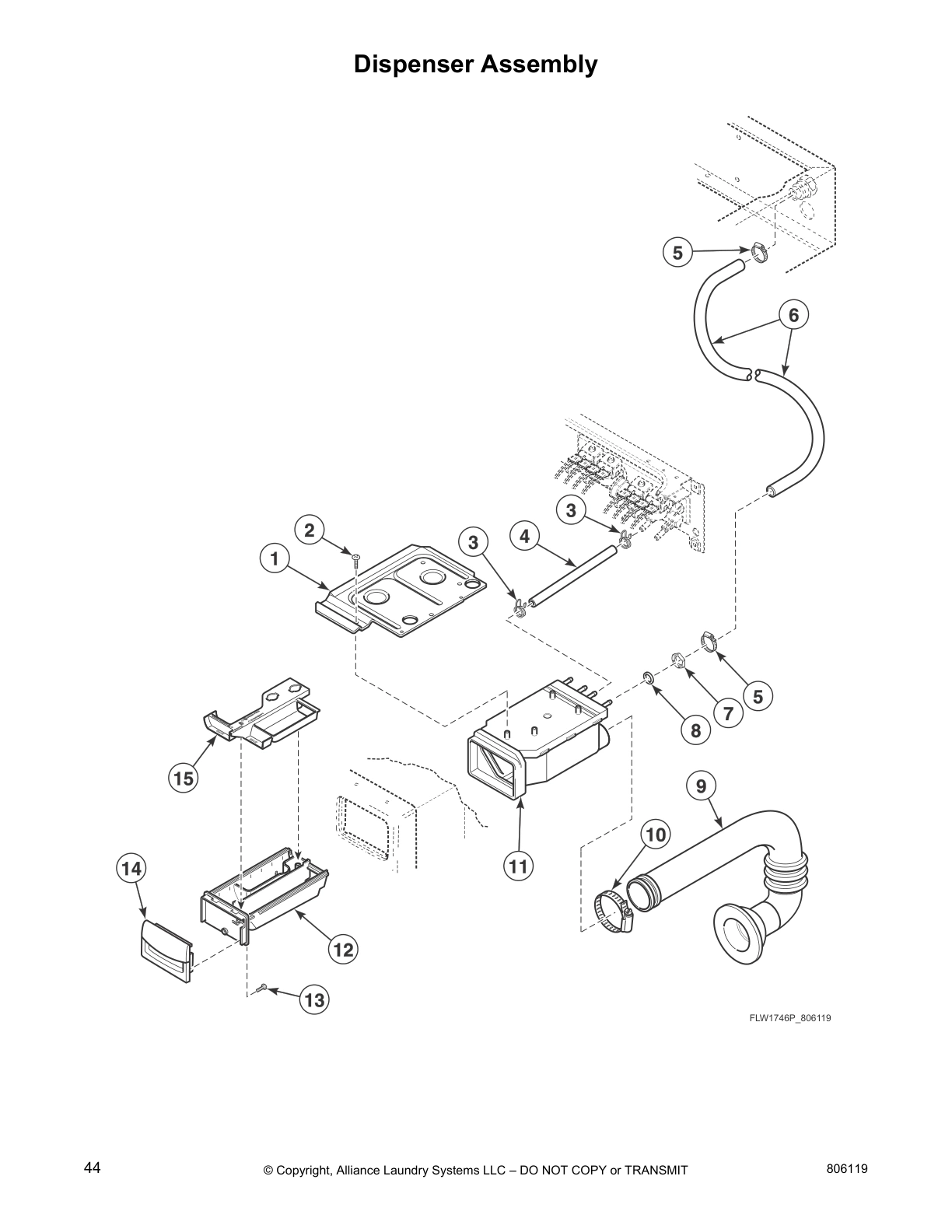

Dispenser Assembly
Mixing Valve

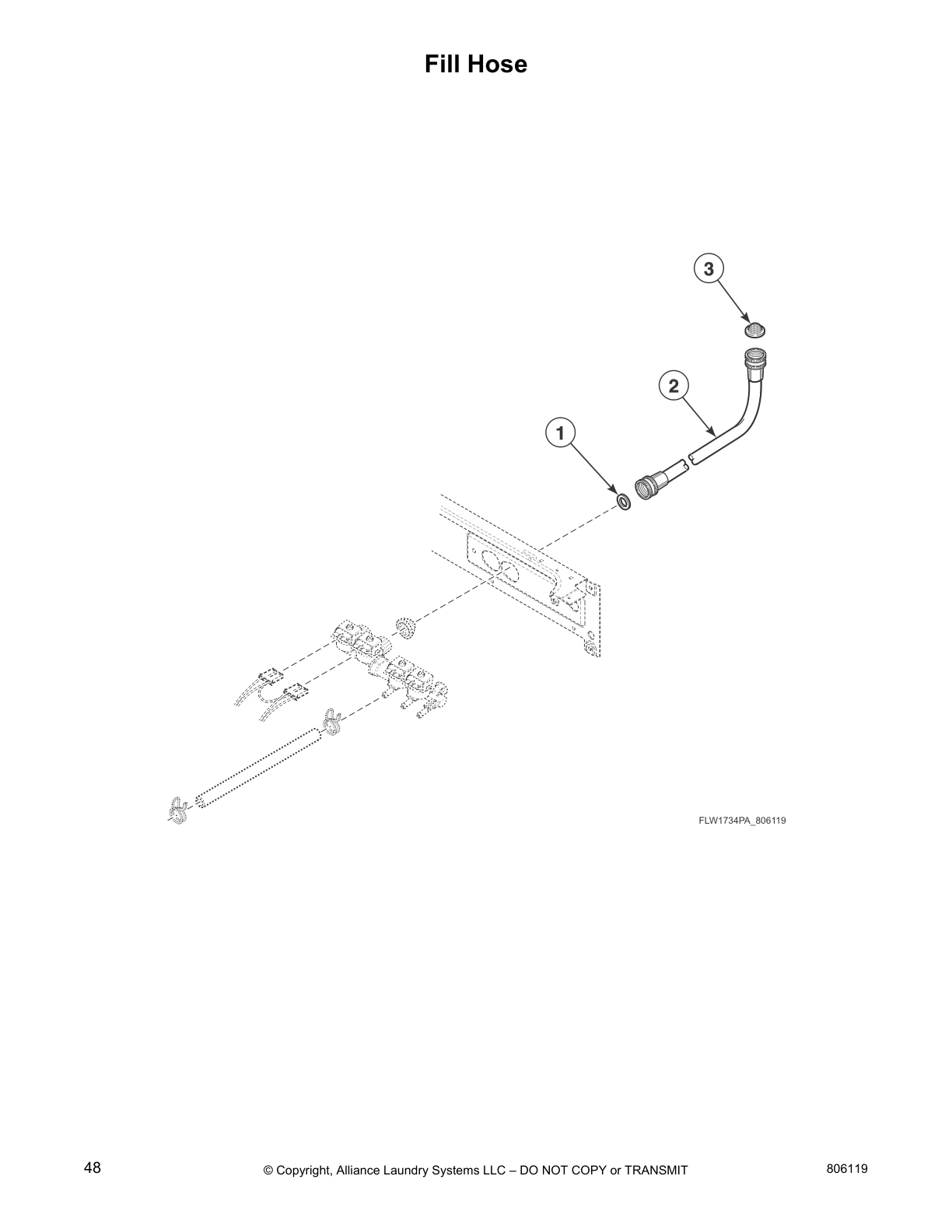

Fill Hose

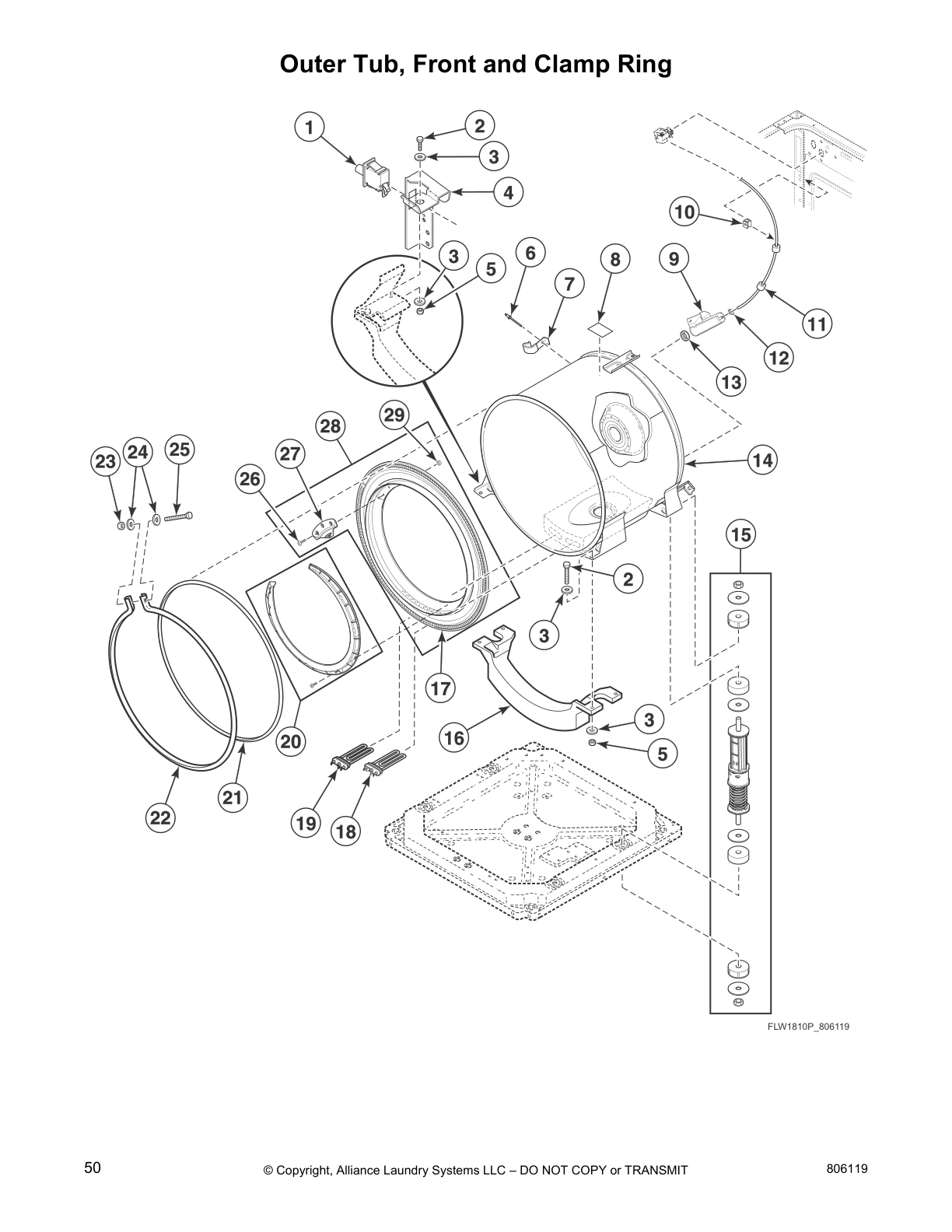

Outer Tub, Front and Clamp Ring
Inner Basket, Trunnion, Bearing Housing and Pulley

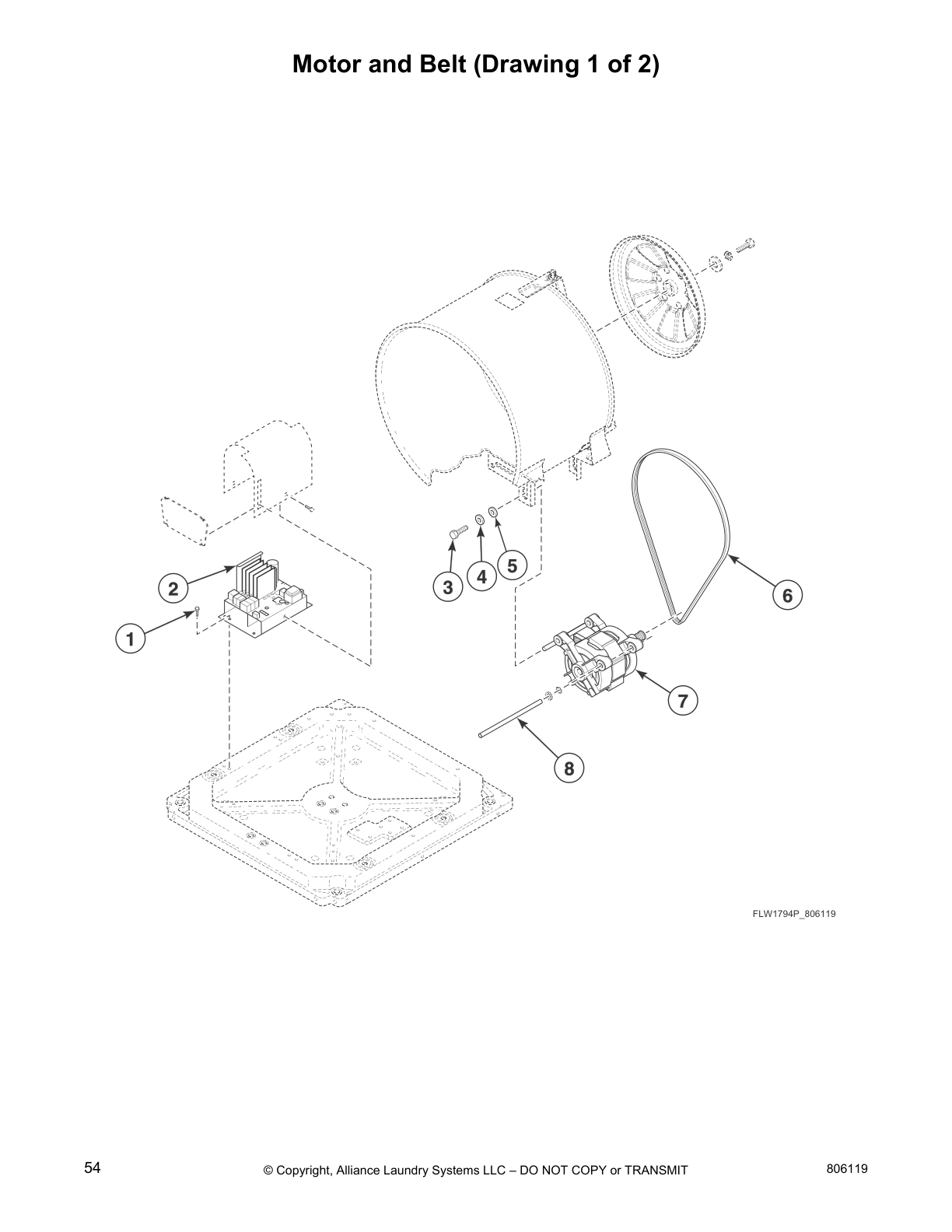

Motor and Belt (Drawing 1 of 2)
Motor and Belt (Drawing 2 of 2)

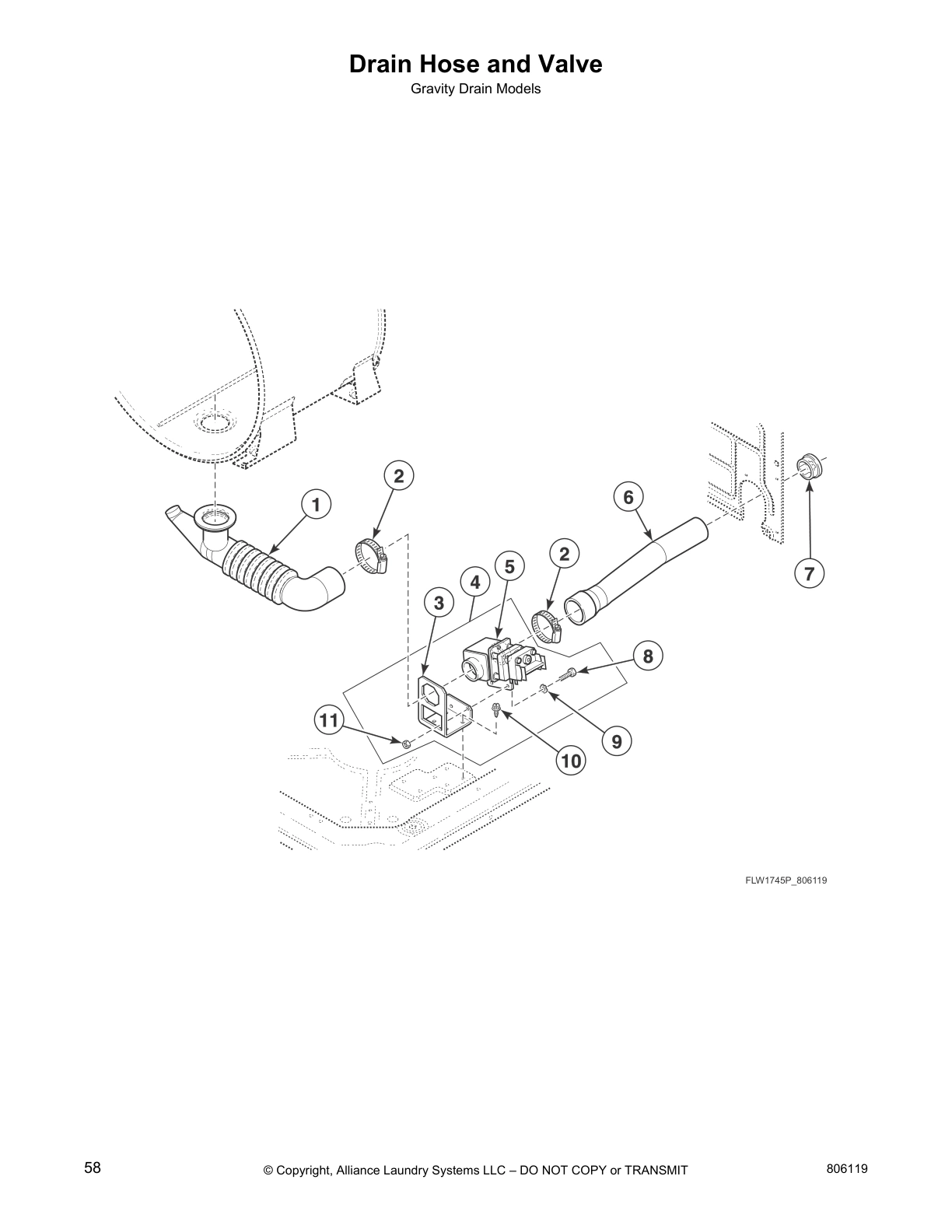

Drain Hose and Valve
Drain Hose and Pump

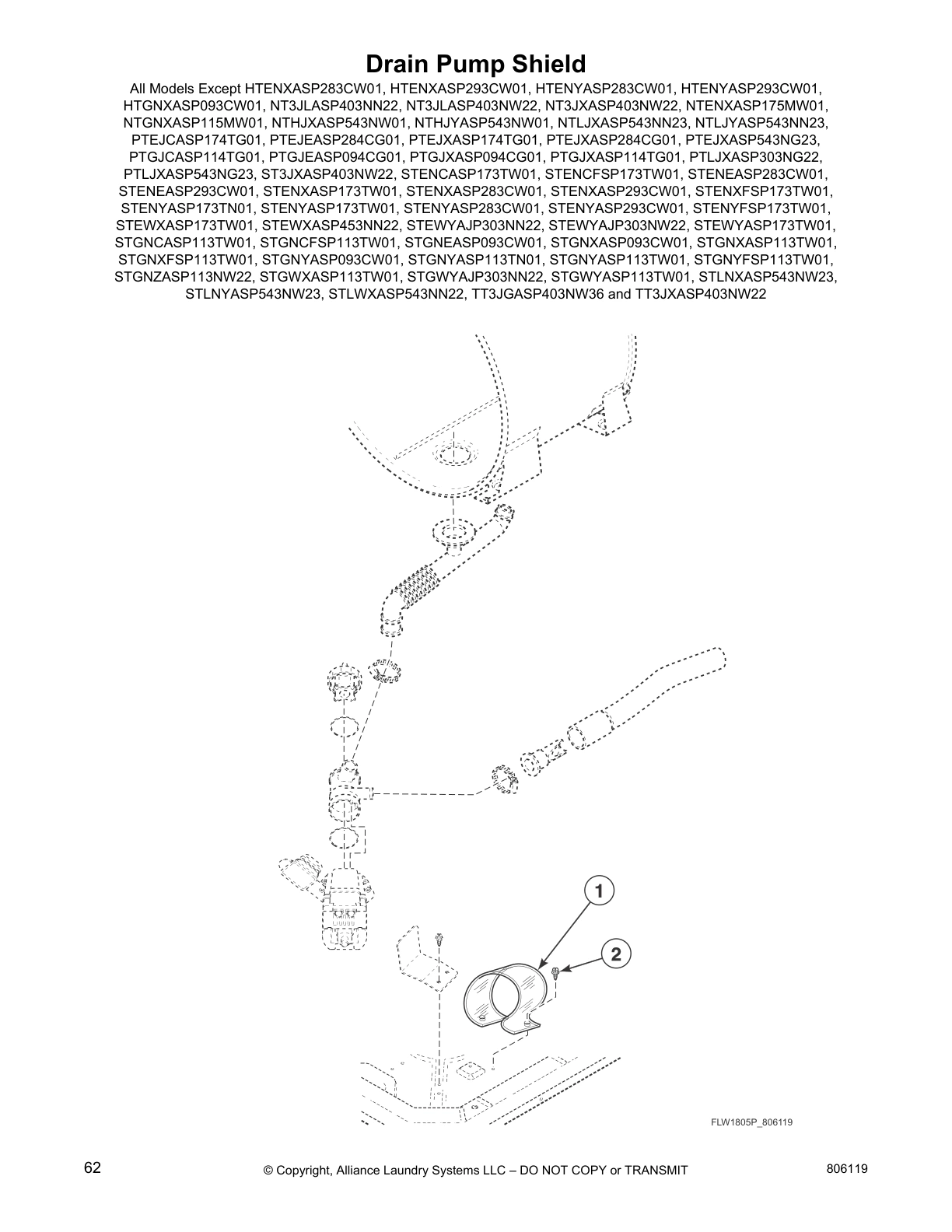

Drain Pump Shield
Washer Base, Side Panels and Rear Panel

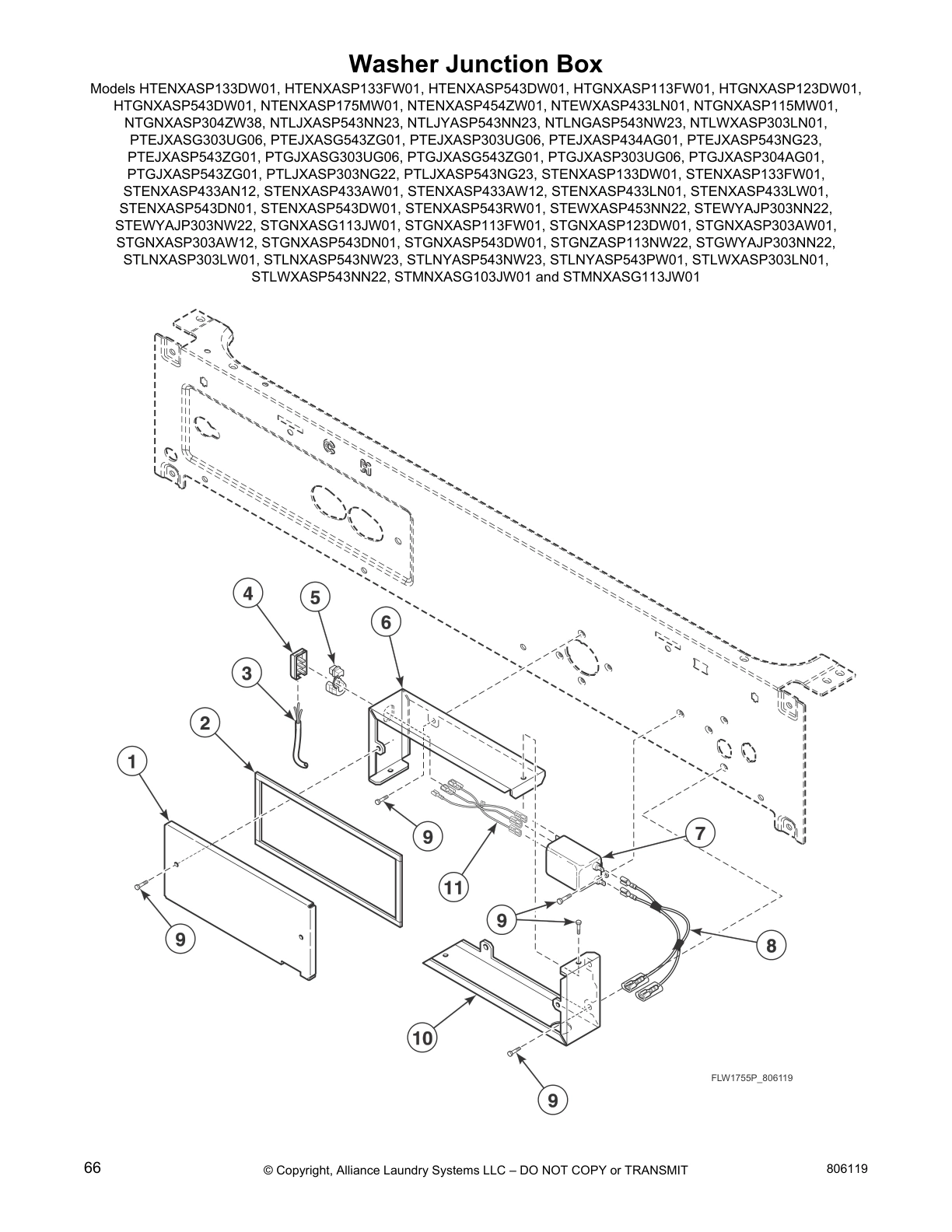

Washer Junction Box

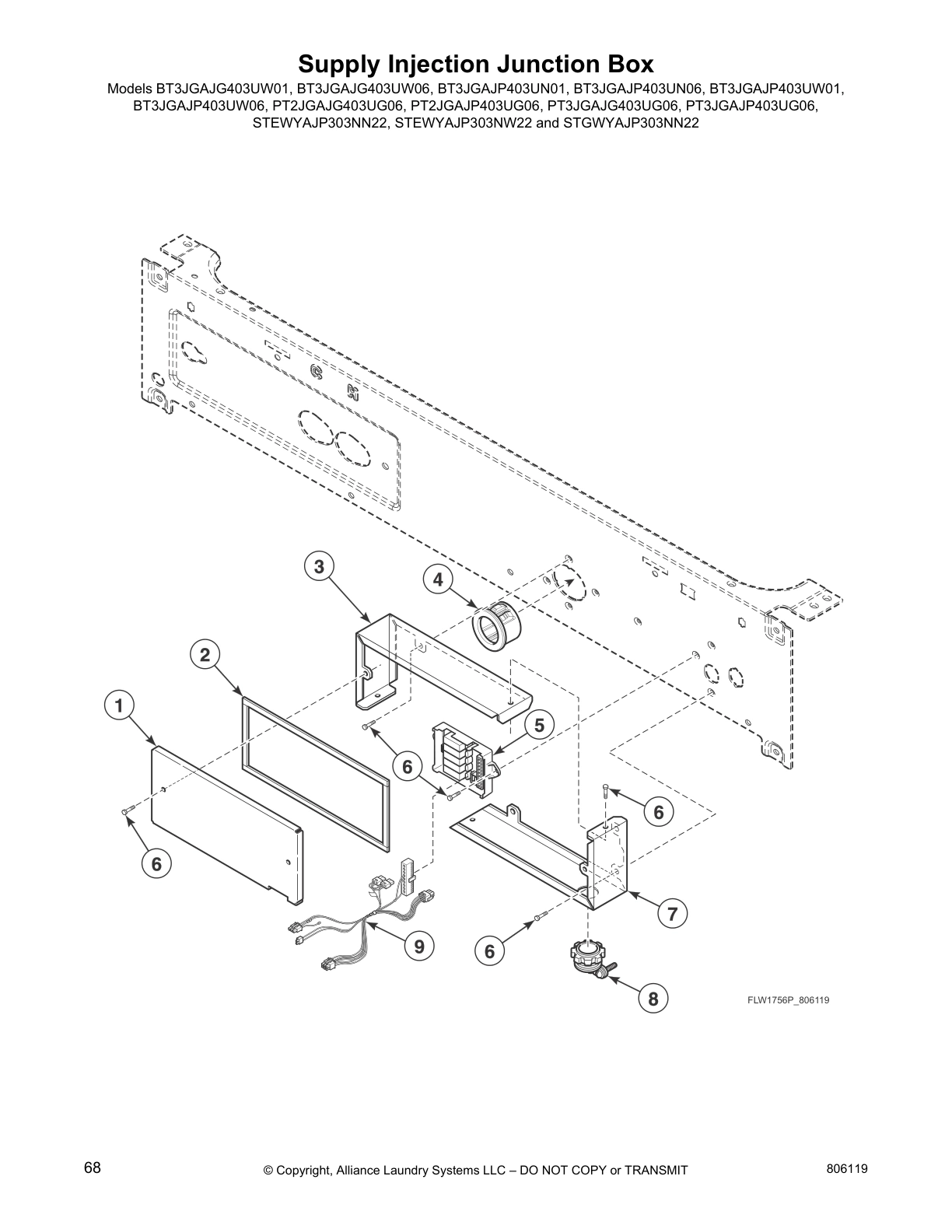

Supply Injection Junction Box

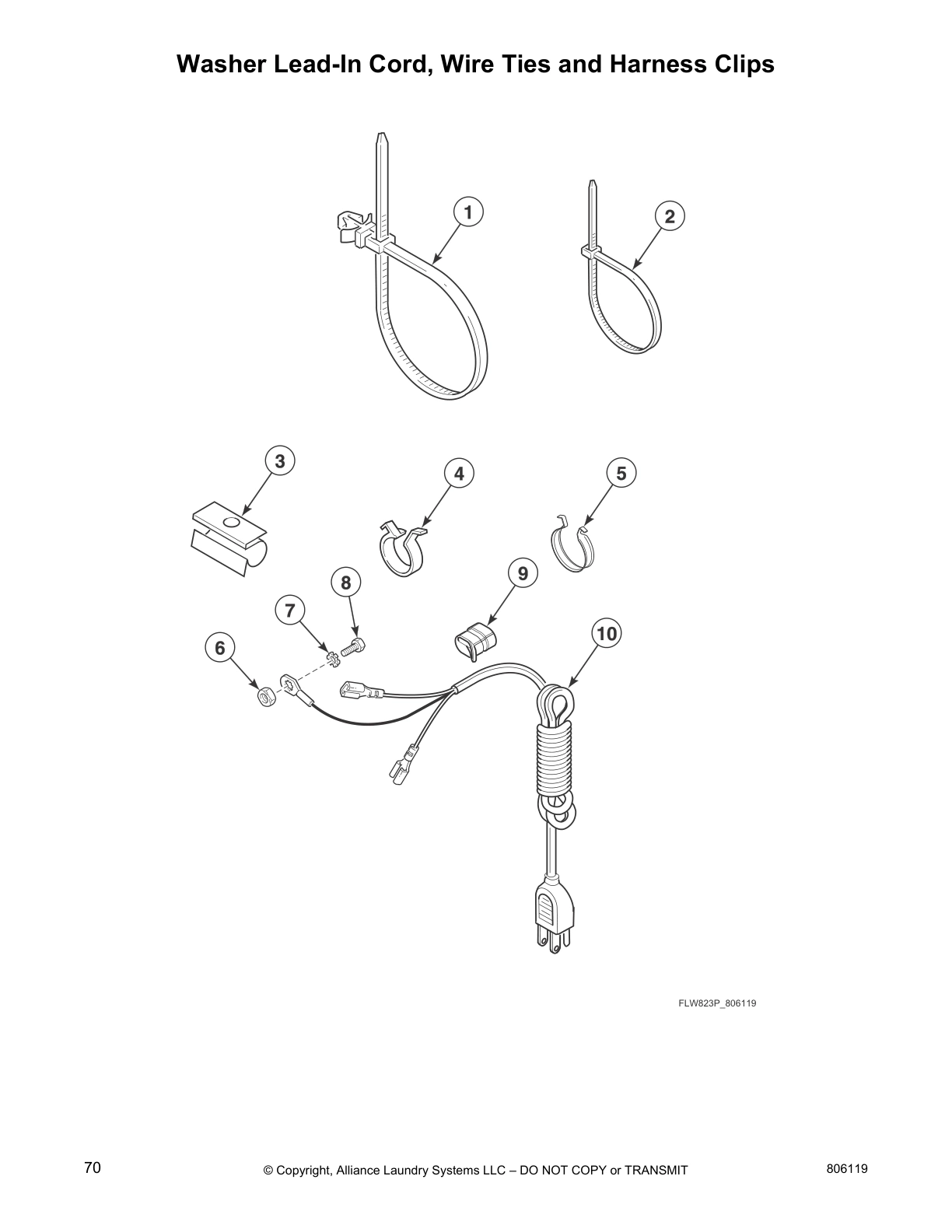

Washer Lead-In Cord, Wire Ties and Harness Clips

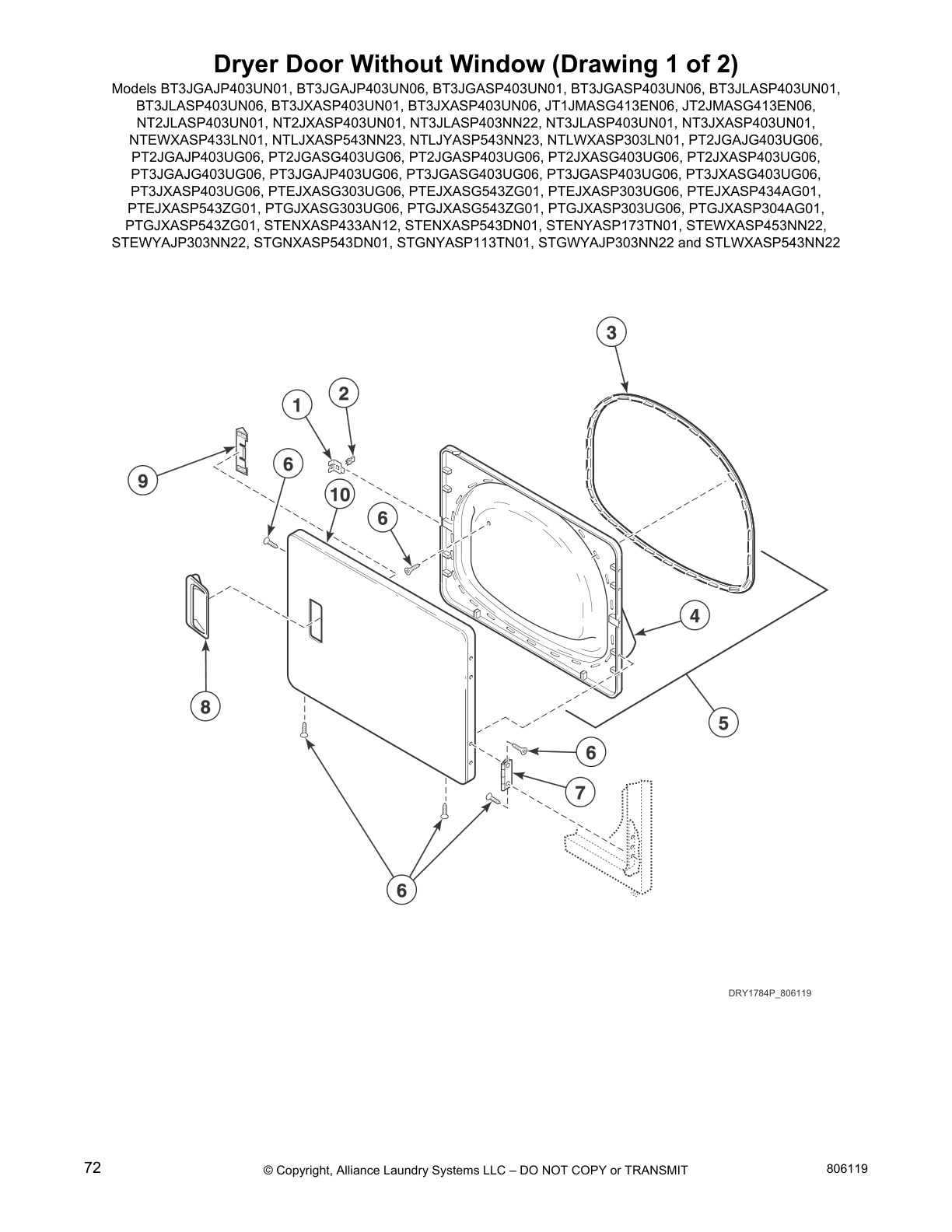

Dryer Door Without Window (Drawing 1 of 2)

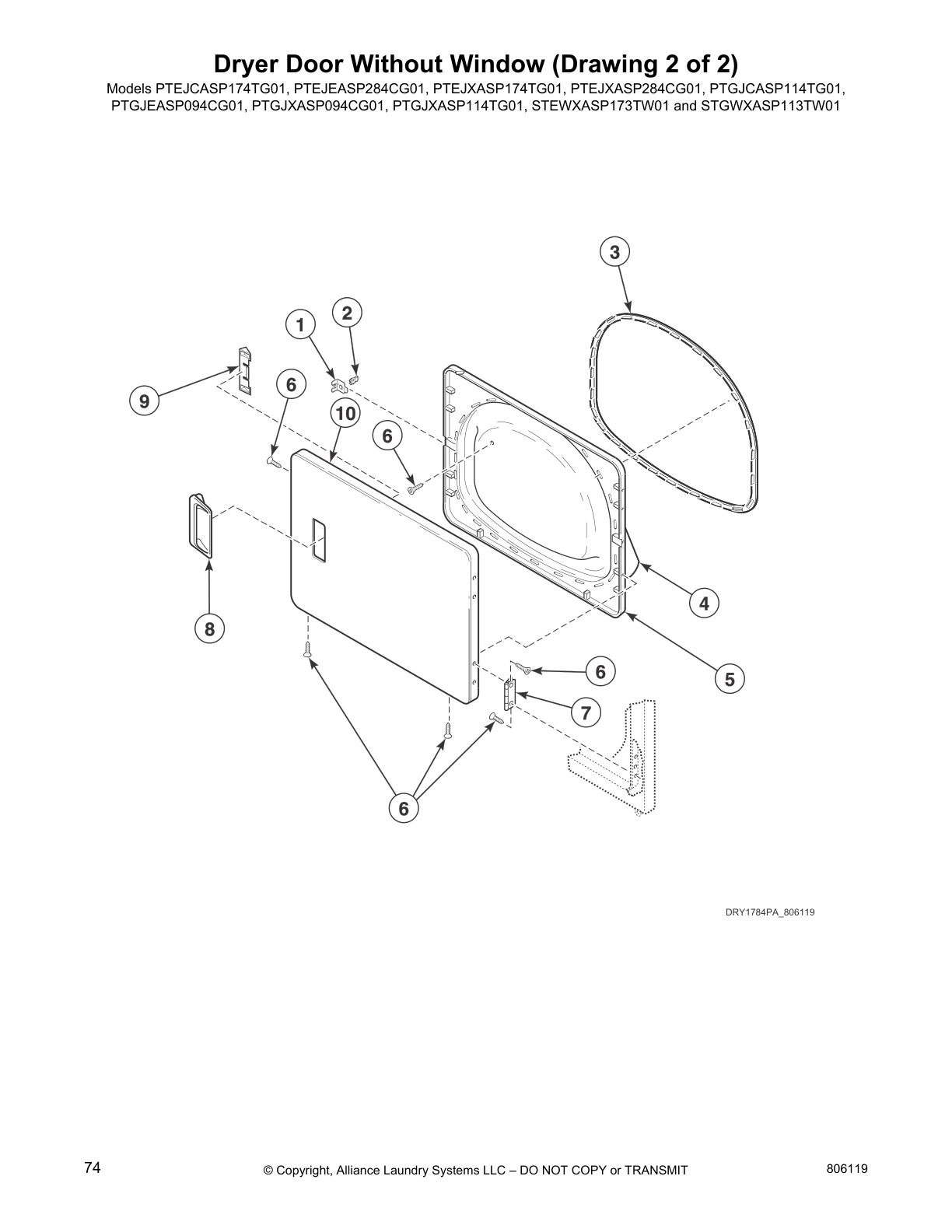

Dryer Door Without Window (Drawing 2 of 2)

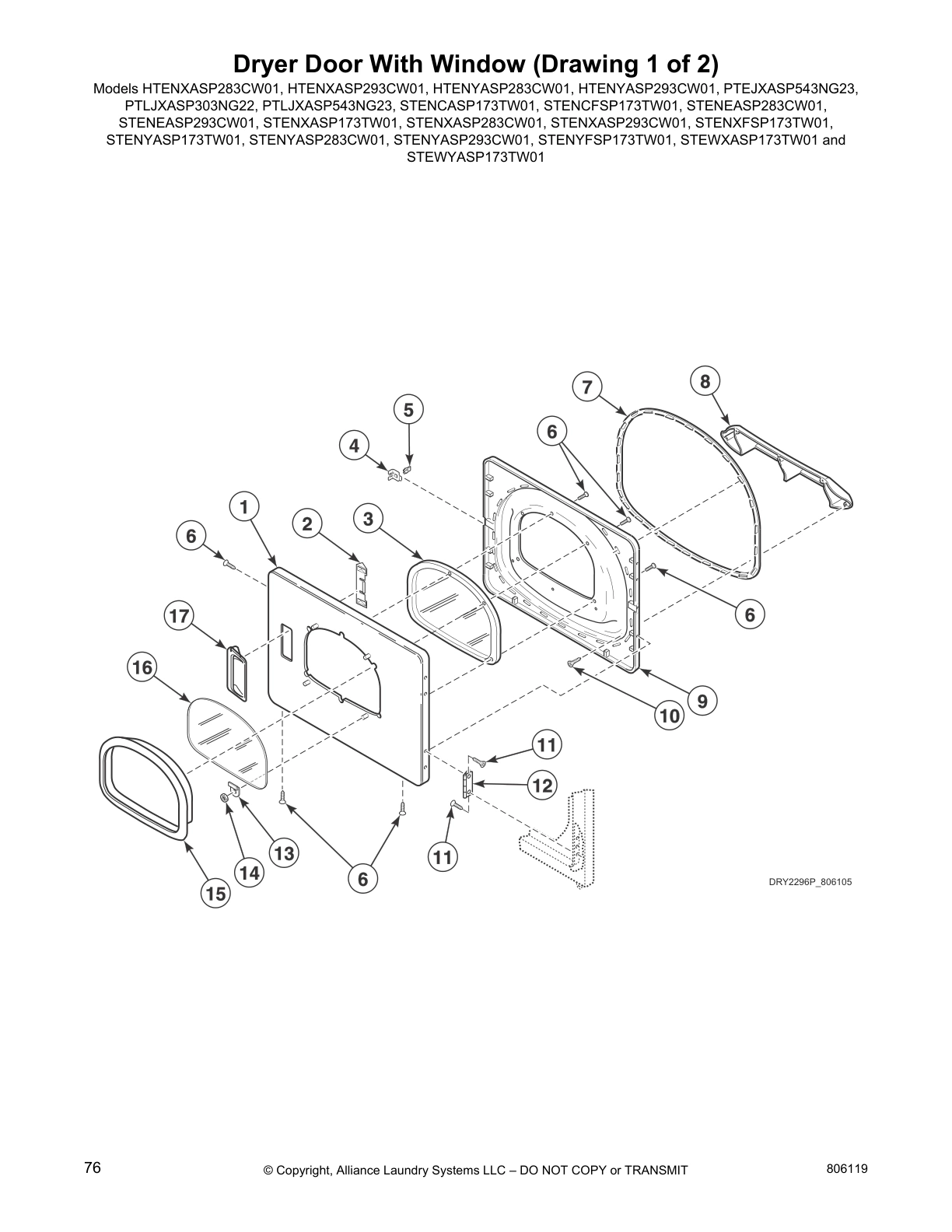

Dryer Door With Window (Drawing 1 of 2)

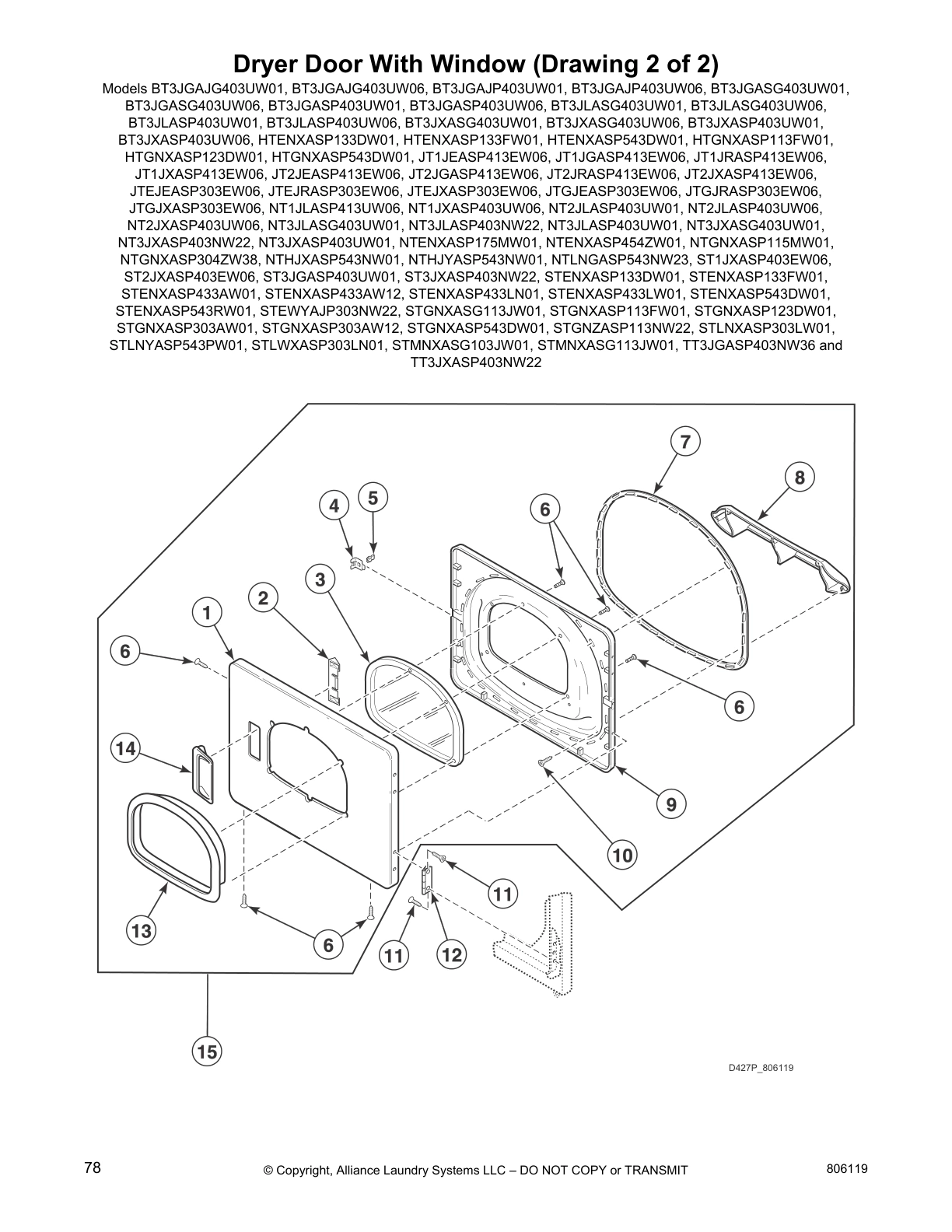

Dryer Door With Window (Drawing 2 of 2)
Dryer Door With Window - Through Serial No. 1706999999

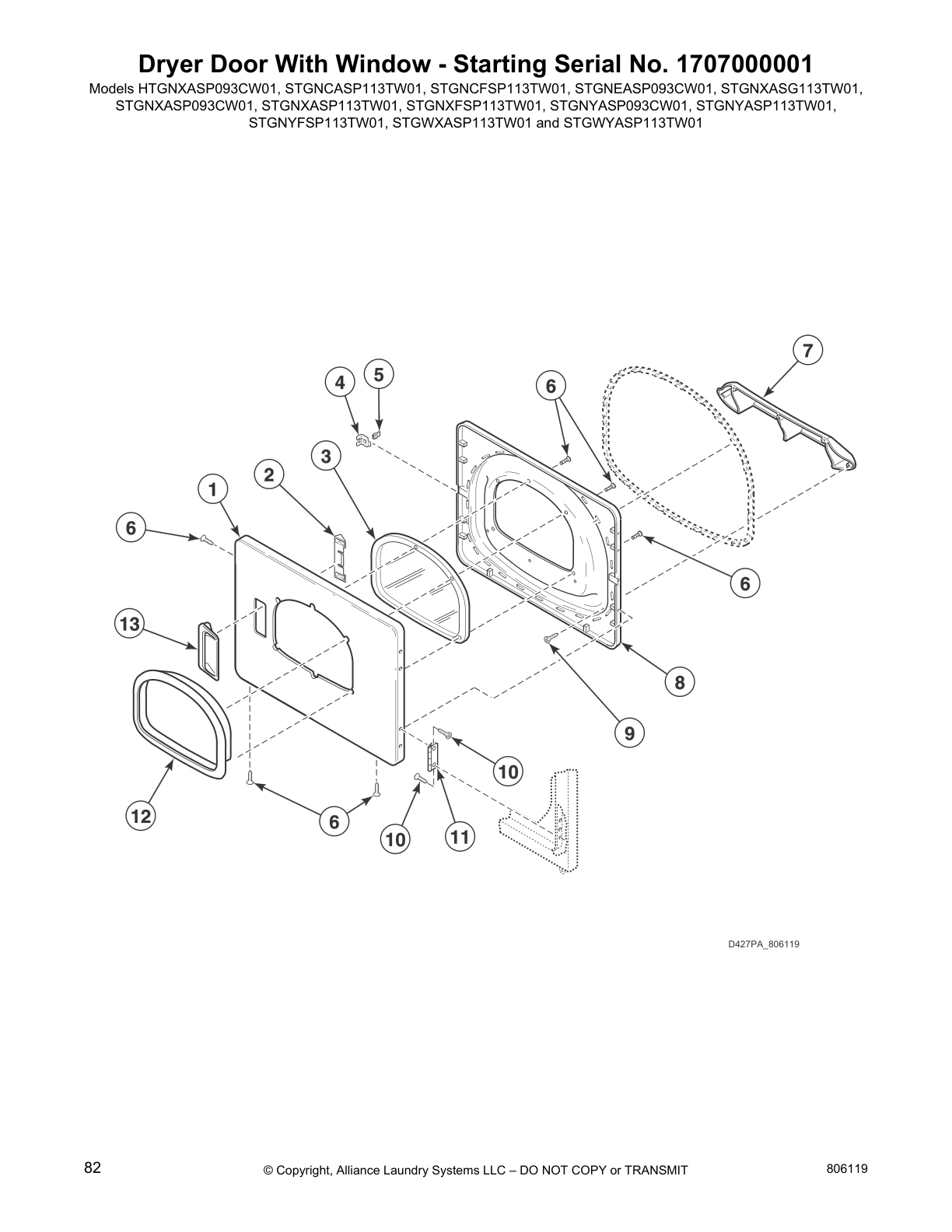

Dryer Door With Window - Starting Serial No. 1707000001

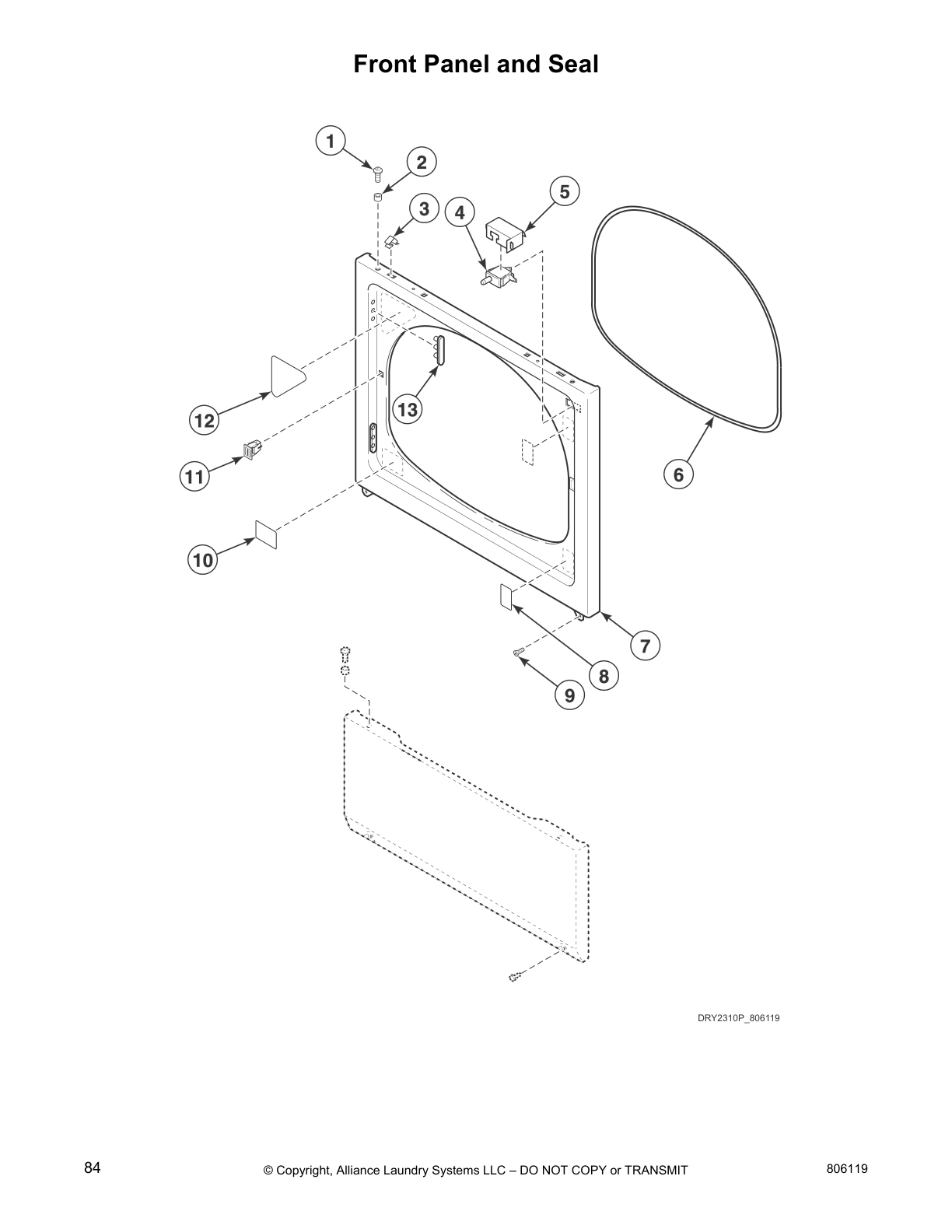

Front Panel and Seal

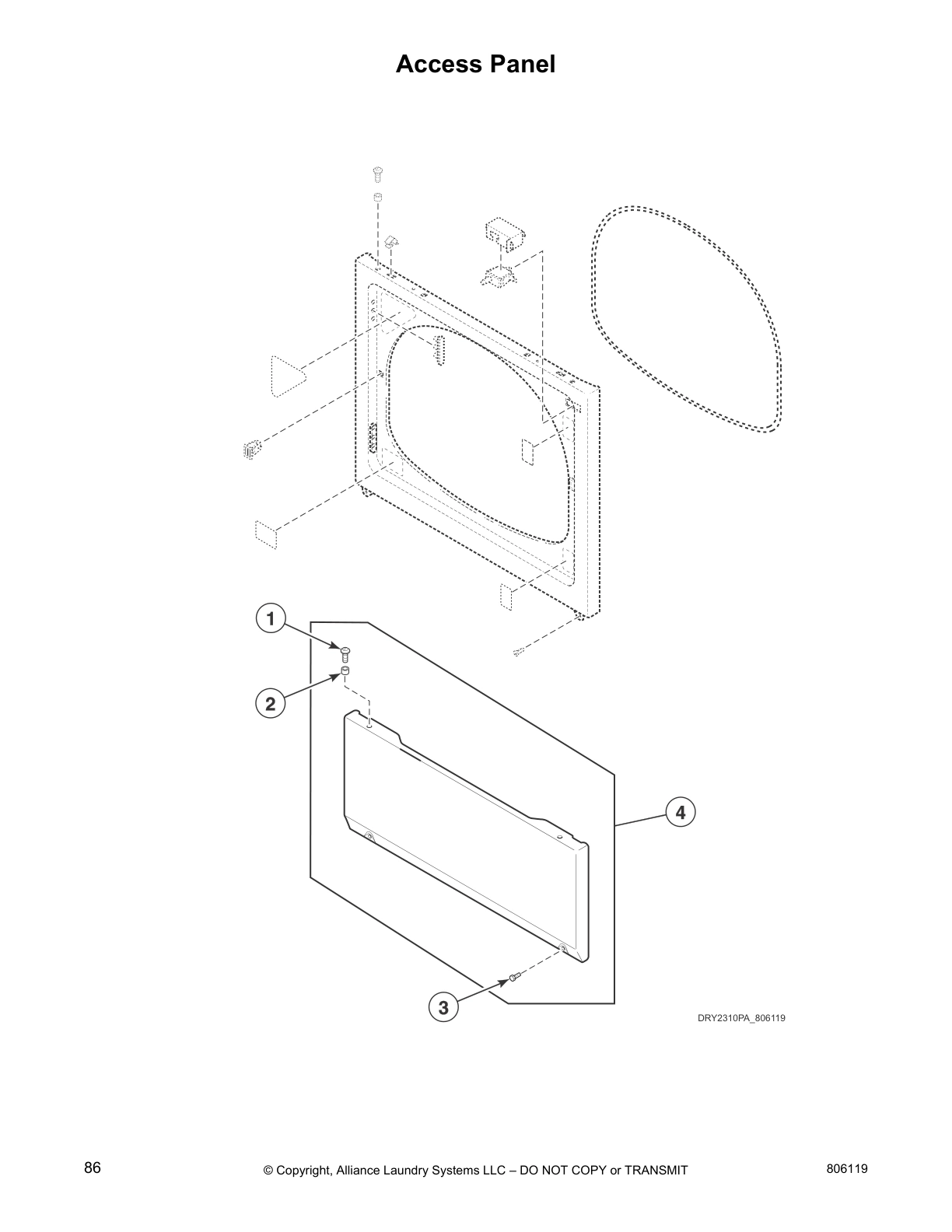

Access Panel

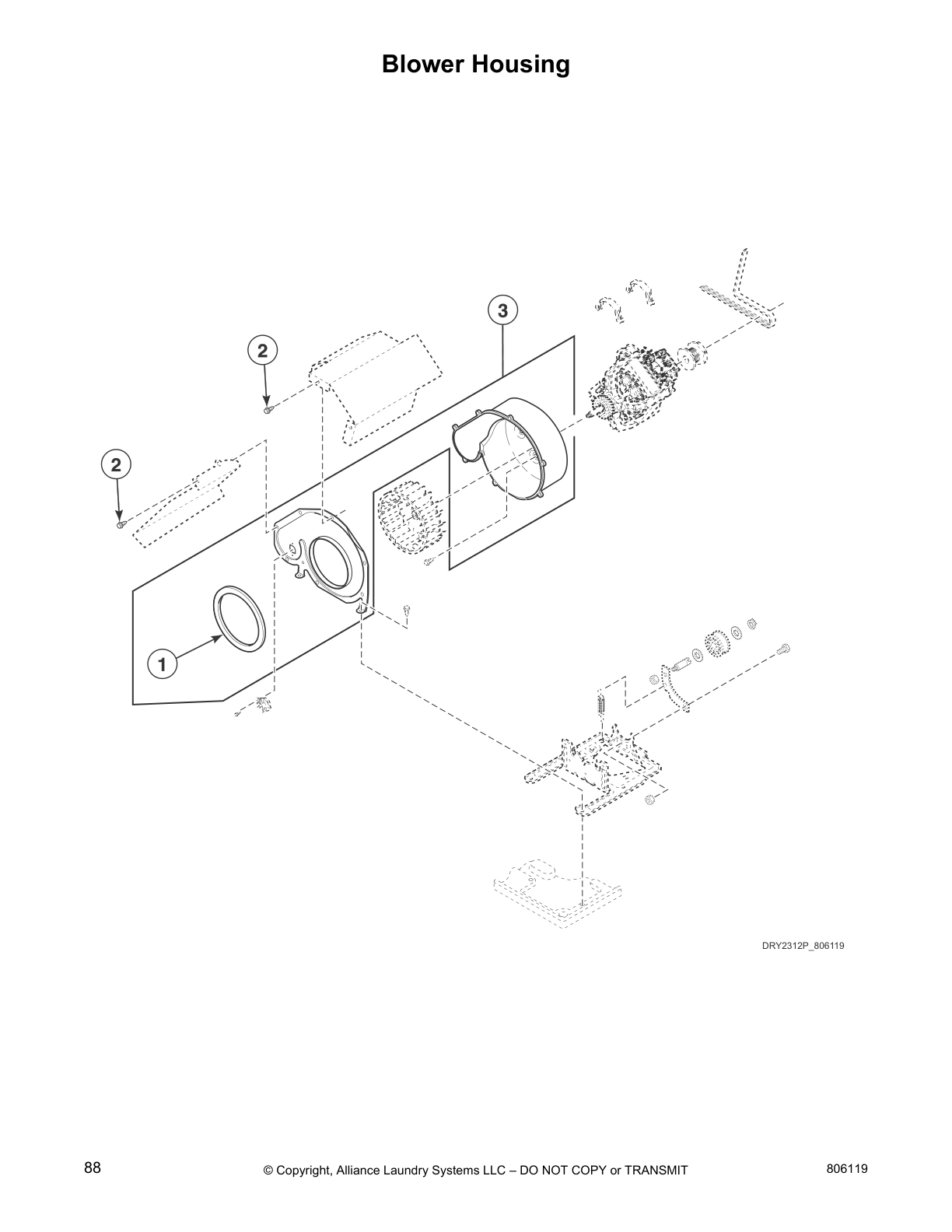

Blower Housing

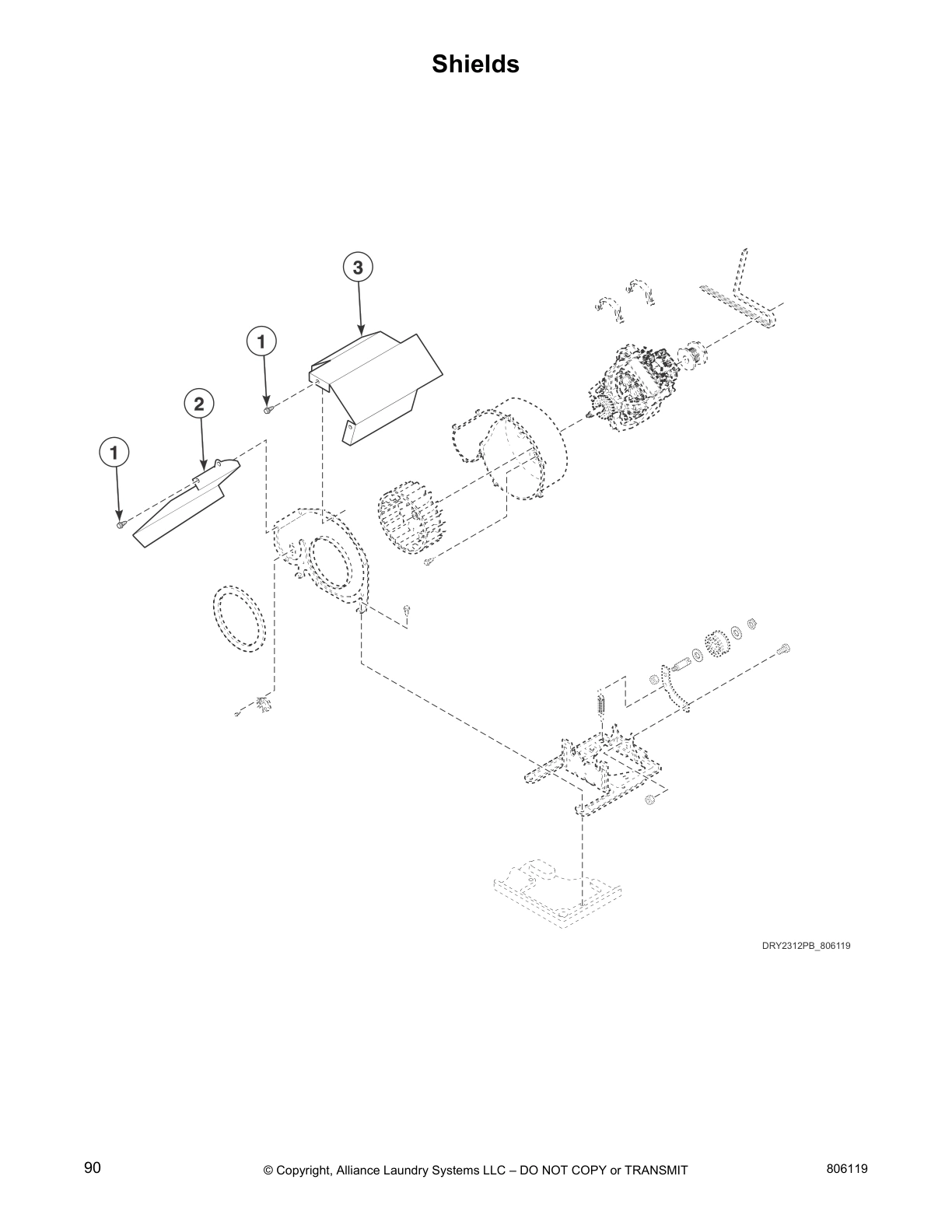

Shields

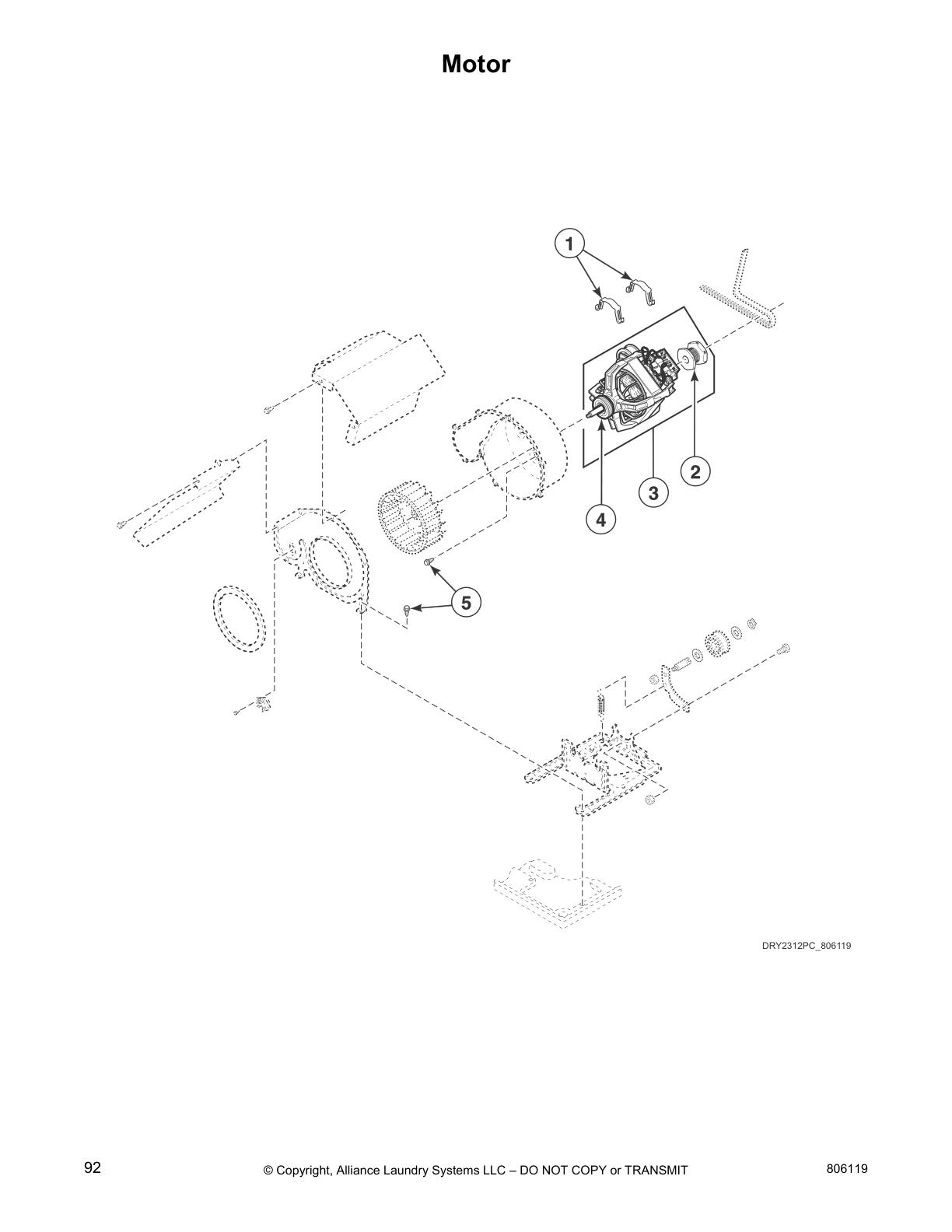

Motor

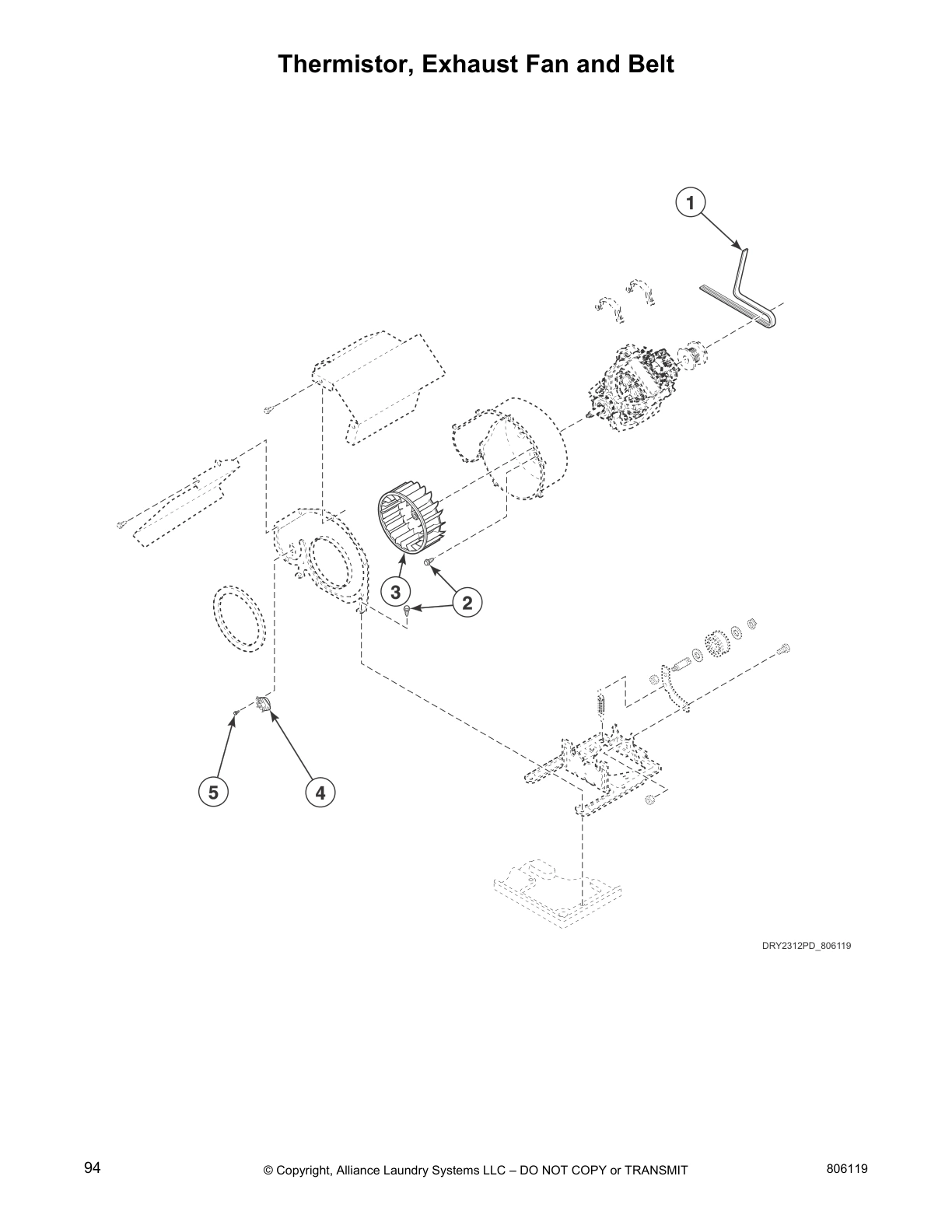

Thermistor, Exhaust Fan and Belt

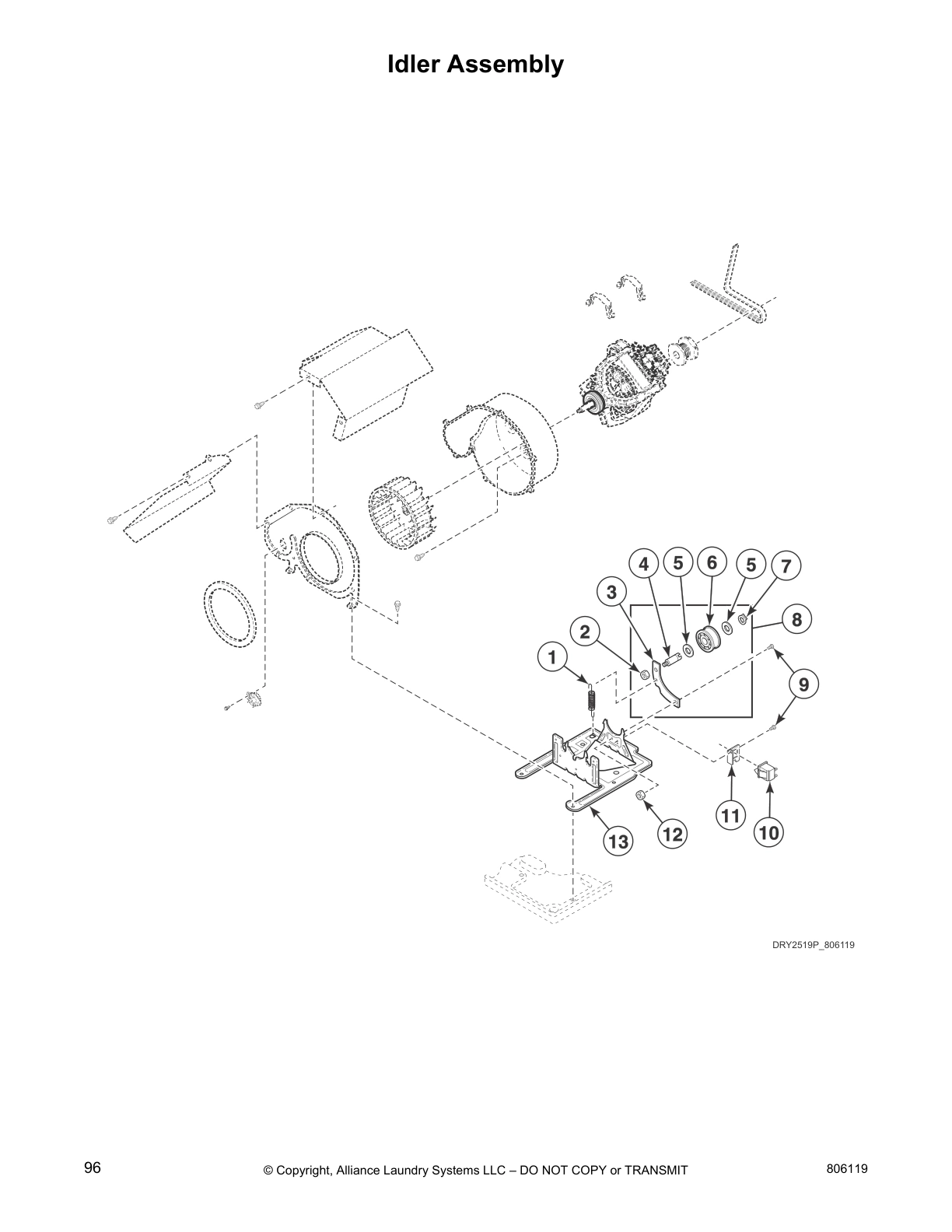

Idler Assembly

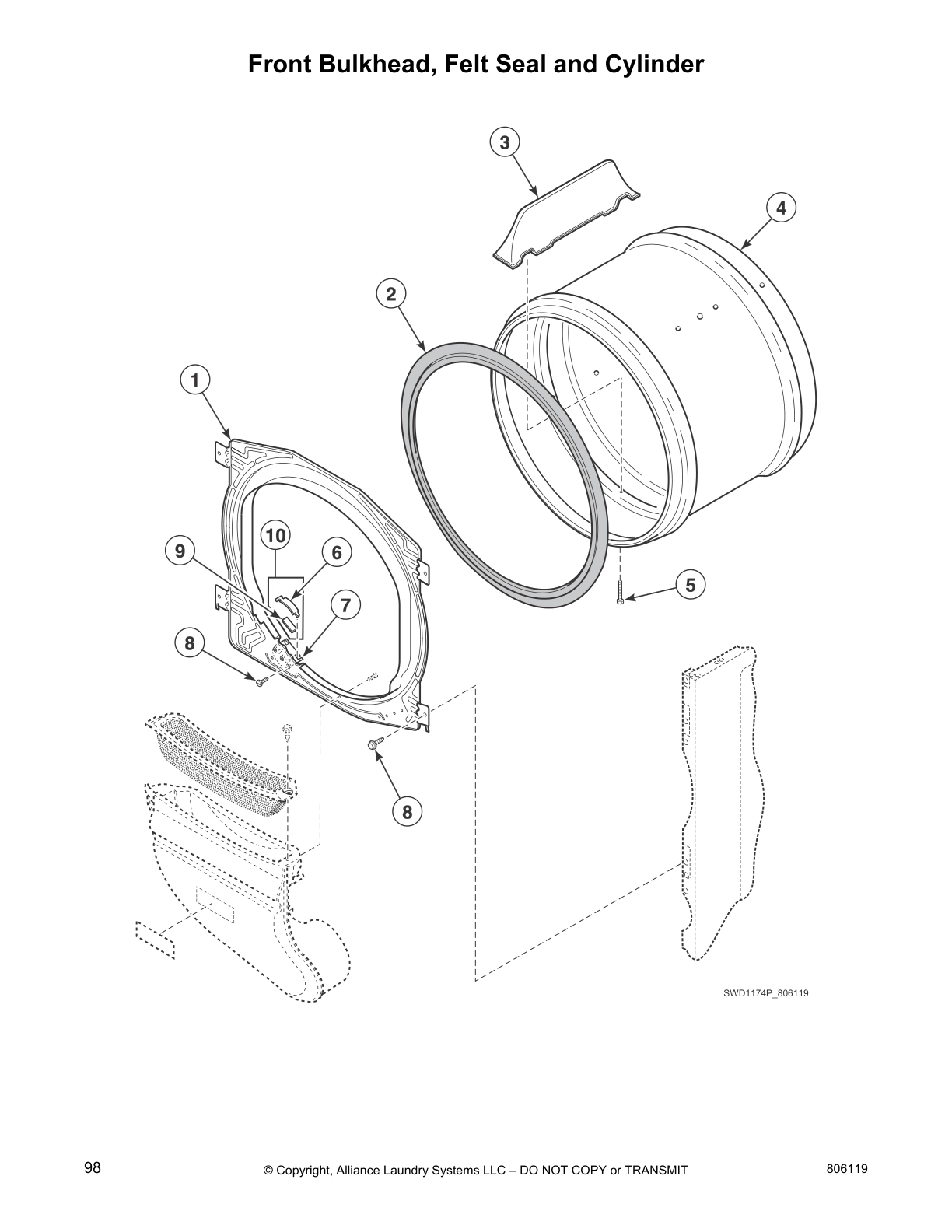

Front Bulkhead, Felt Seal and Cylinder

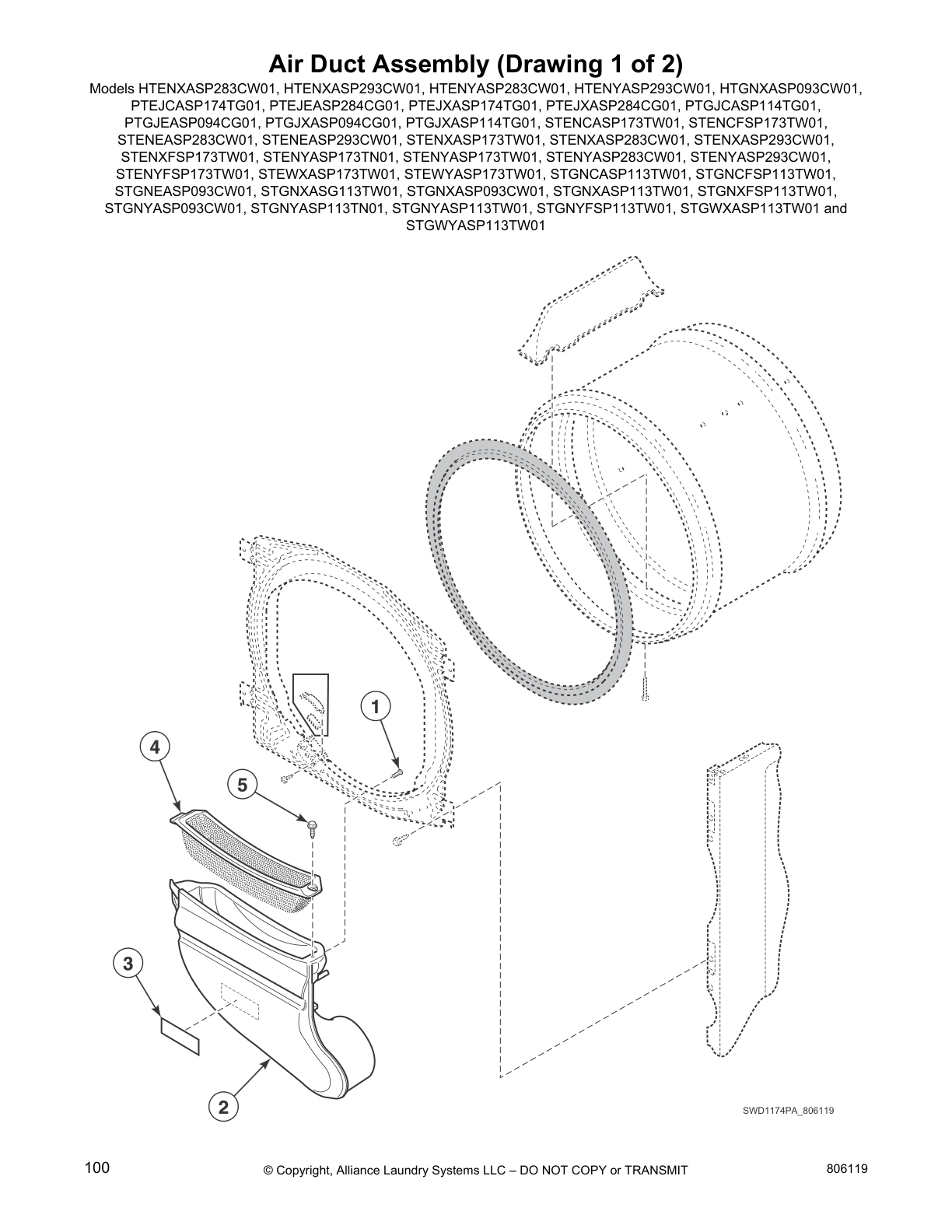

Air Duct Assembly (Drawing 1 of 2)

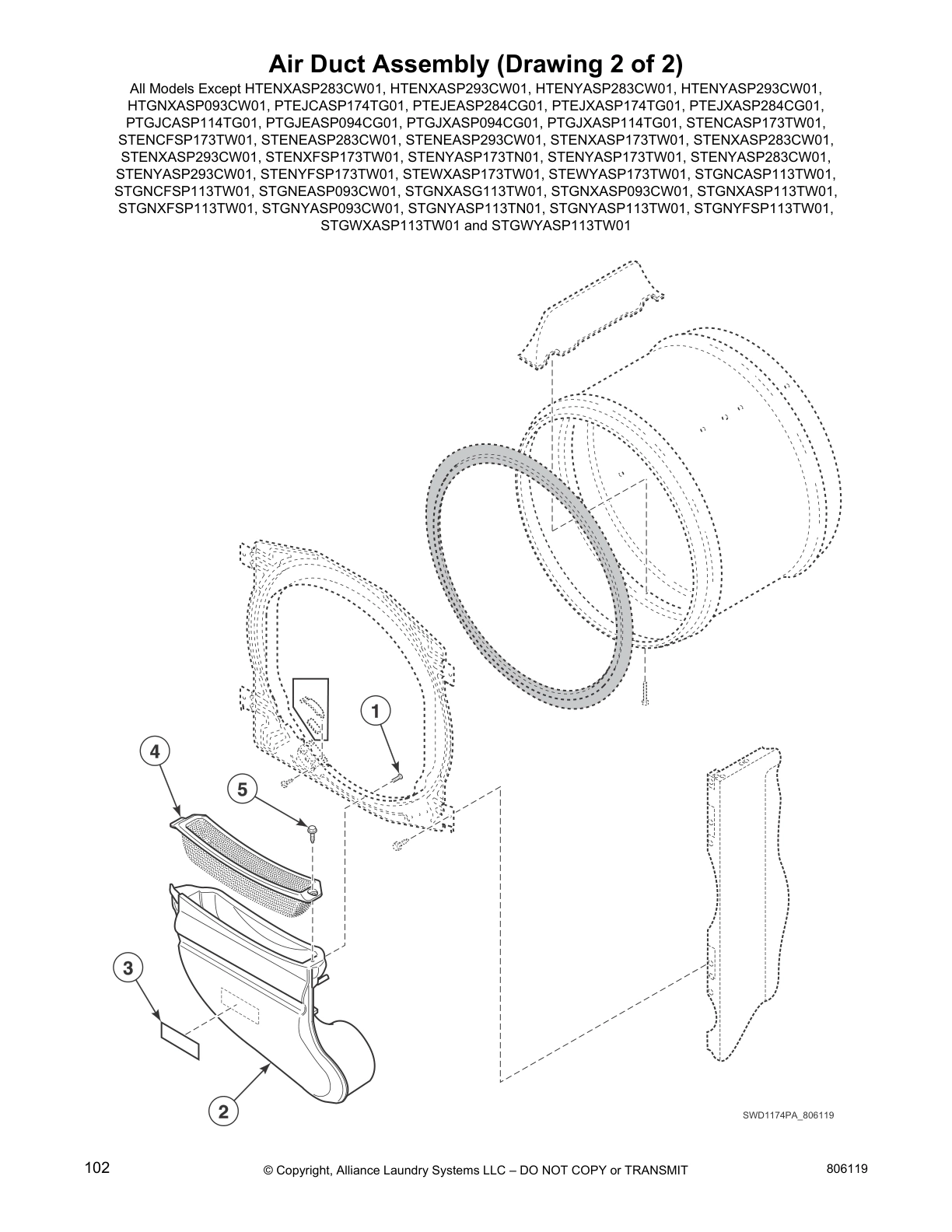

Air Duct Assembly (Drawing 2 of 2)
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

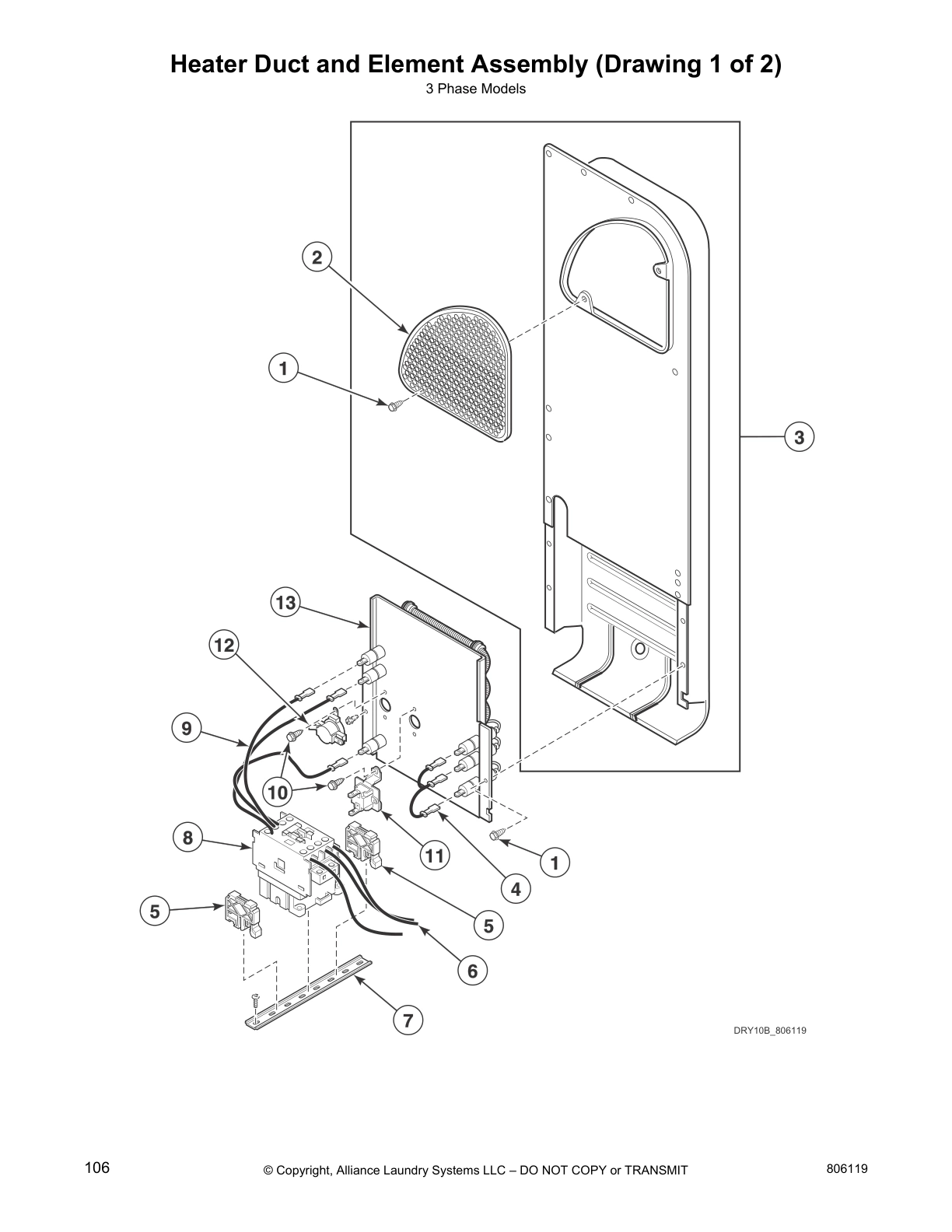

Heater Duct and Element Assembly (Drawing 1 of 2)

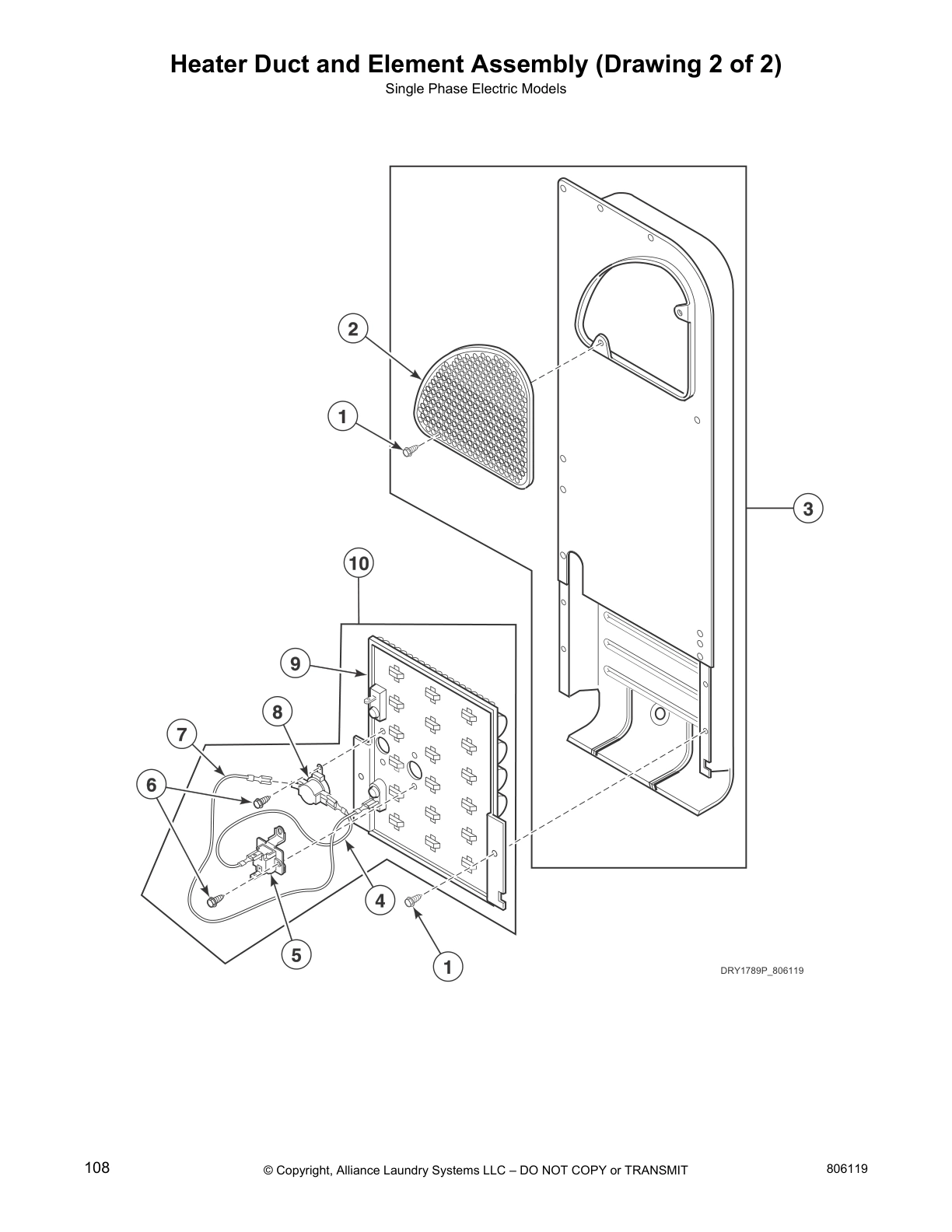

Heater Duct and Element Assembly (Drawing 2 of 2)
Heater Duct Assembly

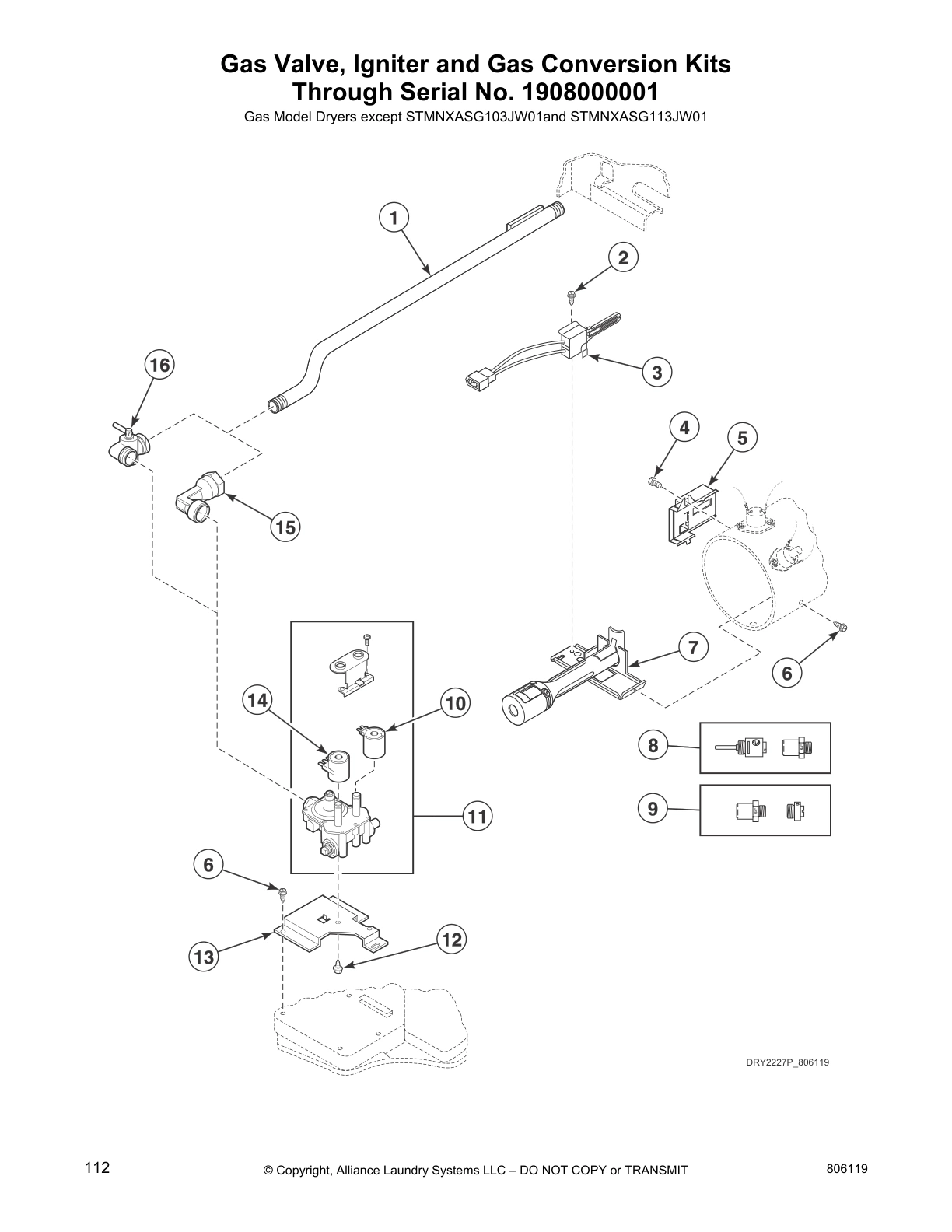

Gas Valve, Igniter and Gas Conversion Kits
Through Serial No. 1908000001
Gas Valve, Igniter and Gas Conversion Kits
Starting Serial No. 1908000001

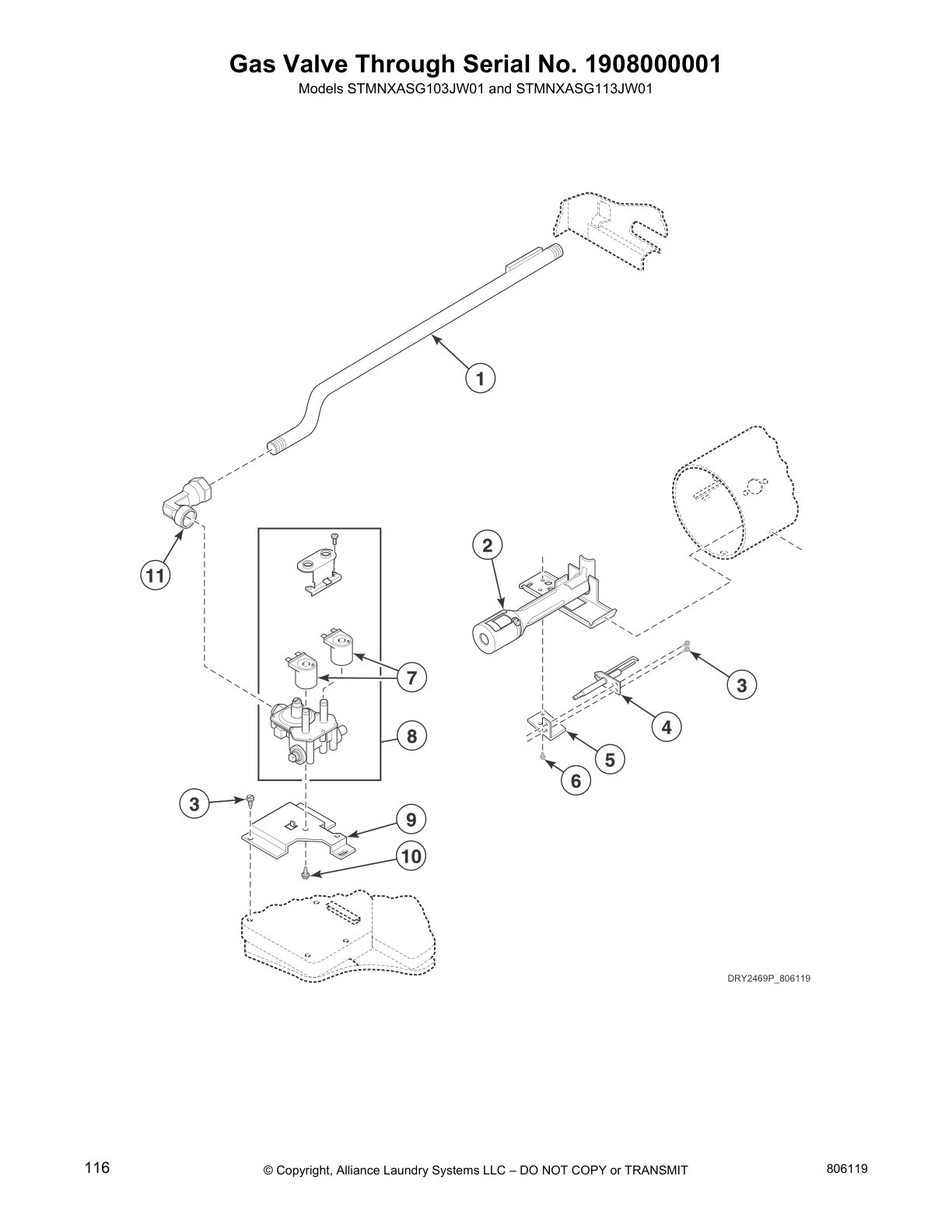

Gas Valve Through Serial No. 1908000001

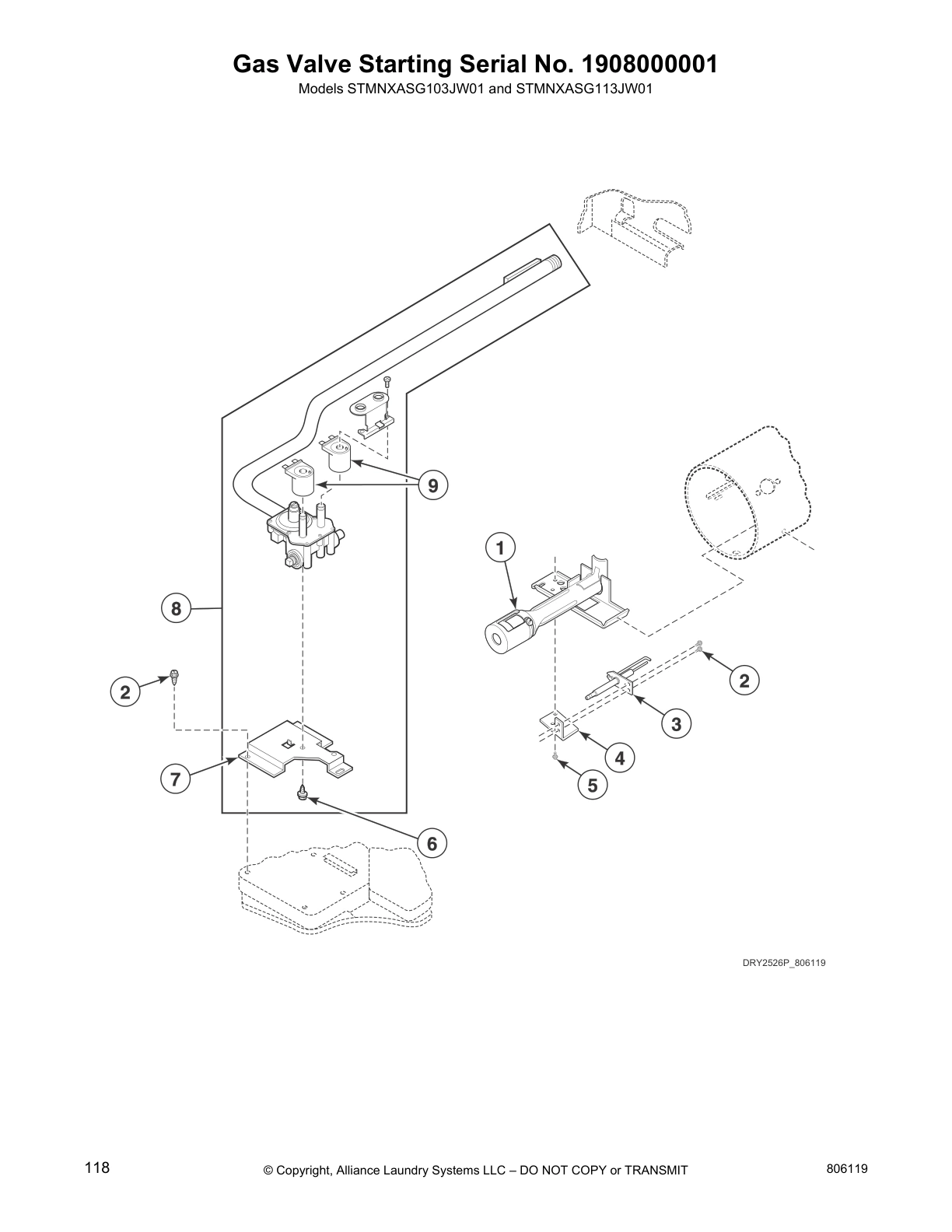

Gas Valve Starting Serial No. 1908000001

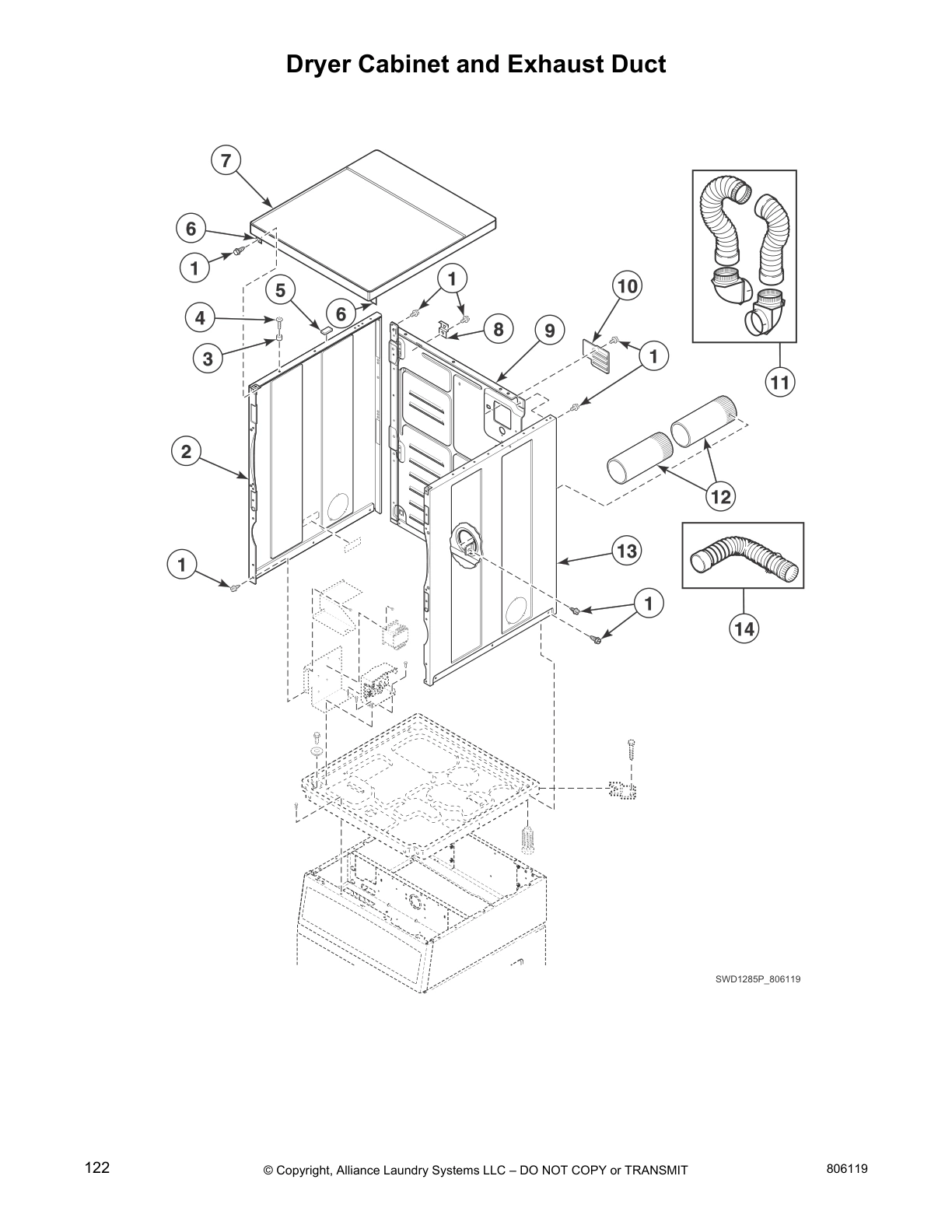

Dryer Cabinet and Exhaust Duct

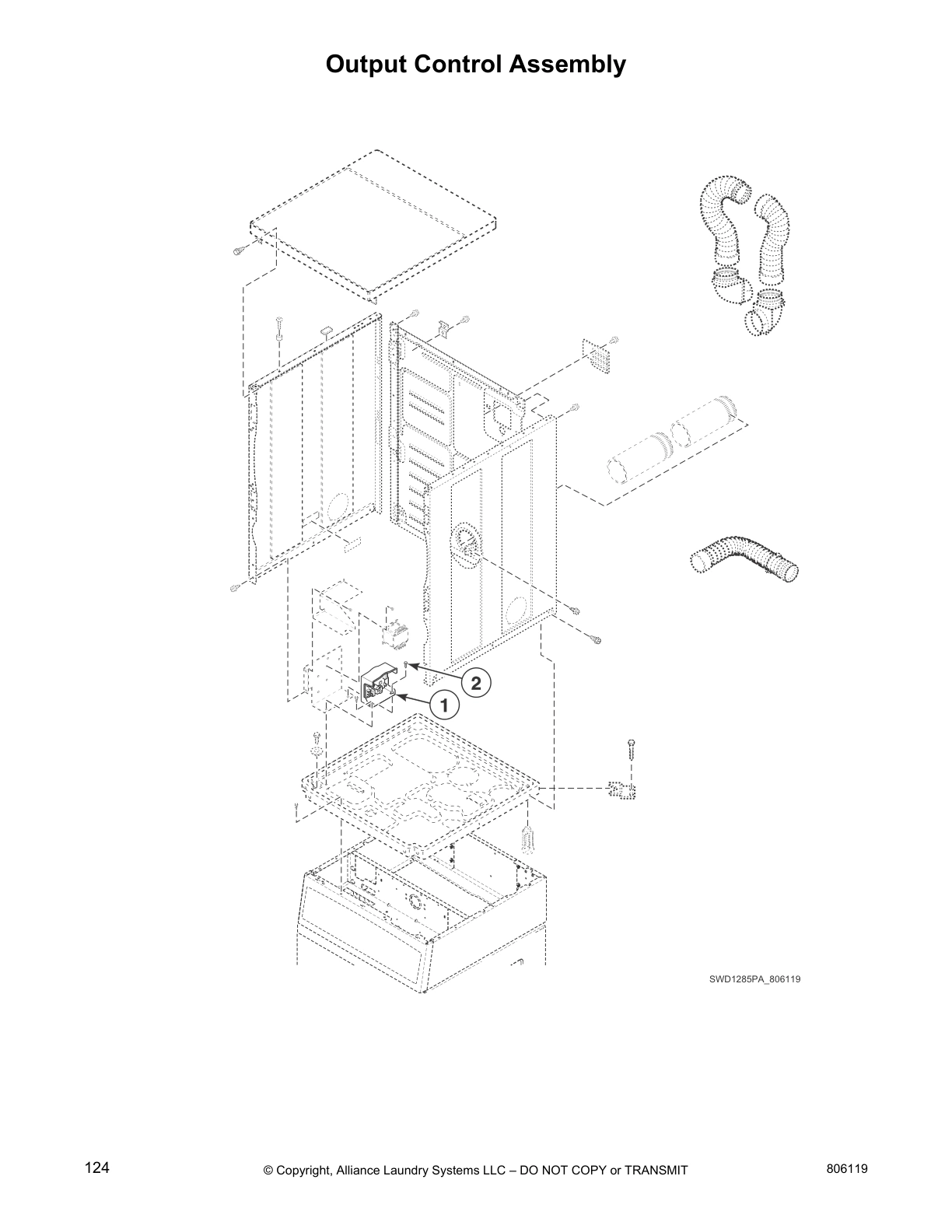

Output Control Assembly

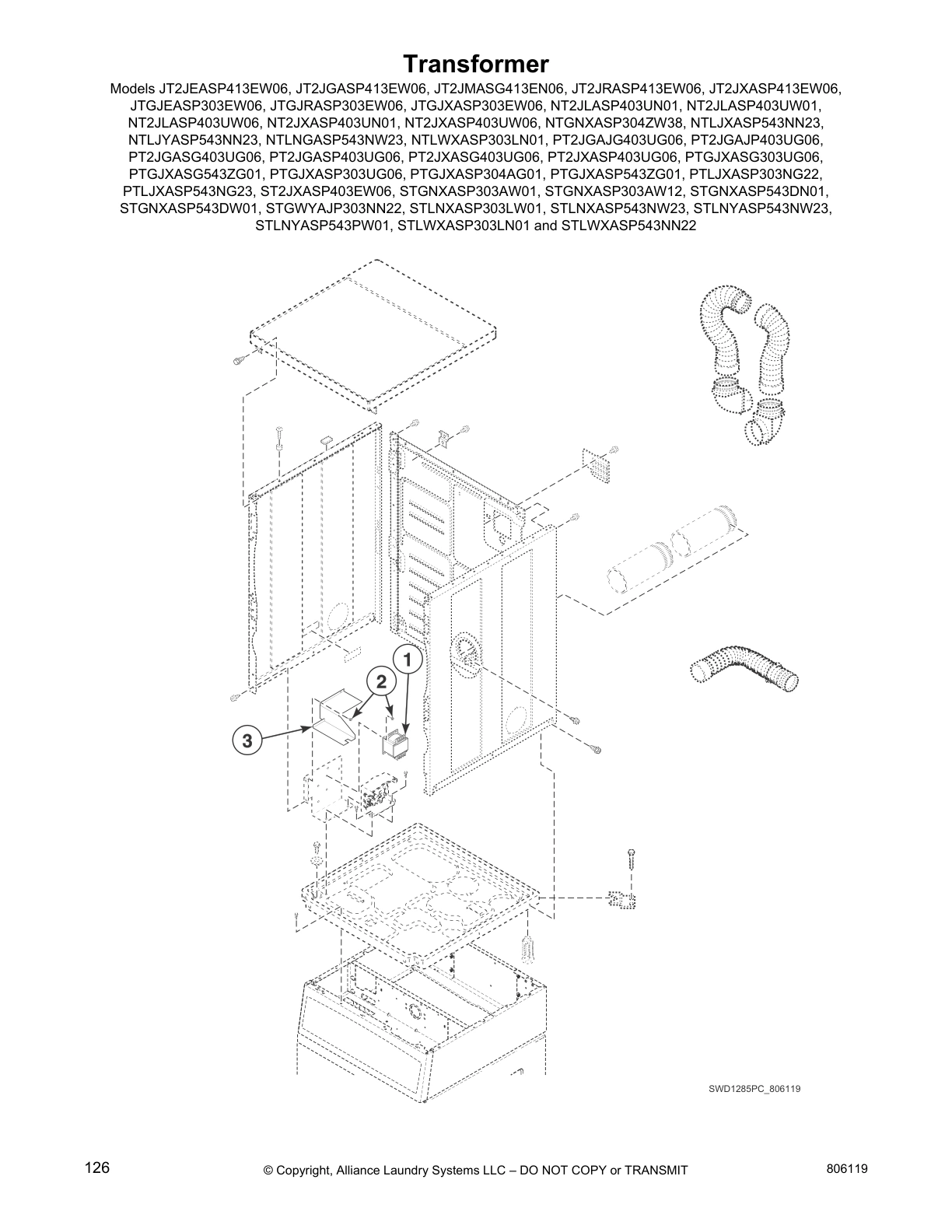

Transformer

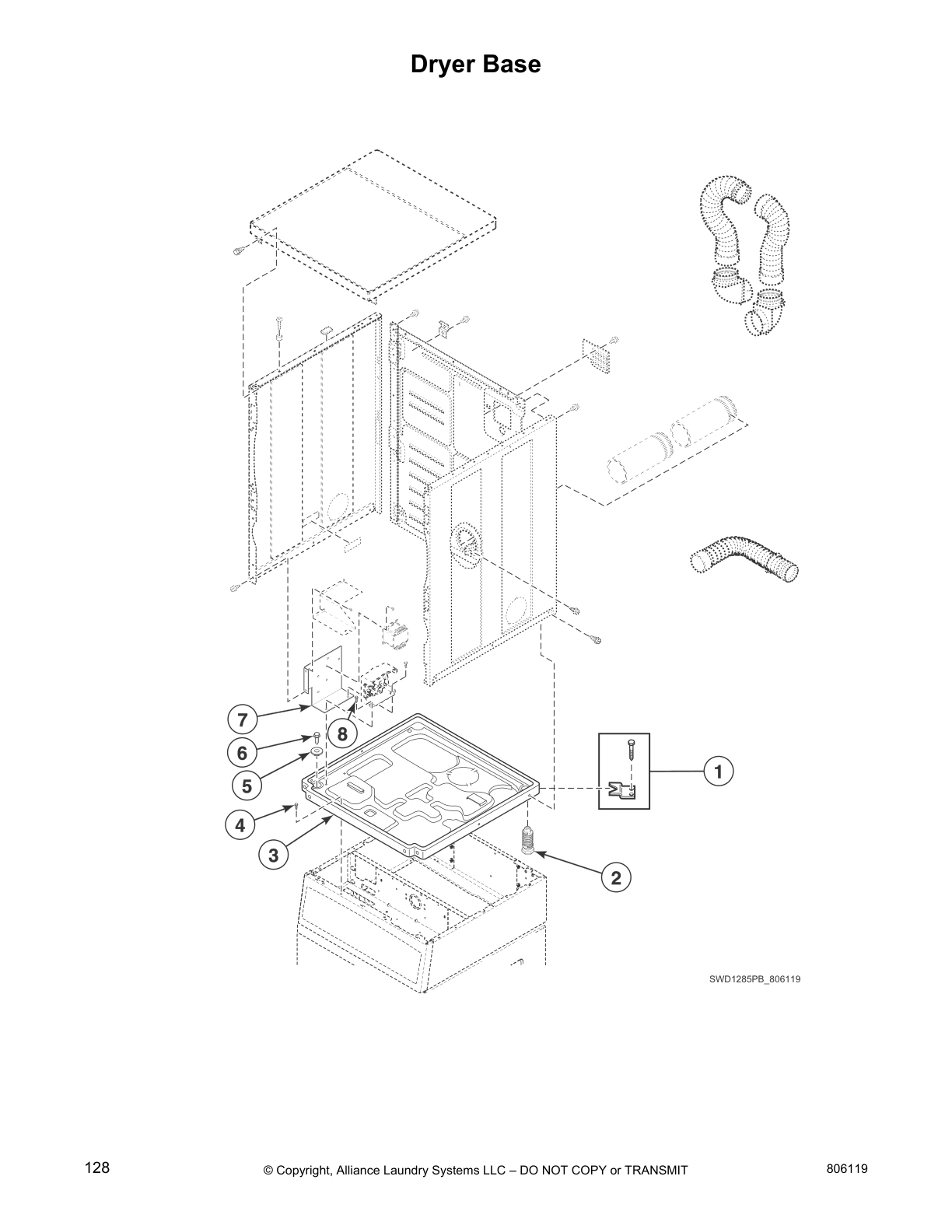

Dryer Base
Ignition Control Module

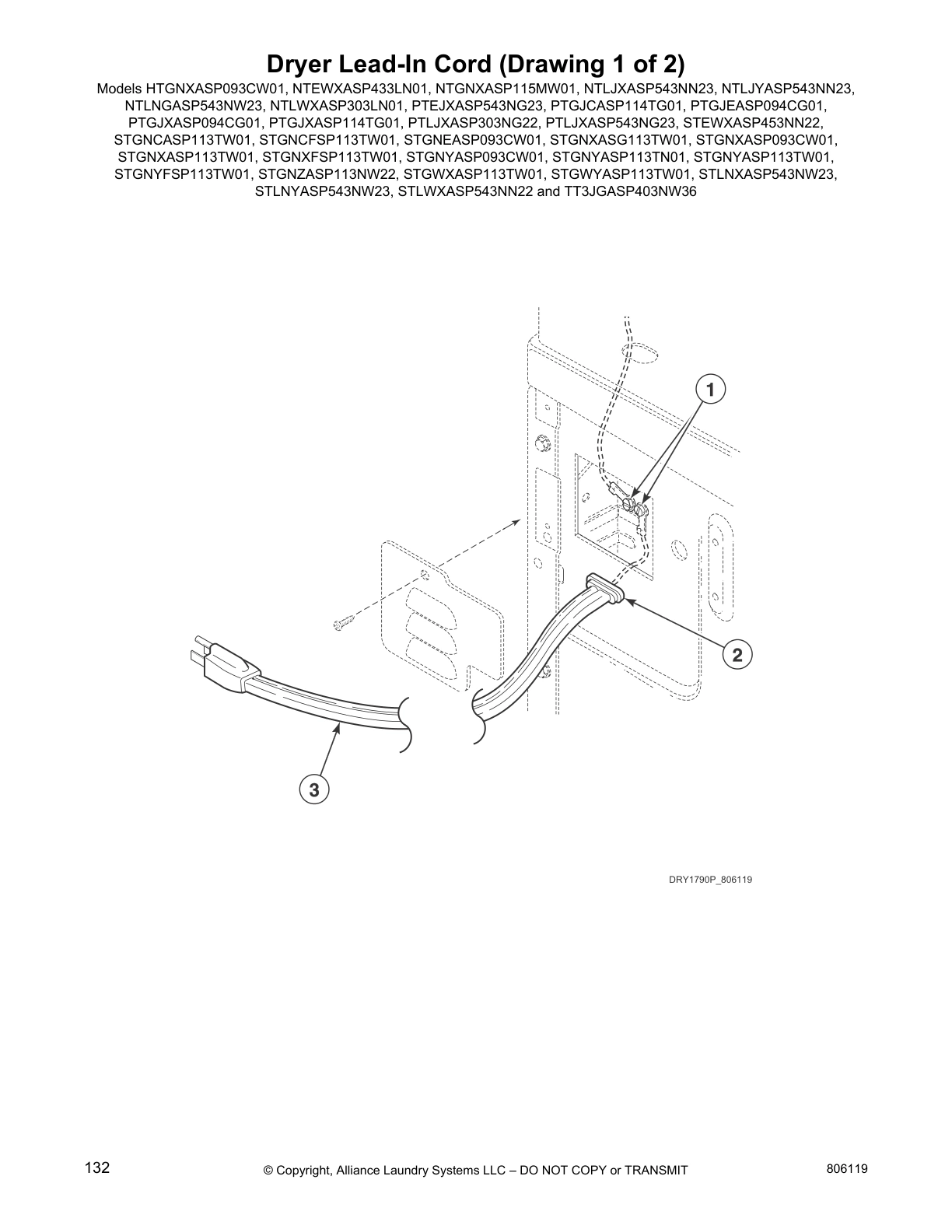

Dryer Lead-In Cord (Drawing 1 of 2)

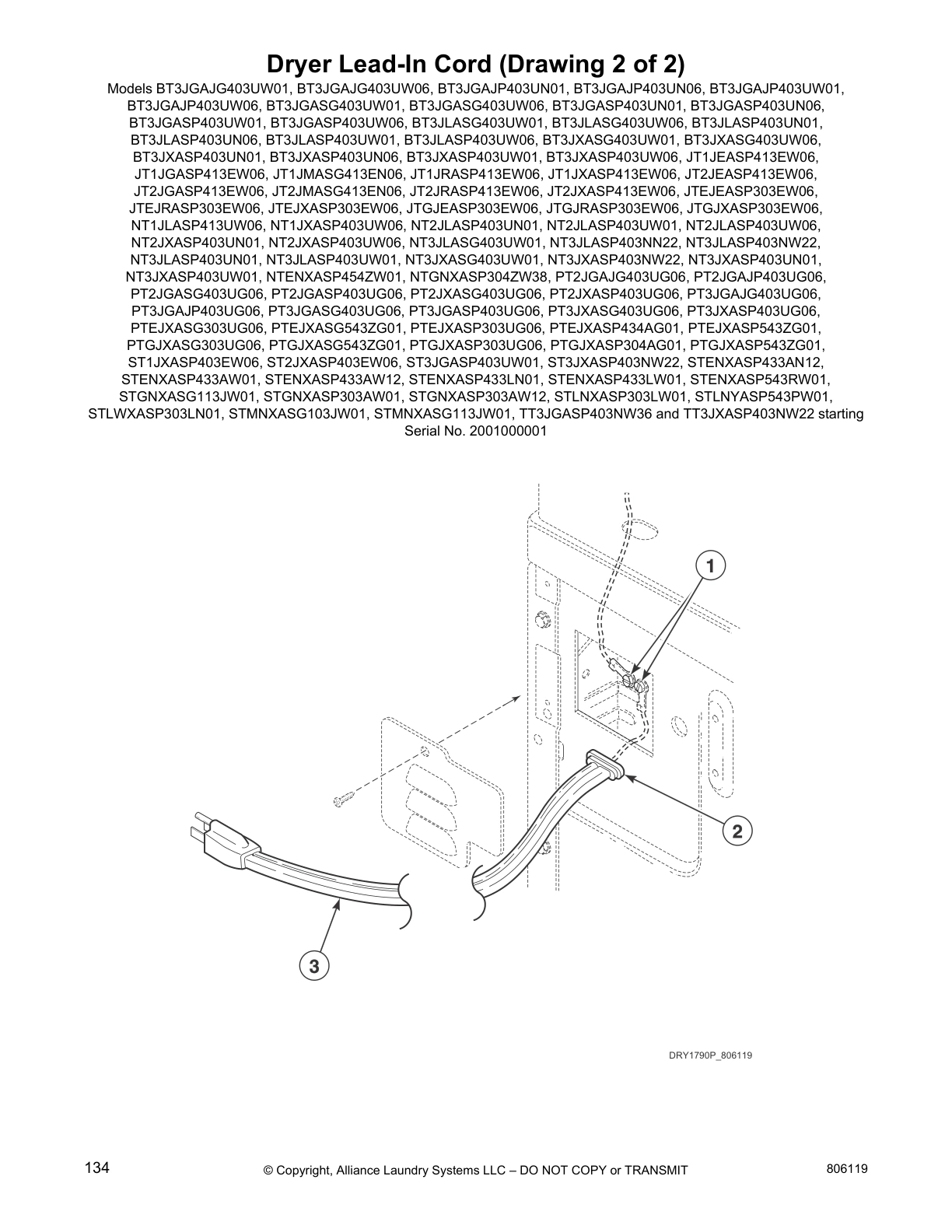

Dryer Lead-In Cord (Drawing 2 of 2)

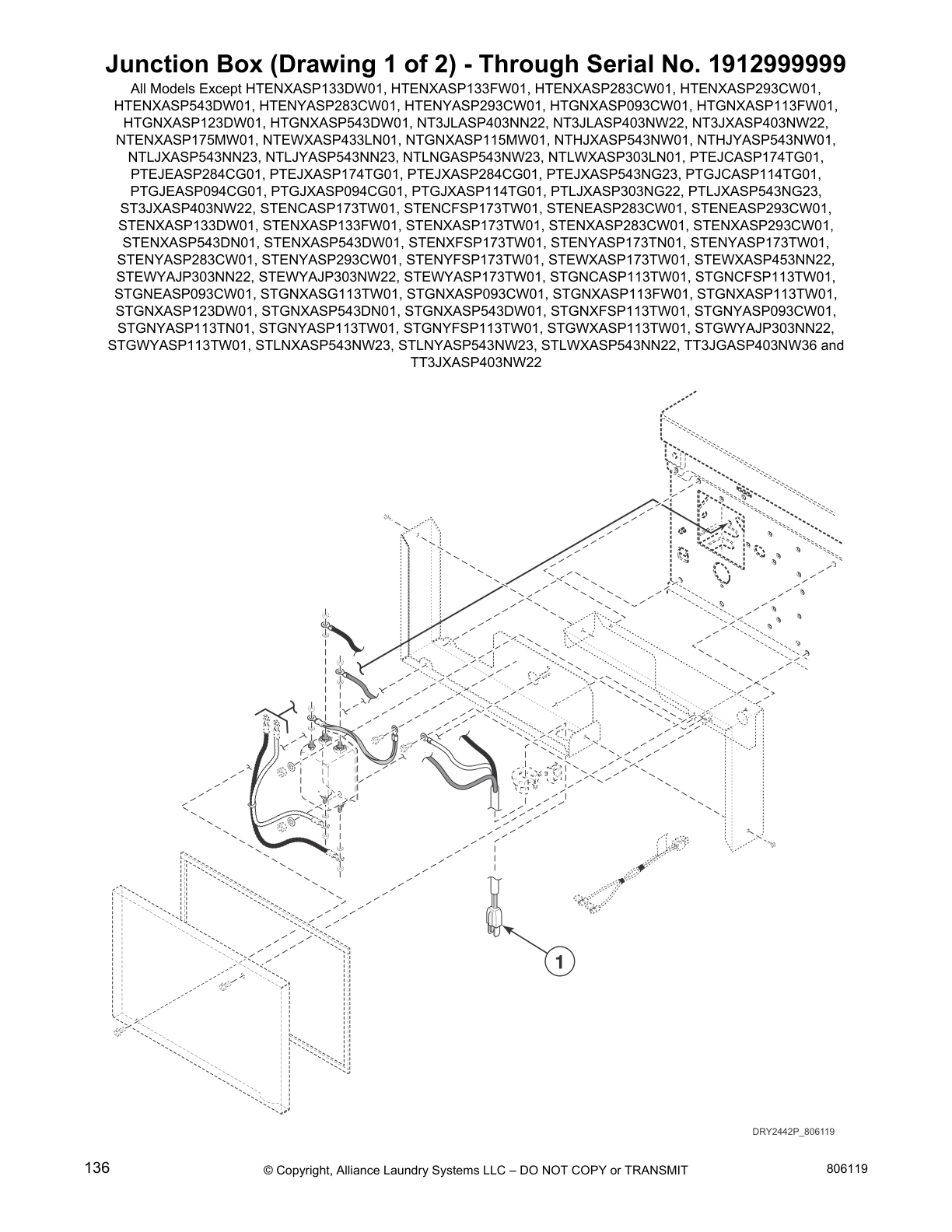

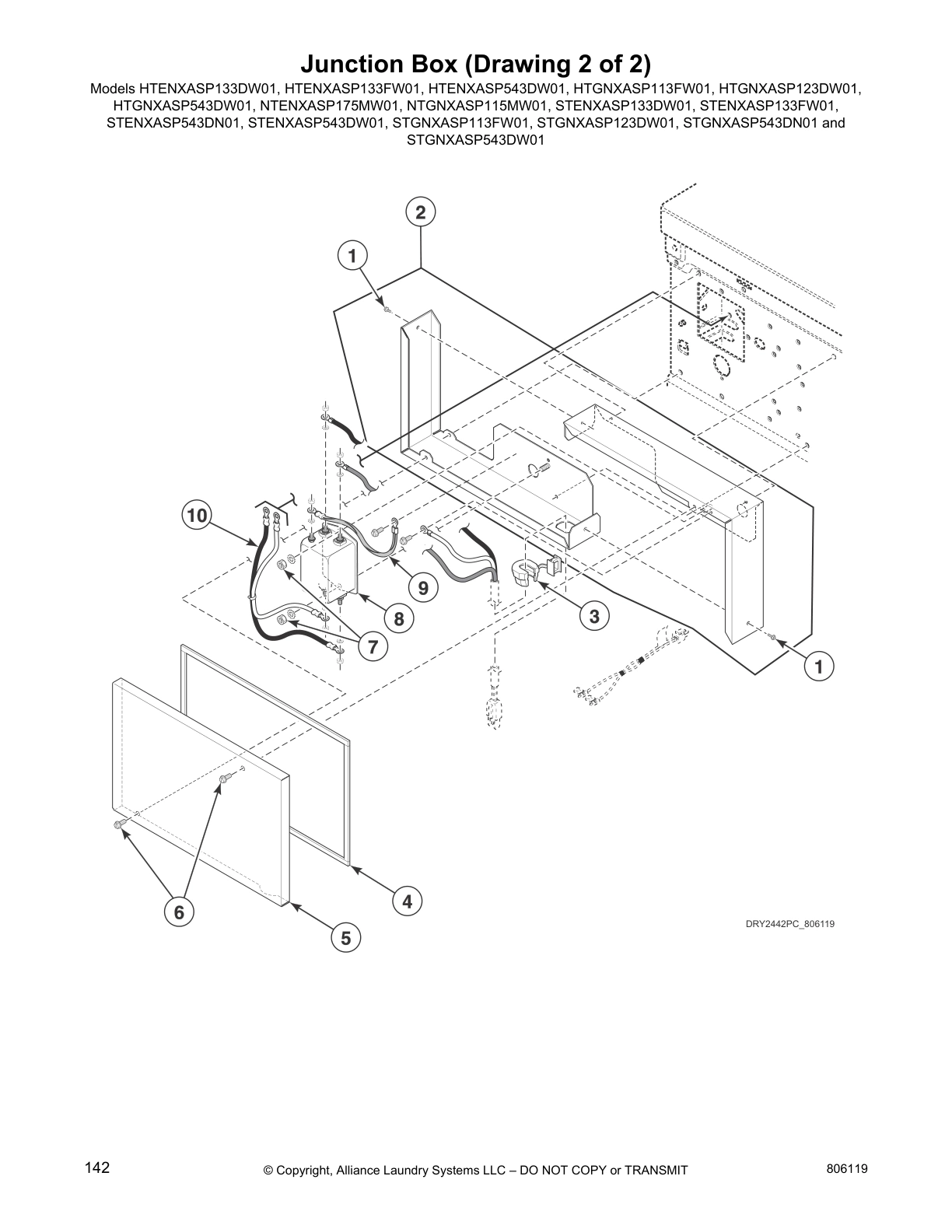

Junction Box (Drawing 1 of 2) - Through Serial No. 1912999999

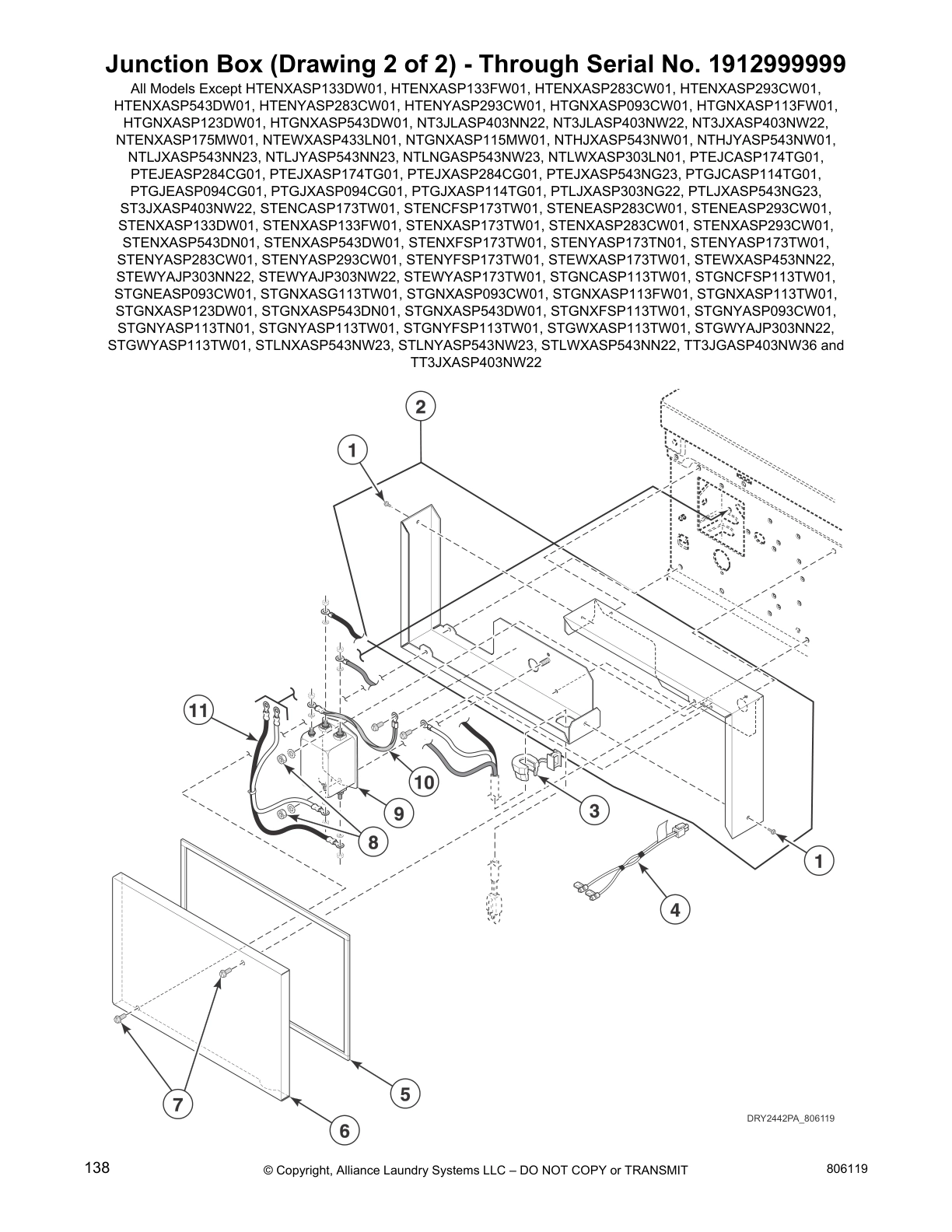

Junction Box (Drawing 2 of 2) - Through Serial No. 1912999999

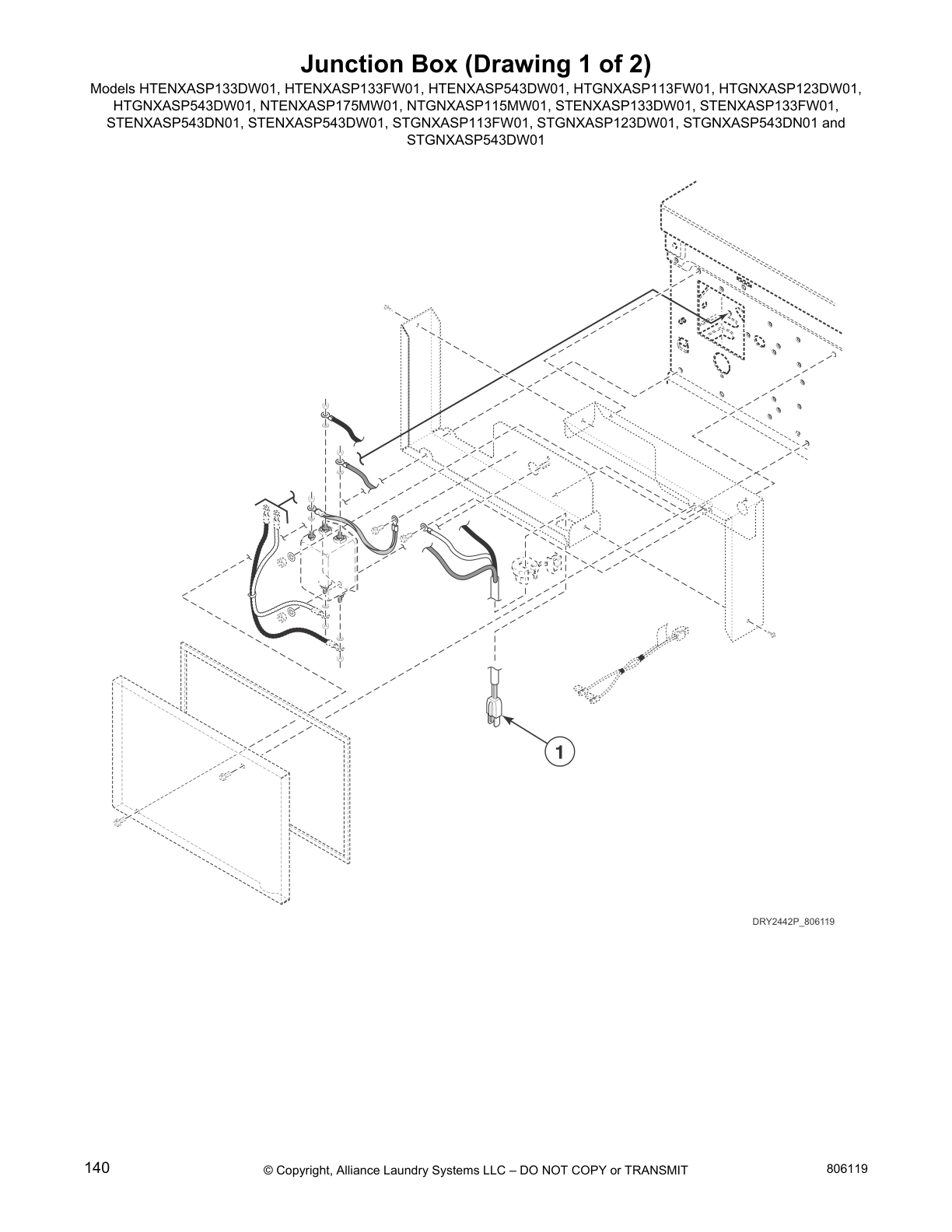

Junction Box (Drawing 1 of 2)
Junction Box (Drawing 2 of 2)
Dryer Terminals and Terminal Extractor Tools

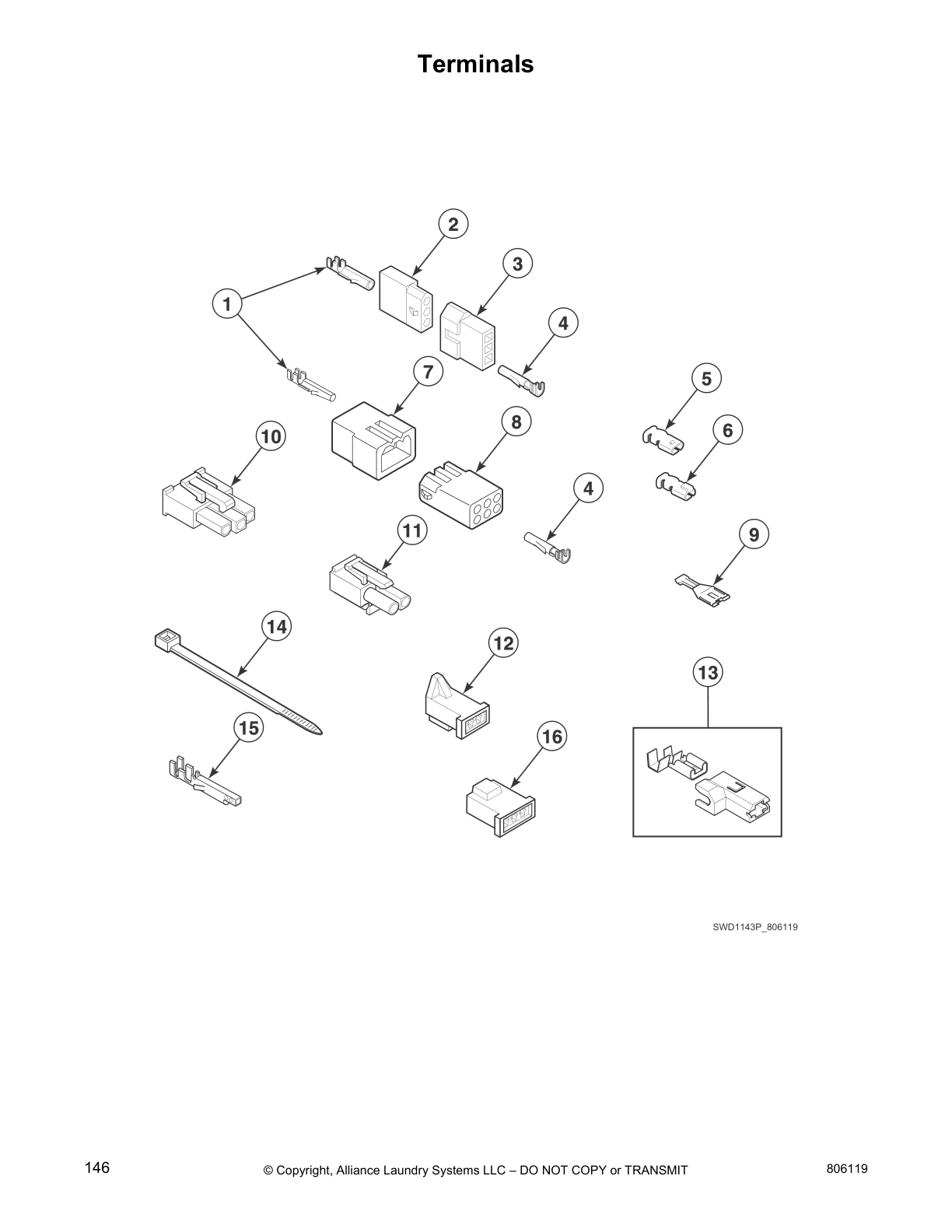

Terminals
Dryer Labels

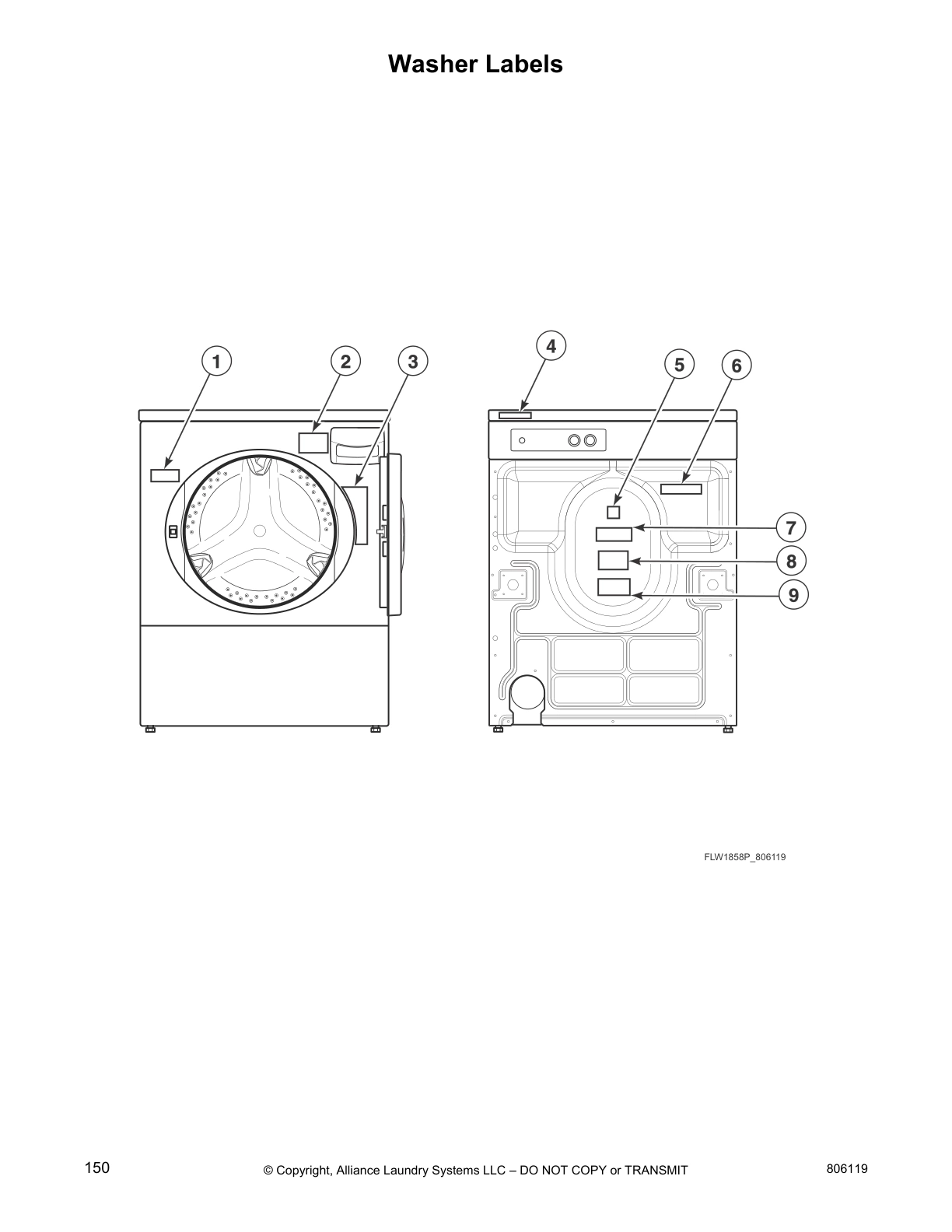

Washer Labels
Shipping Materials
Special Tools

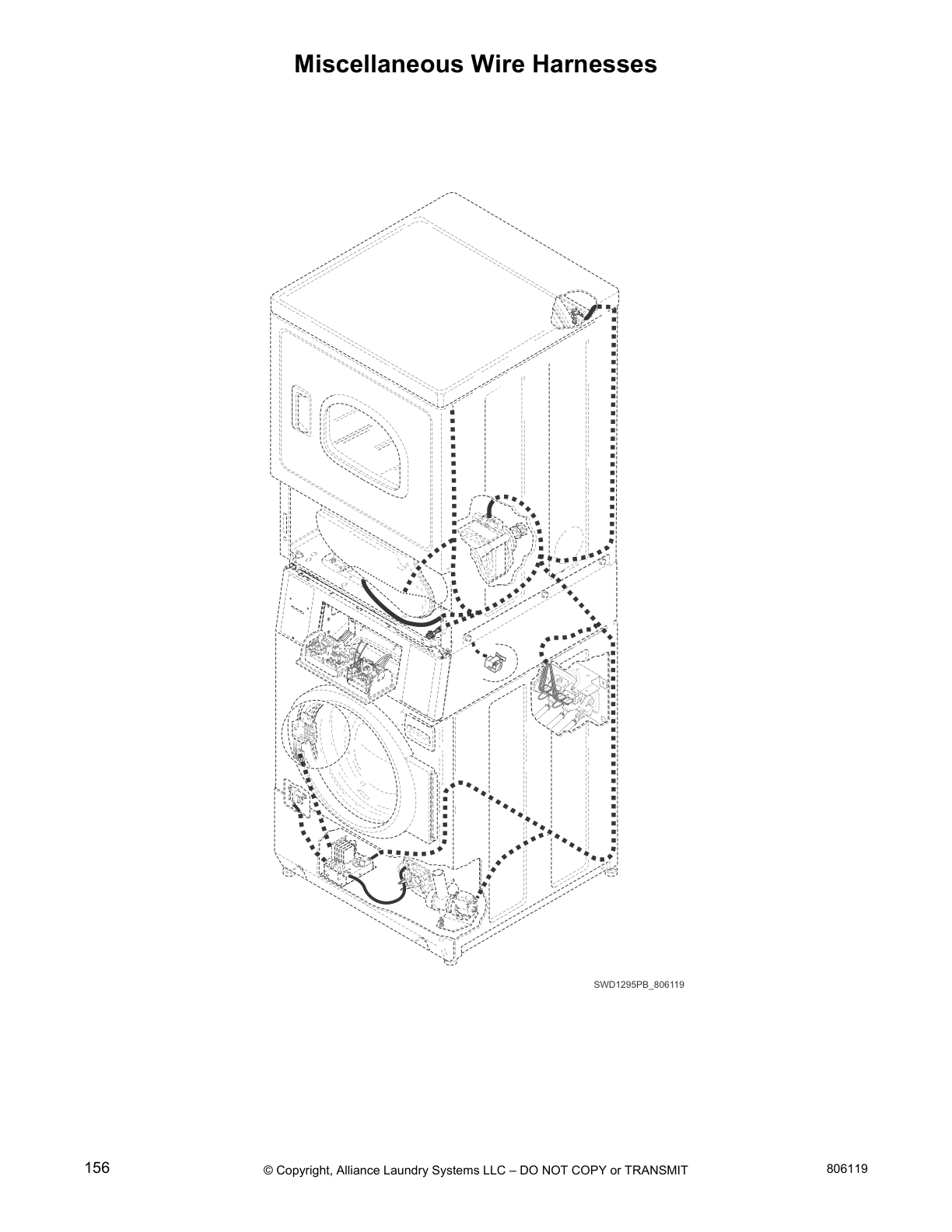

Miscellaneous Wire Harnesses

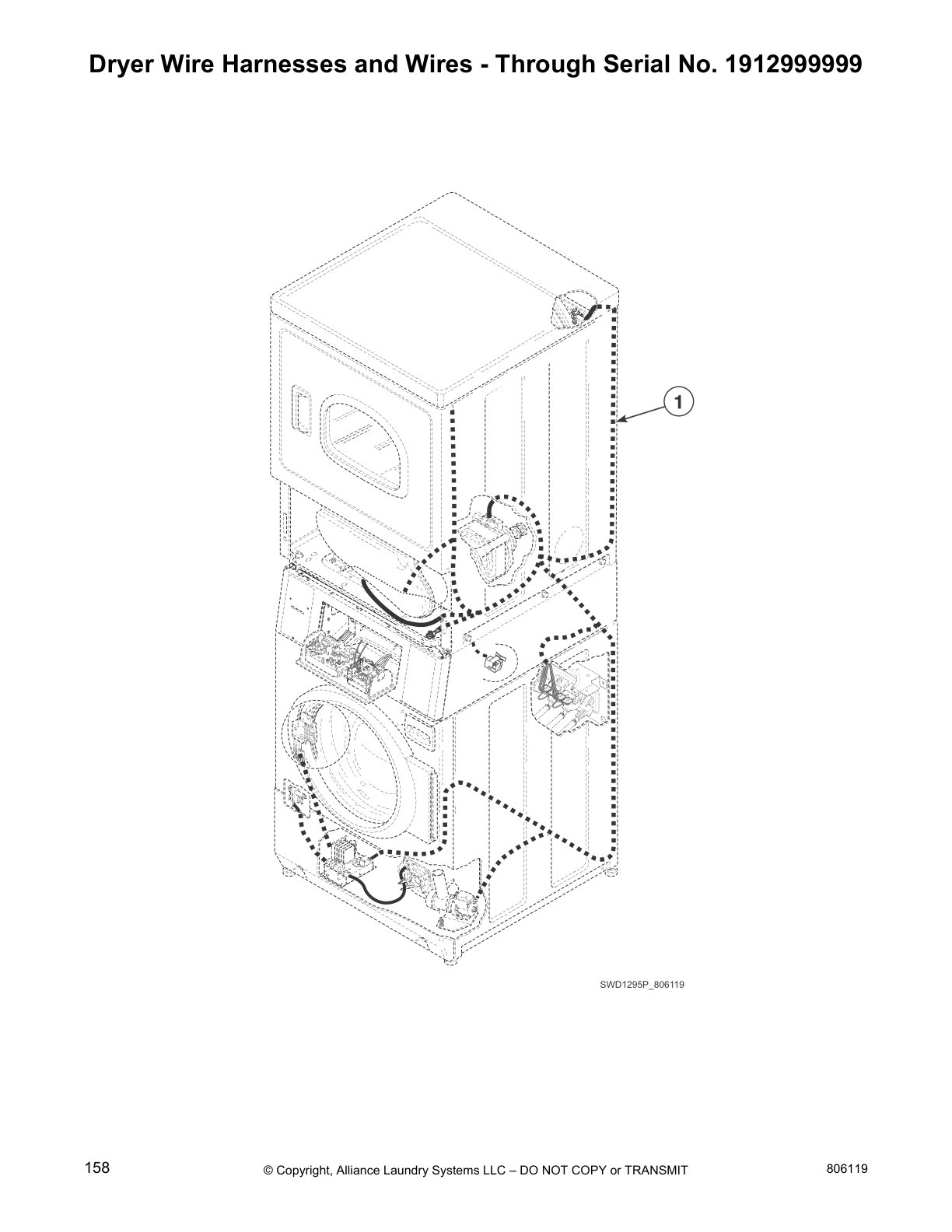

Dryer Wire Harnesses and Wires - Through Serial No. 1912999999

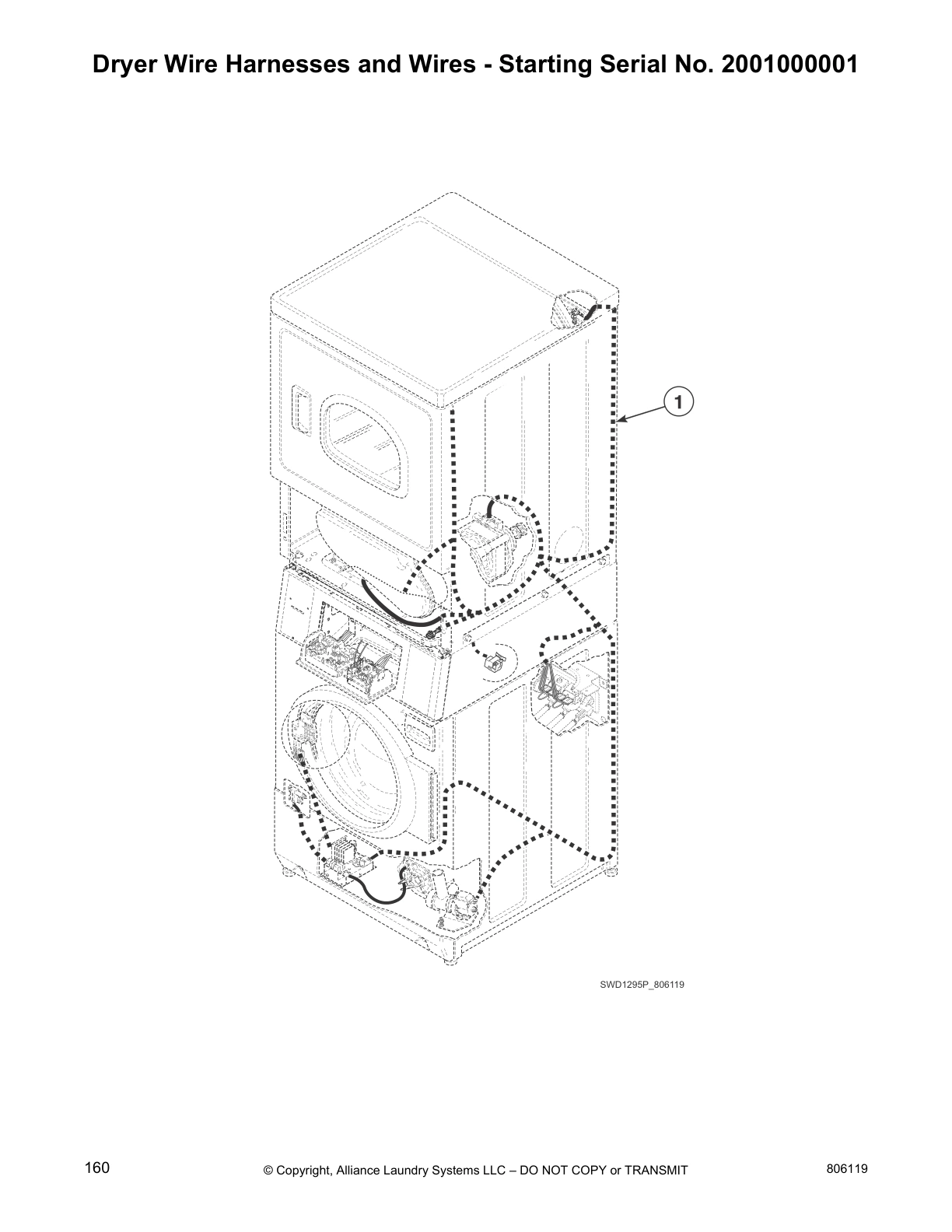

Dryer Wire Harnesses and Wires - Starting Serial No. 2001000001

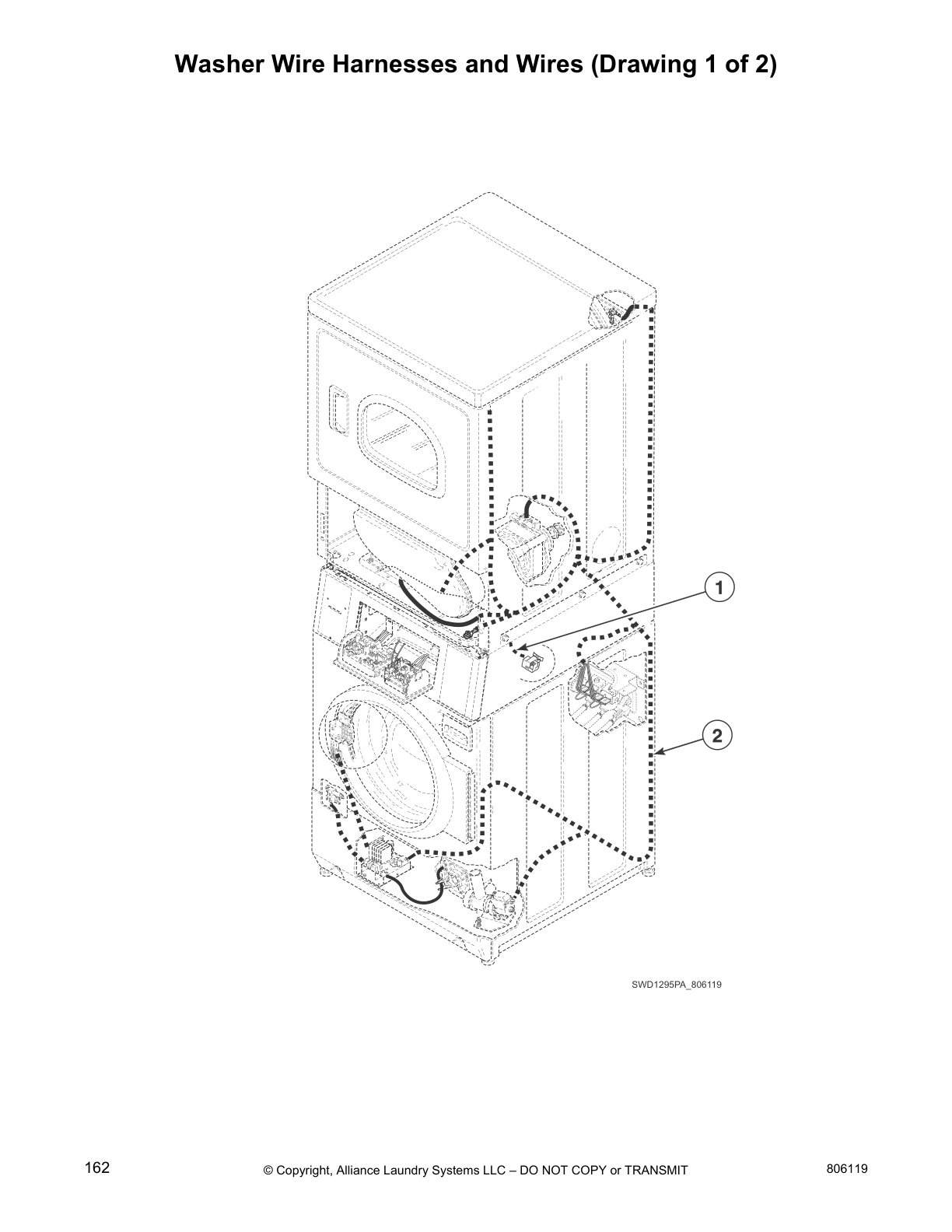

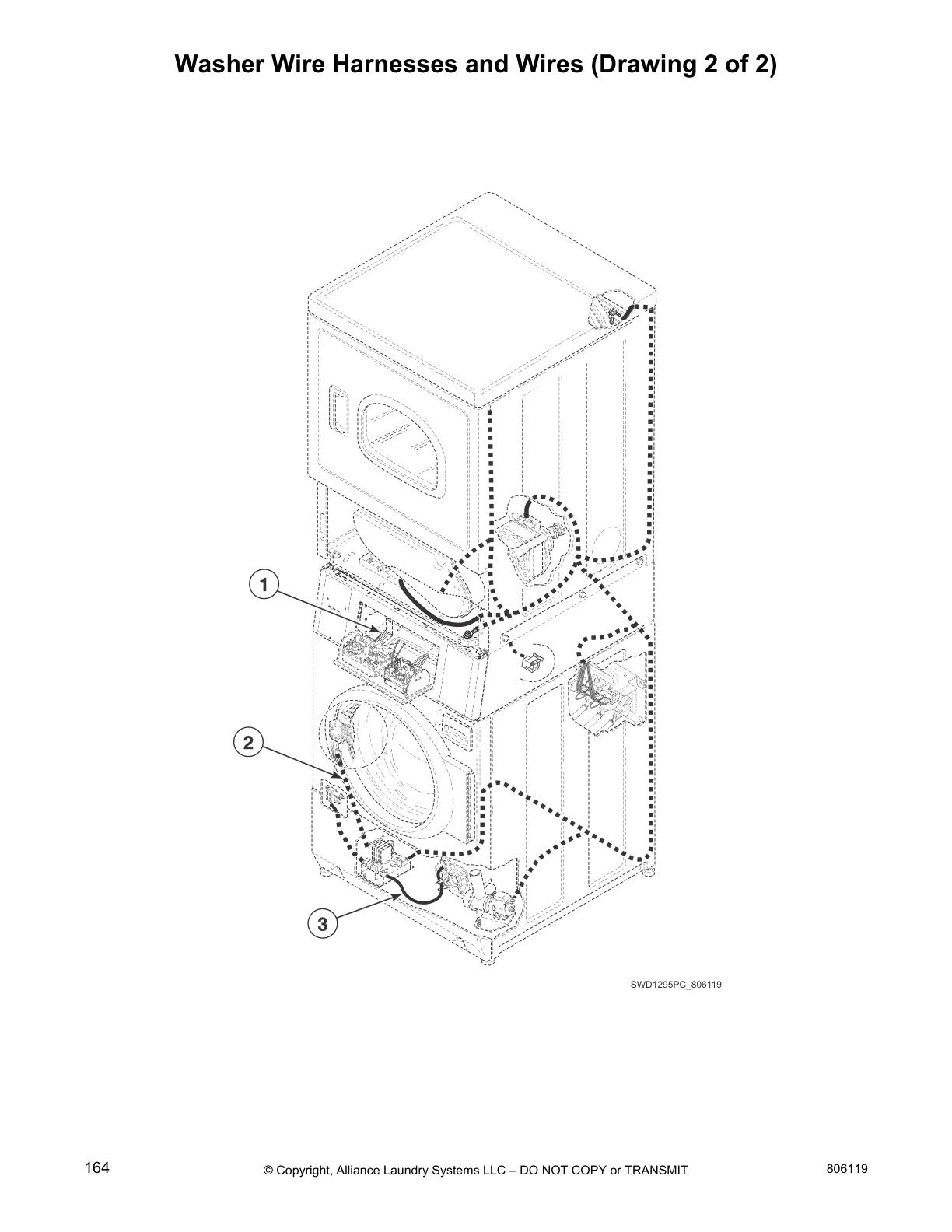

Washer Wire Harnesses and Wires (Drawing 1 of 2)
Washer Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model Huebsch HTENXASP133FW01 Stacked Washer and Dryer
SPQ 802803 SPQ 802803 Contact Us For Availability
SPQ CK115 SPQ CK115 Contact Us For Availability
SPQ D510100 SPQ D510100 Contact Us For Availability
SPQ D514632P SPQ D514632P Contact Us For Availability
Nut SPQ 38462P Contact Us For Availability
SPQ 203720 SPQ 203720 Contact Us For Availability
SPQ 806716 SPQ 806716 Contact Us For Availability
SPQ 803859 SPQ 803859 Contact Us For Availability
SPQ D512542 SPQ D512542 Contact Us For Availability
1
Cylinder Belt SPQ D511255P Contact Us For Availability
1
Seal Kit SPQ RB170001 Contact Us For Availability
1
Key SPQ 54612 Contact Us For Availability
1
Front Bulkhead Assembly SPQ D510266P Contact Us For Availability
1
Out-of-Balance Switch Assembly SPQ 807384 Contact Us For Availability
1
Idler Spring SPQ D510185 Contact Us For Availability
1
Pressure Sensor Harness SPQ 804433 Contact Us For Availability
1
Blower Housing Seal SPQ D510238P Contact Us For Availability
1
Pulley Bolt Tightening Fixture SPQ 802336 Contact Us For Availability
1
Motor Mount Clamp SPQ D510180 Contact Us For Availability
1
Door Assembly SPQ D516737W Contact Us For Availability
1
Drain Hose SPQ 27154 Contact Us For Availability
1
Control Assembly SPQ D515807P Contact Us For Availability
1
Bumper Pad SPQ 36226 Contact Us For Availability
1
Dispenser Plate SPQ 803843 Contact Us For Availability
1
Coin Drop Assembly SPQ 70441602 Contact Us For Availability
1
Shield Bracket SPQ 804018 Contact Us For Availability
1
Coin Identification Paper SPQ 38725 Contact Us For Availability
1
Security Cabinet Harness SPQ D513991 Contact Us For Availability
2
Nut SPQ RB170002 Contact Us For Availability
2
Motor Pulley SPQ D500011 Contact Us For Availability
2
Liner Door Seal SPQ D510127 Contact Us For Availability
2
Anti-Seize Compound SPQ 804393 Contact Us For Availability
2
Directional Exhaust Kit SPQ D510002WP Contact Us For Availability
2
Leveling Leg SPQ D510135 Contact Us For Availability
2
Dispenser Inlet Hose SPQ 803669 Contact Us For Availability
2
Front Control Harness SPQ 806031 Contact Us For Availability
2
Single Overlay SPQ 38717 Contact Us For Availability
2
Wrench SPQ 392P4 Contact Us For Availability
2
Panel Locator SPQ D510186 Contact Us For Availability
2
Door Lock Harness Assembly SPQ 806028 Contact Us For Availability
2
Tub Front SPQ 803770 Contact Us For Availability
2
Access Panel Assembly SPQ 802206 Contact Us For Availability
2
Washer SPQ M400014 Contact Us For Availability
2
Lock Assembly SPQ 804339P Contact Us For Availability
2
Electronic Coin Drop Kit SPQ CK110 Contact Us For Availability
2
Screw SPQ D503661 Contact Us For Availability
3
Blower Fan Assembly SPQ D510139P Contact Us For Availability
3
Outlet Cover SPQ D500820 Contact Us For Availability
3
Door Liner Grill SPQ D510181 Contact Us For Availability
3
Blower Housing SPQ D511969WP Contact Us For Availability
3
Motor Harness SPQ 806029 Contact Us For Availability
3
Dryer Base SPQ D514245 Contact Us For Availability
3
Bearing Kit SPQ 804382 Contact Us For Availability
3
Tubing SPQ 801001 Contact Us For Availability
3
Bumper Pad SPQ 56128 Contact Us For Availability
3
SPQ 805548 SPQ 805548 Contact Us For Availability
3
Power Cord Assembly SPQ 802012 Contact Us For Availability
4
Panel Locator SPQ 203843 Contact Us For Availability
4
Lint Filter SPQ D503980W Contact Us For Availability
4
SPQ 804376P SPQ 804376P Contact Us For Availability
4
Pump-to-Elbow Hose SPQ 35766 Contact Us For Availability
4
Access Panel Assembly SPQ 33562 Contact Us For Availability
4
Switch SPQ 28835 Contact Us For Availability
4
Motor Hub Ring Kit SPQ 590P3 Contact Us For Availability
4
SPQ 802288P SPQ 802288P Contact Us For Availability
4
SPQ 804467 SPQ 804467 Contact Us For Availability
5
Rear Bulkhead Assembly SPQ D511082P Contact Us For Availability
5
Washer SPQ 26509 Contact Us For Availability
5
SPQ D510147P SPQ D510147P Contact Us For Availability
5
Bracket SPQ D510001WP Contact Us For Availability
5
SPQ 803879 SPQ 803879 Contact Us For Availability
5
Cylinder Baffle SPQ D510102W Contact Us For Availability
5
Liner Door Seal SPQ D500226 Contact Us For Availability
5
SPQ 804374P SPQ 804374P Contact Us For Availability
5
Screw SPQ 56079 Contact Us For Availability
5
Anti-Seize Compound SPQ D502535 Contact Us For Availability
5
Nut SPQ 687500 Contact Us For Availability
5
Strain Relief SPQ 38384 Contact Us For Availability
5
Rear Access Panel SPQ 70240301 Contact Us For Availability
6
Retaining Ring SPQ D510142P Contact Us For Availability
6
Terminal Block Shield SPQ D510905WP Contact Us For Availability
6
Cylinder Assembly SPQ D510265WP Contact Us For Availability
6
Detergent Hose SPQ 803849 Contact Us For Availability
6
SPQ D503870W SPQ D503870W Contact Us For Availability
6
SPQ 802343 SPQ 802343 Contact Us For Availability
6
Meter Case Assembly SPQ 807396W Contact Us For Availability
6
Wire Assembly SPQ D518256 Contact Us For Availability
6
Motor Rod SPQ M400080 Contact Us For Availability
7
SPQ D503688 SPQ D503688 Contact Us For Availability
7
Front Panel SPQ D511056 Contact Us For Availability
7
Terminal Block Assembly SPQ D501285 Contact Us For Availability
7
Screw SPQ 807429P Contact Us For Availability
7
Screw SPQ 62588 Contact Us For Availability
7
Foam Pad SPQ F200206 Contact Us For Availability
8
Screw SPQ D516792 Contact Us For Availability
8
Cylinder Glide SPQ D513710 Contact Us For Availability
8
SPQ 800310 SPQ 800310 Contact Us For Availability
8
Heater Assembly SPQ D518255 Contact Us For Availability
8
SPQ 808067P SPQ 808067P Contact Us For Availability
8
Shipping Plug SPQ 802525P Contact Us For Availability
9
Cylinder Roller SPQ D510190P Contact Us For Availability
9
Cylinder Glide Bracket SPQ D510145 Contact Us For Availability
9
Shipping Plate SPQ 800004WP Contact Us For Availability
9
SPQ D500824 SPQ D500824 Contact Us For Availability
9
Cabinet Rear Panel SPQ D510146 Contact Us For Availability
10
Heater Kit SPQ 964P3 Contact Us For Availability
10
Glide Kit SPQ RB170003 Contact Us For Availability
10
Out-of-Balance Switch Assembly Kit SPQ 806512 Contact Us For Availability
10
Adhesive SPQ D511637P Contact Us For Availability
10
Door Hinge SPQ 802934 Contact Us For Availability
10
Switch SPQ D516391 Contact Us For Availability
10
Overlay Kit SPQ 38676 Contact Us For Availability
11
Cylinder Seal Assembly SPQ D510207P Contact Us For Availability
11
Dispenser Assembly SPQ 803698 Contact Us For Availability
11
Access Panel Plate SPQ D510903 Contact Us For Availability
11
Washer SPQ 807679 Contact Us For Availability
11
Nut SPQ 23951 Contact Us For Availability
11
Hinge SPQ D505295 Contact Us For Availability
11
Hose Clip SPQ 36985 Contact Us For Availability
11
Nut SPQ 44087201 Contact Us For Availability
12
Retaining Ring SPQ 23748 Contact Us For Availability
12
Door Pull and Wedge Kit SPQ D511036 Contact Us For Availability
12
Screw SPQ 685831 Contact Us For Availability
12
Pressure Sensor Tube Assembly SPQ 804483 Contact Us For Availability
12
Machine ID Control Assembly SPQ 203423 Contact Us For Availability
12
Glass Mounting Clip SPQ 802700 Contact Us For Availability
13
Switch SPQ D512973 Contact Us For Availability
13
Hinge Hole Plug SPQ D510177 Contact Us For Availability
13
Washer SPQ 52549 Contact Us For Availability
13
Balance Ring Assembly SPQ M403958 Contact Us For Availability
13
Exhaust Duct SPQ D516196 Contact Us For Availability
13
Rubber Foot SPQ 806492 Contact Us For Availability
14
Rubber Foot SPQ D501855 Contact Us For Availability
14
Grommet SPQ 29175 Contact Us For Availability
14
Shaft SPQ D504082 Contact Us For Availability
14
Harness Strap SPQ 55881 Contact Us For Availability
15
Roller Kit SPQ 56461P Contact Us For Availability
15
Anchor Floor Mount Assembly SPQ 34318 Contact Us For Availability
15
Dryer Door Window SPQ D510103WP Contact Us For Availability
15
Compartment Cover SPQ 804227WP Contact Us For Availability
15
Pump Housing Assembly SPQ 802429P Contact Us For Availability
16
Anchor SPQ 802844P Contact Us For Availability
16
Pump Housing SPQ 802434P Contact Us For Availability
16
Door Pull and Wedge Kit SPQ D503981W Contact Us For Availability
16
Door Strike Mount SPQ D515681 Contact Us For Availability
16
Wire Ring and Spring SPQ 806086 Contact Us For Availability
17
Hose Clamp SPQ 806466 Contact Us For Availability
17
Outer Tub Assembly SPQ 803864 Contact Us For Availability
17
Door Strike SPQ D503982P Contact Us For Availability
17
Gasket SPQ 802428 Contact Us For Availability
18
Lid Assembly SPQ 802427 Contact Us For Availability
18
Door Handle Wedge SPQ D510129W Contact Us For Availability
19
Hinge Plate SPQ 802281 Contact Us For Availability
19
Standpipe Strap SPQ 802426P Contact Us For Availability
20
Hose Clamp SPQ 803829 Contact Us For Availability
21
Foreign Object Deflector SPQ 806361 Contact Us For Availability
22
Door Glass Mounting Plate SPQ 36020 Contact Us For Availability
22
Tub Front Seal SPQ 806313 Contact Us For Availability
23
Clamp Ring SPQ 806308 Contact Us For Availability
24
Nut SPQ 803801 Contact Us For Availability
25
Washer SPQ 803802 Contact Us For Availability
29
Pop Rivet SPQ 802596 Contact Us For Availability
NI
SPQ D510708P SPQ D510708P Contact Us For Availability
NI
Screw SPQ D513797P Contact Us For Availability
NI
SPQ D510329P SPQ D510329P Contact Us For Availability
NI
SPQ D510189 SPQ D510189 Contact Us For Availability
NI
SPQ 70441601P SPQ 70441601P Contact Us For Availability
NI
SPQ 802254 SPQ 802254 Contact Us For Availability
NI
SPQ D514250WP SPQ D514250WP Contact Us For Availability
NI
SPQ D510066WP SPQ D510066WP Contact Us For Availability
NI
SPQ 808095 SPQ 808095 Contact Us For Availability
NI
SPQ 24122 SPQ 24122 Contact Us For Availability
NI
SPQ 804717 SPQ 804717 Contact Us For Availability
NI
SPQ 803615 SPQ 803615 Contact Us For Availability
NI
SPQ CK096 SPQ CK096 Contact Us For Availability
NI
SPQ 203719 SPQ 203719 Contact Us For Availability
NI
SPQ 803789 SPQ 803789 Contact Us For Availability
NI
SPQ D510136 SPQ D510136 Contact Us For Availability
NI
SPQ 801993 SPQ 801993 Contact Us For Availability
NI
SPQ 201595P SPQ 201595P Contact Us For Availability
NI
SPQ 805730 SPQ 805730 Contact Us For Availability
NI
SPQ 805771 SPQ 805771 Contact Us For Availability
NI
SPQ 804667 SPQ 804667 Contact Us For Availability
NI
SPQ 201375P SPQ 201375P Contact Us For Availability
NI
18 Gauge Wire SPQ 45001 Contact Us For Availability
× ![]()
