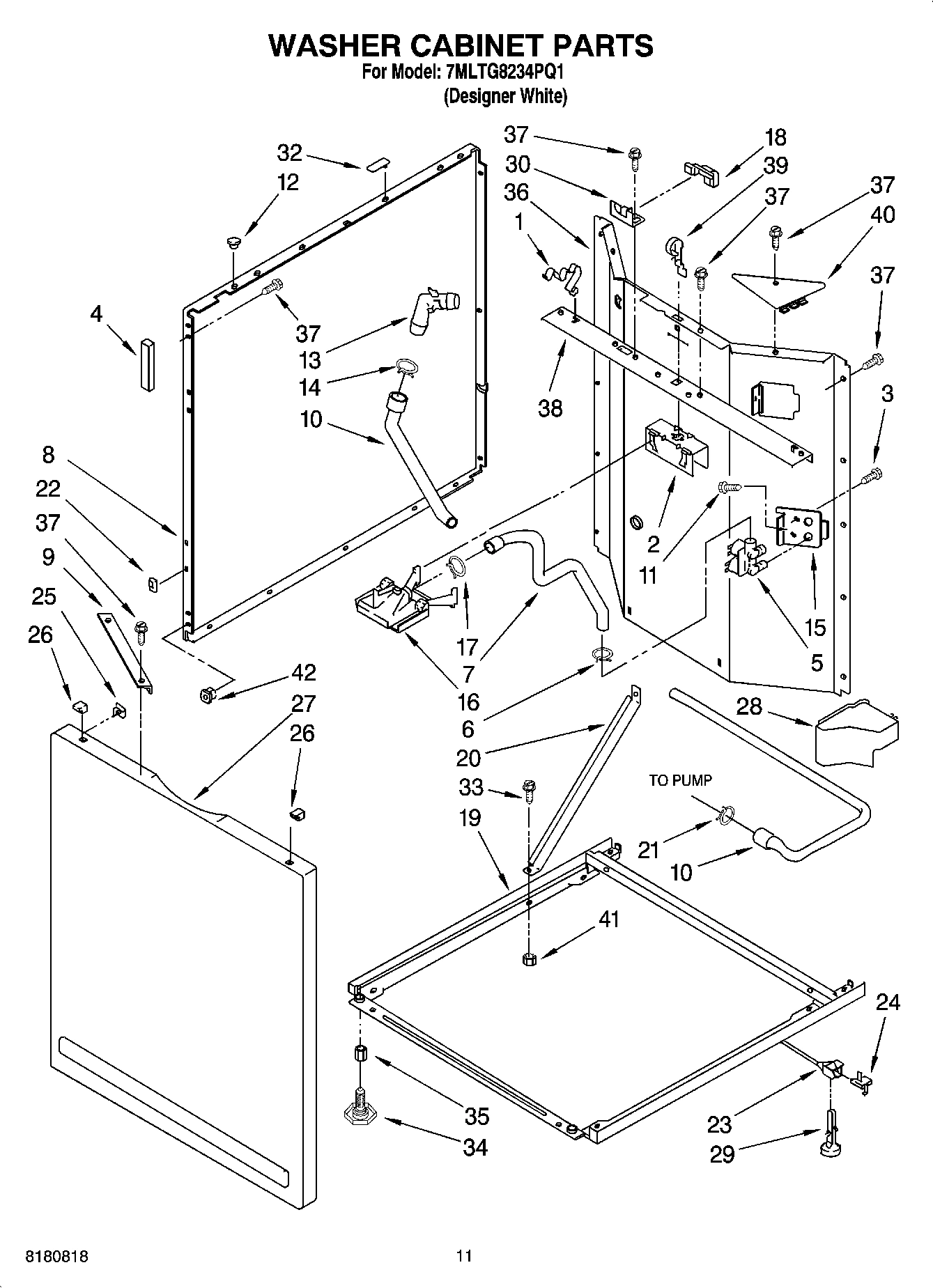

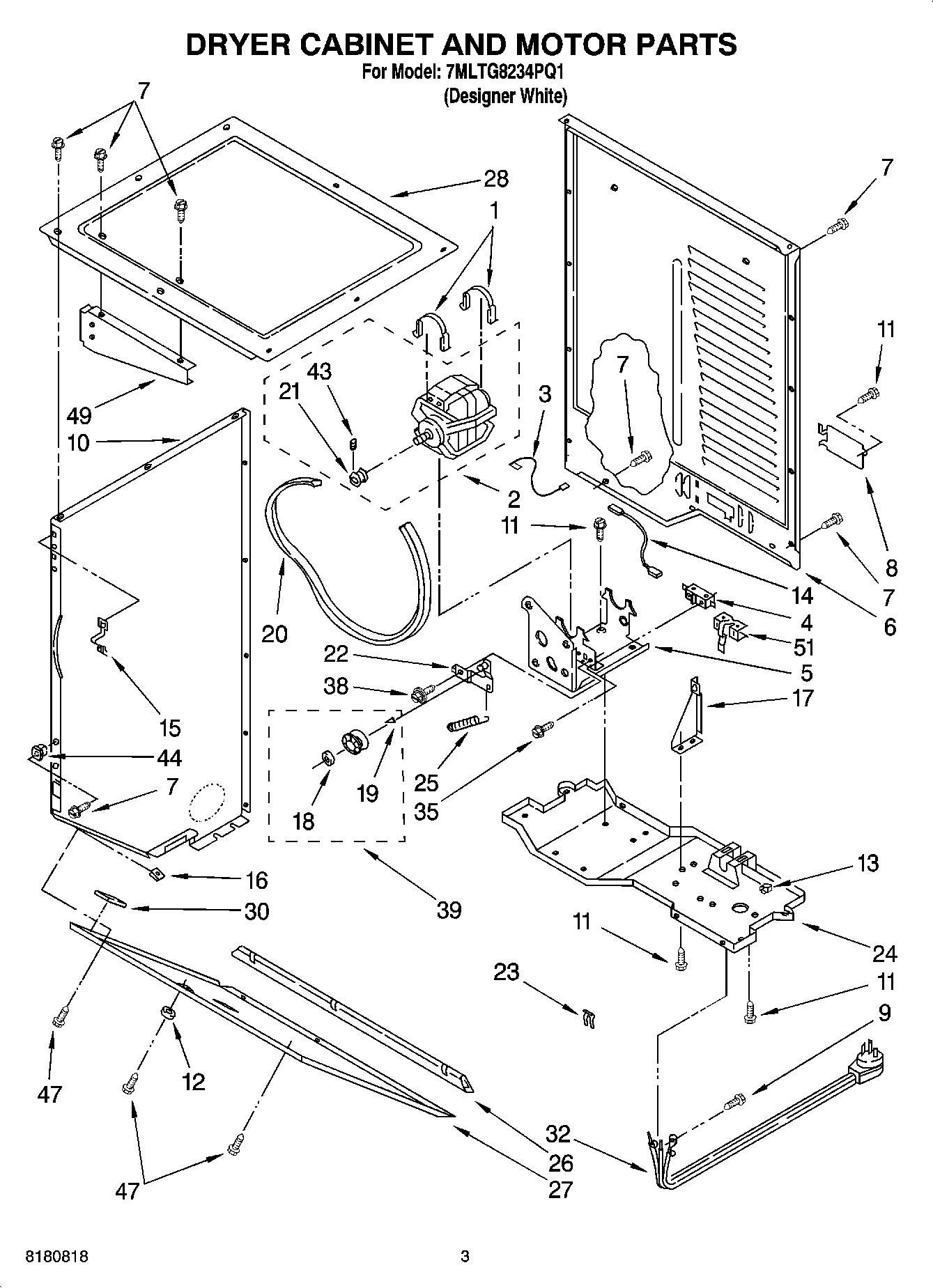

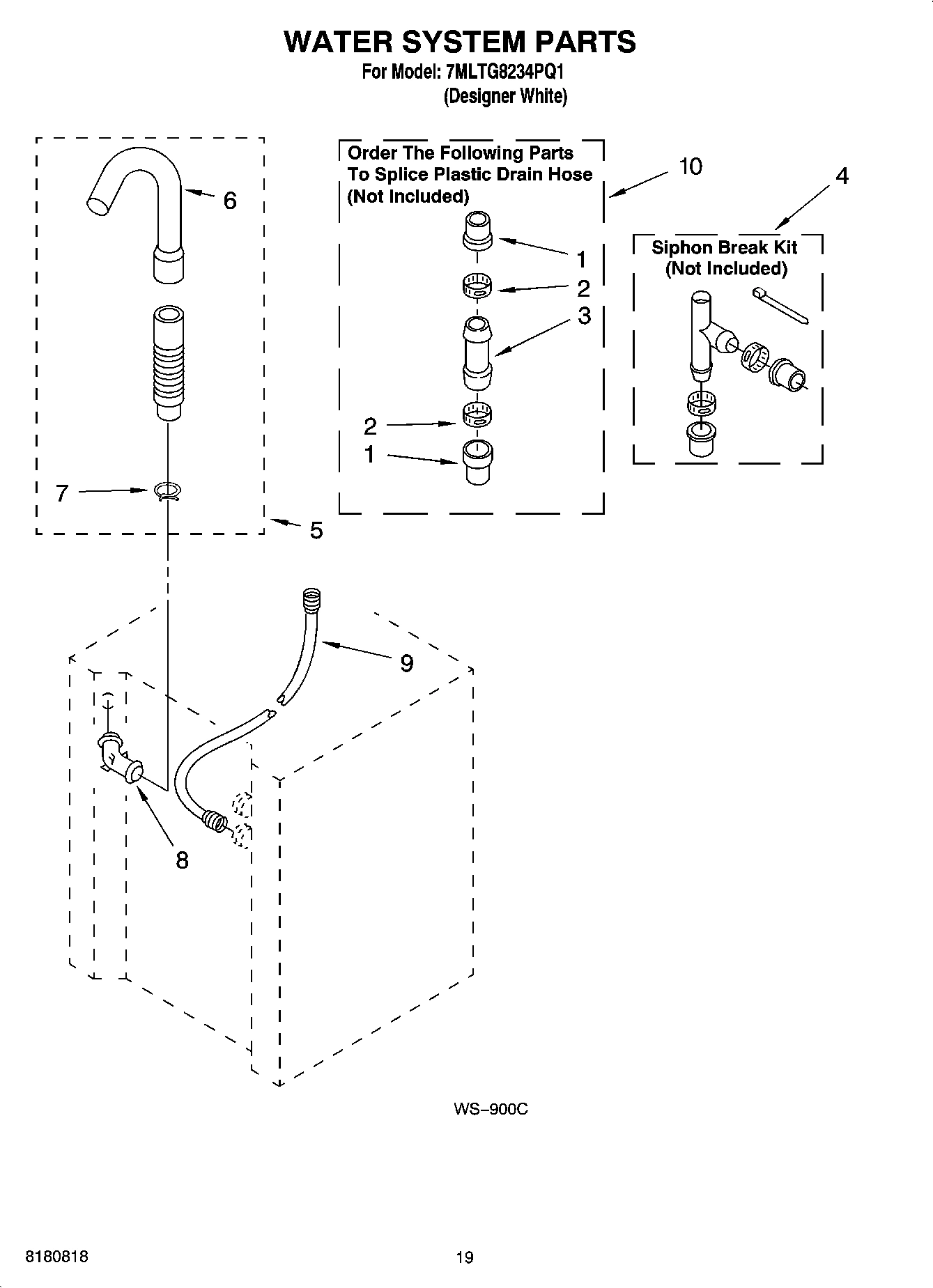

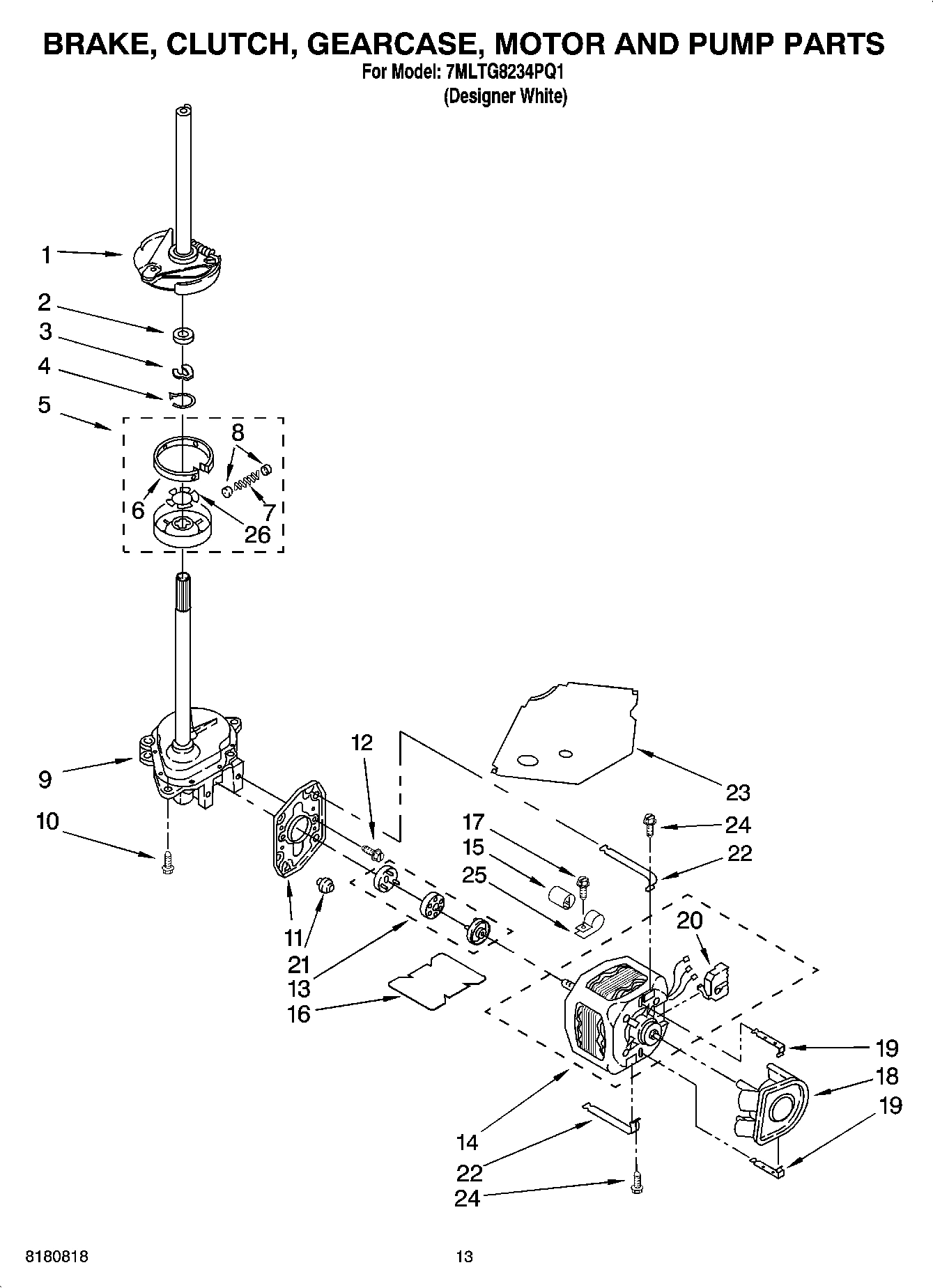

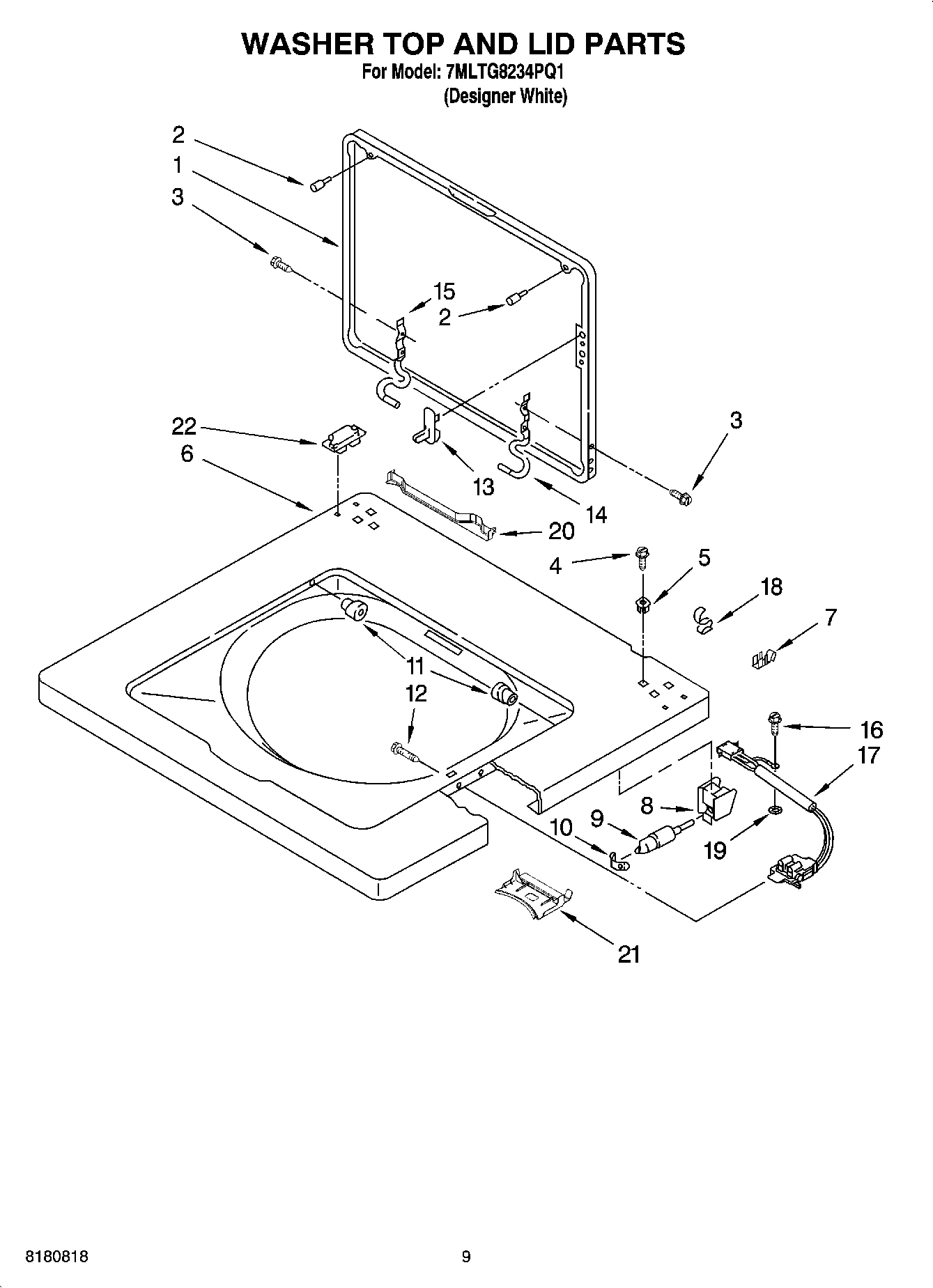

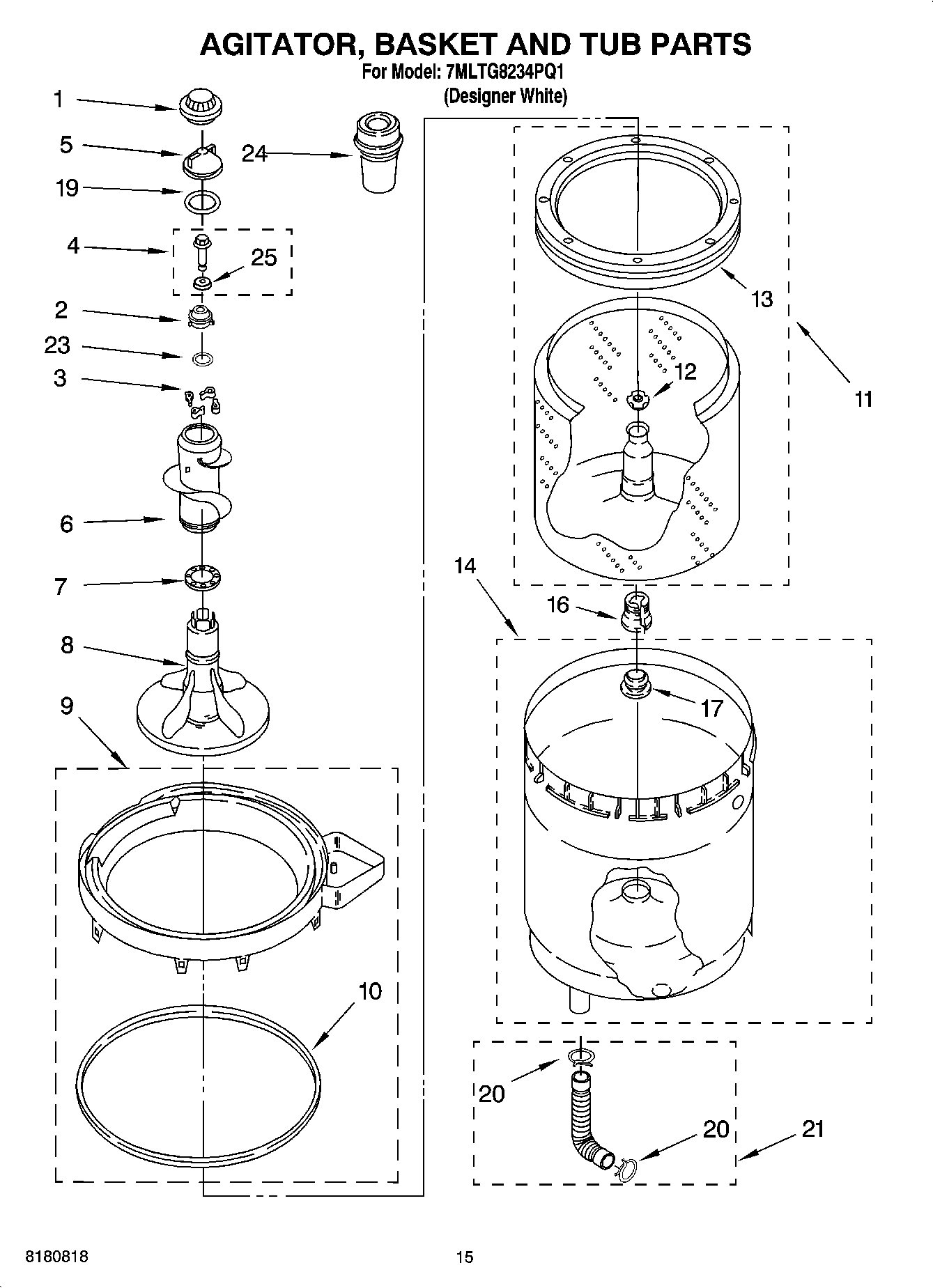

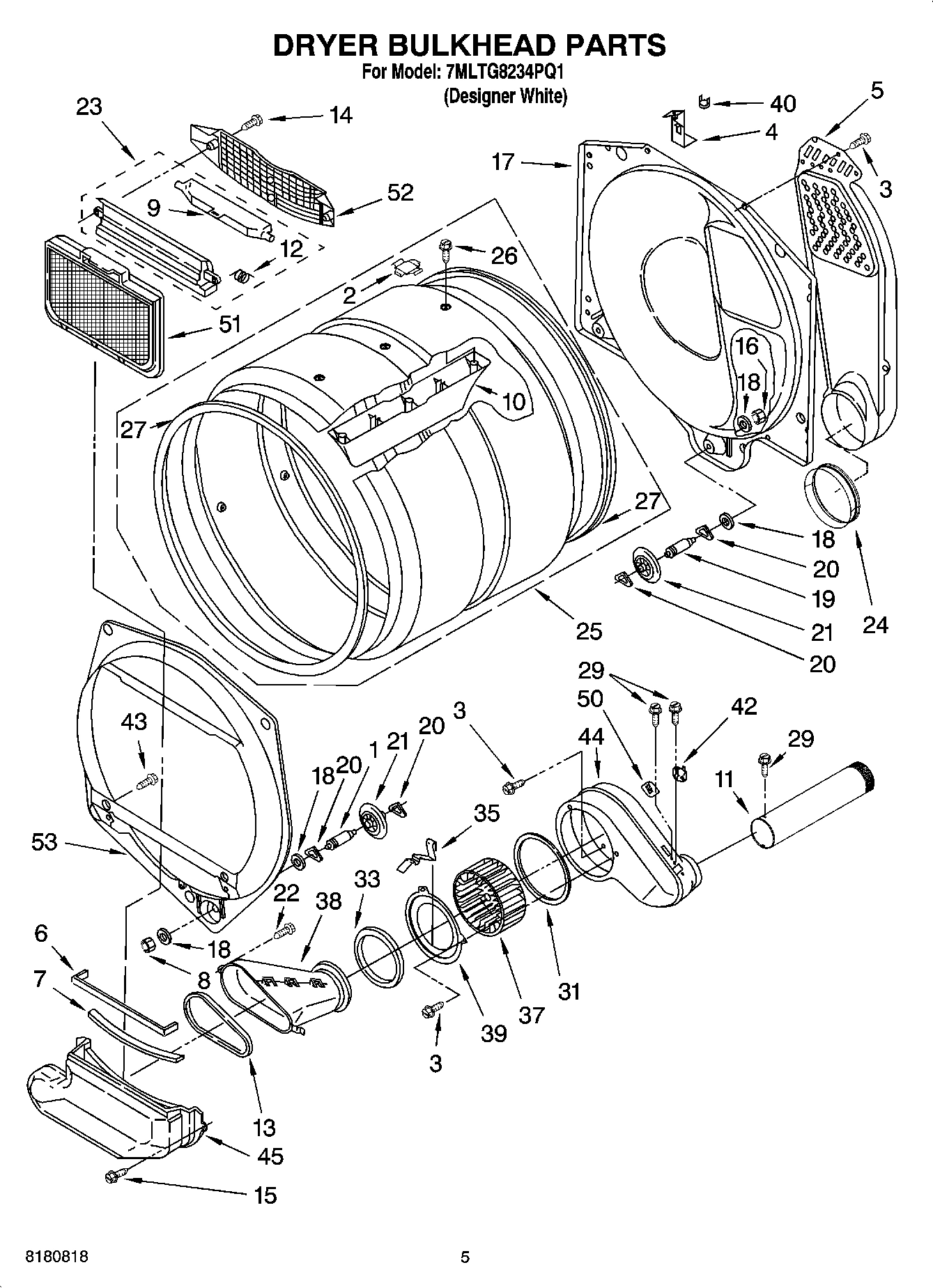

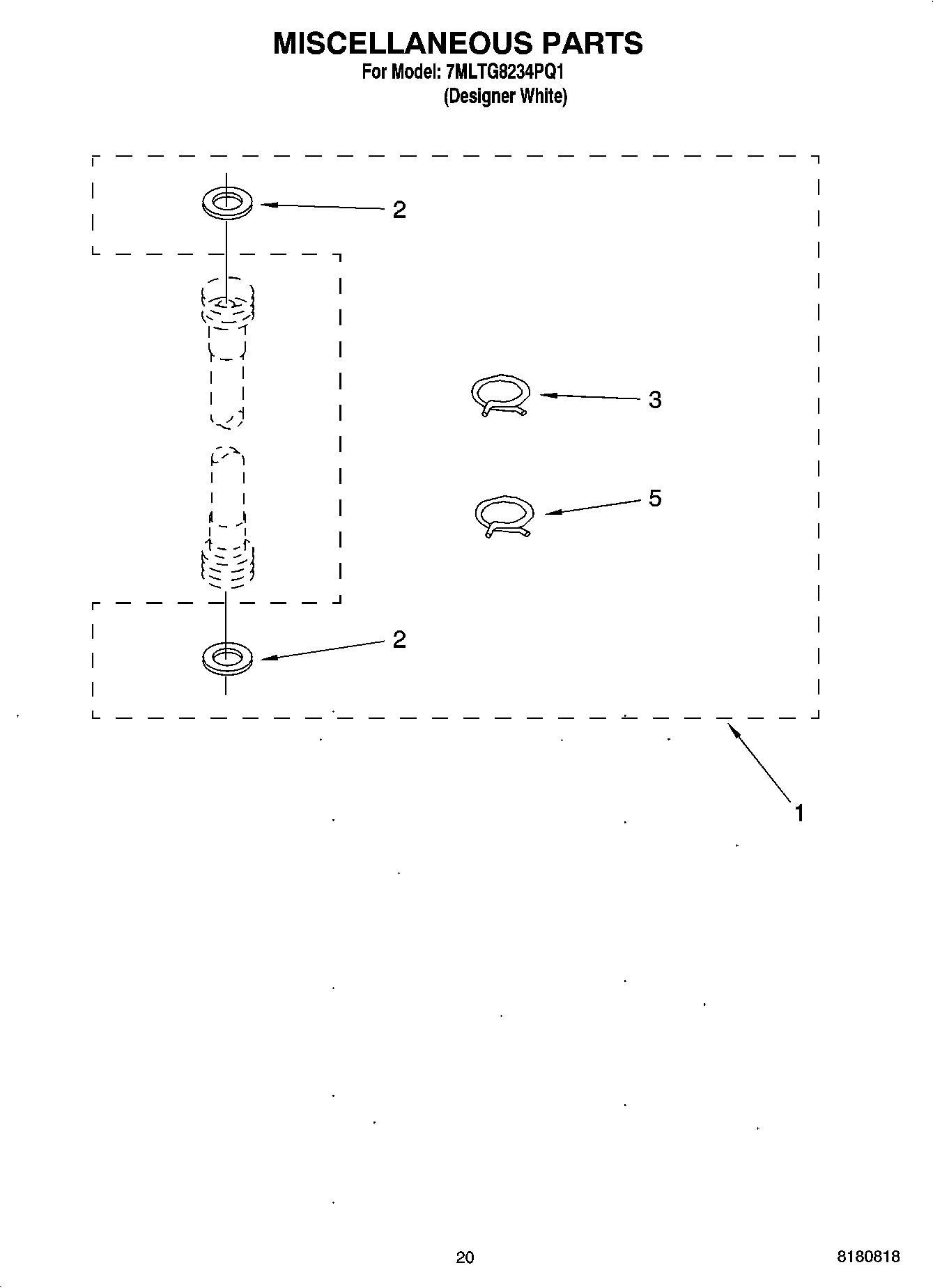

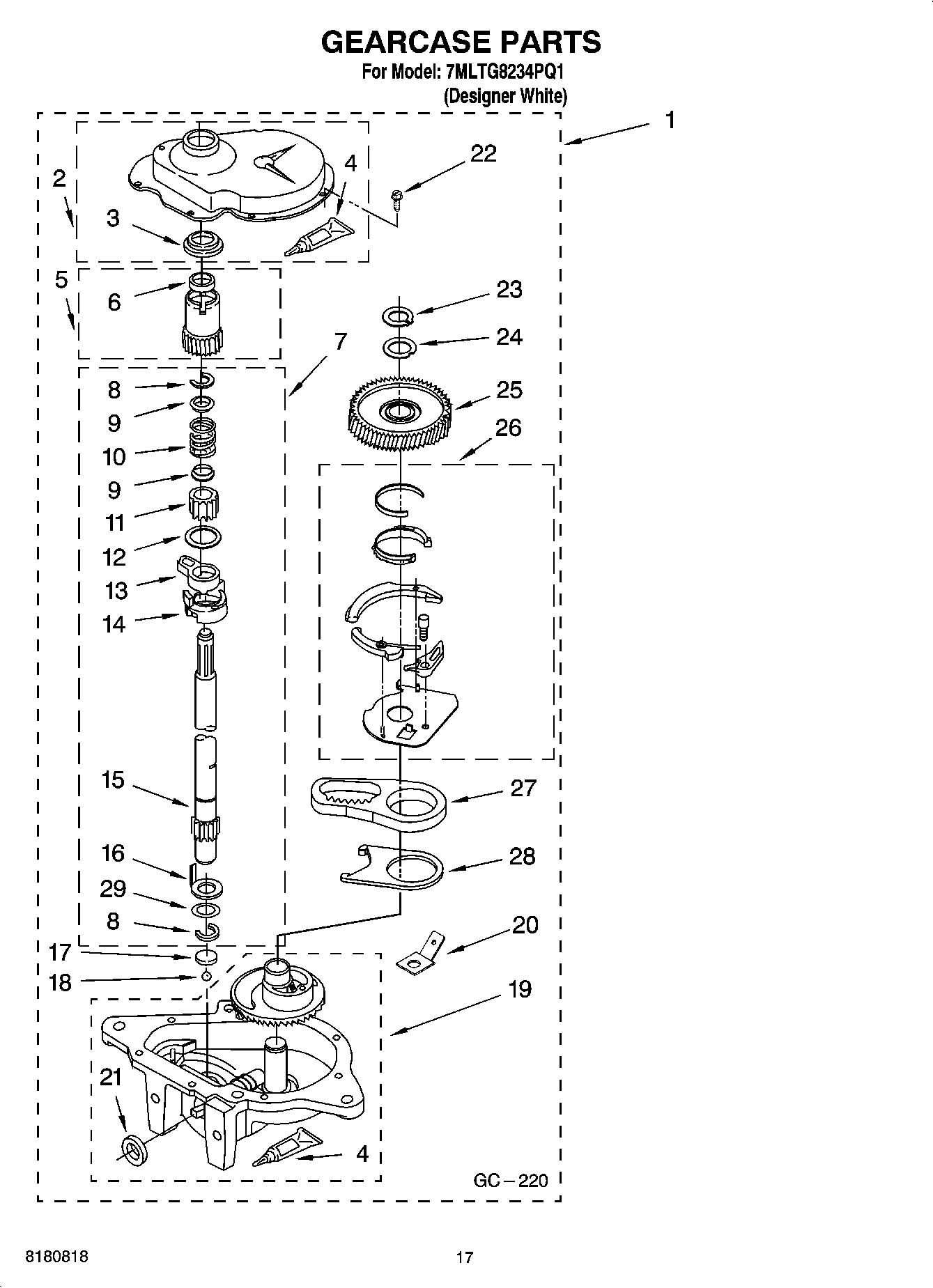

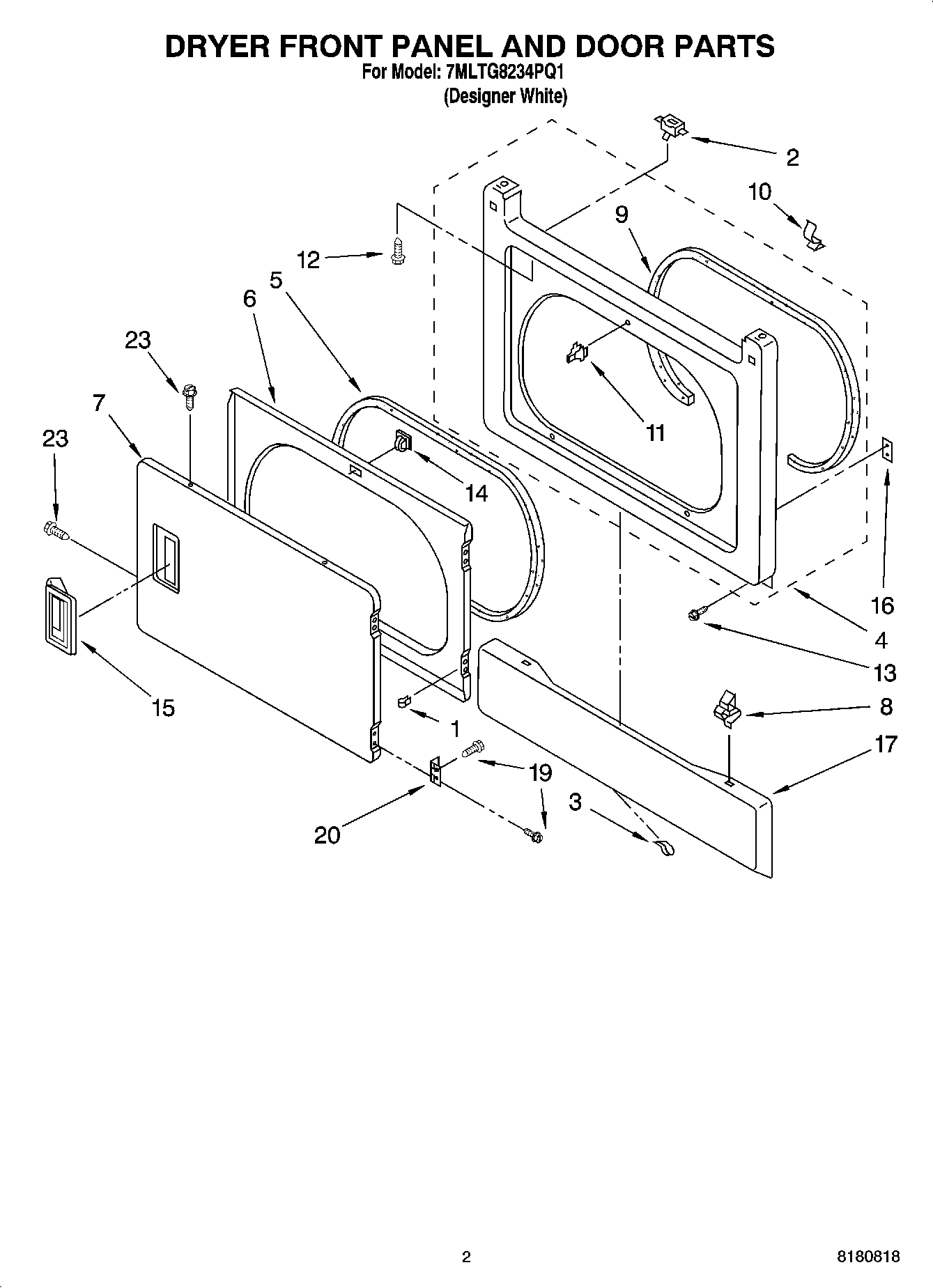

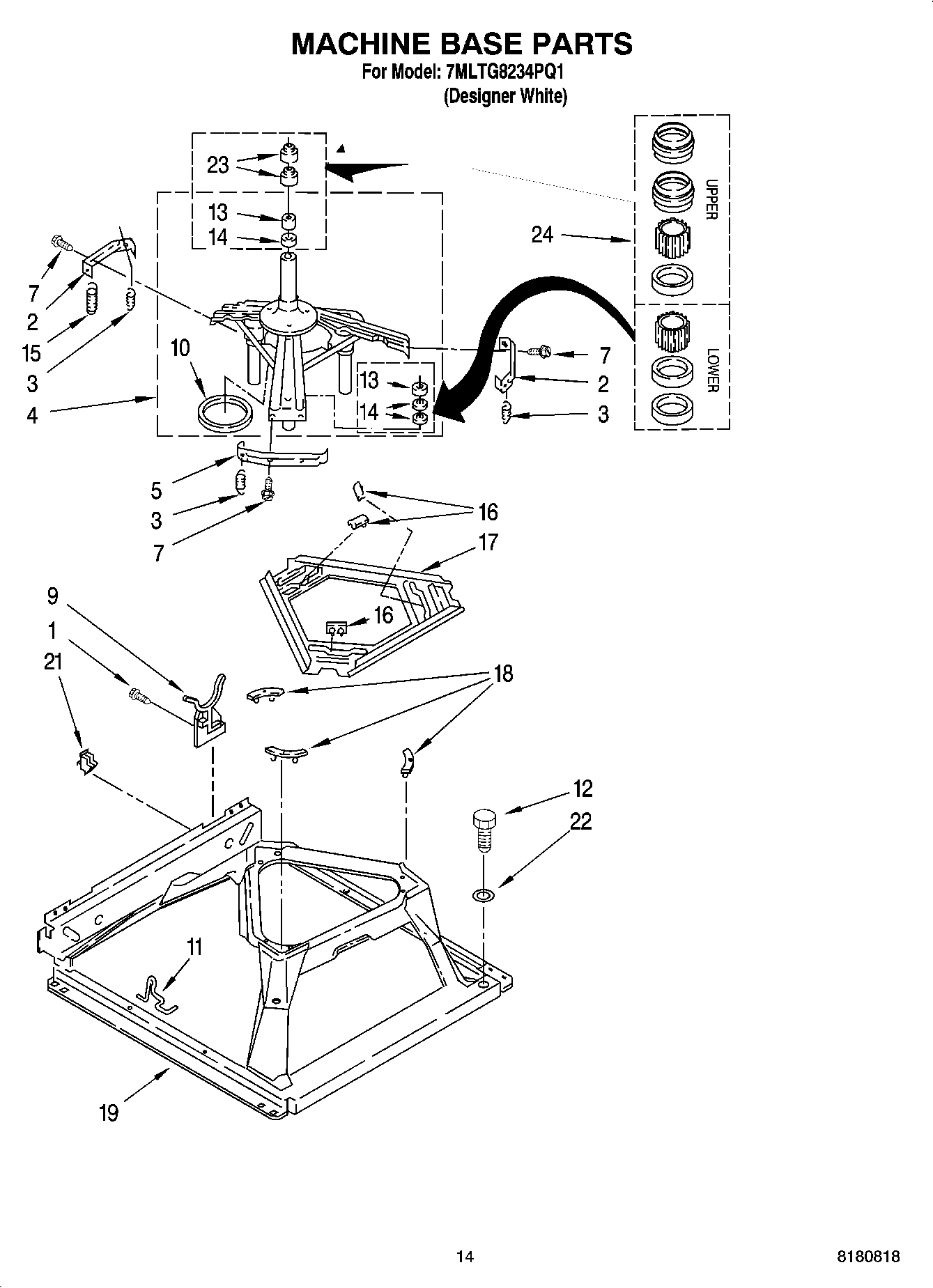

Model Whirlpool 7MLTG8234PQ1 WASHER/DRYER LAUNDRY SYSTEM – Common Parts &amp; Diagrams

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

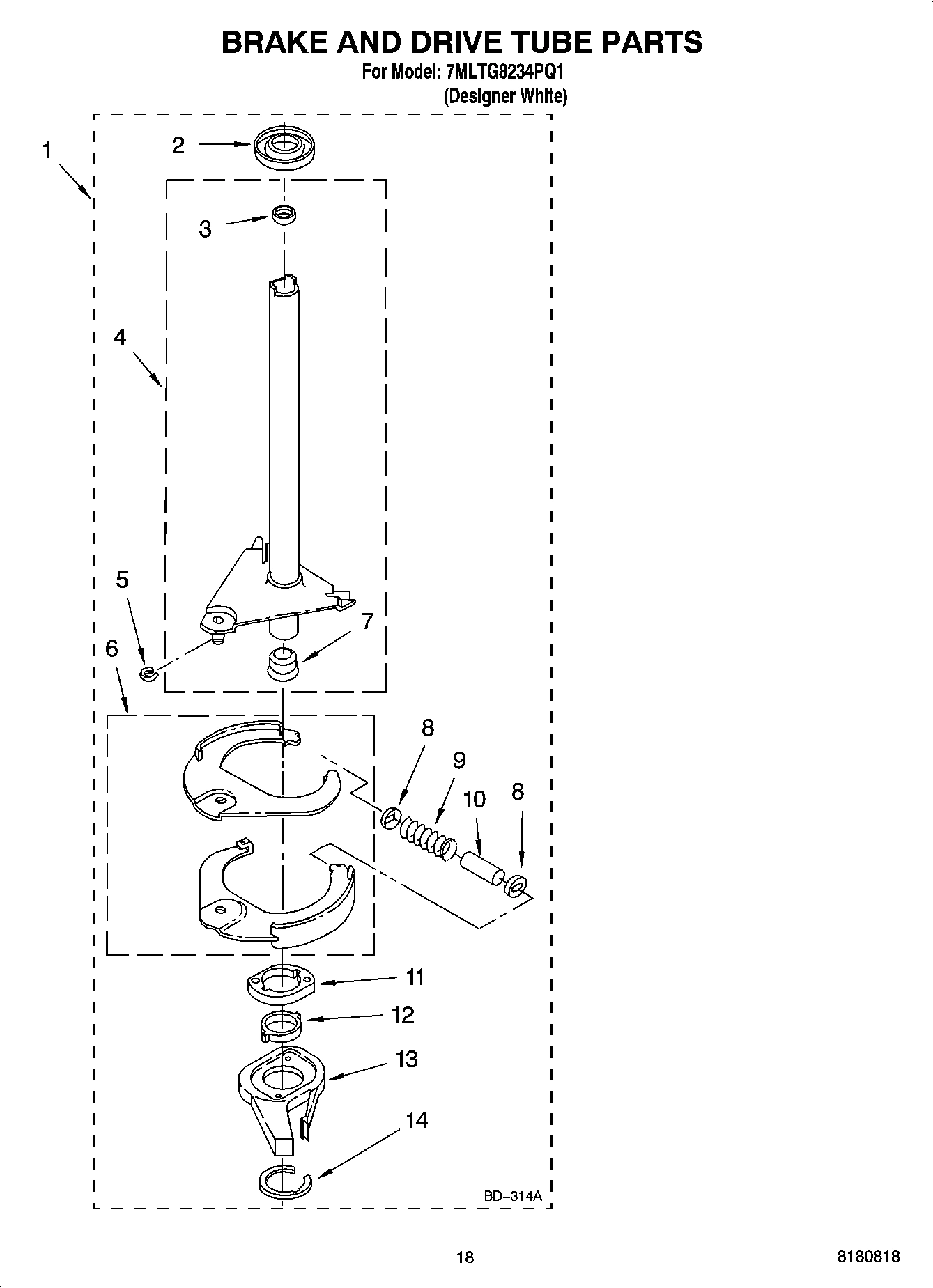

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

OIL WPL ARI142705A Contact Us For Availability

LUBRICANT WPL ARI142706A Contact Us For Availability

SEALER WPL ARI142707A Contact Us For Availability

ACCESSORIES WPL ARI142708A Contact Us For Availability

1

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

1

3349770 Whirlpool Clip Backorder WPL 3349770 $8.73

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.70

1

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $30.25

1

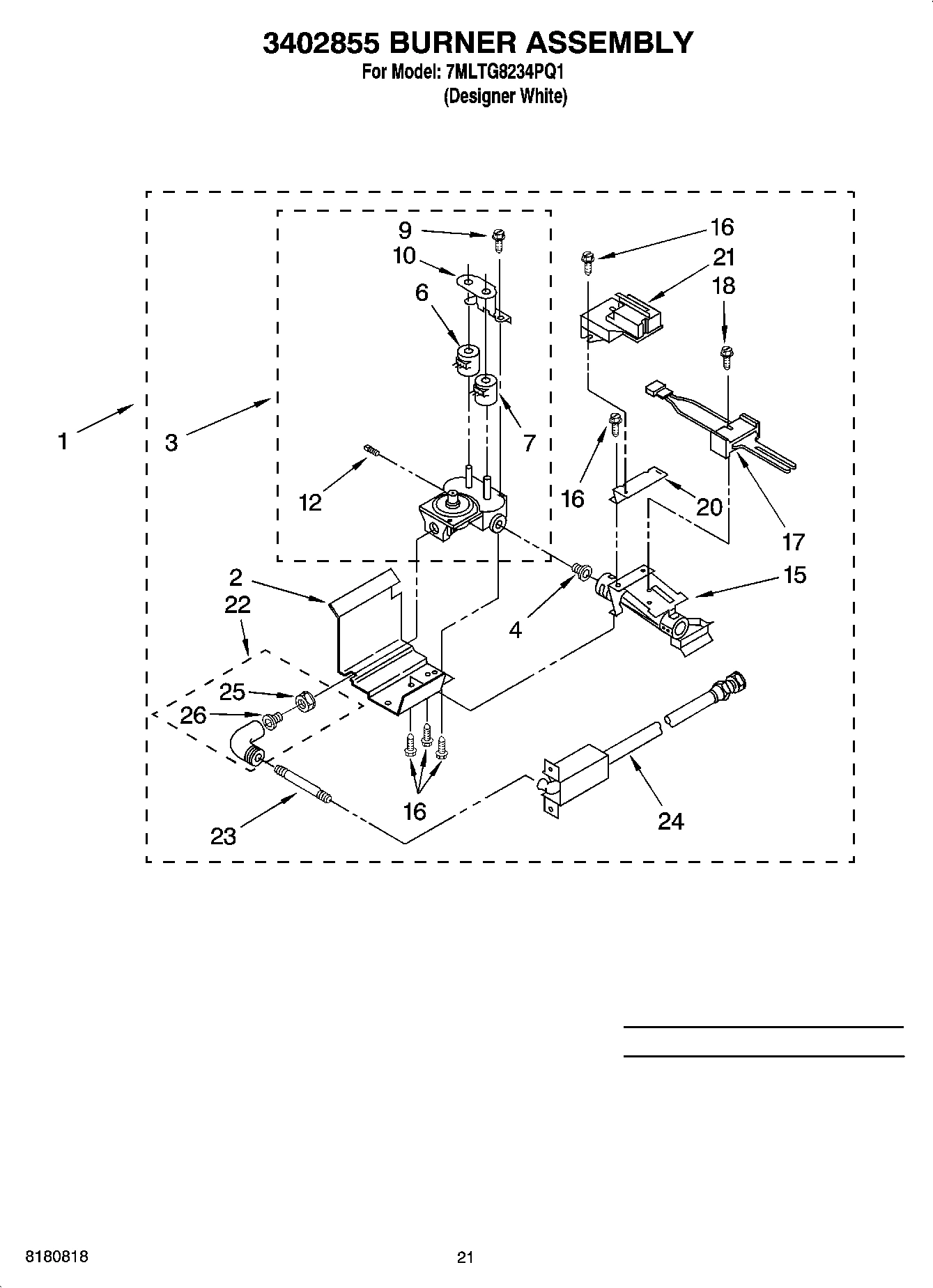

Burner Assembly 60 Hz. WPL 3401795 Contact Us For Availability

1

Nut, Push (4) WPL 3389249 Contact Us For Availability

1A

3350130 Whirlpool Connector Backorder WPL 3350130 $8.31

1E

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

2

WP3391902 Whirlpool Lid Switch In Stock WPL WP3391902 $29.98

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

2

Base, Burner WPL 3391699 Contact Us For Availability

3

279889 Whirlpool Valve Assembly In Stock WPL 279889 $161.14

3

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

4

279718 Whirlpool Panel Backorder WPL 279718 $126.72

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

4

WP3948357 Whirlpool Timer Assembly Backorder WPL WP3948357 $177.43

4

Orifice (L.P. Gas) WPL 15422 Contact Us For Availability

4

ORIFICE, NATURAL GAS WPL 3394360 Contact Us For Availability

4

Clip, Thermostat WPL 3392226 Contact Us For Availability

5

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

5

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

5

W10834213 Whirlpool Hose Backorder WPL W10834213 $16.03

5

WP3390735 Whirlpool Door Seal Backorder WPL WP3390735 $41.23

5

WPW10108350 Whirlpool Hose Backorder WPL WPW10108350 $34.39

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

6

280083 Whirlpool Rear Door Backorder WPL 280083 $114.92

6

W11676449 Whirlpool Agitator Mover Backorder WPL W11676449 $24.38

6

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $28.80

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

Dial (Washer) WPL 3957845 Contact Us For Availability

6

Top, Console WPL 3349798 Contact Us For Availability

7

3352236 Whirlpool Hose Assembly Backorder WPL 3352236 $13.32

7

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

7

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

7

WP3391906 Whirlpool Seal Backorder WPL WP3391906 $3.70

7

Knob, Timer (Washer) WPL 3957825 Contact Us For Availability

8

3354020 Whirlpool Bracket Backorder WPL 3354020 $4.65

8

W11213338 Whirlpool Connector Backorder WPL W11213338 $26.90

8

WP3349455 Whirlpool Panel Backorder WPL WP3349455 $157.60

8

WP3349578 Whirlpool Agitator In Stock WPL WP3349578 $72.02

8

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.70

8

WP3957796 Whirlpool Knob Backorder WPL WP3957796 $30.93

8

WPW10080210 Whirlpool Nut Backorder WPL WPW10080210 $2.51

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

9

W11222846 Whirlpool Door Backorder WPL W11222846 $74.30

9

WP3350152 Whirlpool Retainer In Stock WPL WP3350152 $162.71

9

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

9

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

Clip, Retainer WPL 3350828 Contact Us For Availability

Hose, Drain WPL 3353841 Contact Us For Availability

WS-900C WPL ARI142703A Contact Us For Availability

Clip, Harness WPL 3392602 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

WP3957750 Whirlpool Knob Backorder WPL WP3957750 $38.83

WP8563748 Whirlpool Exhaust Pipe Backorder WPL WP8563748 $5.44

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

WP3389431 Whirlpool Bumper Assembly Backorder WPL WP3389431 $4.89

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

WP3395530 Whirlpool Screw Backorder WPL WP3395530 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.70

13

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

13

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

3350101 Whirlpool Hinge Backorder WPL 3350101 $11.64

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP3349292 Whirlpool Tub Assembly Backorder WPL WP3349292 $110.64

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

Wire, Broken Belt Switch WPL 3394081 Contact Us For Availability

Switch, Temperature WPL 3405157 Contact Us For Availability

3349673 Whirlpool Bracket Assembly Backorder WPL 3349673 $8.89

3350102 Whirlpool Hinge Assembly Backorder WPL 3350102 $11.90

3389522 Whirlpool Handle Backorder WPL 3389522 $43.61

8578392 Whirlpool Burner Backorder WPL 8578392 $53.64

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $103.30

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP3390902 Whirlpool Clip Backorder WPL WP3390902 $4.78

WP3404233 Whirlpool Dryer Starter Switch In Stock WPL WP3404233 $37.17

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $2.51

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

3388958 Whirlpool Panel Backorder WPL 3388958 $55.11

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W11299300 Whirlpool Bulkhead Assembly In Stock WPL W11299300 $118.41

WP3355458 Whirlpool Lid Switch In Stock WPL WP3355458 $30.10

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

3350145 Whirlpool Shield Assembly Backorder WPL 3350145 $8.00

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $9.59

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

WP3402724 Whirlpool Washer Base Backorder WPL WP3402724 $117.98

WP3976569 Whirlpool Timer In Stock WPL WP3976569 $147.09

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $29.96

Base Assembly (Includes Illus. 11 & 18) WPL 3349343 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

W11175815 Whirlpool Hinge Backorder WPL W11175815 $31.27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

BLOCK TAB, TERMINAL WPL 3949116 Contact Us For Availability

Bracket, Sensor WPL 697409 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

3349749 Whirlpool Restrainer Backorder WPL 3349749 $7.69

3389453 Whirlpool Hinge Assembly Backorder WPL 3389453 $28.80

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $7.12

3406051 Whirlpool Elbow Backorder WPL 3406051 $37.17

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.19

W11116924 Whirlpool Locator Backorder WPL W11116924 $10.76

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

Washer (2) WPL 3349340 Contact Us For Availability

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $29.06

WP3349311 Whirlpool Link In Stock WPL WP3349311 $33.65

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Seal, Agitator WPL 64002 Contact Us For Availability

Ring, Retaining WPL 3362552 Contact Us For Availability

Nipple, Short WPL 3391845 Contact Us For Availability

23C

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

W10864899 Whirlpool Fabric Softener Dispenser In Stock WPL W10864899 $48.31

WP3387911 Whirlpool Air Duct Backorder WPL WP3387911 $126.90

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

Washer Kit, Thrust WPL 285735 Contact Us For Availability

Supply Line (Gas) WPL 3391118 Contact Us For Availability

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

W10518375 Whirlpool Drum Assembly Backorder WPL W10518375 $163.03

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

Nut WPL 233076 Contact Us For Availability

3389683 Whirlpool Cover Assembly Backorder WPL 3389683 $41.30

3392235A Whirlpool Gas Conversion Kit In Stock WPL 3392235A $29.96

3393767 Whirlpool Pipe Backorder WPL 3393767 $57.12

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

WP345670 Whirlpool Lock Backorder WPL WP345670 $3.70

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

Following Parts Not Illustrated WPL ARI142704A Contact Us For Availability

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $25.42

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

3389272 Whirlpool Panel Backorder WPL 3389272 $100.04

WP3349499 Whirlpool Panel Backorder WPL WP3349499 $176.00

Jumper, Wire (Buzzer-PTS) WPL 3401684 Contact Us For Availability

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

30

3350144 Whirlpool Bracket Backorder WPL 3350144 $37.57

33

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $28.80

35

3390935 Whirlpool Clip In Stock WPL 3390935 $7.32

35

3400917 Whirlpool Nut Backorder WPL 3400917 $5.65

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

38

279704 Whirlpool Duct Assembly Backorder WPL 279704 $62.06

38

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

39

279780 Whirlpool Plate Cover Backorder WPL 279780 $31.07

39

3350135 Whirlpool Lever Spring Backorder WPL 3350135 $8.09

42

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $10.97

44

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

44

WP8544363 Whirlpool Housing Backorder WPL WP8544363 $56.42

45

279700 Whirlpool Duct Lint Backorder WPL 279700 $74.68

47

WP693304 Whirlpool Screw Backorder WPL WP693304 $2.51

50

WP3403607 Whirlpool Thermoprotector In Stock WPL WP3403607 $19.43

51

WP3389644 Whirlpool Screen Assembly In Stock WPL WP3389644 $56.38

51

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

52

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

53

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $85.65
