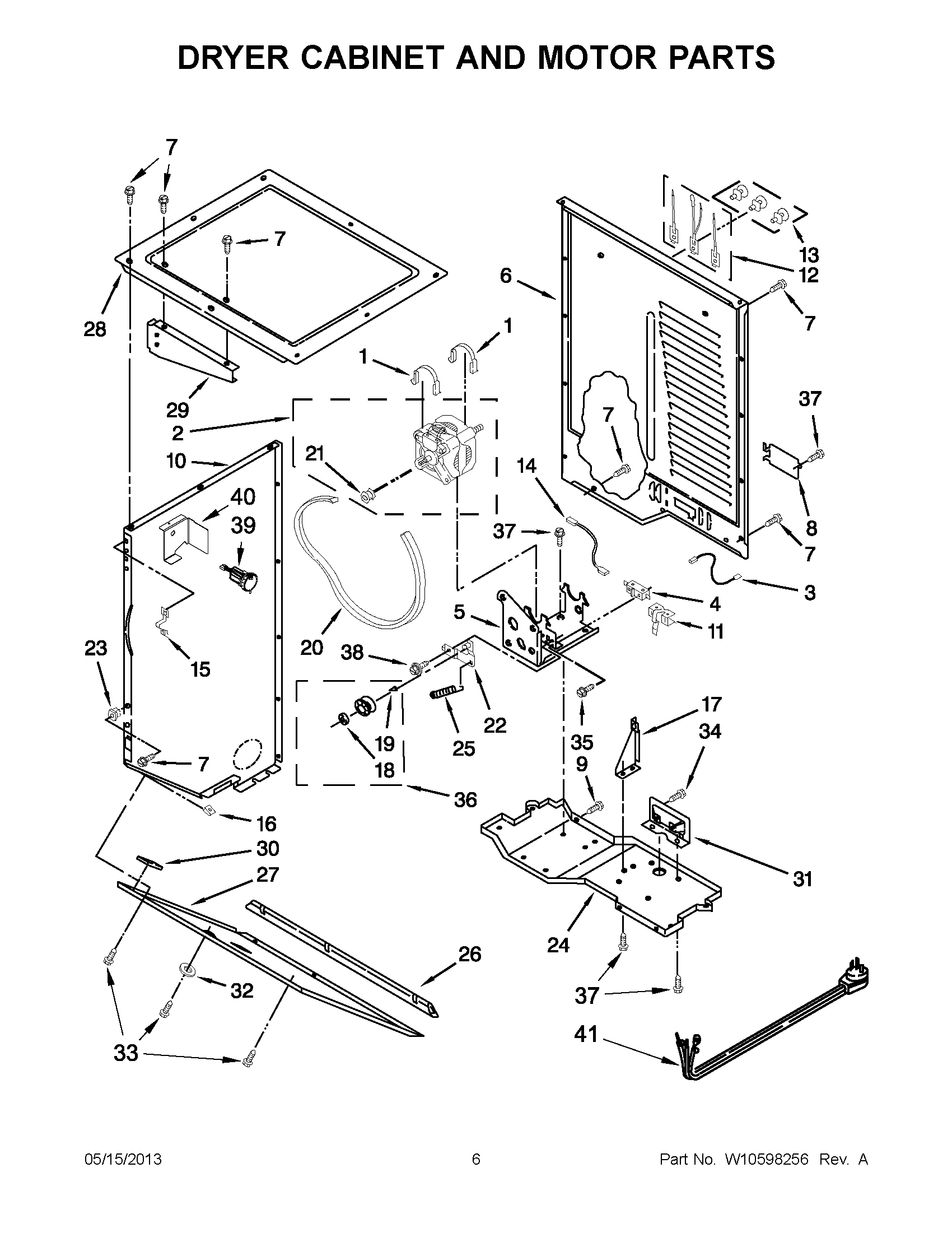

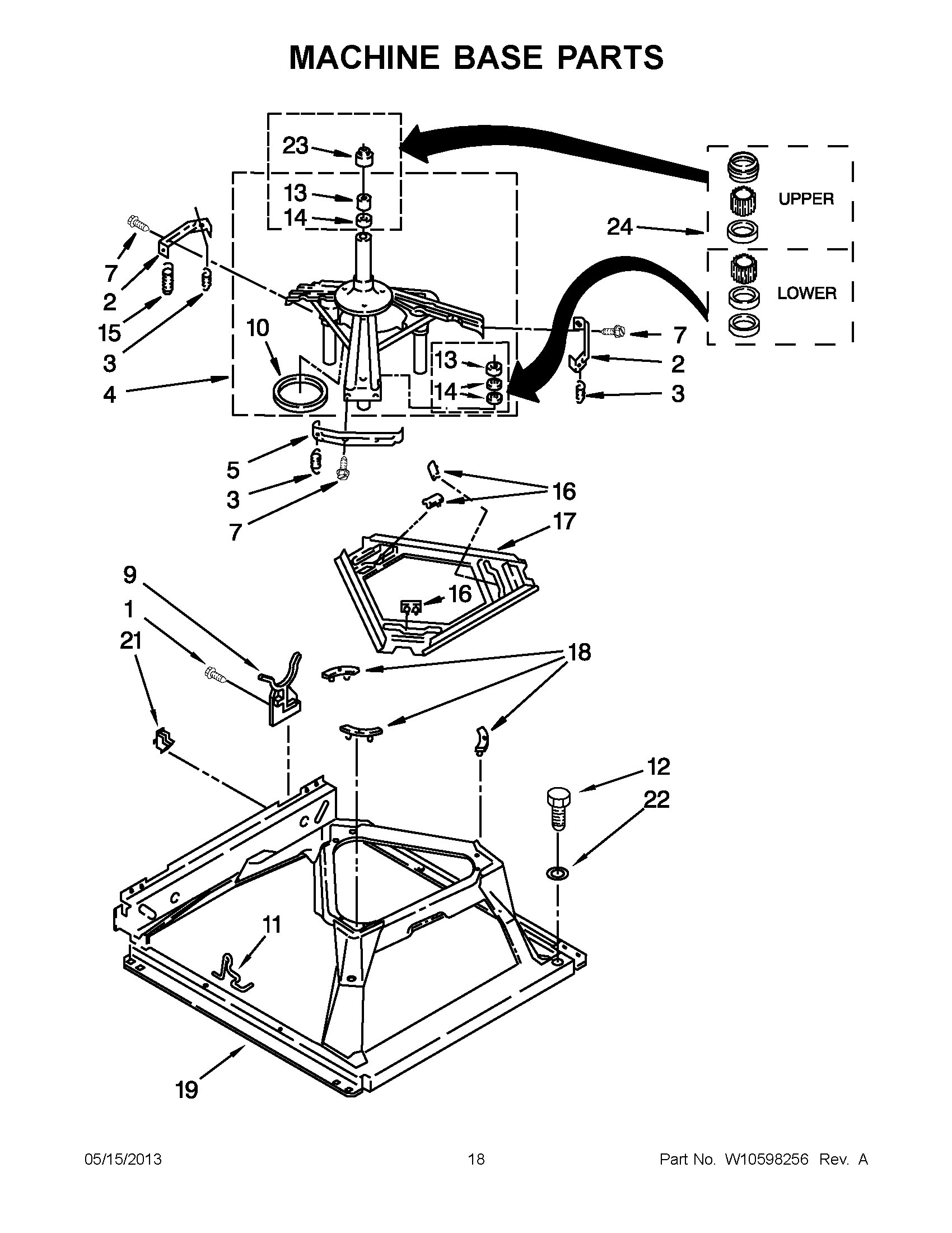

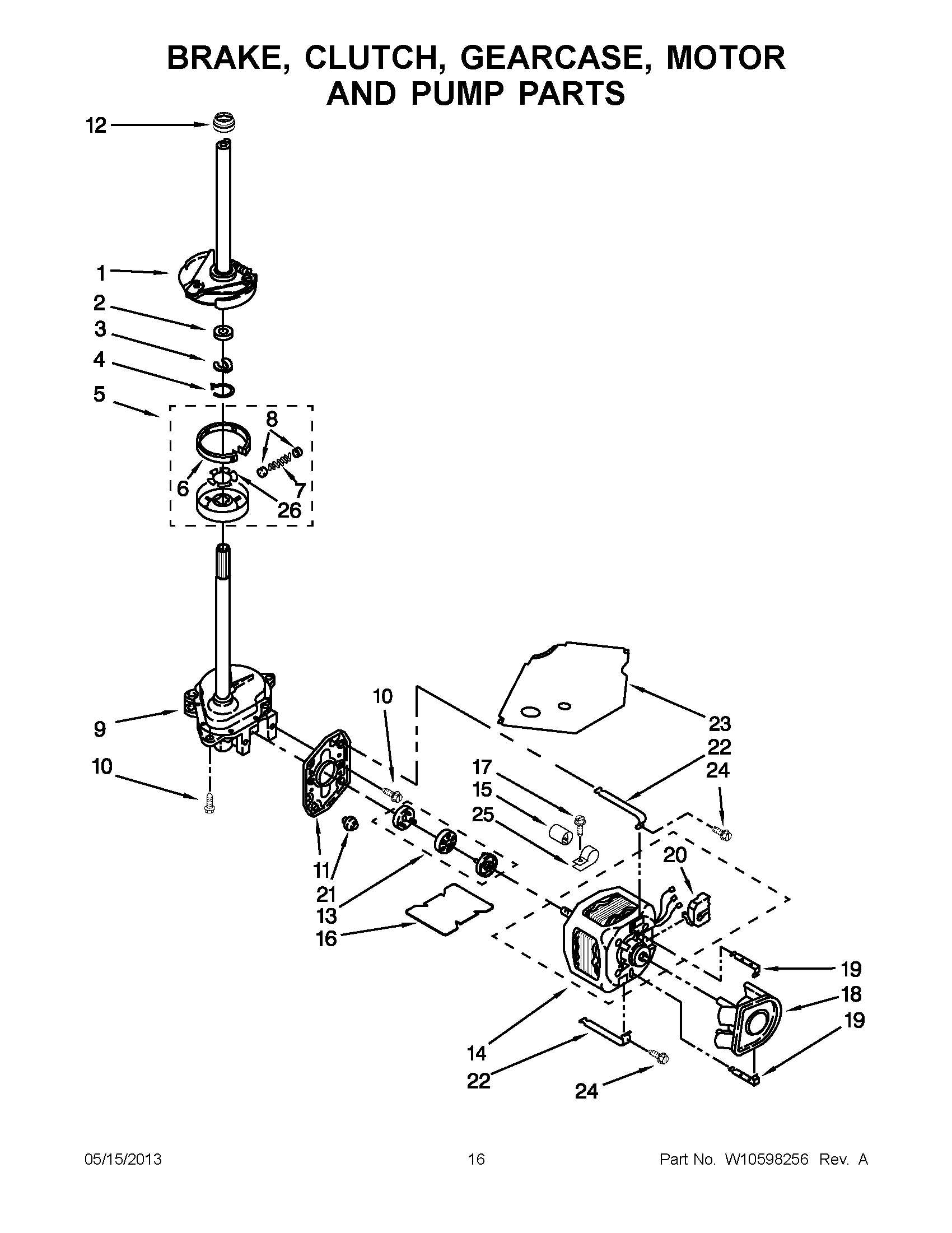

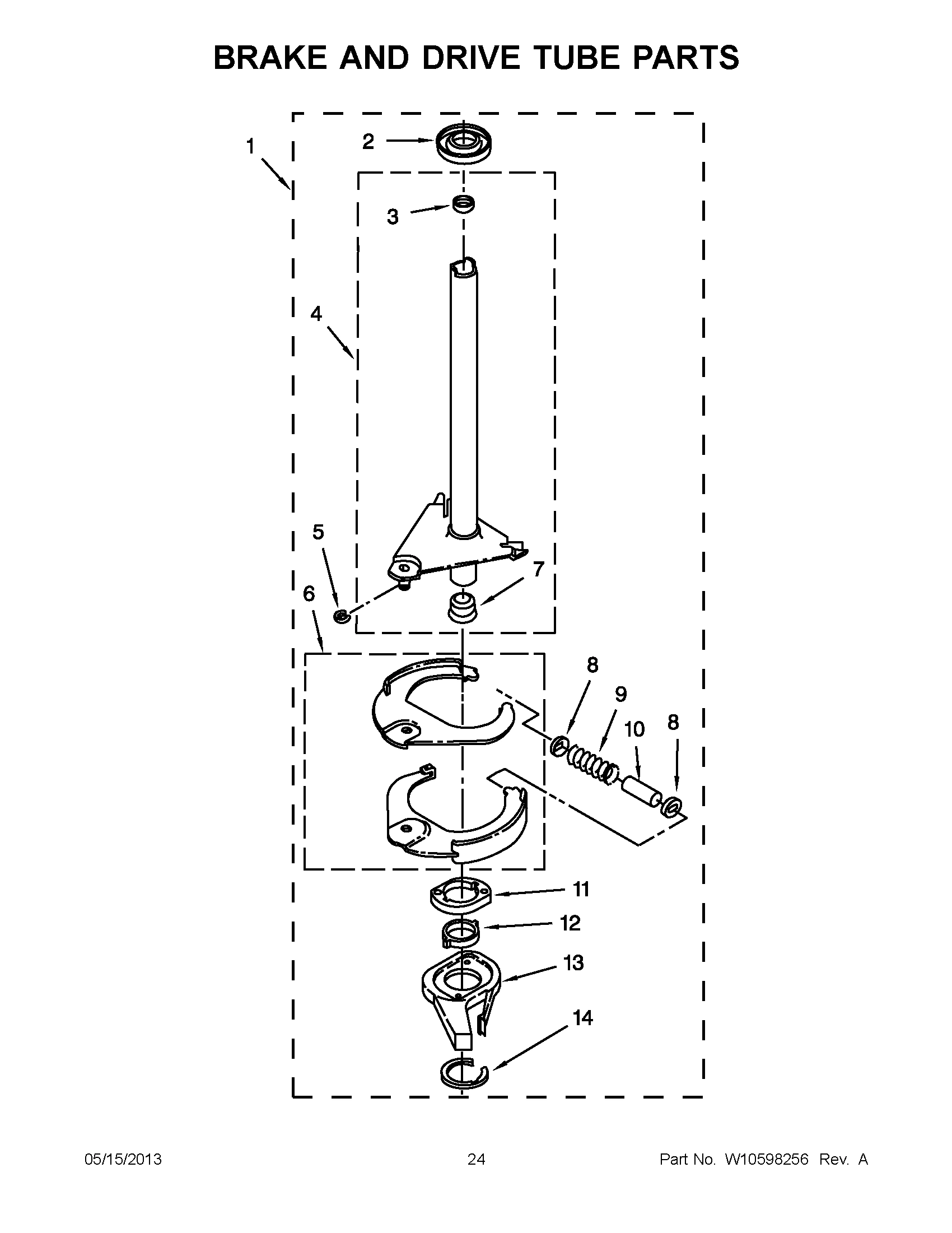

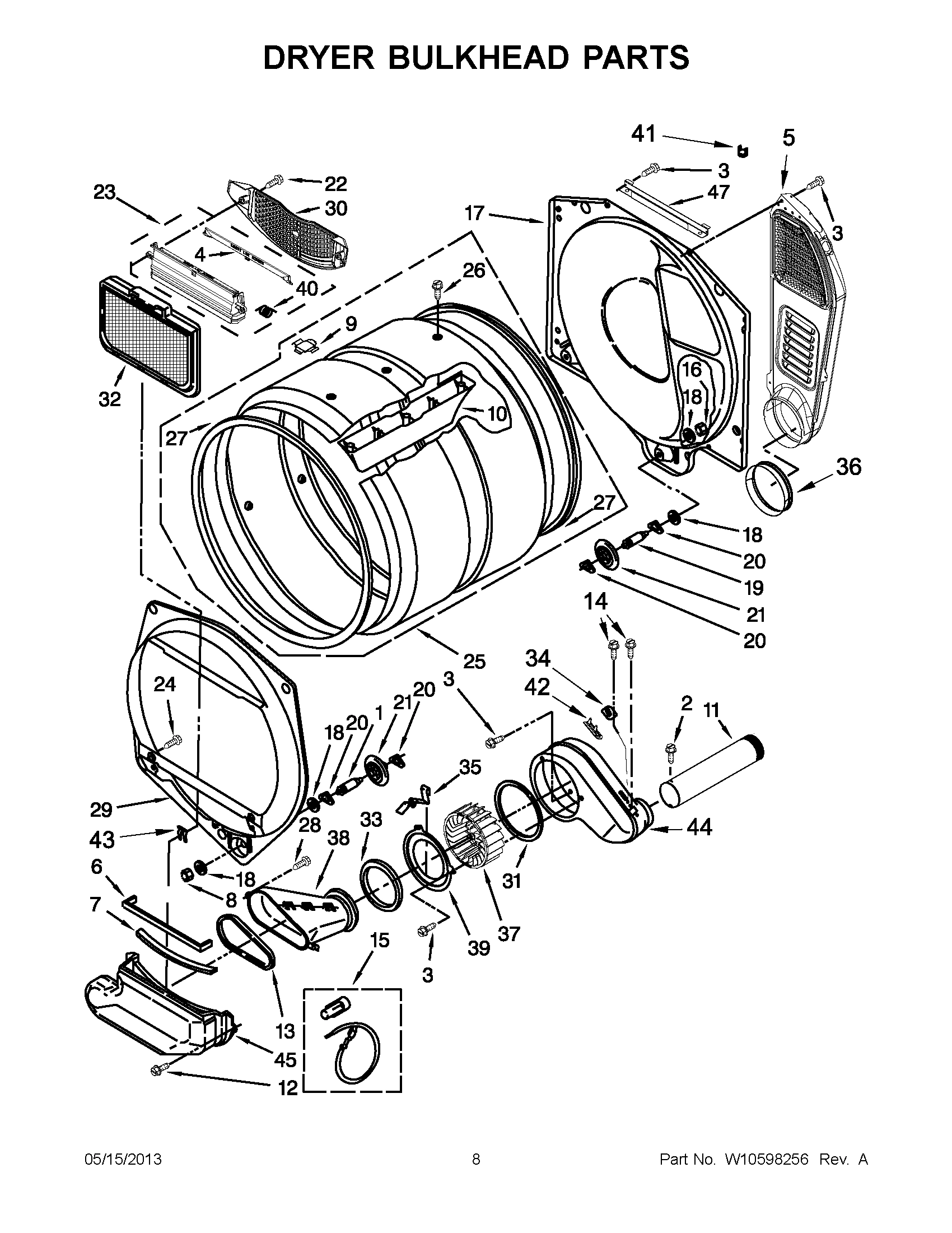

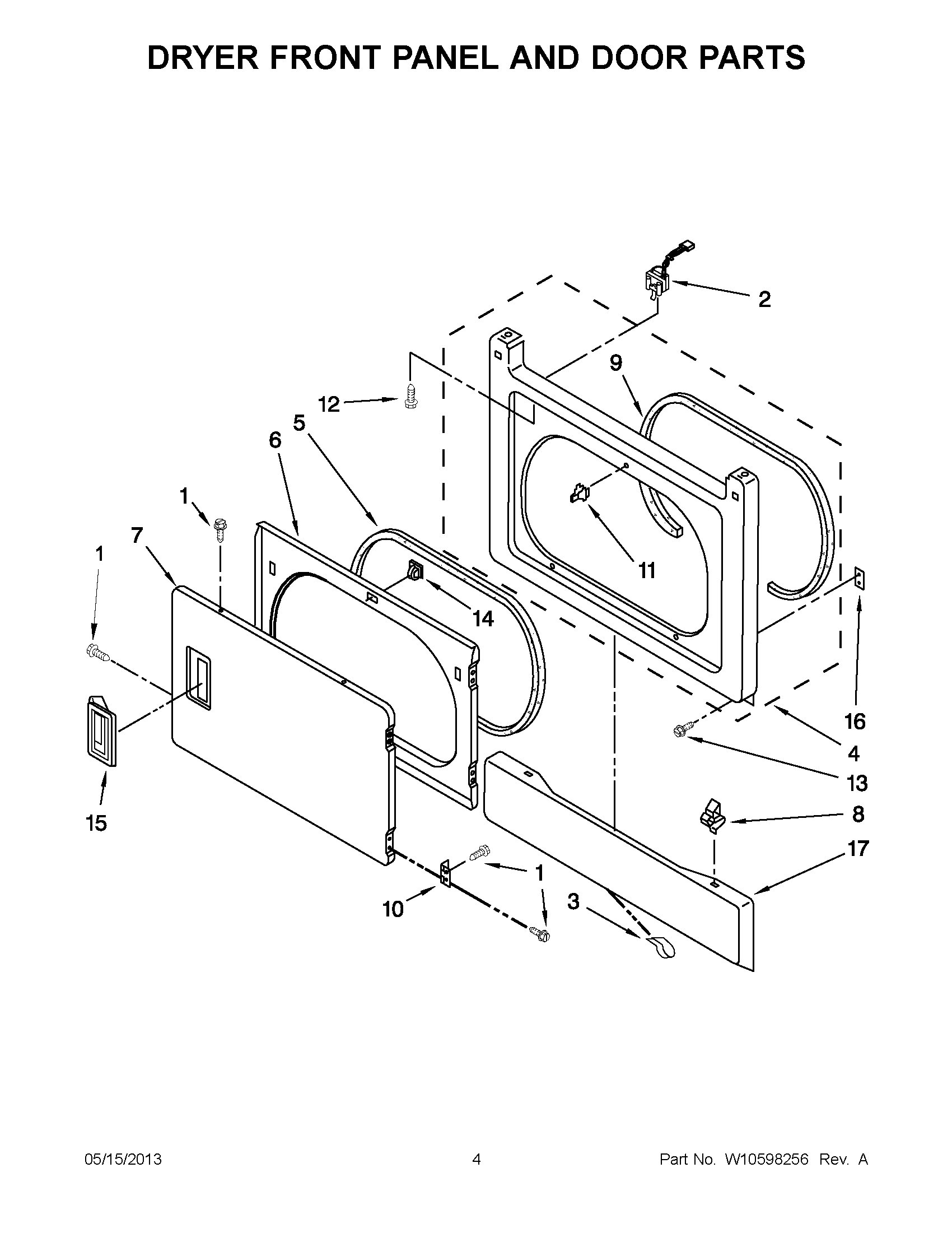

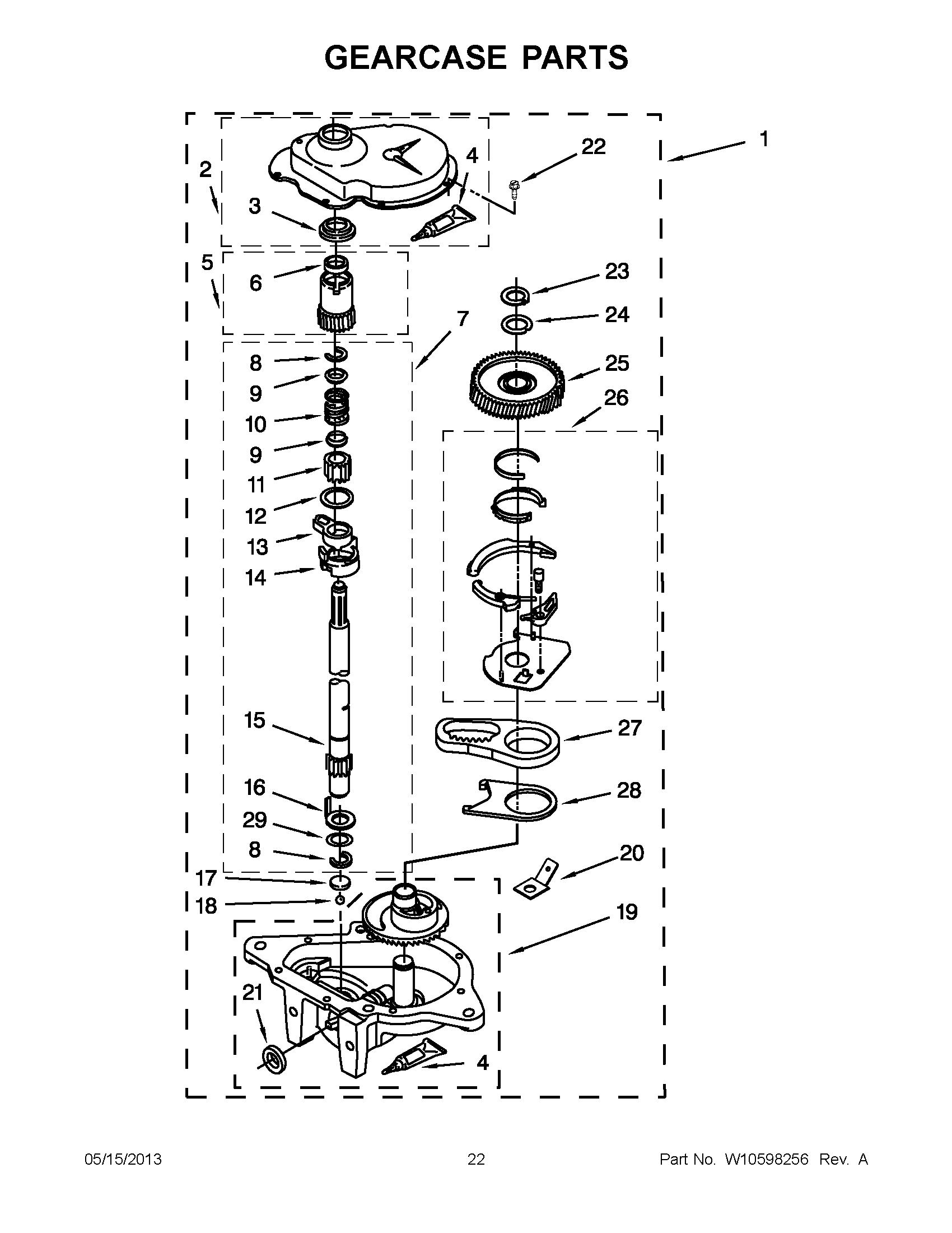

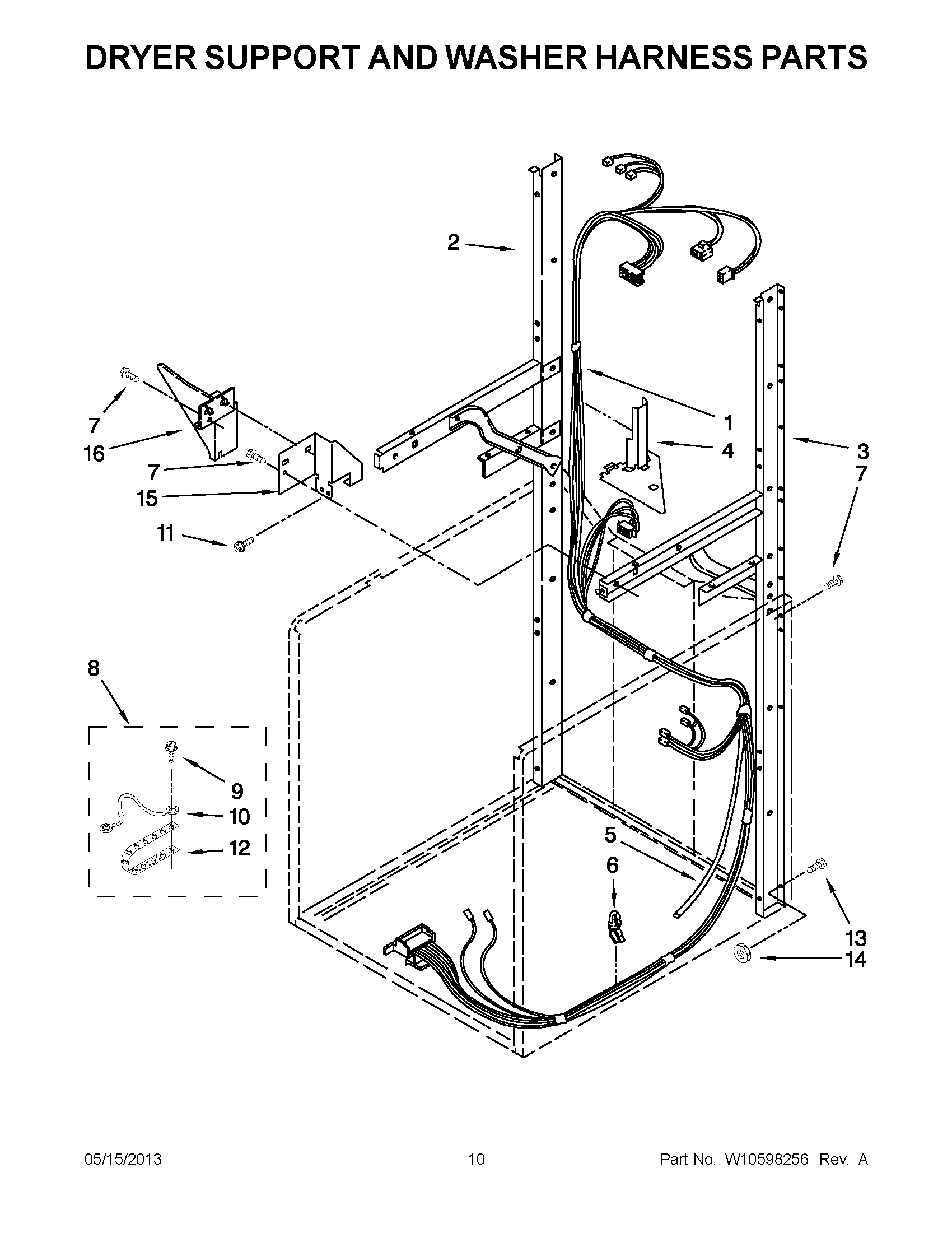

Model Whirlpool WGT3300XQ2 WASHER/DRYER LAUNDRY SYSTEM – Common Parts &amp; Diagrams

1

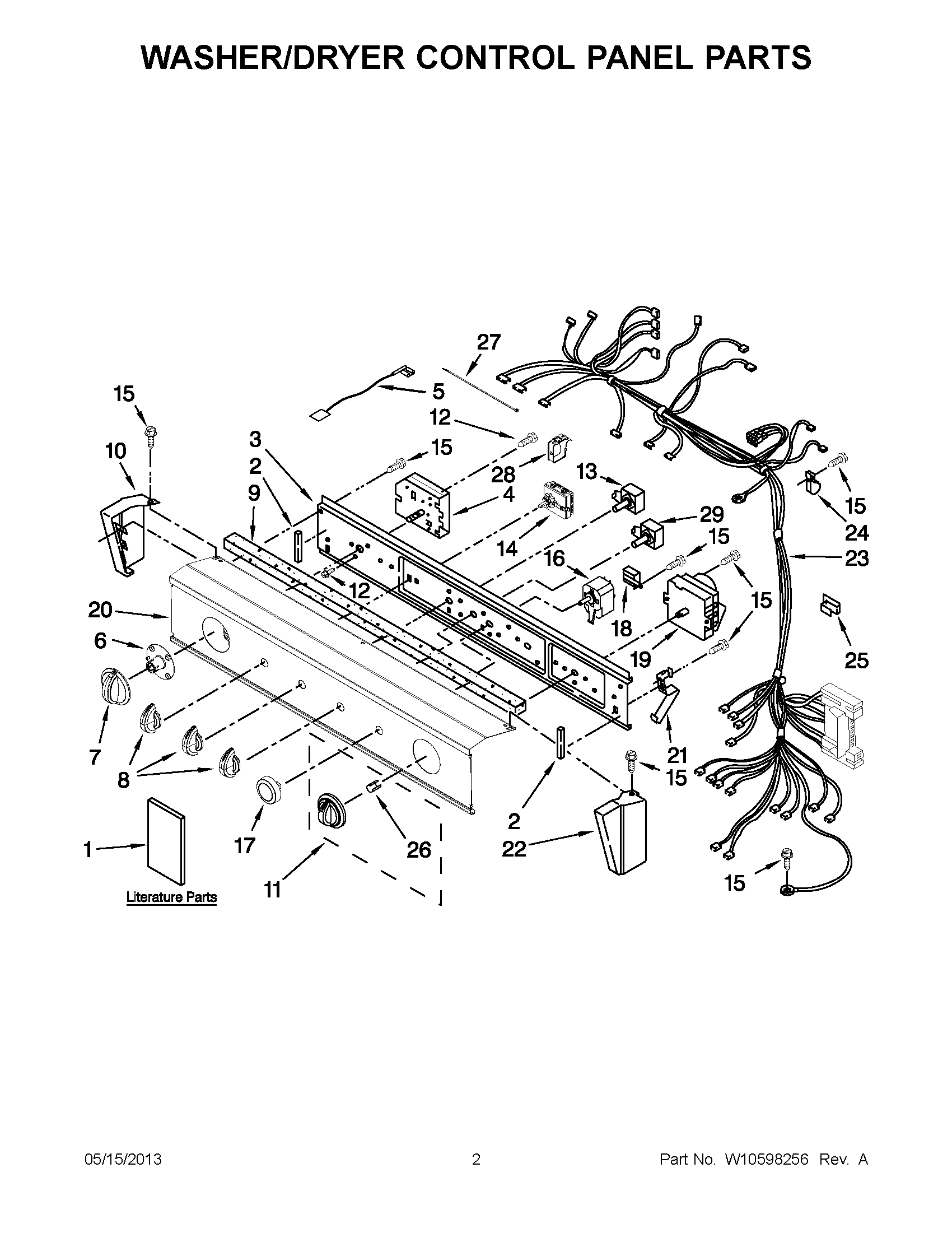

W10545604 Whirlpool Wire Harness Backorder WPL W10545604 $190.70

1

W10864899 Whirlpool Fabric Softener Dispenser In Stock WPL W10864899 $50.73

1

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $30.25

1

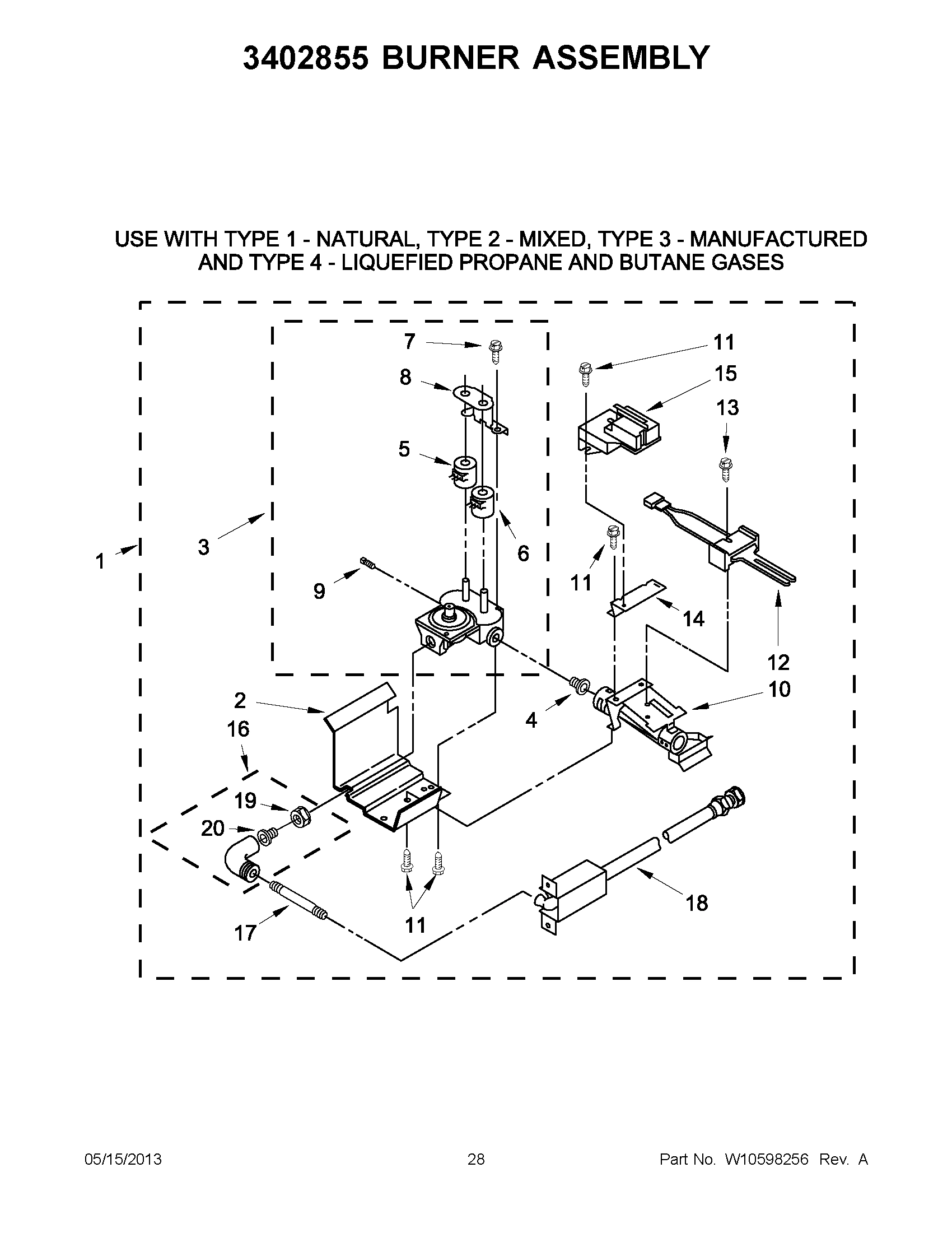

BURNER ASSEMBLY (COMPLETE)(60 HZ.) WPL 3402855 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

3391699 Whirlpool Base Backorder WPL 3391699 $23.79

2

WP3406107 Whirlpool Dryer Door Switch In Stock WPL WP3406107 $11.40

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

3

279889 Whirlpool Valve Assembly Backorder WPL 279889 $161.14

3

3398948 Whirlpool Wire Backorder WPL 3398948 $39.97

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

4

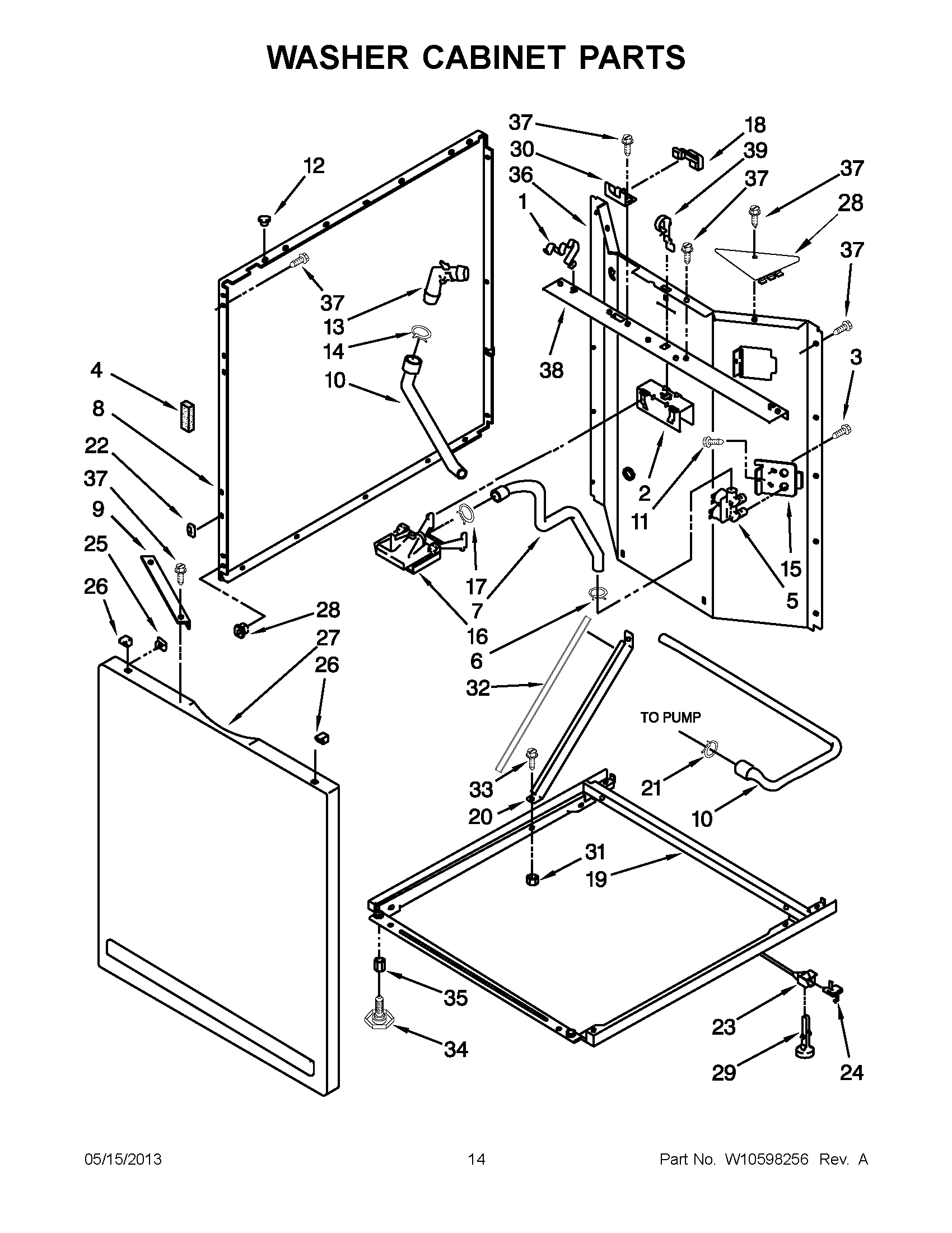

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

4

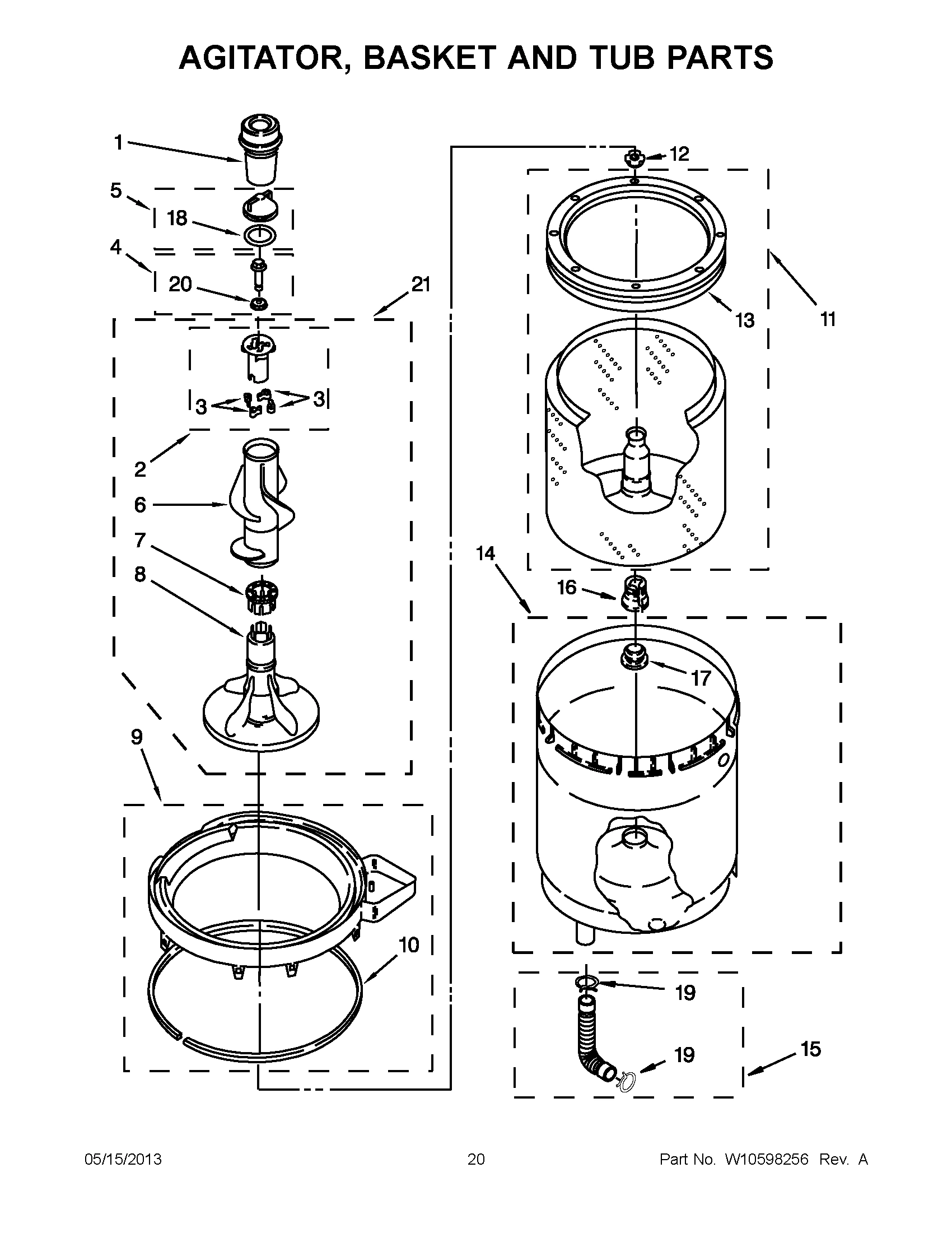

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

4

WPW10113804 Whirlpool Timer Assembly In Stock WPL WPW10113804 $176.95

4

ORIFICE, BURNER (TYPE 4) (BUTANE) WPL 15422 Contact Us For Availability

4

ORIFICE, BURNER (NATURAL GAS) WPL 3394360 Contact Us For Availability

5

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

3349817 Whirlpool Top Assembly Backorder WPL 3349817 $156.71

6

W11676449 Whirlpool Agitator Mover Backorder WPL W11676449 $25.60

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.88

6

WP8566018 Whirlpool Dial Assembly Backorder WPL WP8566018 $29.74

6

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $3.70

7

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

7

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

7

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

7

W11663440 Whirlpool Door Backorder WPL W11663440 $136.74

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

7

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.88

7

Knob, Timer (Washer) (White) WPL 8566022 Contact Us For Availability

7

Hose, Sensor (Vacuum Break To Mixing Valve) WPL 8521954 Contact Us For Availability

8

3354020 Whirlpool Bracket Backorder WPL 3354020 $4.65

8

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

8

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $71.24

8

WP3349455 Whirlpool Panel Backorder WPL WP3349455 $157.60

8

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.88

8

ASSEMBLY, CONTROL KNOB (WHITE) WPL 8565944 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

9

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

9

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $80.47

9

WP3350152 Whirlpool Retainer In Stock WPL WP3350152 $170.84

9

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

285442 Whirlpool Coupling Backorder WPL 285442 $30.25

8578392 Whirlpool Burner Backorder WPL 8578392 $55.71

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

CLIP, CYLINDER RETAINER WPL 3350828 Contact Us For Availability

Hose, Drain WPL 3353841 Contact Us For Availability

END CAP (LEFT) (WHITE) WPL 3389464 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.88

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

Basket WPL 3352234 Contact Us For Availability

Knob, Timer (Dryer) (White) WPL 8566061 Contact Us For Availability

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

279318 Whirlpool Terminal In Stock WPL 279318 $41.56

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.70

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $3.88

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $15.35

W11213338 Whirlpool Connector Backorder WPL W11213338 $28.26

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $79.32

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

WPW10544357 Whirlpool Cycle Switch Backorder WPL WPW10544357 $73.41

3350101 Whirlpool Hinge Backorder WPL 3350101 $11.64

W11103599 Whirlpool Temperature Switch In Stock WPL W11103599 $87.82

WP3349292 Whirlpool Tub Assembly Backorder WPL WP3349292 $110.64

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

Bracket, Sensor WPL 697409 Contact Us For Availability

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $3.93

3349673 Whirlpool Bracket Assembly Backorder WPL 3349673 $8.89

3350102 Whirlpool Hinge Assembly Backorder WPL 3350102 $11.90

W10877261 Whirlpool Handle Assembly Backorder WPL W10877261 $53.77

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

3406051 Whirlpool Elbow Backorder WPL 3406051 $39.03

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

WP3404233 Whirlpool Dryer Starter Switch In Stock WPL WP3404233 $39.03

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

3388958 Whirlpool Panel Backorder WPL 3388958 $57.87

PIPE Backorder WPL W10110398 $10.67

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP3355458 Whirlpool Lid Switch In Stock WPL WP3355458 $30.10

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

3350145 Whirlpool Shield Assembly Backorder WPL 3350145 $8.00

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

WP694419 Whirlpool Buzzer Adjuster In Stock WPL WP694419 $51.99

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.88

Supply Line (Gas) WPL 3391118 Contact Us For Availability

W11116924 Whirlpool Locator Backorder WPL W11116924 $10.76

WP3402724 Whirlpool Washer Base Backorder WPL WP3402724 $123.87

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

WPW10113761 Whirlpool Timer In Stock WPL WPW10113761 $179.38

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $29.96

BASE ASSEMBLY WPL 3349343 Contact Us For Availability

Nut, Compression WPL 233076 Contact Us For Availability

20

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

20

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

3349749 Whirlpool Restrainer Backorder WPL 3349749 $7.69

3389453 Whirlpool Hinge Assembly Backorder WPL 3389453 $30.25

W10429138 Whirlpool Agitator Backorder WPL W10429138 $86.50

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $14.74

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

WASHER WPL 3349340 Contact Us For Availability

23

WP3349311 Whirlpool Link In Stock WPL WP3349311 $35.34

23

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

24

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.88

25

W10518375 Whirlpool Drum Assembly Backorder WPL W10518375 $163.03

25

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

25

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

3389683 Whirlpool Cover Assembly Backorder WPL 3389683 $43.37

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $30.87

W10853898 Whirlpool Screw Backorder WPL W10853898 $2.51

WP345670 Whirlpool Lock In Stock WPL WP345670 $3.88

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.88

27

3389272 Whirlpool Panel Backorder WPL 3389272 $105.03

27

W11229602 Whirlpool Seal In Stock WPL W11229602 $40.99

27

WP3349499 Whirlpool Panel Backorder WPL WP3349499 $176.00

28

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

28

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

29

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $62.32

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

29

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $89.94

30

3350144 Whirlpool Bracket Backorder WPL 3350144 $39.45

30

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $14.24

32

WP3389431 Whirlpool Bumper Assembly Backorder WPL WP3389431 $4.89

32

WP3389644 Whirlpool Screen Assembly In Stock WPL WP3389644 $59.21

33

WP693304 Whirlpool Screw Backorder WPL WP693304 $2.51

33

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $30.25

34

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $11.52

35

3390935 Whirlpool Clip Backorder WPL 3390935 $7.32

35

3400917 Whirlpool Nut Backorder WPL 3400917 $5.65

37

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $31.33

38

279704 Whirlpool Duct Assembly Backorder WPL 279704 $65.16

38

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

39

279780 Whirlpool Plate Cover Backorder WPL 279780 $32.63

39

3350135 Whirlpool Lever Spring Backorder WPL 3350135 $8.09

40

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $30.51

41

W11568973 Whirlpool Thermostat Fix Backorder WPL W11568973 $6.13

41

WPW10581952 Whirlpool Power Cord In Stock WPL WPW10581952 $75.33

42

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

43

W11712577 Whirlpool Clip In Stock WPL W11712577 $2.43

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $35.89

45

279700 Whirlpool Duct Lint Backorder WPL 279700 $78.41

47

W10118337 Whirlpool Bracket Assembly Backorder WPL W10118337 $65.21

279823 Whirlpool Exhaust Pipe Backorder WPL 279823 $97.29

3392235A Whirlpool Gas Conversion Kit In Stock WPL 3392235A $29.96

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
