Model UTG50FSP111TW08 – Common Parts & Diagrams

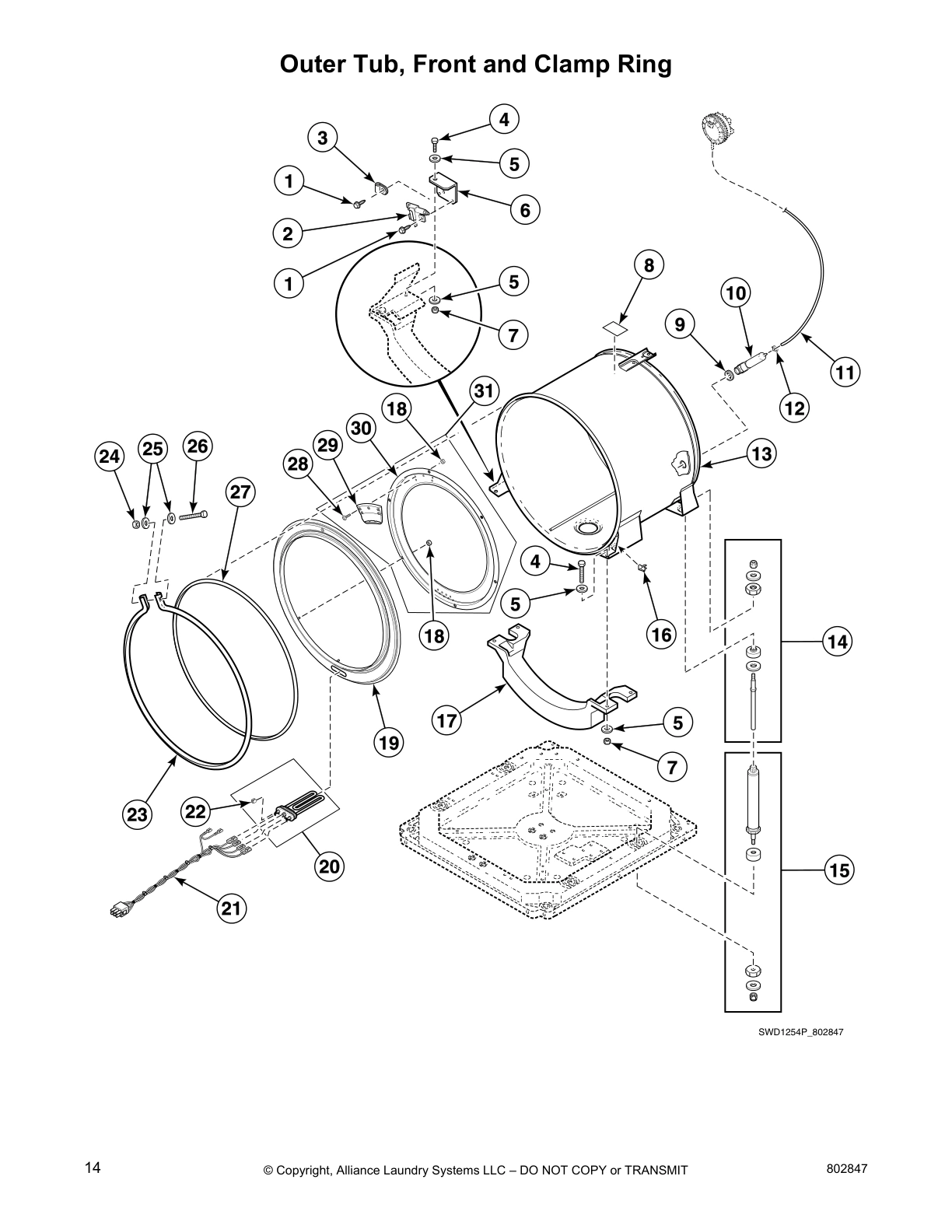

Outer Tub, Front And Clamp Ring
Dryer Motor Connection Block, Terminal Extractor Tools
Washer Motor And Belt

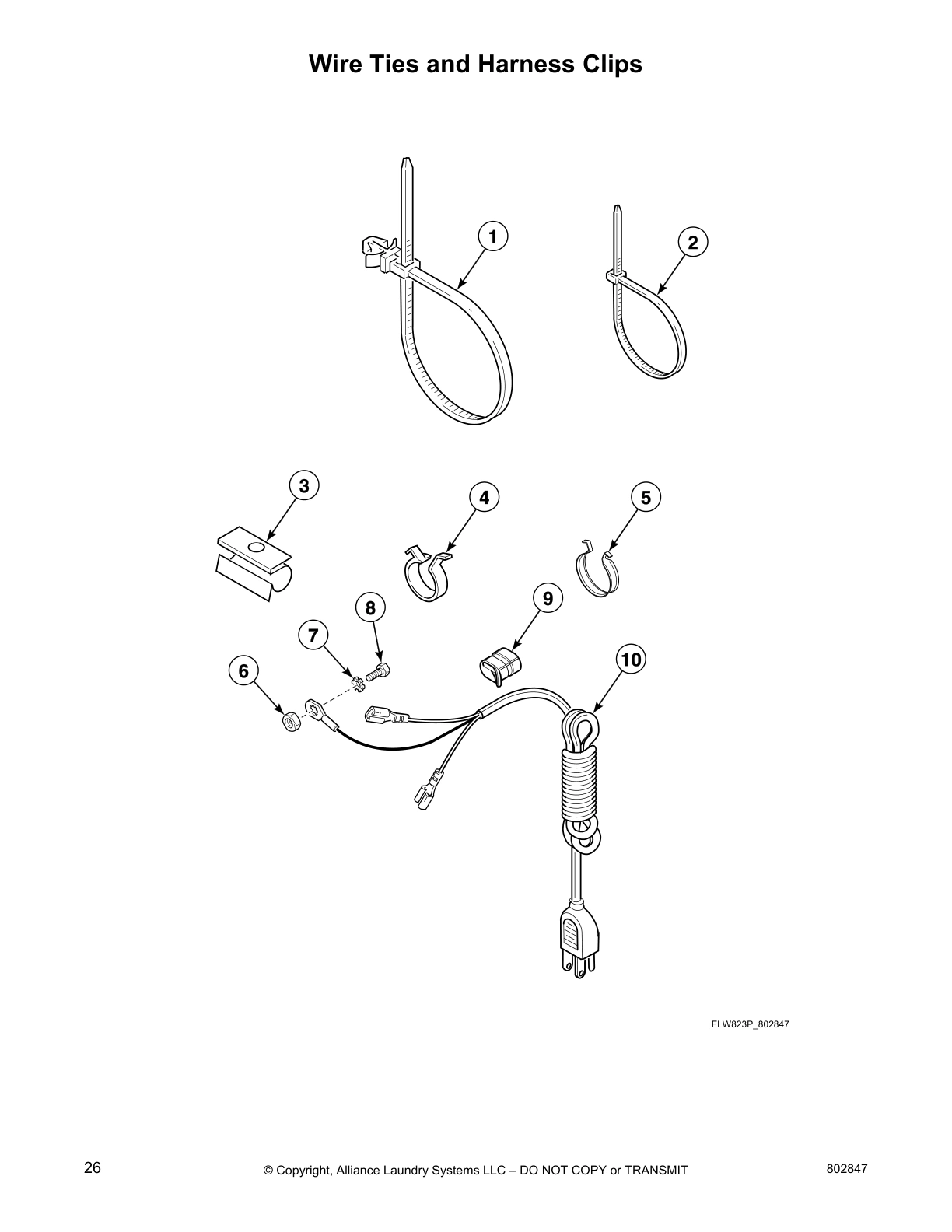

Wire Ties And Harness Clips
Mixing Valve, Valve-to-dispenser Inlet Hose And Fill Hose

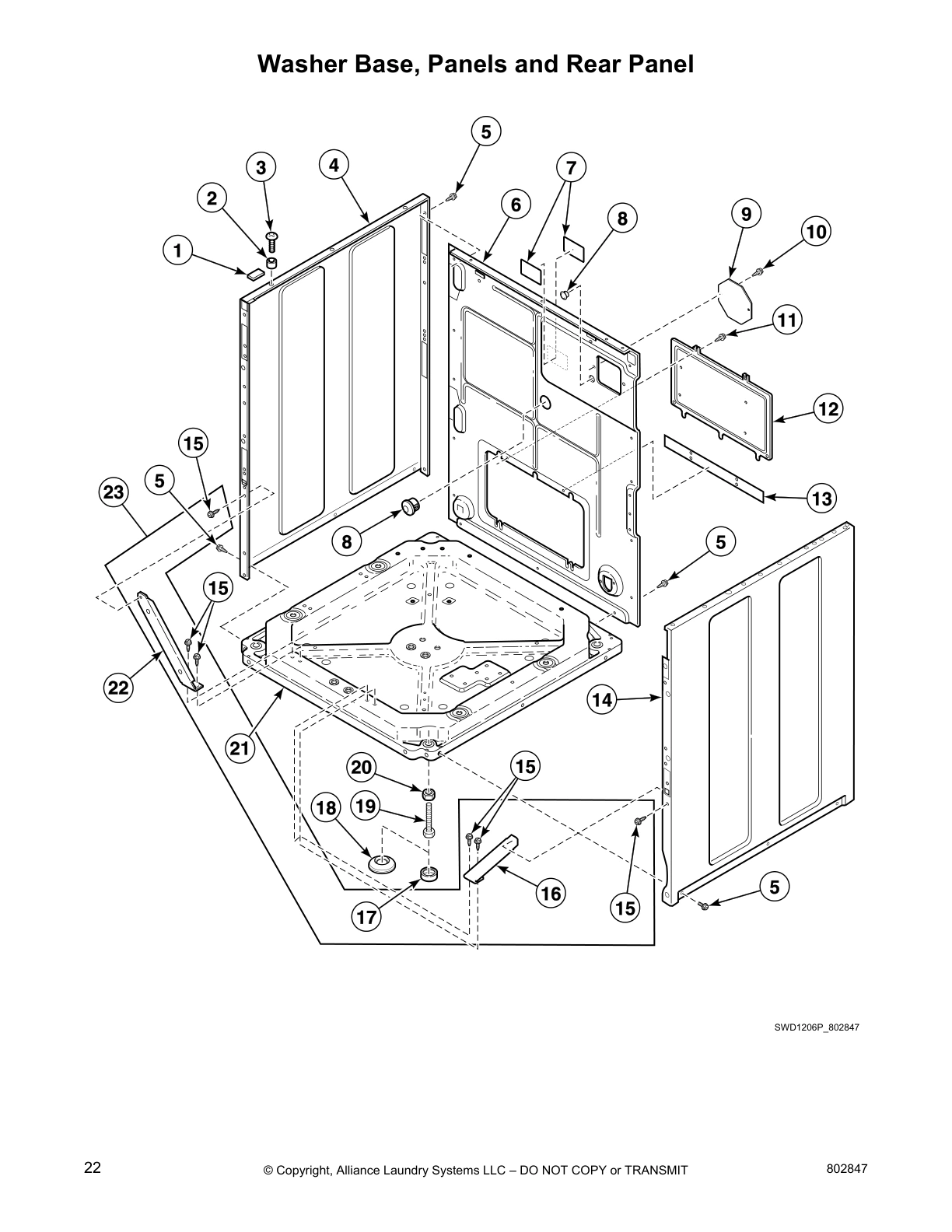

Washer Base, Panels And Rear Panel
Washer Motor And Belt
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block

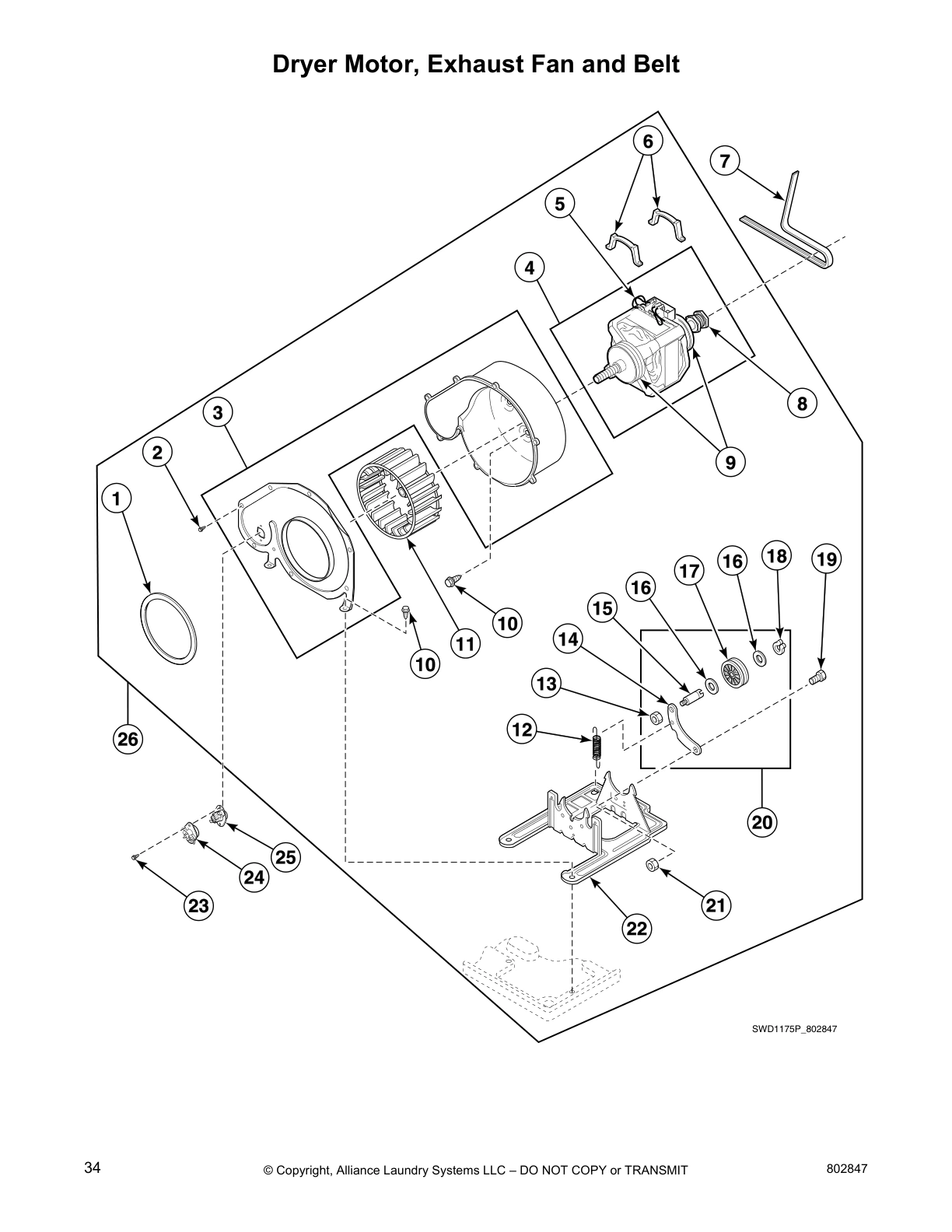

Dryer Motor, Exhaust Fan And Belt

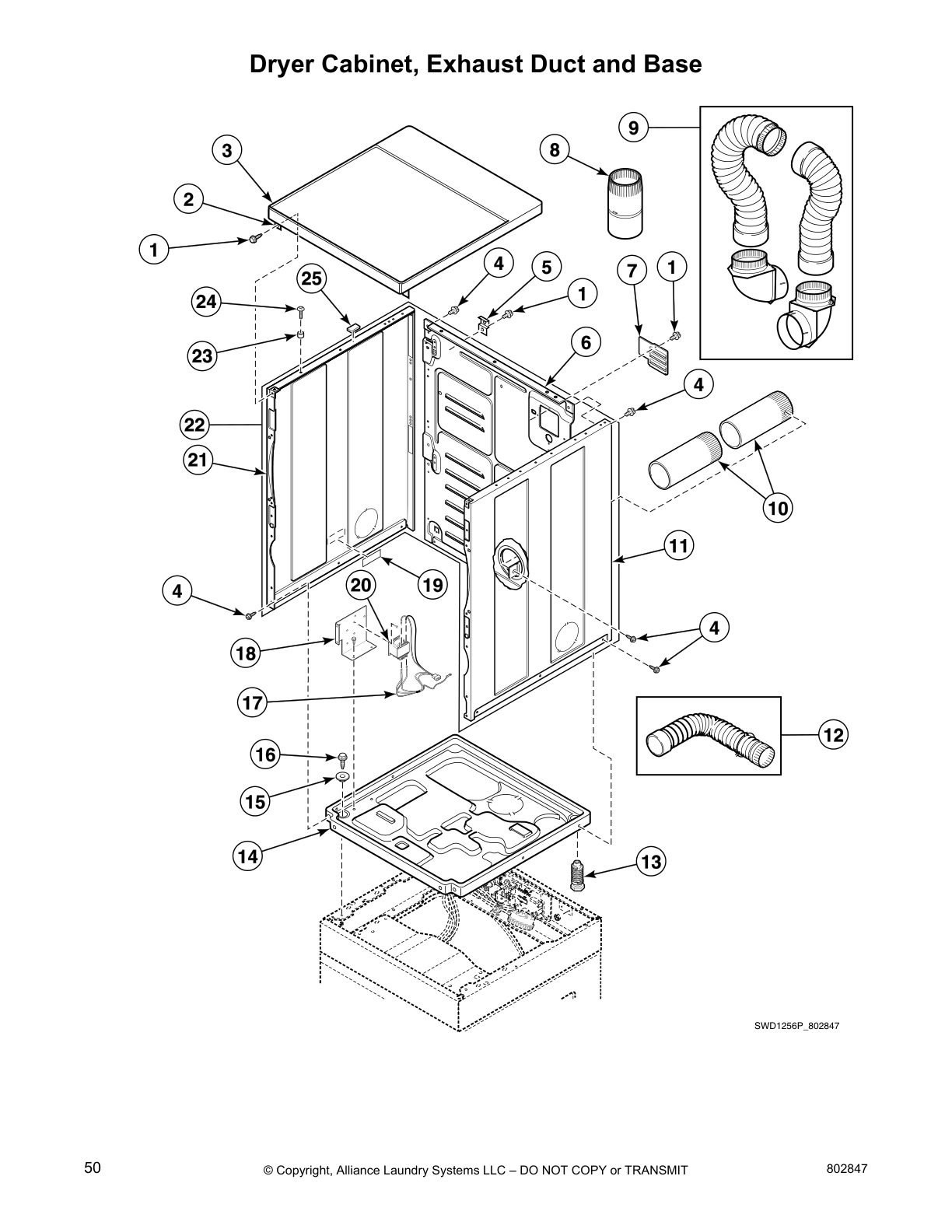

Dryer Cabinet, Exhaust Duct And Base

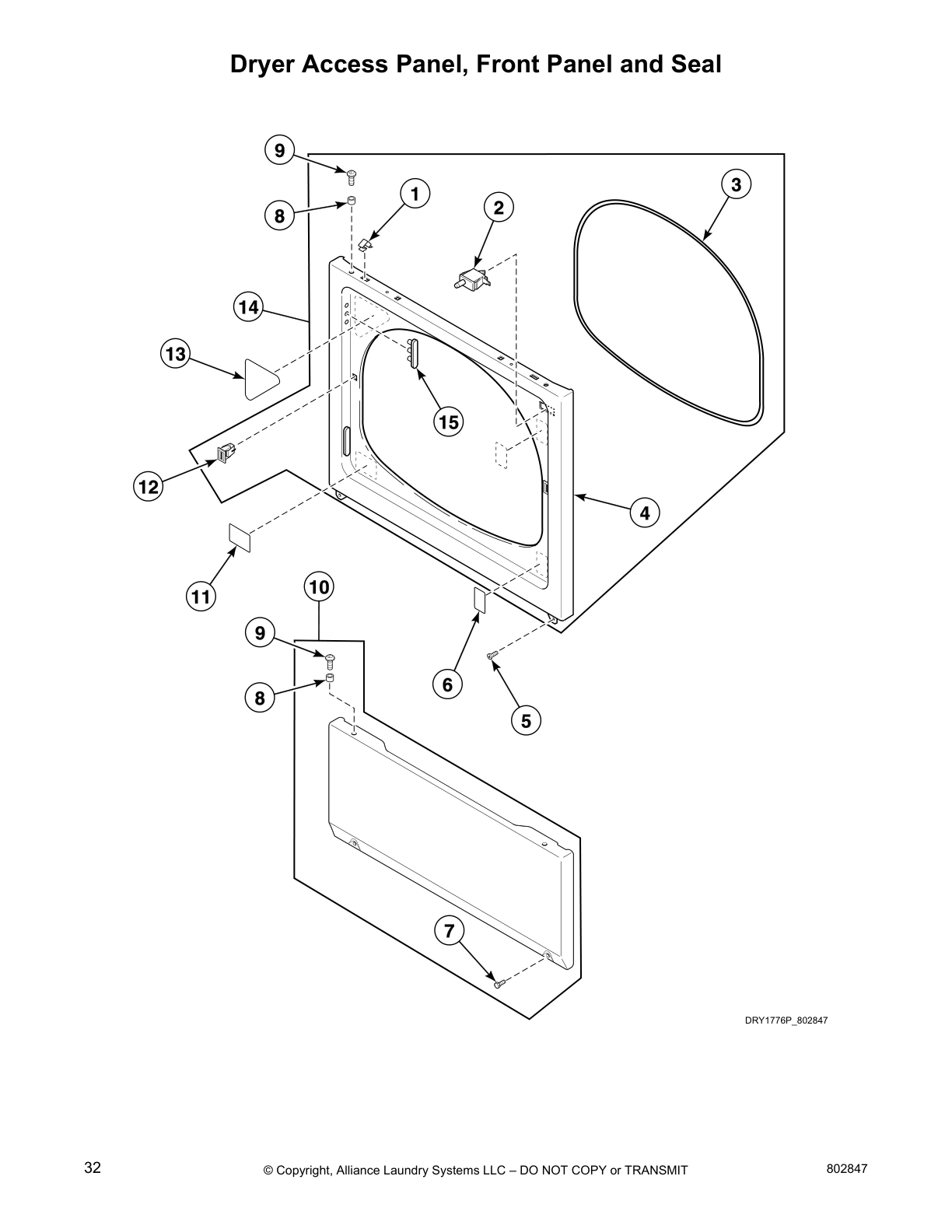

Dryer Access Panel, Front Panel And Seal
Outer Tub, Front And Clamp Ring
Dryer Motor, Exhaust Fan And Belt
Washer Base, Panels And Rear Panel

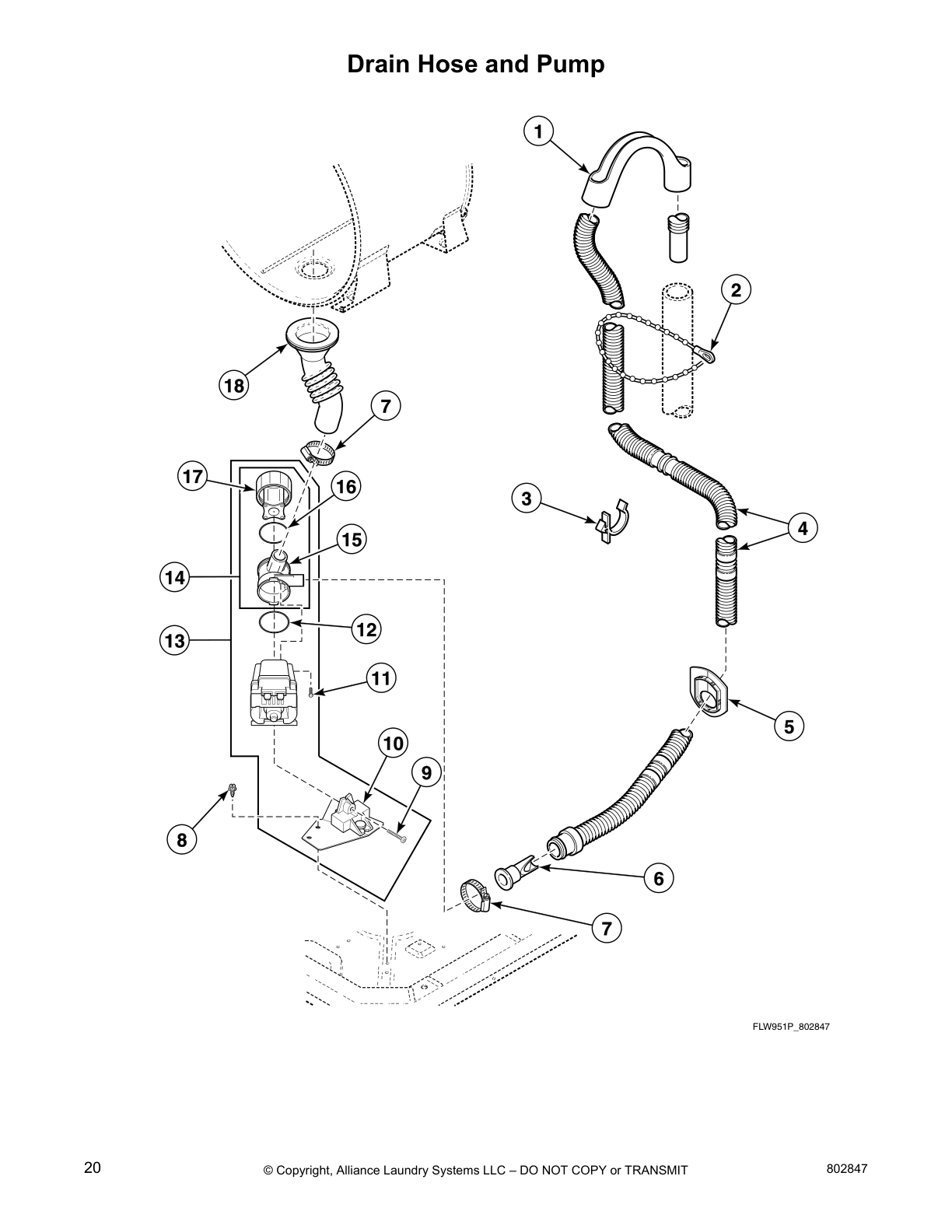

Drain Hose And Pump
Dryer Access Panel, Front Panel And Seal
Drain Hose And Pump
Washer Base, Panels And Rear Panel
Wire Ties And Harness Clips
Drain Hose And Pump

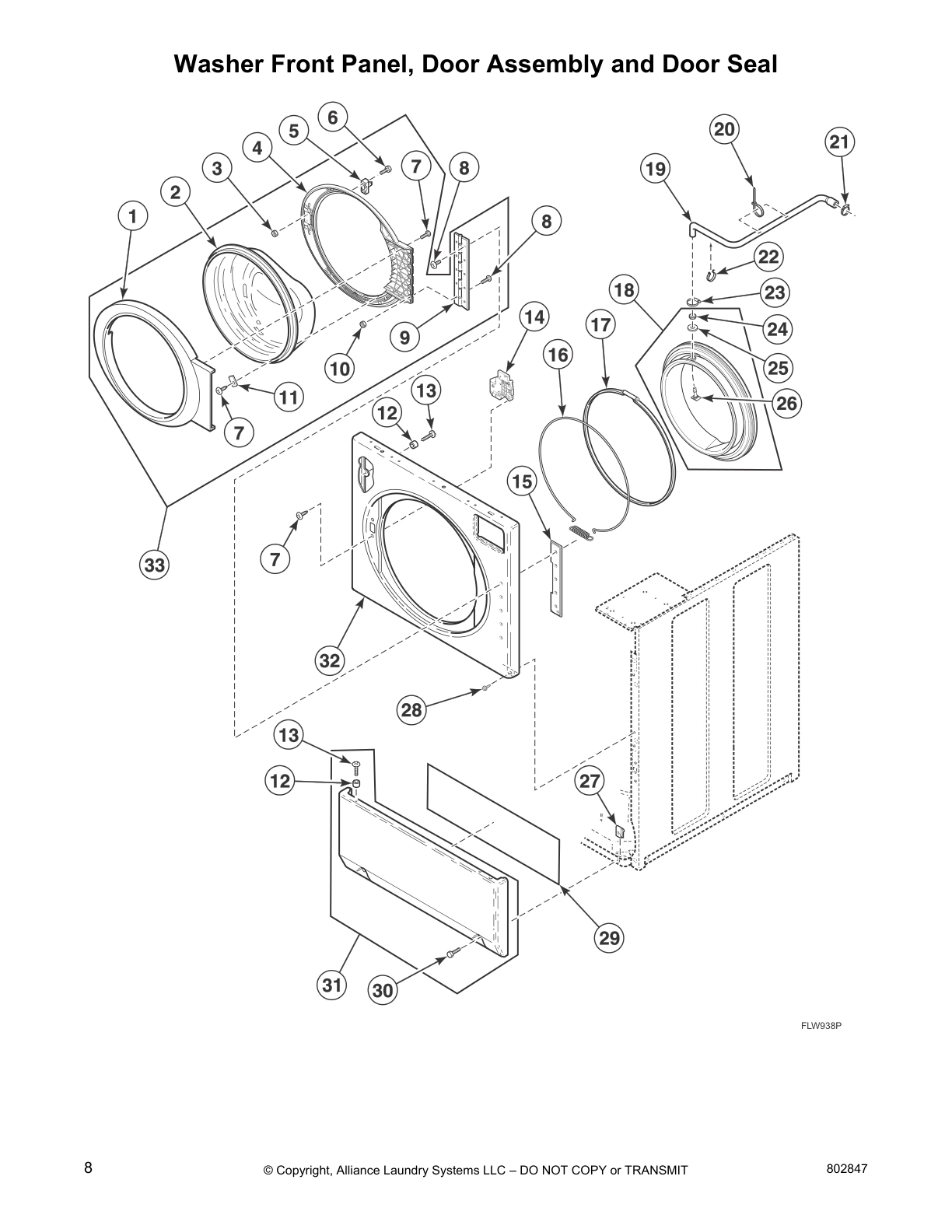

Washer Front Panel, Door Assembly And Door Seal
Washer Base, Panels And Rear Panel
Wire Ties And Harness Clips
Control Cabinet And Controls
Mixing Valve, Valve-to-dispenser Inlet Hose And Fill Hose
Wire Ties And Harness Clips

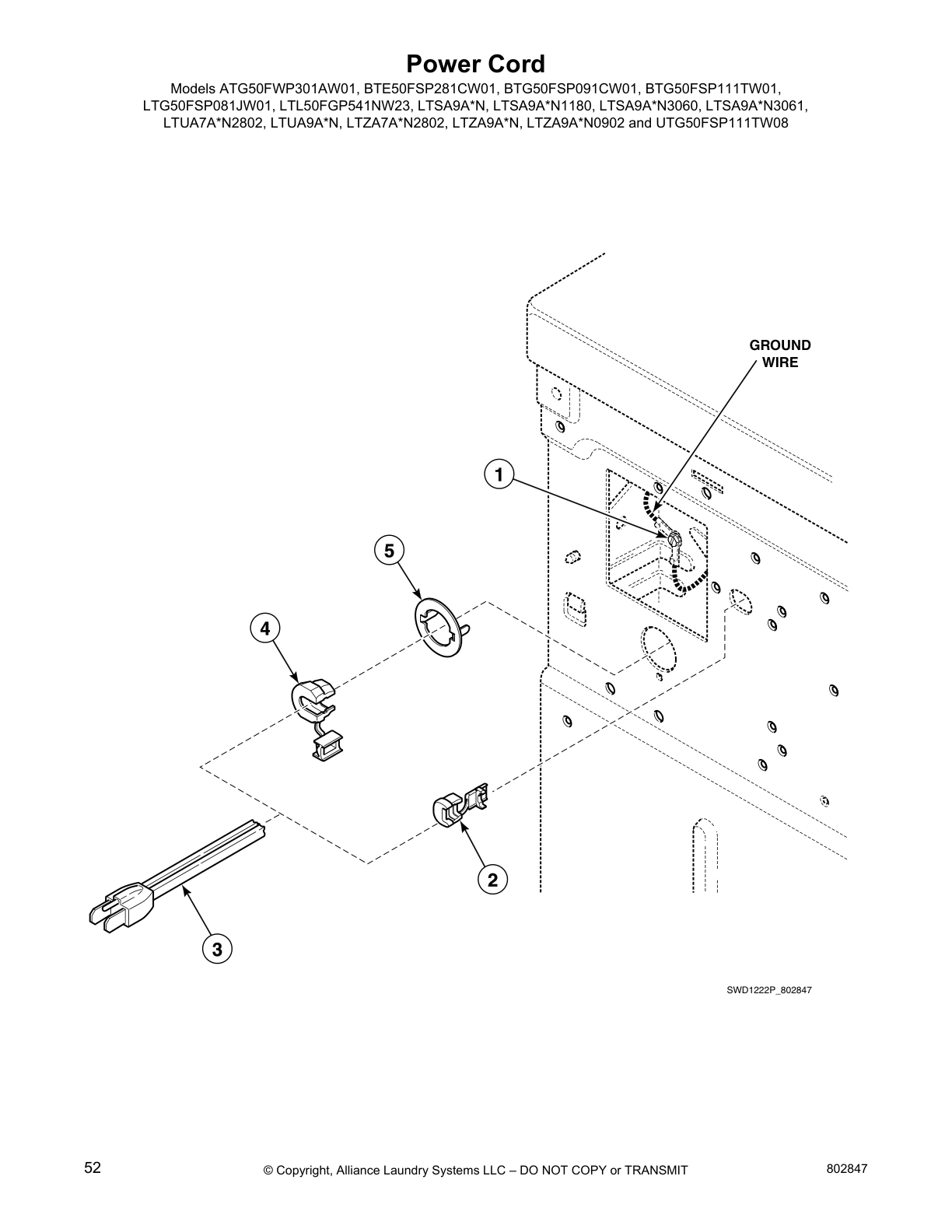

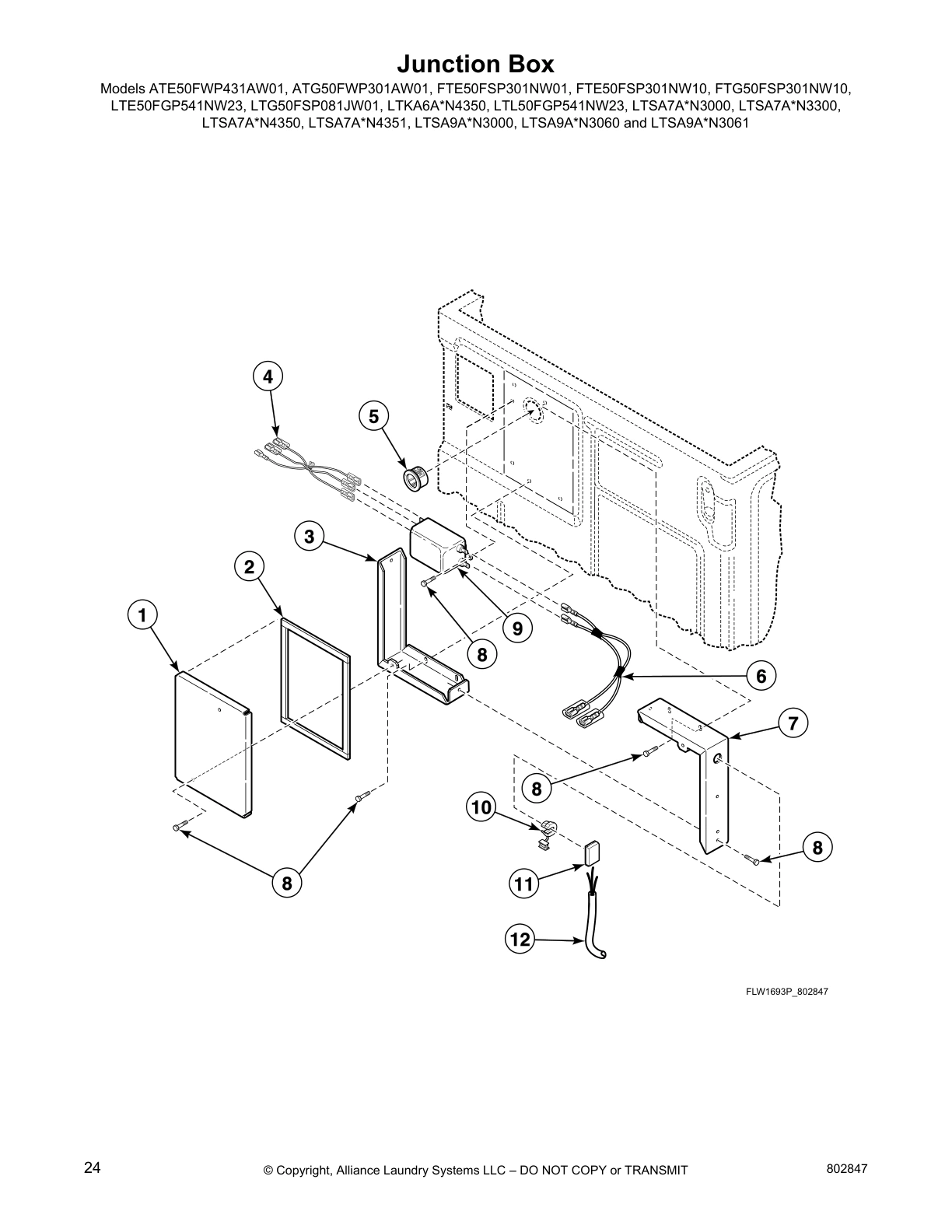

Power Cord
Wire Ties And Harness Clips
Washer Front Panel, Door Assembly And Door Seal
Washer Base, Panels And Rear Panel
Dryer Cabinet, Exhaust Duct And Base
Dryer Access Panel, Front Panel And Seal

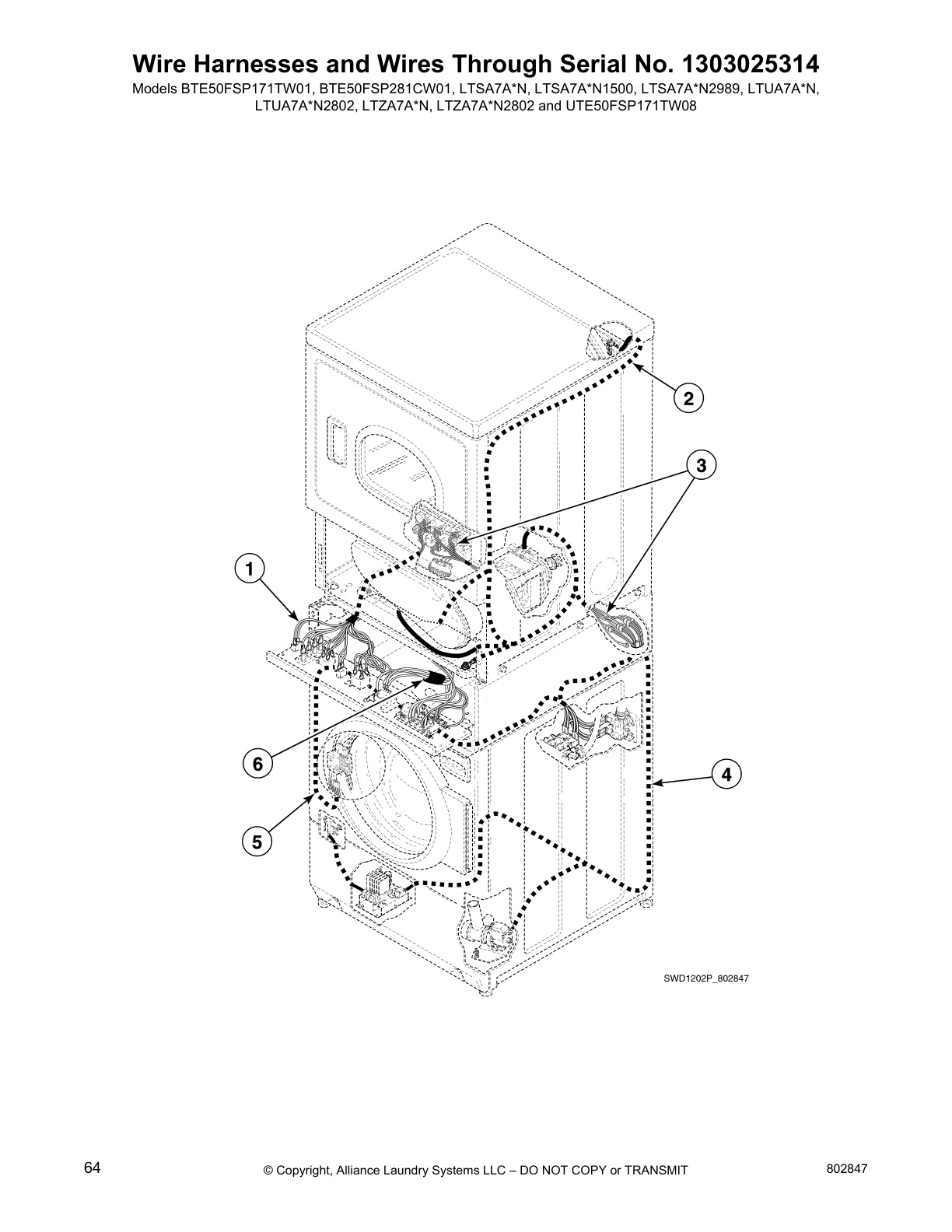

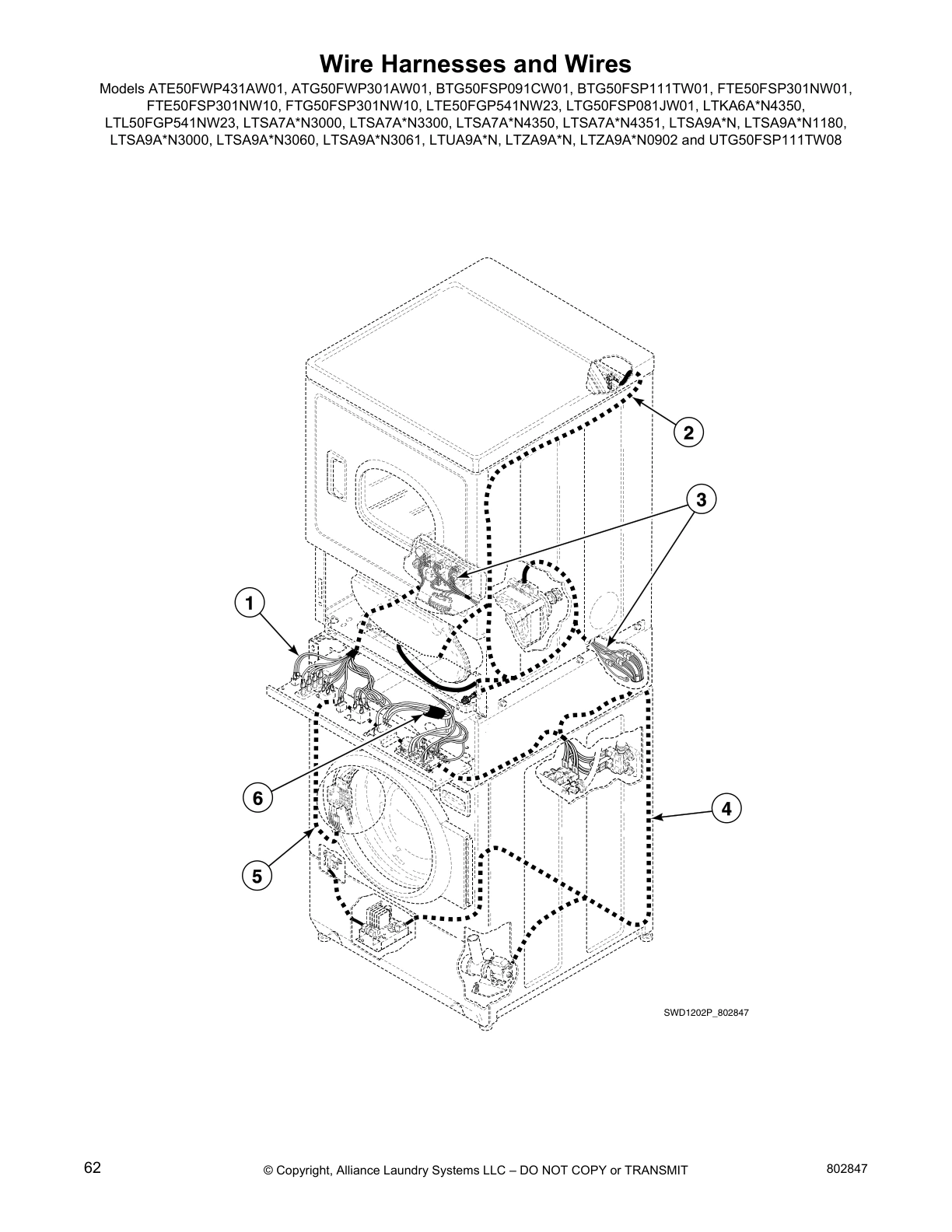

Wire Harnesses And Wires

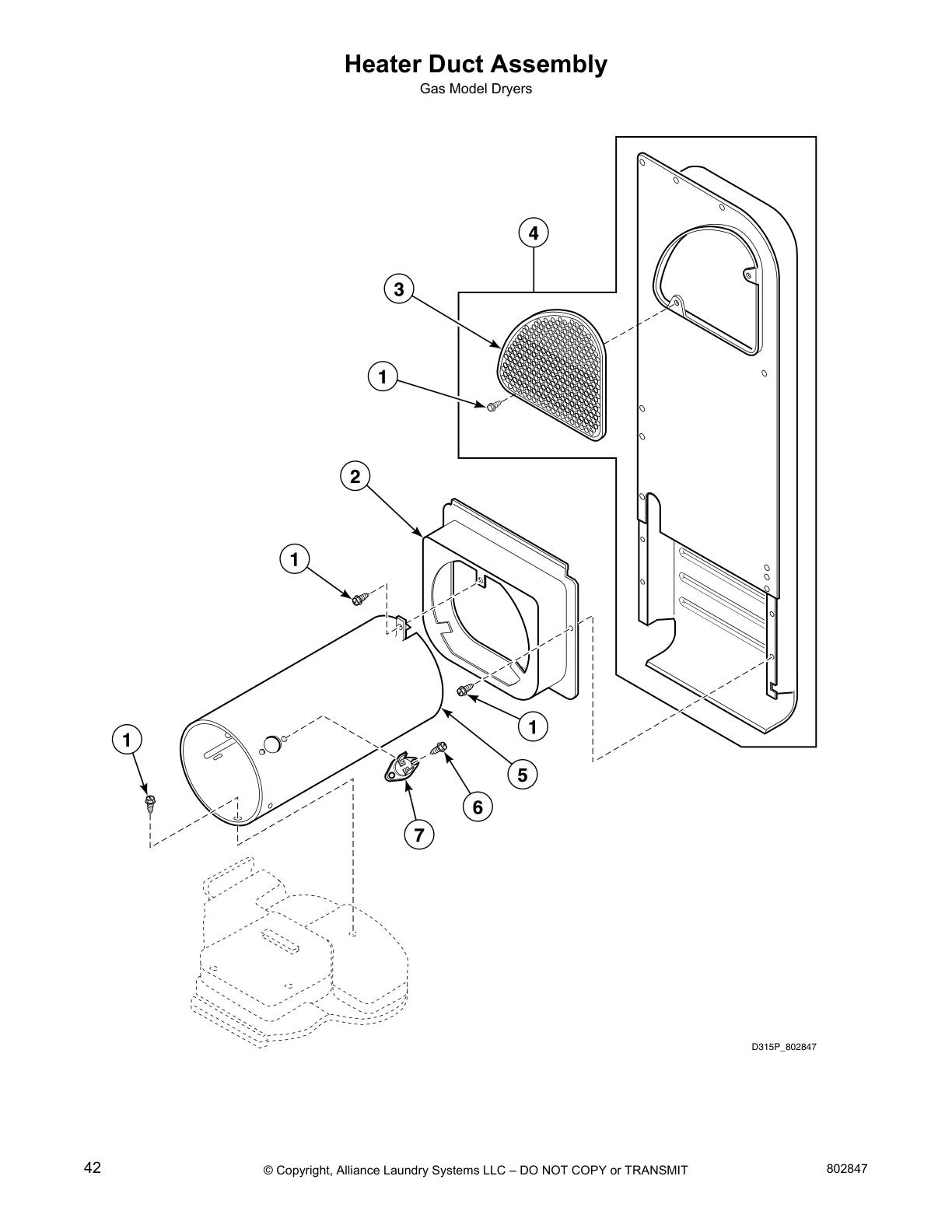

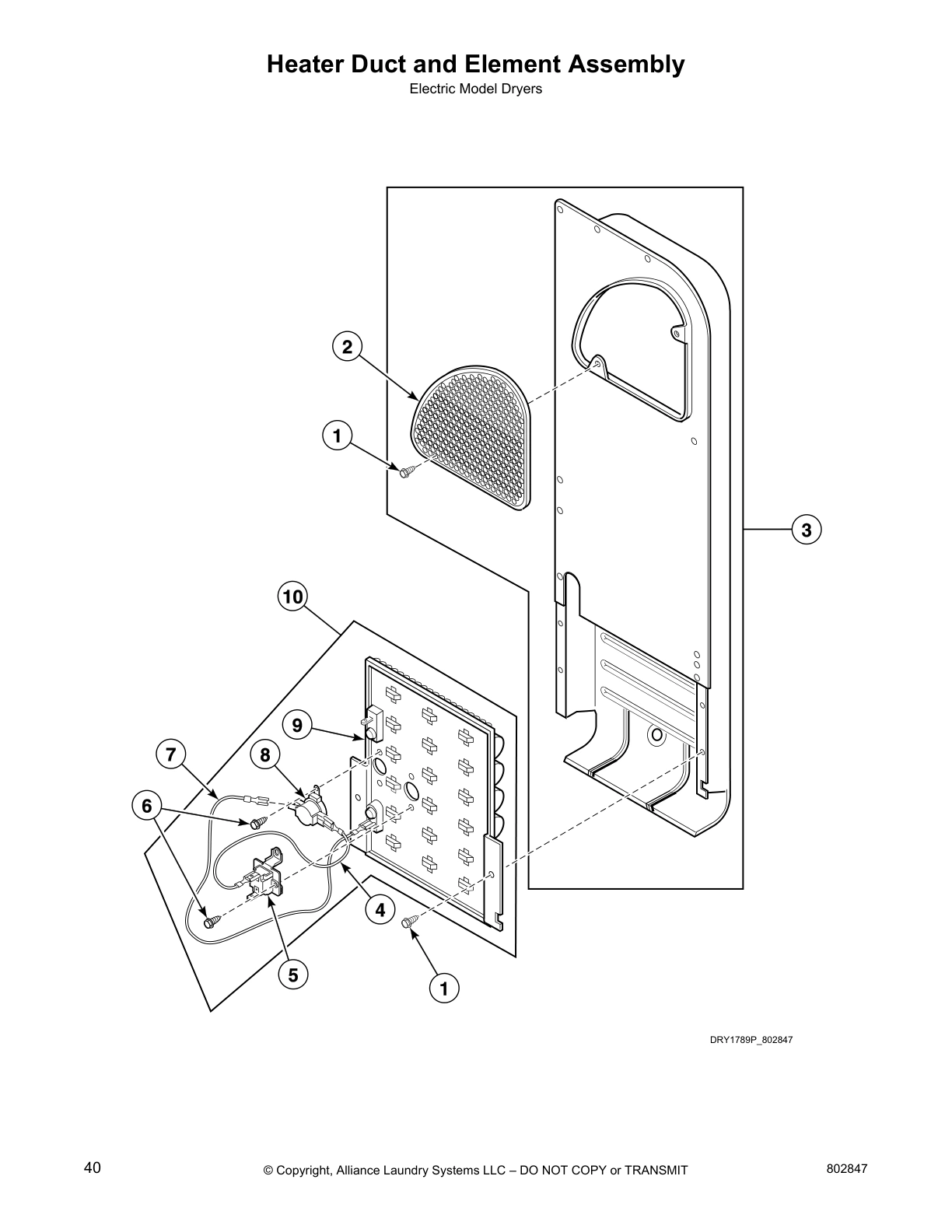

Heater Duct Assembly (gas Model Dryers)

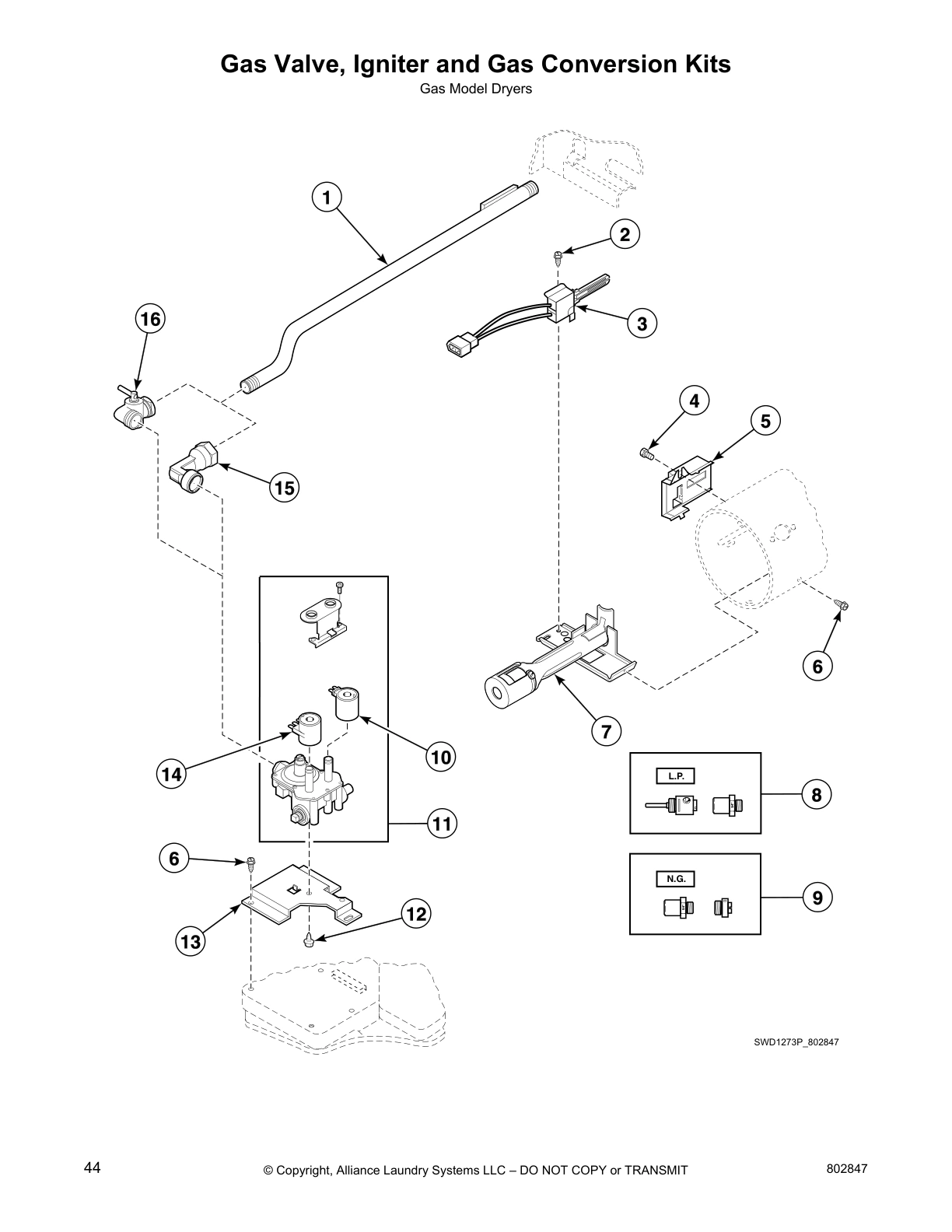

Gas Valve, Igniter And Gas Conversion Kits (gas Model Dryers)
Washer Motor And Belt
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Dryer Motor, Exhaust Fan And Belt

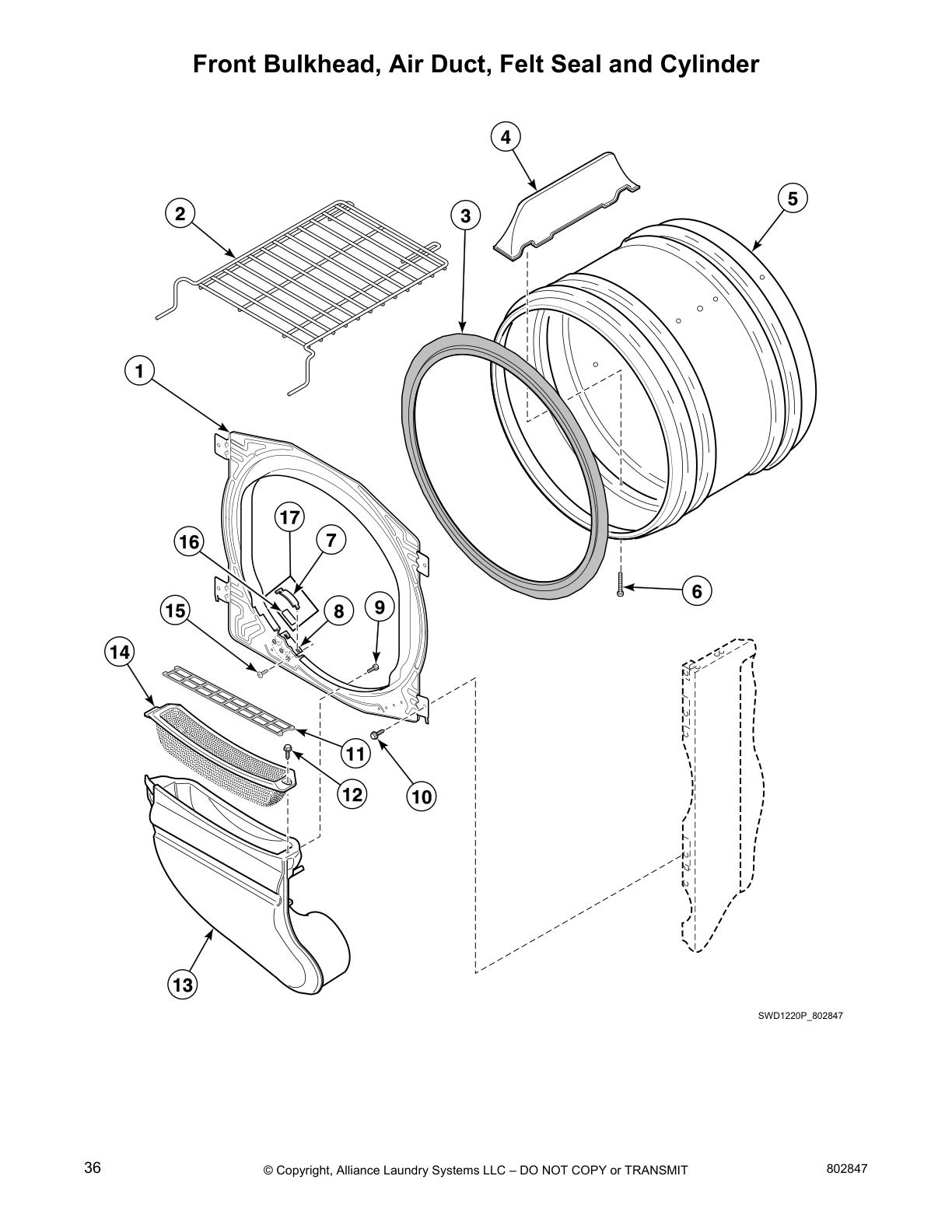

Front Bulkhead, Air Duct, Felt Seal And Cylinder
Wire Ties And Harness Clips
Washer Front Panel, Door Assembly And Door Seal

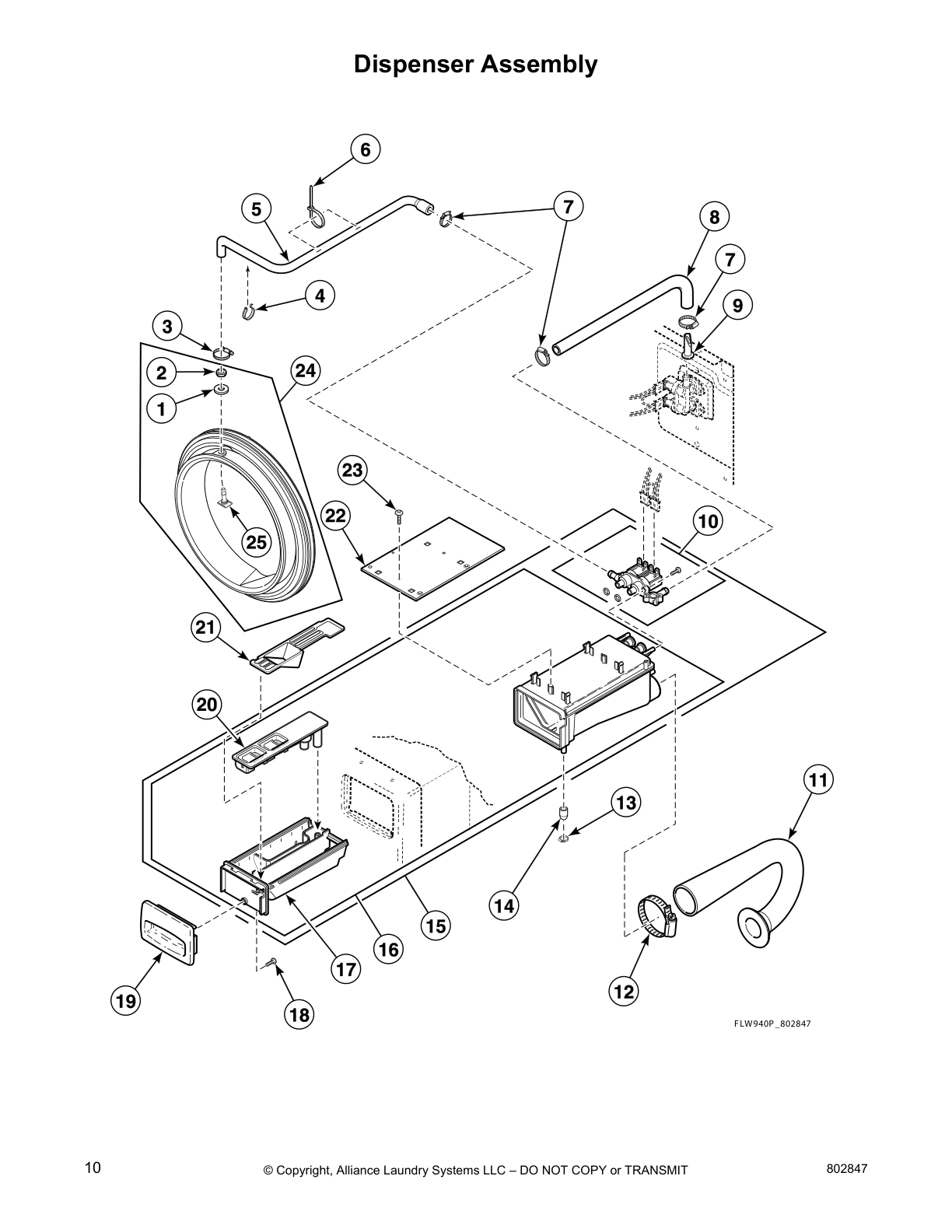

Dispenser Assembly
Washer Front Panel, Door Assembly And Door Seal
Washer Base, Panels And Rear Panel
Dryer Cabinet, Exhaust Duct And Base
Dryer Access Panel, Front Panel And Seal
Dryer Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Dryer Motor, Exhaust Fan And Belt

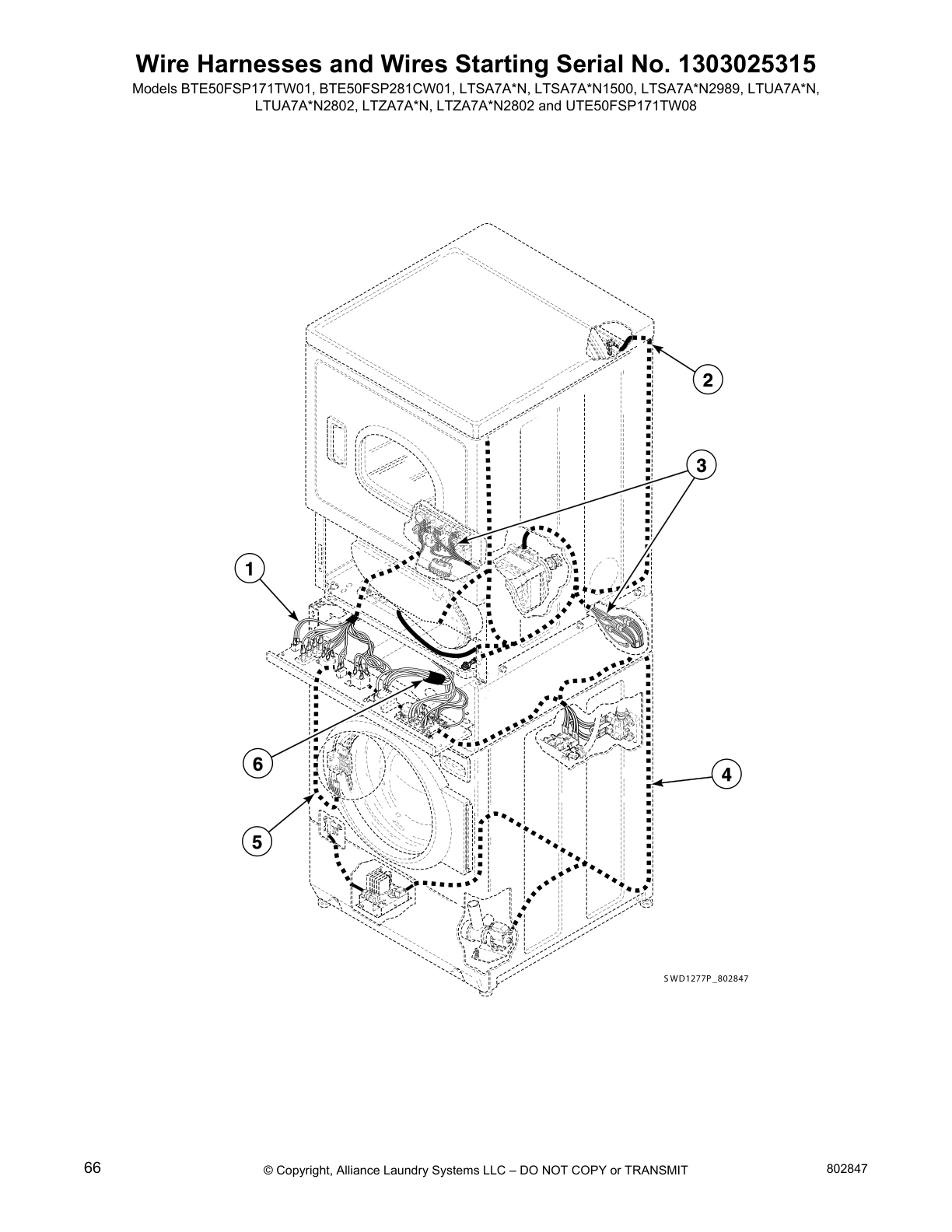

Wire Harnesses And Wires (drawing 2 Of 2)
Dryer Cabinet, Exhaust Duct And Base
Power Cord
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Dryer Access Panel, Front Panel And Seal
Outer Tub, Front And Clamp Ring
Washer Base, Panels And Rear Panel
Control Cabinet And Controls
Dispenser Assembly
Drain Hose And Pump
Inner Basket, Trunnion, Bearing Housing And Pulley
Wire Ties And Harness Clips
Washer Front Panel, Door Assembly And Door Seal
Inner Basket, Trunnion, Bearing Housing And Pulley
Washer Base, Panels And Rear Panel
Shipping Materials
Wire Ties And Harness Clips
Washer Front Panel, Door Assembly And Door Seal
Dispenser Assembly
Control Panel And Controls
Washer Base, Panels And Rear Panel
Outer Tub, Front And Clamp Ring
Drain Hose And Pump
Outer Tub, Front And Clamp Ring
Drain Hose And Pump
Mixing Valve, Valve-to-dispenser Inlet Hose And Fill Hose
Dispenser Assembly
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Washer Front Panel, Door Assembly And Door Seal
Dispenser Assembly
Inner Basket, Trunnion, Bearing Housing And Pulley
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Outer Tub, Front And Clamp Ring
Dispenser Assembly
Control Panel And Controls
Control Cabinet And Controls
Dispenser Assembly
Washer Front Panel, Door Assembly And Door Seal
Dispenser Assembly
Washer Front Panel, Door Assembly And Door Seal
Control Cabinet And Controls
Washer Motor And Belt
Control Panel And Controls
Control Cabinet And Controls
Control Panel And Controls
Mixing Valve, Valve-to-dispenser Inlet Hose And Fill Hose
Dispenser Assembly
Washer Base, Panels And Rear Panel
Dispenser Assembly
Washer Motor And Belt
Control Panel And Controls
Washer Front Panel, Door Assembly And Door Seal

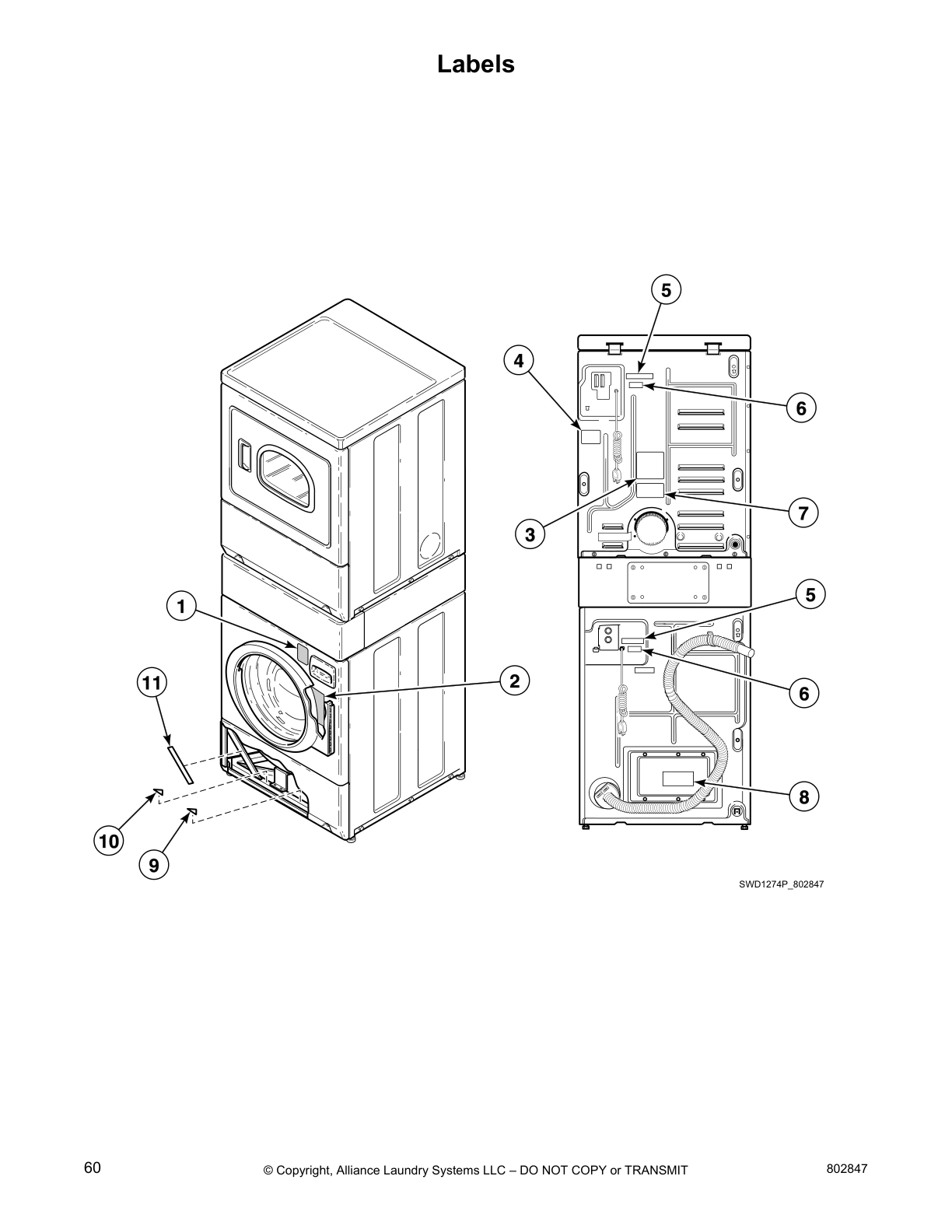

Labels
Washer Front Panel, Door Assembly And Door Seal
Mixing Valve, Valve-to-dispenser Inlet Hose And Fill Hose
Dispenser Assembly
Washer Front Panel, Door Assembly And Door Seal
Mixing Valve, Valve-to-dispenser Inlet Hose And Fill Hose
Washer Front Panel, Door Assembly And Door Seal
Dispenser Assembly
Outer Tub, Front And Clamp Ring
Washer Front Panel, Door Assembly And Door Seal
Dispenser Assembly
Washer Front Panel, Door Assembly And Door Seal
Dispenser Assembly
Washer Front Panel, Door Assembly And Door Seal
Dispenser Assembly

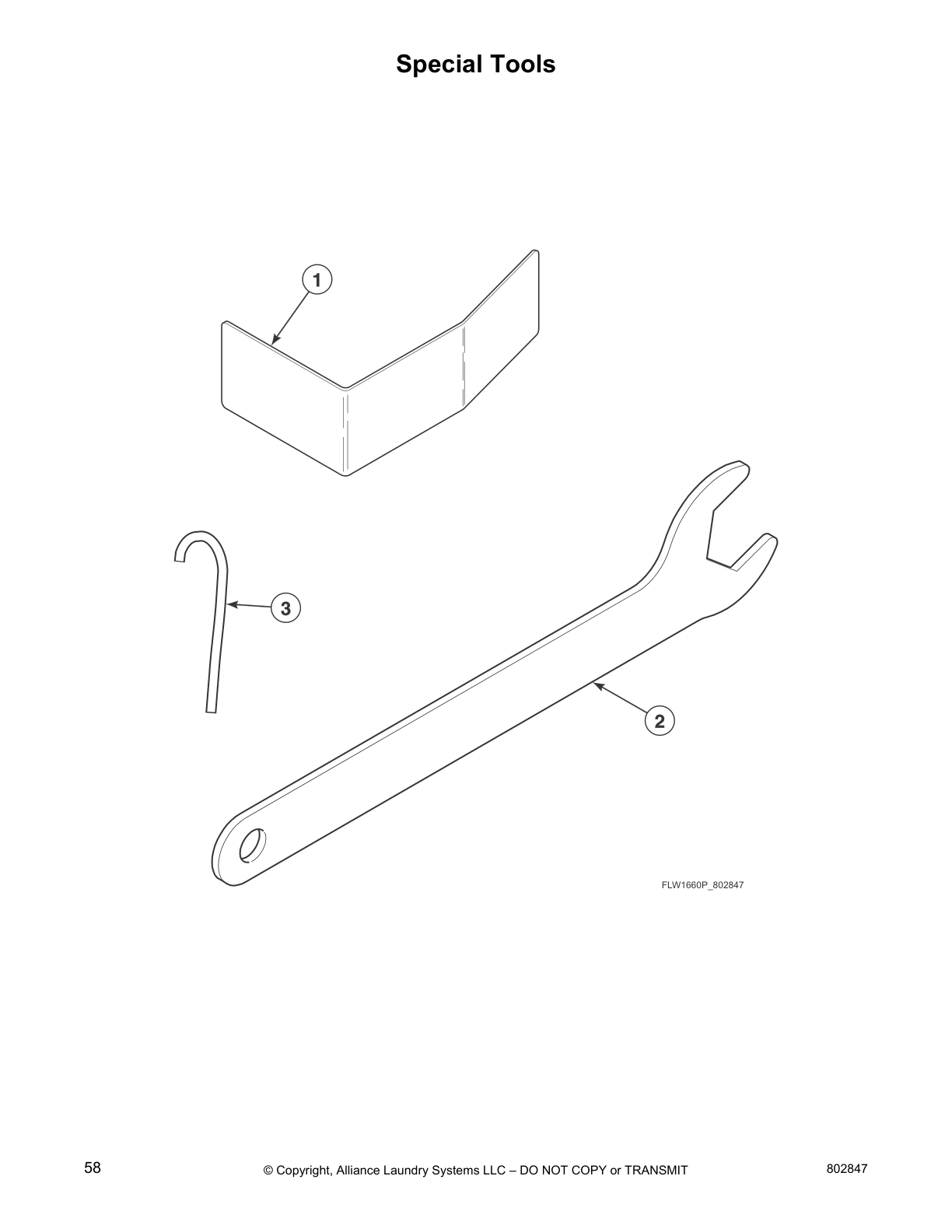

Special Tools
Outer Tub, Front And Clamp Ring
Labels
Drain Hose And Pump
Outer Tub, Front And Clamp Ring
Drain Hose And Pump
Washer Front Panel, Door Assembly And Door Seal
Dispenser Assembly
Washer Front Panel, Door Assembly And Door Seal
Labels
Mixing Valve, Valve-to-dispenser Inlet Hose And Fill Hose
Washer Front Panel, Door Assembly And Door Seal
Inner Basket, Trunnion, Bearing Housing And Pulley
Labels
Outer Tub, Front And Clamp Ring
Labels
Outer Tub, Front And Clamp Ring
Wire Harnesses And Wires
Mixing Valve, Valve-to-dispenser Inlet Hose And Fill Hose
Washer Base, Panels And Rear Panel
Outer Tub, Front And Clamp Ring
Washer Front Panel, Door Assembly And Door Seal
Washer Base, Panels And Rear Panel
Outer Tub, Front And Clamp Ring
Washer Front Panel, Door Assembly And Door Seal
Washer Base, Panels And Rear Panel
Control Cabinet And Controls
Control Panel And Controls
Dryer Cabinet, Exhaust Duct And Base
Dryer Motor Connection Block, Terminal Extractor Tools
Control Cabinet And Controls
Inner Basket, Trunnion, Bearing Housing And Pulley
Drain Hose And Pump
Dryer Motor Connection Block, Terminal Extractor Tools
Special Tools
Control Panel And Controls
Dryer Cabinet, Exhaust Duct And Base
Mixing Valve, Valve-to-dispenser Inlet Hose And Fill Hose
Control Panel And Controls
Special Tools

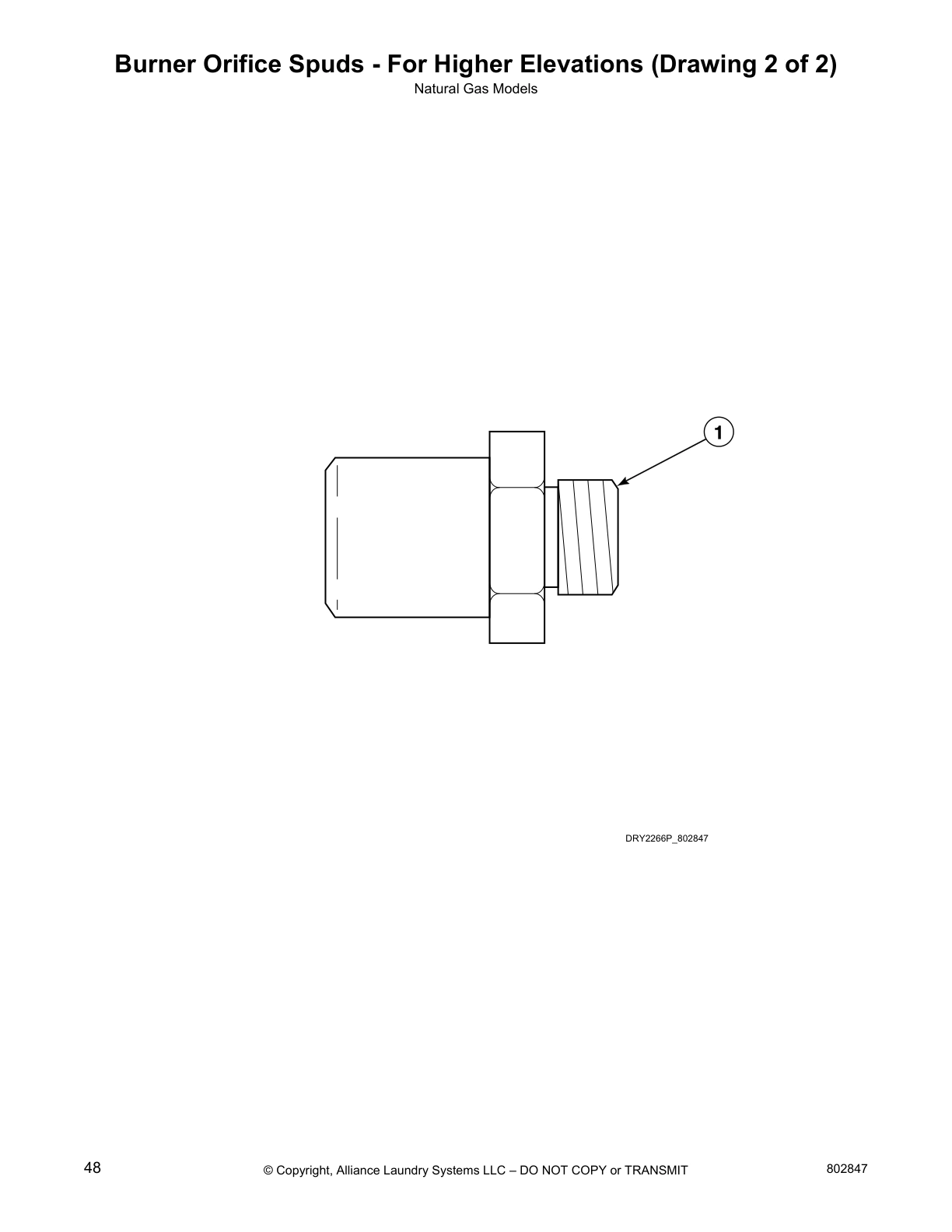

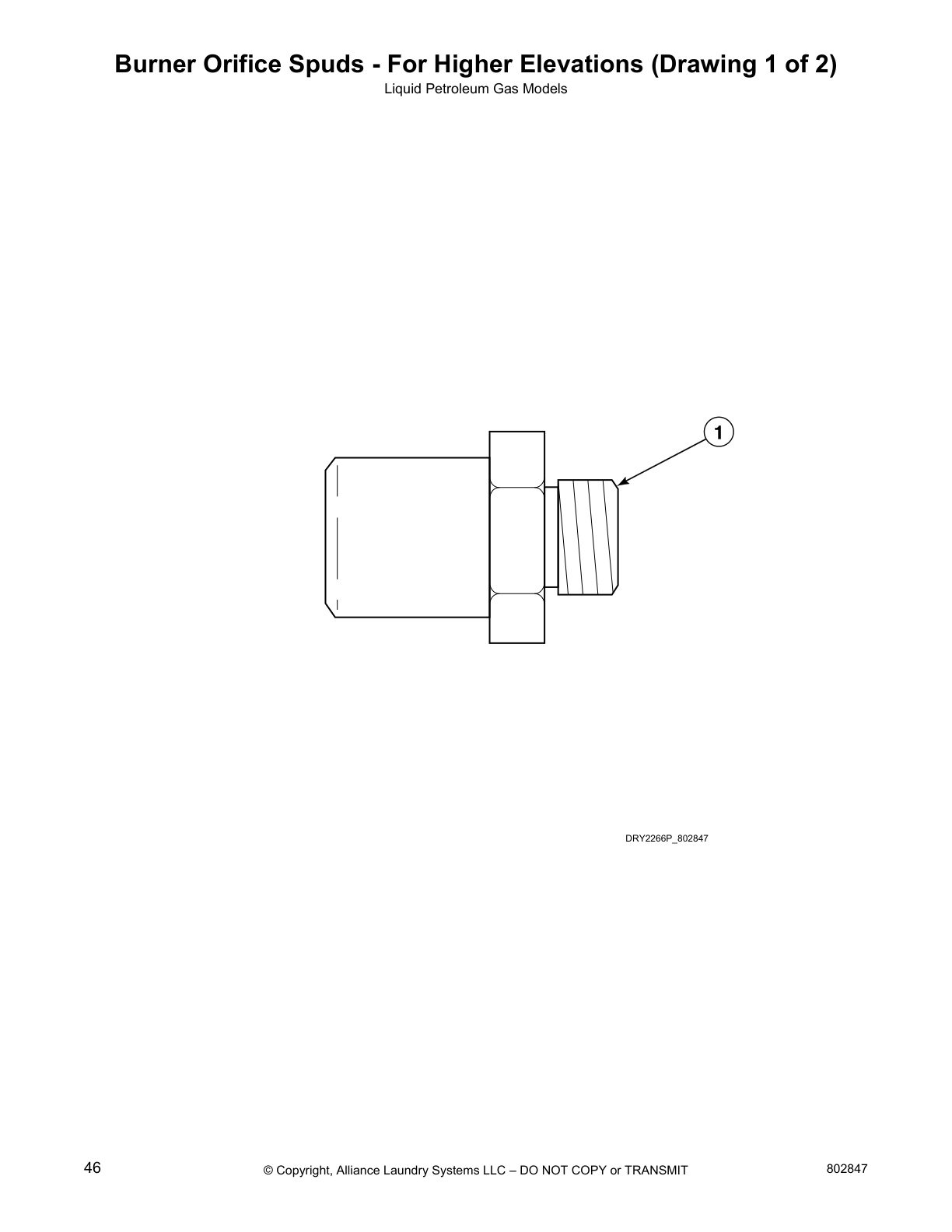

Burner Orifice Spuds - For Higher Elevations (drawing 2 Of 2) (natural Gas Models)
Dryer Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Gas Valve, Igniter And Gas Conversion Kits (gas Model Dryers)
Dryer Motor, Exhaust Fan And Belt
Gas Valve, Igniter And Gas Conversion Kits (gas Model Dryers)
Dispenser Assembly
Dryer Cabinet, Exhaust Duct And Base
Washer Base, Panels And Rear Panel
Washer Motor And Belt
Inner Basket, Trunnion, Bearing Housing And Pulley
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Control Cabinet And Controls
Outer Tub, Front And Clamp Ring
Wire Harnesses And Wires
Control Panel And Controls
Dispenser Assembly
Washer Motor And Belt
Control Panel And Controls
Mixing Valve, Valve-to-dispenser Inlet Hose And Fill Hose
Wire Harnesses And Wires
Washer Front Panel, Door Assembly And Door Seal
Control Cabinet And Controls
Washer Front Panel, Door Assembly And Door Seal
Wire Harnesses And Wires
Inner Basket, Trunnion, Bearing Housing And Pulley
Washer Front Panel, Door Assembly And Door Seal
Drain Hose And Pump
Control Cabinet And Controls
Drain Hose And Pump
Washer Front Panel, Door Assembly And Door Seal
Dispenser Assembly
Wire Harnesses And Wires
Washer Base, Panels And Rear Panel
Washer Front Panel, Door Assembly And Door Seal
Dispenser Assembly
Inner Basket, Trunnion, Bearing Housing And Pulley
Washer Motor And Belt
Outer Tub, Front And Clamp Ring
Washer Front Panel, Door Assembly And Door Seal
Inner Basket, Trunnion, Bearing Housing And Pulley
Washer Base, Panels And Rear Panel
Shipping Materials
Drain Hose And Pump
Dryer Motor, Exhaust Fan And Belt
Outer Tub, Front And Clamp Ring
Labels

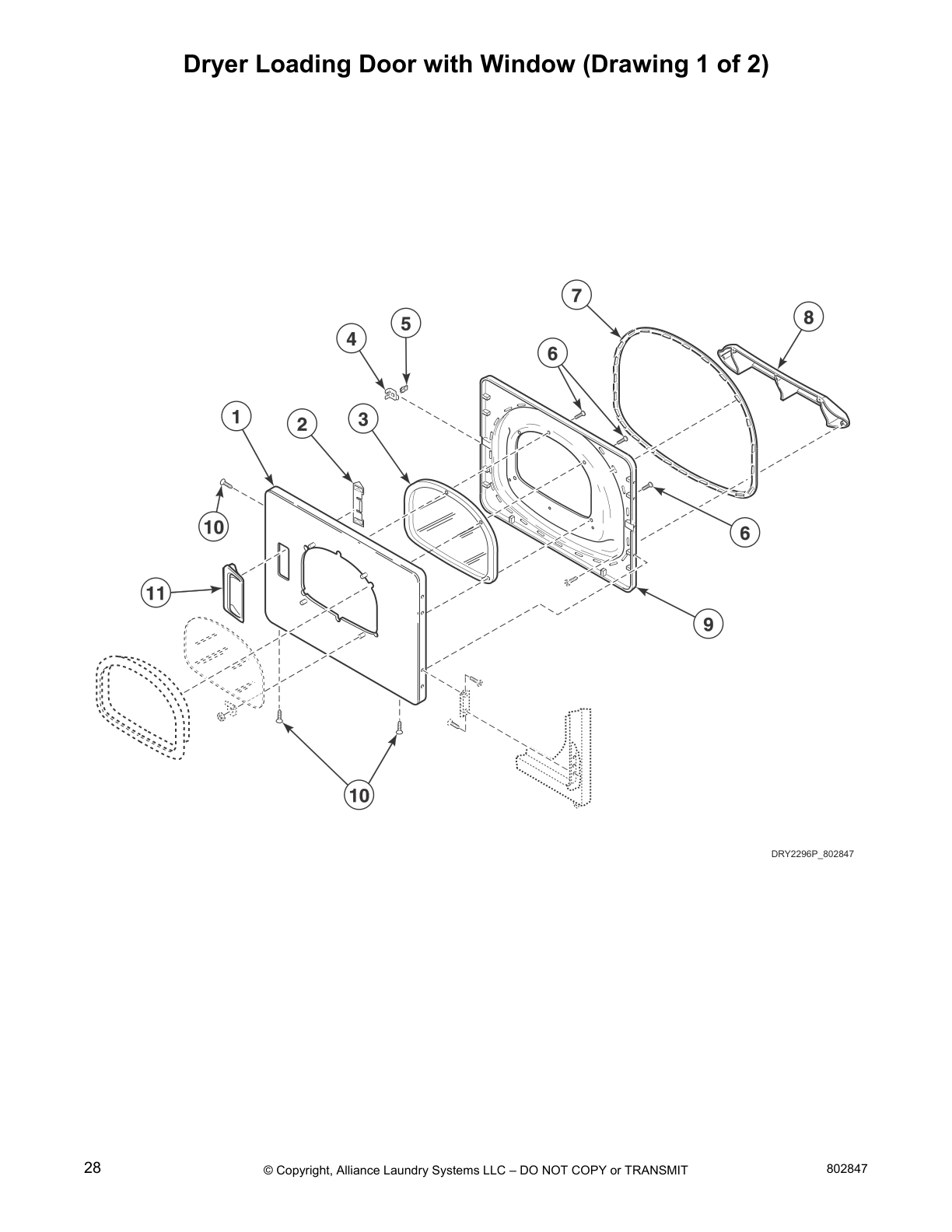

Dryer Loading Door With Window (drawing 1 Of 2)
Dryer Access Panel, Front Panel And Seal
Labels
Dryer Motor Connection Block, Terminal Extractor Tools
Labels
Heater Duct Assembly (gas Model Dryers)
Dryer Motor, Exhaust Fan And Belt
Mixing Valve, Valve-to-dispenser Inlet Hose And Fill Hose
Control Panel And Controls
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Washer Motor And Belt
Control Cabinet And Controls
Dryer Cabinet, Exhaust Duct And Base
Labels
Washer Motor And Belt
Washer Front Panel, Door Assembly And Door Seal
Washer Base, Panels And Rear Panel
Outer Tub, Front And Clamp Ring
Mixing Valve, Valve-to-dispenser Inlet Hose And Fill Hose
Dryer Cabinet, Exhaust Duct And Base
Drain Hose And Pump
Control Cabinet And Controls
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Heater Duct Assembly (gas Model Dryers)
Gas Valve, Igniter And Gas Conversion Kits (gas Model Dryers)
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Dryer Motor, Exhaust Fan And Belt
Dryer Cabinet, Exhaust Duct And Base
Dryer Access Panel, Front Panel And Seal
Control Cabinet And Controls
Burner Orifice Spuds - For Higher Elevations (drawing 2 Of 2) (natural Gas Models)
Wire Harnesses And Wires (drawing 2 Of 2)
Dryer Loading Door With Window (drawing 1 Of 2)
Front Bulkhead, Air Duct, Felt Seal And Cylinder

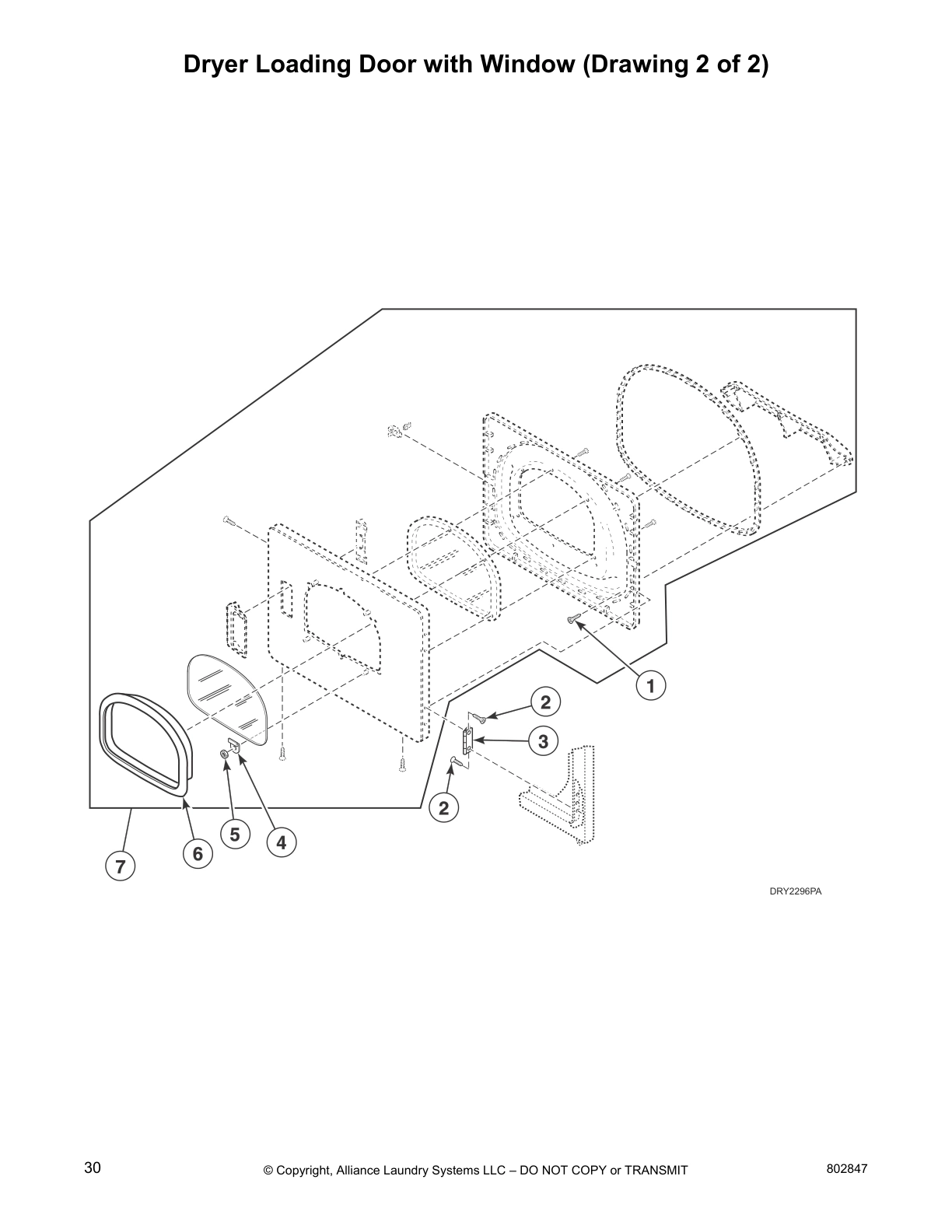

Dryer Loading Door With Window (drawing 2 Of 2)
Dryer Loading Door With Window (drawing 1 Of 2)
Wire Ties And Harness Clips
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Labels
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Dryer Loading Door With Window (drawing 2 Of 2)
Control Panel And Controls
Dryer Loading Door With Window (drawing 2 Of 2)
Dryer Loading Door With Window (drawing 1 Of 2)
Dryer Cabinet, Exhaust Duct And Base
Heater Duct Assembly (gas Model Dryers)
Dryer Cabinet, Exhaust Duct And Base
Dryer Motor, Exhaust Fan And Belt
Dryer Access Panel, Front Panel And Seal
Dryer Loading Door With Window (drawing 1 Of 2)
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Heater Duct Assembly (gas Model Dryers)
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Dryer Loading Door With Window (drawing 1 Of 2)
Gas Valve, Igniter And Gas Conversion Kits (gas Model Dryers)
Dryer Loading Door With Window (drawing 1 Of 2)
Heater Duct Assembly (gas Model Dryers)
Dryer Motor, Exhaust Fan And Belt
Dryer Cabinet, Exhaust Duct And Base
Dryer Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Dryer Cabinet, Exhaust Duct And Base
Dryer Loading Door With Window (drawing 1 Of 2)
Gas Valve, Igniter And Gas Conversion Kits (gas Model Dryers)
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Dryer Access Panel, Front Panel And Seal
Dryer Motor, Exhaust Fan And Belt
Dryer Loading Door With Window (drawing 1 Of 2)
Gas Valve, Igniter And Gas Conversion Kits (gas Model Dryers)
Dryer Motor, Exhaust Fan And Belt
Dryer Access Panel, Front Panel And Seal
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Gas Valve, Igniter And Gas Conversion Kits (gas Model Dryers)
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Gas Valve, Igniter And Gas Conversion Kits (gas Model Dryers)
Dryer Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Gas Valve, Igniter And Gas Conversion Kits (gas Model Dryers)
Heater Duct Assembly (gas Model Dryers)
Dryer Motor, Exhaust Fan And Belt
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Dryer Motor, Exhaust Fan And Belt
Dryer Cabinet, Exhaust Duct And Base
Dryer Loading Door With Window (drawing 2 Of 2)
Dryer Access Panel, Front Panel And Seal
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Dryer Motor, Exhaust Fan And Belt
Wire Harnesses And Wires
Dryer Motor, Exhaust Fan And Belt
Dryer Loading Door With Window (drawing 2 Of 2)
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Dryer Motor, Exhaust Fan And Belt
Control Panel And Controls
Dryer Access Panel, Front Panel And Seal
Washer Motor And Belt
Control Panel And Controls
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Dryer Access Panel, Front Panel And Seal
Dryer Cabinet, Exhaust Duct And Base
Washer Front Panel, Door Assembly And Door Seal
Dryer Access Panel, Front Panel And Seal
Washer Front Panel, Door Assembly And Door Seal
Dryer Access Panel, Front Panel And Seal
Dryer Cabinet, Exhaust Duct And Base
Dryer Motor, Exhaust Fan And Belt
Mixing Valve, Valve-to-dispenser Inlet Hose And Fill Hose
Drain Hose And Pump
Dispenser Assembly
Outer Tub, Front And Clamp Ring
Inner Basket, Trunnion, Bearing Housing And Pulley
Washer Front Panel, Door Assembly And Door Seal
Shipping Materials
Inner Basket, Trunnion, Bearing Housing And Pulley
Washer Motor And Belt
Outer Tub, Front And Clamp Ring
Control Cabinet And Controls
Inner Basket, Trunnion, Bearing Housing And Pulley
Washer Base, Panels And Rear Panel
Inner Basket, Trunnion, Bearing Housing And Pulley
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Mixing Valve, Valve-to-dispenser Inlet Hose And Fill Hose
Dispenser Assembly
Inner Basket, Trunnion, Bearing Housing And Pulley
Gas Valve, Igniter And Gas Conversion Kits (gas Model Dryers)
Dryer Motor, Exhaust Fan And Belt
Power Cord
Gas Valve, Igniter And Gas Conversion Kits (gas Model Dryers)
Outer Tub, Front And Clamp Ring
Dryer Motor, Exhaust Fan And Belt
