Model Speed Queen SWNLY2PP111TW01 Washer – Common Parts & Diagrams
Coin Drop, Meter Case and Service Door
Electronic Coin Drop

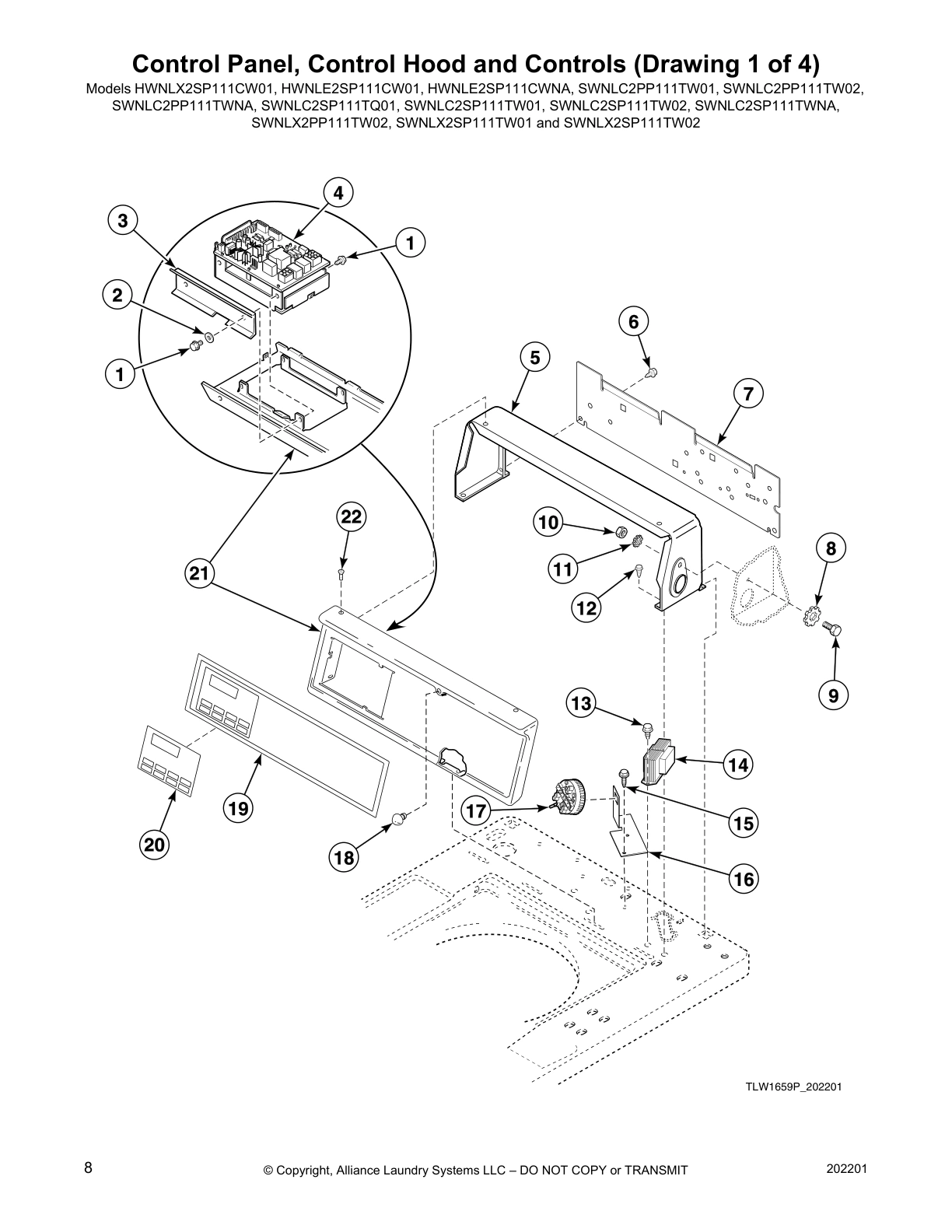

Control Panel, Control Hood and Controls (Drawing 1 of 4)

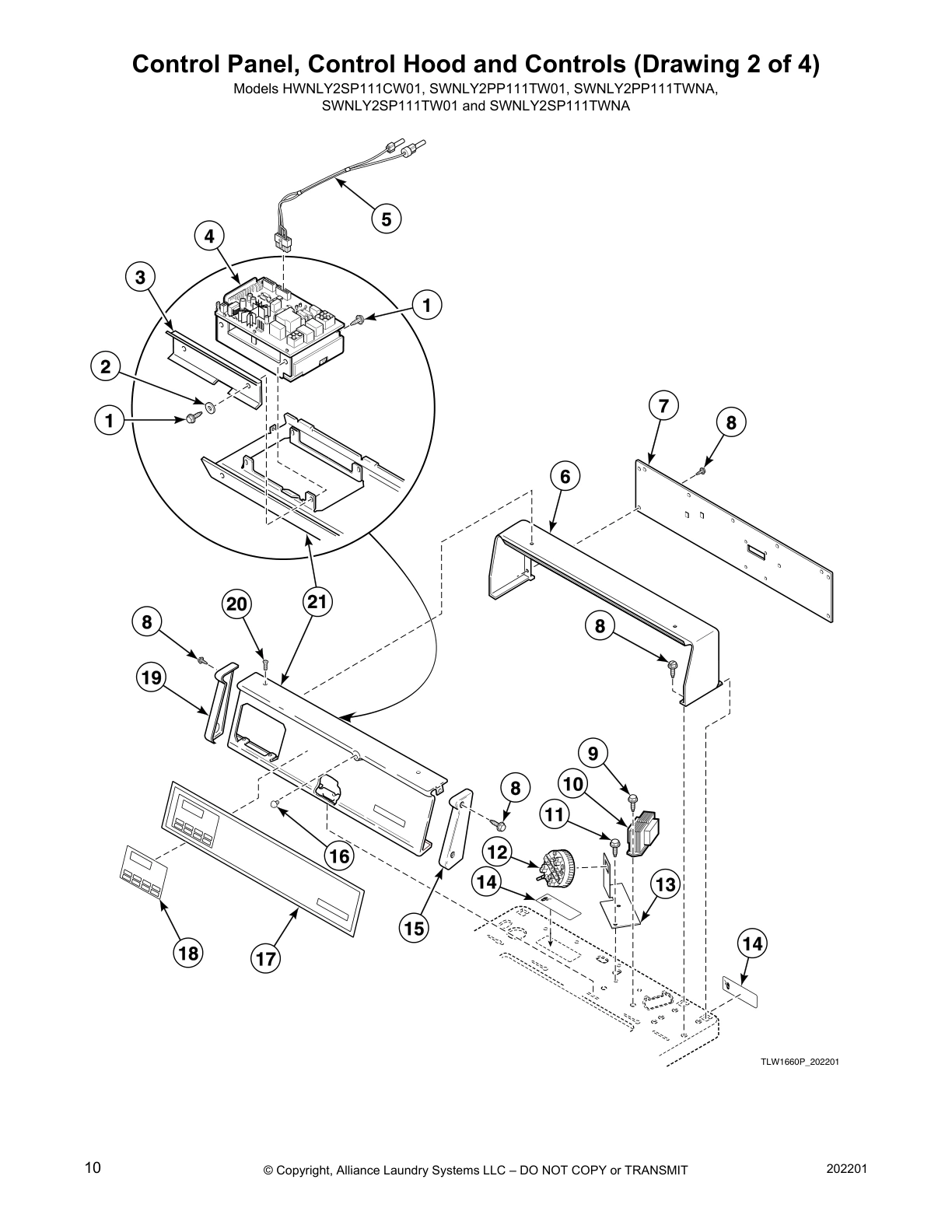

Control Panel, Control Hood and Controls (Drawing 2 of 4)

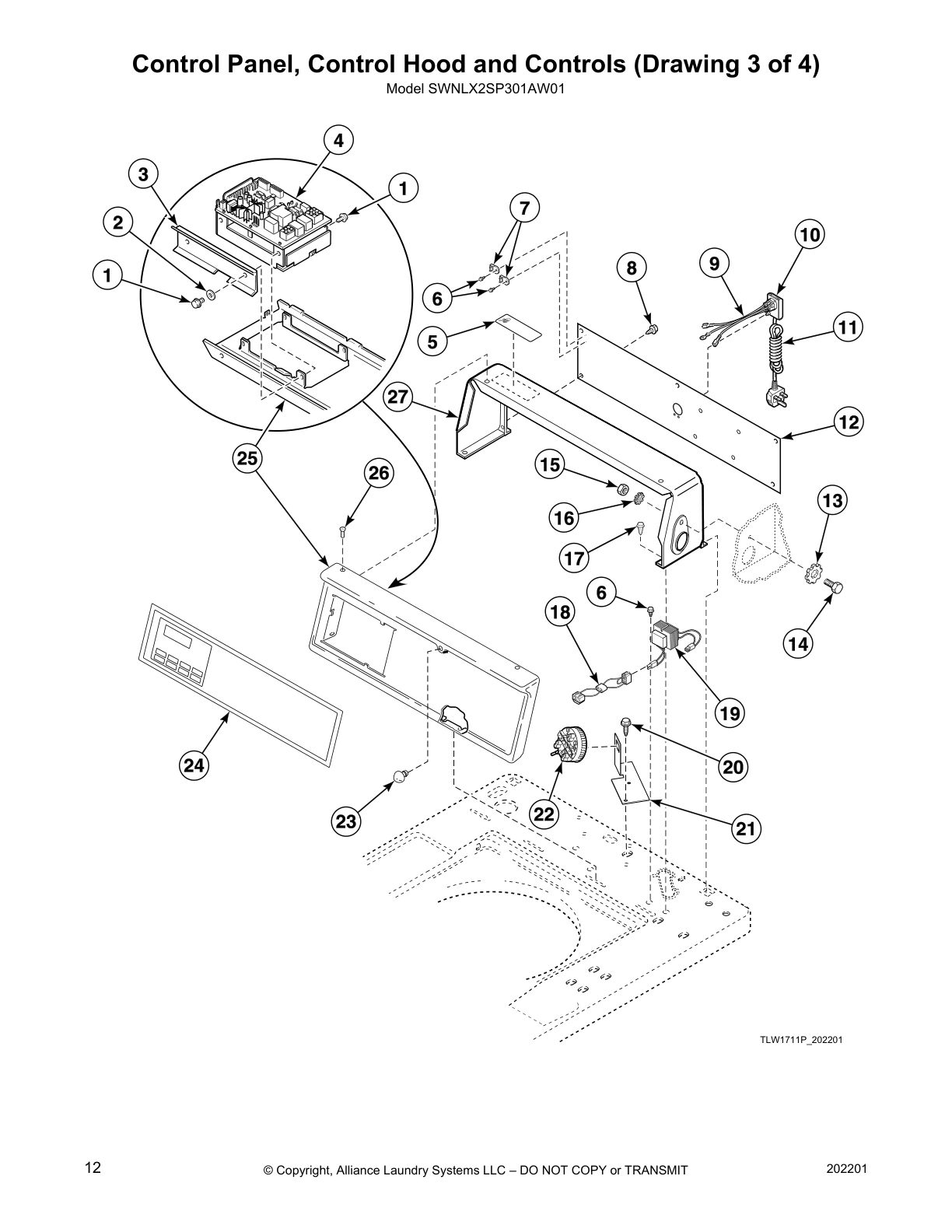

Control Panel, Control Hood and Controls (Drawing 3 of 4)
Control Panel, Control Hood and Controls (Drawing 4 of 4)

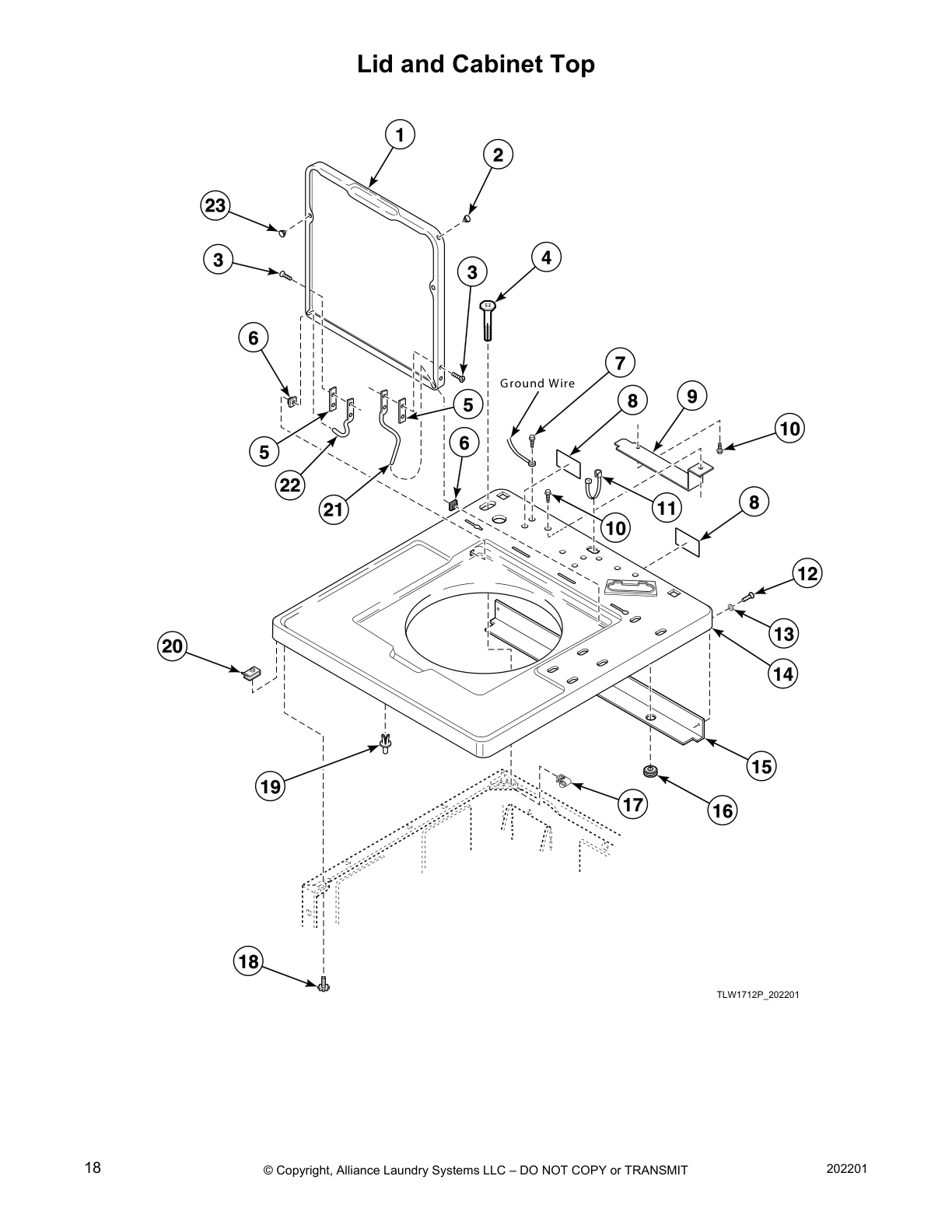

Lid and Cabinet Top

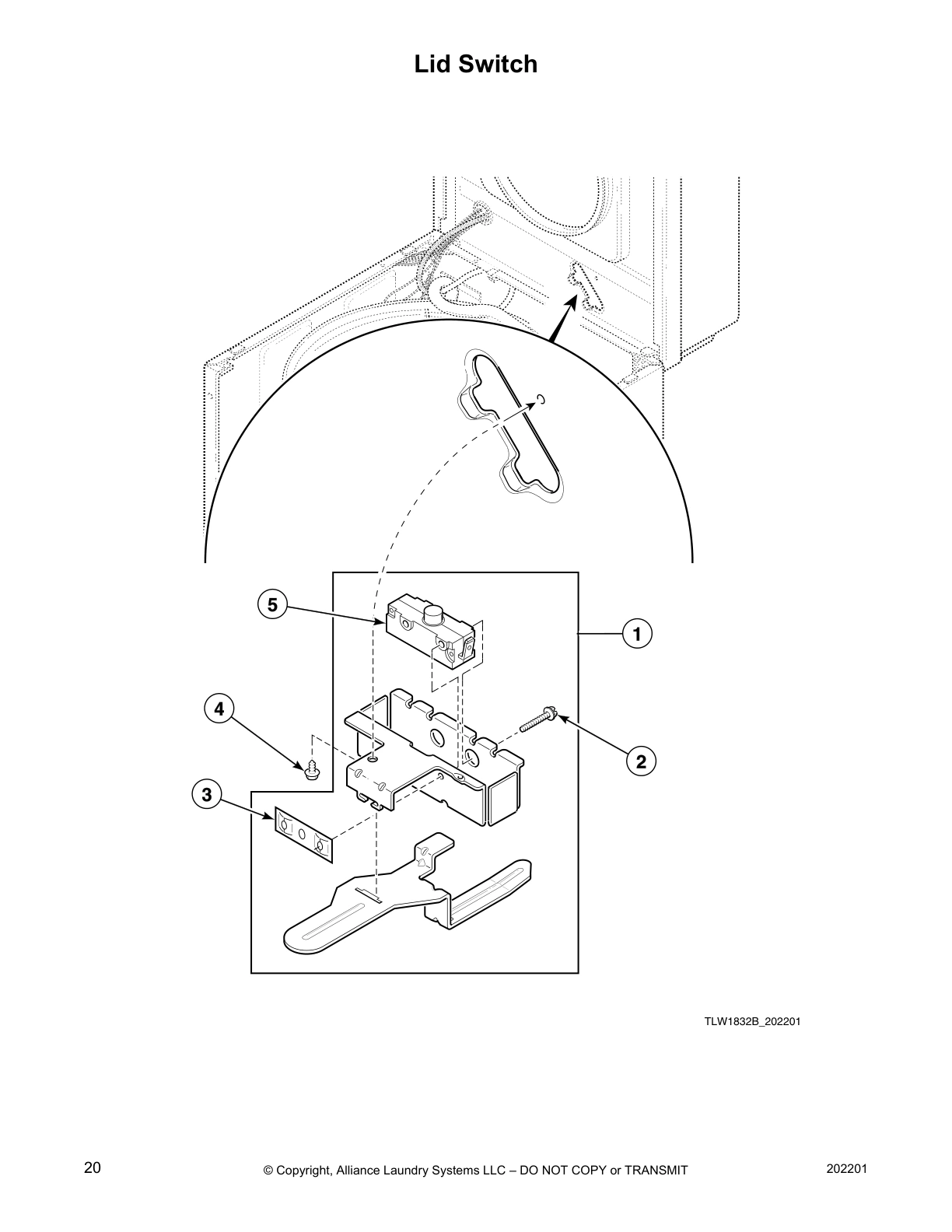

Lid Switch

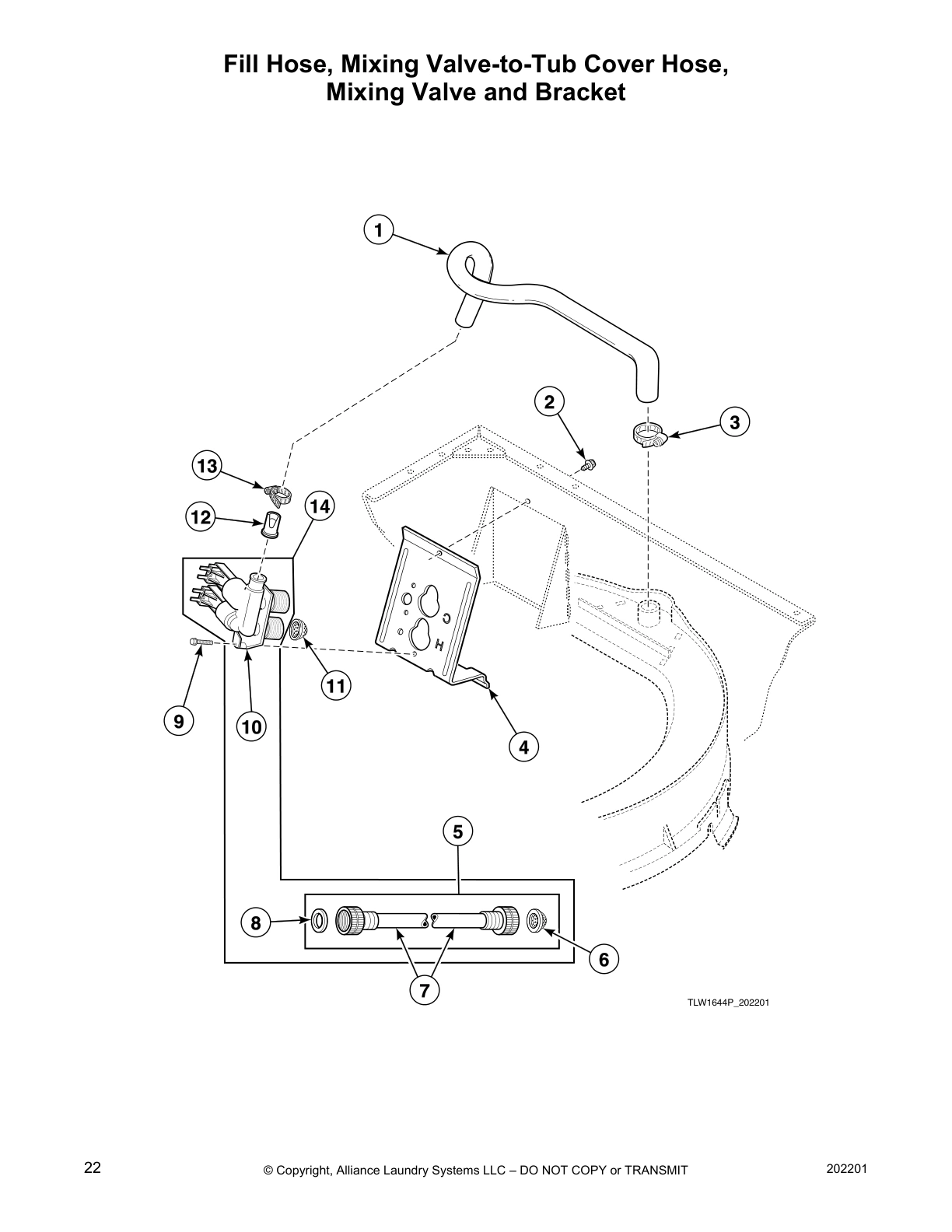

Fill Hose, Mixing Valve-to-Tub Cover Hose,
Mixing Valve and Bracket

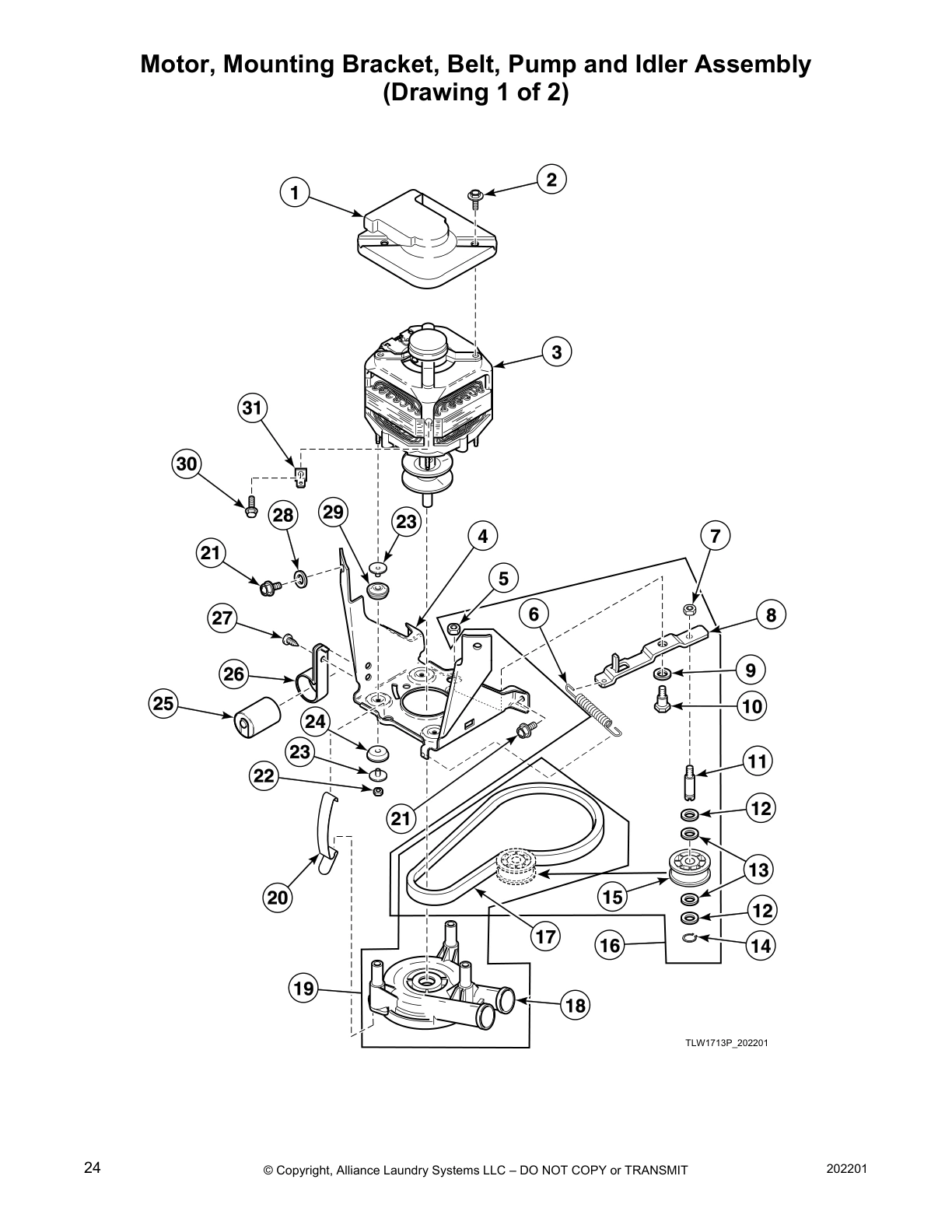

Motor, Mounting Bracket, Belt, Pump and Idler Assembly
(Drawing 1 of 2)

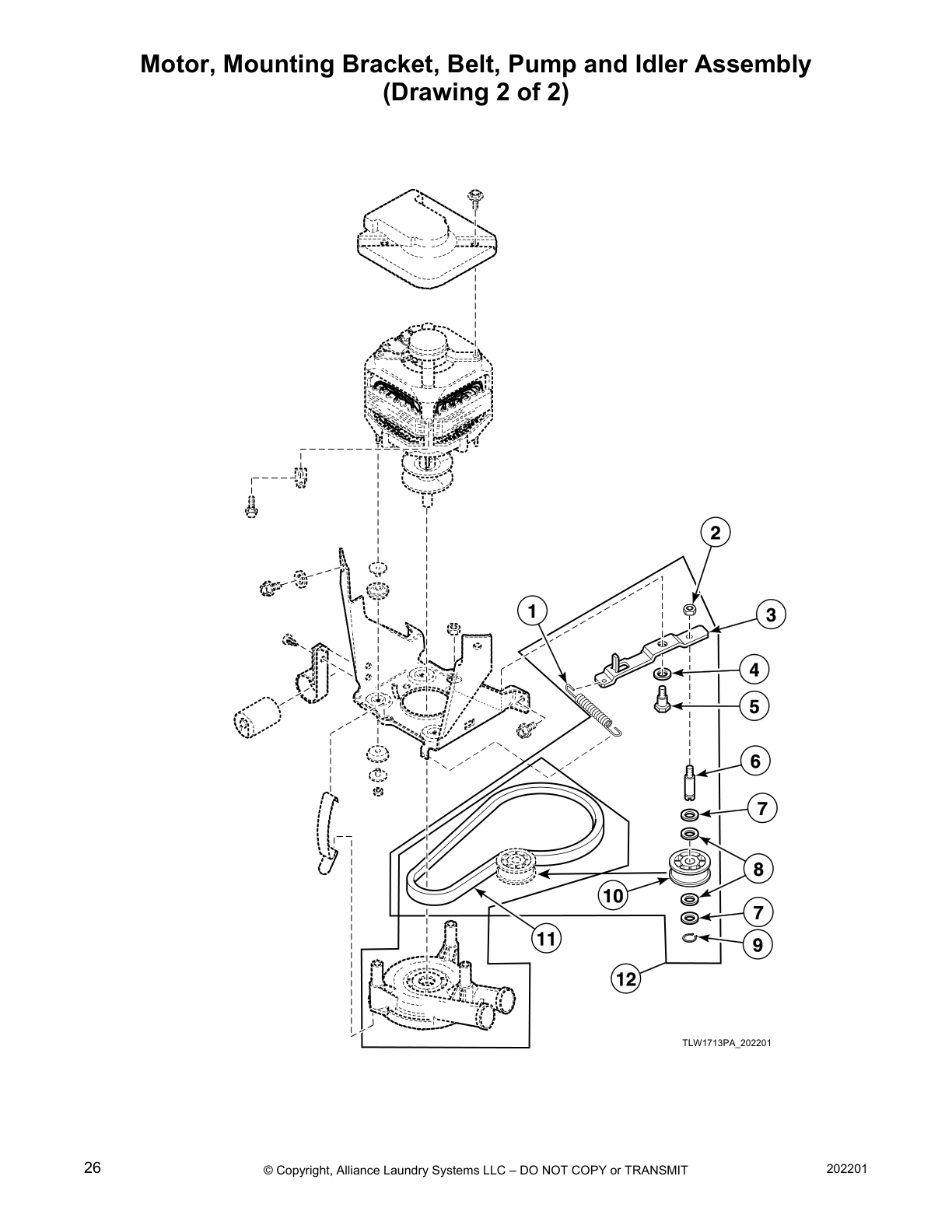

Motor, Mounting Bracket, Belt, Pump and Idler Assembly
(Drawing 2 of 2)

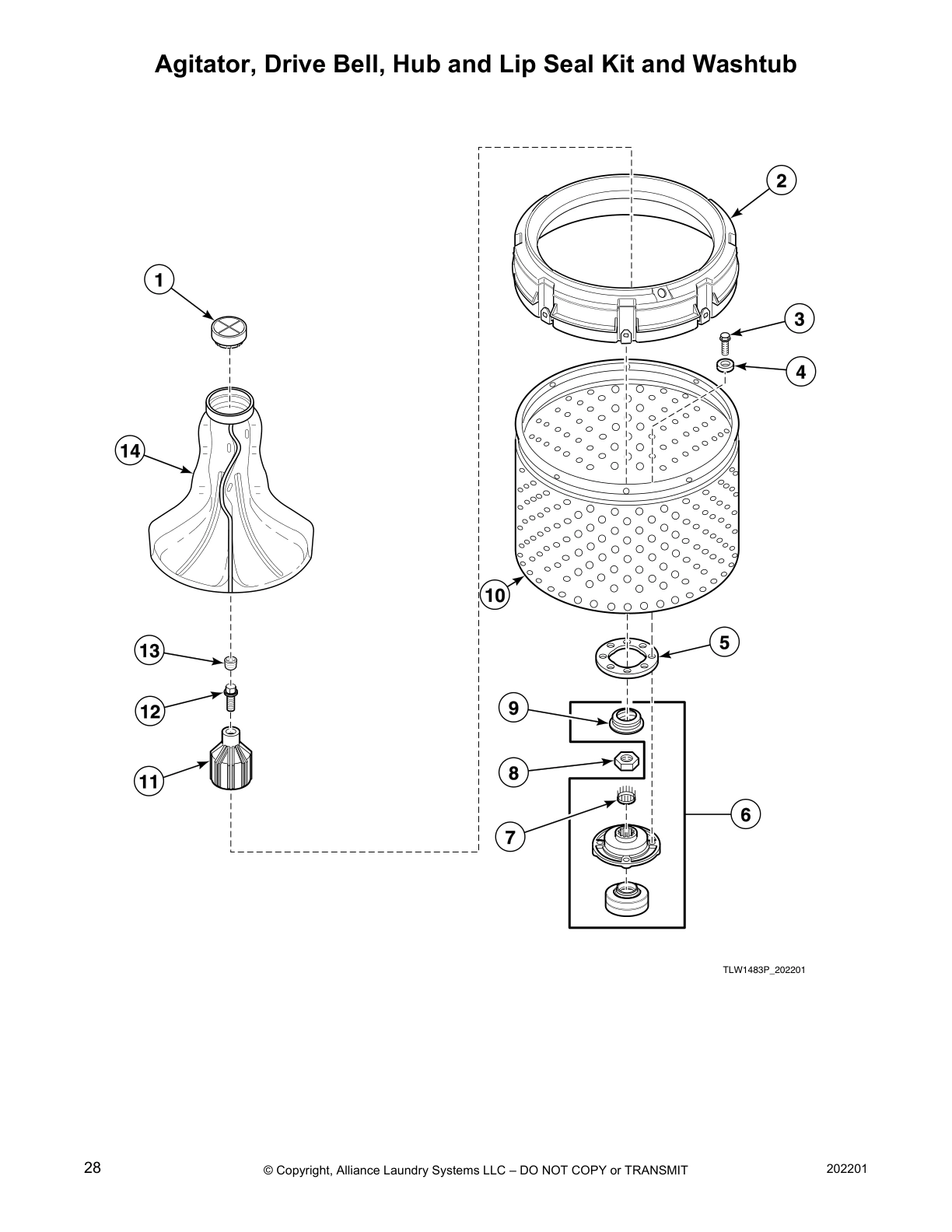

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub
Outer Tub, Cover, Bearing and Seal Housing,
Pressure Hose and Counterweight

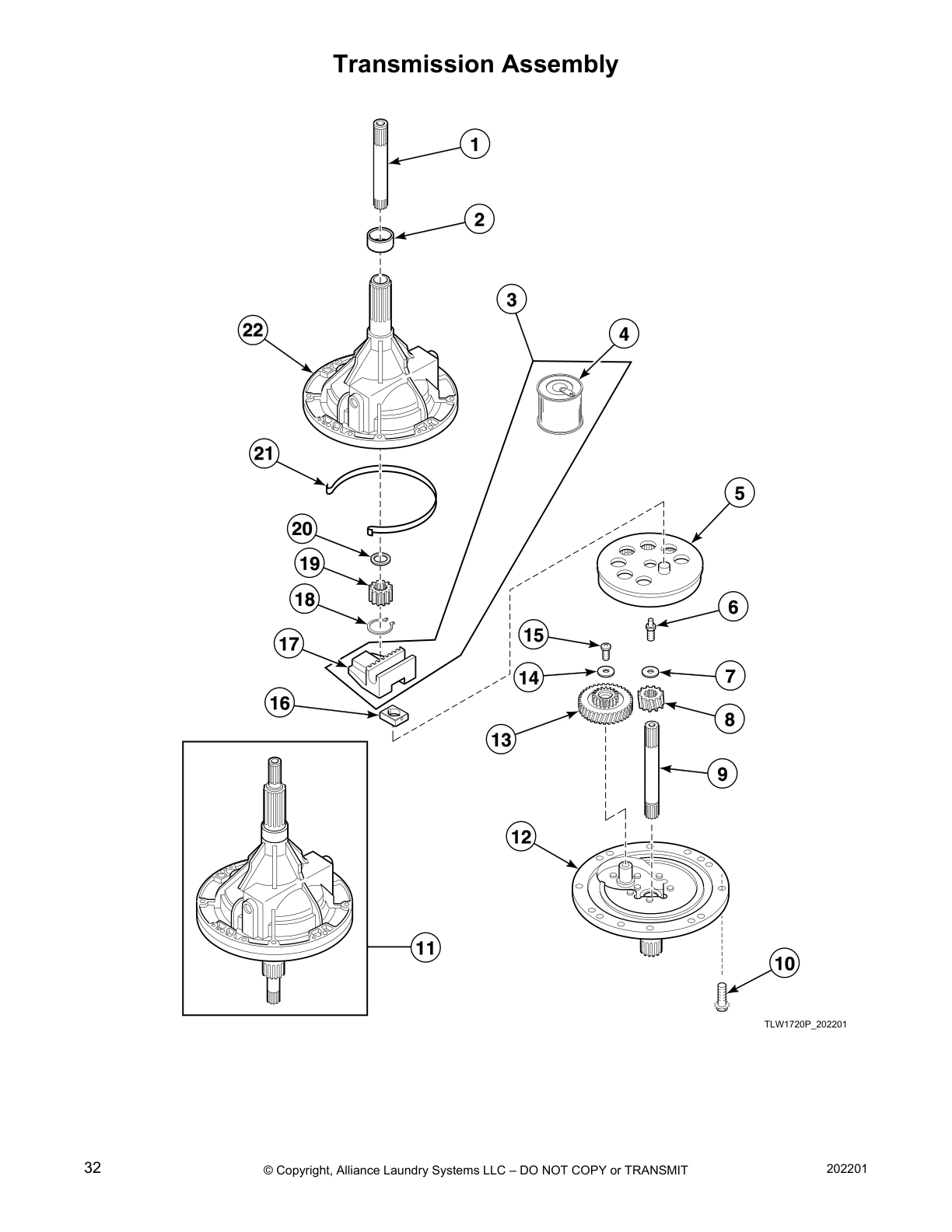

Transmission Assembly

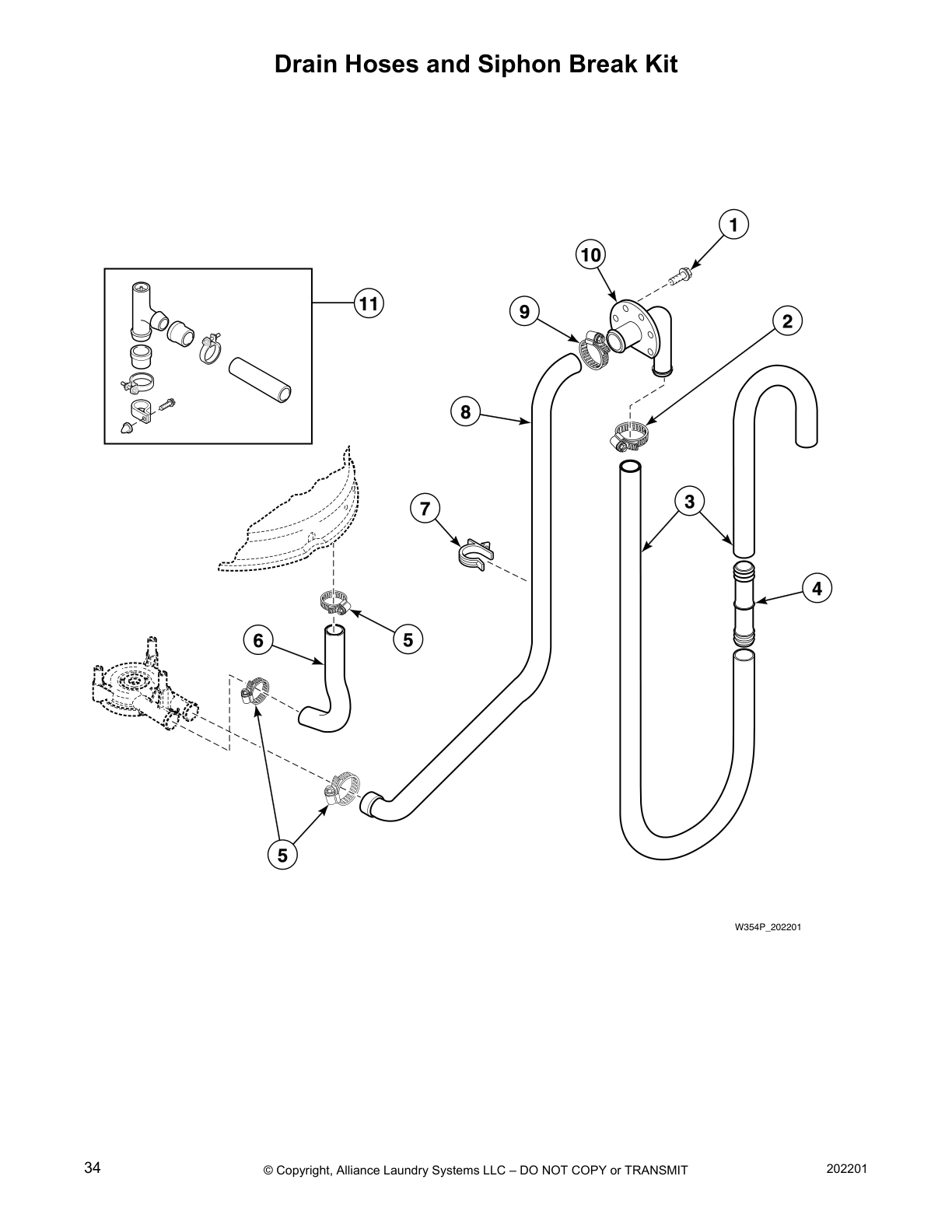

Drain Hoses and Siphon Break Kit

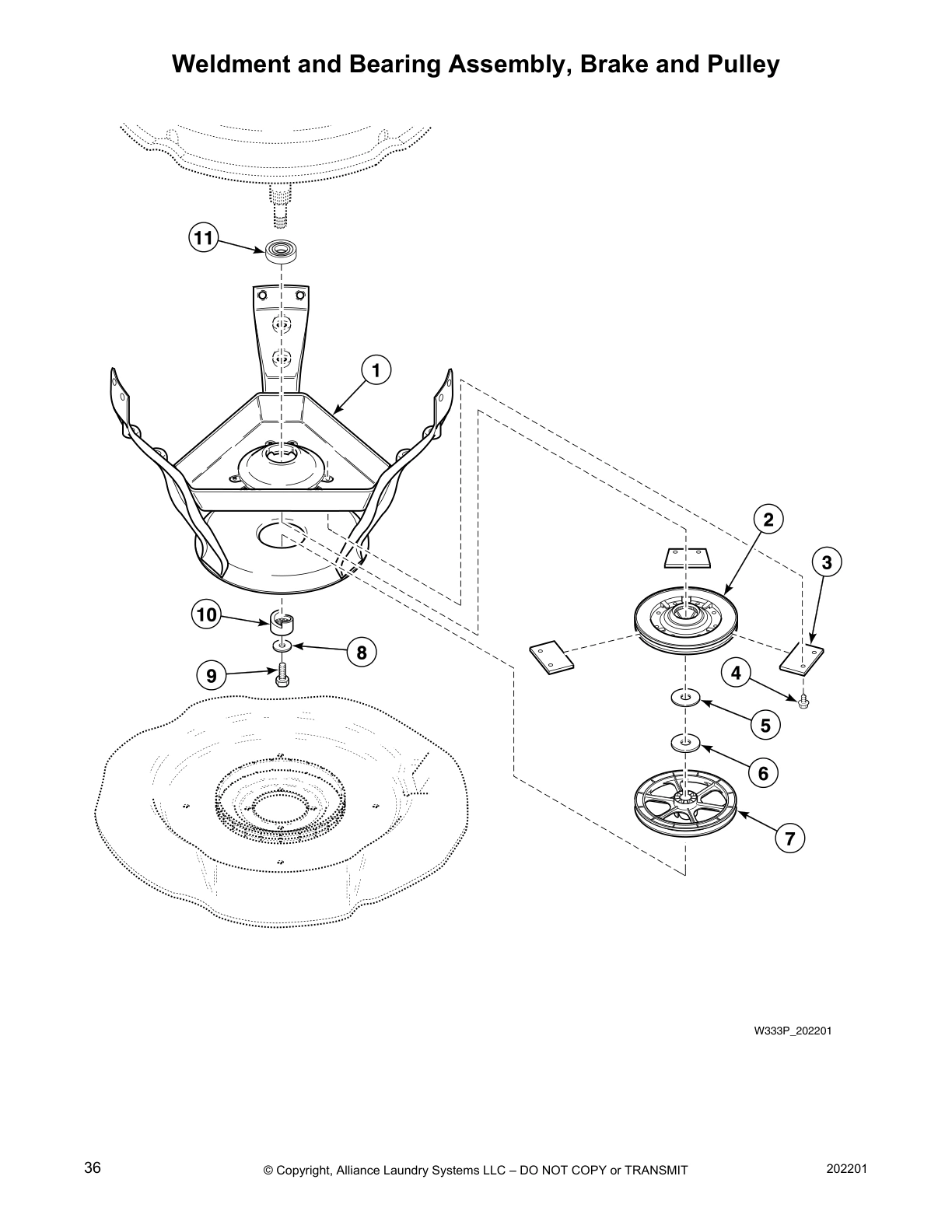

Weldment and Bearing Assembly, Brake and Pulley

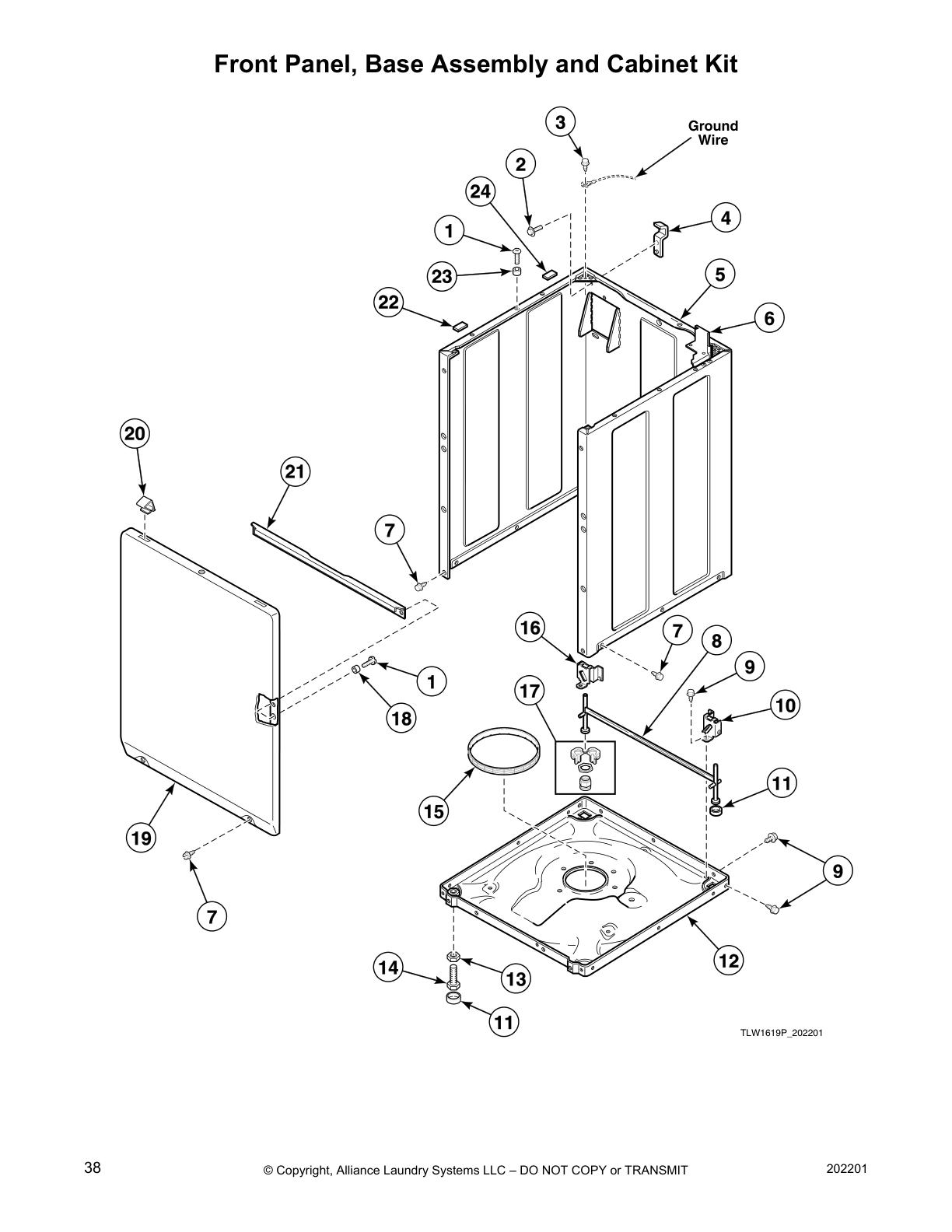

Front Panel, Base Assembly and Cabinet Kit

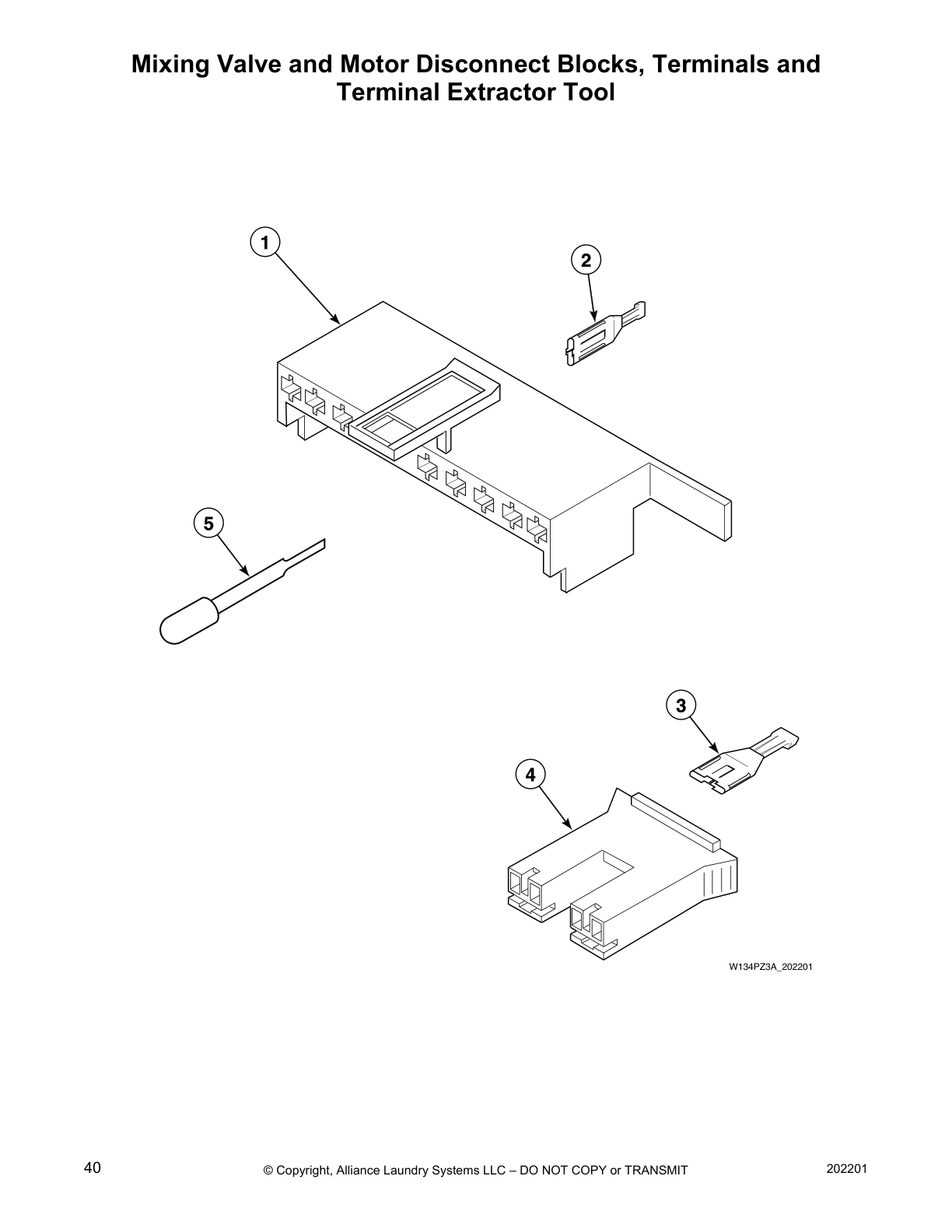

Mixing Valve and Motor Disconnect Blocks, Terminals and
Terminal Extractor Tool

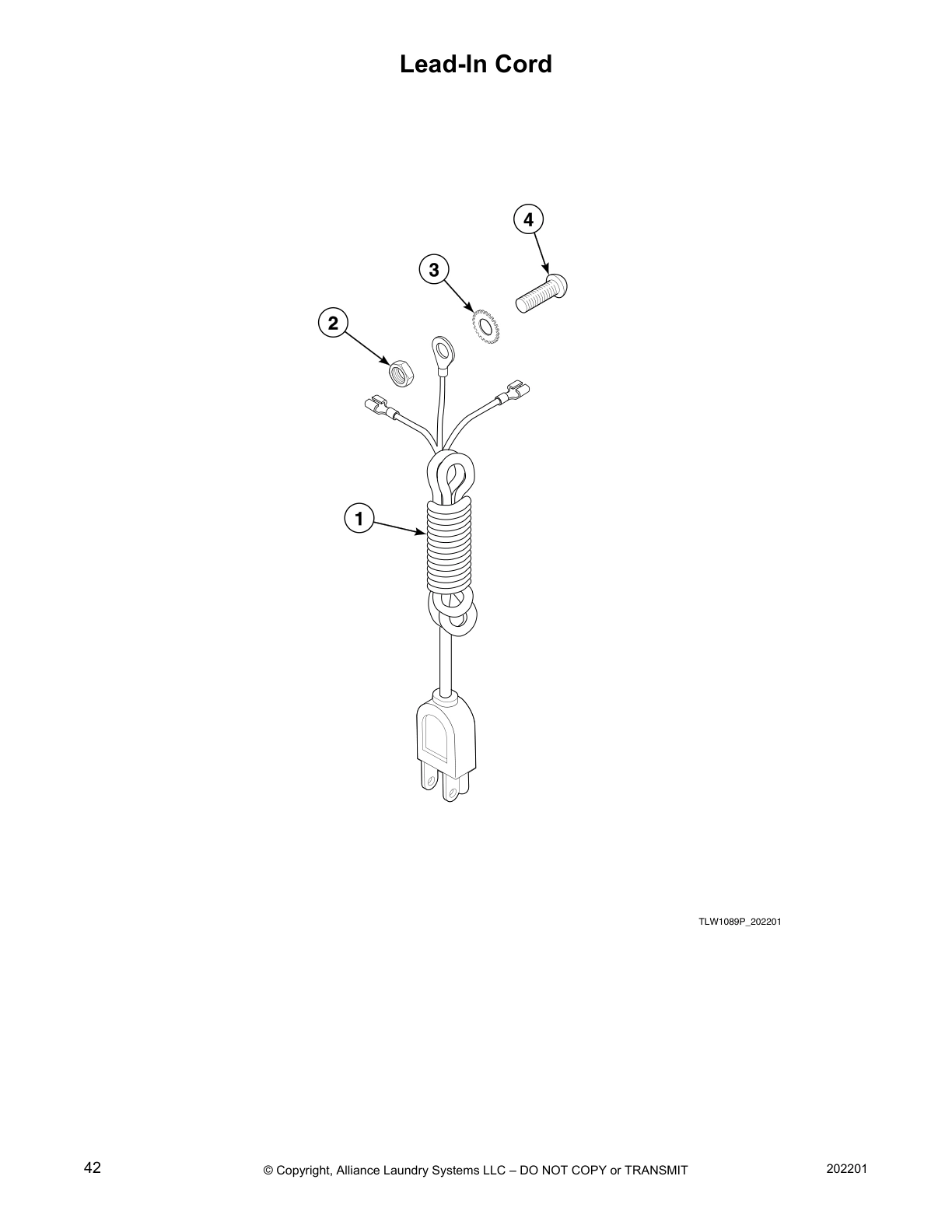

Lead-In Cord

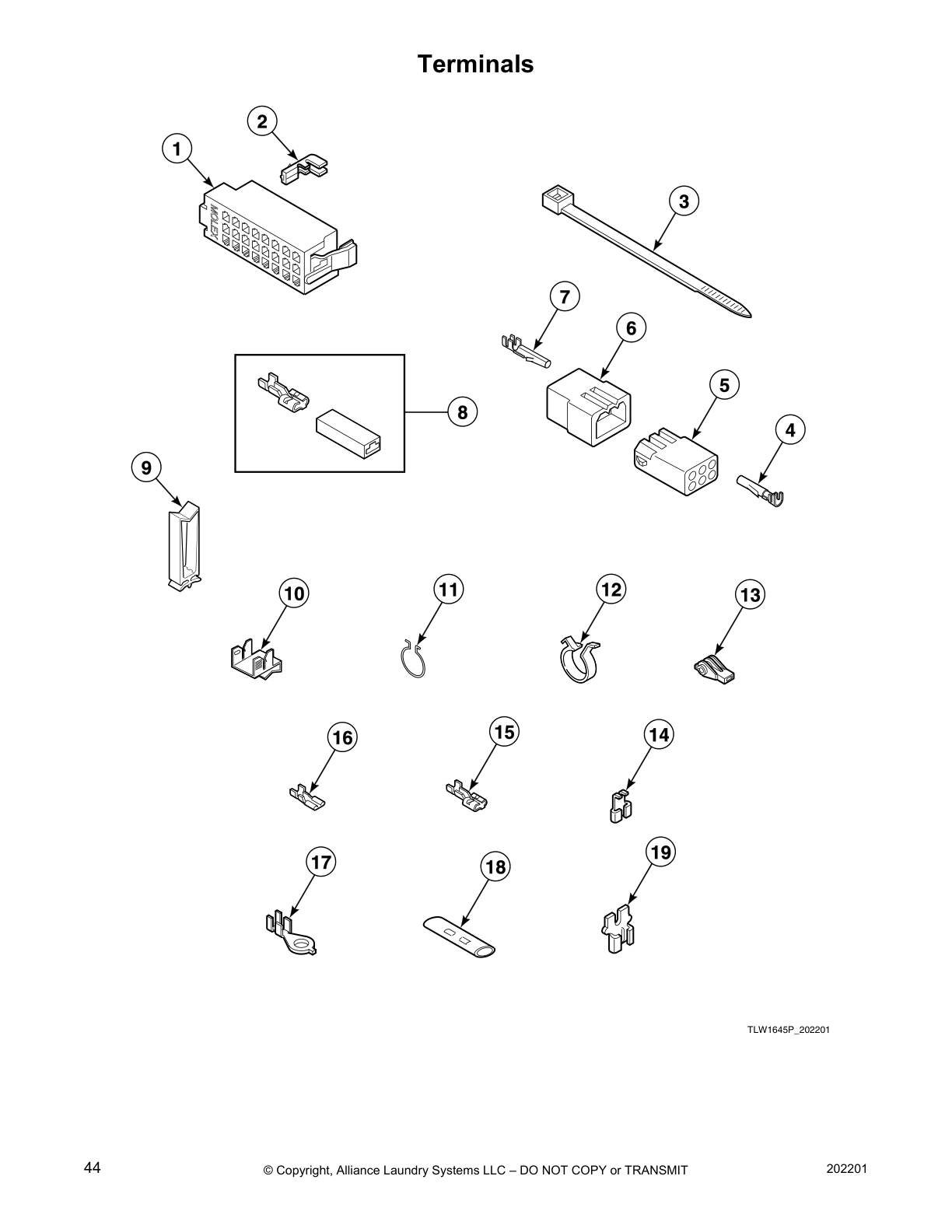

Terminals

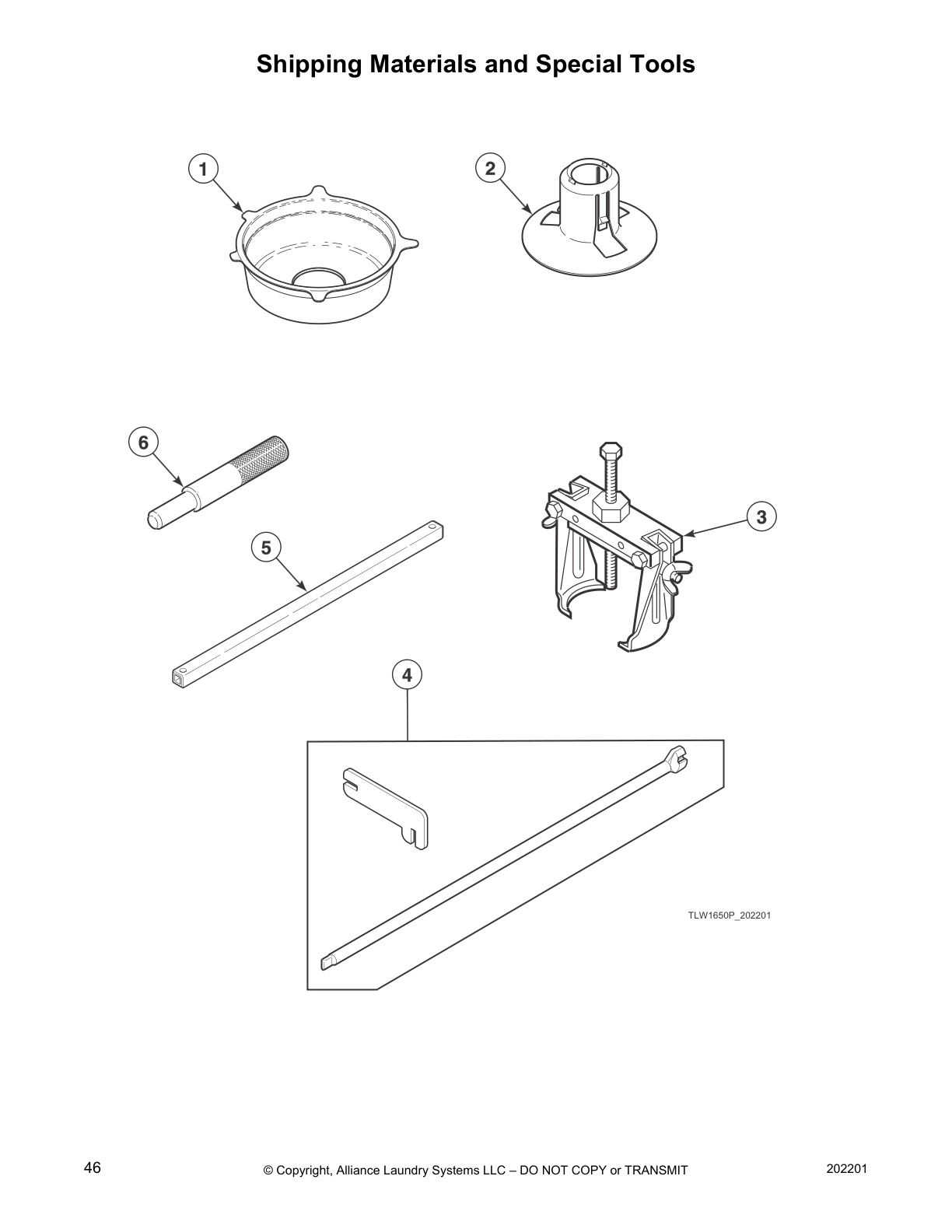

Shipping Materials and Special Tools

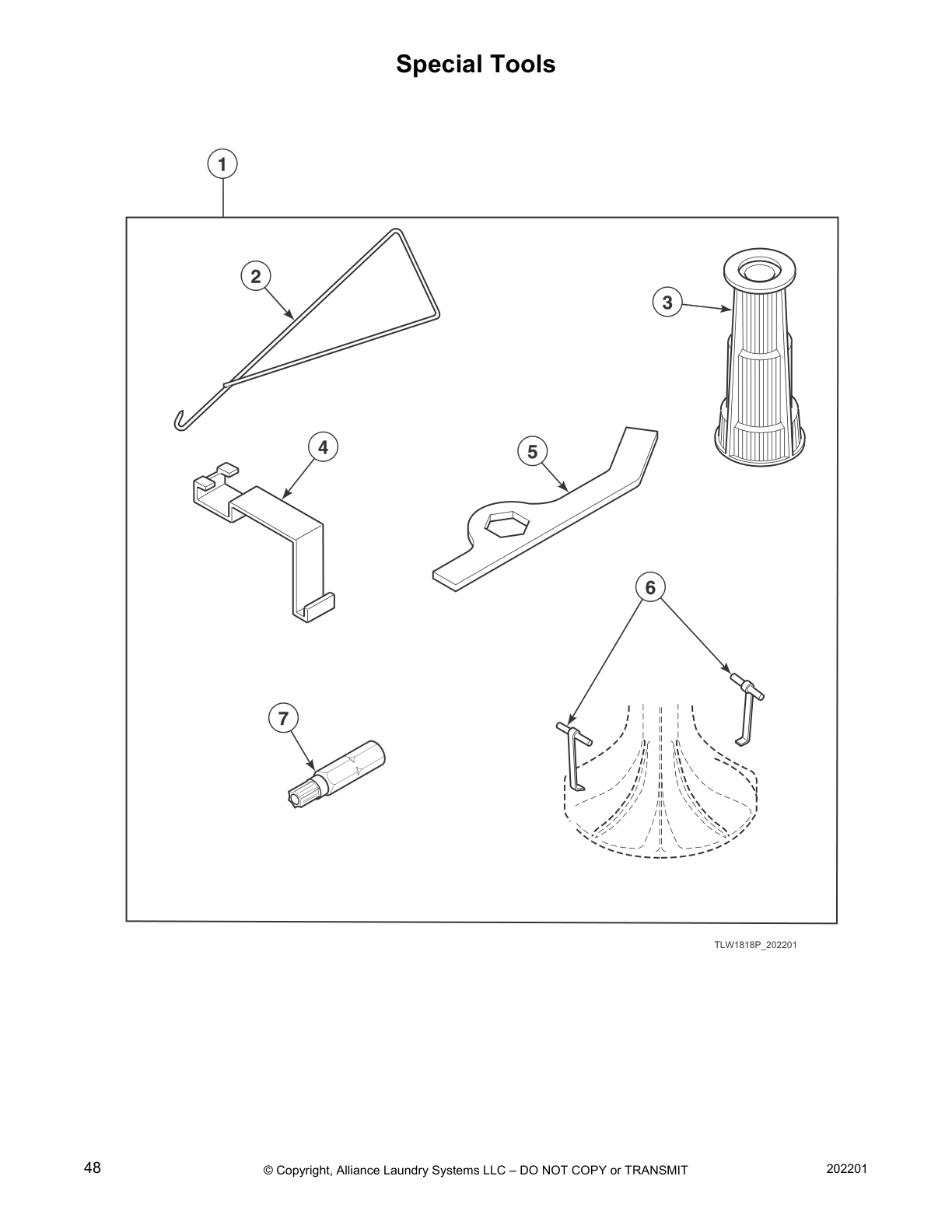

Special Tools

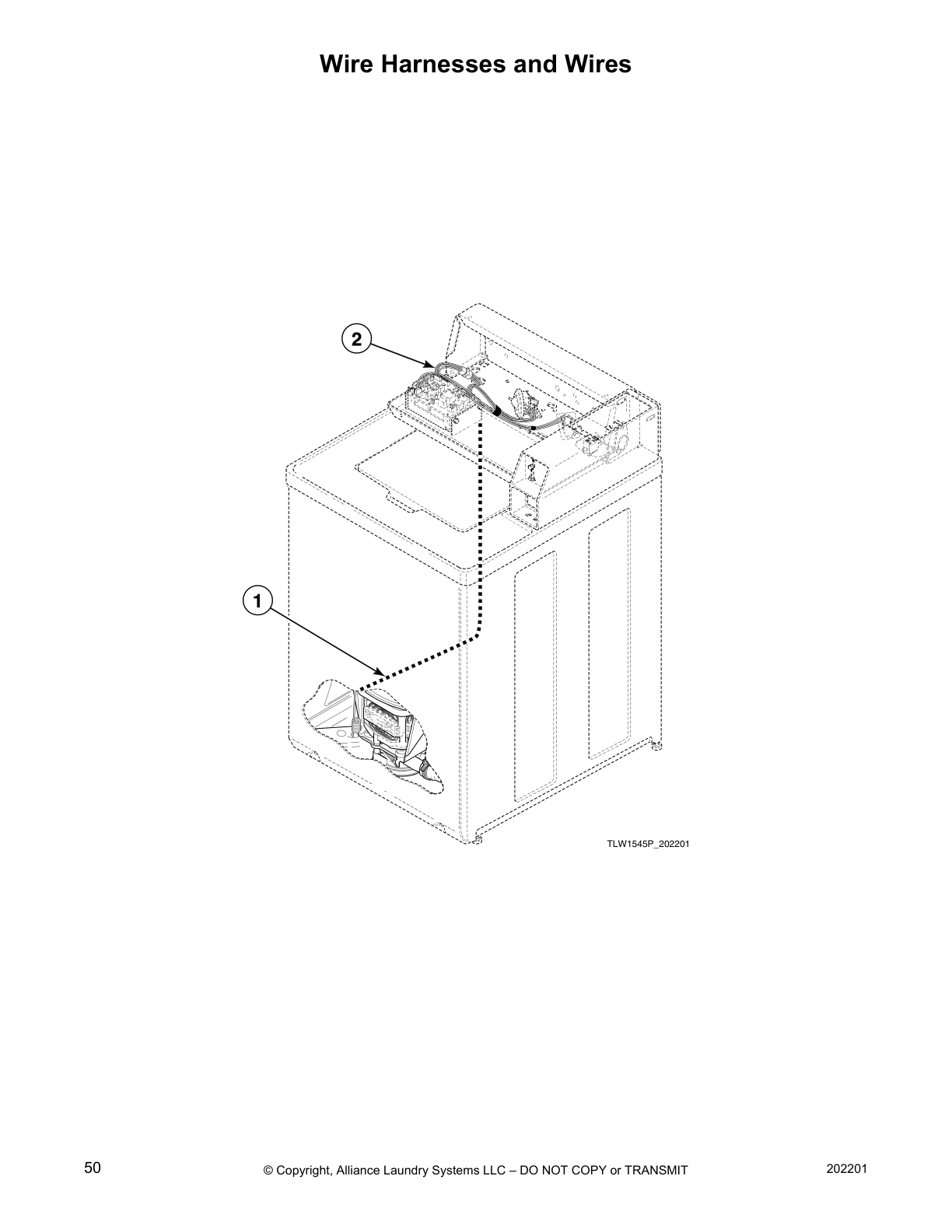

Wire Harnesses and Wires
Common parts from model Speed Queen SWNLY2PP111TW01 Washer
2
Balance Ring Assembly SPQ 39836 Contact Us For Availability
14
Mixing Valve Kit SPQ RB150001 Contact Us For Availability
× ![]()
