Model Speed Queen SWNLX2SP301AW01 Washer – Common Parts & Diagrams

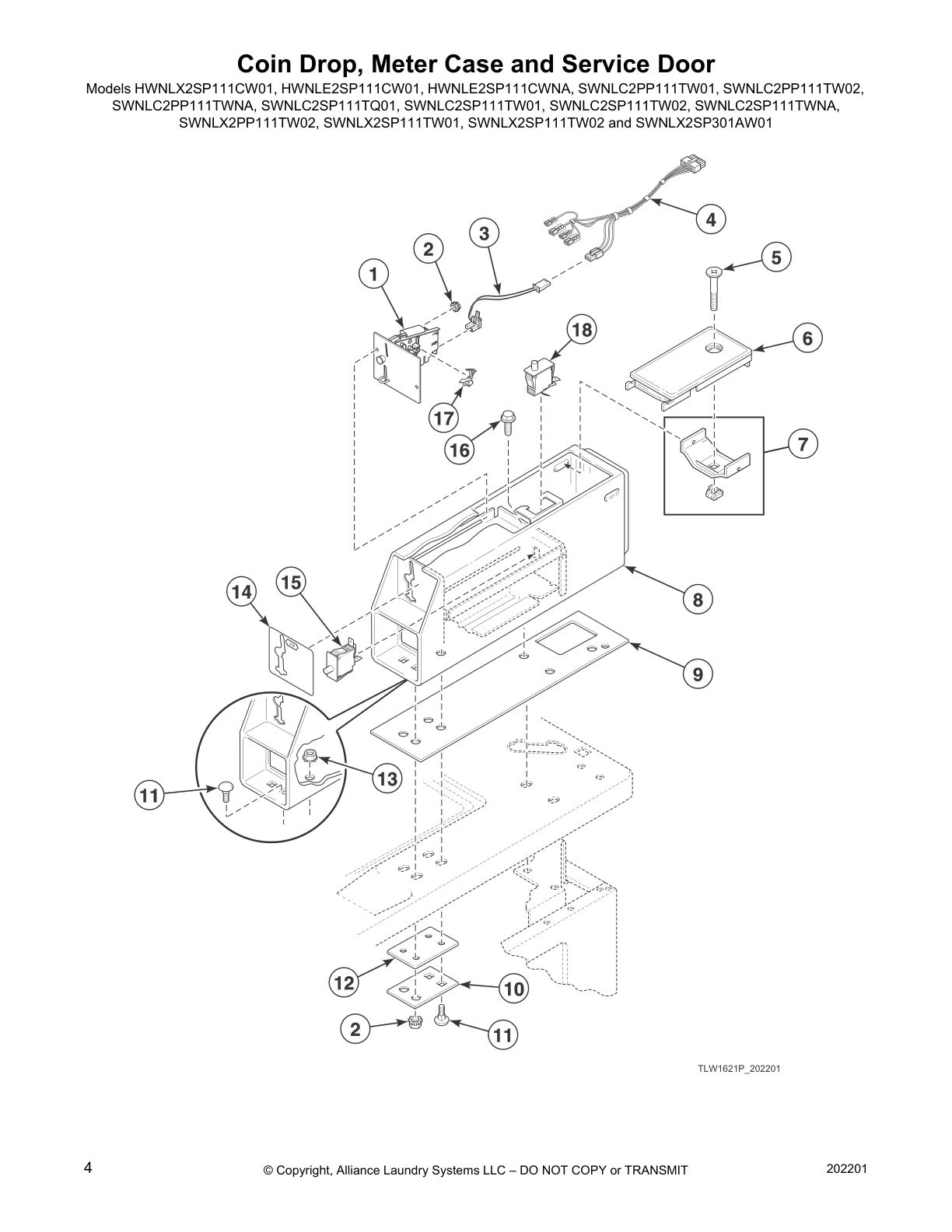

Coin Drop, Meter Case and Service Door

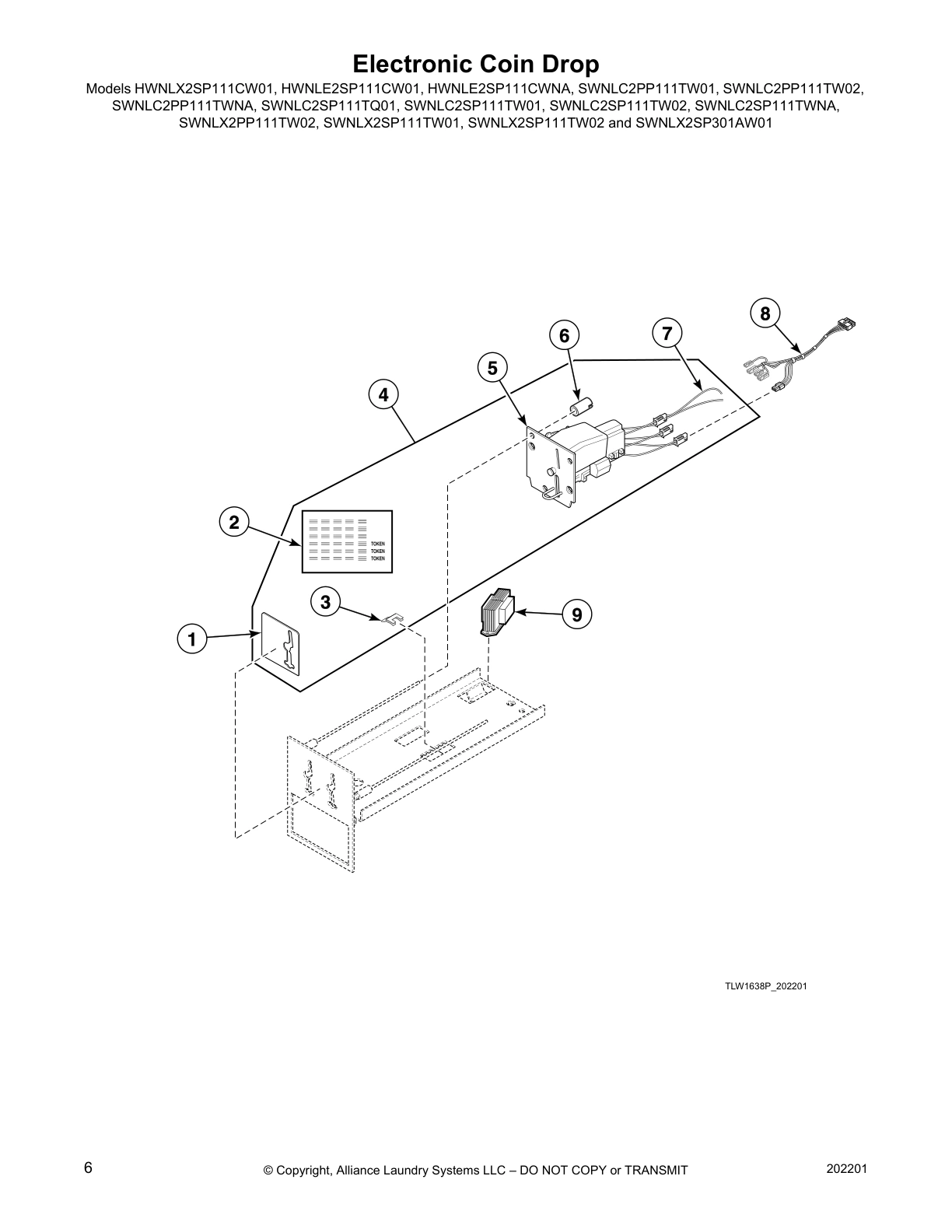

Electronic Coin Drop

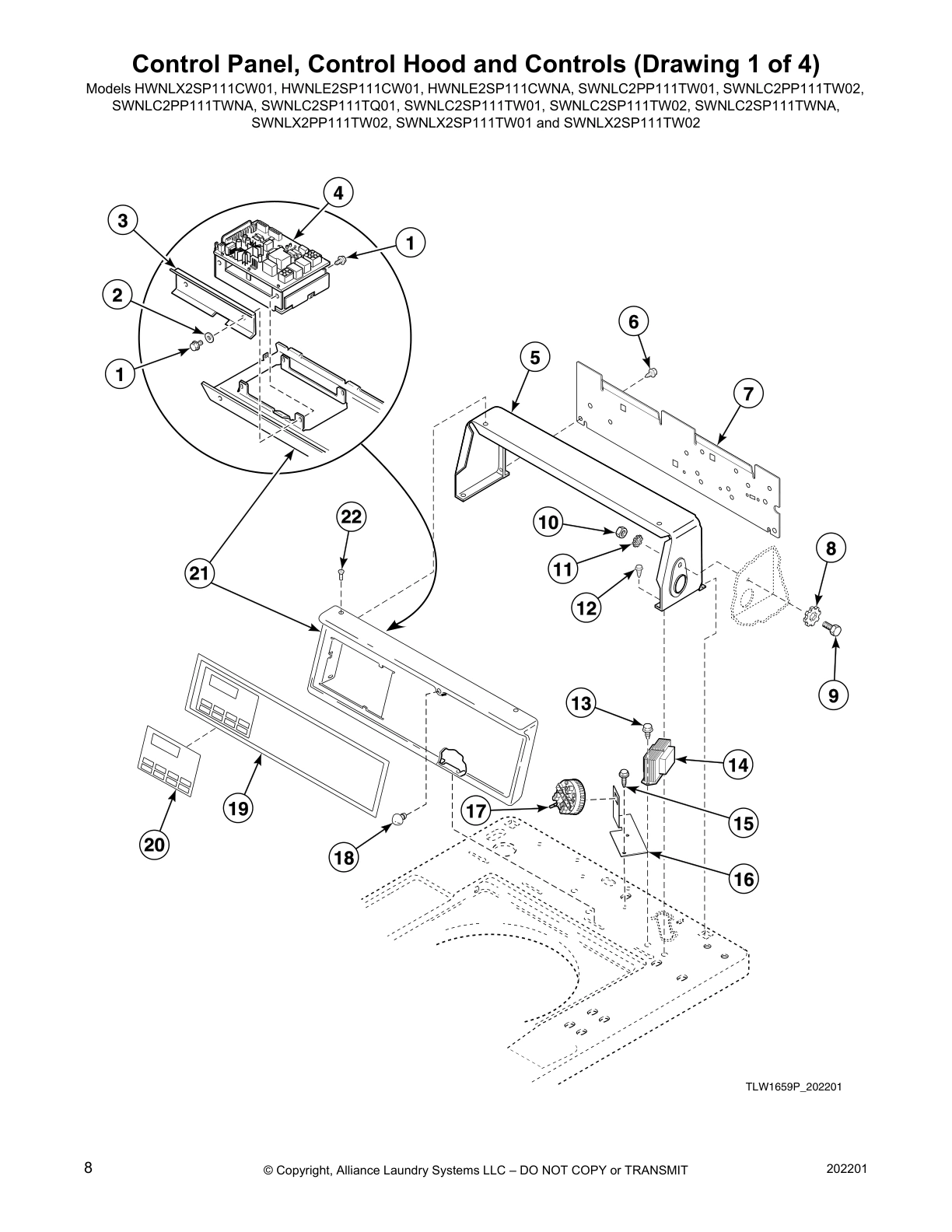

Control Panel, Control Hood and Controls (Drawing 1 of 4)

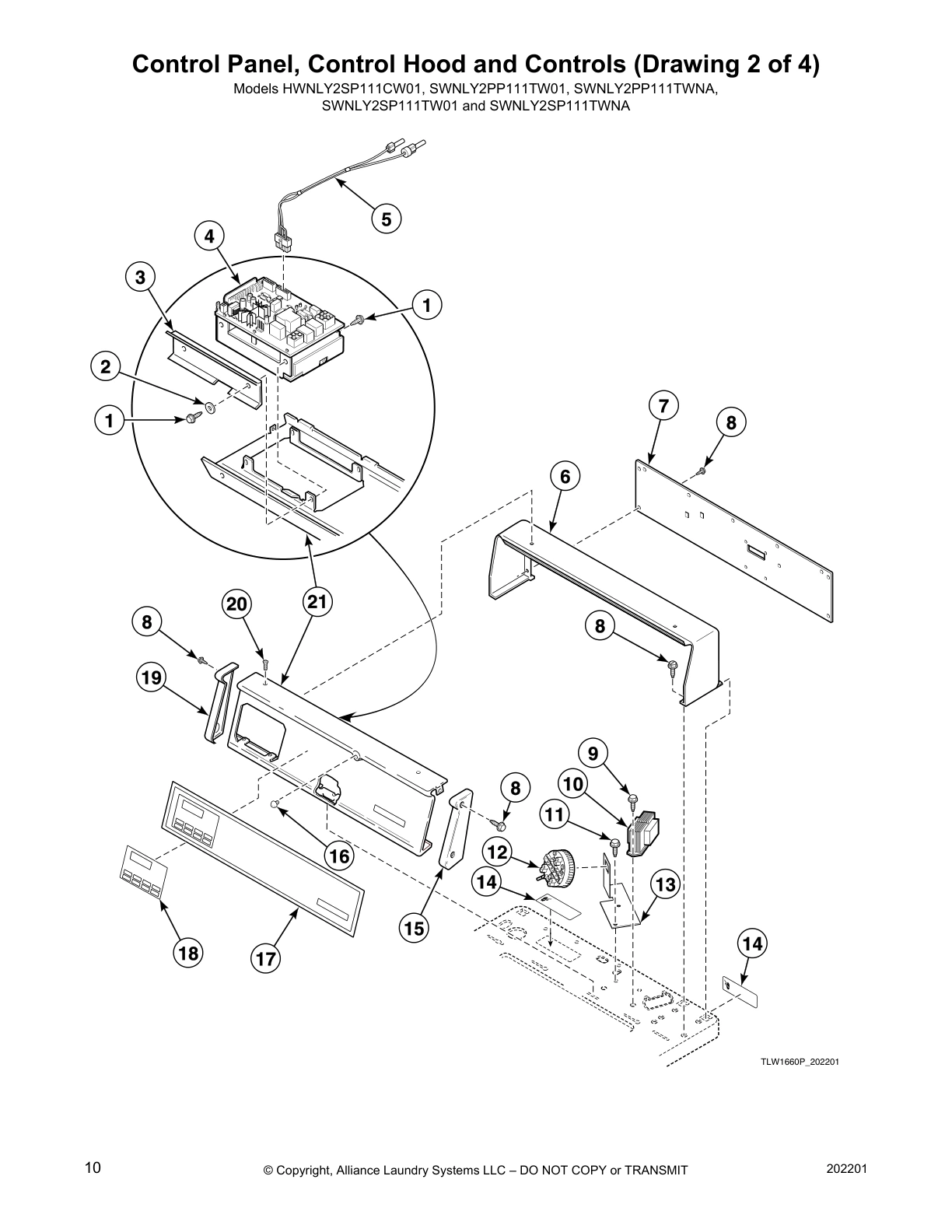

Control Panel, Control Hood and Controls (Drawing 2 of 4)

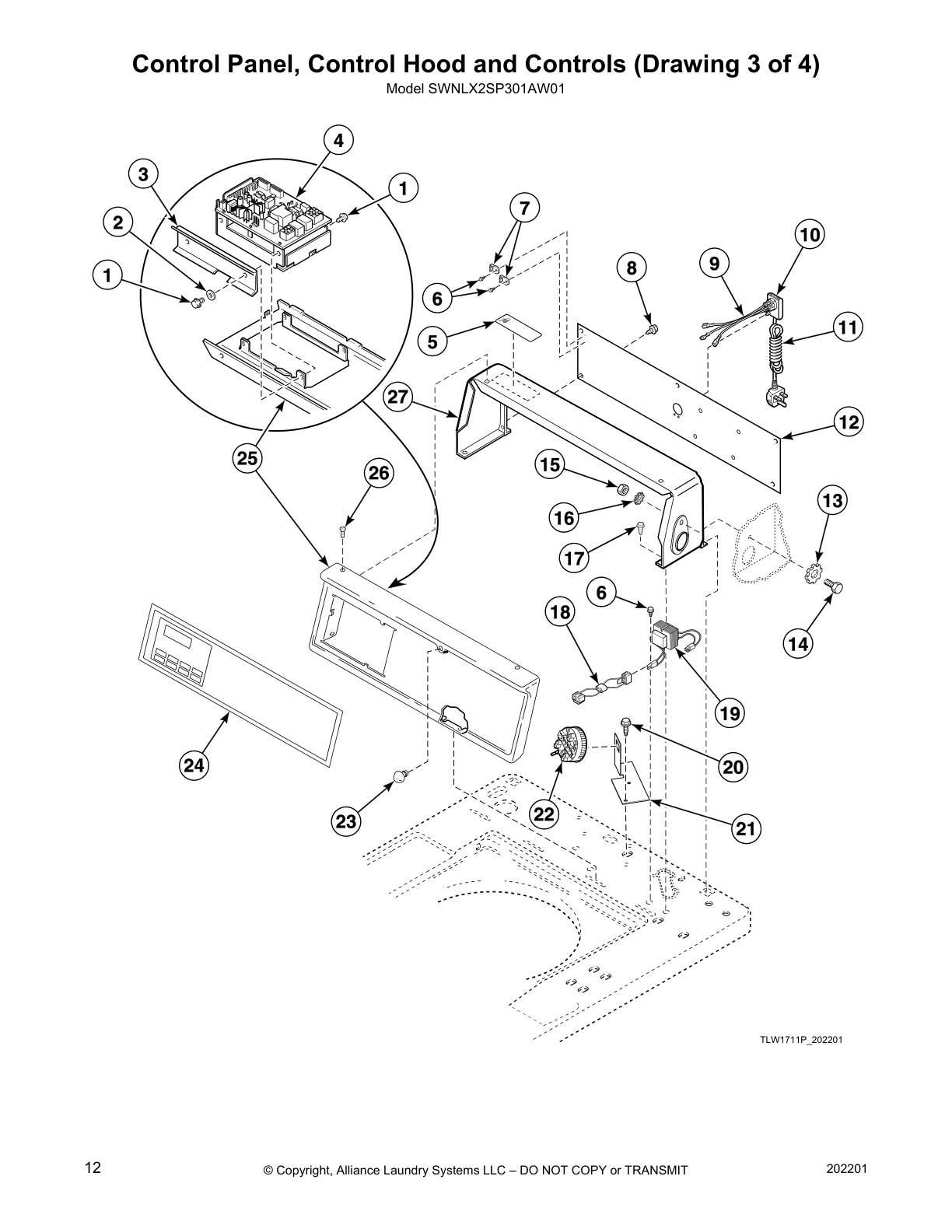

Control Panel, Control Hood and Controls (Drawing 3 of 4)

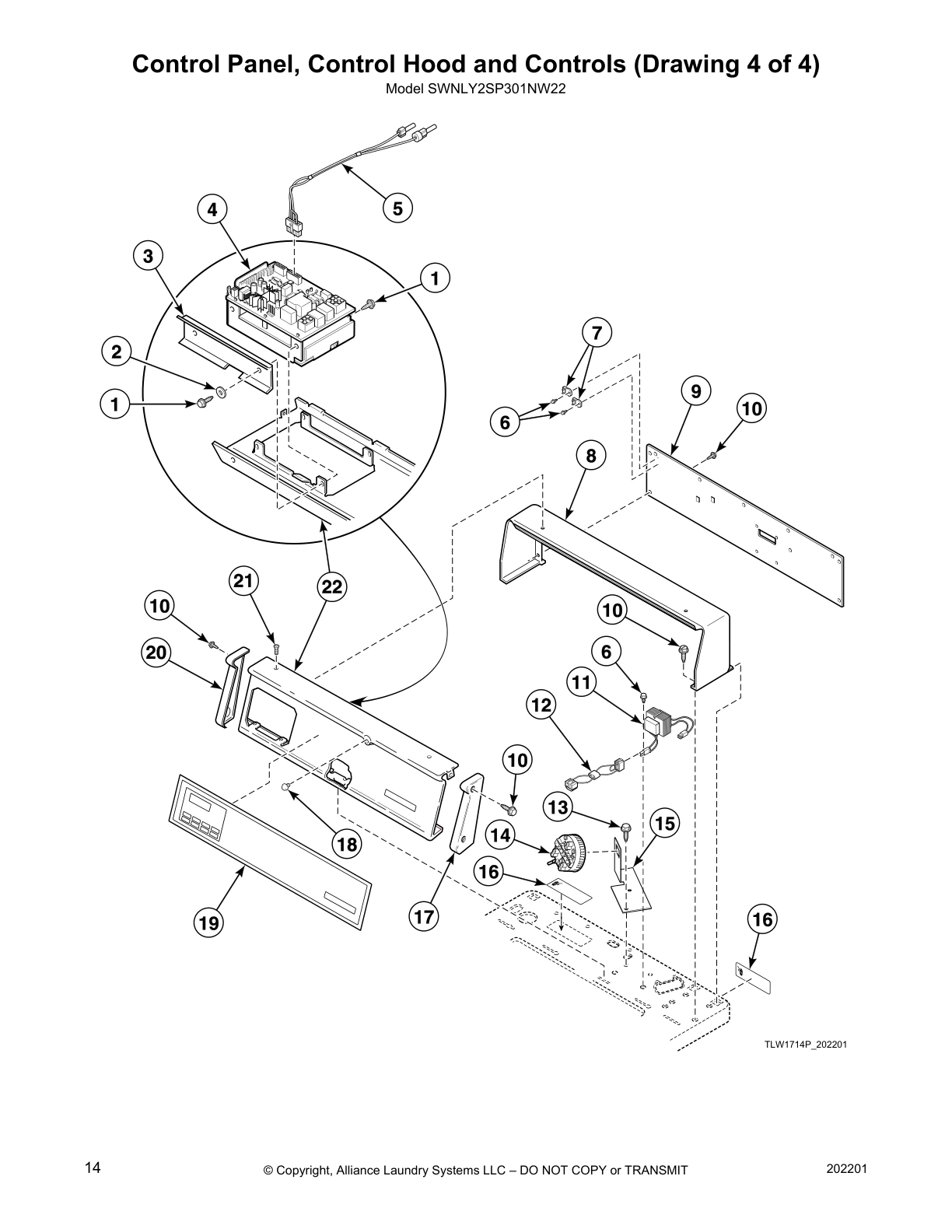

Control Panel, Control Hood and Controls (Drawing 4 of 4)

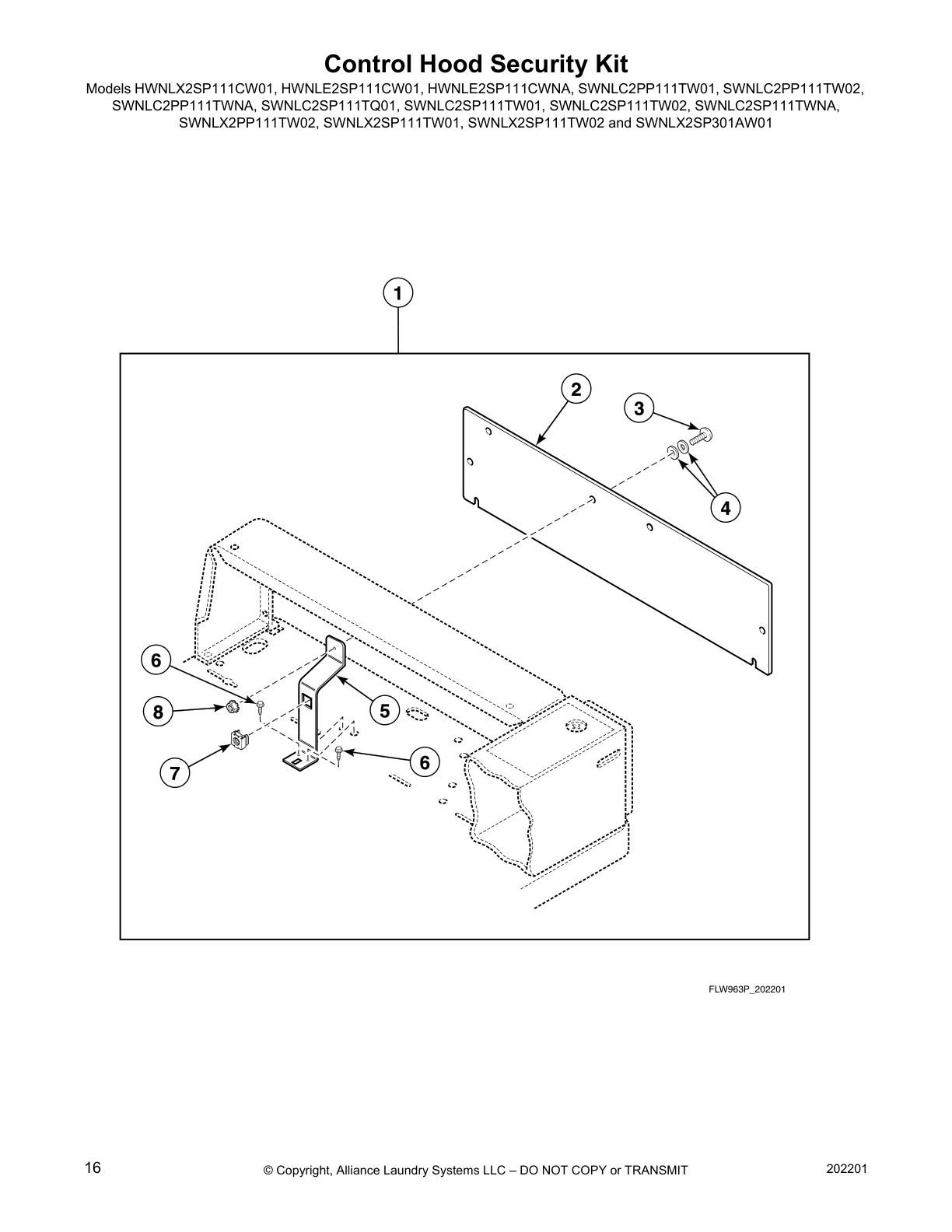

Control Hood Security Kit

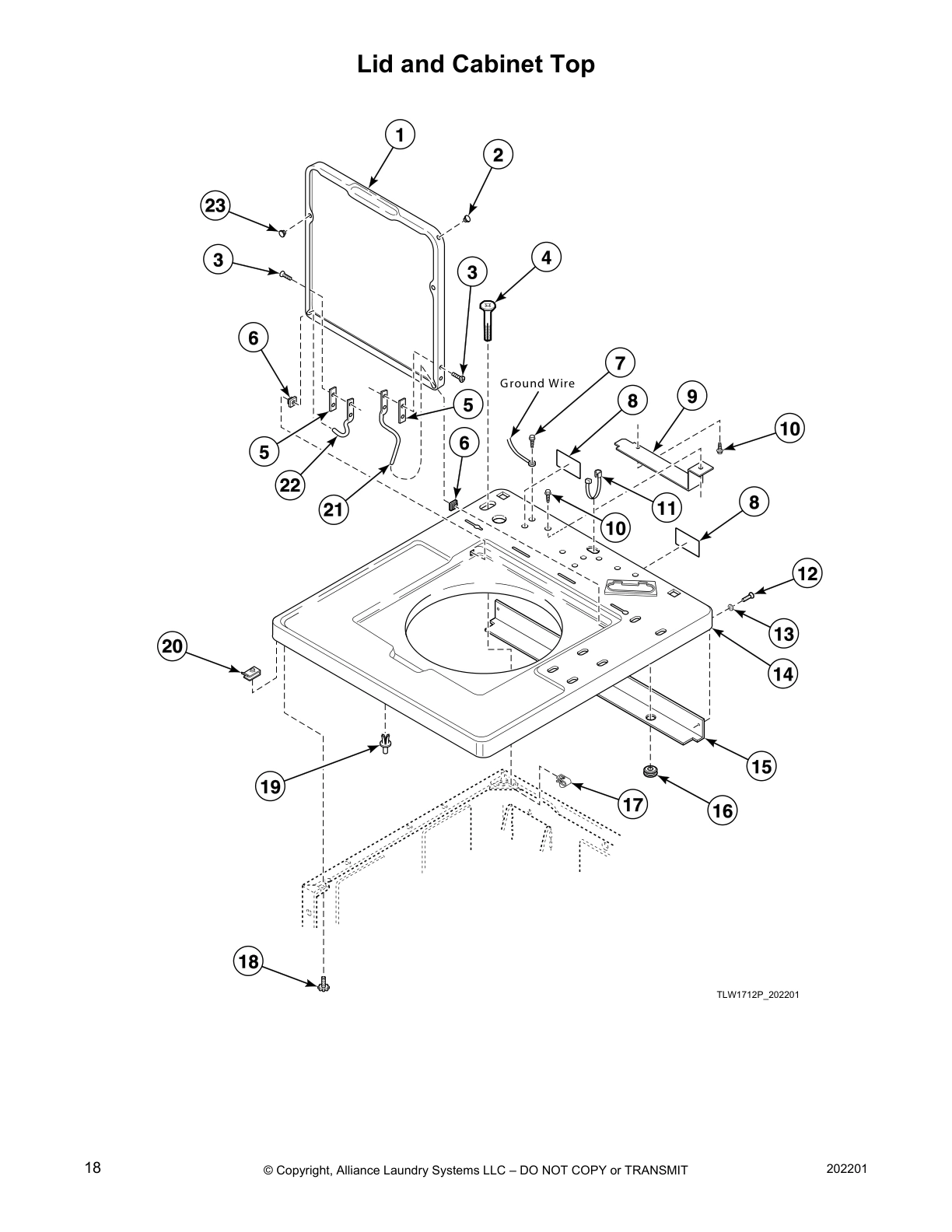

Lid and Cabinet Top

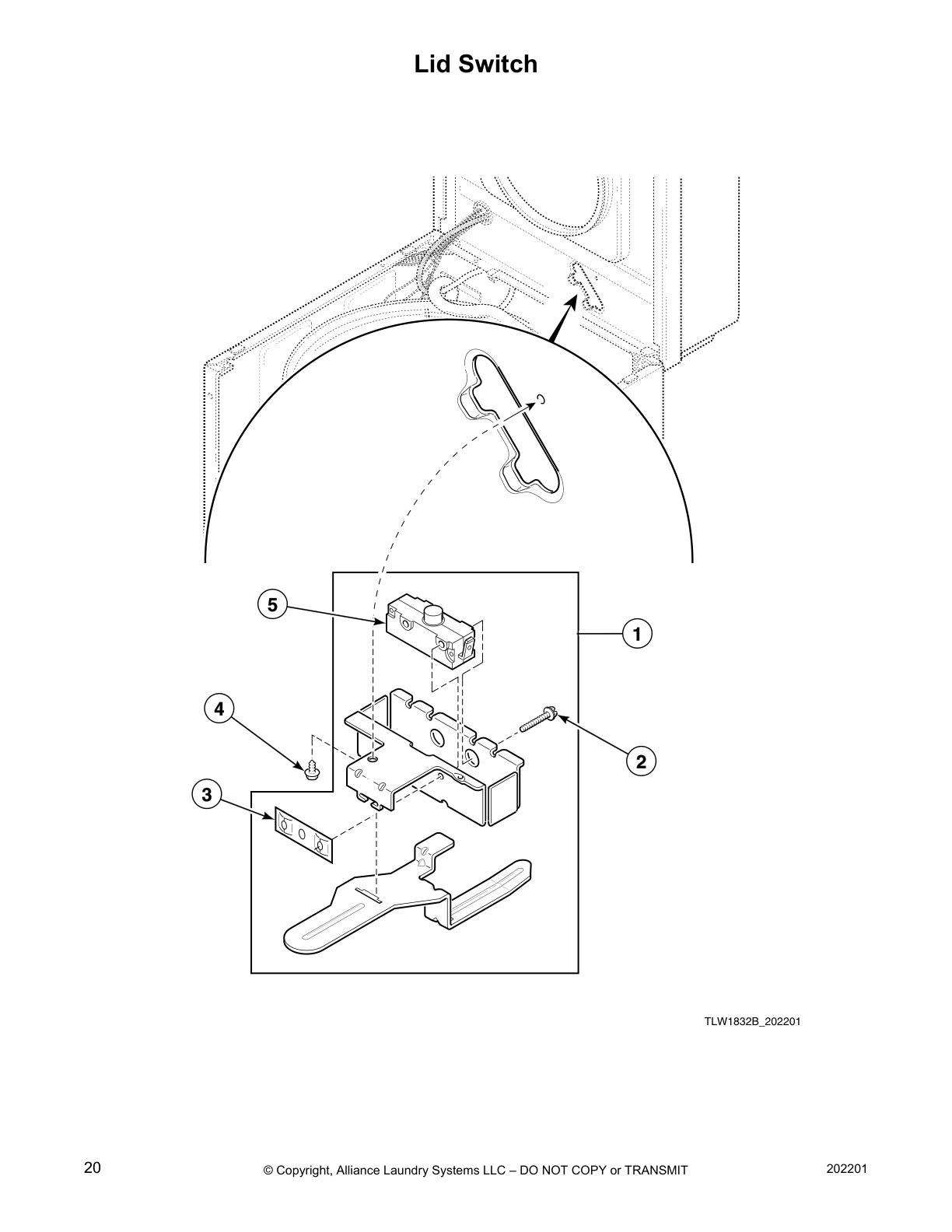

Lid Switch

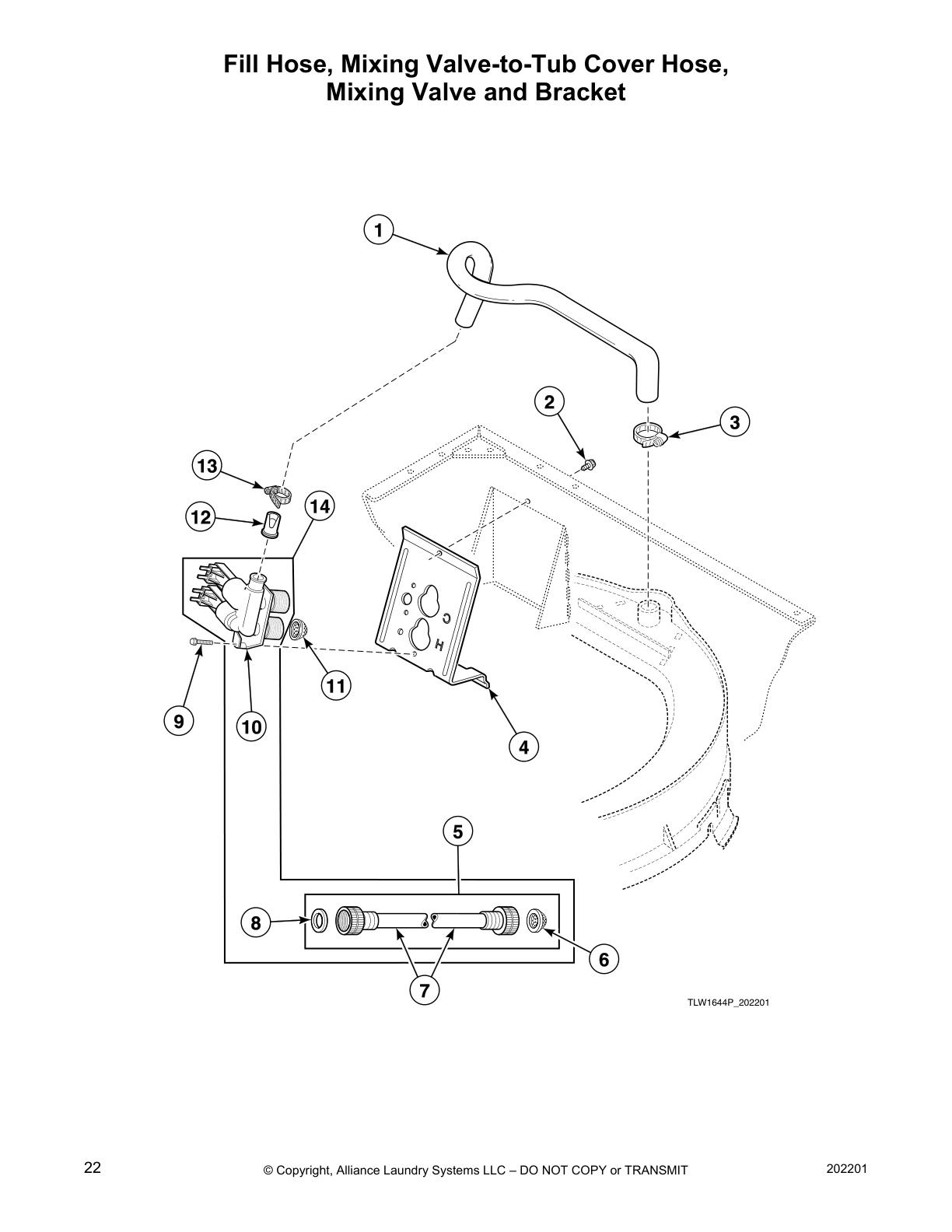

Fill Hose, Mixing Valve-to-Tub Cover Hose,
Mixing Valve and Bracket

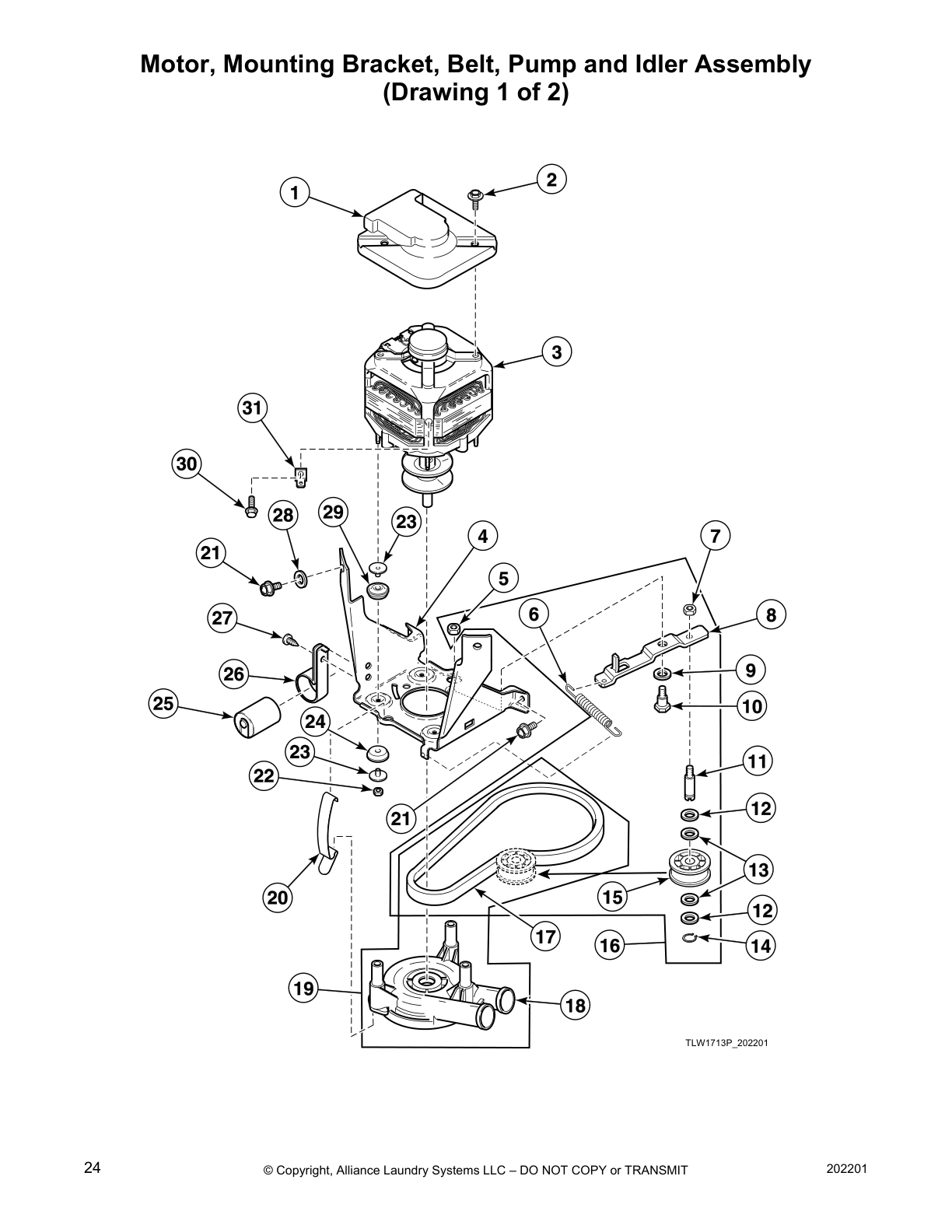

Motor, Mounting Bracket, Belt, Pump and Idler Assembly
(Drawing 1 of 2)

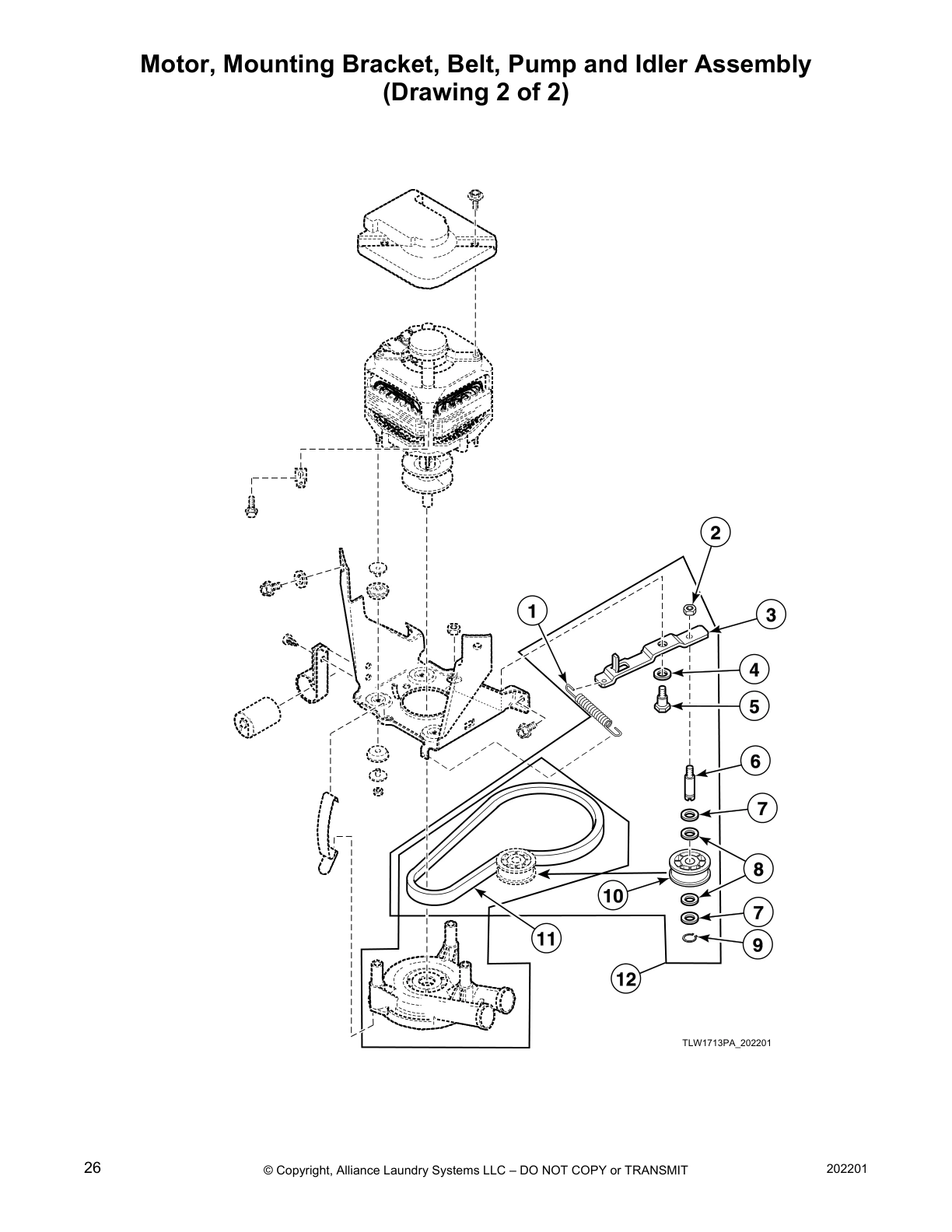

Motor, Mounting Bracket, Belt, Pump and Idler Assembly
(Drawing 2 of 2)

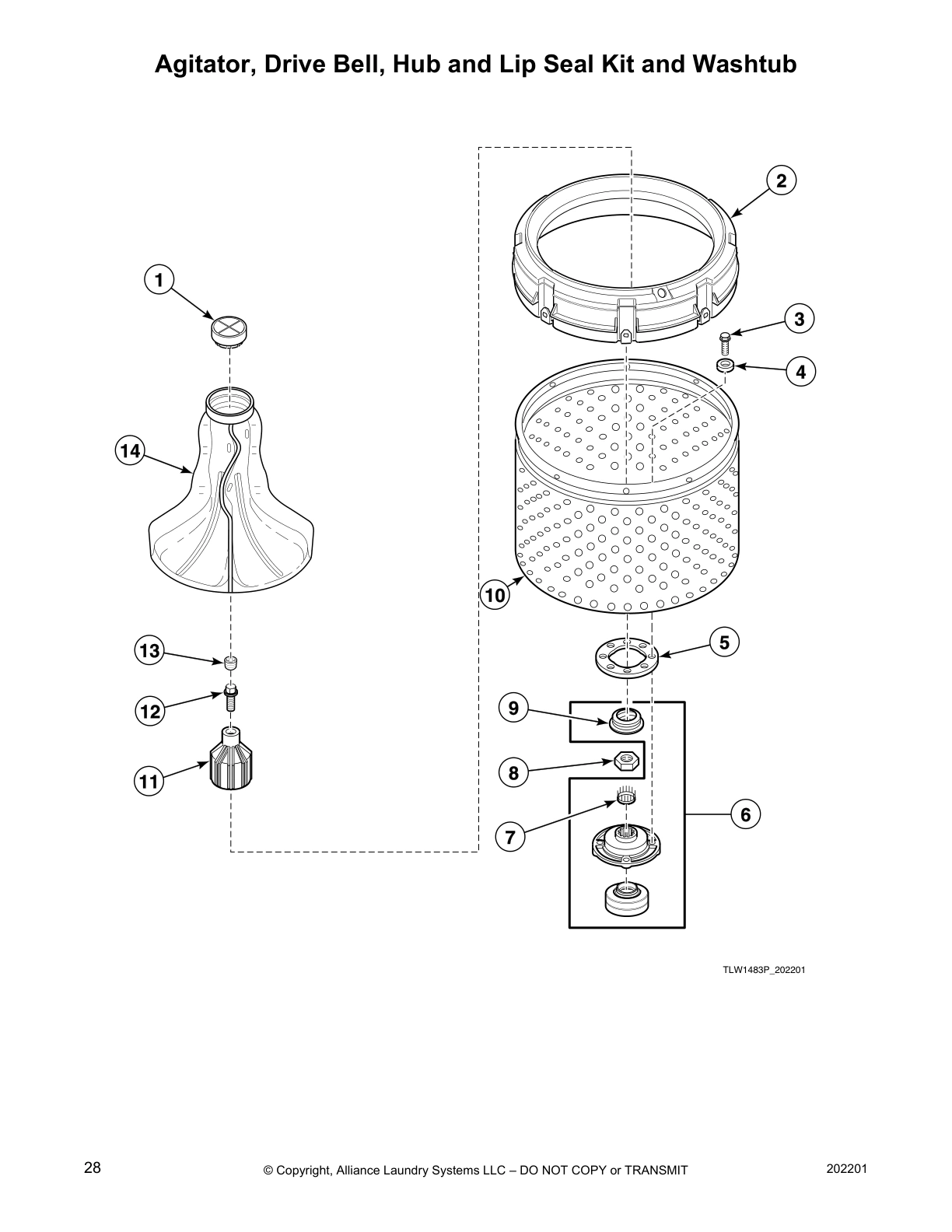

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub

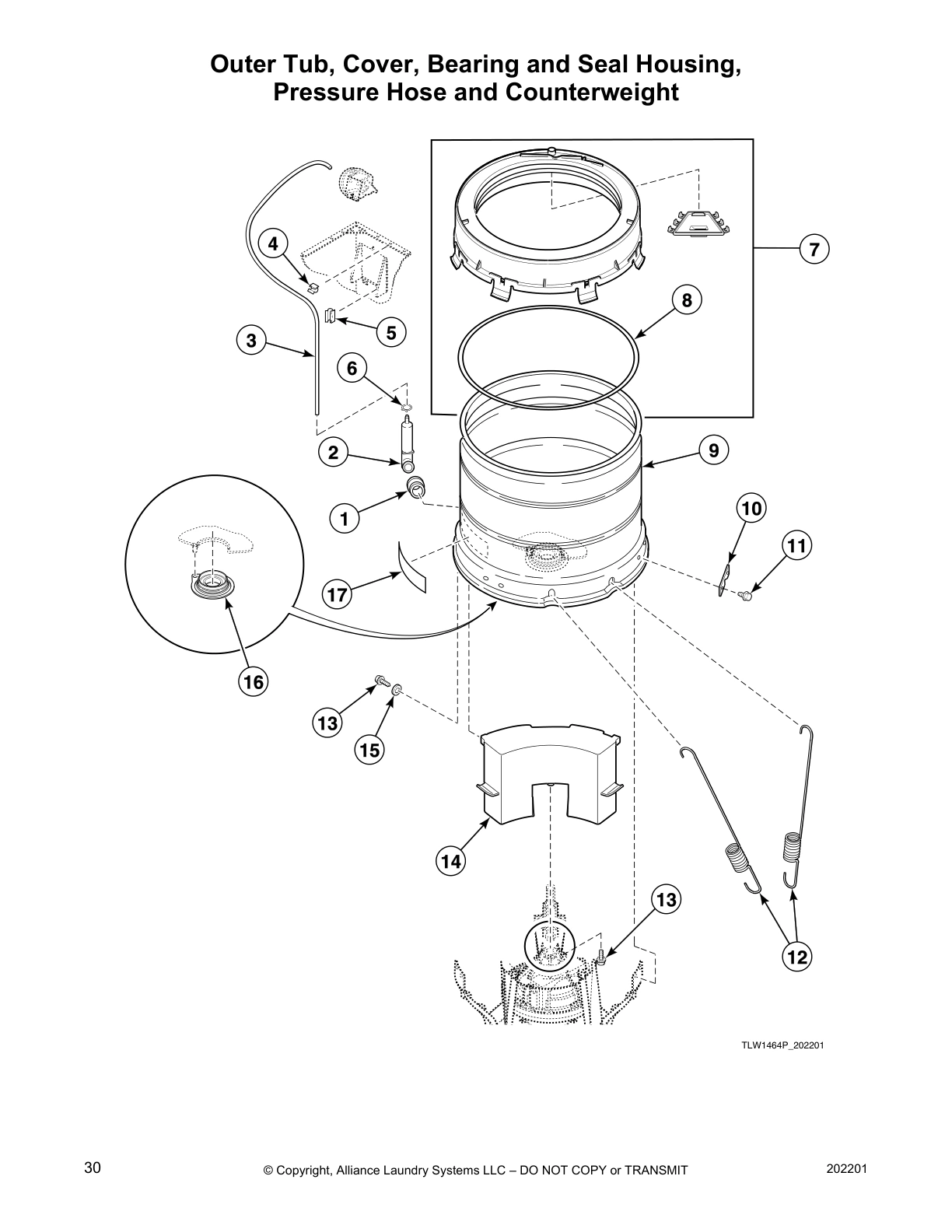

Outer Tub, Cover, Bearing and Seal Housing,
Pressure Hose and Counterweight

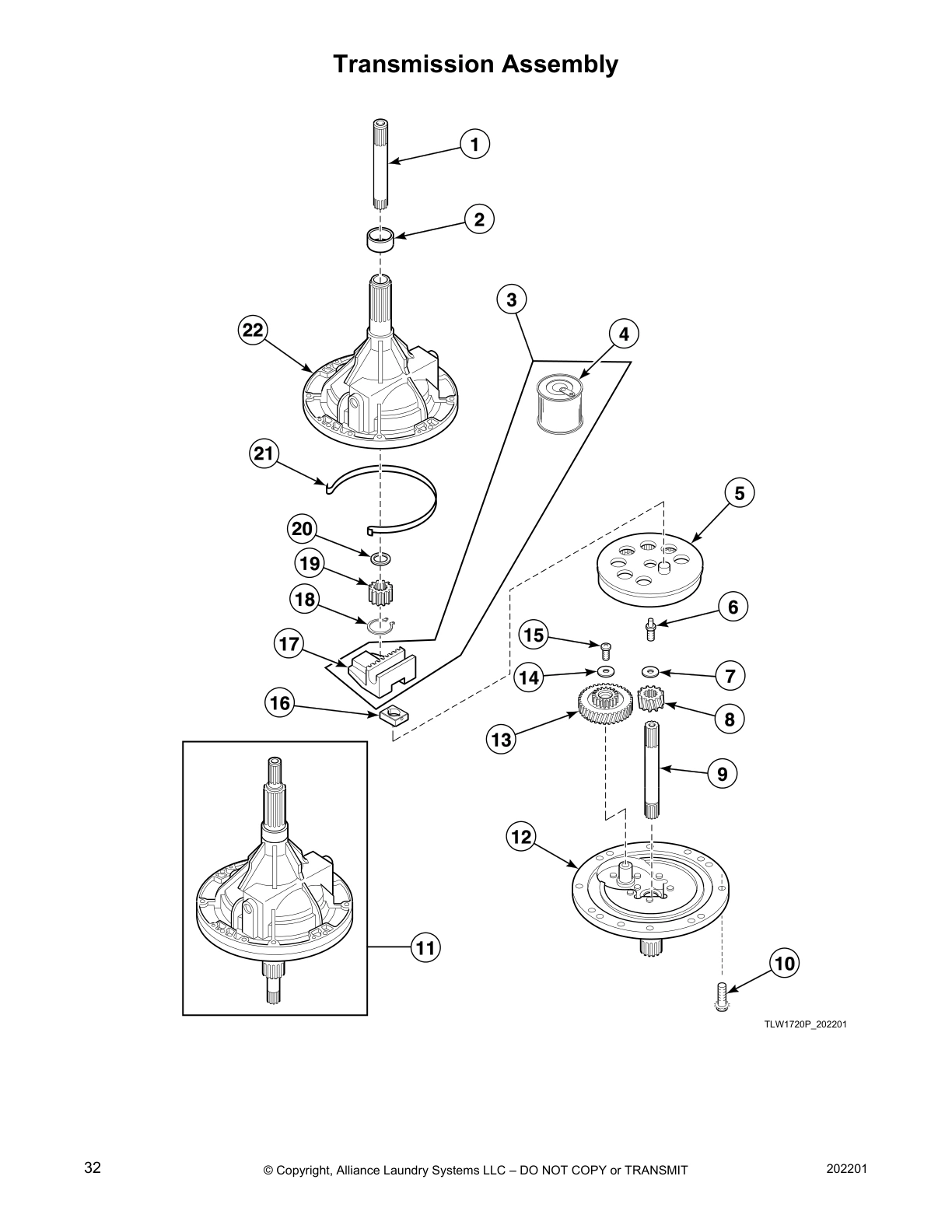

Transmission Assembly

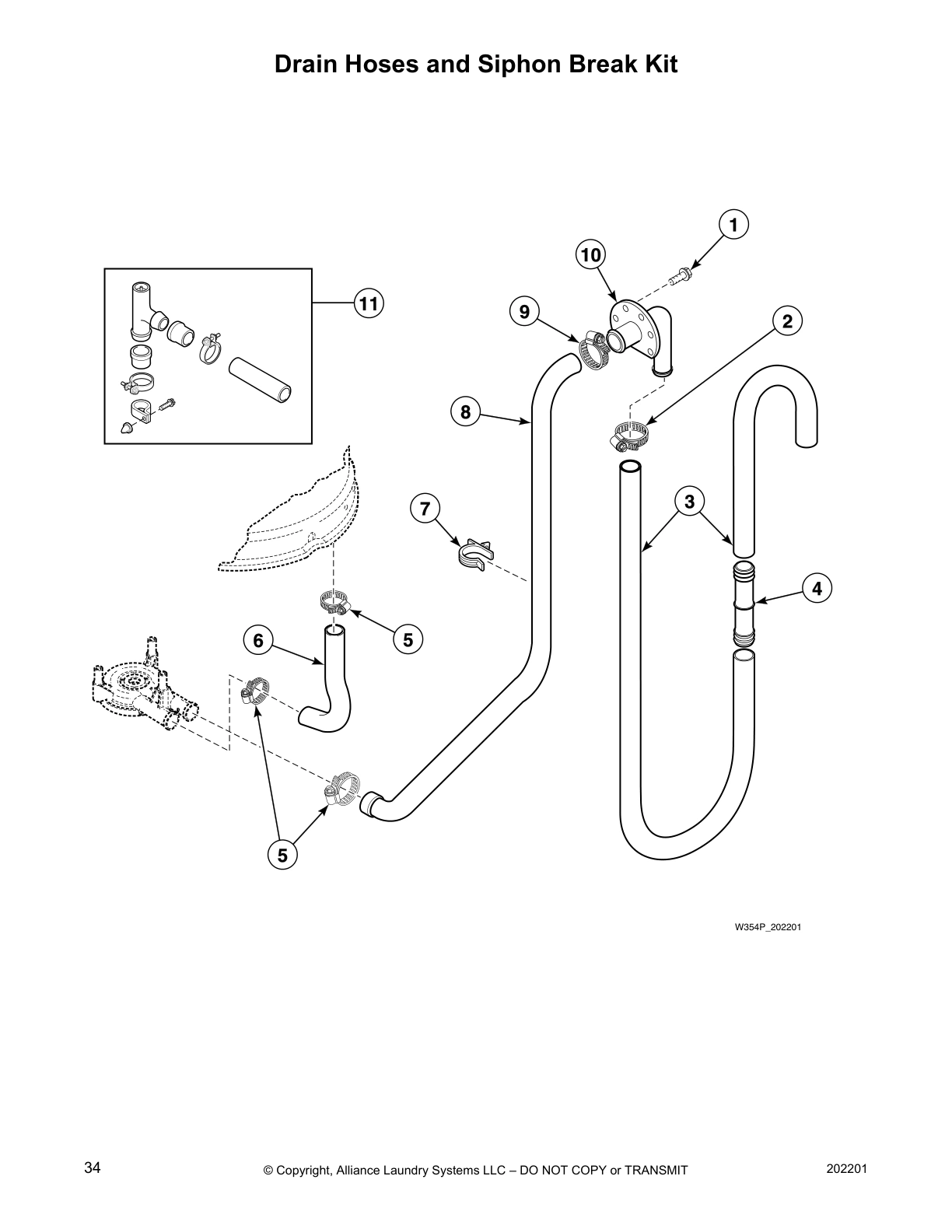

Drain Hoses and Siphon Break Kit
Weldment and Bearing Assembly, Brake and Pulley

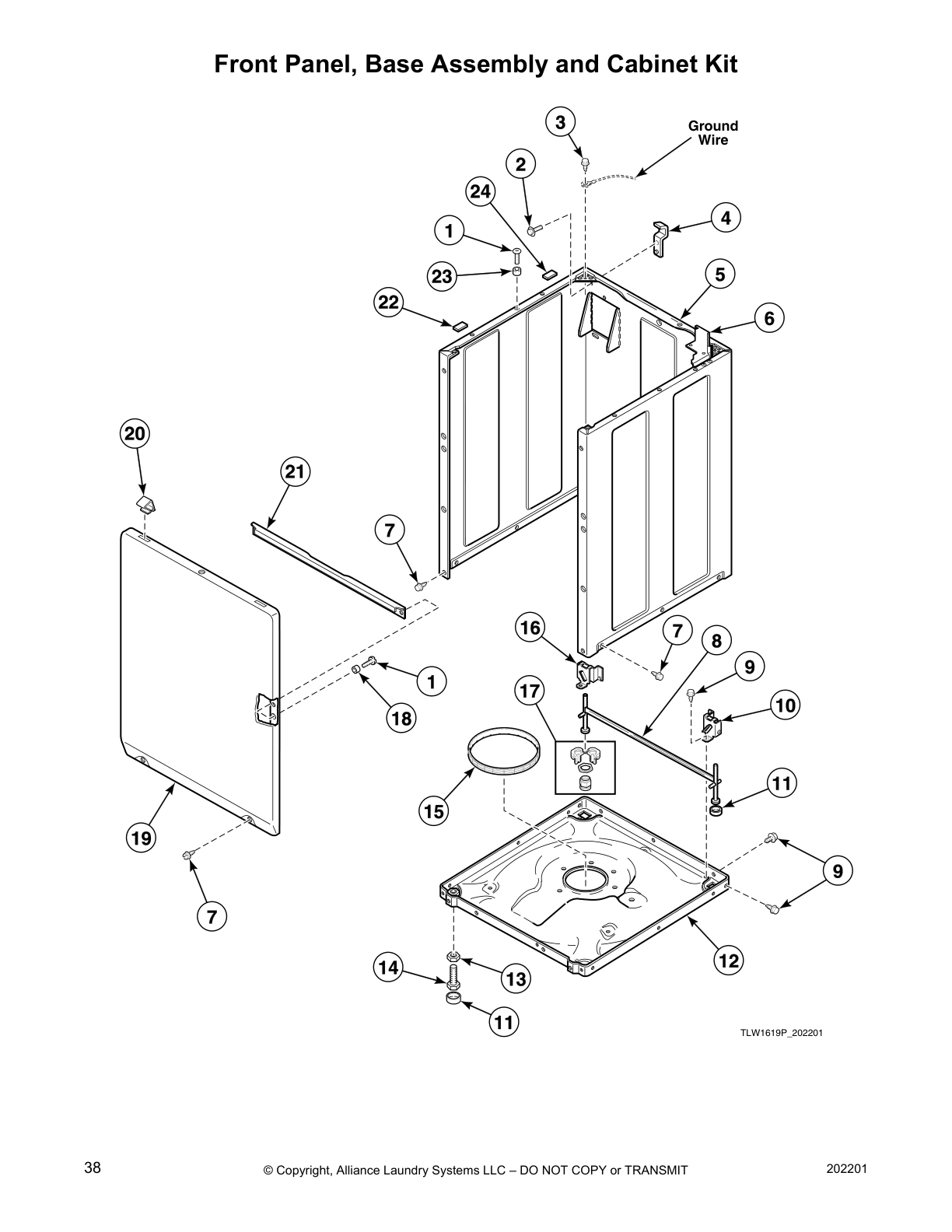

Front Panel, Base Assembly and Cabinet Kit

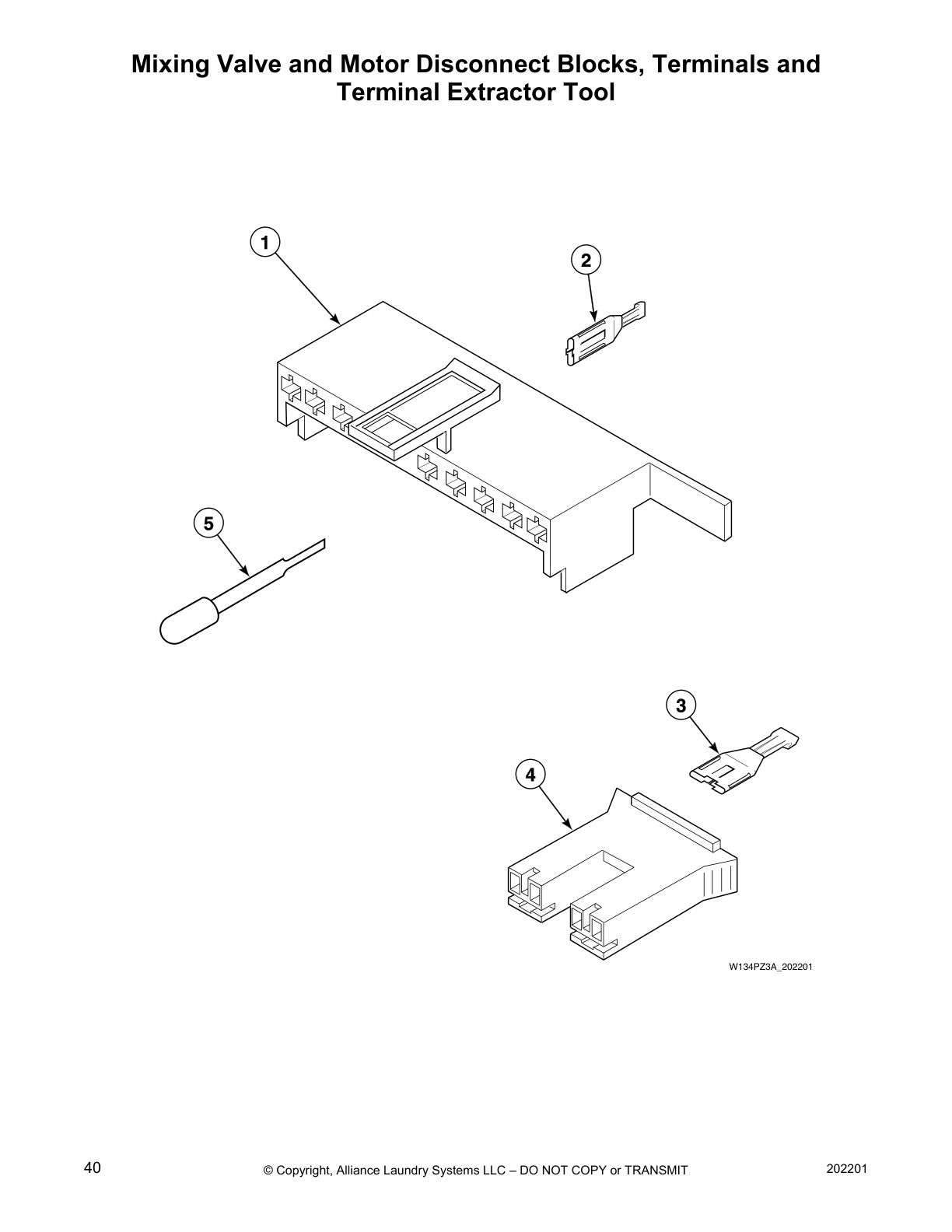

Mixing Valve and Motor Disconnect Blocks, Terminals and
Terminal Extractor Tool

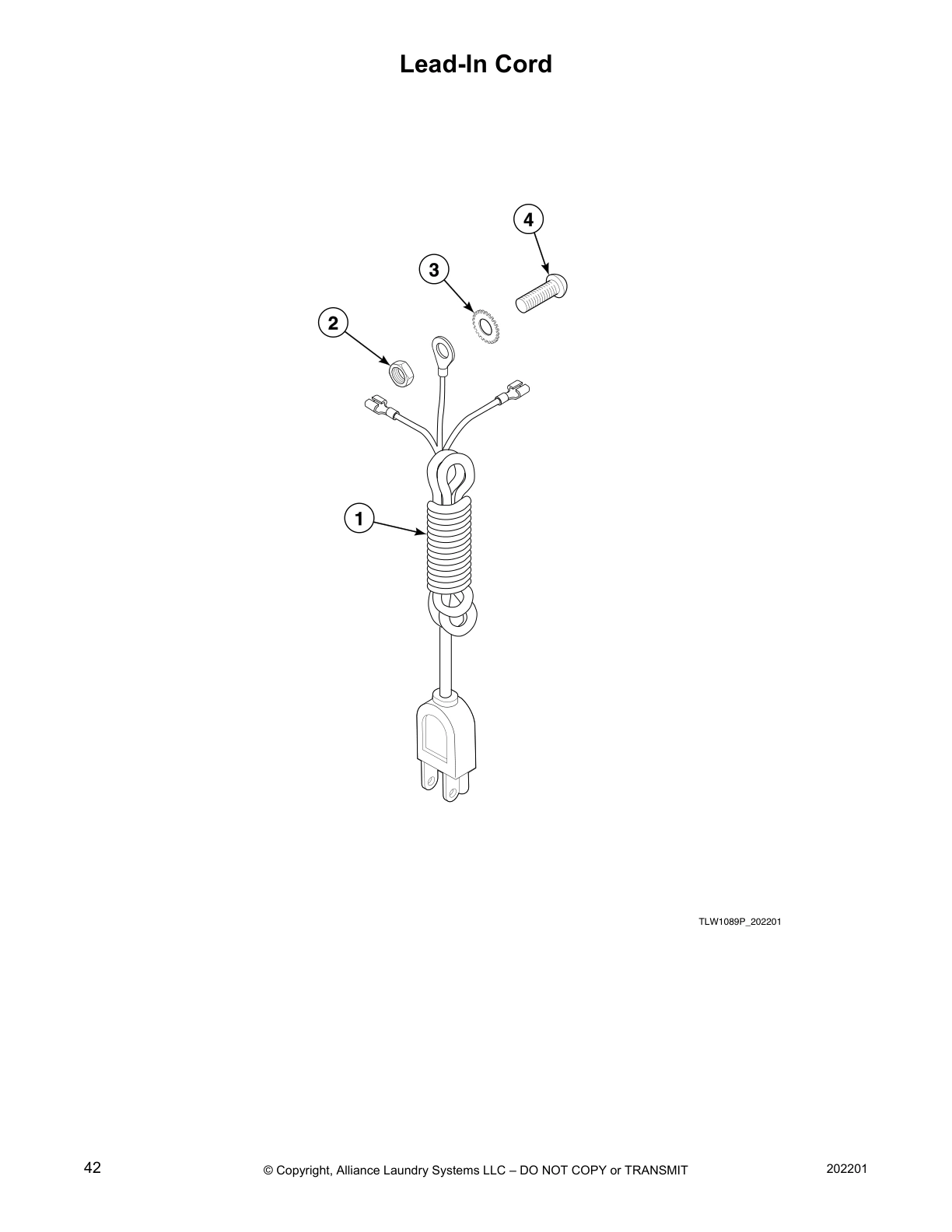

Lead-In Cord

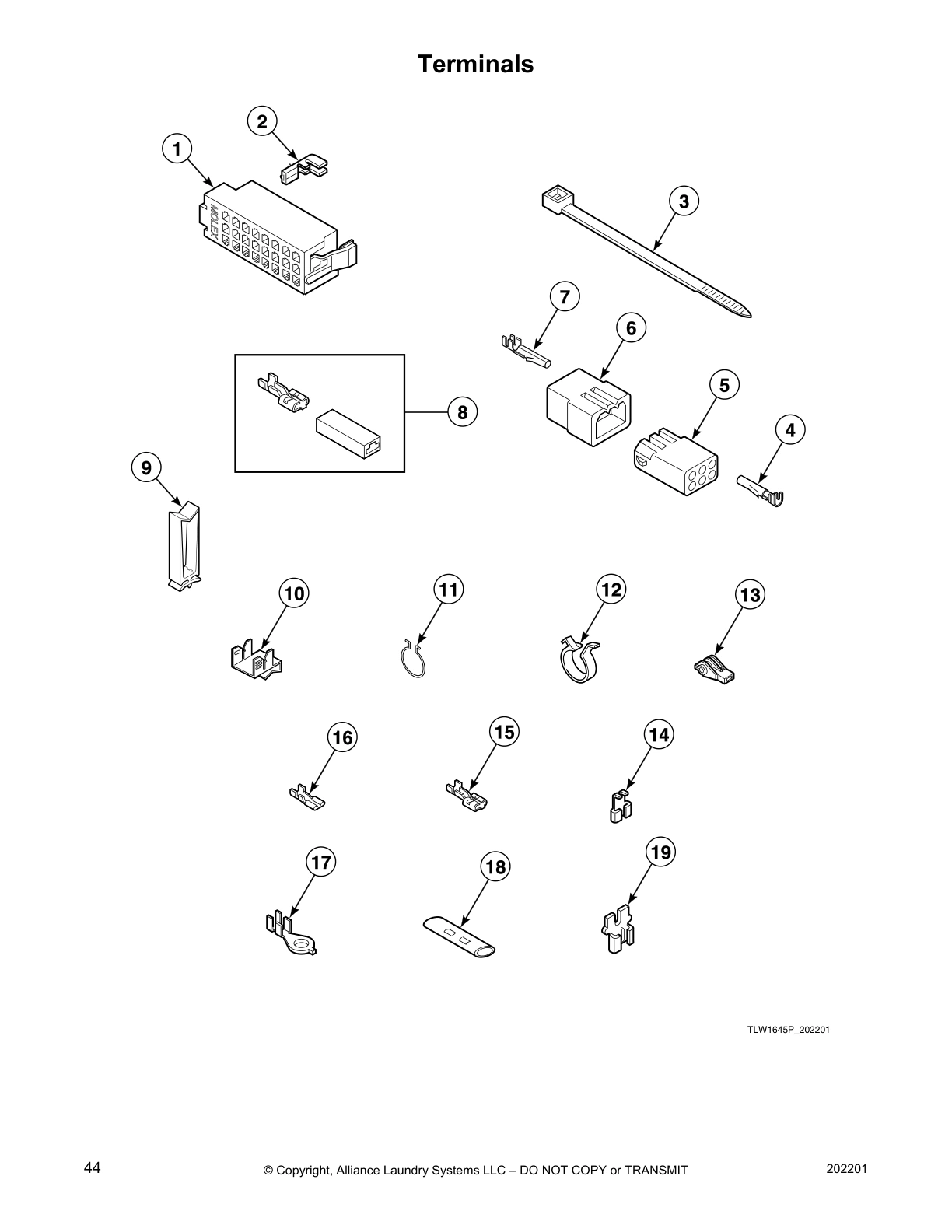

Terminals
Shipping Materials and Special Tools
Special Tools

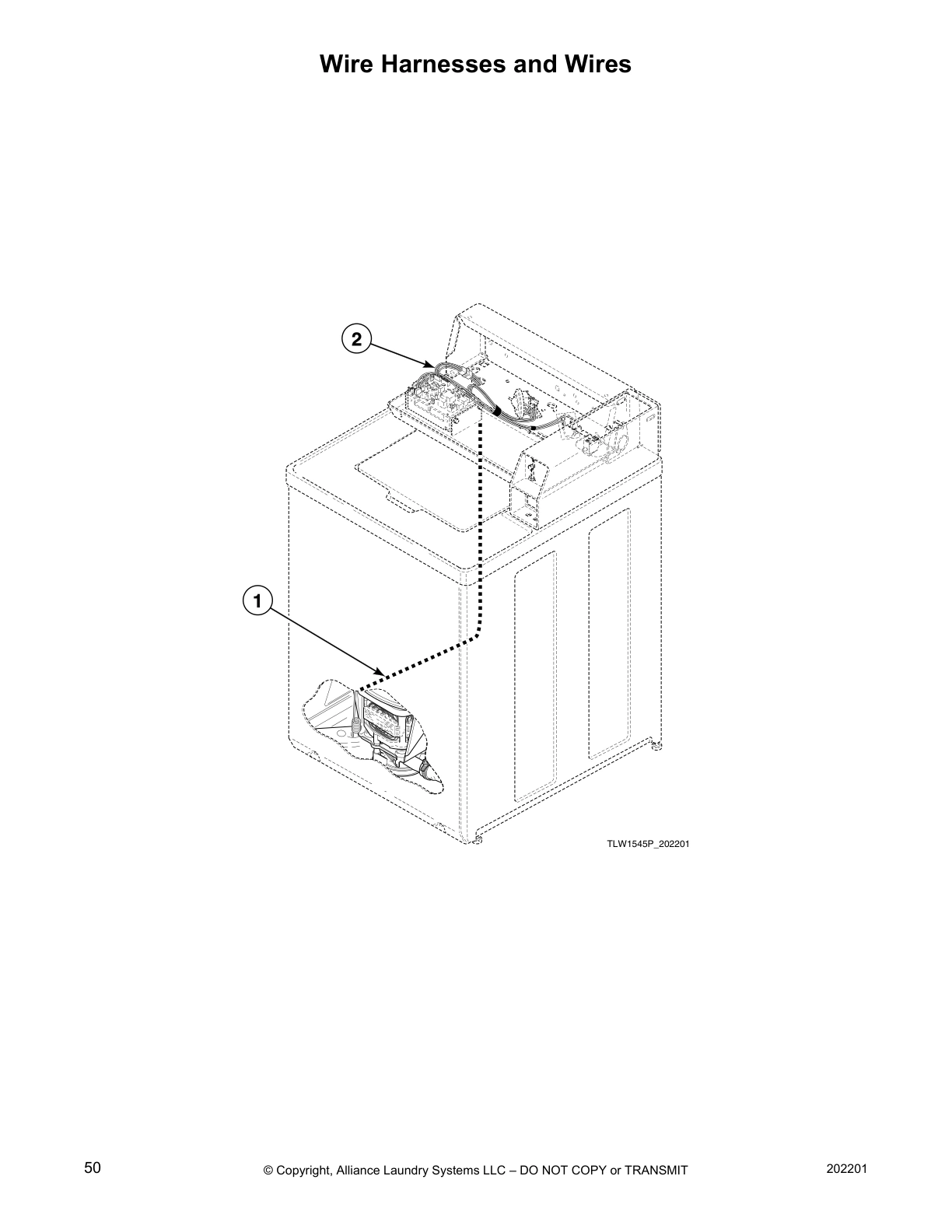

Wire Harnesses and Wires
Common parts from model Speed Queen SWNLX2SP301AW01 Washer
2
Balance Ring Assembly SPQ 39836 Contact Us For Availability
15
Grommet SPQ 39744 Contact Us For Availability
17
Switch SPQ 70441601P No Longer Available
× ![]()
