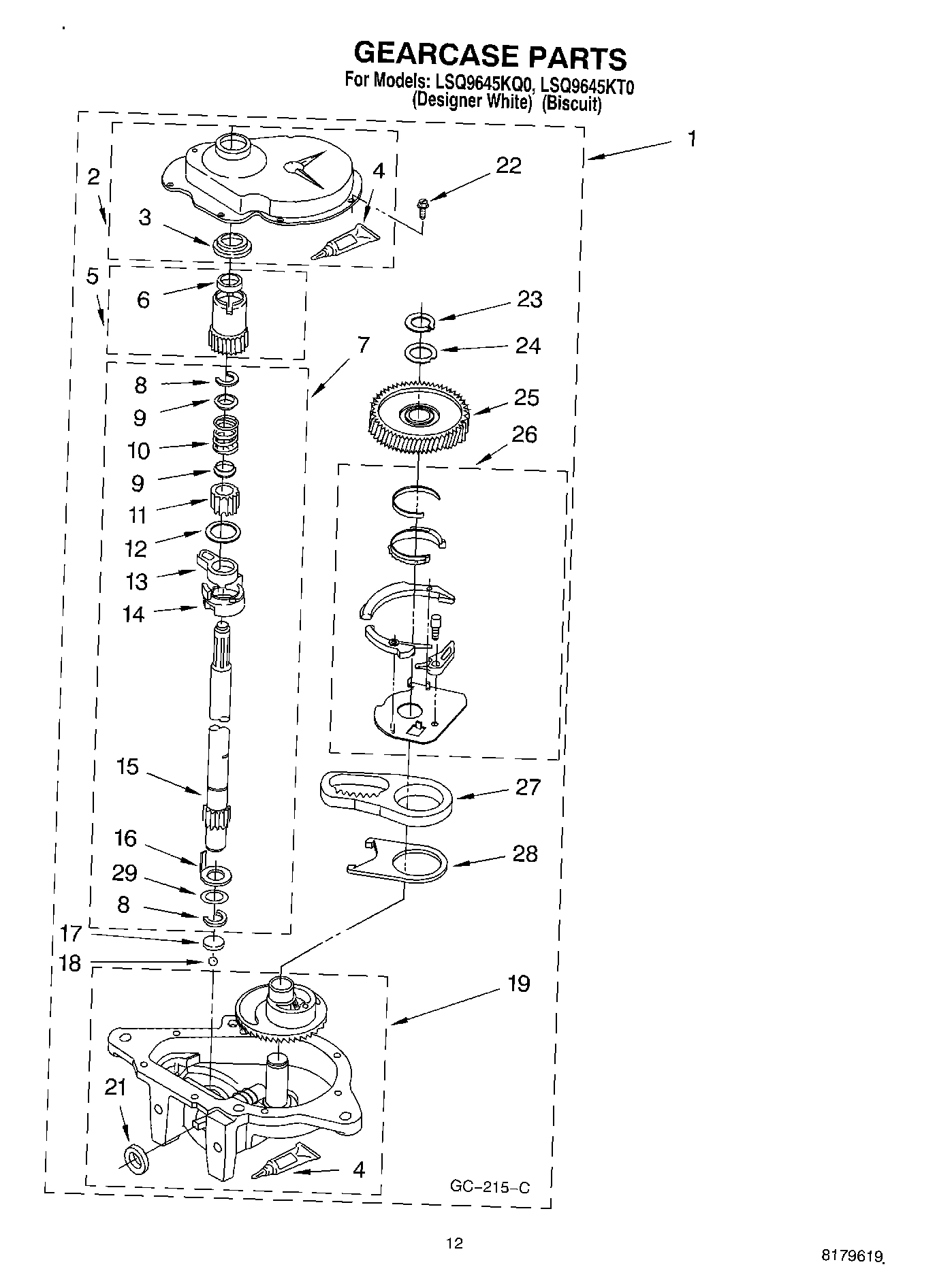

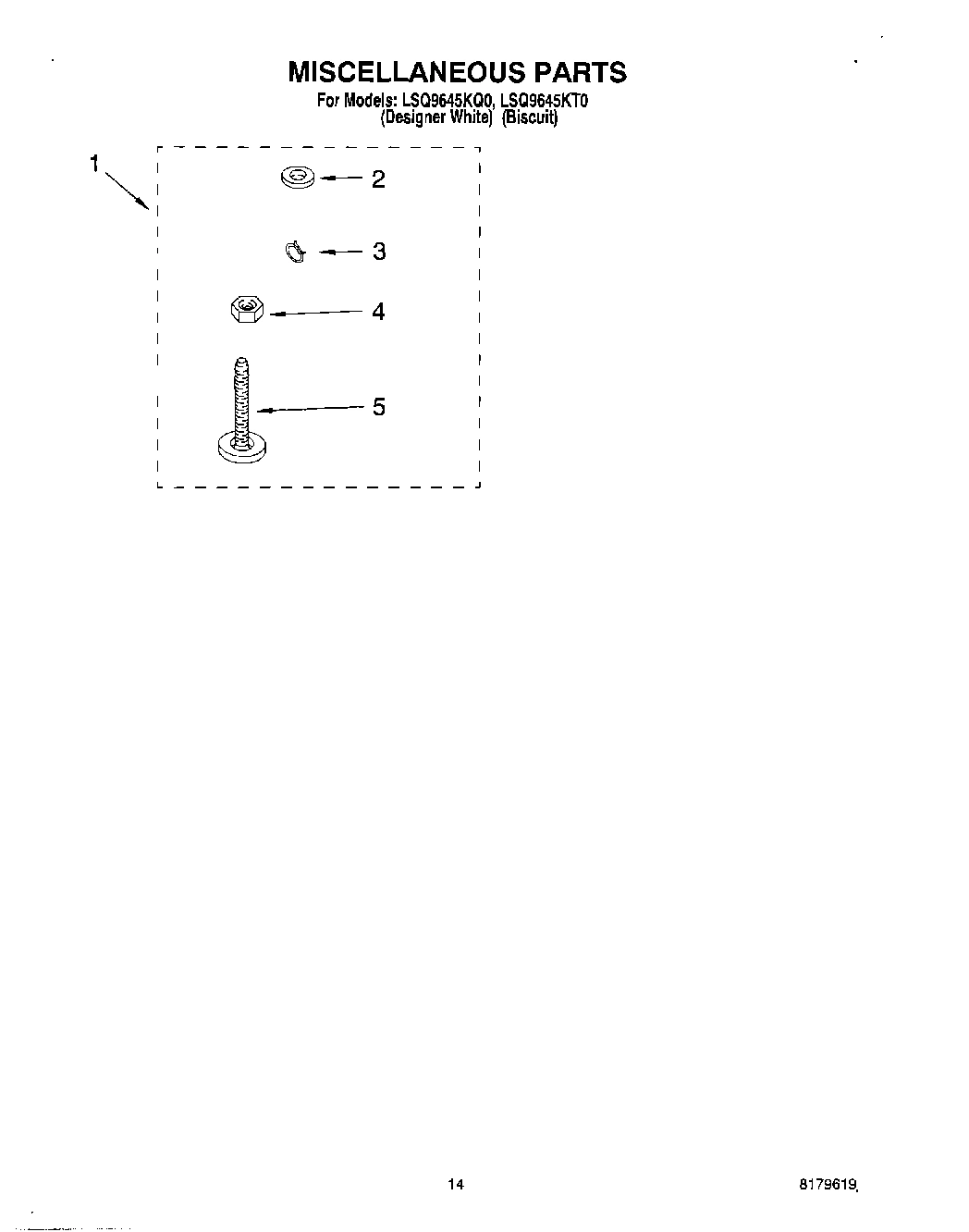

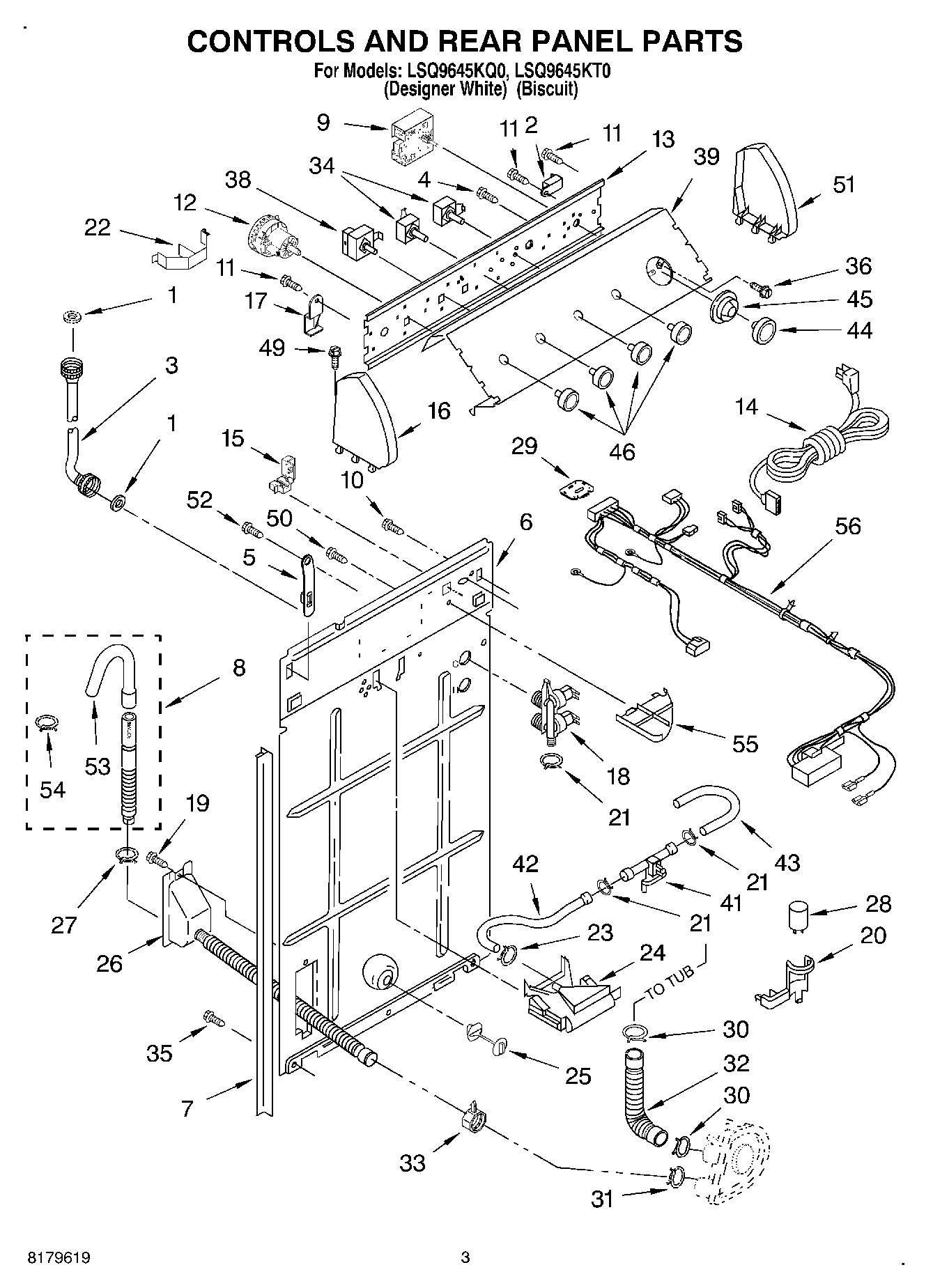

Model Whirlpool LSQ9645KT0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $10.49

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

2

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

2

Top (White) WPL 8271378 Contact Us For Availability

2

Top (Biscuit) WPL 8271380 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $93.60

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

3400073 Whirlpool Screw Backorder WPL 3400073 $5.65

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $81.07

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

5

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

5

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

5

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

5

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

5

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

5

Cabinet (Biscuit) WPL 3954357 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Cabinet-Sound Damper WPL 3349654 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP3954071 Whirlpool Timer Backorder WPL WP3954071 $182.46

10

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

353424 Whirlpool Connector Backorder WPL 353424 $10.76

3949247V Whirlpool Washer Lid Switch Assembly In Stock WPL 3949247V $44.94

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10335056 Whirlpool Washer Water Level Pressu In Stock WPL W10335056 $45.48

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $43.90

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

14

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $59.06

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $132.68

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

Cap, End (L.H.) (White) WPL 8271365 Contact Us For Availability

Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Retainer, Harness WPL 8283343 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

19

WP3352287 Whirlpool Drive Motor In Stock WPL WP3352287 $247.76

19

Lid (White) WPL 3954489 Contact Us For Availability

19

Lid (Biscuit) WPL 3954491 Contact Us For Availability

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $140.64

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

Clip, Capacitor WPL 8318201 Contact Us For Availability

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $3.88

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $42.23

24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

28

WP8572720 Whirlpool Capacitor In Stock WPL WP8572720 $35.57

29

Control, ETC WPL 3407125 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

33

Clamp, Hose WPL 3976395 Contact Us For Availability

34

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $57.12

36

WP3400064 Whirlpool Screw Backorder WPL WP3400064 $2.51

38

Switch, Temperature WPL 8528317 Contact Us For Availability

39

Panel, Console (White) WPL 3955361 Contact Us For Availability

39

Panel, Console (Biscuit) WPL 3955362 Contact Us For Availability

41

Sensor-ETC-Inline WPL 3352282 Contact Us For Availability

42

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $7.47

43

WP3357319 Whirlpool Hose In Stock WPL WP3357319 $9.44

44

WP3364293 Whirlpool Timer Knob In Stock WPL WP3364293 $31.57

44

Knob, Timer (Biscu WPL 8274293 Contact Us For Availability

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $28.09

45

WPL 8271370 WPL 8271370 Contact Us For Availability

46

3957797 Whirlpool Knob In Stock WPL 3957797 $30.89

46

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $31.38

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

50

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

51

WPL 8271359 WPL 8271359 Contact Us For Availability

51

WPL 8271362 WPL 8271362 Contact Us For Availability

52

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

53

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

54

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

55

WPL 3348424 WPL 3348424 Contact Us For Availability

56

WPL 3955197 WPL 3955197 Contact Us For Availability
