Model Whirlpool LSQ9564JZ0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $89.14

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $77.21

4

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

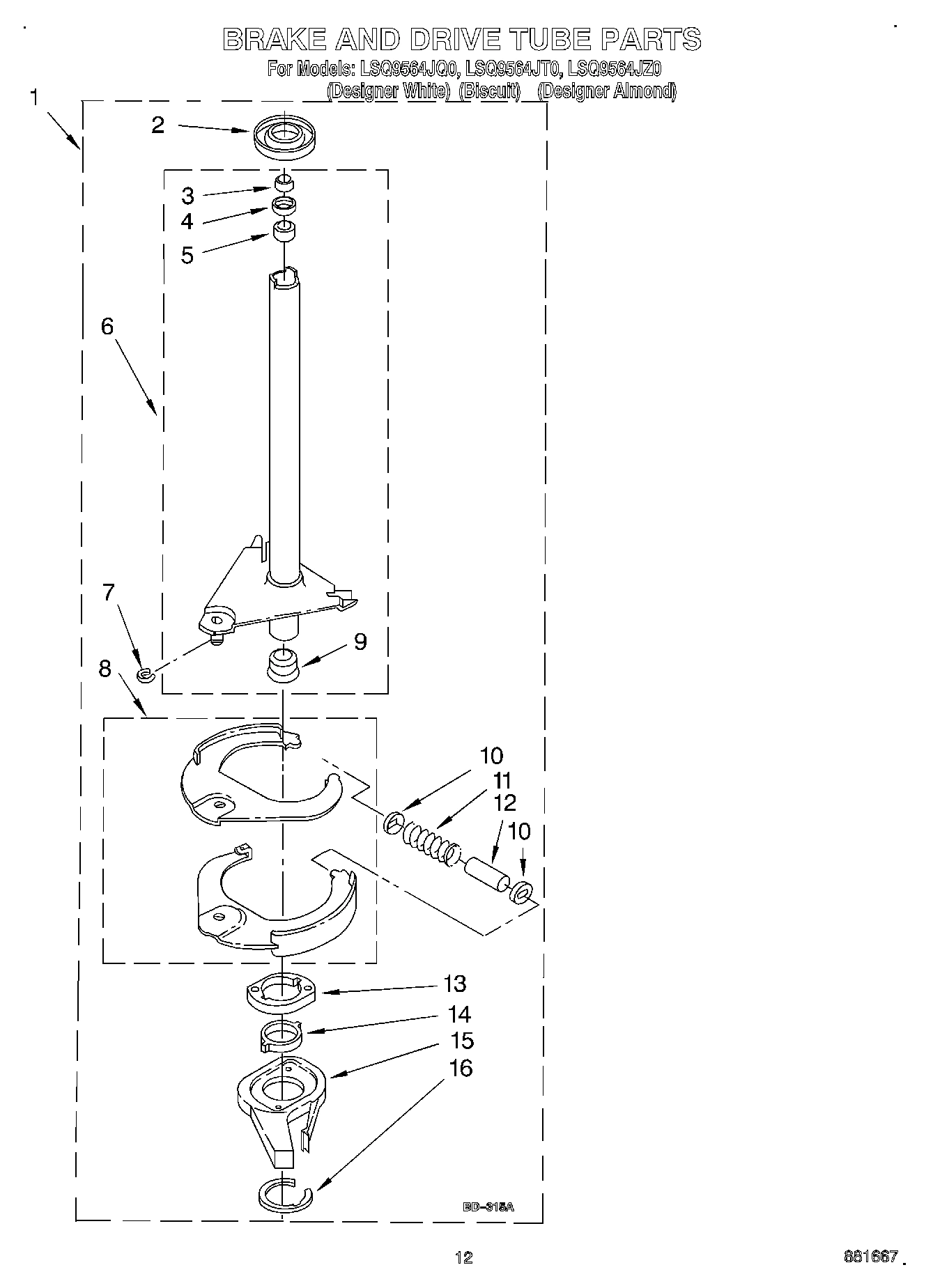

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

7

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

7

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

7

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

7

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

7

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

7

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

7

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

7

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

7

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

9

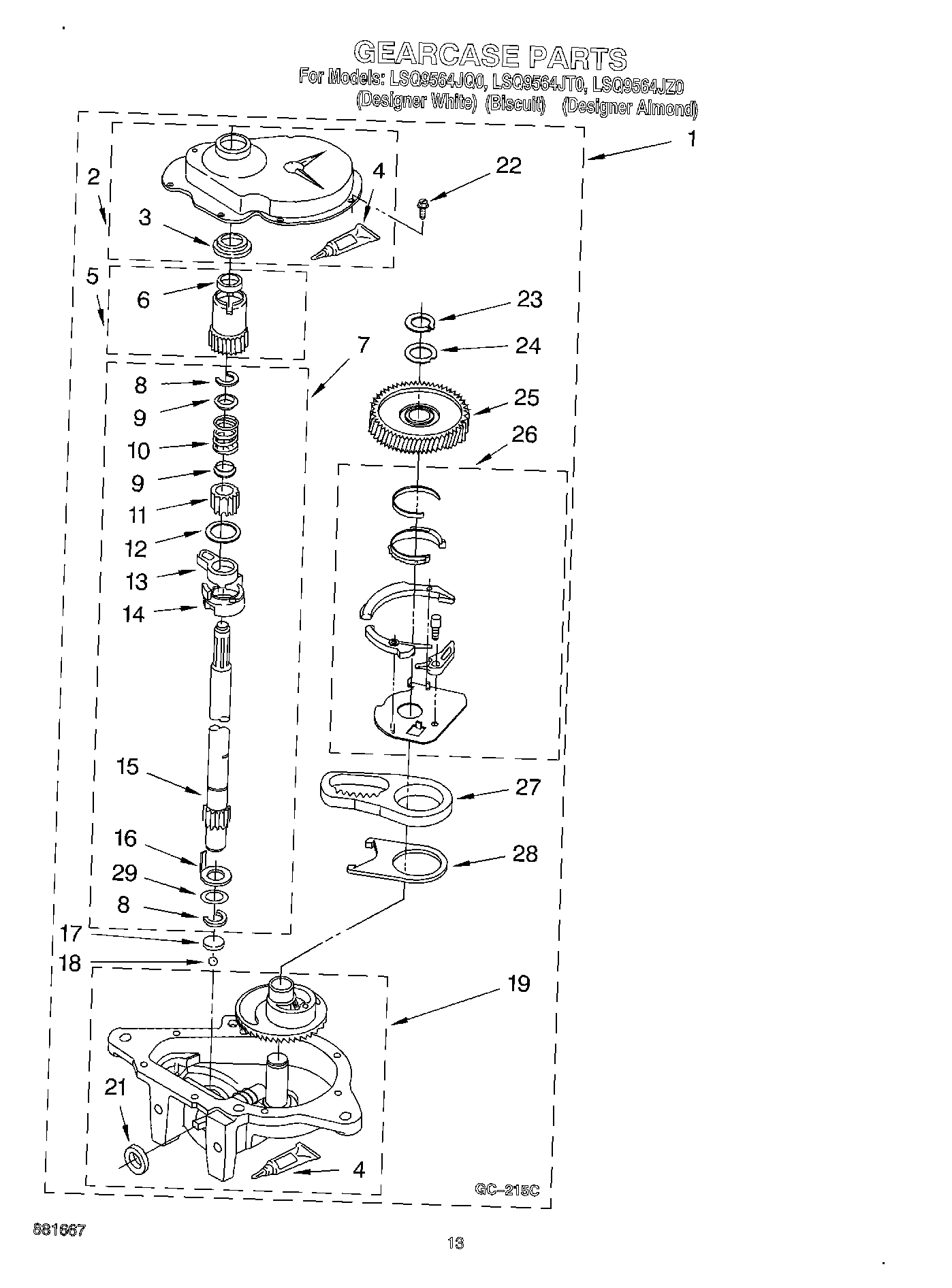

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

9

WP3954071 Whirlpool Timer Backorder WPL WP3954071 $182.46

10

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

10

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

14

W10820044 Whirlpool Power Cord Backorder WPL W10820044 $56.25

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

14

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

16

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

16

Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability

16

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Clip, Harness WPL 3352944 Contact Us For Availability

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

19

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $136.35

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357319 Whirlpool Hose In Stock WPL WP3357319 $9.44

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $3.70

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

23

Connector, Etc WPL 3349494 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

Hose, Bleach WPL 3948705 Contact Us For Availability

Control, ETC WPL 3407125 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $8.66

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

27

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

3354925 Whirlpool Connector Backorder WPL 3354925 $10.76

28

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

29

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $54.41

29

WPL 3354926 WPL 3354926 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

30

WPL 3948615 WPL 3948615 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

33

Sensor-ETC-Inline WPL 3352282 Contact Us For Availability

34

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $7.47

35

Switch, Rotary WPL 3954129 Contact Us For Availability

36

WP3400064 Whirlpool Screw Backorder WPL WP3400064 $2.51

37

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

39

Panel, Console (White) WPL 3954190 Contact Us For Availability

39

Panel, Console (Almond) WPL 3954191 Contact Us For Availability

39

Panel, Console (Biscuit) WPL 3954192 Contact Us For Availability

40

Switch, Water Temperature WPL 3950358 Contact Us For Availability

42

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

44

WP3364293 Whirlpool Timer Knob Backorder WPL WP3364293 $30.07

44

Knob, WPL 8274291 Contact Us For Availability

44

WPL 8274293 WPL 8274293 Contact Us For Availability

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $26.75

45

WPL 8271352 WPL 8271352 Contact Us For Availability

45

WPL 8271370 WPL 8271370 Contact Us For Availability

48

3957797 Whirlpool Knob Backorder WPL 3957797 $29.43

48

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $29.88

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

W10820038 Whirlpool Endcap In Stock WPL W10820038 $49.21

51

WPL 8271360 WPL 8271360 Contact Us For Availability

51

WPL 8271362 WPL 8271362 Contact Us For Availability

55

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

59

WPL 3348424 WPL 3348424 Contact Us For Availability

60

WPL 3954387 WPL 3954387 Contact Us For Availability
