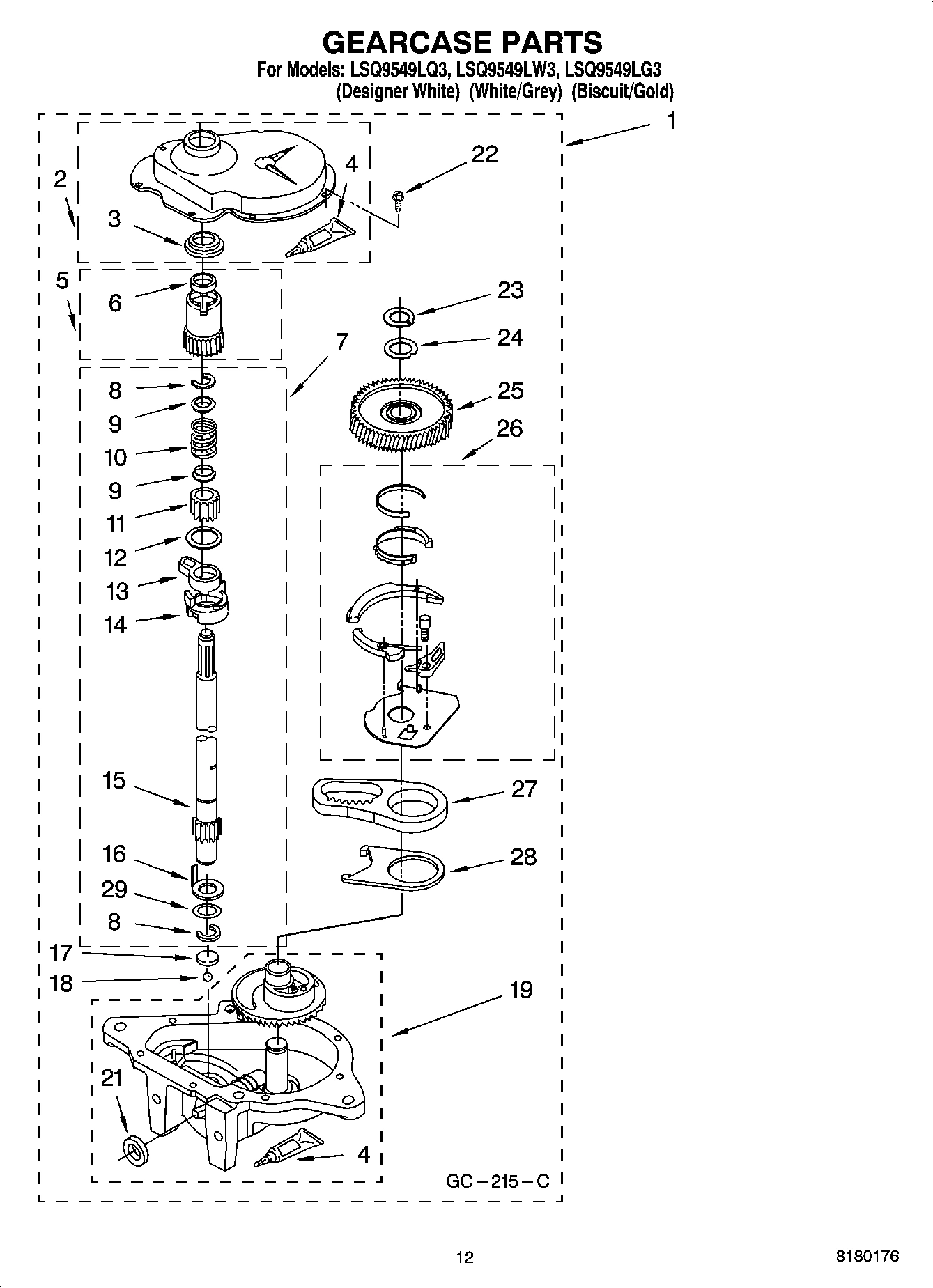

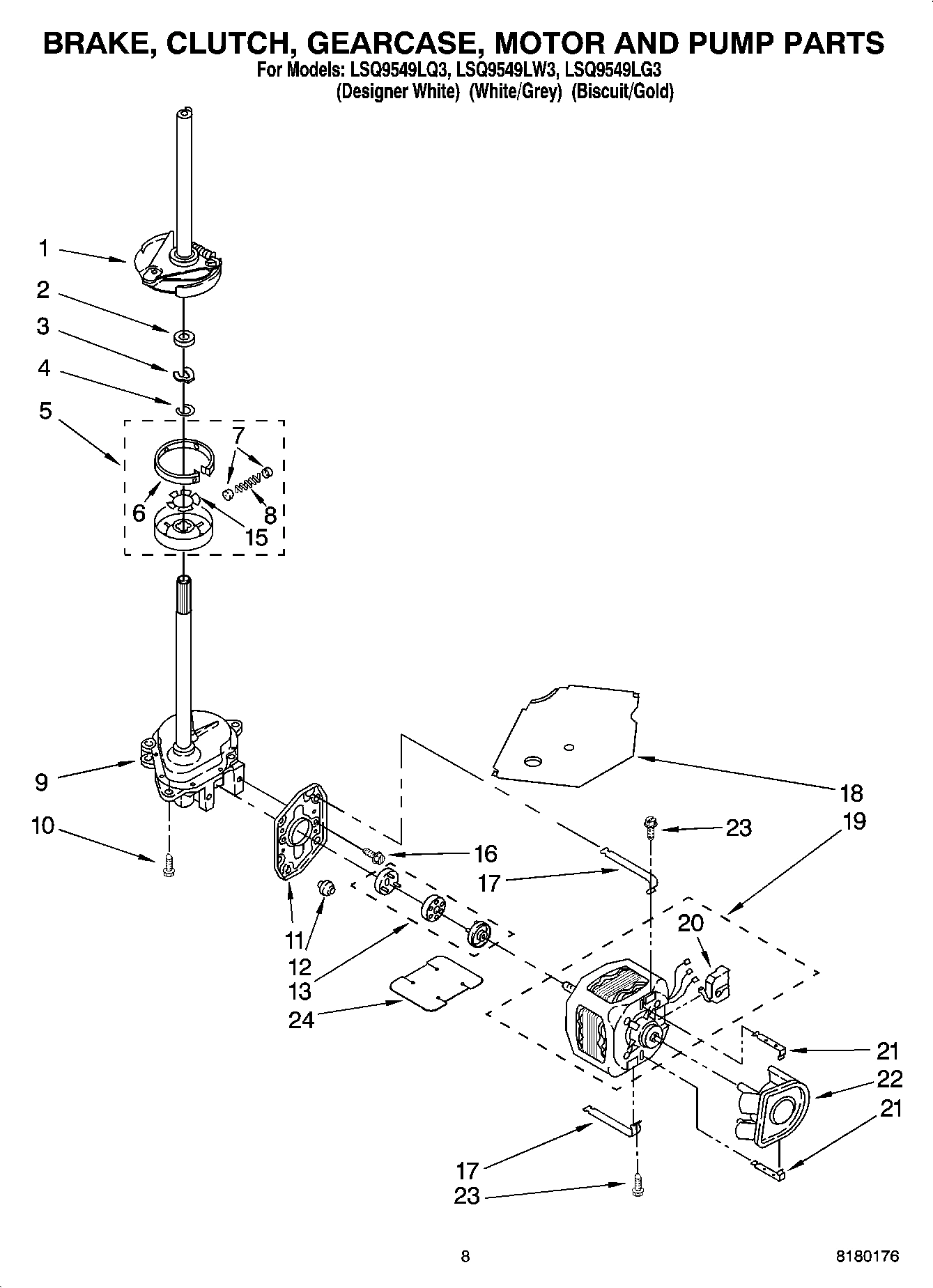

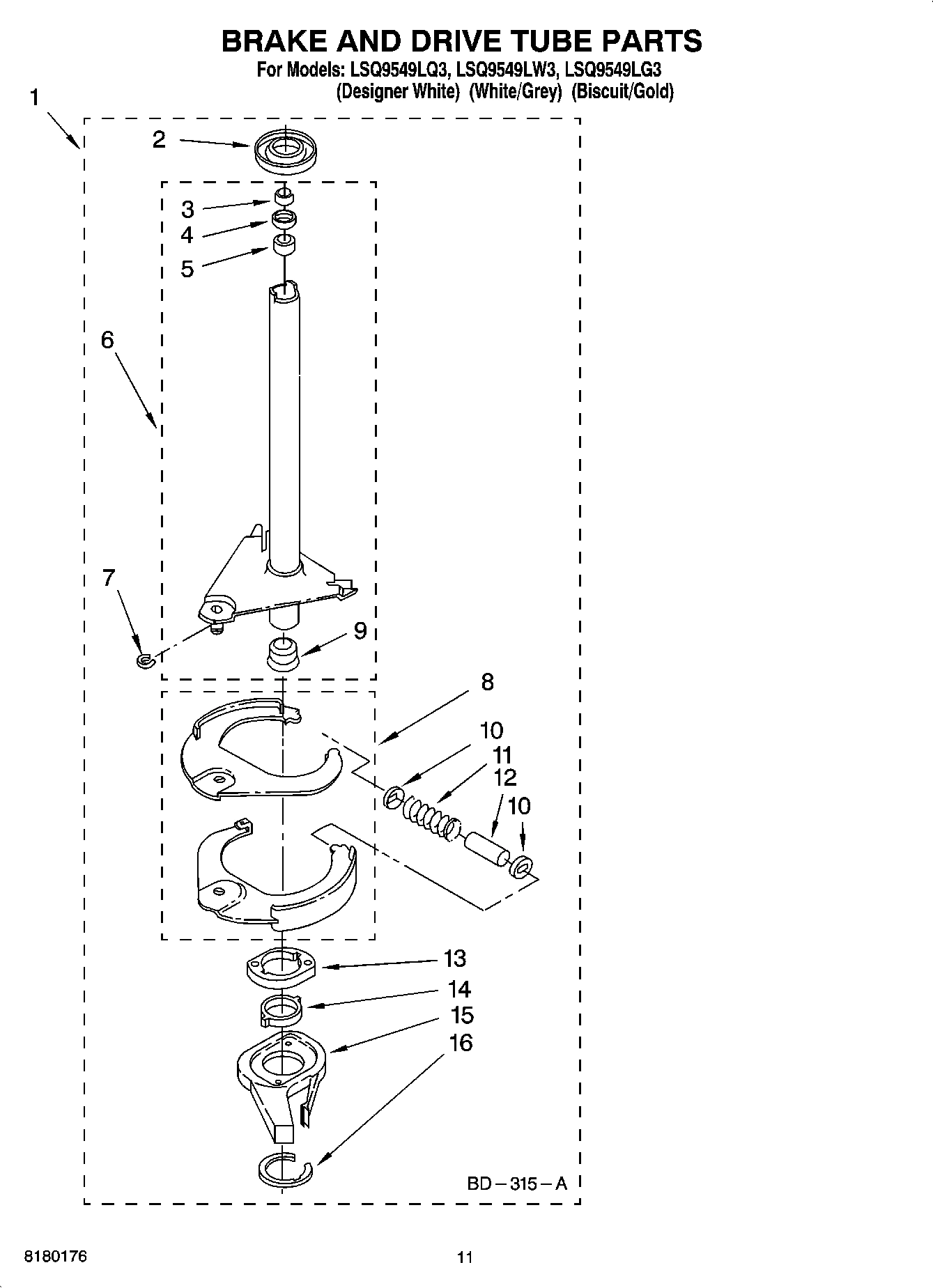

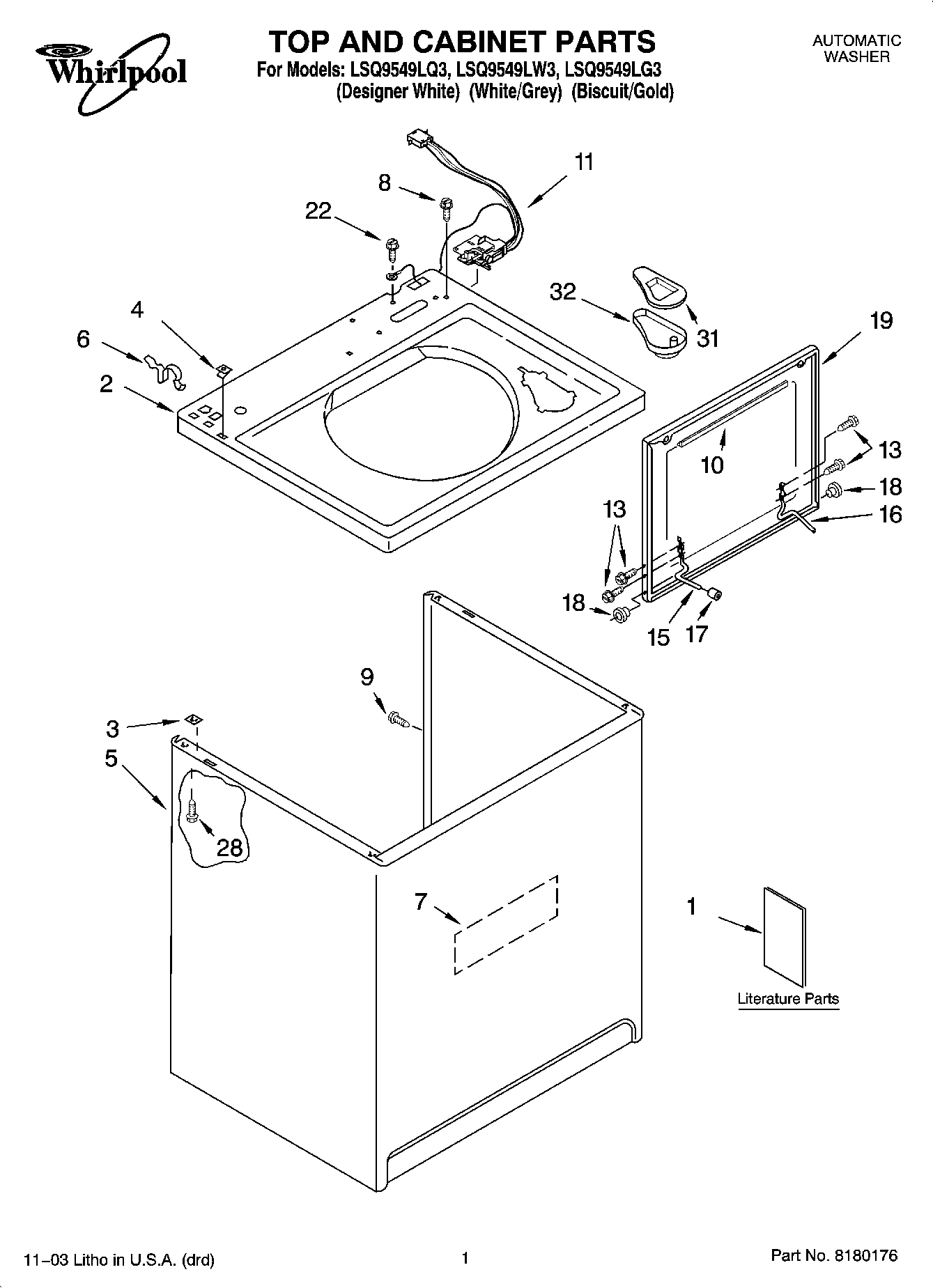

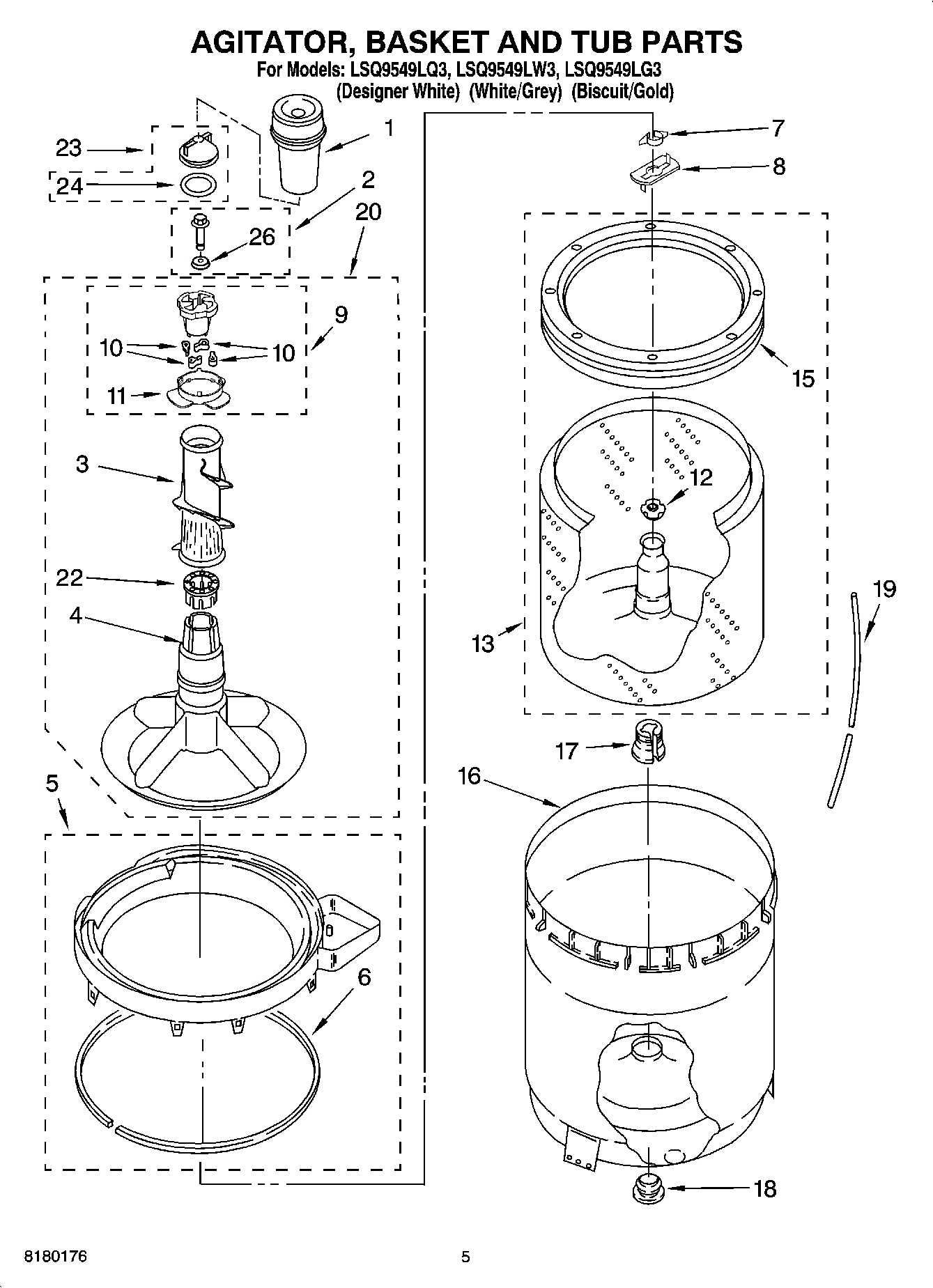

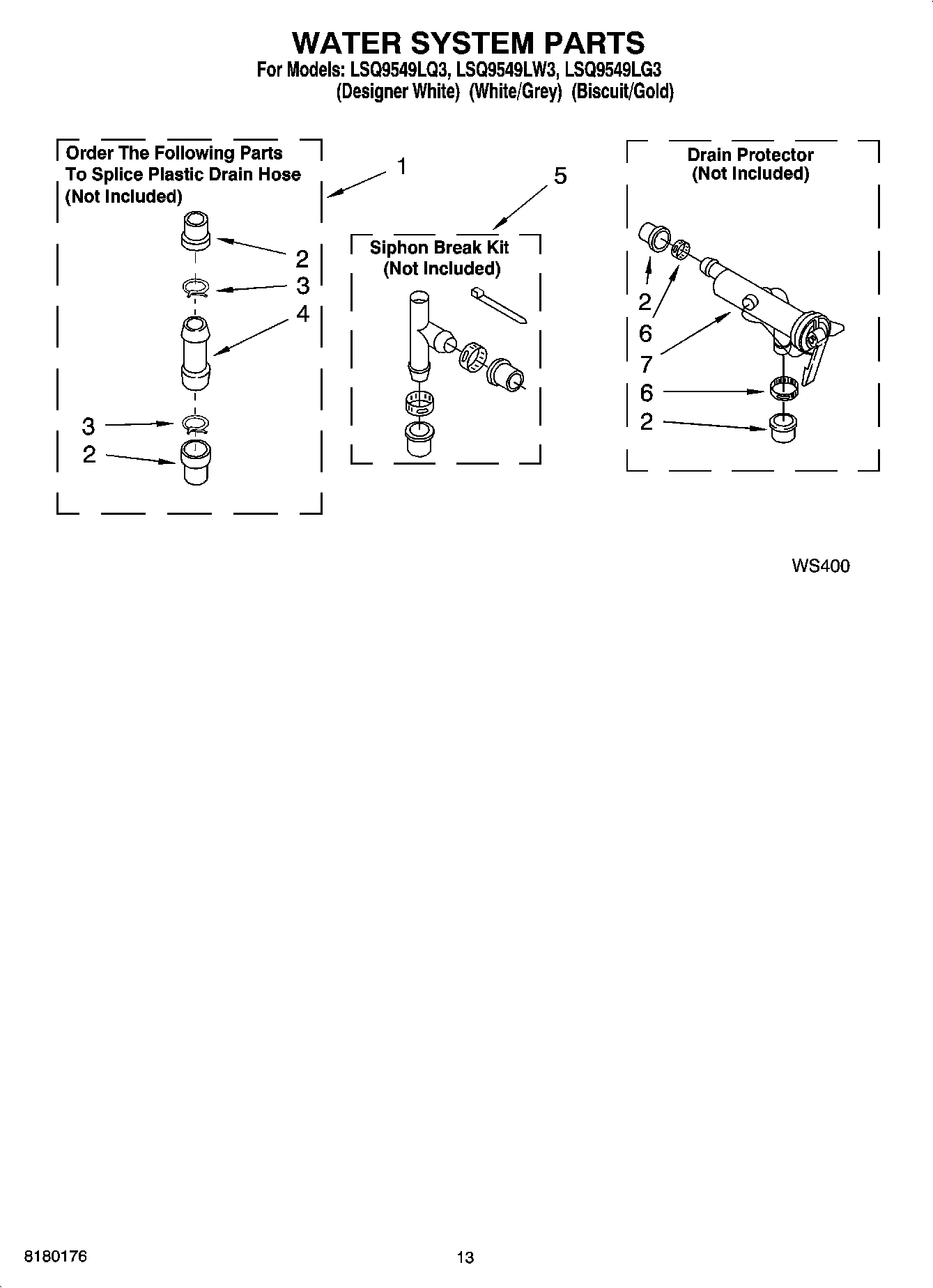

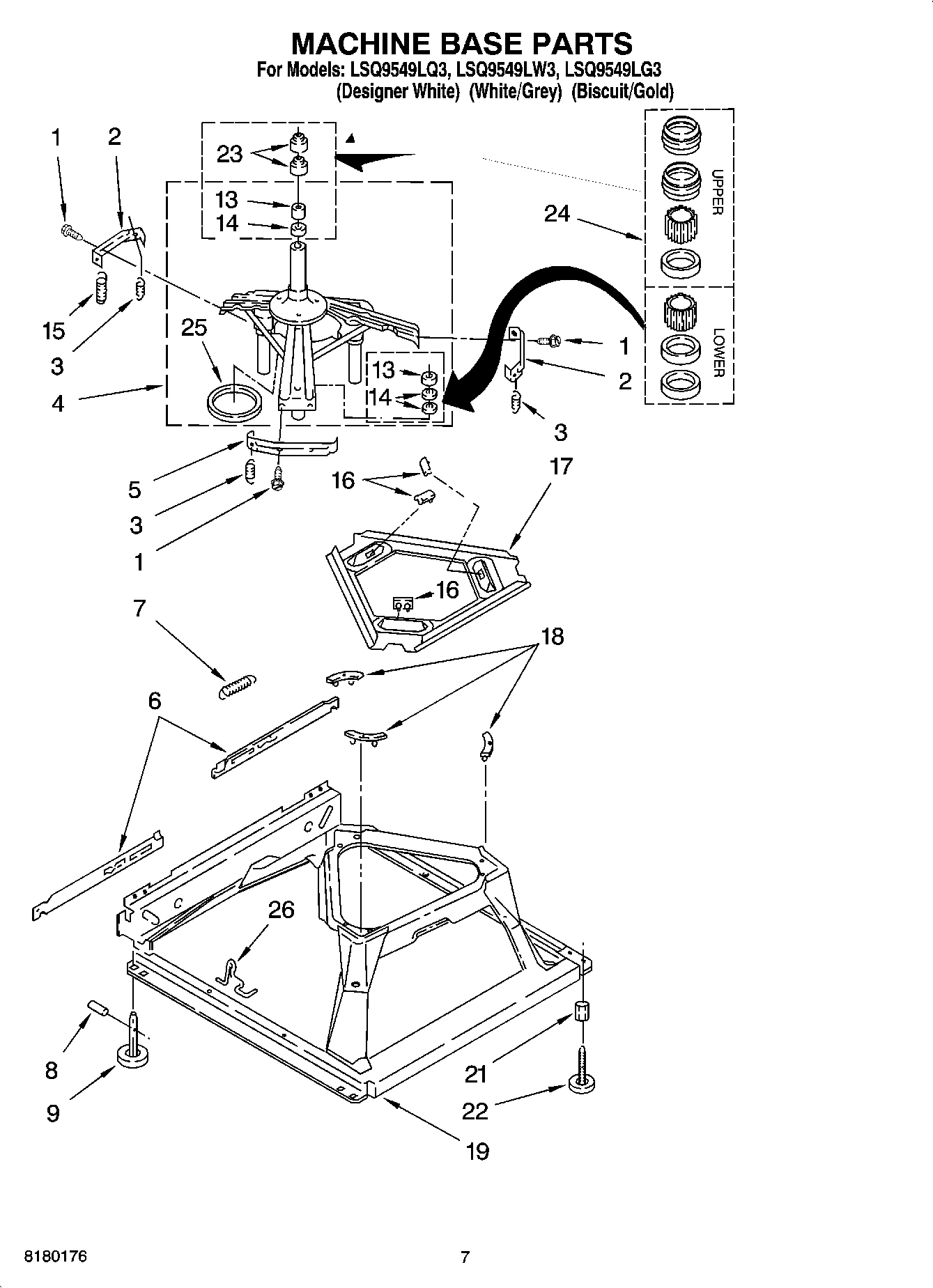

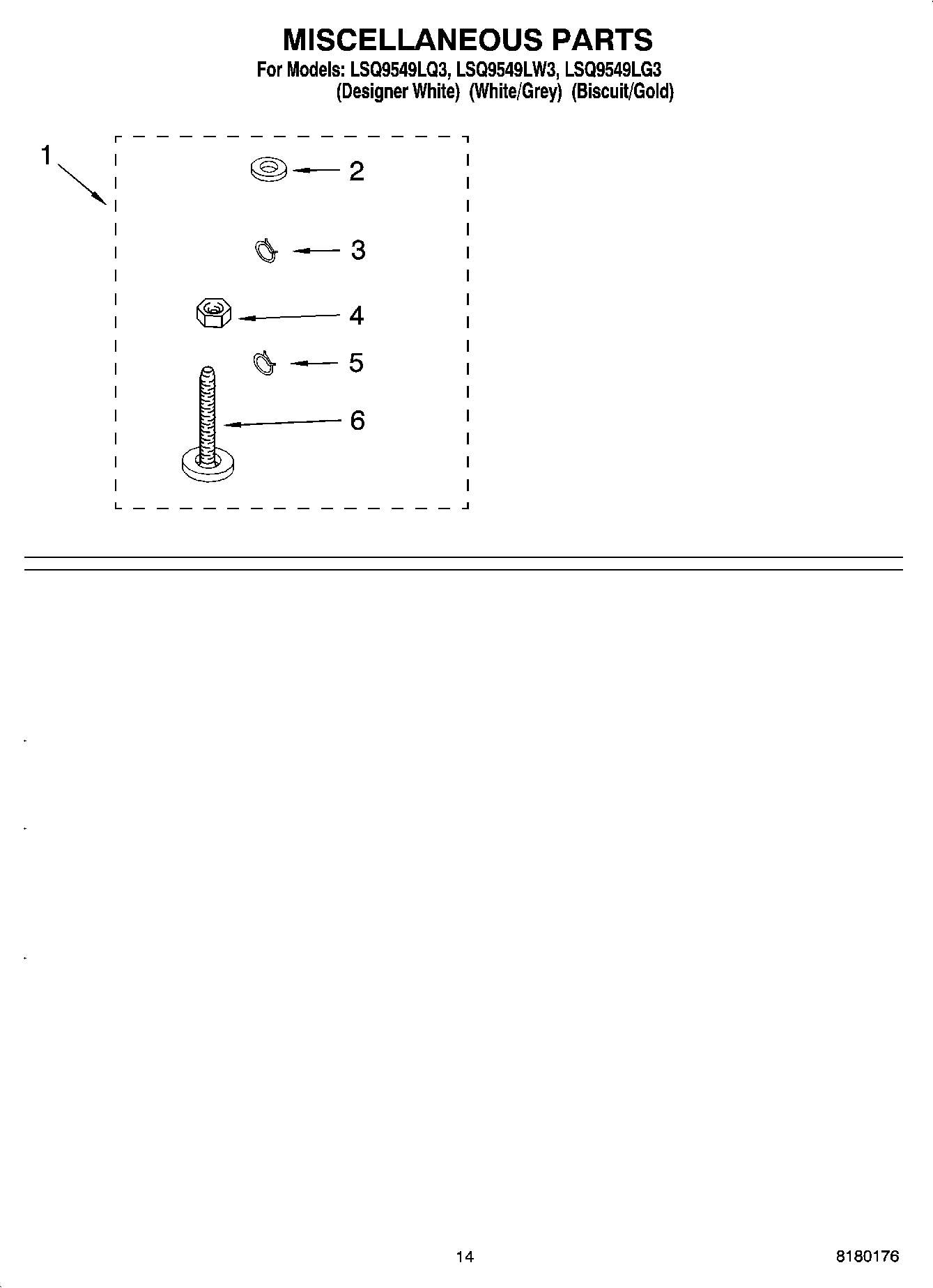

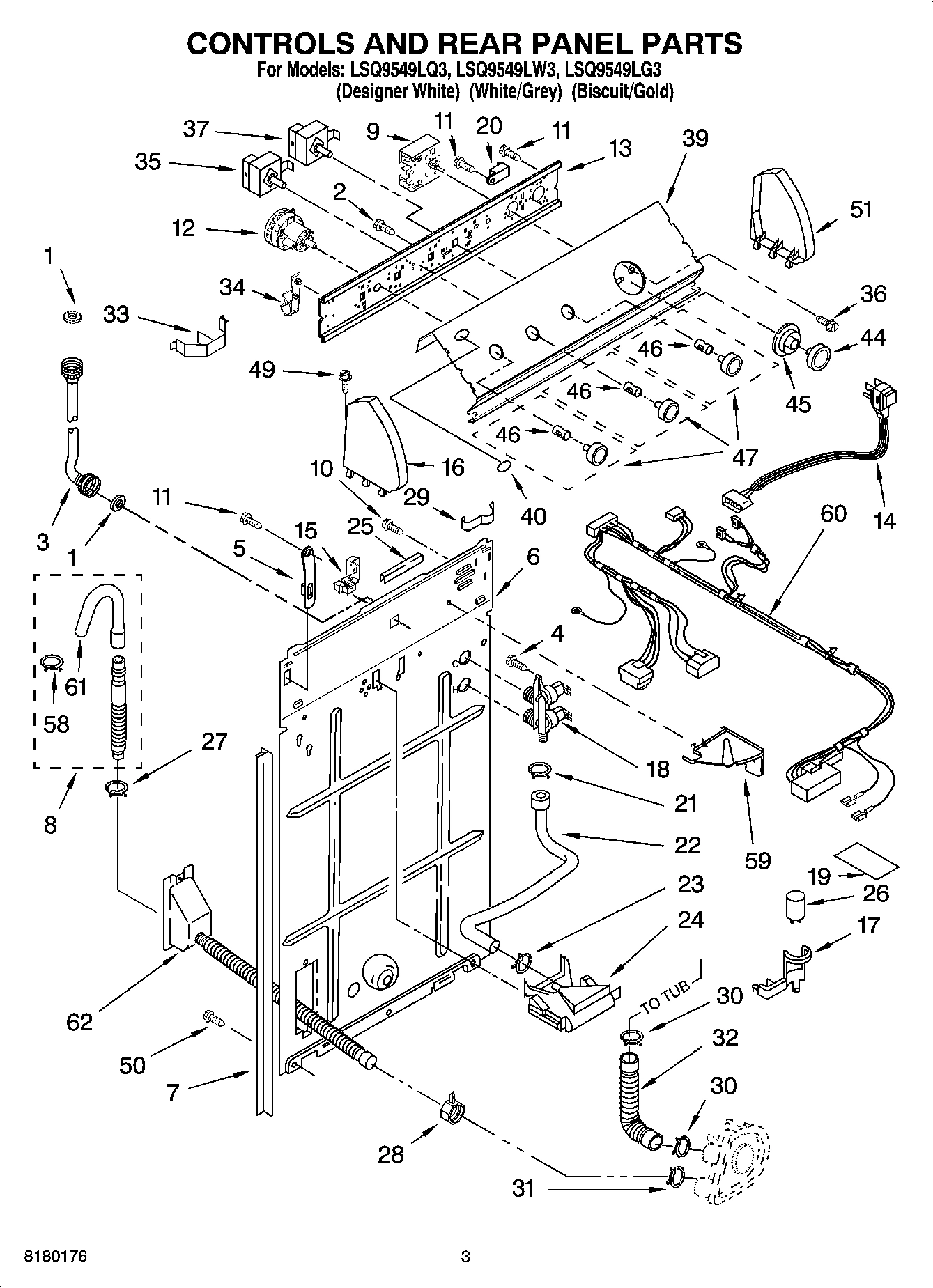

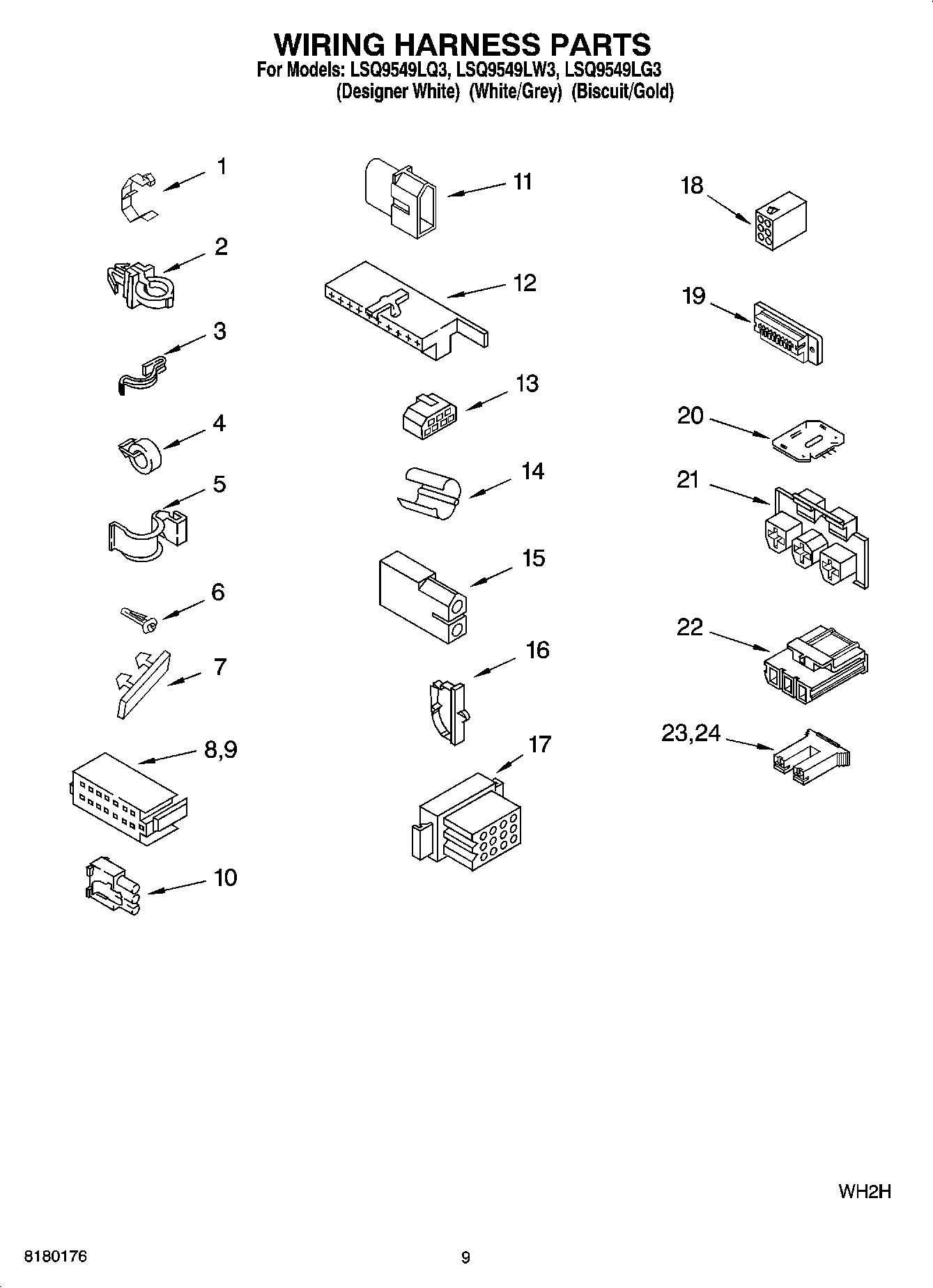

Model Whirlpool LSQ9549LQ3 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $10.49

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $93.60

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $81.07

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $80.47

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $11.67

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.53

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

285809 Whirlpool Washer Agitator Cam Kit In Stock WPL 285809 $5.87

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

Timer, Control (60 Hz.) (Motor Not A Service WPL 8546165 Contact Us For Availability

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.25

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Seal, Lid WPL 8054939 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP3952374 Whirlpool Bearing In Stock WPL WP3952374 $3.70

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $108.33

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

W10389328 Whirlpool Basket Backorder WPL W10389328 $199.90

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $79.32

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Hinge, Lid (L.H.) WPL 8055257 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

16

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $132.68

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

19

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

19

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

20

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $140.64

20

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $3.88

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.83

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $42.23

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.88

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Edge Protector WPL 303294 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

28

Clamp, Hose WPL 3976395 Contact Us For Availability

29

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

31

Cover, Dispenser WPL 3955788 Contact Us For Availability

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

Dispenser, Bleach WPL 8519517 Contact Us For Availability

33

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

34

Retainer, Harness WPL 8317975 Contact Us For Availability

35

Switch, Water Temperature WPL 661614 Contact Us For Availability

36

WP3400064 Whirlpool Screw Backorder WPL WP3400064 $2.51

37

WP8528333 Whirlpool Cycle Switch In Stock WPL WP8528333 $47.43

39

Panel, Console (White) WPL 3955803 Contact Us For Availability

39

Panel, Console (Grey (Includes Item 40)) WPL 3955804 Contact Us For Availability

39

Panel, Console (Gold (Includes Item 40)) WPL 3955805 Contact Us For Availability

40

Medallion WPL 3955775 Contact Us For Availability

44

WP3364293 Whirlpool Timer Knob In Stock WPL WP3364293 $31.57

44

WPL 8538950 WPL 8538950 Contact Us For Availability

44

WPL 8538951 WPL 8538951 Contact Us For Availability

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $28.09

45

WP8538955 Whirlpool Dial Backorder WPL WP8538955 $31.42

45

WPL 8538956 WPL 8538956 Contact Us For Availability

46

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $4.97

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $31.38

47

WP8538957 Whirlpool Knob In Stock WPL WP8538957 $34.55

47

WPL 8538958 WPL 8538958 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

WPL 8271359 WPL 8271359 Contact Us For Availability

51

WPL 8271362 WPL 8271362 Contact Us For Availability

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

59

WPL 8539874 WPL 8539874 Contact Us For Availability

60

WPL 3956691 WPL 3956691 Contact Us For Availability

61

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

62

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40
