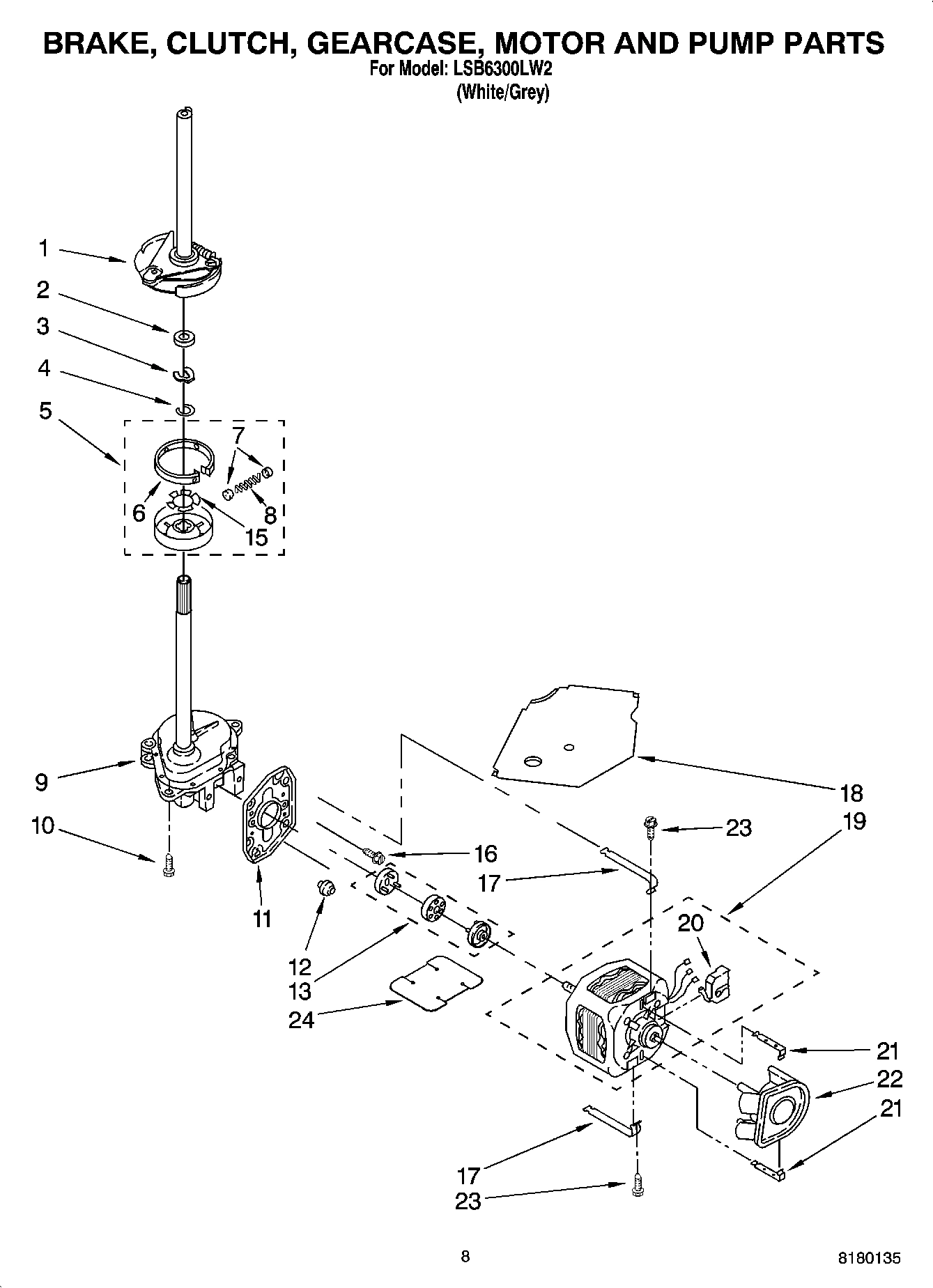

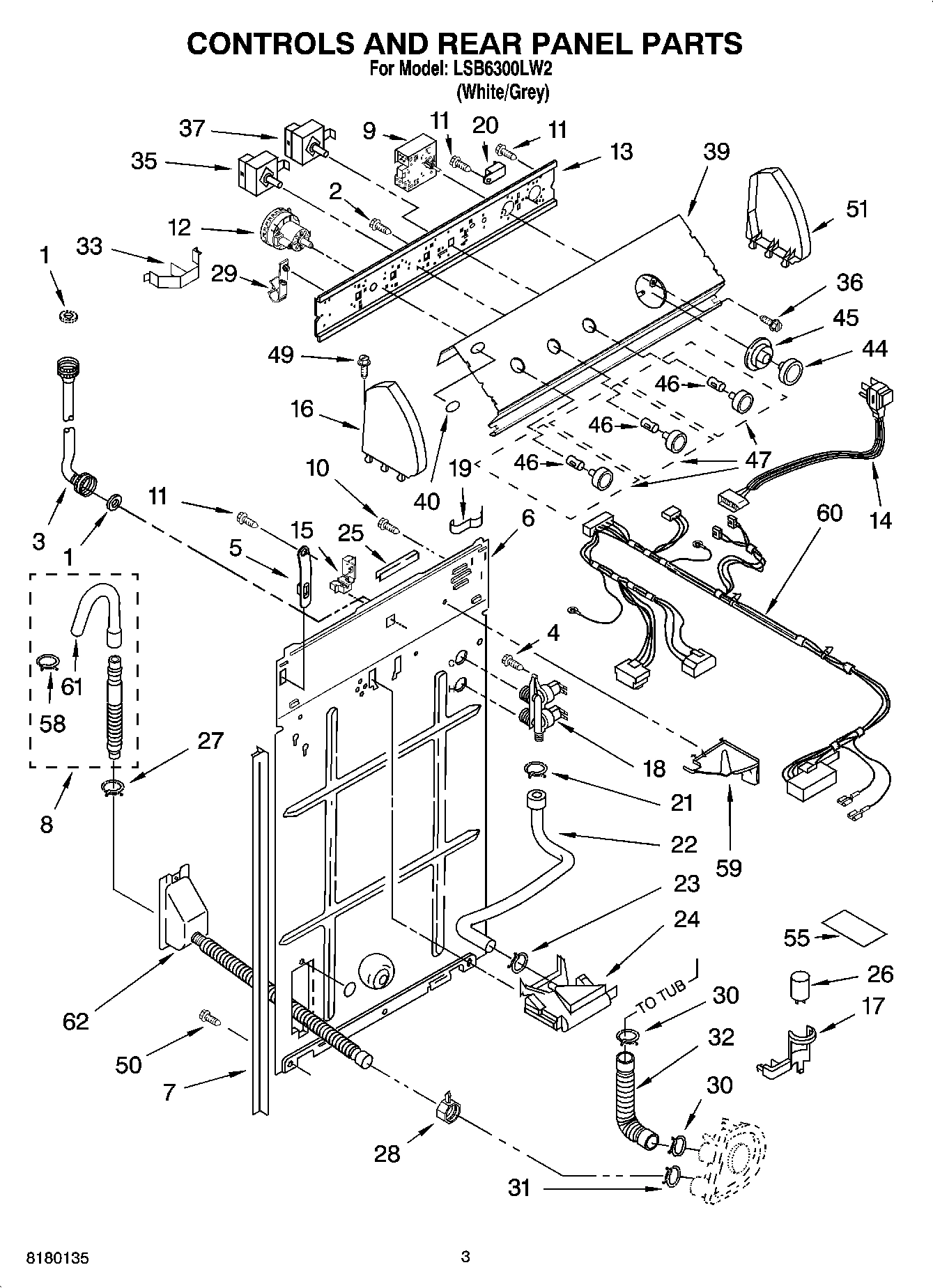

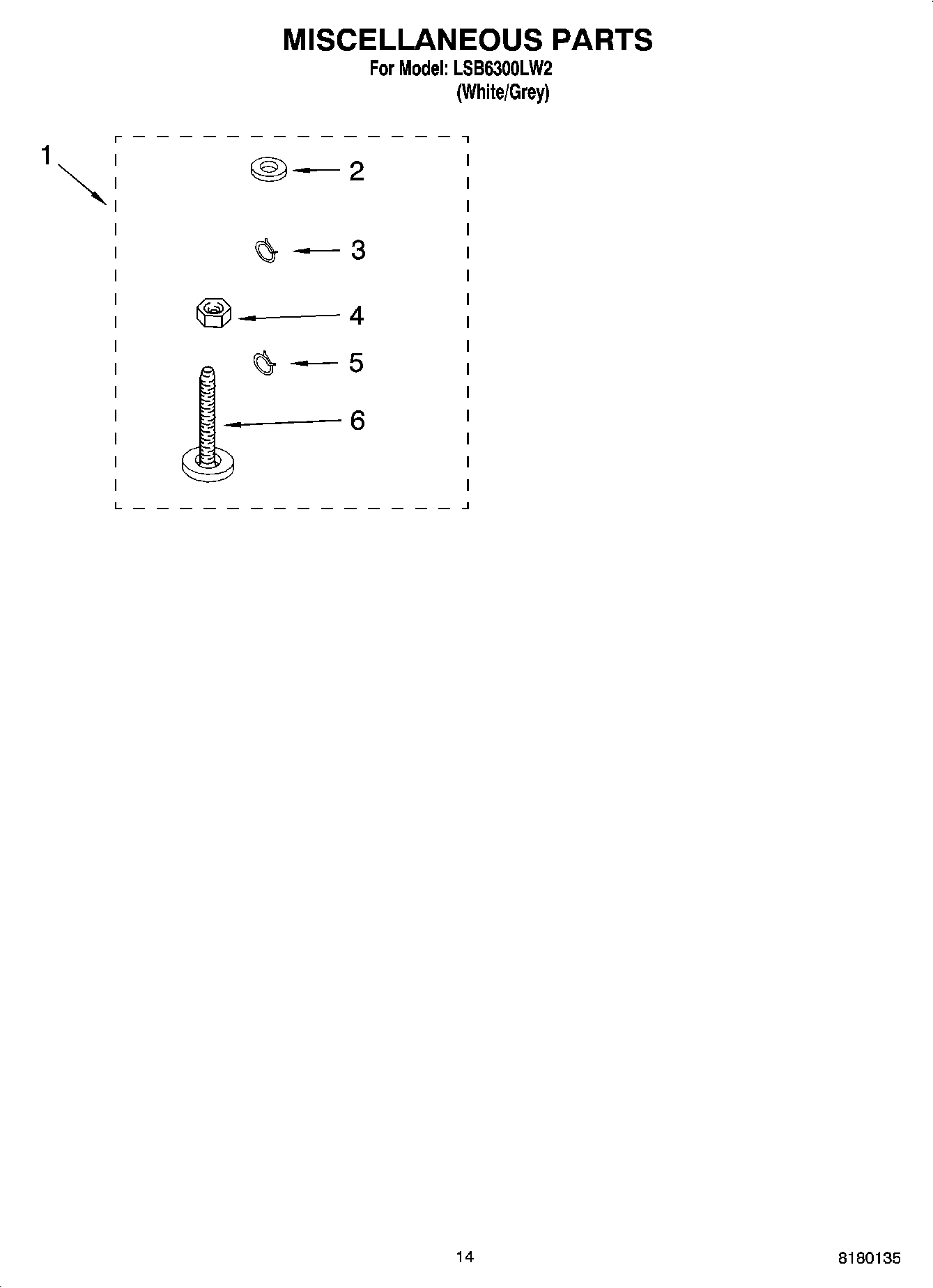

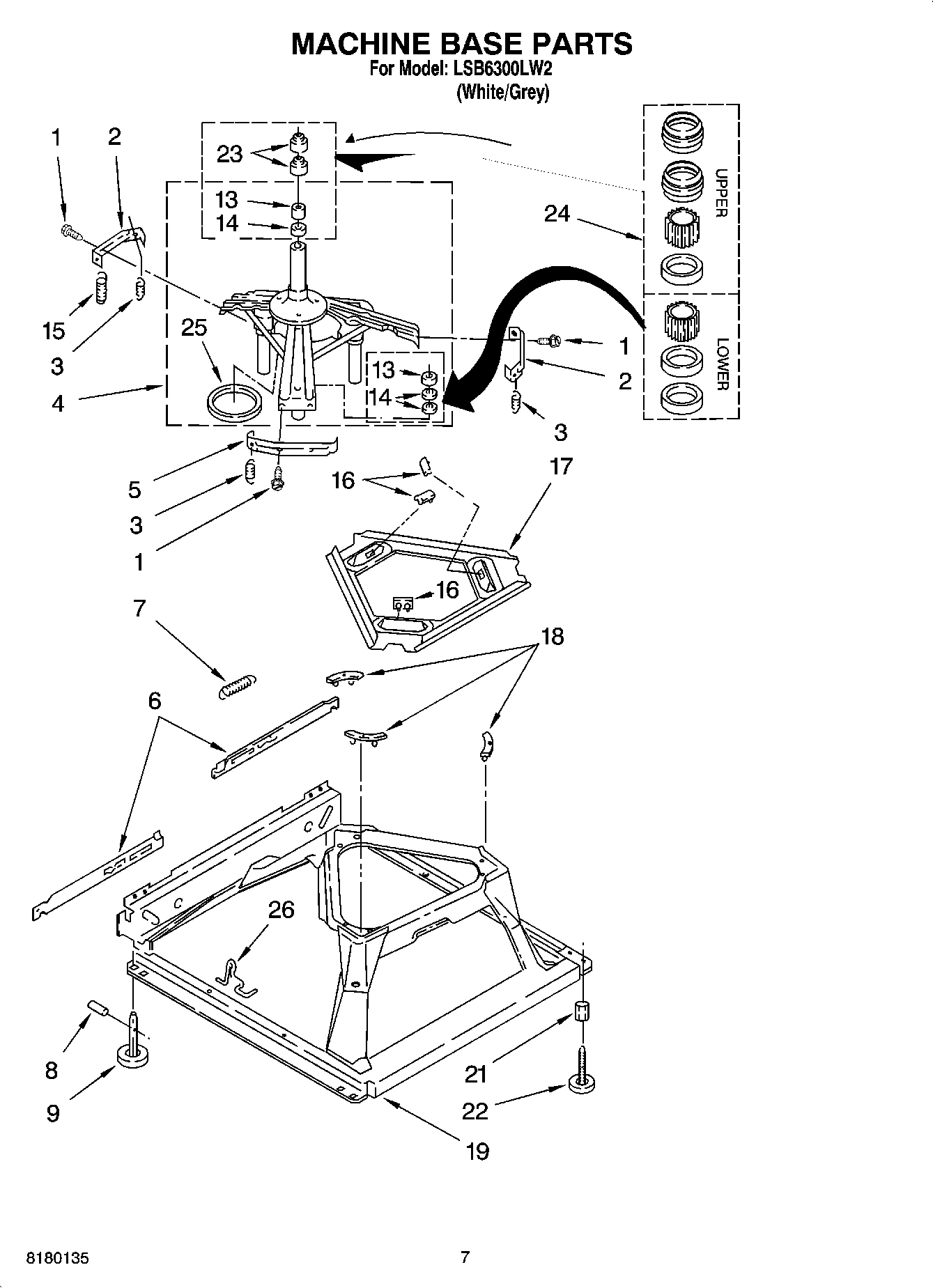

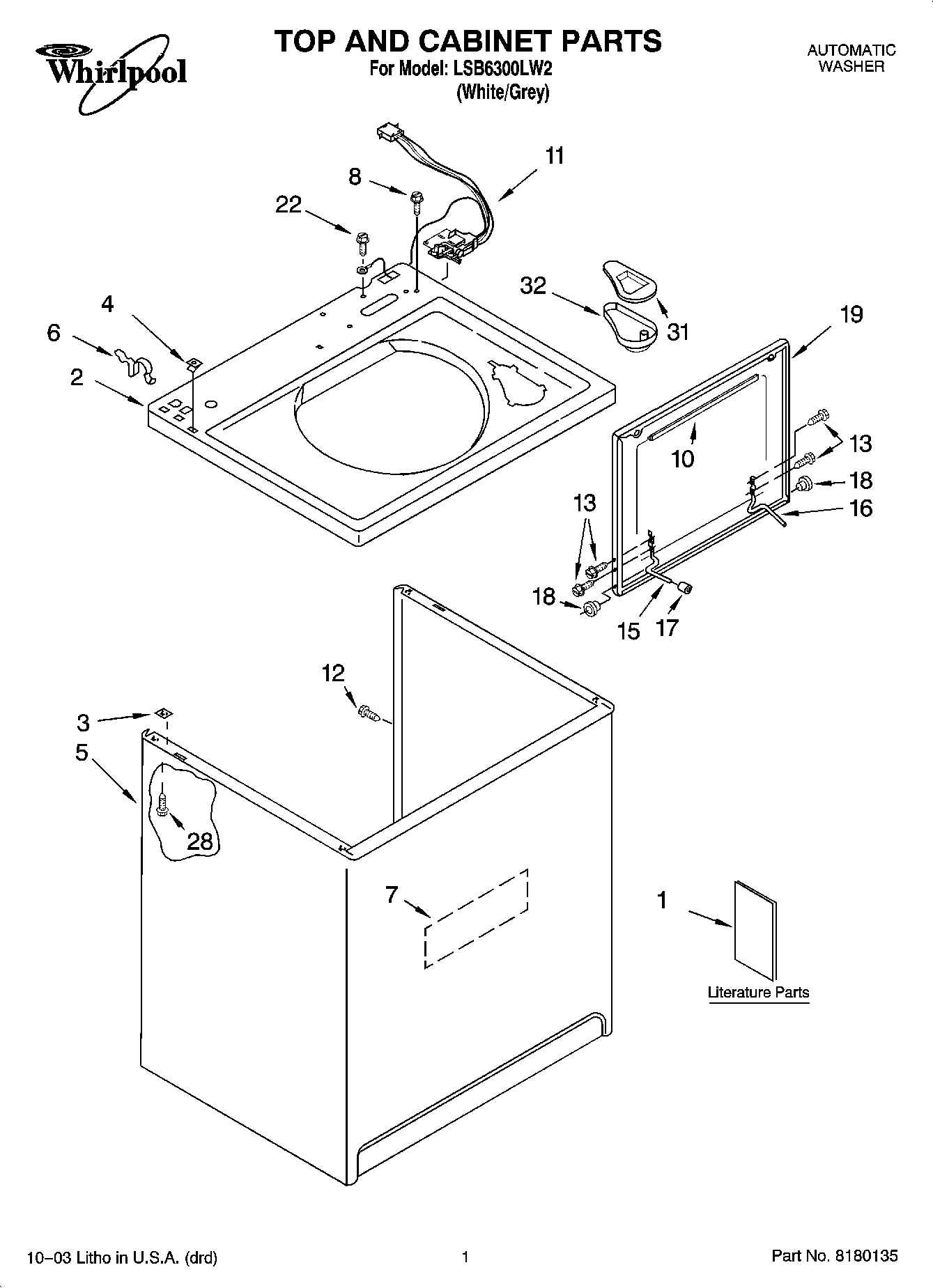

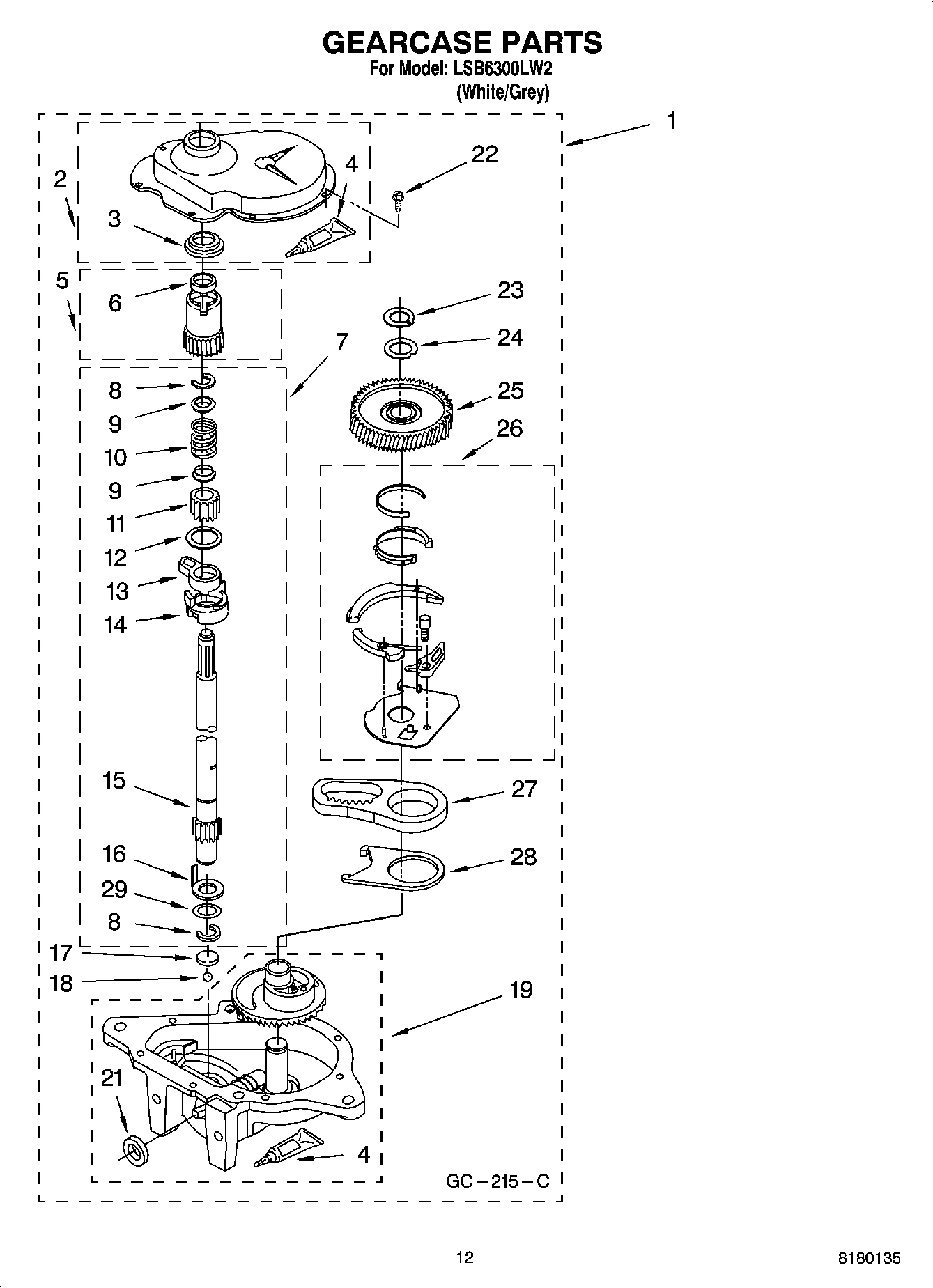

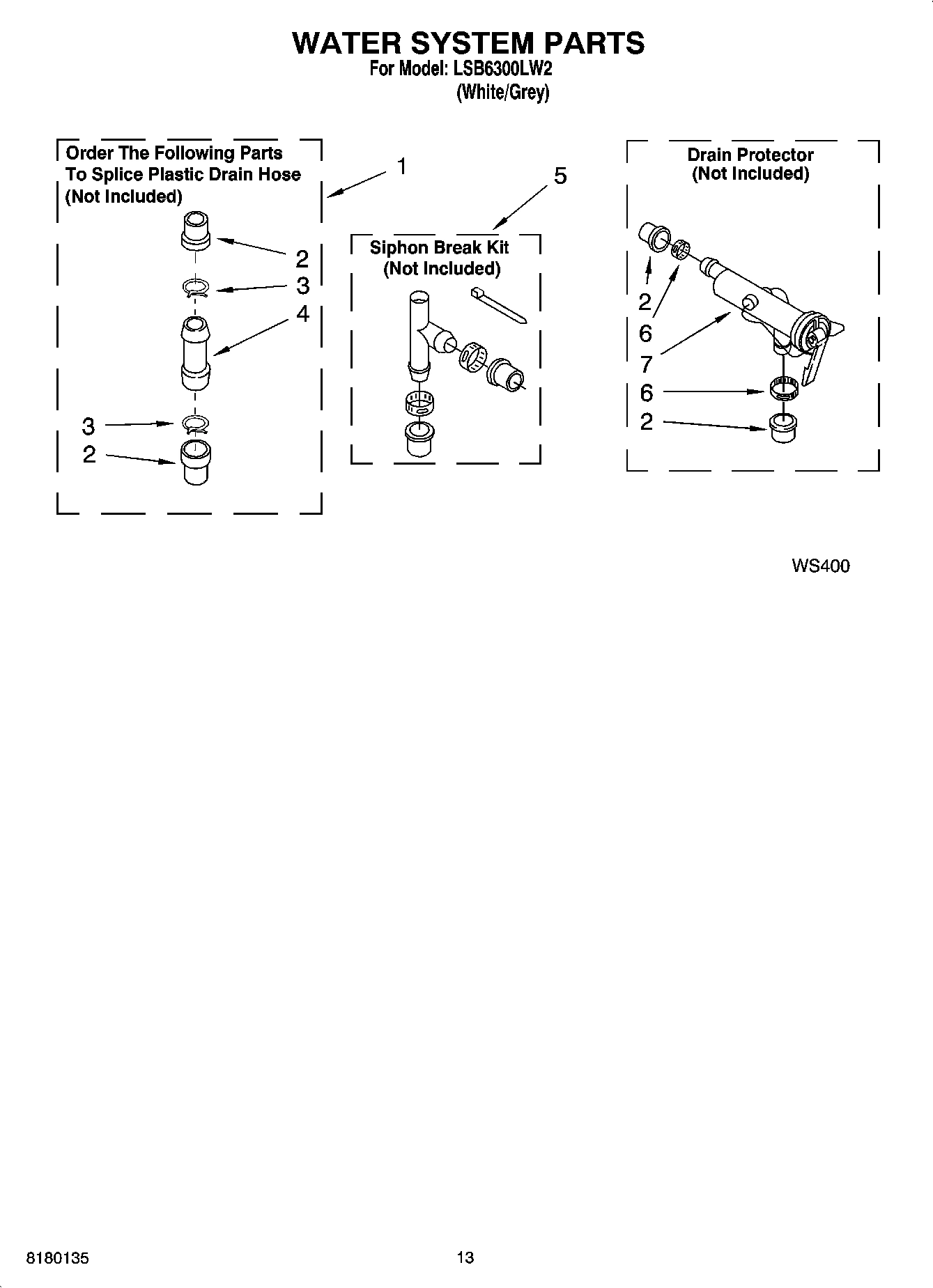

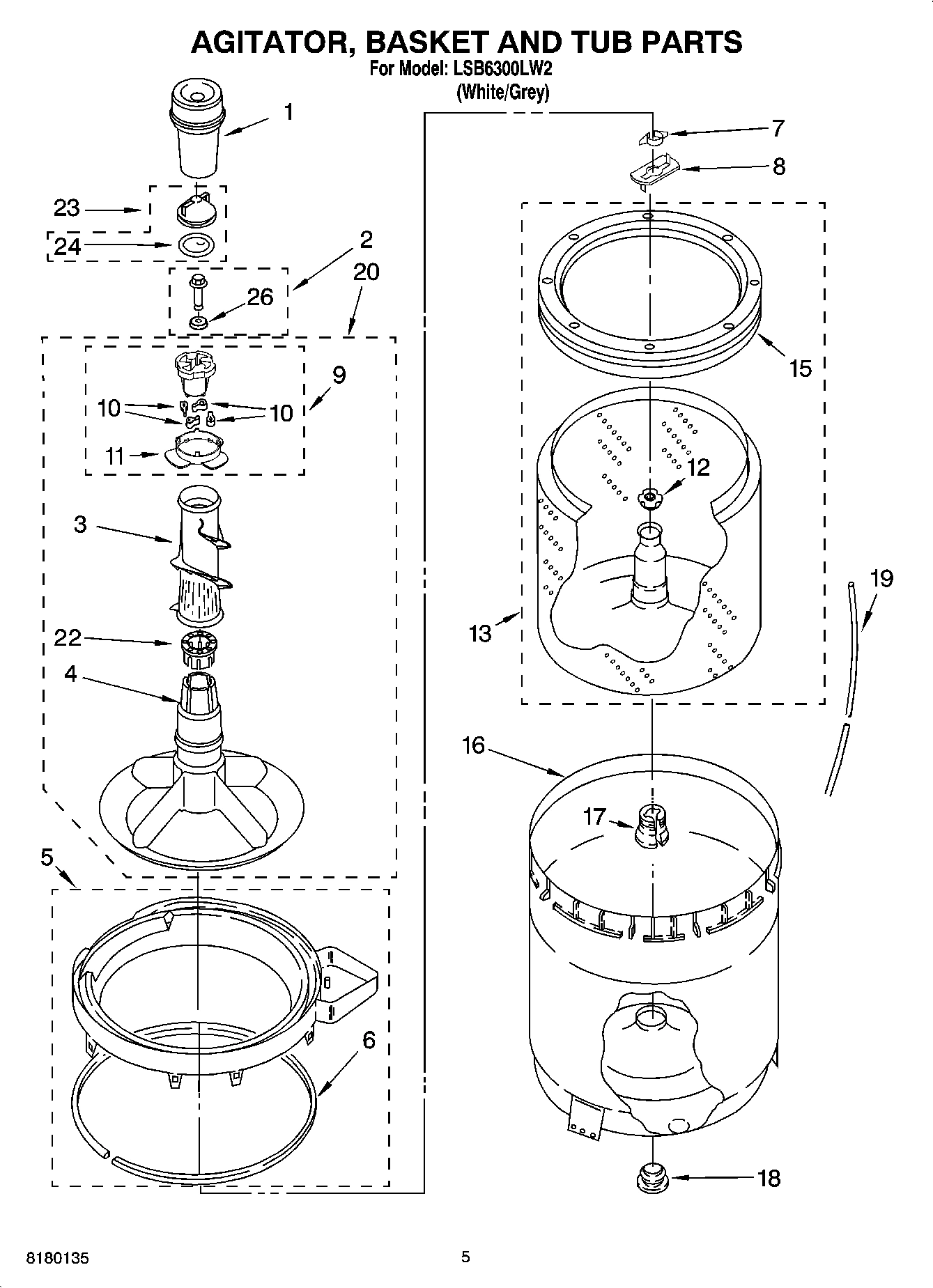

Model Whirlpool LSB6300LW2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI157152A Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT3955499 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT3955869 Contact Us For Availability

1

Literature Parts (Feature Sheet) WPL LIT3955899 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT3956025 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT3956257 Contact Us For Availability

1

Literature Parts (Manual, (Washer) Do-It-Your WPL LIT4313896 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Top WPL 3955792 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $89.14

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $77.21

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $76.64

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.27

8

Screw, Lid Switch (2) WPL 3400611 Contact Us For Availability

9

285809 Whirlpool Washer Agitator Cam Kit In Stock WPL 285809 $5.87

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP3951702 Whirlpool Timer In Stock WPL WP3951702 $177.43

10

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.10

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Seal, Lid WPL 8054939 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP3952374 Whirlpool Bearing Backorder WPL WP3952374 $3.70

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $93.36

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10337780 Whirlpool Pressure Switch In Stock WPL W10337780 $43.32

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

W10389328 Whirlpool Basket Backorder WPL W10389328 $190.38

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $41.82

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

14

Cord, Power (Includes Item 15) WPL 661661 Contact Us For Availability

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $64.40

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

Hinge, Lid (L.H.) WPL 8055257 Contact Us For Availability

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $126.36

16

Hinge, Lid (R.H.) WPL 8055256 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Clip, Capacitor WPL 8318201 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

18

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

19

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

19

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

19

Lid WPL 3956016 Contact Us For Availability

20

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $136.35

20

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $3.70

WP8317926 Whirlpool Inlet Hose In Stock WPL WP8317926 $10.61

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Edge Protector WPL 303294 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

26

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

Clamp, Hose WPL 3976395 No Longer Available

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

29

Retainer, Harness WPL 8317975 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

Cover, Dispenser WPL 3955788 Contact Us For Availability

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

Dispenser, Bleach WPL 8519517 Contact Us For Availability

33

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

35

Switch, Water Temperature WPL 661614 Contact Us For Availability

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

37

WP8528333 Whirlpool Cycle Switch Backorder WPL WP8528333 $45.18

39

Panel, Console (Includes Item 40) WPL 3955795 Contact Us For Availability

40

Medallion WPL 3955775 Contact Us For Availability

44

WP8538949 Whirlpool Knob In Stock WPL WP8538949 $33.29

45

WP8538955 Whirlpool Dial Backorder WPL WP8538955 $29.92

46

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

47

WP8538957 Whirlpool Knob In Stock WPL WP8538957 $32.90

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

W10820038 Whirlpool Endcap In Stock WPL W10820038 $49.21

55

Shield, Capacit WPL 3976286 Contact Us For Availability

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

59

WPL 8539874 WPL 8539874 Contact Us For Availability

60

WPL 3955492 WPL 3955492 Contact Us For Availability

61

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

62

WPW10358151 Whirlpool Hose Backorder WPL WPW10358151 $38.47
