Model GE GTW330ASK0WW – Common Parts & Diagrams
CONTROLS & BACKSPLASH

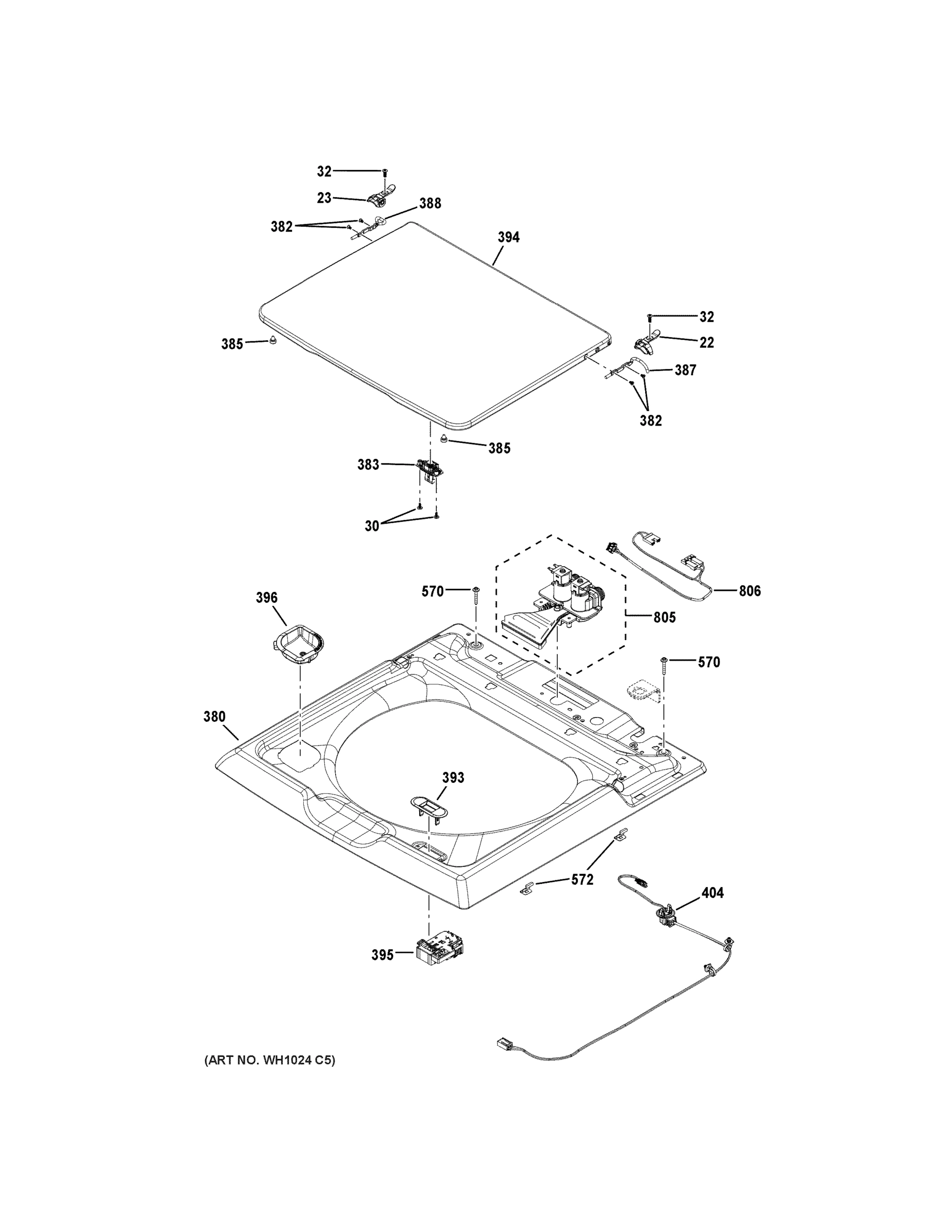

TOP PANEL & LID
TUB & MOTOR
CABINET
Common parts from model GE GTW330ASK0WW
10
CONTROL BOARD SHIELD GEN WH01X24396 Contact Us For Availability
15
RIGHT BACKSPLASH SUPPORT GEN WH16X24477 Contact Us For Availability
16
BUTTON TREE GEN WH01X24376 Contact Us For Availability
17
SELECTOR SWITCH 2 ASM GEN WH12X25295 Contact Us For Availability
18
KNOB OPTIONS ASM GEN WH01X24378 Contact Us For Availability
19
KNOB MAIN ASM GEN WH01X24377 Contact Us For Availability
22
LARGE LID BUSHING RIGHT GEN WH02X24389 Contact Us For Availability
23
LARGE LID BUSHING LEFT GEN WH02X24388 Contact Us For Availability
30
SCR 8-18 BS TRP 3/8 S GEN WH02X24296 Contact Us For Availability
32
SCREW 10-32 GXTT FLP 595 GEN WR01X10065 Contact Us For Availability
99
HARNESS WIRE TIE GEN WH01X24190 Contact Us For Availability
100
HARNESS MAIN YELLOW GEN WH19X25299 Contact Us For Availability
101
HOSE PRESSURE GEN WH41X25301 Contact Us For Availability
102
DUAL HARNESS CONNECTOR B GEN WH16X24192 Contact Us For Availability
149
SCREW 8-18 HI/LO 5/8 GEN WR01X10196 Contact Us For Availability
150
BRACKET PCB GEN WH16X24375 Contact Us For Availability
250
SCR 8-18 AB 13/4 S HXW GEN WR01X10634 Contact Us For Availability
303
SCR 1/4-20, 2A SINULOC GEN WH02X24374 Contact Us For Availability
305
DISPENSER ASM FSD GEN WH43X24454 Contact Us For Availability
313
WASHER HUB GEN WH02X10364 Contact Us For Availability
315
NUT HUB GEN WH02X10363 Contact Us For Availability
319
SCR 1/4-20 TT HXT .485 S GEN WH02X24154 Contact Us For Availability
323
WASHER SPRING GEN WH01X10759 Contact Us For Availability
324
SCREW PLATFORM GEN WH02X10376 Contact Us For Availability
326
CLUTCH GEN WH05X24185 Contact Us For Availability
327
SPRING CLUTCH GEN WH01X24434 Contact Us For Availability
328
CLIP SPRING COVER GEN WH02X24334 Contact Us For Availability
329
TUB COVER 3.8 GEN WH44X25305 Contact Us For Availability
331
OUTER CABINET BUMPER PAD GEN WH01X24146 Contact Us For Availability
332
INNER DRAIN HOSE MOUNTIN GEN WH10X24149 Contact Us For Availability
333
SCR 10-16 B HXW 3/8 S GEN WH02X10396 Contact Us For Availability
379
SCR 10-32 GX HXW 7/16 S GEN WE02X10107 Contact Us For Availability
380
TOP COVER WHITE GEN WH44X24383 Contact Us For Availability
382
HINGE LID SCR 6-32 MCH F GEN WH02X24634 Contact Us For Availability
383
LID LOCK STRIKER GEN WH02X24399 Contact Us For Availability
385
BUMPER LID GEN WH01X24382 Contact Us For Availability
387
WIREFORM HINGE LID RIGHT GEN WH02X24394 Contact Us For Availability
388
WIREFORM HINGE LID LEFT GEN WH02X24393 Contact Us For Availability
393
LID LOCK BEZEL GEN WH01X24381 Contact Us For Availability
394
LARGE LID WHITE GEN WH44X24385 Contact Us For Availability
396
BLEACH CUP 2" GEN WH47X24398 Contact Us For Availability
404
LID LOCK HARNESS GEN WH19X24141 Contact Us For Availability
413
BALL JOINT UPPER GEN WH01X26970 Contact Us For Availability
414
ROD AND SPRING ASM LEFT - BLUE GEN WH16X26909 Contact Us For Availability
415
ROD AND SPRING ASM RIGHT - RED GEN WH16X26908 Contact Us For Availability
570
SCR 10-32 GX 1.309 HWX S GEN WH02X24116 Contact Us For Availability
572
LID LOCK HARNESS CLIP GEN WH02X24143 Contact Us For Availability
604
NUT PULLEY GEN WH02X24417 Contact Us For Availability
630
1/3 HP MOTOR AND NUT GEN WH49X25376 Contact Us For Availability
649
DRAIN PUMP SEAL GEN WH08X24179 Contact Us For Availability
658
INTERNAL DRAIN HOSE ASM GEN WH41X24177 Contact Us For Availability
693
SCR 8-16 PLASTITE HXW 5/ GEN WH02X24057 Contact Us For Availability
824
CLAMP GEN WH01X24494 Contact Us For Availability
826
CLIP ANT-SIP GEN WH1X2725 Contact Us For Availability
× ![]()
