Model GE ATGE9ASP543DW04 General Electric Model ATGE9ASP543DW04 – Common Parts & Diagrams
Washer Labels
Washer Lead-In Cord, Wire Ties and Harness Clips

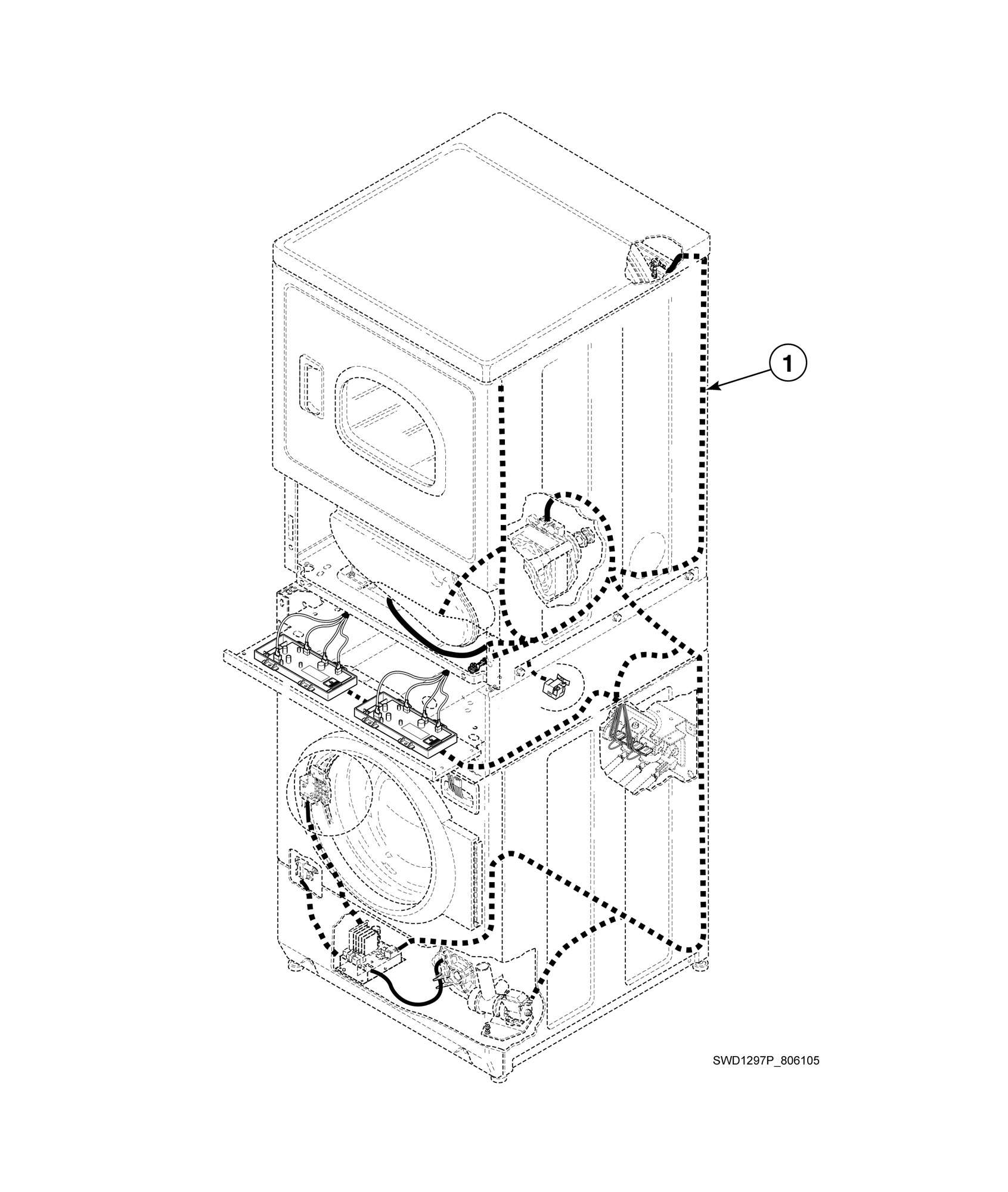

Wire Harnesses and Wires (Drawing 1 of 2)

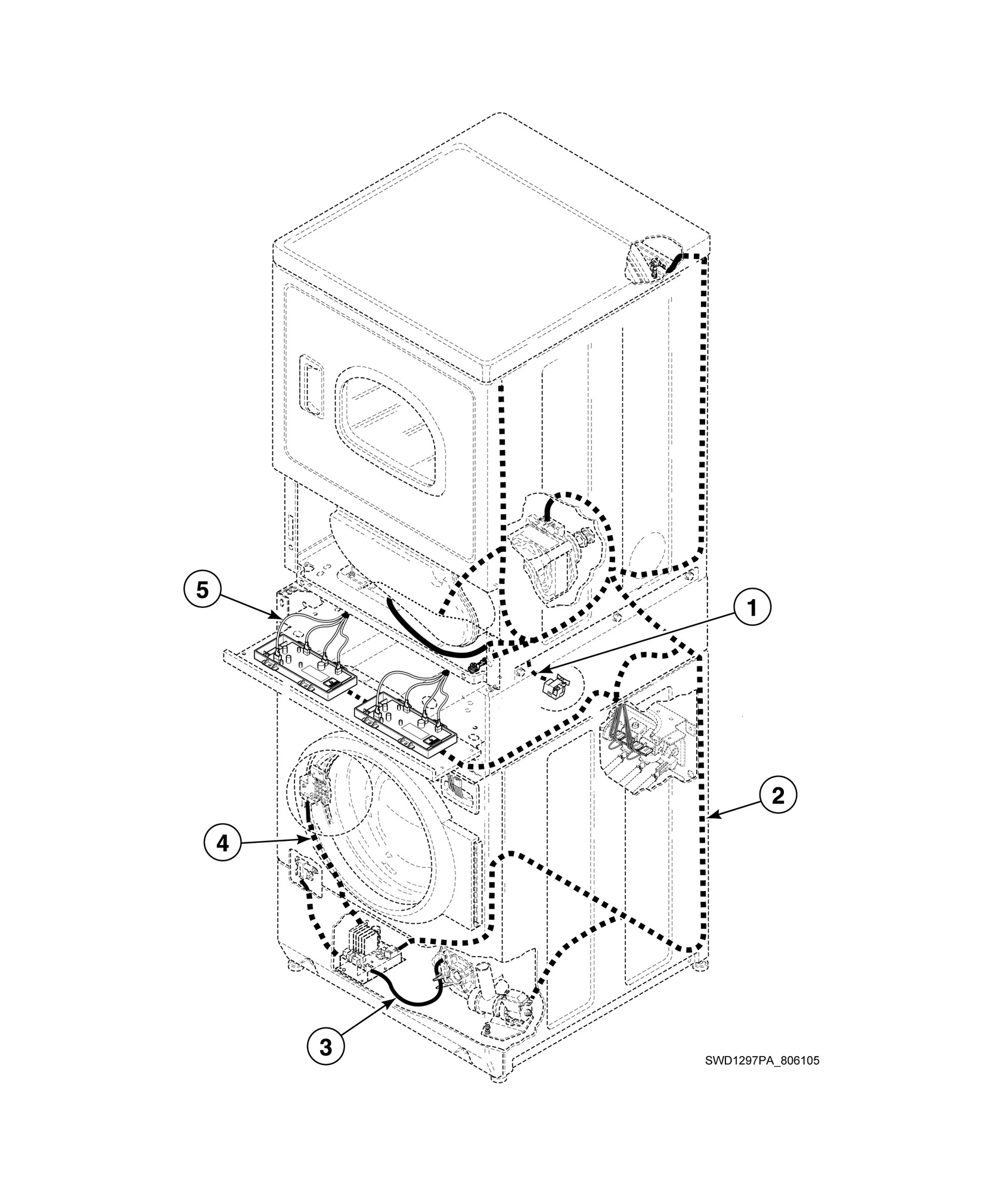

Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model GE ATGE9ASP543DW04 General Electric Model ATGE9ASP543DW04
1
Wire Tie GEN 38663 Contact Us For Availability
1
Upper Gas Harness GEN D517100 Contact Us For Availability
1
Pressure Sensor Harness GEN 804433 Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
2
Front Control Harness (Comment: Washer) GEN 806031 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
3
Motor Harness GEN 806029 Contact Us For Availability
4
Wire Clip (Comment: Small) GEN D504034 Contact Us For Availability
4
Door Lock Harness Assembly GEN 806028 Contact Us For Availability
5
Wire Clip (Comment: Large) GEN 687500 Contact Us For Availability
5
Security Cabinet Harness GEN D513991 Contact Us For Availability
6
Notice Label GEN D516073 Contact Us For Availability
6
Nut GEN 03673 Contact Us For Availability
7
Caution Label (Comment: Icon, Ground machine) GEN 801706 Contact Us For Availability
7
Warning Label (Comment: English/French, Disco GEN D500316 Contact Us For Availability
7
Disconnect Power Warning Label (Comment: Engl GEN D505281 Contact Us For Availability
7
Washer GEN 03815 Contact Us For Availability
8
Left Hand Thread Label (Comment: Text, Left h GEN 685928 Contact Us For Availability
8
Left Hand Thread Label (Comment: Icon, Left h GEN 804949 Contact Us For Availability
8
Screw GEN 20530 Contact Us For Availability
9
Warning Label (Comment: Text, Disconnect powe GEN 803260 Contact Us For Availability
9
Electrical Shock Label (Comment: Icon, Electr GEN F8211201 Contact Us For Availability
9
Strain Relief GEN 38384 Contact Us For Availability
10
NOT ON YOUR MODEL GEN - Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
