Model Speed Queen SWNNX2SP116TW01 Washer – Common Parts & Diagrams
Meter Case Assembly (Drawing 1 of 2)
Meter Case Assembly (Drawing 2 of 2)

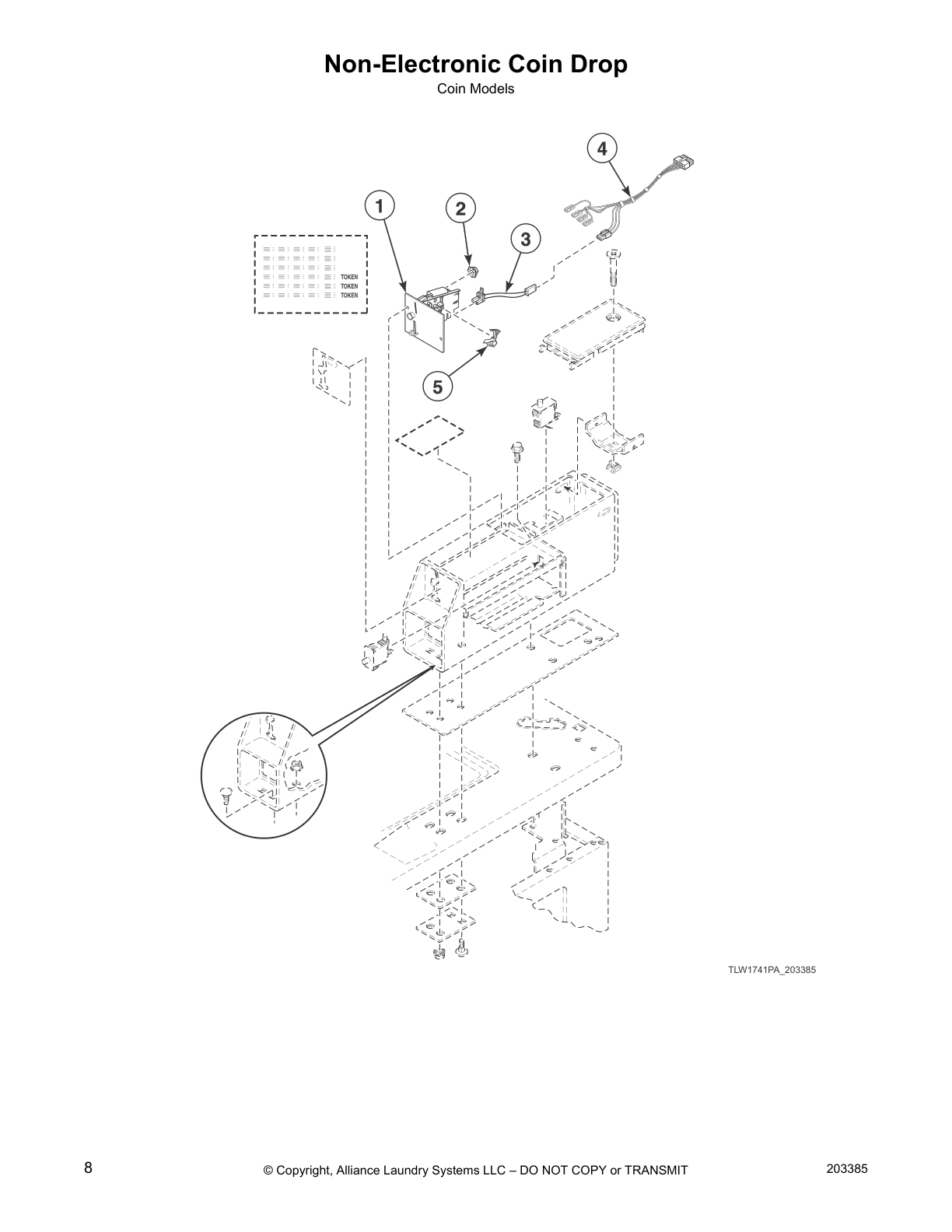

Non-Electronic Coin Drop

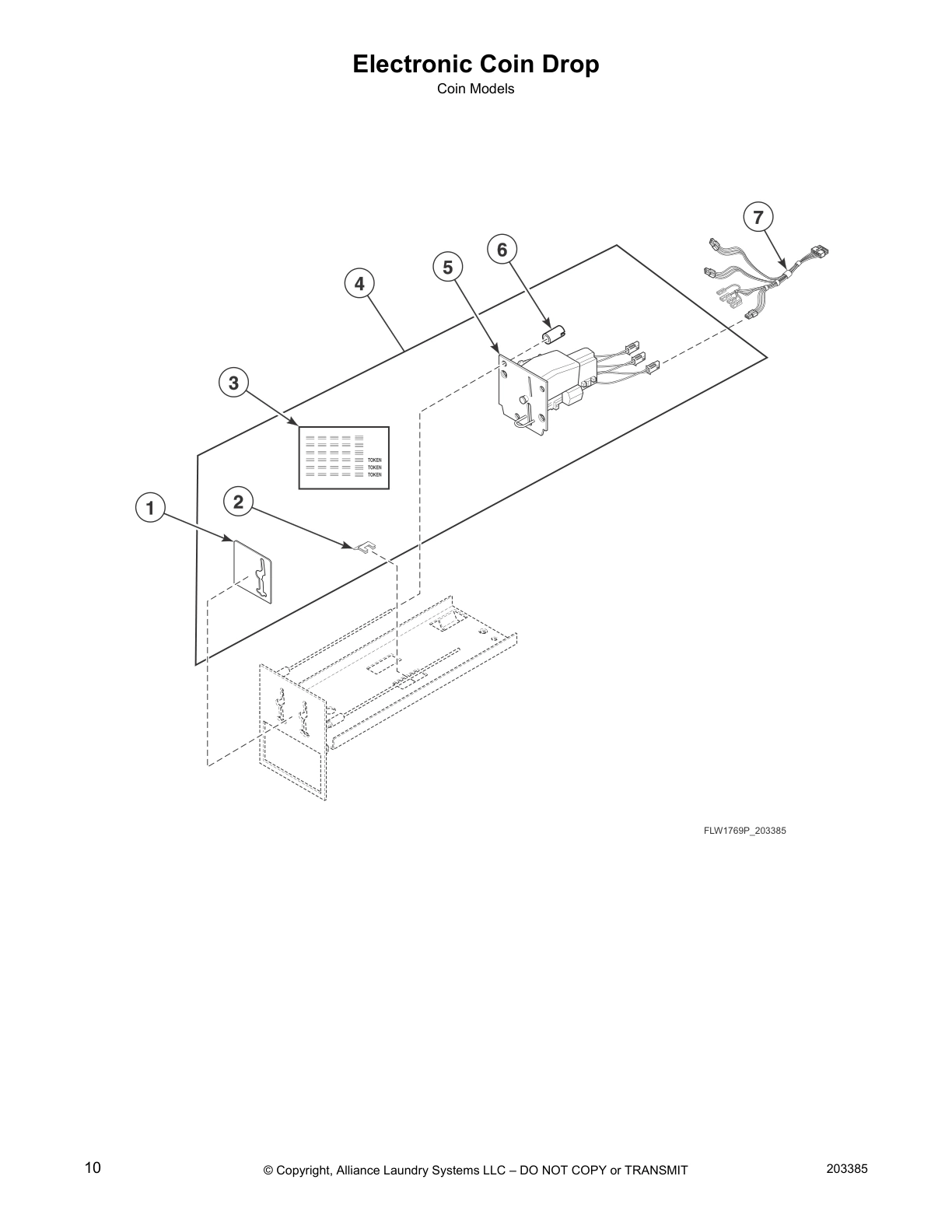

Electronic Coin Drop

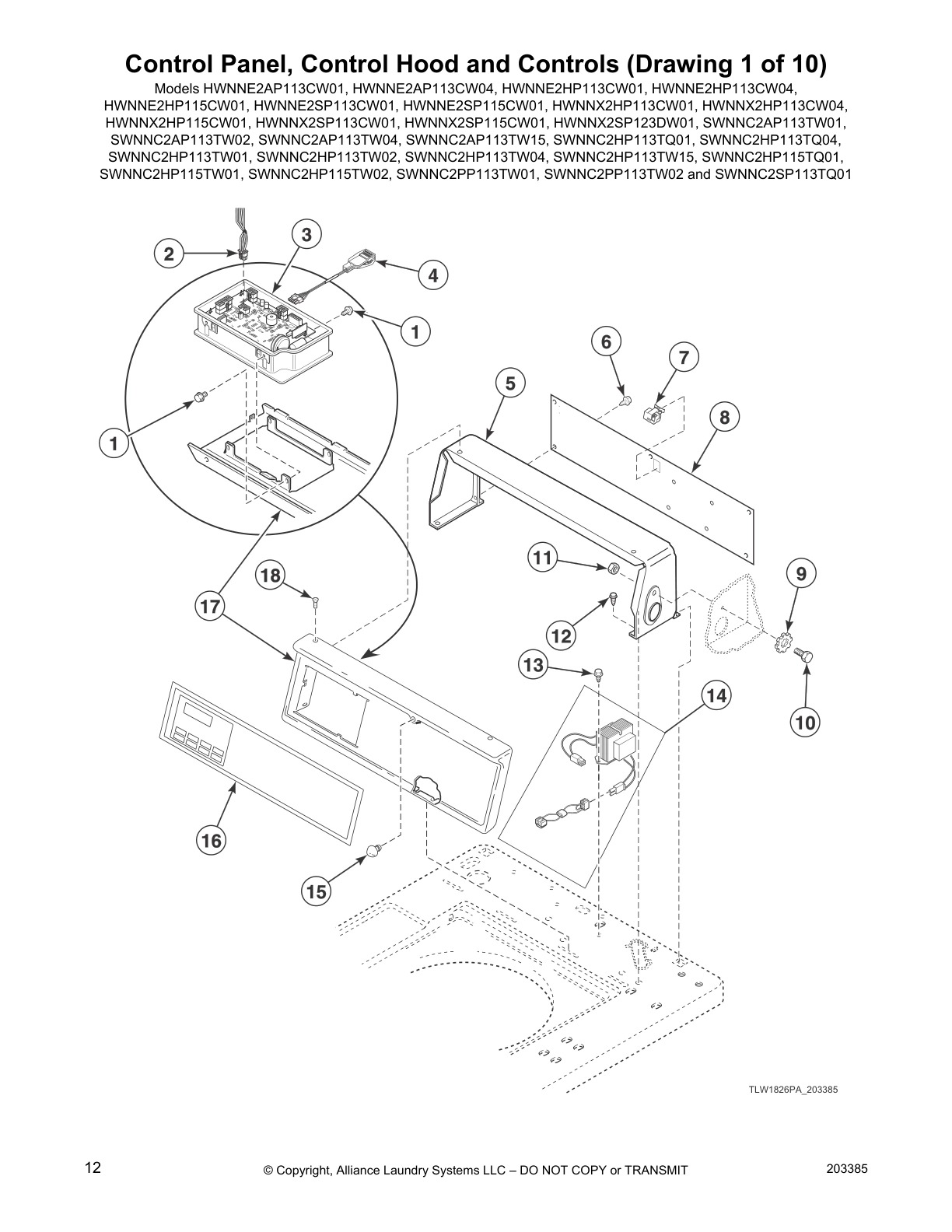

Control Panel, Control Hood and Controls (Drawing 1 of 10)

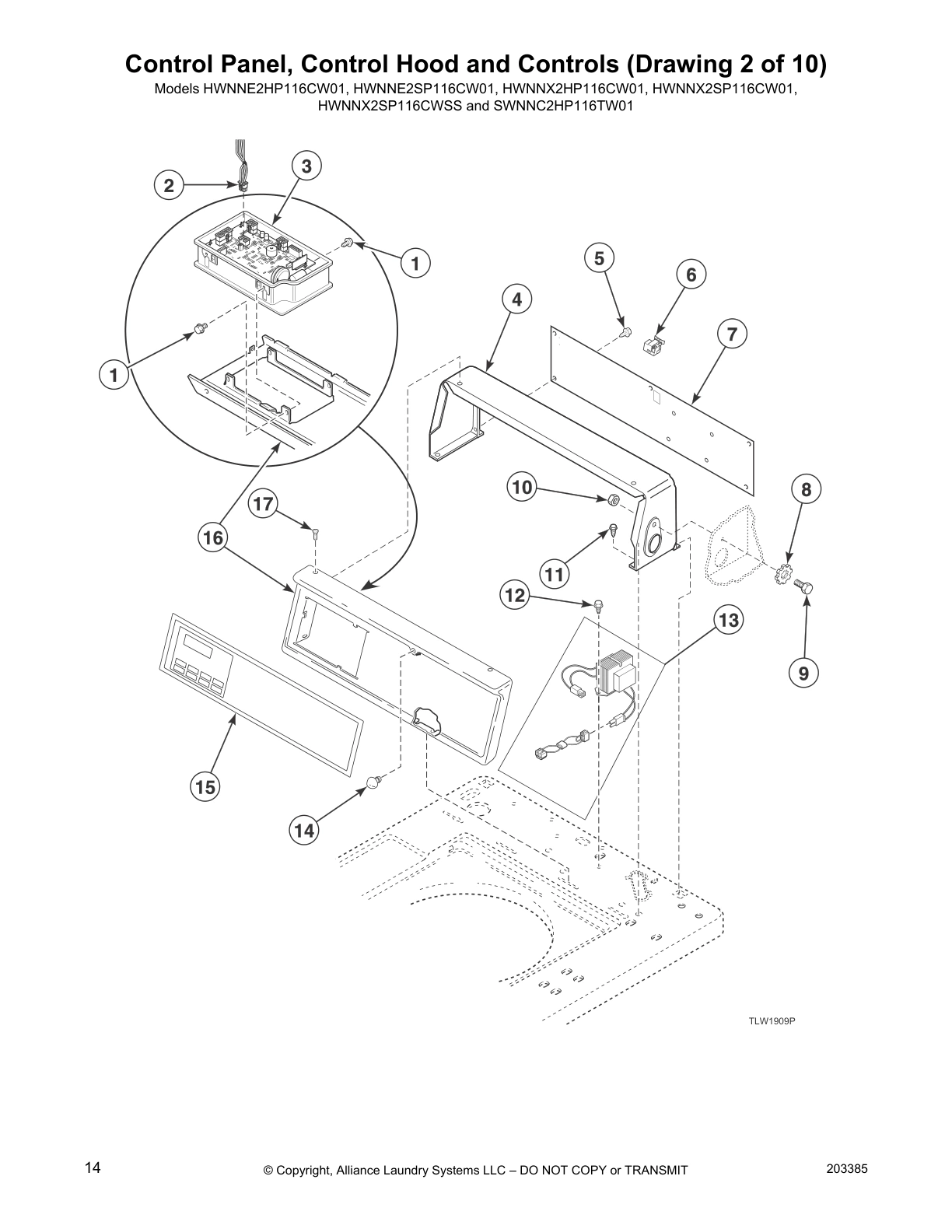

Control Panel, Control Hood and Controls (Drawing 2 of 10)

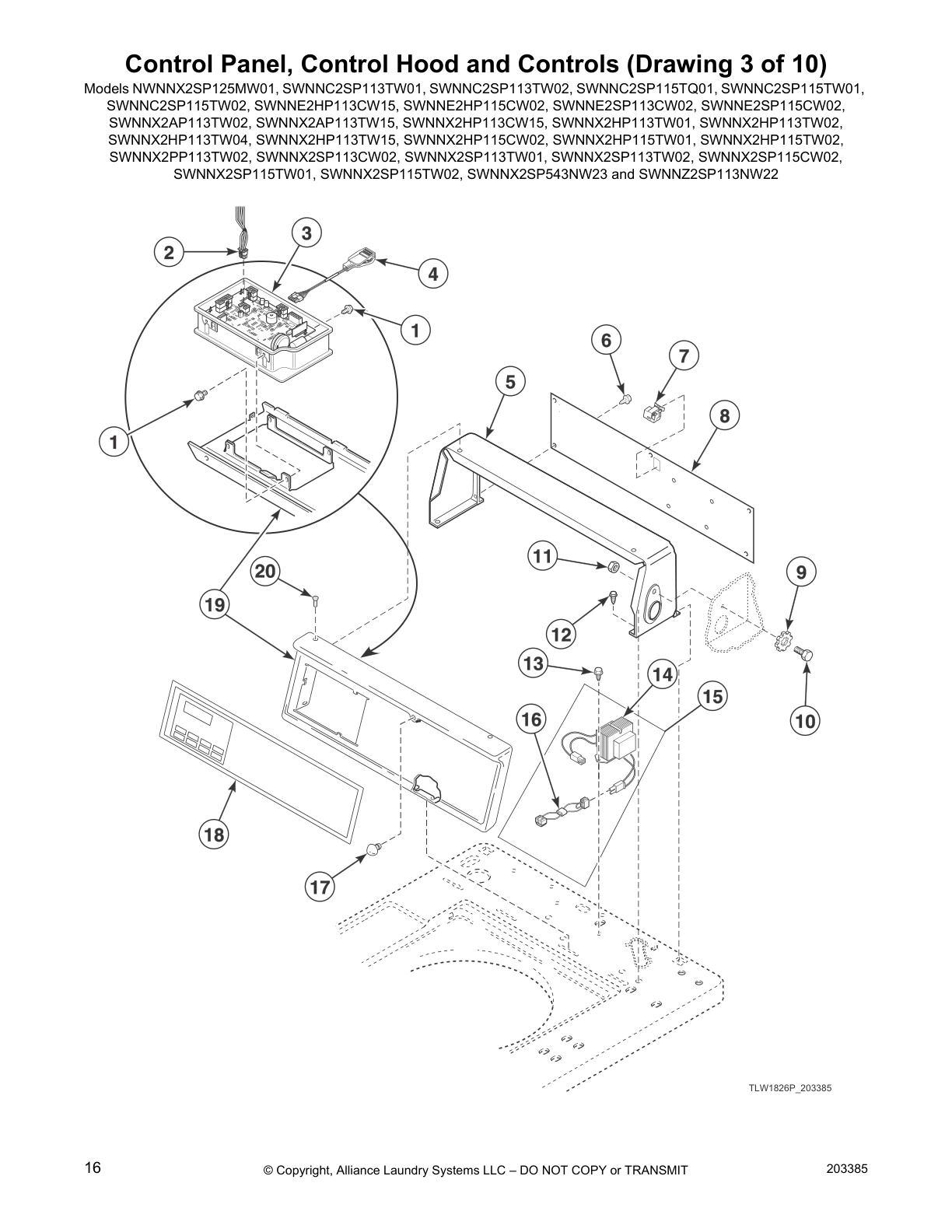

Control Panel, Control Hood and Controls (Drawing 3 of 10)

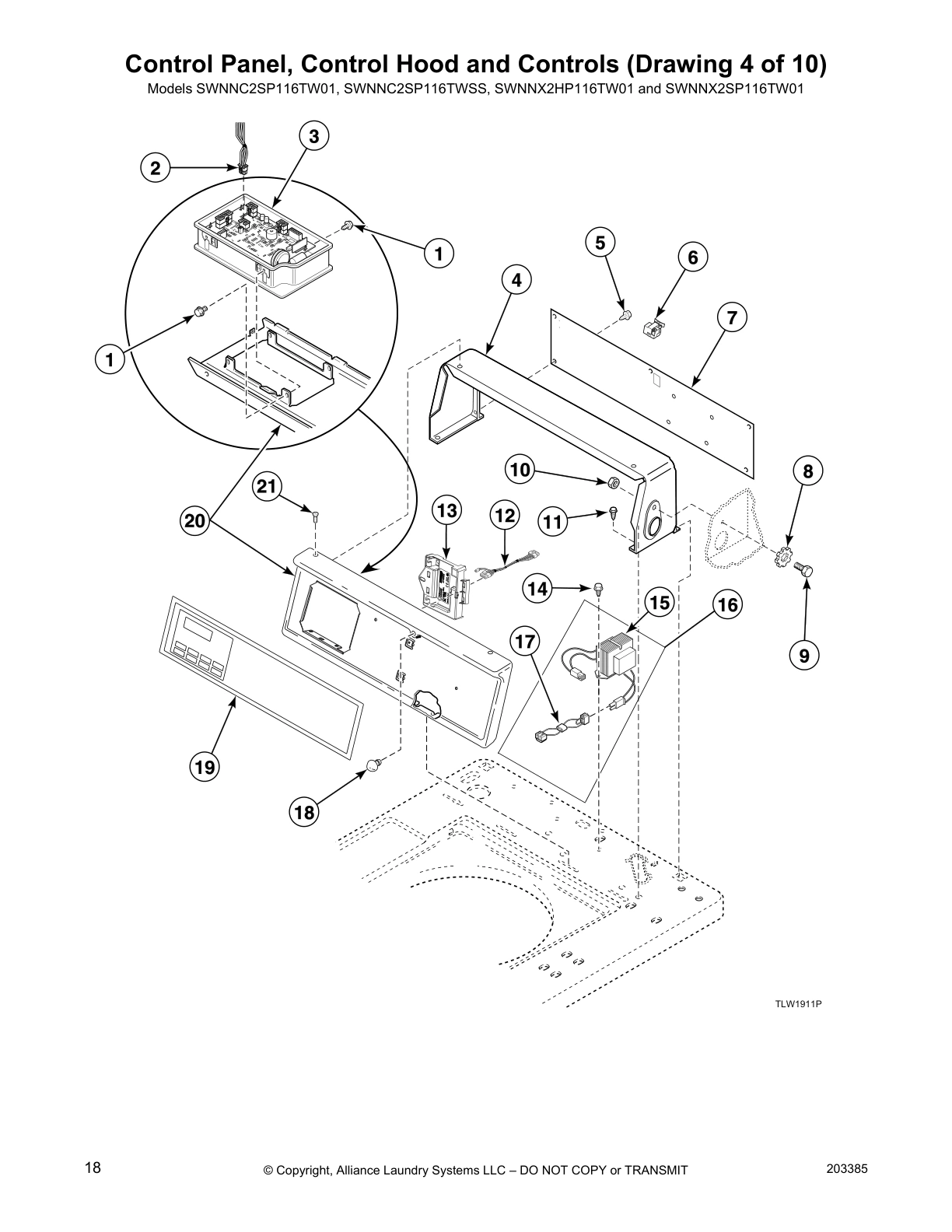

Control Panel, Control Hood and Controls (Drawing 4 of 10)
Control Panel, Control Hood and Controls (Drawing 5 of 10)

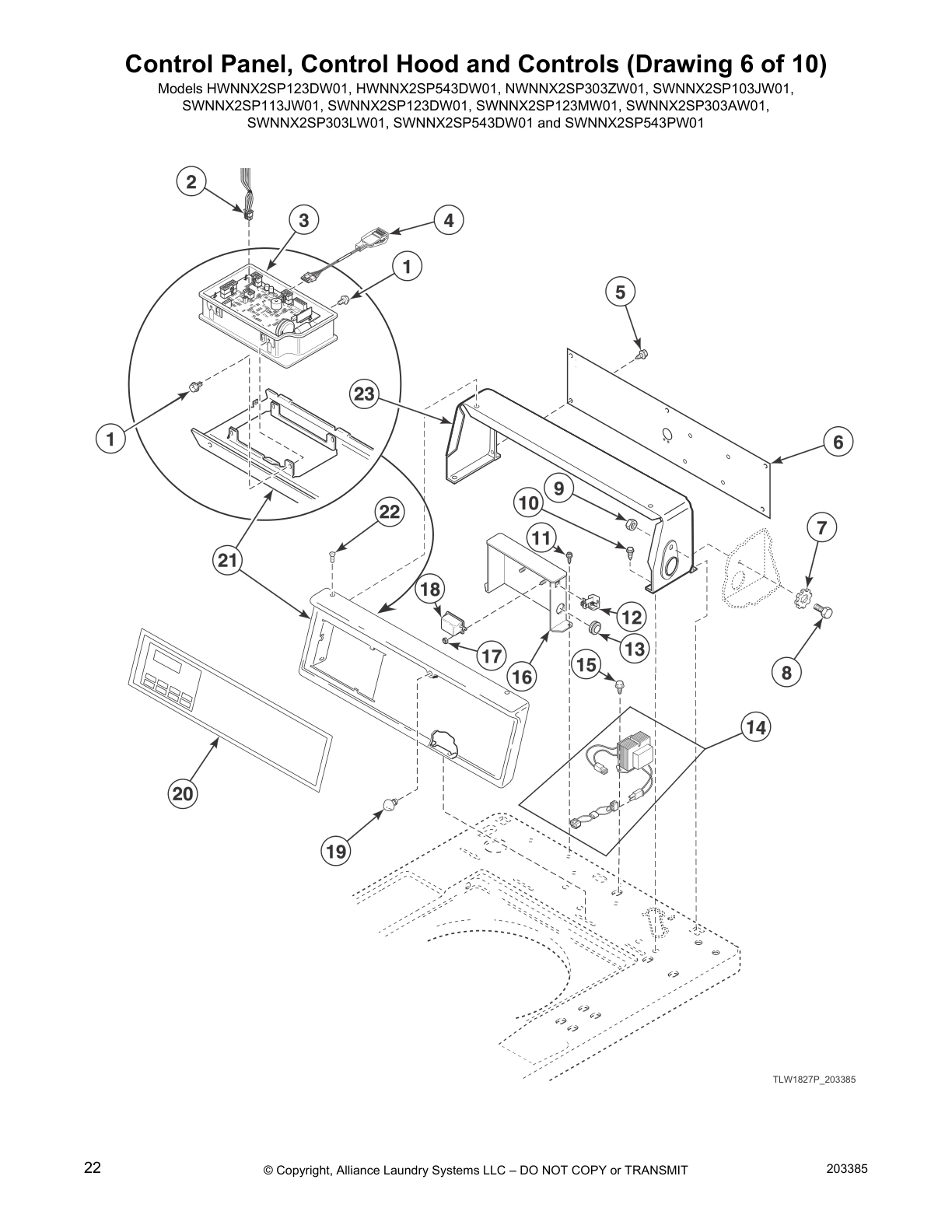

Control Panel, Control Hood and Controls (Drawing 6 of 10)
Control Panel, Control Hood and Controls (Drawing 7 of 10)

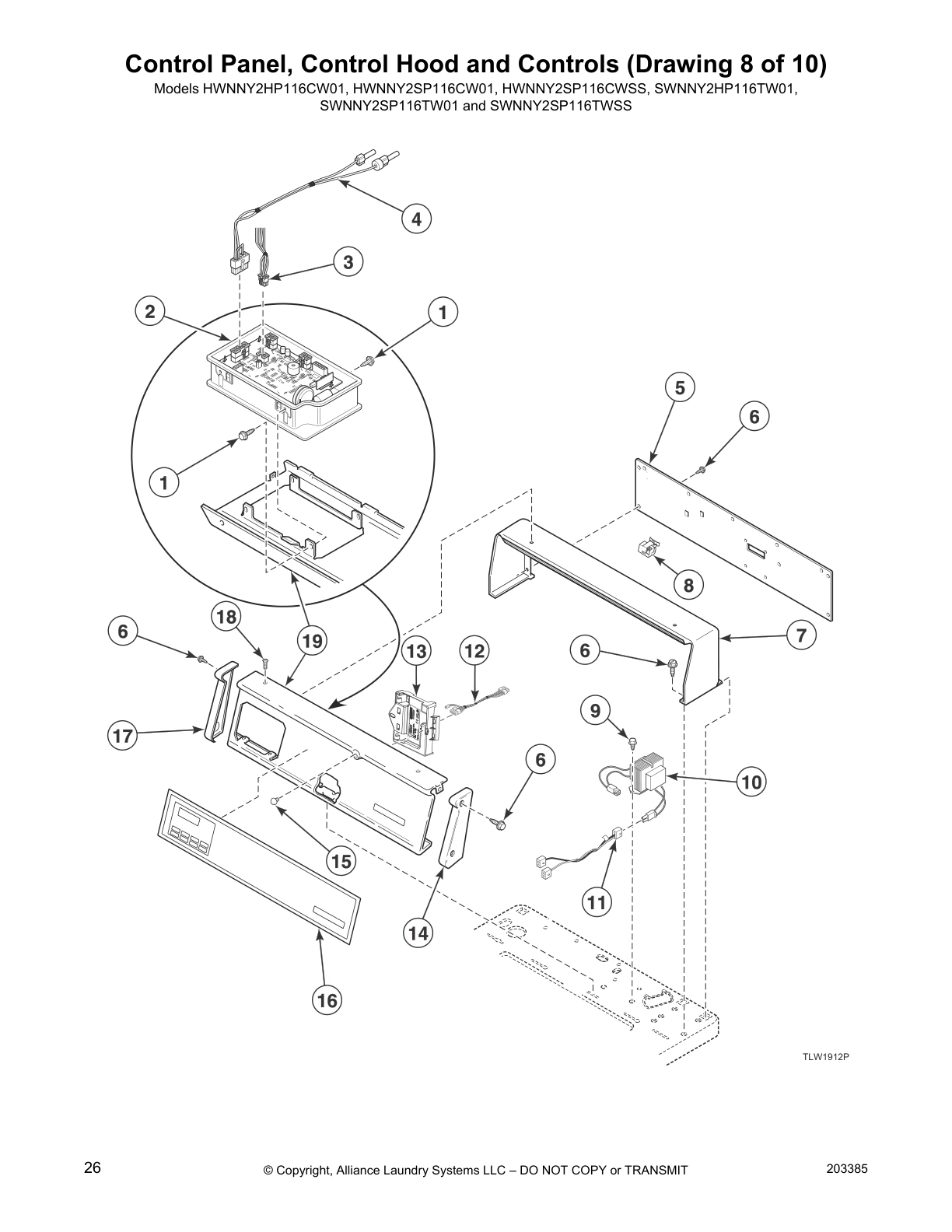

Control Panel, Control Hood and Controls (Drawing 8 of 10)

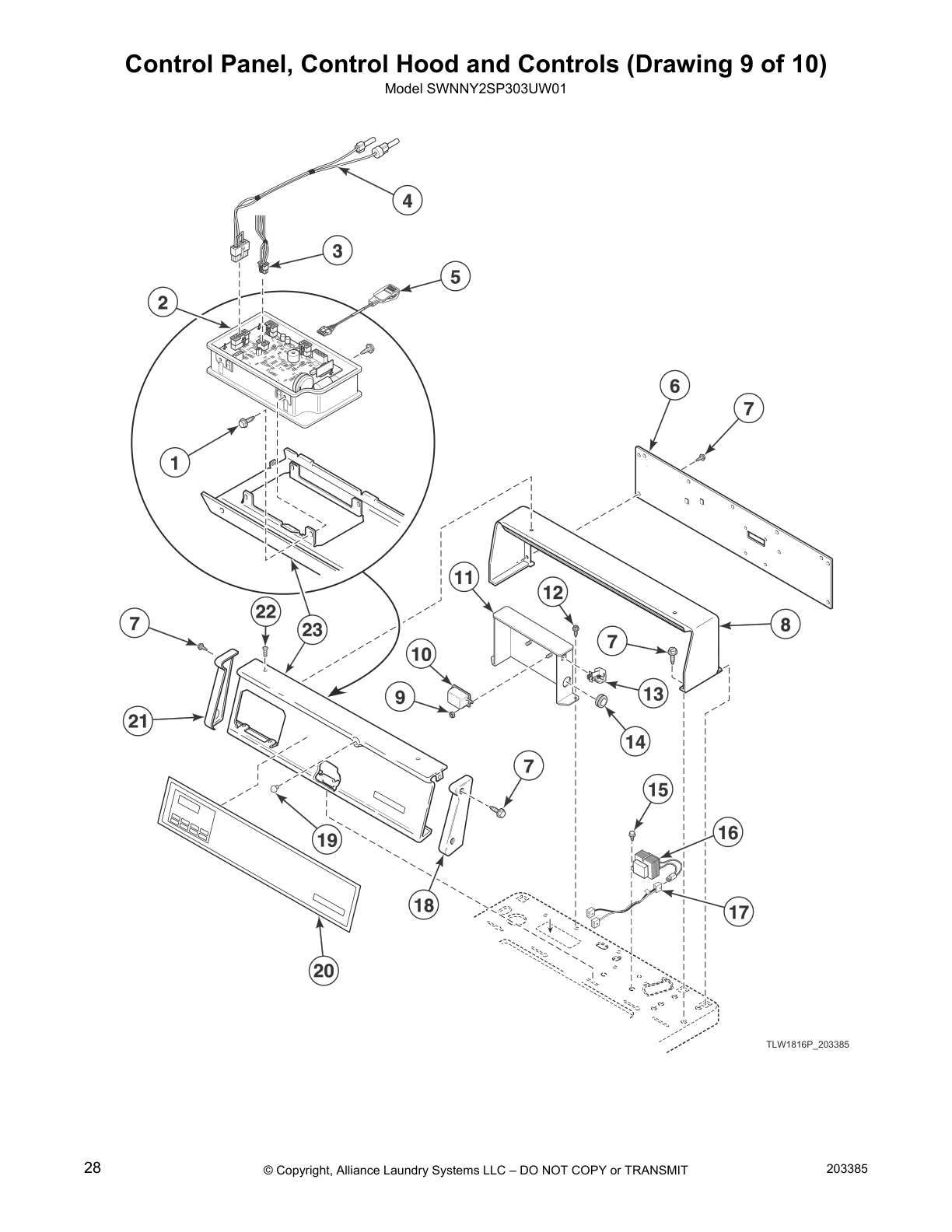

Control Panel, Control Hood and Controls (Drawing 9 of 10)

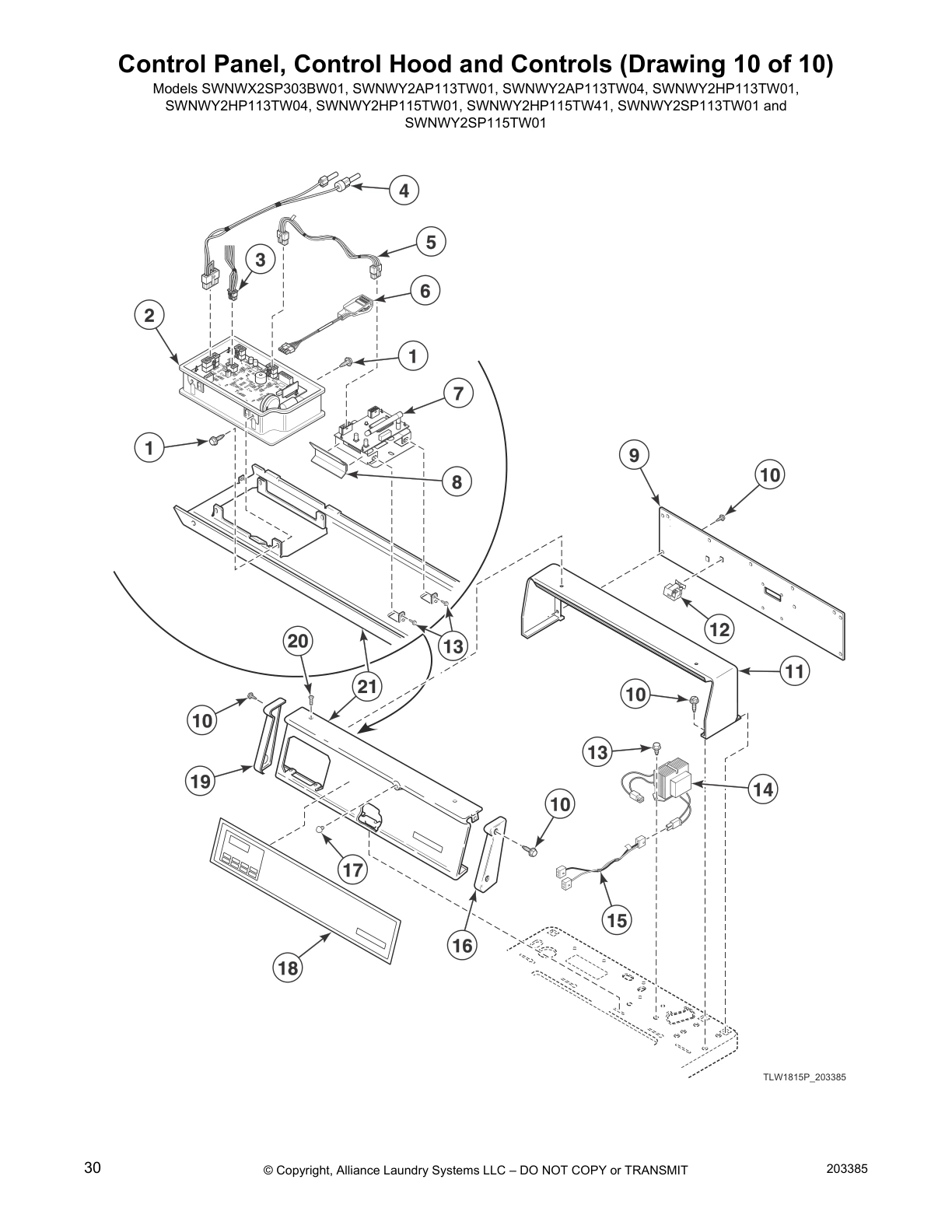

Control Panel, Control Hood and Controls (Drawing 10 of 10)

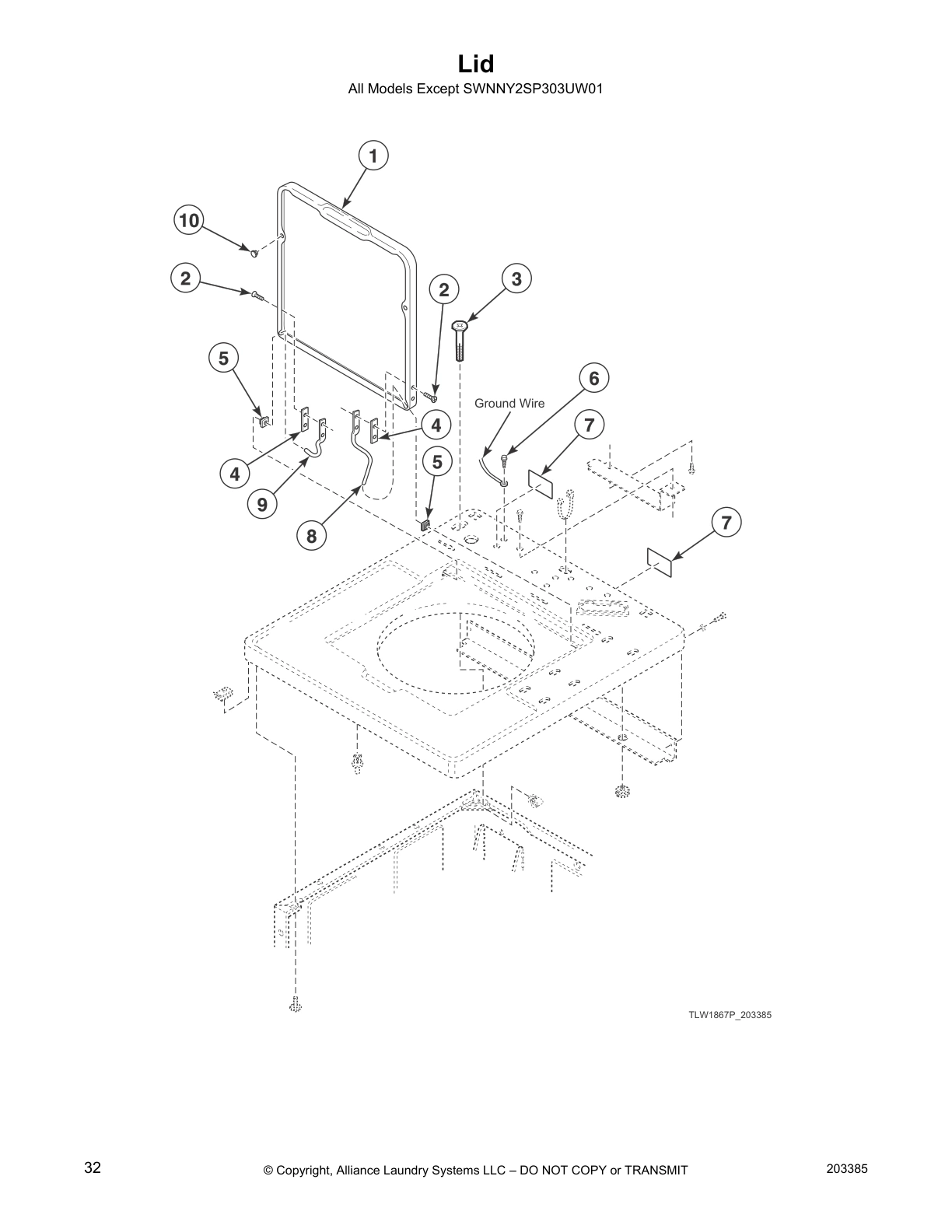

Lid

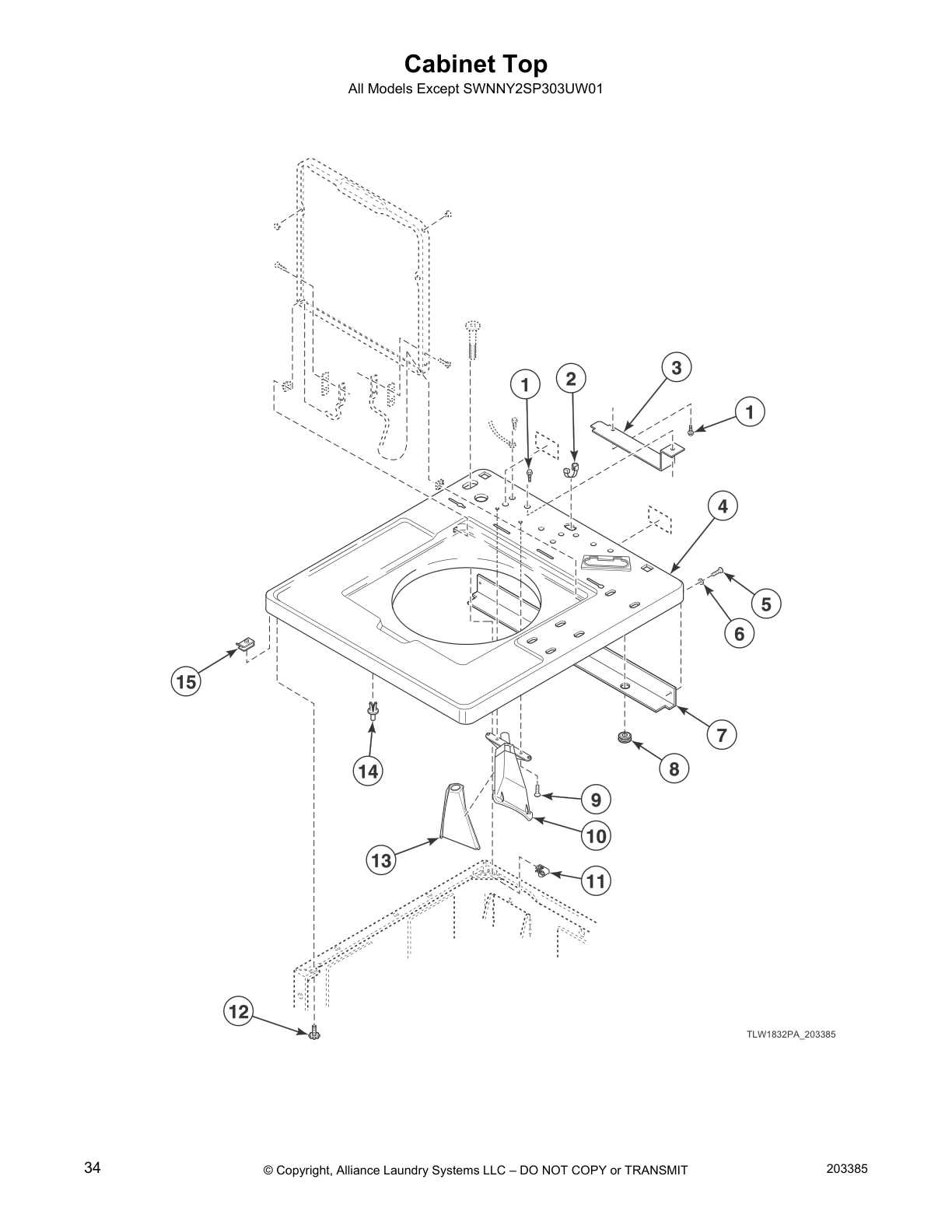

Cabinet Top

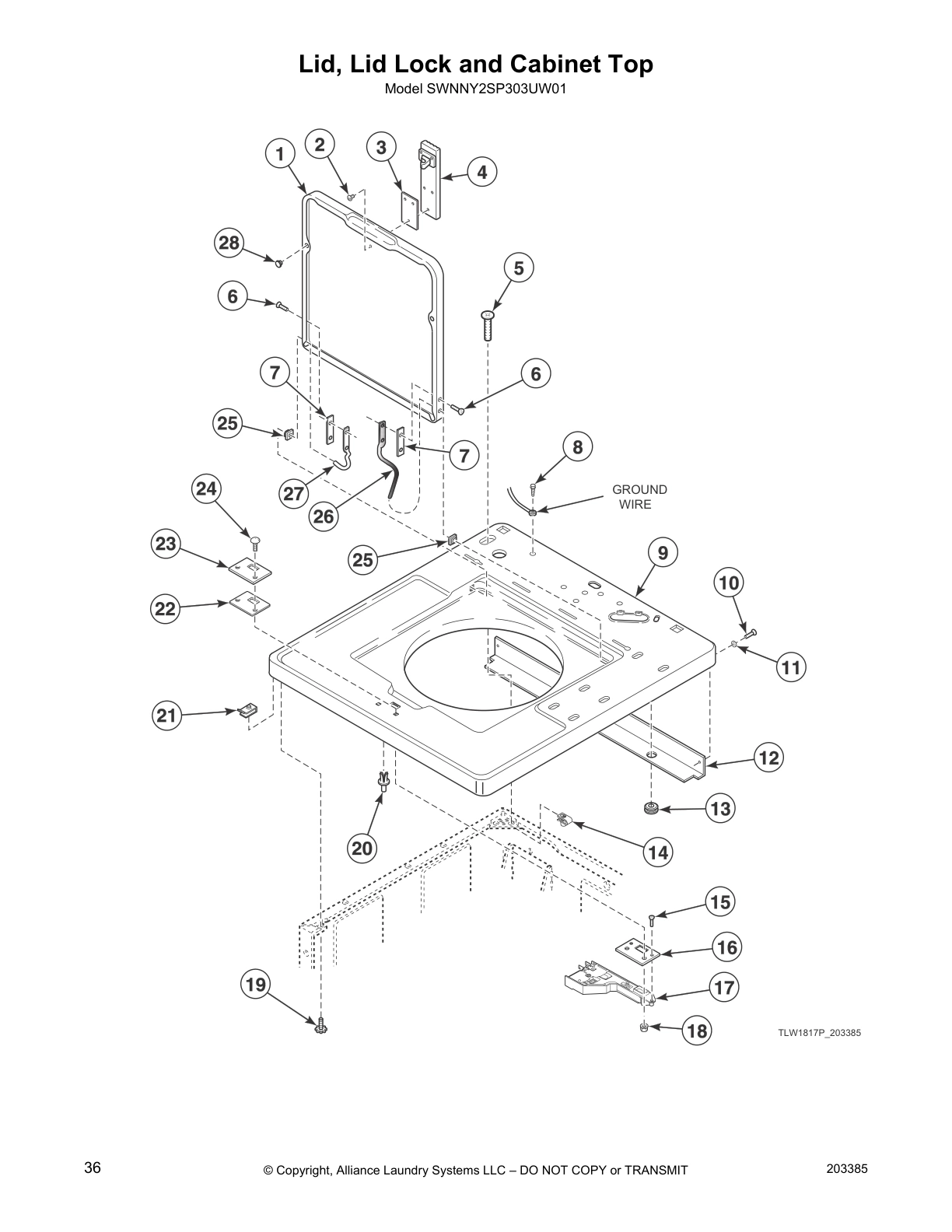

Lid, Lid Lock and Cabinet Top

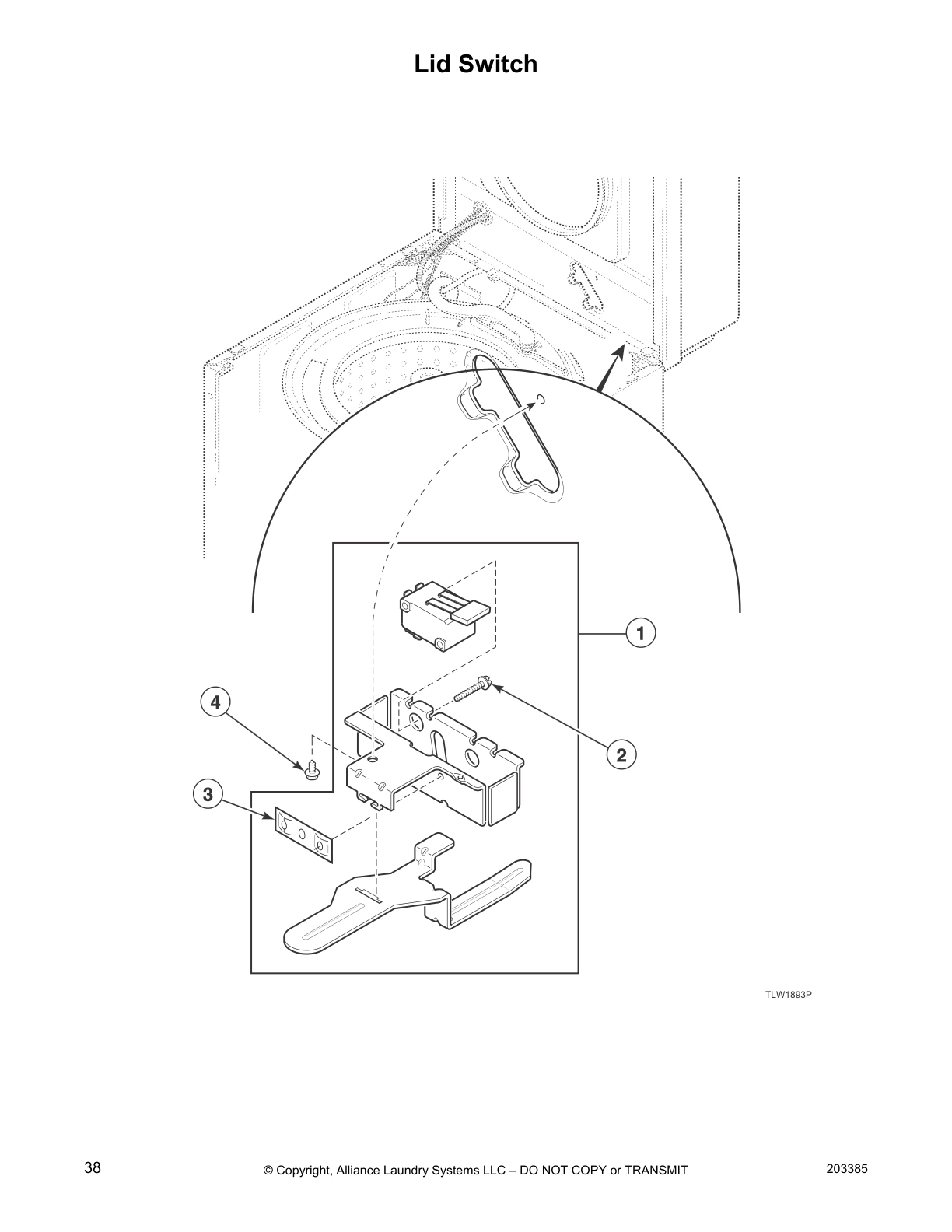

Lid Switch

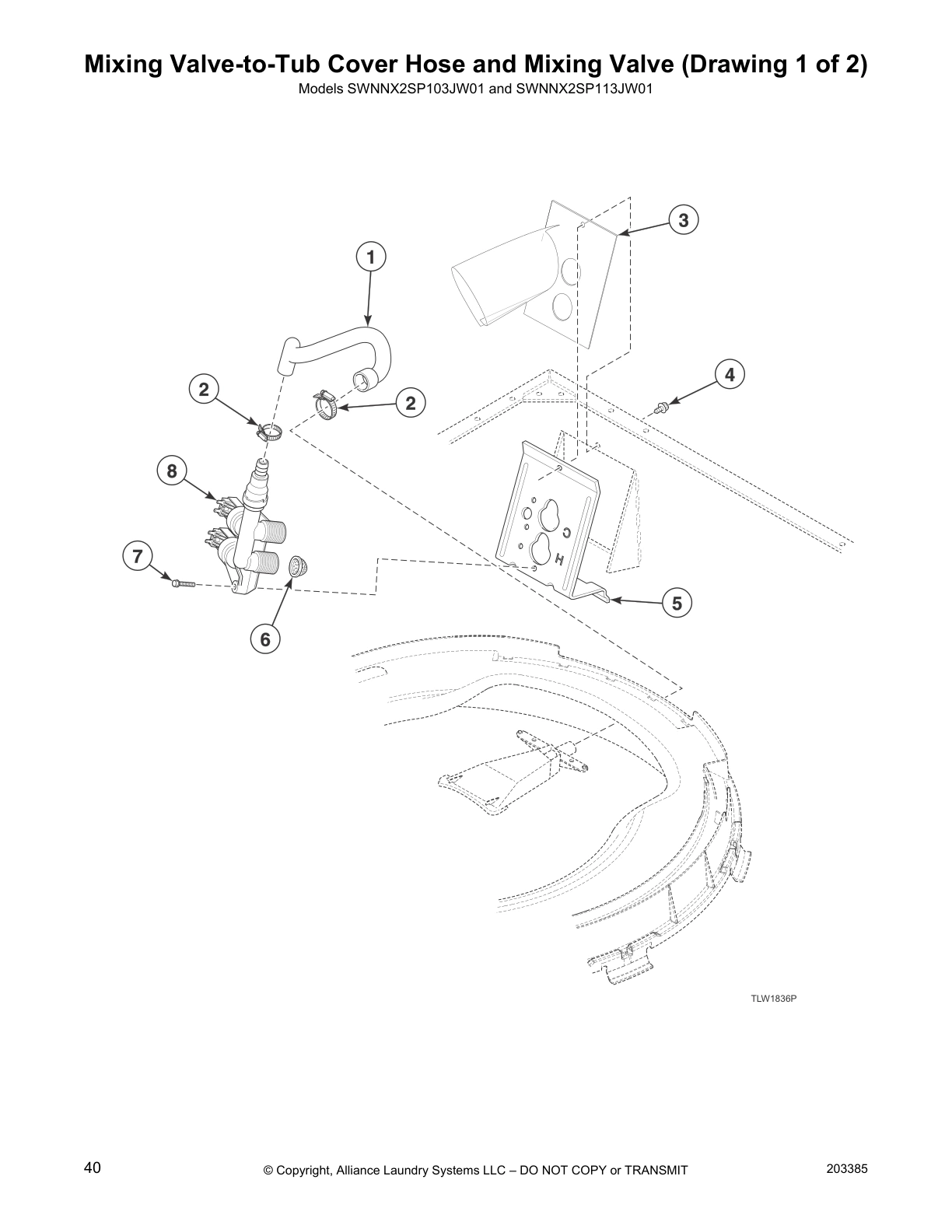

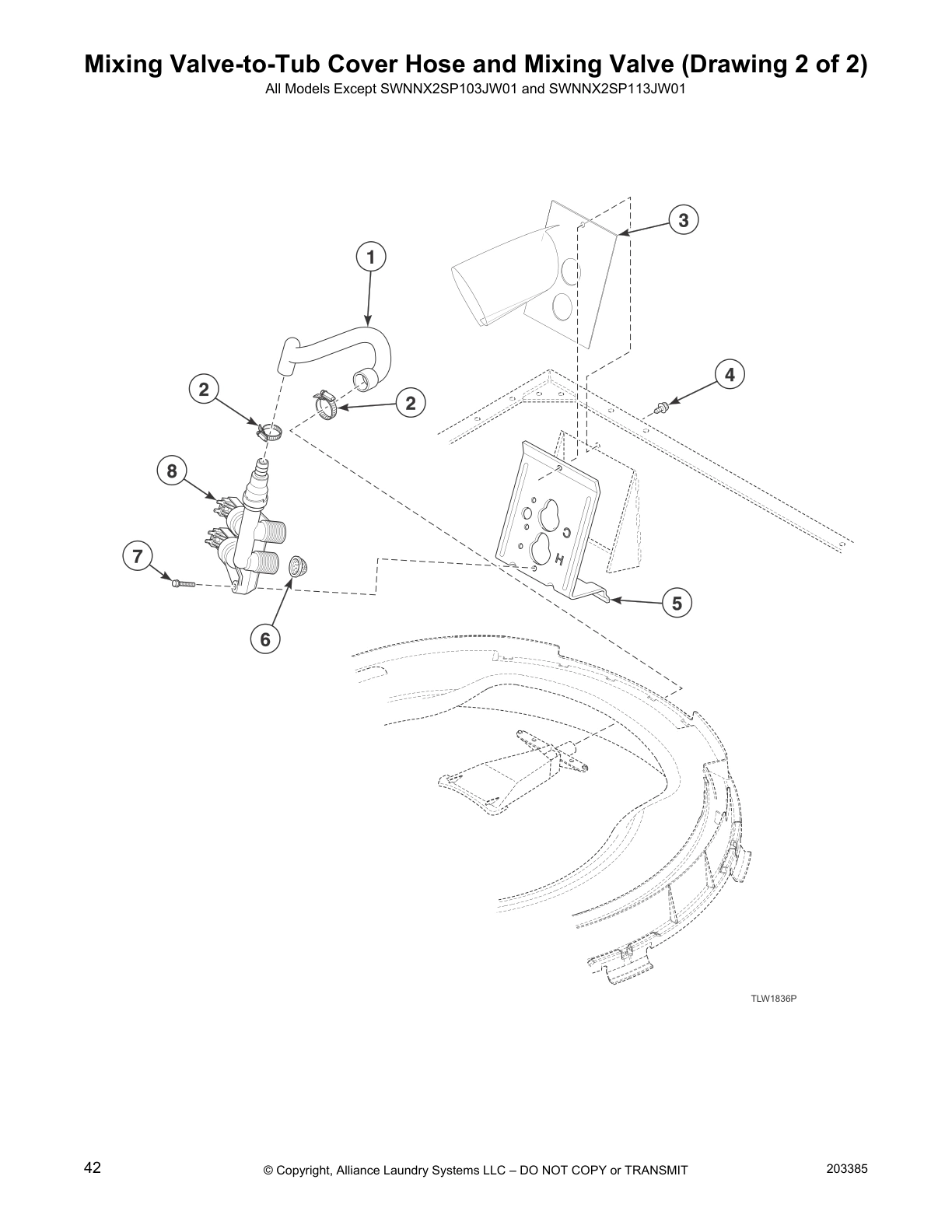

Mixing Valve-to-Tub Cover Hose and Mixing Valve (Drawing 1 of 2)
Mixing Valve-to-Tub Cover Hose and Mixing Valve (Drawing 2 of 2)

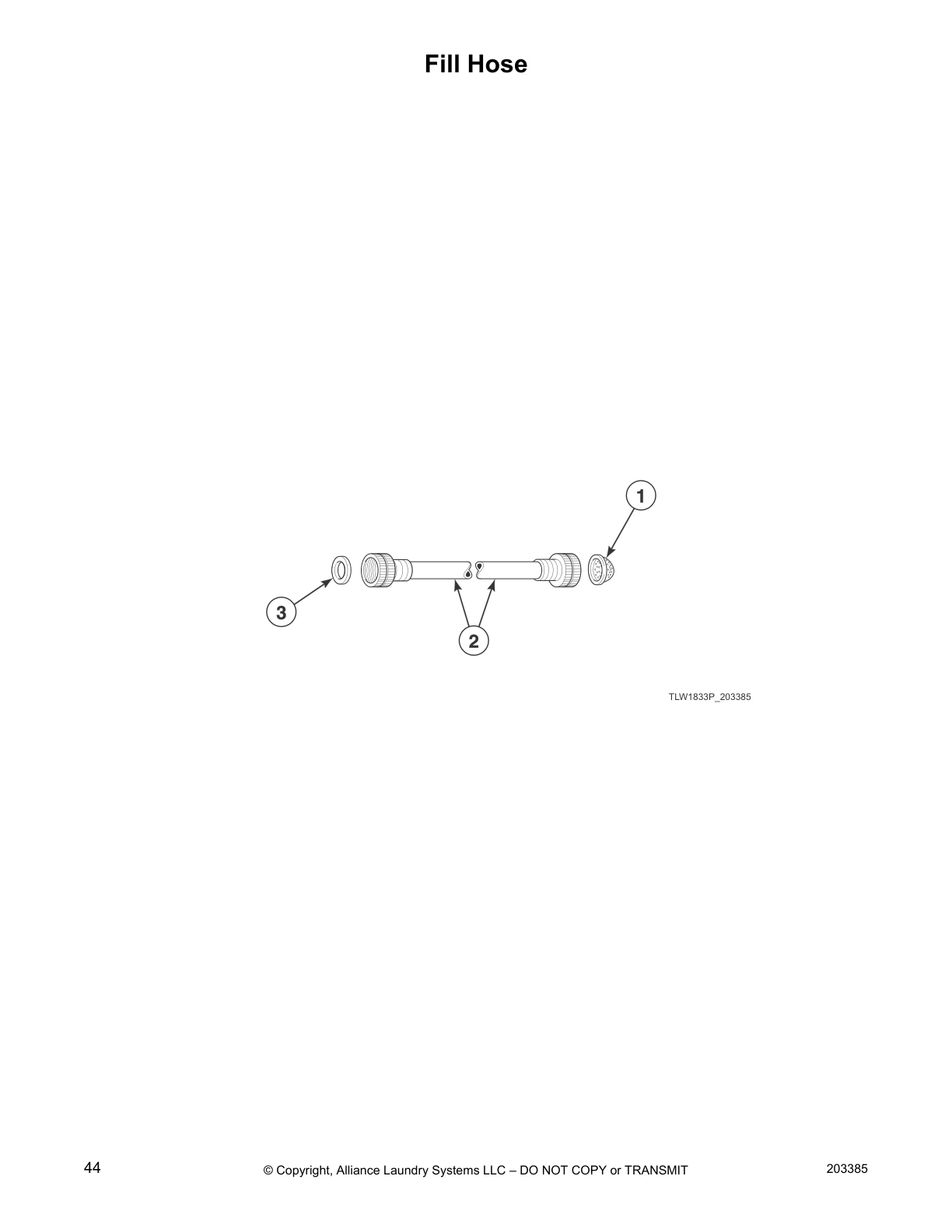

Fill Hose

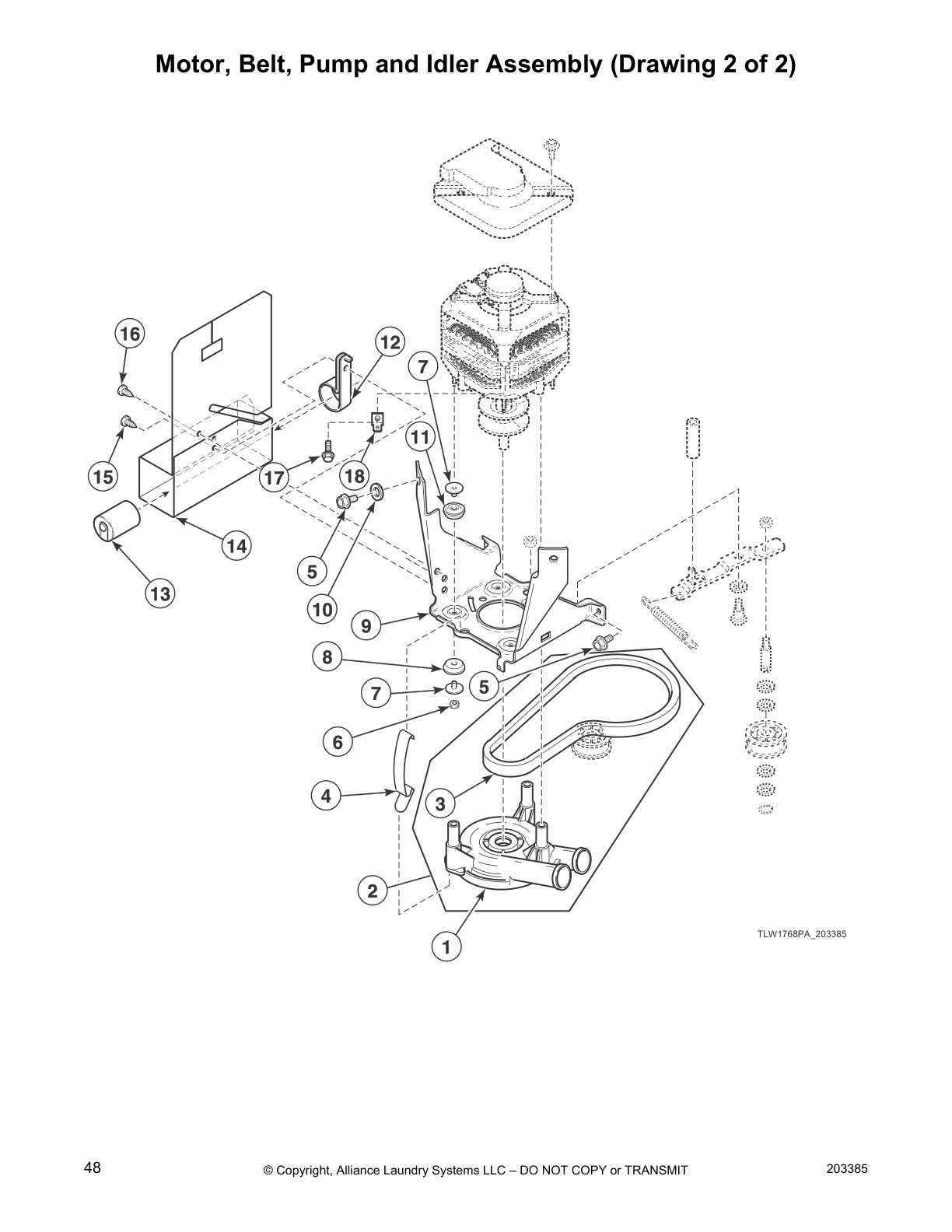

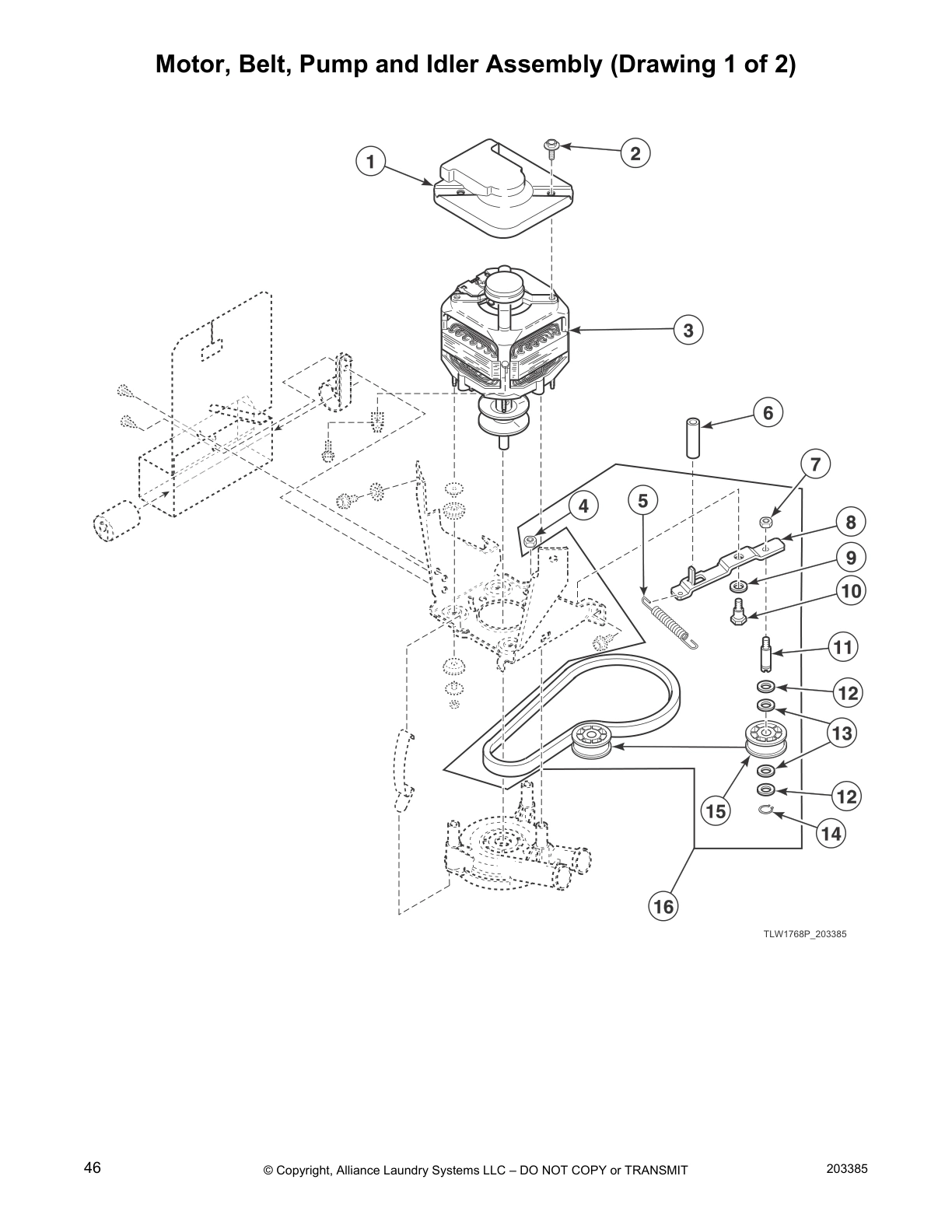

Motor, Belt, Pump and Idler Assembly (Drawing 1 of 2)
Motor, Belt, Pump and Idler Assembly (Drawing 2 of 2)

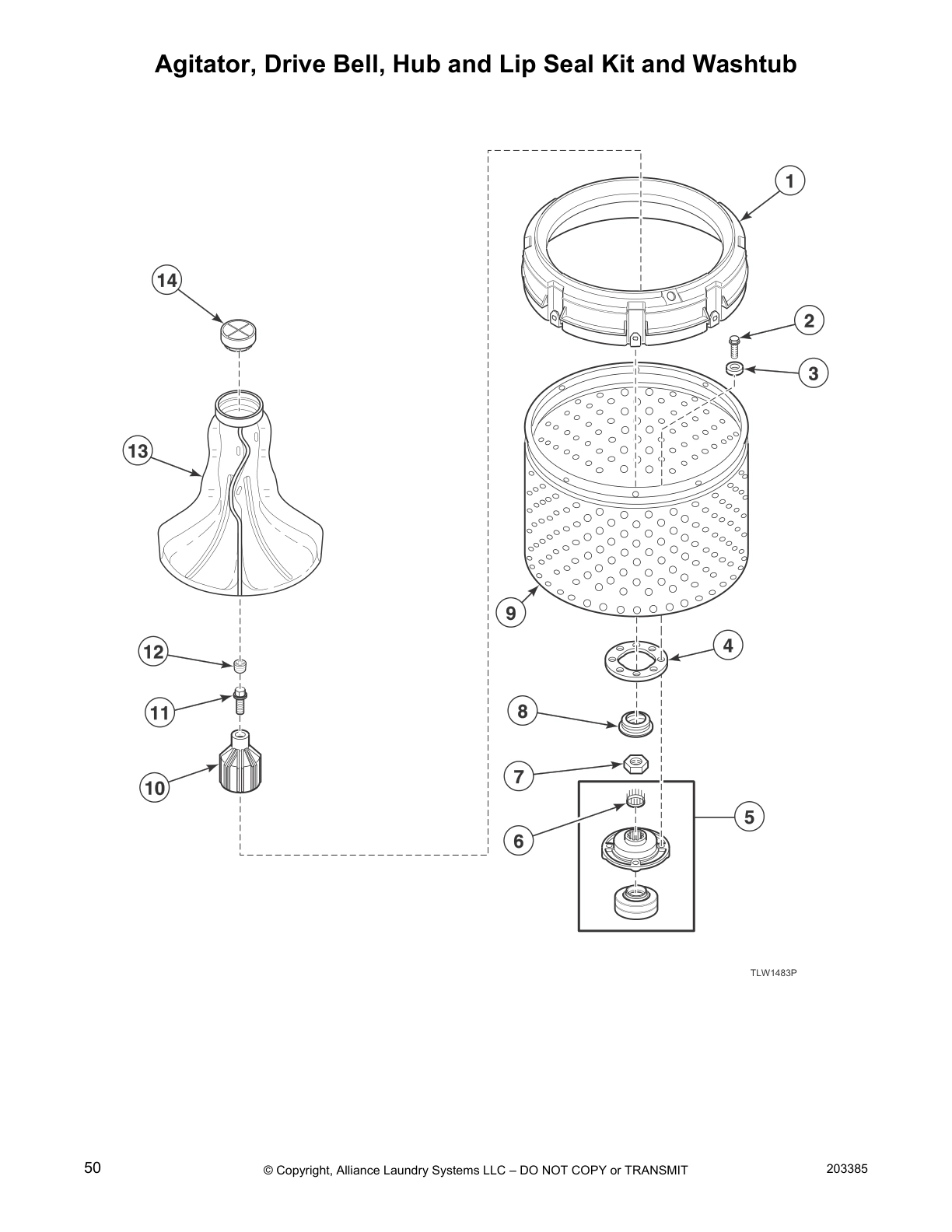

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub

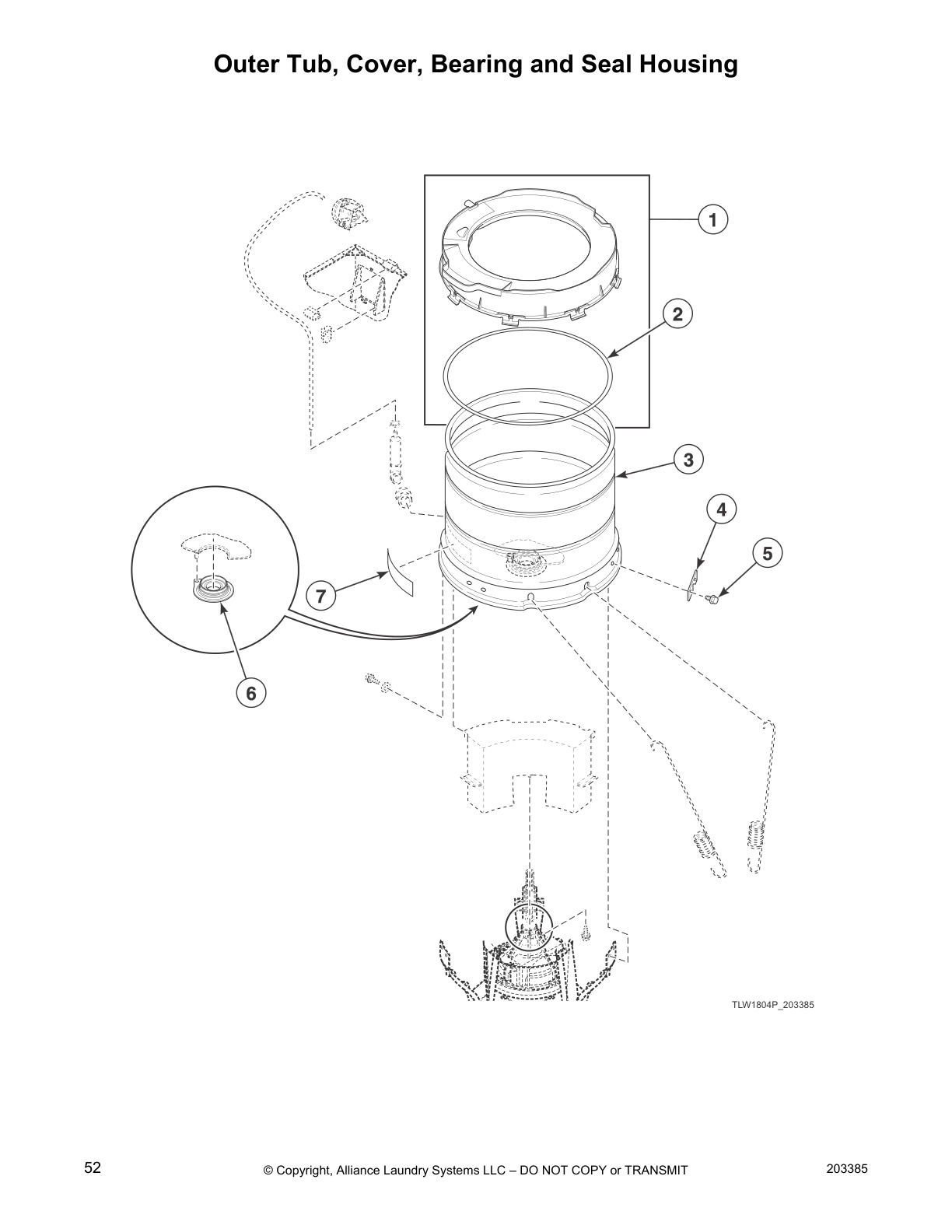

Outer Tub, Cover, Bearing and Seal Housing

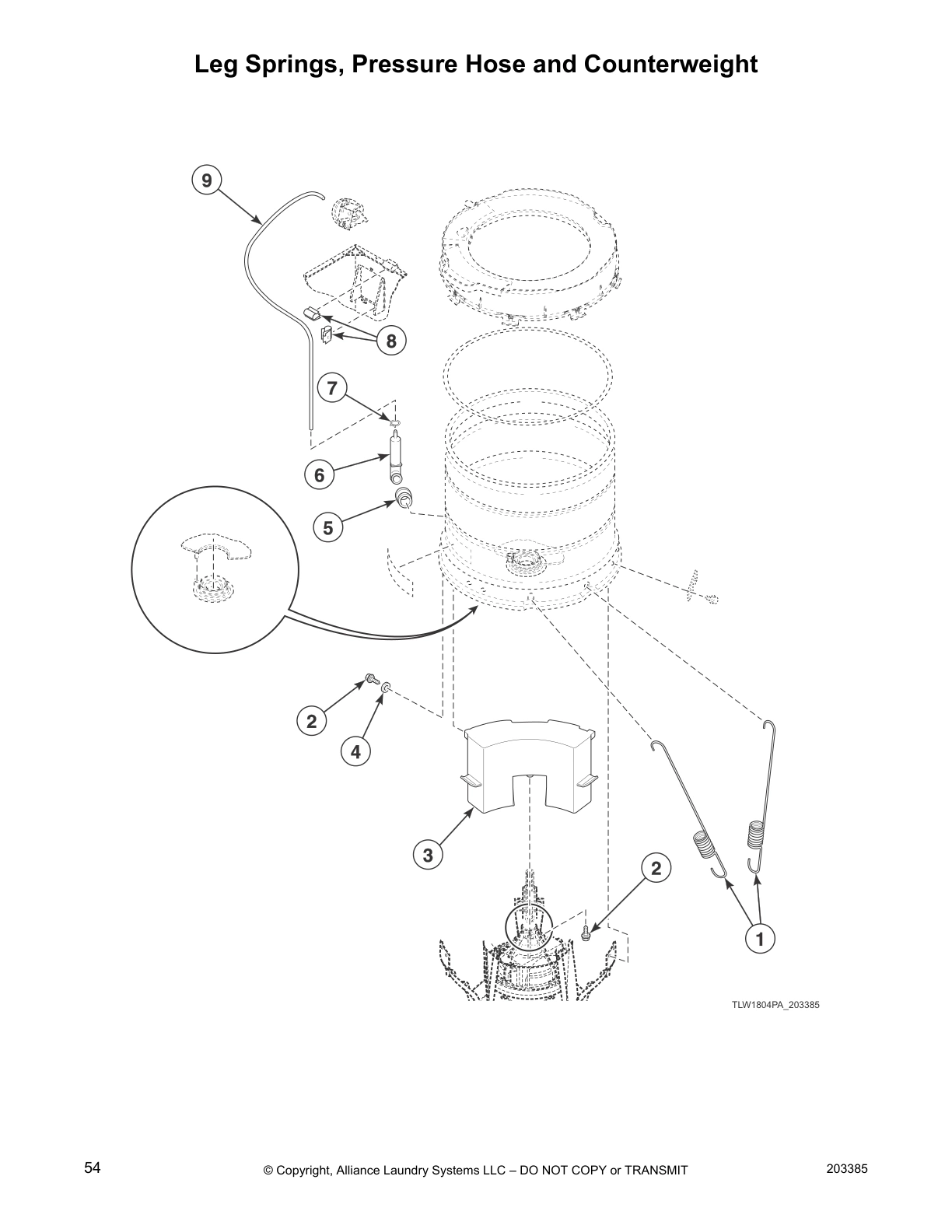

Leg Springs, Pressure Hose and Counterweight

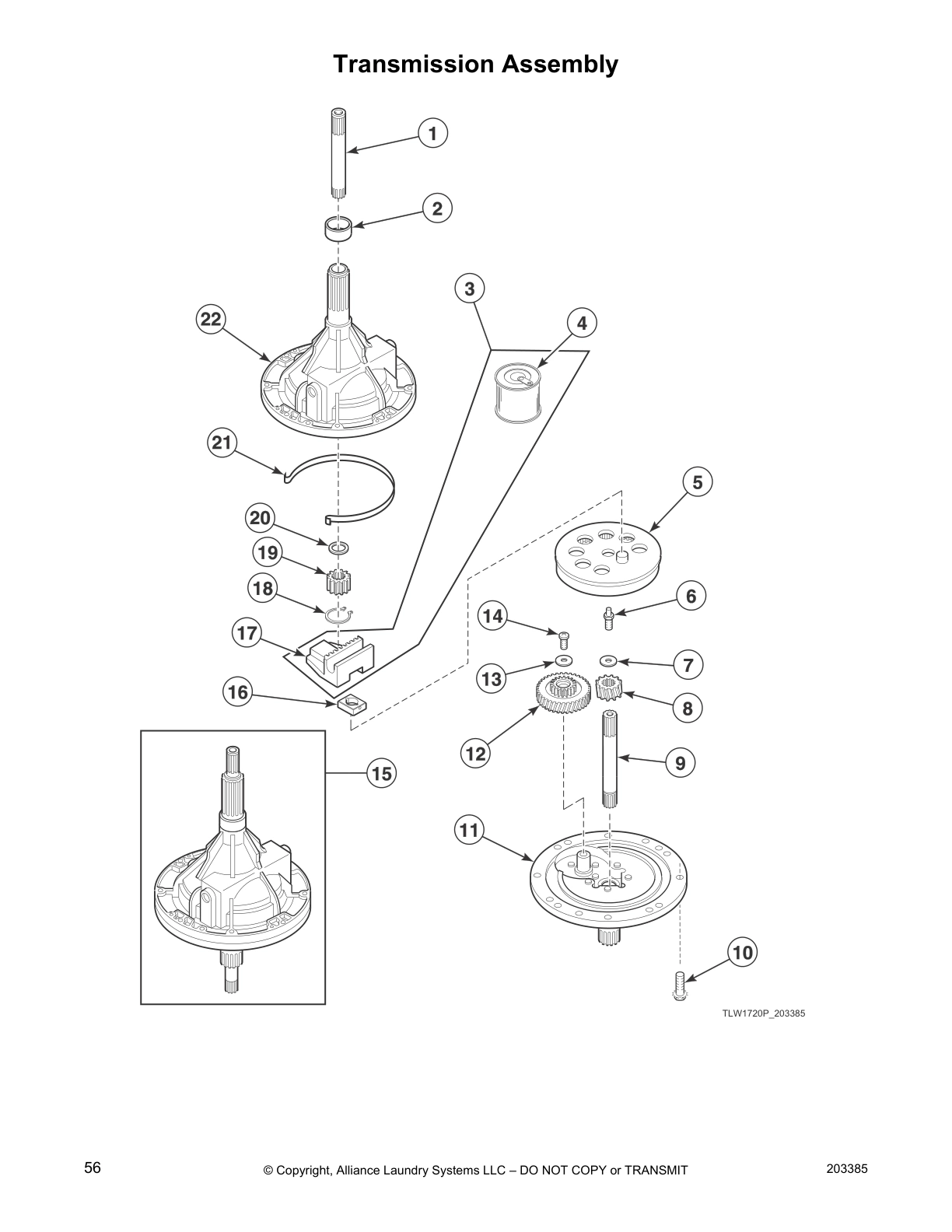

Transmission Assembly
Drain Hoses and Siphon Break Kit
Weldment and Bearing Assembly, Brake and Pulley

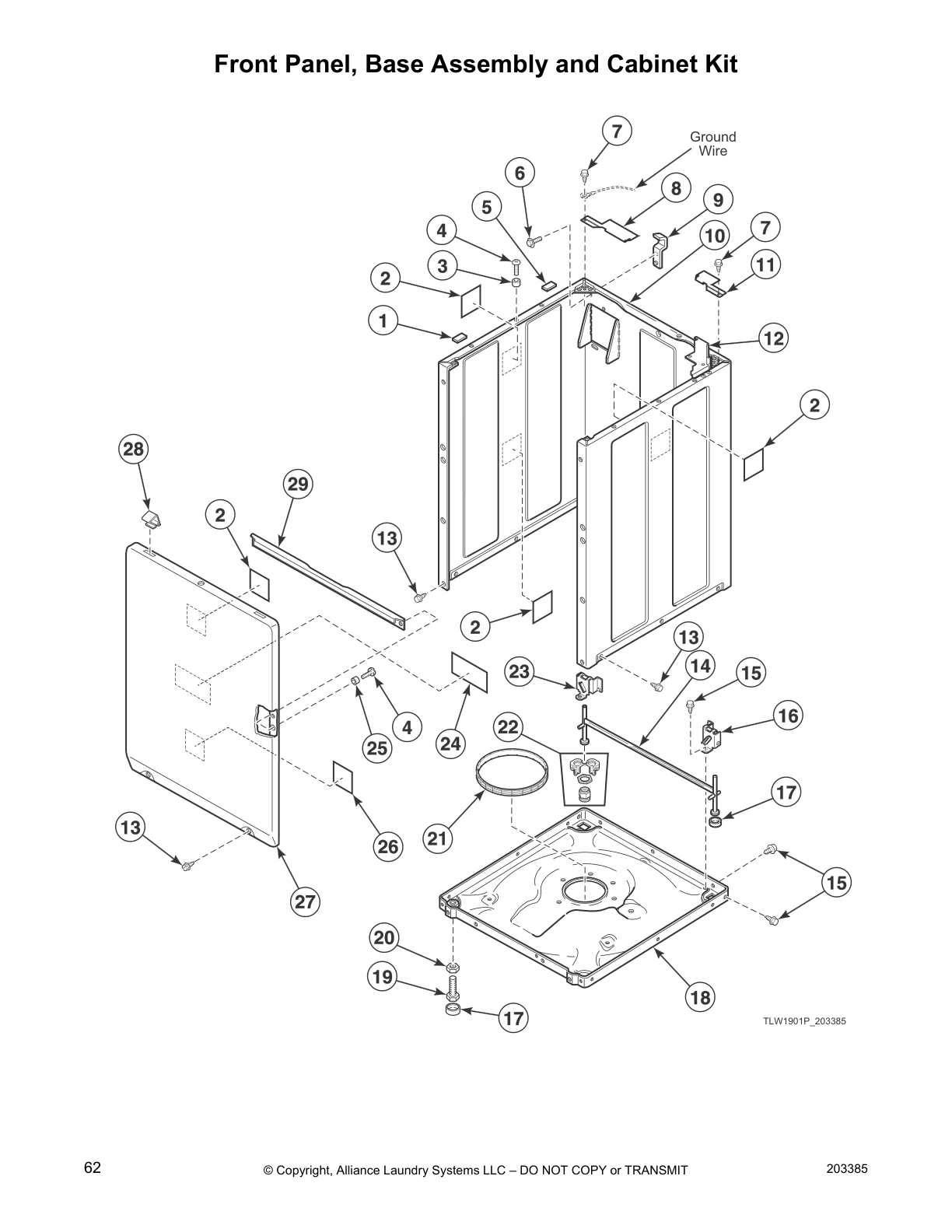

Front Panel, Base Assembly and Cabinet Kit

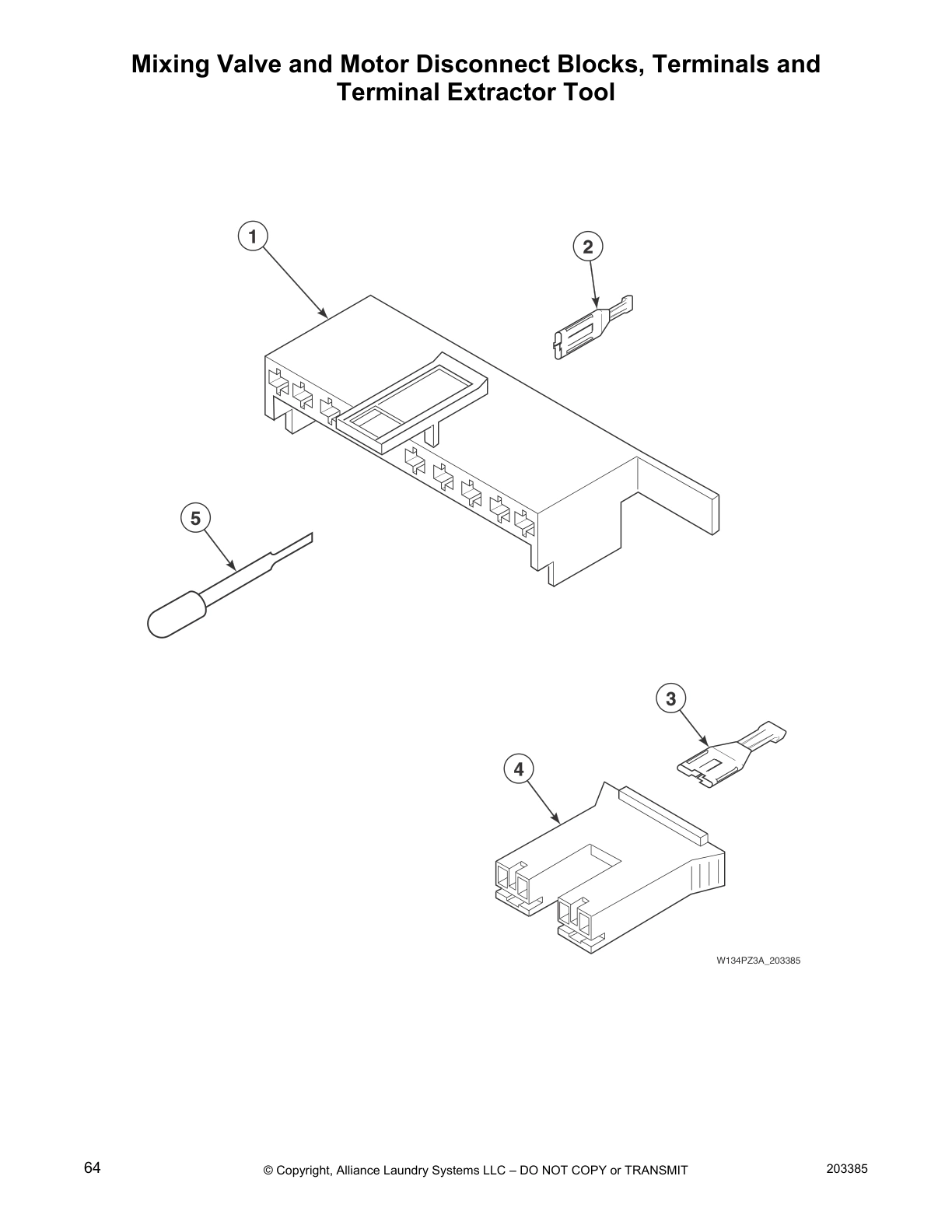

Mixing Valve and Motor Disconnect Blocks, Terminals and
Terminal Extractor Tool

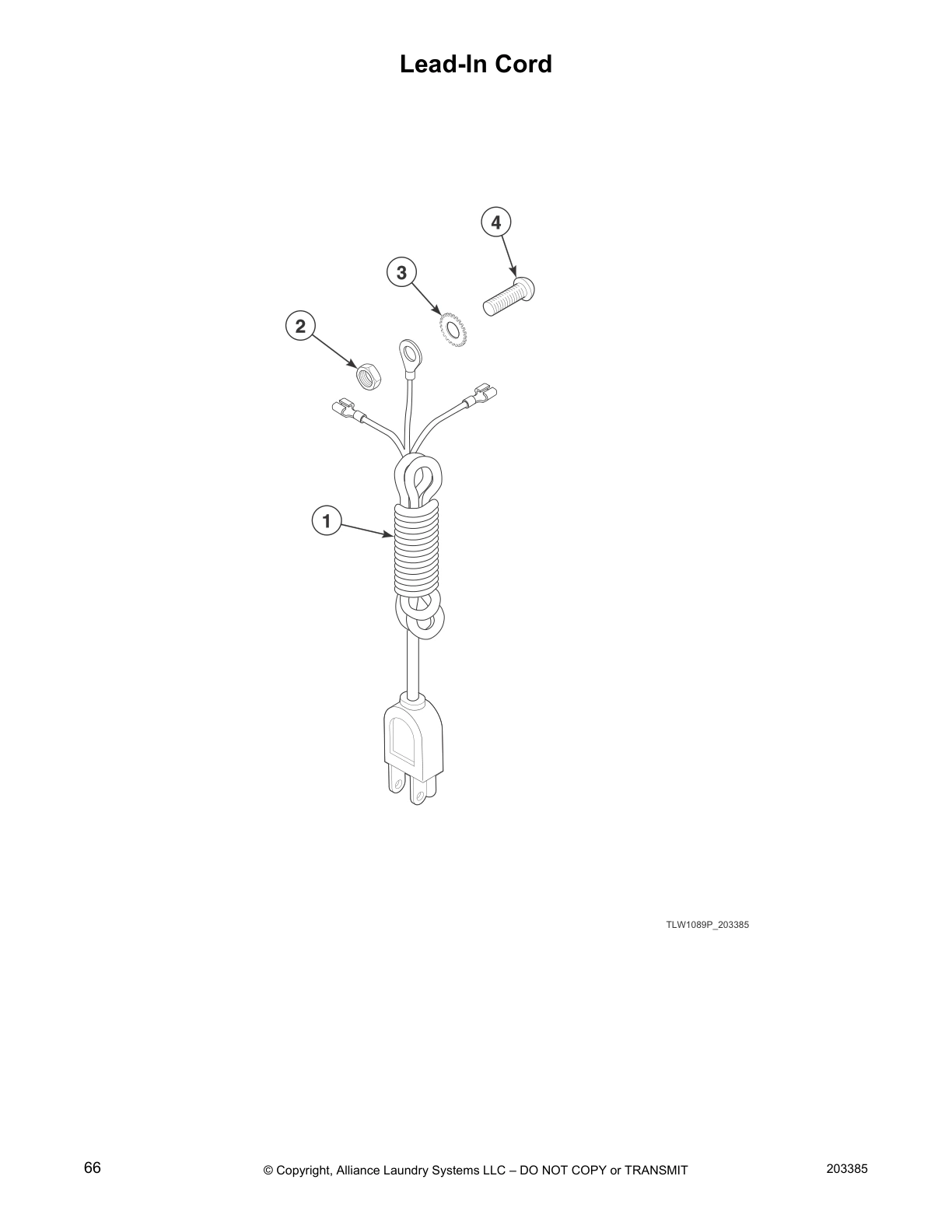

Lead-In Cord

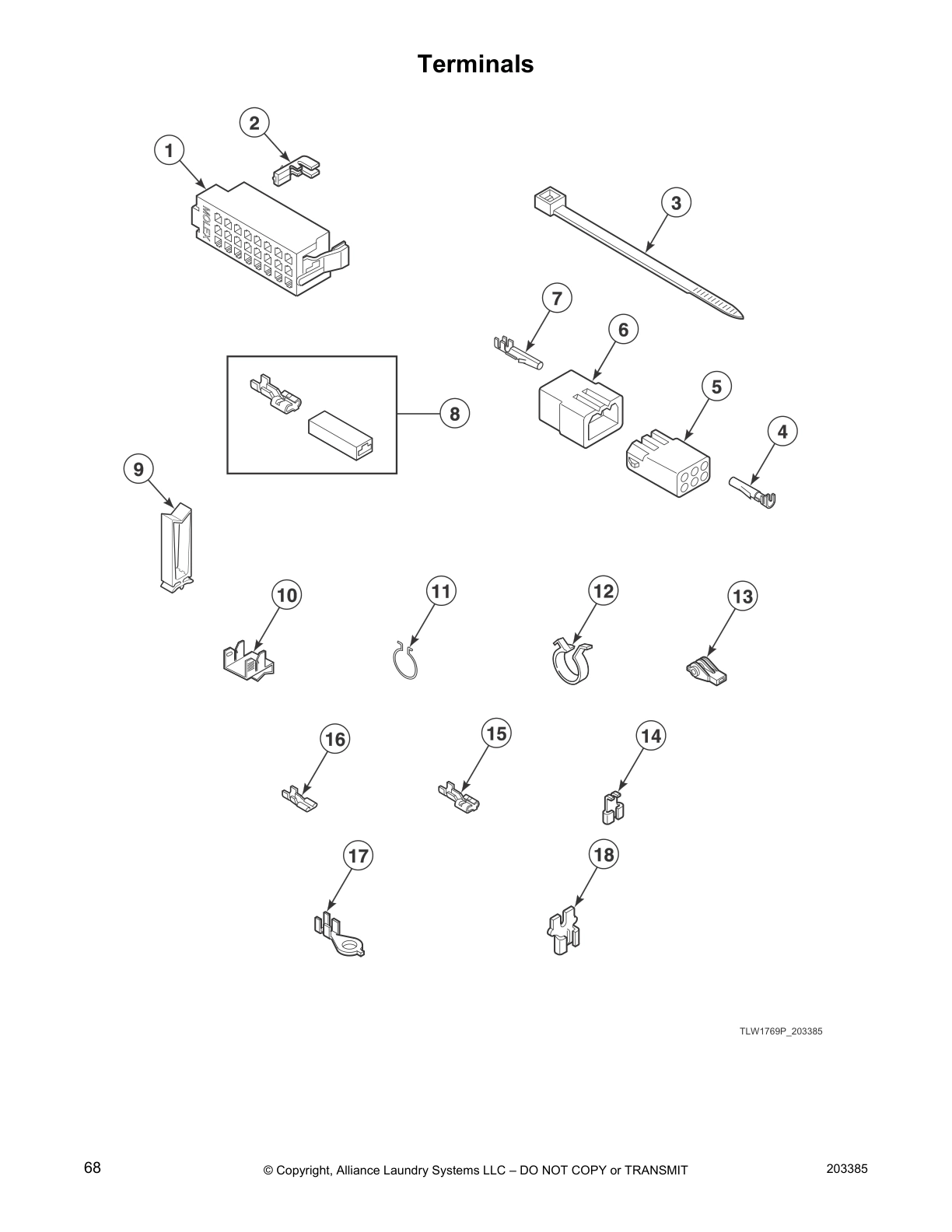

Terminals
Shipping Materials and Special Tools
Special Tools

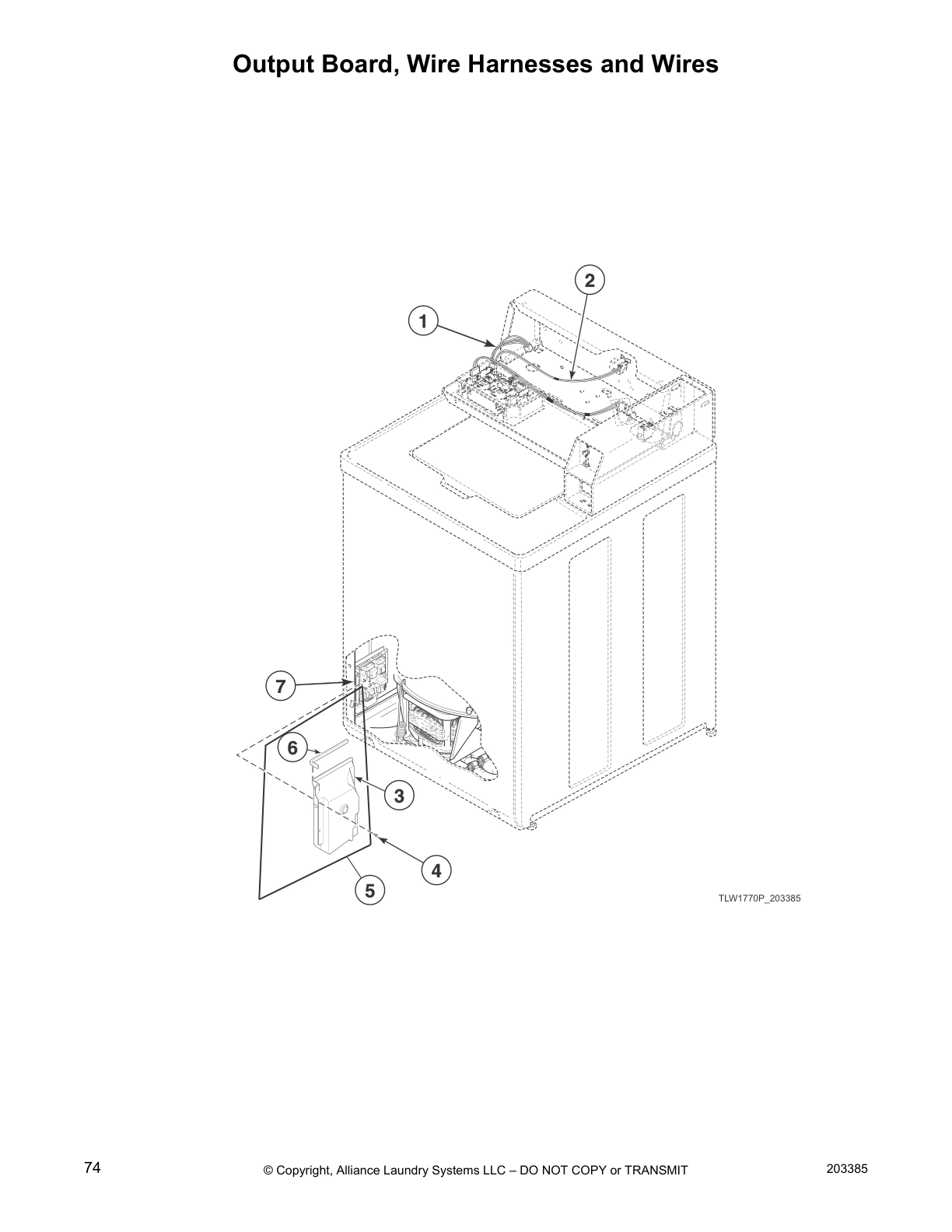

Output Board, Wire Harnesses and Wires
Common parts from model Speed Queen SWNNX2SP116TW01 Washer
SPQ 70441601P No Longer Available
2
Pressure Sensor Harness SPQ 204913 Contact Us For Availability
6
Transmission Pin Tool SPQ 305P4 Contact Us For Availability
7
Torx Bit SPQ 281P4 Contact Us For Availability
× ![]()
