Model Speed Queen SWNNC2SP115TQ01 Washer – Common Parts & Diagrams

Meter Case Assembly (Drawing 1 of 2)

Meter Case Assembly (Drawing 2 of 2)

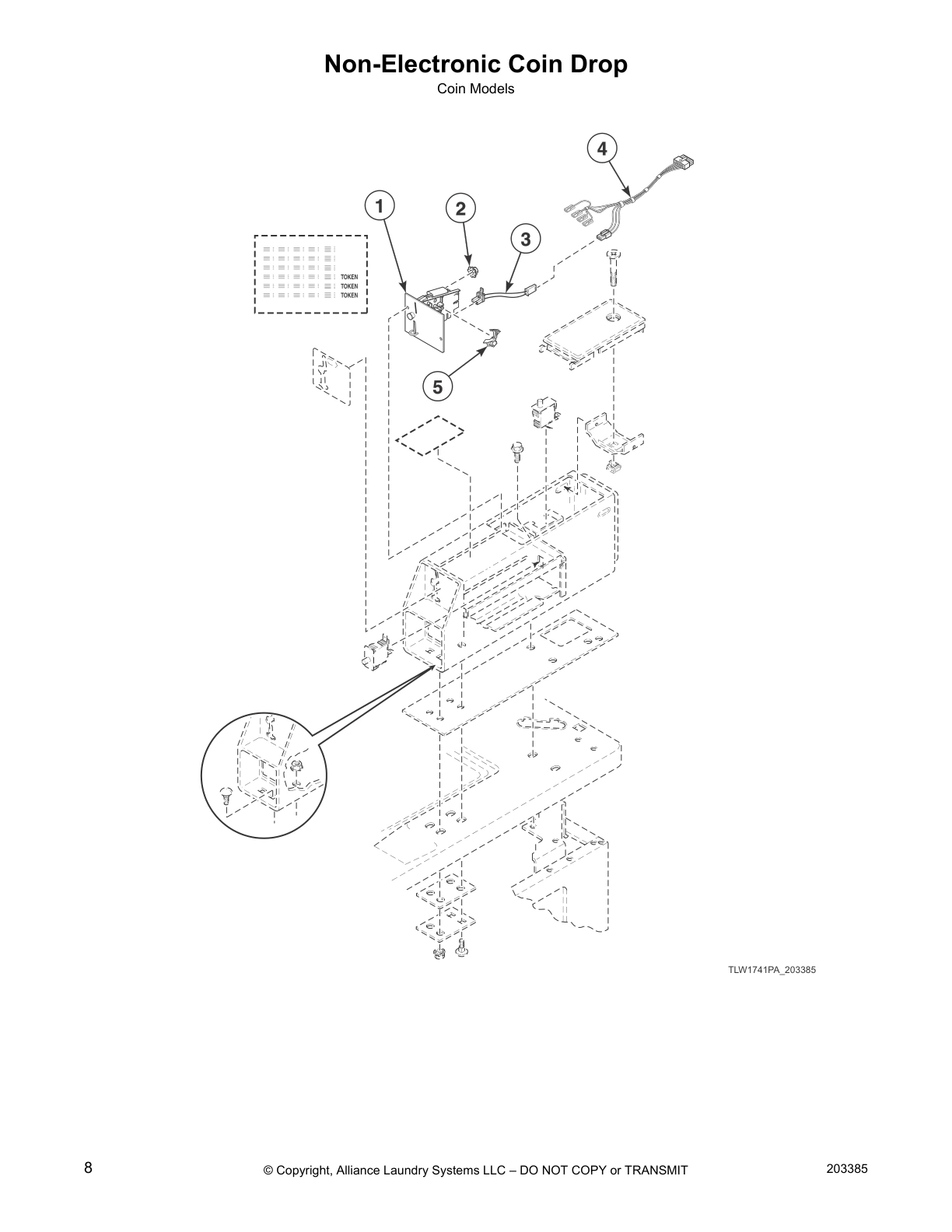

Non-Electronic Coin Drop

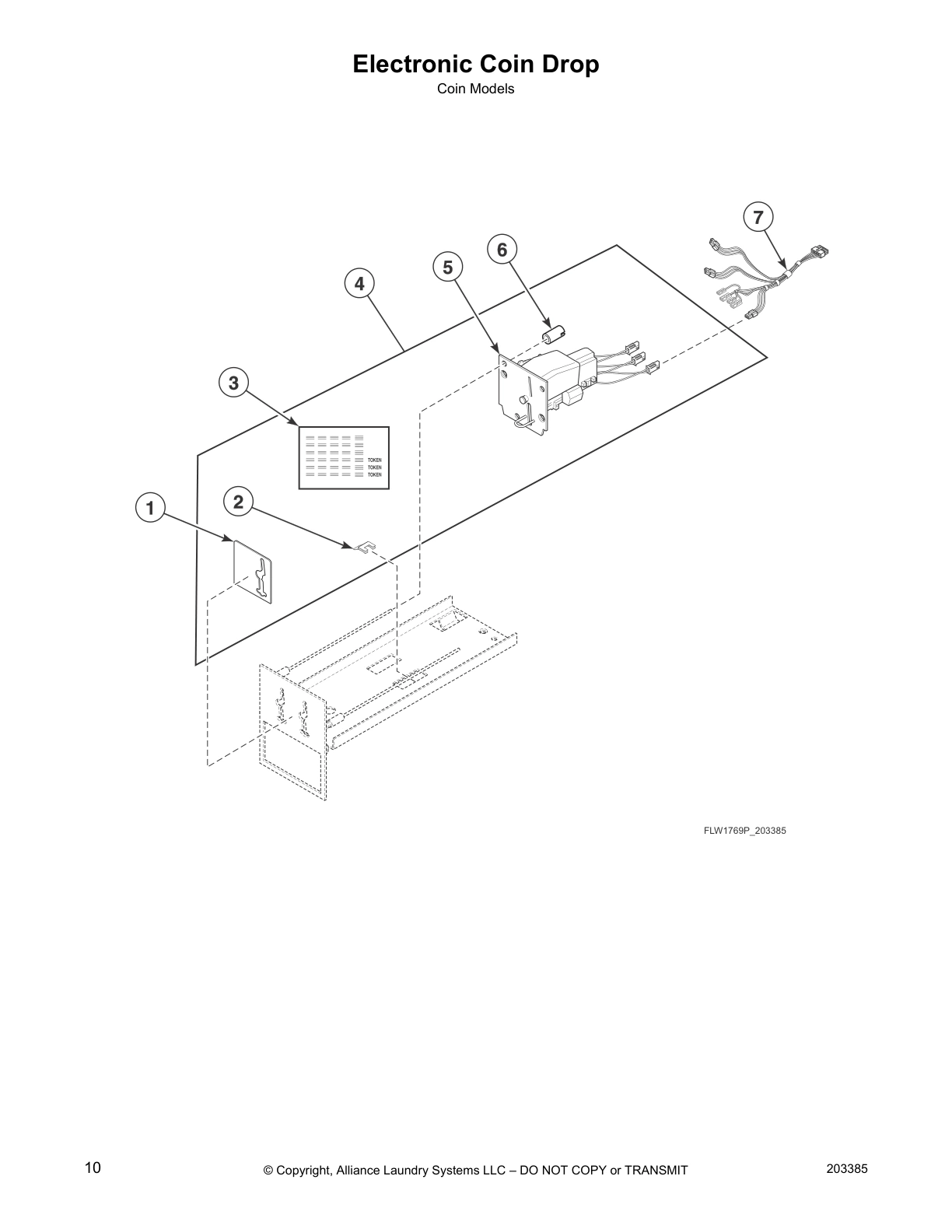

Electronic Coin Drop

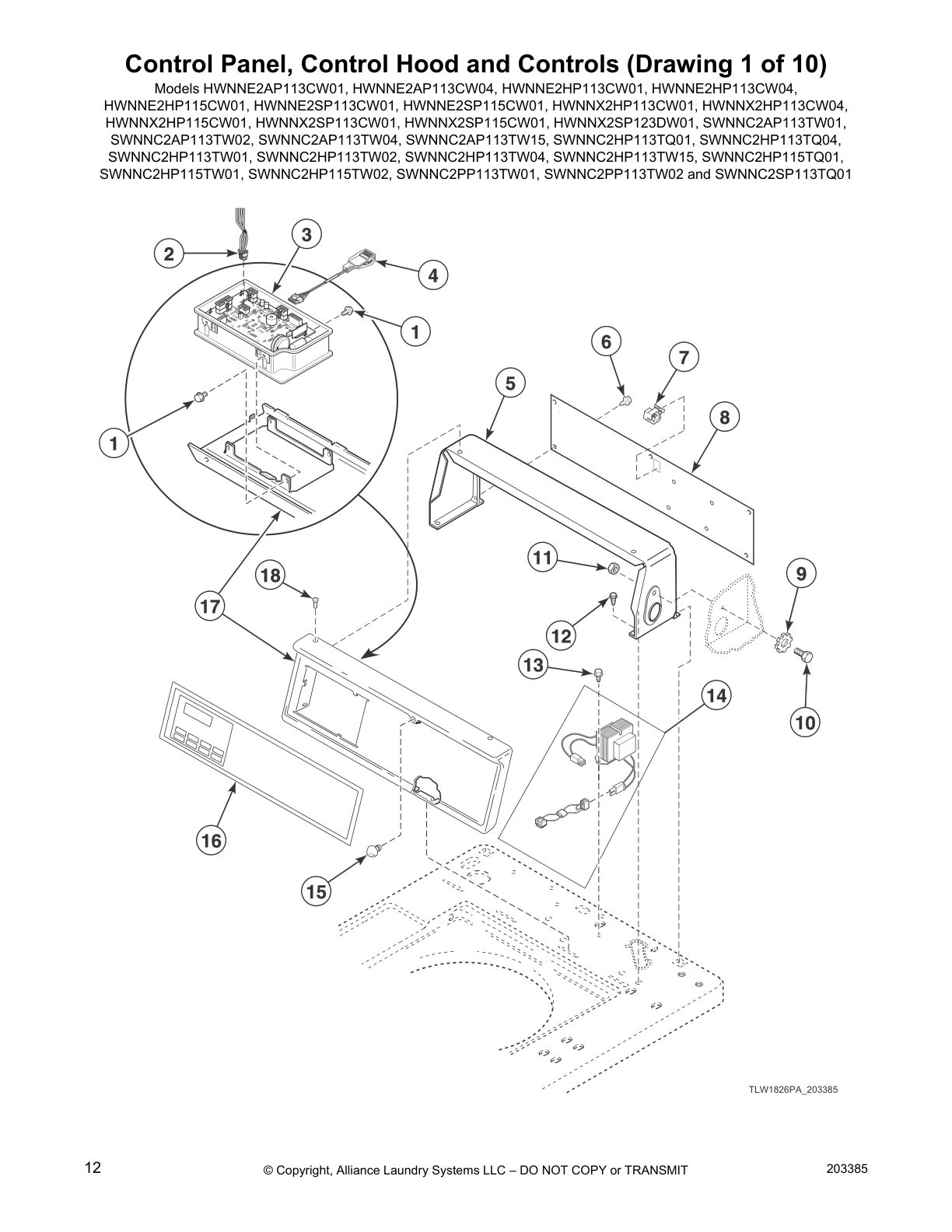

Control Panel, Control Hood and Controls (Drawing 1 of 10)

Control Panel, Control Hood and Controls (Drawing 2 of 10)

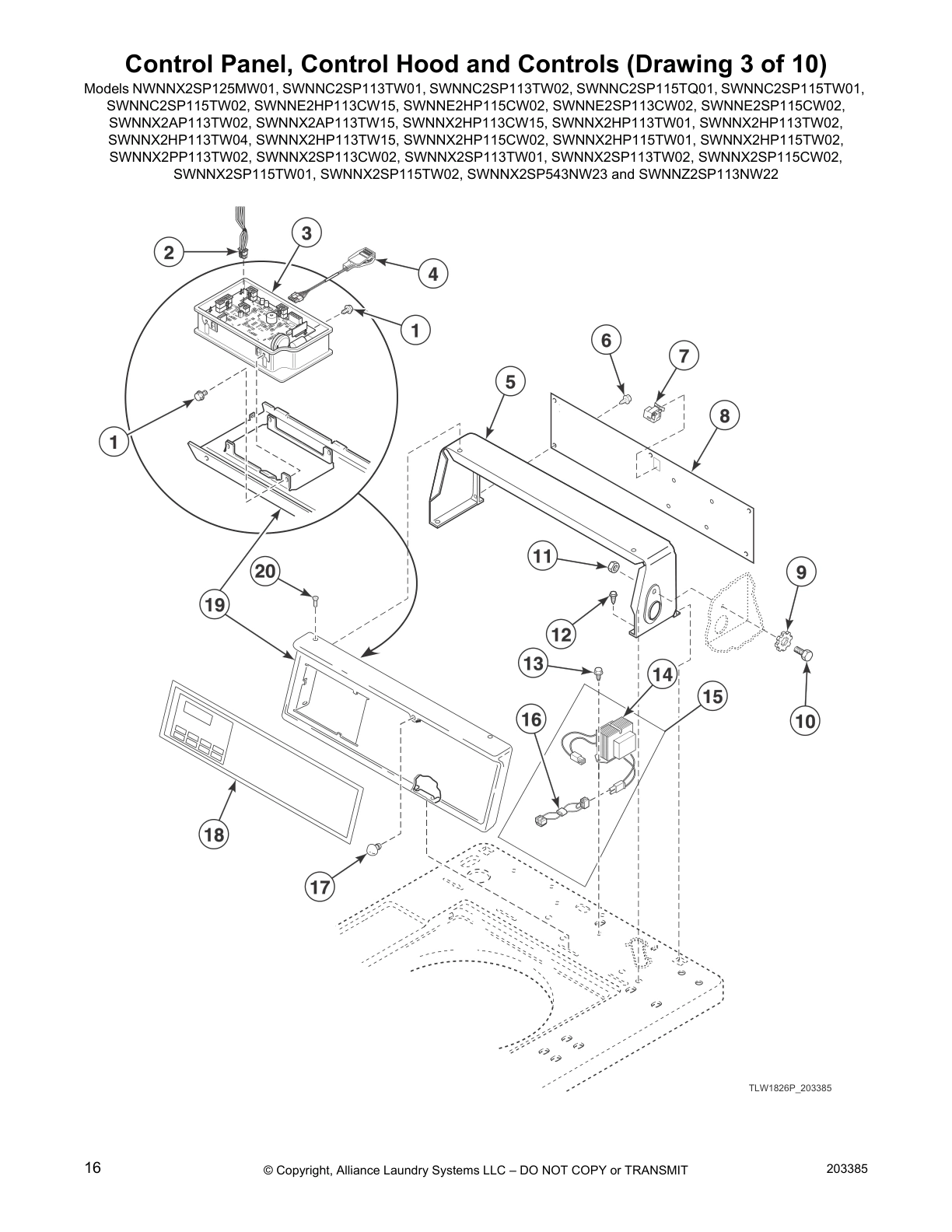

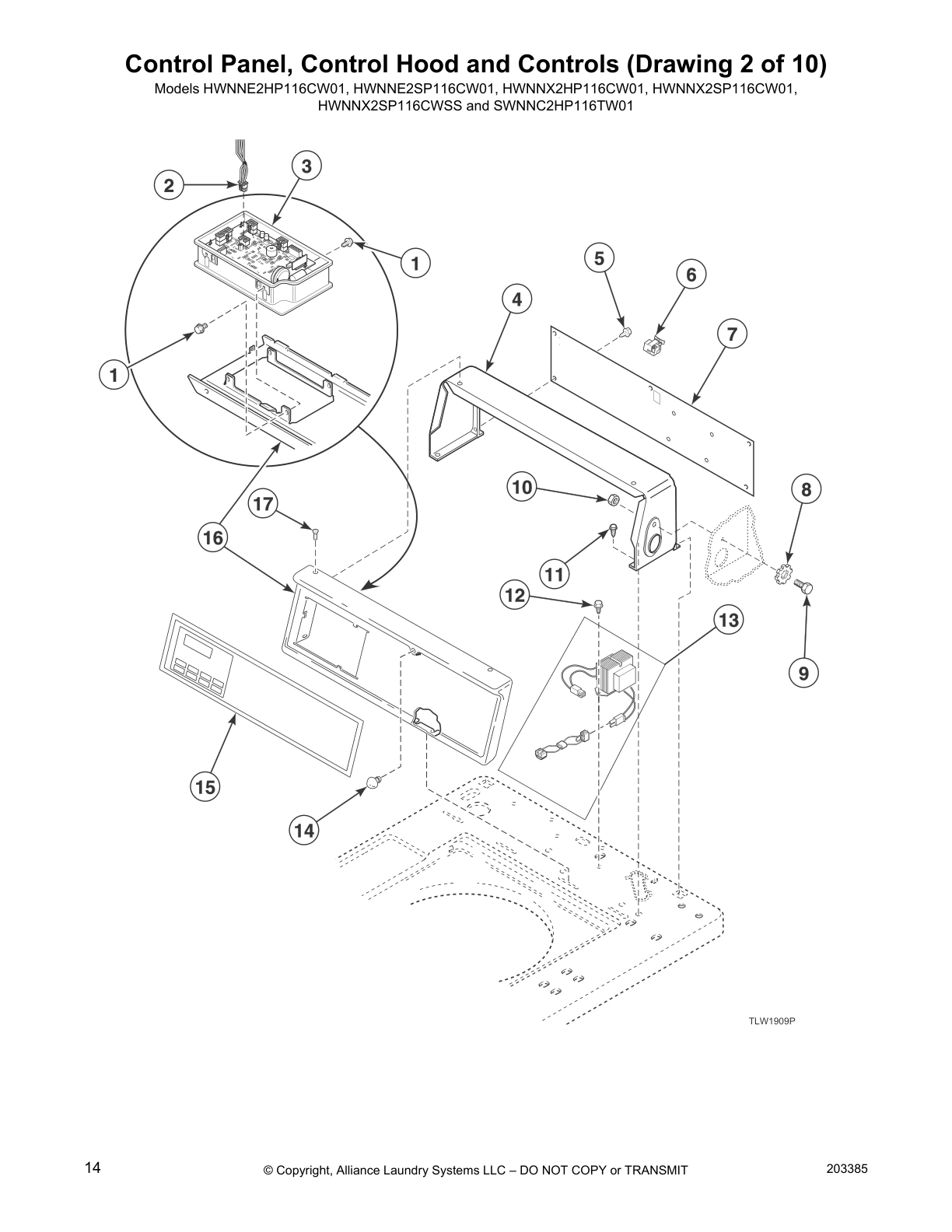

Control Panel, Control Hood and Controls (Drawing 3 of 10)

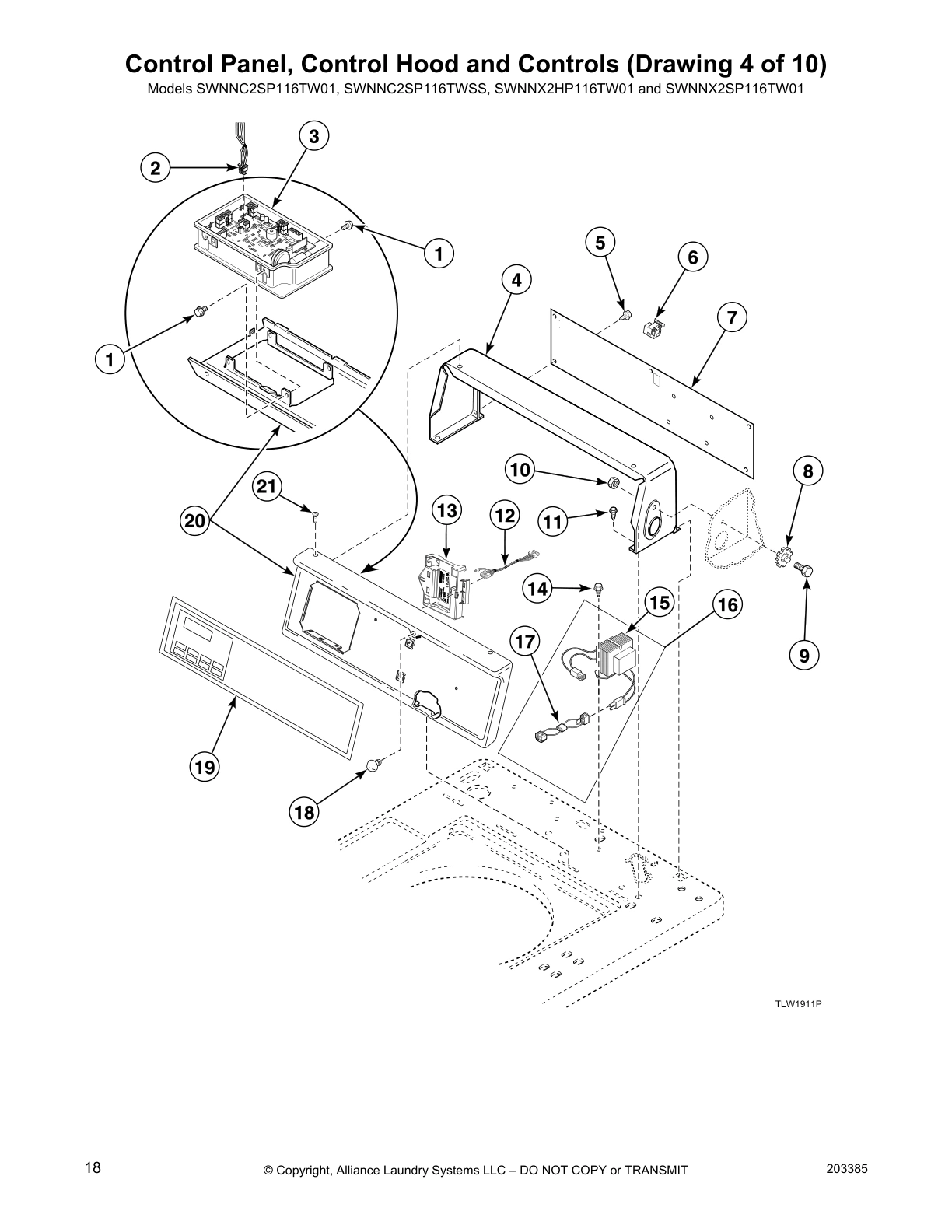

Control Panel, Control Hood and Controls (Drawing 4 of 10)

Control Panel, Control Hood and Controls (Drawing 5 of 10)

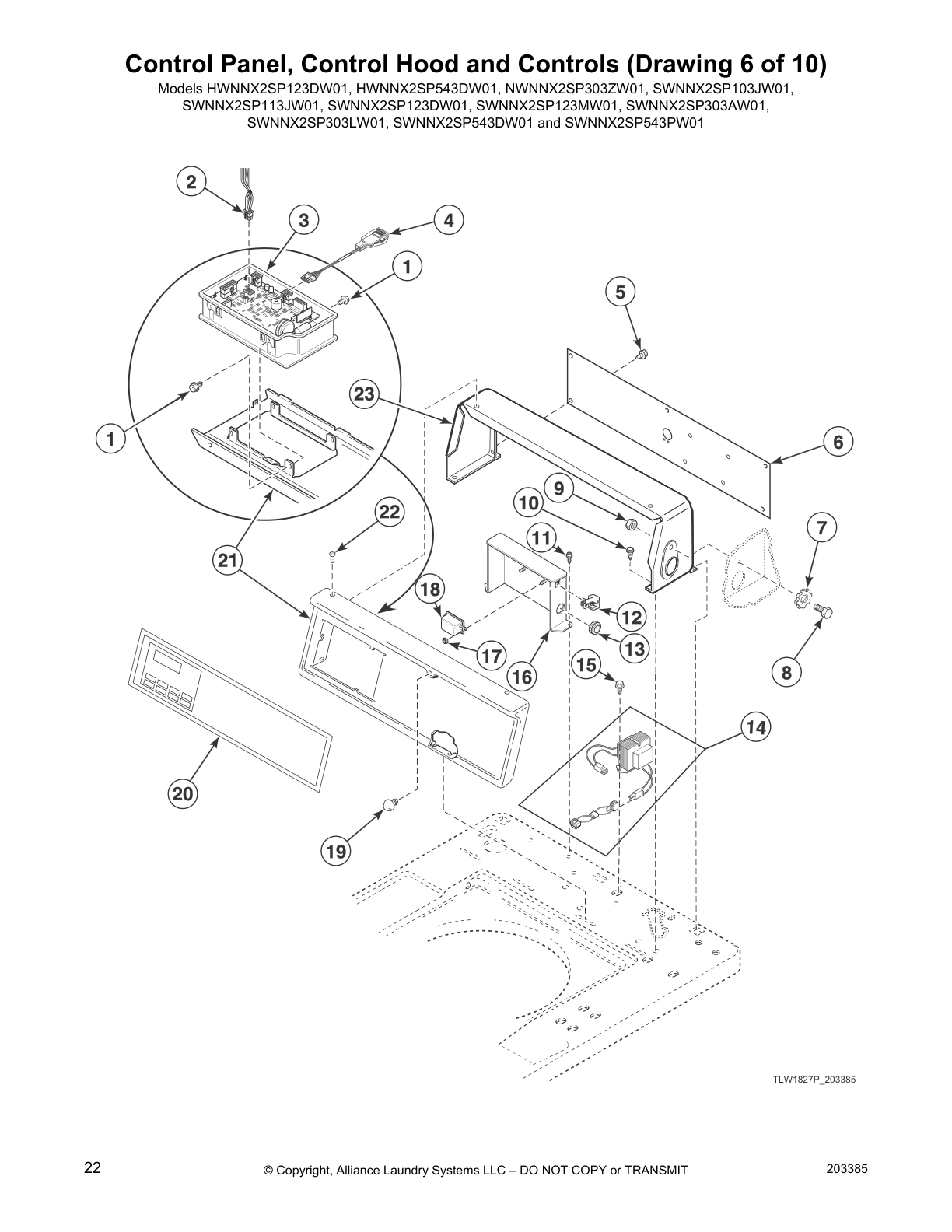

Control Panel, Control Hood and Controls (Drawing 6 of 10)

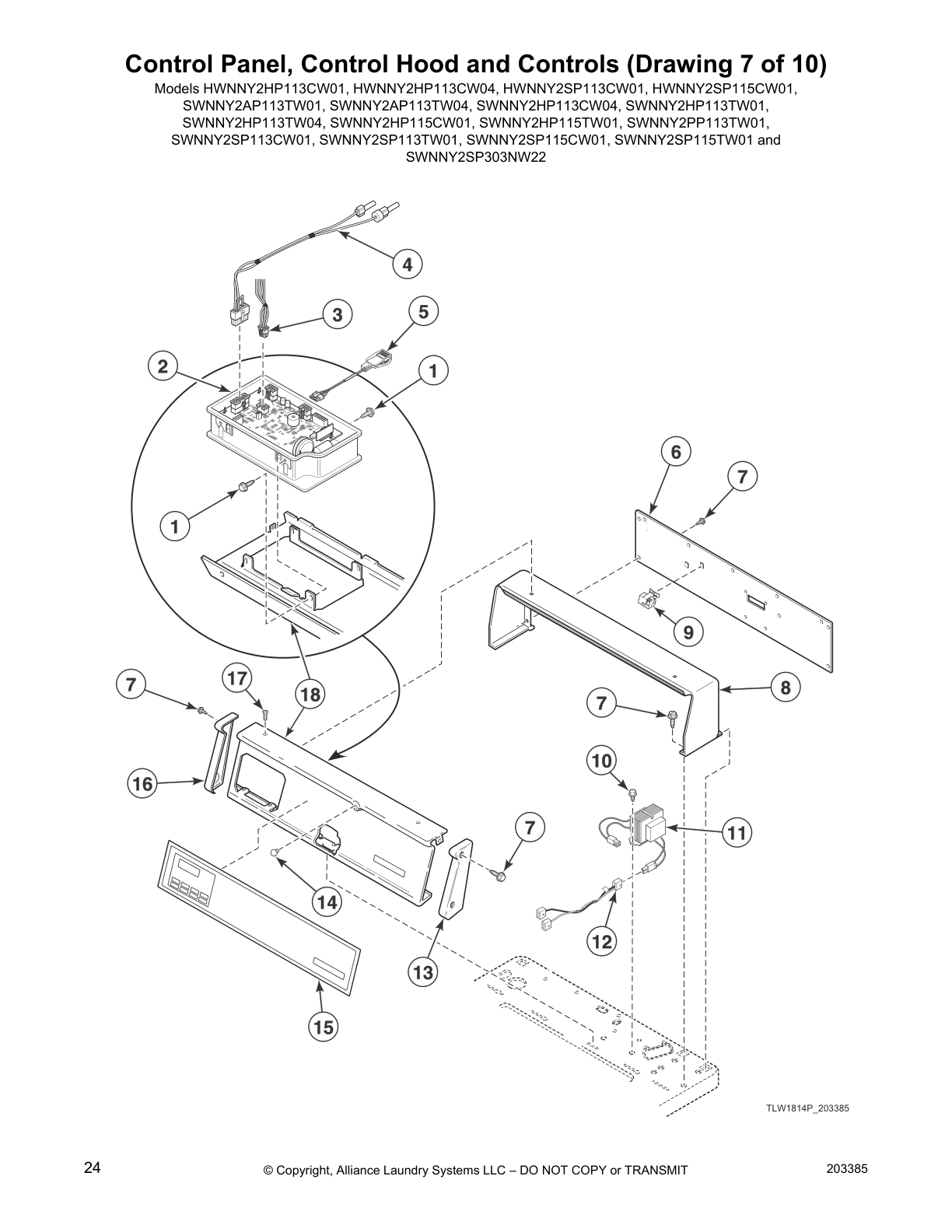

Control Panel, Control Hood and Controls (Drawing 7 of 10)

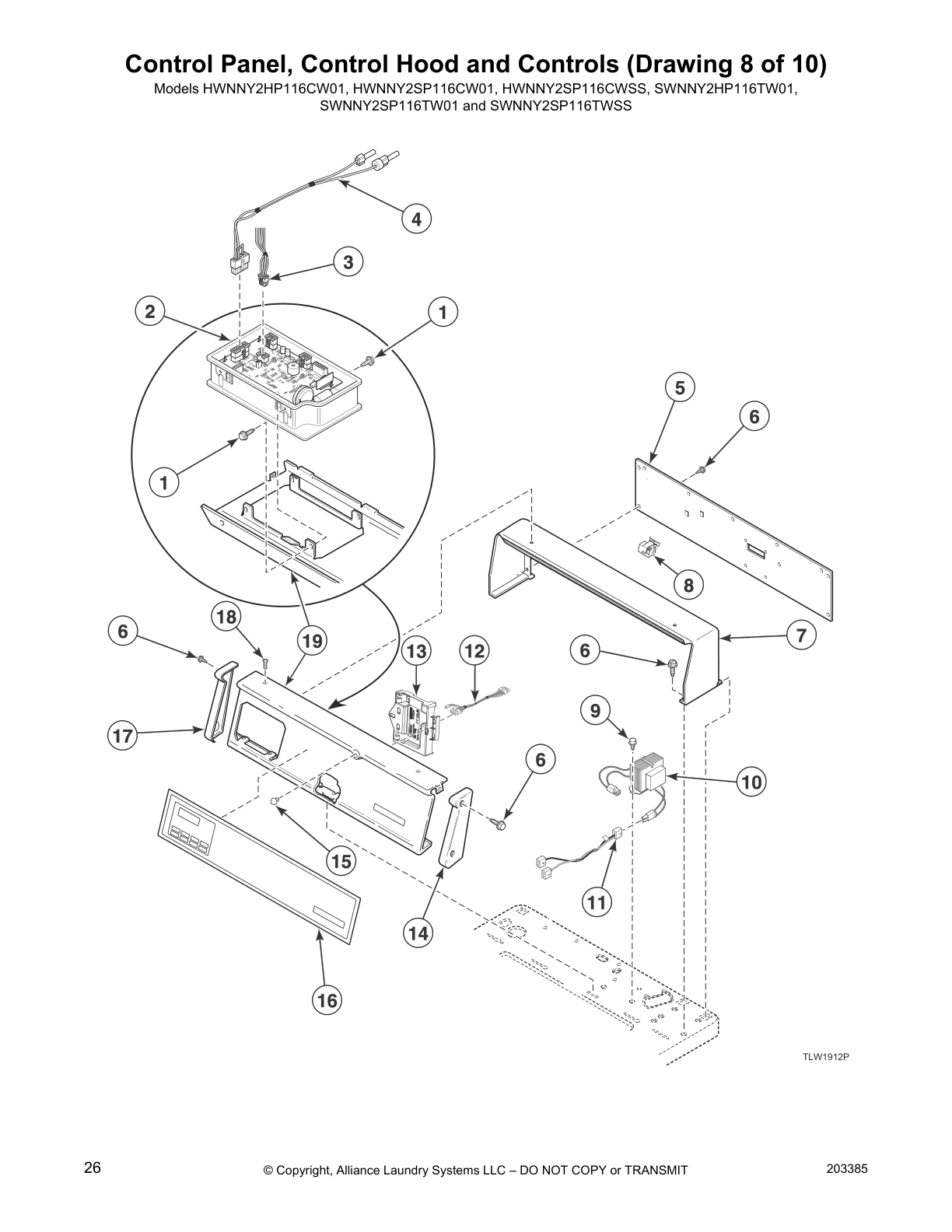

Control Panel, Control Hood and Controls (Drawing 8 of 10)

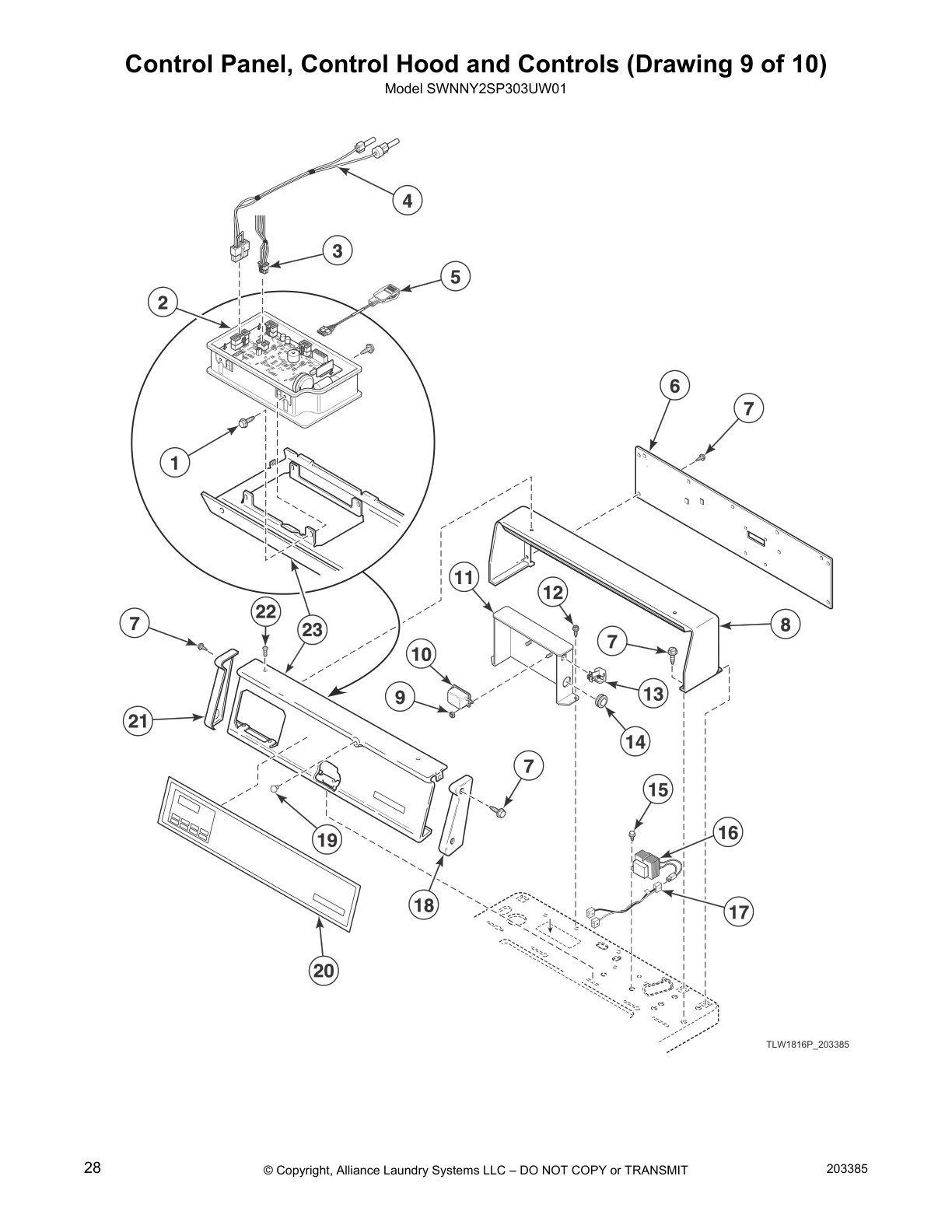

Control Panel, Control Hood and Controls (Drawing 9 of 10)

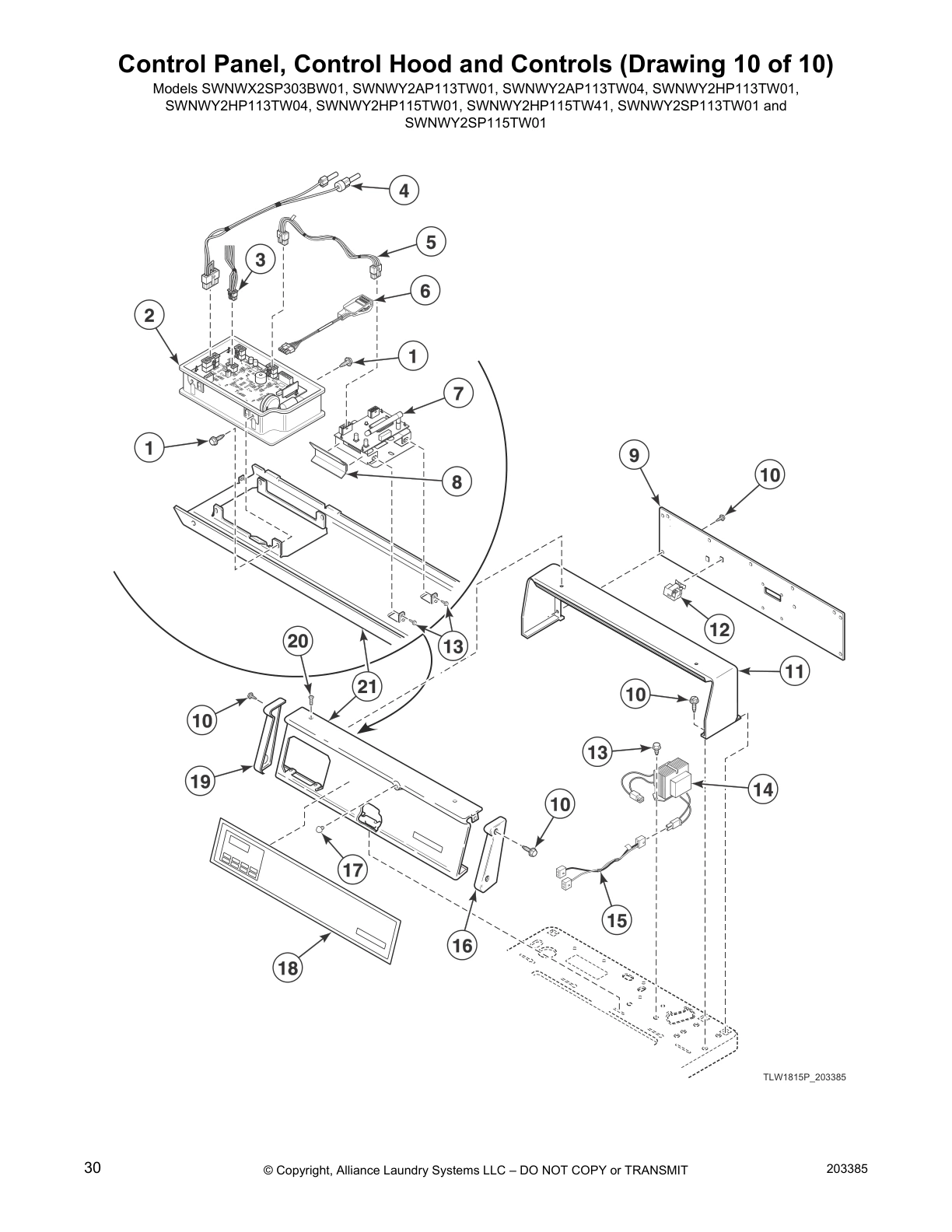

Control Panel, Control Hood and Controls (Drawing 10 of 10)

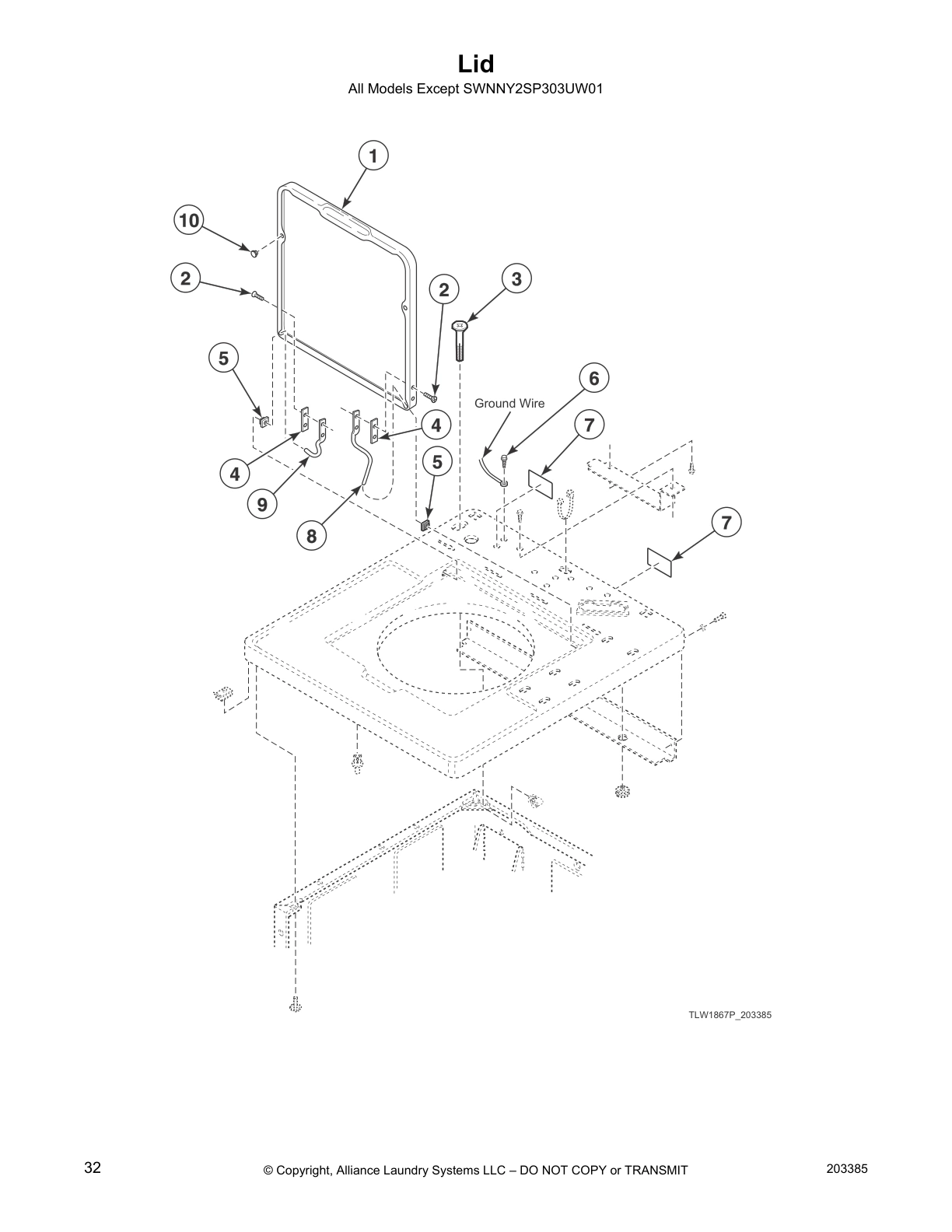

Lid

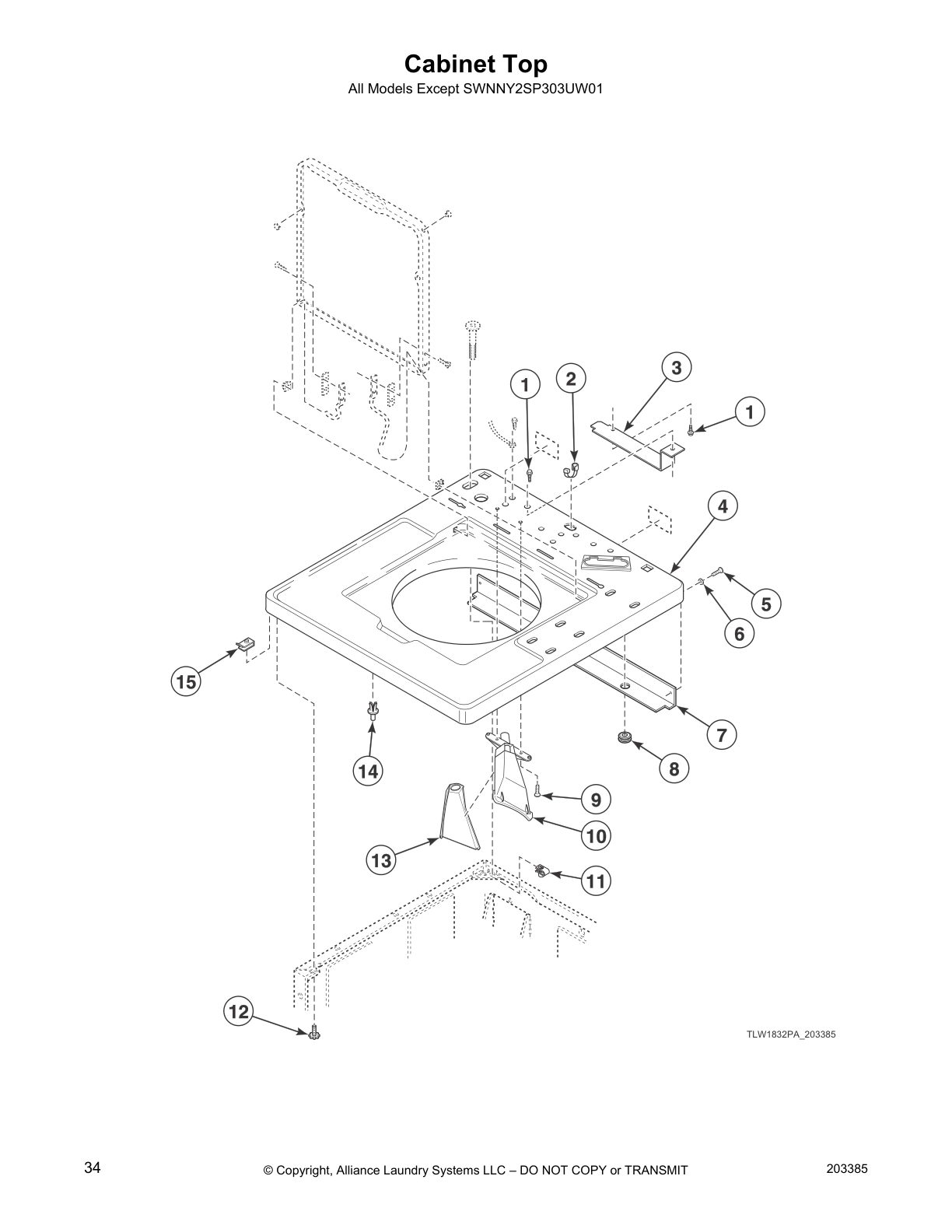

Cabinet Top

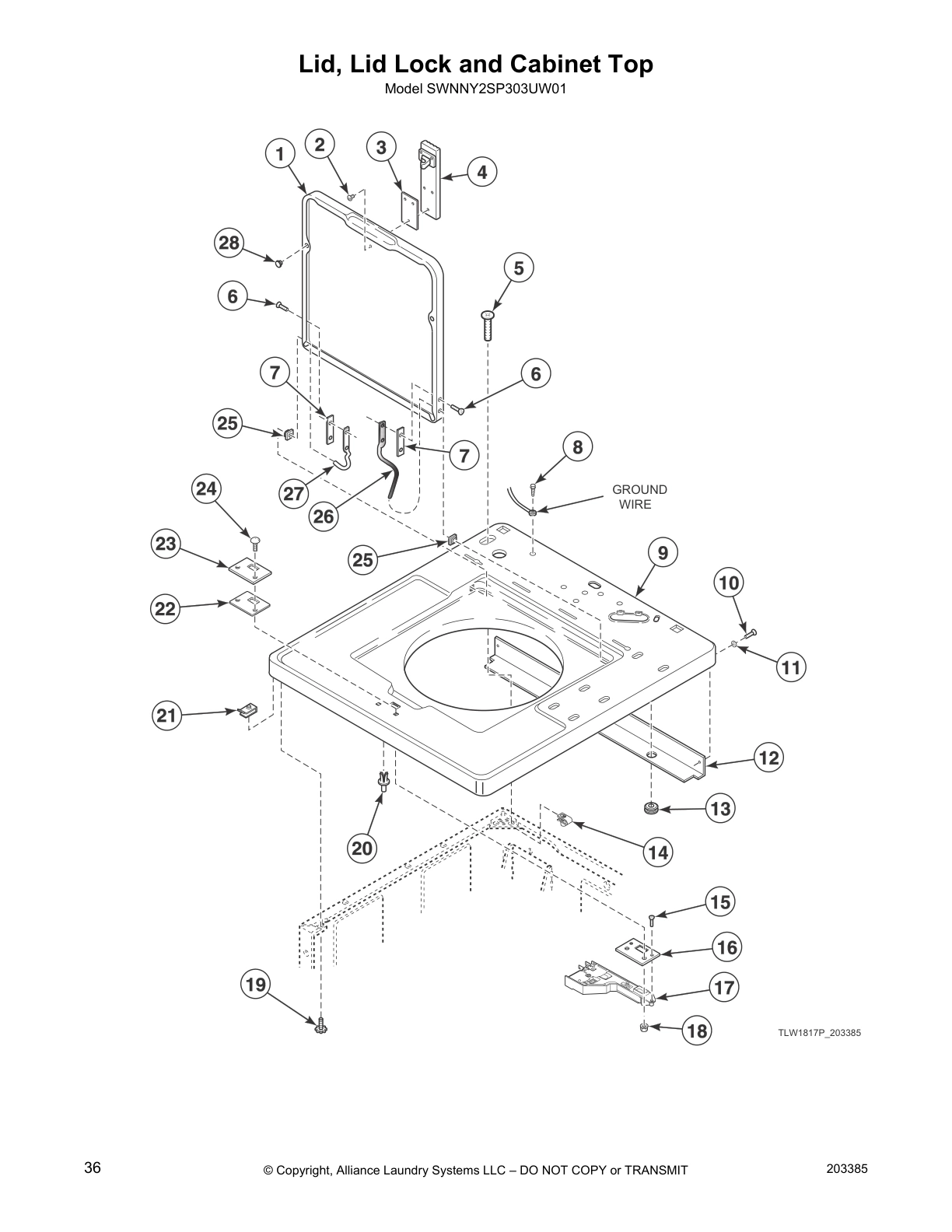

Lid, Lid Lock and Cabinet Top

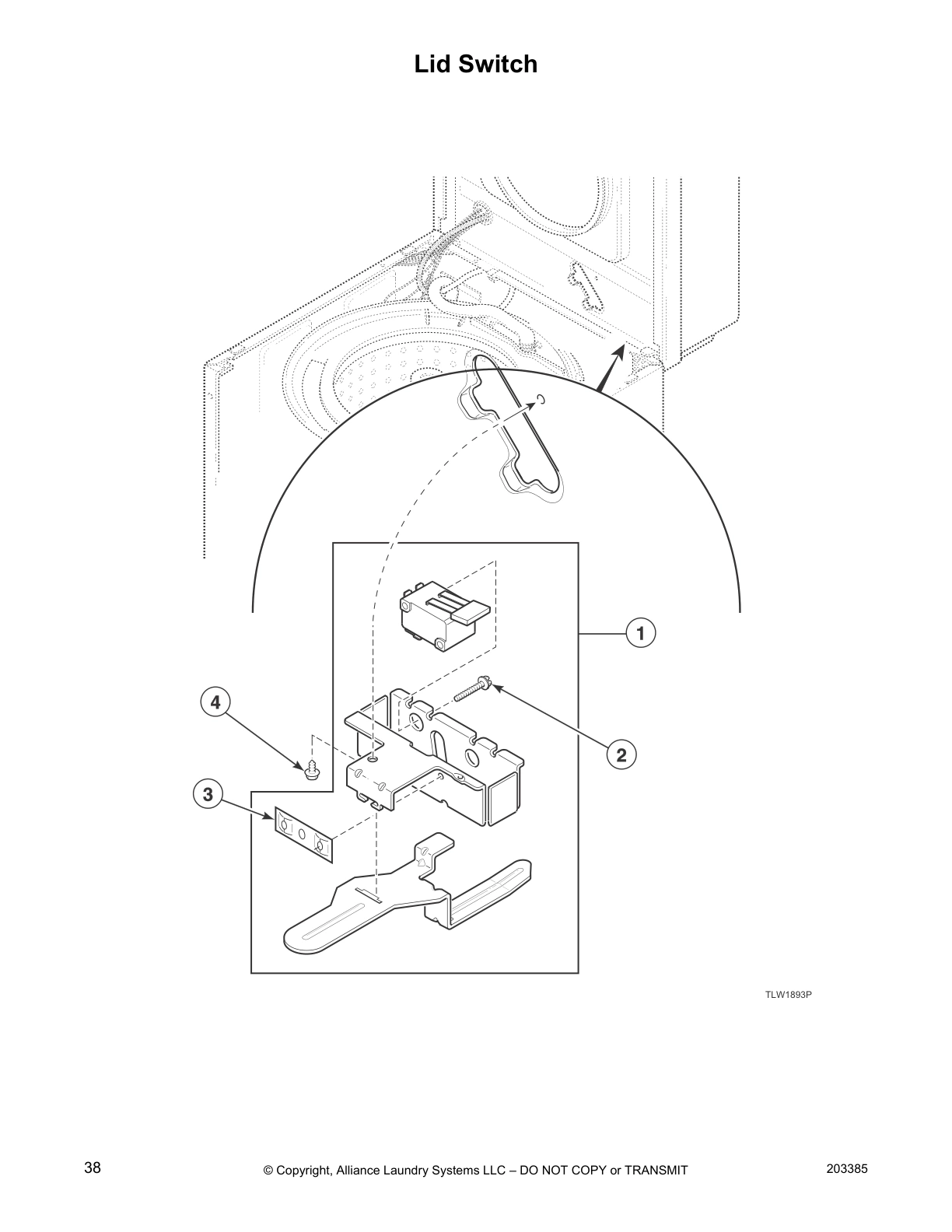

Lid Switch

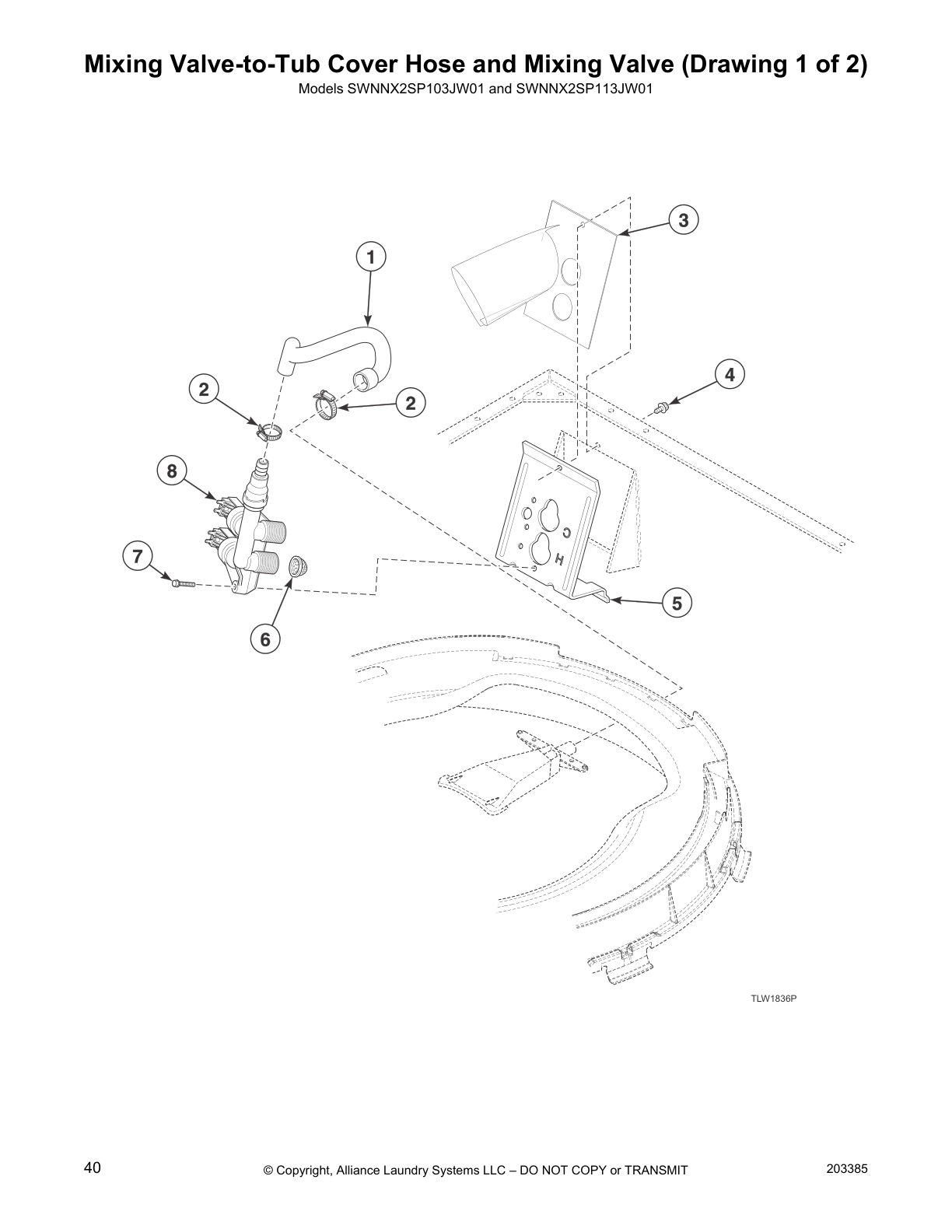

Mixing Valve-to-Tub Cover Hose and Mixing Valve (Drawing 1 of 2)

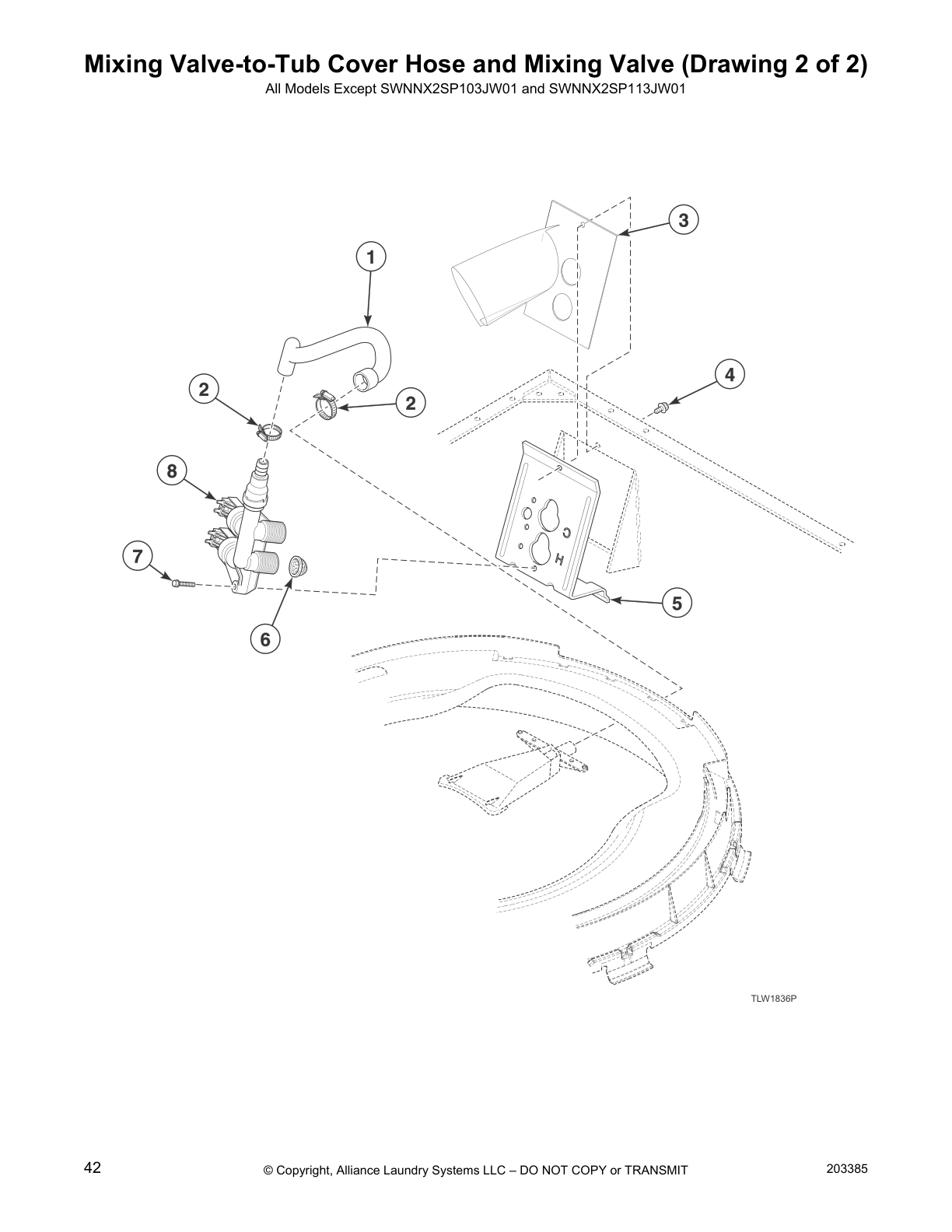

Mixing Valve-to-Tub Cover Hose and Mixing Valve (Drawing 2 of 2)

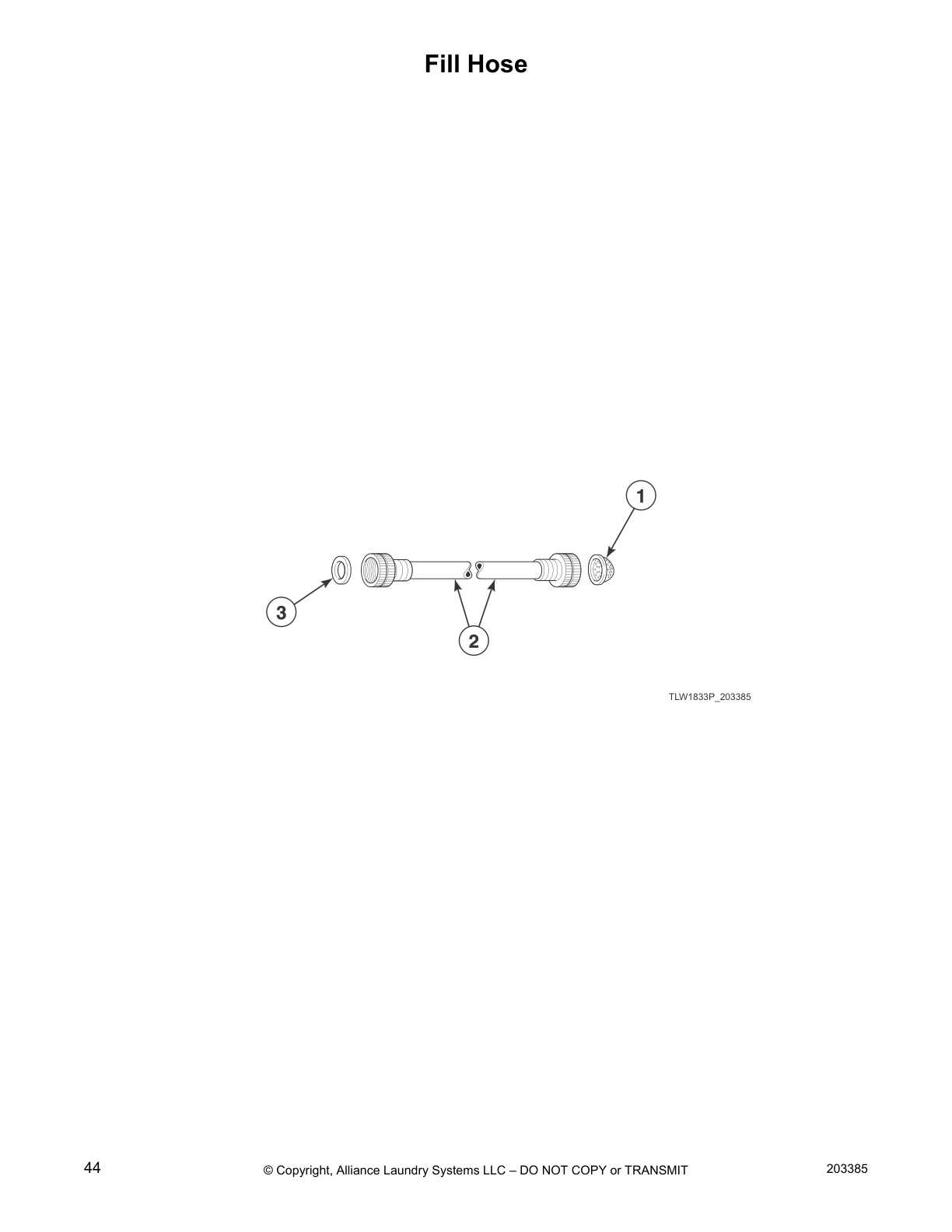

Fill Hose

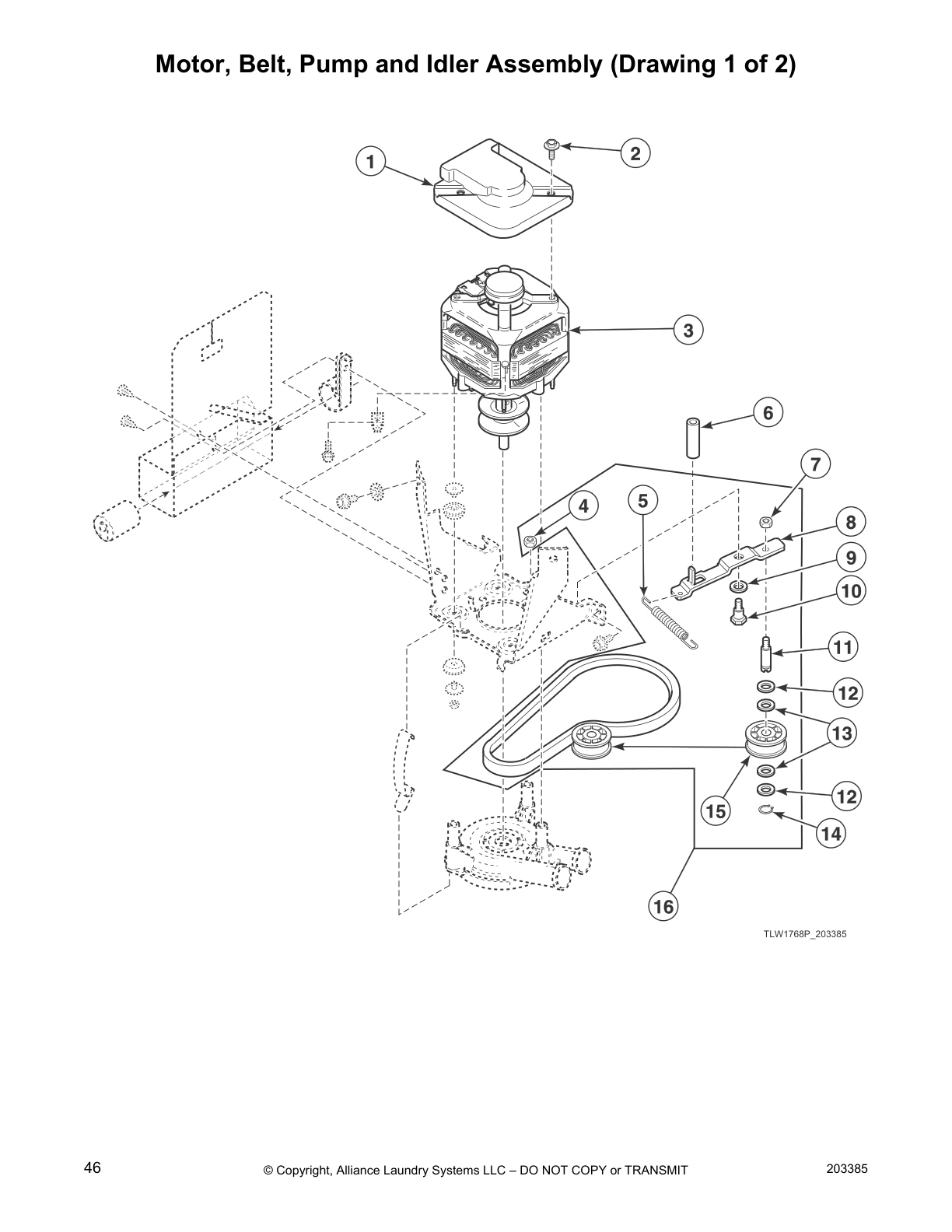

Motor, Belt, Pump and Idler Assembly (Drawing 1 of 2)

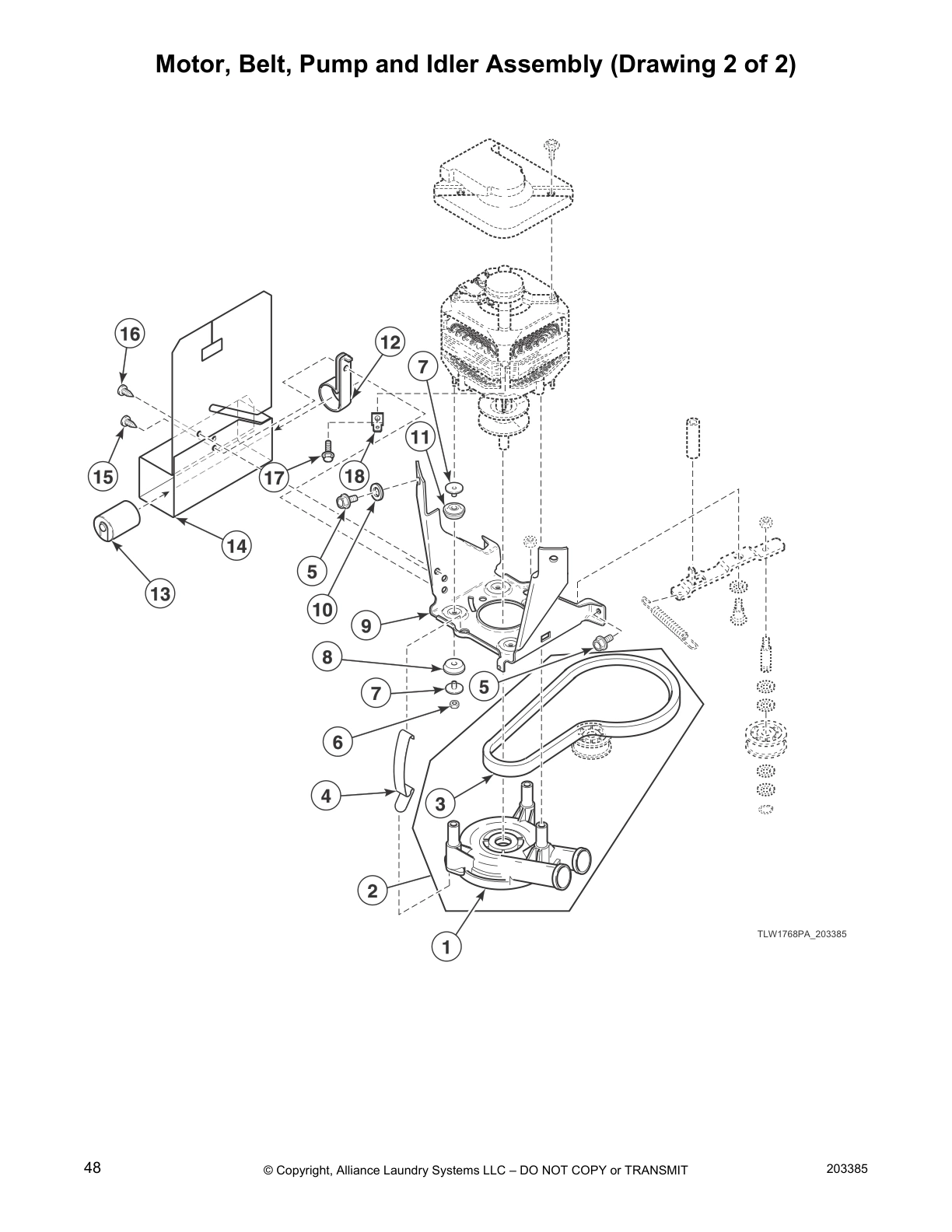

Motor, Belt, Pump and Idler Assembly (Drawing 2 of 2)

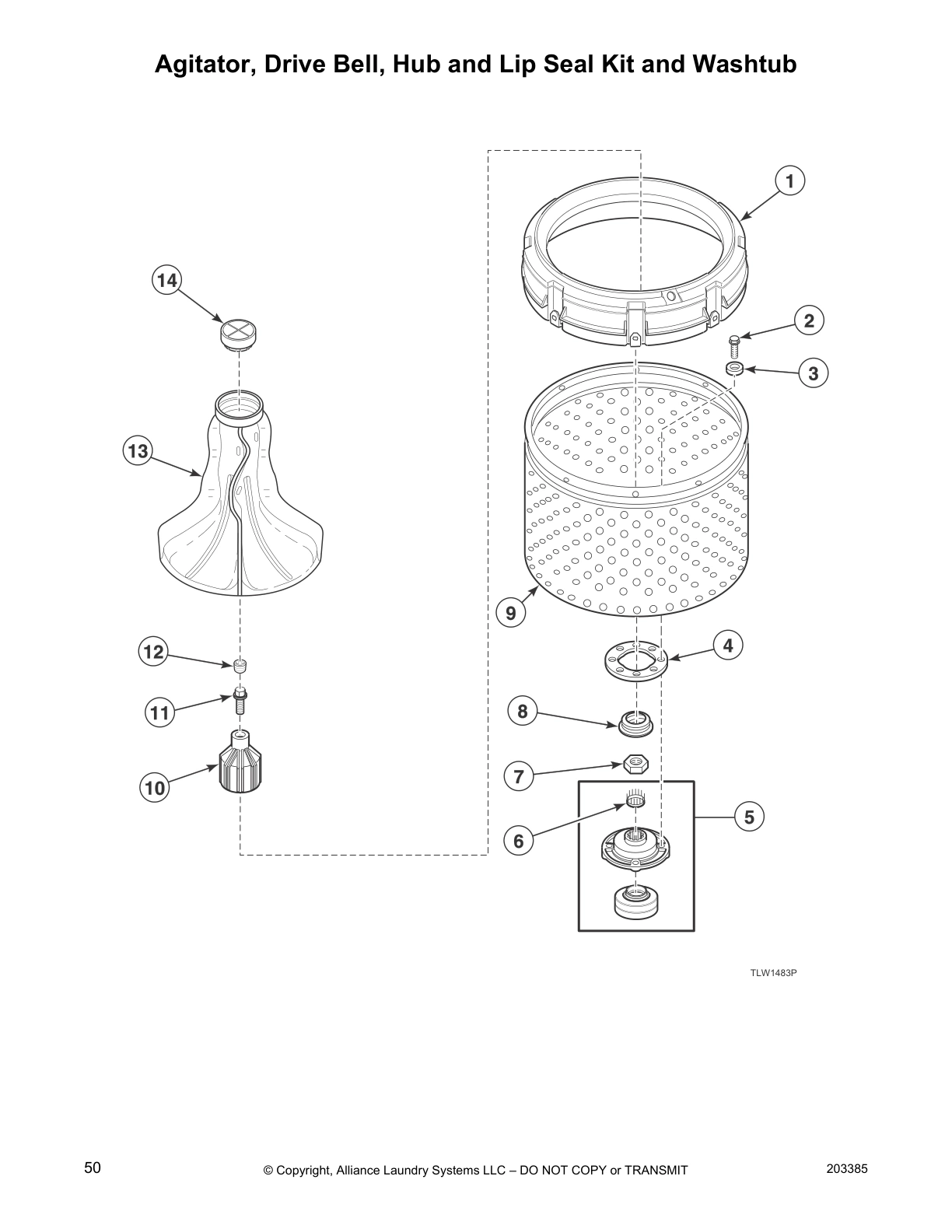

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub

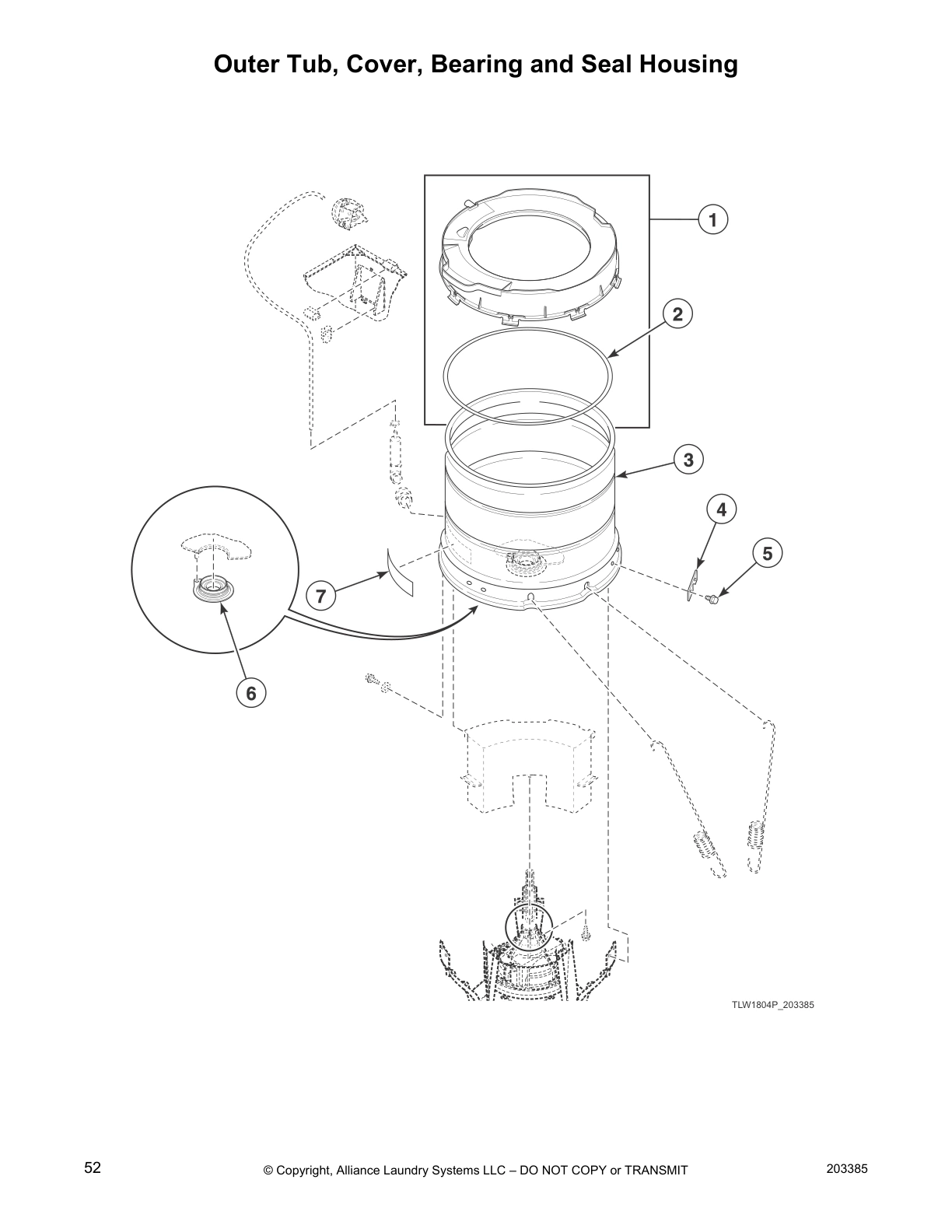

Outer Tub, Cover, Bearing and Seal Housing

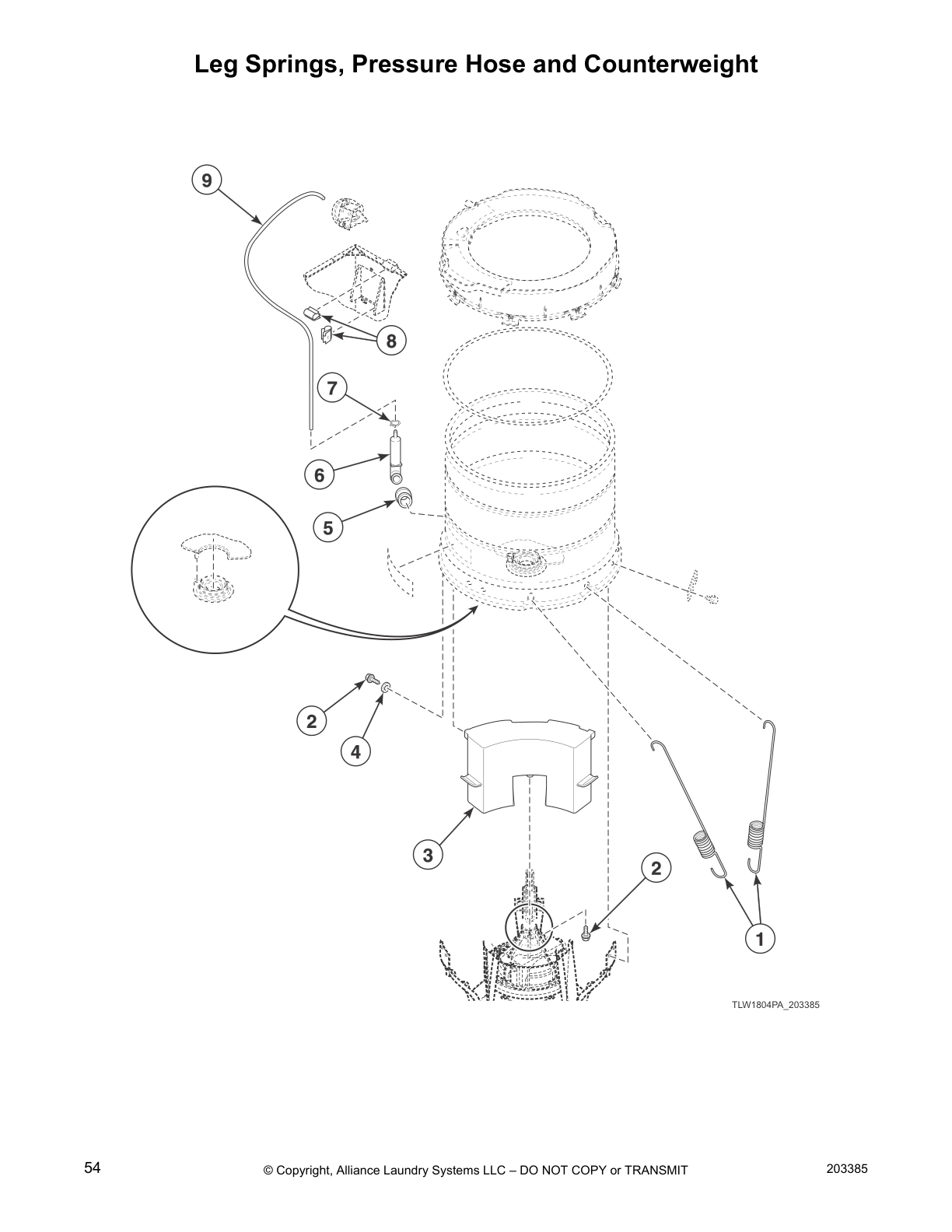

Leg Springs, Pressure Hose and Counterweight

Transmission Assembly

Drain Hoses and Siphon Break Kit

Weldment and Bearing Assembly, Brake and Pulley

Front Panel, Base Assembly and Cabinet Kit

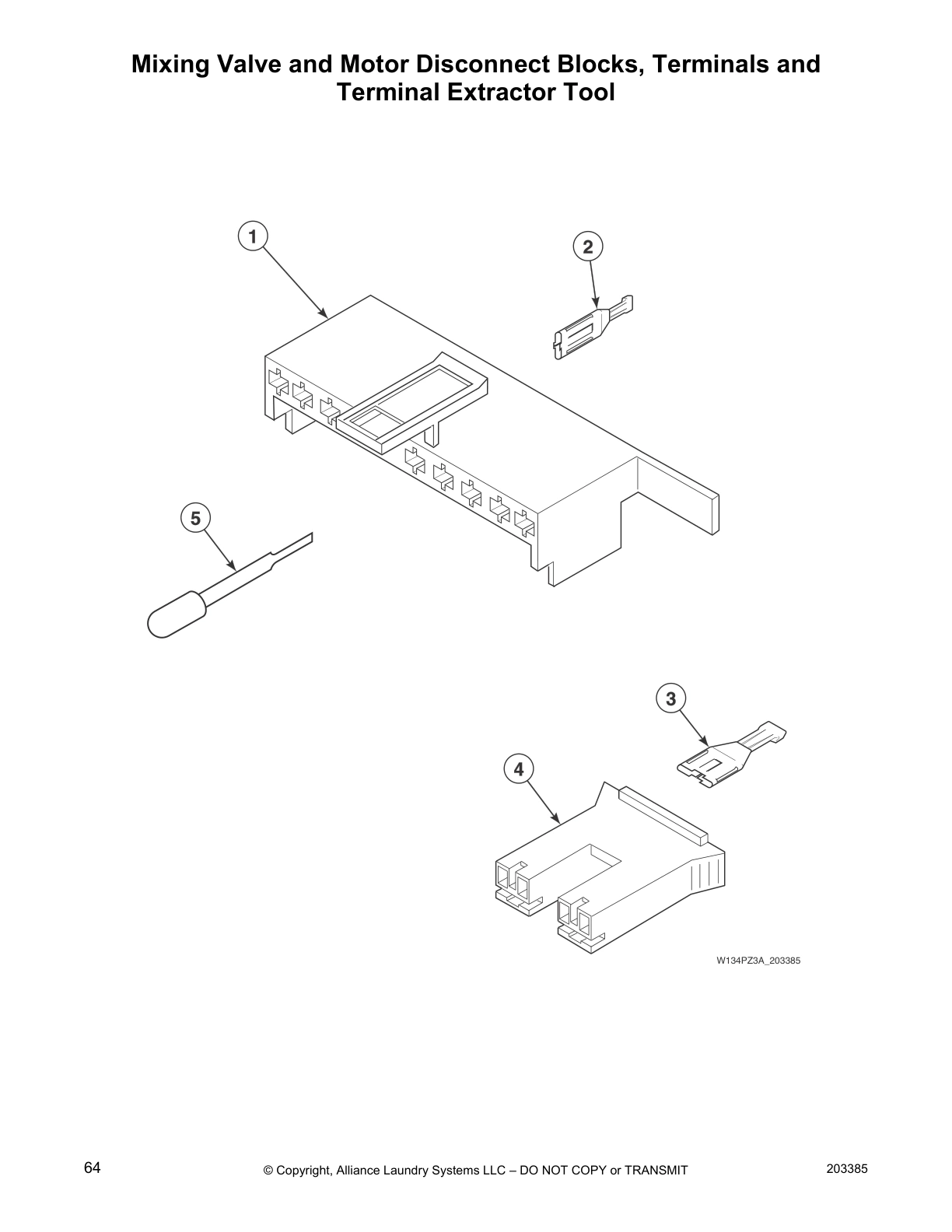

Mixing Valve and Motor Disconnect Blocks, Terminals and Terminal Extractor Tool

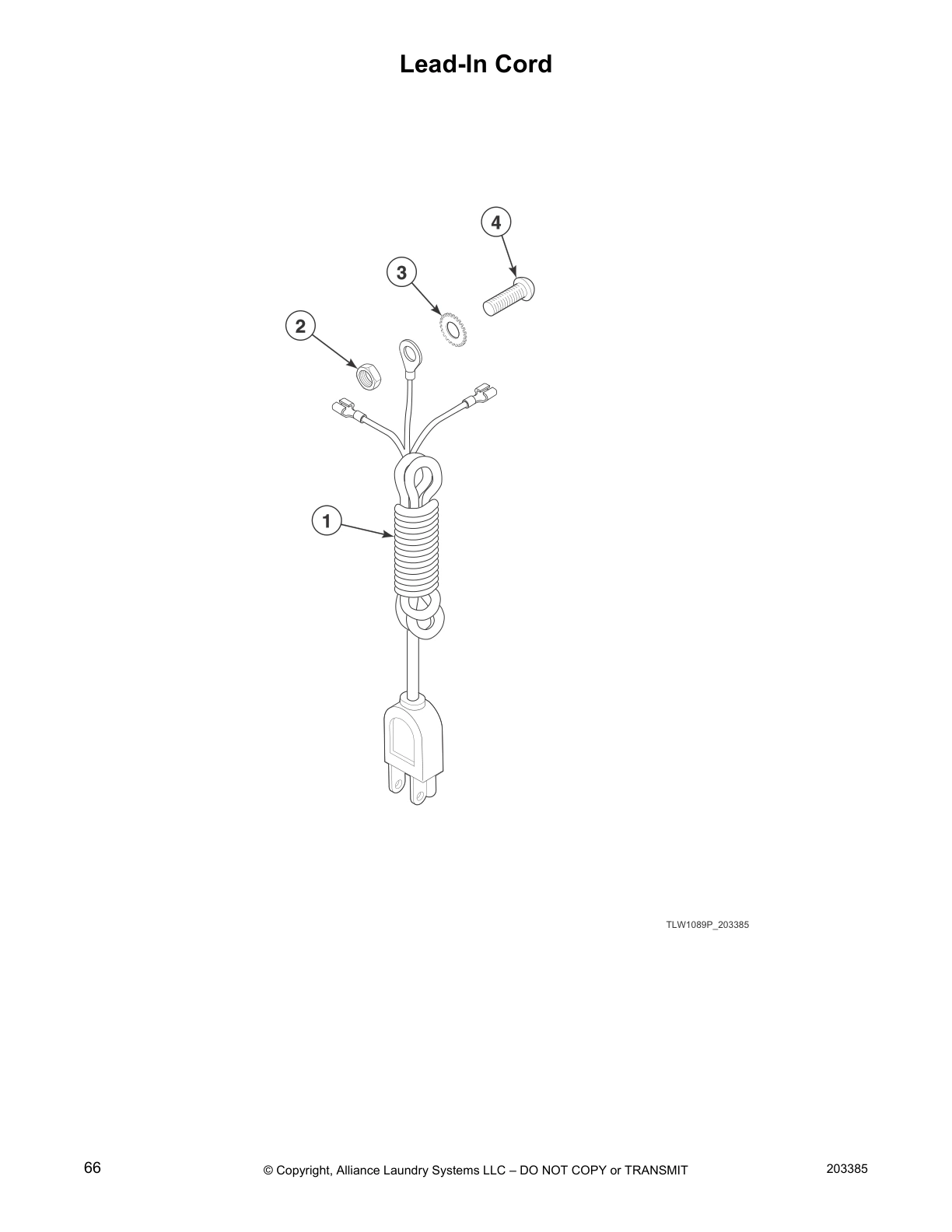

Lead-In Cord

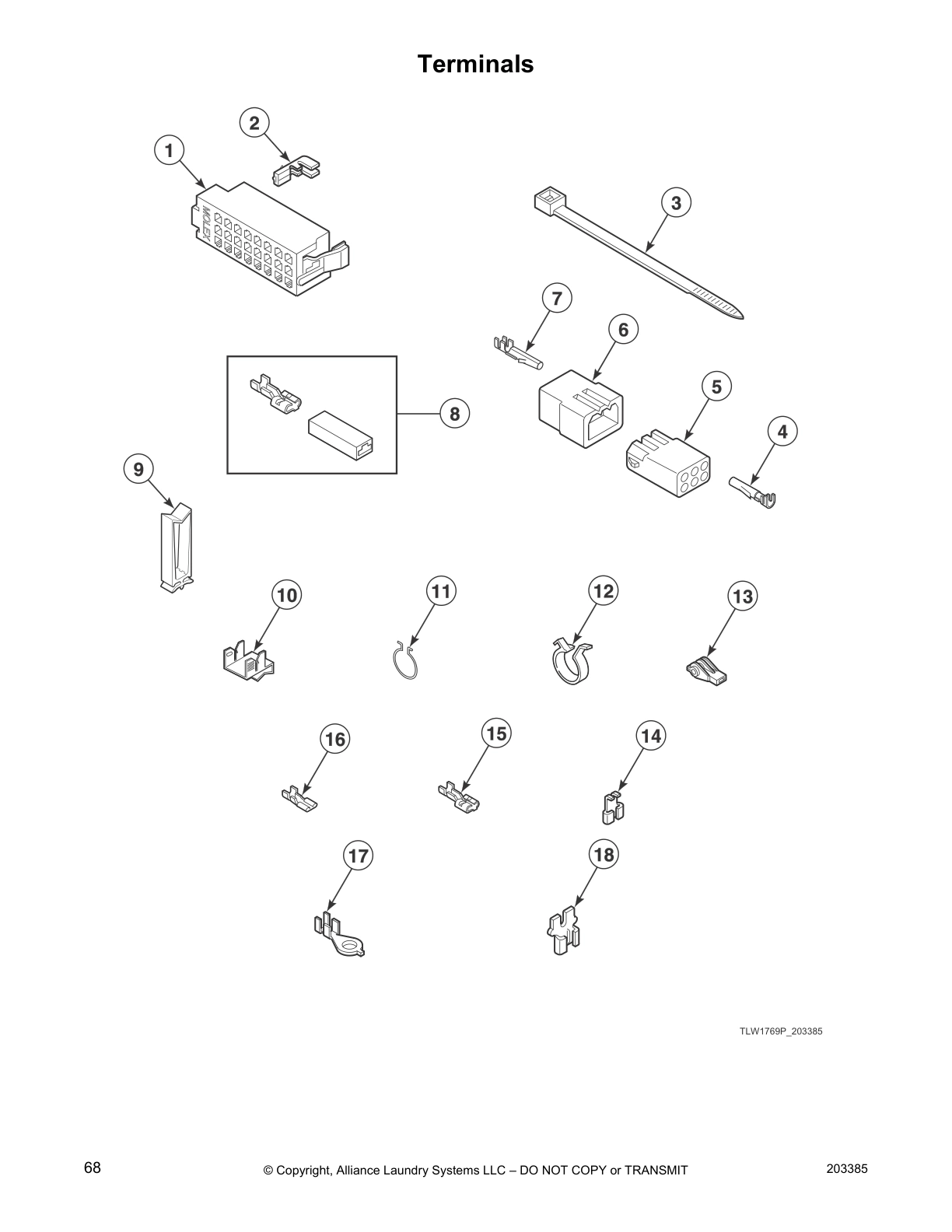

Terminals

Shipping Materials and Special Tools

Special Tools

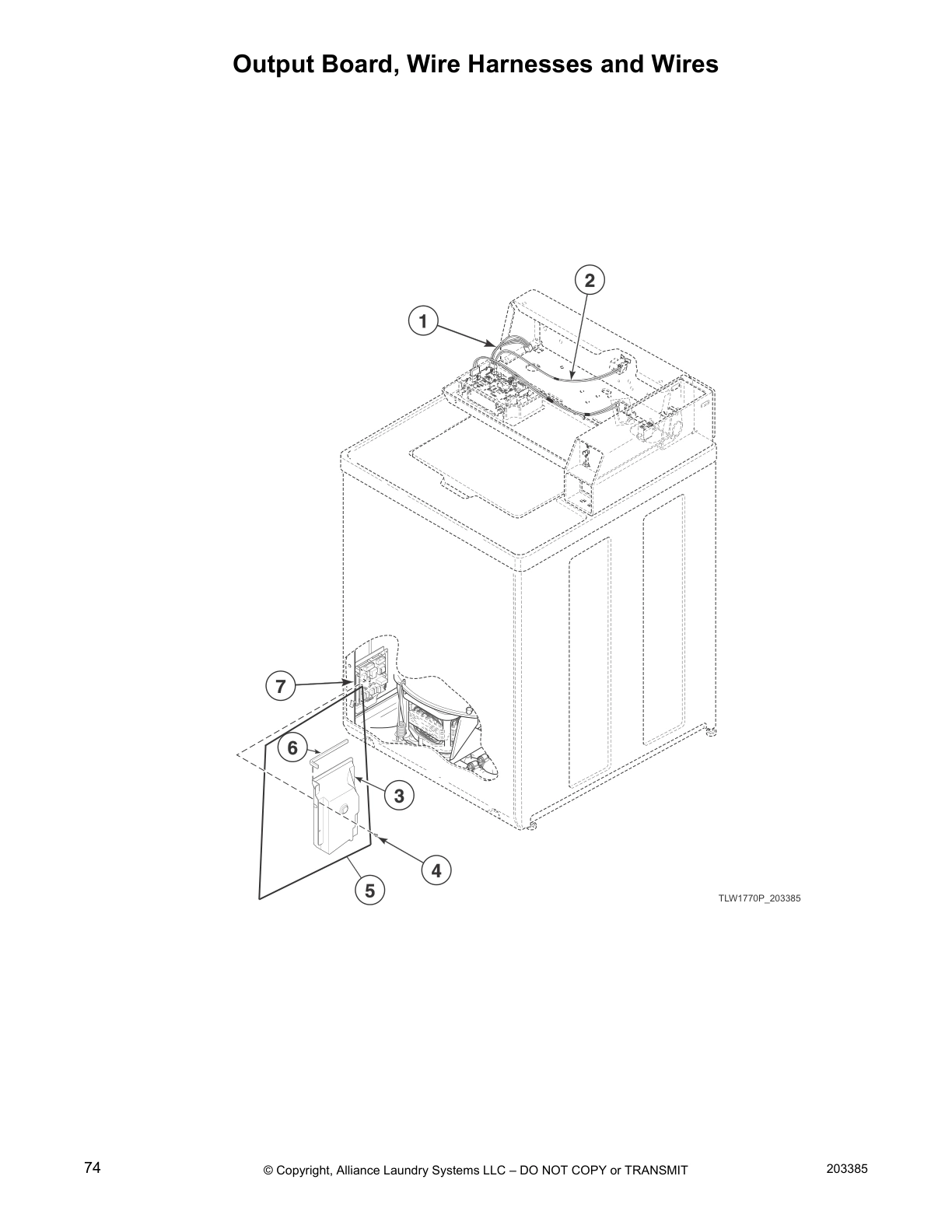

Output Board, Wire Harnesses and Wires

Common parts from model Speed Queen SWNNC2SP115TQ01 Washer

200674P Speed Queen Opto I Coupler 12 Backorder SPQ 200674P $106.17

View on Model

SPQ 70441601P SPQ 70441601P Contact Us For Availability

View on Model

SPQ 203719 SPQ 203719 Contact Us For Availability

View on Model

SPQ 70441603 SPQ 70441603 Contact Us For Availability

View on Model

SPQ 806827 SPQ 806827 Contact Us For Availability

View on Model

37575 Speed Queen Washer Leg Spring Tall Tub In Stock SPQ 37575 $4.92

View on Model

Lid Switch Kit SPQ 204696 Contact Us For Availability

View on Model

Weldment and Bearing Assembly SPQ 39253 Contact Us For Availability

View on Model

Washer SPQ 802254 Contact Us For Availability

View on Model

Lead-In Cord SPQ 202777 Contact Us For Availability

View on Model

Pump Assembly Kit SPQ 205218P Contact Us For Availability

View on Model

Tool Kit SPQ 725P3 Contact Us For Availability

View on Model

Single Overlay SPQ 38717 Contact Us For Availability

View on Model

Control Harness SPQ 204714 Contact Us For Availability

View on Model

Lid SPQ 204615W Contact Us For Availability

View on Model

Screw SPQ D503673 Contact Us For Availability

View on Model

Output Shaft SPQ 36570P Contact Us For Availability

View on Model

Motor Shield SPQ 34754 Contact Us For Availability

View on Model

Bumper Pad SPQ 56128 Contact Us For Availability

View on Model

321P4 Speed Queen Spring Tool Hook In Stock SPQ 321P4 $12.30

View on Model

38149 Speed Queen Plug Backorder SPQ 38149 $2.84

View on Model

38359 Speed Queen Large Washer Tub Cover Gask In Stock SPQ 38359 $8.56

View on Model

Coin Identification Paper SPQ D512973 Contact Us For Availability

View on Model

Nut SPQ 39788 Contact Us For Availability

View on Model

Hose Clamp SPQ 202884 Contact Us For Availability

View on Model

Washer SPQ 803615 Contact Us For Availability

View on Model

Pressure Sensor Harness SPQ 804432 Contact Us For Availability

View on Model

Screw SPQ 39566 Contact Us For Availability

View on Model

Gear Sleeve SPQ 201212 Contact Us For Availability

View on Model

Coin Drop SPQ 70441602 Contact Us For Availability

View on Model

Washer SPQ 27202 Contact Us For Availability

View on Model

Top SPQ 38384 Contact Us For Availability

View on Model

28293 Speed Queen Black Drain Hose Rubber Backorder SPQ 28293 $78.03

View on Model

293P4 Speed Queen Seal Install Tool In Stock SPQ 293P4 $31.02

View on Model

294P4 Speed Queen Agitator Drive Bell Puller In Stock SPQ 294P4 $136.43

View on Model

Idler Lever Spring SPQ 38034P Contact Us For Availability

View on Model

Agitate and Spin Belt SPQ RB150003 Contact Us For Availability

View on Model

Brake Pad Kit SPQ 735P3 Contact Us For Availability

View on Model

Outer Tub Assembly SPQ 203603P Contact Us For Availability

View on Model

Gear and Stud Assembly SPQ RB150004 Contact Us For Availability

View on Model

Output Control Shield SPQ 202939 Contact Us For Availability

View on Model

Washtub Gasket SPQ 28094 Contact Us For Availability

View on Model

Coin Identification Paper SPQ 38725 Contact Us For Availability

View on Model

27243P Speed Queen Oil CW Transmission In Stock SPQ 27243P $59.37

View on Model

52566 Speed Queen Hex Nut 1/4-20 Jam UNC ZNC In Stock SPQ 52566 $4.92

View on Model

Spring Clip SPQ 38174 Contact Us For Availability

View on Model

Hub and Lip Seal Kit SPQ 39122 Contact Us For Availability

View on Model

Silicone Grease SPQ 204253 Contact Us For Availability

View on Model

Mounting Tool Kit SPQ CK096 Contact Us For Availability

View on Model

Washer SPQ 39249 Contact Us For Availability

View on Model

Electronic Coin Drop Kit SPQ CK110 Contact Us For Availability

View on Model

Leg Plate SPQ 27926 Contact Us For Availability

View on Model

6 Circuit Plug SPQ 55881 Contact Us For Availability

View on Model

Screw SPQ 804667 Contact Us For Availability

View on Model

210202 Speed Queen Spring Clip In Stock SPQ 210202 $4.92

View on Model

306P4 Speed Queen Washer Hex Wrench In Stock SPQ 306P4 $23.63

View on Model

39167WP Speed Queen Commercial Top Porcelain Backorder SPQ 39167WP $242.77

View on Model

52864 Speed Queen Flat Head Screw, 8AB-18 x 5 Backorder SPQ 52864 $1.24

View on Model

F200204 Speed Queen Hose Clamp #20 Backorder SPQ F200204 $3.61

View on Model

SPQ 202032 SPQ 202032 Contact Us For Availability

View on Model

SPQ 204870 SPQ 204870 Contact Us For Availability

View on Model

Ratchet Extension Tool SPQ 310P4 Contact Us For Availability

View on Model

Nut SPQ 203564P Contact Us For Availability

View on Model

Grommet SPQ 29175 Contact Us For Availability

View on Model

Washer SPQ 39739 Contact Us For Availability

View on Model

Mixing Valve Mounting Bracket SPQ 33562 Contact Us For Availability

View on Model

254P4P Speed Queen Agitator Hook In Stock SPQ 254P4P $75.88

View on Model

35369 Speed Queen 5/16-18 x 1/2 Hex Flange Sc Backorder SPQ 35369 $4.92

View on Model

39874WP Speed Queen Service Door Assembly Backorder SPQ 39874WP $64.04

View on Model

766P3A Speed Queen Hub and Seal Kit In Stock SPQ 766P3A $155.63

View on Model

Washer SPQ 35535 Contact Us For Availability

View on Model

Nut SPQ 29728 Contact Us For Availability

View on Model

Retainer Clip SPQ 38351 Contact Us For Availability

View on Model

SPQ 35865 SPQ 35865 Contact Us For Availability

View on Model

Pressure Bulb SPQ 205241 Contact Us For Availability

View on Model

SPQ 34337 SPQ 34337 Contact Us For Availability

View on Model

Bolt SPQ 26354 Contact Us For Availability

View on Model

Output Board Cover Gasket SPQ 202964 Contact Us For Availability

View on Model

27015 Speed Queen Flat Washer .630 In Stock SPQ 27015 $4.92

View on Model

34338 Speed Queen Hinge Gasket In Stock SPQ 34338 $4.92

View on Model

Grease SPQ 29220 Contact Us For Availability

View on Model

Hose Clamp SPQ 39282 Contact Us For Availability

View on Model

SPQ 35097 SPQ 35097 Contact Us For Availability

View on Model

Mixing Valve Screen SPQ 203558 Contact Us For Availability

View on Model

Pump-to-Drain Elbow Hose SPQ 36014 Contact Us For Availability

View on Model

38011 Speed Queen Idler Lever Backorder SPQ 38011 $4.92

View on Model

38273 Speed Queen Hose Pump to Drain Elbow Backorder SPQ 38273 $35.41

View on Model

Mixing Valve SPQ 24122 Contact Us For Availability

View on Model

SPQ 203950 SPQ 203950 Contact Us For Availability

View on Model

Bell and Transmission Tube Seal SPQ 36765P Contact Us For Availability

View on Model

Hose Clip SPQ 36985 Contact Us For Availability

View on Model

36990 Speed Queen Restricted Drain Hose Elbow Backorder SPQ 36990 $8.49

View on Model

SPQ 204486 SPQ 204486 Contact Us For Availability

View on Model

Washtub Kit SPQ 36425 Contact Us For Availability

View on Model

Tubing SPQ 202700 Contact Us For Availability

View on Model

SPQ 81392 SPQ 81392 Contact Us For Availability

View on Model

SPQ 204062 SPQ 204062 Contact Us For Availability

View on Model

Pump SPQ 205217P Contact Us For Availability

View on Model

Service Cabinet Kit SPQ 38612WP Contact Us For Availability

View on Model

Screw SPQ 27220 Contact Us For Availability

View on Model

Drive Bell and Seal Kit SPQ 39508P Contact Us For Availability

View on Model

Screw SPQ 27229 Contact Us For Availability

View on Model

Pressure Sensor SPQ D501086 Contact Us For Availability

View on Model

Inlet Deflector SPQ 203509 Contact Us For Availability

View on Model

Screw SPQ 32814 Contact Us For Availability

View on Model

210186 Speed Queen Idler Shaft In Stock SPQ 210186 $5.71

View on Model

Helix SPQ 38008 Contact Us For Availability

View on Model

Screw SPQ 39432 Contact Us For Availability

View on Model

Washer SPQ 37772 Contact Us For Availability

View on Model

Transmission Cover Assembly SPQ 37471 Contact Us For Availability

View on Model

Overlay Kit SPQ 38676 Contact Us For Availability

View on Model

28944RP Speed Queen Washer Upper or Lower Bea In Stock SPQ 28944RP $24.76

View on Model

Transformer Kit SPQ 203843 Contact Us For Availability

View on Model

Washer SPQ D504082 Contact Us For Availability

View on Model

Bell Plug SPQ 36511 Contact Us For Availability

View on Model

Motor Mount and Isolator Assembly SPQ 204063 Contact Us For Availability

View on Model

Retaining Ring SPQ 52549 Contact Us For Availability

View on Model

Support Barrel SPQ 202894 Contact Us For Availability

View on Model

Agitator SPQ 33174 Contact Us For Availability

View on Model

Washer SPQ 29260 Contact Us For Availability

View on Model

27222 Speed Queen Nut Retainer Backorder SPQ 27222 $4.92

View on Model

Idler Pulley SPQ 23748 Contact Us For Availability

View on Model

Capacitor SPQ 37377 Contact Us For Availability

View on Model

Agitator Cap SPQ 36515 Contact Us For Availability

View on Model

Bumper SPQ 203423 Contact Us For Availability

View on Model

Slide SPQ 38165P Contact Us For Availability

View on Model

Control Panel Bumper SPQ D503661 Contact Us For Availability

View on Model

26493 Speed Queen Slide Assembly Backorder SPQ 26493 $6.08

View on Model

34443 Speed Queen Stabilizer and Leg Assembly Backorder SPQ 34443 $31.66

View on Model

52909 Speed Queen Tap-HXWAHD 10B-16X.5 Screw Backorder SPQ 52909 $4.92

View on Model

Motor Kit SPQ 959P3 Contact Us For Availability

View on Model

Screw SPQ 70529301 Contact Us For Availability

View on Model

Retaining Ring SPQ 201664 Contact Us For Availability

View on Model

36036 Speed Queen Right Side SLL Bracket In Stock SPQ 36036 $5.25

View on Model

27003 Speed Queen Series Current Relay Backorder SPQ 27003 $11.11

View on Model

Foam Pad SPQ 34318 Contact Us For Availability

View on Model

Support Barrel SPQ 23008 Contact Us For Availability

View on Model

34319 Speed Queen Leveling Leg 1/2-13 x 1.87 In Stock SPQ 34319 $4.92

View on Model

Lid Hinge SPQ 36020 Contact Us For Availability

View on Model

Adjustable Leg Extension Kit SPQ 39480 Contact Us For Availability

View on Model

21899 Speed Queen Hex Nut 1/2-13 Backorder SPQ 21899 $4.92

View on Model

33223P Speed Queen Transmission Case Assembly Backorder SPQ 33223P $180.75

View on Model

Control Assembly SPQ 210042W Contact Us For Availability

View on Model

37937 Speed Queen Friction Ring In Stock SPQ 37937 $21.50

View on Model

566P3 Speed Queen Adjustable Leg Extension Ki In Stock SPQ 566P3 $54.11

View on Model

33446 Speed Queen Washer Bushing In Stock SPQ 33446 $4.92

View on Model

Hold-Down Clip SPQ 36037 Contact Us For Availability

View on Model

Hinge Gasket SPQ 36437 Contact Us For Availability

View on Model

SPQ 36438 SPQ 36438 Contact Us For Availability

View on Model

SPQ 21685 SPQ 21685 Contact Us For Availability

View on Model

Porcelain Touch-Up Paint SPQ 28102 Contact Us For Availability

View on Model

122P4P Speed Queen Paint, Porcelain Touch Backorder SPQ 122P4P $38.03

View on Model

200941 Speed Queen Motor Mount Bracket Backorder SPQ 200941 $33.09

View on Model

200996P Speed Queen Sealant 10 Oz 200966P In Stock SPQ 200996P $68.56

View on Model

20290 Speed Queen Washer 19/32" ID x 1.031" O In Stock SPQ 20290 $4.92

View on Model

27604P Speed Queen Anti-Seize Compound, 1 oz In Stock SPQ 27604P $5.01

View on Model

283P4 Speed Queen Terminal Extractor Tool Backorder SPQ 283P4 $60.87

View on Model

451P3 Speed Queen Drain Extension Kit Backorder SPQ 451P3 $113.07

View on Model

45380 Speed Queen Wire 12GA ORG/PER FT Backorder SPQ 45380 $4.92

View on Model

Sealant SPQ 719P3 Contact Us For Availability

View on Model

12 Gauge Wire SPQ 202508P Contact Us For Availability

View on Model

SPQ CK115 SPQ CK115 Contact Us For Availability

View on Model

SPQ 26509 SPQ 26509 Contact Us For Availability

View on Model

SPQ 392P4 SPQ 392P4 Contact Us For Availability

View on Model

SPQ 37577P SPQ 37577P Contact Us For Availability

View on Model

Single Coin Harness Assembly SPQ 38462P Contact Us For Availability

View on Model

Bolt SPQ 202877W Contact Us For Availability

View on Model

SPQ 807401W SPQ 807401W Contact Us For Availability

View on Model

SPQ 23962 SPQ 23962 Contact Us For Availability

View on Model

SPQ 36226 SPQ 36226 Contact Us For Availability

View on Model

SPQ 201595P SPQ 201595P Contact Us For Availability

View on Model

SPQ 203720 SPQ 203720 Contact Us For Availability

View on Model

SPQ 45001 SPQ 45001 Contact Us For Availability

View on Model

Model Speed Queen SWNNC2SP115TQ01 Washer – Common Parts & Diagrams

Common parts from model Speed Queen SWNNC2SP115TQ01 Washer

Search result for :
