Model GE PDT845SSJ0SS – Common Parts & Diagrams

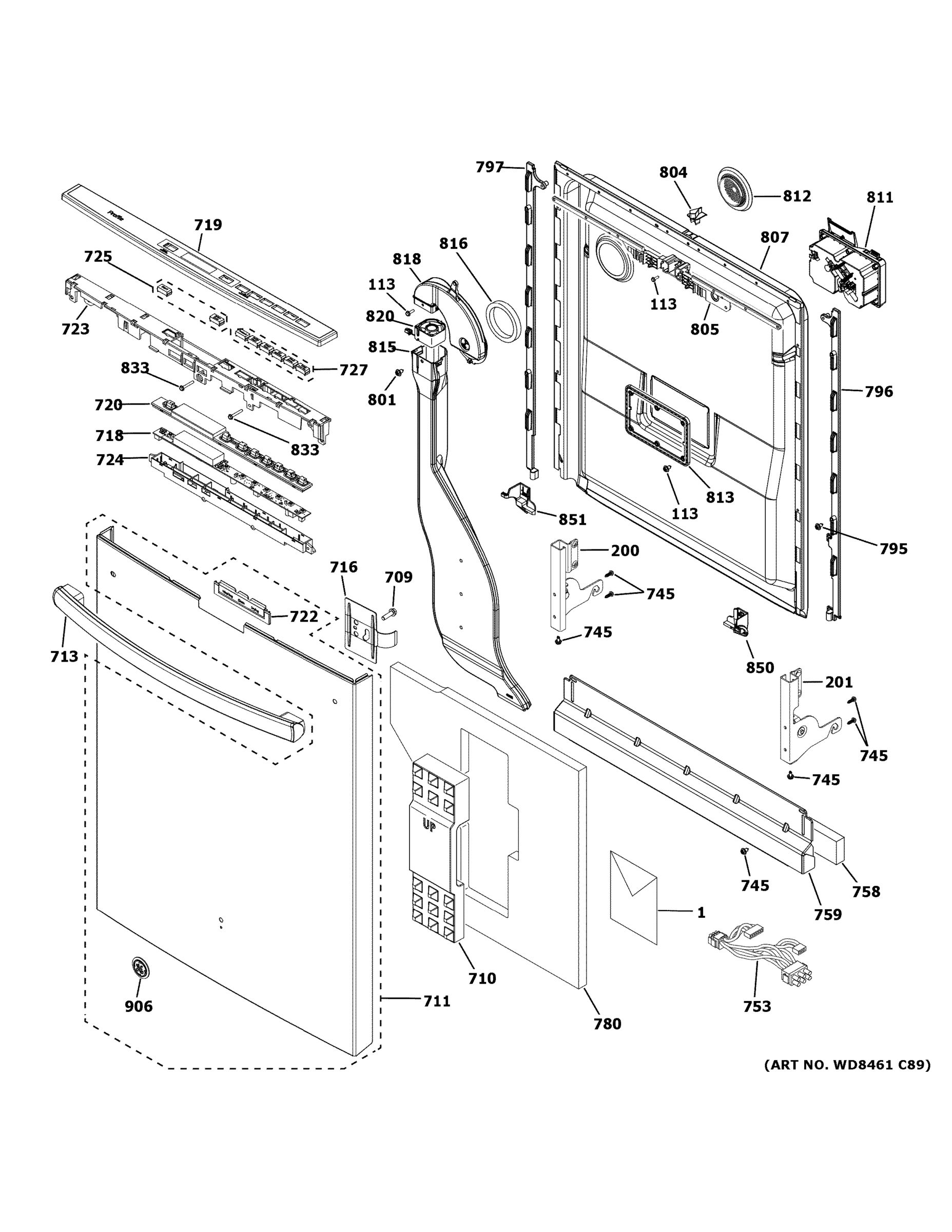

ESCUTCHEON & DOOR ASSEMBLY

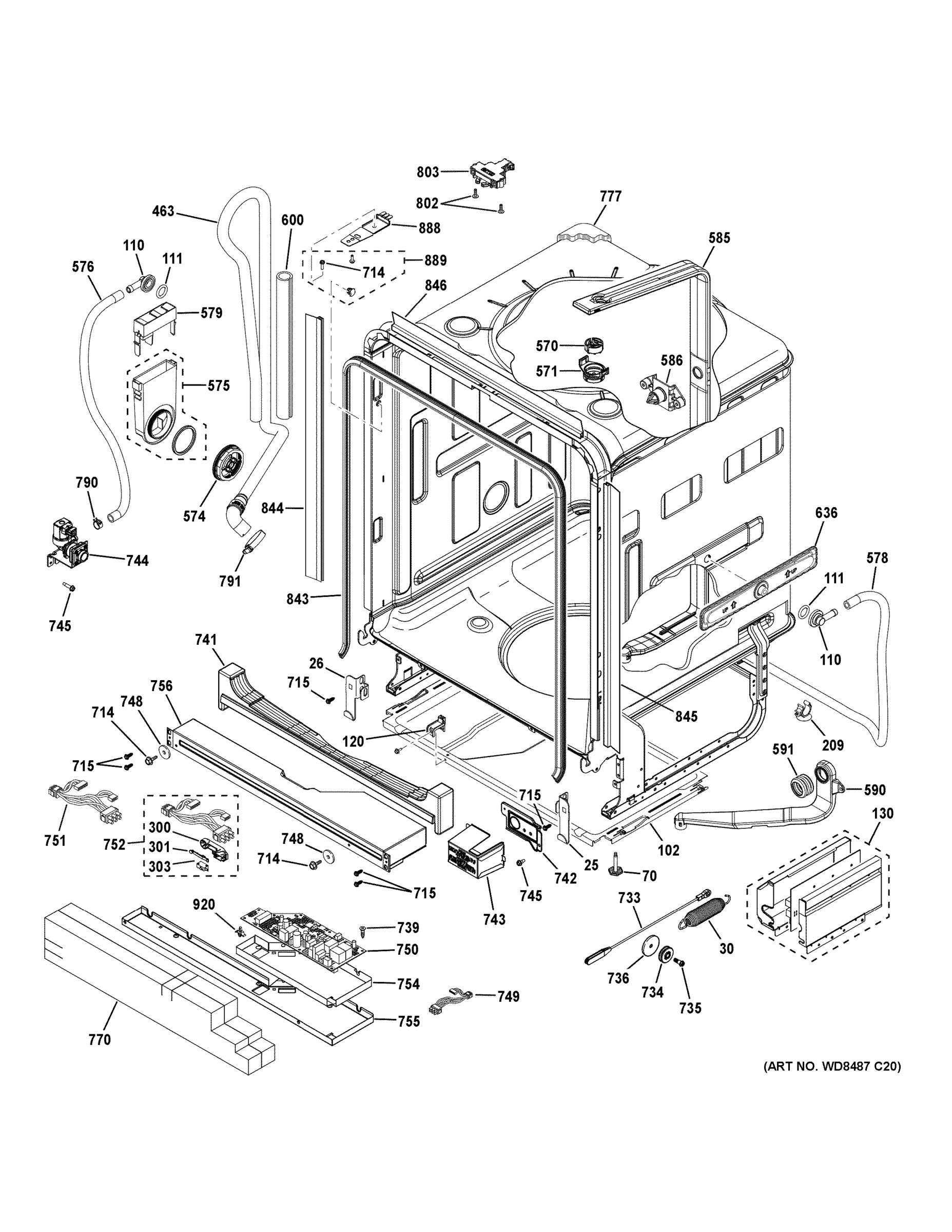

BODY PARTS
UPPER RACK ASSEMBLY
LOWER RACK ASSEMBLY
SUMP & FILTER ASSEMBLY
SUMP & MOTOR MECHANISM
Common parts from model GE PDT845SSJ0SS
25
BRACKET CABLE RH GEN WD01X23776 Contact Us For Availability
26
BRACKET CABLE LH GEN WD01X23777 Contact Us For Availability
30
SPRING DOOR GEN WD03X20446 Contact Us For Availability
42
SCR10 - 16 AB HXW 3/4 SS GEN WD02X22736 Contact Us For Availability
102
PAN LEAK GEN WD18X22842 Contact Us For Availability
113
SCREW 8-16 HXW 1/2 SS GEN WD02X10067 Contact Us For Availability
120
SENSOR LEAK PAN GEN WD21X20552 Contact Us For Availability
209
CLIP HOSE SIDE BLASTER GEN WD01X22855 Contact Us For Availability
300
HOUSING SWITCH FLOOD GEN WD01X23496 Contact Us For Availability
301
LEVER SWITCH FLOOD GEN WD16X23497 Contact Us For Availability
303
SWITCH FLOOD GEN WD21X23498 Contact Us For Availability
308
FLOAT FLOOD GEN WD21X22822 Contact Us For Availability
311
SHIELD PUMP MAIN GEN WD01X20212 Contact Us For Availability
321
SENSOR TURBIDITY ASM GEN WD21X22830 Contact Us For Availability
333
LATCH CAM GEN WD01X10632 Contact Us For Availability
334
LATCH CAM GEN WD01X10575 Contact Us For Availability
425
GROMMET GEN WD01X10101 Contact Us For Availability
426
SCR 10-18 X 5/8 GEN WD02X22781 Contact Us For Availability
453
VENT FILTER GEN WD24X10057 Contact Us For Availability
454
ADAPTOR FILTER GEN WD12X10419 Contact Us For Availability
462
DRAIN TUBE ASM GEN WD24X10062 Contact Us For Availability
501
ARM SPRAY LOWER ASM GEN WD22X22879 Contact Us For Availability
502
FILTER COARSE SS GEN WD22X10093 Contact Us For Availability
503
SCR 10-16 AB HXW .532 GEN WB01T10103 Contact Us For Availability
505
SUMP MANIFOLD GEN WD18X22782 Contact Us For Availability
509
PLATE FLOOR MANUAL GEN WD12X21677 Contact Us For Availability
510
STEM FLOOD GEN WD21X22838 Contact Us For Availability
511
O RING GEN WD01X22825 Contact Us For Availability
512
HUB SPRAY ARM GEN WD12X22852 Contact Us For Availability
514
ADAPTER CONDUIT GEN WD18X22865 Contact Us For Availability
570
IMPELLER GEN WD22X20689 Contact Us For Availability
571
HUB GEN WD22X20688 Contact Us For Availability
576
HOSE FILL GEN WD24X10064 Contact Us For Availability
578
HOSE FILL GEN WD21X20339 Contact Us For Availability
585
CONDUIT MAIN GEN WD12X21681 Contact Us For Availability
586
DOCKING PORT SS GEN WD12X20118 Contact Us For Availability
590
CONDUIT SILVERWARE GEN WD12X22862 Contact Us For Availability
600
ISOLATOR DRAIN HOSE GEN WD24X22856 Contact Us For Availability
614
COVER BOTTLE BLASTER GEN WD24X20263 Contact Us For Availability
616
SHELF CUP GEN WD28X20177 Contact Us For Availability
617
HOSE BOTTLE BLASTER GEN WD24X20262 Contact Us For Availability
618
ARM SPRAY MID ASM GEN WD22X22853 Contact Us For Availability
630
FDT COATED LOWER RACK GEN WD28X20164 Contact Us For Availability
631
FDT COATED LOWER RACK GEN WD28X20165 Contact Us For Availability
636
SIDE BLASTER ASM GEN WD22X21034 Contact Us For Availability
650
INNER RAIL UPR RACK ASM GEN WD30X20110 Contact Us For Availability
680
BRACKET ASM UPPER RACK GEN WD12X20108 Contact Us For Availability
681
BRACKET ASM UPPER RACK GEN WD12X20109 Contact Us For Availability
682
BRACKET FIXED GEN WD12X20112 Contact Us For Availability
683
BRACKET FIXED GEN WD12X20113 Contact Us For Availability
684
FDT CLIP FLAT RACK GEN WD28X20311 Contact Us For Availability
686
FDT CLIP FLAT RACK GEN WD28X20310 Contact Us For Availability
688
FDT ASM UPPER COATED GEN WD28X20193 Contact Us For Availability
695
CLIP LOWER RACK GEN WD12X20171 Contact Us For Availability
700
INDEXER GEN WD28X20166 Contact Us For Availability
702
COVER ROLLER GEN WD12X20161 Contact Us For Availability
709
SCR 1/4-28 FL IHXW 15/16 GEN WD01X20934 Contact Us For Availability
710
BLOCK FOAM DOOR GEN WD01X10585 Contact Us For Availability
713
DOOR HANDLE ASM GEN WD09X21321 Contact Us For Availability
714
SCR 8-18 B HXW .480 S GEN WD02X10160 Contact Us For Availability
715
SCR 10-32 GX HXW 3/8 GEN WD02X10220 Contact Us For Availability
720
SILICONE LIGHT PIPE GEN WD21X20299 Contact Us For Availability
722
LENS AND ADHESIVE ASM GEN WD09X20226 Contact Us For Availability
723
CONSOLE TOP CONTROL GEN WD12X20223 Contact Us For Availability
724
HOUSING BOTTOM GEN WD12X20225 Contact Us For Availability
725
BUTTON AND GRAPHICS ASM GEN WD09X22888 Contact Us For Availability
726
RACK COVER HANDLE GEN WD09X22840 Contact Us For Availability
734
PULLEY HINGE GEN WD16X21836 Contact Us For Availability
735
PULLEY SCREW GEN WD02X10206 Contact Us For Availability
736
FRICTION WASHER GEN WD01X20593 Contact Us For Availability
743
COVER JUNCTION BOX GEN WD12X10412 Contact Us For Availability
745
SCR 10-32 GX IHXW 9/16 S GEN WD01X22514 Contact Us For Availability
753
HARNESS ASM DOOR GEN WD21X20149 Contact Us For Availability
754
SHIELD DIELECTRIC GEN WD01X21974 Contact Us For Availability
755
CONTROL BOX BOTTOM GEN WD30X21714 Contact Us For Availability
756
CONTROL BOX TOP GEN WD27X10390 Contact Us For Availability
758
INSULATION TOE KICK GEN WD27X21334 Contact Us For Availability
761
BASKET SILVERWARE ASM WI GEN WD28X22867 Contact Us For Availability
769
BLASTER SILVERWARE ASM GEN WD22X22863 Contact Us For Availability
790
CLAMP HOSE GEN WD01X22786 Contact Us For Availability
792
CLAMP GEN WD01X10104 Contact Us For Availability
795
SCREW T15 8-16 PLASTITE GEN WD02X22628 Contact Us For Availability
796
ATTACH STRIP RH GEN WD01X22836 Contact Us For Availability
801
SCR 6-20 GXB IHXW 3/8 NI GEN WB02T10324 Contact Us For Availability
802
SCR 8-18 AB TSQ 5/8 SS GEN WR01X10380 Contact Us For Availability
804
STRIKER LATCH GEN WD13X10071 Contact Us For Availability
805
ATTACHMENT STRIP TOP GEN WD13X22837 Contact Us For Availability
812
COVER VENT GEN WD24X20586 Contact Us For Availability
813
PLATE DETERGENT GEN WD12X10462 Contact Us For Availability
815
VENT CONDUIT ASM GEN WD12X20218 Contact Us For Availability
816
DOOR VENT SEAL GEN WD08X10092 Contact Us For Availability
820
VENT FAN ASM GEN WD24X20331 Contact Us For Availability
833
SCR 10-16 PL PNT 2.25 S GEN WD02X20140 Contact Us For Availability
888
BRACKET COUNTERTOP GEN WD01X21740 Contact Us For Availability
889
CT SCREW ASM GEN WD35X10383 Contact Us For Availability
906
BADGE GE ASM GEN WR04X10181 Contact Us For Availability
920
CLIP CONTROL BOARD GEN WD01X21975 Contact Us For Availability
× ![]()
