Model Speed Queen LWNE52SP543RW01 Washer – Common Parts & Diagrams
Graphic Panel, Control Support Panel and Controls

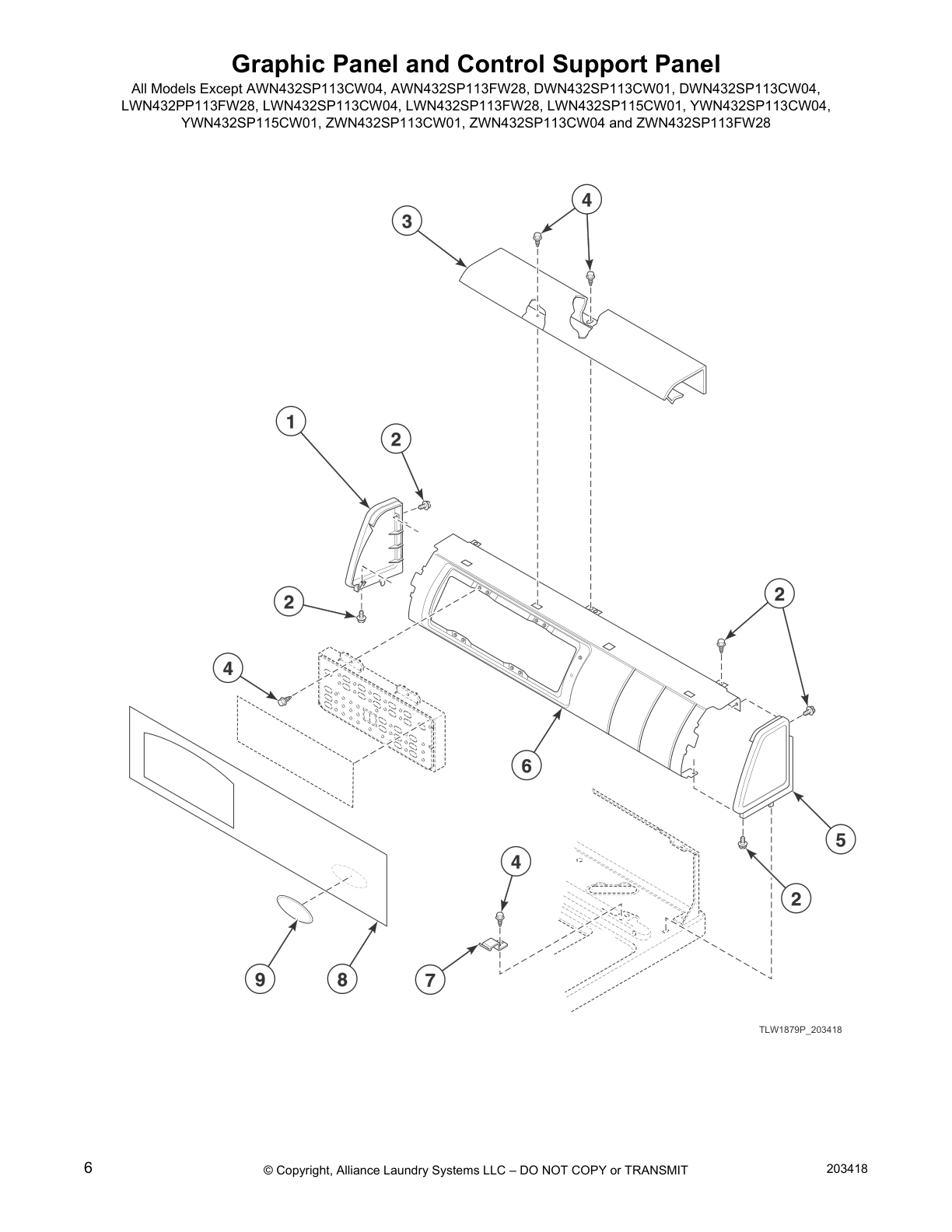

Graphic Panel and Control Support Panel
Controls and Overlay
Lid Switch Assembly
Top, Lid and Lid Lock (Drawing 1 of 2)
Top, Lid and Lid Lock (Drawing 2 of 2)
Lid and Hood Back Panel
Top
Junction Box
Mixing Valve-to-Tub Cover Hose and Mixing Valve Bracket
Mixing Valve
Fill Hose
Belt, Pump and Idler Assembly (Drawing 1 of 2)
Belt, Pump and Idler Assembly (Drawing 2 of 2)
Motor and Mounting Bracket (Drawing 1 of 2)
Motor and Mounting Bracket (Drawing 2 of 2)
Agitator, Fabric Softener Dispenser, Drive Bell,
Hub and Lip Seal Kit and Washtub
Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose
and Counterweight
Drain Hose and Siphon Break Kit
Weldment and Bearing Assembly, Brake and Pulley
Transmission Assembly (Drawing 1 of 2)
Transmission Assembly (Drawing 2 of 2)
Front Panel, Base Assembly and Cabinet Kit
Mixing Valve and Motor Connection Blocks,
Terminals and Extractor Tool
Power Cord
Terminals and Clips
Terminals
Shipping Materials and Special Tools
Special Tools
Output Board, Wire Harnesses and Wires (Drawing 1 of 2)
Output Board, Wire Harnesses and Wires (Drawing 2 of 2)
Wire Harnesses and Wires
Common parts from model Speed Queen LWNE52SP543RW01 Washer
SPQ 203720 SPQ 203720 Contact Us For Availability
SPQ 202942 SPQ 202942 Contact Us For Availability
1
Tub Cover Assembly SPQ 202888 Contact Us For Availability
1
Weldment and Bearing Asse SPQ 39253 Contact Us For Availability
1
Lid SPQ 37395WP Contact Us For Availability
1
Washer SPQ 802254 Contact Us For Availability
1
Tool Kit SPQ 725P3 Contact Us For Availability
1
Pressure Sensor Harness SPQ 204572 Contact Us For Availability
1
End Panel SPQ D504009WP Contact Us For Availability
1
Nut SPQ 52566 Contact Us For Availability
1
Shipping Brace SPQ 200553 Contact Us For Availability
1
Screw SPQ 27202 Contact Us For Availability
1
Screw SPQ 52909 Contact Us For Availability
1
Output Shaft SPQ 36570P Contact Us For Availability
1
Motor Shield SPQ 34754 Contact Us For Availability
1
Bumper Pad SPQ 56128 Contact Us For Availability
2
Sealant SPQ 200996P Contact Us For Availability
2
Screw SPQ 37992WP Contact Us For Availability
2
Spring Hook Tool SPQ 321P4 Contact Us For Availability
2
Tubing SPQ 202700 Contact Us For Availability
2
Screw SPQ 202884 Contact Us For Availability
2
Friction Ring SPQ 34319 Contact Us For Availability
2
Pressure Sensor SPQ 36513 Contact Us For Availability
2
Mixing Valve Screen SPQ 24122 Contact Us For Availability
2
Washer SPQ 803615 Contact Us For Availability
2
Shipping Plug SPQ 38149 Contact Us For Availability
2
Standpipe Strap SPQ 33489 Contact Us For Availability
2
Pressure Sensor Harness SPQ 804432 Contact Us For Availability
2
Gear Sleeve SPQ 201212 Contact Us For Availability
2
Strain Relief SPQ 38384 Contact Us For Availability
3
Washtub Kit SPQ 39837 Contact Us For Availability
3
Idler Lever Spring SPQ 202032 Contact Us For Availability
3
Tub Cover Gasket SPQ 38359 Contact Us For Availability
3
SPQ 204870 SPQ 204870 Contact Us For Availability
3
Agitator Drive Bell Puller SPQ 294P4 Contact Us For Availability
3
Silicone Grease SPQ 204253 Contact Us For Availability
3
Top Cover SPQ 39905W Contact Us For Availability
3
Screw SPQ 21685 Contact Us For Availability
3
Drain Hose Sleeve SPQ 33615 Contact Us For Availability
3
Gear and Stud Assembly SPQ RB150004 Contact Us For Availability
3
Drive Bell Seal Tool SPQ 293P4 Contact Us For Availability
3
Screw SPQ 804667 Contact Us For Availability
3
Wire Clip SPQ 687500 Contact Us For Availability
3
Motor Assembly SPQ 202960 Contact Us For Availability
4
Washtub Gasket SPQ 719P3 Contact Us For Availability
4
Brake Pad Kit SPQ 735P3 Contact Us For Availability
4
Outer Tub Assembly SPQ 203603P Contact Us For Availability
4
SPQ 35865 SPQ 35865 Contact Us For Availability
4
Screw SPQ 202396P Contact Us For Availability
4
Spring Clip SPQ 210202 Contact Us For Availability
4
Nut SPQ 35369 Contact Us For Availability
4
Drive Pinion SPQ 27243P Contact Us For Availability
4
Output Control Shield SPQ 202939 Contact Us For Availability
5
Hex Wrench Tool SPQ 306P4 Contact Us For Availability
5
Hub and Lip Seal Kit SPQ 39122 Contact Us For Availability
5
Strain Relief SPQ 32219 Contact Us For Availability
5
Washer SPQ 39739 Contact Us For Availability
5
SPQ 39733 SPQ 39733 Contact Us For Availability
5
Leg Plate SPQ 27926 Contact Us For Availability
5
Mixing Valve Mounting Bracket SPQ 203558 Contact Us For Availability
6
Sealant SPQ 766P3A Contact Us For Availability
6
Drain Hose SPQ 39893 Contact Us For Availability
6
Washer SPQ 35535 Contact Us For Availability
6
Agitator Hook SPQ 254P4P Contact Us For Availability
6
Screw SPQ 38011 Contact Us For Availability
6
SPQ 35097 SPQ 35097 Contact Us For Availability
6
Motor Mount Bracket SPQ 204062 Contact Us For Availability
6
Output Board Cover Gasket SPQ 202964 Contact Us For Availability
7
Leg Spring SPQ 201521 Contact Us For Availability
7
Pulley SPQ 27015 Contact Us For Availability
7
Washer SPQ 200941 Contact Us For Availability
7
Idler Shaft SPQ 81392 Contact Us For Availability
7
Hose Stand SPQ 38732 Contact Us For Availability
7
6 Circuit Plug SPQ 23033 Contact Us For Availability
8
Leg Spring SPQ 37575 Contact Us For Availability
8
SPQ 203843 SPQ 203843 Contact Us For Availability
8
Nut SPQ 29728 Contact Us For Availability
8
SPQ 203950 SPQ 203950 Contact Us For Availability
8
SPQ D504008WP SPQ D504008WP Contact Us For Availability
8
Idler Lever Assembly SPQ 27229 Contact Us For Availability
8
Hose Clamp SPQ F200204 Contact Us For Availability
8
SPQ 37772 SPQ 37772 Contact Us For Availability
8
SPQ 36226 SPQ 36226 Contact Us For Availability
9
SPQ 204486 SPQ 204486 Contact Us For Availability
9
Bell and Transmission Tube Seal SPQ 29220 Contact Us For Availability
9
Tub-to-Pump Hose SPQ 38351 Contact Us For Availability
9
SPQ 210186 SPQ 210186 Contact Us For Availability
9
Counterweight Assembly SPQ 39566 Contact Us For Availability
9
SPQ 23962 SPQ 23962 Contact Us For Availability
9
SPQ 204063 SPQ 204063 Contact Us For Availability
10
Washer SPQ 52549 Contact Us For Availability
10
Inlet Deflector SPQ 202900 Contact Us For Availability
10
Screw SPQ 27220 Contact Us For Availability
10
Drive Bell and Seal Kit SPQ 39508P Contact Us For Availability
10
Screw SPQ 32814 Contact Us For Availability
10
Retainer Clip SPQ 36014 Contact Us For Availability
11
Transmission Assembly SPQ 38165P Contact Us For Availability
11
Retaining Ring SPQ 23748 Contact Us For Availability
11
Hinge Stop Clip SPQ 36519 Contact Us For Availability
11
Helix SPQ 38008 Contact Us For Availability
11
Bell Plug SPQ 39432 Contact Us For Availability
12
Idler Lever Kit SPQ 959P3 Contact Us For Availability
12
Idler Pulley SPQ 38225P Contact Us For Availability
12
Lower Bearing SPQ 28944RP Contact Us For Availability
12
Hood Back Panel SPQ 36437 Contact Us For Availability
12
Flex Vane Agitator SPQ 36511 Contact Us For Availability
12
Top SPQ 33562 Contact Us For Availability
12
Transmission Cover Assembly SPQ 37471 Contact Us For Availability
13
Fabric Softener Dispenser Assembly SPQ 36507 Contact Us For Availability
13
Leg and Stabilizer Assembly SPQ 38612WP Contact Us For Availability
13
Grommet SPQ 29175 Contact Us For Availability
14
Balance Ring Assembly SPQ 205225 Contact Us For Availability
14
Pump Assembly Kit SPQ 205218P Contact Us For Availability
14
Pressure Bulb SPQ 205241 Contact Us For Availability
14
Washer SPQ 29260 Contact Us For Availability
15
Belt and Pump Kit SPQ RB150003 Contact Us For Availability
15
Rubber Foot SPQ 34443 Contact Us For Availability
15
Hose Clamp SPQ 39282 Contact Us For Availability
16
Pump SPQ 205217P Contact Us For Availability
16
Hose Clip SPQ 36985 Contact Us For Availability
16
Rack SPQ 26493 Contact Us For Availability
17
Leveling Leg SPQ 36036 Contact Us For Availability
17
Retaining Ring SPQ 201664 Contact Us For Availability
18
Nut SPQ 34318 Contact Us For Availability
19
Panel Locator SPQ 39788 Contact Us For Availability
19
Hub Spacer SPQ 27003 Contact Us For Availability
20
Adjustable Leg Extension Kit SPQ 21899 Contact Us For Availability
21
Foam Pad SPQ 56079 Contact Us For Availability
22
Front Panel Pad SPQ 37937 Contact Us For Availability
22
Transmission Oil SPQ 33223P Contact Us For Availability
23
Front Panel SPQ 566P3 Contact Us For Availability
24
Hold-Down Clip SPQ 36037 Contact Us For Availability
25
Front Panel Brace SPQ 39480 Contact Us For Availability
28
Paint SPQ 28102 Contact Us For Availability
29
Porcelain Touch-Up Paint SPQ 38272 Contact Us For Availability
NI
SPQ 204696 SPQ 204696 Contact Us For Availability
NI
12 Gauge Wire SPQ 202508P Contact Us For Availability
NI
SPQ 27604P SPQ 27604P Contact Us For Availability
NI
SPQ 33446 SPQ 33446 Contact Us For Availability
NI
SPQ 202894 SPQ 202894 Contact Us For Availability
NI
Output Board Control Assembly SPQ 204783 Contact Us For Availability
NI
SPQ 36425 SPQ 36425 Contact Us For Availability
NI
Drain Extension Kit SPQ 451P3 Contact Us For Availability
NI
SPQ D504082 SPQ D504082 Contact Us For Availability
NI
SPQ 26509 SPQ 26509 Contact Us For Availability
NI
SPQ 34337 SPQ 34337 Contact Us For Availability
NI
SPQ 203719 SPQ 203719 Contact Us For Availability
NI
SPQ 283P4 SPQ 283P4 Contact Us For Availability
NI
SPQ 20290 SPQ 20290 Contact Us For Availability
NI
SPQ 37577P SPQ 37577P Contact Us For Availability
NI
SPQ 122P4P SPQ 122P4P Contact Us For Availability
NI
SPQ 39249 SPQ 39249 Contact Us For Availability
NI
Mixing Valve Shield SPQ 39407 Contact Us For Availability
NI
12 Gauge Wire SPQ 45380 Contact Us For Availability
NI
SPQ D501086 SPQ D501086 Contact Us For Availability
NI
SPQ 55881 SPQ 55881 Contact Us For Availability
NI
18 Gauge Wire SPQ 45001 Contact Us For Availability
× ![]()
