Model Speed Queen LWNE52SP303AW01 Washer – Common Parts & Diagrams

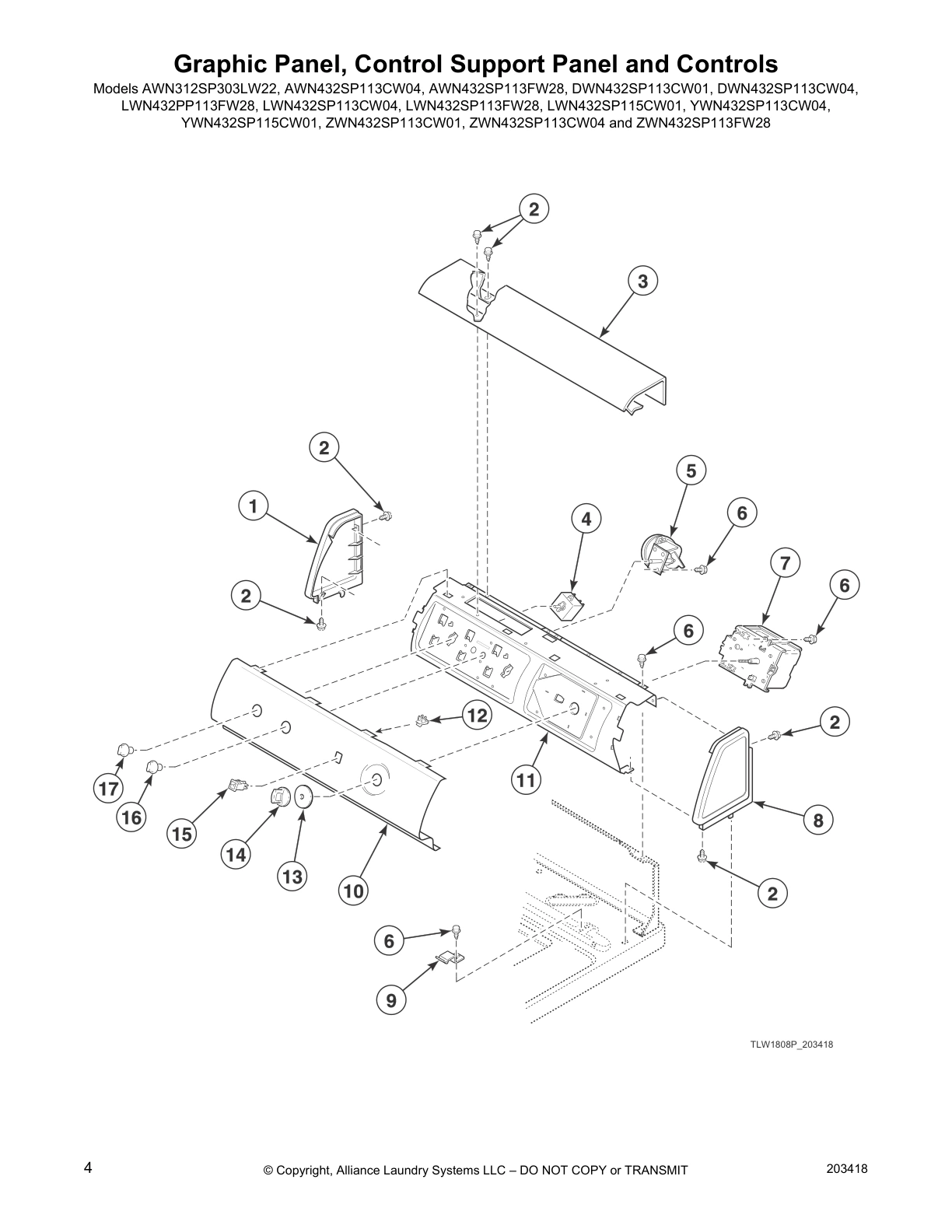

Graphic Panel, Control Support Panel and Controls

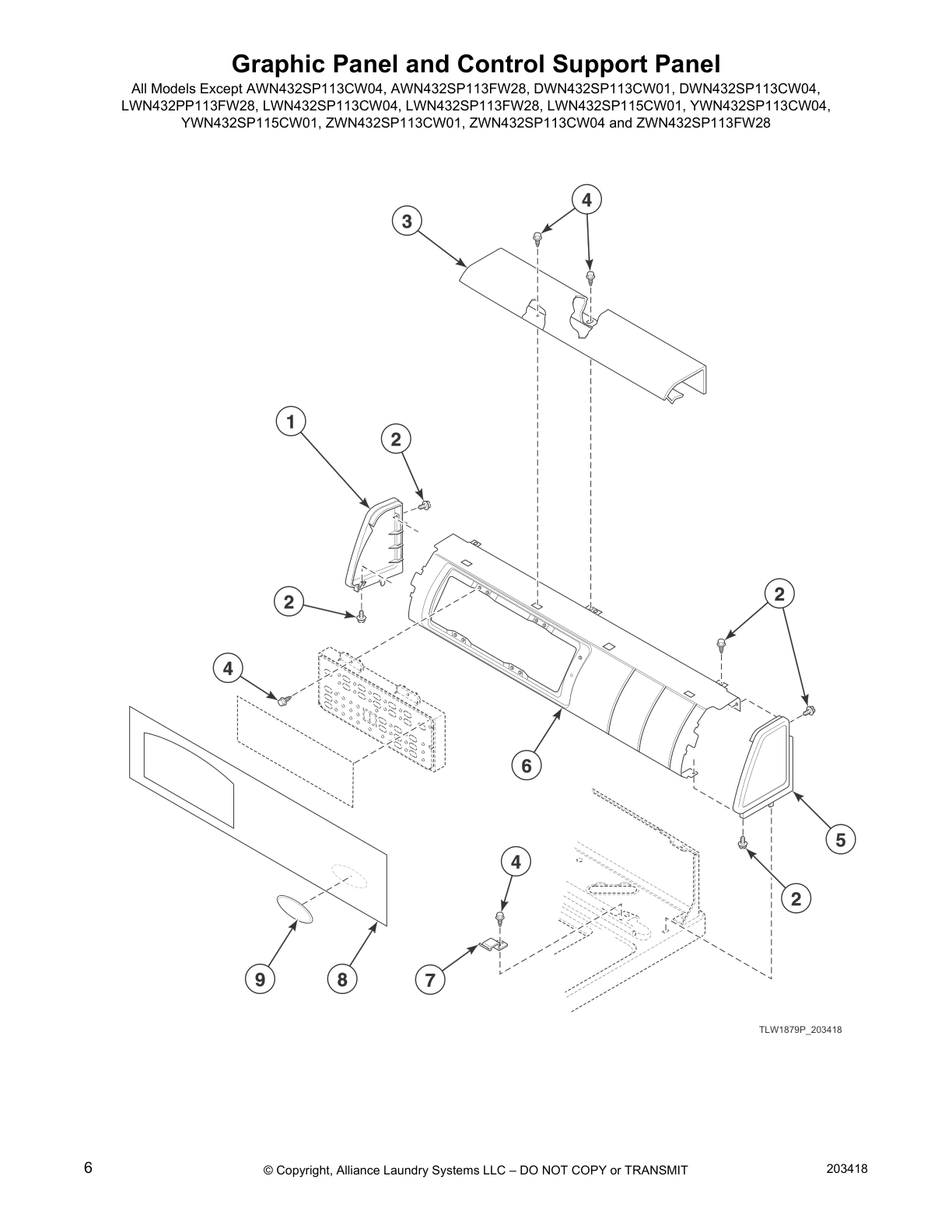

Graphic Panel and Control Support Panel
Controls and Overlay
Lid Switch Assembly
Top, Lid and Lid Lock (Drawing 1 of 2)
Top, Lid and Lid Lock (Drawing 2 of 2)
Lid and Hood Back Panel
Top
Junction Box
Mixing Valve-to-Tub Cover Hose and Mixing Valve Bracket
Mixing Valve
Fill Hose
Belt, Pump and Idler Assembly (Drawing 1 of 2)
Belt, Pump and Idler Assembly (Drawing 2 of 2)
Motor and Mounting Bracket (Drawing 1 of 2)
Motor and Mounting Bracket (Drawing 2 of 2)
Agitator, Fabric Softener Dispenser, Drive Bell,
Hub and Lip Seal Kit and Washtub
Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose
and Counterweight
Drain Hose and Siphon Break Kit
Weldment and Bearing Assembly, Brake and Pulley
Transmission Assembly (Drawing 1 of 2)
Transmission Assembly (Drawing 2 of 2)
Front Panel, Base Assembly and Cabinet Kit
Mixing Valve and Motor Connection Blocks,
Terminals and Extractor Tool
Power Cord
Terminals and Clips
Terminals
Shipping Materials and Special Tools
Special Tools
Output Board, Wire Harnesses and Wires (Drawing 1 of 2)
Output Board, Wire Harnesses and Wires (Drawing 2 of 2)
Wire Harnesses and Wires
Common parts from model Speed Queen LWNE52SP303AW01 Washer
× ![]()
