Model Speed Queen LTZ99A*N Stacked Washer and Dryer – Common Parts & Diagrams
Control Cabinet and Controls
Washer Front Panel, Door Assembly and Door Seal - Models
Through Serial No. 0411000565

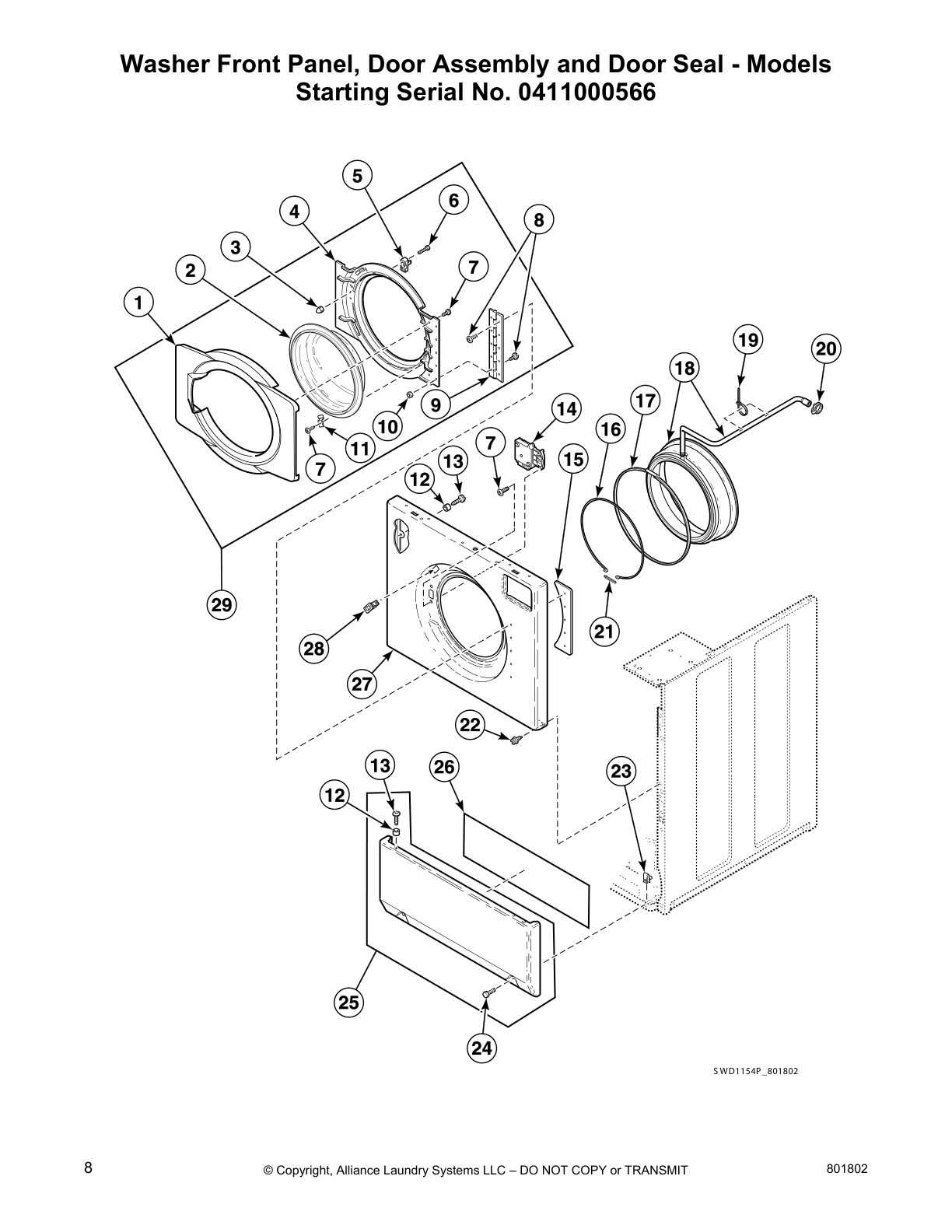

Washer Front Panel, Door Assembly and Door Seal - Models
Starting Serial No. 0411000566

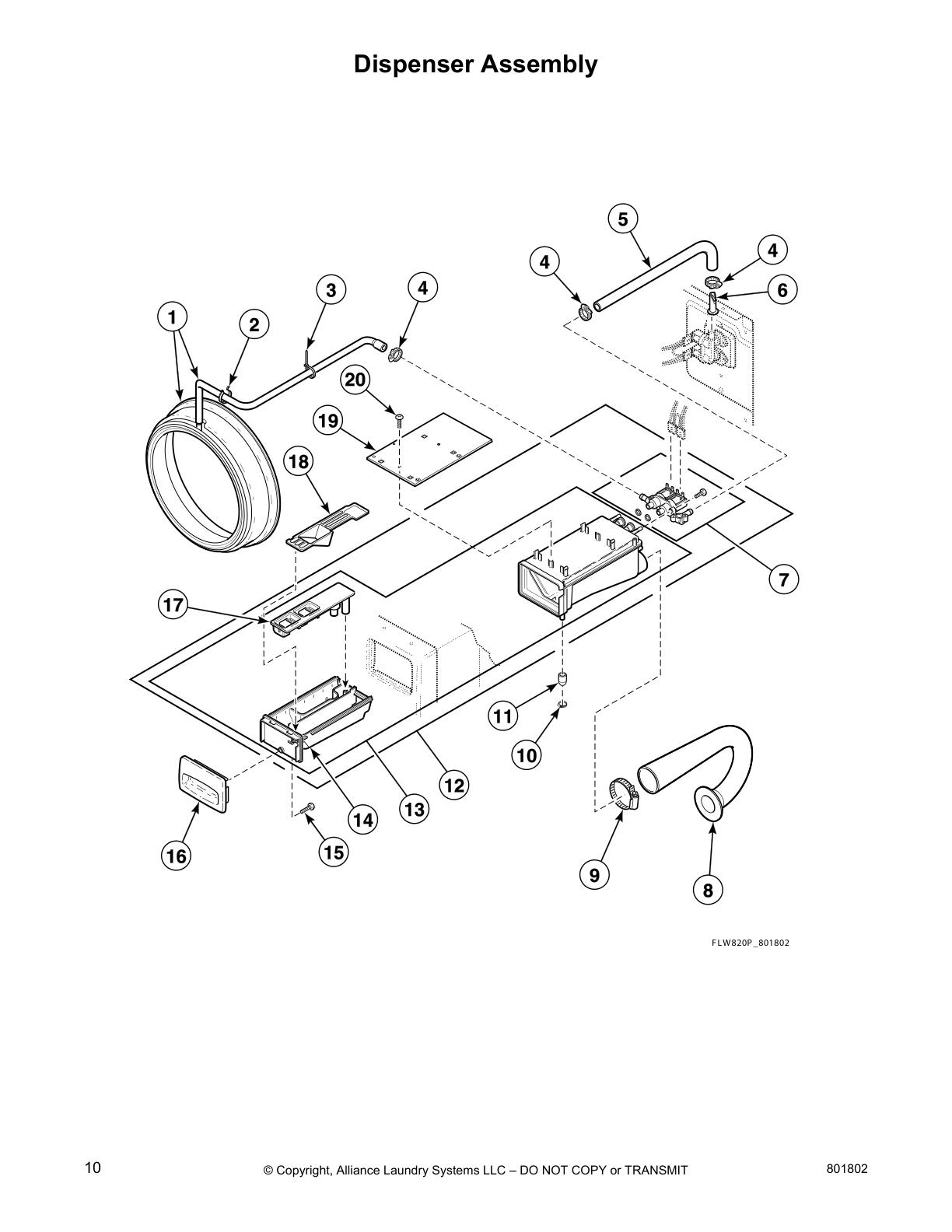

Dispenser Assembly

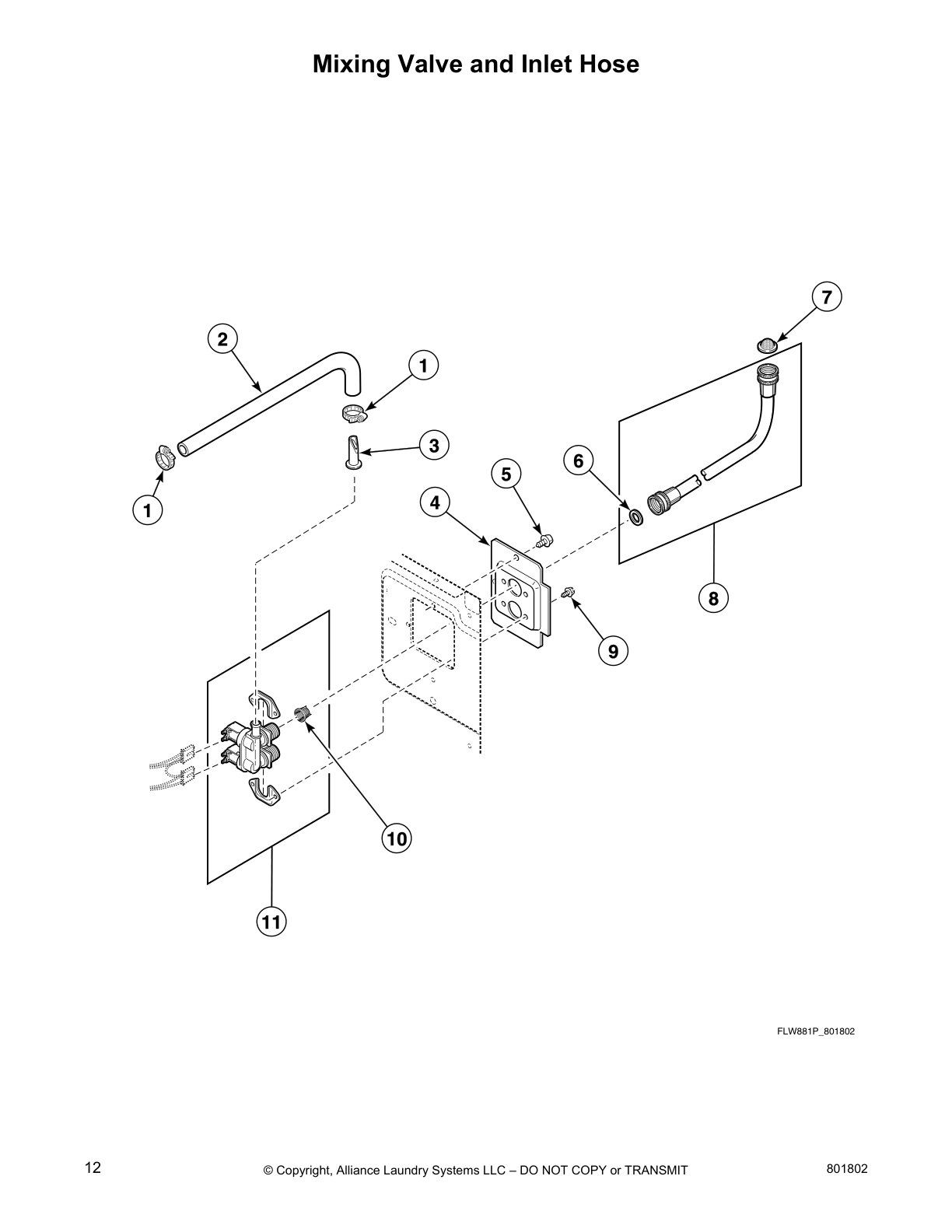

Mixing Valve and Inlet Hose

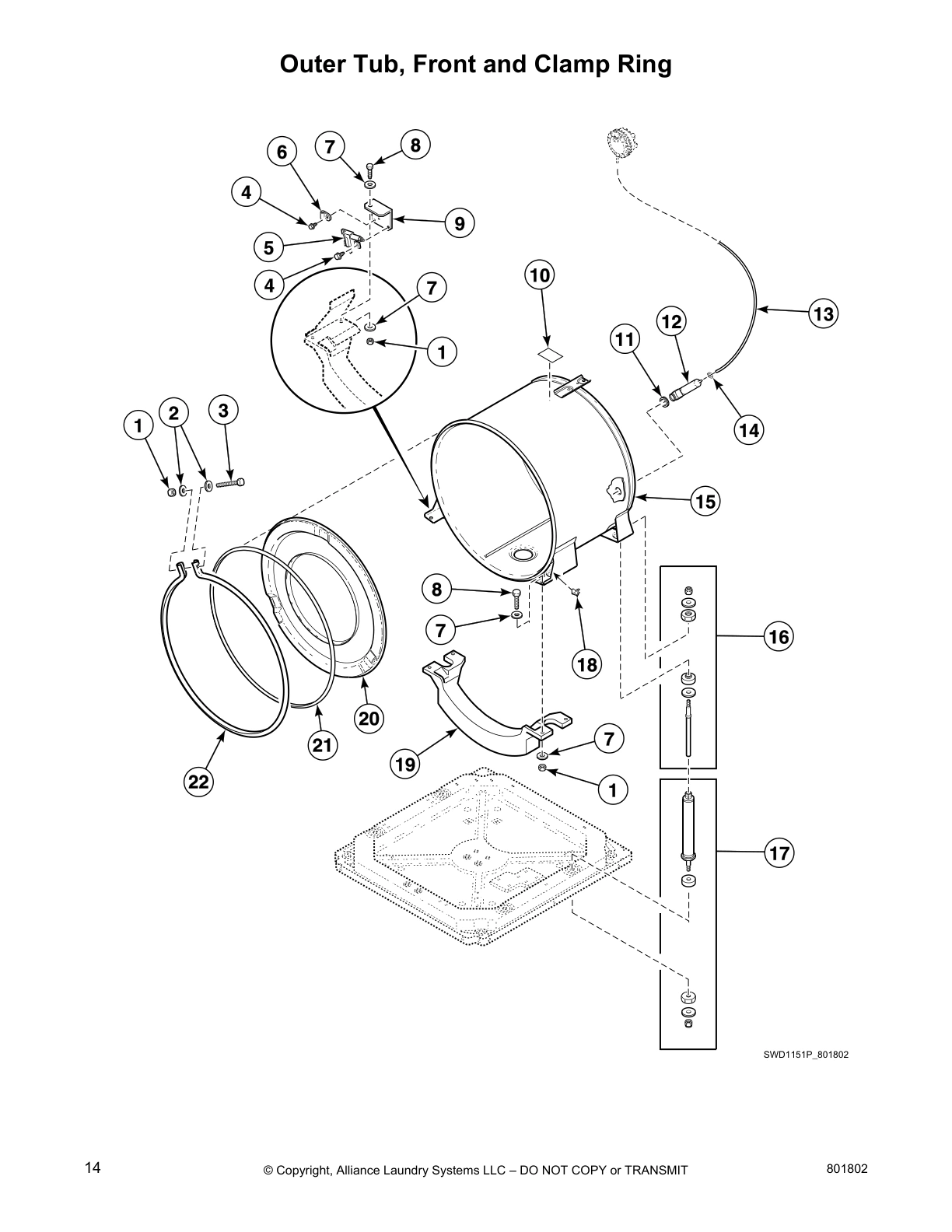

Outer Tub, Front and Clamp Ring

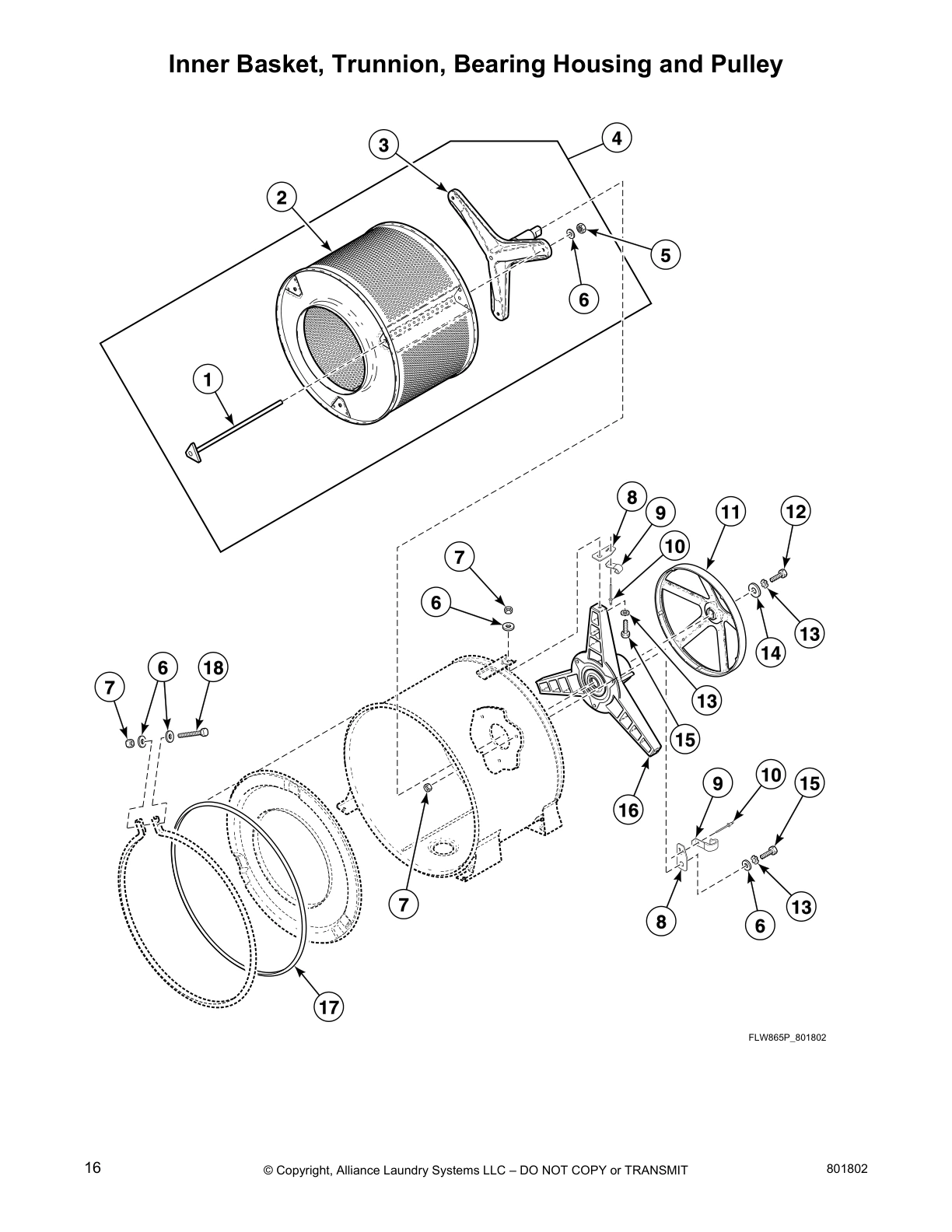

Inner Basket, Trunnion, Bearing Housing and Pulley

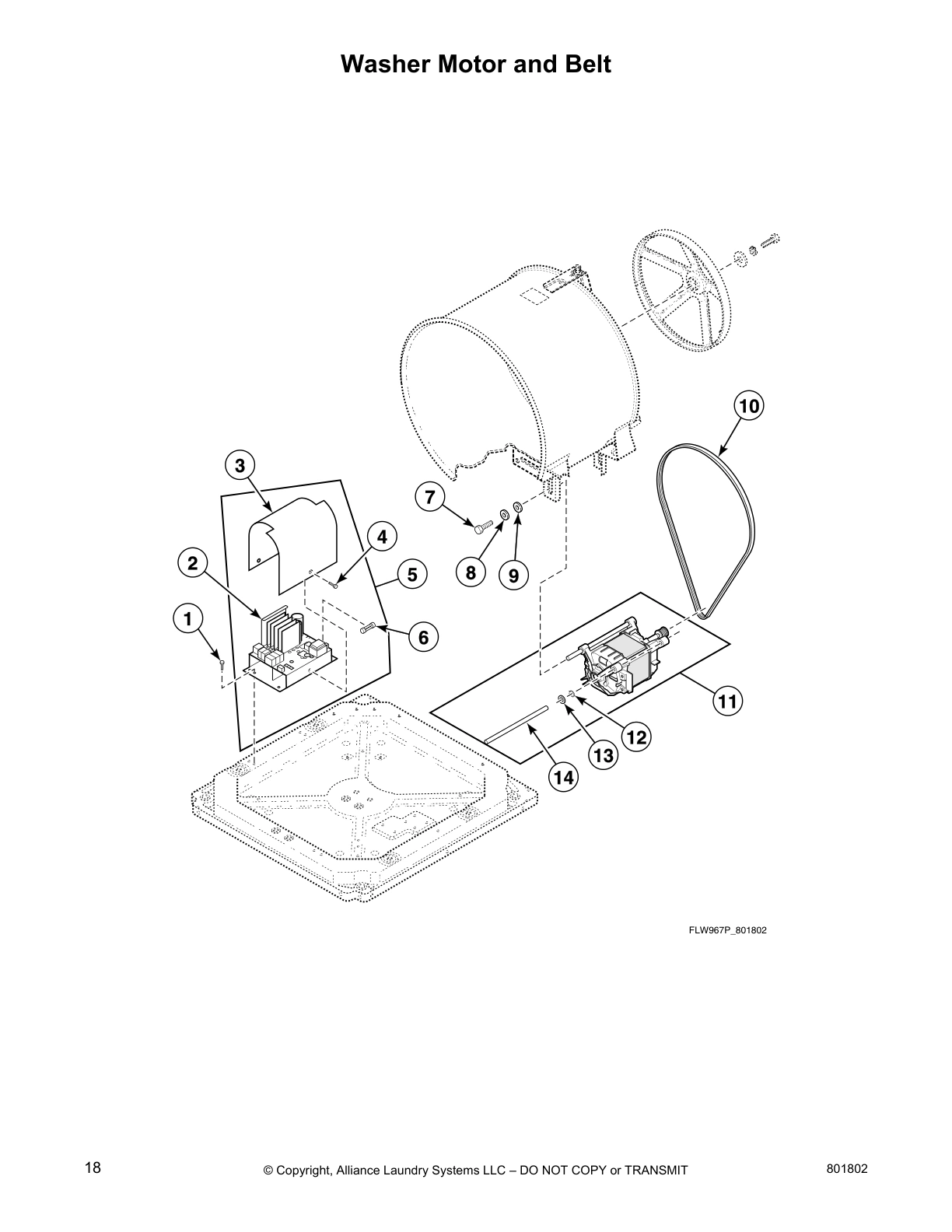

Washer Motor and Belt

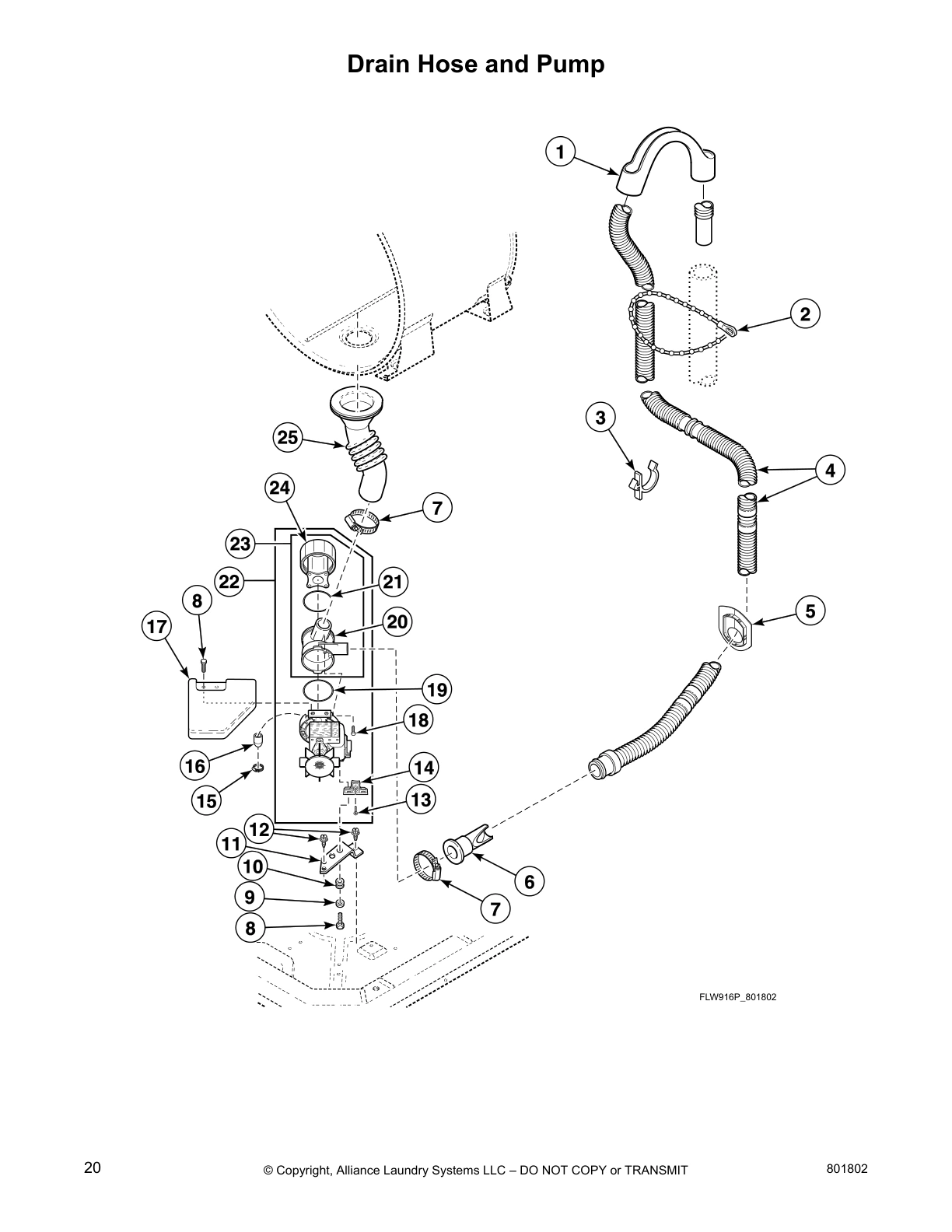

Drain Hose and Pump

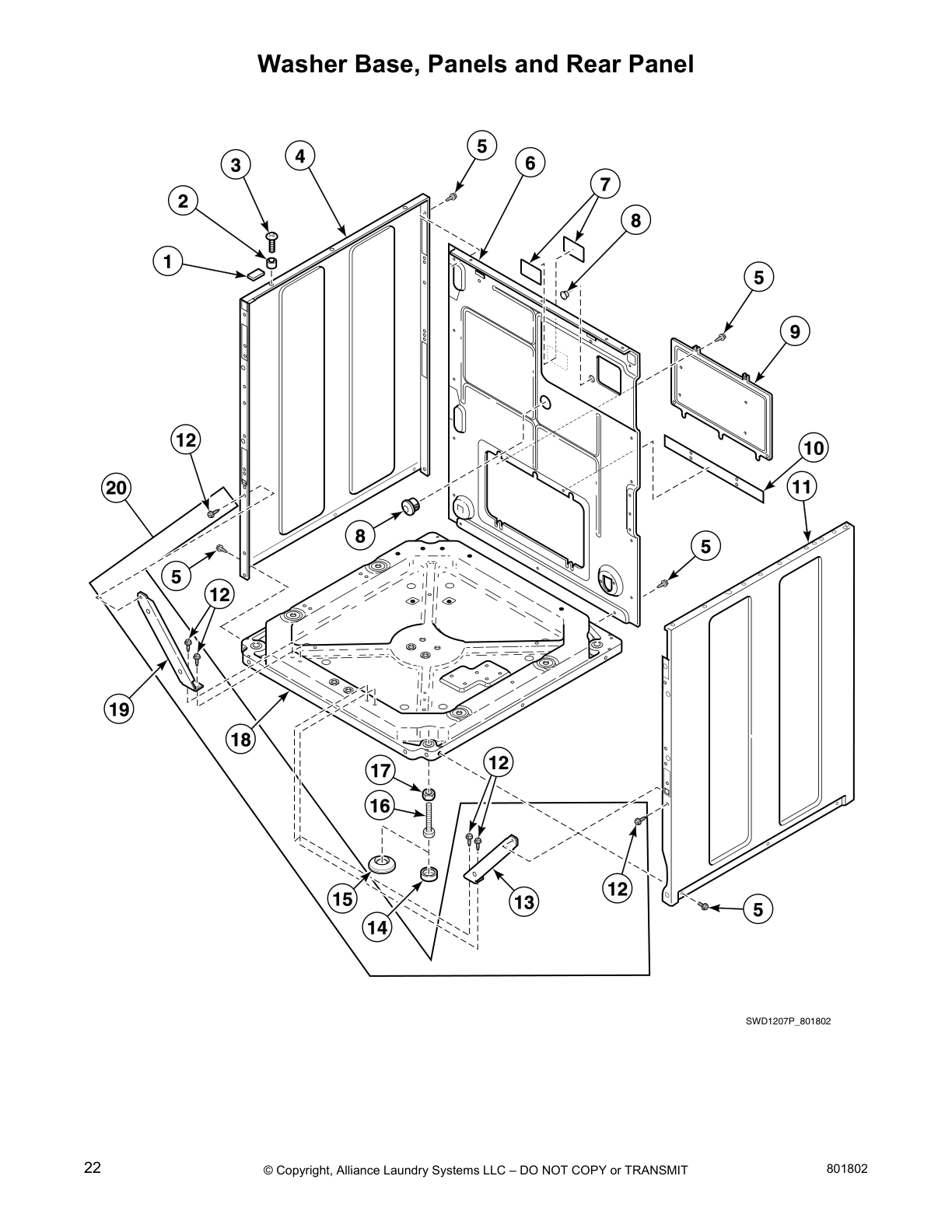

Washer Base, Panels and Rear Panel
Washer Lead-In Cord, Wire Ties and Clips

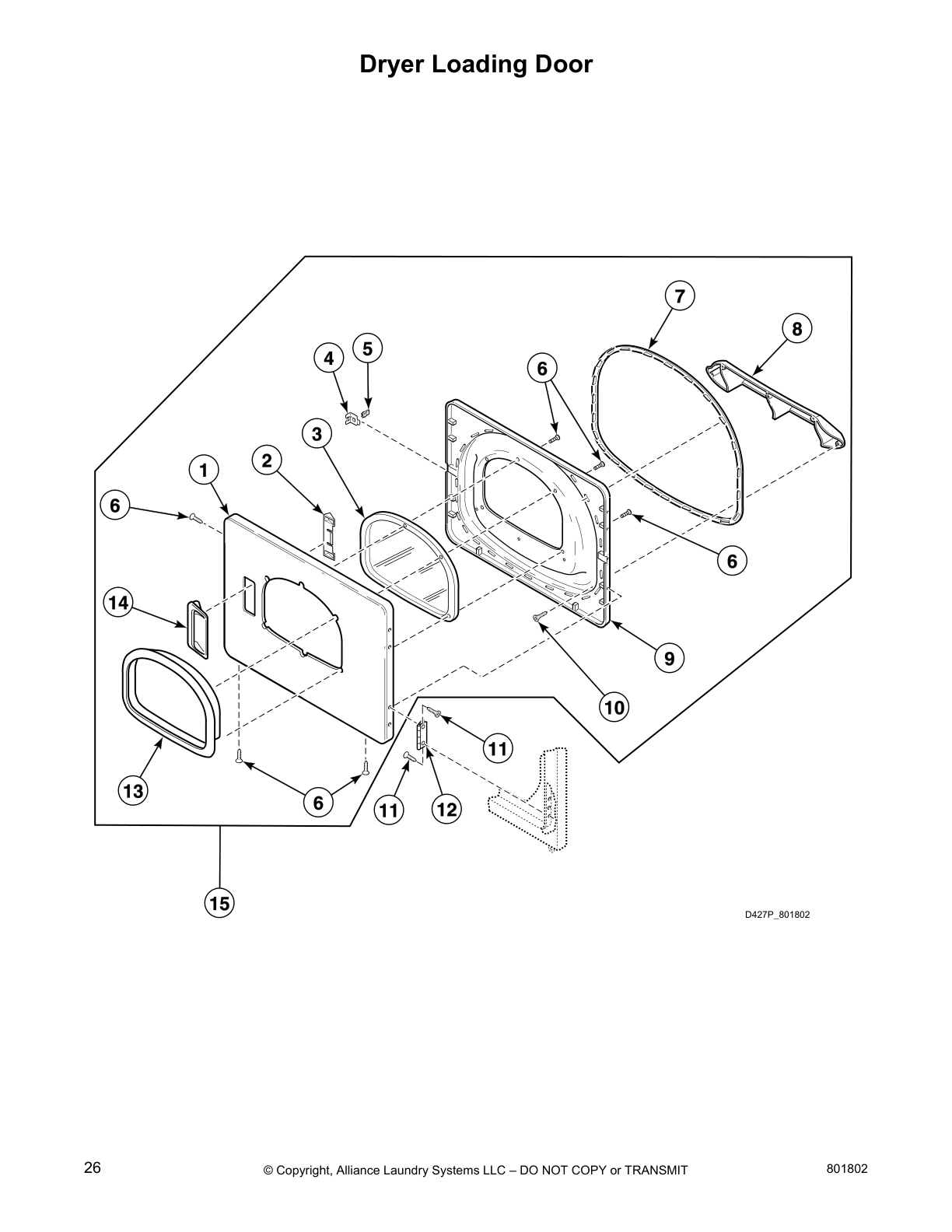

Dryer Loading Door

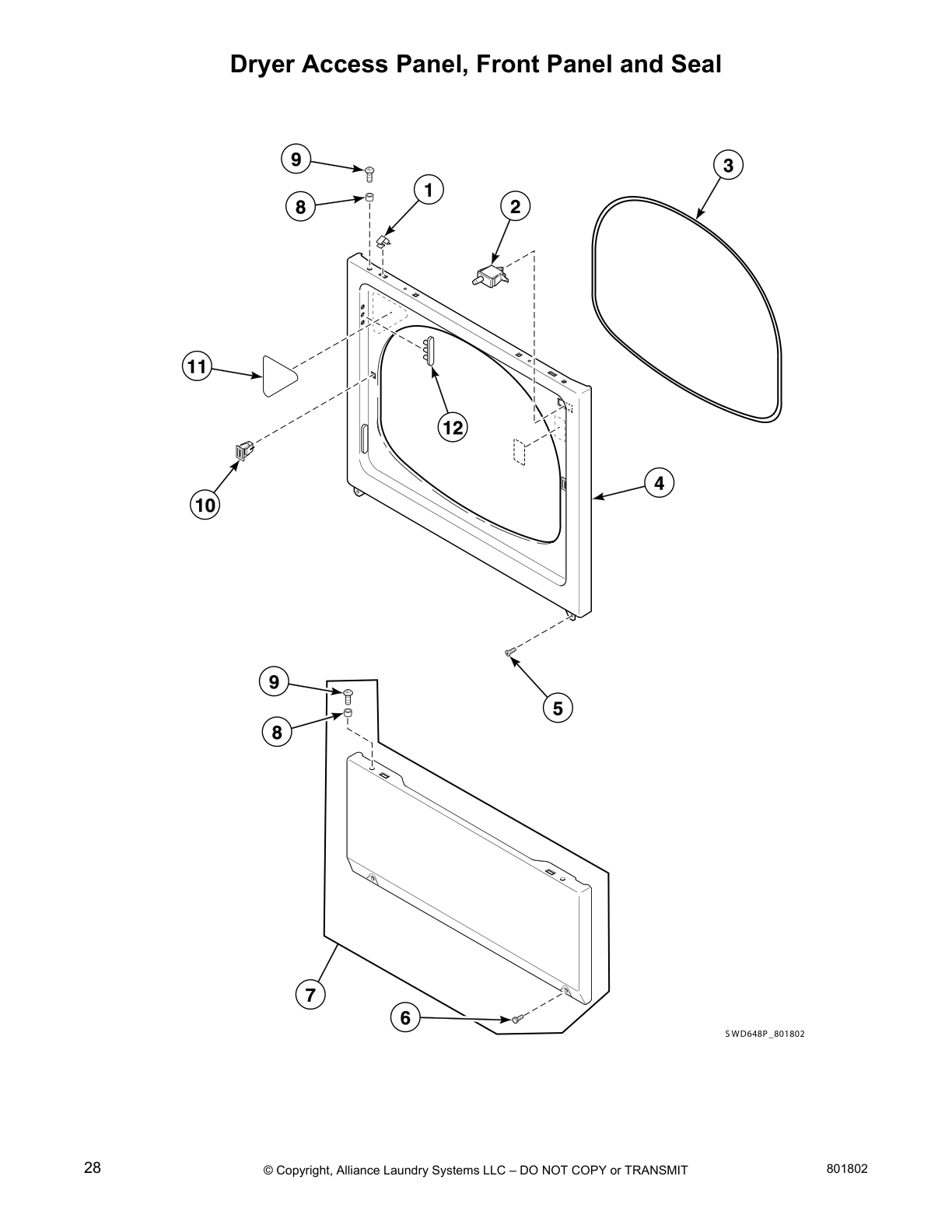

Dryer Access Panel, Front Panel and Seal

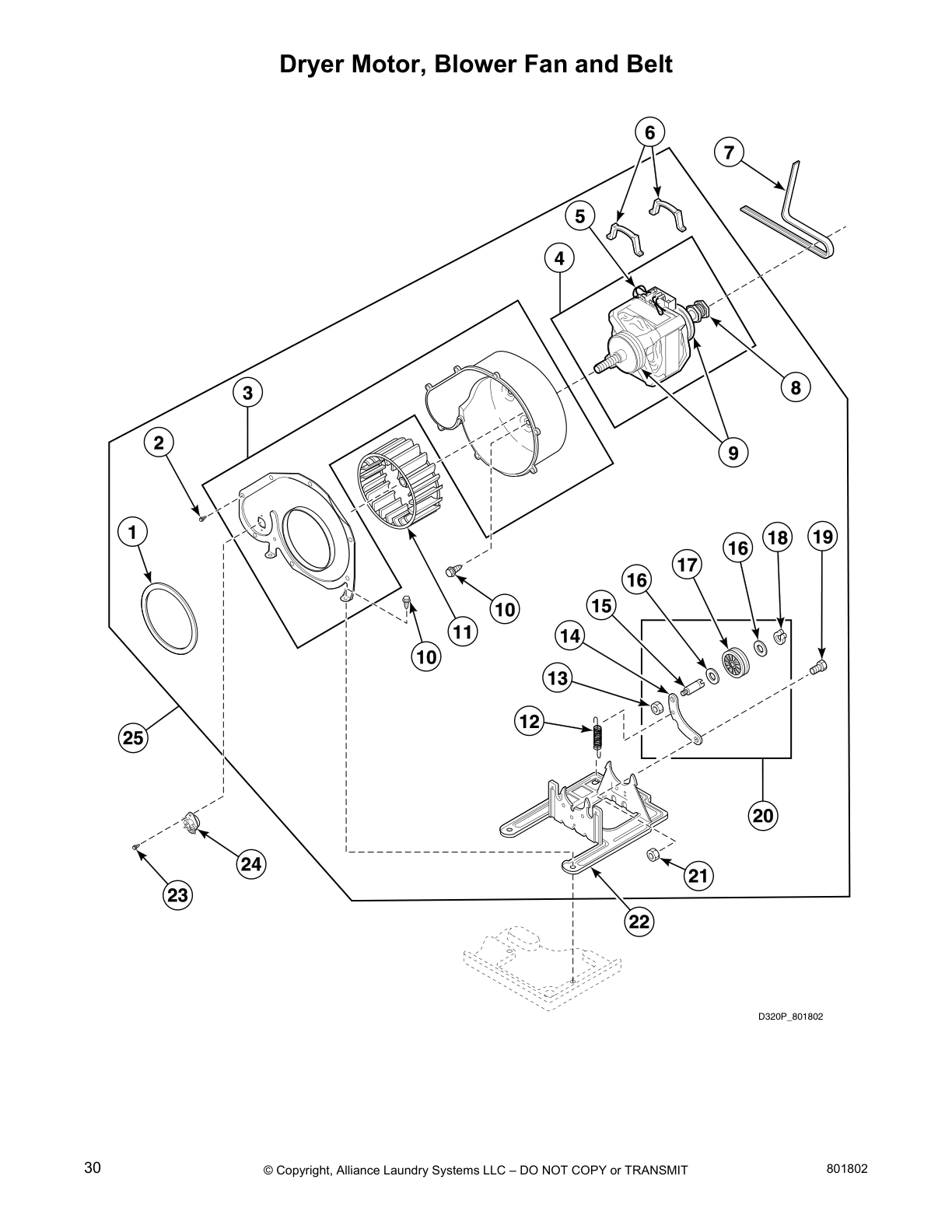

Dryer Motor, Blower Fan and Belt

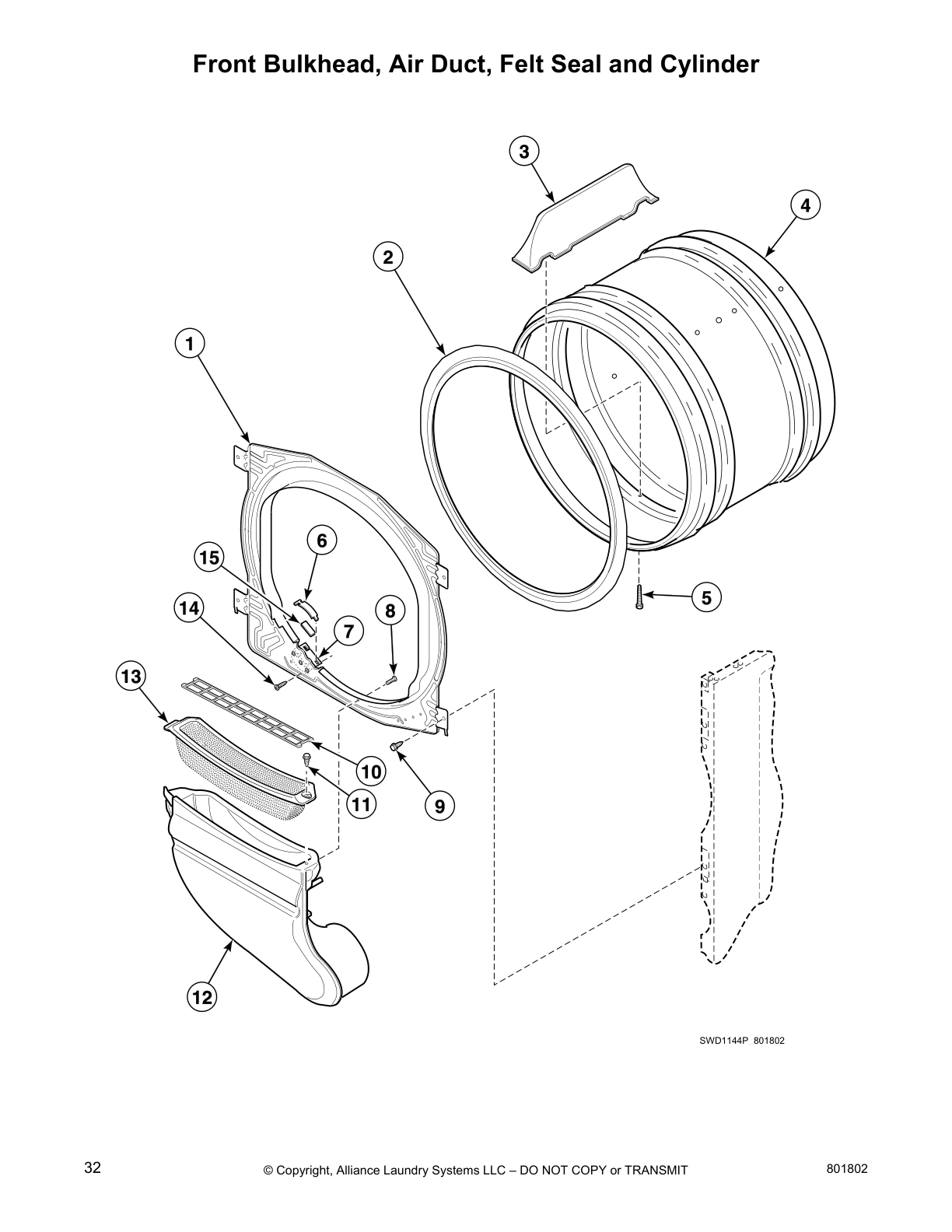

Front Bulkhead, Air Duct, Felt Seal and Cylinder

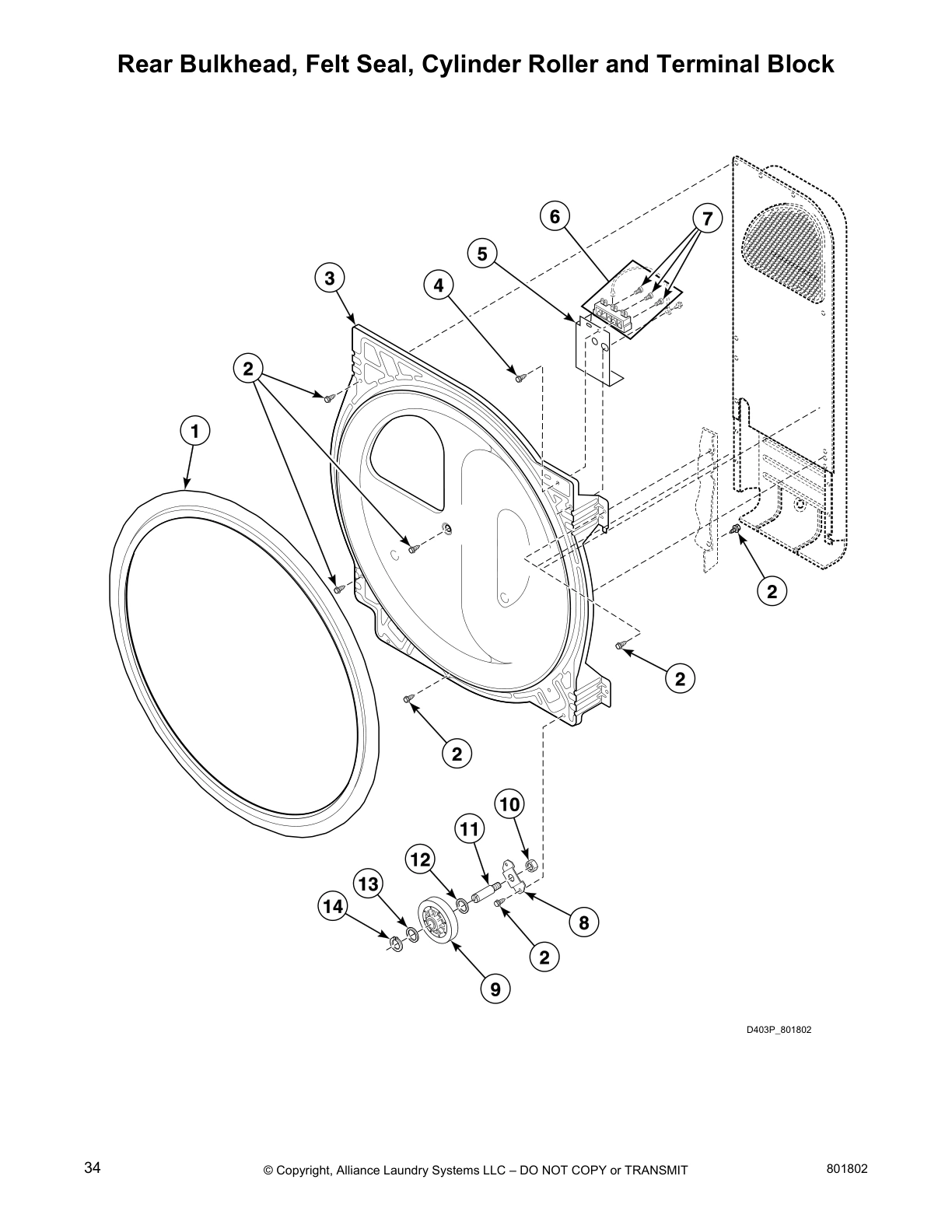

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

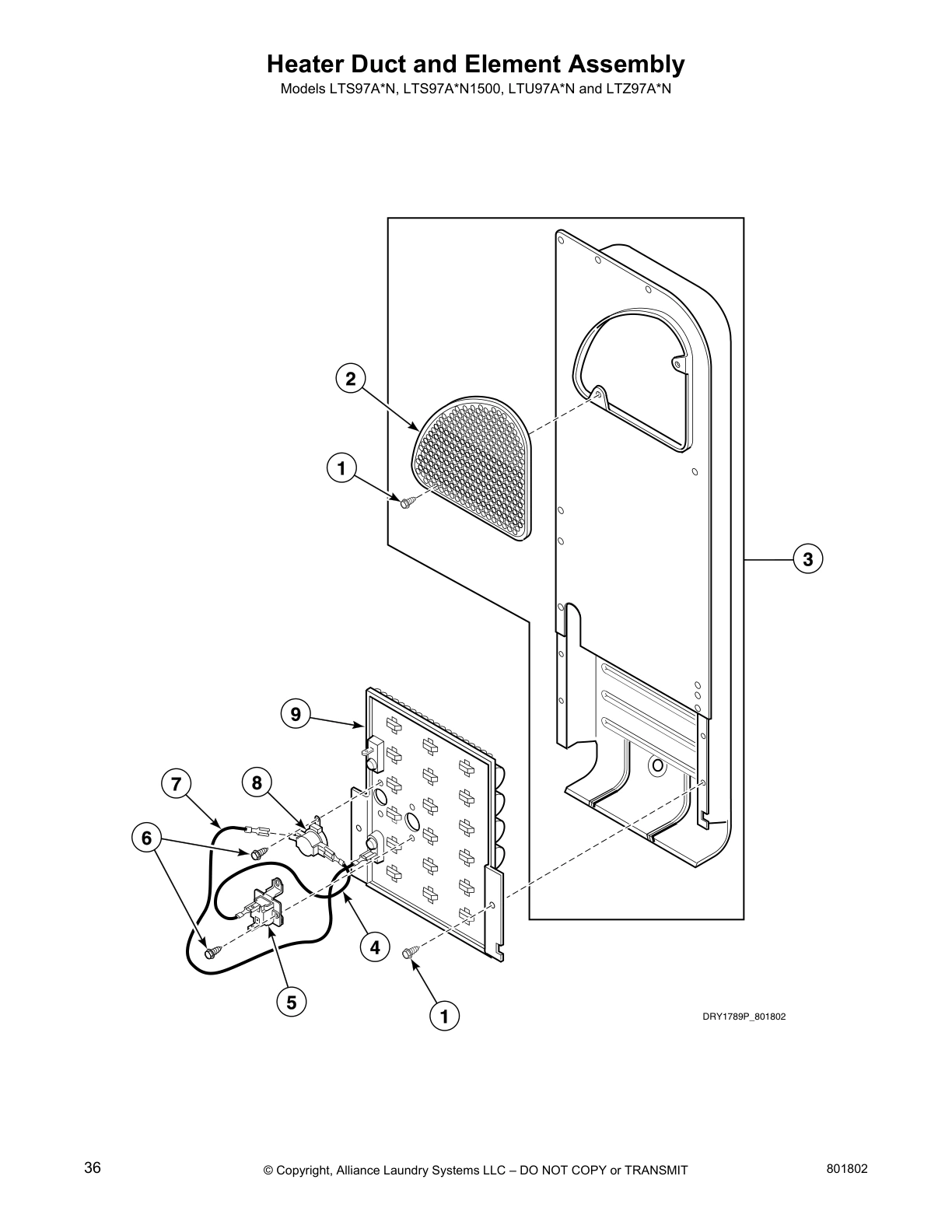

Heater Duct and Element Assembly

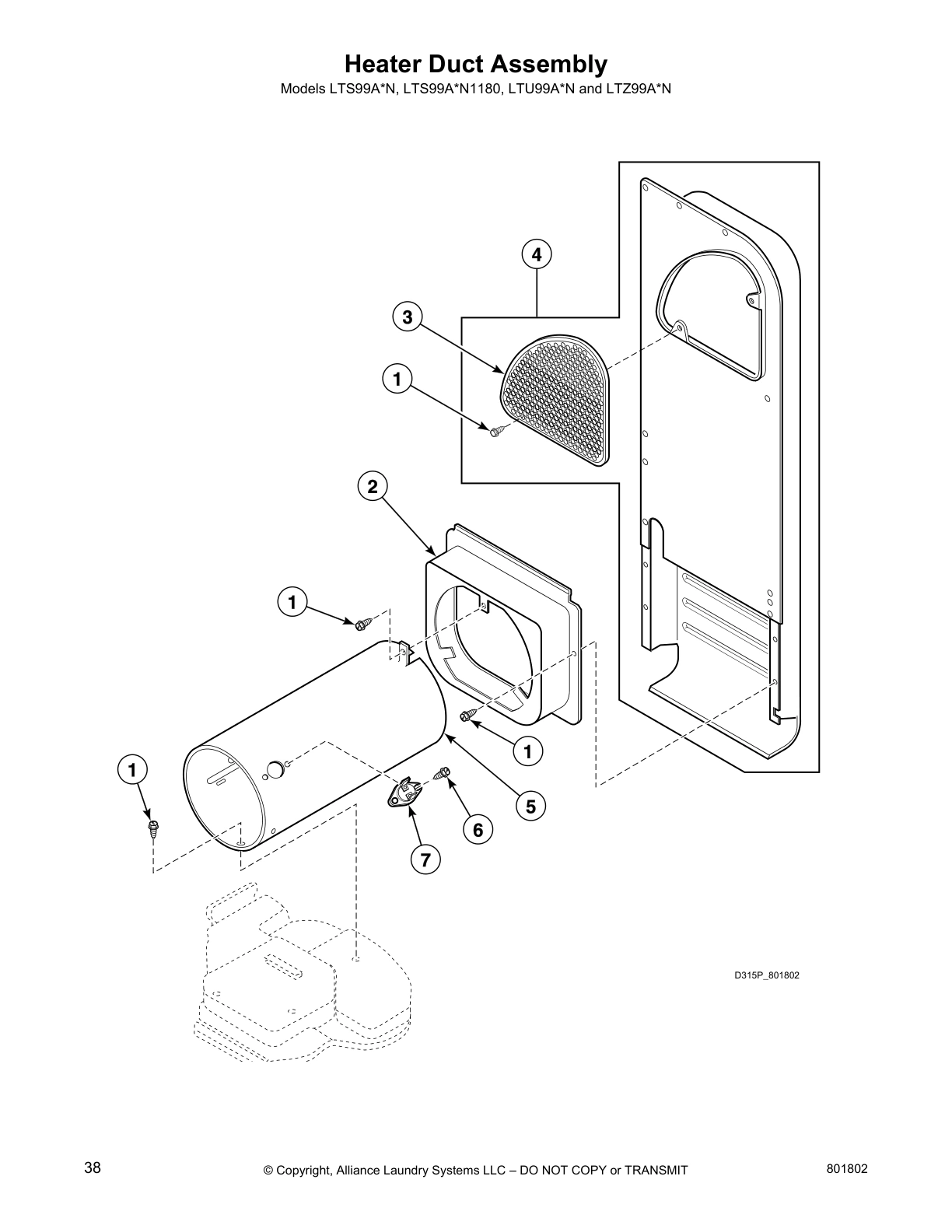

Heater Duct Assembly

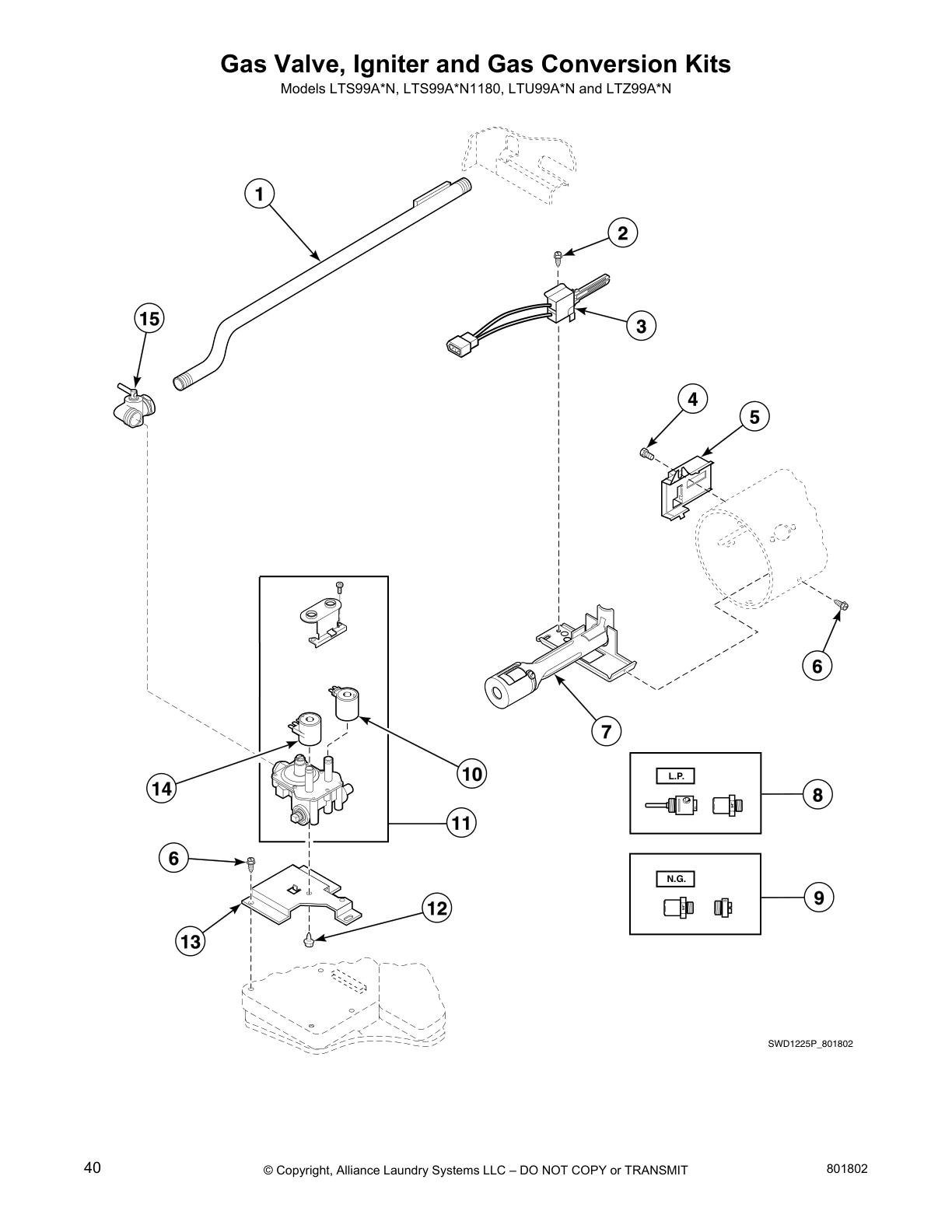

Gas Valve, Igniter and Gas Conversion Kits

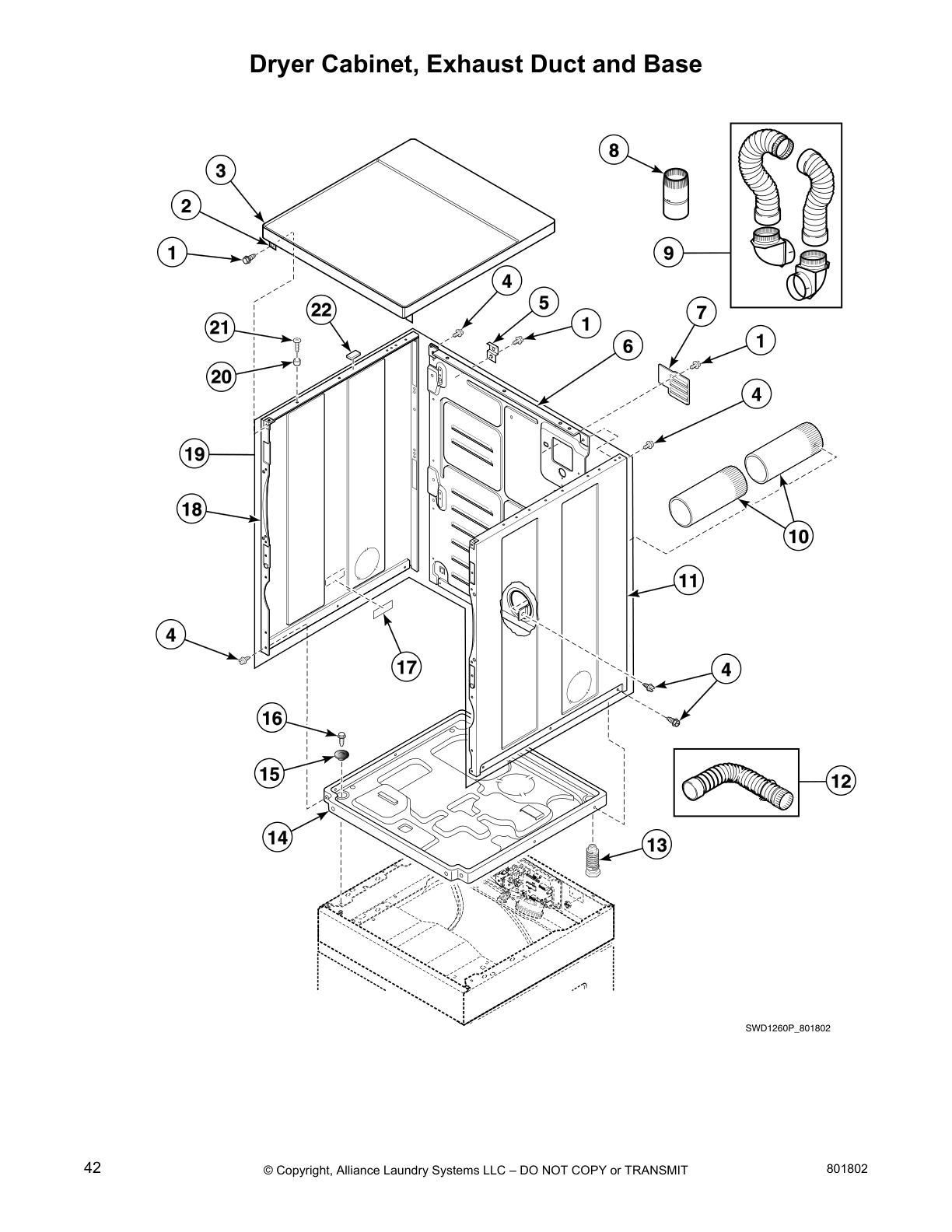

Dryer Cabinet, Exhaust Duct and Base

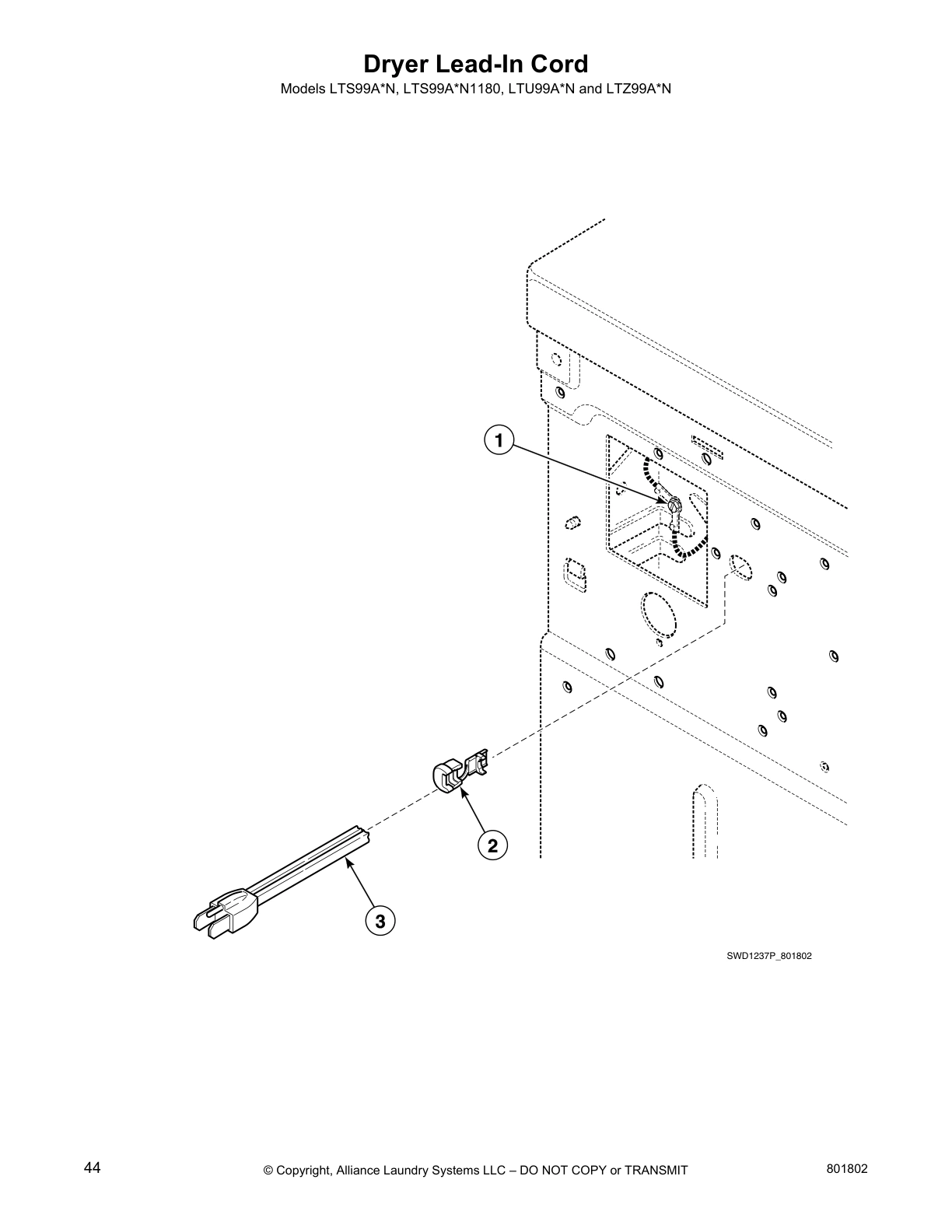

Dryer Lead-In Cord

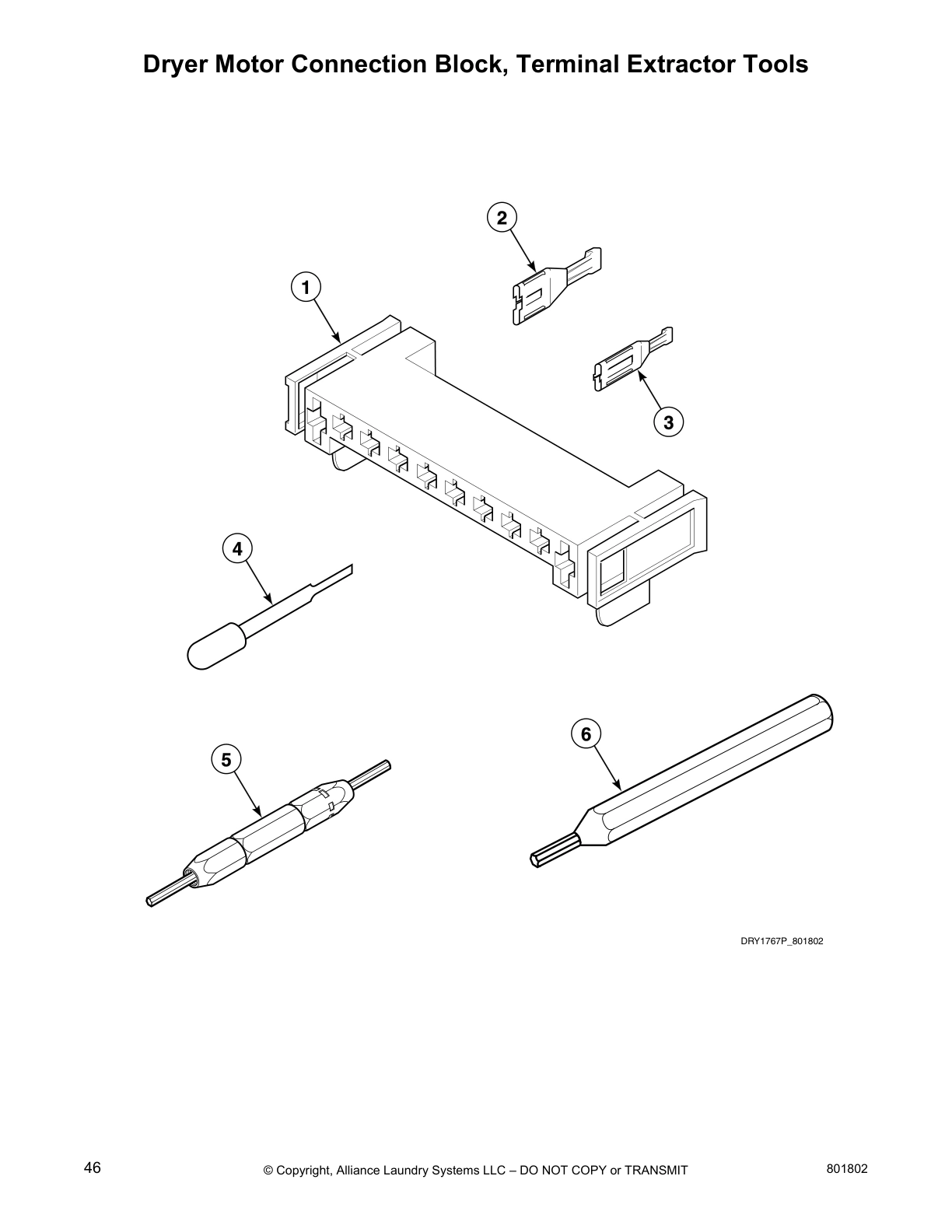

Dryer Motor Connection Block, Terminal Extractor Tools

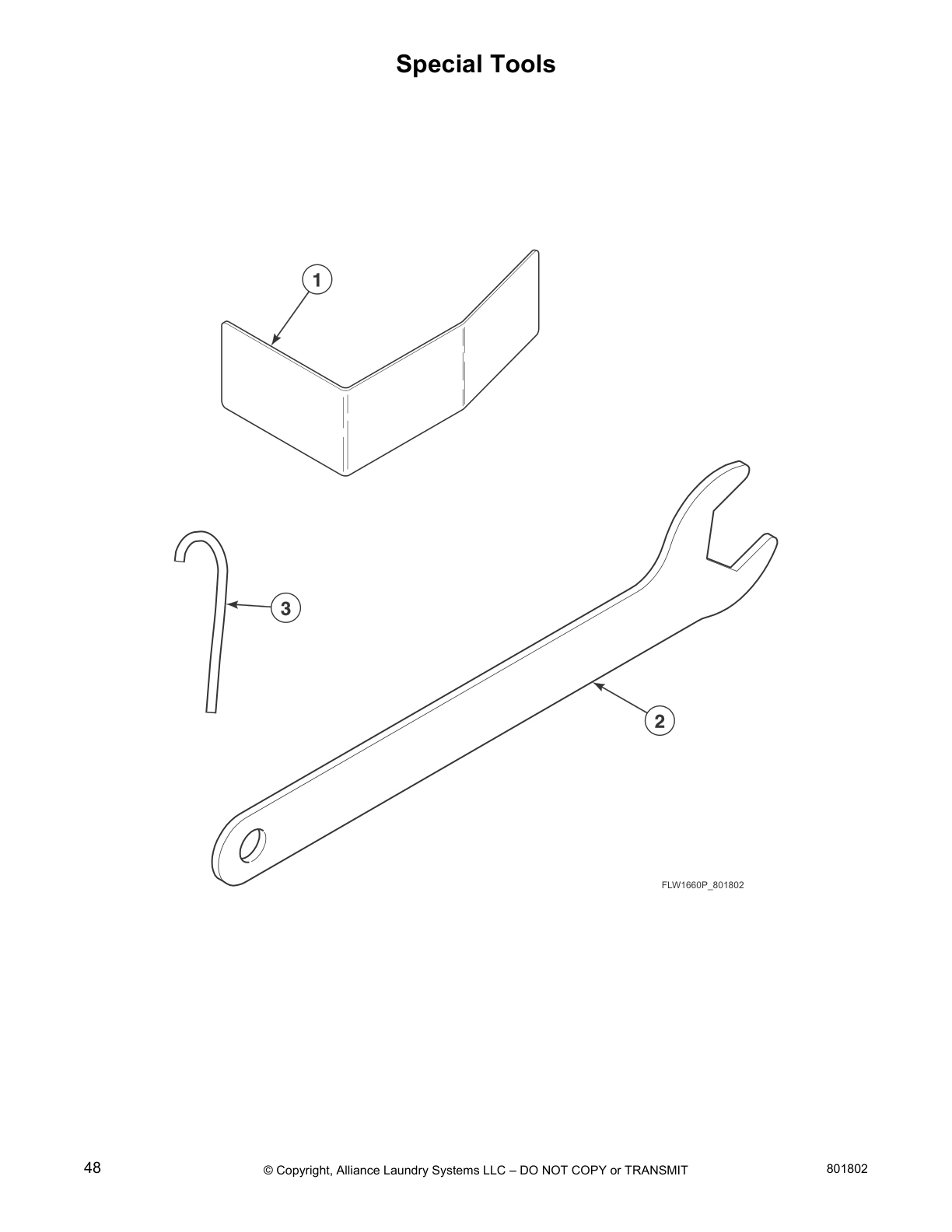

Special Tools

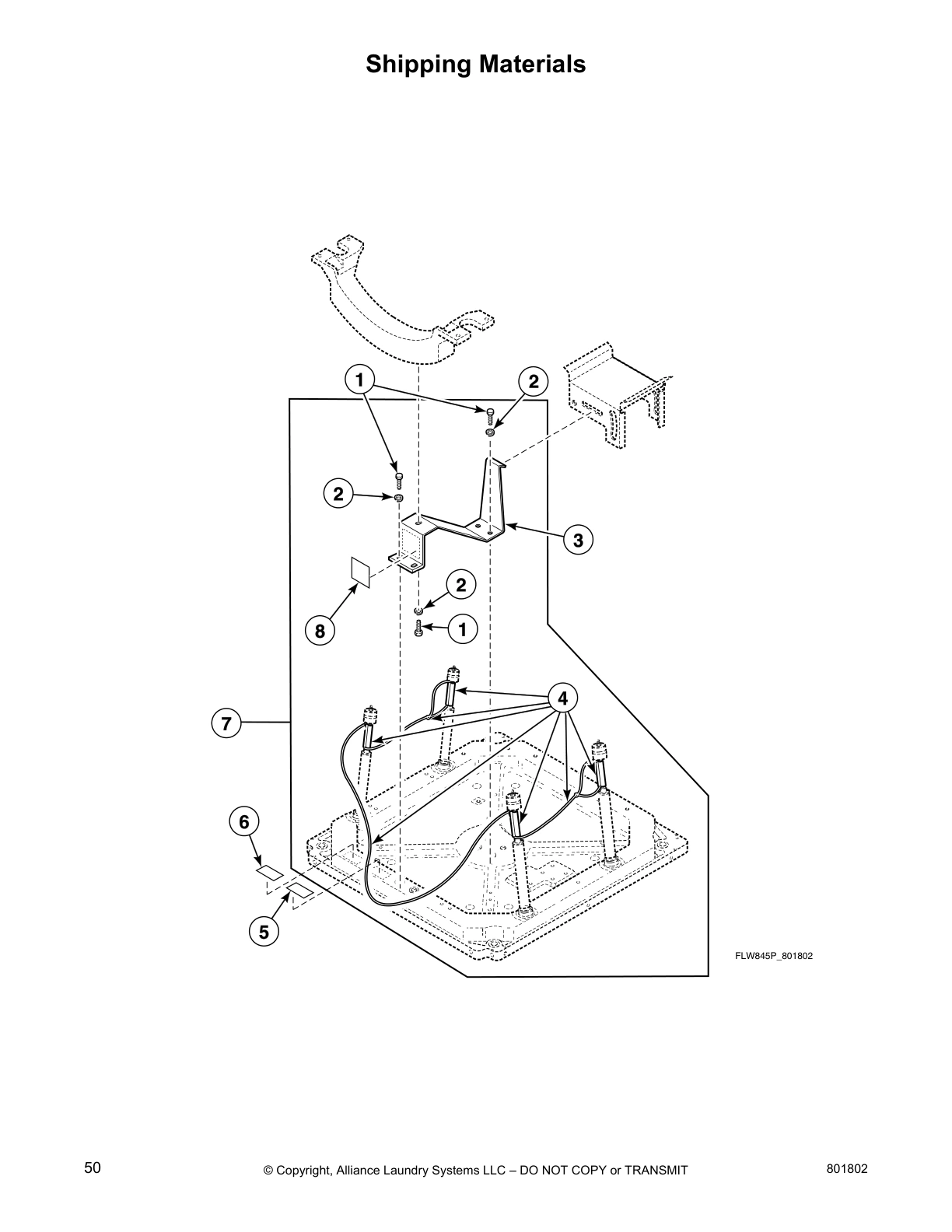

Shipping Materials

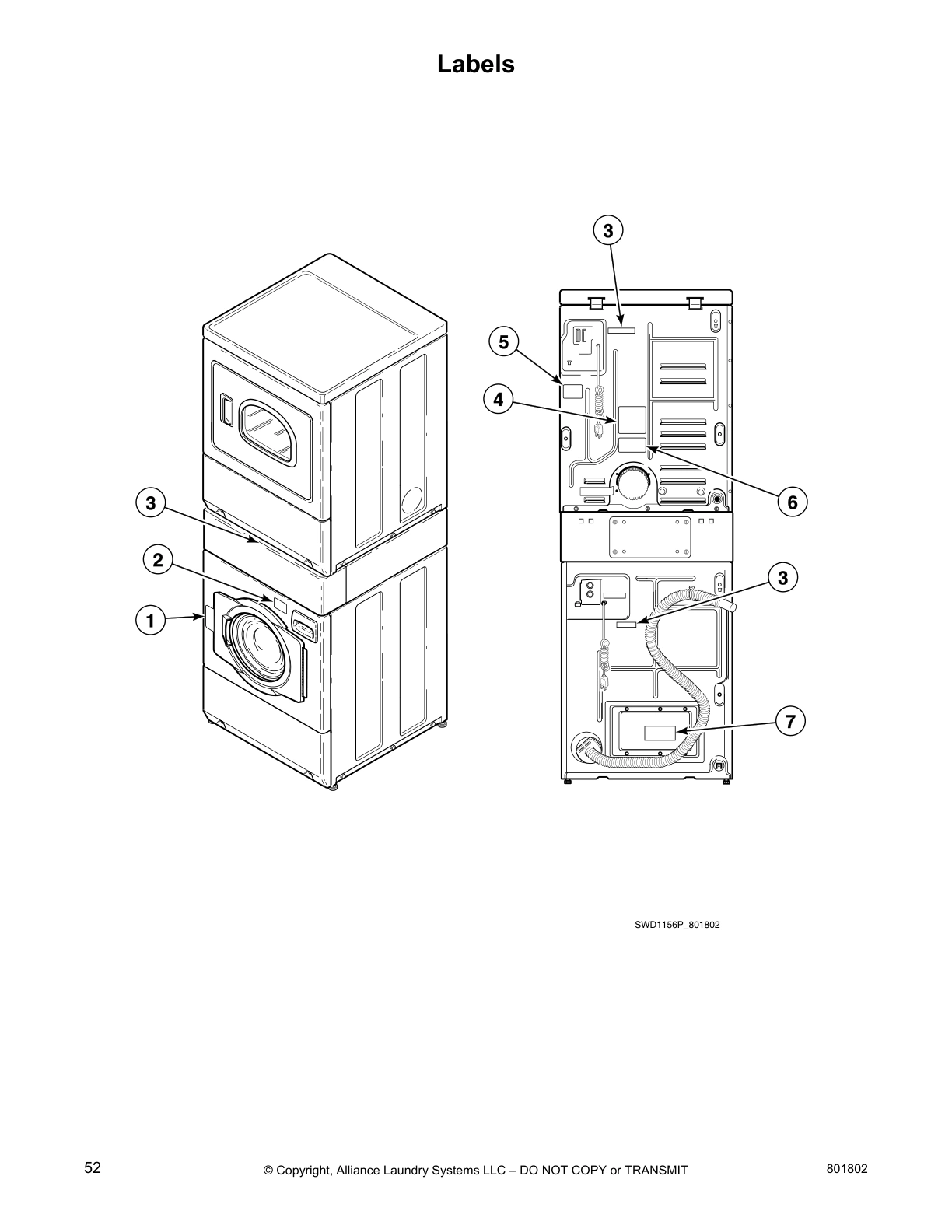

Labels

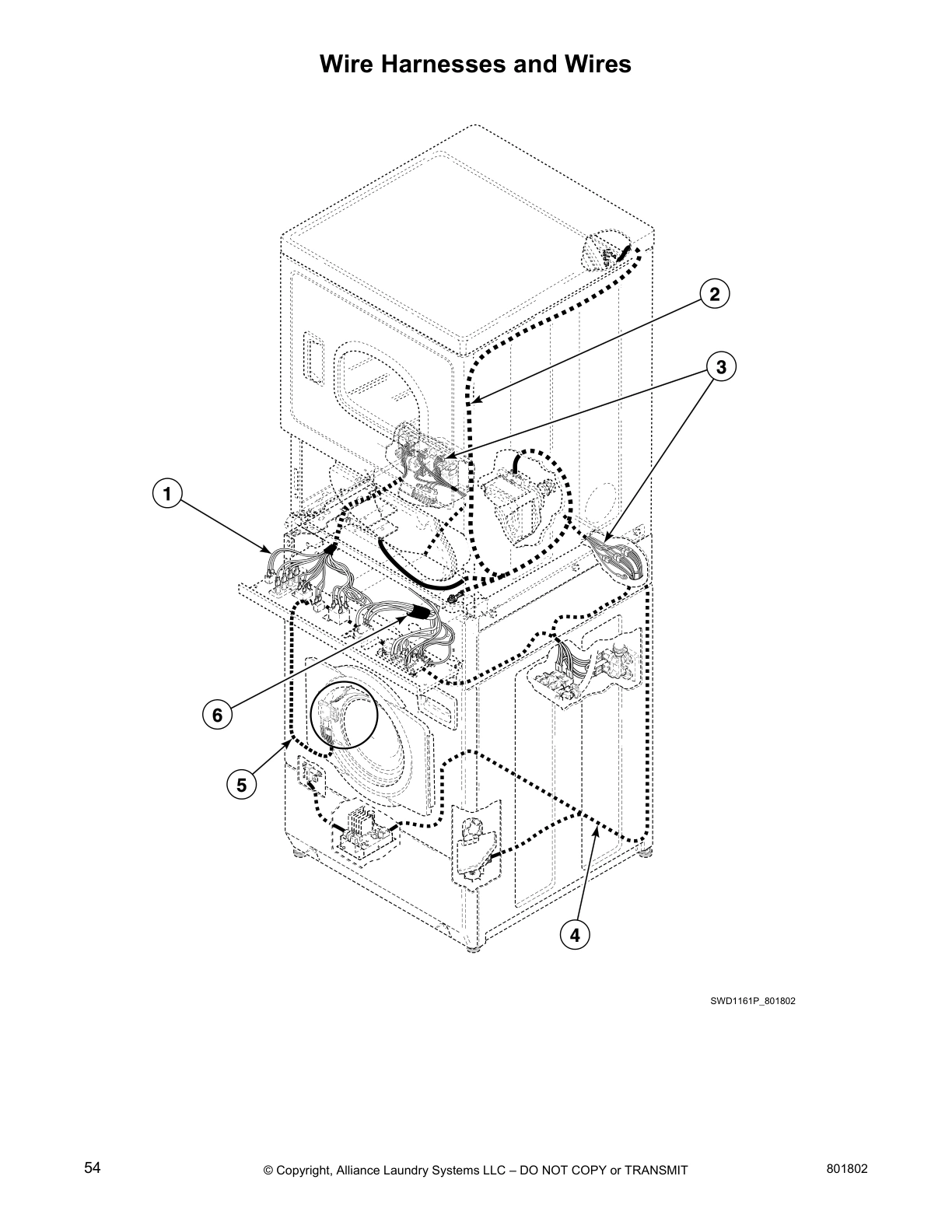

Wire Harnesses and Wires
Common parts from model Speed Queen LTZ99A*N Stacked Washer and Dryer
1
Door Seal and Hose Assembly Kit SPQ 801784P Contact Us For Availability
4
SPQ 800211 SPQ 800211 Contact Us For Availability
5
Backflow Preventer SPQ 802434P Contact Us For Availability
5
SPQ 801928WP SPQ 801928WP Contact Us For Availability
10
Hose Clamp SPQ 800232P Contact Us For Availability
15
Screw SPQ 801476P Contact Us For Availability
16
Inner Basket Assembly SPQ 800428P Contact Us For Availability
19
Timer Knob Assembly SPQ D505794P Contact Us For Availability
NI
SPQ 62853 SPQ 62853 Contact Us For Availability
× ![]()
