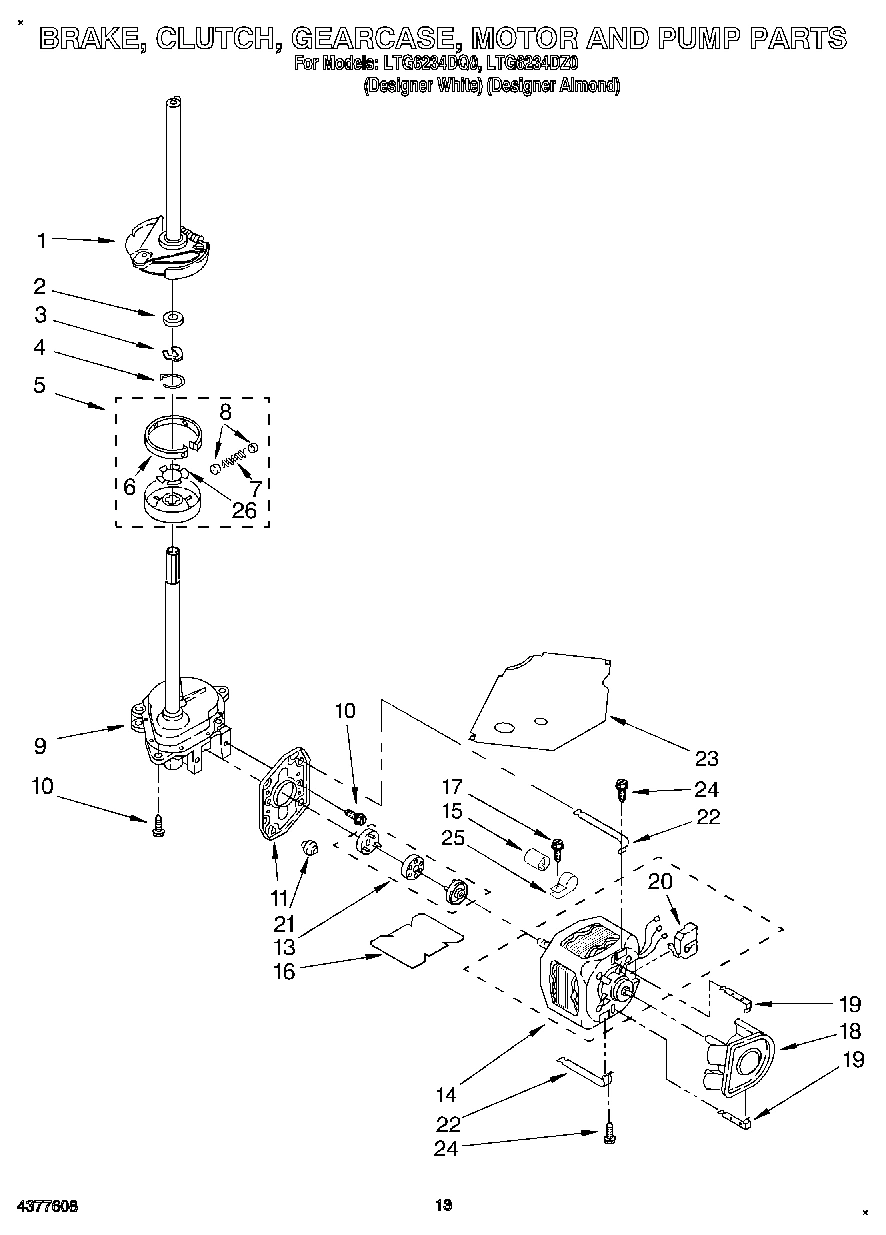

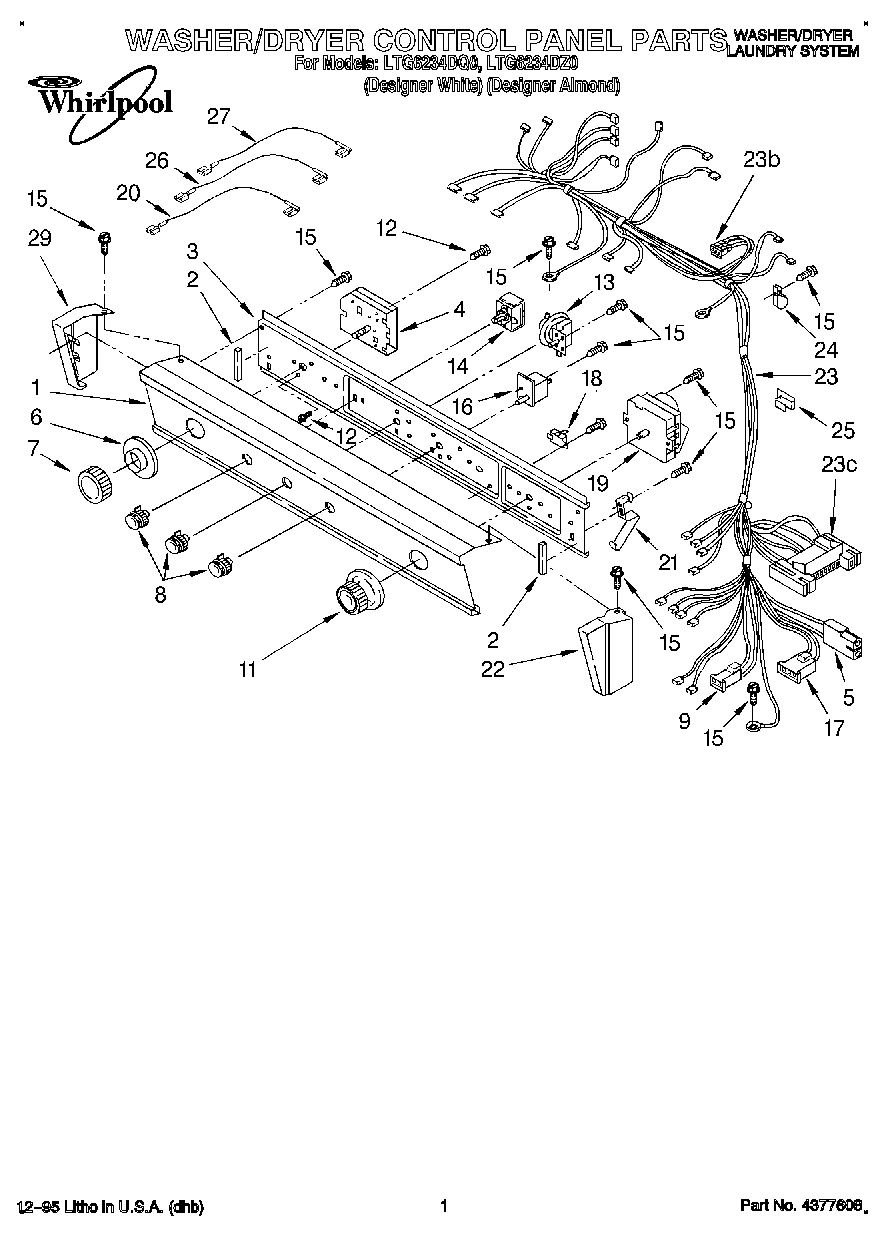

Model Whirlpool LTG6234DZ0 WASHER/DRYER LAUNDRY SYSTEM – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Kit, Exhaust Deflector WPL 694609 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Label, Operating Instruction WPL LIT3394996 Contact Us For Availability

Instructions, Installation WPL LIT3395326 Contact Us For Availability

Tag, Energy Guide WPL LIT3397738 Contact Us For Availability

Guide, Use And Care WPL LIT3401097 Contact Us For Availability

Label, Wiring Diagram WPL LIT3404410 Contact Us For Availability

1

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

1

3349770 Whirlpool Clip Backorder WPL 3349770 $8.73

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $3.70

1

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $30.25

1

Miscellaneous Parts Bag WPL 3356714 Contact Us For Availability

1

Lid, Top (White) WPL 3351652 Contact Us For Availability

1

Lid, Top (Almond) WPL 3351653 Contact Us For Availability

1

Nut, Push (4) WPL 3389249 Contact Us For Availability

1A

3350130 Whirlpool Connector Backorder WPL 3350130 $8.31

1E

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

3349767 Whirlpool Bracket Assembly Backorder WPL 3349767 $11.38

2

3388851 Whirlpool Support Backorder WPL 3388851 $140.80

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

2

WP3391902 Whirlpool Lid Switch In Stock WPL WP3391902 $29.98

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

3

3388850 Whirlpool Support Backorder WPL 3388850 $141.12

3

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

4

279718 Whirlpool Panel Backorder WPL 279718 $126.72

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

4

3350013 Whirlpool Foam Seal Backorder WPL 3350013 $28.80

4

3390609 Whirlpool Shield Backorder WPL 3390609 $26.21

4

3392226 Whirlpool Clip Backorder WPL 3392226 $8.73

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

4

WP3948357 Whirlpool Timer Assembly Backorder WPL WP3948357 $177.43

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

4

Panel, Front (Almond) WPL 3392548 Contact Us For Availability

5

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

5

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

5

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

5

W10834213 Whirlpool Hose Backorder WPL W10834213 $16.03

5

W11727962 Whirlpool HVAC Air Duct Backorder WPL W11727962 $73.20

5

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

5

WP3390735 Whirlpool Door Seal Backorder WPL WP3390735 $41.23

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

280083 Whirlpool Rear Door Backorder WPL 280083 $114.92

6

W11676449 Whirlpool Agitator Mover Backorder WPL W11676449 $24.38

6

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

Top, Console (White) WPL 3349798 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

6

Top, Console (Almond) WPL 3349799 Contact Us For Availability

7

3352236 Whirlpool Hose Assembly Backorder WPL 3352236 $13.32

7

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

7

W11663440 Whirlpool Door Backorder WPL W11663440 $130.22

7

WP3364293 Whirlpool Timer Knob Backorder WPL WP3364293 $30.07

7

WP3391906 Whirlpool Seal Backorder WPL WP3391906 $3.70

7

Door, Front (Almond) WPL 3387873 Contact Us For Availability

8

3354020 Whirlpool Bracket Backorder WPL 3354020 $4.65

8

WP3349455 Whirlpool Panel Backorder WPL WP3349455 $157.60

8

WP3349578 Whirlpool Agitator Backorder WPL WP3349578 $72.02

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

8

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.70

8

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $14.48

8

Panel, Side (2) (Same Panel Used On Left And WPL 3349456 Contact Us For Availability

9

3350506 Whirlpool Retainer Clip Backorder WPL 3350506 $8.20

9

3350744 Whirlpool Brace Assembly Backorder WPL 3350744 $11.35

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

W11222846 Whirlpool Door Backorder WPL W11222846 $74.30

9

WP3350152 Whirlpool Retainer In Stock WPL WP3350152 $162.71

9

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

279982 Whirlpool Drum Baffle Backorder WPL 279982 $80.91

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

Clip, Retainer WPL 3350828 Contact Us For Availability

Hose, Drain WPL 3353841 Contact Us For Availability

279823 Whirlpool Exhaust Pipe Backorder WPL 279823 $97.29

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

Basket WPL 3352234 Contact Us For Availability

285442 Whirlpool Coupling Backorder WPL 285442 $28.80

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

WP3389431 Whirlpool Bumper Assembly Backorder WPL WP3389431 $4.89

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

WP3395530 Whirlpool Screw Backorder WPL WP3395530 $2.51

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $3.70

Screw, Shoulder (2) WPL 3349332 Contact Us For Availability

W11213338 Whirlpool Connector Backorder WPL W11213338 $26.90

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

3350101 Whirlpool Hinge Backorder WPL 3350101 $11.64

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP3349292 Whirlpool Tub Assembly Backorder WPL WP3349292 $110.64

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

Wire, Broken Belt Switch WPL 3394081 Contact Us For Availability

3349673 Whirlpool Bracket Assembly Backorder WPL 3349673 $8.89

3350102 Whirlpool Hinge Assembly Backorder WPL 3350102 $11.90

3389522 Whirlpool Handle Backorder WPL 3389522 $43.61

3392232 Whirlpool Shield Backorder WPL 3392232 $26.21

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Handle, Door (Almond) WPL 3389523 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

WP3390902 Whirlpool Clip Backorder WPL WP3390902 $4.78

WP3404233 Whirlpool Dryer Starter Switch In Stock WPL WP3404233 $37.17

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

Shield, Thermostat WPL 3390336 Contact Us For Availability

Nut, Hex (2) WPL 3387709 Contact Us For Availability

3388958 Whirlpool Panel Backorder WPL 3388958 $55.11

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W11299300 Whirlpool Bulkhead Assembly In Stock WPL W11299300 $118.41

WP3355458 Whirlpool Lid Switch In Stock WPL WP3355458 $30.10

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

Panel, Toe (Almond) WPL 3388959 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

3350145 Whirlpool Shield Assembly Backorder WPL 3350145 $8.00

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $9.59

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

Clip, Harness (2) WPL 3391249 Contact Us For Availability

WP3402724 Whirlpool Washer Base Backorder WPL WP3402724 $117.98

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $29.96

Base Assembly (Includes Illus. 6, 7, 18 & 26) WPL 3349343 Contact Us For Availability

Insulator WPL 358736 Contact Us For Availability

3388857 Whirlpool Bracket Backorder WPL 3388857 $26.55

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $10.71

W11175815 Whirlpool Hinge Backorder WPL W11175815 $31.27

WP285432 Whirlpool Terminal Backorder WPL WP285432 $2.51

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

3349749 Whirlpool Restrainer Backorder WPL 3349749 $7.69

3389453 Whirlpool Hinge Assembly Backorder WPL 3389453 $28.80

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $7.12

Block, Terminal WPL 374230 Contact Us For Availability

Clip, Harness WPL 3392602 Contact Us For Availability

697441 Whirlpool Valve Backorder WPL 697441 $117.00

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.19

W11116924 Whirlpool Locator Backorder WPL W11116924 $10.76

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

Terminal, Female WPL 352088 Contact Us For Availability

Washer (2) WPL 3349340 Contact Us For Availability

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $29.06

WP3349311 Whirlpool Link In Stock WPL WP3349311 $33.65

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Seal, Agitator WPL 64002 Contact Us For Availability

23B

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

23C

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

W10864899 Whirlpool Fabric Softener Dispenser In Stock WPL W10864899 $48.31

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

Protector, Harness WPL 63523 Contact Us For Availability

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

W10518375 Whirlpool Drum Assembly Backorder WPL W10518375 $163.03

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

Nut, Compression WPL 233076 Contact Us For Availability

3389683 Whirlpool Cover Assembly Backorder WPL 3389683 $41.30

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

WP345670 Whirlpool Lock Backorder WPL WP345670 $3.70

Jumper, Buzzer WPL 3401684 Contact Us For Availability

Screw, 11-16 x 7/8 (6) WPL 697777 Contact Us For Availability

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $25.42

3389272 Whirlpool Panel Backorder WPL 3389272 $100.04

WP3349499 Whirlpool Panel Backorder WPL WP3349499 $176.00

Panel, Front (Almond) WPL 3349500 Contact Us For Availability

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

29

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

29

End Cap-Left Hand (White) WPL 3389464 Contact Us For Availability

30

3350144 Whirlpool Bracket Backorder WPL 3350144 $37.57

33

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $28.80

33

Screw, 5/16-18 x 1/2 (2) WPL 9415810 Contact Us For Availability

34

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

35

3390935 Whirlpool Clip In Stock WPL 3390935 $7.32

35

Nut, Jam (2) WPL 124829 Contact Us For Availability

36

8564987 Whirlpool Panel Backorder WPL 8564987 $177.20

37

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

38

279704 Whirlpool Duct Assembly Backorder WPL 279704 $62.06

38

3349697 Whirlpool Back Rail Backorder WPL 3349697 $33.51

38

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

39

279780 Whirlpool Plate Cover Backorder WPL 279780 $31.07

39

3350135 Whirlpool Lever Spring Backorder WPL 3350135 $8.09

40

3390608 Whirlpool Shield Assembly Backorder WPL 3390608 $7.81

40

W11568973 Whirlpool Thermostat Fix Backorder WPL W11568973 $6.13

41

W11712577 Whirlpool Clip Backorder WPL W11712577 $2.43

41

Nut, Hex (2) WPL 3393930 Contact Us For Availability

42

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $10.97

42

Nut, Push-In (2) WPL 352292 Contact Us For Availability

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

44

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

44

WP8544363 Whirlpool Housing Backorder WPL WP8544363 $56.42

45

279700 Whirlpool Duct Lint Backorder WPL 279700 $74.68

47

WP693304 Whirlpool Screw Backorder WPL WP693304 $2.51

50

WP3403607 Whirlpool Thermoprotector In Stock WPL WP3403607 $19.43

51

WP3389644 Whirlpool Screen Assembly In Stock WPL WP3389644 $56.38

52

Grille, Outlet WPL 697767 Contact Us For Availability

53

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $85.65
