Model Whirlpool LSQ9600LW0 AUTOMATIC WASHER – Common Parts & Diagrams
04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP
06 - WIRING HARNESS

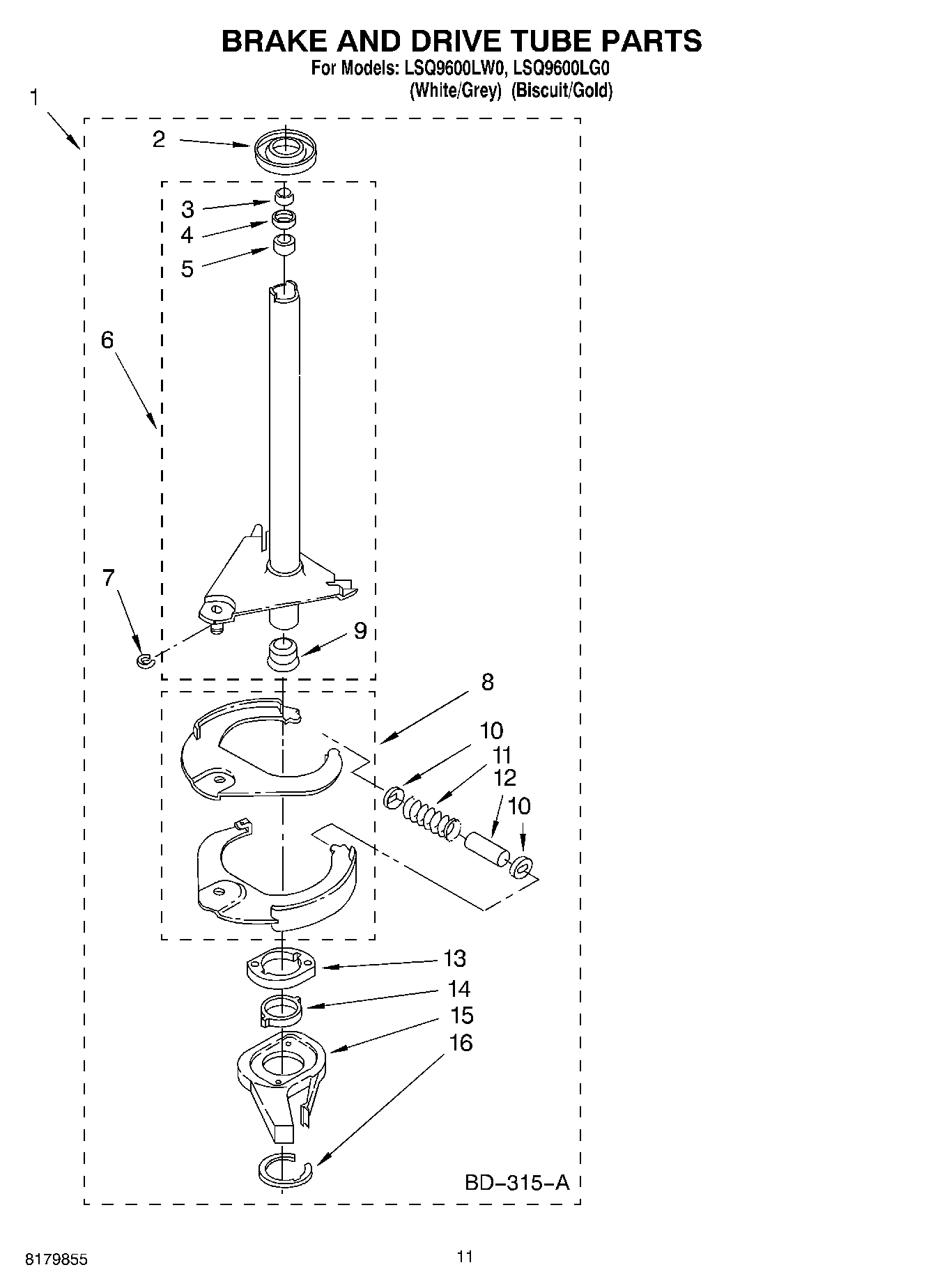

07 - BRAKE AND DRIVE TUBE

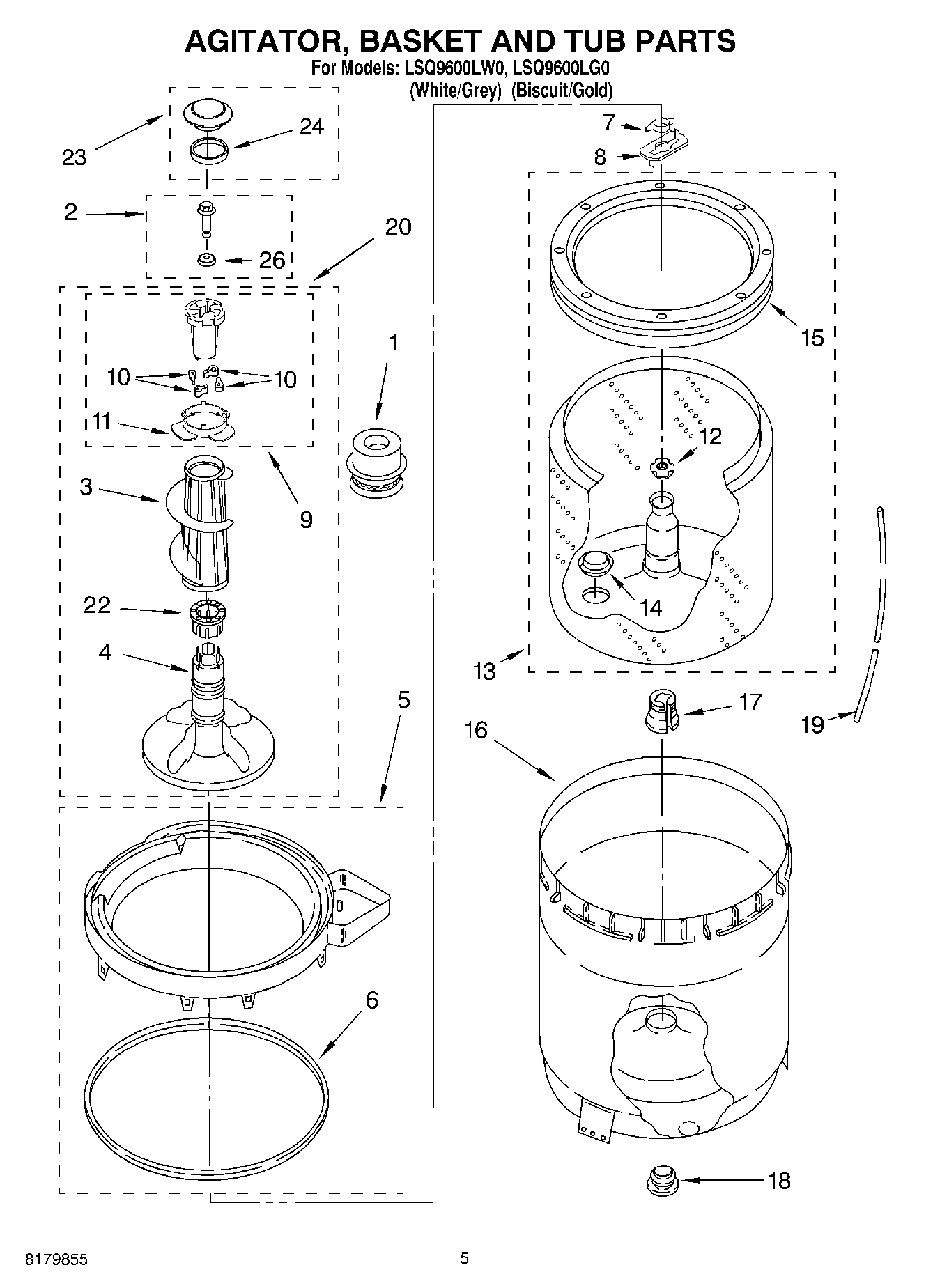

03 - AGITATOR, BASKET AND TUB
05 - MACHINE BASE

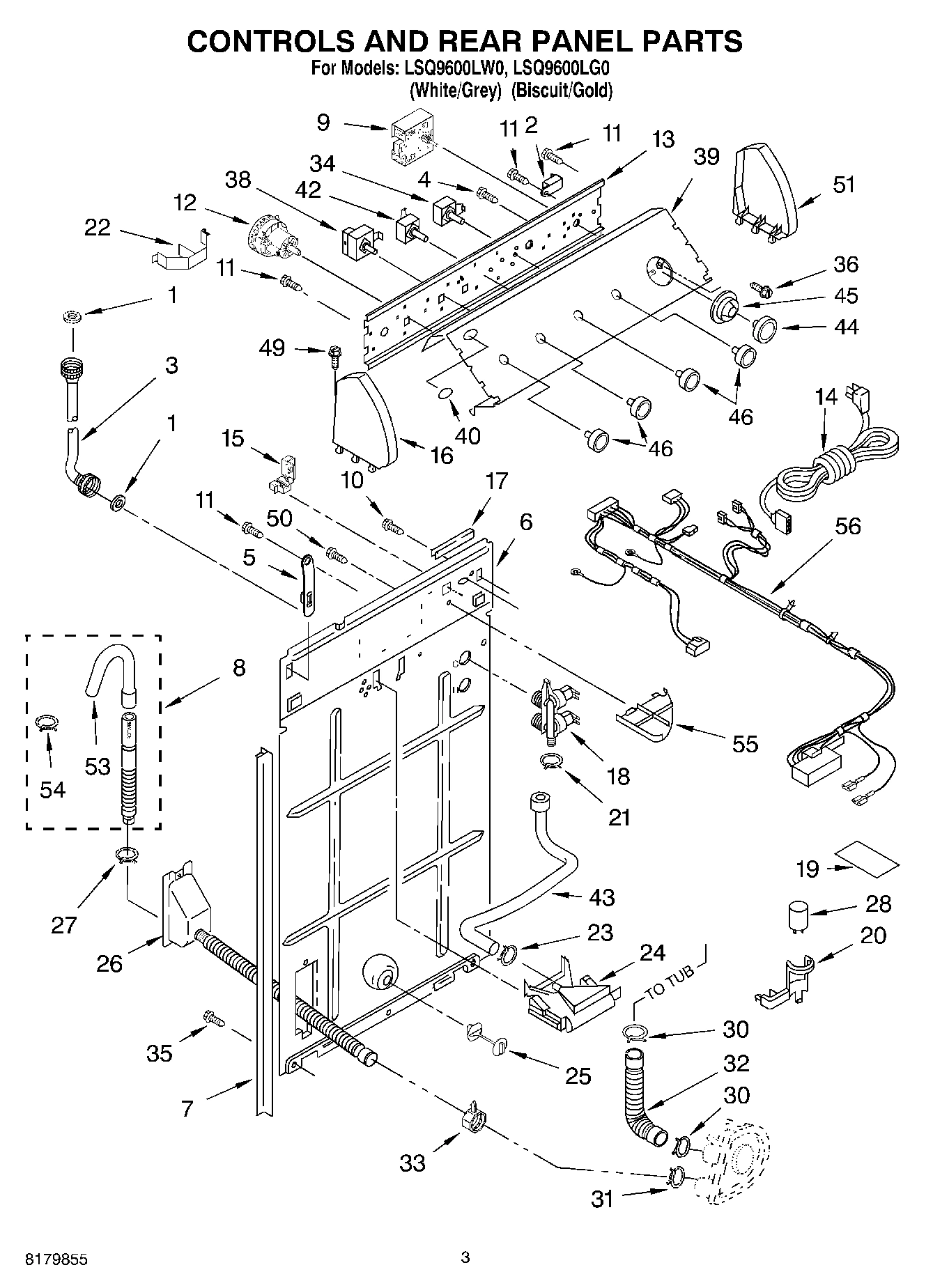

02 - CONTROLS AND REAR PANEL
09 - WATER SYSTEM
08 - GEARCASE

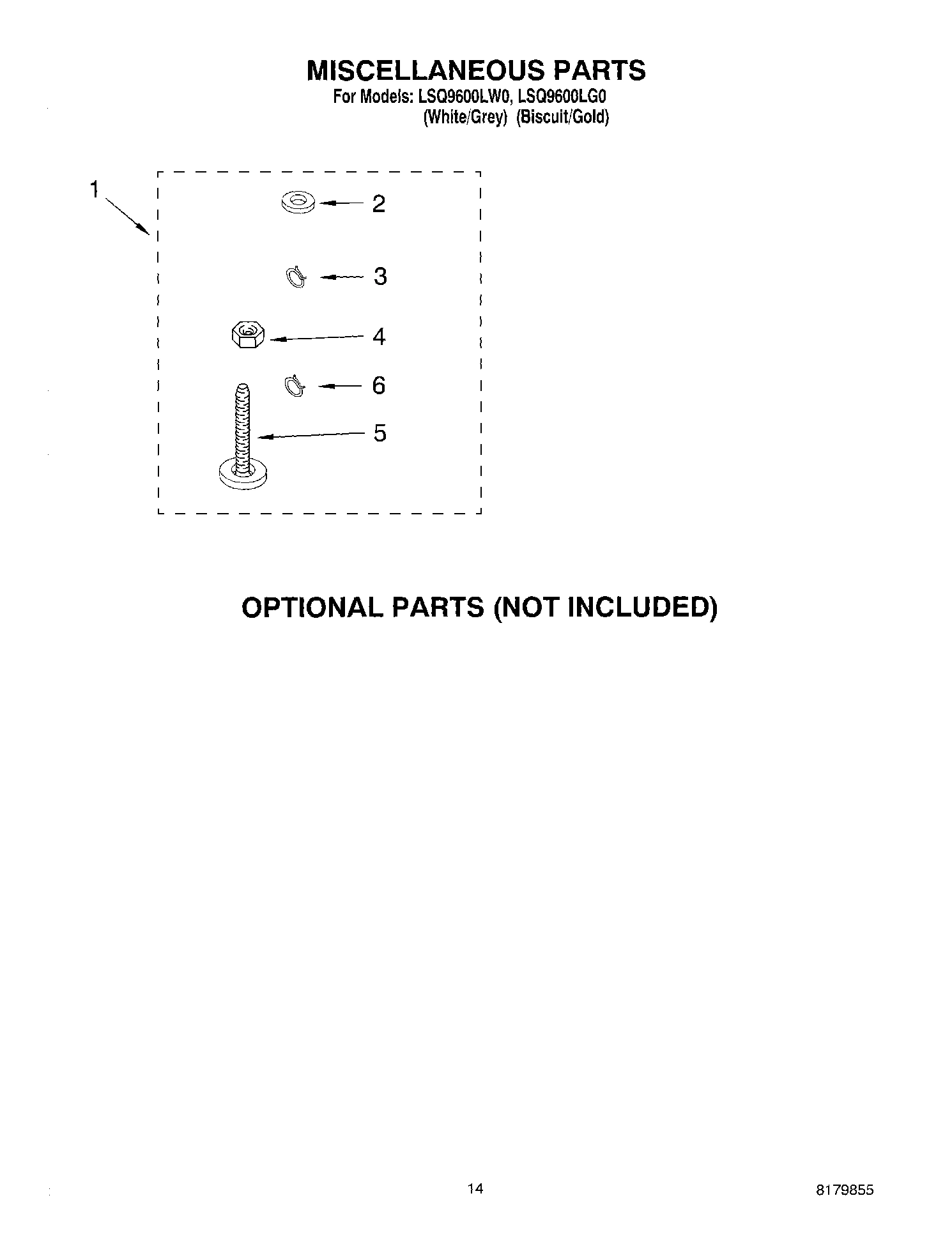

10 - MISCELLANEOUS, OPTIONAL

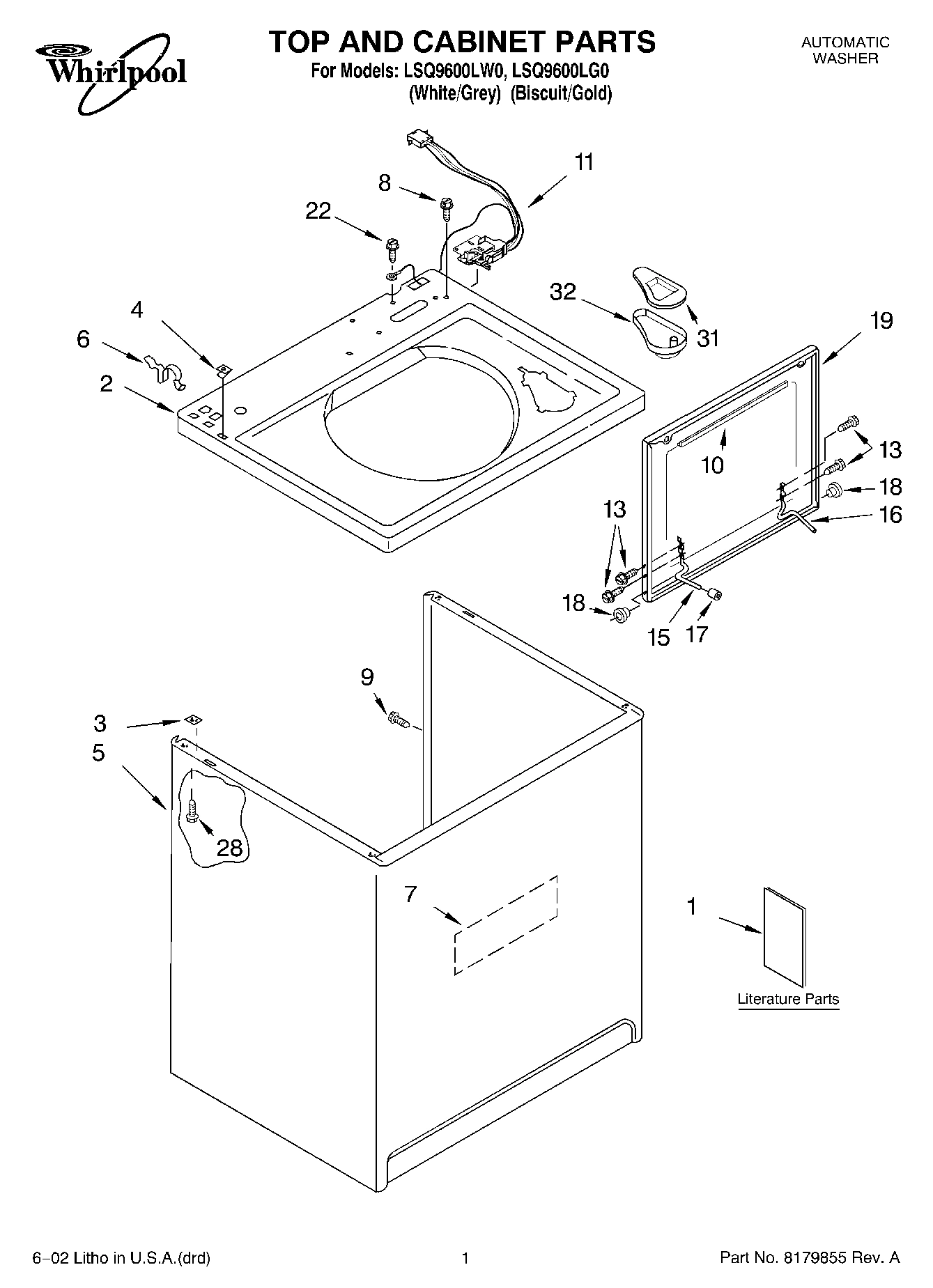

01 - TOP AND CABINET, LITERATURE
Common parts from model Whirlpool LSQ9600LW0 AUTOMATIC WASHER
Manual, (Washer) WPL LIT4313896 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
1
Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability
1
Literature Parts (Energy Guide) WPL LIT3955563 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT3955782 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT3955869 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT3956025 Contact Us For Availability
2
Top (White) WPL 3955792 Contact Us For Availability
2
Top (Biscuit) WPL 3955793 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Cabinet (Biscuit) WPL 3954357 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
6
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
6
Drain Protector WPL 367031 Contact Us For Availability
6
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
6
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
7
Cabinet - Sound Damper WPL 3976348 Contact Us For Availability
8
Ring, Retaining (2) WPL 90369 Contact Us For Availability
8
Screw, Lid Switch (2) WPL 3400611 Contact Us For Availability
10
Seal, Lid WPL 8054939 Contact Us For Availability
10
Spring, Agitate WPL 62676 Contact Us For Availability
15
Hinge, Lid (L.H.) WPL 8055257 Contact Us For Availability
15
Strain Relief, Power Cord WPL 3952821 Contact Us For Availability
16
Cap, End (L.H.) (White) WPL 8271365 Contact Us For Availability
16
Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
16
Hinge, Lid (R.H.) WPL 8055256 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
17
Edge Protector WPL 303294 Contact Us For Availability
18
Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability
19
Shield, Capacitor WPL 3976286 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability
19
Lid (White) WPL 3956016 Contact Us For Availability
19
Lid (Biscuit) WPL 3956017 Contact Us For Availability
20
Switch, Main Drive Motor WPL 8529896 Contact Us For Availability
20
Clip, Capacitor WPL 8318201 Contact Us For Availability
22
Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability
23
Ring, Retaining WPL 3362552 Contact Us For Availability
24
Washer Kit, Thrust WPL 285735 Contact Us For Availability
27
Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability
31
Cover, Dispenser WPL 3955788 Contact Us For Availability
32
Dispenser, Bleach WPL 8519517 Contact Us For Availability
33
Clamp, Hose WPL 3976395 Contact Us For Availability
38
Switch, Temperature WPL 661614 Contact Us For Availability
39
Panel, Console (Grey (Includes No.40)) WPL 3955816 Contact Us For Availability
39
Panel, Console (Gold (Includes No.40)) WPL 3955817 Contact Us For Availability
40
Medallion WPL 3955775 Contact Us For Availability
44
Knob, Timer ((For LSQ9600LW0)) WPL 8316542 Contact Us For Availability
45
WPL 8316547 WPL 8316547 Contact Us For Availability
46
WPL 8316545 WPL 8316545 Contact Us For Availability
51
WPL 8271359 WPL 8271359 Contact Us For Availability
51
WPL 8271362 WPL 8271362 Contact Us For Availability
55
WPL 3348424 WPL 3348424 Contact Us For Availability
56
WPL 3956009 WPL 3956009 Contact Us For Availability
× ![]()
