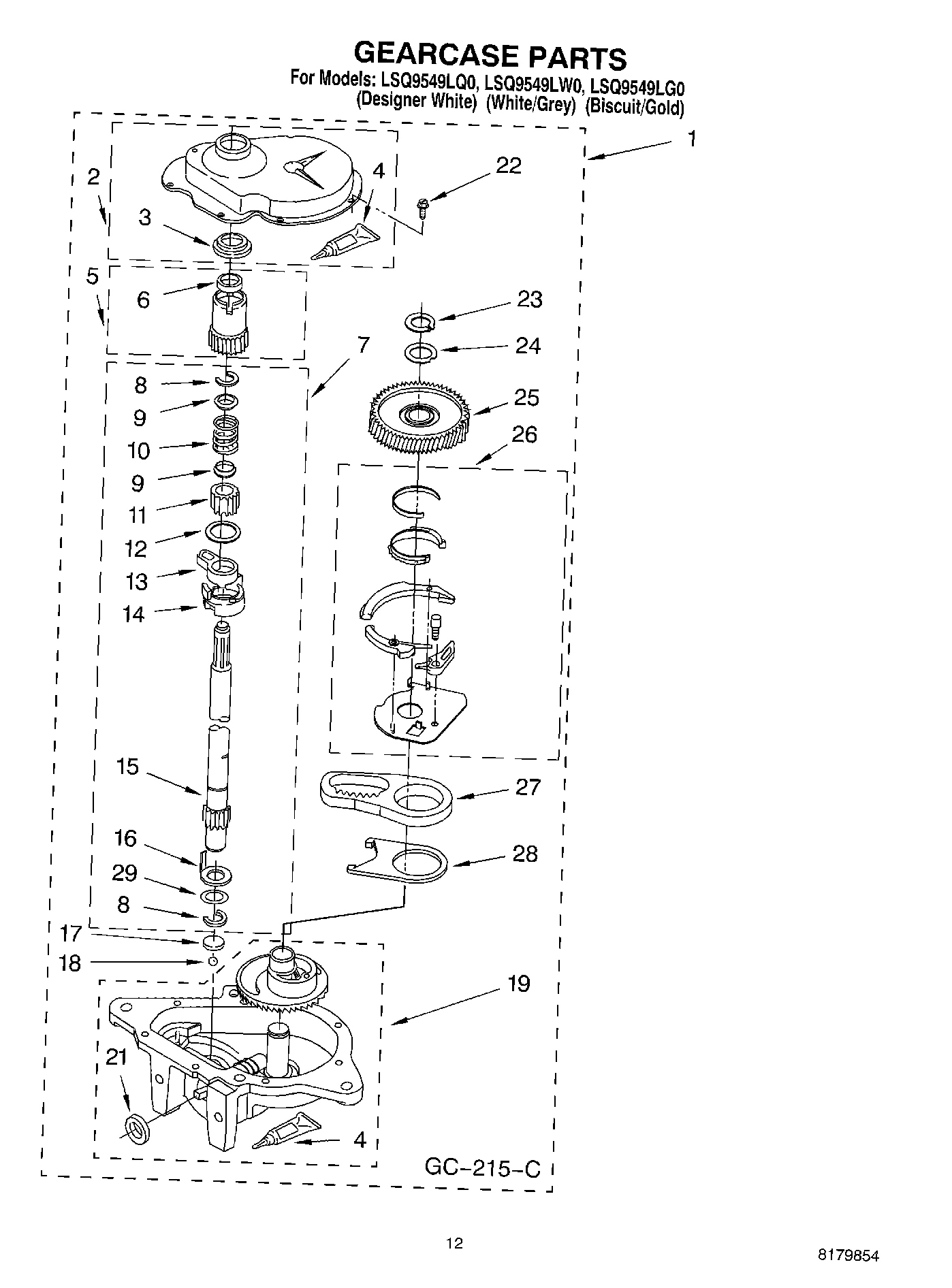

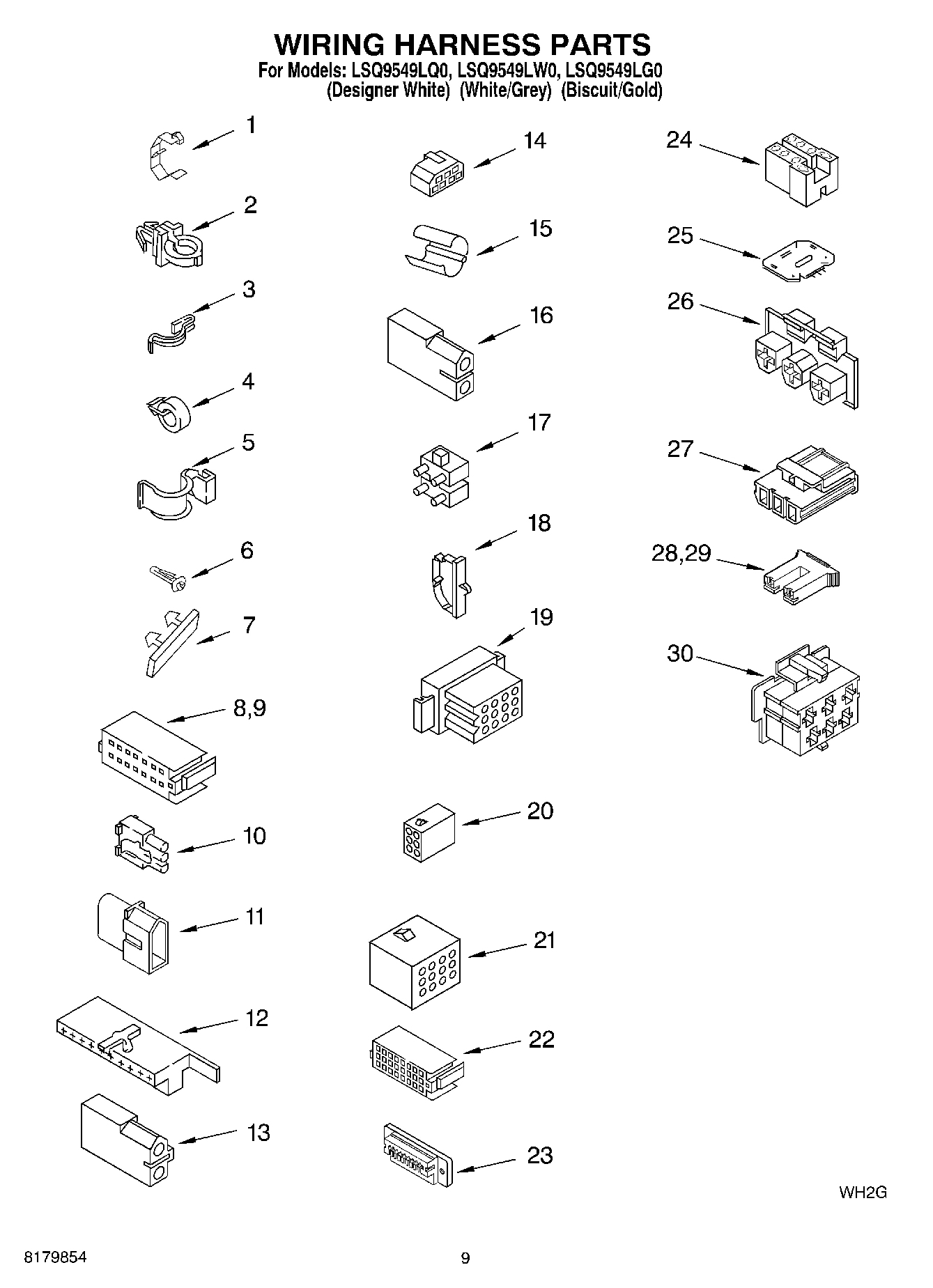

Model Whirlpool LSQ9549LW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

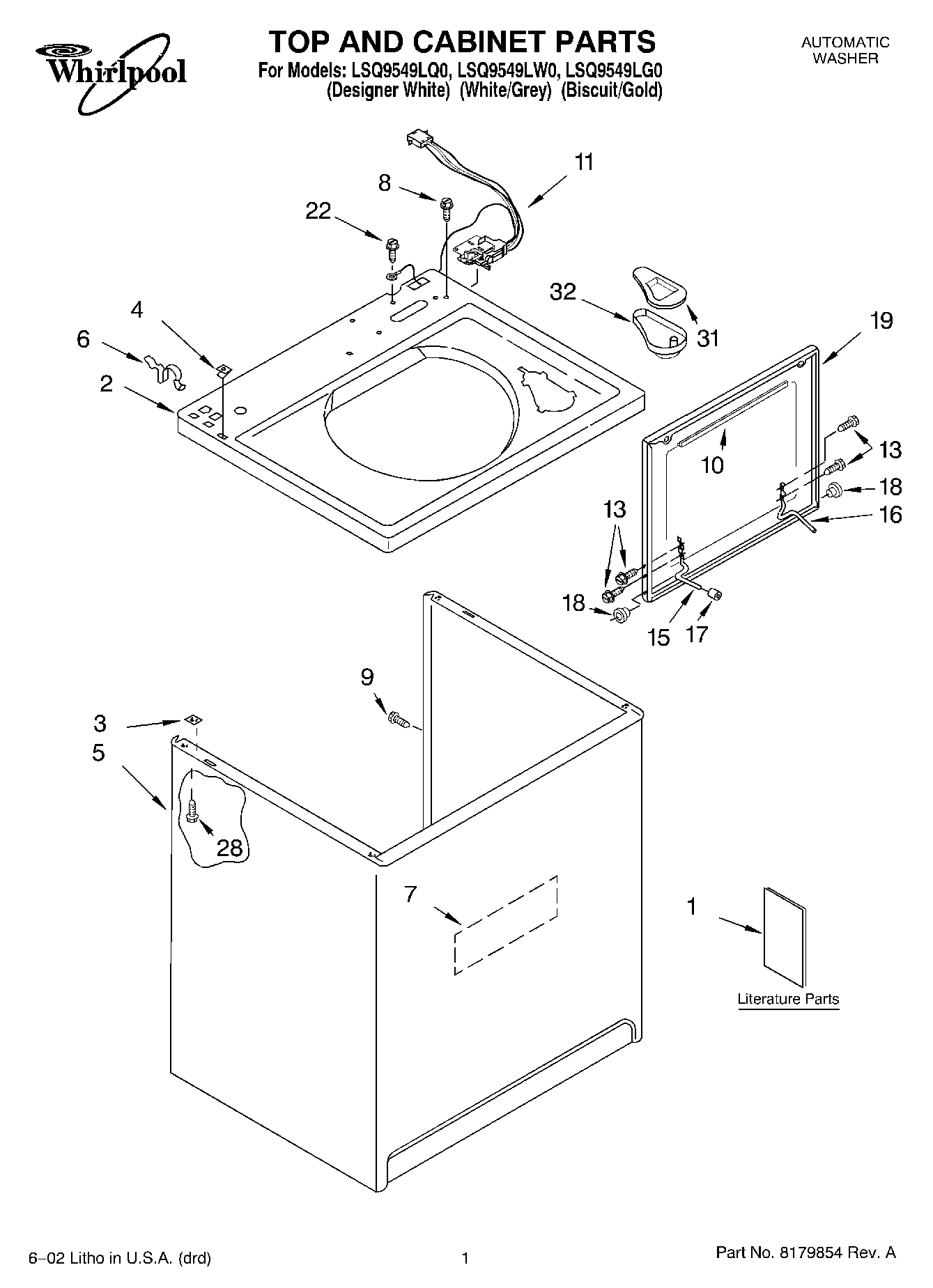

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $11.31

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT3955499 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT3955561 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT3955869 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT3956025 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

3400073 Whirlpool Screw Backorder WPL 3400073 $5.65

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.70

2

Top (White) WPL 3955792 Contact Us For Availability

2

Top (Biscuit) WPL 3955793 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.52

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $10.17

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $93.60

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $4.52

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $5.29

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

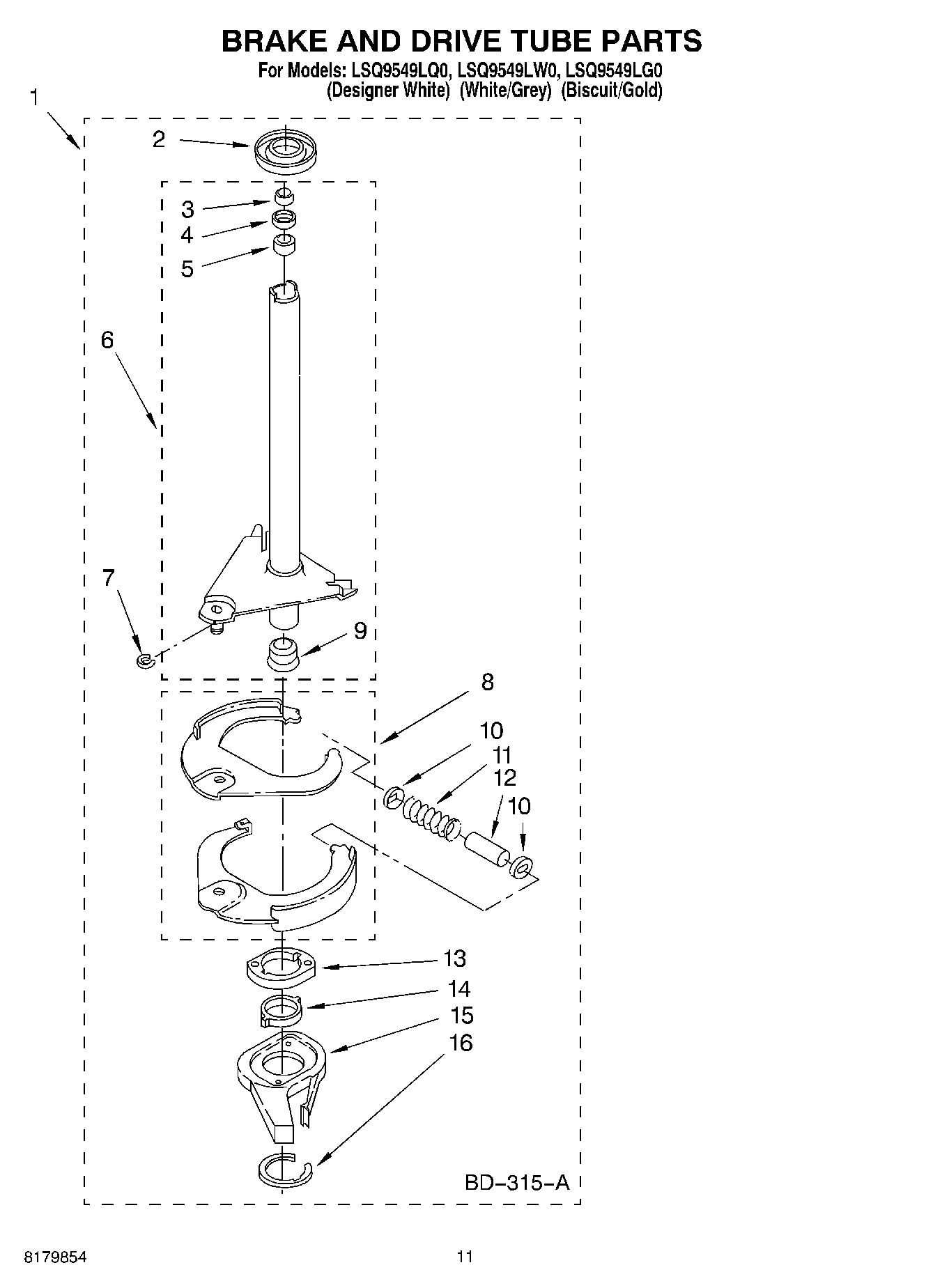

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $81.88

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Biscuit) WPL 3954357 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $33.38

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

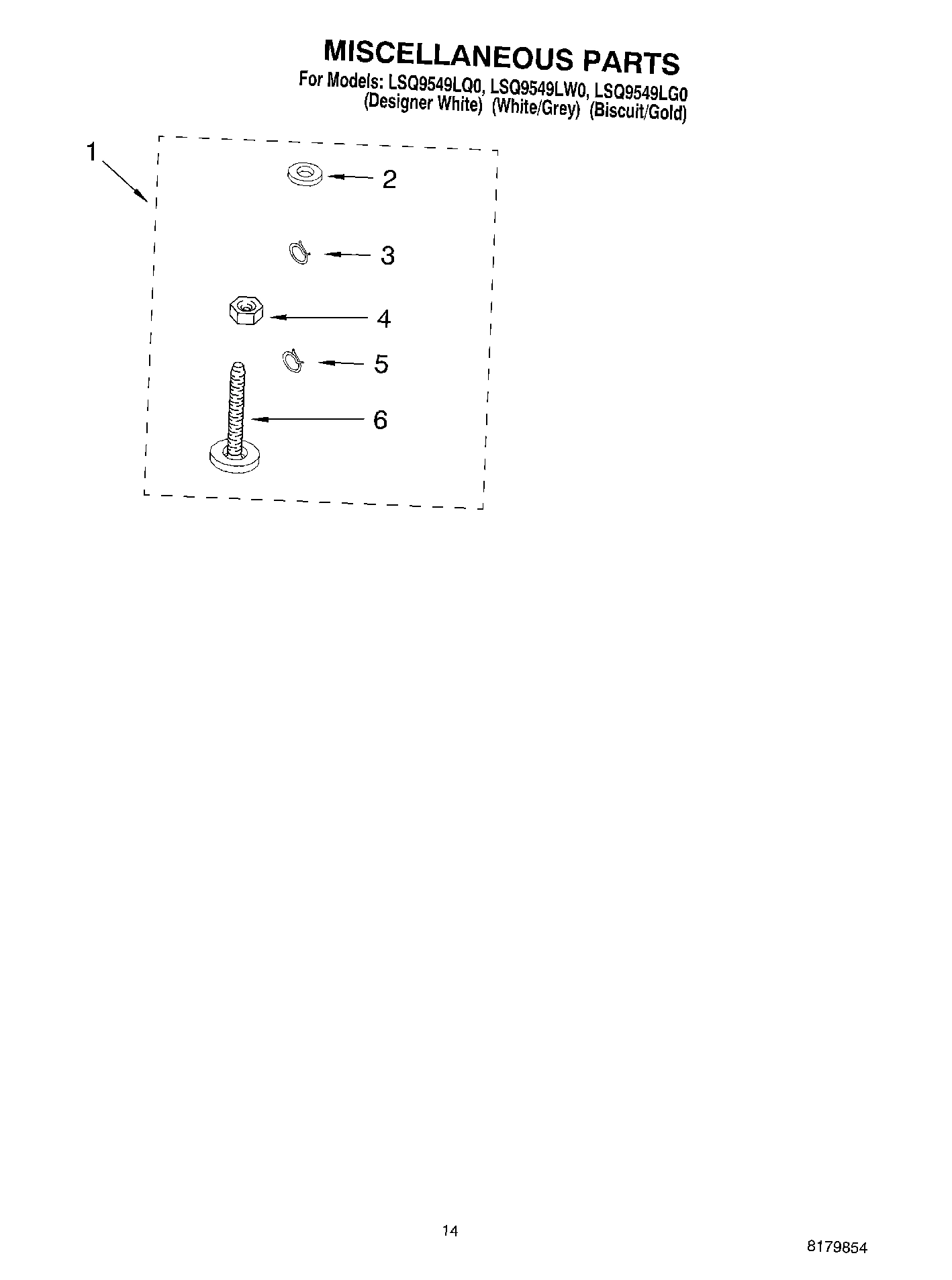

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $4.70

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

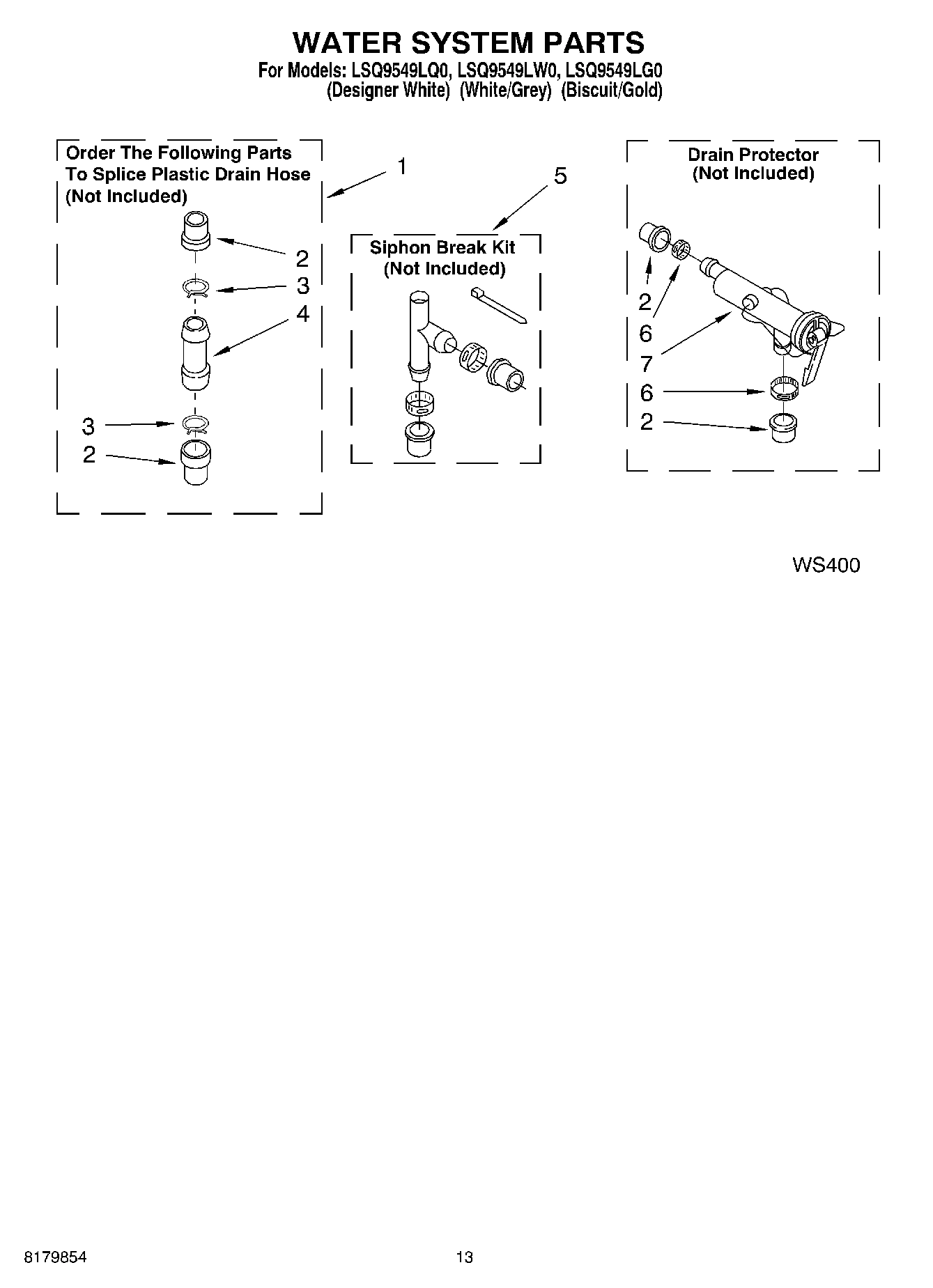

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $19.14

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $30.62

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Screw, Lid Switch (2) WPL 3400611 Contact Us For Availability

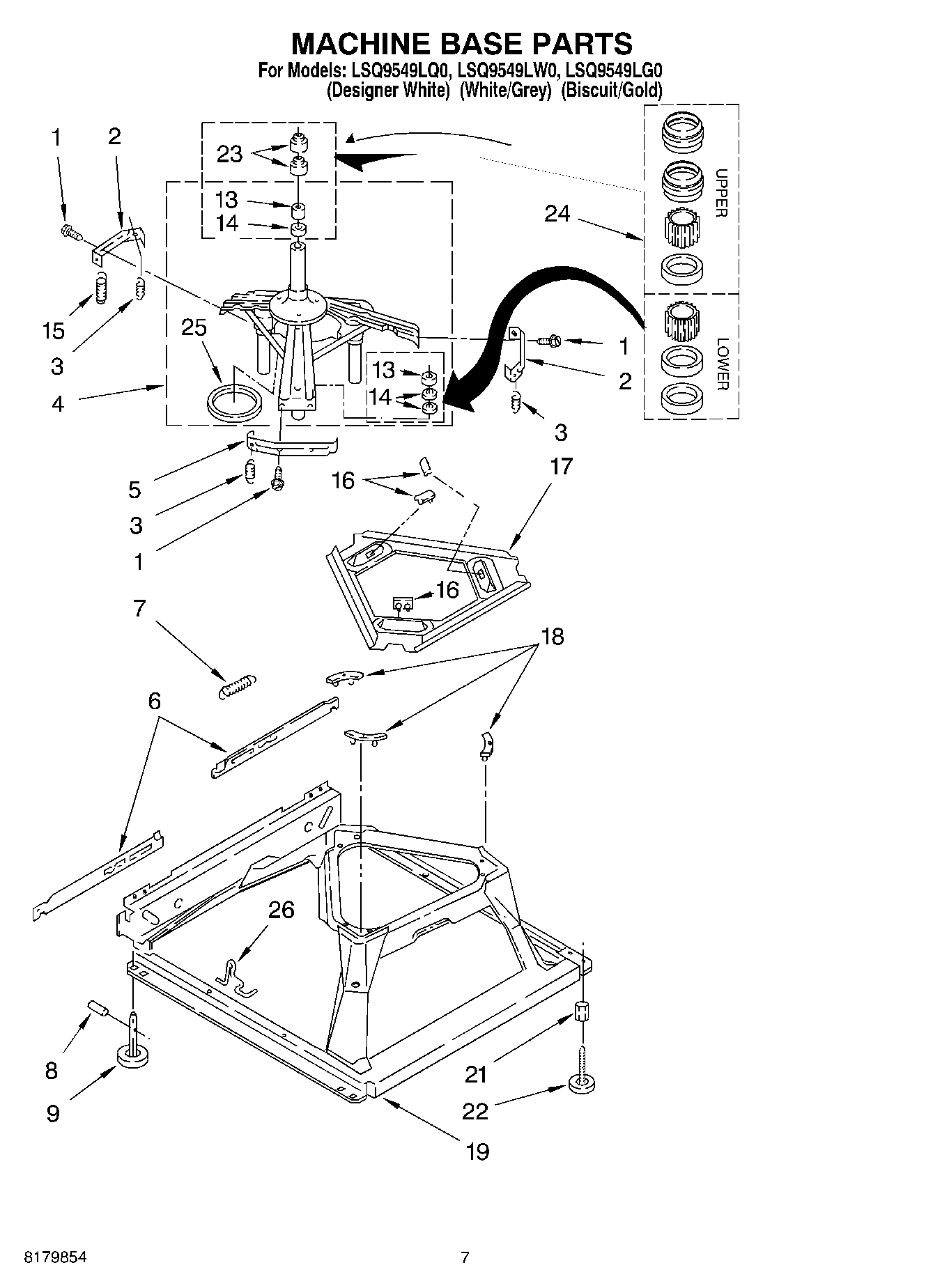

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $12.19

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.33

9

WP3951702 Whirlpool Timer In Stock WPL WP3951702 $188.16

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Seal, Lid WPL 8054939 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $108.33

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10339326 Whirlpool Washer Water Level Switch In Stock WPL W10339326 $40.60

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $10.45

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $43.90

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $10.28

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.46

14

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $59.87

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $11.58

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $3.11

Hinge, Lid (L.H.) WPL 8055257 Contact Us For Availability

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $133.48

Hinge, Lid (R.H.) WPL 8055256 Contact Us For Availability

Cap, End (L.H.) (White) WPL 8271365 Contact Us For Availability

Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $9.26

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Clip, Capacitor WPL 8318201 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.64

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $3.40

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

Lid (White) WPL 3956016 Contact Us For Availability

Lid (Biscuit) WPL 3956017 Contact Us For Availability

Shield, Capacitor WPL 3976286 Contact Us For Availability

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

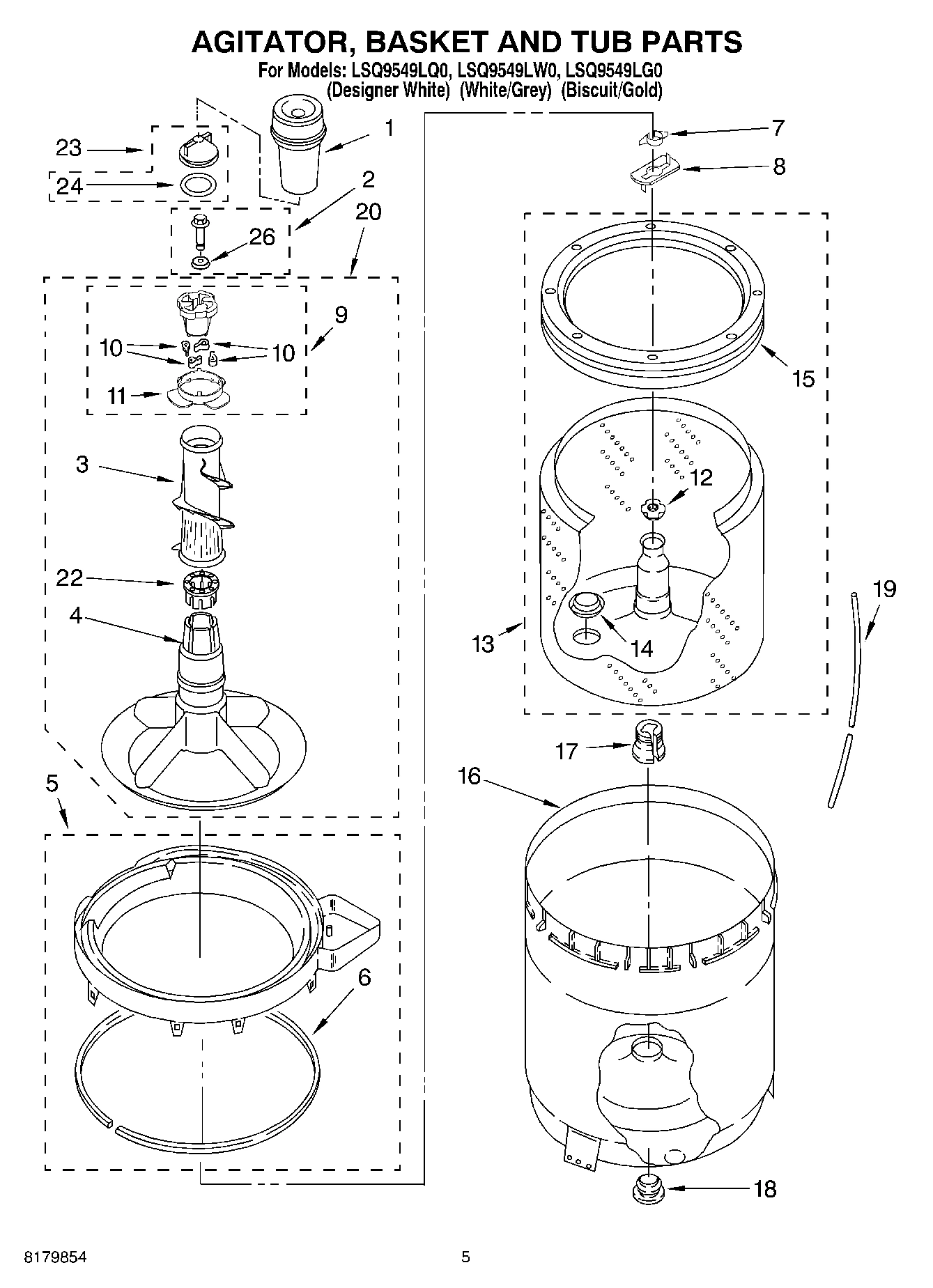

20

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $140.64

20

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

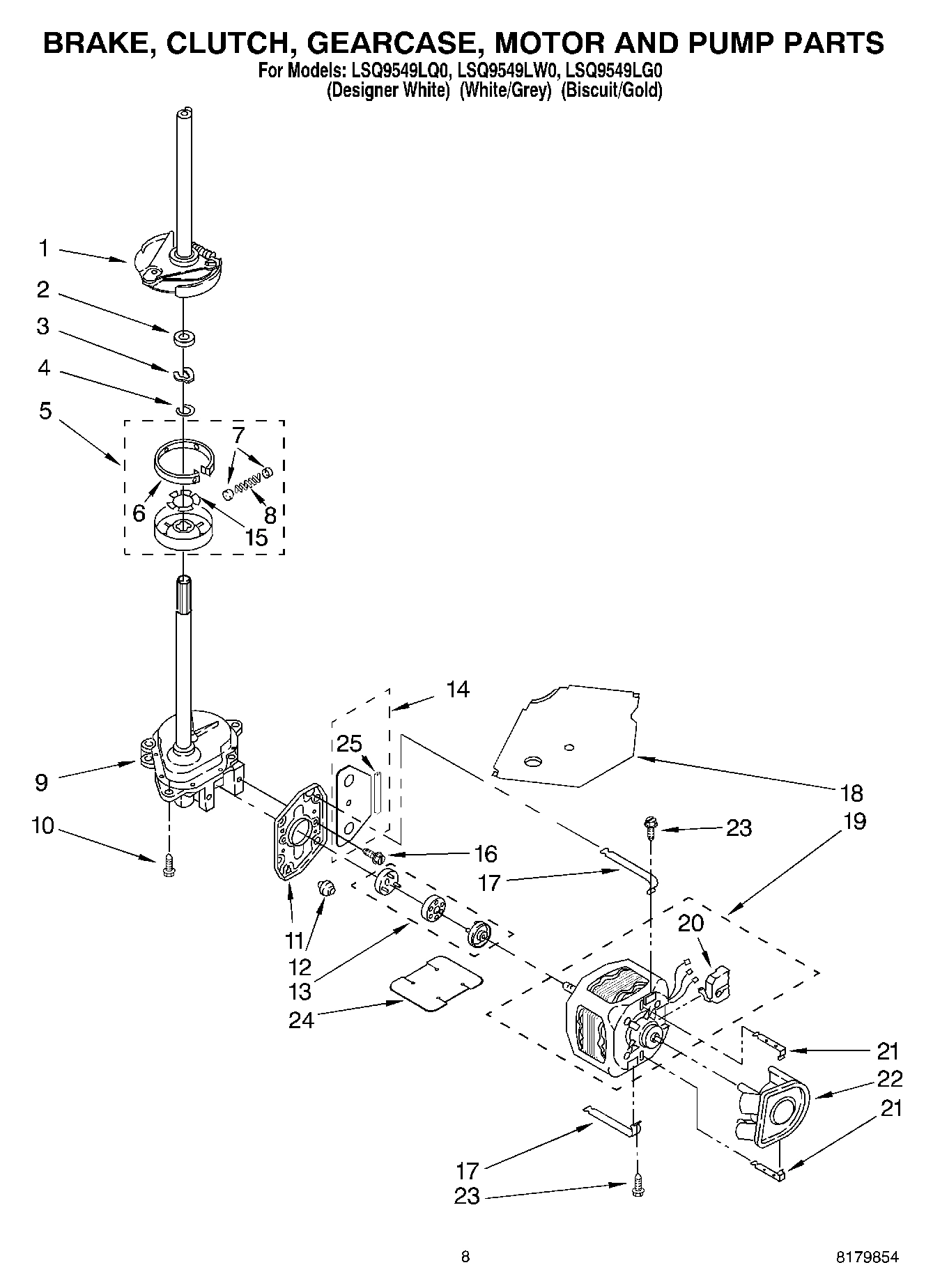

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $3.33

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $9.04

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $4.70

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $3.11

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.70

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $42.23

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.78

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $45.77

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.04

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

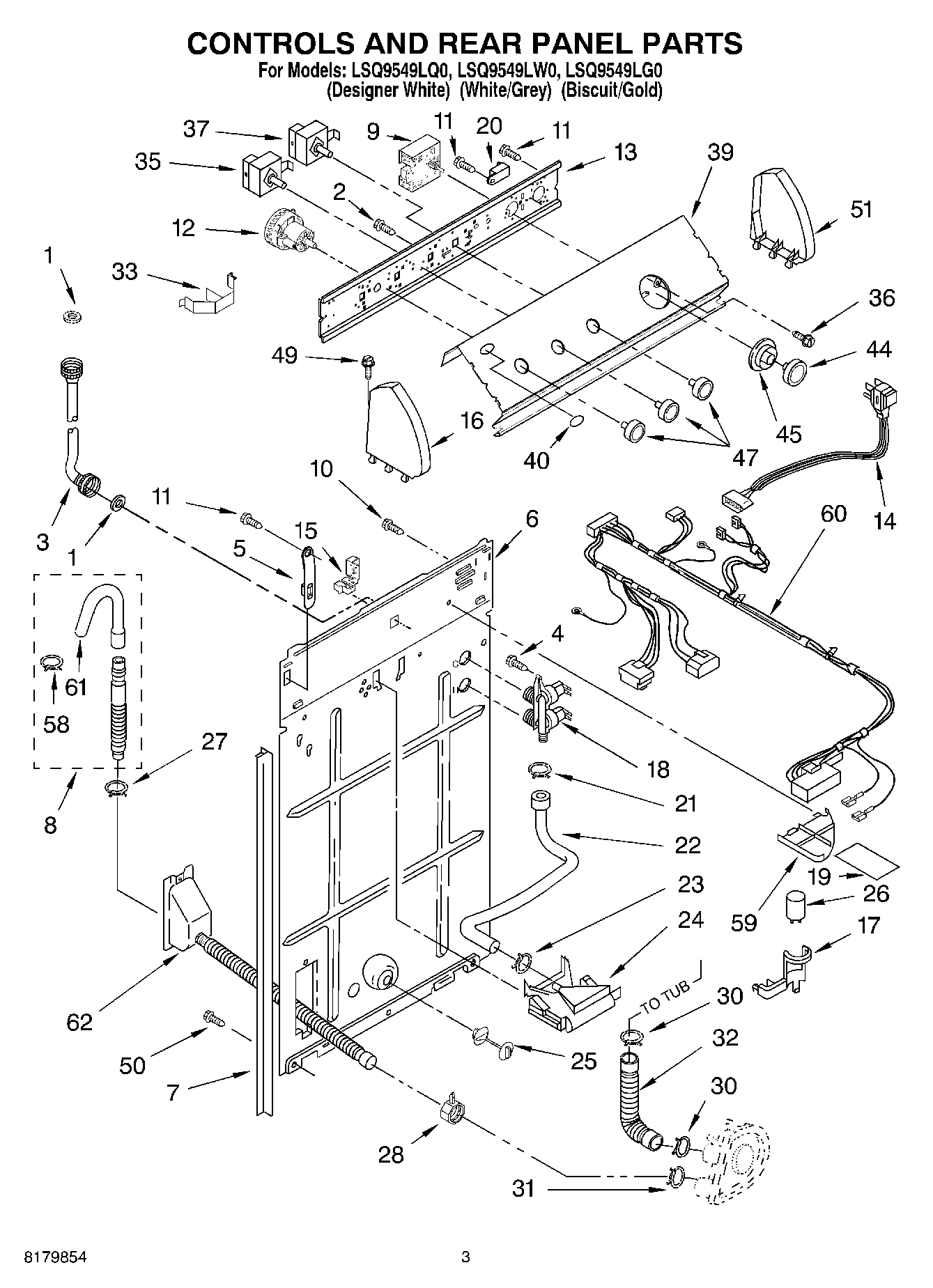

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

28

Clamp, Hose WPL 3976395 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

Cover, Dispenser WPL 3955788 Contact Us For Availability

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $8.75

32

Dispenser, Bleach WPL 8519517 Contact Us For Availability

33

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

35

Switch, Water Temperature WPL 661614 Contact Us For Availability

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

37

WP8528333 Whirlpool Cycle Switch In Stock WPL WP8528333 $47.43

39

Panel, Console (White) WPL 3955803 Contact Us For Availability

39

Panel, Console (Grey (Includes No.40)) WPL 3955804 Contact Us For Availability

39

Panel, Console (Gold (Includes No.40)) WPL 3955805 Contact Us For Availability

40

Medallion WPL 3955775 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $32.35

44

WP8538949 Whirlpool Knob In Stock WPL WP8538949 $35.78

44

Knob, Timer ((Fo WPL 8316548 Contact Us For Availability

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $28.09

45

WP8538955 Whirlpool Dial Backorder WPL WP8538955 $31.42

45

WPL 8316547 WPL 8316547 Contact Us For Availability

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $31.38

47

WP8538957 Whirlpool Knob In Stock WPL WP8538957 $34.55

47

WPL 8316545 WPL 8316545 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

WPL 8271359 WPL 8271359 Contact Us For Availability

51

WPL 8271362 WPL 8271362 Contact Us For Availability

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $4.52

59

WPL 3348424 WPL 3348424 Contact Us For Availability

60

WPL 3955492 WPL 3955492 Contact Us For Availability

61

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

62

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $15.23
