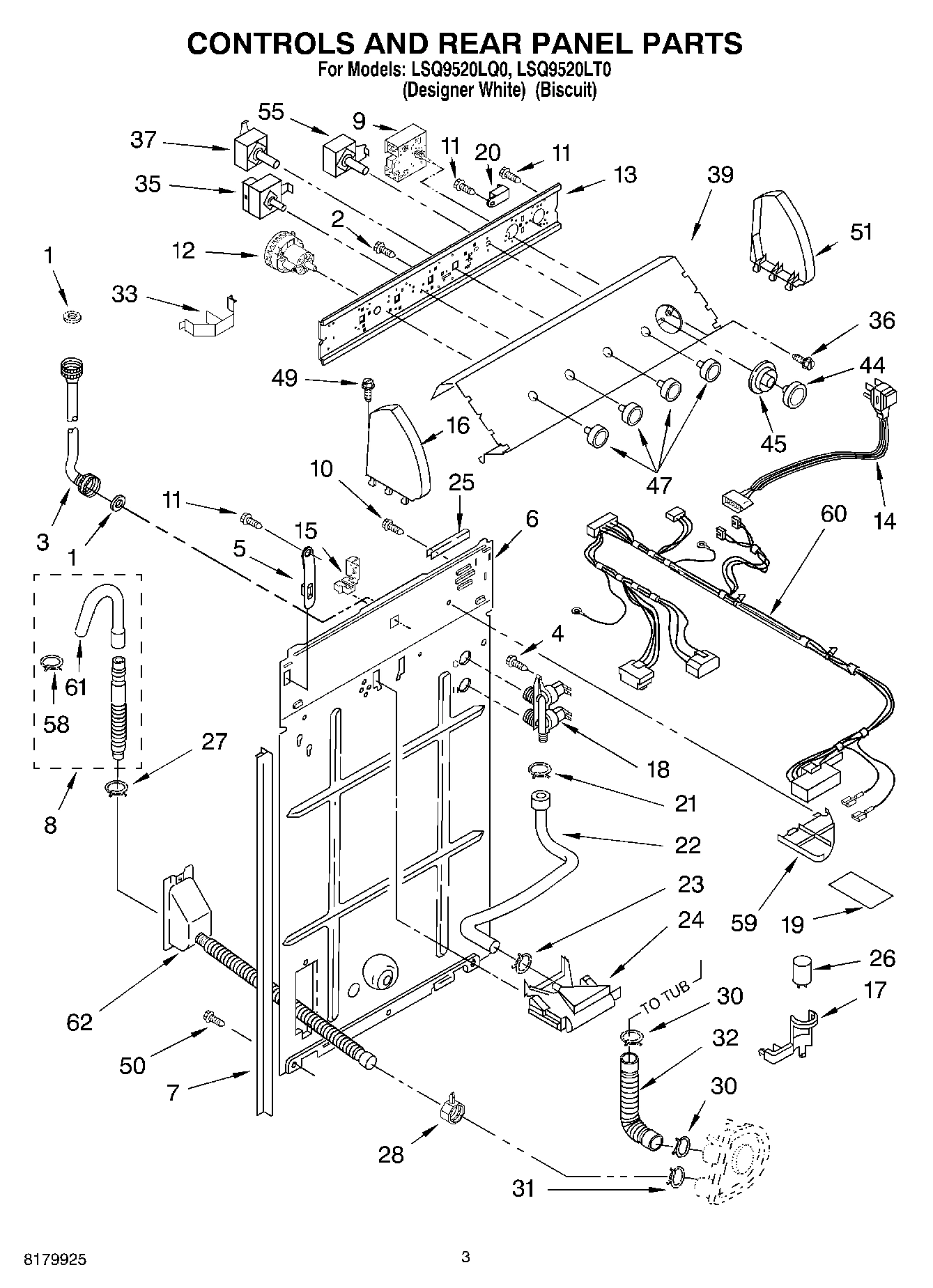

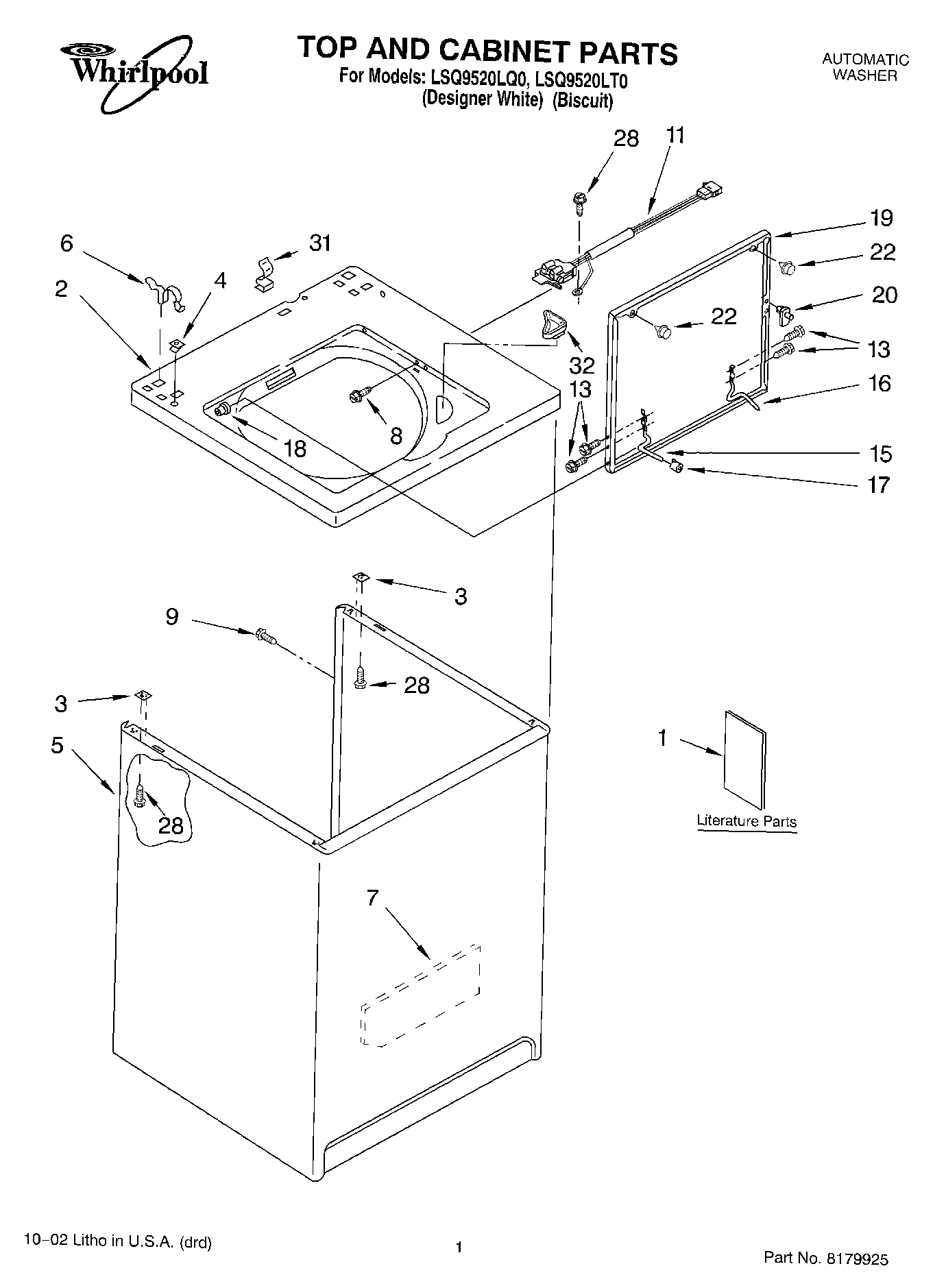

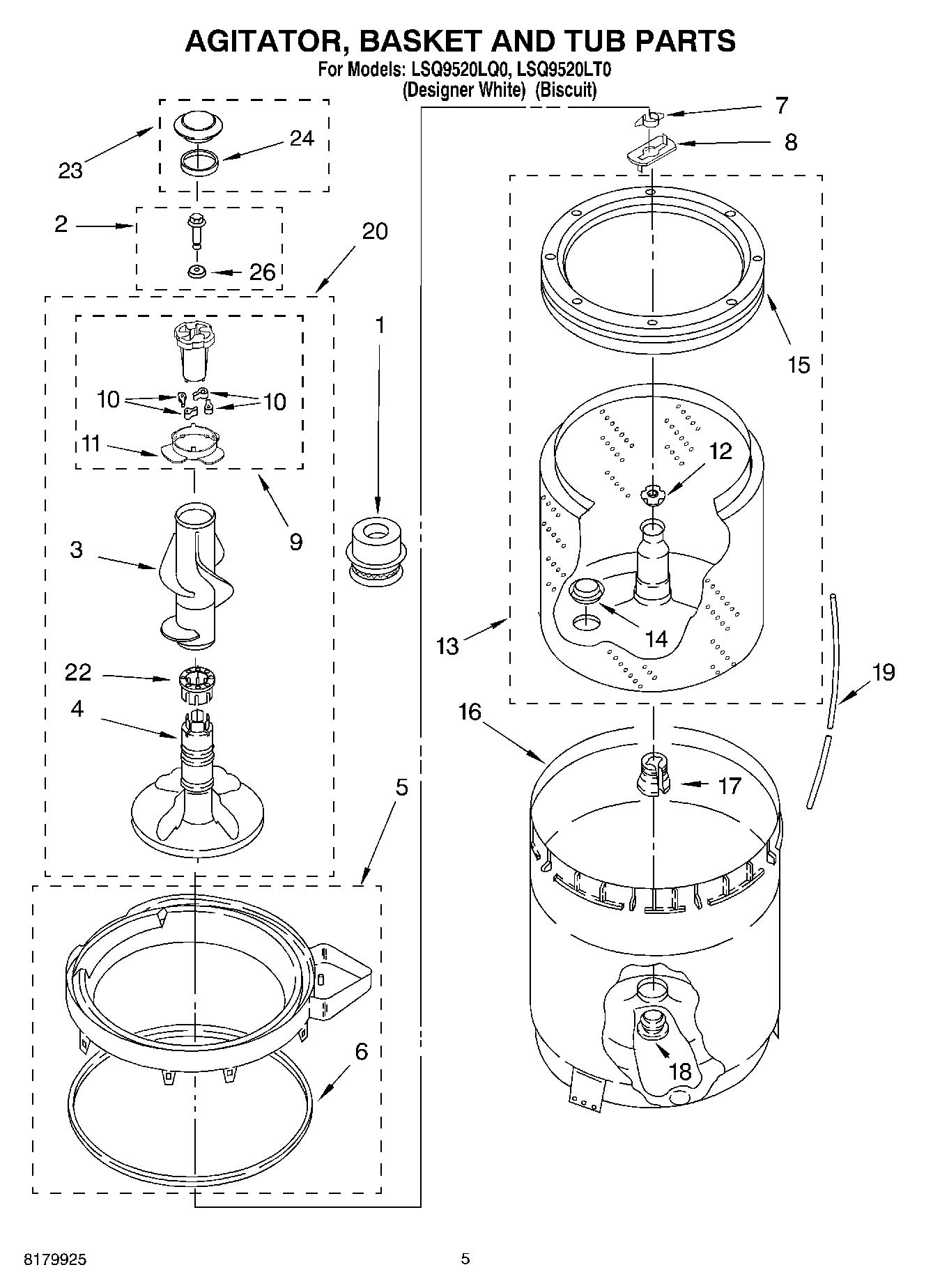

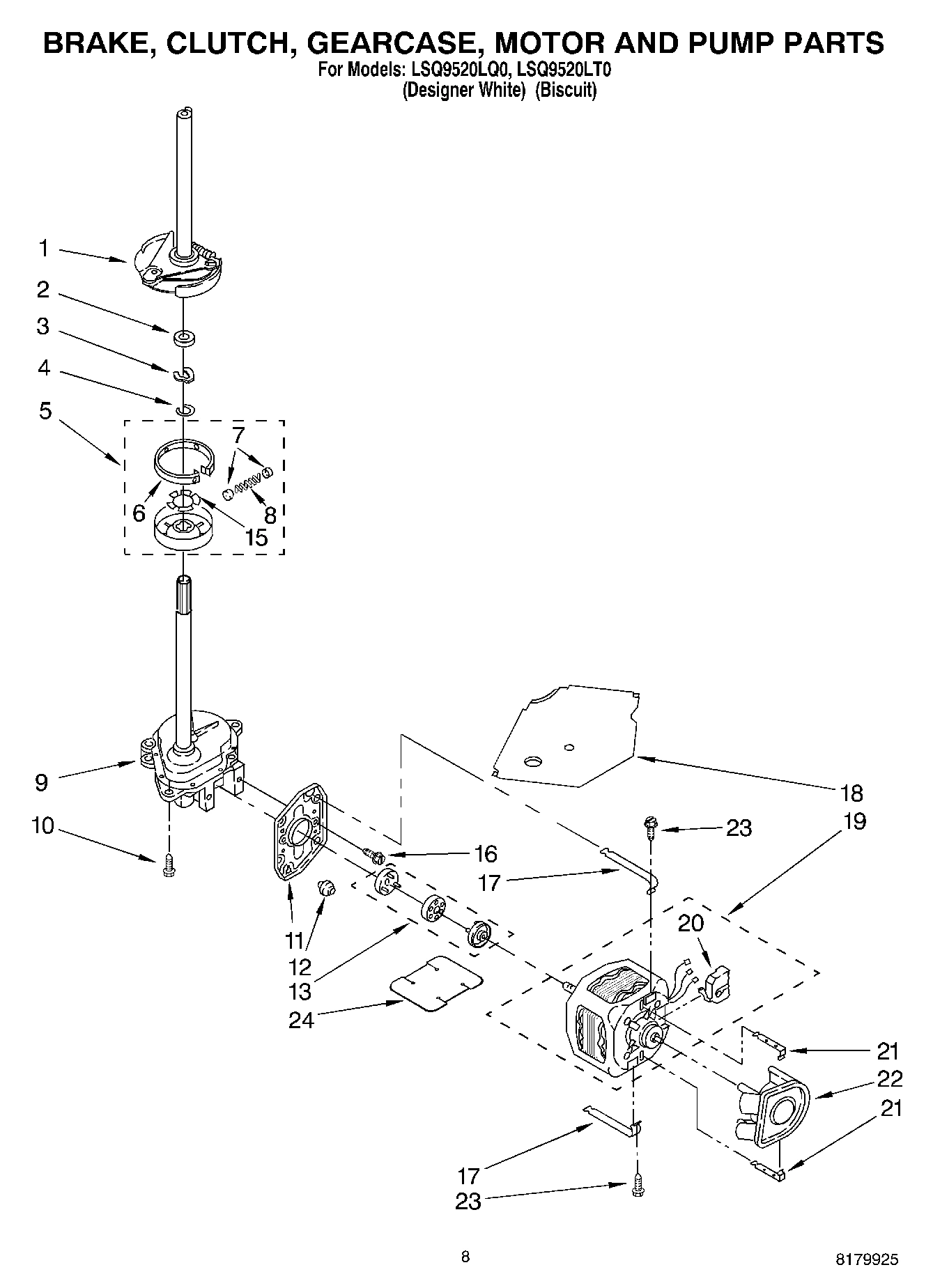

Model Whirlpool LSQ9520LT0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

WP63594 Whirlpool Dispenser In Stock WPL WP63594 $12.35

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

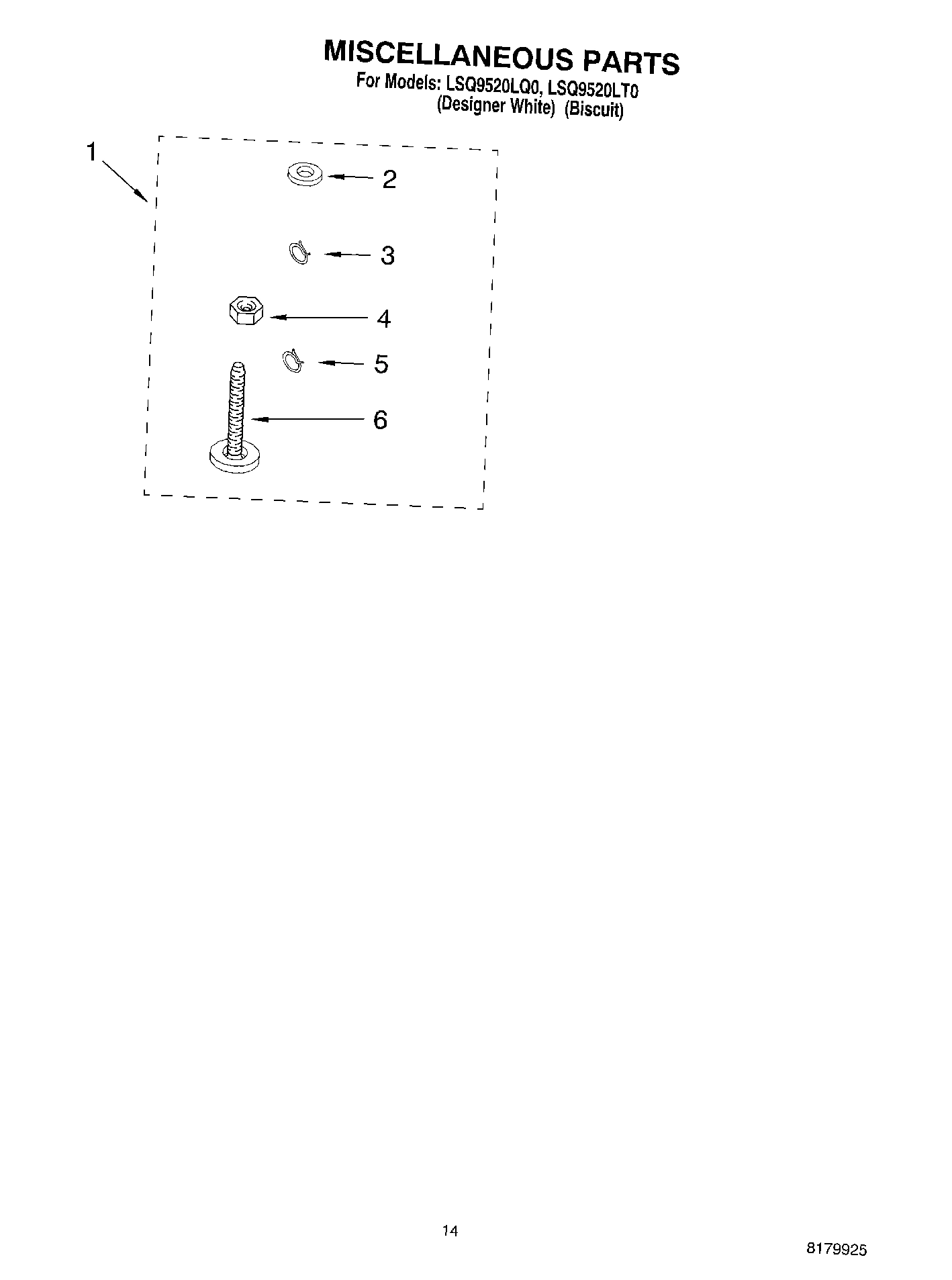

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

285321 Whirlpool Sleeve Backorder WPL 285321 $28.09

2

3400073 Whirlpool Screw Backorder WPL 3400073 $5.65

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $3.11

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.52

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.70

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.52

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $10.17

3

WP3360824 Whirlpool Agitator Auger In Stock WPL WP3360824 $78.12

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $4.52

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $5.29

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP389386 Whirlpool Agitator Assembly Backorder WPL WP389386 $78.08

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $81.29

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $33.38

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $11.67

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.70

6

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $3.11

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

6

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

6

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $19.14

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $30.62

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.35

9

285748 Whirlpool Agitator Cam Kit In Stock WPL 285748 $17.26

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.33

9

WP3951702 Whirlpool Timer In Stock WPL WP3951702 $188.16

10

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.25

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

353424 Whirlpool Connector Backorder WPL 353424 $10.76

3949247V Whirlpool Washer Lid Switch Assembly In Stock WPL 3949247V $44.94

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $3.70

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10339326 Whirlpool Washer Water Level Switch In Stock WPL W10339326 $40.60

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.52

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $10.45

W10389328 Whirlpool Basket Backorder WPL W10389328 $200.69

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $43.90

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.46

14

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $15.41

14

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $59.87

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $79.32

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $133.48

WP91770 Whirlpool Hinge In Stock WPL WP91770 $8.80

Cap, End (L.H.) (White) WPL 8271365 Contact Us For Availability

Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $9.26

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Clip, Capacitor WPL 8318201 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $3.40

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.99

Lid (White) WPL 3954489 Contact Us For Availability

Lid (Biscuit) WPL 3954491 Contact Us For Availability

Shield, Capacitor WPL 3976286 Contact Us For Availability

285727 Whirlpool Agitator Assembly In Stock WPL 285727 $126.97

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $31.51

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $3.33

285587 Whirlpool Thrust Washer In Stock WPL 285587 $2.25

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $9.04

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $3.46

23

WP3362061 Whirlpool Cap Backorder WPL WP3362061 $44.27

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $76.00

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $42.23

24

WP358912 Whirlpool Gasket Backorder WPL WP358912 $3.70

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Edge Protector WPL 303294 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.78

26

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $45.77

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

28

Clamp, Hose WPL 3976395 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $8.75

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.84

33

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

35

WPW10168256 Whirlpool Temperature Switch Backorder WPL WPW10168256 $49.92

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

37

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $57.12

39

Panel, Console (White) WPL 3955826 Contact Us For Availability

39

Panel, Console (Biscuit) WPL 3955827 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $32.35

44

WP3957822 Whirlpool Knob Backorder WPL WP3957822 $31.64

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $28.09

45

Dial, Timer (Biscuit) WPL 8271370 Contact Us For Availability

47

3957797 Whirlpool Knob In Stock WPL 3957797 $30.89

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $31.38

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

WPL 8271359 WPL 8271359 Contact Us For Availability

51

WPL 8271362 WPL 8271362 Contact Us For Availability

55

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $62.32

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $4.52

59

WPL 3348424 WPL 3348424 Contact Us For Availability

60

WPL 3956007 WPL 3956007 Contact Us For Availability

61

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

62

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $15.23
