Model Whirlpool LSQ8500JT0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

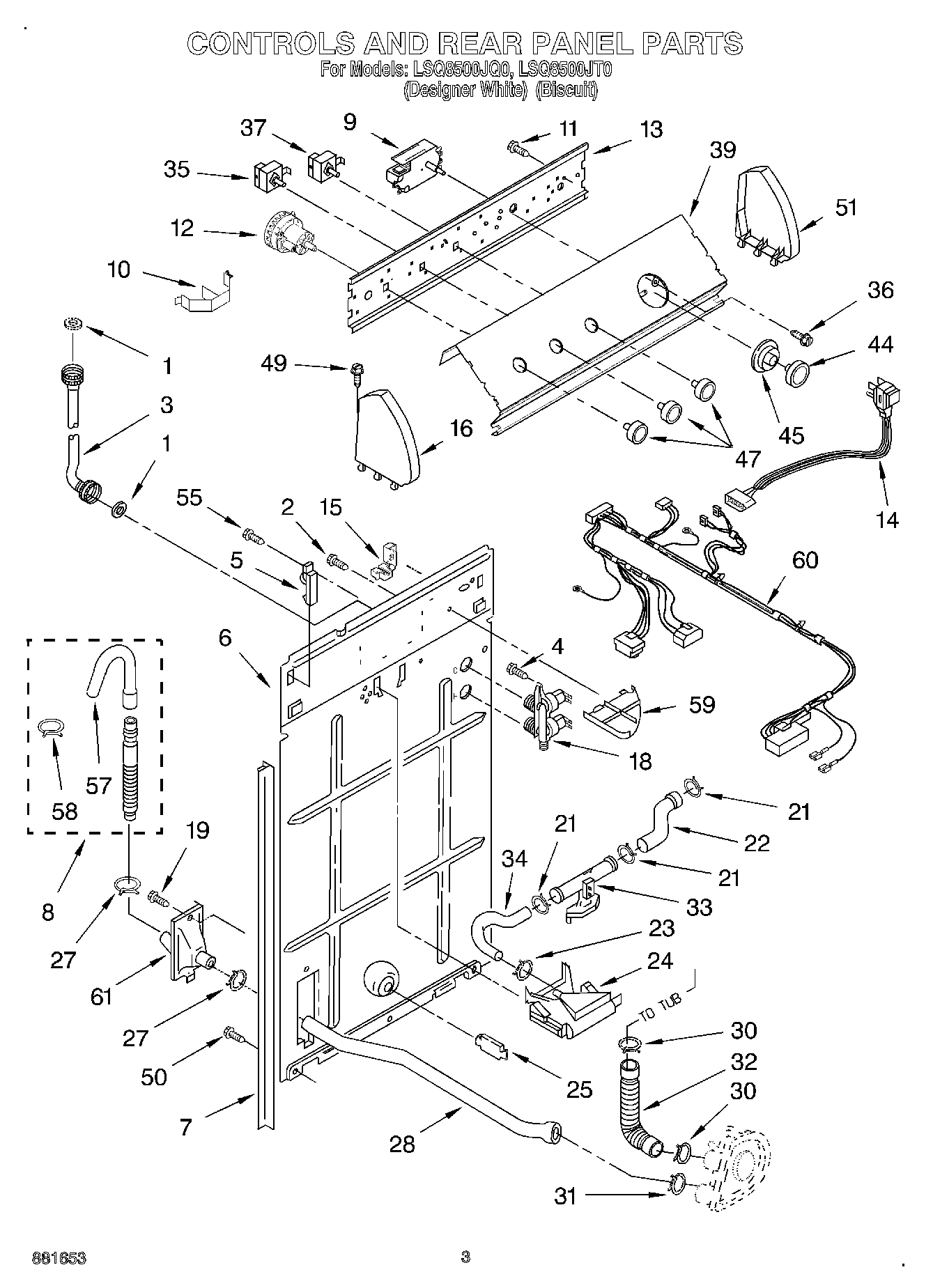

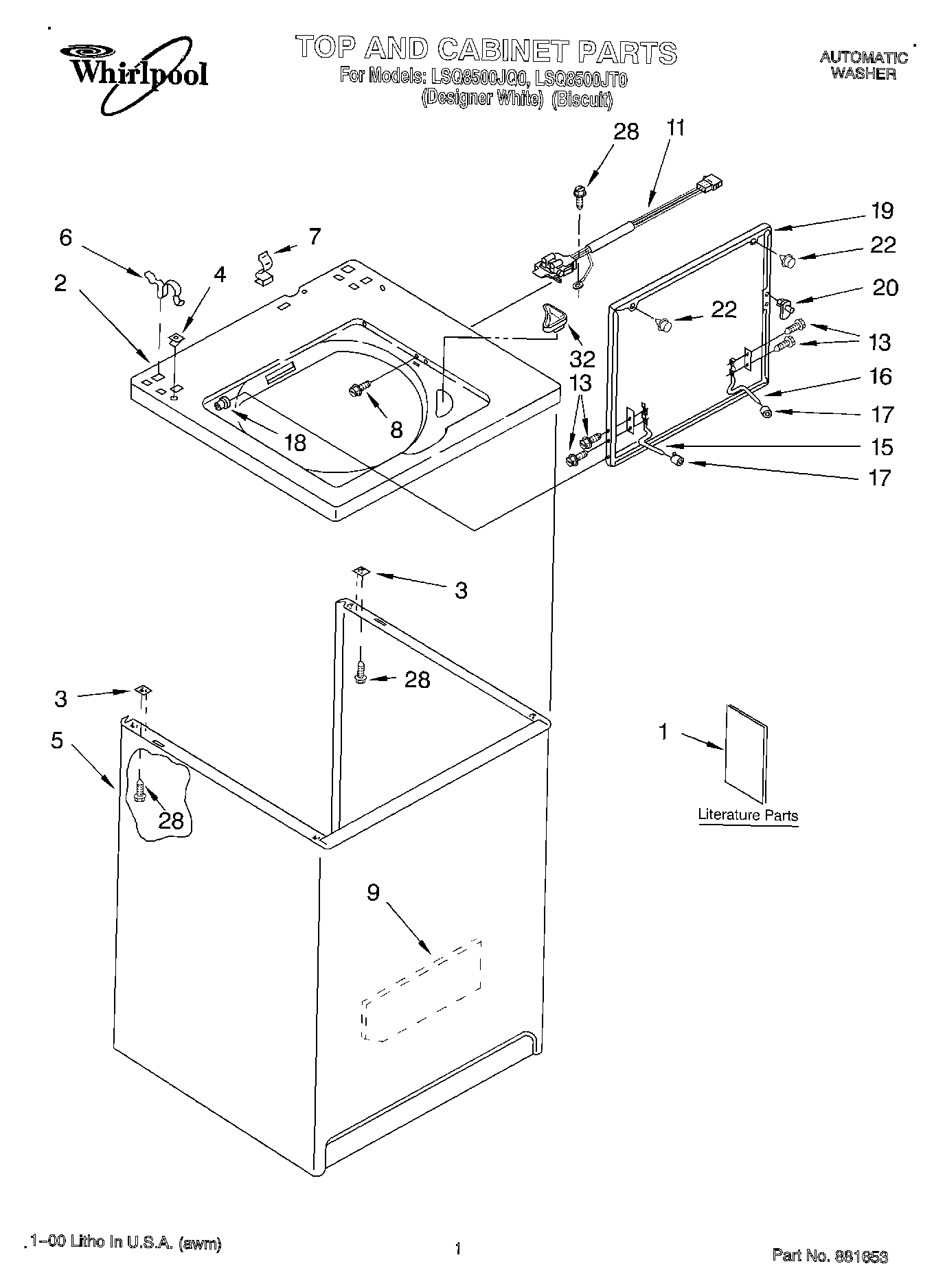

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $10.49

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3976252 Contact Us For Availability

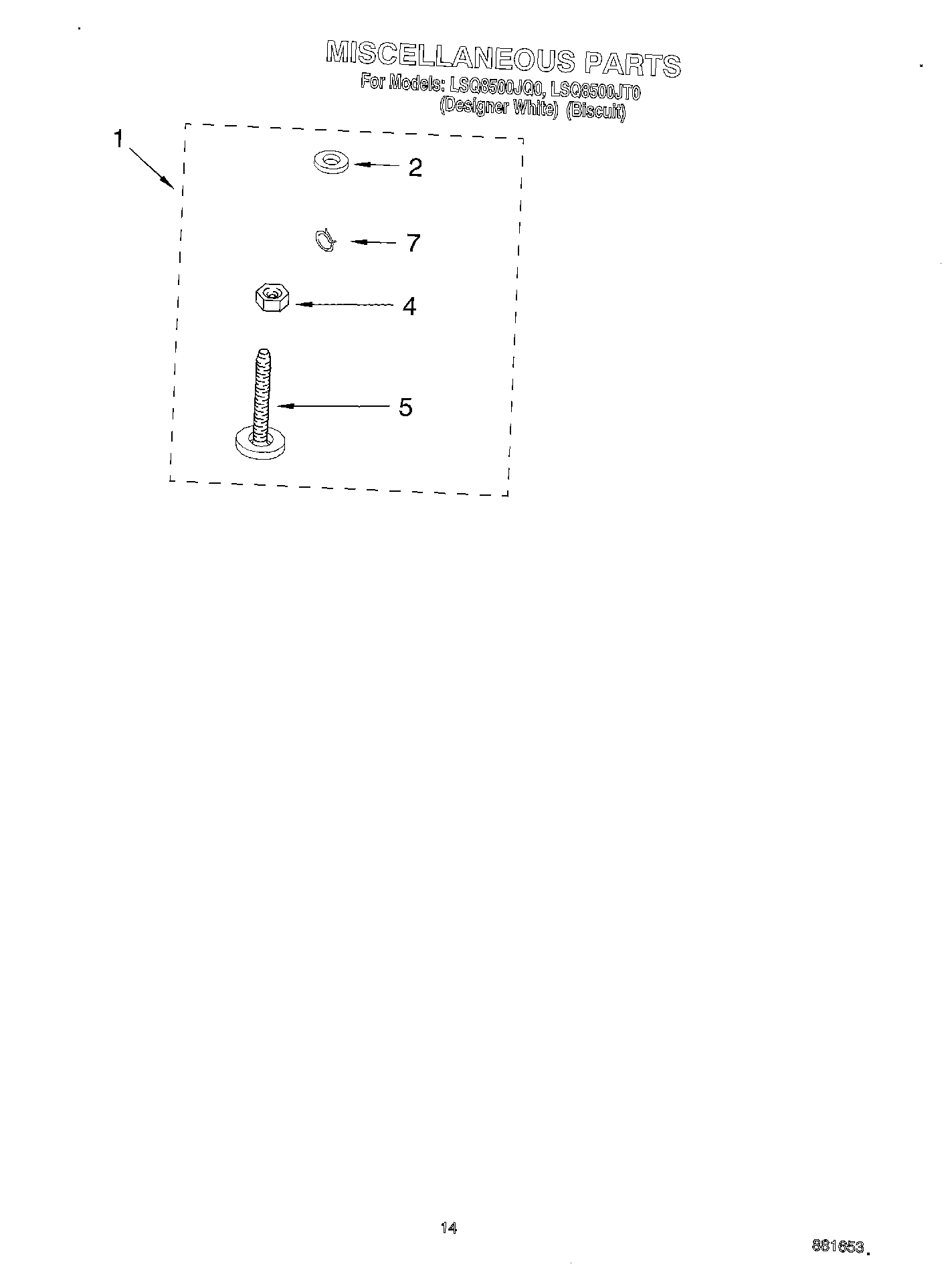

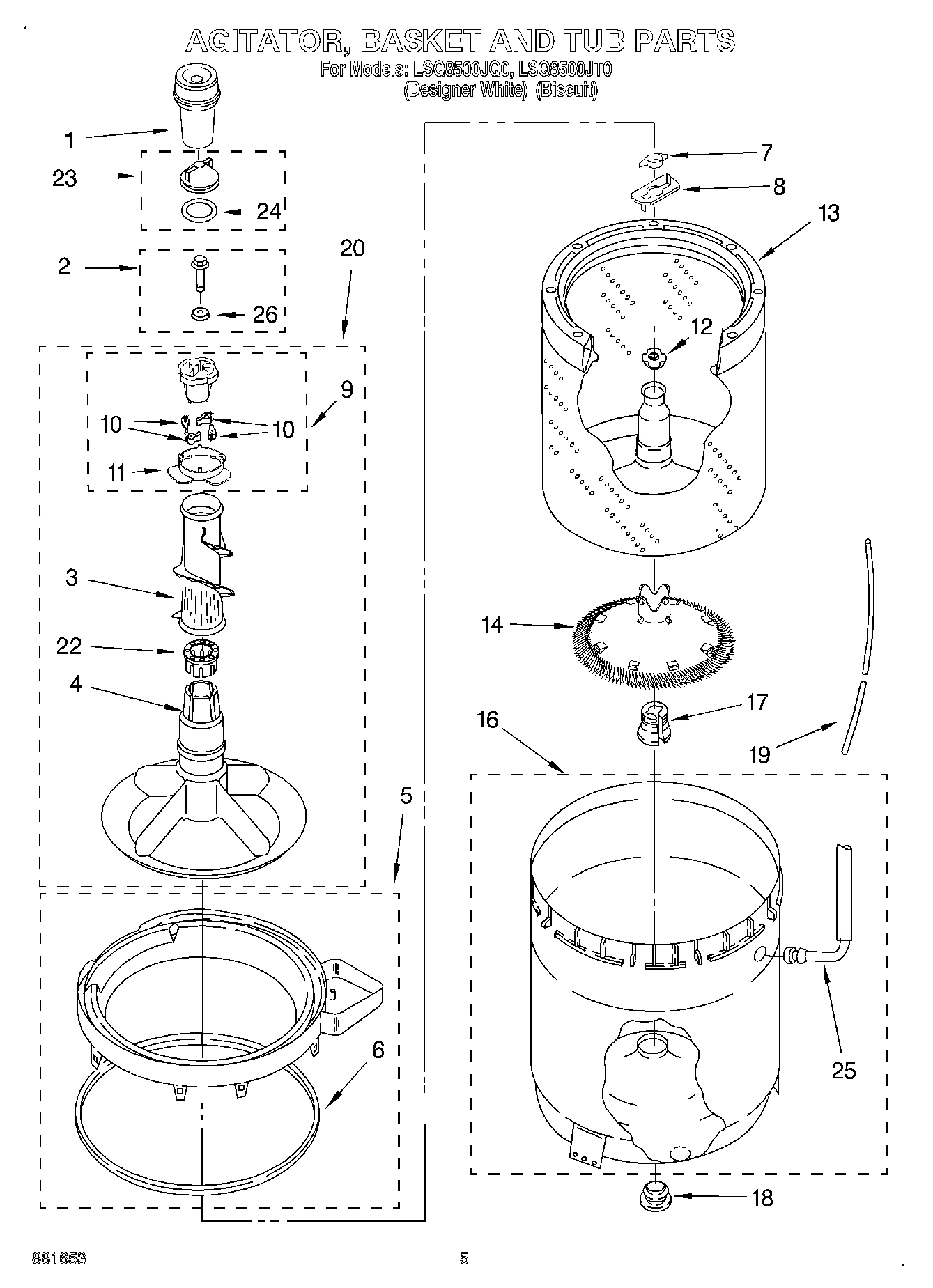

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.88

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $93.60

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

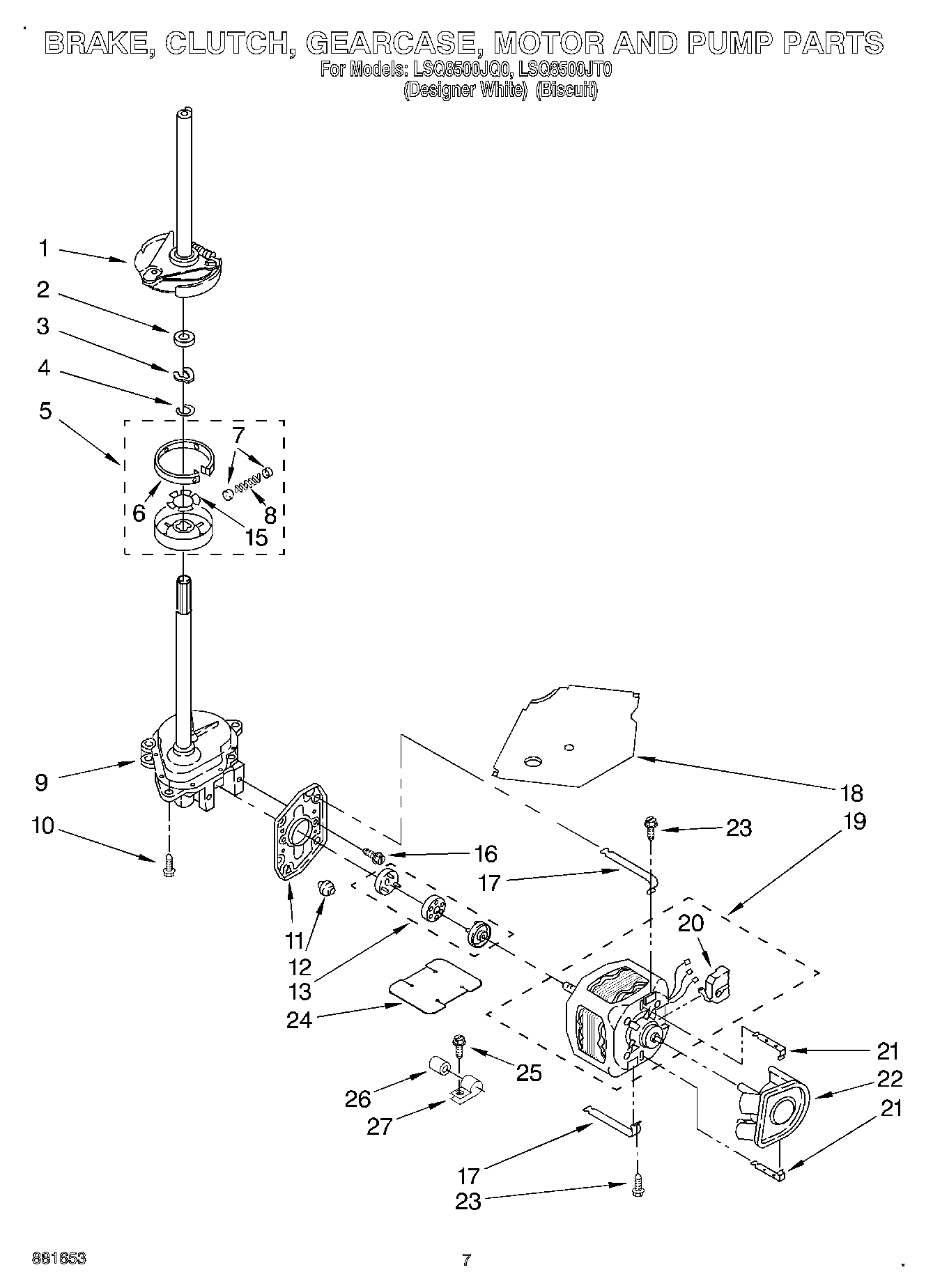

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $81.07

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

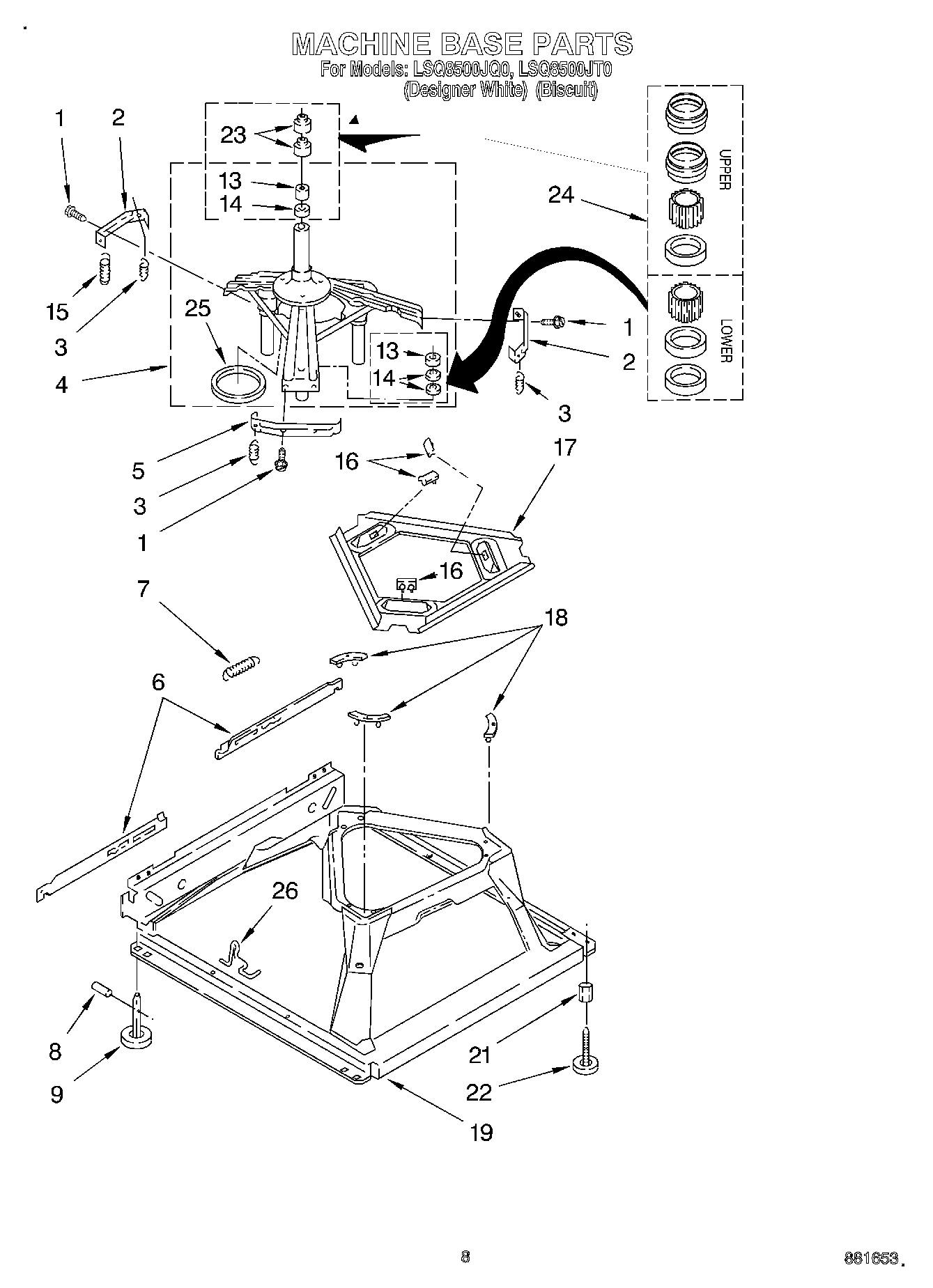

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $80.47

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $11.67

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

7

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

7

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

7

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

7

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

7

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

7

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

7

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

7

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

7

Shipping Kit WPL 3348675 Contact Us For Availability

7

Drain Protector WPL 367031 Contact Us For Availability

7

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

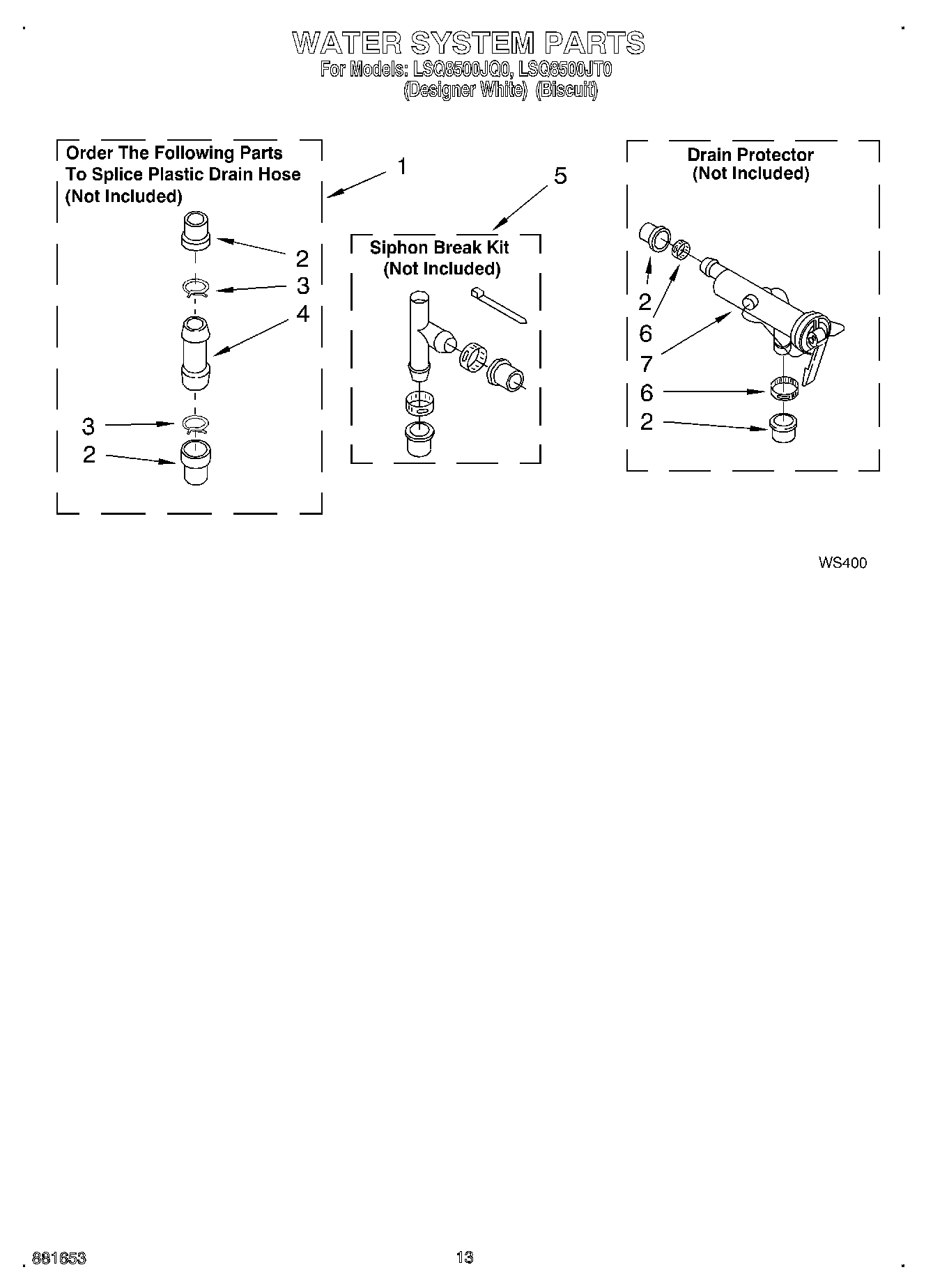

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $5.53

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

285809 Whirlpool Washer Agitator Cam Kit In Stock WPL 285809 $5.87

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

Timer, Control (60 Hz.) (Motor Not A Service WPL 3953545 Contact Us For Availability

10

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.25

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP3952374 Whirlpool Bearing In Stock WPL WP3952374 $3.70

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10820051 Whirlpool Washer Pressure Switch In Stock WPL W10820051 $80.00

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

W10389329 Whirlpool Washer Basket Backorder WPL W10389329 $176.56

13

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $43.90

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $14.59

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $59.06

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

3361596 Whirlpool Outer Tub Primary In Stock WPL 3361596 $180.24

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

Cap, End (L.H.) (White) WPL 8271365 Contact Us For Availability

Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability

17

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

17

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.31

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $6.91

19

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $145.78

19

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

20

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $140.64

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357319 Whirlpool Hose In Stock WPL WP3357319 $9.44

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $3.88

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.64

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.83

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $42.23

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.88

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

25

Hose, Bleach WPL 3948705 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $44.94

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

27

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

Hose, Pump To Drain WPL 3359816 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

33

Sensor-ETC-Inline WPL 3352282 Contact Us For Availability

34

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $7.47

35

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $62.32

36

W10915367 Whirlpool Screw Assembly Backorder WPL W10915367 $2.95

37

Switch, Rotary WPL 661614 Contact Us For Availability

39

Panel, Console (White) WPL 3954177 Contact Us For Availability

39

Panel, Console (Biscuit) WPL 3954178 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $31.53

44

WP3957822 Whirlpool Knob Backorder WPL WP3957822 $31.64

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $28.09

45

Dial, Timer (Biscuit) WPL 8271370 Contact Us For Availability

47

3957797 Whirlpool Knob In Stock WPL 3957797 $30.89

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $31.38

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

51

WPL 8271359 WPL 8271359 Contact Us For Availability

51

WPL 8271362 WPL 8271362 Contact Us For Availability

55

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

57

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25

58

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

59

WPL 3348424 WPL 3348424 Contact Us For Availability

60

WPL 3953611 WPL 3953611 Contact Us For Availability

61

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40
