Model Whirlpool LSQ7030MQ0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

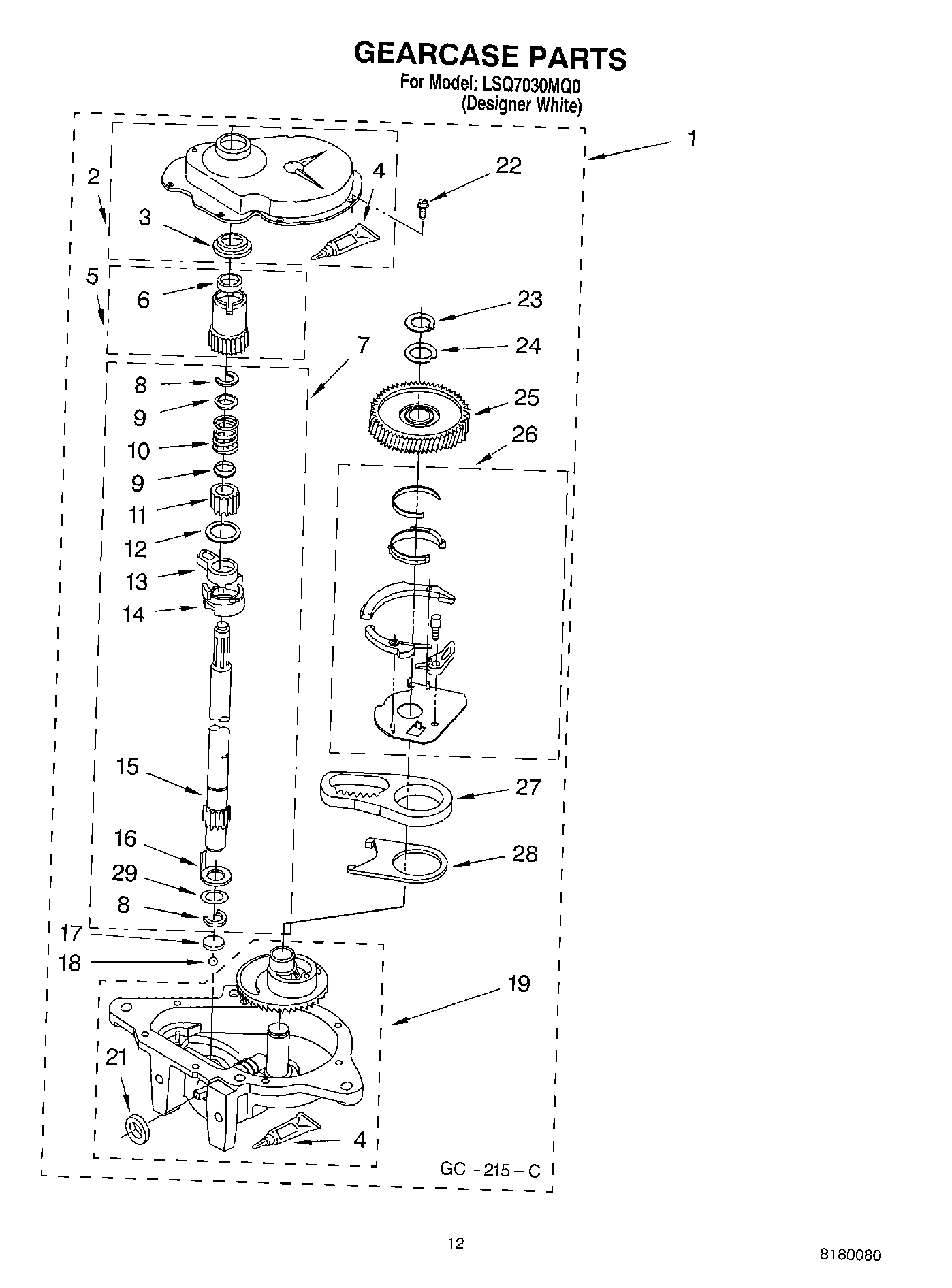

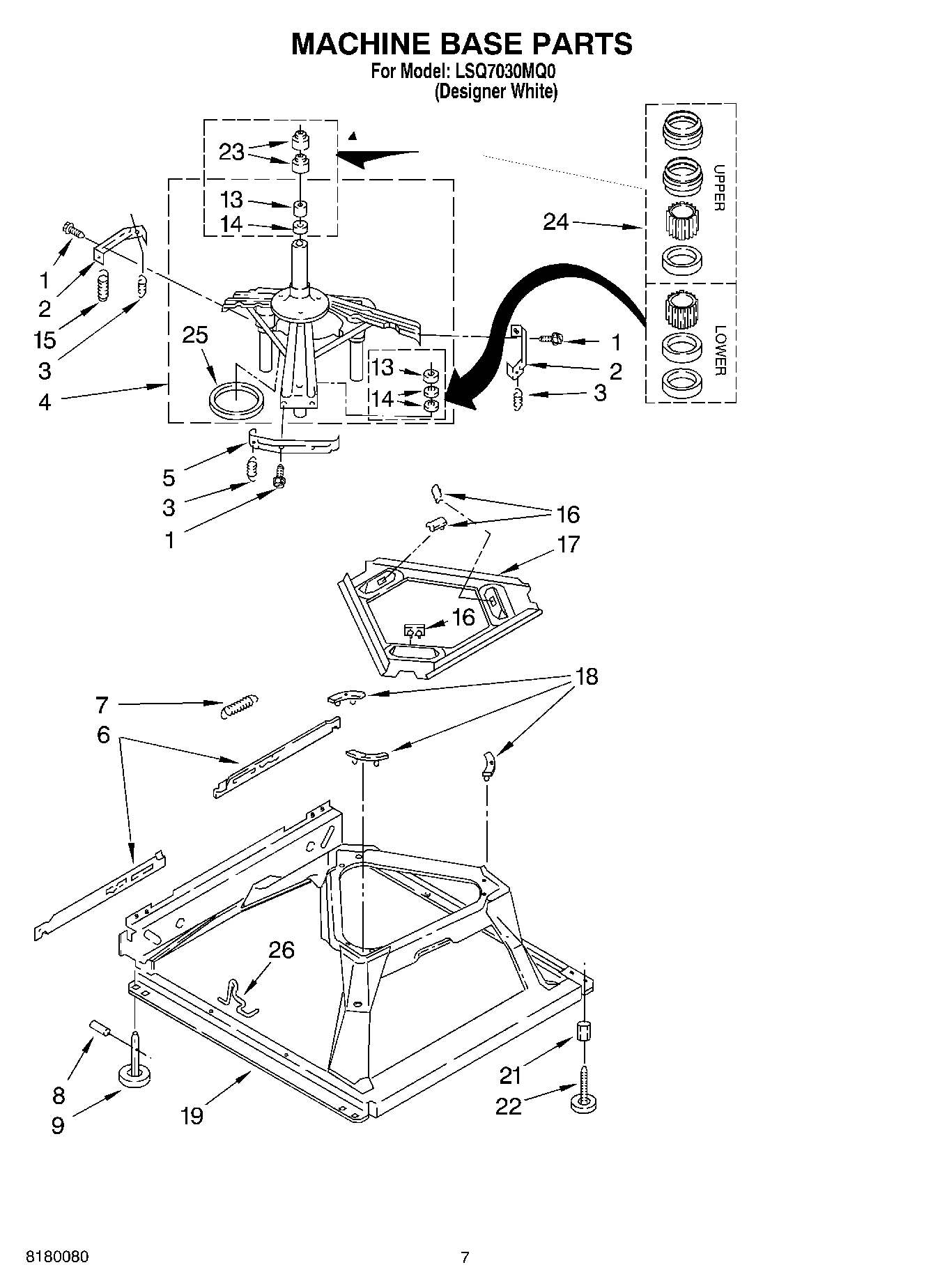

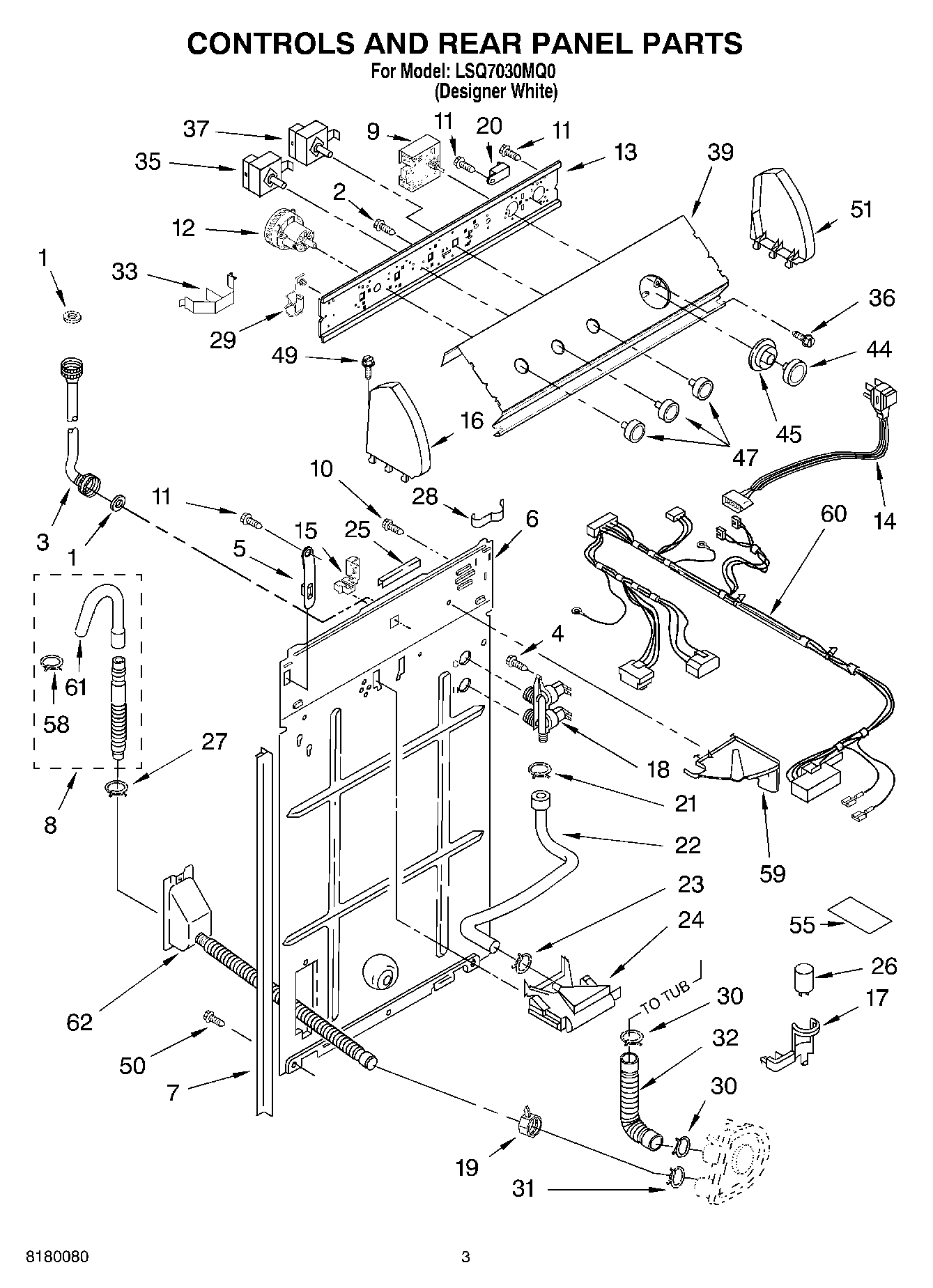

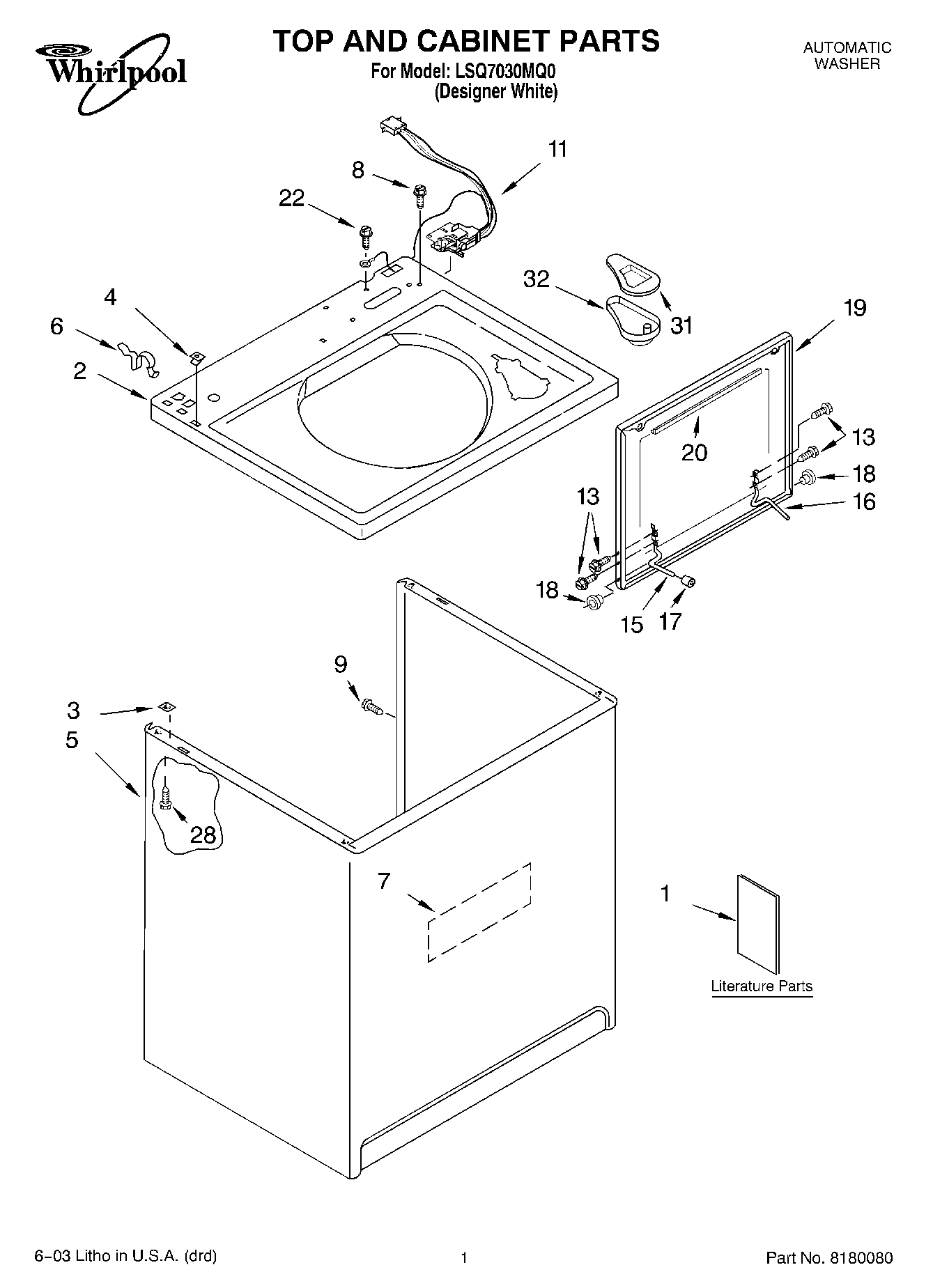

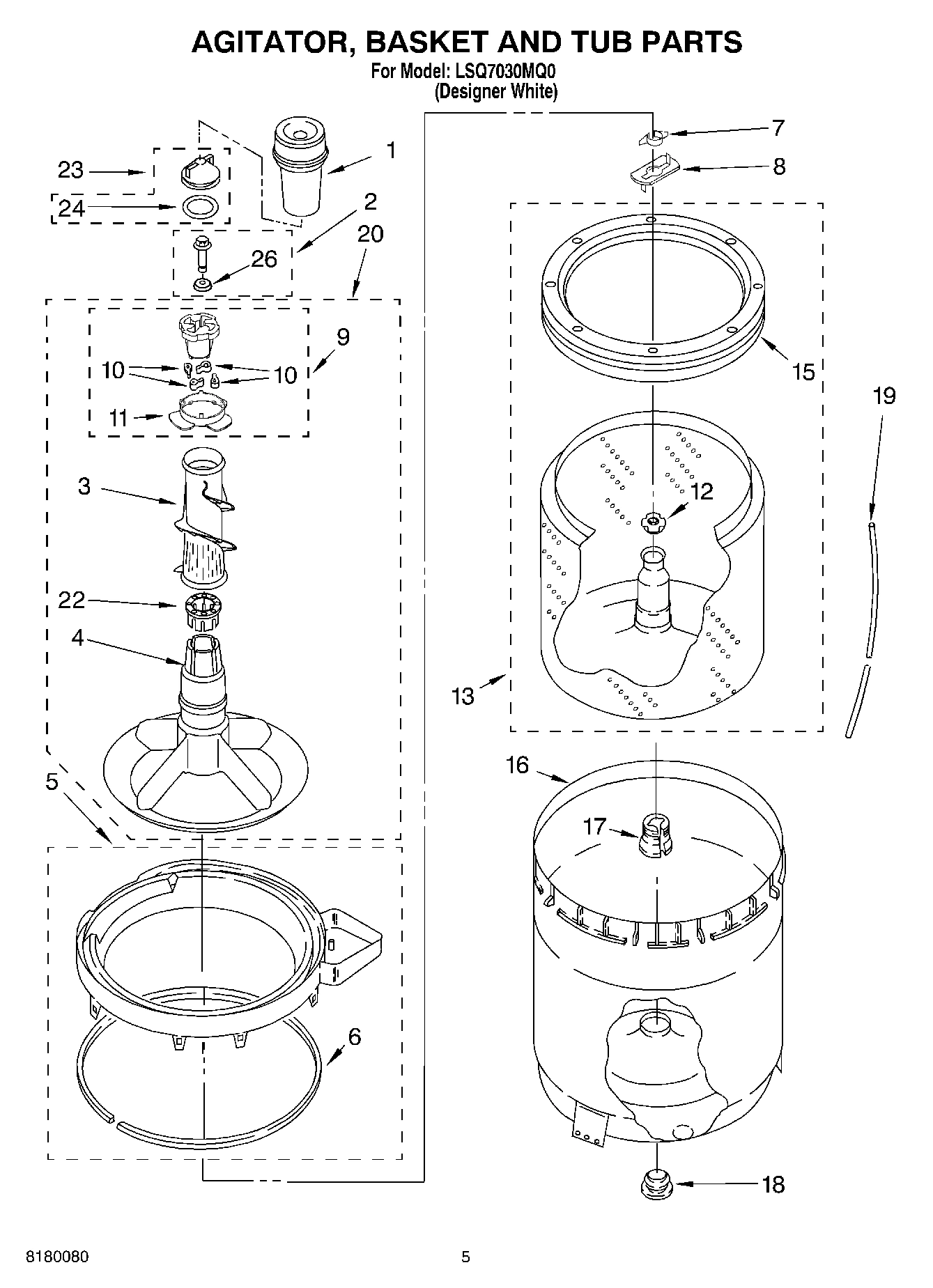

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI157517A Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT3955869 Contact Us For Availability

1

Literature Parts (Feature Sheet) WPL LIT3955904 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT3956025 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT3956341 Contact Us For Availability

1

Literature Parts (Manual, Do-It Yourself (Was WPL LIT4313896 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT8543821 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

3400073 Whirlpool Screw Backorder WPL 3400073 $5.65

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Top WPL 3955792 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $89.14

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $77.21

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $255.69

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $3.70

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $9.42

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

8

Screw, Lid Switch (2) WPL 3400611 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

9

WP3953321 Whirlpool Timer In Stock WPL WP3953321 $189.96

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Spring, Agitate WPL 62676 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $93.36

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10820051 Whirlpool Washer Pressure Switch In Stock WPL W10820051 $89.43

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $41.82

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

14

Cord, Power (Includes Item 15) WPL 661661 Contact Us For Availability

15

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

15

Hinge, Lid (L.H.) WPL 8055257 Contact Us For Availability

15

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $126.36

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

16

Hinge, Lid (R.H.) WPL 8055256 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Clip, Capacitor WPL 8318201 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

Clamp, Hose WPL 3976395 No Longer Available

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

Lid WPL 3956016 Contact Us For Availability

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $136.35

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

Seal, Lid WPL 8054939 Contact Us For Availability

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $3.70

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

23

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Edge Protector WPL 303294 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

26

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $2.51

29

Retainer, Harness WPL 8317975 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

Cover, Dispenser WPL 3955788 Contact Us For Availability

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

Dispenser, Bleach WPL 8519517 Contact Us For Availability

33

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

35

WPW10168256 Whirlpool Temperature Switch Backorder WPL WPW10168256 $47.54

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

37

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $54.41

39

Panel, Console WPL 3954181 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $30.03

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $26.75

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $29.88

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

W10820038 Whirlpool Endcap In Stock WPL W10820038 $49.21

55

Shield, Capacitor WPL 3976286 Contact Us For Availability

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

59

Shield, Suds WPL 8539874 Contact Us For Availability

60

Harness, Wiring (For Detail See Pages 9 & WPL 3956524 Contact Us For Availability

61

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

62

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40
