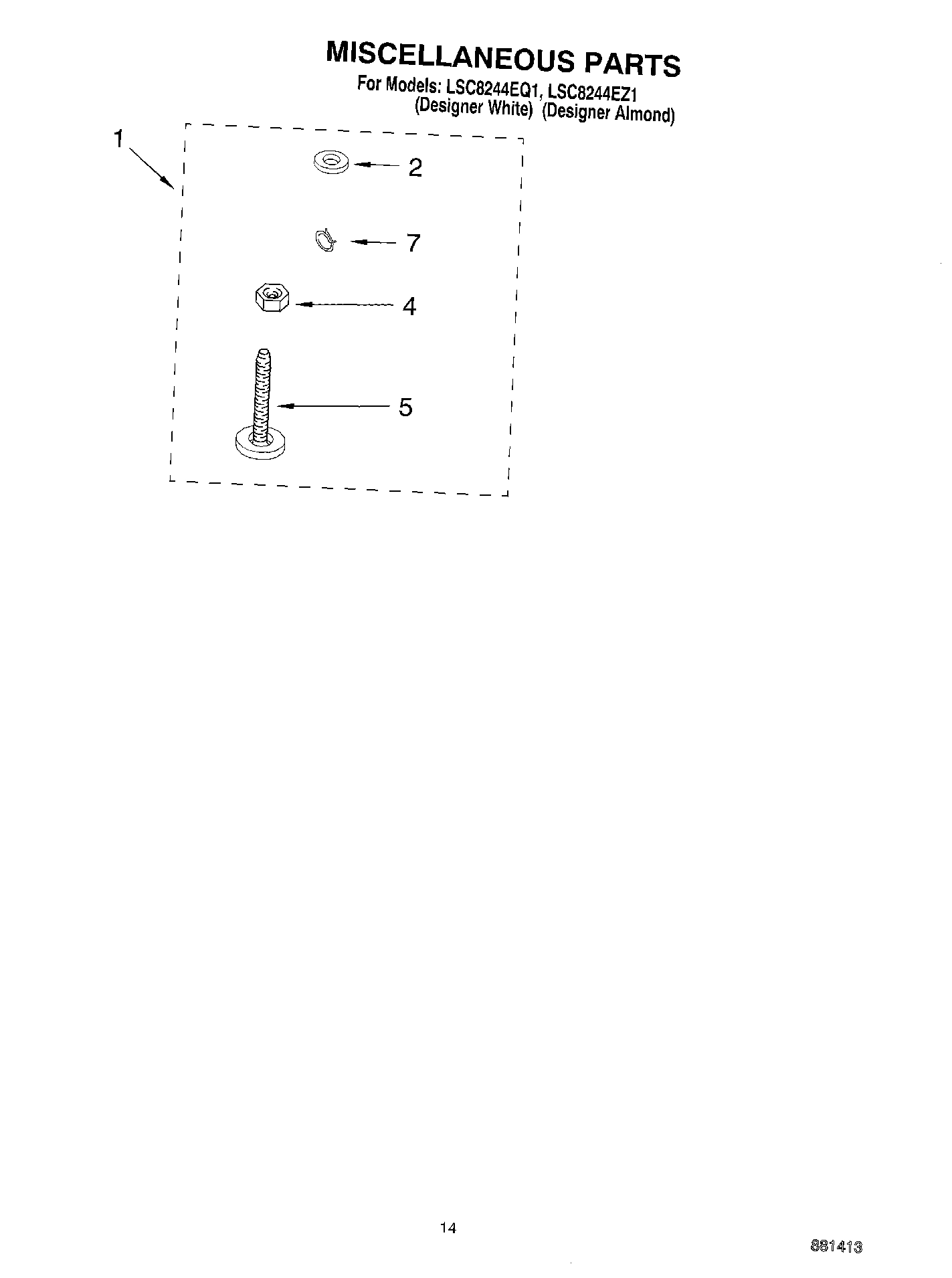

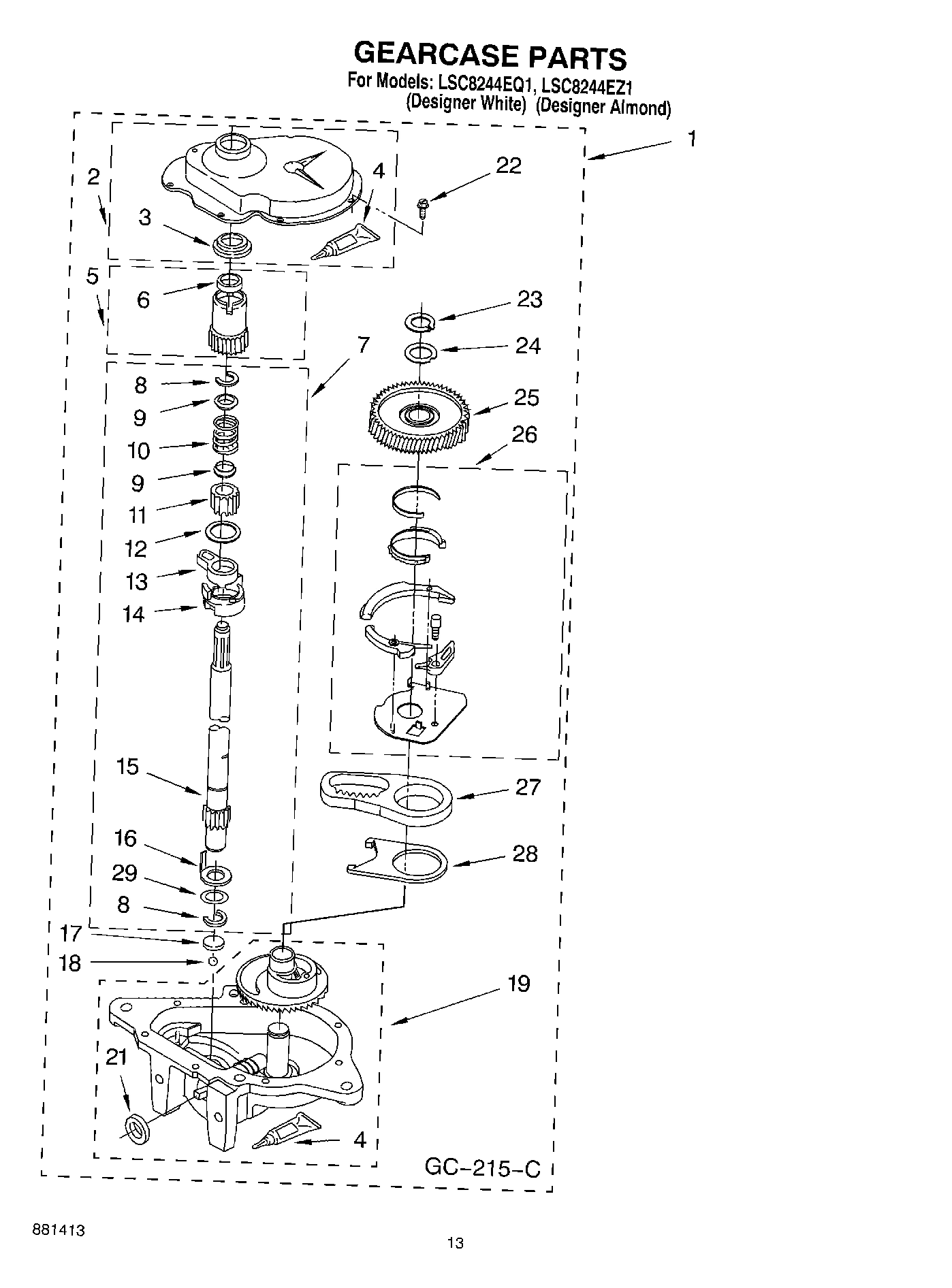

Model Whirlpool LSC8244EZ1 AUTOMATIC WASHER – Common Parts & Diagrams

Manual, (Washer)
Manual, (Washer) WPL LIT4313896 Contact Us For Availability
View on Model
1

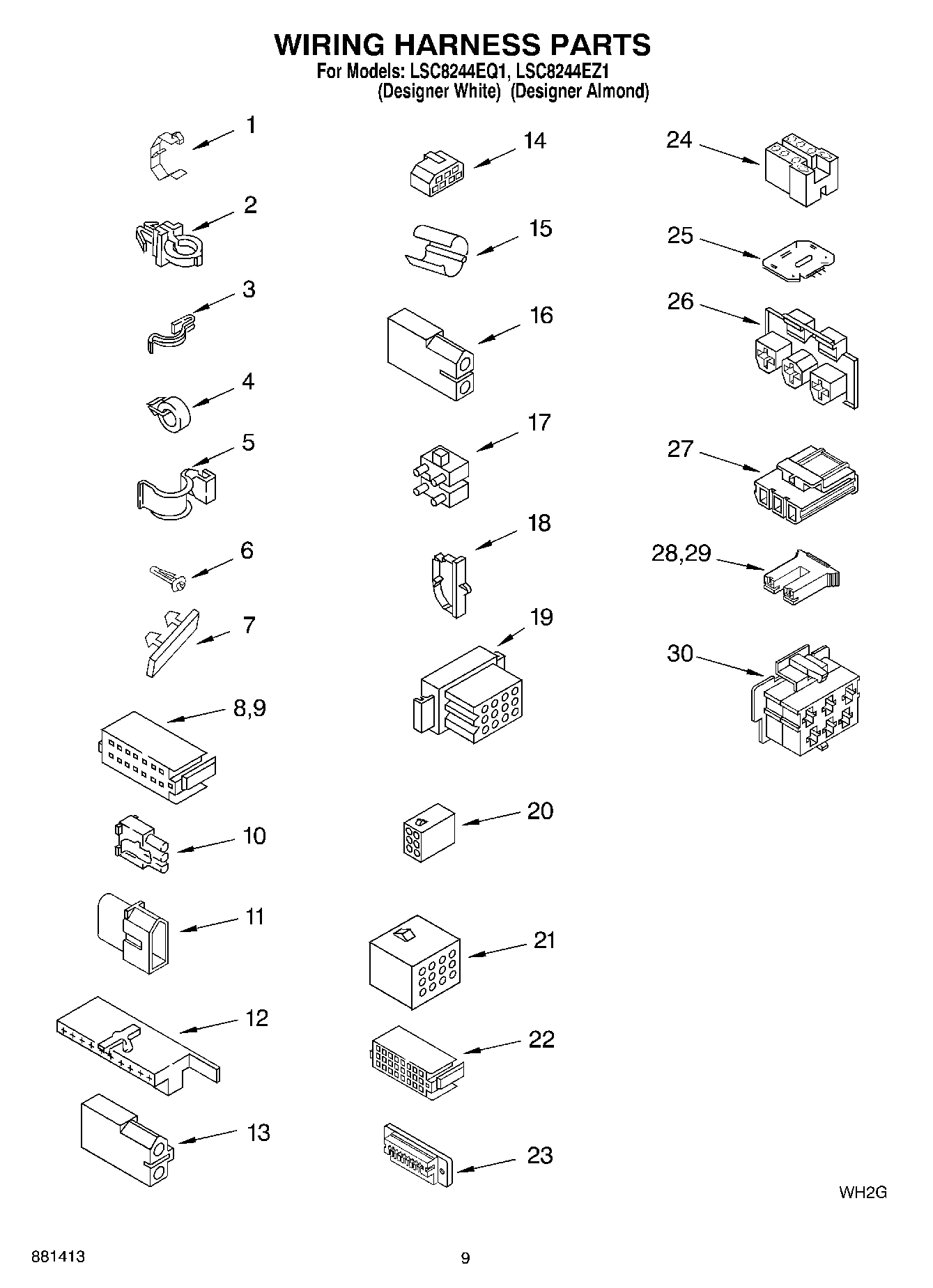

Clip, Harness
Clip, Harness WPL 3349557 Contact Us For Availability
View on Model
1
Literature Parts (Use & Care Guide)
Literature Parts (Use & Care Guide) WPL LIT3363572 Contact Us For Availability
View on Model
1
Literature Parts (Installation Instructions)
Literature Parts (Installation Instructions) WPL LIT3952817 Contact Us For Availability
View on Model
1
Literature Parts (Wiring Diagram)
Literature Parts (Wiring Diagram) WPL LIT3954770 Contact Us For Availability
View on Model
1
Literature Parts (Energy Guide)
Literature Parts (Energy Guide) WPL LIT3954863 Contact Us For Availability
View on Model

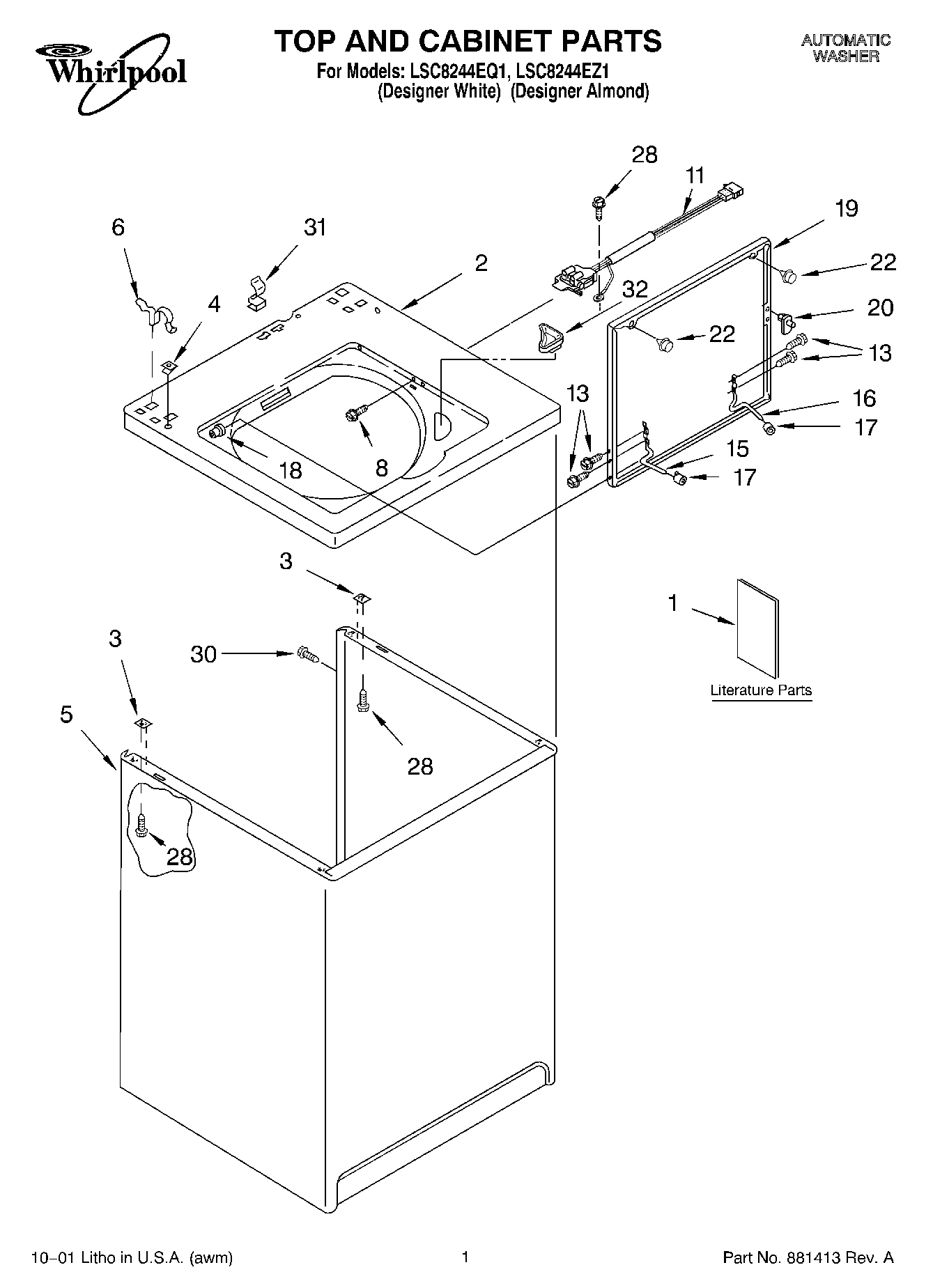

2
Top (White)
Top (White) WPL 3949476 Contact Us For Availability
View on Model
2
Top (Almond)
Top (Almond) WPL 3949477 Contact Us For Availability
View on Model

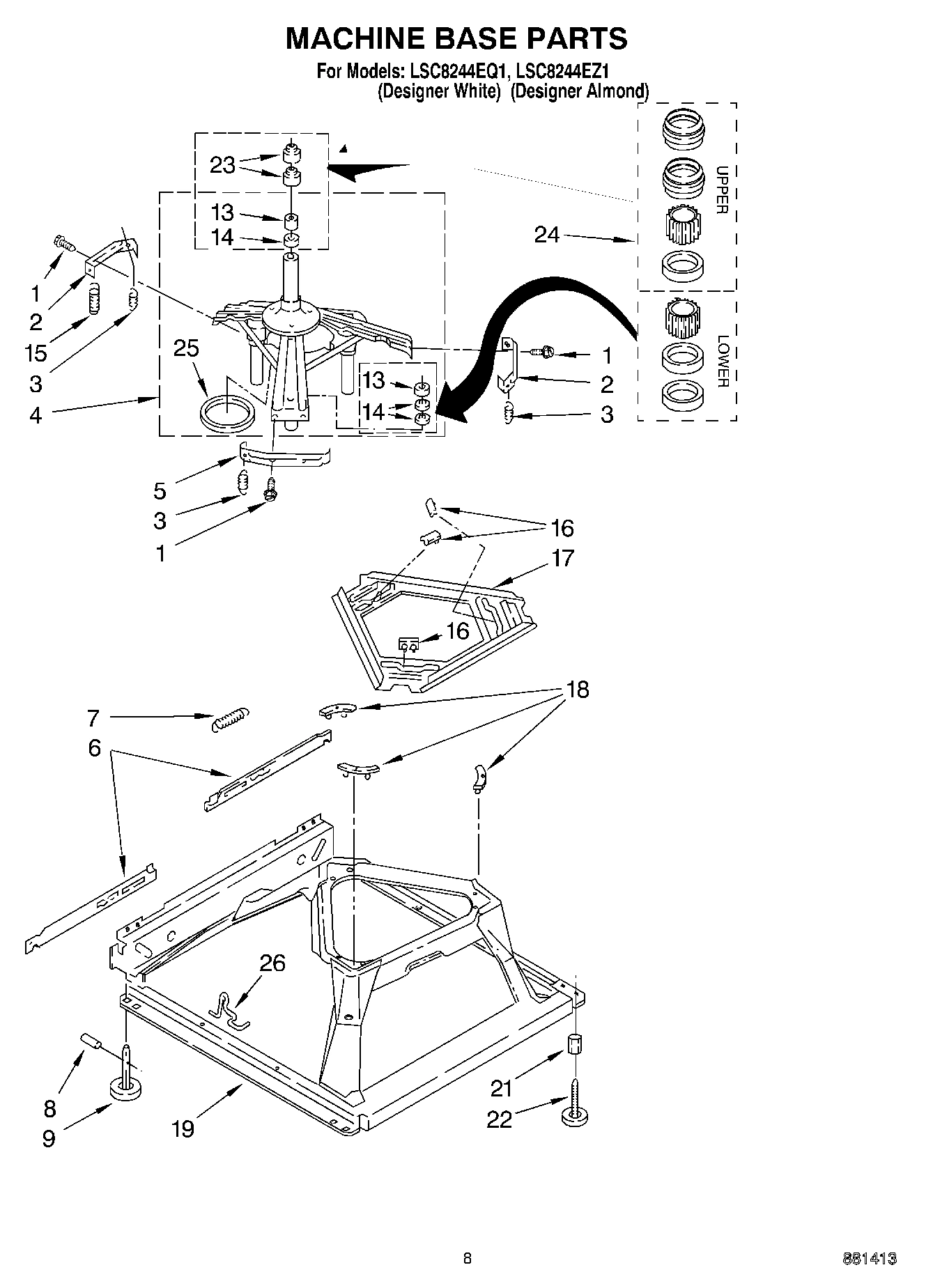

4

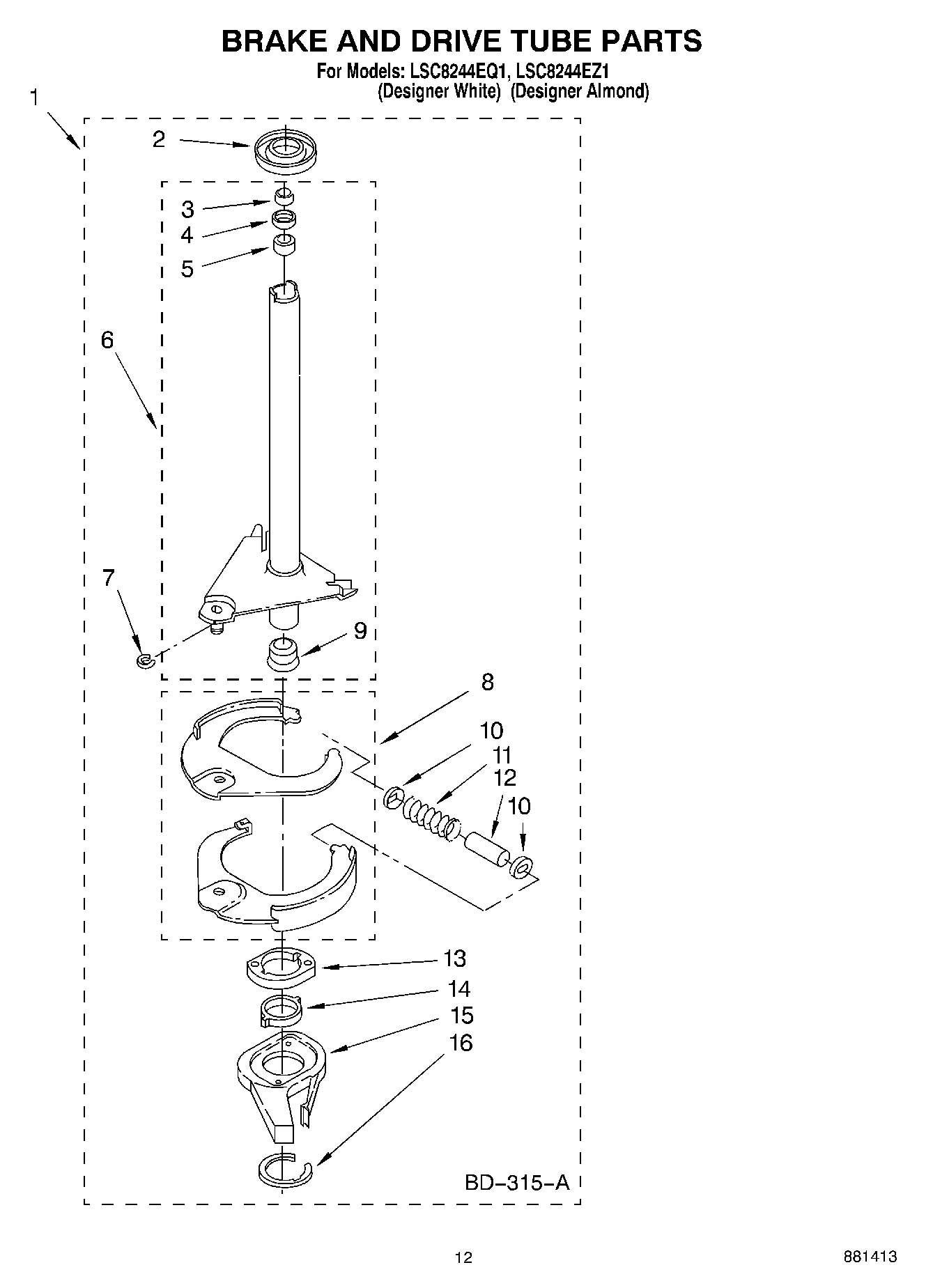

Support & Brake, Tub
Support & Brake, Tub WPL 3362087 Contact Us For Availability
View on Model
5
Bracket, Spring Outer (L.F.)
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
View on Model
5
Cabinet (Almond)
Cabinet (Almond) WPL 63425 Contact Us For Availability
View on Model
6
Link, Leveling Mechanism (2)
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
View on Model
7
PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
9
Timer, Control (60 Hz.) (Motor Not A Service
Timer, Control (60 Hz.) (Motor Not A Service WPL 3948171 Contact Us For Availability
View on Model

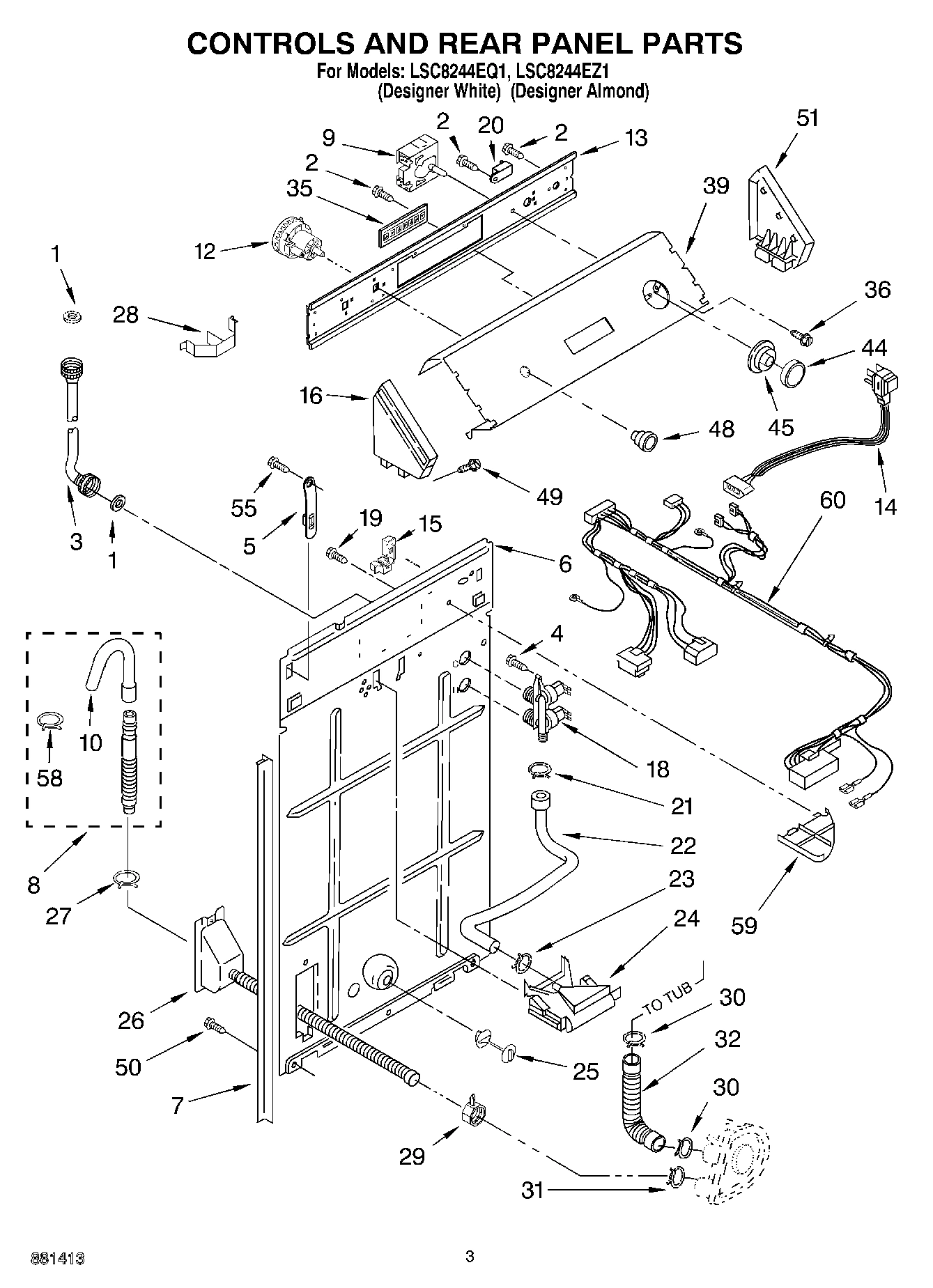

13
Bracket, Control
Bracket, Control WPL 3950194 Contact Us For Availability
View on Model
15
Strain Relief, Power Cord
Strain Relief, Power Cord WPL 3952821 Contact Us For Availability
View on Model
16
Cap, End (L.H.) (White)
Cap, End (L.H.) (White) WPL 3358528 Contact Us For Availability
View on Model
16
Cap, End (L.H.) (Almond)
Cap, End (L.H.) (Almond) WPL 3358529 Contact Us For Availability
View on Model
17
Bumper, Lid Hinge
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
View on Model
19
Lid (White)
Lid (White) WPL 3361400 Contact Us For Availability
View on Model
19
Lid (Almond)
Lid (Almond) WPL 3361401 Contact Us For Availability
View on Model
19
Base Assembly (Includes Illus, 6, 7, 8, 9, 16
Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability
View on Model

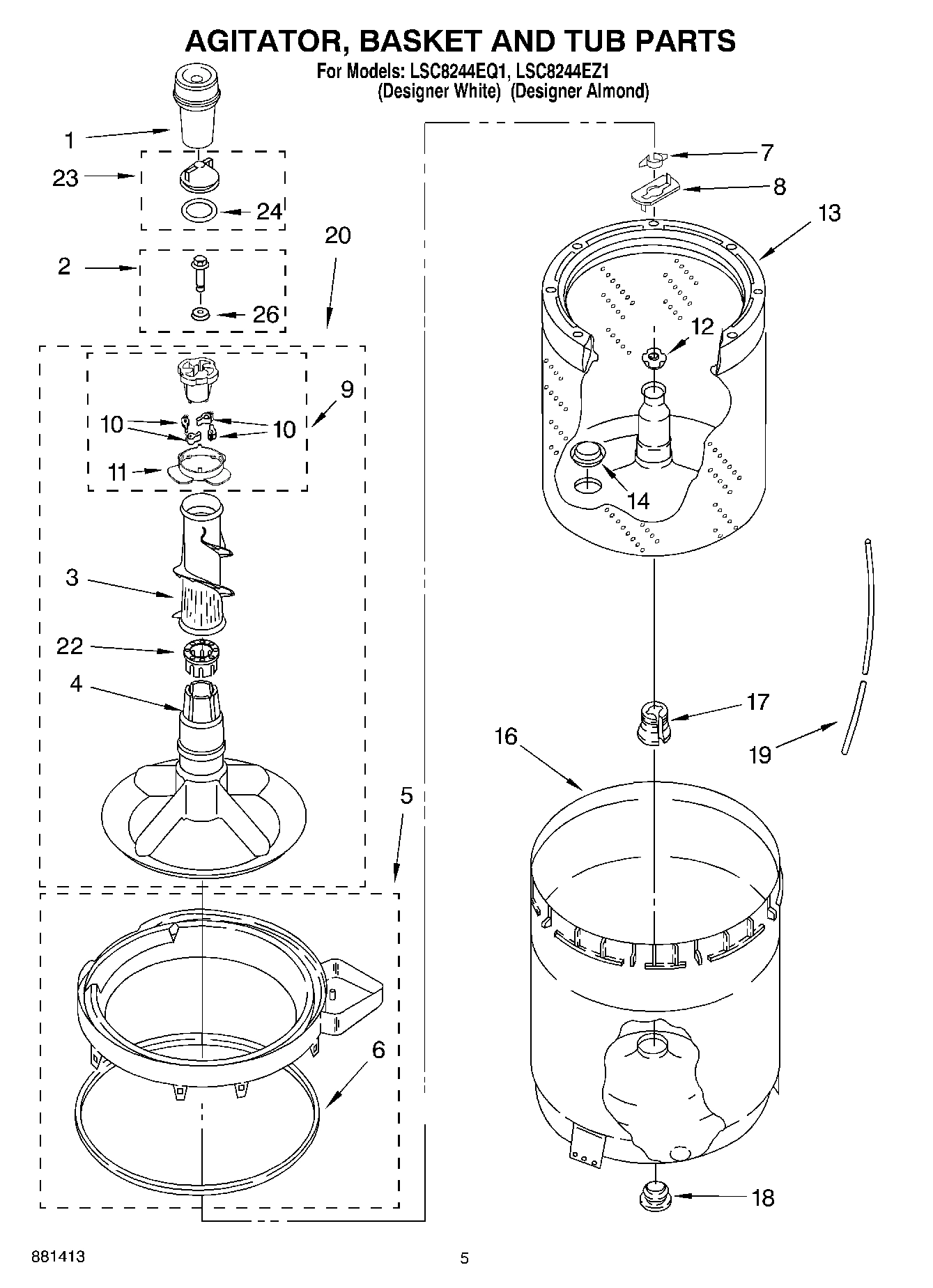

20
Agitator, Asy (Complete)
Agitator, Asy (Complete) WPL 3946501 Contact Us For Availability
View on Model
27
Connector (T.P.A) (3-Circuit) (Pressure Switc
Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability
View on Model
28
Clip, Harness & Pressure Hose
Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability
View on Model
29
Clamp, Hose
Clamp, Hose WPL 3976395 No Longer Available
View on Model
35
Switch, Touch-Pad (8) (White)
Switch, Touch-Pad (8) (White) WPL 3948147 Contact Us For Availability
View on Model
35
Switch, Touch-Pad (8) (Almond)
Switch, Touch-Pad (8) (Almond) WPL 3948148 Contact Us For Availability
View on Model
39
Panel, Console (White)
Panel, Console (White) WPL 3948297 Contact Us For Availability
View on Model
39
Panel, Console (Almond)
Panel, Console (Almond) WPL 3948298 Contact Us For Availability
View on Model
45
Dial, Timer (White)
Dial, Timer (White) WPL 3951053 Contact Us For Availability
View on Model
51
WPL 3358513
WPL 3358513 WPL 3358513 Contact Us For Availability
View on Model
51
WPL 3358514
WPL 3358514 WPL 3358514 Contact Us For Availability
View on Model
59
WPL 3348424
WPL 3348424 WPL 3348424 Contact Us For Availability
View on Model
60
WPL 3952705
WPL 3952705 WPL 3952705 Contact Us For Availability
