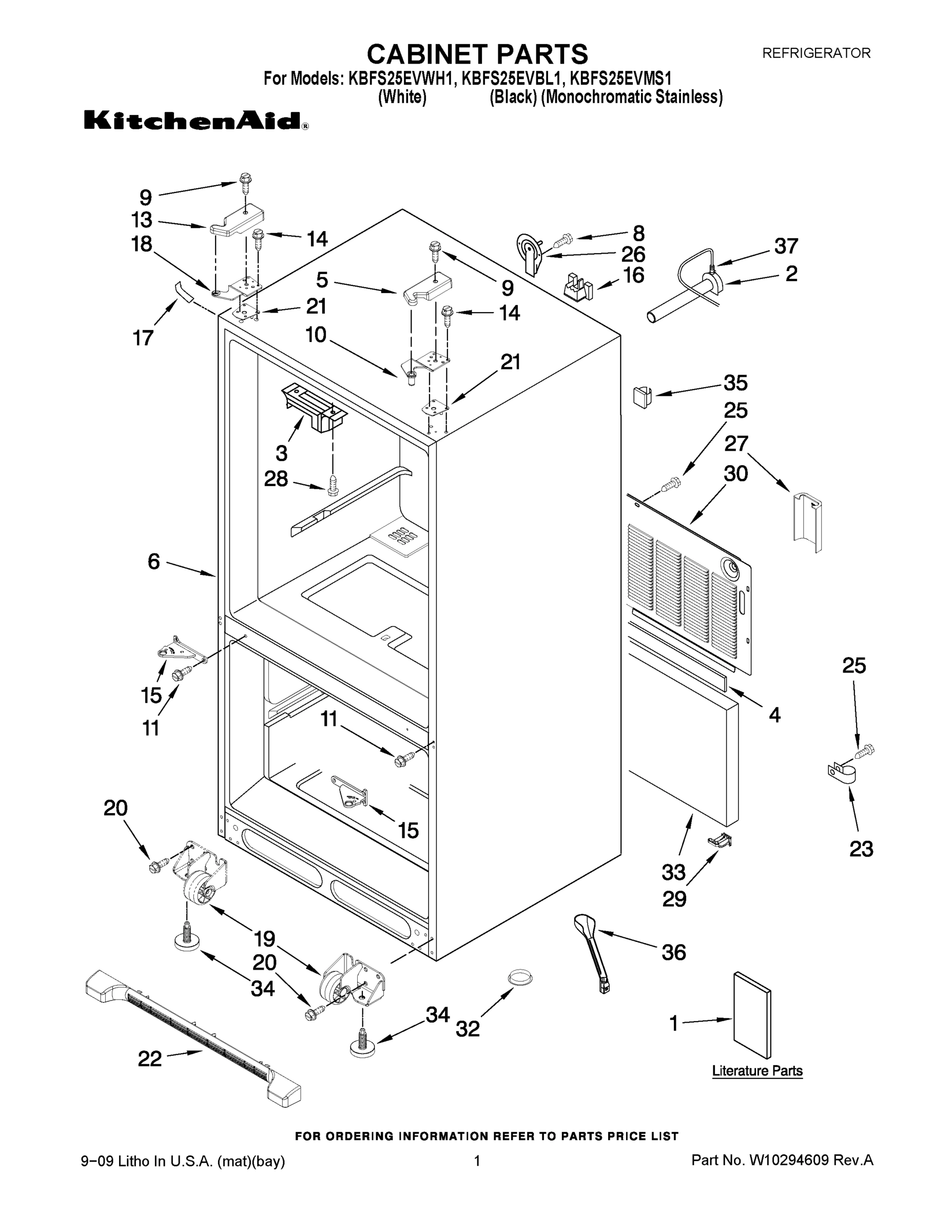

Model Whirlpool KBFS25EVWH1 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11033333 Whirlpool Glass Shelf Backorder WPL W11033333 $133.54

1

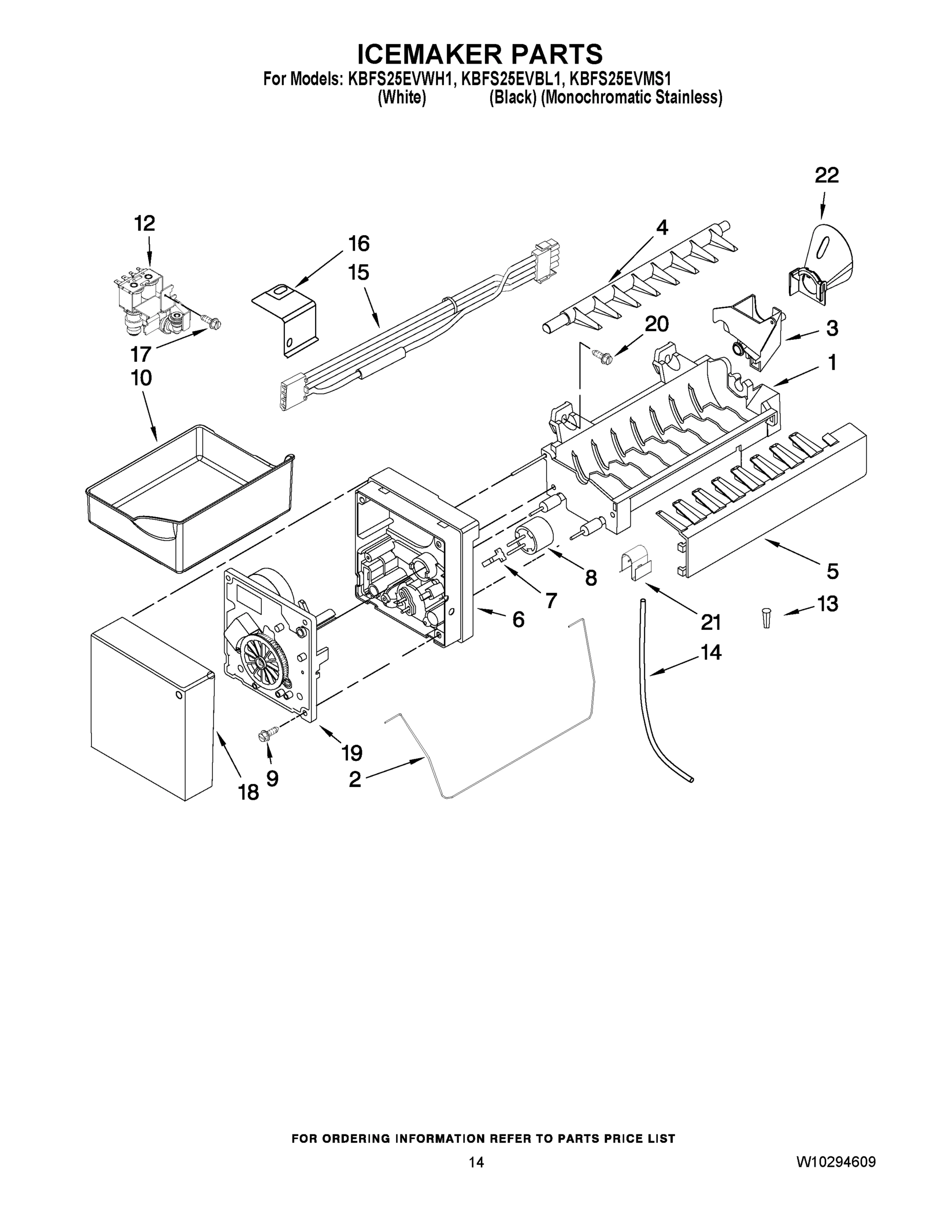

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $145.60

1

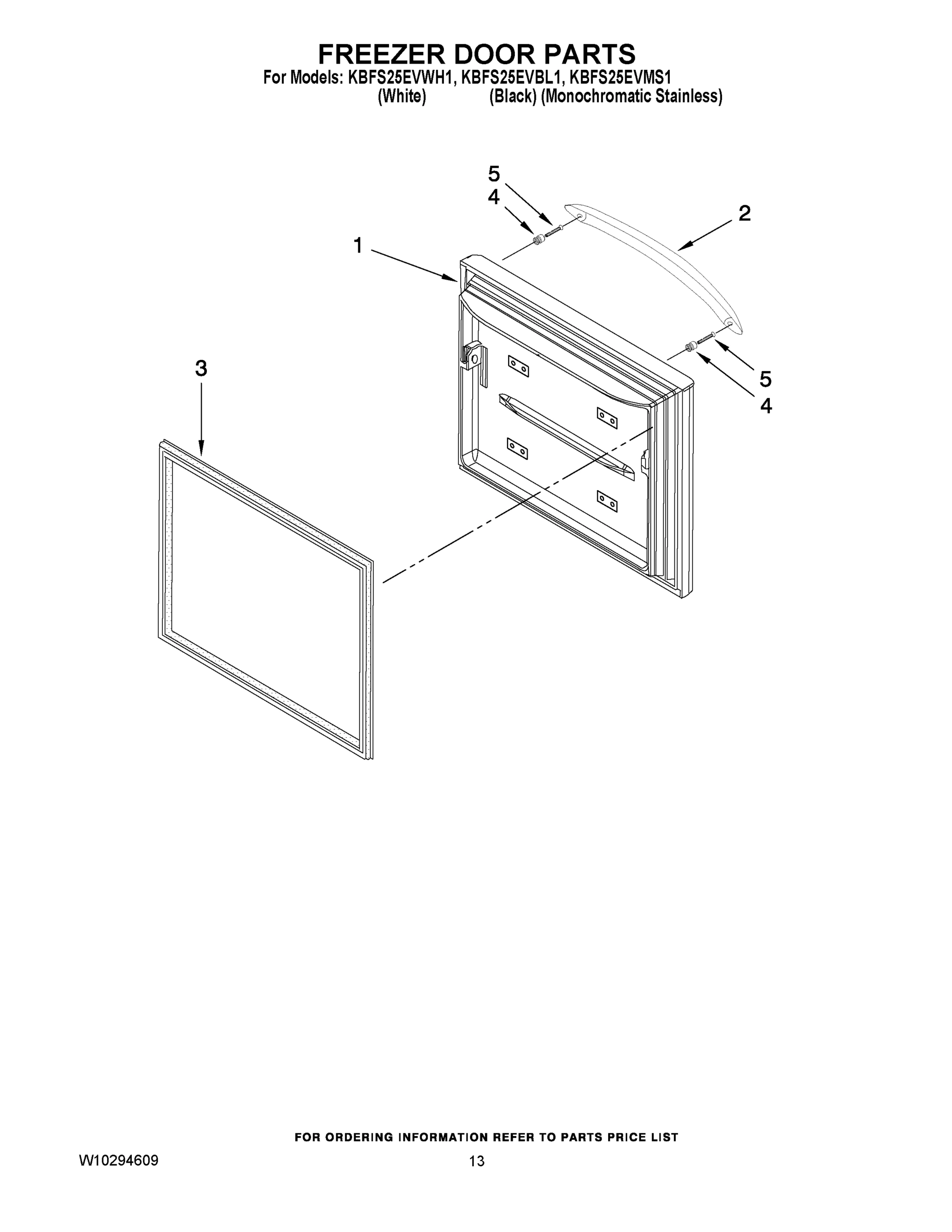

Door, Freezer (Black) WPL 13092233BQ Contact Us For Availability

1

Door, Freezer (White) WPL 13092233WQ Contact Us For Availability

1

Door, Freezer (Stainless) WPL 13092234SQ Contact Us For Availability

1

Owners Manual WPL W10187309 Contact Us For Availability

1

ENERGY GUIDE WPL W10187812 Contact Us For Availability

1

TECH SHEET WPL W10238846 Contact Us For Availability

1

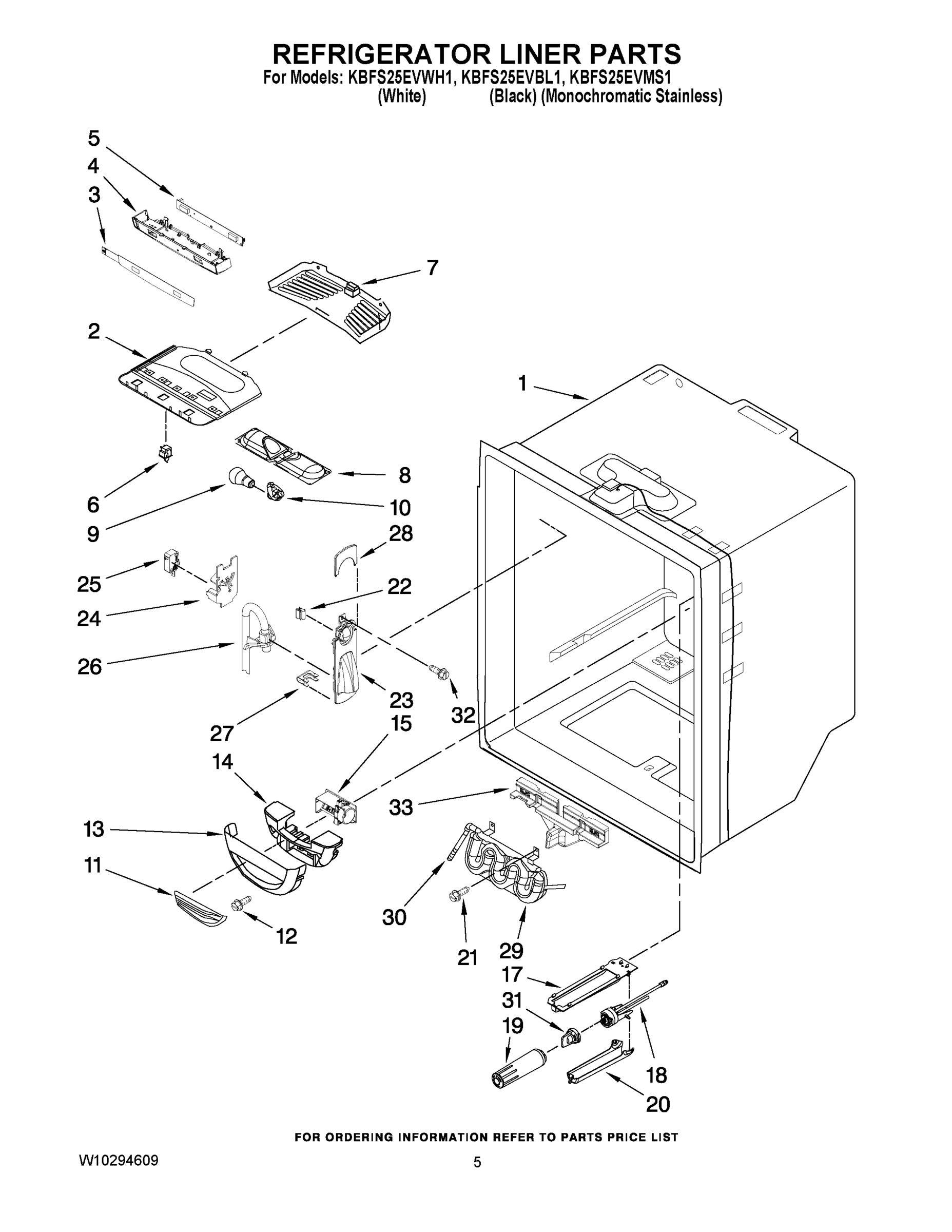

LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

2

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $44.76

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $52.96

2

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $33.86

2

WPW10314515 Whirlpool Refrigerator Handle Backorder WPL WPW10314515 $122.50

2

WPW10314517K Whirlpool Refrigerator Handle Backorder WPL WPW10314517K $120.76

2

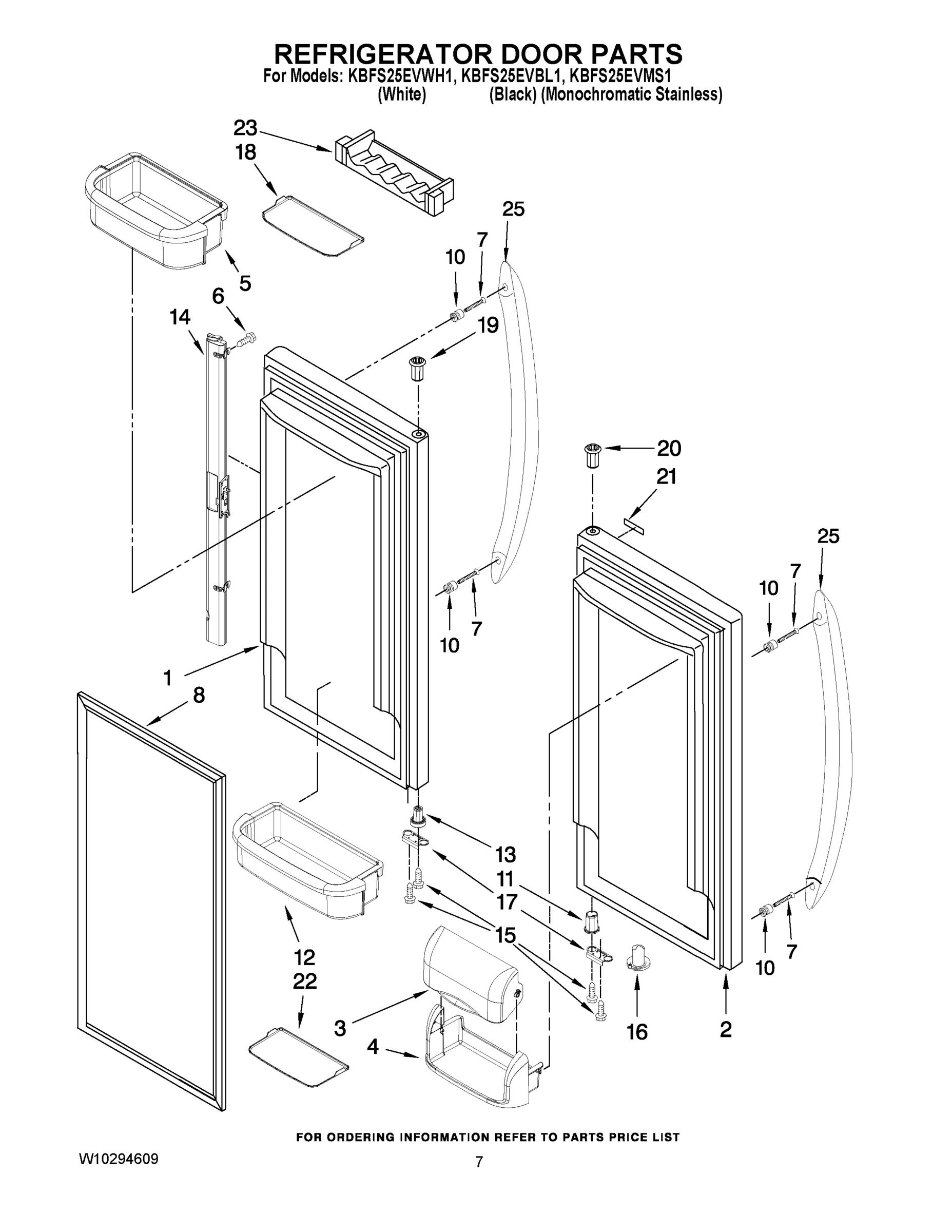

Handle, Door (Black) WPL W10119643 Contact Us For Availability

2

MODULE, LIGHT WPL 12806302 Contact Us For Availability

3

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.21

3

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $30.25

3

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $129.24

3

W10443319 Whirlpool Door Gasket In Stock WPL W10443319 $192.65

3

W10443320 Whirlpool Gray Outer Gasket In Stock WPL W10443320 $82.71

3

WP67003405 Whirlpool Pivot Block In Stock WPL WP67003405 $4.70

3

WPW10317125 Whirlpool Refrigerator Overlay Backorder WPL WPW10317125 $151.35

4

W11416469 Whirlpool Refrigerator Housing Backorder WPL W11416469 $87.50

4

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

4

MOUNT, HANDLE WPL 12691403 Contact Us For Availability

4

Gasket WPL B5759649 Contact Us For Availability

5

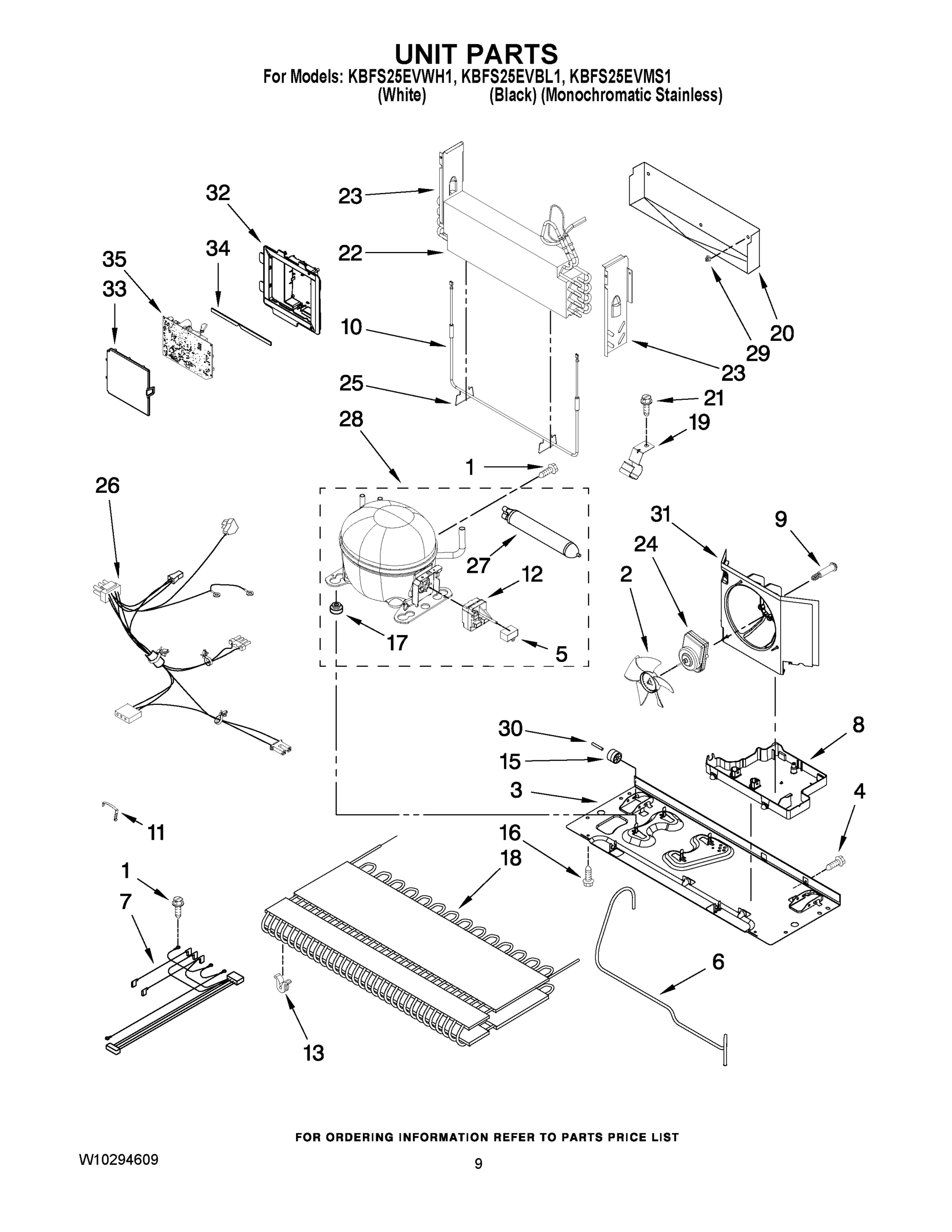

W11024089 Whirlpool Refrigerator Evaporator F In Stock WPL W11024089 $44.33

5

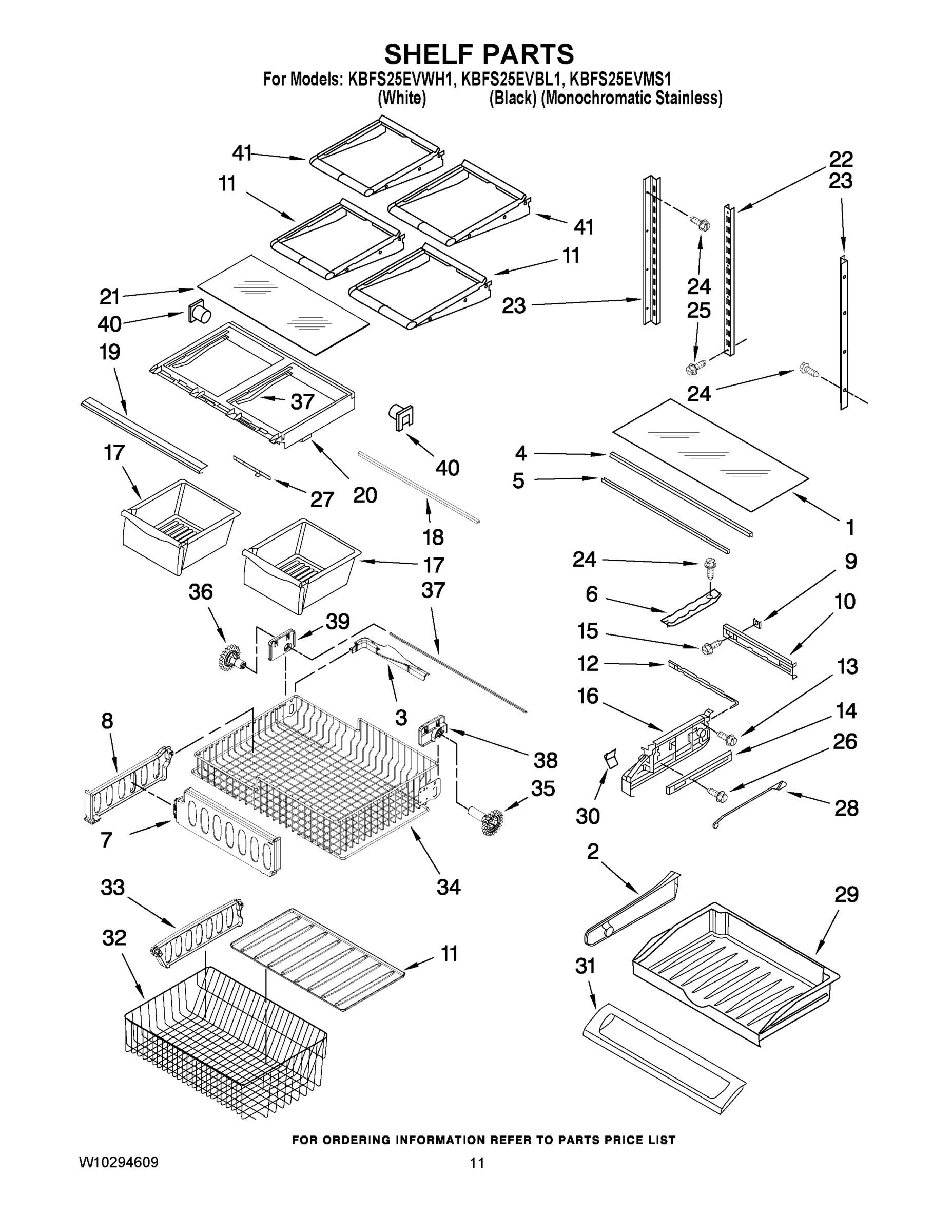

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $44.96

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

5

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.46

5

WPW10319823-includeCORE Whirlpool WPW10319823 Backorder WPL WPW10319823-includeCORE $200.45

5

BUCKET, MEDIUM WPL 12699215 Contact Us For Availability

5

Cover, Right Hinge (Apollo Grey) WPL 12629801AP Contact Us For Availability

5

Cover, Right Hinge (Black) WPL 12629801B Contact Us For Availability

5

Cover, Right Hinge (White) WPL 12629801W Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

6

WPW10217747 Whirlpool Refrigerator Tube Backorder WPL WPW10217747 $49.87

7

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $30.25

7

W10171558 Whirlpool Refrigerator Divider Backorder WPL W10171558 $29.12

7

W10911102 Whirlpool Refrigerator Wire Harness Backorder WPL W10911102 $40.33

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $38.12

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $45.48

8

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.44

8

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $116.56

8

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

8

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $5.01

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.71

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.52

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $54.81

W10825088 Whirlpool Refrigerator Defrost Heat In Stock WPL W10825088 $81.12

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $5.40

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.98

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $63.96

12028601W Whirlpool Refrigerator Hinge Bushin Backorder WPL 12028601W $8.78

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.52

W10853652 Whirlpool Refrigerator Hinge Bushin Backorder WPL W10853652 $4.36

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $3.33

12

WP12544124 Whirlpool Refrigerator Valve In Stock WPL WP12544124 $115.68

12

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $5.38

12

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $41.28

W10217485 Whirlpool Refrigerator Cover Backorder WPL W10217485 $11.16

W10217487 Whirlpool Refrigerator Cover Backorder WPL W10217487 $11.03

W11690160 Whirlpool Grommet Backorder WPL W11690160 $3.22

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $39.73

WP67002721 Whirlpool Refrigerator Door Bushin Backorder WPL WP67002721 $3.70

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.70

Bushing, Door (Bottom Left) (Apollo Grey) WPL 12699301AP Contact Us For Availability

COVER, LEFT HINGE (WHITE) WPL W10217484 Contact Us For Availability

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $45.71

Backorder WPL W11750607 $19.22

WP12722803AP Whirlpool Refrigerator Mullion R In Stock WPL WP12722803AP $101.54

WP12722803B Whirlpool Door Guide In Stock WPL WP12722803B $143.65

WP12722803W Whirlpool Door Support In Stock WPL WP12722803W $141.12

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $3.33

12655102AP Whirlpool Refrigerator Door Hinge Backorder WPL 12655102AP $50.34

12655103ED Whirlpool Door Hinge Backorder WPL 12655103ED $29.13

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

WPW10594329 Whirlpool Control Damper In Stock WPL WPW10594329 $97.22

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $18.54

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $43.13

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $4.15

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $30.25

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $4.52

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $42.09

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

W11401472 Whirlpool Refrigerator Door Stop Backorder WPL W11401472 $10.76

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $7.45

W11346623 Whirlpool Refrigerator Water Filter In Stock WPL W11346623 $71.78

WP12566607ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566607ED $30.91

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $45.27

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

WPW10450021 Whirlpool Refrigerator Mat Backorder WPL WPW10450021 $32.34

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $56.07

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $42.21

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $49.66

BUSHING, DOOR UPPER LEFT (APOLLO GREY) WPL 12395501AP Contact Us For Availability

Bushing, Door (Upper Left) (Black) WPL 12395501B Contact Us For Availability

Bushing, Door (Upper Left) (White) WPL 12395501W Contact Us For Availability

10961006AP Whirlpool Refrigerator Hinge Bushi Backorder WPL 10961006AP $5.71

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $3.33

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.93

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $56.24

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.70

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.33

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $3.70

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

Nameplate (Stainless) WPL W10046610 Contact Us For Availability

Shim, Hinge WPL 12579702 Contact Us For Availability

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $7.69

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $11.38

W11402028 Whirlpool Refrigerator Mat Backorder WPL W11402028 $32.90

WPW10534153 Whirlpool Refrigerator Black Kick In Stock WPL WPW10534153 $69.64

WPW10534154 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534154 $57.79

WPW10534155 Whirlpool Refrigerator Gray Kickp In Stock WPL WPW10534155 $62.25

CLIP, FACADE (2) WPL B8390302SP Contact Us For Availability

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $4.45

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $45.48

Dam (Left Side) WPL 12225602 Contact Us For Availability

FACADE, DISP. WPL 12706909SP Contact Us For Availability

24

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $31.09

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

25

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.33

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

25

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $29.21

26

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

26

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $12.77

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $11.00

W10208593 Whirlpool Refrigerator Valve Cover In Stock WPL W10208593 $9.24

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $36.87

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $36.87

28

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $13.38

28

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $75.69

28

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $2.51

29

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.69

29

W11229977 Whirlpool Refrigerator Reservoir In Stock WPL W11229977 $73.16

30

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $10.72

30

WPW10211855 Whirlpool Refrigerator Back Cover Backorder WPL WPW10211855 $80.65

31

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $12.13

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $30.01

31

Plug, Bypass WPL 61003146 Contact Us For Availability

32

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.68

32

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

32

Basket, Freezer (Lower) WPL W10150039 Contact Us For Availability

33

W10847995 Whirlpool Divider Assembly Backorder WPL W10847995 $30.25

33

W11714300 Whirlpool Insulation In Stock WPL W11714300 $22.22

33

INSULATION, SOUND WPL 12820505 Contact Us For Availability

34

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.08

35

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.51

36

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $25.33

37

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $10.87

37

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.59

40

WP13062602 Whirlpool Refrigerator Support Backorder WPL WP13062602 $30.25

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $78.49

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

WPW10224292 Whirlpool Refrigerator Wire Harne In Stock WPL WPW10224292 $57.00

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

HARNESS, FZ MODULE (INCLUDES THERMISTOR) WPL W10235312 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
