Model GE GTDP280GD6WW Dryer Gas – Common Parts & Diagrams
BACKSPLASH, BLOWER & MOTOR ASSEMBLY

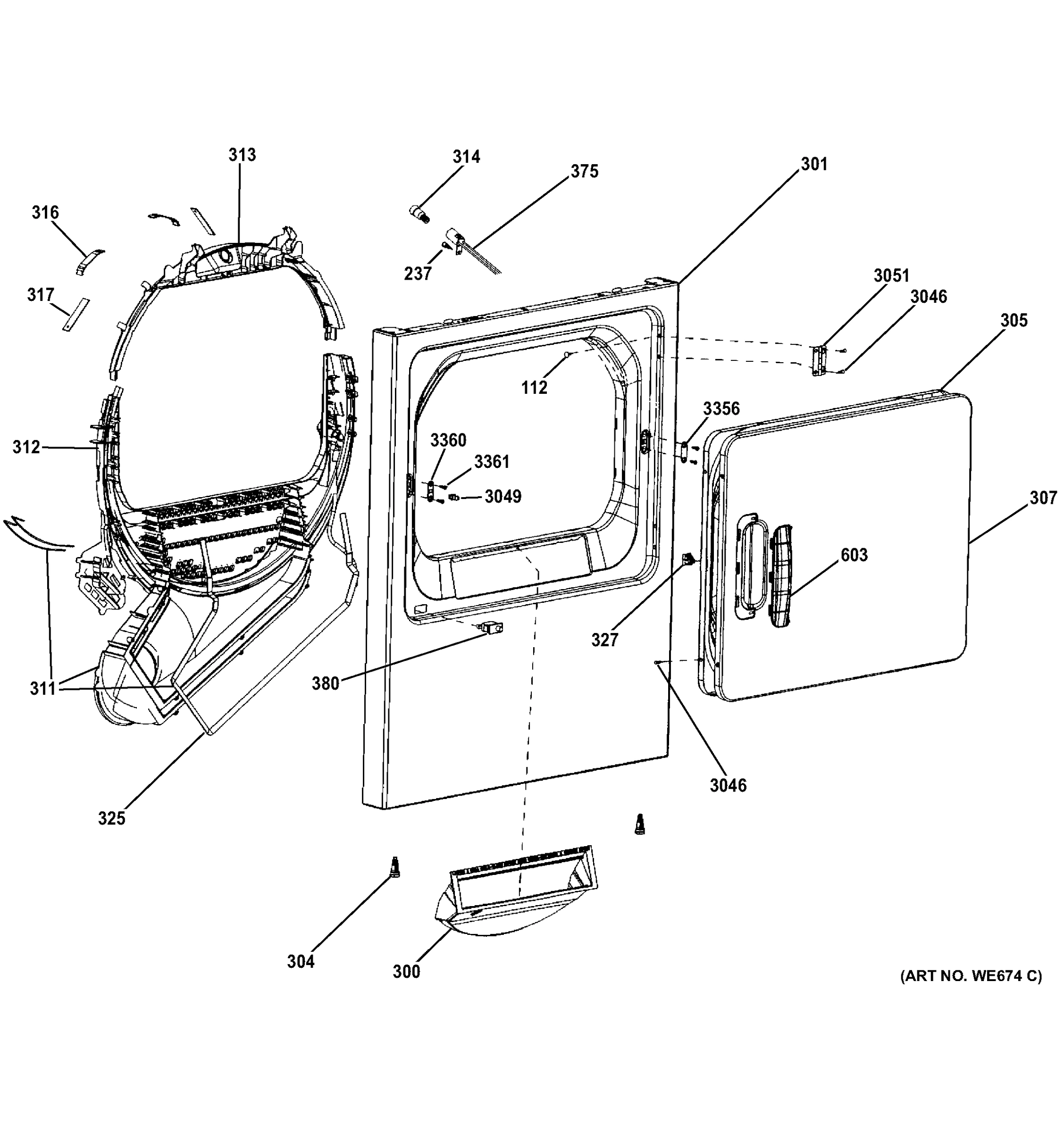

FRONT PANL & DOOR
CABINET & TOP PANEL
DRUM
GAS VALVE & BURNER ASSEMBLY
Common parts from model GE GTDP280GD6WW Dryer Gas
4
END CAP LH GEN WE19X20467 Contact Us For Availability
12
VARIABLE BUZZER GEN WE4M368 Contact Us For Availability
13
BACKSPLASH GRAPHIC ASM GEN WE19X20573 Contact Us For Availability
35
SWITCH PTS GEN WE4M416 Contact Us For Availability
72
PANEL BACK GEN WE19M1481 Contact Us For Availability
75
SCREW GEN WE2M173 Contact Us For Availability
85
ROTARY SWITCH ON/OFF GEN WE4M399 Contact Us For Availability
87
ROTARY SWITCH 4TEMP GEN WE4M520 Contact Us For Availability
100
TIMER GEN WE04X20089 Contact Us For Availability
101
SCR 30 X 20 IA PP GEN WE02X20846 Contact Us For Availability
112
PLUG BUTTON WHITE GEN WE1M934 Contact Us For Availability
201
BLOWER WHEEL GEN WE16X20393 Contact Us For Availability
204
STRAP MOTOR GEN WE1X921 Contact Us For Availability
205
MOTOR SUPPORT GEN WE13M39 Contact Us For Availability
215
IDLER ARM GEN WE03X20434 Contact Us For Availability
219
BLOWER HOUSING ASM GEN WE14X20392 Contact Us For Availability
228
EXHAUST DUCT GEN WE14X20421 Contact Us For Availability
230
THERMOSTAT OUTLET GEN WE4M216 Contact Us For Availability
232
SCREW GEN WE2M202 Contact Us For Availability
233
MOTOR PLATE GEN WE13X20394 Contact Us For Availability
234
CAP NUT GEN WE2M96 Contact Us For Availability
240
SCREW GEN WE1M280 Contact Us For Availability
250
SCREW GEN WE2M223 Contact Us For Availability
301
PANEL FRONT GEN WE20X20758 Contact Us For Availability
307
OUTER DOOR WH GEN WE10X20468 Contact Us For Availability
325
GASKET (SEAL) 39 INCH GEN WE1M825 Contact Us For Availability
375
SOCKET ASM GEN WE5M48 Contact Us For Availability
380
DOOR SWITCH GEN WE4M415 Contact Us For Availability
401
COVER WHITE GEN WE20X20417 Contact Us For Availability
403
SCREW #8 GEN WE2M160 Contact Us For Availability
404
SIDE PANEL WHITE GEN WE20X20406 Contact Us For Availability
417
FUSE HOLDER 3AB GEN WE1X21955 Contact Us For Availability
418
FUSE 3AB GEN WE1X21975 Contact Us For Availability
420
PANEL REAR GEN WE20X20559 Contact Us For Availability
421
POWER CORD (120V GAS) GEN WE26M345 Contact Us For Availability
430
COVER FUSE TERMINAL GEN WE1M1007 Contact Us For Availability
500
THERMOSTAT HI-LIMIT GEN WE4M137 Contact Us For Availability
502
SCREW # 10 GEN WE2M174 Contact Us For Availability
503
DRUM ASM GEN WE21X22675 Contact Us For Availability
505
THERMOSTAT TRIMMER GEN WE4M182 Contact Us For Availability
507
THERMOSTAT BIAS CTR INLT GEN WE4M181 Contact Us For Availability
509
BAFFLE GEN WE14X20683 Contact Us For Availability
515
GROUND STRAP ASM GEN WE1M1015 Contact Us For Availability
530
THERMOSTAT GEN WE4M80 Contact Us For Availability
534
SCREW #10 GEN WE2M163 Contact Us For Availability
552
DETECTOR GEN WE4X448 Contact Us For Availability
603
HANDLE WHITE GEN WE01X20419 Contact Us For Availability
630
MOTOR AND PULLEY GEN WE17X22215 Contact Us For Availability
631
CONNECTOR MOTOR GEN WE1M650 Contact Us For Availability
712
VALVE AND PIPE ASM GEN WE11X20711 Contact Us For Availability
715
SCR GEN WD2M101 Contact Us For Availability
716
BURNER ASM. GEN WE14M104 Contact Us For Availability
717
IGNITER ASM GEN WE4M449 Contact Us For Availability
2232
PUSH/ START BUTTON GREY GEN WE1M659 Contact Us For Availability
3046
SCREW #8 GEN WE2M196 Contact Us For Availability
3102
BEARING RETAINER GEN WE1M300 Contact Us For Availability
3127
O RING GEN WE1M461 Contact Us For Availability
3356
STRIKE PLATE GEN WE1M569 Contact Us For Availability
3360
STRIKE PLATE W/STRK HOLE GEN WE1M570 Contact Us For Availability
× ![]()
