Model Whirlpool GSX9885JT1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

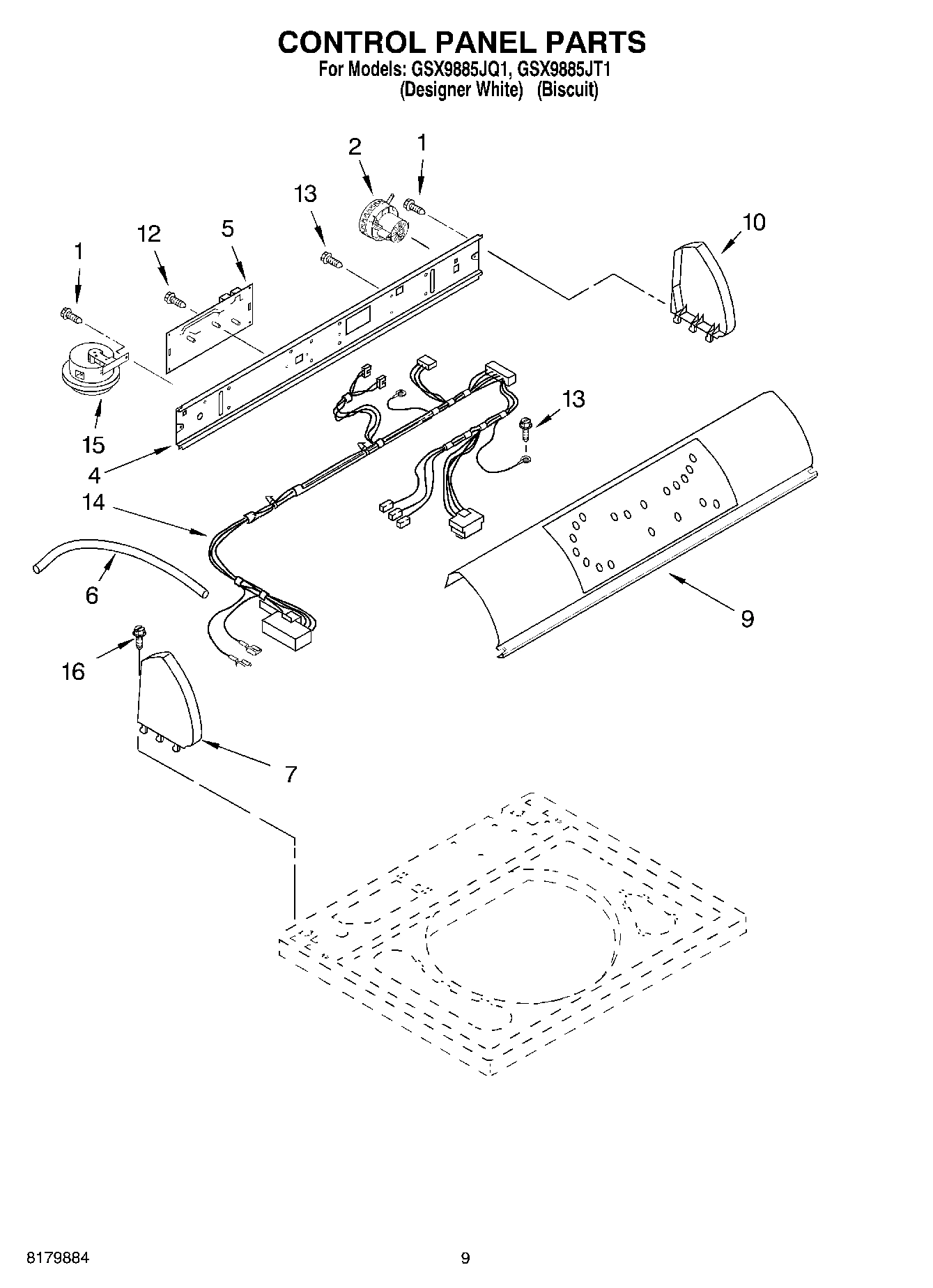

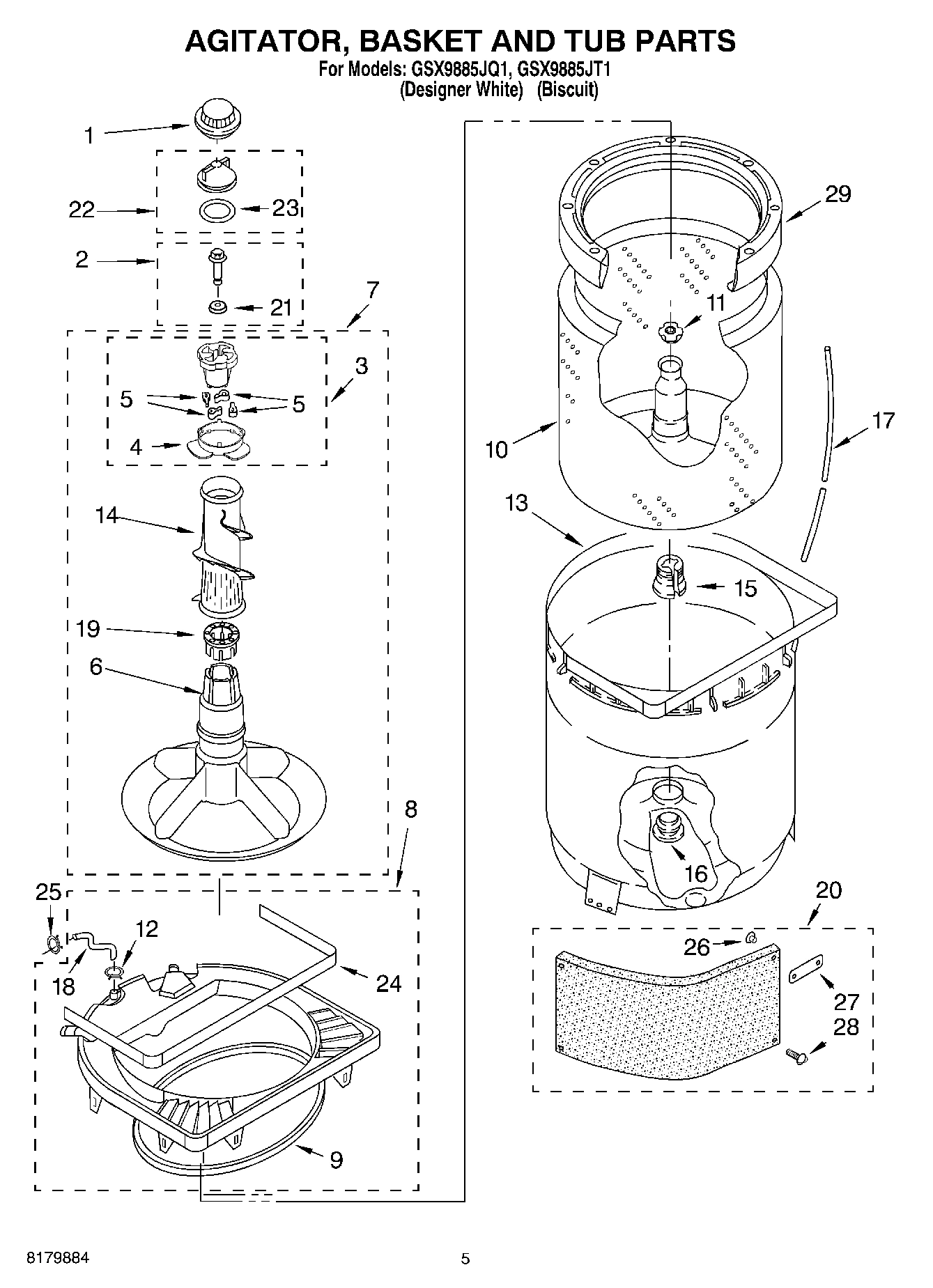

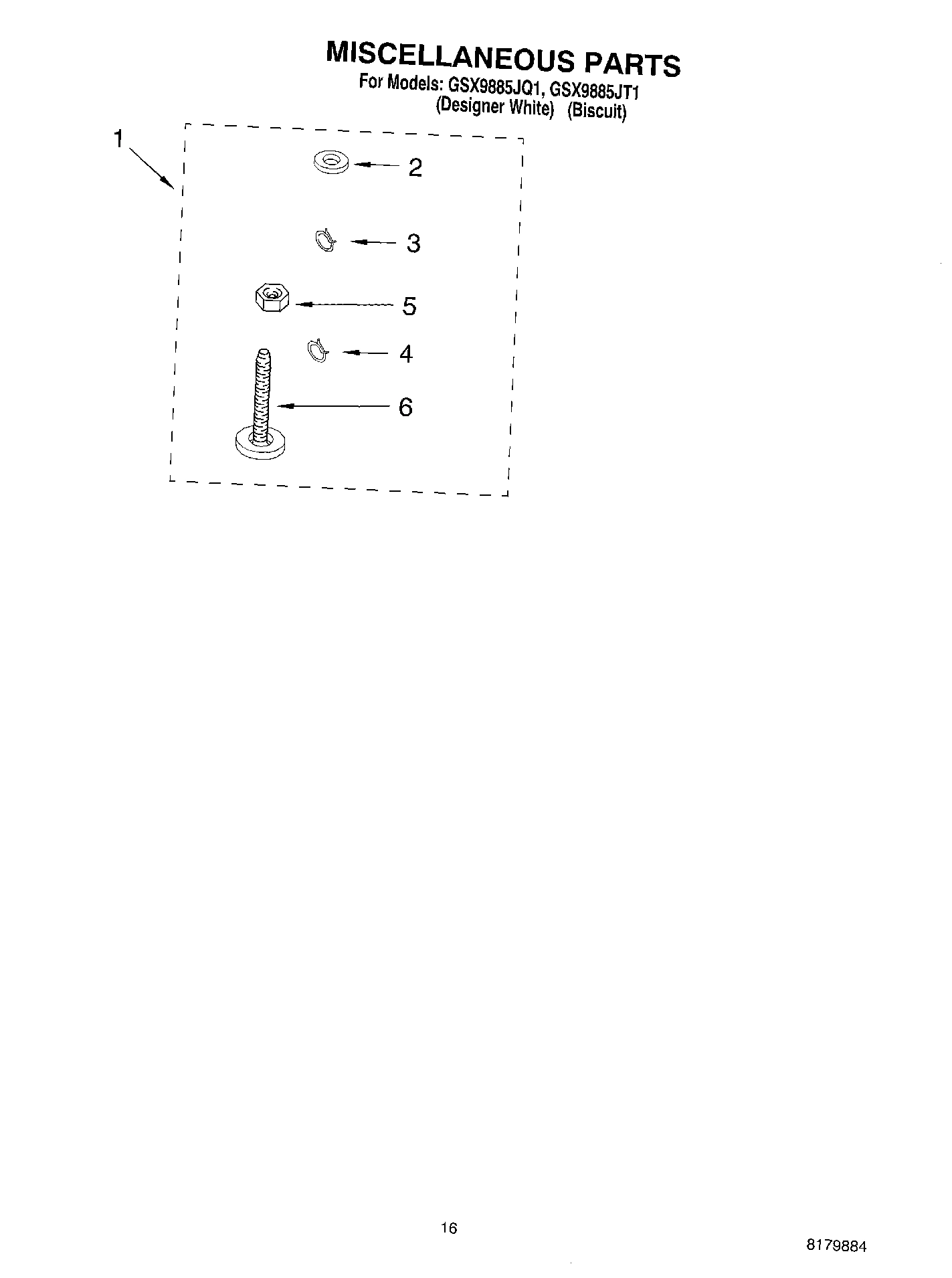

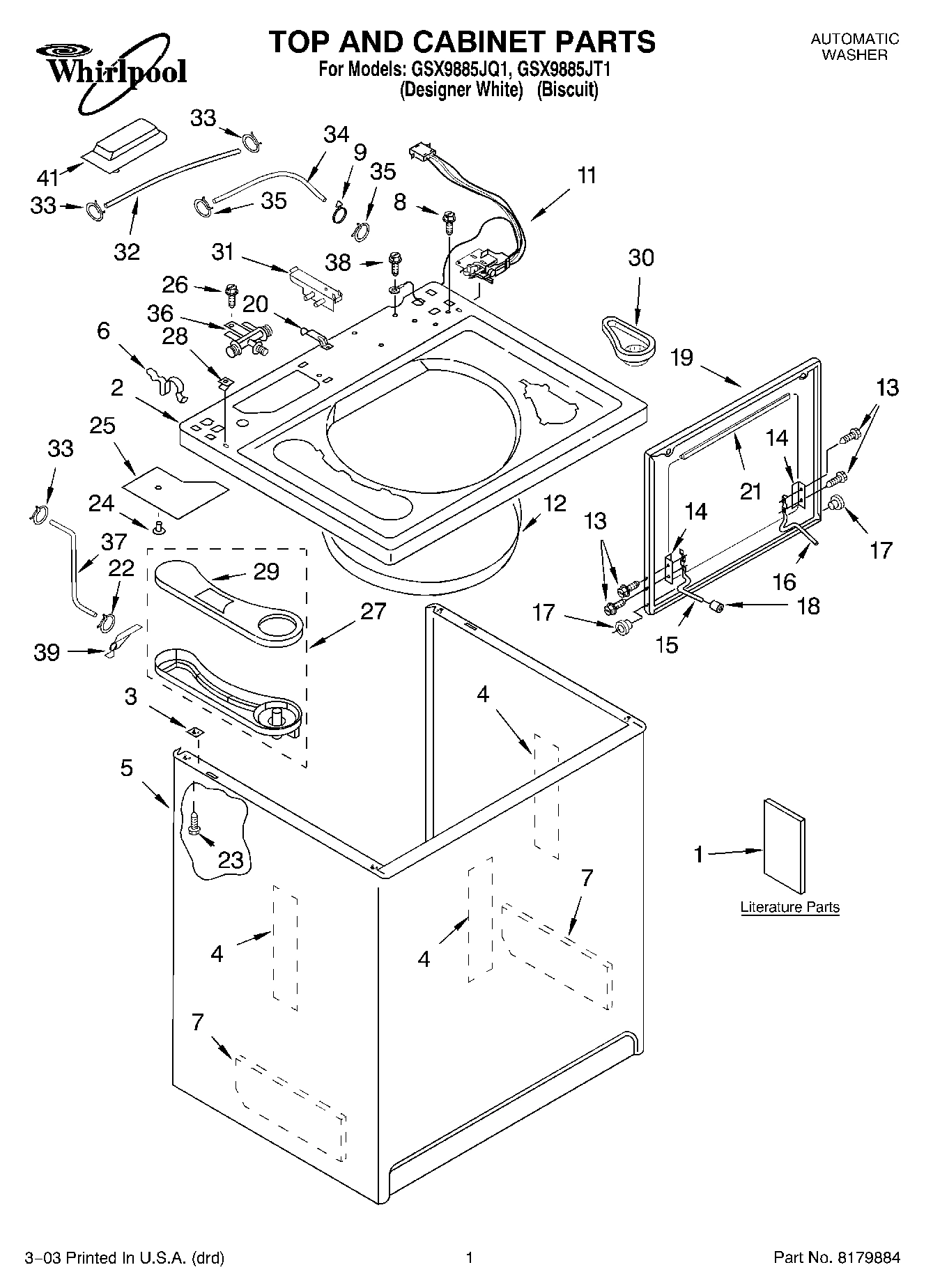

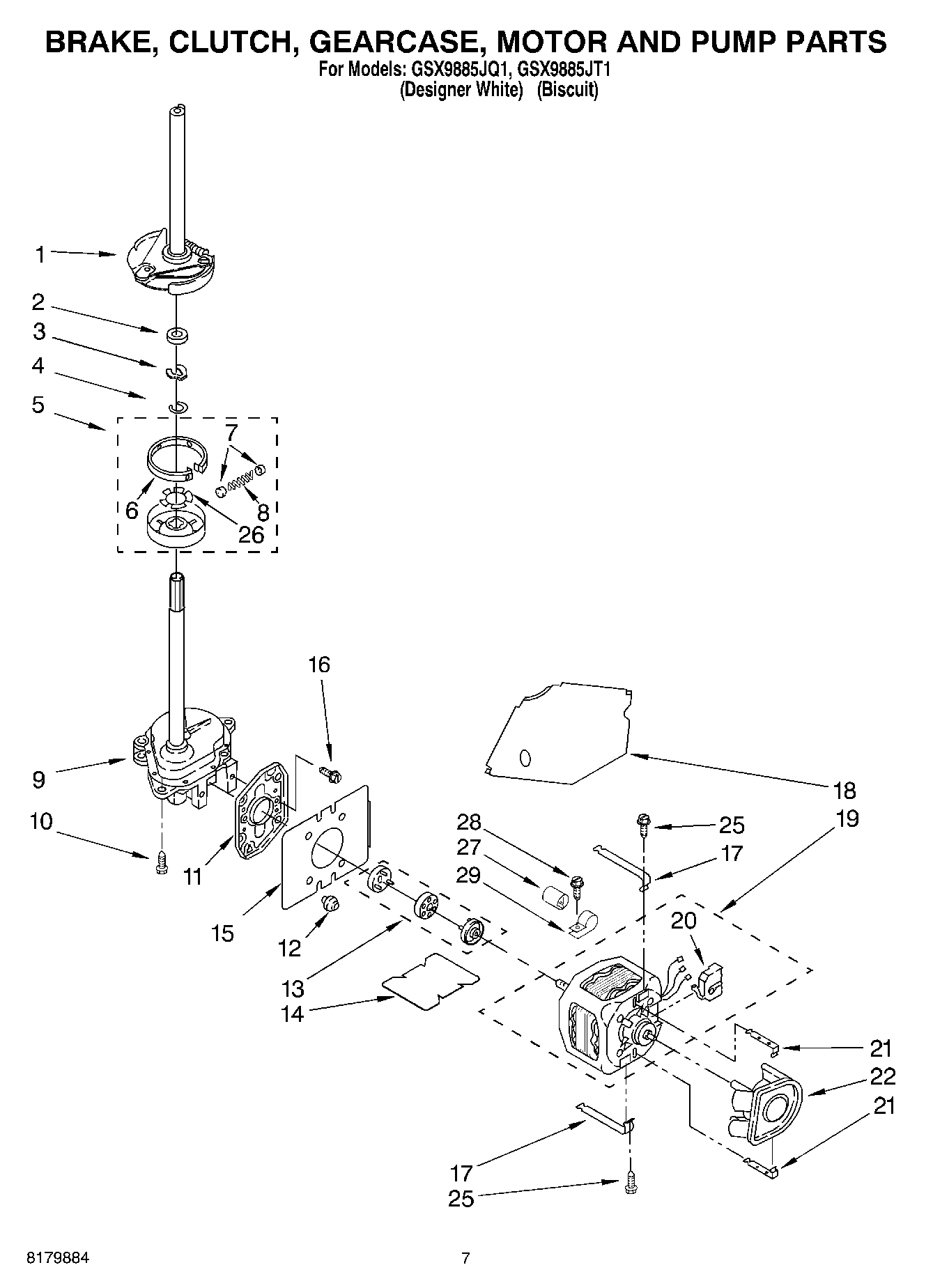

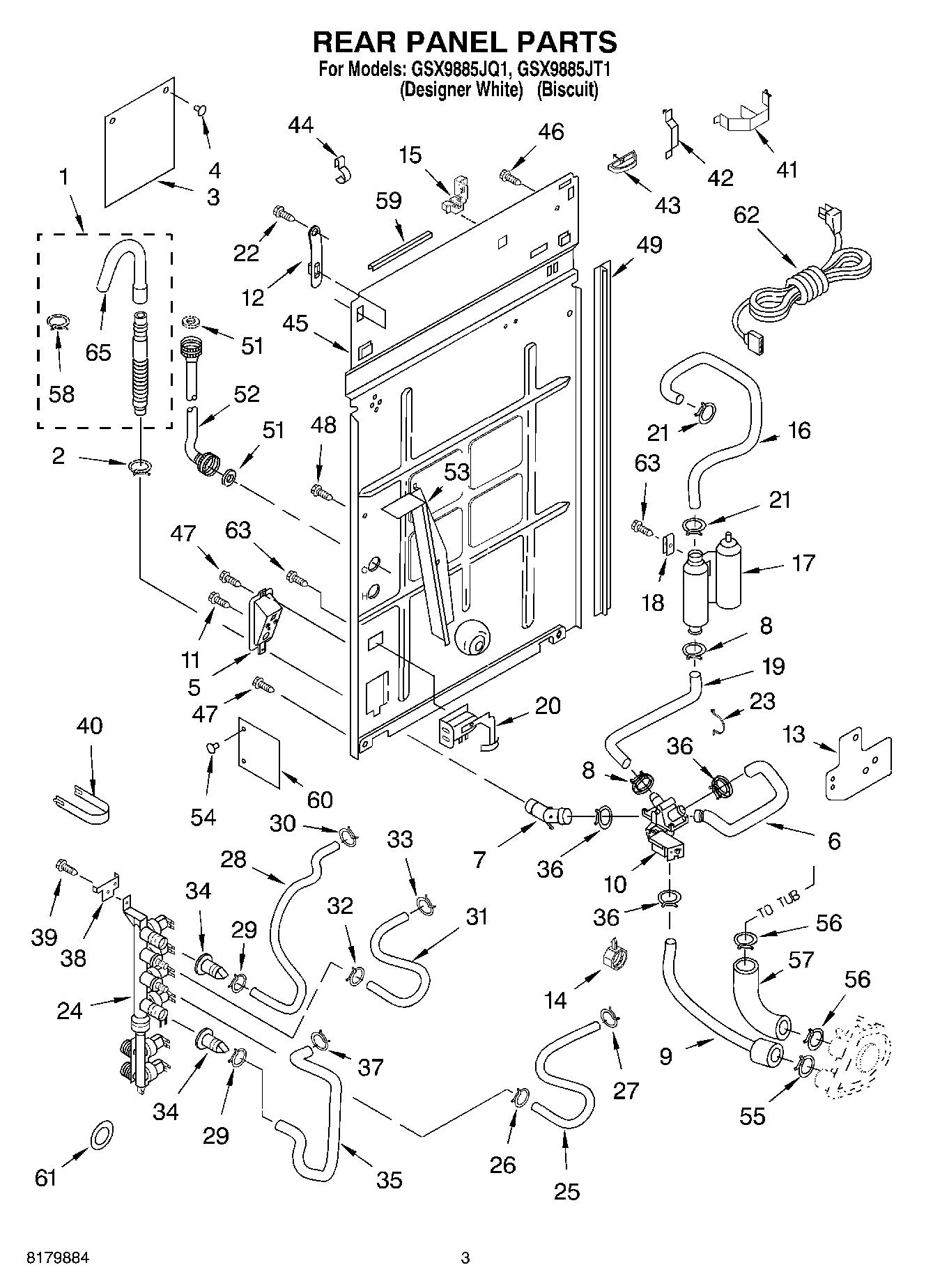

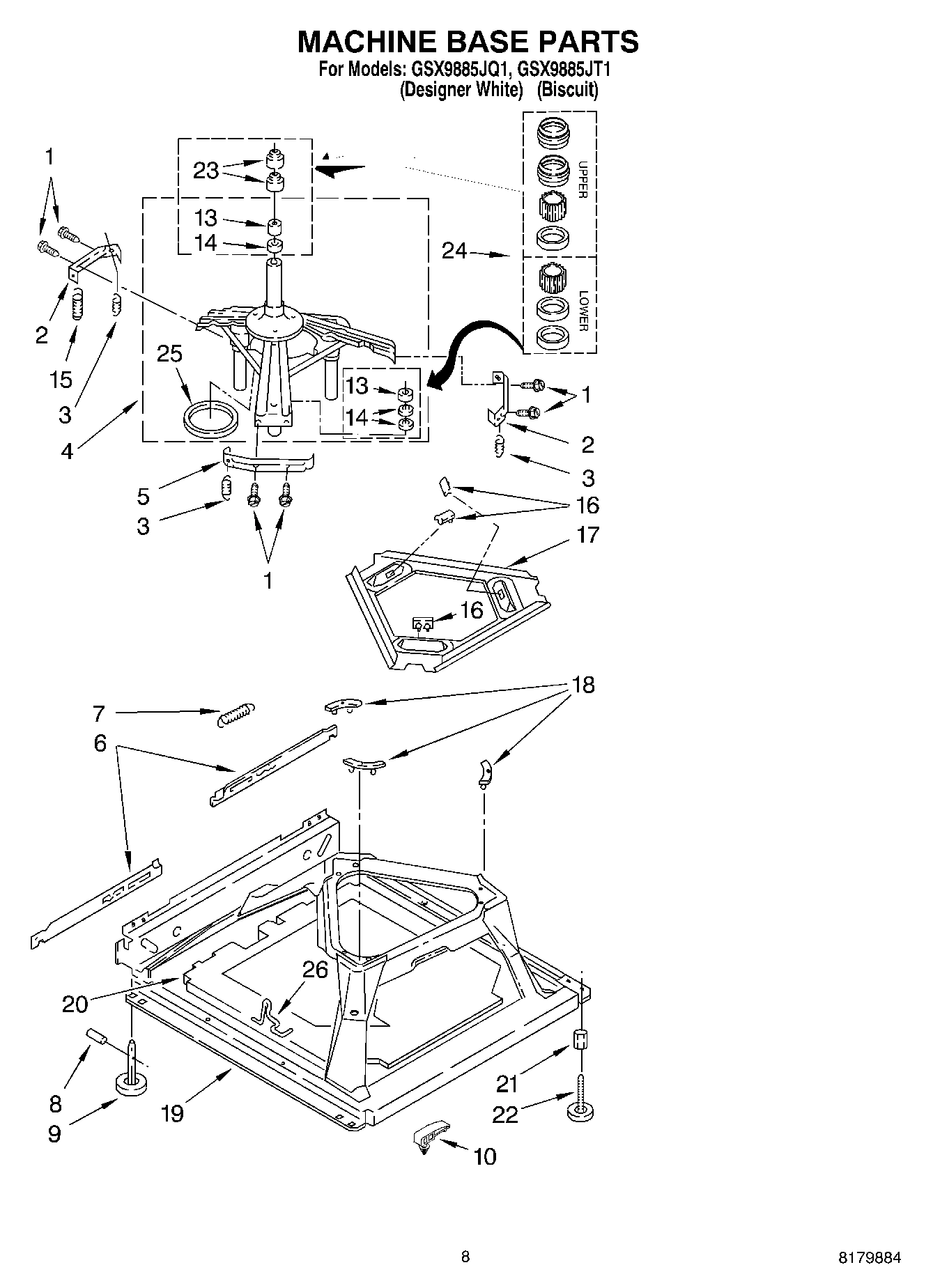

1

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

1

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.79

1

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $8.06

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $82.41

2

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

Bracket, Spring Outer (2) WPL 8282552 Contact Us For Availability

2

Switch, Pressure WPL 8054764 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.88

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.07

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $4.98

3

Drape, Rear Panel WPL 8282565 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

4

Clip, Drape WPL 8282566 Contact Us For Availability

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

4

Bracket, Control WPL 8274302 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $31.44

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

5

Bracket, Valve Mtg WPL 3976335 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 8282550 Contact Us For Availability

5

Control, Electronic WPL 8526076 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $29.92

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $32.56

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $47.23

6

WP353244 Whirlpool Hose In Stock WPL WP353244 $32.17

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.88

6

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $32.39

6

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $81.07

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.88

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

6

Hose, 2-Way Valve To Drain WPL 8317908 Contact Us For Availability

7

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $140.64

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.88

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

Connector, Hose WPL 3976337 Contact Us For Availability

7

Cap, End (L.H.) (White) WPL 8271365 Contact Us For Availability

7

Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability

8

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $3.70

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.36

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $195.01

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

Seal, Tub Ring WPL 8054355 Contact Us For Availability

9

Hose, Pump to 2-Way Valve WPL 8317907 Contact Us For Availability

9

Panel, Console (White) WPL 8274396 Contact Us For Availability

9

Panel, Console (Biscuit) WPL 8274397 Contact Us For Availability

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $2.51

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

Valve, 2-Way WPL 3358559 Contact Us For Availability

Clip, Sound Board (2) WPL 3976276 Contact Us For Availability

Cap, End (R.H.) (White) WPL 8271359 Contact Us For Availability

Cap, End (R.H.) (Biscuit) WPL 8271362 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62611 Whirlpool Plate In Stock WPL WP62611 $39.14

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $108.33

Screw WPL 3352299 Contact Us For Availability

3400826 Whirlpool Screw Backorder WPL 3400826 $5.38

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP8271956 Whirlpool Shield Backorder WPL WP8271956 $61.02

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $3.70

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

3400073 Whirlpool Screw Backorder WPL 3400073 $5.65

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

Tub WPL 8055061 Contact Us For Availability

Shield, 2-Way WPL 3948552 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $93.60

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Clamp, Hose WPL 3976395 Contact Us For Availability

Harness, Wiring (For Detail, See Pages 11 & 1 WPL 3956128 Contact Us For Availability

285901 Whirlpool Spring Kit Assembly In Stock WPL 285901 $45.52

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $117.58

Hinge, Lid (Left) WPL 8055257 Contact Us For Availability

Relief, Strain (Power Cord) WPL 3952821 Contact Us For Availability

Shield, Splash (Motor) WPL 8282581 Contact Us For Availability

Transducer, Pressure WPL 8299559 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $20.97

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

Hinge, Lid (Right) WPL 8055256 Contact Us For Availability

Hose, Airdome WPL 8055233 Contact Us For Availability

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $80.64

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

Airdome Assembly WPL 8317889 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Hose, Bleach Outlet WPL 8526793 Contact Us For Availability

Clip, Airdome WPL 98084 Contact Us For Availability

Shield, Tub To Motor WPL 8054680 Contact Us For Availability

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $3.88

WP8529935 Whirlpool Drive Motor Backorder WPL WP8529935 $236.28

Lid (White) WPL 8274362 Contact Us For Availability

Lid (Biscuit) WPL 8274364 Contact Us For Availability

Hose, 2-Way Valve to Airdome WPL 8054709 Contact Us For Availability

Base Assembly (Includes Illus. 3, 6, 7, 8, 9, WPL 3946512 Contact Us For Availability

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

Switch, Kickout WPL 8283252 Contact Us For Availability

Clip, Wire WPL 357144 Contact Us For Availability

Sound, Absorber WPL 8283230 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $30.69

3363365 Whirlpool Clamp Backorder WPL 3363365 $4.76

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.96

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.07

Seal, Lid WPL 8054939 Contact Us For Availability

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $35.58

22

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

22

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

23

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.51

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.88

23

Clip, Hose (2) (Recirculating) WPL 8054659 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $75.19

24

Valve, Inlet WPL 8528052 Contact Us For Availability

24

Rivet, Shield WPL 8280537 Contact Us For Availability

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

Hose, Detergent WPL 8271982 Contact Us For Availability

Shield, Spill WPL 8272149 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $39.42

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

27

WP8055237 Whirlpool Dispenser Backorder WPL WP8055237 $28.05

27

WP8572720 Whirlpool Capacitor In Stock WPL WP8572720 $35.57

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

28

Hose, Bleach WPL 8271984 Contact Us For Availability

29

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

29

Cover, Dispenser WPL 8272009 Contact Us For Availability

30

Dispenser, Detergent WPL 8055238 Contact Us For Availability

31

Hose, Fabric Softener WPL 8271983 Contact Us For Availability

31

Connector, 2-Port WPL 8055243 Contact Us For Availability

32

Hose, Fabric Softener WPL 8055266 Contact Us For Availability

34

Check Valve, Duck Bill WPL 8055306 Contact Us For Availability

34

Hose, Detergent WPL 8055267 Contact Us For Availability

35

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

35

Hose, Fresh Fill WPL 8318496 Contact Us For Availability

36

Connector, Venturi WPL 8272010 Contact Us For Availability

37

WP8283537 Whirlpool Hose Assembly Backorder WPL WP8283537 $12.15

38

Bracket, Valve WPL 8271909 Contact Us For Availability

39

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

39

Restraint WPL 8271943 Contact Us For Availability

40

Restraint, Hose WPL 8272128 Contact Us For Availability

41

Cov WPL 8055247 Contact Us For Availability

41

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

42

Clip, Harness WPL 8054658 Contact Us For Availability

43

Clip, Push-In WPL 3352944 Contact Us For Availability

44

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

45

Panel, Rear WPL 8282493 Contact Us For Availability

46

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

48

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

49

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

51

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

52

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $4.47

53

Shield, Upper Valve (Incl. 54 & 60) WPL 8280536 Contact Us For Availability

54

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

56

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

57

H WPL 8055063 Contact Us For Availability

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

59

WPL 303294 WPL 303294 Contact Us For Availability

60

WPL 8272150 WPL 8272150 Contact Us For Availability

61

WPL 8318500 WPL 8318500 Contact Us For Availability

62

WPL 661661 WPL 661661 Contact Us For Availability

65

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $30.25
