Model GE GDT635HGJ4BB Dishwasher – Common Parts & Diagrams

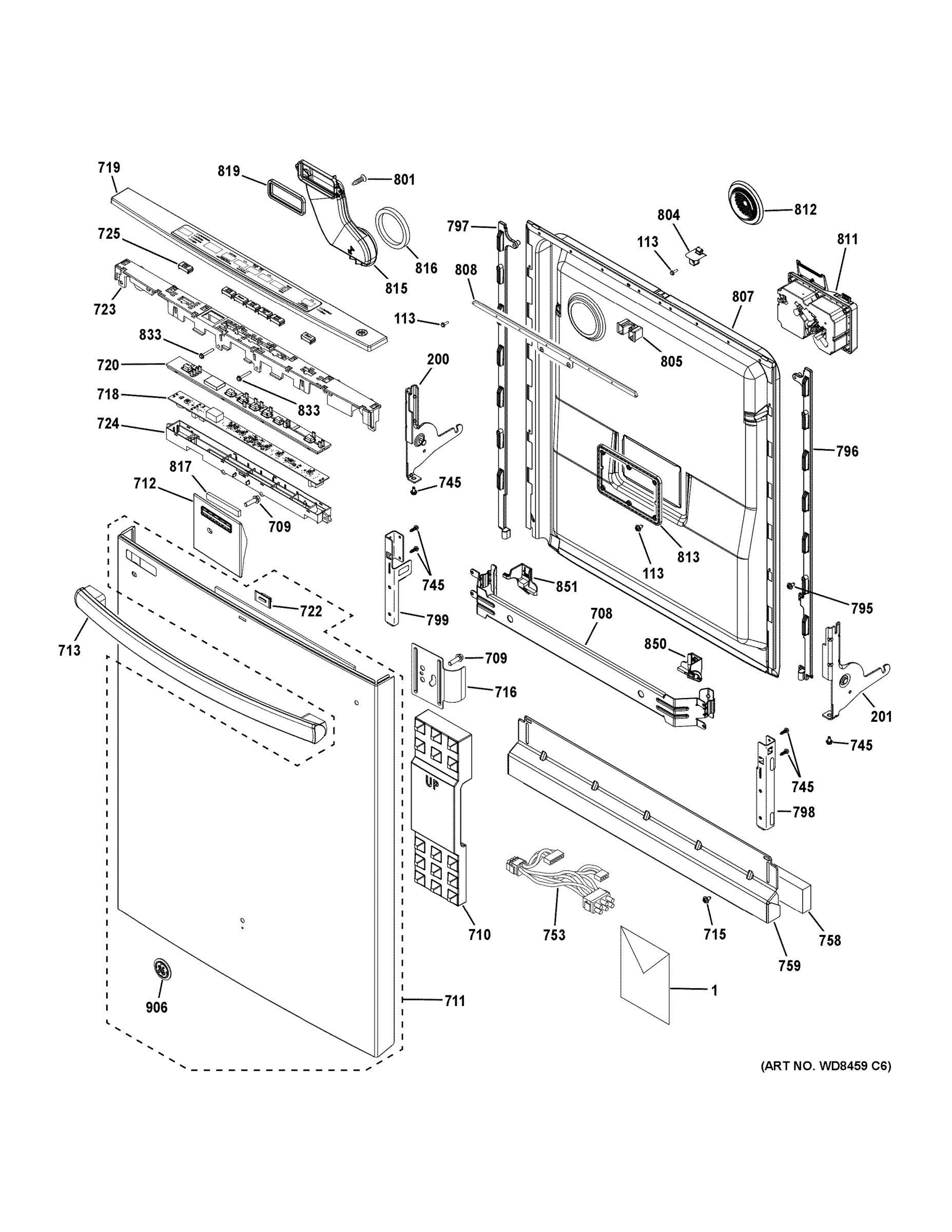

ESCUTCHEON & DOOR ASSEMBLY

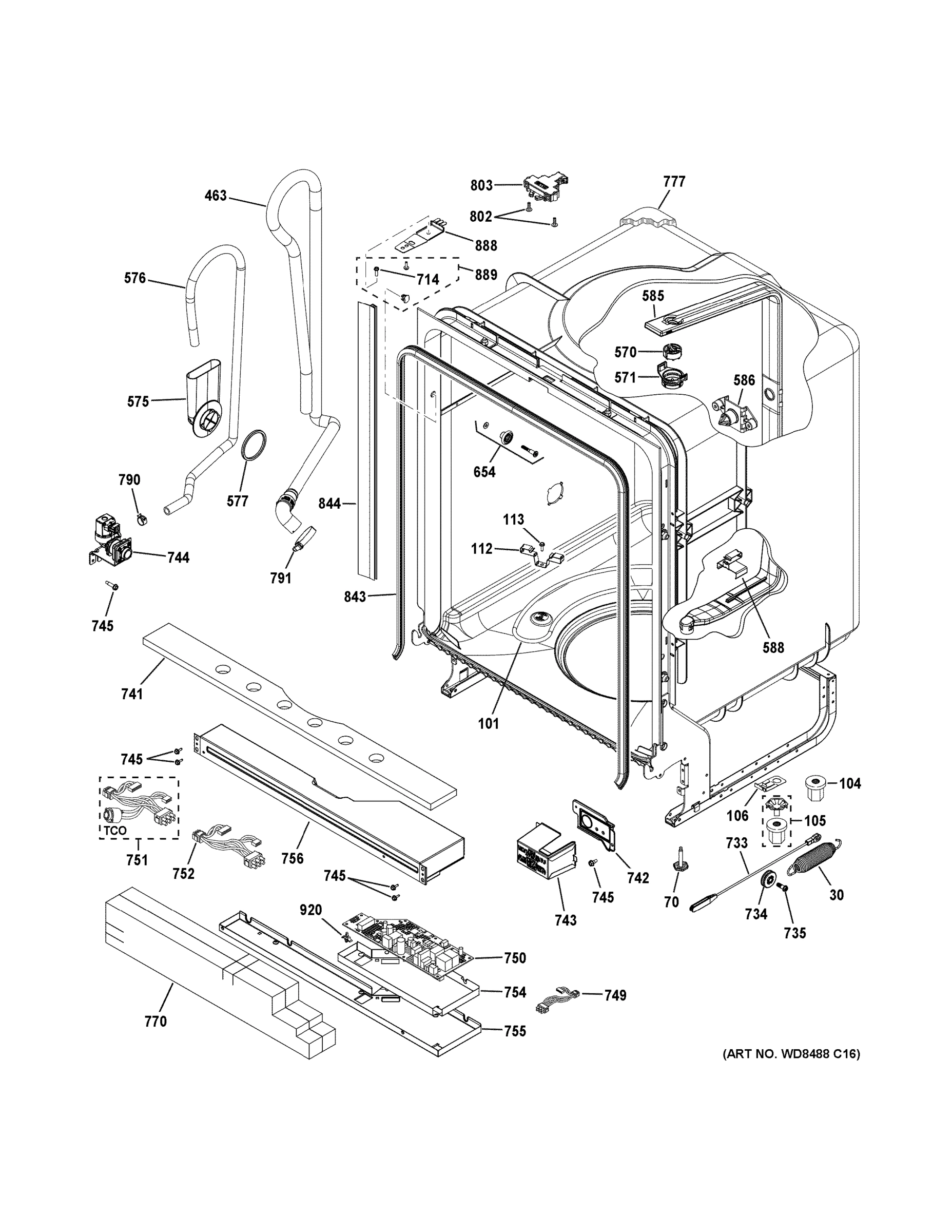

BODY PARTS

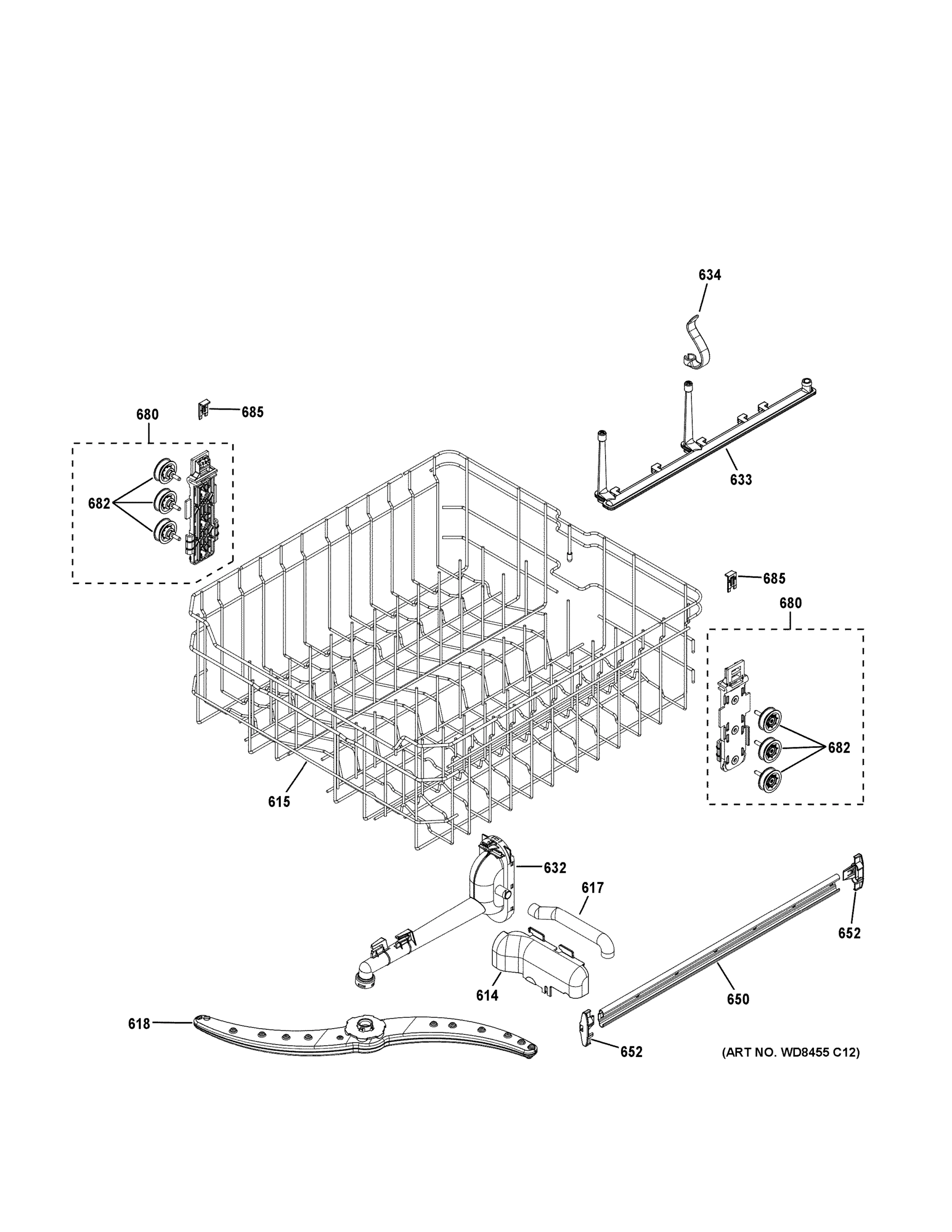

UPPER RACK ASSEMBLY

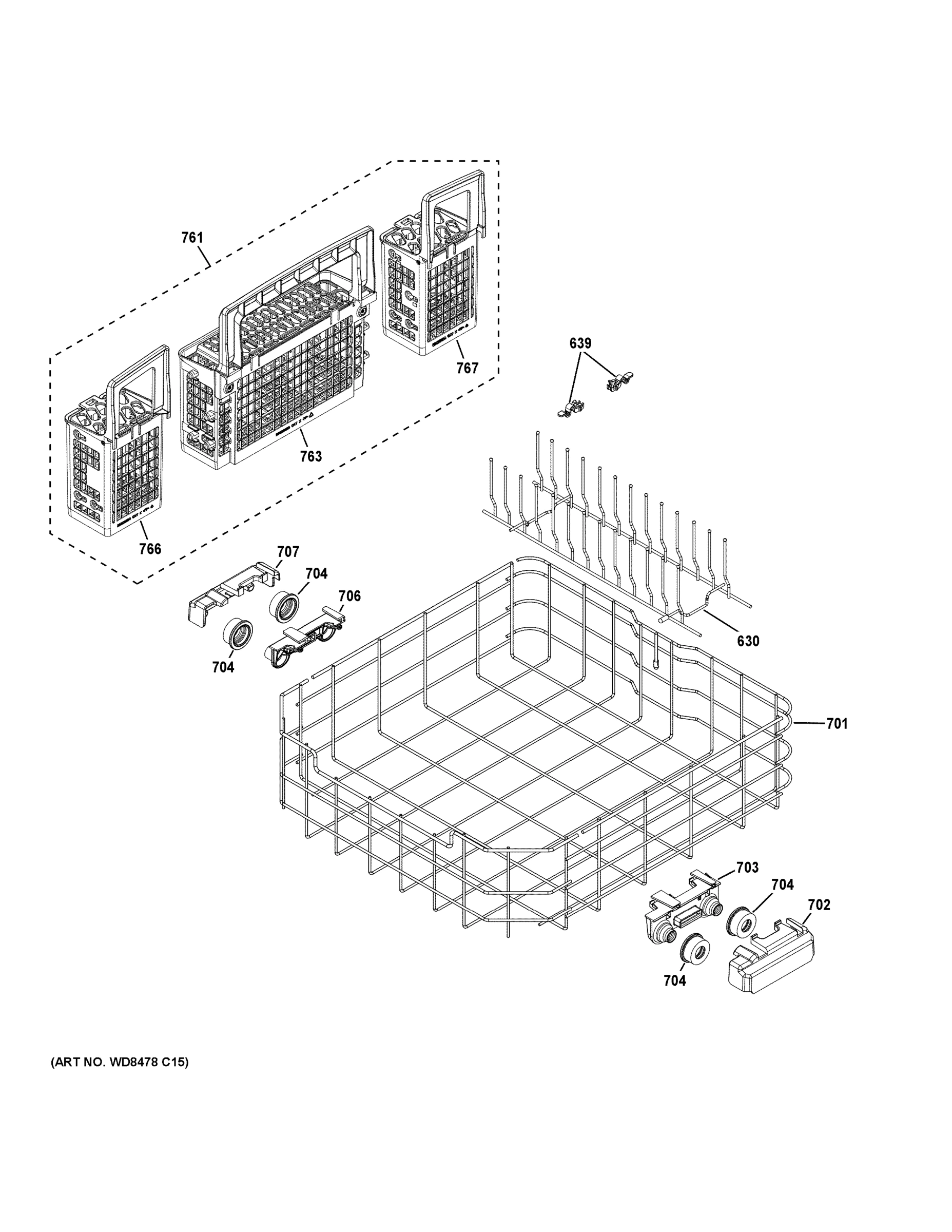

LOWER RACK ASSEMBLY

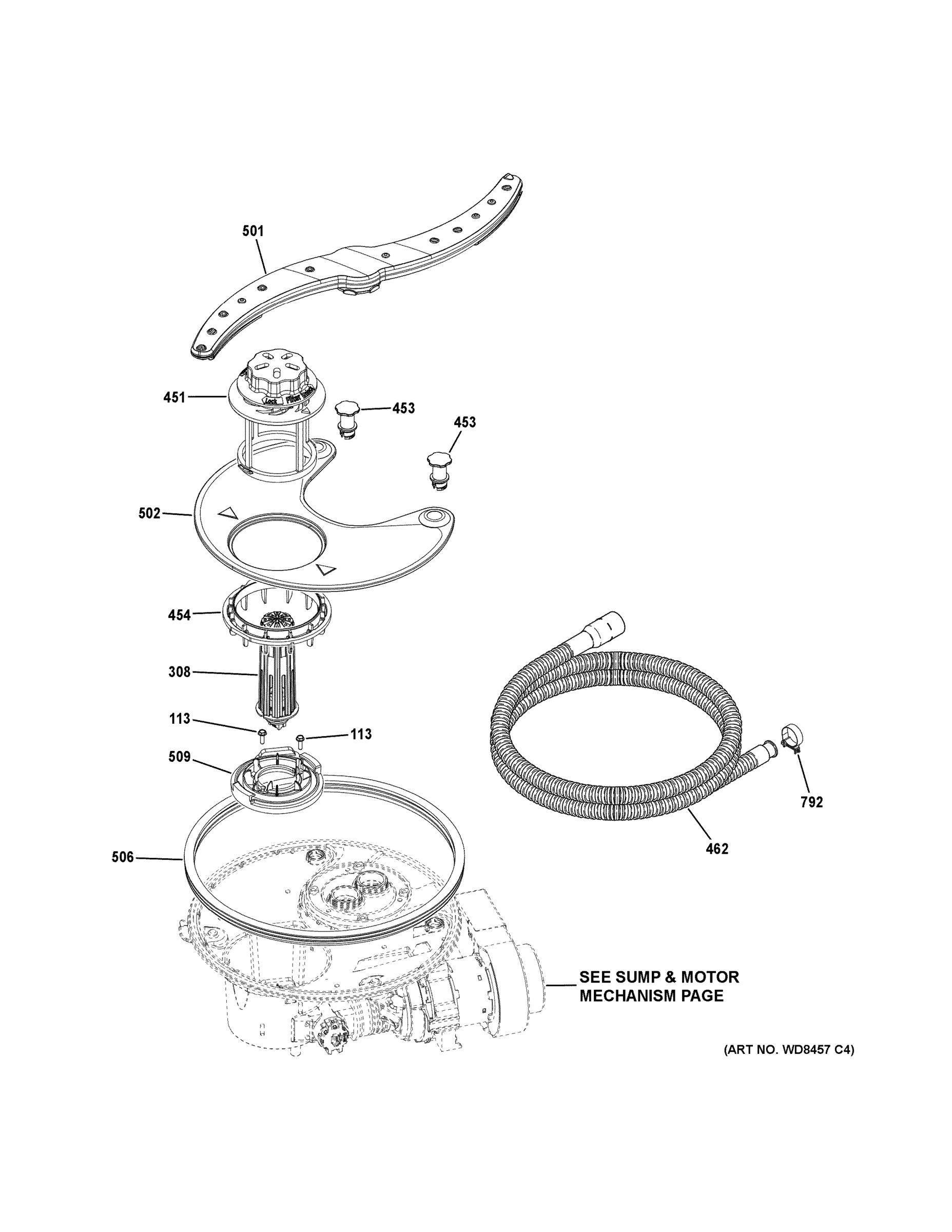

SUMP & FILTER ASSEMBLY

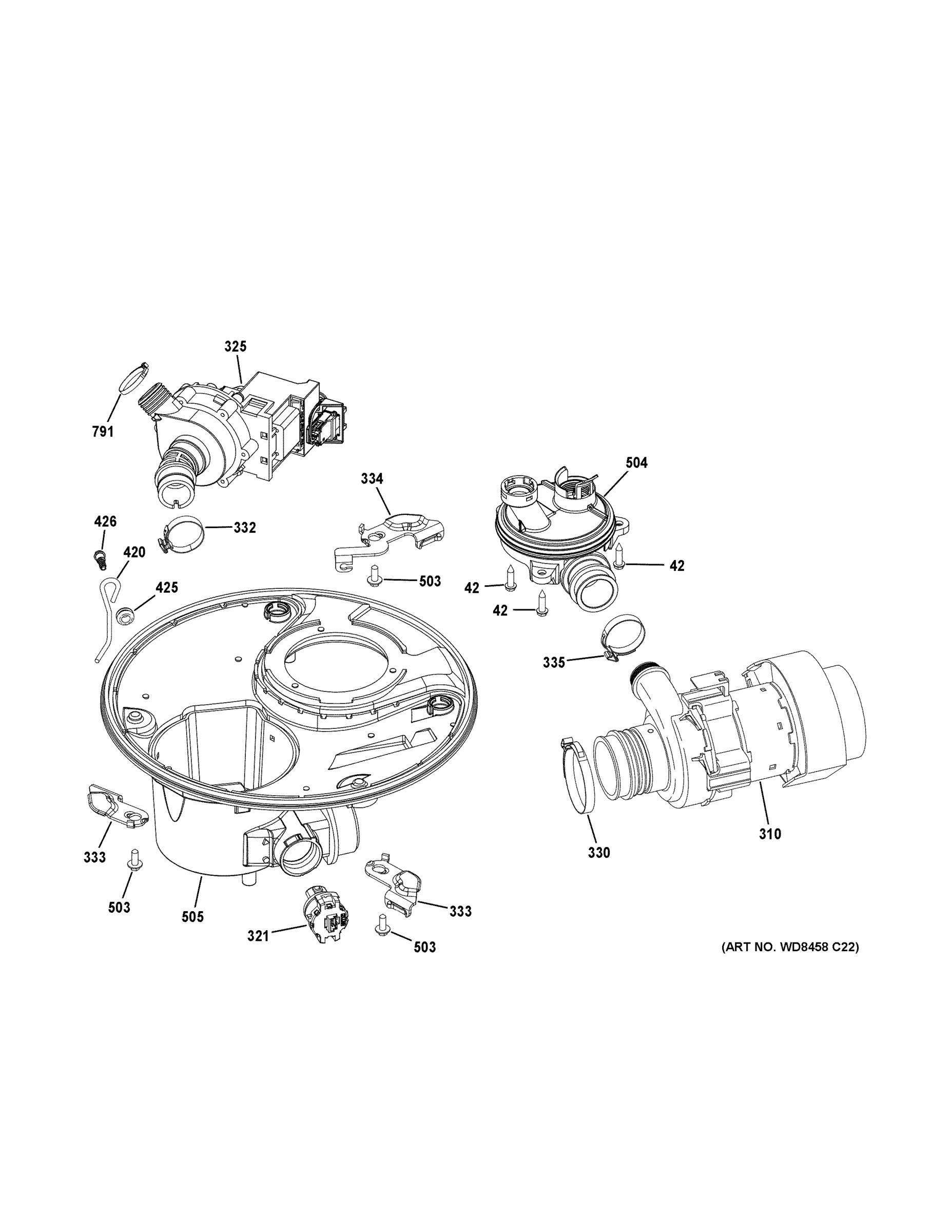

SUMP & MOTOR MECHANISM
Common parts from model GE GDT635HGJ4BB Dishwasher
30
SPRING DOOR GEN WD03X20316 Contact Us For Availability
104
NUT TOWER HEATER GEN WD01X10070 Contact Us For Availability
112
SUPPORT HEATER GEN WD01X22507 Contact Us For Availability
113
SCREW 8-16 HXW 1/2 SS GEN WD02X10067 Contact Us For Availability
200
ARM HINGE ASM GEN WD14X20129 Contact Us For Availability
201
ARM HINGE ASM GEN WD14X20128 Contact Us For Availability
308
SWITCH FLOOD ASM GEN WD21X10519 Contact Us For Availability
321
SENSOR TURBIDITY ASM GEN WD21X22598 Contact Us For Availability
333
LATCH CAM GEN WD01X10632 Contact Us For Availability
334
LATCH CAM GEN WD01X10575 Contact Us For Availability
425
GROMMET GEN WD01X10101 Contact Us For Availability
426
SCR 10-18 X 5/8 GEN WD02X22781 Contact Us For Availability
453
VENT FILTER GEN WD24X10057 Contact Us For Availability
454
ADAPTOR FILTER GEN WD12X10419 Contact Us For Availability
462
DRAIN TUBE ASM GEN WD24X10062 Contact Us For Availability
502
FILTER COARSE SS GEN WD22X10093 Contact Us For Availability
503
SCR 10-16 AB HXW .532 GEN WB01T10103 Contact Us For Availability
505
SUMP MANIFOLD GEN WD18X21680 Contact Us For Availability
509
PLATE FLOOR MANUAL GEN WD12X21677 Contact Us For Availability
570
IMPELLER GEN WD22X20689 Contact Us For Availability
571
HUB GEN WD22X20688 Contact Us For Availability
585
CONDUIT MAIN GEN WD12X21681 Contact Us For Availability
588
CLIP CONDUIT GEN WD01X23982 Contact Us For Availability
614
COVER BOTTLE BLASTER GEN WD24X20263 Contact Us For Availability
615
RACK UPPER ASM COATED GEN WD28X21719 Contact Us For Availability
617
HOSE BOTTLE BLASTER GEN WD24X20262 Contact Us For Availability
633
BLASTER BOTTLE ASM GEN WD22X22456 Contact Us For Availability
639
CLIP RACK GEN WD12X10463 Contact Us For Availability
652
END CAP GEN WD12X10426 Contact Us For Availability
654
TUB ROLLER AND STUD ASM GEN WD12X10433 Contact Us For Availability
680
RACK BRACKET - 3 WHEELS GEN WD12X22801 Contact Us For Availability
685
CLIP BRACKET GEN WD12X10430 Contact Us For Availability
707
COVER ROLLER RH GEN WD12X10438 Contact Us For Availability
708
BRACE DOOR ASM GEN WD30X10045 Contact Us For Availability
710
BLOCK FOAM DOOR GEN WD01X10578 Contact Us For Availability
713
DOOR HANDLE ASM GEN WD09X10086 Contact Us For Availability
715
SCR 10-32 GX HXW 3/8 GEN WD02X10220 Contact Us For Availability
719
CONSOLE CVR GRAPHICS ASM GEN WD34X21696 Contact Us For Availability
720
SILICONE LIGHT PIPE GEN WD12X23316 Contact Us For Availability
722
LENS AND ADHESIVE ASM GEN WD09X20066 Contact Us For Availability
723
CONSOLE TOP CONTROL GEN WD12X20184 Contact Us For Availability
724
HOUSING BOTTOM GEN WD12X10470 Contact Us For Availability
725
BUTTON AND GRAPHIC ASM GEN WD09X21692 Contact Us For Availability
733
CABLE ASM PULLEY GEN WD01X10569 Contact Us For Availability
734
PULLEY HINGE GEN WD16X21836 Contact Us For Availability
735
SCR 10-32 TT CB 1/4 ZN GEN WD01X21837 Contact Us For Availability
741
INSULATION BOTTOM FRONT GEN WD01X22620 Contact Us For Availability
743
COVER JUNCTION BOX GEN WD12X10412 Contact Us For Availability
745
SCR 10-32 GX IHXW 9/16 S GEN WD01X22514 Contact Us For Availability
749
HARNESS ASM JUMPER GEN WD21X23559 Contact Us For Availability
751
HARNESS ASM AC GEN WD21X21690 Contact Us For Availability
752
HARNESS ASM DC GEN WD21X23416 Contact Us For Availability
753
HARNESS ASM DOOR GEN WD21X22916 Contact Us For Availability
754
SHIELD DIELECTRIC GEN WD01X21974 Contact Us For Availability
755
CONTROL BOX BOTTOM GEN WD30X21714 Contact Us For Availability
758
INSULATION TOE KICK GEN WD27X21334 Contact Us For Availability
790
CLAMP HOSE GEN WD01X22786 Contact Us For Availability
792
CLAMP GEN WD01X10104 Contact Us For Availability
795
SCREW T15 8-16 PLASTITE GEN WD02X22628 Contact Us For Availability
796
ATTACH STRIP RH GEN WD01X22836 Contact Us For Availability
798
BRACKET SUPPORT HINGE GEN WD01X22512 Contact Us For Availability
799
BRACKET SUPPORT HINGE GEN WD01X22513 Contact Us For Availability
801
SCR 6-20 GXB IHXW 3/8 NI GEN WB02T10324 Contact Us For Availability
802
SCR 8-18 AB TSQ 5/8 SS GEN WR01X10380 Contact Us For Availability
804
STRIKER LATCH GEN WD13X10071 Contact Us For Availability
808
ATTACHMENT STRIP TOP GEN WD01X10639 Contact Us For Availability
812
VENT - DARK GREY GEN WD12X10472 Contact Us For Availability
813
PLATE DETERGENT GEN WD12X10462 Contact Us For Availability
816
DOOR VENT SEAL GEN WD08X10092 Contact Us For Availability
819
GASKET VENT GEN WD08X22476 Contact Us For Availability
833
SCREW GEN WD2X295 Contact Us For Availability
850
TRIM DOOR RH GEN WD12X22540 Contact Us For Availability
851
TRIM DOOR LH GEN WD12X22541 Contact Us For Availability
888
BRACKET COUNTERTOP GEN WD01X21740 Contact Us For Availability
889
CT SCREW ASM GEN WD35X10383 Contact Us For Availability
906
BADGE GE ASM GEN WR04X10181 Contact Us For Availability
920
CLIP CONTROL BOARD GEN WD01X21975 Contact Us For Availability
× ![]()
