Model GE DLLLR23GG7WW – Common Parts & Diagrams

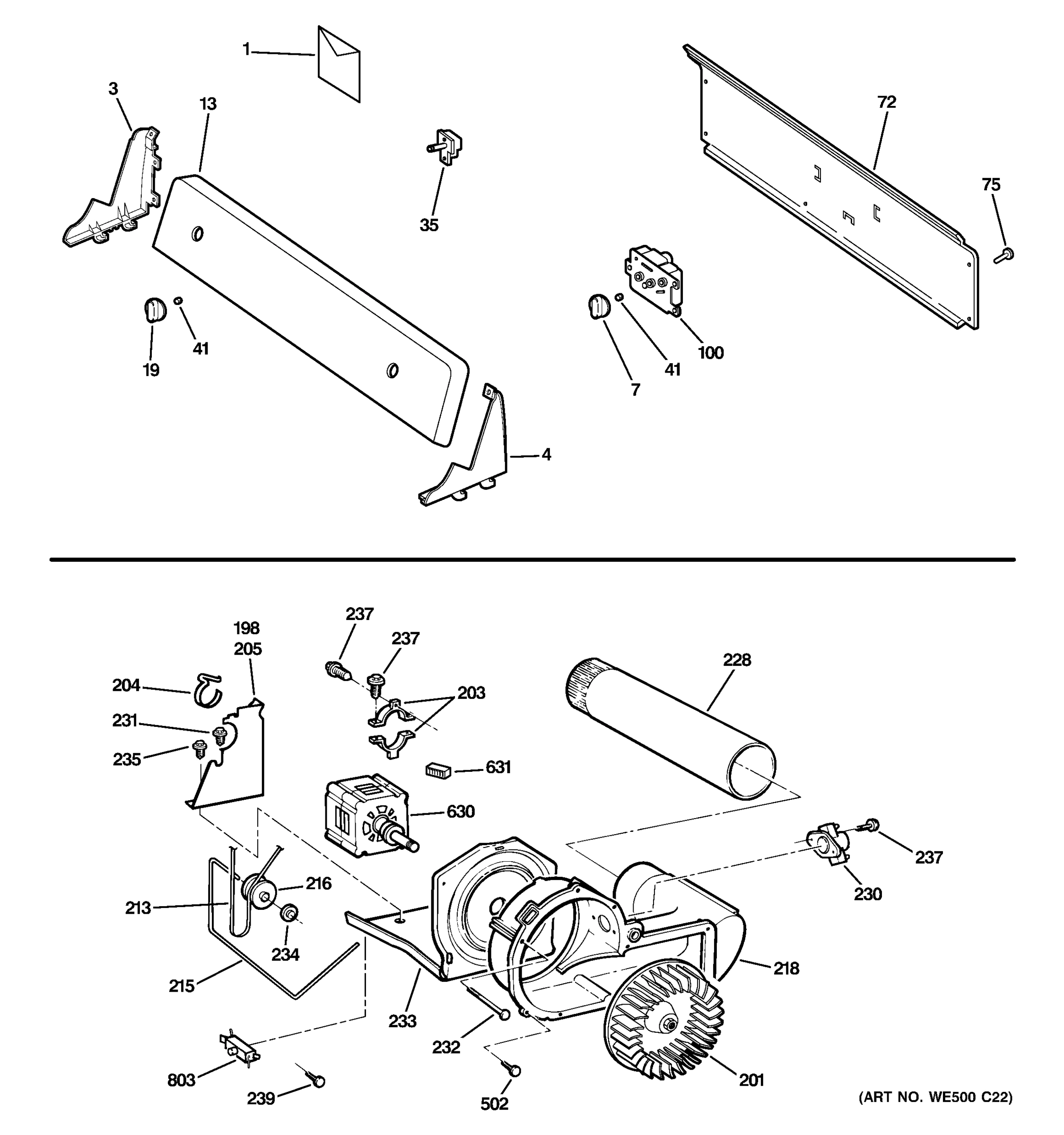

BACKSPLASH, BLOWER & MOTOR

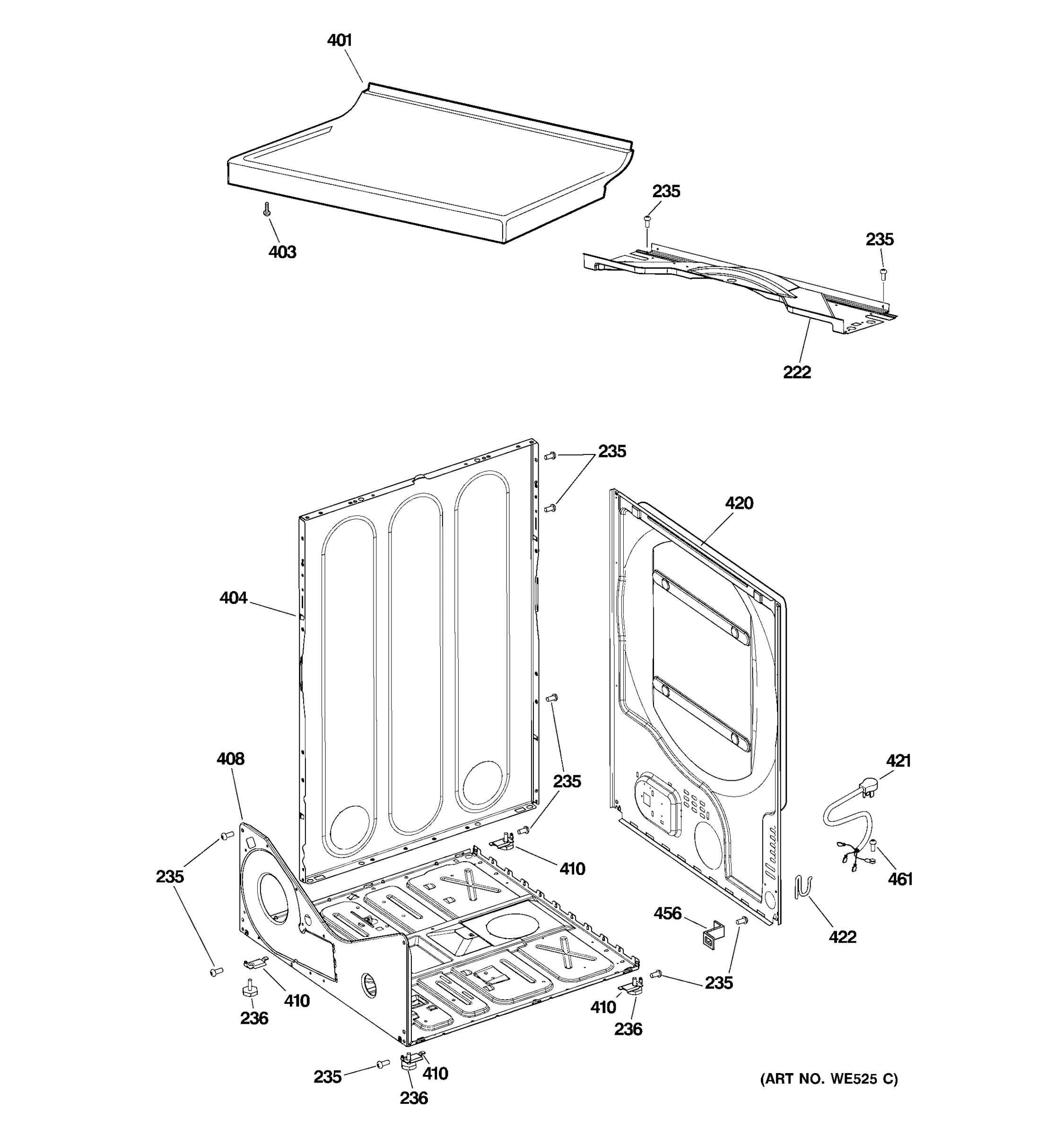

CABINET

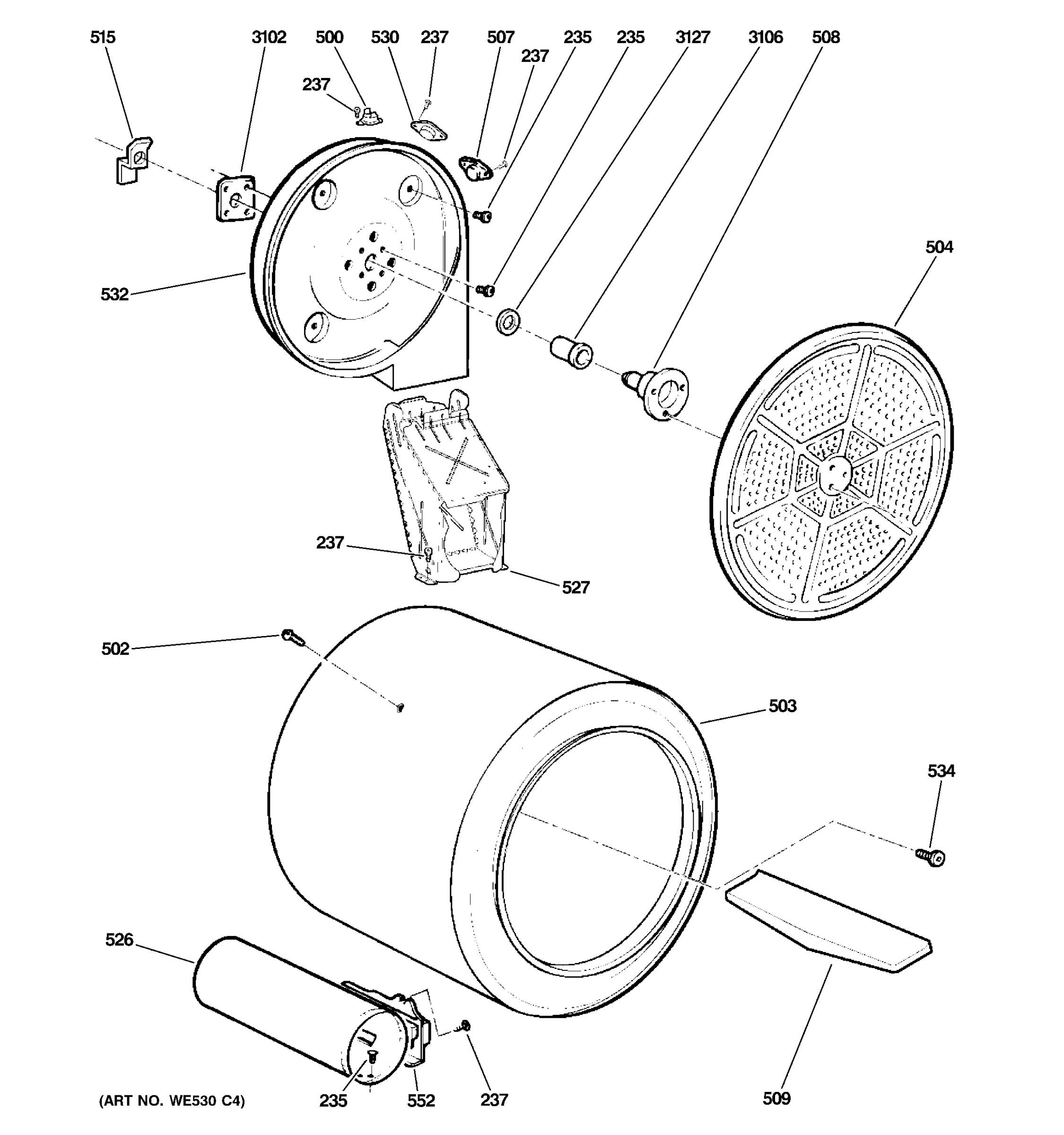

DRUM

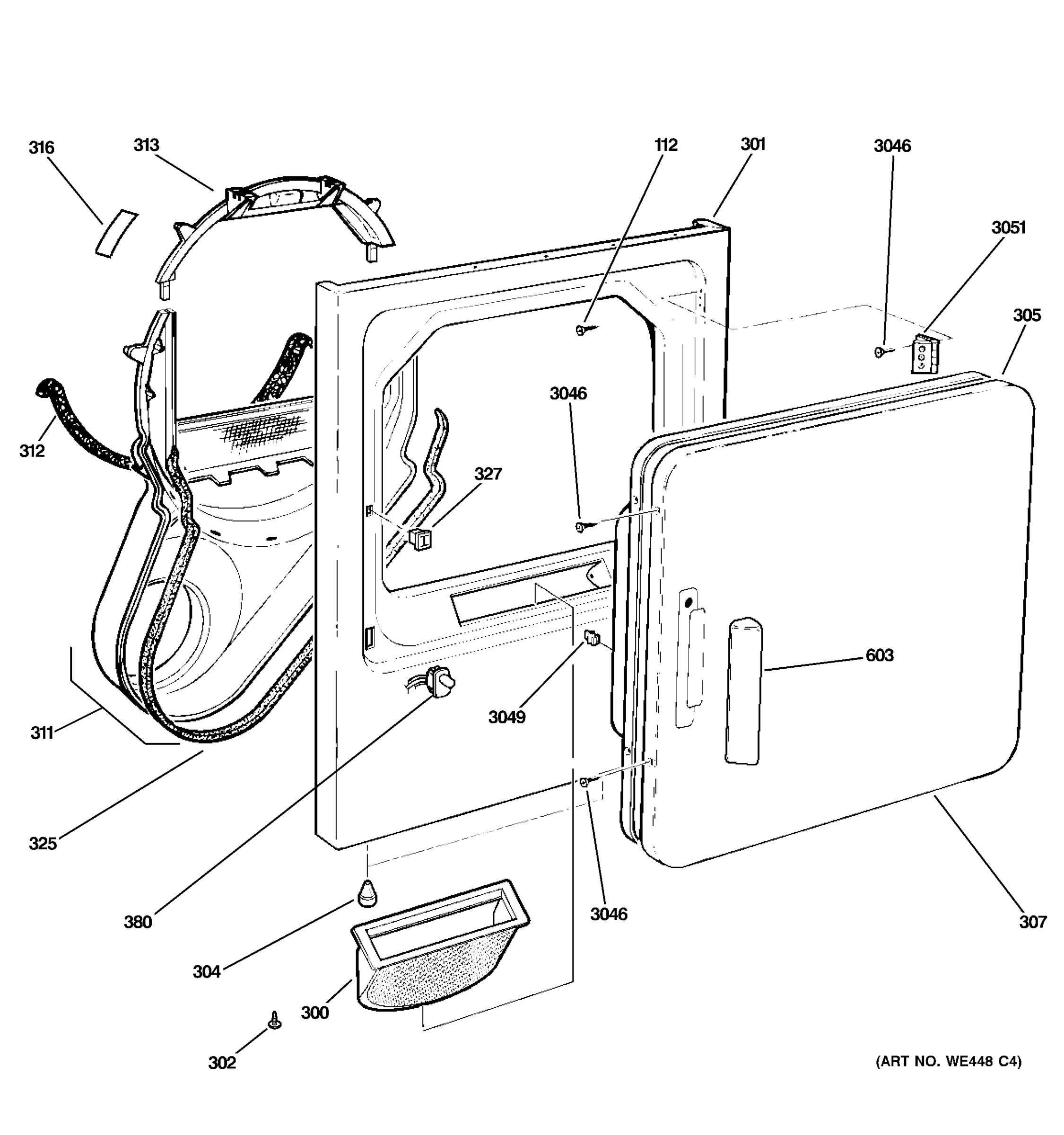

FRONT PANEL & DOOR

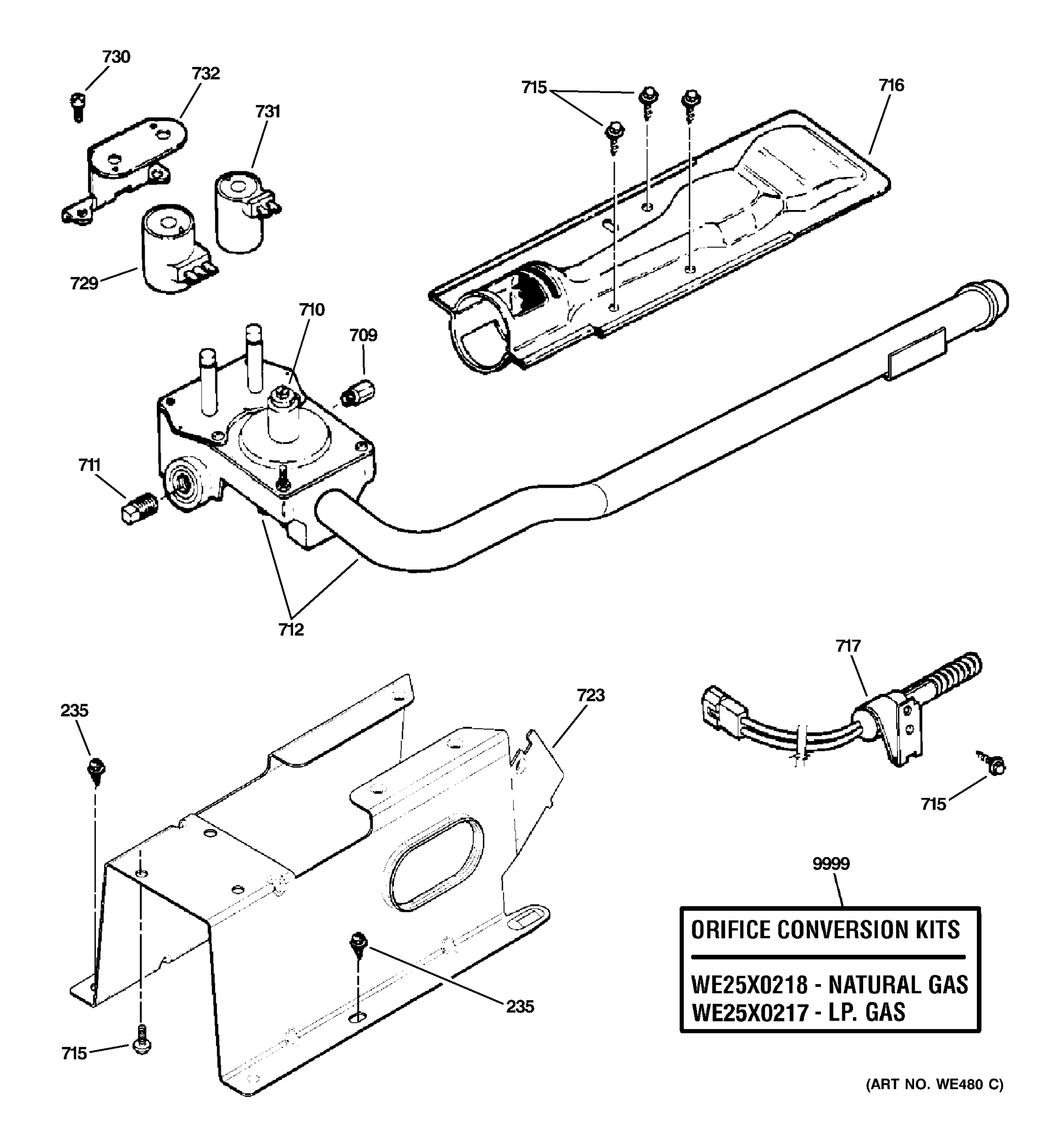

GAS VALVE & BURNER ASSEMBLY
Common parts from model GE DLLLR23GG7WW
13
GEN WE19M1553 GEN WE19M1553 Contact Us For Availability
72
GEN WE19M1481 GEN WE19M1481 Contact Us For Availability
75
GEN WE2M173 GEN WE2M173 Contact Us For Availability
100
GEN WE4M360 GEN WE4M360 Contact Us For Availability
205
GEN WE13M39 GEN WE13M39 Contact Us For Availability
218
GEN WE14M93 GEN WE14M93 Contact Us For Availability
230
GEN WE4M127 GEN WE4M127 Contact Us For Availability
232
GEN WE2M202 GEN WE2M202 Contact Us For Availability
234
GEN WE2M96 GEN WE2M96 Contact Us For Availability
313
TOP BEARING GEN WE3M26 Contact Us For Availability
403
GEN WE2M160 GEN WE2M160 Contact Us For Availability
404
GEN WE20M393 GEN WE20M393 Contact Us For Availability
410
BRKT & LVL LEG ASM REAR GEN WE1M773 Contact Us For Availability
410
GEN WE1M772 GEN WE1M772 Contact Us For Availability
500
T'STAT HI-LIMIT GEN WE4M137 Contact Us For Availability
502
SCREW #10 GEN WE2M174 Contact Us For Availability
507
T'STAT INLET BIASED GEN WE4M181 Contact Us For Availability
509
GEN WE14M75 GEN WE14M75 Contact Us For Availability
530
GEN WE4M80 GEN WE4M80 Contact Us For Availability
534
GEN WE2M163 GEN WE2M163 Contact Us For Availability
552
FLAME DETECTOR GEN WE4X448 Contact Us For Availability
631
GEN WE1M650 GEN WE1M650 Contact Us For Availability
712
GEN WE14M114 GEN WE14M114 Contact Us For Availability
715
SCREW GEN WD2M101 Contact Us For Availability
716
GEN WE14M104 GEN WE14M104 Contact Us For Availability
3046
GEN WE2M196 GEN WE2M196 Contact Us For Availability
3102
GEN WE1M300 GEN WE1M300 Contact Us For Availability
3127
O-RING GEN WE1M461 Contact Us For Availability
× ![]()
