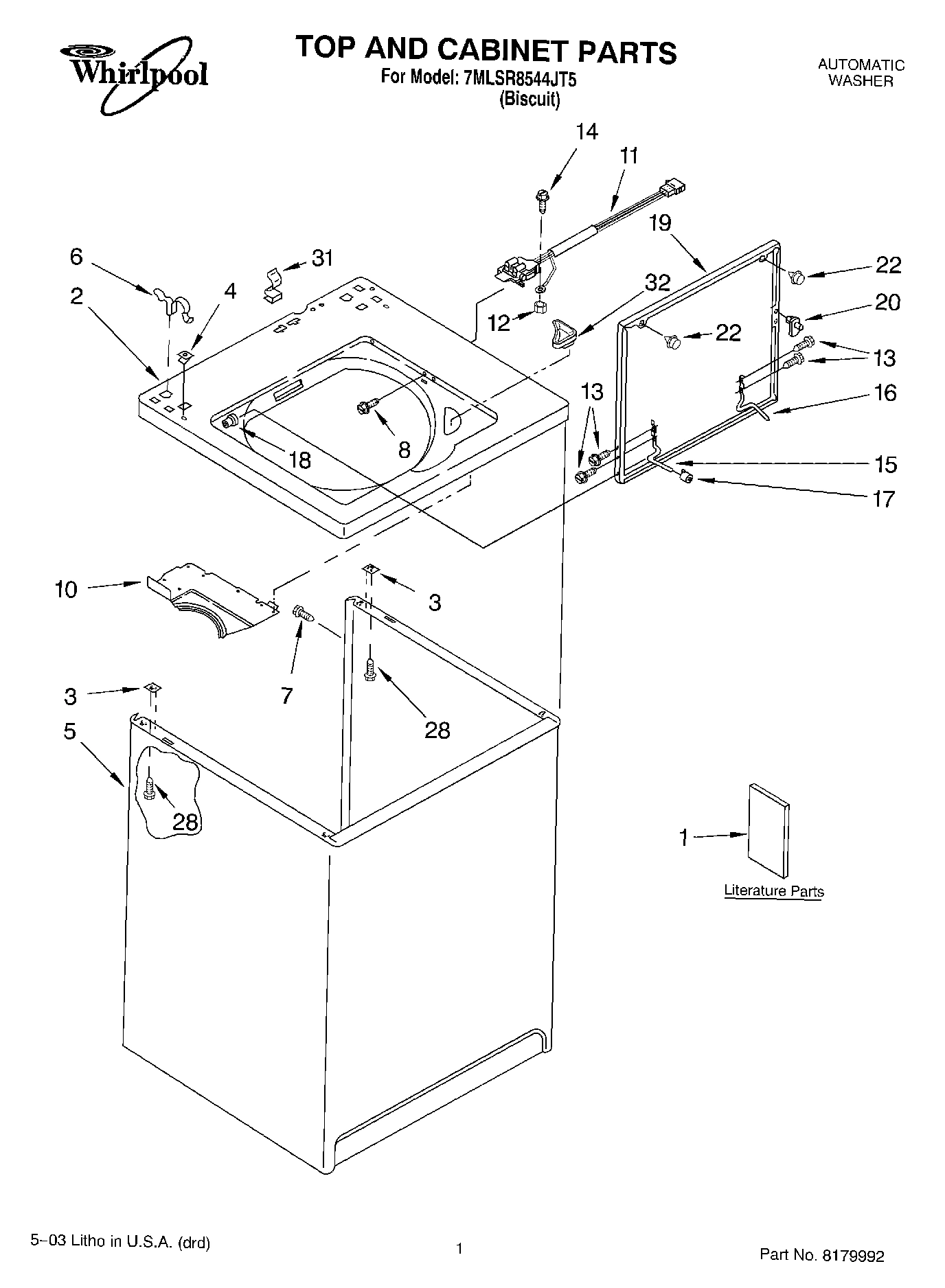

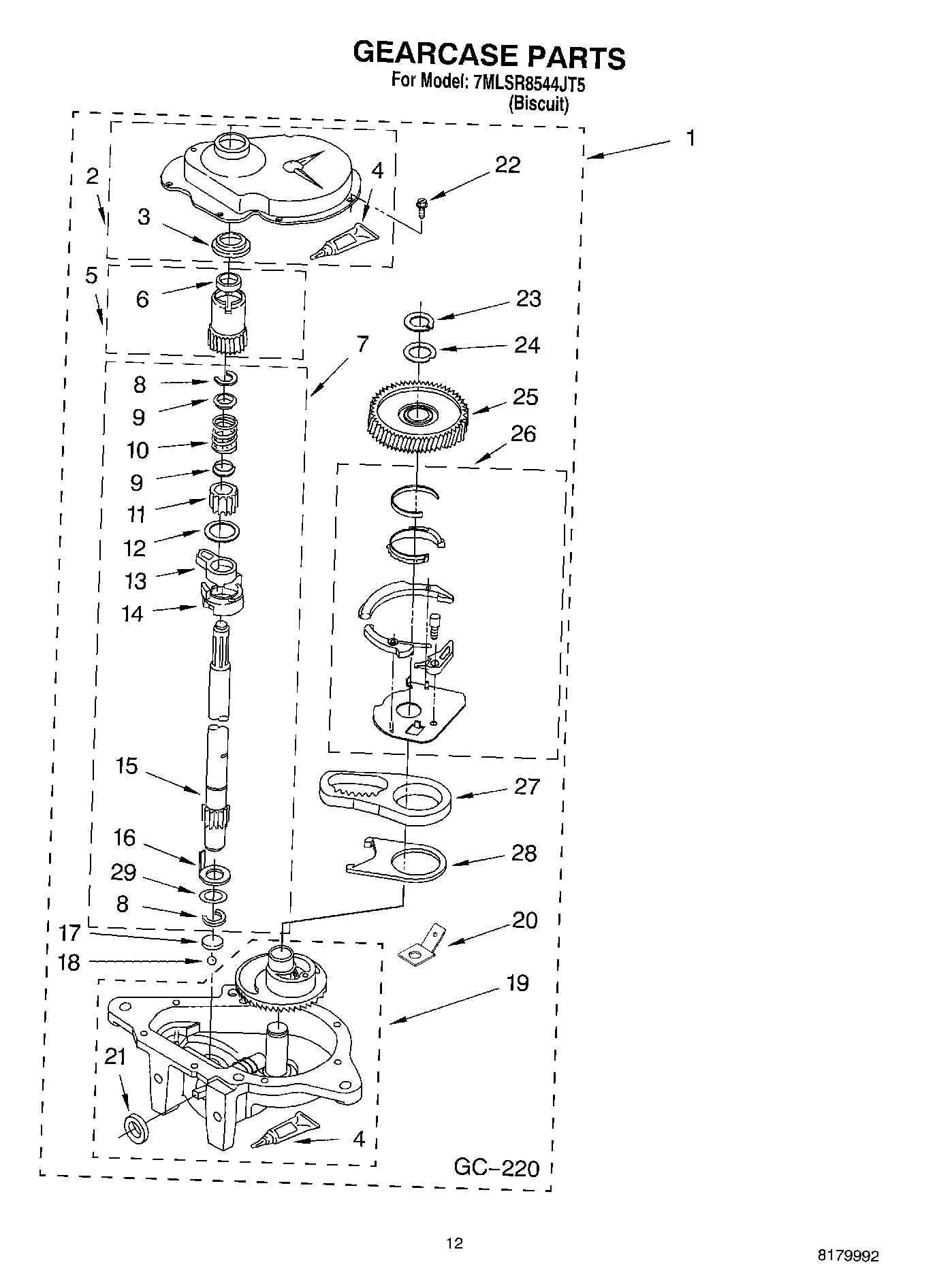

Model Whirlpool 7MLSR8544JT5 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $2.51

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $78.48

2

285321 Whirlpool Sleeve Backorder WPL 285321 $26.75

2

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $59.35

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $9.35

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $89.14

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $77.21

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $2.51

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $3.70

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $29.80

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $127.32

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Panel, Rear WPL 8318405 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP3951702 Whirlpool Timer In Stock WPL WP3951702 $177.43

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

10

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $10.76

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

W10337780 Whirlpool Pressure Switch In Stock WPL W10337780 $43.32

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $41.82

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

14

W10130795 Whirlpool Power Cord Backorder WPL W10130795 $58.70

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

Strain Relief, Power Cord WPL 3949468 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $126.36

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Cap, End (L.H.) WPL 8314852 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI142682A Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

19

Clamp, Hose WPL 3976395 No Longer Available

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $138.84

19

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

20

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $136.35

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

20

Screw, Ground WPL 3179795 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $20.87

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $3.70

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.51

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

8316060 Whirlpool Shield Backorder WPL 8316060 $26.21

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

Edge Protector WPL 303294 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $4.72

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

Clip, Capacitor WPL 8318201 Contact Us For Availability

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $8.69

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

28

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $42.80

29

Shield, Capacitor WPL 3976286 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

33

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

34

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

35

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $54.41

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $2.51

37

Switch, Water Temperature WPL 661614 Contact Us For Availability

39

Panel, Console WPL 8531969 Contact Us For Availability

41

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

42

Wire, Ground WPL 3398893 Contact Us For Availability

44

WP3957822 Whirlpool Knob Backorder WPL WP3957822 $30.14

45

Dial, Timer WPL 8271370 Contact Us For Availability

47

3957797 Whirlpool Knob Backorder WPL 3957797 $29.43

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

51

Cap, End (R.H.) WPL 8314851 Contact Us For Availability

57

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

59

WPL 8314879 WPL 8314879 Contact Us For Availability

60

WPL 3956148 WPL 3956148 Contact Us For Availability

61

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40
