Model Speed Queen SWNSX2SP303EW01 Washer – Common Parts & Diagrams

Coin Slide Extension, Meter Case and Control

Meter Case

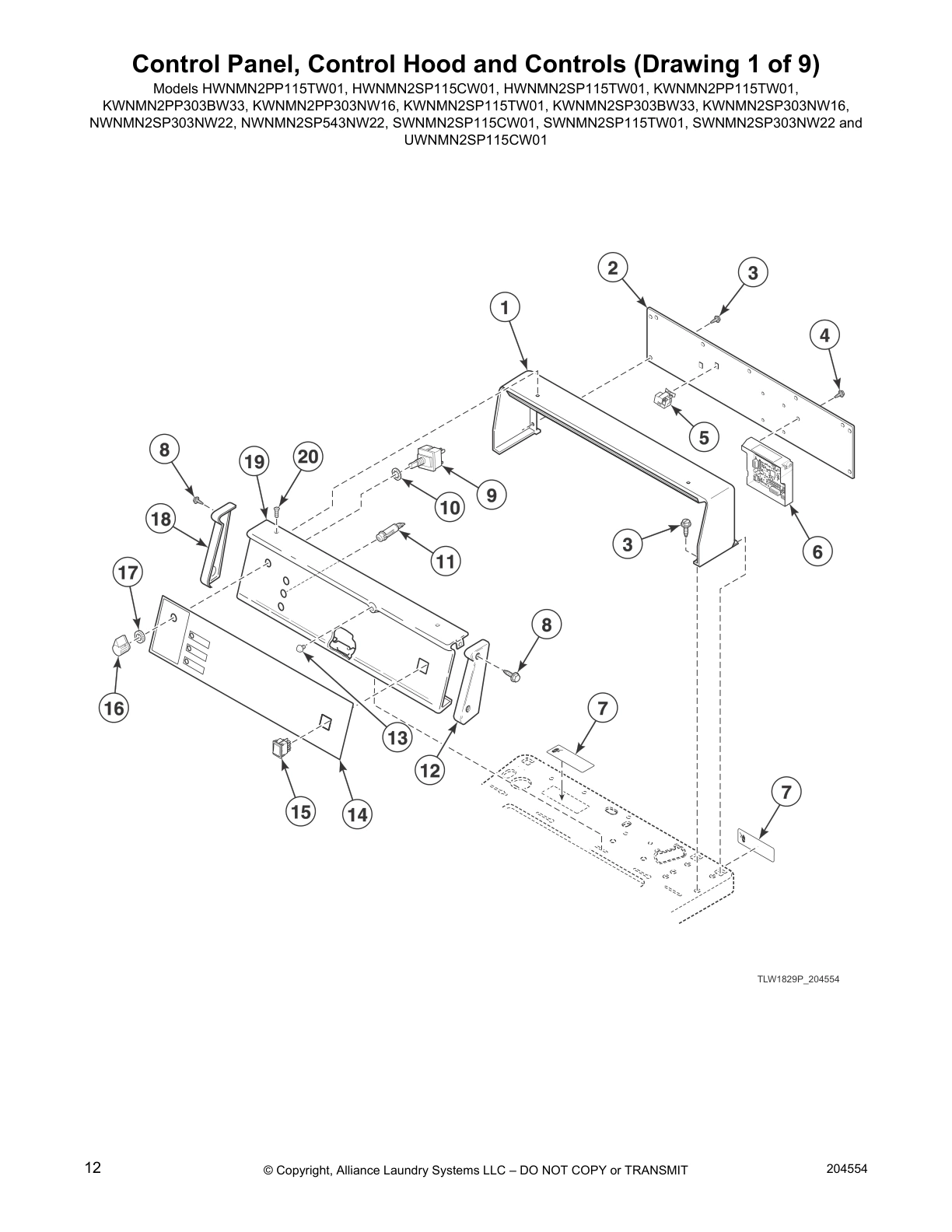

Control Panel, Control Hood and Controls (Drawing 1 of 9)

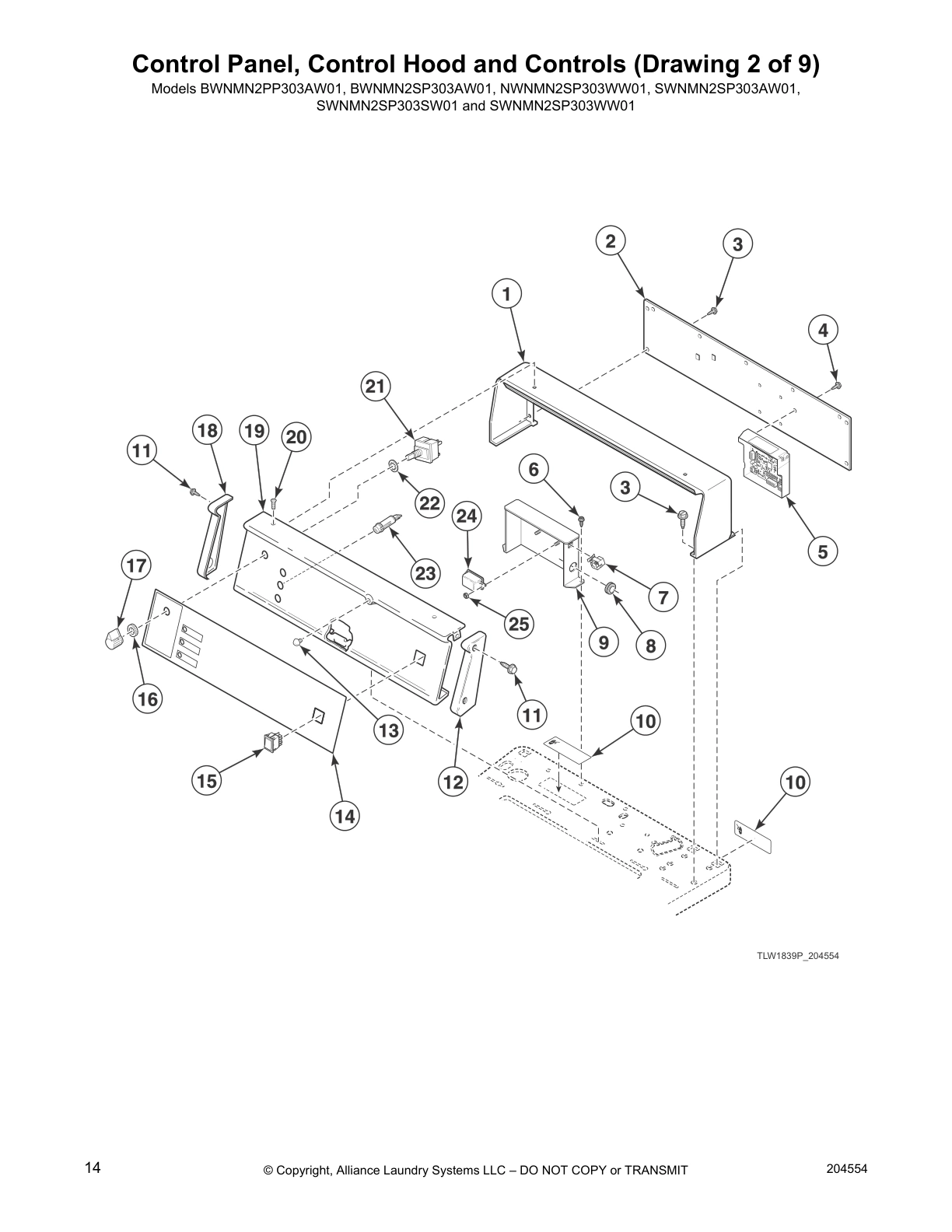

Control Panel, Control Hood and Controls (Drawing 2 of 9)

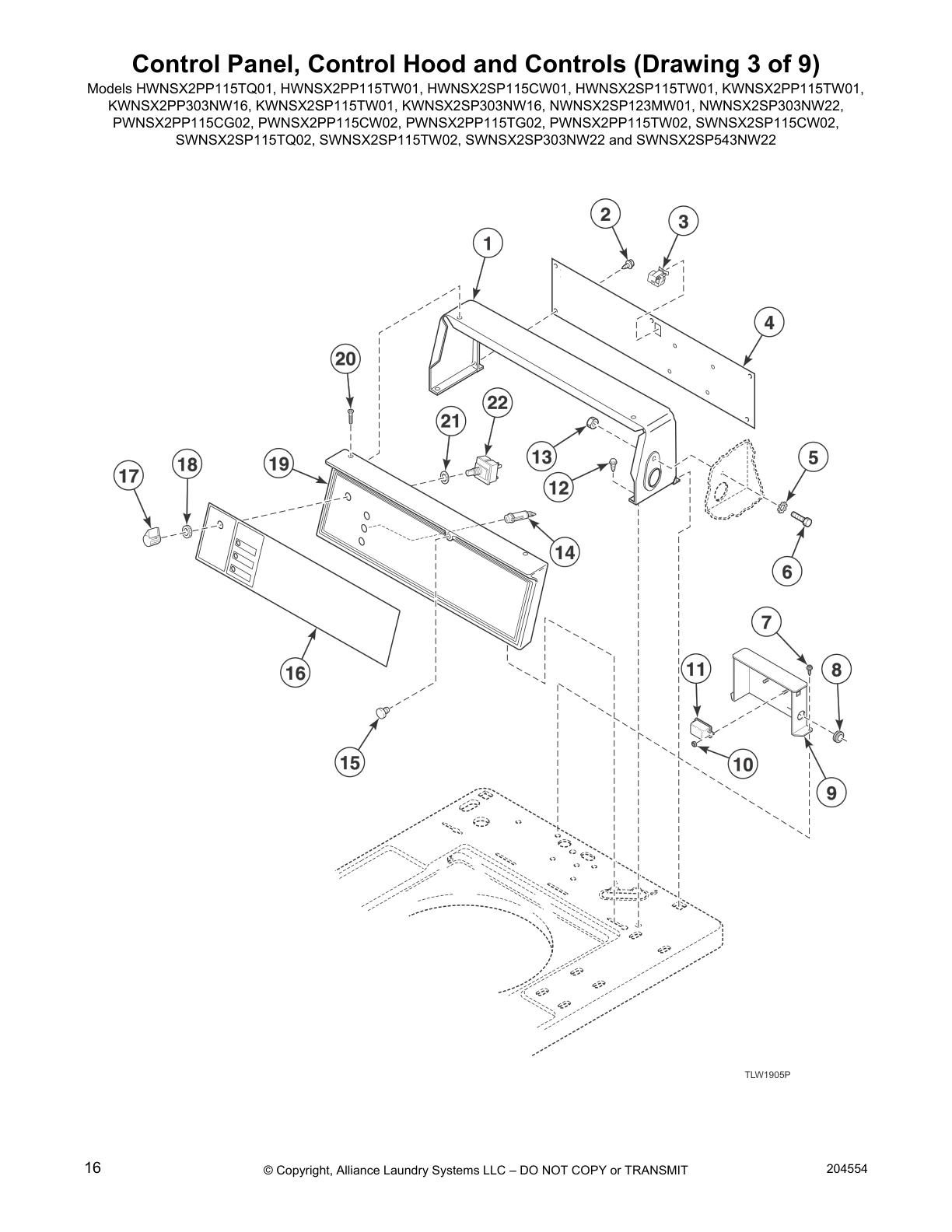

Control Panel, Control Hood and Controls (Drawing 3 of 9)

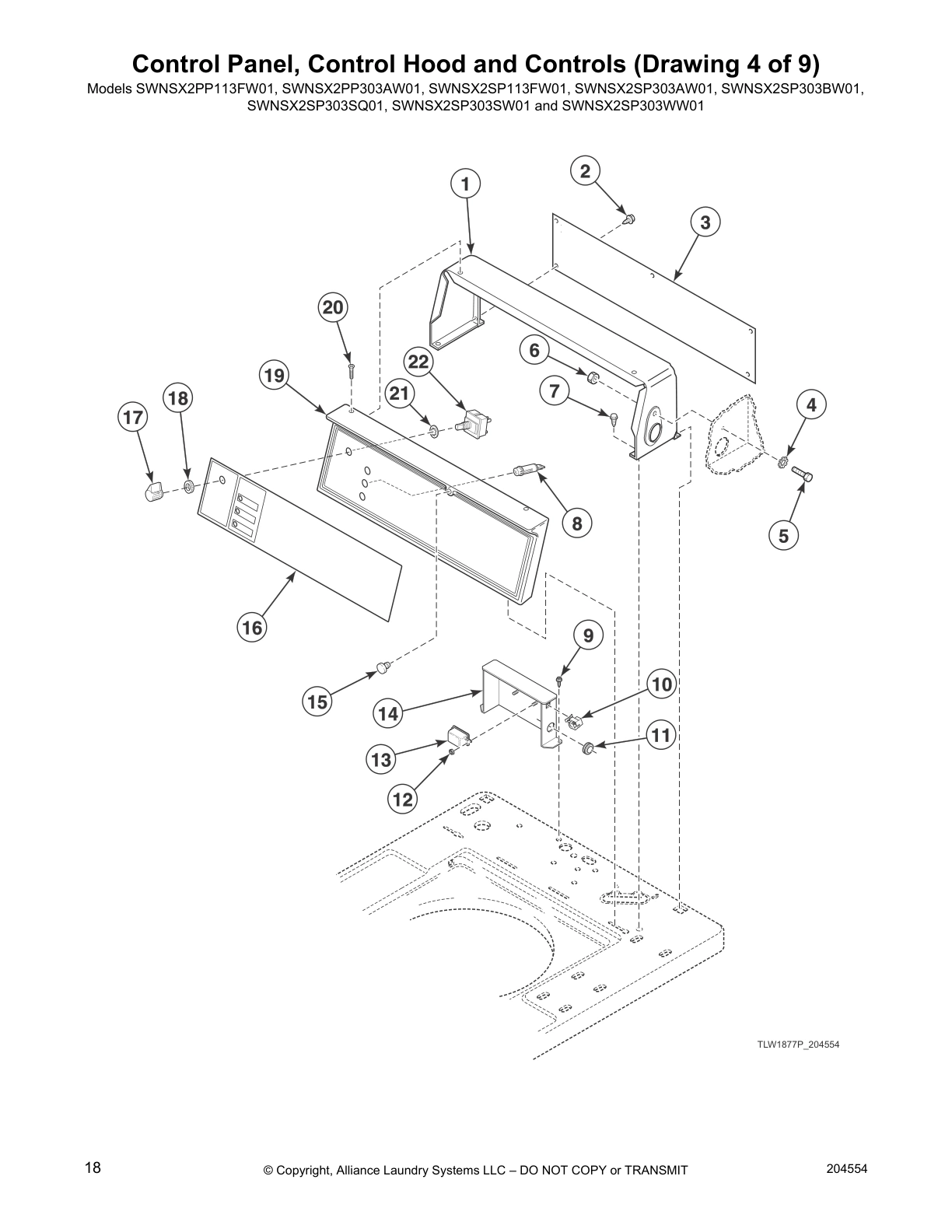

Control Panel, Control Hood and Controls (Drawing 4 of 9)

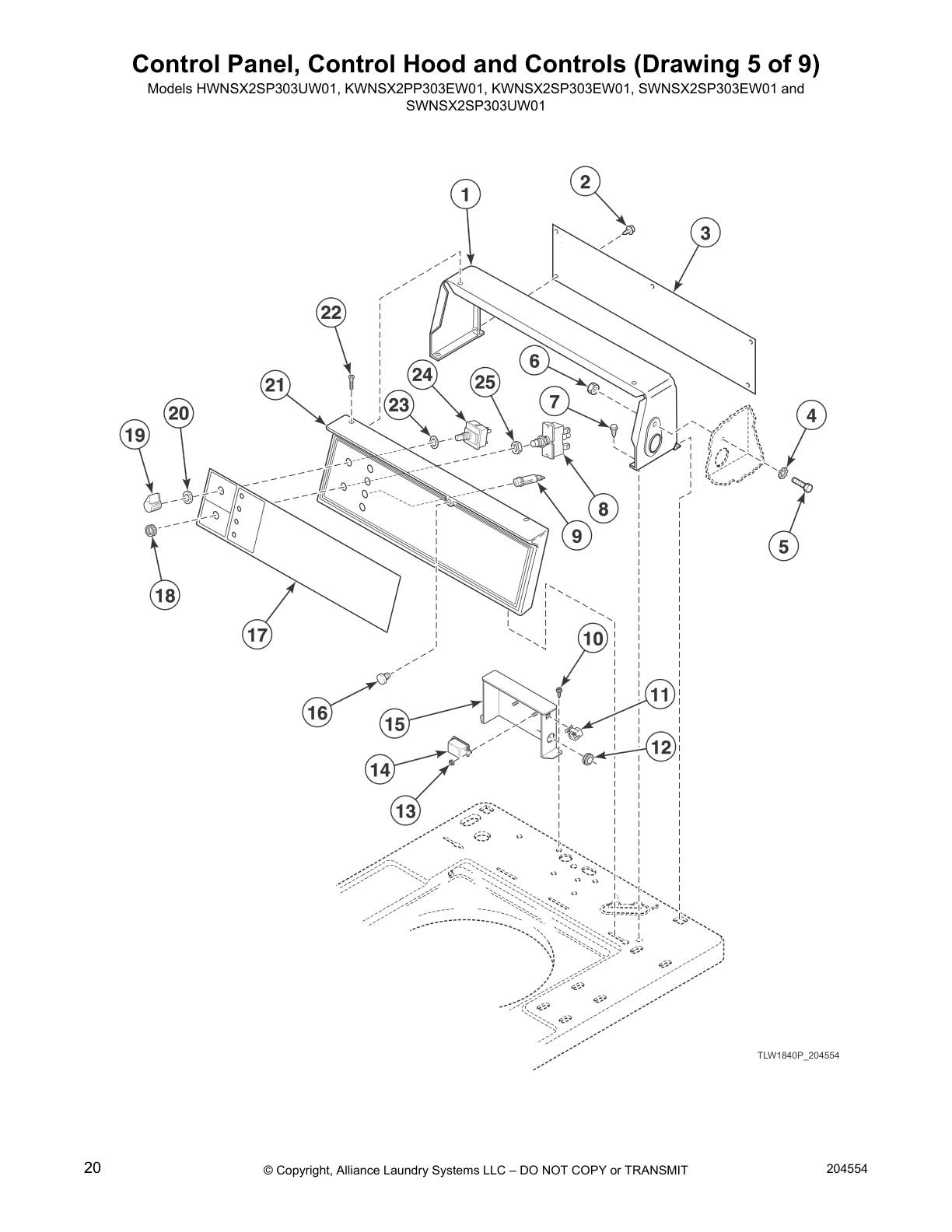

Control Panel, Control Hood and Controls (Drawing 5 of 9)

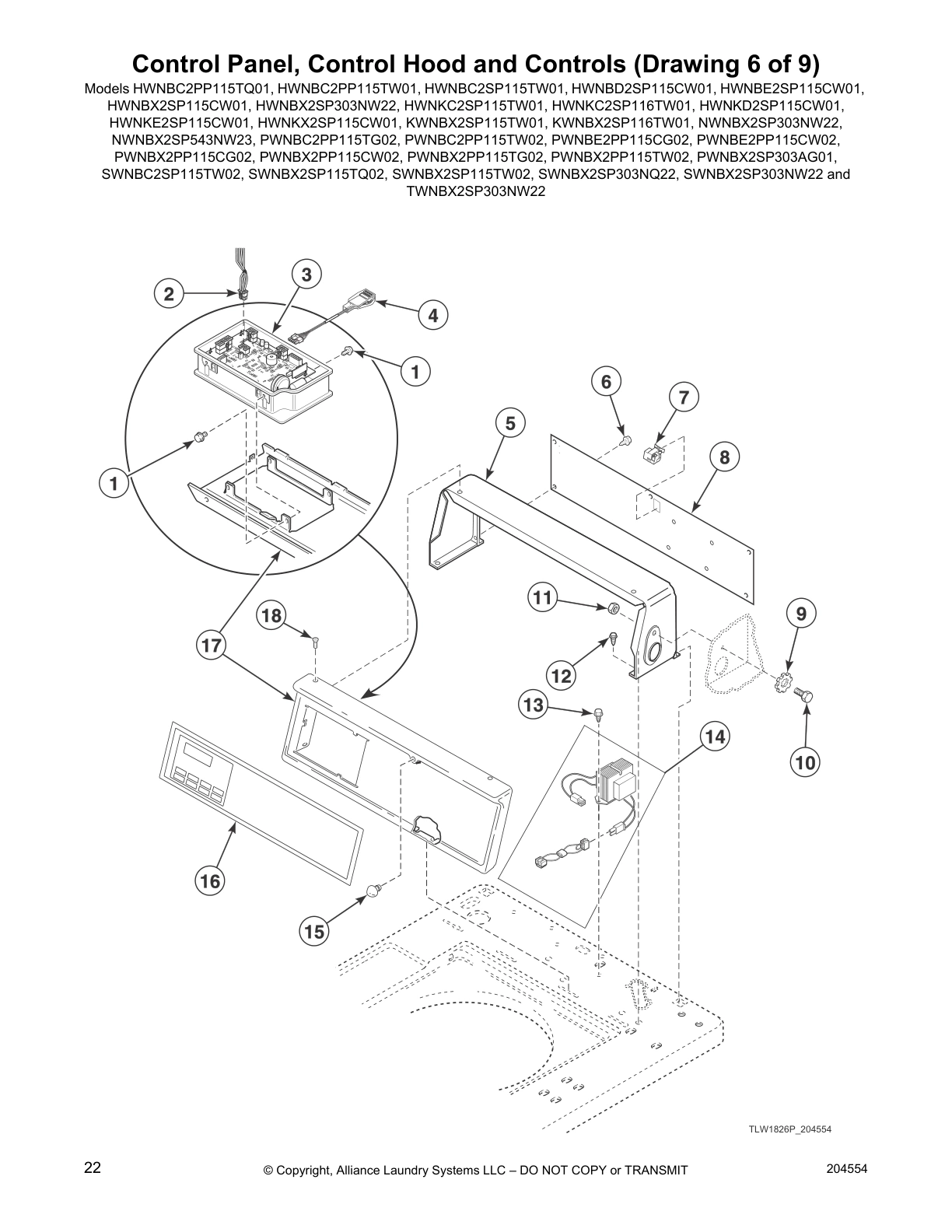

Control Panel, Control Hood and Controls (Drawing 6 of 9)

Control Panel, Control Hood and Controls (Drawing 7 of 9)

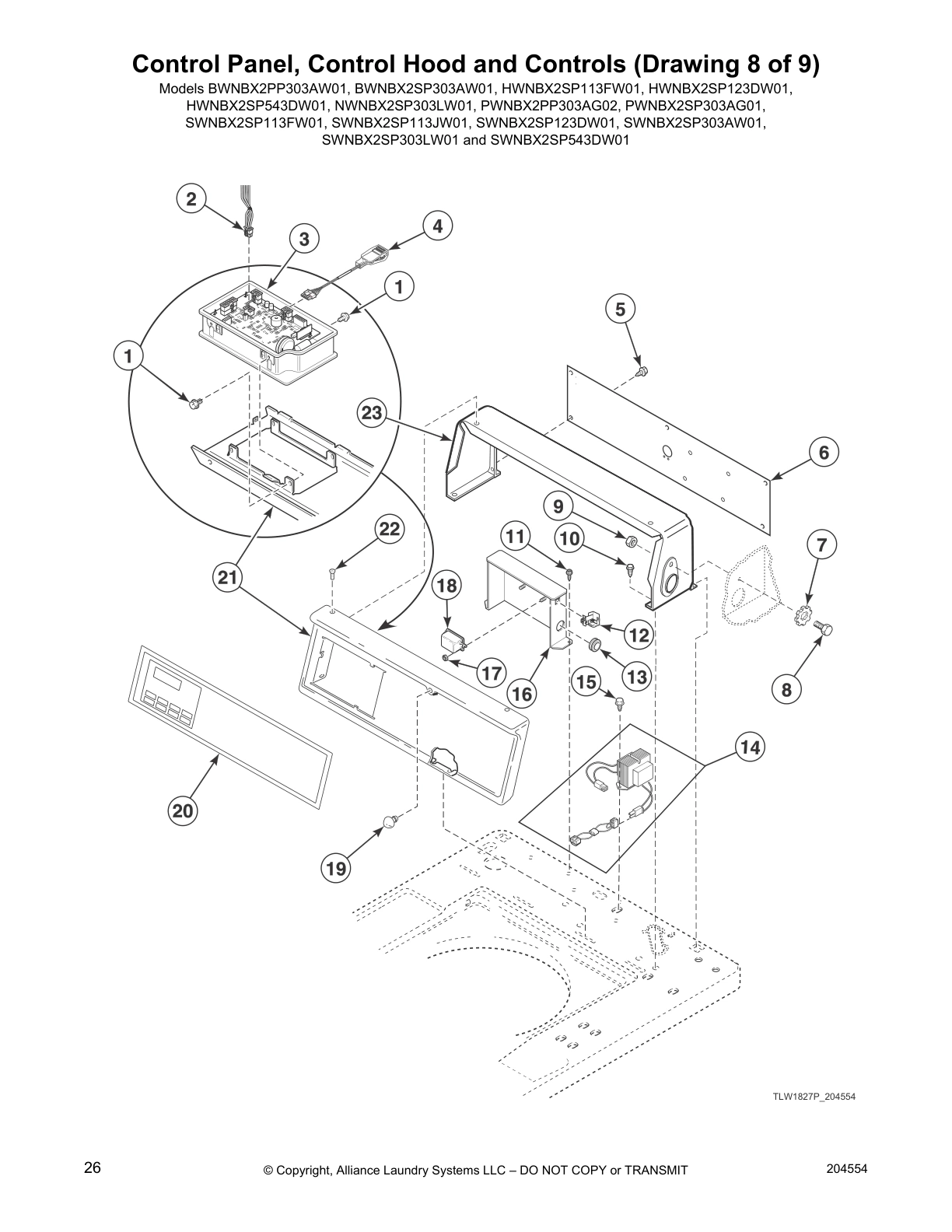

Control Panel, Control Hood and Controls (Drawing 8 of 9)

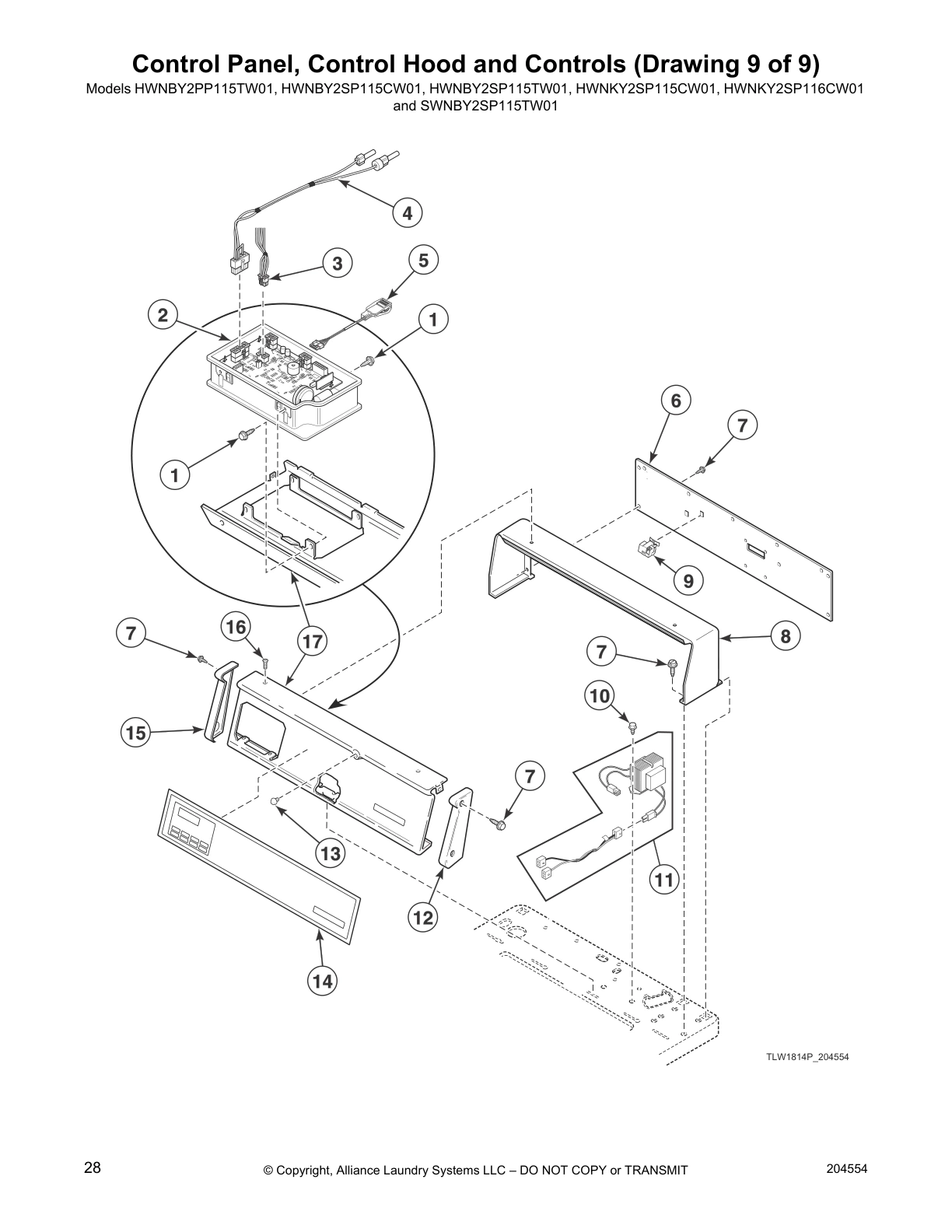

Control Panel, Control Hood and Controls (Drawing 9 of 9)

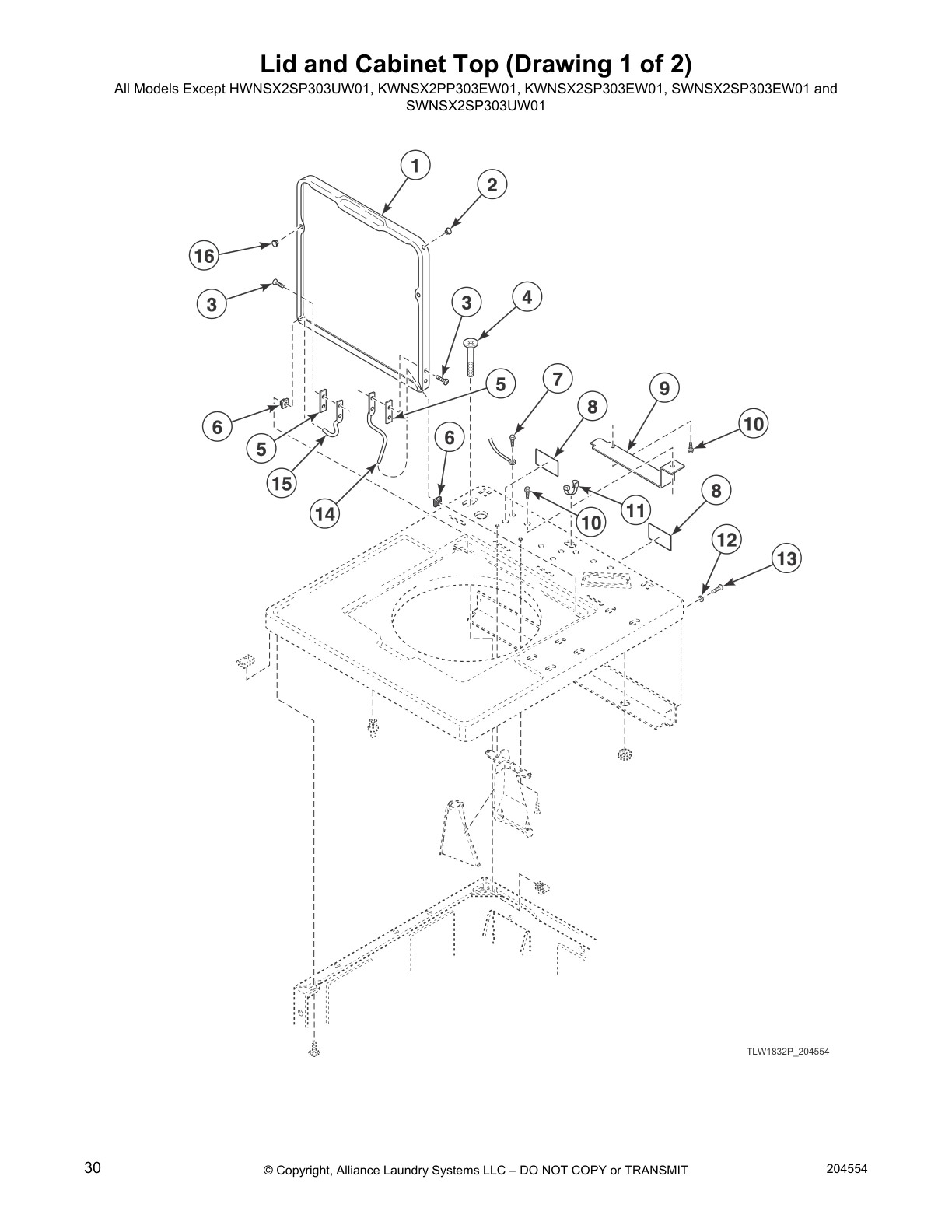

Lid and Cabinet Top (Drawing 1 of 2)

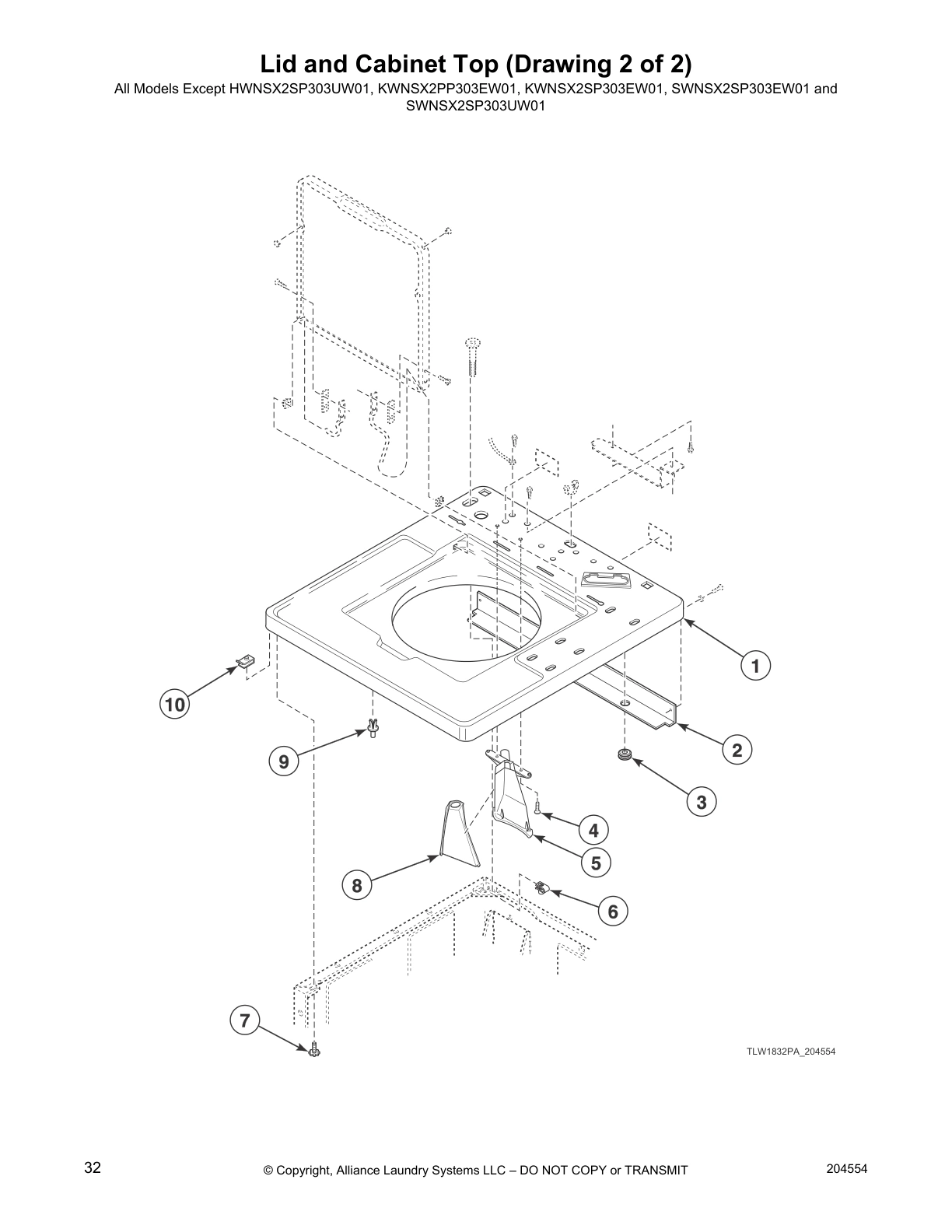

Lid and Cabinet Top (Drawing 2 of 2)

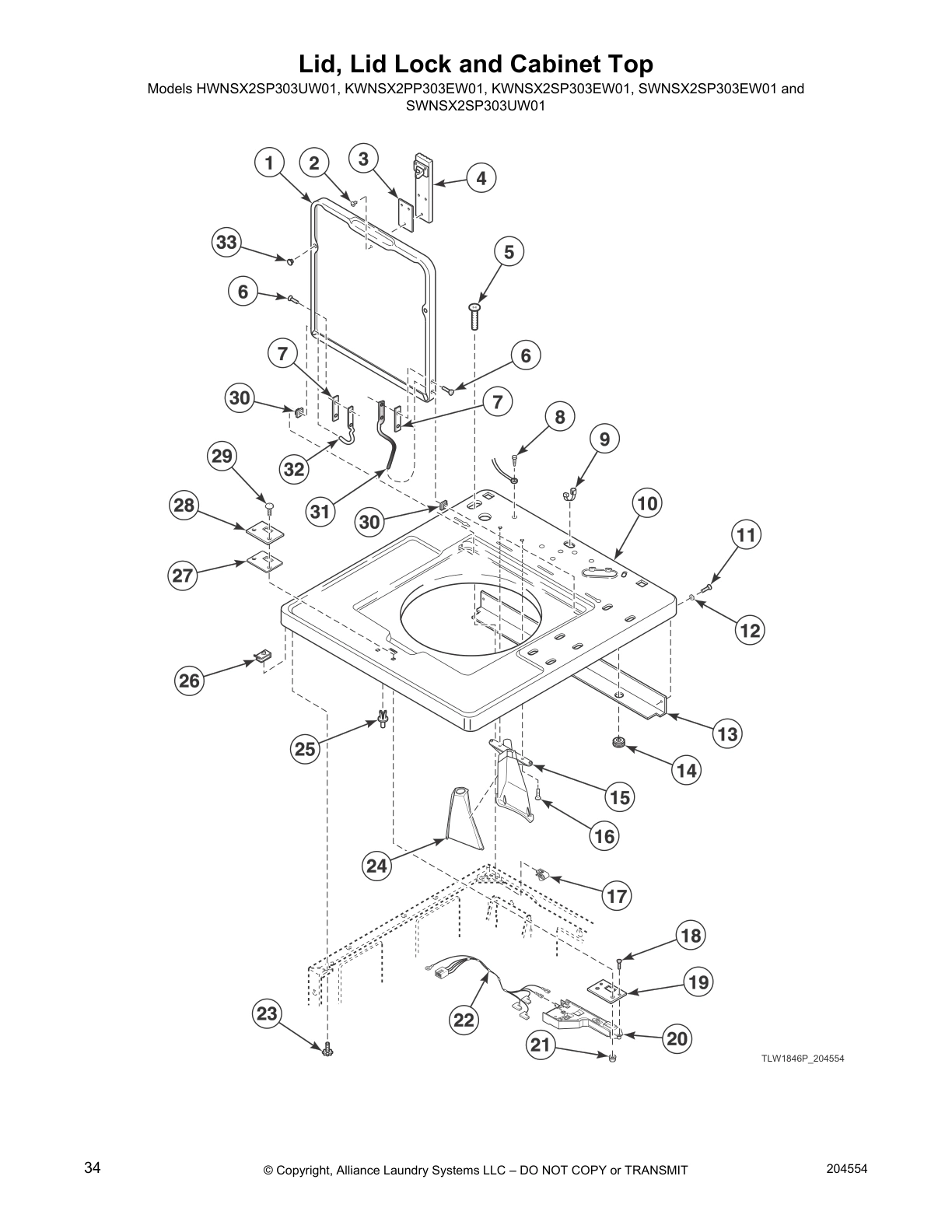

Lid, Lid Lock and Cabinet Top

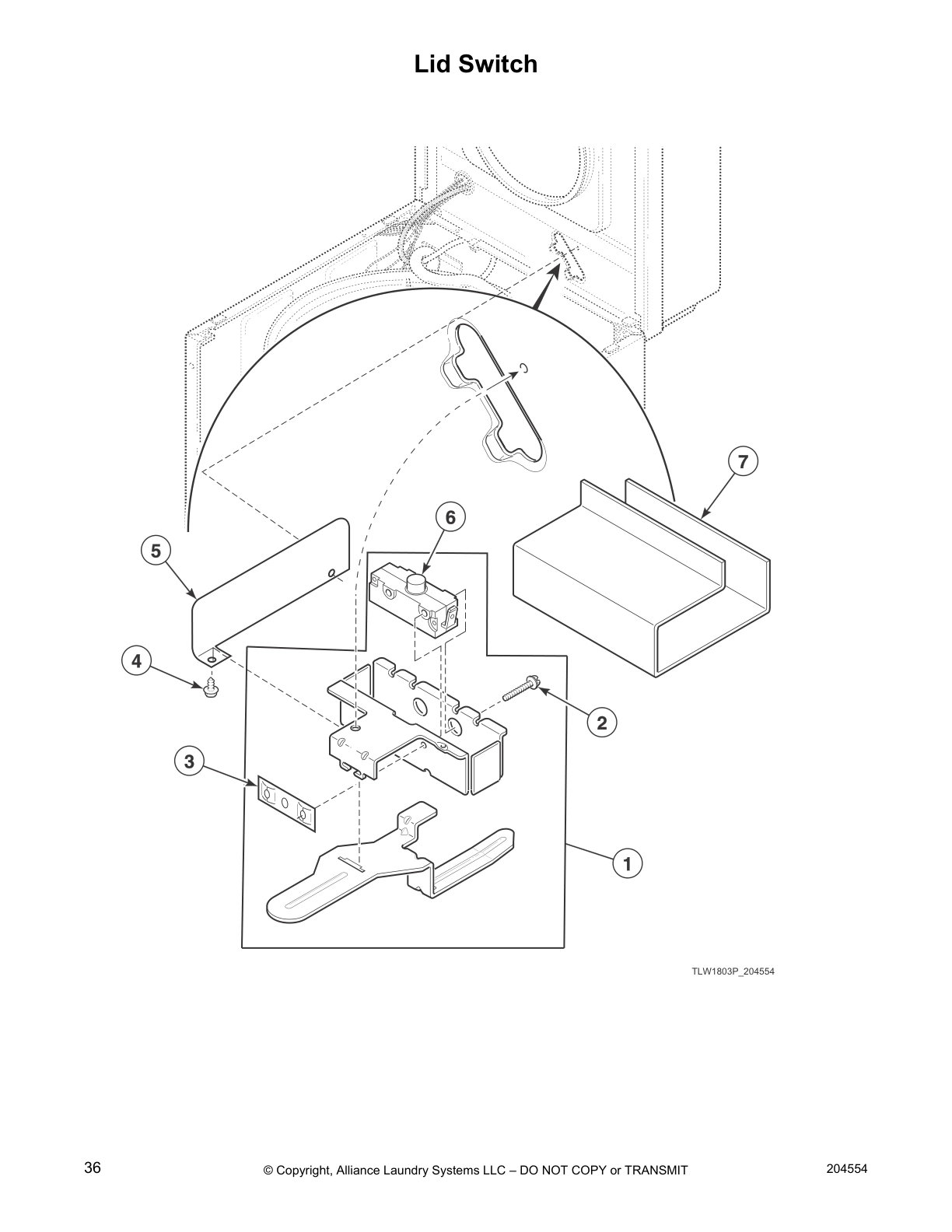

Lid Switch

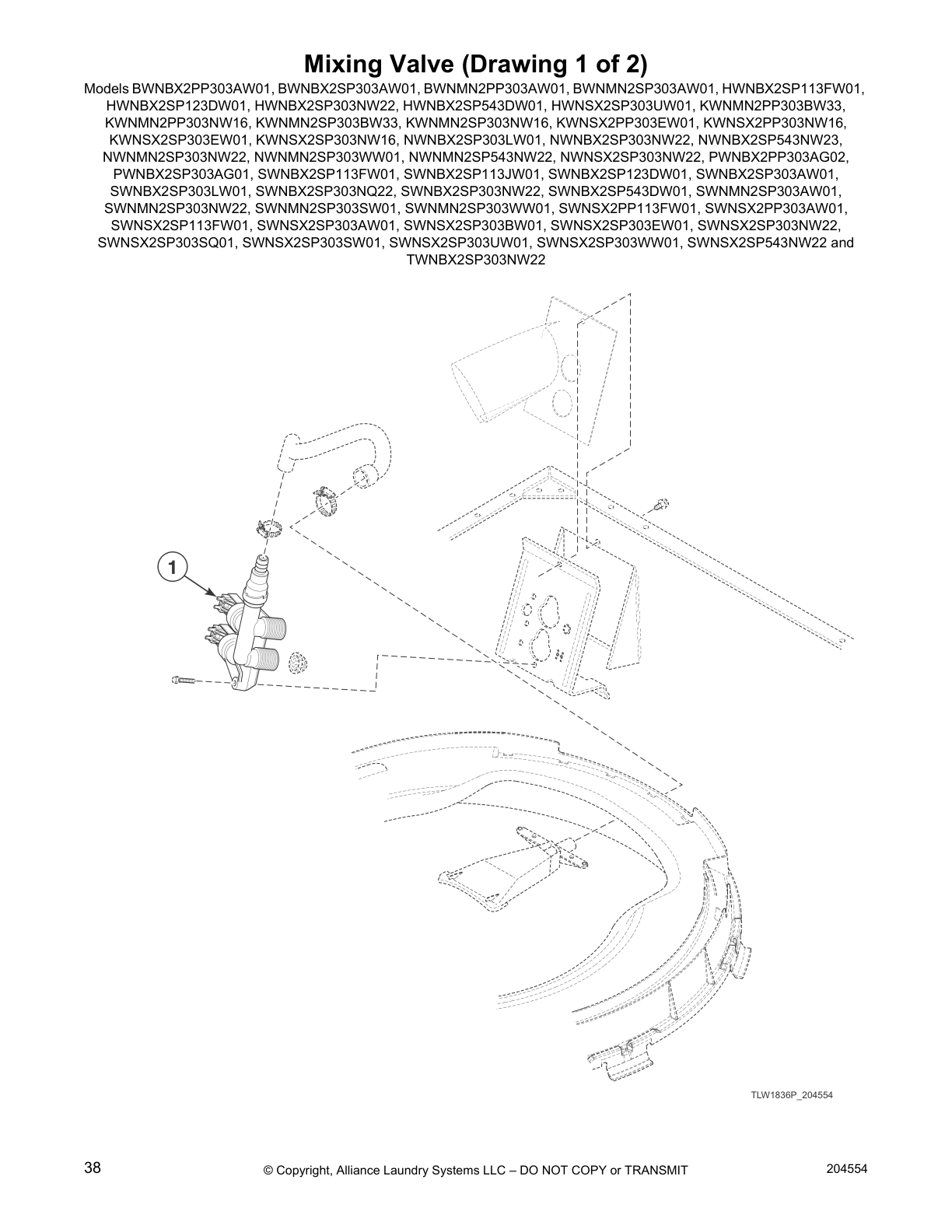

Mixing Valve (Drawing 1 of 2)

Fill Hose

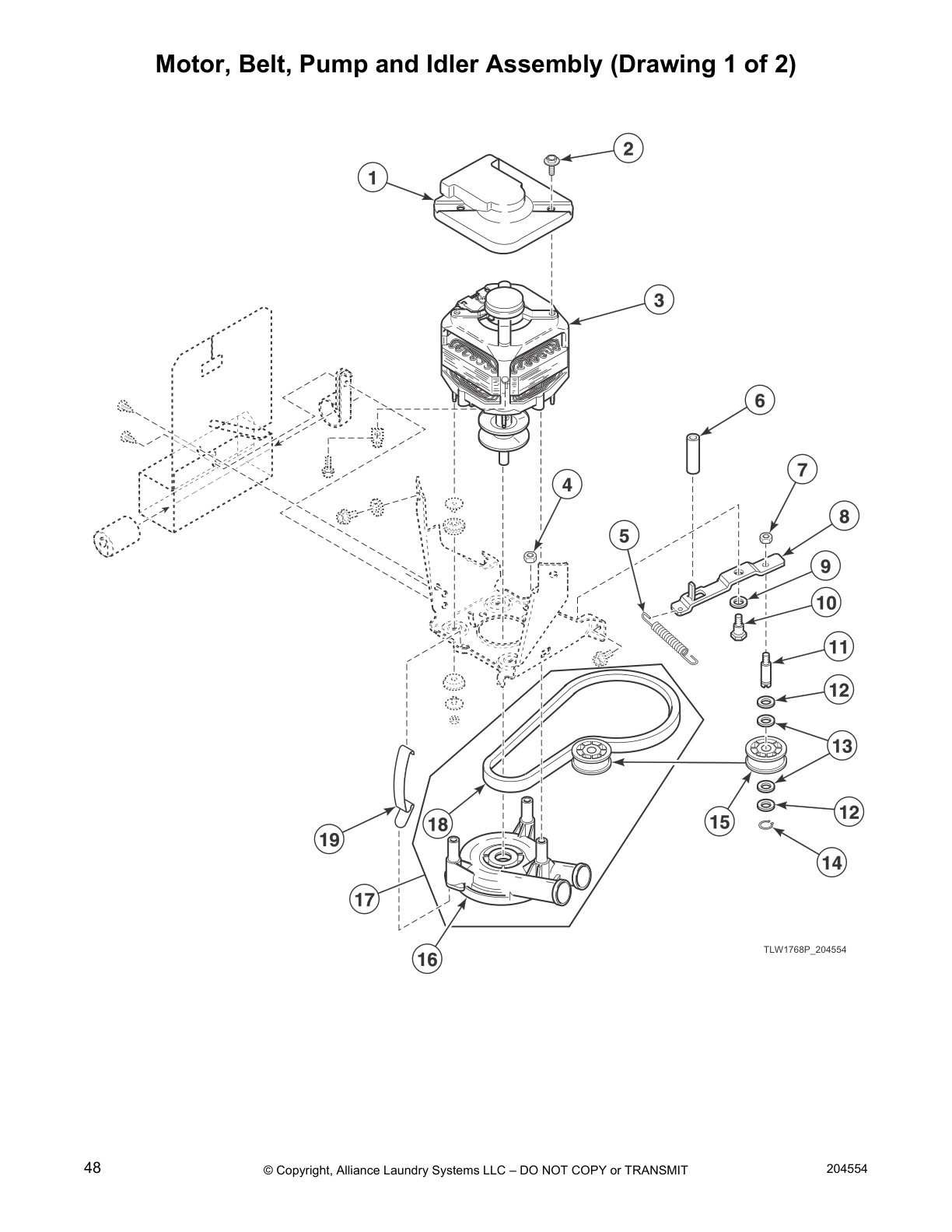

Motor, Belt, Pump and Idler Assembly (Drawing 1 of 2)

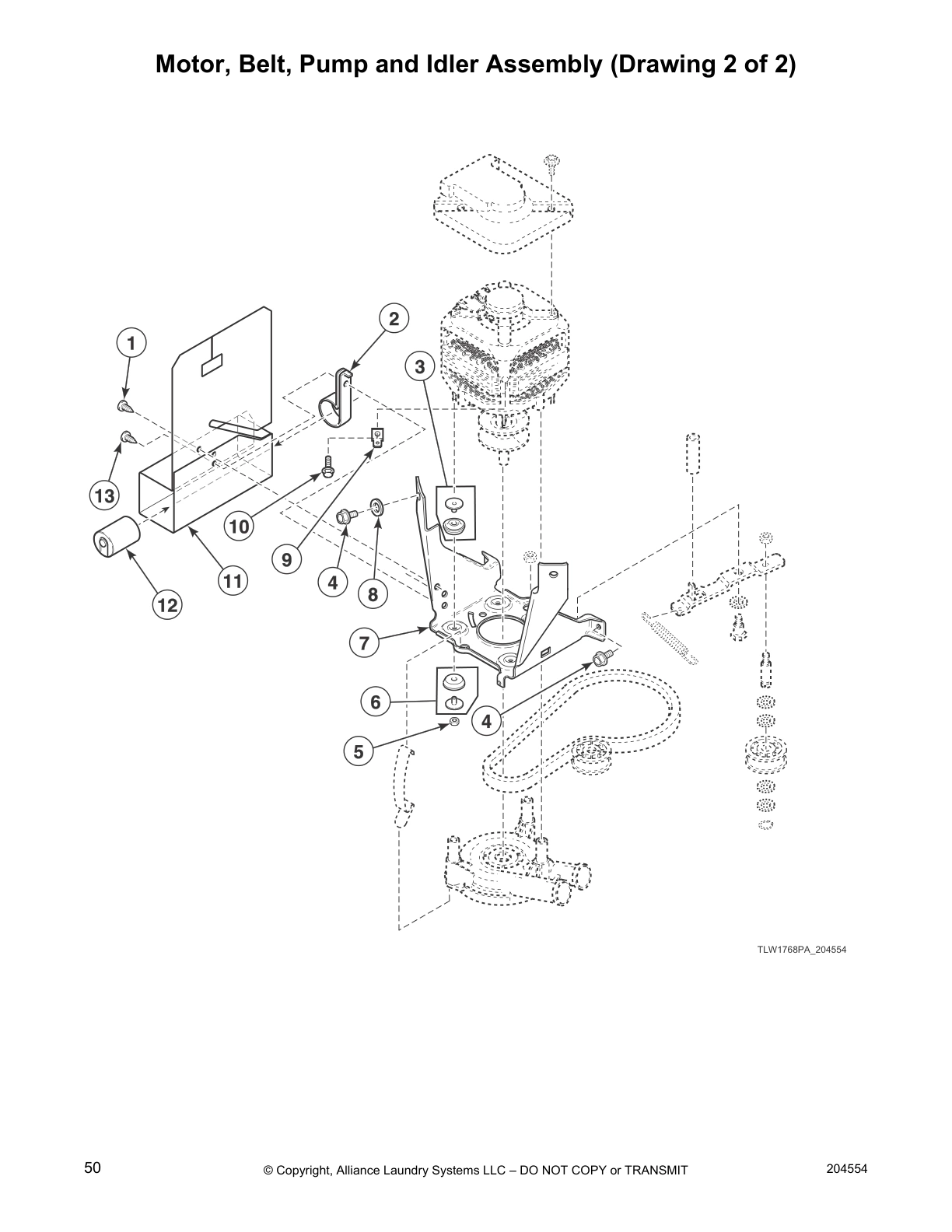

Motor, Belt, Pump and Idler Assembly (Drawing 2 of 2)

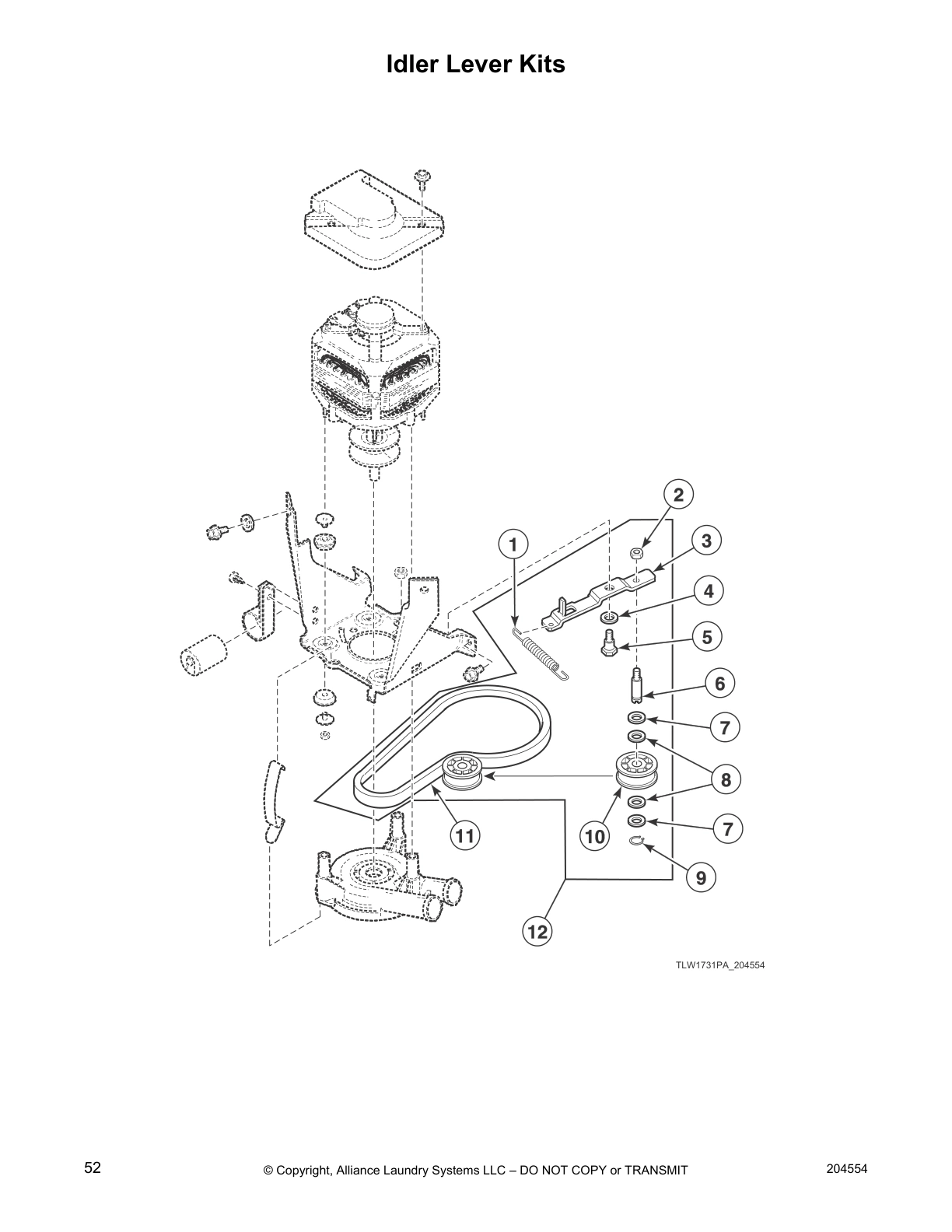

Idler Lever Kits

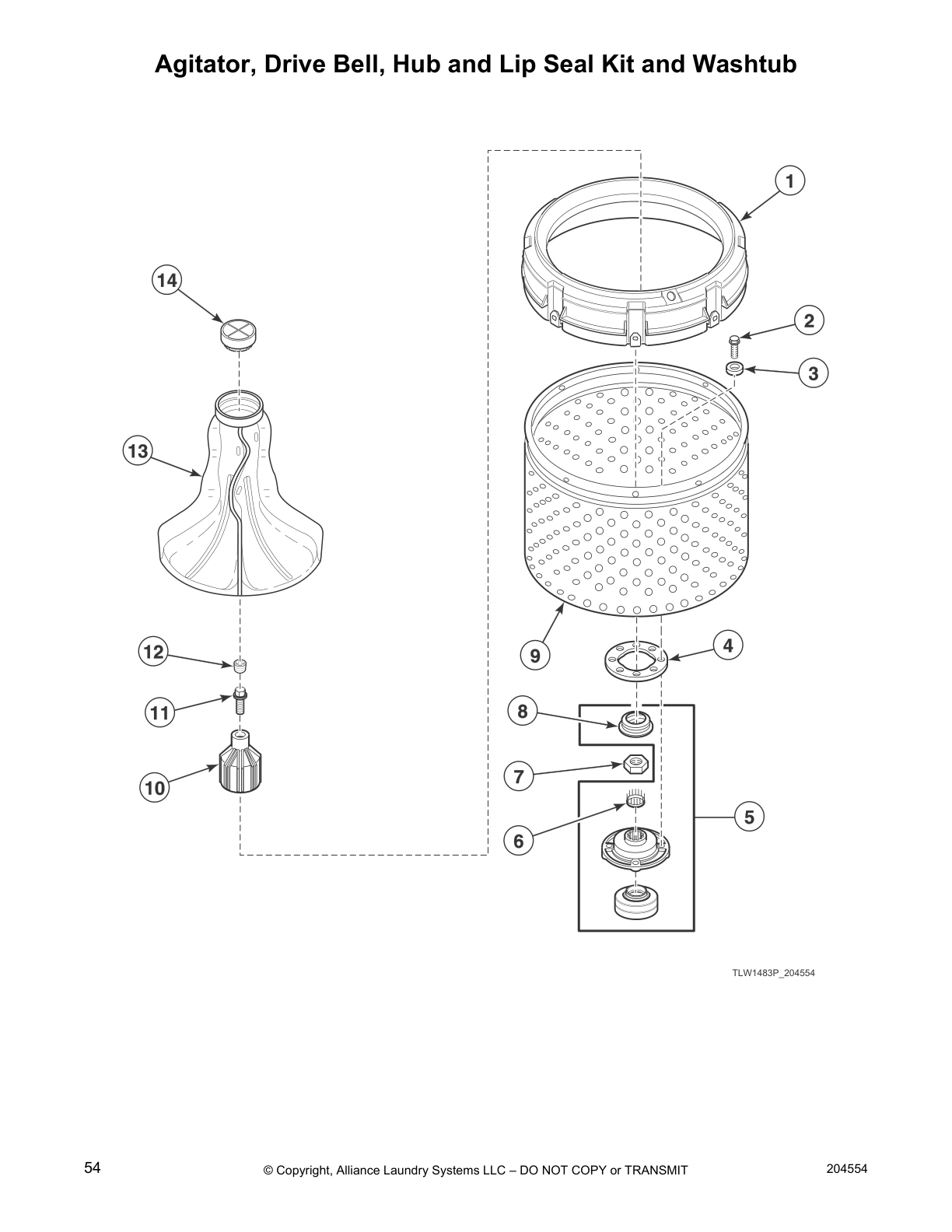

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub

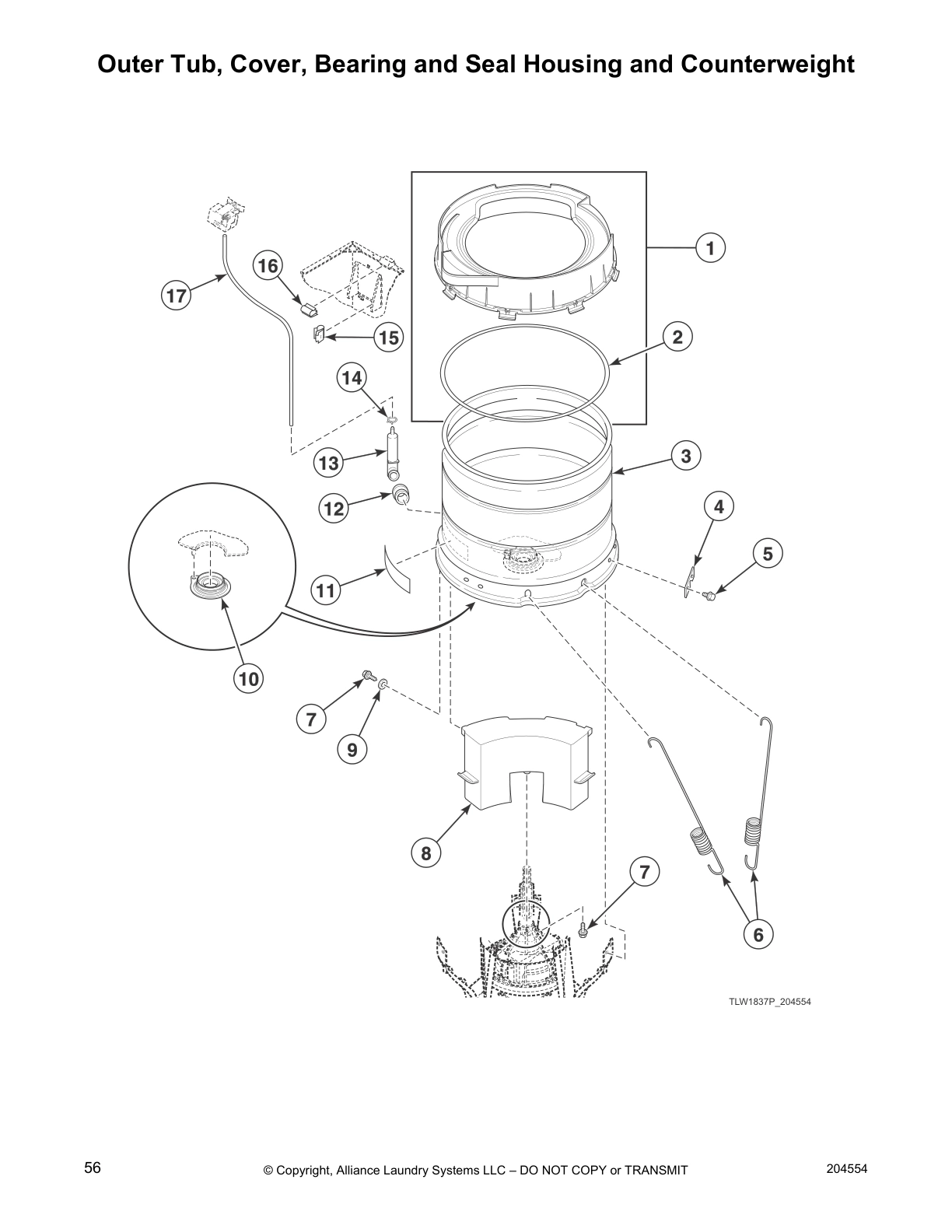

Outer Tub, Cover, Bearing and Seal Housing and Counterweight

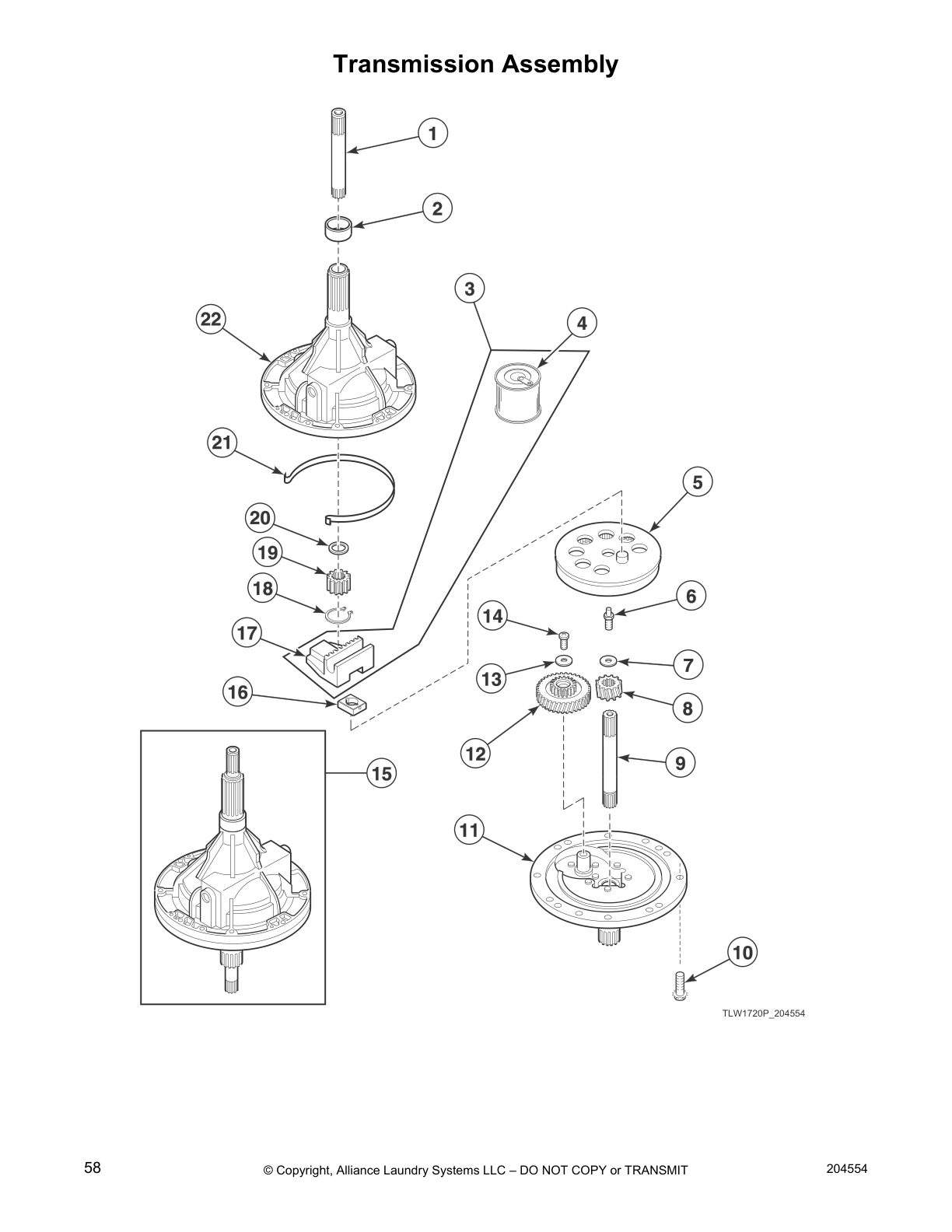

Transmission Assembly

Drain Hoses and Siphon Break Kit

Weldment and Bearing Assembly, Brake and Pulley

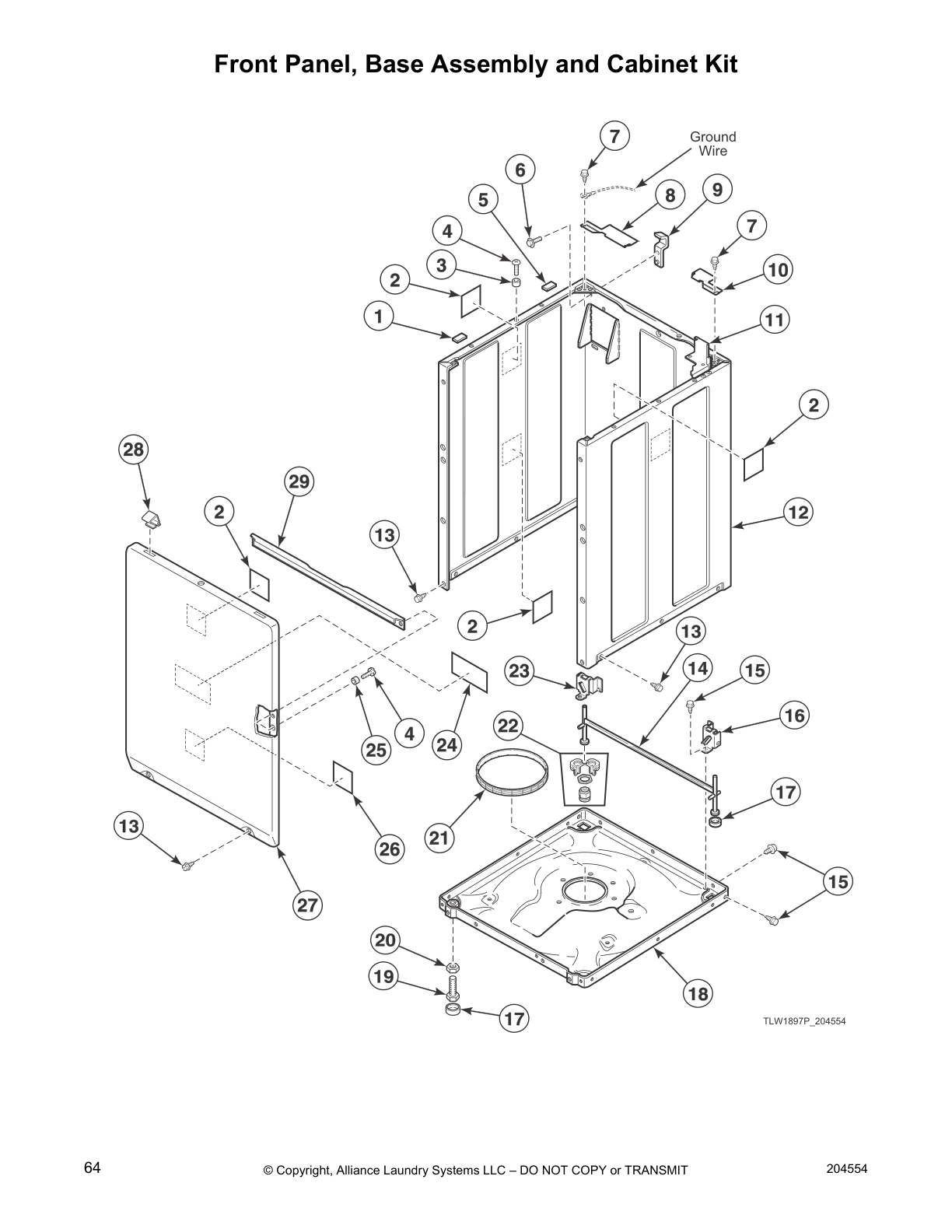

Front Panel, Base Assembly and Cabinet Kit

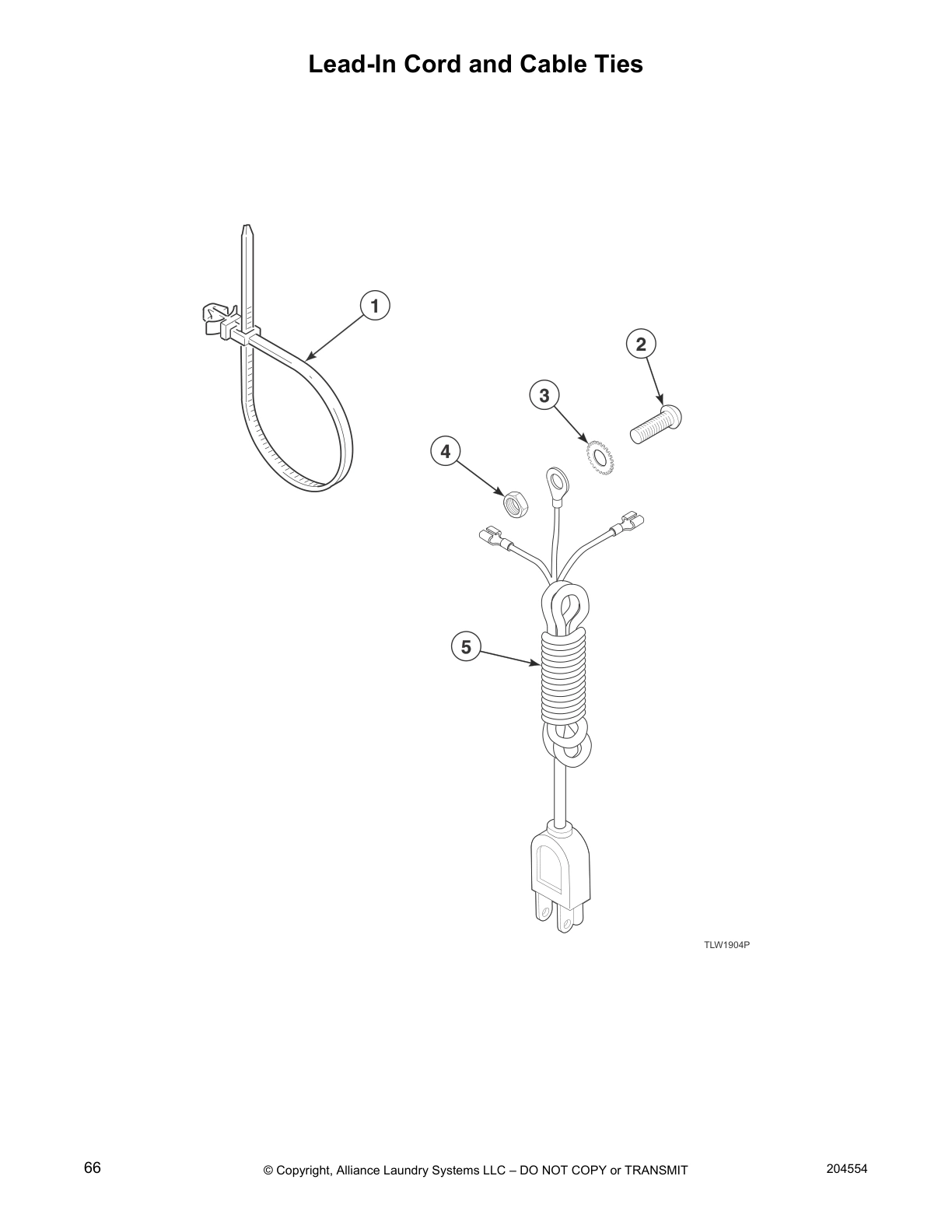

Lead-In Cord and Cable Ties

Shipping Materials and Special Tools

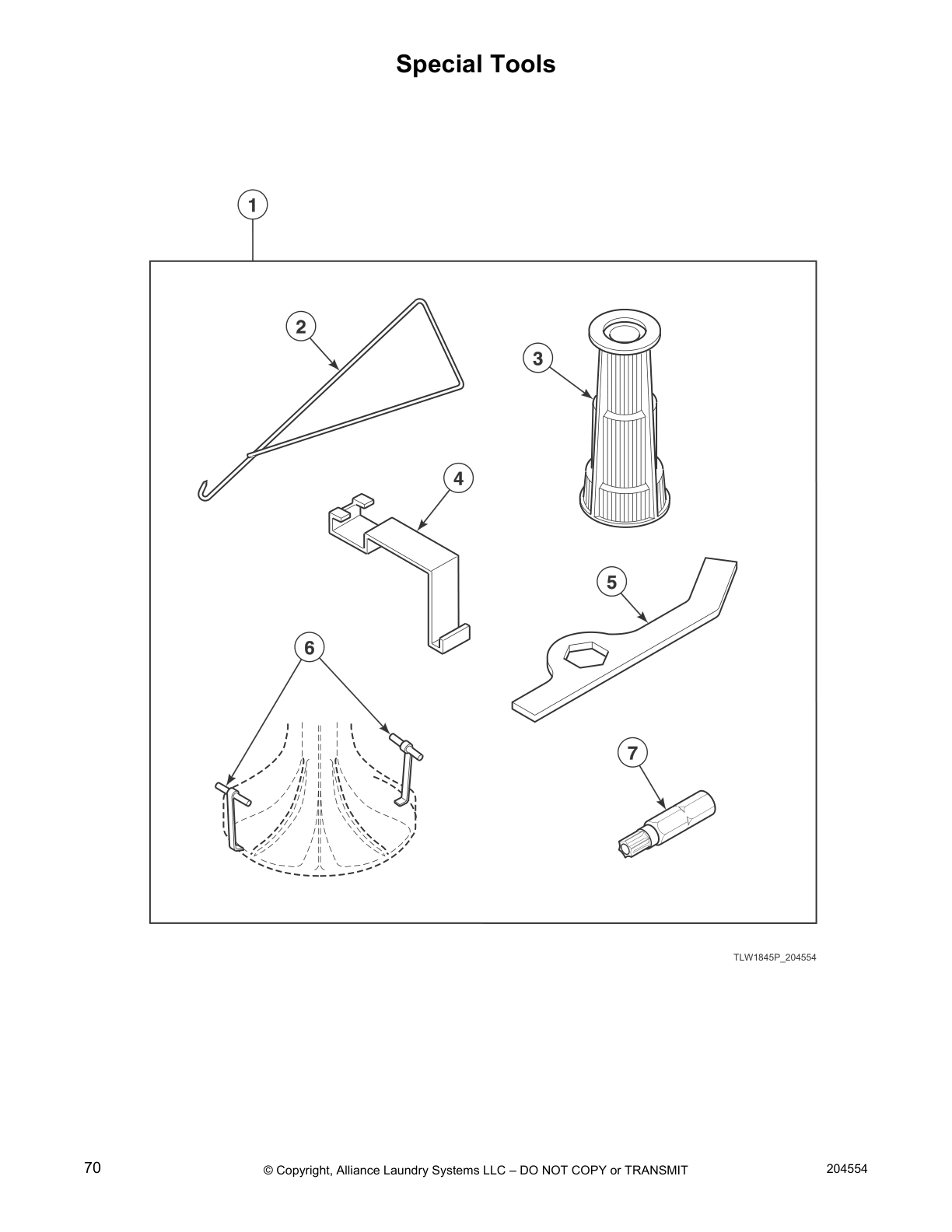

Special Tools

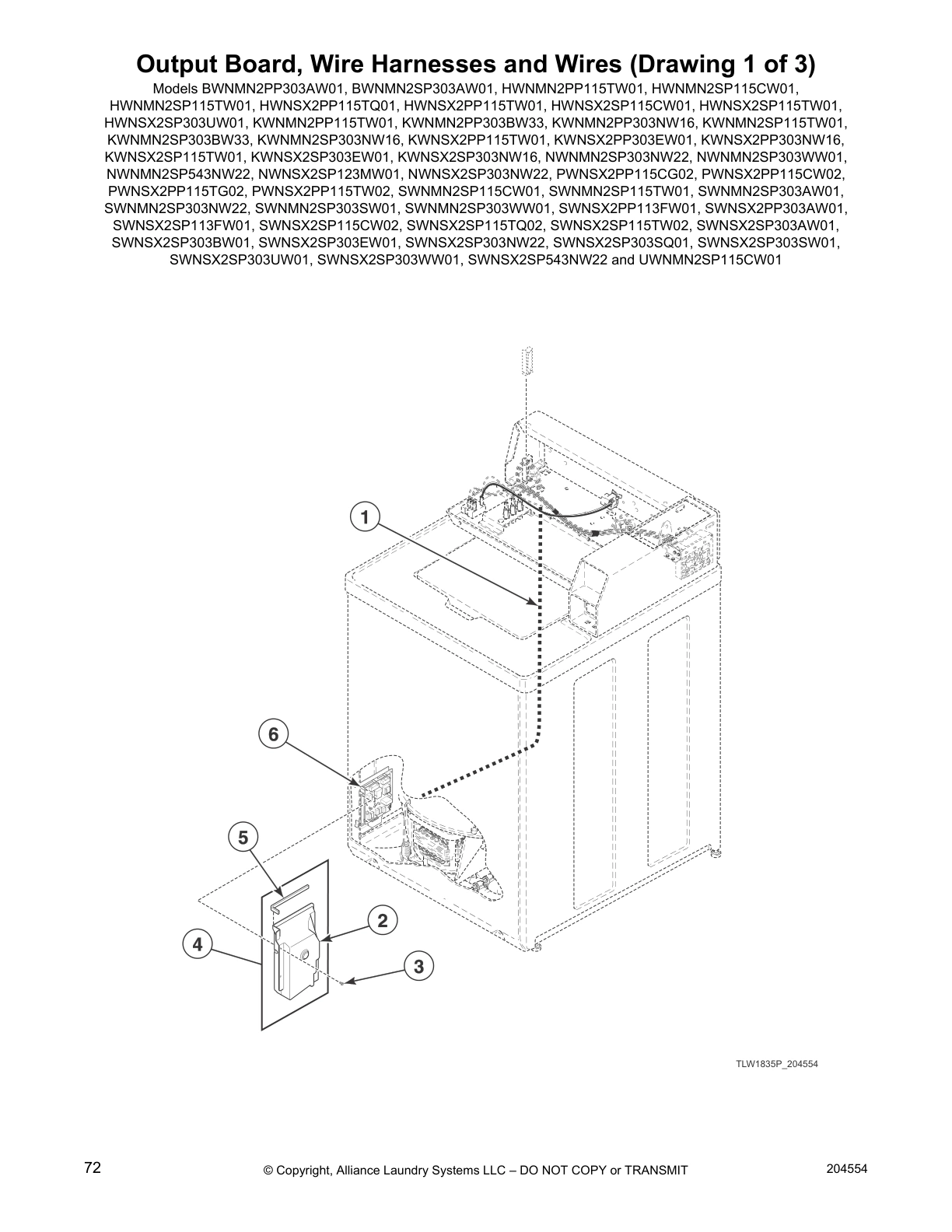

Output Board, Wire Harnesses and Wires (Drawing 1 of 3)

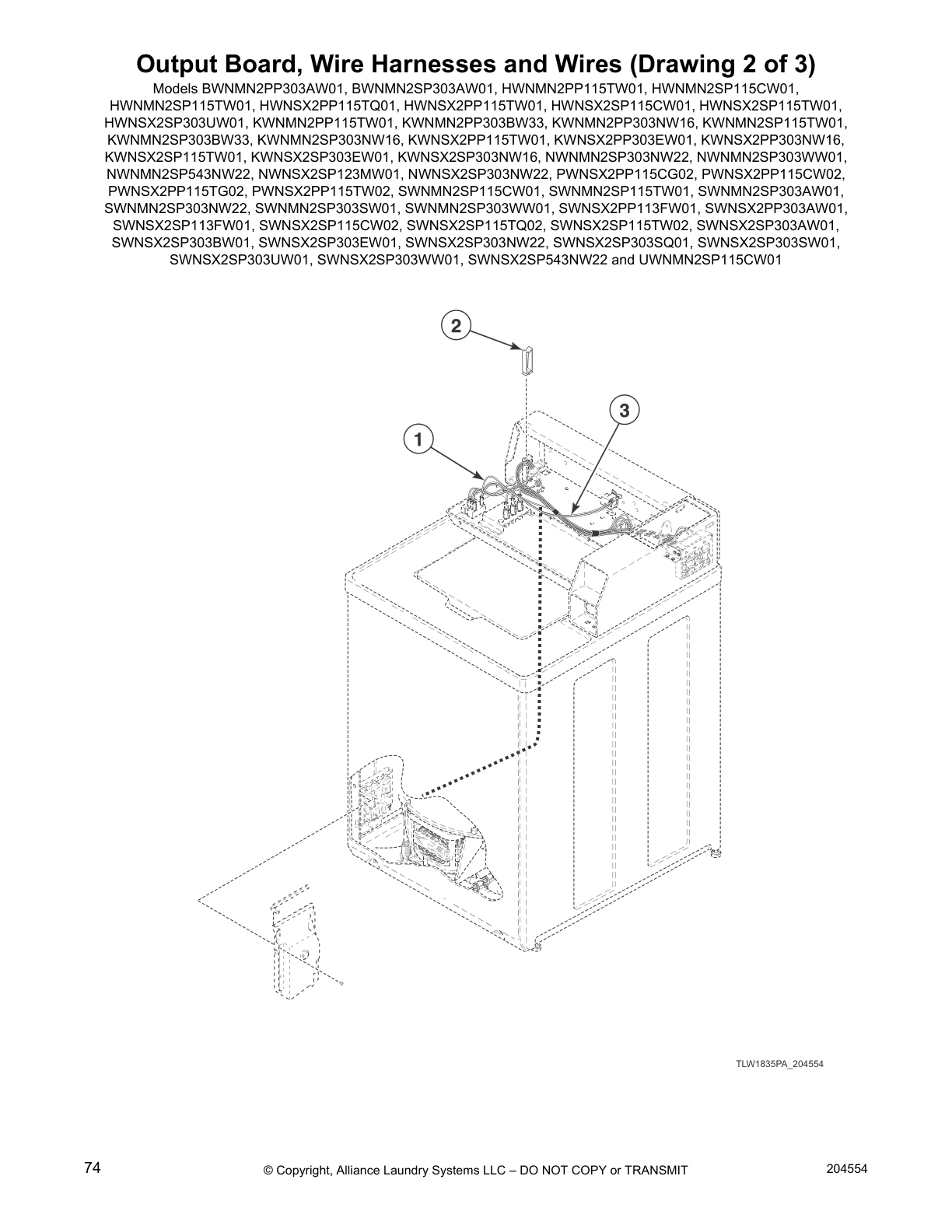

Output Board, Wire Harnesses and Wires (Drawing 2 of 3)

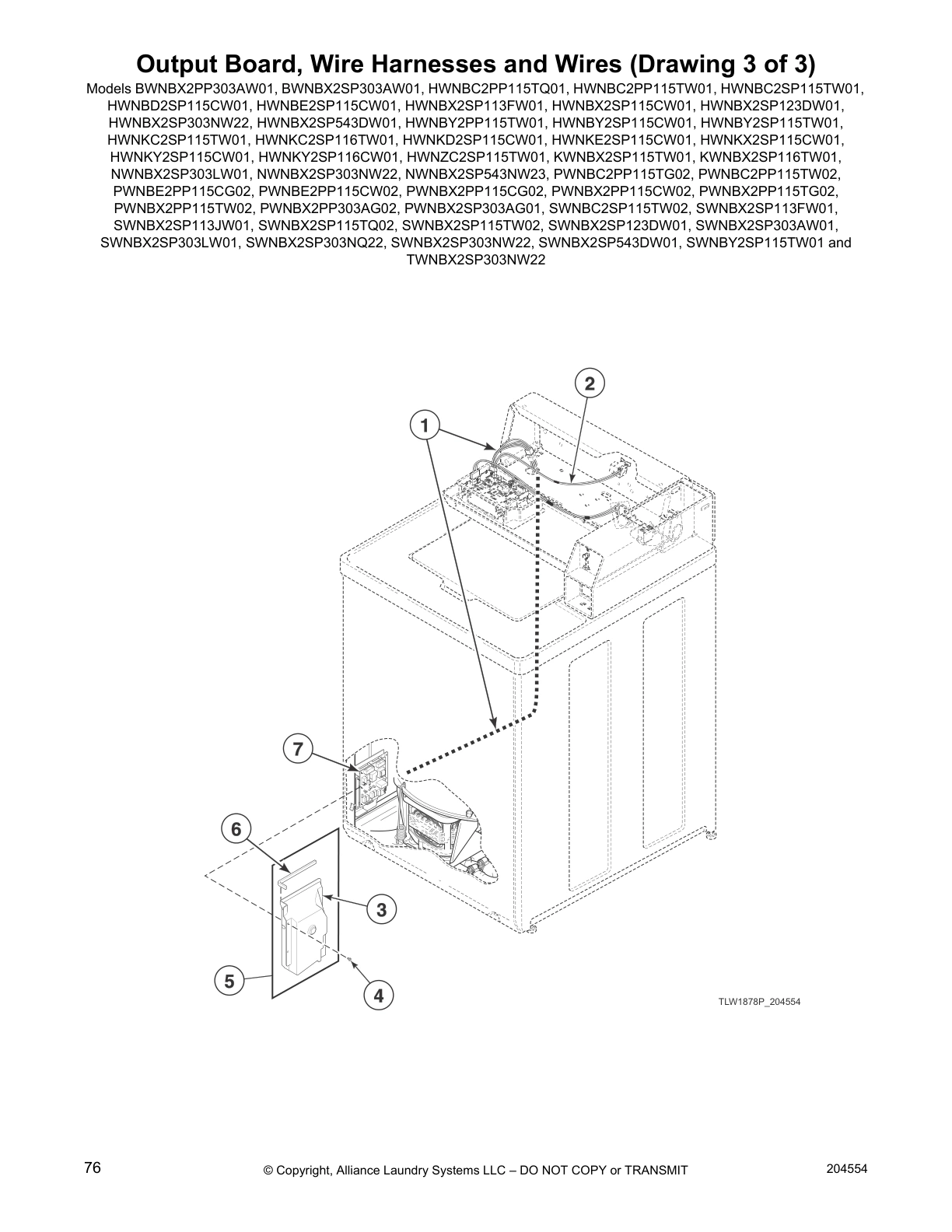

Output Board, Wire Harnesses and Wires (Drawing 3 of 3)

Common parts from model Speed Queen SWNSX2SP303EW01 Washer

122P4P Speed Queen Paint, Porcelain Touch Backorder SPQ 122P4P $36.22

View on Model

803662 Speed Queen Damper Assembly In Stock SPQ 803662 $4.70

View on Model

SPQ 203719 SPQ 203719 Contact Us For Availability

View on Model

34754 Speed Queen Motor Shield Backorder SPQ 34754 $4.70

View on Model

36570P Speed Queen Packaged Output Shaft Backorder SPQ 36570P $54.43

View on Model

39253 Speed Queen Washer Bearing and Weld Ass In Stock SPQ 39253 $182.32

View on Model

802254 Speed Queen Washer Flow Restrictor Red In Stock SPQ 802254 $20.13

View on Model

Tool Kit SPQ 725P3 Contact Us For Availability

View on Model

Bumper Pad SPQ 56128 Contact Us For Availability

View on Model

201212 Speed Queen Hub Spacer In Stock SPQ 201212 $18.68

View on Model

202700 Speed Queen PVC Tubing 26 Backorder SPQ 202700 $4.78

View on Model

321P4 Speed Queen Spring Tool Hook In Stock SPQ 321P4 $11.73

View on Model

38149 Speed Queen Plug Backorder SPQ 38149 $2.71

View on Model

803615 Speed Queen Washer Filter In Stock SPQ 803615 $2.85

View on Model

Nut SPQ 34318 Contact Us For Availability

View on Model

Screw SPQ 39897 Contact Us For Availability

View on Model

Washer SPQ 27202 Contact Us For Availability

View on Model

Top Shield SPQ 203947 Contact Us For Availability

View on Model

201280P Speed Queen Mechanical Assembly, Coun Backorder SPQ 201280P $624.62

View on Model

202544P Speed Queen Motor Assembly Backorder SPQ 202544P $562.87

View on Model

28094 Speed Queen Washer Gasket RUBB Backorder SPQ 28094 $4.70

View on Model

28293 Speed Queen Black Drain Hose Rubber Backorder SPQ 28293 $74.32

View on Model

293P4 Speed Queen Seal Install Tool Backorder SPQ 293P4 $29.55

View on Model

294P4 Speed Queen Agitator Drive Bell Puller In Stock SPQ 294P4 $136.43

View on Model

38359 Speed Queen Large Washer Tub Cover Gask In Stock SPQ 38359 $8.16

View on Model

RB150004 Speed Queen Transmission Rebuild Kit Backorder SPQ RB150004 $186.96

View on Model

Brake Pad Kit SPQ 735P3 Contact Us For Availability

View on Model

Bushing SPQ 34337 Contact Us For Availability

View on Model

Output Control Shield SPQ 202939 Contact Us For Availability

View on Model

Nut SPQ 204063 Contact Us For Availability

View on Model

201307P Speed Queen Lid Lock Catch Assembly, Backorder SPQ 201307P $84.98

View on Model

27243P Speed Queen Oil CW Transmission In Stock SPQ 27243P $56.54

View on Model

52566 Speed Queen Hex Nut 1/4-20 Jam UNC ZNC In Stock SPQ 52566 $4.70

View on Model

CK096 Speed Queen Mounting Tool Kit Backorder SPQ CK096 $14.64

View on Model

Outer Tub Assembly SPQ 203603P Contact Us For Availability

View on Model

Hub and Lip Seal Kit SPQ 39122 Contact Us For Availability

View on Model

Silicone Grease SPQ 204253 Contact Us For Availability

View on Model

Screw SPQ 804667 Contact Us For Availability

View on Model

201189 Speed Queen Idler Lever with Silent Sp In Stock SPQ 201189 $2.58

View on Model

306P4 Speed Queen Washer Hex Wrench In Stock SPQ 306P4 $22.51

View on Model

CK014 Speed Queen Coin Slide Kit - Vertical 8 Backorder SPQ CK014 $179.52

View on Model

F200204 Speed Queen Hose Clamp #20 Backorder SPQ F200204 $3.44

View on Model

Ratchet Extension Tool SPQ 310P4 Contact Us For Availability

View on Model

Washer SPQ 39739 Contact Us For Availability

View on Model

Leg Plate SPQ 27926 Contact Us For Availability

View on Model

Inlet Deflector SPQ 203509 Contact Us For Availability

View on Model

254P4P Speed Queen Agitator Hook In Stock SPQ 254P4P $72.27

View on Model

35369 Speed Queen 5/16-18 x 1/2 Hex Flange Sc Backorder SPQ 35369 $4.70

View on Model

35535 Speed Queen Nylatron Flat Washer In Stock SPQ 35535 $4.70

View on Model

Notice Label SPQ 204870 Contact Us For Availability

View on Model

Retainer Clip SPQ 38351 Contact Us For Availability

View on Model

Male Tab Terminal SPQ 204062 Contact Us For Availability

View on Model

Output Board Cover Gasket SPQ 202964 Contact Us For Availability

View on Model

200941 Speed Queen Motor Mount Bracket Backorder SPQ 200941 $31.51

View on Model

202032 Speed Queen Washer Idler Lever Spring In Stock SPQ 202032 $4.70

View on Model

202508P Speed Queen Control Board Output Asse In Stock SPQ 202508P $269.06

View on Model

27015 Speed Queen Flat Washer .630 In Stock SPQ 27015 $4.70

View on Model

29728 Speed Queen Spline Insert In Stock SPQ 29728 $4.70

View on Model

34338 Speed Queen Hinge Gasket In Stock SPQ 34338 $4.70

View on Model

36014 Speed Queen Drawer Cover Backorder SPQ 36014 $4.70

View on Model

37575 Speed Queen Washer Leg Spring Tall Tub In Stock SPQ 37575 $4.70

View on Model

Paint SPQ 35865 Contact Us For Availability

View on Model

Support Barrel SPQ 23008 Contact Us For Availability

View on Model

201521 Speed Queen Washer Heavy Duty Tall Tub In Stock SPQ 201521 $9.79

View on Model

29220 Speed Queen Locknut In Stock SPQ 29220 $4.70

View on Model

37772 Speed Queen Defrost Temperature Control Backorder SPQ 37772 $4.70

View on Model

38273 Speed Queen Hose Pump to Drain Elbow Backorder SPQ 38273 $33.73

View on Model

SPQ 203950 SPQ 203950 Contact Us For Availability

View on Model

35097 Speed Queen Front Panel Brace Backorder SPQ 35097 $5.62

View on Model

35766 Speed Queen Plastic Drain Hose Elbow Sp Backorder SPQ 35766 $5.33

View on Model

38011 Speed Queen Idler Lever Backorder SPQ 38011 $4.70

View on Model

804794 Speed Queen Filter Grille 36" Left Han In Stock SPQ 804794 $4.70

View on Model

Bell and Transmission Tube Se SPQ 36765P Contact Us For Availability

View on Model

Counterweight Assembly SPQ 39566 Contact Us For Availability

View on Model

Pressure Sensor SPQ D501086 Contact Us For Availability

View on Model

SPQ 204942 SPQ 204942 Contact Us For Availability

View on Model

32814 Speed Queen Hex Cap Screw 1/4-20 X 0.88 Backorder SPQ 32814 $1.41

View on Model

766P3A Speed Queen Hub and Seal Kit In Stock SPQ 766P3A $148.22

View on Model

Screw SPQ 27220 Contact Us For Availability

View on Model

Drive Bell and Seal Kit SPQ 39508P Contact Us For Availability

View on Model

Nut SPQ 36020 Contact Us For Availability

View on Model

Screw SPQ 27229 Contact Us For Availability

View on Model

210186 Speed Queen Idler Shaft In Stock SPQ 210186 $5.45

View on Model

37471 Speed Queen Transmission Cover Assembly Backorder SPQ 37471 $229.75

View on Model

39432 Speed Queen Shoulder Screw 1/4-20 HXFLG Backorder SPQ 39432 $4.70

View on Model

Helix SPQ 38008 Contact Us For Availability

View on Model

Service Door Assembly SPQ D503673 Contact Us For Availability

View on Model

Strain Relief SPQ 38384 Contact Us For Availability

View on Model

200996P Speed Queen Sealant 10 Oz 200966P In Stock SPQ 200996P $68.56

View on Model

202972 Speed Queen Idler Lever and Belt Kit Backorder SPQ 202972 $66.72

View on Model

28944RP Speed Queen Washer Upper or Lower Bea In Stock SPQ 28944RP $23.59

View on Model

38612WP Speed Queen SVS Cabinet Kit Backorder SPQ 38612WP $226.12

View on Model

39874WP Speed Queen Service Door Assembly Backorder SPQ 39874WP $61.00

View on Model

Washer SPQ D504082 Contact Us For Availability

View on Model

Bell Plug SPQ 36511 Contact Us For Availability

View on Model

Washer SPQ 39249 Contact Us For Availability

View on Model

29175 Speed Queen Grommet In Stock SPQ 29175 $5.78

View on Model

52909 Speed Queen Tap-HXWAHD 10B-16X.5 Screw Backorder SPQ 52909 $4.70

View on Model

Retaining Ring SPQ 52549 Contact Us For Availability

View on Model

Agitator SPQ 33174 Contact Us For Availability

View on Model

Washer SPQ 29260 Contact Us For Availability

View on Model

36515 Speed Queen Agitator Cap Backorder SPQ 36515 $4.70

View on Model

Idler Pulley SPQ 23748 Contact Us For Availability

View on Model

Lid Hinge SPQ 36437 Contact Us For Availability

View on Model

Pressure Bulb SPQ 205241 Contact Us For Availability

View on Model

Coin Box Extension Kit SPQ 26354 Contact Us For Availability

View on Model

38225P Speed Queen Idler Pulley Wheel In Stock SPQ 38225P $11.40

View on Model

Slide SPQ 38165P Contact Us For Availability

View on Model

Hose Clamp SPQ 39282 Contact Us For Availability

View on Model

26493 Speed Queen Slide Assembly Backorder SPQ 26493 $5.78

View on Model

36985 Speed Queen Pressure Hose Clip Backorder SPQ 36985 $1.70

View on Model

Belt and Pump Kit SPQ 205218P Contact Us For Availability

View on Model

Hinge Gasket SPQ 21685 Contact Us For Availability

View on Model

201664 Speed Queen Rack In Stock SPQ 201664 $50.54

View on Model

27222 Speed Queen Nut Retainer Backorder SPQ 27222 $4.70

View on Model

34443 Speed Queen Stabilizer and Leg Assembly Backorder SPQ 34443 $30.16

View on Model

RB150003 Speed Queen Washer Pump Kit In Stock SPQ RB150003 $57.21

View on Model

Meter Case Assembly Kit SPQ 807398W Contact Us For Availability

View on Model

200923 Speed Queen Washer Agitate & Spin Belt In Stock SPQ 200923 $27.89

View on Model

Bolt SPQ 803575WP Contact Us For Availability

View on Model

210202 Speed Queen Spring Clip In Stock SPQ 210202 $4.70

View on Model

27003 Speed Queen Series Current Relay Backorder SPQ 27003 $10.60

View on Model

36036 Speed Queen Right Side SLL Bracket Backorder SPQ 36036 $5.01

View on Model

Meter Case Lockdown Bracket SPQ 201010QP Contact Us For Availability

View on Model

Lid Lock Wire Harness Assembly SPQ 29676 Contact Us For Availability

View on Model

39788 Speed Queen Base Assembly Backorder SPQ 39788 $175.31

View on Model

34319 Speed Queen Leveling Leg 1/2-13 x 1.87 In Stock SPQ 34319 $4.70

View on Model

Cycle Selector Switch SPQ 24205 Contact Us For Availability

View on Model

33223P Speed Queen Transmission Case Assembly Backorder SPQ 33223P $174.12

View on Model

Front Panel Pad SPQ 39480 Contact Us For Availability

View on Model

21899 Speed Queen Hex Nut 1/2-13 Backorder SPQ 21899 $4.70

View on Model

202894 Speed Queen Inlet Cover for Top Load W In Stock SPQ 202894 $4.70

View on Model

37937 Speed Queen Friction Ring In Stock SPQ 37937 $20.48

View on Model

52864 Speed Queen Flat Head Screw, 8AB-18 x 5 Backorder SPQ 52864 $1.19

View on Model

566P3 Speed Queen Adjustable Leg Extension Ki In Stock SPQ 566P3 $51.55

View on Model

36037 Speed Queen Left SLL Bracket Backorder SPQ 36037 $5.12

View on Model

Porcelain Touch-Up Paint SPQ 28102 Contact Us For Availability

View on Model

33446 Speed Queen Washer Bushing In Stock SPQ 33446 $4.70

View on Model

36438 Speed Queen Hinge In Stock SPQ 36438 $5.45

View on Model

200913 Speed Queen Coin Slide Extension Kit In Stock SPQ 200913 $35.12

View on Model

201581 Speed Queen Chassis Mounting Bracket Backorder SPQ 201581 $4.70

View on Model

201686 Speed Queen Cycle Selector Switch, 6-P In Stock SPQ 201686 $20.66

View on Model

20290 Speed Queen Washer 19/32" ID x 1.031" O In Stock SPQ 20290 $4.70

View on Model

23962 Speed Queen Screw Tap HXWAHD 8B-18X 3 In Stock SPQ 23962 $2.38

View on Model

27604P Speed Queen Anti-Seize Compound, 1 oz In Stock SPQ 27604P $4.78

View on Model

36226 Speed Queen Bumper Pad .25 Backorder SPQ 36226 $1.70

View on Model

37577P Speed Queen Gasket Element Loctite Backorder SPQ 37577P $95.55

View on Model

392P4 Speed Queen Horizon TL Locknut Wrench T Backorder SPQ 392P4 $11.90

View on Model

451P3 Speed Queen Drain Extension Kit Backorder SPQ 451P3 $57.00

View on Model

45380 Speed Queen Wire 12GA ORG/PER FT Backorder SPQ 45380 $4.70

View on Model

523P3 Speed Queen Coin Funnel Kit In Stock SPQ 523P3 $16.91

View on Model

55882 Speed Queen Switch Assembly In Stock SPQ 55882 $41.76

View on Model

801431 Speed Queen Green LED Light 2VDC Backorder SPQ 801431 $10.27

View on Model

SPQ 719P3 SPQ 719P3 Contact Us For Availability

View on Model

SPQ 203843 SPQ 203843 Contact Us For Availability

View on Model

Washtub Kit SPQ 36425 Contact Us For Availability

View on Model

SPQ 26509 SPQ 26509 Contact Us For Availability

View on Model

Mixing Valve SPQ 202396P Contact Us For Availability

View on Model

SPQ 81392 SPQ 81392 Contact Us For Availability

View on Model

SPQ 202792P SPQ 202792P Contact Us For Availability

View on Model

SPQ 837P3 SPQ 837P3 Contact Us For Availability

View on Model

SPQ 203720 SPQ 203720 Contact Us For Availability

View on Model

18 Gauge Wire SPQ 45001 Contact Us For Availability

View on Model

SPQ 70529301 SPQ 70529301 Contact Us For Availability

View on Model

Model Speed Queen SWNSX2SP303EW01 Washer – Common Parts & Diagrams

Common parts from model Speed Queen SWNSX2SP303EW01 Washer

Search result for :
